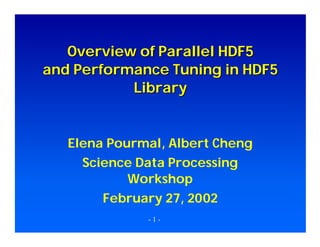

Overview of Parallel HDF5
and Performance Tuning in HDF5
Library

Elena Pourmal, Albert Cheng
Science Data Processing
Workshop
February 27, 2002
-1-

Outline
_ Overview of Parallel HDF5 Design
_ Setting up Parallel Environment
_ Programming model for
_ Creating and Accessing a File
_ Creating and Accessing a Dataset
_ Writing and Reading Hyperslabs

_ Parallel Tutorial available at

_ http://hdf.ncsa.uiuc.edu/HDF5/doc/Tutor

_ Performance tuning in HDF5
-2-

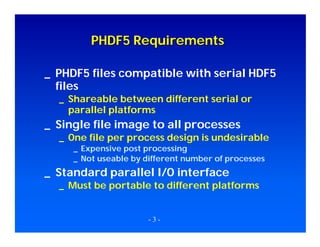

PHDF5 Requirements
_ PHDF5 files compatible with serial HDF5
files
_ Shareable between different serial or
parallel platforms

_ Single file image to all processes

_ One file per process design is undesirable
_ Expensive post processing
_ Not useable by different number of processes

_ Standard parallel I/O interface

_ Must be portable to different platforms

-3-

PHDF5 Initial Target
_ Support for MPI programming
_ Not for shared memory
programming
_ Threads
_ OpenMP

_ Has some experiments with
_ Thread-safe support for Pthreads
_ OpenMP if called correctly
-4-

Implementation Requirements
_ No use of Threads
_ Not commonly supported (1998)

_ No reserved process
_ May interfere with parallel
algorithms

_ No spawn process
_ Not commonly supported even now
-5-

PHDF5 Implementation Layers
Parallel
Application

Parallel
Application

Parallel
Application

Parallel
Application

HDF library

Parallel HDF + MPI

Parallel I/O layer

MPI-IO

O2K Unix I/O

SP GPFS

User Applications

TFLOPS PFS

-6-

Parallel File systems

Programming Restrictions
_ Most PHDF5 APIs are collective
_ MPI definition of collective: All processes of the
communicator must participate in the right
order.
_ PHDF5 opens a parallel file with a communicator
_ Returns a file-handle
_ Future access to the file via the file-handle
_ All processes must participate in collective
PHDF5 APIs
_ Different files can be opened via different
communicators
-7-

Examples of PHDF5 API
_ Examples of PHDF5 collective API
_ File operations: H5Fcreate, H5Fopen,
H5Fclose
_ Objects creation: H5Dcreate, H5Dopen,
H5Dclose
_ Objects structure: H5Dextend (increase
dimension sizes)
_ Array data transfer can be collective or
independent
_ Dataset operations: H5Dwrite, H5Dread
-8-

What Does PHDF5 Support ?
_ After a file is opened by the
processes of a communicator
_ All parts of file are accessible by all
processes
_ All objects in the file are accessible by
all processes
_ Multiple processes write to the same
data array
_ Each process writes to individual data
array
-9-

PHDF5 API Languages
_ C and F90 language interfaces
_ Platforms supported: IBM SP2 and
SP3, Intel TFLOPS, SGI Origin 2000,
HP-UX 11.00 System V, Alpha
Compaq Clusters.

- 10 -

Creating and Accessing a File
Programming model
_ HDF5 uses access template object
to control the file access
mechanism
_ General model to access HDF5 file
in parallel:
_ Setup access template
_ Open File
_ Close File
- 11 -

Setup access template
Each process of the MPI communicator creates an
access template and sets it up with MPI parallel
access information
C:
herr_t H5Pset_fapl_mpio(hid_t plist_id,
MPI_Comm comm, MPI_Info info);

F90:
h5pset_fapl_mpio_f(plist_id, comm, info);
integer(hid_t) :: plist_id
integer
:: comm, info
- 12 -

C Example
Parallel File Create
23
24
26
27
28
29
33
34
35
36
37
38
42
49
50
51
52
54

comm = MPI_COMM_WORLD;
info = MPI_INFO_NULL;
/*
* Initialize MPI
*/
MPI_Init(&argc, &argv);
/*
* Set up file access property list for MPI-IO access
*/
plist_id = H5Pcreate(H5P_FILE_ACCESS);
H5Pset_fapl_mpio(plist_id, comm, info);
file_id = H5Fcreate(H5FILE_NAME, H5F_ACC_TRUNC,
H5P_DEFAULT, plist_id);
/*
* Close the file.
*/
H5Fclose(file_id);
MPI_Finalize();
- 13 -

F90 Example
Parallel File Create
23
24
26
29
30
32
34
35
37
38
40
41
43
45
46
49
51
52
54
56

comm = MPI_COMM_WORLD
info = MPI_INFO_NULL
CALL MPI_INIT(mpierror)
!
! Initialize FORTRAN predefined datatypes
CALL h5open_f(error)
!
! Setup file access property list for MPI-IO access.
CALL h5pcreate_f(H5P_FILE_ACCESS_F, plist_id, error)
CALL h5pset_fapl_mpio_f(plist_id, comm, info, error)
!
! Create the file collectively.
CALL h5fcreate_f(filename, H5F_ACC_TRUNC_F, file_id,
error, access_prp = plist_id)
!
! Close the file.
CALL h5fclose_f(file_id, error)
!
! Close FORTRAN interface
CALL h5close_f(error)
- 14 CALL MPI_FINALIZE(mpierror)

Creating and Opening Dataset
All processes of the MPI communicator
open/close a dataset by a collective call
– C: H5Dcreate or H5Dopen;
H5Dclose
– F90: h5dfreate_f or h5dopen_f;
h5dclose_f
_ All processes of the MPI communicator
extend dataset with unlimited
dimensions before writing to it
– C: H5Dextend
– F90: h5dextend_f
- 15 -

C Example
Parallel Dataset Create
56
57
58
59
60
61
62
63
64
65
66
67
68

file_id = H5Fcreate(…);
/*
* Create the dataspace for the dataset.
*/
dimsf[0] = NX;
dimsf[1] = NY;
filespace = H5Screate_simple(RANK, dimsf, NULL);

70
71
72
73
74

H5Dclose(dset_id);
/*
* Close the file.
*/
H5Fclose(file_id);

/*
* Create the dataset with default properties collective.
*/
dset_id = H5Dcreate(file_id, “dataset1”, H5T_NATIVE_INT,
filespace, H5P_DEFAULT);

- 16 -

F90 Example
Parallel Dataset Create
43 CALL h5fcreate_f(filename, H5F_ACC_TRUNC_F, file_id,
error, access_prp = plist_id)
73 CALL h5screate_simple_f(rank, dimsf, filespace, error)
76 !
77 ! Create the dataset with default properties.
78 !
79 CALL h5dcreate_f(file_id, “dataset1”, H5T_NATIVE_INTEGER,
filespace, dset_id, error)
90
91
92
93
94
95

!
! Close the dataset.
CALL h5dclose_f(dset_id, error)
!
! Close the file.
CALL h5fclose_f(file_id, error)

- 17 -

Accessing a Dataset
_ All processes that have opened
dataset may do collective I/O
_ Each process may do independent
and arbitrary number of data I/O
access calls
– F90: h5dwrite_f and
h5dread_f
– C:
H5Dwrite and H5Dread
- 18 -

Accessing a Dataset
Programming model

_ Create and set dataset transfer
property
– C:

H5Pset_dxpl_mpio
– H5FD_MPIO_COLLECTIVE
– H5FD_MPIO_INDEPENDENT

– F90: h5pset_dxpl_mpio_f
– H5FD_MPIO_COLLECTIVE_F
– H5FD_MPIO_INDEPENDENT_F

_ Access dataset with the defined
transfer property
- 19 -

C Example: Collective write

95 /*
96
* Create property list for collective dataset write.
97
*/
98 plist_id = H5Pcreate(H5P_DATASET_XFER);
99 H5Pset_dxpl_mpio(plist_id, H5FD_MPIO_COLLECTIVE);
100
101 status = H5Dwrite(dset_id, H5T_NATIVE_INT,
102
memspace, filespace, plist_id, data);

- 20 -

F90 Example: Collective write

88
89
90
91
92
93
94
95
96

! Create property list for collective dataset write
!
CALL h5pcreate_f(H5P_DATASET_XFER_F, plist_id, error)
CALL h5pset_dxpl_mpio_f(plist_id, &
H5FD_MPIO_COLLECTIVE_F, error)
!
! Write the dataset collectively.
!
CALL h5dwrite_f(dset_id, H5T_NATIVE_INTEGER, data, &
error, &
file_space_id = filespace, &
mem_space_id = memspace, &
xfer_prp = plist_id)
- 21 -

Writing and Reading Hyperslabs
Programming model
_ Each process defines memory and
file hyperslabs
_ Each process executes partial
write/read call
_ Collective calls
_ Independent calls
- 22 -

Hyperslab Example 1
Writing dataset by rows
P0
P1

File

P2
P3

- 23 -

Writing by rows
Output of h5dump utility
HDF5 "SDS_row.h5" {
GROUP "/" {
DATASET "IntArray" {
DATATYPE H5T_STD_I32BE
DATASPACE SIMPLE { ( 8, 5 ) / ( 8, 5 ) }
DATA {
10, 10, 10, 10, 10,
10, 10, 10, 10, 10,
11, 11, 11, 11, 11,
11, 11, 11, 11, 11,
12, 12, 12, 12, 12,
12, 12, 12, 12, 12,
13, 13, 13, 13, 13,
13, 13, 13, 13, 13
}
}
}
}
- 24 -

Example 1
Writing dataset by rows
File

P1 (memory space)

offset[1]
count[1]
offset[0]

count[0]

count[0] = dimsf[0]/mpi_size
count[1] = dimsf[1];
offset[0] = mpi_rank * count[0];
offset[1] = 0;
- 25 -

C Example 1
71 /*
72
* Each process defines dataset in memory and
* writes it to the hyperslab
73
* in the file.
74
*/
75
count[0] = dimsf[0]/mpi_size;
76
count[1] = dimsf[1];
77
offset[0] = mpi_rank * count[0];
78
offset[1] = 0;
79
memspace = H5Screate_simple(RANK,count,NULL);
80
81 /*
82
* Select hyperslab in the file.
83
*/
84
filespace = H5Dget_space(dset_id);
85
H5Sselect_hyperslab(filespace,
H5S_SELECT_SET,offset,NULL,count,NULL);
- 26 -

Hyperslab Example 2
Writing dataset by columns

P0
File
P1

- 27 -

Writing by columns
HDF5 "SDS_col.h5" {
GROUP "/" {
DATA {
1, 2, 10, 20, 100, 200,
1, 2, 10, 20, 100, 200,
1, 2, 10, 20, 100, 200,
1, 2, 10, 20, 100, 200,
1, 2, 10, 20, 100, 200,
1, 2, 10, 20, 100, 200,
1, 2, 10, 20, 100, 200,
1, 2, 10, 20, 100, 200
}
}
}
}
- 28 -

Example 2
Writing dataset by column
File

Memory
P0 offset[1]

block[0]

P0
dimsm[0]
dimsm[1]

P1 offset[1]

block[1]
stride[1]

P1
- 29 -

C Example 2
85
86
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102

/*
* Each process defines hyperslab in
* the file
*/
count[0] = 1;
count[1] = dimsm[1];
offset[0] = 0;
offset[1] = mpi_rank;
stride[0] = 1;
stride[1] = 2;
block[0] = dimsf[0];
block[1] = 1;
/*
* Each process selects hyperslab.
*/
filespace = H5Dget_space(dset_id);
H5Sselect_hyperslab(filespace,
H5S_SELECT_SET, offset, stride,
count, block);
- 30 -

Hyperslab Example 3
Writing dataset by pattern

P0

File

P1
P2
P3
- 31 -

Writing by Pattern
HDF5 "SDS_pat.h5" {
GROUP "/" {
DATA {
1, 3, 1, 3,
2, 4, 2, 4,
1, 3, 1, 3,
2, 4, 2, 4,
1, 3, 1, 3,
2, 4, 2, 4,
1, 3, 1, 3,
2, 4, 2, 4
}
}
}
}
- 32 -

Example 3
Writing dataset by pattern
Memory

File
stride[1]

P2
stride[0]
count[1]
offset[0] = 0;
offset[1] = 1;
count[0] = 4;
count[1] = 2;
stride[0] = 2;
stride[1] = 2;

offset[1]
- 33 -

C Example 3: Writing by
pattern
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112

/* Each process defines dataset in memory and
* writes it to the hyperslab
* in the file.
*/
count[0] = 4;
count[1] = 2;
stride[0] = 2;
stride[1] = 2;
if(mpi_rank == 0) {
offset[0] = 0;
offset[1] = 0;
}
if(mpi_rank == 1) {
offset[0] = 1;
offset[1] = 0;
}
if(mpi_rank == 2) {
offset[0] = 0;
offset[1] = 1;
}
if(mpi_rank == 3) {
offset[0] = 1;
offset[1] = 1;
- 34 }

Hyperslab Example 4
Writing dataset by chunks

P0

P1

P2

P3

- 35 -

File

Writing by Chunks
HDF5 "SDS_chnk.h5" {
GROUP "/" {
DATA {
1, 1, 2, 2,
1, 1, 2, 2,
1, 1, 2, 2,
1, 1, 2, 2,
3, 3, 4, 4,
3, 3, 4, 4,
3, 3, 4, 4,
3, 3, 4, 4
}
}
}
- 36 }

Example 4
Writing dataset by chunks
File

Memory
P2

offset[1]

chunk_dims[1]
offset[0]
chunk_dims[0]

block[0]
block[0] = chunk_dims[0];
offset[0] = chunk_dims[0];
offset[1] = 0;

block[1]
- 37 -

C Example 4
Writing by chunks
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118

count[0] = 1;
count[1] = 1 ;
stride[0] = 1;
stride[1] = 1;
if(mpi_rank == 0) {
offset[0] = 0;
offset[1] = 0;
}
if(mpi_rank == 1) {
offset[0] = 0;
}
if(mpi_rank == 2) {
offset[1] = 0;
}
if(mpi_rank == 3) {
}
- 38 -

Performance Tuning in HDF5

- 39 -

File Level Knobs
_ H5Pset_meta_block_size
_ H5Pset_alignment
_ H5Pset_fapl_split
_ H5Pset_cache
_ H5Pset_fapl_mpio

- 40 -

H5Pset_meta_block_size
_ Sets the minimum metadata block size
allocated for metadata aggregation.
The larger the size, the fewer the
number of small data objects in the file.
_ The aggregated block of metadata is
usually written in a single write action
and always in a contiguous block,
potentially significantly improving
library and application performance.
_ Default is 2KB
- 41 -

H5Pset_alignment
_ Sets the alignment properties of a file access
property list so that any file object greater
than or equal in size to threshold bytes will be
aligned on an address which is a multiple of
alignment. This makes significant improvement
to file systems that are sensitive to data block
alignments.
_ Default values for threshold and alignment are
one, implying no alignment. Generally the
default values will result in the best
performance for single-process access to the
file. For MPI-IO and other parallel systems,
choose an alignment which is a multiple of the
- 42 disk block size.

H5Pset_fapl_split
_ Sets file driver to store metadata and
raw data in two separate files, metadata
and raw data files.
_ Significant I/O improvement if the
metadata file is stored in Unix file
systems (good for small I/O) while the
raw data file is stored in Parallel file
systems (good for large I/O).
_ Default is no split.
- 43 -

Writing contiguous dataset on Tflop at
LANL
(Mb/sec, various buffer sizes)
Measured functionality:
20
16

HDF5 writing to a standard HDF5 file

Mb/sec
12

Writing directly with MPI I/O (no HDF5)

8

HDF5 writing with the split driver

4
2

4
8
Number of processes

- 44 -

16

Each process writes 10Mb
of data.

H5Pset_cache
_ Sets:
_ the number of elements (objects) in the
meta data cache
_ the number of elements, the total number
of bytes, and the preemption policy value in
the raw data chunk cache

_ The right values depend on the
individual application access pattern.
_ Default for preemption value is 0.75
- 45 -

H5Pset_fapl_mpio
_ MPI-IO hints can be passed to the MPIIO layer via the Info parameter.
_ E.g., telling Romio to use 2-phases I/O
speeds up collective I/O in the ASCI Red
machine.

- 46 -

Data Transfer Level Knobs
_ H5Pset_buffer
_ H5Pset_sieve_buf_size
_ H5Pset_hyper_cache

- 47 -

H5Pset_buffer
_ Sets the maximum size for the type
conversion buffer and background
buffer used during data transfer. The
bigger the size, the better the
performance.
_ Default is 1 MB.

- 48 -

H5Pset_sieve_buf_size
_ Sets the maximum size of the data sieve
buffer. The bigger the size, the fewer
I/O requests issued for raw data access.
_ Default is 64KB

- 49 -

H5Pset_hyper_cache
_ Indicates whether to cache hyperslab
blocks during I/O, a process which can
significantly increase I/O speeds.
_ Default is to cache blocks with no limit
on block size for serial I/O and to not
cache blocks for parallel I/O.

- 50 -

Chunk Cache Effect
by H5Pset_cache
_ Write one integer dataset
256x256x1024 (256MB)
_ Using chunks of 256x16x1024
(16MB)
_ Two tests of
_ Default chunk cache size (1MB)
_ Set chunk cache size 16MB
- 51 -

Chunk Cache
Time Definitions
_ Total: time to open file, write dataset,
close dataset and close file.
_ Dataset Write: time to write the whole
dataset
_ Chunk Write: best time to write a chunk
_ User Time: total Unix user time of test
_ System Time: total Unix system time of
test
- 52 -

Chunk Cache size Results
Cache
Chunk
buffer size write time
on MB
(sec)

Dataset
write time
(sec)

Total
time(sec)

1

132.58

2450.25 2453.09 14

2200.1

16

0.376

7.83

3.45

8.27

- 53 -

User time
(sec)

6.21

System
time (sec)

Chunk Cache Size
Summary

_ Big chunk cache size improves
performance
_ Poor performance mostly due to
increased system time
_ Many more I/O requests
_ Smaller I/O requests

- 54 -

Overview of Parallel HDF5 and Performance Tuning in HDF5 Library

More Related Content

Similar to Overview of Parallel HDF5 and Performance Tuning in HDF5 Library (20)

More from The HDF-EOS Tools and Information Center (20)

Recently uploaded (20)

Overview of Parallel HDF5 and Performance Tuning in HDF5 Library
