Simulation of Unified Power Quality Conditioner for Power
Quality Improvement Using Fuzzy Logic and Neural Networks
L.Dinesh* , S.Srinivasa Rao, N. Siva Mallikarjuna Rao
Department of Electrical and Electronics Engineering, Gitam University, Visakhapatnam 530045,
Andhra Pradesh, India
*dinesh_245@yahoo.com

Abstract
One of the major concerns in electricity industry today is power quality. It becomes especially important
with the introduction of advanced and complicated devices, whose performance is very sensitive to the
quality of power supply. The electronic devices are very sensitive to disturbances and thus industrial loads
become less tolerant to power quality problems such as voltage dips, voltage sags, voltage flickers,
harmonics and load unbalance etc. At present, a wide range of very flexible controllers, which capitalize on
newly available power electronics components, are emerging for custom power applications. Among these,
the distribution static compensator, dynamic voltage restorer and unified power quality conditioner which is
based on the VSC principle are used for power quality improvement. In this project, a fuzzy logic controller
with reference signal generation method is designed for UPQC and compared its performance with
artificial neural network based controller. This is used to compensate current and voltage quality problems
of sensitive loads. The results are analyzed and presented using matlab/simulink software .
Keywords: power quality, upqc, voltage sag, fuzzy logic controller, neural networks

1. Introduction
Power quality is the set of limits of electrical properties that allows electrical system to function in proper
manner without significant loss of performance Like flexible ac transmission system, the term custom
power use for distribution system. Just as facts improve the reliability and quality of power transmission
system, the custom power enhances the quality and reliability of power that is delivered to customers. The
main causes of a poor power quality are harmonic currents, poor power factor, supply voltage variations,
etc. In recent years the demand for the quality of electric power has been increased rapidly. Power quality
problems have received a great attention nowadays because of their impacts on both utilities and customers.
Voltage sag, swell, momentary interruption, under voltages, over voltages, noise and harmonics are the
most common power quality disturbances. There are many custom power devices. The devices either
connected in shunt or in series or a combination of both. The devices include D-STATCOM, DVR and
UPQC etc.One of the most common power quality problems today is voltage dips. A voltage dip is a short
time event during which a reduction in R.M.S voltage magnitude occurs. Despite a short duration, a small
deviation from the nominal voltage can result in serious disturbances. A voltage dip is caused by a fault in
the utility system, a fault within the customer’s facility or a large increase of the load current, like starting a
motor or transformer energizing. Unified power quality conditioner (UPQC) is one of the best custom
power device used to compensate both source and load side problems. It consists of shunt and series
converters connected back to back to a common dc link. It can perform the functions of both DSTATCOM
and DVR. In this paper a fuzzy logic controller is used to compensate voltage sag and it is compared with
neural network based controller.
2. Upqc System with Control Methods
UPQC mainly includes three parts: the series active power filters, shunt active power filters and energy
storage capacitors. The series and shunt active power filter couples together through the DC-link energy
storage capacitors. Series APF connected to the grid and load by coupling transformer is mainly used to
adjust the load voltage amplitude and compensate the power supply voltage sag in the controlled voltage
source mode. Shunt active filter connected to the load is used to compensate load currents.

36

Vol 3, No 3, 2012

2.1 Voltage Sag Energy
The voltage sag energy is defined as
2
T  V (t ) 
E VS = ∫
0 1 −
 V nom 
 dt
(2.1)
Where V is the magnitude of the voltage and Vnom is the nominal voltage and T is duration of the sag.

3. Fuzzy Logic Controllers
The logic of a approximate reasoning continues to grow in importance, as it provides an in expensive
solution for controlling know complex systems. Fuzzy logic controllers are already used in appliances
washing machine, refrigerator, vaccum cleaner etc. Computer subsystems (disk drive controller, power
management) consumer electronics (video, camera, battery charger) C.D.Player etc. and so on In last
decade, fuzzy controllers have convert adequate attention in motion control systems.

3.1 Implication methods
The implication step (3) was introduced for the evaluation of individual rules.
Methods:
a) MAMDANI
b) SUGENO

4. Artificial Neural Networks
Artificial Neural Networks are relatively electronic models based on the neural structure of the brain The
brain basically learns from experiences. It is natural proof that are beyond the scope of current computers
are indeed solvable by small energy efficient packages. This brain modeling also promises a less technical
way to develop machine solutions. The ANN is made up of interconnecting artificial neurons. It is
essentially a cluster of suitably interconnected nonlinear elements of very simple form that possess the
ability to learn. A one-layer network with R input elements and S neurons follow. In this network, each
element of the input vector p is connected to each neuron input through the weight matrix W. The ith
neuron has a summer that gathers its weighted inputs and bias to form its own scalar output n(i). The
various n(i) taken together form an S-element net input vector n.

4.1 Training an artificial neural network
Once a network has been structured for a particular application, that network is ready to be trained. To start
this process the initial weights are chosen randomly. Then, the training, or learning, begins. There are two
approaches to training – ‘SUPERVISED’ and ‘UNSUPERVISED’. Supervised training involves a
mechanism of providing the network with the desired output either by manually “grading” the network’s
performance or by providing the desired outputs with the inputs. Unsupervised training is where the
network has to make sense of the inputs without outside help. The vast bulk of networks utilize supervised
training. Unsupervised training is used to perform Some initial Characterization on inputs. Training can
also be classified on basis of how the training pairs are presented to the network. They are
‘INCREMENTAL TRAINING’ and ‘BATCH TRAINING’. In incremental training the weights and biases
of the network are updated each time an input is presented to the network. In batch training the weights and
biases are only updated after all of the inputs have been presented.

5. Design of Upqc Using Matlab Simulation
To verify the operating performance of the proposed UPQC, a 3-phase electrical system, a fuzzy logic
controller with reference signal generation method is designed for UPQC and compared its performance

37

Vol 3, No 3, 2012

with Artificial neural network based controller is simulated using MATLAB software.

5.1 Fuzzy logic and neural network controllers design
The aim of the control scheme is to maintain constant voltage magnitude at a point where a fault is
connected. The controller input is an erroe signal obtained from the reference voltage and the value rms of
the terminal voltage is measured. Such error is processed by a fuzzy logic and neural network based
controllers where the output is the angle δ, which is provided to the PWM signal.

5.2 Voltage control
The sinusoidal signal Vcontrol (REFERENCE VOLTAGE) is phase-modulated by means of the angle i.e,
VA = Sin (ωt +δ)
VB = Sin (ωt +δ-2π/3) (5.1)
VC = Sin (ωt +δ+2π/3)
The Vcontrol is compared against a triangular signal in order to generate the switching signal for the VSC
valves.
V control
Ma =
= 1p.u (5.2)
V tri

6. Neural Network Training Algorithm
NEWFF (PR, [S1 S2 … SN1], {TF1 TF2 … TFN1}, BTF, BLF, PF) takes,
PR – Rx2 matrix of mind and max values for input elements
Si – Size of iTh layer, for N1 layers
TFi – Transfer function of iTh layer, default = ‘tansig’
BTF – Back prop network training function, default = ‘trainlm’
BLF – Back prop weight/bias learning function, default = ‘learngdm’
net = init (net);
Before training a feed forward network, the weights and biases must be initialized. The initial weights and
biases are created with the command init. This function takes network object as input and returns a
network object with all weights and biases initialized. Here is all weights and biases initialized

6.1 Training the input
There are two types of training procedures according to the way in which the inputs are applied applied to
the network. They are ‘incremental training’ where each training pair will be applied one after the other and
‘batch training’ in which entire set of training pairs will be applied at once. The syntaxes for them are as
below
net = train (net, p, t);

6.3 Simulation
The function sim simulates a network. Sim takes the network p, and the Network objects net, and returns
the network outputs ‘k’.
K = sim (net, p);

6.4 Reference Signal Generation
Reference voltage generation which is used for series converter control and Reference current generation
used for shunt converter control are generated using Parks transformation. The source current is given as:
is = ia *e^j(θ)+ ib* e j^(θ -120) + ic* e ^j(θ+120)

38

Vol 3, No 3, 2012

= ia( cos(θ) + j sin(θ)) + ib ( cos(θ -120)+j sin(θ -120) +ic(cos(θ+120)+ jsin (θ +120) (6.1)
Id = ia cos (θ) +ib cos (θ -120) + ic cos (θ+120) (6.2)
Iq = ia sin (θ) +ib sin (θ-120) + ic sin (θ +120)
(6.3)

7. Conclusion
This thesis work is mainly devoted to the study of Power Quality problems and its compensation with
Unified power quality conditioner (UPQC). Results obtained from this study provide useful information
regarding the behaviour of different controllers used for power quality improvement connected to
distribution line. The controllers mainly used for power quality improvement are Fuzzy logic controller and
Artificial neural network based controller. Fuzzy logic controller with reference signal generation method is
designed for Unified power quality conditioner (UPQC) and compared its performance with artificial
neural network based controller. A New functionality is added to the UPQC system to quickly extract the
reference signals directly for load current and supply voltage with a minimal amount of mathematical
operands. The highly developed graphic facilities available in MATLAB/SIMULINK were used to conduct
all aspects of model implementation and to carry our extensive simulation studies on test system. The
simulation results show that the UPQC with fuzzy logic controller Compensates 75% of voltage sag during
fault condition. While UPQC with artificial neural network based controller compensates 95% of voltage
sag. Hence as compared to the response obtained with Fuzzy controller, Neural network based controller
have great advantage of flexibility.

7.1 Scope for future work
Proposed model of UPQC is to compensate source side and also load side problems using fuzzy logic and
ANN controllers. The work can be extended to compensate total drop in the system using combined
NEURO-FUZZY control (Adaptive neuro fuzzy controller).

References
Vadirajacharya G. Kinhal, Promod Agarwal, and Hari Oam Gupta (2011), Senior Member, IEEE
“Performance Investigation of Neural-Network- Based Unified Power-Quality Conditioner” ieee
transactions on power delivery, vol.26.
Ahmet Teke, Lütfü Saribulut, and Mehmet Tümay (2011) “A Novel Reference Signal Generation Method
for Power- Quality Improvement of Unified Power-Quality Conditioner” ieee transactions on power
delivery.
A. Zouidi, F. Fnaiech, and K. AL-Haddad (2006), “Neural network controlled three-phase three-wire shunt
active power filter,” in Proc. IEEE ISIE, Montreal, QC, Canada, Jul. 9–12,pp. 5–10.
L. H. Tey, P. L. So, and Y. C. Chu (2004), “Unified power quality conditioner for improving power quality
using ANN with hysteresis control,” in Proc. Int. Conf. Power System Technology, pp. 1441–1446.
Ruiye Liu, Ning Xia, Xiaonan Wang” The Research on Fuzzy-PID Control in Unified Power Quality
Conditioner”.
Timothy Ross J. (1995), “Fuzzy Logic with Engineering Applications”, McGraw-Hillbook Company;
University of Mexico.
HUANG Min, ZHA Xiao-ming, CHEN Yun-ping (2002), The controller of fuzzy changing structure of
parallel power quality conditioner[J]. Power System Technology,26(7):11-14.

L .Dinesh born in the year 1989 is currently doing his Post Graduate course in Power Systems And

39

Vol 3, No 3, 2012

Automation in Electrical and Electronics Engineering, department of GITAM Institute of Technology,
GITAM University, Visakhapatnam, India, the B.Tech degree in Electrical and Electronics Engineering
from JNTU Kakinada, Andhra Pradesh, India, in 2010.

S. Srinivasa Rao received his master degree in Electrical Power Systems from JNTU Anantapur, in 2008,
B.Tech degree in Electrical and Electronics Engineering from G.M.R Institute of Technology, India, in
2004. He is currently working as an Assistant Professor of Electrical and Electronics Engineering
department at GITAM Institute of Technology, GITAM University, Visakhapatnam, Andhra Pradesh, India.
His research interest includes Power Quality.

N. Siva Mallikarjuna Rao received his master degree in Control Systems from JNTU Anantapur, in 2006,
B.Tech degree in Electrical and Electronics Engineering from Narasraopeta Engineering College, India, in
2003. He is currently working as an Assistant Professor of Electrical and Electronics Engineering
department at GITAM Institute of Technology, GITAM University, Hyderabad, Andhra Pradesh, India. His
research interest includes Control systems.

Figure 1. Topology of upqc

40

Vol 3, No 3, 2012

Figure 2. Single layer feed forward network

Figure 3. Matlab simulation model of upqc

41

Vol 3, No 3, 2012

Figure 4. Voltage controller using fuzzy

Figure 5. Voltage controller using neural networks

Figure 6. Modulator signal generation

Figure 7. Membership figures for input and output

42

Vol 3, No 3, 2012

Figure 8. fuzzy interface system

Figure 9. fuzzy Rule Viewer and Fuzzy Rule Editor

Time
Figure 10. Source voltage due to 3 phase fault

43

Vol 3, No 3, 2012

Time
Figure 11. Load current due to 3 phase fault

Figure 12.Matlab/Simulink Model for Reference current signal generation

Time
Figure 13. The injected voltage to the PCC at disturbance (Vinj)

44

Vol 3, No 3, 2012

Time
Figure 14.Load voltage with fuzzy logic controller

Time
Figure 15. Load voltage with artificial neural network

Time
Figure 16. Load current with fuzzy logic controller

Time

45

Vol 3, No 3, 2012

Figure 17.Load current with artificial neural network

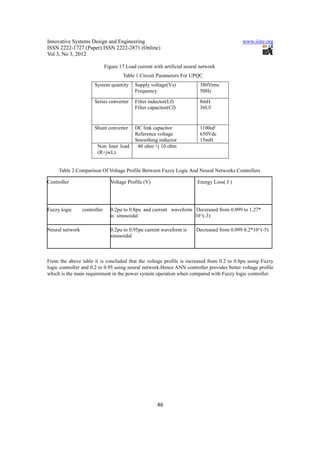

Table 1.Circuit Parameters For UPQC
System quantity Supply voltage(Vs) 380Vrms
Frequency 50Hz

Series converter Filter inductor(Lf) 8mH
Filter capacitor(Cf) 36Uf

Shunt converter DC link capacitor 1100uF
Reference voltage 650Vdc
Smoothing inductor 15mH
Non liner load 40 ohm +j 10 ohm
(R+jwL)

Table 2.Comparison Of Voltage Profile Between Fuzzy Logic And Neural Networks Controllers

Controller Voltage Profile (V) Energy Loss( J )

Fuzzy logic controller 0.2pu to 0.8pu and current waveform Decreased from 0.099 to 1.27*
is sinusoidal 10^(-3)

Neural network 0.2pu to 0.95pu current waveform is Decreased from 0.099 8.2*10^(-5)
sinusoidal

From the above table it is concluded that the voltage profile is increased from 0.2 to 0.8pu using Fuzzy
logic controller and 0.2 to 0.95 using neural network.Hence ANN controller provides better voltage profile
which is the main requirement in the power system operation when compared with Fuzzy logic controller.

46

International Journals Call for Paper
The IISTE, a U.S. publisher, is currently hosting the academic journals listed below. The peer review process of the following journals
usually takes LESS THAN 14 business days and IISTE usually publishes a qualified article within 30 days. Authors should
send their full paper to the following email address. More information can be found in the IISTE website : www.iiste.org

Business, Economics, Finance and Management PAPER SUBMISSION EMAIL
European Journal of Business and Management EJBM@iiste.org
Research Journal of Finance and Accounting RJFA@iiste.org
Journal of Economics and Sustainable Development JESD@iiste.org
Information and Knowledge Management IKM@iiste.org
Developing Country Studies DCS@iiste.org
Industrial Engineering Letters IEL@iiste.org

Physical Sciences, Mathematics and Chemistry PAPER SUBMISSION EMAIL
Journal of Natural Sciences Research JNSR@iiste.org
Chemistry and Materials Research CMR@iiste.org
Mathematical Theory and Modeling MTM@iiste.org
Advances in Physics Theories and Applications APTA@iiste.org
Chemical and Process Engineering Research CPER@iiste.org

Engineering, Technology and Systems PAPER SUBMISSION EMAIL
Computer Engineering and Intelligent Systems CEIS@iiste.org
Innovative Systems Design and Engineering ISDE@iiste.org
Journal of Energy Technologies and Policy JETP@iiste.org
Information and Knowledge Management IKM@iiste.org
Control Theory and Informatics CTI@iiste.org
Journal of Information Engineering and Applications JIEA@iiste.org
Industrial Engineering Letters IEL@iiste.org
Network and Complex Systems NCS@iiste.org

Environment, Civil, Materials Sciences PAPER SUBMISSION EMAIL
Journal of Environment and Earth Science JEES@iiste.org
Civil and Environmental Research CER@iiste.org
Civil and Environmental Research CER@iiste.org

Life Science, Food and Medical Sciences PAPER SUBMISSION EMAIL
Journal of Biology, Agriculture and Healthcare JBAH@iiste.org
Food Science and Quality Management FSQM@iiste.org
Chemistry and Materials Research CMR@iiste.org

Education, and other Social Sciences PAPER SUBMISSION EMAIL
Journal of Education and Practice JEP@iiste.org
Journal of Law, Policy and Globalization JLPG@iiste.org Global knowledge sharing:
New Media and Mass Communication NMMC@iiste.org EBSCO, Index Copernicus, Ulrich's
Journal of Energy Technologies and Policy JETP@iiste.org Periodicals Directory, JournalTOCS, PKP
Historical Research Letter HRL@iiste.org Open Archives Harvester, Bielefeld
Academic Search Engine, Elektronische
Public Policy and Administration Research PPAR@iiste.org Zeitschriftenbibliothek EZB, Open J-Gate,
International Affairs and Global Strategy IAGS@iiste.org OCLC WorldCat, Universe Digtial Library ,
Research on Humanities and Social Sciences RHSS@iiste.org NewJour, Google Scholar.

Developing Country Studies DCS@iiste.org IISTE is member of CrossRef. All journals
Arts and Design Studies ADS@iiste.org have high IC Impact Factor Values (ICV).

11.simulation of unified power quality conditioner for power quality improvement using fuzzy logic and neural network

More Related Content

What's hot (20)

Viewers also liked (6)

Similar to 11.simulation of unified power quality conditioner for power quality improvement using fuzzy logic and neural network (20)

More from Alexander Decker (20)

Recently uploaded (20)

11.simulation of unified power quality conditioner for power quality improvement using fuzzy logic and neural network
