- 1. Ch. 12 Cache Direct Mapped Cache
- 2. Memory Hierarchy Registers: very few, very fast cache memory: small, fast main memory: large, slow secondary memory (disk): huge, very slow Example: http://www.dell.com/content/products/category.aspx/vostrodt? c=us&cs=04&l=en&s=bsd Comp Sci 251 -- mem hierarchy 2
- 3. Memory Hierarchy Registers: very small, very fast cache memory: small, fast Up to Intel® CoreTM 2 Duo E6700 (2.60GHz, 4MB L2 cache, 1066MHz FSB) main memory: large, slow Up to 4GB1 Dual-Channel DDR22 SDRAM3 (667MHz) secondary memory (disk): huge, very slow Up to 2 hard drives and 1 TB of data Comp Sci 251 -- mem hierarchy 3
- 4. Goal: Illusion of Large Fast Memory Exploit two characteristics of programs: Temporal locality: programs tend to re- access recently accessed locations Spatial locality: programs tend to access neighbors of recently accessed locations Comp Sci 251 -- mem hierarchy 4
- 5. Exploiting Locality Keep most recently accessed items and their neighbors in faster memory We will focus on the cache/main memory interface Comp Sci 251 -- mem hierarchy 5
- 6. Terminology Cache hit word we want to access is already in cache transaction is fast Cache miss word we want is not in cache main memory access is necessary transaction is slow Comp Sci 251 -- mem hierarchy 6
- 7. Hit or Miss? Two questions on each memory access: Is the requested word in cache? Where in cache is it? Cache block contains: copy of main memory word(s) info about where word(s) came from (Note: cache block can contain >1 memory word) Comp Sci 251 -- mem hierarchy 7
- 8. Direct Mapped Cache Each memory word maps to a single cache block “round robin” assignment of words to blocks (assume one-word blocks for now, byte- addressable memory) How do we tell which block a word maps to? number of cache blocks is a power of 2 Comp Sci 251 -- mem hierarchy 8
- 9. Direct Mapped Cache Memory Memory Address data Cache Memory address data Comp Sci 251 -- mem hierarchy 9
- 10. Direct Mapped Cache Cache Main Memory Memory Index Index Index0 Index0 Index1 Index1 Index2 Index2 Index3 Index3 Index4 Index5 Index6 Index7 Index8 Index9 Comp Sci 251 -- mem hierarchy 10
- 11. Direct Mapped Cache If cache has 2n blocks, cache block index = n bits main memory address: Tag cache index 00 leftover bits are stored in cache as a tag Cache block format: Cache index V Tag Data Comp Sci 251 -- mem hierarchy 11
- 12. Cache Read Operation Look up cache block indexed by low n bits of address Compare Tag in cache with Tag bits of address if valid and match: HIT read from cache mismatch or invalid: MISS new word + Tag is brought into cache Comp Sci 251 -- mem hierarchy 12
- 13. Cache Write Operation (Problem: main memory and cache can become inconsistent) Look up cache block indexed by low n bits of address Compare Tag with high bits of address if valid and match: HIT write cache and main memory (write-through policy) invalid or mismatch: MISS write main memory overwrite cache with new word + Tag Comp Sci 251 -- mem hierarchy 13
- 14. Exercise Byte-addressable main memory 32-bit main memory addresses 1024KB-capacity cache; one word per cache block 256K = 218 cache blocks Show cache block format & address decomposition Access memory address 0x0040006c Which cache block? What tag bits? Comp Sci 251 -- mem hierarchy 14

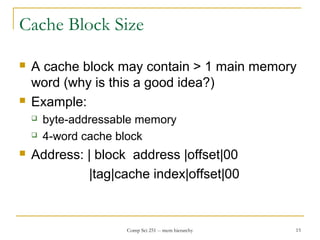

- 15. Cache Block Size A cache block may contain > 1 main memory word (why is this a good idea?) Example: byte-addressable memory 4-word cache block Address: | block address |offset|00 |tag|cache index|offset|00 Comp Sci 251 -- mem hierarchy 15
- 16. Exercise Byte-addressable main memory 32-bit main memory addresses 1024KB-capacity cache; four words per cache block 64K=216 cache blocks Show cache block format & address decomposition Access memory address 0x0040006c Which cache block? What tag bits? Comp Sci 251 -- mem hierarchy 16
- 17. Given main memory of 256 bytes, a memory block is one word, cache size (number of blocks ) is 8 What is the total size of the cache Address (binary) Contents (Hex) in bits? 000000 aa bb cc dd Memory address is m bytes long 000100 00 11 00 33 256 bytes = 2m bytes → m = ? 001000 ff ee 01 23 001100 45 67 89 0a 010000 bc de f0 1a You need n bits to address 8 010100 2a 3a 4a 5a blocks in cache. n = ? 011000 6a 7a 8a 9a 011100 1b 2b 3b 4b 100000 b2 b3 b4 b5 You need b bits to address 4 bytes 100100 c1 c2 c3 c4 in a word. b = ? 101000 d1 d2 d3 d4 101100 e1 e2 e3 e4 110000 f1 f2 f3 f4 Size of tag bits = t = m - n - b 110100 a1 a2 a3 a4 Size of cache = (1+ t + 32) x 8 111000 2c 3c 4c 5c 111100 2d 3d 4d 5d Comp Sci 251 -- mem hierarchy 17
- 18. Given main memory of 256 bytes, a memory block is 2 words, cache size is 8 Address (binary) Contents (Hex) What is the total size of the 000000 aa bb cc dd cache in bits? 000100 00 11 00 33 Memory address is m bytes long 001000 ff ee 01 23 256 bytes = 2m bytes → m = ? 001100 45 67 89 0a 010000 bc de f0 1a You need n bits to address 8 010100 2a 3a 4a 5a blocks in cache. n = ? 011000 6a 7a 8a 9a 011100 1b 2b 3b 4b You need b bits to address the 100000 b2 b3 b4 b5 bytes in 2 words. b = ? 100100 c1 c2 c3 c4 101000 d1 d2 d3 d4 Size of tag bits = t = m - n – b 101100 e1 e2 e3 e4 Size of cache = (1+ t + 64) x 8 110000 f1 f2 f3 f4 110100 a1 a2 a3 a4 111000 2c 3c 4c 5c 111100 2d 3d 4d 5d Comp Sci 251 -- mem hierarchy 18
- 19. Suppose a memory address is 32 bits, a memory block is 8 words and the cache size is 16K blocks. What is the total size of the cache in bytes? 32-bit Memory address Cache v Tag Data in 8-word block 16K blocks Comp Sci 251 -- mem hierarchy 19
Editor's Notes
- #3: In personal computers , the Front Side Bus ( FSB ) is the bus that carries data between the CPU and the northbridge.
- #4: Multi-level caches Another issue is the fundamental tradeoff between cache latency and hit rate. Larger caches have better hit rates but longer latency. To address this tradeoff, many computers use multiple levels of cache, with small fast caches backed up by larger slower caches. Multi-level caches generally operate by checking the smallest Level 1 (L1) cache first; if it hits, the processor proceeds at high speed. If the smaller cache misses, the next larger cache (L2) is checked, and so on, before external memory is checked. As the latency difference between main memory and the fastest cache has become larger, some processors have begun to utilize as many as three levels of on-chip cache. For example, in 2003, Itanium 2 began shipping with a 6 MiB unified level 3 (L3) cache on-chip. The IBM Power 4 series has a 256 MiB L3 cache off chip, shared among several processors. The new AMD Phenom series of chips carries a 2MB on die L3 cache. [edit] Exclusive versus inclusive Multi-level caches introduce new design decisions. For instance, in some processors, all data in the L1 cache must also be somewhere in the L2 cache. These caches are called strictly inclusive . Other processors (like the AMD Athlon) have exclusive caches — data is guaranteed to be in at most one of the L1 and L2 caches, never in both. Still other processors (like the Intel Pentium II, III, and 4), do not require that data in the L1 cache also reside in the L2 cache, although it may often do so. There is no universally accepted name for this intermediate policy, although the term mainly inclusive has been used.
- #15: One word per cache block → 4 bytes/block 1024K bytes / 4 bytes/block = 256 K blocks = 2 8 x 2 10 blocks = 2 18 blocks 18 bits needed to access 2 18 blocks Need 2 bits to access a block of 1 word Cache index: 18 bits Tag size 12 bits 0x0040006c = 0000 0000 0100 0000 0000 0000 0110 11 00 Tag bits Block addr
- #17: 4 words per cache block → 4 x 4 bytes/block 1024K bytes / (4 x 4) bytes/block = 256/4 K blocks = 64K blocks = 2 6 x 2 10 blocks = 2 16 blocks 16 bits needed to access 2 16 blocks Need 2 bits to access a word in a block; 2 bits in a word → need 4 bits to access a block Cache index: 16 bits Tag size 12 bits 0x0040006c = 0000 0000 0100 0000 0000 0000 0110 1100 Tag address Block addr w b
- #18: What is the total size of the cache in bits? Memory address is m bytes long 256 bytes = 2 m bytes → m = 3 You need n bits to address 8 blocks in cache. n = 3 You need b bits to address 4 bytes in a word. b = 2 Size of tag bits = t = m - n – b = 8 – 3 – 2 = 3 Size of cache = (1+ t + 32) x 8 = (1 + 3 + 32) x 8
- #19: What is the total size of the cache in bits? Memory address is m bytes long 256 bytes = 2 m bytes → m = 8 You need n bits to address 8 blocks in cache. n = 3 You need b bits to address the bytes in 2 words. b = 3 Size of tag bits = t = m - n – b = 8 – 3 – 3 = 2 Size of cache = (1+ t + 64) x 8 = (1 + 2 + 64) x 8
- #20: 16K blocks = 2 4 x 2 10 blocks = 2 14 blocks → need 14 bits for cache index Offset bits = 3 Offset in a word = 2 Size of tag bits = 32 – 14 - 3 – 2 = 13 Size of cache memory = ( valid + tag + memoryBlock) x cacheSize = ( 1 + 13 + 8x32) x 2 14 = 4320 K bits = 540 KB
