HumanAnatomy&PhysiologyI
Homeostasis
Presented by: Lovekesh Singh
CONTENTS
• Objectives
• Introduction
• Definitions
Objectives
•Define homeostasis.
•Describe the components of a feedback system.
•Contrast the operation of negative and positive
feedback system
Homeostasis
• Homeostasis ( homeo- sameness; -stasis standing still) is the
tendency of organisms to auto-regulate and maintain the
internal environment in stable state .
Feedback Systems
• The body can regulate its internal environment
through many feedback systems. A feedback system
or feedback loop is a cycle of events in which the
status of a body condition is
• Monitored
• Evaluated
• changed,
• Re-monitored,
• Re-evaluated, and so on. Each monitored variable,
such as body temperature, blood pressure, or blood
glucose level, is termed a controlled condition.
3. Homeostatis.ppt
Stimulus
•Any disruption that changes a
controlled condition is called a stimulus.
•A feedback system includes three basic
components—
•a receptor
•a control centre
• an effector
Receptor
•A receptor is a body structure that monitors
changes in a controlled condition and sends input
to a control centre.
•Typically, the input is in the form of nerve
impulses or chemical signals.
•For example, certain nerve endings in the skin
sense temperature and can detect changes, such
as a dramatic drop in temperature.
.
Control Centre
Brain, sets the range of values within which a
controlled condition should be maintained,
evaluates the input it receives from receptors, and
•Generates output commands when they are
needed.
• In our skin temperature example, the brain acts
as the control centre, receiving nerve impulses
•From the skin receptors and generating nerve
impulses as output.
Effector
• Body structure that receives output from the control centre and
produces a response or effect that changes the controlled condition.
• When your body temperature drops sharply, your brain (control
centre) sends nerve impulses (output) to your skeletal muscles
(effectors).
• The result is shivering, which generates heat and raises your body
temperature
NEGATIVE FEEDBACK SYSTEMS
• A negative feedback system reverses
• a change in a controlled condition. Consider the regulation of blood
pressure. Blood pressure (BP) is the force exerted by blood as it
presses against the walls of blood vessels. When the heart beats
faster or harder, BP increases. If some internal or external stimulus
causes blood pressure (controlled condition) to rise, the following
sequence of events occurs (Figure 1.3).
• Baroreceptors (the receptors), pressure-sensitive nerve cells located
in the walls of certain blood vessels, detect the higher
• pressure. The baroreceptors send nerve impulses (input) to the brain
(control center), which interprets the impulses and responds
• by sending nerve impulses (output) to the heart and blood vessels
(the effectors). Heart rate decreases and blood vessels dilate (widen),
which cause BP to decrease (response).
• This sequence of events quickly returns the controlled condition—
• blood pressure—to normal, and homeostasis is restored.
the activity of the effector causes BP to drop, a result that negates the
original stimulus (an increase in BP). This is why it is called a negative
feedback system.
3. Homeostatis.ppt
POSITIVE FEEDBACK SYSTEMS
•A positive feedback system tends to strengthen or
reinforce a change in one of the body’s controlled
conditions.
•The control centre still provides commands to an
effector, but this time the effector produces a
physiological response that adds to or reinforces the
initial change in the controlled condition.
•The action of a positive feedback system continues
until it is interrupted by some mechanism.
• feedback system. The first contractions of labor (stimulus)
push part of the foetus into the cervix, the lowest part of
the uterus, which opens into the vagina.
• Stretch-sensitive nerve cells (receptors) monitor the
amount of stretching of the cervix (controlled condition).
As stretching increases, they send more nerve impulses
(input) to the brain (control center), which in turn releases
the hormone oxytocin (output) into the blood.
• Oxytocin causes muscles in the wall of the uterus (effector)
to contract even more forcefully. The contractions push the
foetus farther down the uterus, which stretches the cervix
even more.
• The cycle of stretching, hormone release, and ever-stronger
contractions is interrupted only by the birth of the baby.
Then, stretching of the cervix ceases and oxytocin is no
longer released
3. Homeostatis.ppt

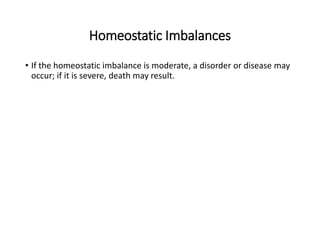

Homeostatic Imbalances
• If the homeostatic imbalance is moderate, a disorder or disease may
occur; if it is severe, death may result.
• A disorder is any abnormality of structure or function.
• Disease is a more specific term for an illness
• A local disease affects one part or a limited region of the body;
• a systemic disease affects either the entire body or several parts of it.
• Symptoms subjective changes in body functions that are not
apparent to an observer.
• Examples include headache, nausea, and anxiety. Signs of disease can
be either anatomical, such as swelling or a rash, or physiological, such
as fever, high blood pressure, or paralysis.
• Epidemiology :-The science that deals with why, when, and where
diseases occur and how they are transmitted among individuals in a
community
• Pharmacology is the science that deals with uses of drugs in the
treatment of disease.
What to think?
• Describe the locations of intracellular fluid, extracellular
fluid, interstitial fluid, and blood plasma.
• Why is interstitial fluid called the internal environment of
the body?
• What types of disturbances can act as stimuli that initiate
a feedback system?
• How are negative and positive feedback systems similar?
How are they different?
• What is the difference between symptoms and signs of a
disease? Give examples of each.
REFERENCES
• Essentials of Medical Physiology by K. Sembulingam and P. Sembulingam. Jaypee
Brothers Medical Publishers, New Delhi.
• Anatomy and Physiology in Health and Illness by Kathleen J.W. Wilson, Churchill
Livingstone, New York.
• Physiological basis of Medical Practice-Best and Tailor. Williams and Wilkins
Co, Riverview, MI USA.
• Text book of Medical Physiology- Arthur C, Guyton and John.E. Hall. Miamisburg,
OH, U.S.A.
• Principles of Anatomy and Physiology by Tortora Grabowski. Palmetto, GA, U.S.A.
• Human Physiology (vol 1 and 2) by Dr. C.C. Chatterrje, Academic Publishers Kolkata.
THANKS
