3-WAY SWITCH pptx in electrical technology
- 1. G U E S S T H E W O R D
- 2. G U E S S T H E W O R D 3-WAY SWITCH
- 3. 3-WAY SWITCH by: RODLAN L. DIPON LIGHTING CONTROL
- 4. 3-WAY SWITCH A 3 - w a y s w i t c h i s a n e l e c t r i c a l d e v i c e u s e d t o c o n t r o l a b u l b f r o m t w o d i ff e r e n t l o c a t i o n s .
- 6. 3-WAY SWITCH WIRING DIAGRAM 1 1 3 3 0 0
- 7. THANK YOU!
- 8. QUIZ
- 9. Get ¼ sheet of paper and prepare for a short quiz. 1. What is the primary function of a 3-way switch in an electrical circuit? a. To control two different circuits from one switch b. To control a single light or load from two different locations c. To connect a circuit to the ground d. To provide additional safety 2. Which of the following components are essential in a 3-way switch circuit? a. Live wire, neutral wire, traveler wires b. Live wire, ground wire, fuse c. Neutral wire, breaker, fuse d. Ground wire, load, resistor

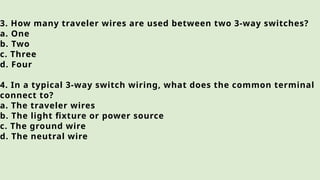

- 10. 3. How many traveler wires are used between two 3-way switches? a. One b. Two c. Three d. Four 4. In a typical 3-way switch wiring, what does the common terminal connect to? a. The traveler wires b. The light fixture or power source c. The ground wire d. The neutral wire
- 11. 5. What is the role of the traveler wires in a 3-way switch circuit? a. To supply power to the light fixture b. To connect the two switches and allow control from either location c. To provide a direct connection to the ground d. To act as a backup for the common wire
- 12. 1. b. To control a single light or load from two different locations 2. a. Live wire, neutral wire, traveler wires 3. b. Two 4. b. The light fixture or power source 5. b. To connect the two switches and allow control from either location ANSWERS KEY
- 13. Study about Electrical Diagrams and its different types. ASSIGNMENT:
