8086 arch instns

 1) 8086 has 16-bit ALU; this means 16-bit
numbers are directly processed by 8086.
 2) It has 16-bit data bus, so it can read data
or write data to memory or I/O ports either 16
bits or 8 bits at a time.
 3) It has 20 address lines, so it can address
up to 220
i.e. 1048576 = 1Mbytes of memory
(words i.e. 16 bit numbers are stored in
consecutive memory locations). Due to the
1Mbytes memory size multiprogramming is
made feasible as well as several
multiprogramming features have been
incorporated in 8086 design.

 4) 8086 includes few features, which enhance
multiprocessing capability (it can be used with
math coprocessors like 8087, I/O processor 8089
etc.
 5) Operates on +5v supply and single phase
(single line) clock frequency.(Clock is generated
by separate peripheral chip 8284).
 6) 8086 comes with different versions. 8086 runs
at 5 MHz, 8086-2 runs at 8 MHz, 8086-1 runs at
10 MHz.
 7) It comes in 40-pin configuration with HMOS
technology having around 20,000 transistors in its
circuitry.

 8) It has multiplexed address and data
bus like 8085 due to which the pin count
is reduced considerably
 9) Higher Throughput (Speed)(This is
achieved by a concept called pipelining)
 But the concept of 8086’s principles and
structures is very useful for understanding
other advanced Intel microprocessors

 Fetching the next instruction while current
instruction is under execution is called pipelining.
 What happens to queue when jump or call
instruction is executed ?
 When 8086 is reset the contents of IP are 0000 H
and contents of CS are FFFF H. Other registers
are cleared to 0000 h.

 Allow the memory capacity to be 1Mb even though the
addresses associated with the individual instructions
are only 16 bits wide.
 Facilitate the use of separate memory areas for the
program, its data and the stack.
 Permit a program and/or its data to be put into different
areas of memory each time the program is executed.
 Multitasking becomes easy.

The 20-bit Physical address is often represented as:
Segment Base : Offset OR CS : IP
CS 3 4 8 0 0 Implied Zero (from shft Left)
+IP 1 2 3 4
-----------------------
3 5 A3 4 H

 X X X X OF DF IF TF SF ZF X AF X PF X
CF
8085 Compatible Flags
 6 Conditional Flags and 3 Control Flags.
 DF = Directional Flag:
 autoincremends when ‘0’ and
 autodecrements when ‘1’.

 A] Data Category B] Branch Category
 A] Data Category
 1) Immediate Addressing
 2) Direct Addressing
( Segment Override prefix)
 3) Register Addressing
 4) Register Indirect Addressing

 5) Register Relative addressing
 6) Base Index addressing
 7) Relative Base Index addressing
B] Branch Category :
 1) Intrasegment Direct
 2) Intersegment Indirect
 3) Intrasegment Direct
 4) Intersegment Indirect

 Classified into 7 categories:
 1] Data Transfer
 2] Arithmetic
 3] Logical
 4] Control
 5]Processor Control Instructions
 6] String Manipulation
 7] Interrupt Control

 Note : Data Transfer Instructions do not affect any flags
 1] MOV dest, src
 Note that source and destination cannot be memory location.
Also source and destination must be same type.
 2] PUSH Src: Copies word on stack.
 3] POP dest: Copies word from stack into dest. Reg.
 4] IN acc, port : Copies 8 or 16 bit data from port to
accumulator.
 a) Fixed Port
 b) Variable Port
 5] OUT port, acc

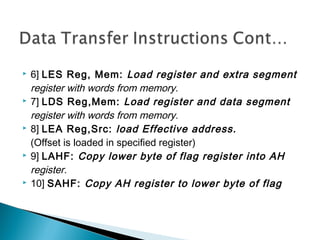

 6] LES Reg, Mem: Load register and extra segment
register with words from memory.
 7] LDS Reg,Mem: Load register and data segment
register with words from memory.
 8] LEA Reg,Src: load Effective address.
(Offset is loaded in specified register)
 9] LAHF: Copy lower byte of flag register into AH
register.
 10] SAHF: Copy AH register to lower byte of flag

 11] XCHG dest, src: Exchange contents of
source and destination.
 12] XLAT: Translate a byte in AL.
This instruction replaces the byte in AL with byte
pointed by BX.To point desired byte in look up
table instruction adds contains of BX with AL
( BX+ AL). Goes to this location and loads into AL.

 1]ADD dest,src
 2] ADC dest,src: Add with carry
 3] AAA : ASCII adjust after addition.
We can add two ASCII numbers directly and use
AAA after addition so as to get result directly in
BCD. (Works with AL only)
 4] DAA : Decimal adjust accumulator.
( Works with AL only)

 5] SUB dest, src
 6] SBB dest, src: Subtract with borrow.
 7] AAS: ASCII adjust for subtraction
( same as AAA and works with AL only)
 8] DAS : Decimal adjust after Subtraction.
( works with AL only)
 9] MUL src
 10 ] IMUL src: Multiplication of signed byte.

 11] AAM: BCD adjust after multiply.
(works with AL only)
 12]DIV src
If any one attempts to divide by 0 , then ?
 13] IDIV: Division of signed numbers
 14]AAD: BCD to Binary convert before
Division.
 15] DEC dest

 16] INC dest
 17] CWD: Convert signed word to signed
double word.
 18] CBW : Convert signed byte to signed
word.
(CBW and CWD works only with AL, AX and DX)
 19] NEG dest: Forms 2’s complement.

 1] AND dest, src
 2] NOT dest: Invert each bit in destination
 3] OR dest, src
 4] XOR dest, src
 5] RCL dest, count : Rotate left through Carry
Rotate as many times as directly specified in the instruction. For
more no.of rotations, count can be specified in CL register.
 6] RCR dest, count : Rotate right through carry
 7] ROL dest, count : Rotate left ( into carry as well as
into LSB)
 8] ROR dest, Count : Rotate left ( into carry as well as
into MSB)

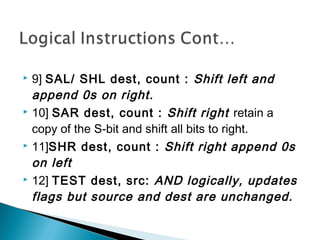

 9] SAL/ SHL dest, count : Shift left and
append 0s on right.
 10] SAR dest, count : Shift right retain a
copy of the S-bit and shift all bits to right.
 11]SHR dest, count : Shift right append 0s
on left
 12] TEST dest, src: AND logically, updates
flags but source and dest are unchanged.

 13] CMP dest, src
 CF, ZF and SF are used
Ex. CMP CX,BX
CF ZF SF
 CX = BX 0 1 0
 CX> BX 0 0 0
 CX<BX 1 0 1

 1]CALL : Call a procedure
Two types of calls:
i) Near Call ( Intrasegment)
ii) Far Call ( Intersegment)
 2] RET : Return execution from procedure
 3] JMP : Unconditional Jump to specified
destination. Two types near and Far

 4] JA / JNBE: Jump if above / Jump if not
below
The terms above and below are used when we refer
to the magnitude of Unsigned number .
Used normally after CMP.
 5] JAE / JNB / JNC
 6] JB / JC / JNAE
 7] JBE / JNA
 8] JE/ JZ

 9] JCXZ: Jump if CX is Zero.
 10] JG / JNLE: Jump if Greater /Jump if
NOT less than or equal.
The term greater than or less than is used in
connection with two signed numbers.
 11] JGE / JNL:
 12] JL / JNGE :
 13] JLE / JNG :
 14]JNE / JNZ :

 15] JNO : Jump if no overflow
 16] JNS : Jump if no sign
 17] JS
 18] JO
 19] JNP / JPO
 20] JP / JPE
In all above conditional instructions the destination
of jump is in the range of -128 to + 127 bytes from
the address after jump.

 21] LOOP: Loop to the specified label if CX is
not equal to Zero.
The count is loaded in CX reg. Every time LOOP is
executed, CX is automatically decremented - used in
delay programs
 22] LOOPE/ LOOPZ: Loop while CX is not equal
to zero and ZF = 1.
 23] LOOPNE / LOOPNZ: Loop while CX not
equal to zero and ZF = 0.
In all above LOOP instructions the destination of jump is
in the range of -128 to + 127 bytes from the address after
LOOP.

 1] CLC: Clear Carry flag.
 2] STC :Set carry Flag
 3] CMC :Complement Carry Flag
 4] CLD: Clear Direction Flag.
 5] STD: Set Direction Flag
 6] CLI :Clear Interrupt Flag.
 7] STI : Set Interrupt Flag.
 8] HLT: Halt Processing.

 9] NOP : No Operation
 10] ESC: Escape
Executed by Co-processors and actions are
performed according to 6 bit coding in the
instruction.
 11] LOCK : Assert bus lock Signal
This is a prefix instruction.
 12] WAIT :Wait for test or Interrupt Signal.
Assert wait states.

 1] MOVS/ MOVSB/ MOVSW
Dest string name,src string name
This instn moves data byte or word from location
in DS to location in ES.
 2] REP / REPE / REPZ / REPNE / REPNZ
Repeat string instructions until specified
conditions exist.
This is prefix a instruction.

 3] CMPS / CMPSB / CMPSW
Compare string bytes or string words.
 4] SCAS / SCASB / SCASW
Scan a string byte or string word.
Compares byte in AL or word in AX. String address is to be loaded in DI.
 5] STOS / STOSB / STOSW
Store byte or word in a string.
Copies a byte or word in AL or AX to memory location pointed by DI.
 6] LODS / LODSB /LODSW
Load a byte or word in AL or AX
 Copies byte or word from memory location pointed by SI into AL or
AX register.

 1]INT type
 2] INTO Interrupt on overflow
 3] IRET Interrupt return

 1] ASSUME
Used to tell assembler the name of logical segment.
Ex. ASSUME CS: Code here
 2] END
 3] DB
 4] DW
 5] DD Define Double Word
 6] DQ Define Quad Word
 7] DT Define Ten Bytes

 8] PROC Procedure
PROC DELAY NEAR
 9] ENDP
 10] ENDS
 11] EQU
 12] EVEN: Align on even memory address.
 13] ORG
 14] OFFSET
Ex: MOV BX, Offset of Data Here
 15] PTR Pointer

 16] LABEL
Ex: AGAIN LABEL FAR
 17] EXTRN
Tells the assembler that the names or labels
following this directive is in some other assembly
module.
 18] PUBLIC
Links modules together

 19] INCLUDE
Include source code from file.
 20] NAME
To give specific name to module.
 21] GROUP
Grouping of logical segments.
 22] SEGMENT
 23] SHORT
Operator that tells assembler about short displacement.
 24] TYPE
Type of variable whether byte or word.
