A privacy learning objects identity system for smartphones based on a virtual learning environment database

International Journal of Computer Science & Information Technology (IJCSIT) Vol 5, No 5, October 2013

A PRIVACY - LEARNING OBJECTS IDENTITY SYSTEM
FOR SMARTPHONES BASED ON A VIRTUAL
LEARNING ENVIRONMENT DATABASE
LeThanhHieu*#, JinHai*, DeQingZou *,WangDaiBin*
*Cluster Grid Computing Laboratory (CGCL)
Computer Science Department, HuaZhong University of Science and Technology
Address 1037 Luoyu Road, Wuhan, China
#Hue University's college of Education
Address: 32 Le Loi, Hue city, Viet Nam

ABSTRACT
Smartphones are widely used today, with many features such as GPS map navigation, capturing
photos with camera equipment such as digital camera, internet connection via wifi or 3G devices that
function as computers. These devices are being used for various purposes including online learning, where
learners can study from anywhere and anytime for example in the street, home, office and school. However,
identifing a method by which teachers in these virtural environements can remember their learners “faces”
in the classroom or manage "Identification Number Student" (ID student or user) is not reliable when the
teacher cannot see all of the learners in the class or know who is online from a particular account. In this
paper, we propose a system, Android Virtual Learner Identify (AVLI), which collects images captured by
the face of the learning object directly from the camera, the location of the learner by identifing where the
learner is studying and configuration of information including Time, Mac, IP addresses, IMEI number and
location via GPS. The systen then saves learner profiles to help the teacher or education managers on the
Virtual Learning Environment (VLE) identify learning object. We used the VLE that we built on
mobile.ona.vn domain. We implemented the AVLI prototype Android phone with solution password
encryption and images taken directly from the camera to ensure that the information is transmitted and
stored securely in the Virtual Learning Environment System Database (VLE Data) of learning objects while
preserving the ability to identify learning objects by a teacher or education manager.
In addition, we solve the problem of image size on a smartphone device by compressing images.
We demonstrate our solution which is secure enough to prevent fraud of the learner as well as the
transmission of data from the client device to the server with three layers of protection by taking images
directly from the camera, converting images from string and encoding them before transmission.

KEYWORDS
Privaxy, security Mlearning, learning management system, Virtual Learning Environment System

1. INTRODUCTION
With the development of technology, smartphones have become increasingly popular. They offer
"all in one," which goes beyond the features of traditional telephony. Its features include phone,
calendar, games, and address management, where users can browse the web using internet
connectivity through General Packet Radio Service (GPRS), Data network cards or connect
phone service form (sim card) allows users to read email, view photos, and use video
DOI : 10.5121/ijcsit.2013.5508

117


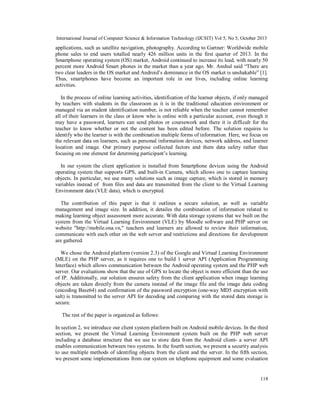

applications, such as satellite navigation, photography. According to Gartner: Worldwide mobile
phone sales to end users totalled nearly 426 million units in the first quarter of 2013. In the
Smartphone operating system (OS) market, Android continued to increase its lead, with nearly 50
percent more Android Smart phones in the market than a year ago. Mr. Anshul said “There are
two clear leaders in the OS market and Android’s dominance in the OS market is unshakable” [1].
Thus, smartphones have become an important role in our lives, including online learning
activities.
In the process of online learning activities, identification of the learner objects, if only managed
by teachers with students in the classroom as it is in the traditional education environment or
managed via an student identification number, is not reliable when the teacher cannot remember
all of their learners in the class or know who is online with a particular account, even though it
may have a password, learners can send photos or coursework and there it is difficult for the
teacher to know whether or not the content has been edited before. The solution requires to
identify who the learner is with the combination multiple forms of information. Here, we focus on
the relevant data on learners, such as personal information devices, network address, and learner
location and image. Our primary purpose collected factors and them data safety rather than
focusing on one element for determing participant’s learning.
In our system the client application is installed from Smartphone devices using the Android
operating system that supports GPS, and built-in Camera, which allows one to capture learning
objects. In particular, we use many solutions such as image capture, which is stored in memory
variables instead of from files and data are transmitted from the client to the Virtual Learning
Environment data (VLE data), which is encrypted.
The contribution of this paper is that it outlines a secure solution, as well as variable
management and image size. In addition, it detailes the combination of information related to
making learning object assessment more accurate. With data storage systems that we built on the
system from the Virtual Learning Environment (VLE) by Moodle software and PHP server on
website "http://mobile.ona.vn," teachers and learners are allowed to review their information,
communicate with each other on the web server and restrictions and directions for development
are gathered.
We chose the Android platform (version 2.3) of the Google and Virtual Learning Environment
(MLE) on the PHP server, as it requires one to build 1 server API (Application Programming
Interface) which allows communication between the Android operating system and the PHP web
server. Our evaluations show that the use of GPS to locate the object is more efficient than the use
of IP. Additionally, our solution ensures safety from the client application when image learning
objects are taken directly from the camera instead of the image file and the image data coding
(encoding Base64) and confirmation of the password encryption (one-way MD5 encryption with
salt) is transmitted to the server API for decoding and comparing with the stored data storage is
secure.
The rest of the paper is organized as follows:
In section 2, we introduce our client system platform built on Android mobile devices. In the third
section, we present the Virtual Learning Environment system built on the PHP web server
including a database structure that we use to store data from the Android client- a server API
enables communication between two systems. In the fourth section, we present a security analysis
to use multiple methods of identifing objects from the client and the server. In the fifth section,
we present some implementations from our system on telephone equipment and some evaluation

118


regarding image size and time when its data is transmitted to our system. Finally, we present
conclusions and future work.

2. A NDROID CLIENT
Our client system is built on a Android mobile platform device. Figure 1 shows the
workflow of AVLI when it is executed on a mobile device.
Object
Course
Module
Object
Module

Key
Mannagement
Module

Other
Application

Get
Imfomation
Module

Kernel services and Hardware interfaces

Figure 1. AVLI Client runs on Smartphone

The AVLI system includes three modules: the first module certification object participated
(based on user and password), and the second module to acquire images directly from the camera.
Both modules are encrypted, including the first module which is encrypted using the MD5
encryption method (one-way encryption) combined with the salt [4], the second module is
encrypted with the Base64 method. The third module gathers other information to clarify the
object, as follows:

2.1. Login Object Course Module:(Figure 2)
Course Database is stored in table "user" and includes "user" and "password" information. This
module is implemented by the client to input "user" and "password." After that, the password will
be encrypted (MD5 encrypted + salt) before it is sent from the client to the server API to compare
with values stored in the table "user" on the VLE system.

Figure 2. Object Course Checking

We use the MD5 hash function of the Java language to establish a one-way encryption to
provide the security of password and combine "salt" to increase difficulty of cracking. This
solution is synchronized from the client and server.

119


2.2. Object Image module:
The teacher or education manager of the Virtual Learning Environment System Database (VLE
Data) create the properties that the AVLI system would like to store, such as: picture, GPS
(Latitude, Longitude), network (IP and MAC), Config of mobile: IMEI. Its structure is described
in Figure 3:

Figure 3. Object Picture module

2.3. Image Encryption Method:
Base64 is a group of similar binary-to-text encoding schemes that represent binary
data in an ASCII string format by translating it into a radix-64 representation. Base64 is
commonly used in a number of applications including email via MIME, and storing
complex data in XML [2].
We use the Base64 method to encode and decode. Base64 class is held as follows (see
Figure 4):

Figure 4. Upload picture from Android to Server PHP

2.4. Get Information module:
This module will take the MAC address, IP address of the device access and configuration
devices "IMEI" (International Mobile Station Equipment Identity). The IMEI number is used by
a GSM network to identify valid devices and therefore can be used for stopping a stolen phone
from accessing that network, it alos includes information on the origin, model, and serial number
of the device [3].

120


3. V IRTUAL LEARNING ENVIRONMENT
Moodle is a Course Management System (CMS), also known as a Learning Management
System (LMS) or a Virtual Learning Environment (VLE) [5]. It is a free web application that
educators can use to create effective online learning sites. We have built a Host and Domain
"mobile.ona.vn." It allows us to create online learning environments with configurations as
follows: model 1.9 (software), PHP 4.3.0 (language), and MySQL 4.1.16 (database). In which, we
build a course "Android Virtual Learning Identification" with a Virtual Learning Environment
System Database (VLE Data) and "Proof and identify learners Database" to store the value
obtained from AVLI system.

Figure 5. A course on mobile.ona.vn

3.1. AVLI system:
3.1.1. Structure (Figure 6):

Figure 6. Communication between Client and Virtual Learning Environment Database

3.1.2. The server API module is written in PHP language in our system on "mobile.ona.vn"
website. It allows for the receiving of encrypted string data to decrypt and to be stored in an
mysql database or directory. The algorithm is as follows:
a. Server API access mysql database:
POST (data); //gets the data from client
Mysql_select_db(database); //access database
Mysql_query(table); // query command
-Update (field); //saves data from client to database on server
-Select (field); //find data
-Get filed send to client
b. Server API saves an image from the camera
POST (data); //gets the data from client
Mysql_select_db(database); //access database
Mysql_query(table); // query command
-Select (field); //find a folder to save the image
-Save the file: fopen(), fwrite(), fclose();
121

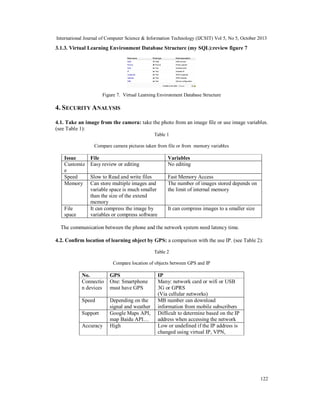

3.1.3. Virtual Learning Environment Database Structure (my SQL):review figure 7

Figure 7. Virtual Learning Environment Database Structure

4. SECURITY A NALYSIS
4.1. Take an image from the camera: take the photo from an image file or use image variables.
(see Table 1):
Table 1
Compare camera pictures taken from file or from memory variables

Issue
Customiz
e
Speed
Memory

File
space

File
Easy review or editing

Variables
No editing

Slow to Read and write files
Can store multiple images and
variable space is much smaller
than the size of the extend
memory
It can compress the image by
variables or compress software

Fast Memory Access
The number of images stored depends on
the limit of internal memory

It can compress images to a smaller size

The communication between the phone and the network system need latency time.
4.2. Confirm location of learning object by GPS: a comparison with the use IP. (see Table 2):
Table 2
Compare location of objects between GPS and IP

No.
Connectio
n devices

GPS
One: Smartphone
must have GPS

Speed

Depending on the
signal and weather
Google Maps API,
map Baidu API…
High

Support
Accuracy

IP
Many: network card or wifi or USB
3G or GPRS
(Via cellular networks)
MB number can download
information from mobile subscribers
Difficult to determine based on the IP
address when accessing the network
Low or undefined if the IP address is
changed using virtual IP, VPN,

122


4.3. Security evaluation of encryption methods includes: encode MD5+salt and encode
Base64.
4.3.1. Encode password by "MD5+salt" method: this is a one-way encryption, it
allows for encryption but not decryption. Thus, when only the password is raised, the new
password is changed instead of bowing to find the password. In addition, "Salt" combined with
MD5 encryption makes the system more secure[4].
4.3.2. Encode by the Base64 bit method: Base64 encoding schemes are commonly used
when there is a need to encode binary data that needs to be stored and transferred over media that
are designed to deal with textual data. It is suitable for using encryption to image and text data
such as GPS, IP, and MAC in the AVLI system.

5. IMPLEMENTATION AND EVALUATION
As Android is the most popular mobile OS, we implement a prototype of AVLI on Lenovo
P70, supported by Android 2.3 Gingerbread, 512MB of RAM. The system hosting the
experiments was host domain: mobile.ona.vn and it was installed on Moodle software. It was
connected to the Internet with wifi. We programmed AVLI in java using Eclipse IDE with an
Android SDK, developed the software on an Android emulator and ran it on a real phone. Figure
8 shows the modules of the AVLI implementation.

Figure 8. Android Virtual Learner Identify System

We obtain location data from Lenovo P70 with values: longitude: 114.40672, latitude:
30.517261666666666 and called upon Google Maps to display the point of the learner in
maps (Figure 9). In the future, we will embed Google Maps API in the Android system to
track learners and their coordinates for more intuition [15,16,17].

Figure 9. Virtual Learning Environment Database Structure

Device configuration information such as: time, date and IP address that learners are able
to access via the school's network or not during school hours or outside school hours. In addition,
some software uses GPS and IMEI which not only allows one to identify the owner of the phone
device being accessed, or check some information about the device [6], but also allows one to
search the missing device [7].

123


An image is saved as a folder with its structure as a number. That number is a stored
value
corresponding
with
table.ID
in
the
database.
Figure
10,
folder:
mobile.ona.vn/data/4/moddata/9/22/15 is the position of an image [10]: mdl_course.id=4 (No.
course), mdl_data.id=9 (name database), mdl_data_fields.id=22 (No. image field) and
mdl_data_records.id=15 (No. user). We use PHPMyAdmin to review database structure.[11]

Figure 10. Folder Structure to save the image

For effectiveness of the compressed image, data transmitted from the AVLI system before the
image is uploaded onto the Database’s Virtual Learning Environment (VLE Data), we use
System.currentTimeMillis(); [8] function to get the time and bitmap.compress
(Bitmap.CompressFormat.PNG,% compression, stream); [9] function to select the image
compression rate, the following results in table 3:
Table 3
Compare the image compression rate with time to upload them

% Compression
100
90
80
70
60
50
40
30
20
10

Time (milliseconds)
1143
1103
1089
1076
1057
1034
1021
1012
1007
965

From Table 3, we found that with the reduced compression rate, the image size will be smaller
and the transmission time will be faster. However, image quality is inversely proportional to the
reduced compression ratio and the quality of images captured is also determined by the camera.
We chose a compression rate of 90% for image upload and review; the system still recognized
the faces of the learner object.
The source code of AVLI system includes: 3983 lines java, 443 lines xml code, 100 lines PHP
code and the installation package size on an Android is 69 KB.

124


6. RELATED WORK
The Smartphone is a unique device with the following devices rolled into one: phone, PC,
networked device, audio/video capable of recording and playback, GPS enabled, live TV, gaming
device, accelerometer. Inputs to mobile could be through many interfaces including: keypad,
touch screen, camera (photo & video), barcode scanners, microphone voice, motion sensor, and
network input to GPS [12].
These features are integrated more on the computer, allowing learners to easily access course
content, as well as permission to use these functions to define learning objects which
outperformed the computer. But the issues with them are higher development cost and no cross
platform support. Thus, the learning application is tied down to one platform[13].
During the implementation process of our system, we had to install the application MLE
(Mobile Learning Engine) and Mono (Mobile Moodle) in website mobile.ona.vn. This project
was not supported in later versions of the Android and Java version and was configuration
dependent. In addition, support the development of client applications, but do not take advantage
of the existing infrastructure of the course’s teaching Virtualization Environment.
The organisational process we teach in this system also faced difficulties in identifying and
selecting a teaching object mobile platform after deciding on the Android platform as they are
widely used to solve the issue of the costs of Smart phones.
The integrity and identification of online learning also been mentioned in [14], : Ninety-six
percent (96%) of the respondents indicate their college requires learners to authenticate their
identity—using a unique username and password—to access their online course and user.id in
distance education are not secure. They take place in circumstances that include firm learner
identification such as: time limits, and sending emails to confirm receipt.

7. C ONCLUSIONS
We have built a virtual learning environment system (domain mobile.ona.cn) including
applications for mobile devices (AVLI system). The system uses the database to help teachers and
education managers to identify learning objects by collecting information about the object
properties. Such information includes: user location, IP address, image and time; the inclusion of
such elements would increase accuracy of user authentication.
Our proposed approach to safety in the process of communication between the phone devices
and the server, especially between the Android system and the PHP server is to use the password
encryption solution, and encryption images.
We present the design, implementation and security analysis and evaluation of the AVLI
system. Finally, we present the problem in the future development and management of our
system.

REFERENCES
[1] Gartner, (07/2013) “Says Asia/Pacific Led Worldwide Mobile Phone Sales to Growth in First Quarter
of 2013”.
[2] Wikipedia, (2013) “Base64”, https://en.wikipedia.org/wiki/Base64.
125

[3] Wikipedia,
(2013)
“International
Mobile
Station
Equipment
Identity
(IMEI)”,
http://en.wikipedia.org/wiki/International_Mobile_Station_Equipment_Identity.
[4] Viral Patel, (06/08/2012) “Java MD5 Hashing & Salting: Secure Your Passwords”,
http://viralpatel.net/blogs/java-md5-hashing-salting-password/.
[5] Moodle, (2013) https://moodle.org/?lang=vi,.
[6] Website checks regarding information about the device: (07/2013) “IMEI” from
http://www.imei.info/, http://www.numberingplans.com/.
[7] ZhaoKao, JinHai, DeQingZou,WangDaiBin, , (2012) “A Privacy-Preserving Location Tracking
System for Smartphones Based on Cloud Storage”, Mobicom13, p.234.
[8] (07/2013)
“AndroidAPIs,java.lang.System »,
http://developer.android.com/reference
/java/lang/System.html#currentTimeMillis() , 07/2013.
[9] AndroidAPIs,
(07/2013)
“
android.graphics.Bitmap »,
http://developer.android.com/
reference/android/graphics/Bitmap.html#compress(android.graphics.Bitmap.CompressFormat,
int,
java.io. OutputStream), 2013.
[10] Sau Hi, (07/2013) “Learn how to use FTP by FileZilla”, www.youtube.com/watch?v=G9wCcq4bAgU
[11] ituplusdotcom, (07/2013) “Learn how to use PHPMyAdmin”, www.youtube.com/watch?v=J4PoclzoO8
[12] Amit
Garg,
(07/2013)
“How
To
Create
Successful
M-Learning
Strategy”,
http://www.upsidelearning.com/blog/index.php/2010/06/23/how-to-create-successful-m-learningstrategy-mlearncon-part-i/.
[13] Amar
Jadhav,
(03/2010)
“Tools
For
Mobile
Learning
Development”,
http://www.upsidelearning.com/blog/index.php/2010/03/21/tools-for-mobile-learning-development/.
[14] Mike Jortberg, (07/2013) “Mike.Jortberg@Acxiom.com, "Academic Integrity and Identity in Online
Learning", Midwest Blackboard User's Group (SLATE) Meeting at Lewis University.
[15] Wikipedia, (07/2013) “ Longitude”, http://en.wikipedia.org/wiki/Longitude, 07/2013.
[16] Wikipedia, (07/2013) “Latitude”, http://en.wikipedia.org/wiki/Latitude,.
[17] (07/2013)
“How
To
Convert
a
Decimal
to
Sexagesimal”,
http://geography.about.com/library/howto/htdegrees.htm.

Authors
Le Thanh Hieu was born in Hue city, VietNam, in 1976. He received the Diploma in
Informatics from Hue University's college of Education and became a lecturer in there
from 1998. He also holds a Master's of Computer science in School Information and
Communication Technology of the HaNoi University of Science and Technology.
Currently, Dr. Le Thanh Hieu is Ph.D student of Computer Science Department,
HuaZhong University of Science and Technology, Wuhan, China. His research
interests are in the fields of elearning and education management security and privacy.

126

A privacy learning objects identity system for smartphones based on a virtual learning environment database

More Related Content

What's hot (20)

Similar to A privacy learning objects identity system for smartphones based on a virtual learning environment database (20)

Recently uploaded (20)

A privacy learning objects identity system for smartphones based on a virtual learning environment database
