Actionview

In
RAILS
By,
Amal Subhash
AssociateSoftwareEngineer,
PIT Solutions,
Technopark,
Trivandrum.
Date: 12-06-2015
Action View

What is Action View?
Action View and Action Controller are the two
major components of Action Pack.

In Rails, web requests are handled by Action
Pack, which splits the work into a controller
part (performing the logic) and a view part
(rendering a template).

Typically, Action Controller will be concerned
with communicating with the database and

Using Action View with Rails
For each controller there is an associated directory
in the app/views directory which holds the
template files that make up the views associated
with that controller.
These files are used to display the view that results
from each controller action.

Example of view in scaffold
generator :
$ bin/rails generate scaffold article

[...]

invoke scaffold_controller

create
app/controllers/articles_controller.r
b

invoke erb

create app/views/articles

There is a naming convention for views in
Rails. Typically, the views share their
name with the associated controller action,
as you can see above.
For example, the index controller action of
the articles_controller.rb will use the
index.html.erb view file in the
app/views/articles directory.
The complete HTML returned to the client is
composed of a combination of this ERB
file, a layout template that wraps it, and all
the partials that the view may reference

Templates, Partials and
Layouts
Templates
Action View templates can be written in
several ways. If the template file has a .erb
extension then it uses a mixture of ERB
(Embedded Ruby) and HTML. If the template
file has a .builder extension then the
Builder::XmlMarkup library is used.

ERB
Within an ERB template, Ruby code can be
included using both <% %> and <%= %>
tags. The <% %> tags are used to execute
Ruby code that does not return anything,
such as conditions, loops or blocks, and
the <%= %> tags are used when you want
output.
Consider the following loop for names:

Builder
Builder templates are a more programmatic
alternative to ERB. They are especially
useful for generating XML content. An
XmlMarkup object named xml is
automatically made available to templates
with a .builder extension.
Here are some basic examples:
xml.em("emphasized")

Partials
Partial templates - usually just called "partials" - are
another device for breaking the rendering process
into more manageable chunks. With partials, you
can extract pieces of code from your templates to
separate files and also reuse them throughout your
templates.

Naming Partials
To render a partial as part of a view, you use
the render method within the view:
<%= render "menu" %>
This will render a file named _menu.html.erb
at that point within the view that is being
rendered. Note the leading underscore
character: partials are named with a leading
underscore to distinguish them from regular
views, even though they are referred to
without the underscore. This holds true even
when you're pulling in a partial from another

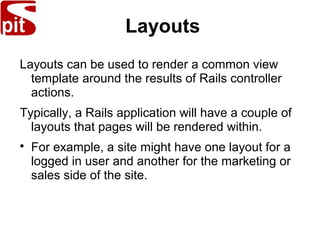

Layouts
Layouts can be used to render a common view
template around the results of Rails controller
actions.
Typically, a Rails application will have a couple of
layouts that pages will be rendered within.

For example, a site might have one layout for a
logged in user and another for the marketing or
sales side of the site.

Partial Layouts
Partials can have their own layouts applied to
them. These layouts are different from those
applied to a controller action, but they work in
a similar fashion.
Let's say we're displaying an article on a page
which should be wrapped in a div for display
purposes. Firstly, we'll create a new Article:
Article.create(body: 'Partial Layouts are cool!')
In the show template, we'll render the _article
partial wrapped in the box layout:

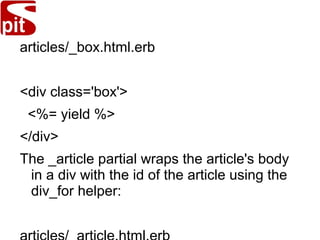

articles/_box.html.erb
<div class='box'>
<%= yield %>
</div>
The _article partial wraps the article's body
in a div with the id of the article using the
div_for helper:

this would output the following:
<div class='box'>
<div id='article_1'>
<p>Partial Layouts are cool!</p>
</div>
</div>

Overview of helpers
provided by Action View

RecordTagHelper
This module provides methods for
generating container tags, such as div, for
your record. This is the recommended way
of creating a container for render your
Active Record object, as it adds an
appropriate class and id attributes to that
container. You can then refer to those
containers easily by following the

content_tag_for
Renders a container tag that relates to your
Active Record Object.
For example, given @article is the object of
Article class, you can do:
<%= content_tag_for(:tr, @article) do %>

This will generate this HTML output:
<tr id="article_1234" class="article">
<td>Hello World!</td>
</tr>

div_for
This is actually a convenient method which
calls content_tag_for internally with :div as
the tag name. You can pass either an
Active Record object or a collection of
objects. For example:
<%= div_for(@article, class: "frontpage") do
%>

AssetTagHelper
This module provides methods for generating
HTML that links views to assets such as
images, JavaScript files, stylesheets, and
feeds.
By default, Rails links to these assets on the
current host in the public folder, but you can
direct Rails to link to assets from a
dedicated assets server by setting
config.action_controller.asset_host in the

register_javascript_expansion
Register one or more JavaScript files to be
included when symbol is passed to
javascript_include_tag. This method is
typically intended to be called from plugin
initialization to register JavaScript files that
the plugin installed in
vendor/assets/javascripts.
ActionView::Helpers::AssetTagHelper.regist

register_stylesheet_expansion
Register one or more stylesheet files to be
included when symbol is passed to
stylesheet_link_tag. This method is typically
intended to be called from plugin
initialization to register stylesheet files that
the plugin installed in
vendor/assets/stylesheets.
ActionView::Helpers::AssetTagHelper.register
_stylesheet_expansion monkey: ["head",

auto_discovery_link_tag
Returns a link tag that browsers and feed
readers can use to auto-detect an RSS or
Atom feed.
auto_discovery_link_tag(:rss,
"http://www.example.com/feed.rss", {title:
"RSS Feed"}) # =>
<link rel="alternate"

Image_path
Computes the path to an image asset in the
app/assets/images directory. Full paths from
the document root will be passed through.
Used internally by image_tag to build the
image path.
image_path("edit.png") # => /assets/edit.png

image_url
Computes the url to an image asset in the
app/assets/images directory. This will call
image_path internally and merge with your
current host or your asset host.
image_url("edit.png") # =>
http://www.example.com/assets/edit.png

javascript_include_tag
Returns an HTML script tag for each of the
sources provided. You can pass in the
filename (.js extension is optional) of
JavaScript files that exist in your
app/assets/javascripts directory for
inclusion into the current page or you can
pass the full path relative to your document
root.
javascript_include_tag "common" # =>
<script src="/assets/common.js"></script>

javascript_path
Computes the path to a JavaScript asset in
the app/assets/javascripts directory. If the
source filename has no extension, .js will be
appended. Full paths from the document
root will be passed through. Used internally
by javascript_include_tag to build the script
path.

stylesheet_link_tag
Returns a stylesheet link tag for the sources
specified as arguments. If you don't specify
an extension, .css will be appended
automatically.
stylesheet_link_tag "application" # => <link
href="/assets/application.css"
media="screen" rel="stylesheet" />

stylesheet_path
Computes the path to a stylesheet asset in the
app/assets/stylesheets directory. If the
source filename has no extension, .css will
be appended. Full paths from the document
root will be passed through. Used internally
by stylesheet_link_tag to build the stylesheet
path.
stylesheet_path "application" # =>
/assets/application.css

DateHelper
date_select
Returns a set of select tags (one for year,
month, and day) pre-selected for
accessing a specified date-based attribute.
date_select("article", "published_on")
datetime_select
Returns a set of select tags (one for year,
month, day, hour, and minute) pre-
selected for accessing a specified

distance_of_time_in_words
Reports the approximate distance in time
between two Time or Date objects or integers
as seconds. Set include_seconds to true if
you want more detailed approximations.
distance_of_time_in_words(Time.now,
Time.now + 15.seconds) # => less than a
minute
distance_of_time_in_words(Time.now,
Time.now + 15.seconds, include_seconds:
true) # => less than 20 seconds

select_datetime
Returns a set of HTML select-tags (one for year,
month, day, hour, and minute) pre-selected
with the datetime provided.
# Generates a datetime select that defaults to the
datetime provided (four days after today)
select_datetime(Time.now + 4.days)
# Generates a datetime select that defaults to
today (no specified datetime)


select_hour

select_minute

select_month

select_second

select_time

select_year

time_ago_in_words

time_select

FormHelper
Form helpers are designed to make
working with models much easier
compared to using just standard HTML
elements by providing a set of methods for
creating forms based on your models.
This helper generates the HTML for forms,
providing a method for each sort of input
(e.g., text, password, select, and so on).

form_for, gives you the ability to create a
form for a model instance; for example,
let's say that you have a model Person
and want to create a new instance of it:
<%= form_for @person, url: {action:
"create"} do |f| %>
<%= f.text_field :first_name %>
<%= f.text_field :last_name %>
<%= submit_tag 'Create' %>
<% end %>
The HTML generated for this would be:

The params object created when this form is
submitted would look like:
{"action" => "create", "controller" => "people",
"person" => {"first_name" => "William",
"last_name" => "Smith"}}
Check_box
Returns a checkbox tag tailored for
accessing a specified attribute.

file_field
Returns a file upload input tag tailored for
file_field(:user, :avatar)
# => <input type="file" id="user_avatar"
name="user[avatar]" />
form_for
Creates a form and a scope around a
specific model object that is used as a base
for questioning about values for the fields.

hidden_field
Returns a hidden input tag tailored for
hidden_field(:user, :token)
# => <input type="hidden" id="user_token"
name="user[token]"
value="#{@user.token}" />
label
Returns a label tag tailored for labelling an

password_field
Returns an input tag of the "password" type
tailored for accessing a specified attribute.
password_field(:login, :pass)
# => <input type="text" id="login_pass"
name="login[pass]" value="#{@login.pass}"
/>
radio_button
Returns a radio button tag for accessing a
specified attribute.

text_field
Returns an input tag of the "text" type tailored
for accessing a specified attribute.
text_field(:article, :title)
# => <input type="text" id="article_title"
name="article[title]" value="#{@article.title}"
/>
email_field
Returns an input tag of the "email" type
tailored for accessing a specified attribute.

url_field
Returns an input tag of the "url" type tailored
for accessing a specified attribute.
url_field(:user, :url)
# => <input type="url" id="user_url"
name="user[url]" value="#{@user.url}" />
FormOptionsHelper
Provides a number of methods for turning
different kinds of containers into a set of
option tags.

Example object structure for use with this
method:
class Article < ActiveRecord::Base
belongs_to :author
end
class Author < ActiveRecord::Base
has_many :articles

collection_radio_buttons
collection_check_boxes
country_options_for_select
country_select
option_groups_from_collection_for_select
options_for_select
options_from_collection_for_select

Select
Create a select tag and a series of contained
option tags for the provided object and
method.
Example:
select("article", "person_id", Person.all.collect
{|p| [ p.name, p.id ] }, {include_blank: true})
If @article.person_id is 1, this would become:

time_zone_options_for_select
Returns a string of option tags for pretty
much any time zone in the world.
time_zone_select
Returns select and option tags for the given
object and method, using
time_zone_options_for_select to generate
the list of option tags.
time_zone_select( "user", "time_zone")

FormTagHelper
Provides a number of methods for creating
form tags that don't rely on an Active
Record object assigned to the template like
FormHelper does. Instead, you provide the
names and values manually.
check_box_tag
Creates a check box form input tag.

field_set_tag
file_field_tag
form_tag
hidden_field_tag
image_submit_tag
label_tag
password_field_tag
radio_button_tag
select_tag

JavaScriptHelper
Provides functionality for working with JavaScript in
your views.
NumberHelper
Provides methods for converting numbers into
formatted strings. Methods are provided for
phone numbers, currency, percentage, precision,
positional notation, and file size.

number_to_currency
number_to_human_size
number_to_percentage
number_to_phone
number_with_delimiter
number_with_precision

Actionview

More Related Content

What's hot (20)

Viewers also liked (13)

Similar to Actionview (20)

Recently uploaded (20)

Actionview
