Android Bluetooth Hacking Java Day2010 Eng
- 1. Bluetooth Hacking Stefano Sanna - JUG Sardegna Emanuele Di Saverio - JUG Roma Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 01/30/2010
- 2. Outline • Who we are • The relevance of Bluetooth on mobile devices • Android & Bluetooth: an unconsummated marriage • Happy hacking! • Bluetooth API for Android 1.x • Official API for Android 2.x • Demo: Android controls Arduino Bluetooth Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 3. Who we are • Stefano Sanna • Senior Solution Engineer Android @ beeweeb SpA • Author of the book “Java Micro Edition”, Hoepli (2007) • Main designer Bluetooth API for Android 1.x • Emanuele Di Saverio • Scrum Master and Senior Developer @ beeweeb SpA • SCMAD, SCJP • Committer easy-bluetooth spin-off for Android Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 4. Bluetooth on Android • early Android • Wrapper Java su Bluez • Android 0.9 • API Bluetooth disappears! • Android 1.x • No API for developers • Android 2.x • Exposes an API allowing discovery of remote devices, opening and accepting RFCOMM connections Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 5. The relevance of Bluetooth • Without a dedicated API is not possible to: • Discovery devices and services • Transfer files with Bluetooth FTP and OBEX • GPS connections, gamepads, medical devices • Remote control of embedded modules and sensor networks • Robotic application (i.e. LEGO Mindstorms) Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 6. A lot of devices out there... Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 7. Happy Hacking! Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 01/30/2010
- 8. System service & Reflection • Bluetooth Service is accessible like every other Android Service: Object bluetoothService = context.getSystemService(“bluetooth”); Having the right Class, we can leverage la reflection to know (and invoke!) the methods: Class bluetoothServiceClass = bluetoothService.class; Method[] bluetoothMethods = bluetoothServiceClass.getMethods(); Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 9. Available Methods public android.bluetooth.BluetoothDevice(android.bluetooth.IBluetoothDevice) public boolean android.bluetooth.BluetoothDevice.cancelBondProcess(java.lang.String) public void android.bluetooth.BluetoothDevice.cancelDiscovery() public boolean android.bluetooth.BluetoothDevice.cancelPin(java.lang.String) public boolean android.bluetooth.BluetoothDevice.createBond(java.lang.String) public boolean android.bluetooth.BluetoothDevice.disable() public boolean android.bluetooth.BluetoothDevice.disconnectRemoteDeviceAcl(java.lang.String) public boolean android.bluetooth.BluetoothDevice.enable() public java.lang.String android.bluetooth.BluetoothDevice.getAddress() public int android.bluetooth.BluetoothDevice.getBluetoothState() public int android.bluetooth.BluetoothDevice.getBondState(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getCompany() public int android.bluetooth.BluetoothDevice.getDiscoverableTimeout() public java.lang.String android.bluetooth.BluetoothDevice.getManufacturer() public java.lang.String android.bluetooth.BluetoothDevice.getName() public int android.bluetooth.BluetoothDevice.getRemoteClass(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getRemoteCompany(java.lang.String) public [B android.bluetooth.BluetoothDevice.getRemoteFeatures(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getRemoteManufacturer(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getRemoteName(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getRemoteRevision(java.lang.String) public boolean android.bluetooth.BluetoothDevice.getRemoteServiceChannel(java.lang.String,short,android.bluetoot h.IBluetoothDeviceCallback) Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 10. Available Methods public android.bluetooth.BluetoothDevice(android.bluetooth.IBluetoothDevice) public boolean android.bluetooth.BluetoothDevice.cancelBondProcess(java.lang.String) public void android.bluetooth.BluetoothDevice.cancelDiscovery() O X! public boolean android.bluetooth.BluetoothDevice.cancelPin(java.lang.String) public boolean android.bluetooth.BluetoothDevice.createBond(java.lang.String) O E public boolean android.bluetooth.BluetoothDevice.disable() public boolean android.bluetooth.BluetoothDevice.disconnectRemoteDeviceAcl(java.lang.String) T L public boolean android.bluetooth.BluetoothDevice.enable() public java.lang.String android.bluetooth.BluetoothDevice.getAddress() public int android.bluetooth.BluetoothDevice.getBluetoothState() public int android.bluetooth.BluetoothDevice.getBondState(java.lang.String) P public java.lang.String android.bluetooth.BluetoothDevice.getCompany() public int android.bluetooth.BluetoothDevice.getDiscoverableTimeout() M public java.lang.String android.bluetooth.BluetoothDevice.getManufacturer() public java.lang.String android.bluetooth.BluetoothDevice.getName() O public int android.bluetooth.BluetoothDevice.getRemoteClass(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getRemoteCompany(java.lang.String) public [B android.bluetooth.BluetoothDevice.getRemoteFeatures(java.lang.String) C public java.lang.String android.bluetooth.BluetoothDevice.getRemoteManufacturer(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getRemoteName(java.lang.String) public java.lang.String android.bluetooth.BluetoothDevice.getRemoteRevision(java.lang.String) public boolean android.bluetooth.BluetoothDevice.getRemoteServiceChannel(java.lang.String,short,android.bluetoot h.IBluetoothDeviceCallback) Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 11. Permission • First Step: to access Bluetooth functionalities we need to declare two Permissions in the Manifest: <uses-permission android:name="android.permission.BLUETOOTH" /> <uses-permission android:name="android.permission.BLUETOOTH_ADMIN" /> Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010

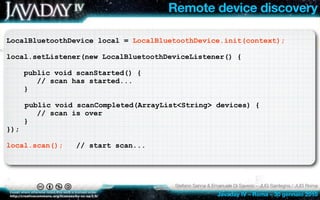

- 12. Remote device discovery LocalBluetoothDevice local = LocalBluetoothDevice.init(context); local.setListener(new LocalBluetoothDeviceListener() { public void scanStarted() { // scan has started... } public void scanCompleted(ArrayList<String> devices) { // scan is over } }); local.scan(); // start scan... Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 13. Open an RFCOMM socket from client RemoteBluetoothDevice dev = local.getRemoteBluetoothDevice(address); dev.setListener(new RemoteBluetoothDeviceListener() { public void paired() { // we open sockets and I/O streams... 3 BluetoothSocket socket = dev.openSocket(1); InputStream input = socket.getInputStream(); OutputStream output = socket.getOutputStream(); } public void pinRequested() { // show dialog for PIN input 2 } }); dev.pair(); 1 Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 14. Compatible devices • HTC Dream • HTC Magic • HTC Tattoo • Samsung Galaxy i7500 • Samsung Galaxy i5700 • Huawei U8220 • Sony-Ericsson XPERIA X10 Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 15. Bluetooth API for Android 1.x • The only opensource library (Apache 2.0) for accessing Bluetooth stack on Android 1.x • Features: • turn on/off Bluetooth • discovery of remote devices and RFCOMM bound to a service • opening of RFCOMM connections from client • Works without the necessity of root access • Check it out! • http://code.google.com/p/android-bluetooth Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 16. Bluetooth API for Android 1.x • More than 1000 downloads! • Used in commercial and free projects: • Inspired Bluetooth File Transfer by Medieval Software, the most succesful file transfer application on the Android Market • Used in Amarino (developed by MIT), first framework for controlling Arduino via an Android device • Used in GoPayment by Intuit Inc., for credit card payment via swiper and Bluetooth printer • Used in DUBwise project, for flying helicpoters :) Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 17. Main limitations • It’s not possible to register an SDP (Service Discovery Protocol) service on the database, even though is possible to create RFCOMM server socket • If a device inquiry is issue just after phone startup, the native call interferes with a system scan process and Bluetooth stack become unusable • Compatibility problems with HTC Hero Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 18. Permission on socket dbus Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 19. Android 2.x API • Android 2.0 : Bluetooth officially in the SDK! • Yay! But... • No direct control over pairing • No direct access to RFCOMM channels • No service discovery ...not so : • Android style: based on Intents and Receivers • Publish/Subscribe paradigm, a little clunky! Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 20. Discovery in Android 2.x BluetoothAdapter adapter = BluetoothAdapter.getDefaultAdapter(); IntentFilter filter = new IntentFilter(); filter.addAction(BluetoothDevice.ACTION_FOUND); filter.addAction(BluetoothAdapter.ACTION_DISCOVERY_FINISHED); //also can register for DISCOVERY_STARTED Action context.registerReceiver(receiver, filter); adapter.startDiscovery(); Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 21. BroadcastReceiver private final BroadcastReceiver receiver = new BroadcastReceiver() { public void onReceive(Context ctx, Intent intent) { final String action = intent.getAction(); if (action.equals(BluetoothDevice.ACTION_FOUND)) { BluetoothDevice device = (BluetoothDevice) intent.getParcelableExtra(BluetoothDevice.EXTRA_DEVICE); //process device } else if (action.equals(BluetoothAdapter.ACTION_DISCOVERY_FINISHED)) { //done :o) } } }; Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 22. Socket e stream I/O //given a valid “BluetoothDevice”... UUID uuidOfTargetService = UUID.nameUUIDFromBytes(“2d26618601fb47c28d9f10b8ec891363”); BluetoothSocket socket = rbd.createRfcommSocketToServiceRecord(uuidOfTargetService); socket.connect(); InputStream input = socket.getInputStream(); OutputStream output = socket.getOutputStream(); .... socket.close(); Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 23. Android good practices • It’s important to keep in mind good practices of Android (and Java) programming!: • I/O operations always in a separate Thread • update UI via Handler • unregister Receivers before destroying Context Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 24. Is a separate library still useful? • In spite of Android 2.0 API, a Bluetooth library would be greatly useful! • Access to hidden features (via reflection) • Expose a simpler API • 1.x vs 2.x abstraction Retrocompatibility! • ....working out Easy Bluetooth • Check it out: http://android-bluetooth.googlecode.com/svn/ Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010

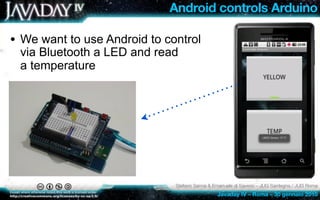

- 25. Android controls Arduino • We want to use Android to control via Bluetooth a LED and read a temperature Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 26. Arduino • “Arduino is an open-source electronics prototyping platform based on flexible, easy-to-use hardware and software. [...] It can sense the environment by receiving input from a variety of sensors and can affect its surroundings by controlling lights, motors, and other actuators. • Strictly MADE IN ITALY! • http://www.arduino.cc Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 27. Arduino Source int LED_PIN = 13; int LM35_PIN = 2; void setup() { Hardware: Serial.begin(115200); } pinMode(LED_PIN, OUTPUT); • Arduino Bluetooth • Prototype shield e breadboard void loop() { • LM35 Temperature Sensor if (Serial.available() > 0) { int inByte = Serial.read(); switch (inByte) { case '1': digitalWrite(LED_PIN, HIGH); Serial.write('1'); break; case '0': void readTemp() { digitalWrite(LED_PIN, LOW); int temp = analogRead(LM35_PIN); Serial.write('0'); temp= ( 5.0 * temp * 100.0) / 1024.0; break; Serial.write(temp); case 'r': } readTemp(); break; } } Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 28. Android Source // define commands... byte LED_ON_REQUEST = ‘1’; byte LED_OFF_REQUEST = ‘0’; byte READ_TEMPERATURE = ‘r’; [...] // in the Thread we send comandi and read responses... output.write(request); final int response = input.read(); if (request == 'r') { handler.post(new Runnable() { public void run() { String temp = Integer.toString(response); Toast.makeText(Controller.this, "LM35 Sensor: " + temp + "°C", 4000).show(); }); } Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010

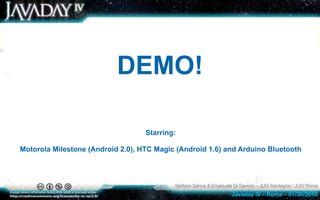

- 29. DEMO! Starring: Motorola Milestone (Android 2.0), HTC Magic (Android 1.6) and Arduino Bluetooth Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 01/30/2010

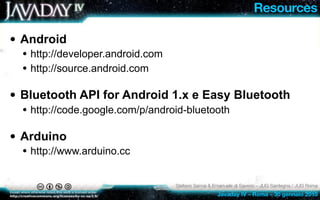

- 30. Resources • Android • http://developer.android.com • http://source.android.com • Bluetooth API for Android 1.x e Easy Bluetooth • http://code.google.com/p/android-bluetooth • Arduino • http://www.arduino.cc Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010

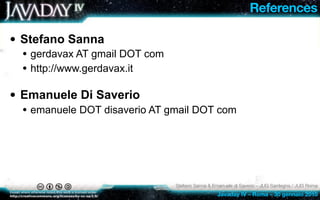

- 31. References • Stefano Sanna • gerdavax AT gmail DOT com • http://www.gerdavax.it • Emanuele Di Saverio • emanuele DOT disaverio AT gmail DOT com Stefano Sanna & Emanuele di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 30 gennaio 2010
- 32. THANK YOU! Stefano & Emanuele & i rispettivi JUG! Stefano Sanna & Emanuele Di Saverio – JUG Sardegna / JUG Roma Javaday IV – Roma – 01/30/2010
