Android debug bridge android developers

ADB quickview
Manage the state of an emulator or device
Run shell commands on a device
Manage port forwarding on an emulator or device
Copy files to/from an emulator or device
In this document
Issuing ADB Commands
Querying for Emulator/Device Instances
Directing Commands to a Specific Emulator/Device
Instance
Installing an Application
Forwarding Ports
Copying Files to or from an Emulator/Device Instance
Listing of adb Commands
Issuing Shell Commands
Enabling logcat Logging
Stopping the adb Server
See also
Emulator
Tools >
Android Debug Bridge
Android Debug Bridge (adb) is a versatile tool lets you
manage the state of an emulator instance or Android-powered
device. It is a client-server program that includes three
components:
A client, which runs on your development machine. You
can invoke a client from a shell by issuing an adb
command. Other Android tools such as the ADT plugin
and DDMS also create adb clients.
A server, which runs as a background process on your
development machine. The server manages
communication between the client and the adb daemon
running on an emulator or device.
A daemon, which runs as a background process on each
emulator or device instance.
You can find the adb tool in <sdk>/platform-tools/.
When you start an adb client, the client first checks whether
there is an adb server process already running. If there isn't,
it starts the server process. When the server starts, it binds to local TCP port 5037 and listens for commands sent from
adb clients—all adb clients use port 5037 to communicate with the adb server.
The server then sets up connections to all running emulator/device instances. It locates emulator/device instances by
scanning odd-numbered ports in the range 5555 to 5585, the range used by emulators/devices. Where the server finds an
adb daemon, it sets up a connection to that port. Note that each emulator/device instance acquires a pair of sequential
ports — an even-numbered port for console connections and an odd-numbered port for adb connections. For example:
Emulator 1, console: 5554
Emulator 1, adb: 5555
Emulator 2, console: 5556
Emulator 2, adb: 5557 ...
As shown, the emulator instance connected to adb on port 5555 is the same as the instance whose console listens on
port 5554.
Once the server has set up connections to all emulator instances, you can use adb commands to control and access
those instances. Because the server manages connections to emulator/device instances and handles commands from
multiple adb clients, you can control any emulator/device instance from any client (or from a script).
The sections below describe the commands that you can use to access adb capabilities and manage the state of an
emulator/device. Note that if you are developing Android applications in Eclipse and have installed the ADT plugin, you do
not need to access adb from the command line. The ADT plugin provides a transparent integration of adb into the Eclipse
IDE. However, you can still use adb directly as necessary, such as for debugging.
Issuing adb Commands
You can issue adb commands from a command line on your development machine or from a script. The usage is:

adb [-d|-e|-s <serialNumber>] <command>
When you issue a command, the program invokes an adb client. The client is not specifically associated with any
emulator instance, so if multiple emulators/devices are running, you need to use the -d option to specify the target
instance to which the command should be directed. For more information about using this option, see Directing Commands
to a Specific Emulator/Device Instance.
Querying for Emulator/Device Instances
Before issuing adb commands, it is helpful to know what emulator/device instances are connected to the adb server. You
can generate a list of attached emulators/devices using the devices command:
adb devices
In response, adb prints this status information for each instance:
Serial number — A string created by adb to uniquely identify an emulator/device instance by its console port number.
The format of the serial number is <type>-<consolePort>. Here's an example serial number: emulator-5554
State — The connection state of the instance. Three states are supported:
offline — the instance is not connected to adb or is not responding.
device — the instance is now connected to the adb server. Note that this state does not imply that the Android
system is fully booted and operational, since the instance connects to adb while the system is still booting.
However, after boot-up, this is the normal operational state of an emulator/device instance.
The output for each instance is formatted like this:
[serialNumber] [state]
Here's an example showing the devices command and its output:
$ adb devices
List of devices attached
emulator-5554 device
If there is no emulator/device running, adb returns no device.
Directing Commands to a Specific Emulator/Device Instance
If multiple emulator/device instances are running, you need to specify a target instance when issuing adb commands. To
so so, use the -s option in the commands. The usage for the -s option is:
adb -s <serialNumber> <command>
As shown, you specify the target instance for a command using its adb-assigned serial number. You can use the
devices command to obtain the serial numbers of running emulator/device instances.
Here is an example:

adb -s emulator-5556 install helloWorld.apk
Note that, if you issue a command without specifying a target emulator/device instance using -s, adb generates an error.
Installing an Application
You can use adb to copy an application from your development computer and install it on an emulator/device instance. To
do so, use the install command. With the command, you must specify the path to the .apk file that you want to install:
adb install <path_to_apk>
For more information about how to create an .apk file that you can install on an emulator/device instance, see Building
and Running
Note that, if you are using the Eclipse IDE and have the ADT plugin installed, you do not need to use adb (or aapt)
directly to install your application on the emulator/device. Instead, the ADT plugin handles the packaging and installation
of the application for you.
Forwarding Ports
You can use the forward command to set up arbitrary port forwarding — forwarding of requests on a specific host port to
a different port on an emulator/device instance. Here's how you would set up forwarding of host port 6100 to
emulator/device port 7100:
adb forward tcp:6100 tcp:7100
You can also use adb to set up forwarding to named abstract UNIX domain sockets, as illustrated here:
adb forward tcp:6100 local:logd
Copying Files to or from an Emulator/Device Instance
You can use the adb commands pull and push to copy files to and from an emulator/device instance's data file. Unlike
the install command, which only copies an .apk file to a specific location, the pull and push commands let you copy
arbitrary directories and files to any location in an emulator/device instance.
To copy a file or directory (recursively) from the emulator or device, use
adb pull <remote> <local>
To copy a file or directory (recursively) to the emulator or device, use
adb push <local> <remote>
In the commands, <local> and <remote> refer to the paths to the target files/directory on your development machine
(local) and on the emulator/device instance (remote).
Here's an example:

adb push foo.txt /sdcard/foo.txt
Listing of adb Commands
The table below lists all of the supported adb commands and explains their meaning and usage.
Category Command Description Comments
Options -d Direct an adb command to the
only attached USB device.
Returns an error if more
than one USB device is
attached.
-e Direct an adb command to the
only running emulator instance.
Returns an error if more
than one emulator instance
is running.
-s <serialNumber> Direct an adb command a specific
emulator/device instance, referred
to by its adb-assigned serial
number (such as
"emulator-5556").
If not specified, adb
generates an error.
General devices Prints a list of all attached
emulator/device instances.
See Querying for
Emulator/Device Instances
for more information.
help Prints a list of supported adb
commands.
version Prints the adb version number.
Debug logcat [<option>]
[<filter-specs>]
Prints log data to the screen.
bugreport Prints dumpsys, dumpstate, and
logcat data to the screen, for
the purposes of bug reporting.
jdwp Prints a list of available JDWP
processes on a given device.
You can use the forward
jdwp:<pid> port-forwarding
specification to connect to
a specific JDWP process.
For example:
adb forward tcp:8000
jdwp:472
jdb -attach
localhost:8000
Data install <path-to-apk> Pushes an Android application
(specified as a full path to an
.apk file) to the data file of an
emulator/device.
pull <remote> <local> Copies a specified file from an
emulator/device instance to your
development computer.
push <local> <remote> Copies a specified file from your
development computer to an
emulator/device instance.
Ports and
Networking
forward <local> <remote> Forwards socket connections
from a specified local port to a
specified remote port on the
Port specifications can us
these schemes:
tcp:<portnum>

local:<UNIX domain
socket name>
dev:<character
device name>
jdwp:<pid>
ppp <tty> [parm]... Run PPP over USB.
<tty> — the tty for PPP
stream. For example
dev:/dev/omap_csmi_ttyl.
[parm]... — zero or more
PPP/PPPD options, such as
defaultroute, local,
notty, etc.
Note that you should not
automatically start a PPP
connection.
Scripting get-serialno Prints the adb instance serial
number string.
See Querying for
Emulator/Device Instances
for more information.
get-state Prints the adb state of an
wait-for-device Blocks execution until the device
is online — that is, until the
instance state is device.
You can prepend this
command to other adb
commands, in which case
adb will wait until the
emulator/device instance is
connected before issuing
the other commands.
Here's an example:
adb
wait-for-device
shell getprop
Note that this command
does not cause adb to wait
until the entire system is
fully booted. For that
reason, you should not
prepend it to other
commands that require a
fully booted system. As an
example, the install
requires the Android
package manager, which is
available only after the
system is fully booted. A
command such as
adb
wait-for-device
install <app>.apk
would issue the install
command as soon as the
emulator or device instance
connected to the adb
server, but before the
Android system was fully

booted, so it would result in
an error.

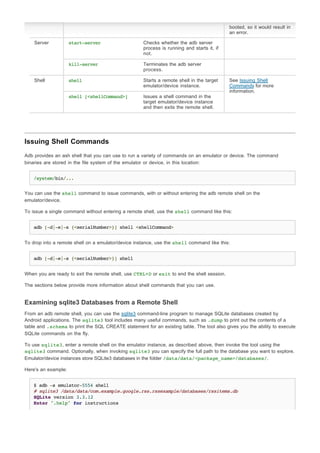

Server start-server Checks whether the adb server
process is running and starts it, if
not.
kill-server Terminates the adb server
process.
Shell shell Starts a remote shell in the target
See Issuing Shell
Commands for more
information.
shell [<shellCommand>] Issues a shell command in the
target emulator/device instance
and then exits the remote shell.
Issuing Shell Commands
Adb provides an ash shell that you can use to run a variety of commands on an emulator or device. The command
binaries are stored in the file system of the emulator or device, in this location:
/system/bin/...
You can use the shell command to issue commands, with or without entering the adb remote shell on the
emulator/device.
To issue a single command without entering a remote shell, use the shell command like this:
adb [-d|-e|-s {<serialNumber>}] shell <shellCommand>
To drop into a remote shell on a emulator/device instance, use the shell command like this:
adb [-d|-e|-s {<serialNumber>}] shell
When you are ready to exit the remote shell, use CTRL+D or exit to end the shell session.
The sections below provide more information about shell commands that you can use.
Examining sqlite3 Databases from a Remote Shell
From an adb remote shell, you can use the sqlite3 command-line program to manage SQLite databases created by
Android applications. The sqlite3 tool includes many useful commands, such as .dump to print out the contents of a
table and .schema to print the SQL CREATE statement for an existing table. The tool also gives you the ability to execute
SQLite commands on the fly.
To use sqlite3, enter a remote shell on the emulator instance, as described above, then invoke the tool using the
sqlite3 command. Optionally, when invoking sqlite3 you can specify the full path to the database you want to explore.
Emulator/device instances store SQLite3 databases in the folder /data/data/<package_name>/databases/.
Here's an example:
$ adb -s emulator-5554 shell
# sqlite3 /data/data/com.example.google.rss.rssexample/databases/rssitems.db
SQLite version 3.3.12
Enter ".help" for instructions

.... enter commands, then quit...
sqlite> .exit
Once you've invoked sqlite3, you can issue sqlite3 commands in the shell. To exit and return to the adb remote shell,
use exit or CTRL+D.
UI/Application Exerciser Monkey
The Monkey is a program that runs on your emulator or device and generates pseudo-random streams of user events
such as clicks, touches, or gestures, as well as a number of system-level events. You can use the Monkey to
stress-test applications that you are developing, in a random yet repeatable manner.
The simplest way to use the monkey is with the following command, which will launch your application and send 500
pseudo-random events to it.
$ adb shell monkey -v -p your.package.name 500
For more information about command options for Monkey, see the complete UI/Application Exerciser Monkey
documentation page.
Other Shell Commands
The table below lists several of the adb shell commands available. For a complete list of commands and programs, start
an emulator instance and use the adb -help command.
adb shell ls /system/bin
Help is available for most of the commands.
Shell Command Description Comments
dumpsys Dumps system data to
the screen.
The Dalvik Debug Monitor Server
(DDMS) tool offers integrated
debug environment that you may
find easier to use.dumpstate Dumps state to a file.
logcat [<option>]... [<filter-spec>]... Enables radio logging
and prints output to the
screen.
dmesg Prints kernel debugging
messages to the
screen.
start Starts (restarts) an
emulator/device
instance.
stop Stops execution of an
emulator/device
instance.
Enabling logcat Logging
The Android logging system provides a mechanism for collecting and viewing system debug output. Logs from various
applications and portions of the system are collected in a series of circular buffers, which then can be viewed and filtered
by the logcat command.

Using logcat Commands
You can use the logcat command to view and follow the contents of the system's log buffers. The general usage is:
[adb] logcat [<option>] ... [<filter-spec>] ...
The sections below explain filter specifications and the command options. See Listing of logcat Command Options for a
summary of options.
You can use the logcat command from your development computer or from a remote adb shell in an emulator/device
instance. To view log output in your development computer, you use
$ adb logcat
and from a remote adb shell you use
# logcat
Filtering Log Output
Every Android log message has a tag and a priority associated with it.
The tag of a log message is a short string indicating the system component from which the message originates (for
example, "View" for the view system).
The priority is one of the following character values, ordered from lowest to highest priority:
V — Verbose (lowest priority)
D — Debug
I — Info
W — Warning
E — Error
F — Fatal
S — Silent (highest priority, on which nothing is ever printed)
You can obtain a list of tags used in the system, together with priorities, by running logcat and observing the first two
columns of each message, given as <priority>/<tag>.
Here's an example of logcat output that shows that the message relates to priority level "I" and tag "ActivityManager":
I/ActivityManager( 585): Starting activity: Intent { action=android.intent.action...}
To reduce the log output to a manageable level, you can restrict log output using filter expressions. Filter expressions let
you indicate to the system the tags-priority combinations that you are interested in — the system suppresses other
messages for the specified tags.
A filter expression follows this format tag:priority ..., where tag indicates the tag of interest and priority indicates
the minimum level of priority to report for that tag. Messages for that tag at or above the specified priority are written to
the log. You can supply any number of tag:priority specifications in a single filter expression. The series of
specifications is whitespace-delimited.
Here's an example of a filter expression that suppresses all log messages except those with the tag "ActivityManager", at
priority "Info" or above, and all log messages with tag "MyApp", with priority "Debug" or above:
adb logcat ActivityManager:I MyApp:D *:S

The final element in the above expression, *:S, sets the priority level for all tags to "silent", thus ensuring only log
messages with "View" and "MyApp" are displayed. Using *:S is an excellent way to ensure that log output is restricted to
the filters that you have explicitly specified — it lets your filters serve as a "whitelist" for log output.
The following filter expression displays all log messages with priority level "warning" and higher, on all tags:
adb logcat *:W
If you're running logcat from your development computer (versus running it on a remote adb shell), you can also set a
default filter expression by exporting a value for the environment variable ANDROID_LOG_TAGS:
export ANDROID_LOG_TAGS="ActivityManager:I MyApp:D *:S"
Note that ANDROID_LOG_TAGS filter is not exported to the emulator/device instance, if you are running logcat from a
remote shell or using adb shell logcat.
Controlling Log Output Format
Log messages contain a number of metadata fields, in addition to the tag and priority. You can modify the output format
for messages so that they display a specific metadata field. To do so, you use the -v option and specify one of the
supported output formats listed below.
brief — Display priority/tag and PID of originating process (the default format).
process — Display PID only.
tag — Display the priority/tag only.
thread — Display process:thread and priority/tag only.
raw — Display the raw log message, with no other metadata fields.
time — Display the date, invocation time, priority/tag, and PID of the originating process.
long — Display all metadata fields and separate messages with a blank lines.
When starting logcat, you can specify the output format you want by using the -v option:
[adb] logcat [-v <format>]
Here's an example that shows how to generate messages in thread output format:
adb logcat -v thread
Note that you can only specify one output format with the -v option.
Viewing Alternative Log Buffers
The Android logging system keeps multiple circular buffers for log messages, and not all of the log messages are sent to
the default circular buffer. To see additional log messages, you can start logcat with the -b option, to request viewing of
an alternate circular buffer. You can view any of these alternate buffers:
radio — View the buffer that contains radio/telephony related messages.
events — View the buffer containing events-related messages.
main — View the main log buffer (default)
The usage of the -b option is:

↑ Go to top
[adb] logcat [-b <buffer>]
Here's an example of how to view a log buffer containing radio and telephony messages:
adb logcat -b radio
Viewing stdout and stderr
By default, the Android system sends stdout and stderr (System.out and System.err) output to /dev/null. In
processes that run the Dalvik VM, you can have the system write a copy of the output to the log file. In this case, the
system writes the messages to the log using the log tags stdout and stderr, both with priority I.
To route the output in this way, you stop a running emulator/device instance and then use the shell command setprop to
enable the redirection of output. Here's how you do it:
$ adb shell stop
$ adb shell setprop log.redirect-stdio true
$ adb shell start
The system retains this setting until you terminate the emulator/device instance. To use the setting as a default on the
emulator/device instance, you can add an entry to /data/local.prop on the device.
Listing of logcat Command Options
Option Description
-b <buffer> Loads an alternate log buffer for viewing, such as event or radio. The main buffer is used by
default. See Viewing Alternative Log Buffers.
-c Clears (flushes) the entire log and exits.
-d Dumps the log to the screen and exits.
-f <filename> Writes log message output to <filename>. The default is stdout.
-g Prints the size of the specified log buffer and exits.
-n <count> Sets the maximum number of rotated logs to <count>. The default value is 4. Requires the -r
option.
-r <kbytes> Rotates the log file every <kbytes> of output. The default value is 16. Requires the -f option.
-s Sets the default filter spec to silent.
-v <format> Sets the output format for log messages. The default is brief format. For a list of supported
formats, see Controlling Log Output Format.
Stopping the adb Server
In some cases, you might need to terminate the adb server process and then restart it. For example, if adb does not
respond to a command, you can terminate the server and restart it and that may resolve the problem.
To stop the adb server, use the kill-server. You can then restart the server by issuing any adb command.
← Back to Tools
Except as noted, this content is licensed under Apache 2.0. For details and restrictions, see the Content License.

Android 3.0 r1 - 24 Mar 2011 11:38
Site Terms of Service - Privacy Policy - Brand Guidelines

Android debug bridge android developers

More Related Content

Similar to Android debug bridge android developers (20)

Recently uploaded (20)

Android debug bridge android developers
