ANSI C12 Standards Update

ANSI C12
Standards Update
Prepared by Tom Lawton, TESCO
For Pennsylvania Rural Electric Association (PREA)
Tuesday, March 12, 2019
12:30 p.m. to 1:30 p.m.

ANSI
American National Standard Institute, Inc.
• Not a government agency
• Standards do not have force of Law
• All compliance is voluntary
• ANSI doesn’t actually generate any standards
• Each standard is controlled by an industry
organization as the “secretariat”
 For C12 NEMA (National Electrical Manufacturer’s
Association) is the secretariat
 Paul Orr has been the NEMA’s secretary assigned to C12 for
over ten years providing continuity to the process

ANSI
American National Standard Institute, Inc.
• NEMA organizes committees to propose and review
standards
• Standards are republished approximately every 5
years
• Standards codify consensus approaches in common
practice
• Generally, they do not break new ground or deal in
controversial issues
 This is changing. Can’t avoid issues any longer.

ANSI C12
C12 Main Committee
• General makeup has expanded slightly over last few
years
• 34 voting members with representation from three
groups:
 12 - Manufacturers: Meter, Socket, Test Equipment, etc.
 13 - Users: Utilities
 9 - General Interest: PUC, UL, IEEE, Consultants, etc.
• Meets twice a year in conjunction with EEI/AEIC Meter
conference.

ANSI C12
C12 Main Committee
• Has final approval for all activities on any C12 family
standard
• Establishes Subcommittees (SC) and Working Groups
(WG) to address various standards and issues
• Sub committees and Working Groups also meet twice
a year in conjunction with EEI Transmission,
Distribution and Metering Conference and also hold
regular or ad hoc conference calls throughout the
year as members put together drafts and other
technical material for consideration at the next face
to face meeting.

ANSI C12
C12 Subcommittees
• Various subcommittees have been organized to
review specific standards
• This is where the work is really done
• Each operates slightly differently
• Each meets on a schedule of its own choosing
• Most meet at EEI Biannual Transmission, Distribution
and Metering Meetings
• Communication WG meets more often and longer
• Various subgroups meet frequently by teleconference

ANSI C12 – Sub-Committees
Sub-Committee Standards
C12 SC1 C12.1, C12.4, C12.5, C12.10
C12 SC15 C12.6, C12.7, C12.8, C12.9, C12.11
C12 SC16 C12.20, C12.24
C12 SC17 C12.18, C12.19, C12.21, C12.22, C12.23, C12.26
C12 SC29 C12.29 Standard for Field Testing of Metering Sites
C12 SC31 C12.31 VA Measurement Standard
C12 SC46
C12.46 American National Standard for Electricity
Meters - 0.1, 0.2 and 0.5 Accuracy Classes for the
Measurement of Active, Apparent and Reactive Power

ANSI C12 SC 1
C12.1– Code for Electricity Metering
• C12.1-2014 published in 2016
• Changes in this Revision
 Vector diagrams for balanced voltages are defined for
common services
 Various definitions have been updated
 Bi-directional metering is added and tests updated to
include bidirectional measurements
 Significant changes were made to the temperature rise
section based on TRINIWOG tests

ANSI C12 SC 1
C12.1 – Code for Electricity Metering
• Changes in this Revision (continued)
 Table 1b on maximum errors for reference standards was
added
• Tightened to 0.05% and 0.02%
 Meter Accuracy Class 0.5 was added to the standard
 A new column was added to all tables with tighter specs for
AC 0.5
 Section 5 on Standards for New and In Service Performance
was completely rewritten
 Appendix D was rewritten and simplified
 A new Appendix F was added

ANSI C12 SC 1
C12.1 – Code for Electricity Metering
• Safety
 Work is under way to move the safety related sections of
C12.1 into C12.10
 C12 is coordinating efforts with UL and its work on Subject
2735
• UL2735C (Canadian) is about to be balloted
• New topics for next revision
 Changes to EMC Testing
 Addition of demand testing
 Revision of Temperature Rise Test based on additional
testing

ANSI C12 SC 1
C12.10 – Physical Aspects of Watthour Meters –
Safety Standards
• Published C12.10 – 2011
• New revision in editorial review
 Will add safety sections from C12.1
 New safety requirements in development
 Working with UL to achieve consistency with UL 2735C
 10 new meter forms with auxiliary power pins

ANSI C12 SC 1
New meter forms with Auxiliary Power

ANSI C12 SC 15
 C12.6 – Marking and Arrangement of Terminals
for Phase-Shifting Devices used in Metering
• About to be reissued without change
 C12.7 – Requirements for Watthour Meter
Sockets
• Published – Feb 2015

ANSI C12 SC 15
 C12.8 – Test Block and Cabinets for Installation
of Self contained “A” Base Watthour Meters
• Published without change Dec 2012
• Will be deprecated once Figure 4 is moved to C12.7
in its next release

ANSI C12 SC 15
 C12.9 – Test Switches and Plugs for Transformer
Rated Meters
 Extensive Revision in last publication
 Specifications for test plugs added
 Published – March 2015

ANSI C12 SC 15
 C12.11– Instrument Transformers for Revenue
Metering, 10 kBIL through 350 kBIL
 Revised to parallel C57.13
 Published – July 2014
 New proposal on the table to revise barcode formats
to allow QR and other more modern codes

ANSI C12 SC16
C12.20 – 0.1, 0.2 and 0.5 Accuracy Class Metering
• C12.20 -2015 Published May 2017, Errata sheet also
published
• 0.1 Percent Accuracy Class Added
• New column added to all accuracy test tables
• Section 4.6 added to provide specifications for test
outputs
 Type B port specifications were made “informative” due to a
lack of unanimity. No Standard can force a manufacturer or
utility to change their existing practices without their
voluntary consent.

ANSI C12 SC16
• Tighter performance at reference conditions was
specified
• Table 2 updated to make clear which forms and
applications are Blondel compliant.
• Table 2A added to make clear which forms and
applications are NOT Blondel compliant
 Therefore NOT covered by the standard

ANSI C12 SC16
• Polyphase loading for accuracy testing is allowed and
details provided
 In next revision polyphase loading is proposed to be
REQUIRED
• Non-Sinusoidal Performance Testing
 Harmonics WG
• Extensive performance testing using non-sinusoidal
waveforms was added

ANSI C12 SC16
• Areas of activity for next revision
 Auxiliary device influences (requiring accuracy testing with
any communication devices active)
 Disturbances test for memory corruption due to rapid
power cycling such as during dropout/reclosure events
 Extended temperature operating ranges

ANSI C12 SC29
Field Testing of Metering Installations
• Field Testing of Metering Accuracy
 Hope to send for approval after next meeting
 Agreement on single set of acceptability criteria for
testing under all three modes
• Voltage and current supplied by test equipment
• Site voltage, equipment provided current
• Site voltage and current (customer load)
 Final issue is review of “acceptability” values

ANSI C12 SC31
VA and VAR Metering Standard
• Establish a legal definition for VA and VAR
• VA being addressed first in order to “Fast Track” the result.
 Definitions agreed upon
 Initial draft completed
• At this meeting, new quantity “source VA” was proposed by
Landis+Gyr
 Committee agreed to consider during a series of WEB conferences
• Goal is to promote VA and active energy (watts) as the primary
metering quantities.

ANSI C12.46
Sub-Committee to Develop a Replacement for
C12.1 and C12.20
• Adopts the structure of OIML IR-46
• Addresses 0.1, 0.2, and 0.5 Accuracy Classes
• Addresses Active, Reactive, and Apparent Energy
• Will be biggest change to metering standards in 100
years
• Review and editing of draft in process
• Expected Publication 2020

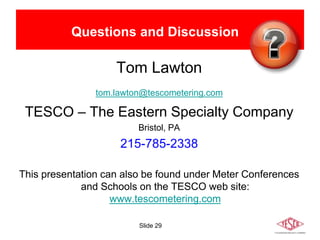

Questions and Discussion
Tom Lawton
tom.lawton@tescometering.com
TESCO – The Eastern Specialty Company
Bristol, PA
215-785-2338
This presentation can also be found under Meter Conferences
and Schools on the TESCO web site:
www.tescometering.com
