The document outlines the process and tools necessary for conducting Android application penetration testing (pentesting). It details the steps involved, including planning, reconnaissance, static and dynamic analysis, and reporting, while also emphasizing the importance of various tools such as Burp Suite and APKTool. Additionally, it highlights common vulnerabilities in Android apps and provides resources for further learning and practical examples.
![Static Analysis: How are APIs called - Example
[STRIPPED]
public class ApiCallTask extends AsyncTask<String, Void, String> {
[STRIPPED]
try {
URL url = new URL(apiUrl);
HttpURLConnection con = (HttpURLConnection) url.openConnection();
con.setRequestMethod("GET");
int responseCode = con.getResponseCode();
Log.d(TAG, "API response code: " + responseCode);
BufferedReader in = new BufferedReader(new
InputStreamReader(con.getInputStream()));
String inputLine;
StringBuffer responseBuffer = new StringBuffer();
while ((inputLine = in.readLine()) != null) {
responseBuffer.append(inputLine);
}
in.close();
response = responseBuffer.toString();
} catch (IOException e) {
Log.e(TAG, "API call failed", e);
}
return response;
}
[STRIPPED]
new
ApiCallTask().execute("http
s://api.example.com/data");
Class used and
executed in an
instance](https://image.slidesharecdn.com/gabriellebotbolapisecureandroidapplicationhacking-230321121732-12a846b1/85/APIsecure-2023-Android-Applications-and-API-Hacking-Gabrielle-Botbol-22-320.jpg)
APIsecure 2023 - Android Applications and API Hacking, Gabrielle Botbol
- 1. March 14&15, 2023 Gabrielle Botbol Is powered by & Android Applications and APIs Hacking
- 2. Who am I? Gabrielle Botbol @Gabrielle_BGB /in/gabriellebotbol https://csbygb.github.io/

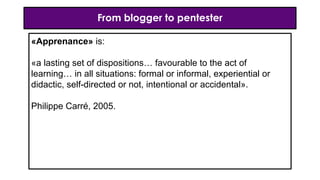

- 3. From blogger to pentester «Apprenance» is: «a lasting set of dispositions… favourable to the act of learning… in all situations: formal or informal, experiential or didactic, self-directed or not, intentional or accidental». Philippe Carré, 2005.
- 4. CTF Conferences MOOC Summer Schools Volunteering Internship From blogger to pentester
- 6. What is Android App Pentest?

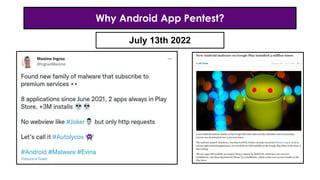

- 7. Why Android App Pentest? July 13th 2022
- 8. Some figures Source: https://www.zimperium.com/global-mobile-threat-report/ New Mobile Malware Samples Detected in the Wild in 2021 Increase in Exploited, Zero-Day Mobile Vulnerabilities Enterprises Reported Mobile Devices and Web Apps Led To A Security Incident Phishing Sites Specifically Targeted Mobile Devices Of Mobile Devices Encountered Malicious Applications Worldwide 10M+ 466% 2,034,217+ Mobile Endpoints Impacted By Threats 42% 75% 23%

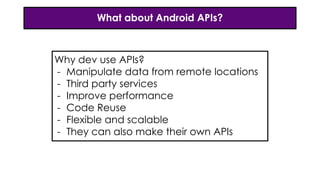

- 9. What about Android APIs? Why dev use APIs? - Manipulate data from remote locations - Third party services - Improve performance - Code Reuse - Flexible and scalable - They can also make their own APIs

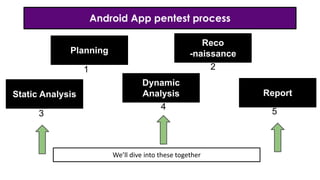

- 10. Android App pentest process We’ll dive into these together Planning Reco -naissance Static Analysis Dynamic Analysis Report 1 2 3 4 5
- 11. The importance of the lab
- 12. What you will need - Jadx - apktool - ADB - Android Studio - Burp Suite Tools:

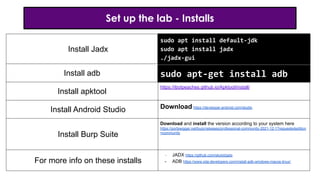

- 13. Set up the lab - Installs Install Jadx Install adb Install apktool https://ibotpeaches.github.io/Apktool/install/ Install Android Studio Download https://developer.android.com/studio Install Burp Suite Download and install the version according to your system here https://portswigger.net/burp/releases/professional-community-2021-12-1?requestededition =community For more info on these installs - JADX https://github.com/skylot/jadx - ADB https://www.xda-developers.com/install-adb-windows-macos-linux/ sudo apt install default-jdk sudo apt install jadx ./jadx-gui sudo apt-get install adb
- 14. Set up the lab - Create an emulator

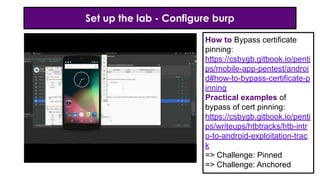

- 15. Set up the lab - Configure burp How to Bypass certificate pinning: https://csbygb.gitbook.io/penti ps/mobile-app-pentest/androi d#how-to-bypass-certificate-p inning Practical examples of bypass of cert pinning: https://csbygb.gitbook.io/penti ps/writeups/htbtracks/htb-intr o-to-android-exploitation-trac k => Challenge: Pinned => Challenge: Anchored
- 16. Vuln Apps used for the examples Get PIVAA here: https://github.com/HTBridge/pivaa Purposefully Insecure and Vulnerable Android Application. Get InjuredAndroid here: https://github.com/B3nac/InjuredAndroid /releases/tag/v1.0.12

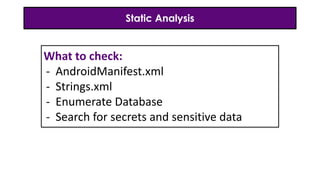

- 17. Static Analysis What to check: - AndroidManifest.xml - Strings.xml - Enumerate Database - Search for secrets and sensitive data

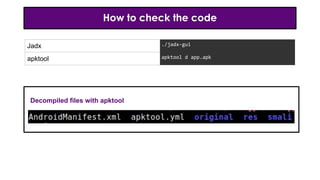

- 18. How to check the code Jadx ./jadx-gui apktool apktool d app.apk Decompiled files with apktool

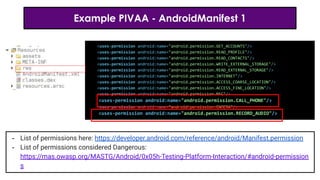

- 19. Example PIVAA - AndroidManifest 1 <uses-permission android:name="android.permission.GET_ACCOUNTS"/> <uses-permission android:name="android.permission.READ_PROFILE"/> <uses-permission android:name="android.permission.READ_CONTACTS"/> <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/> <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/> <uses-permission android:name="android.permission.INTERNET"/> <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/> <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/> <uses-permission android:name="android.permission.NFC"/> <uses-permission android:name="android.permission.CALL_PHONE"/> <uses-permission android:name="android.permission.CAMERA"/> <uses-permission android:name="android.permission.RECORD_AUDIO"/> - List of permissions here: https://developer.android.com/reference/android/Manifest.permission - List of permissions considered Dangerous: https://mas.owasp.org/MASTG/Android/0x05h-Testing-Platform-Interaction/#android-permission s

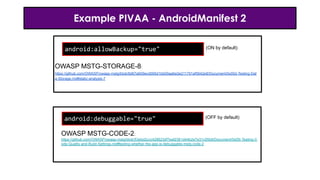

- 20. Example PIVAA - AndroidManifest 2 android:allowBackup="true" android:debuggable="true" OWASP MSTG-STORAGE-8: https://github.com/OWASP/owasp-mstg/blob/8d67a609ecd095d1bb00aa6a3e211791af5642e8/Document/0x05d-Testing-Dat a-Storage.md#static-analysis-7 OWASP MSTG-CODE-2: https://github.com/OWASP/owasp-mstg/blob/53ebd2ccc428623df7eaf2361d44b2e7e31c05b9/Document/0x05i-Testing-C ode-Quality-and-Build-Settings.md#testing-whether-the-app-is-debuggable-mstg-code-2 (ON by default) (OFF by default)

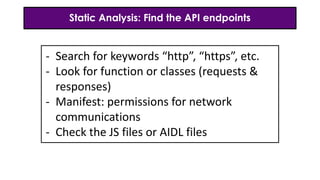

- 21. Static Analysis: Find the API endpoints - Search for keywords “http”, “https”, etc. - Look for function or classes (requests & responses) - Manifest: permissions for network communications - Check the JS files or AIDL files

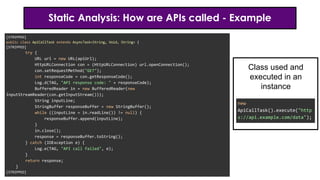

- 22. Static Analysis: How are APIs called - Example [STRIPPED] public class ApiCallTask extends AsyncTask<String, Void, String> { [STRIPPED] try { URL url = new URL(apiUrl); HttpURLConnection con = (HttpURLConnection) url.openConnection(); con.setRequestMethod("GET"); int responseCode = con.getResponseCode(); Log.d(TAG, "API response code: " + responseCode); BufferedReader in = new BufferedReader(new InputStreamReader(con.getInputStream())); String inputLine; StringBuffer responseBuffer = new StringBuffer(); while ((inputLine = in.readLine()) != null) { responseBuffer.append(inputLine); } in.close(); response = responseBuffer.toString(); } catch (IOException e) { Log.e(TAG, "API call failed", e); } return response; } [STRIPPED] new ApiCallTask().execute("http s://api.example.com/data"); Class used and executed in an instance

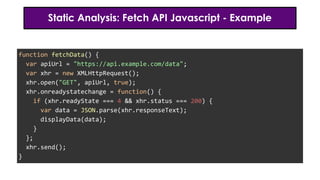

- 23. Static Analysis: Fetch API Javascript - Example function fetchData() { var apiUrl = "https://api.example.com/data"; var xhr = new XMLHttpRequest(); xhr.open("GET", apiUrl, true); xhr.onreadystatechange = function() { if (xhr.readyState === 4 && xhr.status === 200) { var data = JSON.parse(xhr.responseText); displayData(data); } }; xhr.send(); }
- 24. Static Analysis: API vulnerabilities 2022 2019 “This is a private key! WTF, man!” - Alissa Knight - 2019 How I hacked 30 mobile banking apps & the future of API Security, Alissa Knight Thousands of Android apps leak hard-coded secrets, research shows - Cybernews
- 25. Example with InjuredAndroid - Strings <string name="google_api_key">AIzaSyCUImEIOSvqAswLqFak75xhskkB6illd7A</string> <string name="google_app_id">1:430943006316:android:d97db57e11e42a1a037249</str ing> <string name="google_crash_reporting_api_key">AIzaSyCUImEIOSvqAswLqFak75xhskkB6 illd7A</string> <string name="google_storage_bucket">injuredandroid.appspot.com</string> /res/values/strings.xml

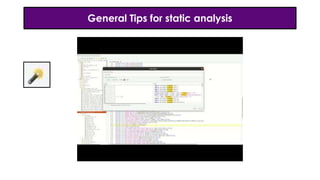

- 26. General Tips for static analysis

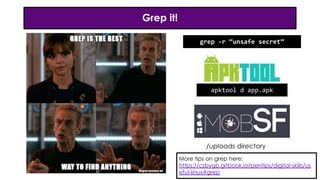

- 27. Grep it! /uploads directory apktool d app.apk grep -r “unsafe secret” More tips on grep here: https://csbygb.gitbook.io/pentips/digital-skills/us eful-linux#grep
- 28. Tools for static analysis - Firebase Enum Github: https://github.com/Sambal0x/firebaseEnum - FireBaseScanner: https://github.com/shivsahni/FireBaseScanner - Cloud Enum https://github.com/initstring/cloud_enum
- 29. Dynamic Analysis What to check: - Tapjacking - Can you capture screens with sensitive data - OWASP Top 10 - Analyse traffic with burp to find odd things
- 30. Dynamic Analysis: Find API endpoint /api /api/v1 /v1 /docs /rest /v1 /v2 /v3 /swagger /swagger.json /doc/graphql Use a wordlist and FUZZ: https://github.com/danielmiessler/SecLists/blob/master/Discovery/Web-Content/ api/api-endpoints.txt
- 31. Example with PIVAA - BG capture
- 32. Automatic tools - MobSF https://github.com/MobSF/Mobile-Security-Framework-Mo bSF - Qark https://github.com/linkedin/qark

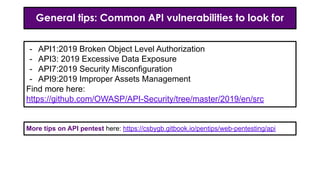

- 33. General tips: Common API vulnerabilities to look for - API1:2019 Broken Object Level Authorization - API3: 2019 Excessive Data Exposure - API7:2019 Security Misconfiguration - API9:2019 Improper Assets Management Find more here: https://github.com/OWASP/API-Security/tree/master/2019/en/src More tips on API pentest here: https://csbygb.gitbook.io/pentips/web-pentesting/api

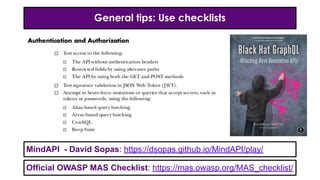

- 34. General tips: Use checklists MindAPI - David Sopas: https://dsopas.github.io/MindAPI/play/ Official OWASP MAS Checklist: https://mas.owasp.org/MAS_checklist/
- 35. How to report
- 36. How to report - Example Broken Object Access Control Severity: Medium CVSS:3.1/AV:L/AC:L/PR:N/UI:R/S:U/C:L/I:N/A:N Description A BOLA (Broken Object Level Authorization) vulnerability is a security issue that allows an attacker to access or manipulate sensitive data or functionality in an application by modifying the object ID in the API requests. This vulnerability arises when the application lacks proper authorization checks and fails to enforce access control restrictions on user input. In our context, we identified a BOLA vulnerability in the API of the application. This vulnerability could allow an attacker to bypass the access control measures and gain unauthorized access to sensitive data or functionality in the application.
- 37. How to report - Example Broken Object Access Control Remediation We recommend that the development team implement proper authorization checks in the API to prevent this vulnerability from being exploited. Additionally, we suggest conducting a thorough review of the application's access control mechanisms to identify and address any other potential BOLA vulnerabilities. Resource https://github.com/OWASP/API-Security/blob/master/2019/en/src/0xa1-broken-obje ct-level-authorization.md

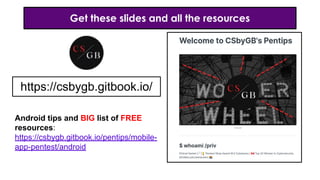

- 38. Get these slides and all the resources https://csbygb.gitbook.io/ Android tips and BIG list of FREE resources: https://csbygb.gitbook.io/pentips/mobile- app-pentest/android

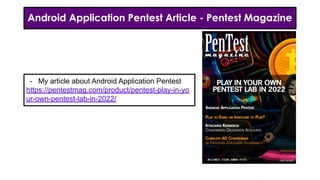

- 39. Android Application Pentest Article - Pentest Magazine - My article about Android Application Pentest https://pentestmag.com/product/pentest-play-in-yo ur-own-pentest-lab-in-2022/
- 40. Quiz to go Check out the quiz about this presentation here: https://forms.gle/GPymC3RrsmCRLxY C6
- 42. Thanks
