This document provides an overview of constraint layout, Kotlin, and Firebase machine learning capabilities. It discusses new features in constraint layout like circular positioning and barriers. It also summarizes Kotlin features like null safety, extension functions, and data classes. Finally, it outlines Firebase machine learning services like Cloud Firestore, ML Kit, text recognition, face detection, and using custom TensorFlow Lite models with ML Kit.
App development with constraint layout, kotlin & firebase
- 1. App development with Constraint layout, Kotlin & Firebase
- 2. Agenda What’s new in constraint layout Kotlin, fun tool for programmer Machine learning with firebase
- 3. Layouts Constraint layout - To build an expressive UI Linear layout - Useful for straightforward layouts Coordinate layout - To use material design tools Frame layout - Better use for dynamic fragment and for single view layout Relative layout - Good time to switch to constraint layout Grid layout - Views need to be shown in grids ( try recyclerview) Absolute layout - RIP

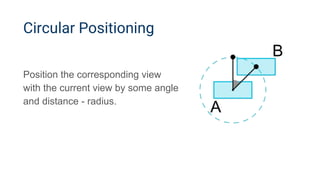

- 6. Circular Positioning Position the corresponding view with the current view by some angle and distance - radius.
- 7. Barrier A barrier adjust virtual guideline at runtime based on maximum size among various set of views.
- 8. Group A group acts on various set of views and set their visibility as VISIBLE, GONE or INVISIBLE. It acts by taking view reference id. <android.support.constraint.Group android:id="@+id/group" android:layout_width="0dp" android:layout_height="0dp" android:visibility="gone" app:constraint_referenced_ids="view1,view2" />
- 9. Placeholder It’s use to dynamically set content on screen where any view can be set to placeholder just by passing its id. If the view exists on same screen as placeholder than it’s visibility will automatically be set to gone.
- 10. Dimension Constraint It restrict view to be in the defined constraint even when view width/height is wrap content.
- 11. <Button android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Hello this is an example with constraint width" app:layout_constrainedWidth="true" app:layout_constraintLeft_toLeftOf="parent" app:layout_constraintRight_toRightOf="@+id/guideline_50"/>

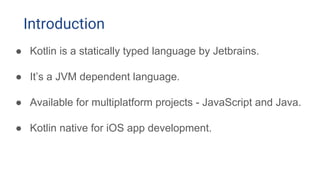

- 13. ● Kotlin is a statically typed language by Jetbrains. ● It’s a JVM dependent language. ● Available for multiplatform projects - JavaScript and Java. ● Kotlin native for iOS app development. Introduction
- 14. Features of kotlin Null Safety Extension function Higher Order Function Default & Named Arguments Data Class
- 15. Null Safety val length if(city != null) { length = city.length } val length = city?.length
- 16. Extension Function fun TextView.setCurrency(money: Double){ val numFormat = NumberFormat.getCurrencyInstance() this.text = numFormat.format(money) } textView.setCurrency(100.50)
- 17. Higher Order Function fun AppCompatActivity.networkCheck( errorMessage: String = "Unable to connect, please try again later", networkFun: () -> Unit) { if(isNetworkAvailable) { networkFun() } else { Toast.makeText(this, errorMessage, Toast.LENGTH_SHORT).show() } } Default Argument
- 18. Default & Named Argument fun updateAddress(city: String = "Hyderabad", state: String = "Telangana") { ..... } updateAddress(city = "Mumbai", state = "Maharashtra") updateAddress(state = "Maharashtra", city = "Mumbai")
- 19. Data Class //If empty constructor needed class Address { val city: String = "" val state: String = "" val country: String = "" } data class Address(val city: String, val state: String, val country: String)
- 22. Cloud Firestore A NoSQL database with a great querying capability. Auto scale & Multi region database. It’s based on Collection and Document. Can build a serverless application using cloud firestore.
- 23. Collection & Document Collection Collections are like a container which itself doesn’t store any data but contains document which in turn stores data. Document It’s the smallest unit to store data in the database more set of data type are now supported with document
- 25. ML kit ML Kit lets you to bring powerful machine learning features in your app whether it's for Android or iOS. There's no need to have deep knowledge of neural network or model optimization to get started.
- 27. Landmark recognition On Cloud Text recognition On Device On Cloud Image labeling On Device On Cloud Face detection On Device Barcode scanning On Device Custom model inference - Tensorflow Lite On Device

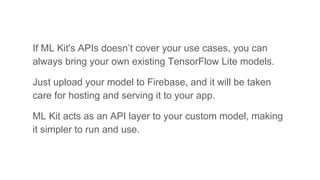

- 28. If ML Kit's APIs doesn’t cover your use cases, you can always bring your own existing TensorFlow Lite models. Just upload your model to Firebase, and it will be taken care for hosting and serving it to your app. ML Kit acts as an API layer to your custom model, making it simpler to run and use.

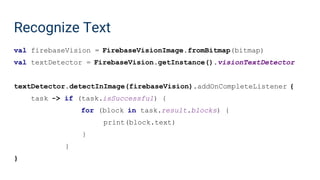

- 29. Recognize Text val firebaseVision = FirebaseVisionImage.fromBitmap(bitmap) val textDetector = FirebaseVision.getInstance().visionTextDetector textDetector.detectInImage(firebaseVision).addOnCompleteListener { task -> if (task.isSuccessful) { for (block in task.result.blocks) { print(block.text) } } }
- 30. Face Detection val options = FirebaseVisionFaceDetectorOptions.Builder() .setModeType(FirebaseVisionFaceDetectorOptions.ACCURATE_MODE) .setLandmarkType(FirebaseVisionFaceDetectorOptions.ALL_LANDMARKS) .build() val detector = FirebaseVision.getInstance().getVisionFaceDetector(options) val firebaseVision = FirebaseVisionImage.fromBitmap(bitmap) detector.detectInImage(firebaseVision).addOnCompleteListener { task -> if (task.isSuccessful) { for(face in task.result) { print(face. smilingProbability) } } }
