Application Lifecycle management Utilizando ferramentas Microsoft

© 2015 Stefanini Proprietary and Confidential
1
Application
Lifecycle
Management
Agile Project Management
in Visual Studio Team
Foundation Server 2013

2
Luis Cesar Teodoro
Arquiteto de Soluções na Stefanini
Sou Arquiteto de software, entusiasta DevOPs, especialista plataforma Microsoft por formação(MCSA, MCPD),
Scrum Master por formação (CSM), consultor, palestrante e instrutor. Trabalho com TI há cerca de 15 anos,
gosto muito de documentar e compartilhar o que tenho aprendido. Além disto tudo, sou casado, pai da Laura e
do Mateus. Fique a vontade para entrar em contato :)
Microsoft Certified Solutions Expert: SharePoint
Microsoft Certified Solutions Developer: SharePoint, Web
CSM: Certified ScrumMaster®
Contato: lcteodoro@hotmail.com
Linkedin: https://br.linkedin.com/in/luís-cesar-teodoro-298a6116

Application Lifecycle Management
Agile Project Management in Visual Studio Team Foundation Server 2013
3

4
Branching and Merging Visualization with Visual Studio Team
Foundation Server 2013
Log in as Julia. All user passwords are P2ssw0rd

5
Branching and Merging Visualization
1. Log in as Julia. A senha para todos os usuário é:
P2ssw0rd.
2. Abrir o Visual studio Start Menu | All Programs |
Microsoft Visual Studio 2013 | Visual Studio
2013.
3. Abrir o Source Control Explorer window from
View | Other Windows | Source Control
Explorer.

6
1. Clicar com o botão direito na branch:
Release1 Selecionar Advanced
|Properties no menu. Essas
propriedades provem detalhes como:
Versões, Descrições, hierarquias com
outras brachs e permissões.

7
1. Abra a solution abaixo.

8
1. Abra a solution abaixo.
2. Rebuild Solution
3. Selecione o projeto
FabrikamFiber.Web e set
as the startup project
(right-click and select Set
as StartUp Project in
Solution Explorer).
Pressione Ctrl+F5 Para Rodar
the Fabrikam Fiber intranet
portal.

9

10
1. Ao Clicar o link estará
quebrado levando o usuário a
tela de erro

11
1. Feche o Internet Explorer e retorne ao
Visual Studio.
2. A tarefa sera atualizar a branch Release1 e
executar um deploy no servidor de
produção. Apartir da Solution Explorer, abra
_Profile.cshtml contido em
FabrikamFiber.Web | Views | Shared pasta
contida na branch release1.
3. Localize o trecho de código e comente
conforme imagem.

12
1. Pressione Ctrl+F5 para rodar o website e se
a funcionalidade está OK.
2. Open the Pending Changes window from
View | Other Windows | Pending
Changes.
3. In the Comment field, enter “removed
non-functional links from profile”, verify
only _Profile.cshtml is changed, and select the
Check In button.

13
1. In Source Control
Explorer, right-click on
the Release1 branch and
select View History from
the context menu.

14
1. Right-click on the
changeset that you
just checked in and
select Track
Changeset from the
context menu.

15

16
1. To perform the merge of this
changeset and the Main branch,
drag and drop the green Release1
node onto the Main node. This
will load the Source Control
Merge Wizard.

17

18
1. After the merge is complete, open the Pending
Changes window on the right and note that
_Profile.cshtml changed status for the Main code
branch and is now “merge, edit”. The merge
process is complete, but we still need to check in
the changes.

19
1. Add a Comment of “Merging fast-tracked changes
from Release to Main” and then click the Check In
button to finalize the merge.

20
1. In the Tracking Changeset window, click on the
Rerun button to generate an updated view. You
will need to click the Visualize button again when
the Select Branches window appears.

21
1. Next, merge the changeset from the Main branch
with the Dev branch in the same manner as
before by dragging and dropping to load the
Source Control Merge Wizard.
2. Select Next followed by Finish to perform the
merge process.
3. In the Pending Changes window, enter a
Comment of “Merged fast-tracked changes from
Main to Dev”.
4. Select the Check In button to finalize the merge
with the Dev branch.
5. In the Tracking Changeset window, click on the
Rerun button to see the updated view.

22

23
1. In Solution Explorer, navigate to
and right-click on the
_Profile.cshtml file and select
Source Control | Annotate from
the context menu.
2. Scroll to the bottom of the
annotated _Profile.cshtml file
and locate the HTML that you
previously commented out.
3. In the annotation column on the
left-hand side, mouse over the
recent changeset (it should
show the date of the guest
virtual machine). Note that the
changeset path and comment
refer to the Production branch
where the original change was
made.

24
Agile Teams

25
Agile Teams
Time 1
- Integrantes
- Usuario …
- Funcionalidades
-
Time 2
- Integrantes
- Usuario …
- Funcionalidades
-
Time 3
- Integrantes
- Usuario …
- Funcionalidades
-
Time 4
- Integrantes
- Usuario …
- Funcionalidades
-

26

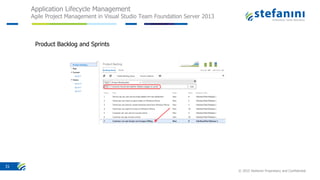

Product Backlog and Sprints

27

28

29
⦁ Nota: Cada Equipe pode ter
diferente itens listados no item
favoritos e diferentes work items.

30

31

32

33

34

35

36

37

38

39

40

41

42
⦁ Gráfico que indica a velocidade
em que o time completou as
histórias contidas no sprint.

43

44

45

46

47

48

49

50
⦁ Cumulative Flow Diagram

51
⦁ Nota: Esse Cumulative Flow Diagram é
a representação de um cenário tipico
de desenvolvimento de software.

52

53

54
Nota: Para mais informações de como usar o
“Kanban board”, por favor acesse: “Manage
Your Backlog with the Kanban Board”.

55

56

57

58

59

60

61

62

63

64

65

66

67
Authoring and Running Manual Tests using Microsoft Test
Manager 2013

68
Authoring and Running Manual Tests
1. Log in as Julia. All user passwords are P2ssw0rd.
2. Open Microsoft Test Manager from Start | All
Programs | Microsoft Visual Studio 2013 |
Microsoft Test Manager.
3. In this lab, we’re going to focus on creating a new
manual test case and running it. We will focus on
the other aspects of managing test cases and test
plans in another lab.
4. If you are not in the Test plan view already, click
on Plan from the main menu. The Microsoft Test
Manager will connect to the most recently loaded
test plan, which in the case of this virtual machine
is the test plan named Iteration 2. If Iteration 2
plan is not opened, click on the Home button to
switch to Iteration 2.

69

70
1. In the Title box, type “Confirm that receipt
number appears after successful order”.
Alternatively, you can open the “New Test
Case.txt” file from the Code Snippets folder on
the desktop of the VM and copy and paste the
title from there.
2. At this point, we’re ready to add steps to this
manual test. Each step includes an Action, which
describes the action the tester needs to perform.
Optionally, a step can include an Expected Result,
which describes the expected result of the given
action.
3. In the Steps panel, create a step for each of the
following Actions, only one of which has an
Expected Result. See the next paragraph for an
alternate, faster way to add the actions.
Action Expected Result
Open
http://www.tailspinto
ys.com
Click Model Airplanes
Click Northwind Trader
Click Add to Cart
Click Checkout
Enter @First, @Last,
@Email, @Address,
@City, @Country,
@State, @PostalCode
Click Review Order
Click Place Order
Confirm order page has
receipt #
Receipt # should appear
at top of order
confirmation page
Close Browser

71
An alternative to manual entry of each step is to copy and paste all steps
from the “New Test Case.txt” file to add them all at once. In order to do
this, right-click on the row that currently shows “Click here to add a step”
and select the Paste option.

72
1. Note the “Enter @First, @Last,
@Email, @Address, @City,
@Country, @State,
@PostalCode” step. In this
step, we used the @ sign to
indicate that there were
iteration-specific variables to
be used during the manual
test pass. We can define which
variables to use by scrolling
down to the Parameter Values
section of this form and
entering them for each
iteration. Use the following
table to set up values for three
iterations (or use the copy and
paste method from the “New
Test Case.txt” file once again):

73
First Last Email Address
Michael Affronti Michael@Contoso.com One Microsoft Way
Chris Barry Chris@Tailspin.com Two Tailspin Trail
Robin Wood Robin@Northwind.com Nine Northwind Street
City Country State PostalCode
Redmond USA Washington 98052
Springfield USA Illinois 11135
North Wind USA North Dakota 99909

74

75

76

77

78

79

80

81
1. In this iteration, we will not create an action
recording as it will overwrite the original one that
we just created. Instead, we’re going to use the
version that we just recorded to aid in the running
of this iteration. Click the Start Test button to start
iteration 2.
2. Step 1 should already be selected. Hold down the
Shift key and click the “Click Place Order” step to
select all steps leading to it, inclusively.

82

83

84

85

86

87

88
Test Case Management and Manual Testing in Team
Foundation Server 2013 Web Access

89

90

91

92

93
⦁ Note: As of Update 2, you
cannot add or edit
parameters using TFS Web
Access. You will need to
use Microsoft Test
Manager for this purpose.

94

95

96

97

98

99
Relatórios
https://msdn.microsoft.com/en-us/library/dd380714(v=vs.110).aspx Bug Status
Bug Trends
Build Quality Indicators
Build Success Over Time
Build Summary
Burndown and Burn Rate
Reactivations
Remaining Work
Status on All Iterations
Stories Overview
Stories Progress
Test Case Readiness
Test Plan Progress
Test Plan Progress
Unplanned Work

100
Links Uteis
Caminho para Virtual Machine e Hands on Lab
- Application Lifecycle Management Virtual Machine And Hands on Labs
http://blogs.msdn.com/b/briankel/archive/2013/08/02/visual-studio-2013-
application-lifecycle-management-virtual-machine-and-hands-on-labs-demo-
scripts.aspx
Ou
http://goo.gl/BCHtbq
http://www.microsoftvirtualacademy.com/
http://onthehub.com/

OBRIGADO!
Luis Cesar Teodoro
Arquiteto de Soluções
lcteodoro@stefanini.com
101
