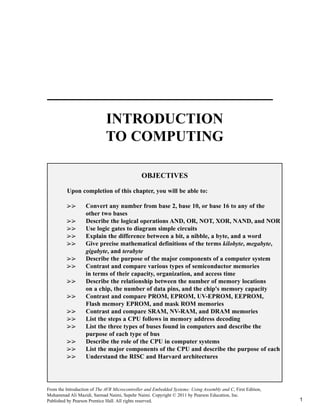

OBJECTIVES
Upon completion of this chapter, you will be able to:
>
> >
> Convert any number from base 2, base 10, or base 16 to any of the
other two bases
>
> >
> Describe the logical operations AND, OR, NOT, XOR, NAND, and NOR
>
> >
> Use logic gates to diagram simple circuits
>
> >
> Explain the difference between a bit, a nibble, a byte, and a word
>
> >
> Give precise mathematical definitions of the terms kilobyte, megabyte,
gigabyte, and terabyte
>
> >
> Describe the purpose of the major components of a computer system
>
> >
> Contrast and compare various types of semiconductor memories
in terms of their capacity, organization, and access time
>
> >
> Describe the relationship between the number of memory locations
on a chip, the number of data pins, and the chip's memory capacity
>
> >
> Contrast and compare PROM, EPROM, UV-EPROM, EEPROM,
Flash memory EPROM, and mask ROM memories
>
> >
> Contrast and compare SRAM, NV-RAM, and DRAM memories
>
> >
> List the steps a CPU follows in memory address decoding
>
> >
> List the three types of buses found in computers and describe the
purpose of each type of bus
>
> >
> Describe the role of the CPU in computer systems
>
> >
> List the major components of the CPU and describe the purpose of each
>
> >
> Understand the RISC and Harvard architectures
INTRODUCTION
TO COMPUTING
From the Introduction of The AVR Microcontroller and Embedded Systems: Using Assembly and C, First Edition,
Published by Pearson Prentice Hall. All rights reserved.
Muhammad Ali Mazidi, Sarmad Naimi, Sepehr Naimi. Copyright © 2011 by Pearson Education, Inc.
1

the base 2 (binary) system. In this section we explain how to convert from the dec-
imal system to the binary system, and vice versa. The convenient representation of
binary numbers, called hexadecimal, also is covered. Finally, the binary format of
the alphanumeric code, called ASCII, is explored.
Decimal and binary number systems
Although there has been speculation that the origin of the base 10 system
is the fact that human beings have 10 fingers, there is absolutely no speculation
about the reason behind the use of the binary system in computers. The binary sys-
tem is used in computers because 1 and 0 represent the two voltage levels of on
and off. Whereas in base 10 there are 10 distinct symbols, 0, 1, 2, ..., 9, in base 2
there are only two, 0 and 1, with which to generate numbers. Base 10 contains dig-
its 0 through 9; binary contains digits 0 and 1 only. These two binary digits, 0 and
1, are commonly referred to as bits.
Converting from decimal to binary
One method of converting from decimal to binary is to divide the decimal
number by 2 repeatedly, keeping track of the remainders. This process continues
until the quotient becomes zero. The remainders are then written in reverse order
Convert 2510 to binary.
Solution:
Quotient Remainder
25/2 = 12 1 LSB (least significant bit)
12/2 = 6 0
6/2 = 3 0
3/2 = 1 1
1/2 = 0 1 MSB (most significant bit)
Therefore, 2510 = 110012.
INTRODUCTION TO COMPUTING
SECTION 1: NUMBERING AND CODING SYSTEMS
to obtain the binary number. This is demonstrated in Example 1.
Example 1
To understand the software and hardware of a microcontroller-based sys-
tem, one must first master some very basic concepts underlying computer archi-
sented in Section 1. In Section 2, an overview of logic gates is given. The semicon-
CPUs and Harvard and von Neumann architectures are discussed. Finally, in the
last section we give a brief history of RISC architecture. Although some readers
may have an adequate background in many of the topics of this chapter, it is rec-
ommended that the material be reviewed, however briefly.
tecture. In this chapter, the fundamentals of numbering and coding systems are pre-
Whereas human beings use base 10 (decimal) arithmetic, computers use
ductor memory and memory interfacing are discussed in Section 3. In Section 4,
2

Converting from binary to decimal
To convert from binary to decimal, it is
important to understand the concept of weight
associated with each digit position. First, as an
analogy, recall the weight of numbers in the base
10 system, as shown in the diagram. By the same
token, each digit position of a number in base 2
has a weight associated with it:
1101012 = Decimal Binary
1 × 20 = 1 × 1 = 1 1
0 × 21 = 0 × 2 = 0 00
1 × 22 = 1 × 4 = 4 100
0 × 23 = 0 × 8 = 0 0000
1 × 24 = 1 × 16 = 16 10000
1 × 25 = 1 × 32 = 32 100000
53 110101
Knowing the weight of each bit in a binary number makes it simple to add
Knowing the weight associated with each binary bit position allows one to
convert a decimal number to binary directly instead of going through the process
Convert 110012 to decimal.
Solution:
Weight: 16 8 4 2 1
Digits: 1 1 0 0 1
Sum: 16 + 8 + 0 + 0 + 1 = 2510
Use the concept of weight to convert 3910 to binary.
Solution:
Weight: 32 16 8 4 2 1
1 0 0 1 1 1
32 + 0 + 0 + 4 + 2 + 1 = 39
Therefore, 3910 = 1001112.
74068310 =
3 × 100 = 3
8 × 101 = 80
6 × 102 = 600
0 × 103 = 0000
4 × 104 = 40000
7 × 105 = 700000
740683
them together to get its decimal equivalent, as shown in Example 2.
of repeated division. This is shown in Example 3.
Example 2
Example 3
3

Hexadecimal system
Base 16, or the hexadecimal system as it is called in
computer literature, is used as a convenient representation
of binary numbers. For example, it is much easier for a
human being to represent a string of 0s and 1s such as
100010010110 as its hexadecimal equivalent of 896H. The
binary system has 2 digits, 0 and 1. The base 10 system has
10 digits, 0 through 9. The hexadecimal (base 16) system
has 16 digits. In base 16, the first 10 digits, 0 to 9, are the
same as in decimal, and for the remaining six digits, the let-
equivalent binary, decimal, and hexadecimal representa-
tions for 0 to 15.
Converting between binary and hex
To represent a binary number as its equivalent hexa-
decimal number, start from the right and group 4 bits at a
time, replacing each 4-bit binary number with its hex equiv-
each hex digit is replaced with its 4-bit binary equivalent.
Converting from decimal to hex
Converting from decimal to hex could be approached in two ways:
method of converting decimal to hex.
2. Convert directly from decimal to hex by repeated division, keeping track of the
remainders. Experimenting with this method is left to the reader.
Number System
Decimal Binary Hex
0 0000 0
1 0001 1
2 0010 2
3 0011 3
4 0100 4
5 0101 5
6 0110 6
7 0111 7
8 1000 8
9 1001 9
10 1010 A
11 1011 B
12 1100 C
13 1101 D
14 1110 E
15 1111 F
Convert hex 29B to binary.
Solution:
2 9 B
29B = 0010 1001 1011
Dropping the leading zeros gives 1010011011.
Represent binary 100111110101 in hex.
Solution:
First the number is grouped into sets of 4 bits: 1001 1111 0101.
Then each group of 4 bits is replaced with its hex equivalent:
1001 1111 0101
9 F 5
Therefore, 1001111101012 = 9F5 hexadecimal.
Table 1: Base 16
See Examples 4 and 5.
alent shown in Table 1. To convert from hex to binary,
Example 4
Example 5
1. Convert to binary first and then convert to hex. Example 6 shows this
ters A, B, C, D, E, and F are used. Table 1 shows the
4

Converting from hex to decimal
Conversion from hex to decimal can also be approached in two ways:
this method of converting from hex to decimal.
2. Convert directly from hex to decimal by summing the weight of all digits.
(a) Convert 4510 to hex.
32 16 8 4 2 1 First, convert to binary.
1 0 1 1 0 1 32 + 8 + 4 + 1 = 45
4510 = 0010 11012 = 2D hex
(b) Convert 62910 to hex.
512 256 128 64 32 16 8 4 2 1
1 0 0 1 1 1 0 1 0 1
62910 = (512 + 64 + 32 + 16 + 4 + 1) = 0010 0111 01012 = 275 hex
(c) Convert 171410 to hex.
1024 512 256 128 64 32 16 8 4 2 1
1 1 0 1 0 1 1 0 0 1 0
171410 = (1024 + 512 + 128 + 32 + 16 + 2) = 0110 1011 00102 = 6B2 hex
Convert the following hexadecimal numbers to decimal.
(a) 6B216 = 0110 1011 00102
1024 512 256 128 64 32 16 8 4 2 1
1 1 0 1 0 1 1 0 0 1 0
1024 + 512 + 128 + 32 + 16 + 2 = 171410
(b) 9F2D16 = 1001 1111 0010 11012
32768 16384 8192 4096 2048 1024 512 256 128 64 32 16 8 4 2 1
1 0 0 1 1 1 1 1 0 0 1 0 1 1 0 1
32768 + 4096 + 2048 + 1024 + 512 + 256 + 32 + 8 + 4 + 1 = 40,74910
Example 6
Example 7
1. Convert from hex to binary and then to decimal. Example 7 demonstrates
5

Counting in bases 10, 2, and 16
To show the relationship between all
of numbers from 0 to 31 in decimal, along with
the equivalent binary and hex numbers. Notice
in each base that when one more is added to the
highest digit, that digit becomes zero and a 1 is
carried to the next-highest digit position. For
example, in decimal, 9 + 1 = 0 with a carry to the
next-highest position. In binary, 1 + 1 = 0 with a
carry; similarly, in hex, F + 1 = 0 with a carry.
Addition of binary and hex numbers
traction of binary numbers is bypassed since all
computers
use the
a d d i t i o n
process to
implement
s u b t r a c -
t i o n .
Although
computers have adder circuitry, there is no sep-
arate circuitry for subtractors. Instead, adders
are used in conjunction with 2’s complement
circuitry to perform subtraction. In other words,
to implement “x – y”, the computer takes the 2’s
complement of y and adds it to x. The concept
of 2’s complement is reviewed next. Example
2’s complement
To get the 2’s complement of a binary number, invert all the bits and then
Decimal Binary Hex
0 00000 0
1 00001 1
2 00010 2
3 00011 3
4 00100 4
5 00101 5
6 00110 6
7 00111 7
8 01000 8
9 01001 9
10 01010 A
11 01011 B
12 01100 C
13 01101 D
14 01110 E
15 01111 F
16 10000 10
17 10001 11
18 10010 12
19 10011 13
20 10100 14
21 10101 15
22 10110 16
23 10111 17
24 11000 18
25 11001 19
26 11010 1A
27 11011 1B
28 11100 1C
29 11101 1D
30 11110 1E
31 11111 1F
A + B Carry Sum
0 + 0 0 0
0 + 1 0 1
1 + 0 0 1
1 + 1 1 0
Add the following binary numbers. Check against their decimal equivalents.
Solution:
Binary Decimal
1101 13
+ 1001 9
10110 22
Table 2: Counting in Bases
Example 8
three bases, in Table 2 we show the sequence
Table 3: Binary Addition
8 shows the addition of binary numbers.
The addition of binary numbers is a very
straightforward process. Table 3 shows the
addition of two bits. The discussion of sub-
6

add 1 to the result. Inverting the bits is simply a matter of changing all 0s to 1s and
Addition and subtraction of hex numbers
In studying issues related to software and hardware of computers, it is
often necessary to add or subtract hex numbers. Mastery of these techniques is
essential. Hex addition and subtraction are discussed separately below.
Addition of hex numbers
This section describes the process of adding hex numbers. Starting with the
least significant digits, the digits are added together. If the result is less than 16,
write that digit as the sum for that position. If it is greater than 16, subtract 16 from
it to get the digit and carry 1 to the next digit. The best way to explain this is by
Subtraction of hex numbers
In subtracting two hex numbers, if the second digit is greater than the first,
Take the 2’s complement of 10011101.
Solution:
10011101 binary number
01100010 1’s complement
+ 1
01100011 2’s complement
Perform hex addition: 23D9 + 94BE.
Solution:
23D9 LSD: 9 + 14 = 23 23 – 16 = 7 with a carry
+ 94BE 1 + 13 + 11 = 25 25 – 16 = 9 with a carry
B897 1 + 3 + 4 = 8
MSD: 2 + 9 = B
Perform hex subtraction: 59F – 2B8.
Solution:
59F LSD: 8 from 15 = 7
– 2B8 11 from 25 (9 + 16) = 14 (E)
2E7 2 from 4 (5 – 1) = 2
1s to 0s. This is called the 1’s complement. See Example 9.
Example 9
example, as shown in Example 10.
Example 10
Example 11
borrow 16 from the preceding digit. See Example 11.
7

ASCII code
The discussion so far has
revolved around the representation of
number systems. Because all informa-
tion in the computer must be represent-
ed by 0s and 1s, binary patterns must be
assigned to letters and other characters.
In the 1960s a standard representation
called ASCII (American Standard Code
for Information Interchange) was estab-
lished. The ASCII (pronounced “ask-E”) code assigns binary patterns for numbers
0 to 9, all the letters of the English alphabet, both uppercase (capital) and lower-
case, and many control codes and punctuation marks. The great advantage of this
system is that it is used by most computers, so that information can be shared
among computers. The ASCII system uses a total of 7 bits to represent each code.
For example, 100 0001 is assigned to the uppercase letter “A” and 110 0001 is for
Notice that the pattern of ASCII codes was designed to allow for easy
manipulation of ASCII data. For example, digits 0 through 9 are represented by
ASCII codes 30 through 39. This enables a program to easily convert ASCII to
decimal by masking off the “3” in the upper nibble. Also notice that there is a rela-
tionship between the uppercase and lowercase letters. The uppercase letters are
represented by ASCII codes 41 through 5A while lowercase letters are represent-
ed by codes 61 through 7A. Looking at the binary code, the only bit that is differ-
ent between the uppercase “A” and lowercase “a” is bit 5. Therefore, conversion
between uppercase and lowercase is as simple as changing bit 5 of the ASCII code.
Review Questions
1. Why do computers use the binary number system instead of the decimal sys-
tem?
2. Convert 3410 to binary and hex.
3. Convert 1101012 to hex and decimal.
4. Perform binary addition: 101100 + 101.
5. Convert 1011002 to its 2’s complement representation.
6. Add 36BH + F6H.
7. Subtract 36BH – F6H.
8. Write “80x86 CPUs” in its ASCII code (in hex form).
Hex Symbol Hex Symbol
41 A 61 a
42 B 62 b
43 C 63 c
44 D 64 d
... ... ... ...
59 Y 79 y
5A Z 7A z
Figure 1. Selected ASCII Codes
the lowercase “a”. Often, a zero is placed in the most-significant bit position to
make it an 8-bit code. Figure 1 shows selected ASCII codes. The use of ASCII is
not only standard for keyboards used in the United States and many other coun-
tries but also provides a standard for printing and displaying characters by output
devices such as printers and monitors.
8

This section gives an overview of digital logic and design. First, we cover
binary logic operations, then we show gates that perform these functions. Next,
logic gates are put together to form simple digital circuits. Finally, we cover some
logic devices commonly found in microcontroller interfacing.
Binary logic
As mentioned earlier, computers use the
binary number system because the two voltage lev-
els can be represented as the two digits 0 and 1.
Signals in digital electronics have two distinct volt-
age levels. For example, a system may define 0 V as
system with the built-in tolerances for variations in
the voltage. A valid digital signal in this example
should be within either of the two shaded areas.
Logic gates
Binary logic gates are simple circuits that
take one or more input signals and send out one out-
put signal. Several of these gates are defined below.
AND gate
The AND gate takes two or more inputs and
performs a logic AND on them. See the truth table
and diagram of the AND gate. Notice that if both
inputs to the AND gate are 1, the output will be 1.
Any other combination of inputs will give a 0 output.
The example shows two inputs, x and y. Multiple
outputs are also possible for logic gates. In the case
of AND, if all inputs are 1, the output is 1. If any
input is 0, the output is 0.
OR gate
The OR logic function will output a 1 if one
or more inputs is 1. If all inputs are 0, then and only
then will the output be 0.
Tri-state buffer
A buffer gate does not change the logic level
of the input. It is used to isolate or amplify the sig-
nal.
Logical AND Function
Inputs Output
X Y X AND Y
0 0 0
0 1 0
1 0 0
1 1 1
X
Y
X AND Y
Logical OR Function
Inputs Output
X Y X OR Y
0 0 0
0 1 1
1 0 1
1 1 1
X
Y
X OR Y
Buffer
X
Control
Y
5
4
3
2
1
0
Logic 0
Logic 1
Figure 2. Binary Signals
logic 0 and +5 V as logic 1. Figure 2 shows this
SECTION 2: DIGITAL PRIMER
9

Inverter
The inverter, also called NOT, outputs the
value opposite to that input to the gate. That is, a 1
input will give a 0 output, while a 0 input will give a
1 output.
XOR gate
The XOR gate performs an exclusive-OR
operation on the inputs. Exclusive-OR produces a 1
output if one (but only one) input is 1. If both
operands are 0, the output is 0. Likewise, if both
operands are 1, the output is also 0. Notice from the
XOR truth table, that whenever the two inputs are
the same, the output is 0. This function can be used
to compare two bits to see if they are the same.
NAND and NOR gates
The NAND gate functions like an AND gate
with an inverter on the output. It produces a 0 output
when all inputs are 1; otherwise, it produces a 1 out-
put. The NOR gate functions like an OR gate with an
inverter on the output. It produces a 1 if all inputs are
0; otherwise, it produces a 0. NAND and NOR gates
are used extensively in digital design because they
are easy and inexpensive to fabricate. Any circuit
that can be designed with AND, OR, XOR, and
INVERTER gates can be implemented using only
NAND and NOR gates. A simple example of this is
given below. Notice in NAND, that if any input is 0,
the output is 1. Notice in NOR, that if any input is 1,
the output is 0.
Logic design using gates
Next we will show a simple logic design to
add two binary digits. If we add two binary digits
there are four possible outcomes:
Carry Sum
0 + 0 = 0 0
0 + 1 = 0 1
1 + 0 = 0 1
1 + 1 = 1 0
Logical Inverter
Input Output
X NOT X
0 1
1 0
X NOT X
Logical NAND Function
Inputs Output
X Y X NAND Y
0 0 1
0 1 1
1 0 1
1 1 0
X
Y
X NAND Y
Logical NOR Function
Inputs Output
X Y X NOR Y
0 0 1
0 1 0
1 0 0
1 1 0
X
Y
X NOR Y
Logical XOR Function
Inputs Output
X Y X XOR Y
0 0 0
0 1 1
1 0 1
1 1 0
X
Y
X XOR Y
10

Notice that when we add 1 + 1 we get 0 with a carry to the next higher
place. We will need to determine the sum and the carry for this design. Notice that
the sum column above matches the output for the XOR function, and that the carry
circuit implemented with AND and OR gates and inverters.
gram of a half-adder. Two half-adders
can be combined to form an adder that
can add three input digits. This is called
diagram of a full-adder, along with a
block diagram that masks the details of
adder using three full-adders.
Sum
Sum
Final Sum
C out
Carry
Half-
Adder
Half-
Adder
X
Y
Carry
Final
Carry
C in
X
Y
C in
X
Y
Sum
Carry
X
Y
X
Y
X
Y
Sum
Carry
(a) Half-Adder Using XOR and AND (b) Half-Adder Using AND, OR, Inverters
Half-
Adder
X Sum
Carry
out
Y
Figure 3. Two Implementations of a Half-Adder
Figure 5. Full-Adder Built from a Half-Adder
Figure 4. Block Diagram of a Half-Adder
a full-adder. Figure 5 shows the logic
column matches the output for the AND function. Figure 3(a) shows a simple
adder implemented with XOR and AND gates. Figure 3(b) shows the same logic
Figure 4 shows a block dia-
the circuit. Figure 6 shows a 3-bit
11

Decoders
Another example of the application
of logic gates is the decoder. Decoders are
widely used for address decoding in com-
for 9 (1001 binary) and 5 (0101) using
inverters and AND gates.
Flip-flops
A widely used component in digital
systems is the flip-flop. Frequently, flip-
shows the logic diagram, block diagram,
and truth table for a flip-flop.
The D flip-flop is widely used to
latch data. Notice from the truth table that
a D-FF grabs the data at the input as the
clock is activated. A D-FF holds the data as
long as the power is on.
Adders
Full-
Adder
Full-
Adder
Full-
Adder
X0 S0
S1
S2
S3
Carry
Carry
Carry
Y0
X1
Y1
X2
Y2
LSB LSB
(a) Address decoder for 9 (binary 1001)
The output of the AND gate will be 1
if and only if the input is binary 1001.
(b) Address decoder for 5 (binary 0101)
The output of the AND gate will be 1
if and only if the input is binary 0101.
Clk D Q
No x no change
0 0
1 1
x = don’t care
D Q
Clk
Q
D
Q
Q
Clk
(a) Circuit diagram (b) Block diagram (c) Truth table
puter design. Figure 7 shows decoders
Figure 7. Address Decoders
Figure 8. D Flip-Flops
flops are used to store data. Figure 8
Figure 6. 3-Bit Adder Using Three Full-
12

Review Questions
1. The logical operation _____ gives a 1 output when all inputs are 1.
2. The logical operation _____ gives a 1 output when one or more of its inputs is
1.
3. The logical operation _____ is often used to compare two inputs to determine
whether they have the same value.
4. A _____ gate does not change the logic level of the input.
5. Name a common use for flip-flops.
6. An address ______ is used to identify a predetermined binary address.
In this section we discuss various types of semiconductor memories and
their characteristics such as capacity, organization, and access time. We will also
show how the memory is connected to CPU. Before we embark on the subject of
memory, it will be helpful to give an overview of computer organization and
review some widely used terminology in computer literature.
Some important terminology
Recall from the discussion above
that a bit is a binary digit that can have the
value 0 or 1. A byte is defined as 8 bits. A
nibble is half a byte, or 4 bits. A word is
two bytes, or 16 bits. The display is intended to show the relative size of these
units. Of course, they could all be composed of any combination of zeros and ones.
A kilobyte is 210 bytes, which is 1024 bytes. The abbreviation K is often
used to represent kilobytes. A megabyte, or meg as some call it, is 220 bytes. That
is a little over 1 million bytes; it is exactly 1,048,576 bytes. Moving rapidly up the
scale in size, a gigabyte is 230 bytes (over 1 billion), and a terabyte is 240 bytes
(over 1 trillion). As an example of how some of these terms are used, suppose that
a given computer has 16 megabytes of memory. That would be 16 × 220, or 24 ×
220, which is 224. Therefore 16 megabytes is 224 bytes.
Two types of memory commonly used in microcomputers are RAM, which
stands for “random access memory” (sometimes called read/write memory), and
ROM, which stands for “read-only memory.” RAM is used by the computer for
temporary storage of programs that it is running. That data is lost when the com-
puter is turned off. For this reason, RAM is sometimes called volatile memory.
ROM contains programs and information essential to operation of the computer.
The information in ROM is permanent, cannot be changed by the user, and is not
lost when the power is turned off. Therefore, it is called nonvolatile memory.
Internal organization of computers
Bit 0
Nibble 0000
Byte 0000 0000
Word 0000 0000 0000 0000
SECTION 3: SEMICONDUCTOR MEMORY
The internal working of every computer can be broken down into three
parts: CPU (central processing unit), memory, and I/O (input/output) devices.
Figure 9 shows a block diagram of the internal organization of a computer.
13

The function of the CPU is to execute (process) information stored in memory. The
function of I/O devices such as the keyboard and video monitor is to provide a
means of communicating with the CPU. The CPU is connected to memory and I/O
through strips of wire called a bus. The bus inside a computer allows carrying
information from place to place just as a street allows cars to carry people from
place to place. In every computer there are three types of buses: address bus, data
bus, and control bus.
For a device (memory or I/O) to be recognized by the CPU, it must be
assigned an address. The address assigned to a given device must be unique; no
two devices are allowed to have the same address. The CPU puts the address (in
binary, of course) on the address bus, and the decoding circuitry finds the device.
Then the CPU uses the data bus either to get data from that device or to send data
to it. The control buses are used to provide read or write signals to the device to
indicate if the CPU is asking for information or sending information. Of the three
buses, the address bus and data bus determine the capability of a given CPU.
More about the data bus
Because data buses are used to carry information in and out of a CPU, the
more data buses available, the better the CPU. If one thinks of data buses as high-
way lanes, it is clear that more lanes provide a better pathway between the CPU
the same token, that increase in the number of lanes increases the cost of construc-
tion. More data buses mean a more expensive CPU and computer. The average
size of data buses in CPUs varies between 8 and 64 bits. Early personal comput-
ers such as Apple 2 used an 8-bit data bus, while supercomputers such as Cray
used a 64-bit data bus. Data buses are bidirectional, because the CPU must use
them either to receive or to send data. The processing power of a computer is relat-
ed to the size of its buses, because an 8-bit bus can send out 1 byte a time, but a
16-bit bus can send out 2 bytes at a time, which is twice as fast.
More about the address bus
Because the address bus is used to identify the devices and memory con-
nected to the CPU, the more address buses available, the larger the number of
CPU
Read/write
RAM ROM Printer Disk Monitor Keyboard
Address Bus
Data Bus
Control Buses (MEMR, MEMW, IORD, and IOWR)
Figure 9. Internal Organization of a Computer
and its external devices (such as printers, RAM, ROM, etc.; see Figure 9). By
14

devices that can be addressed. In other words, the number of address buses for a
CPU determines the number of locations with which it can communicate. The
number of locations is always equal to 2x, where x is the number of address lines,
regardless of the size of the data bus. For example, a CPU with 16 address lines
can provide a total of 65,536 (216) or 64K of addressable memory. Each location
can have a maximum of 1 byte of data. This is because all general-purpose micro-
processor CPUs are what is called byte addressable. As another example, the IBM
PC AT uses a CPU with 24 address lines and 16 data lines. Thus, the total acces-
sible memory is 16 megabytes (224 = 16 megabytes). In this example there would
be 224 locations, and because each location is one byte, there would be 16
megabytes of memory. The address bus is a unidirectional bus, which means that
the CPU uses the address bus only to send out addresses. To summarize: The total
number of memory locations addressable by a given CPU is always equal to 2x
where x is the number of address bits, regardless of the size of the data bus.
CPU and its relation to RAM and ROM
For the CPU to process information, the data must be stored in RAM or
ROM. The function of ROM in computers is to provide information that is fixed
and permanent. This is information such as tables for character patterns to be dis-
played on the video monitor, or programs that are essential to the working of the
computer, such as programs for testing and finding the total amount of RAM
installed on the system, or for displaying information on the video monitor. In con-
trast, RAM stores temporary information that can change with time, such as vari-
ous versions of the operating system and application packages such as word pro-
cessing or tax calculation packages. These programs are loaded from the hard
drive into RAM to be processed by the CPU. The CPU cannot get the information
from the disk directly because the disk is too slow. In other words, the CPU first
seeks the information to be processed from RAM (or ROM). Only if the data is not
there does the CPU seek it from a mass storage device such as a disk, and then it
transfers the information to RAM. For this reason, RAM and ROM are sometimes
referred to as primary memory and disks are called secondary memory. Next, we
discuss various types of semiconductor memories and their characteristics such as
capacity, organization, and access time.
Memory capacity
The number of bits that a semiconductor memory chip can store is called
chip capacity. It can be in units of Kbits (kilobits), Mbits (megabits), and so on.
This must be distinguished from the storage capacity of computer systems. While
the memory capacity of a memory IC chip is always given in bits, the memory
capacity of a computer system is given in bytes. For example, an article in a tech-
nical journal may state that the 128M chip has become popular. In that case, it is
understood, although it is not mentioned, that 128M means 128 megabits since the
article is referring to an IC memory chip. However, if an advertisement states that
a computer comes with 128M memory, it is understood that 128M means 128
megabytes since it is referring to a computer system.
15

Memory organization
Memory chips are organized into a number of locations within the IC.
Each location can hold 1 bit, 4 bits, 8 bits, or even 16 bits, depending on how it is
designed internally. The number of bits that each location within the memory chip
can hold is always equal to the number of data pins on the chip. How many loca-
tions exist inside a memory chip? That depends on the number of address pins. The
number of locations within a memory IC always equals 2 to the power of the num-
ber of address pins. Therefore, the total number of bits that a memory chip can
store is equal to the number of locations times the number of data bits per location.
To summarize:
1. A memory chip contains 2x
locations, where x is the number of address pins.
2. Each location contains y bits, where y is the number of data pins on the chip.
3. The entire chip will contain 2x
× y bits, where x is the number of address pins
and y is the number of data pins on the chip.
Speed
One of the most important characteristics of a
memory chip is the speed at which its data can be
accessed. To access the data, the address is presented to
the address pins, the READ pin is activated, and after a
certain amount of time has elapsed, the data shows up
at the data pins. The shorter this elapsed time, the bet-
ter, and consequently, the more expensive the memory
chip. The speed of the memory chip is commonly
referred to as its access time. The access time of mem-
ory chips varies from a few nanoseconds to hundreds
of nanoseconds, depending on the IC technology used
in the design and fabrication process.
The three important memory characteristics of
capacity, organization, and access time will be
a reference for the calculation of memory organization.
ROM (read-only memory)
ROM is a type of memory that does not lose its
contents when the power is turned off. For this reason, ROM is also called non-
volatile memory. There are different types of read-only memory, such as PROM,
EPROM, EEPROM, Flash EPROM, and mask ROM. Each is explained next.
PROM (programmable ROM) and OTP
PROM refers to the kind of ROM that the user can burn information into.
In other words, PROM is a user-programmable memory. For every bit of the
PROM, there exists a fuse. PROM is programmed by blowing the fuses. If the
information burned into PROM is wrong, that PROM must be discarded since its
internal fuses are blown permanently. For this reason, PROM is also referred to as
x 2x
10 1K
11 2K
12 4K
13 8K
14 16K
15 32K
16 64K
17 128K
18 256K
19 512K
20 1M
21 2M
22 4M
23 8M
24 16M
25 32M
26 64M
27 128M
Table 4: Powers of 2
explored extensively in this chapter. Table 4 serves as
Examples 12 and 13 demonstrate these concepts.
16

OTP (one-time programmable). Programming ROM, also called burning ROM,
requires special equipment called a ROM burner or ROM programmer.
EPROM (erasable programmable ROM) and UV-EPROM
EPROM was invented to allow making changes in the contents of PROM
after it is burned. In EPROM, one can program the memory chip and erase it thou-
sands of times. This is especially necessary during development of the prototype
of a microprocessor-based project. A widely used EPROM is called UV-EPROM,
where UV stands for ultraviolet. The only problem with UV-EPROM is that eras-
ing its contents can take up to 20 minutes. All UV-EPROM chips have a window
through which the programmer can shine ultraviolet (UV) radiation to erase the
chip’s contents. For this reason, EPROM is also referred to as UV-erasable
chips.
To program a UV-EPROM chip, the following steps must be taken:
1. Its contents must be erased. To erase a chip, remove it from its socket on the
system board and place it in EPROM erasure equipment to expose it to UV
radiation for 15–20 minutes.
2. Program the chip. To program a UV-EPROM chip, place it in the ROM burn-
er (programmer). To burn code or data into EPROM, the ROM burner uses
12.5 volts or higher, depending on the EPROM type. This voltage is referred
A 512K memory chip has 8 pins for data. Find:
(a) the organization, and (b) the number of address pins for this memory chip.
Solution:
(a) A memory chip with 8 data pins means that each location within the chip can hold
8 bits of data. To find the number of locations within this memory chip, divide the
capacity by the number of data pins. 512K/8 = 64K; therefore, the organization for
this memory chip is 64K × 8.
(b) The chip has 16 address lines since 216
= 64K.
A given memory chip has 12 address pins and 4 data pins. Find:
(a) the organization, and (b) the capacity.
Solution:
(a) This memory chip has 4,096 locations (212
= 4,096), and each location can hold 4
bits of data. This gives an organization of 4,096 × 4, often represented as 4K × 4.
(b) The capacity is equal to 16K bits since there is a total of 4K locations and each loca-
tion can hold 4 bits of data.
EPROM or simply UV-EPROM. Figure 10 shows the pins for UV-EPROM
Example 12
Example 13
17

to as VPP in the UV-EPROM data sheet.
3. Place the chip back into its socket on the system board.
As can be seen from the above steps, not only is there an EPROM program-
mer (burner), but there is also separate EPROM erasure equipment. The main
problem, and indeed the major disadvantage of UV-EPROM, is that it cannot be
erased and programmed while it is in the system board. To provide a solution to
this problem, EEPROM was invented.
ber 27128-25 refers to UV-EPROM that has a capacity of 128K bits and access
time of 250 nanoseconds. The capacity of the memory chip is indicated in the part
part numbers, C refers to CMOS technology. Notice that 27XX always refers to
UV-EPROM chips. For a comprehensive list of available memory chips see the
JAMECO (jameco.com) or JDR (jdr.com) catalogs.
For ROM chip 27128, find the number of data and address pins.
Solution:
The 27128 has a capacity of 128K bits. It has 16K × 8 organization (all ROMs have 8
data pins), which indicates that there are 8 pins for data and 14 pins for address
(214
= 16K).
Vcc
PGM
N.C.
A8
A9
A11
OE
A10
CE
O7
O6
O5
O4
O3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
Vpp
A12
A7
A6
A5
A4
A3
A2
A1
A0
O0
O1
O2
GND
Vcc
A8
A9
Vpp
OE
A10
CE
O7
O6
O5
O4
O3
Vcc
A14
A13
A8
A9
Vpp
OE
A10
CE
O7
O6
O5
O4
O3
Vcc
PGM
A13
A8
A9
Vpp
OE
A10
CE
O7
O6
O5
O4
O3
Vcc
A8
A9
A11
OE/Vpp
A10
CE
O7
O6
O5
O4
O3
2716
27128
27256
2732A
Vpp
A12
A7
A6
A5
A4
A3
A2
A1
A0
O0
O1
O2
GND
A7
A6
A5
A4
A3
A2
A1
A0
O0
O1
O2
GND
A7
A6
A5
A4
A3
A2
A1
A0
O0
O1
O2
GND
Vpp
A12
A7
A6
A5
A4
A3
A2
A1
A0
O0
O1
O2
GND
27256
2732A
2716
27128
2764
Notice the patterns of the IC numbers in Table 5. For example, part num-
Figure 10. Pin Configurations for 27xx ROM Family
Example 14
number and the access time is given with a zero dropped. See Example 14. In
18

EEPROM (electrically erasable programmable ROM)
EEPROM has several advantages over EPROM, such as the fact that its
method of erasure is electrical and therefore instant, as opposed to the 20-minute
erasure time required for UV-EPROM. In addition, in EEPROM one can select
which byte to be erased, in contrast to UV-EPROM, in which the entire contents
of ROM are erased. However, the main advantage of EEPROM is that one can pro-
gram and erase its contents while it is still in the system board. It does not require
physical removal of the memory chip from its socket. In other words, unlike UV-
EPROM, EEPROM does not require an external erasure and programming device.
To utilize EEPROM fully, the designer must incorporate the circuitry to program
the EEPROM into the system board. In general, the cost per bit for EEPROM is
much higher than for UV-EPROM.
Flash memory EPROM
Since the early 1990s, Flash EPROM has become a popular user-program-
mable memory chip, and for good reasons. First, the erasure of the entire contents
takes less than a second, or one might say in a flash, hence its name, Flash mem-
ory. In addition, the erasure method is electrical, and for this reason it is sometimes
referred to as Flash EEPROM. To avoid confusion, it is commonly called Flash
memory. The major difference between EEPROM and Flash memory is that when
Flash memory's contents are erased, the entire device is erased, in contrast to EEP-
ROM, where one can erase a desired byte. Although in many Flash memories
recently made available the contents are divided into blocks and the erasure can be
done block by block, unlike EEPROM, Flash memory has no byte erasure option.
Because Flash memory can be programmed while it is in its socket on the system
board, it is widely used to upgrade the BIOS ROM of the PC. Some designers
believe that Flash memory will replace the hard disk as a mass storage medium.
Part # Capacity Org. Access Pins VPP
2716 16K 2K × 8 450 ns 24 25 V
2732 32K 4K × 8 450 ns 24 25 V
2732A-20 32K 4K × 8 200 ns 24 21 V
27C32-1 32K 4K × 8 450 ns 24 12.5 V CMOS
2764-20 64K 8K × 8 200 ns 28 21 V
2764A-20 64K 8K × 8 200 ns 28 12.5 V
27C64-12 64K 8K × 8 120 ns 28 12.5 V CMOS
27128-25 128K 16K × 8 250 ns 28 21 V
27C128-12 128K 16K × 8 120 ns 28 12.5 V CMOS
27256-25 256K 32K × 8 250 ns 28 12.5 V
27C256-15 256K 32K × 8 150 ns 28 12.5 V CMOS
27512-25 512K 64K × 8 250 ns 28 12.5 V
27C512-15 512K 64K × 8 150 ns 28 12.5 V CMOS
27C010-15 1024K 128K × 8 150 ns 32 12.5 V CMOS
27C020-15 2048K 256K × 8 150 ns 32 12.5 V CMOS
27C040-15 4096K 512K × 8 150 ns 32 12.5 V CMOS
Table 5: Some UV-EPROM Chips
19

This would increase the performance of the computer tremendously, since Flash
memory is semiconductor memory with access time in the range of 100 ns com-
pared with disk access time in the range of tens of milliseconds. For this to hap-
pen, Flash memory's program/erase cycles must become infinite, just like hard
disks. Program/erase cycle refers to the number of times that a chip can be erased
and reprogrammed before it becomes unusable. At this time, the program/erase
cycle is 100,000 for Flash and EEPROM, 1000 for UV-EPROM, and infinite for
Mask ROM
Mask ROM refers to a kind of ROM in which the contents are programmed
by the IC manufacturer. In other words, it is not a user-programmable ROM. The
term mask is used in IC fabrication. Since the process is costly, mask ROM is used
when the needed volume is high (hundreds of thousands) and it is absolutely cer-
tain that the contents will not change. It is common practice to use UV-EPROM or
Flash for the development phase of a project, and only after the code/data have
been finalized is the mask version of the product ordered. The main advantage of
mask ROM is its cost, since it is significantly cheaper than other kinds of ROM,
but if an error is found in the data/code, the entire batch must be thrown away. It
must be noted that all ROM memories have 8 bits for data pins; therefore, the
organization is ×8.
RAM (random access memory)
RAM memory is called volatile memory since cutting off the power to the
IC results in the loss of data. Sometimes RAM is also referred to as RAWM (read
and write memory), in contrast to ROM, which cannot be written to. There are
three types of RAM: static RAM (SRAM), NV-RAM (nonvolatile RAM), and
dynamic RAM (DRAM). Each is explained separately.
EEPROMs
Part No. Capacity Org. Speed Pins VPP
2816A-25 16K 2K × 8 250 ns 24 5 V
2864A 64K 8K × 8 250 ns 28 5 V
28C64A-25 64K 8K × 8 250 ns 28 5 V CMOS
28C256-15 256K 32K × 8 150 ns 28 5 V
28C256-25 256K 32K × 8 250 ns 28 5 V CMOS
Flash
28F256-20 256K 32K × 8 200 ns 32 12 V CMOS
28F010-15 1024K 128K × 8 150 ns 32 12 V CMOS
28F020-15 2048K 256K × 8 150 ns 32 12 V CMOS
Table 6: Some EEPROM and Flash Chips
RAM and disks. See Table 6 for some sample chips.
20

SRAM (static RAM)
Storage cells in static RAM memo-
ry are made of flip-flops and therefore do
not require refreshing in order to keep their
data. This is in contrast to DRAM, dis-
cussed below. The problem with the use of
flip-flops for storage cells is that each cell
requires at least 6 transistors to build, and
the cell holds only 1 bit of data. In recent
years, the cells have been made of 4 tran-
sistors, which still is too many. The use of
4-transistor cells plus the use of CMOS
technology has given birth to a high-capac-
ity SRAM, but its capacity is far below
for an SRAM chip.
The following is a description of the 6116 SRAM pins.
A0–A10 are for address inputs, where 11 address lines gives 211 = 2K.
WE (write enable) is for writing data into SRAM (active low).
OE (output enable) is for reading data out of SRAM (active low)
CS (chip select) is used to select the memory chip.
I/O0–I/O7 are for data I/O, where 8-bit data lines give an organization of 2K × 8.
ADDRESS
DECODER
128 X 128
MEMORY ARRAY
I/O CONTROL
INPUT
DATA
CIRCUIT
CONTROL
CIRCUIT
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
A0 Vcc
GND
A10
I/O0
I/O7
CS
OE
WE
Vcc
A8
A9
WE
OE
A10
CS
I/O 8
I/O 7
I/O 6
I/O 5
I/O 4
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
A7
A6
A5
A4
A3
A2
A1
A0
I/O 1
I/O 2
1/O 3
GND
Figure 12. Functional Block Diagram for 6116 SRAM
The functional diagram for the 6116 SRAM is given in Figure 12.
DRAM. Figure 11 shows the pin diagram
Figure 11. 2K × 8 SRAM Pins
21

1. Provide the addresses to pins A0–A10.
2. Activate the CS pin.
3. Make WE = 0 while RD = 1.
4. Provide the data to pins I/O0–I/O7.
5. Make WE = 1 and data will be written into SRAM on the positive edge of the
WE signal.
1. Provide the addresses to pins A0–A10. This is the start of the access time
(tAA).
2. Activate the CS pin.
3. While WE = 1, a high-to-low pulse on the OE pin will read the data out of the
chip.
NV-RAM (nonvolatile RAM)
Whereas SRAM is volatile, there is a new type of nonvolatile RAM called
NV-RAM. Like other RAMs, it allows the CPU to read and write to it, but when
the power is turned off the contents are not lost. NV-RAM combines the best of
RAM and ROM: the read and write ability of RAM, plus the nonvolatility of
ROM. To retain its contents, every NV-RAM chip internally is made of the follow-
ing components:
1. It uses extremely power-efficient (very low-power consumption) SRAM cells
built out of CMOS.
Address
CS
OE
Data out Data valid
Address valid
tRC
tAA
Address
CS
Data in
WE
Data valid
Data
set up
Data
hold
Figure 13 shows the following steps to write data into SRAM.
Figure 14. Memory Read Timing for SRAM
Figure 13. Memory Write Timing for SRAM
The following are steps to read data from SRAM. See Figure 14.
22

2. It uses an internal lithium battery as a backup energy source.
3. It uses an intelligent control circuitry. The main job of this control circuitry is
to monitor the VCC pin constantly to detect loss of the external power supply.
If the power to the VCC pin falls below out-of-tolerance conditions, the control
circuitry switches automatically to its internal power source, the lithium bat-
tery. The internal lithium power source is used to retain the NV-RAM contents
only when the external power source is off.
It must be emphasized that all three of the components above are incorpo-
rated into a single IC chip, and for this reason nonvolatile RAM is a very expen-
sive type of RAM as far as cost per bit is concerned. Offsetting the cost, however,
is the fact that it can retain its contents up to ten years after the power has been
turned off and allows one to read and write in exactly the same way as SRAM.
DRAM (dynamic RAM)
Since the early days of the computer, the need for huge, inexpensive
read/write memory has been a major preoccupation of computer designers. In
1970, Intel Corporation introduced the first dynamic RAM (random access mem-
ory). Its density (capacity) was 1024 bits and it used a capacitor to store each bit.
Using a capacitor to store data cuts down the number of transistors needed to build
the cell; however, it requires constant refreshing due to leakage. This is in contrast
to SRAM (static RAM), whose individual cells are made of flip-flops. Since each
bit in SRAM uses a single flip-flop, and each flip-flop requires six transistors,
SRAM
6116P-1 16K 2K × 8 100 ns 24 CMOS
6116P-2 16K 2K × 8 120 ns 24 CMOS
6116P-3 16K 2K × 8 150 ns 24 CMOS
6116LP-1 16K 2K × 8 100 ns 24 Low-power CMOS
6264P-10 64K 8K × 8 100 ns 28 CMOS
NV-RAM from Dallas Semiconductor
DS1220Y-150 16K 2K × 8 150 ns 24
DS1225AB-150 64K 8K × 8 150 ns 28
DS1230Y-85 256K 32K × 8 85 ns 28
Table 7: Some SRAM and NV-RAM Chips
Table 7 shows some examples of SRAM and NV-RAM parts.
23

SRAM has much larger memory cells and consequently lower density. The use of
capacitors as storage cells in DRAM results in much smaller net memory cell size.
The advantages and disadvantages of DRAM memory can be summarized
as follows. The major advantages are high density (capacity), cheaper cost per bit,
and lower power consumption per bit. The disadvantage is that it must be refreshed
periodically because the capacitor cell loses its charge; furthermore, while DRAM
is being refreshed, the data cannot be accessed. This is in contrast to SRAM's flip-
flops, which retain data as long as the power is on, do not need to be refreshed, and
whose contents can be accessed at any time. Since 1970, the capacity of DRAM
has exploded. After the 1K-bit (1024) chip came the 4K-bit in 1973, and then the
16K chip in 1976. The 1980s saw the introduction of 64K, 256K, and finally 1M
and 4M memory chips. The 1990s saw 16M, 64M, 256M, and the beginning of
1G-bit DRAM chips. In the 2000s, 2G-bit chips are standard, and as the fabrica-
tion process gets smaller, larger memory chips will be rolling off the manufactur-
ing line. Keep in mind that when talking about IC memory chips, the capacity is
always assumed to be in bits. Therefore, a 1M chip means a 1-megabit chip and a
256K chip means a 256K-bit memory chip. However, when talking about the
memory of a computer system, it is always assumed to be in bytes.
Packaging issue in DRAM
In DRAM there is a problem of packing a large number of cells into a sin-
gle chip with the normal number of pins assigned to addresses. For example, a
64K-bit chip (64K × 1) must have 16 address lines and 1 data line, requiring 16
pins to send in the address if the conventional method is used. This is in addition
to VCC power, ground, and read/write control pins. Using the conventional method
of data access, the large number of pins defeats the purpose of high density and
small packaging, so dearly cherished by IC designers. Therefore, to reduce the
number of pins needed for addresses, multiplexing/demultiplexing is used. The
method used is to split the address in half and send in each half of the address
through the same pins, thereby requiring fewer address pins. Internally, the DRAM
structure is divided into a square of rows and columns. The first half of the address
is called the row and the second half is called the column. For example, in the case
of DRAM of 64K × 1 organization, the first half of the address is sent in through
the 8 pins A0–A7, and by activating RAS (row address strobe), the internal latch-
es inside DRAM grab the first half of the address. After that, the second half of the
address is sent in through the same pins, and by activating CAS (column address
strobe), the internal latches inside DRAM latch the second half of the address. This
results in using 8 pins for addresses plus RAS and CAS, for a total of 10 pins,
instead of the 16 pins that would be required without multiplexing. To access a bit
of data from DRAM, both row and column addresses must be provided. For this
concept to work, there must be a 2-by-1 multiplexer outside the DRAM circuitry
and a demultiplexer inside every DRAM chip. Due to the complexities associated
with DRAM interfacing (RAS, CAS, the need for multiplexer and refreshing cir-
cuitry), some DRAM controllers are designed to make DRAM interfacing much
easier. However, many small microcontroller-based projects that do not require
much RAM (usually less than 64K bytes) use SRAM of types EEPROM and NV-
RAM, instead of DRAM.
24

DRAM organization
In the discussion of ROM, we noted
that all of these chips have 8 pins for data.
This is not the case for DRAM memory
chips, which can have ×1, ×4, ×8, or ×16
In memory chips, the data pins are
also called I/O. In some DRAMs there are
in and Dout
shows a 256K × 1 DRAM chip with pins
A0–A8 for address, RAS and CAS, WE (write enable), and data in and data out,
as well as power and ground.
Memory address decoding
Next we discuss address decoding. The CPU provides the address of the
data desired, but it is the job of the decoding circuitry to locate the selected mem-
ory block. To explore the concept of decoding circuitry, we look at various meth-
ods used in decoding the addresses. In this discussion we use SRAM or ROM for
the sake of simplicity.
Memory chips have one or more pins called CS (chip select), which must
be activated for the memory's contents to be accessed. Sometimes the chip select
is also referred to as chip enable (CE). In connecting a memory chip to the CPU,
Part No. Speed Capacity Org. Pins
4164-15 150 ns 64K 64K × 1 16
41464-8 80 ns 256K 64K × 4 18
41256-15 150 ns 256K 256K × 1 16
41256-6 60 ns 256K 256K × 1 16
414256-10 100 ns 1M 256K × 4 20
511000P-8 80 ns 1M 1M × 1 18
514100-7 70 ns 4M 4M × 1 20
GND
CAS
D OUT
A6
A3
A4
A5
A7
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
A8
D IN
WE
RAS
A0
A2
A1
Vcc
Discuss the number of pins set aside for addresses in each of the following memory
chips. (a) 16K × 4 DRAM (b) 16K × 4 SRAM
Solution:
Since 214
= 16K:
(a) For DRAM we have 7 pins (A0–A6) for the address pins and 2 pins for RAS and
CAS.
(b) For SRAM we have 14 pins for address and no pins for RAS and CAS since they
are associated only with DRAM. In both cases we have 4 pins for the data bus.
Table 8: Some DRAMs
separate D pins. Figure 15
Figure 15. 256K × 1 DRAM
Example 15
organizations. See Example 15 and Table 8.
25

note the following points.
1. The data bus of the CPU is connected directly to the data pins of the memory
chip.
2. Control signals RD (read) and WR (memory write) from the CPU are connect-
ed to the OE (output enable) and WE (write enable) pins of the memory chip,
respectively.
3. In the case of the address buses, while the lower bits of the addresses from the
CPU go directly to the memory chip address pins, the upper ones are used to
activate the CS pin of the memory chip. It is the CS pin that along with
RD/WR allows the flow of data in or out of the memory chip. No data can be
written into or read from the memory chip unless CS is activated.
As can be seen from the data sheets of SRAM and ROM, the CS input of
a memory chip is normally active low and is activated by the output of the mem-
ory decoder. Normally memories are divided into blocks, and the output of the
decoder selects a given memory block. There are three ways to generate a memo-
ry block selector: (a) using simple logic gates, (b) using the 74LS138, or (c) using
programmable logics such as CPLD and FPGA. Each method is described below.
Simple logic gate address decoder
The simplest method of constructing decoding circuitry is the use of a
NAND gate. The output of a NAND gate is active low, and the CS pin is also
active low, which makes them a perfect match. In cases where the CS input is
active high, an AND gate must be used. Using a combination of NAND gates and
inverters, one can decode any address range. An example of this is shown in Figure
results in the assignment of addresses 3000H to 3FFFH to this memory chip.
A12
A13
A14
A15
CS
RD WR
MEMR
MEMW
4K × 8
A0
A0
-
A11
A11
D7
D7
D0
D0
16, which shows that A15–A12 must be 0011 in order to select the chip. This
Figure 16. Logic Gate as Decoder
26

Using the 74LS138 3-8
decoder
This used to be one of the
most widely used address
decoders. The 3 inputs A, B, and
C generate 8 active-low outputs
Y output is connected to CS of a
memory chip, allowing control
of 8 memory blocks by a single
74LS138. In the 74LS138,
where A, B, and C select which
output is activated, there are
three additional inputs, G2A,
G2B, and G1. G2A and G2B are
both active low, and G1 is active
high. If any one of the inputs
G1, G2A, or G2B is not connect-
ed to an address signal (some-
times they are connected to a
control signal), they must be
activated permanently by either
VCC or ground, depending on the
shows the design and the address
range calculation for the
74LS138 decoder.
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
A
B
C
G2A G2B
Enable
G1
Block Diagram
Function Table
Vcc GND
Inputs
Enable Select
G1 G2 C B A
Outputs
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
X H
L X
H L
H L
H L
H L
H L
H L
H L
H L
X X X
X X X
L L L
L L H
L H L
L H H
H L L
H L H
H H L
H H H
H
H
L
H
H
H
H
H
H
H
H
H
H
L
H
H
H
H
H
H
H
H
H
H
L
H
H
H
H
H
H
H
H
H
H
L
H
H
H
H
H
H
H
H
H
H
L
H
H
H
H
H
H
H
H
H
H
L
H
H
H
H
H
H
H
H
H
H
L
H
H
H
H
H
H
H
H
H
H
L
A12
A13
A14
A15
GND
Vcc
CE
OE Vpp
MEMR
Vcc
4K × 8
A0
A0
-
A11
A11
D7
D7
D0
D0
A
B
C
G2A
G2B
G1
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y0–Y7. See Figure 17. Each
Figure 17. 74LS138 Decoder
Figure 18. Using 74LS138 as Decoder
activation level. Example 16
27

Using programmable logic as an address decoder
Other widely used decoders are programmable logic chips such as PAL,
GAL, and FPGA chips. One disadvantage of these chips is that they require
PAL/GAL/FPGA software and a burner (programmer), whereas the 74LS138
needs neither of these. The advantage of these chips is that they can be pro-
grammed for any combination of address ranges, and so are much more versatile.
This plus the fact that PAL/GAL/FPGA chips have 10 or more inputs (in contrast
to 6 in the 74138) means that they can accommodate more address inputs.
Review Questions
1. How many bytes is 24 kilobytes?
2. What does “RAM” stand for? How is it used in computer systems?
3. What does “ROM” stand for? How is it used in computer systems?
4. Why is RAM called volatile memory?
5. List the three major components of a computer system.
6. What does “CPU” stand for? Explain its function in a computer.
7. List the three types of buses found in computer systems and state briefly the
purpose of each type of bus.
8. State which of the following is unidirectional and which is bidirectional:
(a) data bus (b) address bus
(a) Y4, (b) Y2, and (c) Y7.
Solution:
(a) The address range for Y4 is calculated as follows.
A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1
A15 must be 0 for the decoder to be activated. Y4 will be selected when A14 A13 A12
= 100 (4 in binary). The remaining A11–A0 will be 0 for the lowest address and 1 for
the highest address.
(b) The address range for Y2 is 2000H to 2FFFH.
0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 1 0 1 1 1 1 1 1 1 1 1 1 1 1
(c) The address range for Y7 is 7000H to 7FFFH.
0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Example 16
Looking at the design in Figure 18, find the address range for the following:
The above shows that the range for Y4 is 4000H to 4FFFH. In Figure 18, notice that
28

9. If an address bus for a given computer has 16 lines, what is the maximum
amount of memory it can access?
10. The speed of semiconductor memory is in the range of
(a) microseconds (b) milliseconds
(c) nanoseconds (d) picoseconds
11. Find the organization and chip capacity for each ROM with the indicated num-
ber of address and data pins.
(a) 14 address, 8 data (b) 16 address, 8 data (c) 12 address, 8 data
12. Find the organization and chip capacity for each RAM with the indicated num-
ber of address and data pins.
(a) 11 address, 1 data SRAM (b) 13 address, 4 data SRAM
(c) 17 address, 8 data SRAM (d) 8 address, 4 data DRAM
(e) 9 address, 1 data DRAM (f) 9 address, 4 data DRAM
13. Find the capacity and number of pins set aside for address and data for mem-
ory chips with the following organizations.
(a) 16K × 4 SRAM (b) 32K × 8 EPROM (c) 1M × 1 DRAM
(d) 256K × 4 SRAM (e) 64K × 8 EEPROM (f) 1M × 4 DRAM
14. Which of the following is (are) volatile memory?
(a) EEPROM (b) SRAM (c) DRAM (d) NV-RAM
15. A given memory block uses addresses 4000H–7FFFH. How many kilobytes is
this memory block?
16. The 74138 is a(n) _____ by _____ decoder.
17. In the 74138 give the status of G2A and G2B for the chip to be enabled.
18. In the 74138 give the status of G1 for the chip to be enabled.
In this section we will examine the inside of a CPU. Then, we will com-
pare the Harvard and von Neumann architectures.
Inside CPU
A program stored in memory provides instructions to the CPU to perform
data or controlling a machine such as a robot. The function of the CPU is to fetch
these instructions from memory and execute them. To perform the actions of fetch
and execute, all CPUs are equipped with resources such as the following:
1. Foremost among the resources at the disposal of the CPU are a number of reg-
isters. The CPU uses registers to store information temporarily. The informa-
tion could be two values to be processed, or the address of the value needed to
be fetched from memory. Registers inside the CPU can be 8-bit, 16-bit, 32-bit,
or even 64-bit registers, depending on the CPU. In general, the more and big-
ger the registers, the better the CPU. The disadvantage of more and bigger reg-
isters is the increased cost of such a CPU.
2. The CPU also has what is called the ALU (arithmetic/logic unit). The ALU sec-
tion of the CPU is responsible for performing arithmetic functions such as add,
19. In Example 16, what is the range of addresses assigned to Y5?
an action. See Figure 19. The action can simply be adding data such as payroll
SECTION 4: CPU ARCHITECTURE
29

subtract, multiply, and divide, and logic functions such as AND, OR, and NOT.
3. Every CPU has what is called a program counter. The function of the program
counter is to point to the address of the next instruction to be executed. As each
instruction is executed, the program counter is incremented to point to the
address of the next instruction to be executed. The contents of the program
counter are placed on the address bus to find and fetch the desired instruction.
In the IBM PC, the program counter is a register called IP, or the instruction
pointer.
4. The function of the instruction decoder is to interpret the instruction fetched
into the CPU. One can think of the instruction decoder as a kind of dictionary,
storing the meaning of each instruction and what steps the CPU should take
upon receiving a given instruction. Just as a dictionary requires more pages the
more words it defines, a CPU capable of understanding more instructions
requires more transistors to design.
Internal working of CPUs
To demonstrate some of the concepts discussed above, a step-by-step
analysis of the process a CPU would go through to add three numbers is given
next. Assume that an imaginary CPU has registers called A, B, C, and D. It has an
8-bit data bus and a 16-bit address bus. Therefore, the CPU can access memory
from addresses 0000 to FFFFH (for a total of 10000H locations). The action to be
performed by the CPU is to put hexadecimal value 21 into register A, and then add
to register A the values 42H and 12H. Assume that the code for the CPU to move
a value to register A is 1011 0000 (B0H) and the code for adding a value to regis-
ter A is 0000 0100 (04H). The necessary steps and code to perform these opera-
ALU
Flags
Program Counter
Register A
Register B
Register C
Register D
Instruction Register
Instruction
decoder, timing,
and control
Address
Bus
Control
Buses
Data
Bus
Internal
buses
Figure 19. Internal Block Diagram of a CPU
30

tions are as follows.
Action Code Data
Move value 21H into register A B0H 21H
Add value 42H to register A 04H 42H
Add value 12H to register A 04H 12H
If the program to perform the actions listed above is stored in memory
locations starting at 1400H, the following would represent the contents for each
memory address location:
Memory address Contents of memory address
1400 (B0)code for moving a value to register A
1401 (21)value to be moved
1402 (04)code for adding a value to register A
1403 (42)value to be added
1404 (04)code for adding a value to register A
1405 (12)value to be added
1406 (F4)code for halt
The actions performed by the CPU to run the program above would be as
follows:
1. The CPU’s program counter can have a value between 0000 and FFFFH. The
program counter must be set to the value 1400H, indicating the address of the
first instruction code to be executed. After the program counter has been
loaded with the address of the first instruction, the CPU is ready to execute.
2. The CPU puts 1400H on the address bus and sends it out. The memory circuit-
ry finds the location while the CPU activates the READ signal, indicating to
memory that it wants the byte at location 1400H. This causes the contents of
memory location 1400H, which is B0, to be put on the data bus and brought
into the CPU.
3. The CPU decodes the instruction B0 with the help of its instruction decoder
dictionary. When it finds the definition for that instruction it knows it must
bring the byte in the next memory location into register A of the CPU.
Therefore, it commands its controller circuitry to do exactly that. When it
brings in value 21H from memory location 1401, it makes sure that the doors
of all registers are closed except register A. Therefore, when value 21H comes
into the CPU it will go directly into register A. After completing one instruc-
tion, the program counter points to the address of the next instruction to be exe-
cuted, which in this case is 1402H. Address 1402 is sent out on the address bus
to fetch the next instruction.
4. From memory location 1402H the CPU fetches code 04H. After decoding, the
CPU knows that it must add the byte sitting at the next address (1403) to the
contents of register A. After the CPU brings the value (in this case, 42H) into
register A, it provides the contents of register A along with this value to the
ALU to perform the addition. It then takes the result of the addition from the
ALU’s output and puts it into register A. Meanwhile the program counter
becomes 1404, the address of the next instruction.
31

5. Address 1404H is put on the address bus and the code is fetched into the CPU,
decoded, and executed. This code again is adding a value to register A. The
program counter is updated to 1406H.
6. Finally, the contents of address 1406 are fetched in and executed. This HALT
instruction tells the CPU to stop incrementing the program counter and asking
for the next instruction. Without the HALT, the CPU would continue updating
the program counter and fetching instructions.
Now suppose that address 1403H contained value 04 instead of 42H. How
would the CPU distinguish between data 04 to be added and code 04? Remember
that code 04 for this CPU means “move the next value into register A.” Therefore,
the CPU will not try to decode the next value. It simply moves the contents of the
following memory location into register A, regardless of its value.
Harvard and von Neumann architectures
Every microprocessor must have memory space to store program (code)
and data. While code provides instructions to the CPU, the data provides the infor-
mation to be processed. The CPU uses buses (wire traces) to access the code ROM
and data RAM memory spaces. The early computers used the same bus for access-
ing both the code and data. Such an architecture is commonly referred to as von
Neumann (Princeton) architecture. That means for von Neumann computers, the
process of accessing the code or data could cause them to get in each other’s way
and slow down the processing speed of the CPU, because each had to wait for the
other to finish fetching. To speed up the process of program execution, some CPUs
use what is called Harvard architecture. In Harvard architecture, we have separate
four sets of buses: (1) a set of data buses for carrying data into and out of the CPU,
(2) a set of address buses for accessing the data, (3) a set of data buses for carry-
ing code into the CPU, and (4) an address bus for accessing the code. See Figure
both ROM code and data RAM are internal (on-chip) and distances are on the
micron and millimeter scale. But implementing Harvard architecture for systems
such as x86 IBM PC-type computers is very expensive because the RAM and
ROM that hold code and data are external to the CPU. Separate wire traces for data
and code on the motherboard will make the board large and expensive. For exam-
ple, for a Pentium microprocessor with a 64-bit data bus and a 32-bit address bus
we will need about 100 wire traces on the motherboard if it is von Neumann archi-
tecture (96 for address and data, plus a few others for control signals of read and
write and so on). But the number of wire traces will double to 200 if we use
Harvard architecture. Harvard architecture will also necessitate a large number of
pins coming out of the microprocessor itself. For this reason you do not see
Harvard architecture implemented in the world of PCs and workstations. This is
also the reason that microcontrollers such as AVR use Harvard architecture inter-
nally, but they still use von Neumann architecture if they need external memory
for code and data space. The von Neumann architecture was developed at
Princeton University, while the Harvard architecture was the work of Harvard
University.
buses for the code and data memory. See Figure 20. That means that we need
20. This is easy to implement inside an IC chip such as a microcontroller where
32

Review Questions
1. What does “ALU” stand for? What is its purpose?
2. How are registers used in computer systems?
3. What is the purpose of the program counter?
4. What is the purpose of the instruction decoder?
5. True or false. Harvard architecture uses the same address and data buses to
fetch both code and data.
SUMMARY
The binary number system represents all numbers with a combination of
the two binary digits, 0 and 1. The use of binary systems is necessary in digital
computers because only two states can be represented: on or off. Any binary num-
ber can be coded directly into its hexadecimal equivalent for the convenience of
humans. Converting from binary/hex to decimal, and vice versa, is a straightfor-
ward process that becomes easy with practice. ASCII code is a binary code used
to represent alphanumeric data internally in the computer. It is frequently used in
peripheral devices for input and/or output.
The AND, OR, and inverter logic gates are the basic building blocks of
simple circuits. NAND, NOR, and XOR gates are also used to implement circuit
design. Diagrams of half-adders and full-adders were given as examples of the use
of logic gates for circuit design. Decoders are used to detect certain addresses.
Flip-flops are used to latch in data until other circuits are ready for it.
The major components of any computer system are the CPU, memory, and
Figure 20. von Neumann vs. Harvard Architecture
33

I/O devices. “Memory” refers to temporary or permanent storage of data. In most
systems, memory can be accessed as bytes or words. The terms kilobyte,
megabyte, gigabyte, and terabyte are used to refer to large numbers of bytes. There
are two main types of memory in computer systems: RAM and ROM. RAM (ran-
dom access memory) is used for temporary storage of programs and data. ROM
(read-only memory) is used for permanent storage of programs and data that the
computer system must have in order to function. All components of the computer
system are under the control of the CPU. Peripheral devices such as I/O (input/out-
put) devices allow the CPU to communicate with humans or other computer sys-
tems. There are three types of buses in computers: address, control, and data.
Control buses are used by the CPU to direct other devices. The address bus is used
by the CPU to locate a device or a memory location. Data buses are used to send
information back and forth between the CPU and other devices.
This chapter provided an overview of semiconductor memories. Types of
memories were compared in terms of their capacity, organization, and access time.
ROM (read-only memory) is nonvolatile memory typically used to store programs
in embedded systems. The relative advantages of various types of ROM were
described, including PROM, EPROM, UV-EPROM, EEPROM, Flash memory
EPROM, and mask ROM.
Address decoding techniques using simple logic gates, decoders, and pro-
grammable logic were covered.
The computer organization and the internals of the CPU were also covered.
PROBLEMS
1. Convert the following decimal numbers to binary:
(a) 12 (b) 123 (c) 63 (d) 128 (e) 1000
2. Convert the following binary numbers to decimal:
(a) 100100 (b) 1000001 (c) 11101 (d) 1010 (e) 00100010
3. Convert the values in Problem 2 to hexadecimal.
4. Convert the following hex numbers to binary and decimal:
(a) 2B9H (b) F44H (c) 912H (d) 2BH (e) FFFFH
5. Convert the values in Problem 1 to hex.
6. Find the 2’s complement of the following binary numbers:
(a) 1001010 (b) 111001 (c) 10000010 (d) 111110001
7. Add the following hex values:
(a) 2CH + 3FH (b) F34H + 5D6H (c) 20000H + 12FFH
(d) FFFFH + 2222H
8. Perform hex subtraction for the following:
(a) 24FH – 129H (b) FE9H – 5CCH (c) 2FFFFH – FFFFFH
(d) 9FF25H – 4DD99H
9. Show the ASCII codes for numbers 0, 1, 2, 3, ..., 9 in both hex and binary.
10. Show the ASCII code (in hex) for the following strings:
“U.S.A. is a country” CR,LF
“in North America” CR,LF
(CR is carriage return, LF is line feed)
34

11. Draw a 3-input OR gate using a 2-input OR gate.
12. Show the truth table for a 3-input OR gate.
13. Draw a 3-input AND gate using a 2-input AND gate.
14. Show the truth table for a 3-input AND gate.
15. Design a 3-input XOR gate with a 2-input XOR gate. Show the truth table for
a 3-input XOR.
16. List the truth table for a 3-input NAND.
17. List the truth table for a 3-input NOR.
18. Show the decoder for binary 1100.
19. Show the decoder for binary 11011.
20. List the truth table for a D-FF.
21. Answer the following:
(a) How many nibbles are 16 bits?
(b) How many bytes are 32 bits?
(c) If a word is defined as 16 bits, how many words is a 64-bit data item?
(d) What is the exact value (in decimal) of 1 meg?
(e) How many kilobytes is 1 meg?
(f) What is the exact value (in decimal) of 1 gigabyte?
(g) How many kilobytes is 1 gigabyte?
(h) How many megs is 1 gigabyte?
(i) If a given computer has a total of 8 megabytes of memory, how many
bytes (in decimal) is this? How many kilobytes is this?
22. A given mass storage device such as a hard disk can store 2 gigabytes of infor-
mation. Assuming that each page of text has 25 rows and each row has 80
columns of ASCII characters (each character = 1 byte), approximately how
many pages of information can this disk store?
23. In a given byte-addressable computer, memory locations 10000H to 9FFFFH
are available for user programs. The first location is 10000H and the last loca-
tion is 9FFFFH. Calculate the following:
(a) The total number of bytes available (in decimal)
(b) The total number of kilobytes (in decimal)
24. A given computer has a 32-bit data bus. What is the largest number that can be
carried into the CPU at a time?
25. Below are listed several computers with their data bus widths. For each com-
puter, list the maximum value that can be brought into the CPU at a time (in
both hex and decimal).
(a) Apple 2 with an 8-bit data bus
(b) x86 PC with a 16-bit data bus
(c) x86 PC with a 32-bit data bus
(d) Cray supercomputer with a 64-bit data bus
26. Find the total amount of memory, in the units requested, for each of the follow-
ing CPUs, given the size of the address buses:
35

(a) 16-bit address bus (in K)
(b) 24-bit address bus (in megs)
(c) 32-bit address bus (in megabytes and gigabytes)
(d) 48-bit address bus (in megabytes, gigabytes, and terabytes)
27. Of the data bus and address bus, which is unidirectional and which is bidirec-
tional?
28. What is the difference in capacity between a 4M memory chip and 4M of com-
puter memory?
29. True or false. The more address pins, the more memory locations are inside the
chip. (Assume that the number of data pins is fixed.)
30. True or false. The more data pins, the more each location inside the chip will
hold.
31. True or false. The more data pins, the higher the capacity of the memory chip.
32. True or false. The more data pins and address pins, the greater the capacity of
the memory chip.
33. The speed of a memory chip is referred to as its ________________.
34. True or false. The price of memory chips varies according to capacity and
speed.
35. The main advantage of EEPROM over UV-EPROM is ________________.
36. True or false. SRAM has a larger cell size than DRAM.
37. Which of the following, EPROM, DRAM, or SRAM, must be refreshed peri-
odically?
38. Which memory is used for PC cache?
39. Which of the following, SRAM, UV-EPROM, NV-RAM, or DRAM, is
volatile memory?
40. RAS and CAS are associated with which type of memory?
(a) EPROM (b) SRAM (c) DRAM (d) all of the above
41. Which type of memory needs an external multiplexer?
(a) EPROM (b) SRAM (c) DRAM (d) all of the above
42. Find the organization and capacity of memory chips with the following pins.
(a) EEPROM A0–A14, D0–D7 (b) UV-EPROM A0–A12, D0–D7
(c) SRAM A0–A11, D0–D7 (d) SRAM A0–A12, D0–D7
(e) DRAM A0–A10, D0 (f) SRAM A0–A12, D0
(g) EEPROM A0–A11, D0–D7 (h) UV-EPROM A0–A10, D0–D7
(i) DRAM A0–A8, D0–D3 (j) DRAM A0–A7, D0–D7
43. Find the capacity, address, and data pins for the following memory organiza-
tions.
(a) 16K × 8 ROM (b) 32K × 8 ROM
(c) 64K × 8 SRAM (d) 256K × 8 EEPROM
(e) 64K × 8 ROM (f) 64K × 4 DRAM
(g) 1M × 8 SRAM (h) 4M × 4 DRAM
(i) 64K × 8 NV-RAM
44. Find the address range of the memory design in the diagram.
45. Using NAND gates and inverters, design decoding circuitry for the address
range 2000H–2FFFH.
46. Find the address range for Y0, Y3, and Y6 of the 74LS138 for the diagrammed
36

design.
47. Using the 74138, design the memory
decoding circuitry in which the mem-
ory block controlled by Y0 is in the
range 0000H to 1FFFH. Indicate the
size of the memory block controlled
by each Y.
48. Find the address range for Y3, Y6, and
Y7 in Problem 47.
49. Using the 74138, design memory decoding circuit-
ry in which the memory block controlled by Y0 is
in the 0000H to 3FFFH space. Indicate the size of
the memory block controlled by each Y.
50. Find the address range for Y1, Y2, and Y3 in
Problem 49.
TURE
51. Which register of the CPU holds the address of the instruction to be fetched?
52. Which section of the CPU is responsible for performing addition?
53. List the three bus types present in every CPU.
ANSWERS TO REVIEW QUESTIONS
1. Computers use the binary system because each bit can have one of two voltage levels: on and
off.
2. 3410 = 1000102 = 2216
3. 1101012 = 3516 = 5310
4. 1110001
5. 010100
6. 461
7. 275
8. 38 30 78 38 36 20 43 50 55 73
1. AND
2. OR
3. XOR
4. Buffer
5. Storing data
6. Decoder
1. 24,576
2. Random access memory; it is used for temporary storage of programs that the CPU is run-
A0
CS
A14
A0
A13
A15
D7 - D0
16K × 8
Diagram for Problem 44
A14
A12 A
B
C
G2A
G2B
G1
A13
GND
GND
A15
74LS138
Diagram for Problem 46
SECTION 4: CPU AND HARVARD ARCHITEC-
37

ning, such as the operating system, word processing programs, etc.
3. Read-only memory; it is used for permanent programs such as those that control the keyboard,
etc.
4. The contents of RAM are lost when the computer is powered off.
5. The CPU, memory, and I/O devices
6. Central processing unit; it can be considered the “brain” of the computer; it executes the pro-
grams and controls all other devices in the computer.
7. The address bus carries the location (address) needed by the CPU; the data bus carries infor-
mation in and out of the CPU; the control bus is used by the CPU to send signals controlling
I/O devices.
8. (a) bidirectional (b) unidirectional
9. 64K, or 65,536 bytes
10. c
11. (a) 16K × 8, 128K bits (b) 64K × 8, 512K (c) 4K × 8, 32K
12. (a) 2K × 1, 2K bits (b) 8K × 4, 32K (c) 128K × 8, 1M
(d) 64K × 4, 256K (e) 256K × 1, 256K (f) 256K × 4, 1M
13. (a) 64K bits, 14 address, and 4 data (b) 256K, 15 address, and 8 data
(c) 1M, 10 address, and 1 data (d) 1M, 18 address, and 4 data
(e) 512K, 16 address, and 8 data (f) 4M, 10 address, and 4 data
14. b, c
15. 16K bytes
16. 3, 8
17. Both must be low.
18. G1 must be high.
19. 5000H–5FFFH
1. Arithmetic/logic unit; it performs all arithmetic and logic operations.
2. They are used for temporary storage of information.
3. It holds the address of the next instruction to be executed.
4. It tells the CPU what actions to perform for each instruction.
5. False
SECTION 4: CPU ARCHITECTURE
38

OBJECTIVES
>
> >
> Compare and contrast microprocessors and microcontrollers
>
> >
> Describe the advantages of microcontrollers for some applications
>
> >
> Explain the concept of embedded systems
>
> >
> Discuss criteria for considering a microcontroller
>
> >
> Explain the variations of speed, packaging, memory, and
cost per unit and how these affect choosing a microcontroller
>
> >
> Compare and contrast the various members of the AVR family
>
> >
> Compare the AVR with microcontrollers offered by other manufacturers
THE AVR
MICROCONTROLLER:
HISTORY AND FEATURES
From Chapter 1 of The AVR Microcontroller and Embedded Systems: Using Assembly and C, First Edition,
39

This chapter begins with a discussion of the role and importance of micro-
choosing a microcontroller, as well as the use of microcontrollers in the embedded
In addition, we provide a brief discussion of alternatives to the AVR chip such as
the 8051, PIC, and 68HC11 microcontrollers.
PROCESSORS
In this section we discuss the need for microcontrollers and contrast them
with general-purpose microprocessors such as the Pentium and other x86 micro-
processors. We also look at the role of microcontrollers in the embedded market.
In addition, we provide some criteria on how to choose a microcontroller.
Microcontroller versus general-purpose microprocessor
What is the difference between a microprocessor and a microcontroller?
By microprocessor is meant the general-purpose microprocessors such as Intel’s
x86 family (8086, 80286, 80386, 80486, and the Pentium) or Motorola’s PowerPC
family. These microprocessors contain no RAM, no ROM, and no I/O ports on the
chip itself. For this reason, they are commonly referred to as general-purpose
A system designer using a general-purpose microprocessor such as the
Pentium or the PowerPC must add RAM, ROM, I/O ports, and timers externally
to make them functional. Although the addition of external RAM, ROM, and I/O
ports makes these systems bulkier and much more expensive, they have the advan-
tage of versatility, enabling the designer to decide on the amount of RAM, ROM,
and I/O ports needed to fit the task at hand. This is not the case with microcon-
trollers. A microcontroller has a CPU (a microprocessor) in addition to a fixed
amount of RAM, ROM, I/O ports, and a timer all on a single chip. In other words,
the processor, RAM, ROM, I/O ports, and timer are all embedded together on one
chip; therefore, the designer cannot add any external memory, I/O, or timer to it.
The fixed amount of on-chip ROM, RAM, and number of I/O ports in microcon-
trollers makes them ideal for many applications in which cost and space are criti-
CPU
General-
Purpose
Micro-
processor
Data bus
Address bus
RAM
Serial
COM
Port
Timer
I/O
Port
ROM
CPU RAM ROM
I/O Timer Serial
----- COM
ADC Port
(a) General-Purpose Microprocessor System (b) Microcontroller
THE AVR MICROCONTROLLER
controllers in everyday life. In Section 1 we also discuss criteria to consider in
market. Section 2 covers various members of the AVR family and their features.
SECTION 1: MICROCONTROLLERS AND EMBEDDED
Figure 1. Microprocessor System Contrasted with Microcontroller System
microprocessors. See Figure 1.
40

cal. In many applications, for example, a TV remote control, there
is no need for the computing power of a 486 or even an 8086
microprocessor. In many applications, the space used, the power
consumed, and the price per unit are much more critical consider-
ations than the computing power. These applications most often
require some I/O operations to read signals and turn on and off
certain bits. For this reason some call these processors IBP, “itty-
bitty processors.” (See “Good Things in Small Packages Are
Generating Big Product Opportunities” by Rick Grehan, BYTE
magazine, September 1994 (http://www.byte.com) for an excel-
lent discussion of microcontrollers.)
It is interesting to note that many microcontroller manu-
facturers have gone as far as integrating an ADC (analog-to-digi-
tal converter) and other peripherals into the microcontroller.
Microcontrollers for embedded systems
In the literature discussing microprocessors, we often see
the term embedded system. Microprocessors and microcontrollers
are widely used in embedded system products. An embedded sys-
tem is controlled by its own internal microprocessor (or micro-
controller) as opposed to an external controller. Typically, in an
embedded system, the microcontroller’s ROM is burned with a
purpose for specific functions needed for the system. A printer is
an example of an embedded system because the processor inside
it performs one task only; namely, getting the data and printing it.
Contrast this with a Pentium-based PC (or any x86 PC), which
can be used for any number of applications such as word proces-
sor, print server, bank teller terminal, video game player, network
server, or Internet terminal. A PC can also load and run software
for a variety of applications. Of course, the reason a PC can per-
form myriad tasks is that it has RAM memory and an operating
system that loads the application software into RAM and lets the
CPU run it. In an embedded system, typically only one applica-
tion software is burned into ROM. An x86 PC contains or is con-
nected to various embedded products such as the keyboard, print-
er, modem, disk controller, sound card, CD-ROM driver, mouse,
and so on. Each one of these peripherals has a microcontroller
inside it that performs only one task. For example, inside every
mouse a microcontroller performs the task of finding the mouse’s
products.
x86 PC embedded applications
Although microcontrollers are the preferred choice for
many embedded systems, sometimes a microcontroller is inade-
quate for the task. For this reason, in recent years many manufac-
turers of general-purpose microprocessors such as Intel, Freescale
Home
Appliances
Intercom
Telephones
Security systems
Garage door openers
Answering machines
Fax machines
Home computers
TVs
Cable TV tuner
VCR
Camcorder
Remote controls
Video games
Cellular phones
Musical instruments
Sewing machines
Lighting control
Paging
Camera
Pinball machines
Toys
Exercise equipment
Office
Telephones
Computers
Security systems
Fax machine
Microwave
Copier
Laser printer
Color printer
Paging
Auto
Trip computer
Engine control
Air bag
ABS
Instrumentation
Security system
Transmission control
Entertainment
Climate control
Cellular phone
Keyless entry
Embedded Products
Using Microcontrollers
position and sending it to the PC. Table 1 lists some embedded
Table 1: Some
41

Semiconductor (formerly Motorola), and AMD (Advanced Micro Devices, Inc.)
have targeted their microprocessors for the high end of the embedded market. Intel
and AMD push their x86 processors for both the embedded and desktop PC mar-
kets. In the early 1990s, Apple computer began using the PowerPC microproces-
sors (604, 603, 620, etc.) in place of the 680x0 for the Macintosh. In 2007 Apple
switched to the x86 CPU for use in the Mac computers. The PowerPC micro-
processor is a joint venture between IBM and Freescale, and is targeted for the
high end of the embedded market. It must be noted that when a company targets a
general-purpose microprocessor for the embedded market it optimizes the proces-
sor used for embedded systems. For this reason these processors are often called
high-end embedded processors. Another chip widely used in the high end of the
embedded system design is the ARM (Advanced RISC Machine) microprocessor.
Very often the terms embedded processor and microcontroller are used inter-
changeably.
One of the most critical needs of an embedded system is to decrease power
consumption and space. This can be achieved by integrating more functions into
the CPU chip. All the embedded processors based on the x86 and PowerPC 6xx
have low power consumption in addition to some forms of I/O, COM port, and
ROM, all on a single chip. In high-performance embedded processors, the trend is
to integrate more and more functions on the CPU chip and let the designer decide
which features to use. This trend is invading PC system design as well. Normally,
in designing the PC motherboard we need a CPU plus a chipset containing I/O, a
cache controller, a Flash ROM containing BIOS, and finally a secondary cache
memory. New designs are emerging in industry. For example, many companies
have a chip that contains the entire CPU and all the supporting logic and memory,
except for DRAM. In other words, we have the entire computer on a single chip.
Currently, because of Linux and Windows standardization, many embed-
ded systems use x86 PCs. In many cases, using x86 PCs for the high-end embed-
ded applications not only saves money but also shortens development time
because a vast library of software already exists for the Linux and Windows plat-
forms. The fact that Windows and Linux are widely used and well-understood plat-
forms means that developing a Windows-based or Linux-based embedded product
reduces the cost and shortens the development time considerably.
Choosing a microcontroller
There are five major 8-bit microcontrollers. They are: Freescale
Semiconductor’s (formerly Motorola) 68HC08/68HC11, Intel’s 8051, Atmel’s
AVR, Zilog’s Z8, and PIC from Microchip Technology. Each of the above micro-
controllers has a unique instruction set and register set; therefore, they are not
compatible with each other. Programs written for one will not run on the others.
There are also 16-bit and 32-bit microcontrollers made by various chip makers.
With all these different microcontrollers, what criteria do designers consider in
choosing one? Three criteria in choosing microcontrollers are as follows: (1)
meeting the computing needs of the task at hand efficiently and cost effectively;
(2) availability of software and hardware development tools such as compilers,
assemblers, debuggers, and emulators; and (3) wide availability and reliable
sources of the microcontroller. Next, we elaborate on each of the above criteria.
42

Criteria for choosing a microcontroller
1. The first and foremost criterion in choosing a microcontroller is that it must
meet the task at hand efficiently and cost effectively. In analyzing the needs of
a microcontroller-based project, we must first see whether an 8-bit, 16-bit, or
32-bit microcontroller can best handle the computing needs of the task most
effectively. Among other considerations in this category are:
(a) Speed. What is the highest speed that the microcontroller supports?
(b) Packaging. Does it come in a DIP (dual inline package) or a QFP (quad flat
package), or some other packaging format? This is important in terms of
space, assembling, and prototyping the end product.
(c) Power consumption. This is especially critical for battery-powered prod-
ucts.
(d) The amount of RAM and ROM on the chip.
(e) The number of I/O pins and the timer on the chip.
(f) Ease of upgrade to higher-performance or lower-power-consumption ver-
sions.
(g) Cost per unit. This is important in terms of the final cost of the product in
which a microcontroller is used. For example, some microcontrollers cost
50 cents per unit when purchased 100,000 units at a time.
2. The second criterion in choosing a microcontroller is how easy it is to devel-
op products around it. Key considerations include the availability of an assem-
bler, a debugger, a code-efficient C language compiler, an emulator, technical
support, and both in-house and outside expertise. In many cases, third-party
vendor (i.e., a supplier other than the chip manufacturer) support for the chip
is as good as, if not better than, support from the chip manufacturer.
3. The third criterion in choosing a microcontroller is its ready availability in
needed quantities both now and in the future. For some designers this is even
more important than the first two criteria. Currently, of the leading 8-bit micro-
controllers, the 8051 family has the largest number of diversified (multiple
source) suppliers. (Supplier means a producer besides the originator of the
microcontroller.) In the case of the 8051, which was originated by Intel, many
companies also currently produce the 8051.
Notice that Freescale Semiconductor (Motorola), Atmel, Zilog, and
Microchip Technology have all dedicated massive resources to ensure wide and
timely availability of their products because their products are stable, mature, and
single sourced. In recent years, companies have begun to sell Field-Programmable
Gate Array (FPGA) and Application-Specific Integrated Circuit (ASIC) libraries
for the different microcontrollers.
Mechatronics and microcontrollers
The microcontroller is playing a major role in an emerging field called
mechatronics. Here is an excellent summary of what the field of mechatronics is
all about, taken from the website of Newcastle University (http://mechatron-
ics2004.newcastle.edu.au/mech2004), which holds a major conference every year
on this subject:
“Many technical processes and products in the area of mechanical and
43

electrical engineering show an increasing integration of mechanics with electron-
ics and information processing. This integration is between the components (hard-
ware) and the information-driven functions (software), resulting in integrated sys-
tems called mechatronic systems.
The development of mechatronic systems involves finding an optimal bal-
ance between the basic mechanical structure, sensor and actuator implementation,
automatic digital information processing and overall control, and this synergy
results in innovative solutions. The practice of mechatronics requires multidisci-
plinary expertise across a range of disciplines, such as: mechanical engineering,
electronics, information technology, and decision making theories.”
Review Questions
1. True or false. Microcontrollers are normally less expensive than microproces-
sors.
2. When comparing a system board based on a microcontroller and a general-
purpose microprocessor, which one is cheaper?
3. A microcontroller normally has which of the following devices on-chip?
(a) RAM (b) ROM (c) I/O (d) all of the above
4. A general-purpose microprocessor normally needs which of the following
devices to be attached to it?
(a) RAM (b) ROM (c) I/O (d) all of the above
5. An embedded system is also called a dedicated system. Why?
6. What does the term embedded system mean?
7. Why does having multiple sources of a given product matter?
In this section, we first look at the AVR microcontrollers and their features
and then examine the different families of AVR in more detail.
A brief history of the AVR microcontroller
The basic architecture of AVR was designed by two students of Norwegian
Institute of Technology (NTH), Alf-Egil Bogen and Vegard Wollan, and then was
bought and developed by Atmel in 1996.
You may ask what AVR stands for; AVR can have different meanings for
different people! Atmel says that it is nothing more than a product name, but it
might stand for Advanced Virtual RISC, or Alf and Vegard RISC (the names of the
AVR designers).
There are many kinds of AVR microcontroller with different properties.
Except for AVR32, which is a 32-bit microcontroller, AVRs are all 8-bit micro-
processors, meaning that the CPU can work on only 8 bits of data at a time. Data
larger than 8 bits has to be broken into 8-bit pieces to be processed by the CPU.
One of the problems with the AVR microcontrollers is that they are not all 100%
compatible in terms of software when going from one family to another family. To
run programs written for the ATtiny25 on a ATmega64, we must recompile the
program and possibly change some register locations before loading it into the
ATmega64. AVRs are generally classified into four broad groups: Mega, Tiny,
SECTION 2: OVERVIEW OF THE AVR FAMILY
44

microcontrollers are widely used. Also, we will focus on ATmega32 since it is
powerful, widely available, and comes in DIP packages, which makes it ideal for
educational purposes. For those who have mastered the Mega family, understand-
ing the other families is very easy and straightforward. The following is a brief
description of the AVR microcontroller.
AVR features
The AVR is an 8-bit RISC single-chip microcontroller with Harvard archi-
tecture that comes with some standard features such as on-chip program (code)
AVRs have some additional features like ADC, PWM, and different kinds of seri-
al interface such as USART, SPI, I2C (TWI), CAN, USB, and so on. See Figures
AVR microcontroller program ROM
In microcontrollers, the ROM is used to store programs and for that reason
it is called program or code ROM. Although the AVR has 8M (megabytes) of pro-
gram (code) ROM space, not all family members come with that much ROM
installed. The program ROM size can vary from 1K to 256K at the time of this
writing, depending on the family member. The AVR was one of the first microcon-
trollers to use on-chip Flash memory for program storage. The Flash memory is
PROGRAM
ROM
Ports
OSC
CPU
Timers
Other
Peripherals
Program
Bus Bus
RAM
I/O
PINS
EEPROM
Interrupt
Unit
ROM, data RAM, data EEPROM, timers and I/O ports. See Figure 2. Most
3 and 4.
Figure 2. Simplified View of an AVR Microcontroller
Special purpose, and Classic. In this text we cover the Mega family because these
45

PROGRAM
COUNTER
INTERNAL
OSCILLATOR
WATCHDOG
TIMER
STACK
POINTER
PROGRAM
FLASH
SRAM
MCU CONTROL
REGISTER
GENERAL
PURPOSE
REGISTERS
INSTRUCTION
REGISTER
TIMER/
COUNTER0
SERIAL
UNIVERSAL
INTERFACE
TIMER/
COUNTER1
INSTRUCTION
DECODER
DATA DIR.
REG.PORT B
DATA REGISTER
PORT B
PROGRAMMING
LOGIC
TIMING AND
CONTROL
MCU STATUS
REGISTER
STATUS
REGISTER
ALU
PORT B DRIVERS
PB0-PB5
VCC
GND
CONTROL
LINES
8-BIT DATABUS
Z
ADC /
ANALOG COMPARATOR
INTERRUPT
UNIT
DATA
EEPROM
CALIBRATED
OSCILLATORS
Y
X
RESET
Figure 3. ATtiny25 Block Diagram
46

INTERNAL
OSCILLATOR
OSCILLATOR
WATCHDOG
TIMER
MCU CTRL.
& TIMING
OSCILLATOR
TIMERS/
COUNTERS
INTERRUPT
UNIT
STACK
POINTER
EEPROM
SRAM
STATUS
REGISTER
USART
PROGRAM
COUNTER
PROGRAM
FLASH
INSTRUCTION
REGISTER
INSTRUCTION
DECODER
PROGRAMMING
LOGIC
SPI
ADC
INTERFACE
COMP.
INTERFACE
PORTA DRIVERS/BUFFERS
PORTA DIGITAL INTERFACE
GENERAL
PURPOSE
REGISTERS
X
Y
Z
ALU
+
-
PORTC DRIVERS/BUFFERS
PORTC DIGITAL INTERFACE
PORTB DIGITAL INTERFACE
PORTB DRIVERS/BUFFERS
PORTD DIGITAL INTERFACE
PORTD DRIVERS/BUFFERS
XTAL1
XTAL2
RESET
CONTROL
LINES
VCC
GND
MUX &
ADC
AREF
PA0 - PA7 PC0 - PC7
PD0 - PD7
PB0 - PB7
AVR CPU
TWI
AVCC
INTERNAL
CALIBRATED
OSCILLATOR
Figure 4. ATmega32 Block Diagram
47

ideal for fast development because Flash memory can be erased in seconds com-
pared to the 20 minutes or more needed for the UV-EPROM.
AVR microcontroller data RAM and EEPROM
AVR microcontroller I/O pins
The AVR can have from 3 to 86 pins for I/O. The number of I/O pins
depends on the number of pins in the package itself. The number of pins for the
AVR package goes from 8 to 100 at this time. In the case of the 8-pin AT90S2323,
we have 3 pins for I/O, while in the case of the 100-pin ATmega1280, we can use
AVR microcontroller peripherals
Part Num. Code Data Data I/O pins ADC Timers Pin numbers
ROM RAM EEPROM & Package
AT90S2313 2K 128 128 15 0 2 SOIC20, PDIP20
AT90S2323 2K 128 128 3 0 1 SOIC8, PDIP8
AT90S4433 4K 128 256 20 6 2 TQFP32, PDIP28
Notes:
1. All ROM, RAM, and EEPROM memories are in bytes.
2. Data RAM (general-purpose RAM) is the amount of RAM available for data manipulation (scratch
pad) in addition to the register space.
Table 2: Some Members of the Classic Family
up to 86 pins for I/O.
the I2
C and SPI buses and some of them have USB or CAN bus as well.
Most of the AVRs come with ADC (analog-to-digital converter), timers,
and USART (Universal Synchronous Asynchronous Receiver Transmitter) as
standard peripherals. The ADC is 10-bit and the number of ADC channels in
AVR chips varies and can be up to 16, depending on the number of pins in the
package. The AVR can have up to 6 timers besides the watchdog timer. The
USART peripheral allows us to connect the AVR-based system to serial ports such
as the COM port of the x86 IBM PC. Most of the AVR family members come with
While ROM is used to store program (code), the RAM space is for data
storage. The AVR has a maximum of 64K bytes of data RAM space. Not all of the
family members come with that much RAM. The data RAM space has three com-
ponents: general-purpose registers, I/O memory, and internal SRAM. There are 32
general-purpose registers in all of the AVRs, but the SRAM’s size and the I/O
memory’s size varies from chip to chip. On the Atmel website, whenever the size
of RAM is mentioned the internal SRAM size is meant. The internal SRAM space
EEPROM to store critical data that does not need to be changed very often.
is used for a read/write scratch pad. In AVR, we also have a small amount of
48

AVR family overview
AVR can be classified into four groups: Classic, Mega, Tiny, and special
purpose.
Classic AVR (AT90Sxxxx)
This is the original AVR chip, which has been replaced by newer AVR
mended for new designs.
Mega AVR (ATmegaxxxx)
These are powerful microcontrollers with more than 120 instructions and
lots of different peripheral capabilities, which can be used in different designs. See
• Program memory: 4K to 256K bytes
• Package: 28 to 100 pins
• Extensive peripheral set
• Extended instruction set: They have rich instruction sets.
Tiny AVR (ATtinyxxxx)
As its name indicates, the microcontrollers in this group have less
instructions and smaller packages in comparison to mega family. You can design
systems with low costs and power consumptions using the Tiny AVRs. See Table
• Program memory: 1K to 8K bytes
• Package: 8 to 28 pins
• Limited peripheral set
• Limited instruction set: The instruction sets are limited. For exam-
ple, some of them do not have the multiply instruction.
ATmega8 8K 1K 0.5K 23 8 3 TQFP32, PDIP28
ATmega16 16K 1K 0.5K 32 8 3 TQFP44, PDIP40
ATmega32 32K 2K 1K 32 8 3 TQFP44, PDIP40
ATmega64 64K 4K 2K 54 8 4 TQFP64, MLF64
ATmega1280 128K 8K 4K 86 16 6 TQFP100, CBGA
Notes:
1. All ROM, RAM, and EEPROM memories are in bytes.
2. Data RAM (general-purpose RAM) is the amount of RAM available for data manipulation (scratch
pad) in addition to the register space.
3. All the above chips have USART for serial data transfer.
chips. Table 2 shows some members of the Classic AVR that are not recom-
Table 3. Some of their characteristics are as follows:
Table 3: Some Members of the ATmega Family
4. Some of their characteristics are as follows:
49

Special purpose AVR
The ICs of this group can be considered as a subset of other groups, but
their special capabilities are made for designing specific applications. Some of
the special capabilities are: USB controller, CAN controller, LCD controller,
AVR product number scheme
All of the product numbers start with AT, which stands for Atmel. Now,
look at the number located at the end of the product number, from left to right,
and find the biggest number that is a power of 2. This number most probably
shows the amount of the microcontroller’s ROM. For example, in ATmega1280
the biggest power of 2 that we can find is 128; so it has 128K bytes of ROM. In
ATtiny44, the amount of memory is 4K, and so on. Although this rule has a few
exceptions such as AT90PWM216, which has 16K of ROM instead of 2K, it
works in most of the cases.
Other microcontrollers
There are many other popular 8-bit microcontrollers besides the AVR chip.
Among them are the 8051, HCS08, PIC, and Z8. The AVR is made by Atmel Corp,
Motorola) makes the HCS08 and many of its variations. Zilog produces the Z8
microcontroller. The 8051 family is made by Intel and a number of other compa-
For a comprehensive treatment of the 8051, HCS12, and PIC microcon-
trollers, see “The 8051 Microcontroller and Embedded Systems,” “HCS12
Microcontroller and Embedded Systems,” and “PIC Microcontroller and
Embedded Systems” by Mazidi, et al.
ATtiny13 1K 64 64 6 4 1 SOIC8, PDIP8
Part Num. Code Data Data Max I/O Special Timers Pin numbers
ROM RAM EEPROM pins Capabilities & Package
AT90CAN128 128K 4K 4K 53 CAN 4 LQFP64
AT90USB1287 128K 8K 4K 48 USB Host 4 TQFP64
AT90PWM216 16K 1K 0.5K 19 Advanced PWM 2 SOIC24
ATmega169 16K 1K 0.5K 54 LCD 3 TQFP64, MLF64
Table 4: Some Members of the Tiny Family
Zigbee, Ethernet controller, FPGA, and advanced PWM. See Table 5.
Table 5: Some Members of the Special Purpose Family
as seen in Table 6. Microchip produces the PIC family. Freescale (formerly
nies. To contrast the ATmega32 with the 8052 chip and PIC, examine Table 7.
50

Review Questions
1. Name three features of the AVR.
2. The AVR is a(n) _______-bit microprocessor.
3 Name the different groups of the AVR chips.
4. Which group of AVR has smaller packages?
5. Give the size of RAM in each of the following:
(a) ATmega32 (b) ATtiny25
6. Give the size of the on-chip program ROM in each of the following:
(a) ATtiny84 (b) ATmega32 (c) ATtiny25
Company Web Site Architecture
Atmel http://www.atmel.com AVR and 8051
Microchip http://www.microchip.com PIC16xxx/18xxx
Intel http://www.intel.com/design/mcs51 8051
Philips/Signetics http://www.semiconductors.philips.com 8051
Zilog http://www.zilog.com Z8 and Z80
Dallas Semi/Maxim http://www.maxim-ic.com 8051
Freescale Semi http://www.freescale.com 68HC11/HCS08
See http://www.microcontroller.com for a complete list.
See the following websites for AVR microcontrollers and AVR trainers:
http://www.Atmel.com
http://www.MicroDigitalEd.com
http://www.digilentinc.com
Feature 8052 PIC18F452 ATmega32
Program ROM 8K 32K 32K
Data RAM (maximum space) 256 bytes 2K 2K
EEPROM 0 bytes 256 bytes 1K
Timers 3 4 3
I/O pins 32 35 32
Table 6: Some of the Companies that Produce Widely Used 8-bit Microcontrollers
Table 7: Comparison of 8051, PIC18 Family, and AVR (40-pin package)
51

SUMMARY
This chapter discussed the role and importance of microcontrollers in
everyday life. Microprocessors and microcontrollers were contrasted and com-
pared. We discussed the use of microcontrollers in the embedded market. We also
discussed criteria to consider in choosing a microcontroller such as speed, memo-
ry, I/O, packaging, and cost per unit. The second section of this chapter described
various families of the AVR, such as Mega and Tiny, and their features. In addi-
tion, we discussed some of the most common AVR microcontrollers such as the
ATmega32 and ATtiny25.
PROBLEMS
1. True or False. A general-purpose microprocessor has on-chip ROM.
2. True or False. Generally, a microcontroller has on-chip ROM.
3. True or False. A microcontroller has on-chip I/O ports.
4. True or False. A microcontroller has a fixed amount of RAM on the chip.
5. What components are usually put together with the microcontroller onto a sin-
gle chip?
6. Intel's Pentium chips used in Windows PCs need external ______ and _____
chips to store data and code.
7. List three embedded products attached to a PC.
8. Why would someone want to use an x86 as an embedded processor?
9. Give the name and the manufacturer of some of the most widely used 8-bit
microcontrollers.
10. In Question 9, which one has the most manufacture sources?
11. In a battery-based embedded product, what is the most important factor in
choosing a microcontroller?
12. In an embedded controller with on-chip ROM, why does the size of the ROM
matter?
13. In choosing a microcontroller, how important is it to have multiple sources for
that chip?
14. What does the term "third-party support" mean?
15. Suppose that a microcontroller architecture has both 8-bit and 16-bit versions.
Which of the following statements is true?
(a) The 8-bit software will run on the 16-bit system.
(b) The 16-bit software will run on the 8-bit system.
16. What is the advantage of Flash memory over the other kinds of ROM?
17. The ATmega32 has ____ pins for I/O.
18. The ATmega32 has _____ bytes of on-chip program ROM.
19. The ATtiny44 has _____ bytes of on-chip data RAM.
20. The ATtiny44 has _____ ADCs.
SECTION 1: MICROCONTROLLERS AND EMBEDDED PROCESSORS
52

21. The ATmega64 has _____ bytes of on-chip data RAM.
22. The ATmega1280 has ____ on-chip timer(s).
23. The ATmega32 has ____ bytes of on-chip data RAM.
24. Check the Atmel website to see if there is a RAMless version of the AVR. Give
the part number if there is one.
25. Check the Atmel website to see if there is a ROMless version of the AVR. Give
the part number if there is one.
26. Check the Atmel website to find three members of the AVR family that have
USB controllers.
27. Check the Atmel website to find two members of the AVR family that have
CAN controllers.
28. Give the amount of program ROM and data RAM for the following chips:
(a) ATmega32 (b) ATtiny44 (c) ATtiny84 (d) 90CAN128
29. What are the main differences between the ATmega16 and the ATmega32?
30. The ATmega16 has ________ bytes of data EEPROM.
1. True
2. A microcontroller-based system
3. (d)
4. (d)
5. It is dedicated because it is does only one type of job.
6. Embedded system means that the application and the processor are combined into a single sys-
tem.
7. Having multiple sources for a given part means you are not hostage to one supplier. More
importantly, competition among suppliers brings about lower cost for that product.
1. 64K of RAM space, 8M of on-chip ROM space, a large number of I/O pins, ADC, and differ-
ent serial protocols such as SPI, USART, I2C, etc.
2. 8
3. Tiny, Mega, Classic, and special purpose
4. Tiny
5. (a) 2K bytes
(b) 128 bytes
6. (a) 8K bytes (b) 32K bytes (c) 2K bytes
SECTION 1: MICROCONTROLLERS AND EMBEDDED PROCESSORS
53

OBJECTIVES
>
> >
> List the registers of the AVR microcontroller
>
> >
> Examine the data memory of the AVR microcontroller
>
> >
> Perform simple operations, such as ADD and load, and access internal
RAM memory in the AVR microcontroller
>
> >
> Explain the purpose of the status register
>
> >
> Discuss data RAM memory space allocation in the AVR microcontroller
>
> >
> Code simple AVR Assembly language instructions
>
> >
> Describe AVR data types and directives
>
> >
> Assemble and run a AVR program using AVR Studio
>
> >
> Describe the sequence of events that occur upon AVR power-up
>
> >
> Examine programs in AVR ROM code
>
> >
> Detail the execution of AVR Assembly language instructions
>
> >
> Understand the RISC and Harvard architectures of the AVR
microcontroller
>
> >
> Examine the AVR’s registers and data RAM using the AVR Studio
simulator
AVR ARCHITECTURE AND
ASSEMBLY LANGUAGE
PROGRAMMING
55

CPUs use registers to store data temporarily. To program in Assembly lan-
guage, we must understand the registers and architecture of a given CPU and the
registers (GPRs) of the AVR. We demonstrate the use of GPRs with simple instruc-
tions such as LDI and ADD. Allocation of RAM memory inside the AVR and the
we discuss the status register’s flag bits and how they are affected by arithmetic
mnemonics, opcode, operand, and so on. The process of assembling and creating
cution of an AVR program and the role of the program counter are examined in
THE AVR
CPUs use many registers to store data temporarily. To program in
Assembly language, we must understand the registers and architecture of a given
CPU and the role they play in processing data. In this section we look at the gen-
eral purpose registers (GPRs) of the AVR and we demonstrate the use of GPRs
with simple instructions such as LDI and ADD.
AVR microcontrollers have many registers for arithmetic and logic opera-
tions. In the CPU, registers are used to store information temporarily. That infor-
mation could be a byte of data to be processed, or an address pointing to the data
to be fetched. The vast majority of AVR registers are 8-bit registers. In the AVR
there is only one data type: 8-bit. The 8 bits of a register are shown in the diagram
below. These range from the MSB (most-significant bit) D7
to the LSB (least-significant bit) D0. With an 8-bit data type,
any data larger than 8 bits must be broken into 8-bit chunks
before it is processed.
In AVR there are 32 general purpose registers. They
are R0–R31 and are located in the lowest location of memo-
The general purpose registers in AVR are the same as
the accumulator in other microprocessors. They can be used
by all arithmetic and logic instructions. To understand the use
of the general purpose registers, we will show it in the con-
text of two simple instructions: LDI and ADD.
AVR ARCHITECTURE AND ASSEMBLY LANGUAGE
role they play in processing data. In Section 1 we look at the general purpose
addressing mode of the AVR are discussed in Sections 2 and 3. In Section 4
Assembly language and machine language programming and define terms such as
instructions. In Section 5 we look at some widely used Assembly language direc-
tives, pseudocode, and data types related to the AVR. In Section 6 we examine
a ready-to-run program for the AVR is discussed in Section 7. Step-by-step exe-
Section 8. The merits of RISC architecture are examined in Section 9. Section
10 discusses the AVR Studio.
SECTION 1: THE GENERAL PURPOSE REGISTERS IN
ry address. See Figure 1. All of these registers are 8 bits.
Figure 1. GPRs
56

LDI instruction
Simply stated, the LDI instruction copies 8-bit data into the general pur-
pose registers. It has the following format:
LDI Rd,K ;load Rd (destination) with Immediate value K
;d must be between 16 and 31
K is an 8-bit value that can be 0–255 in decimal, or 00–FF in hex, and Rd
is R16 to R31 (any of the upper 16 general purpose registers). The I in LDI stands
for ”immediate.” If we see the word “immediate” in any instruction, we are deal-
ing with a value that must be provided right there with the instruction. The follow-
ing instruction loads the R20 register with a value of 0x25 (25 in hex).
LDI R20,0x25 ;load R20 with 0x25 (R20 = 0x25)
The following instruction loads the R31 register with the value 0x87 (87 in
hex).
LDI R31,0x87 ;load 0x87 into R31 (R31 = 0x87)
The following instruction loads R25 with the value 0x15 (15 in hex and 21
in decimal).
LDI R25,0x79 ;load 0x79 into R25 (R25 = 0x79)
Notice the position of the source and destination operands. As you can see,
the LDI loads the right operand into the left operand. In other words, the destina-
tion comes first.
To write a comment in Assembly language we use ‘;’. It is the same as ‘//‘
in C language, which causes the remainder of the line of code to be ignored. For
instance, in the above examples the expressions mentioned after ‘;’ just explain the
functionality of the instructions to you, and do not have any effects on the execu-
tion of the instructions.
When programming the GPRs of the AVR microcontroller with an imme-
diate value, the following points should be noted:
1. If we want to present a number in hex, we put a dollar sign ($) or a 0x in front
of it. If we put nothing in front of a number, it is in decimal. For example, in
“LDI R16,50”, R16 is loaded with 50 in decimal, whereas in “LDI
R16,0x50”, R16 is loaded with 50 in hex.
2. If values 0 to F are moved into an 8-bit register such as GPRs, the rest of the
bits are assumed to be all zeros. For example, in “LDI R16,0x5” the result
will be R16 = 0x05; that is, R16 = 00000101 in binary.
3. Moving a value larger than 255 (FF in hex) into the GPRs will cause an error.
LDI R17, 0x7F2 ;ILLEGAL $7F2 > 8 bits ($FF)
Note: We cannot load values into registers R0 to R15 using the LDI instruc-
tion. For example, the following instruction is not valid:
LDI R5,0x99 ;invalid instruction
57

ADD instruction
The ADD instruction has the following format:
ADD Rd,Rr ;ADD Rr to Rd and store the result in Rd
The ADD instruction tells the CPU to add the value of Rr to Rd and put the
result back into the Rd register. To add two numbers such as 0x25 and 0x34, one
can do the following:
LDI R16,0x25 ;load 0x25 into R16
ADD R16,R17 ;add value R17 to R16 (R16 = R16 + R17)
Executing the above lines results in R16 = 0x59 (0x25 + 0x34 = 0x59)
AVR. The affect of arithmetic and logic operations on the status register will be
Review Questions
1. Write instructions to move the value 0x34 into the R29 register.
2. Write instructions to add the values 0x16 and 0xCD. Place the result in the R19 register.
3. True or false. No value can be moved directly into the GPRs.
4. What is the largest hex value that can be moved into an 8-bit register? What is
the decimal equivalent of that hex value?
5. The vast majority of registers in the AVR are _____-bit.
STATUS
REGISTER
32 x 8
General Purpose
Registers
CARRY
BIT
H, S, V, N, Z, C
FLAGS
8-BIT
WIDE
8-BIT
WIDE
8-BIT
WIDE
discussed in Section 4.
Figure 2 shows the general purpose registers (GPRs) and the ALU in
Figure 2. AVR General Purpose Registers and ALU
58

In AVR microcontrollers there are two kinds of memory space: code mem-
ory space and data memory space. Our program is stored in code memory space,
whereas the data memory stores data. We will examine the code memory space in
ory is composed of three parts: GPRs (general purpose registers), I/O memory, and
GPRs (general purpose registers)
As we discussed in the last section, the GPRs use 32 bytes of data memo-
ry space. They always take the address location $00–$1F in the data memory
I/O memory (SFRs)
The I/O memory is dedicated to specific functions such as status register,
timers, serial communication, I/O ports, ADC, and so on. The function of each I/O
memory location is fixed by the CPU designer at the time of design because it is
used for control of the microcontroller or peripherals. The AVR I/O memory is
made of 8-bit registers. The number of locations in the data memory set aside for
I/O memory depends on the pin numbers and peripheral functions supported by
$0000
$0001
$0020
$001F
$005F
R31
...
TWBR
TWSR
SPH
SREG
...
$00
$01
$3E
$3F
$0060
...
...
Data Address
Space
I/O Address
...
8 bit
$FFFF
R2
R0
R1
SECTION 2: THE AVR DATA MEMORY
Section 8. In this section, we will discuss the data memory space. The data mem-
internal data SRAM. See Figure 3.
Figure 3. The Data Memory for AVRs with No Extended I/O Memory
space, regardless of the AVR chip number. See Figure 3.
59

that chip, although the number can vary from chip to chip even among members
of the same family. However, all of the AVRs have at least 64 bytes of I/O mem-
ory locations. This 64-byte section is called standard I/O memory. In AVRs with
more than 32 I/O pins (e.g., ATmega64, ATmega128, and ATmega256) there is
also an extended I/O memory, which contains the registers for controlling the extra
the I/O registers are called SFRs (special function registers) since each one is ded-
icated to a specific function. In contrast to SFRs, the GPRs do not have any spe-
cific function and are used for storing general data.
Internal data SRAM
$0000
$0020
Internal
SRAM
$001F
$005F
General
Purpose
Registers
Standard I/O
Registers
(SFRs)
$0100
...
...
Data
Address
..
.
$FFFF
$0060
Extended
I/O Memory
$00FF
Mega64
Mega64L
Mega128
Mega128L
$10FF
External
SRAM
$1100
$0000
$0020
Internal
SRAM
$001F
$005F
General
Purpose
Registers
Standard I/O
Registers
(SFRs)
$0200
...
...
Data
Address
...
$FFFF
$0060
Extended
I/O Memory
$01FF
Mega640/V
Mega1280/V
Mega1281/V
Mega2560/V
Mega2561/V
$21FF
External
SRAM
$2200
reserved
DDRF
PORTF
reserved
...
R0
R1
R2
R31
...
ports and the extra peripherals. See Figures 3 and 4. In other microcontrollers
Figure 4. The Data Memory for the AVRs with Extended I/O Memory
Internal data SRAM is widely used for storing data and parameters by AVR
programmers and C compilers. Generally, this is called scratch pad. Each location
of the SRAM can be accessed directly by its address. Each location is 8 bits wide
and can be used to store any data we want as long as it is 8-bit. Again, the size of
SRAM can vary from chip to chip, even among members of the same family. See
Table 1 for a comparison of the data memories of various AVR chips. Also, see
Figure 4.
60

SRAM vs. EEPROM in AVR chips
In AVR datasheets, EEPROM refers to the EEPROM’s size, and SRAM is
the internal SRAM size. By adding the sizes of GPR, SFRs (I/O registers), and
Review Questions
1. True or false. The I/O registers are used for storing data.
2. The GPRs together with I/O registers and SRAM are called______.
3. The I/O registers in AVR are _____-bit.
4. The data memory space in AVR is divided into _____ parts.
5. The data memory space in AVR can be a maximum of ______ bytes.
6. The standard I/O memory space in AVR is ______ bytes.
MEMORY
The instructions we have used so far worked with the immediate (constant)
value of K and the GPRs. They also used the GPRs as their destination. We saw
direct access to other locations in the data memory. In this section we show the
instructions accessing various locations of the data memory. This is one of the
guage programming.
Data Memory I/O Registers SRAM General Purpose
(Bytes) = (Bytes) + (Bytes) + Register
ATtiny25 224 64 128 32
ATtiny85 608 64 512 32
ATmega8 1120 64 1024 32
ATmega16 1120 64 1024 32
ATmega32 2144 64 2048 32
ATmega128 4352 64+160 4096 32
ATmega2560 8704 64+416 8192 32
Extracted from http://www.atmel.com
SECTION 3: USING INSTRUCTIONS WITH THE DATA
SRAMs we get the data memory size. See Table 1.
Table 1: Data Memory Size for AVR Chips
simple examples of using LDI and ADD earlier in Section 1. The AVR allows
The AVR has an EEPROM memory that is used for storing data. EEPROM
does not lose its data when power is off, whereas SRAM does. So, the EEPROM is
used for storing data that should rarely be changed and should not be lost when the
power is off (e.g., options and settings); whereas the SRAM is used for storing data
and parameters that are changed frequently. The three parts of the data memory
(GPRs, SFRs, and the internal SRAM) are made of SRAM.
most important sections in the text for mastering the topic of AVR Assembly lan-
61

LDS instruction (LoaD direct from data Space)
LDS Rd, K ;load Rd with the contents of location K (0 ≤ d ≤ 31)
;K is an address between $0000 to $FFFF
The LDS instruction tells the CPU to load (copy) one byte from an address
in the data memory to the GPR. After this instruction is executed, the GPR will
have the same value as the location in the data memory. The location in the data
memory can be in any part of the data space; it can be one of the I/O registers, a
location in the internal SRAM, or a GPR. For example, the “LDS R20,0x1”
instruction will copy the contents of location 1 (in hex) into R20. As you can see
address of R1. So, the instruction copies R1 to R20.
The following instruction loads R5 with the contents of location 0x200. As
LDS R5,0x200 ;load R5 with the contents of location $200
The following program adds the contents of location 0x300 to location
0x302. To do so, first it loads R0 with the contents of location 0x300 and R1 with
the contents of location 0x302, then adds R0 to R1:
LDS R0, 0x300 ;R0 = the contents of location 0x300
LDS R1, 0x302 ;R1 = the contents of location 0x302
ADD R1, R0 ;add R0 to R1
You can see the execution of “LDS R0,0x300” and “LDS R1,0x302”
300 and 302 of data memory before and after the execution of each of the instruc-
respectively.
$0000
$0001
$0002
$0020
R0
R1
R2
$001F
$005F
R31
...
...
...
...
$0300
$0301
$0302
...
LDS R0, 0x300
LDS R1, 0x302
R0,0x300” and “LDS R1,0x302” Instructions
in Figure 3, location 1 of the data memory is in the GPR part, and it is the
you can see in Figure 3, 0x200 is located in the internal SRAM:
instructions in Figure 5. Figure 6 shows the contents of R0, R1 and locations
Figure 5. Execution of “LDS
tions, assuming that locations $300 and $302 contain a and β,
62

STS instruction (STore direct to data Space)
STS K, Rr ;store register into location K
;K is an address between $0000 to $FFFF
The STS instruction tells the CPU to store (copy) the contents of the GPR
to an address location in the data memory space. After this instruction is executed,
can be in any part of the data memory space; it can be one of the I/O registers, a
location in the SRAM, or a GPR. For example, the “STS 0x1,R10” instruction will
of the data memory is in the GPR part, and it is the address of R1. So, the instruc-
tion copies R10 to R1.
The following instruction stores the contents of R25 to location 0x230. As
STS 0x230, R25 ;store R25 to data space location 0x230
The following program first loads the R16 register with value 0x55, then
moves this value around to I/O registers of ports B, C, and D. As shown in
0x32, respectively:
LDI R16, 0x55 ;R16 = 55 (in hex)
STS 0x38, R16 ;copy R16 to Port B (PORTB = 0x55)
STS 0x35, R16 ;copy R16 to Port C (PORTC = 0x55)
STS 0x32, R16 ;copy R16 to Port D (PORTD = 0x55)
LDI R20, 0x99 ;R20 = 0x99
STS 0x200, R20 ;store R20 in loc 0x200
STS 0x201, R20 ;store R20 in loc 0x201
STS 0x202, R20
STS 0x203, R20 ;see the Mem. contents->
R0
Before LDS R0,0x300
After LDS R0,0x300
After LDS R1,0x302
After ADD R0, R1

?
?
R1 Loc $300 Loc $302
?

+

Address Data
$200 0x99
$201 0x99
$202 0x99
$203 0x99
Notice that you cannot copy (store) an immediate value directly into
the SRAM location in the AVR. This must be done via the GPRs.
Figure 6. The Contents of R0, R1, and Locations $300 and $302
copy the contents of R10 into location 1. As you can see in Figure 3, location 1
the location in the data space will have the same value as the GPR. The location
you can see in Figure 3, 0x230 is located in the internal SRAM:
Figure 7, the addresses of PORTB, PORTC, and PORTD are 0x38, 0x35, and
As we saw in Figure 3, PORTB, PORTC, and PORTD are part of the spe-
cial function registers in the I/O memory. They can be connected to the I/O pins of
the AVR microcontroller. We can also store the contents of a GPR into any location
in the SRAM region of the data space. The following program will put 0x99 into
locations 0x200–0x203 of the SRAM region in the data memory:
63

The following program adds the contents of location 0x220 to location
0x221, and stores the result in location 0x221:
LDS R30, 0x220 ;load R30 with the contents of location 0x220
STS 0x221, R31 ;store R31 to data space location 0x221
IN instruction (IN from I/O location)
IN Rd, A ;load an I/O location to the GPR (0 ≤ d ≤31),(0 ≤ A ≤ 63)
The IN instruction tells the CPU to load one byte from an I/O register to
the GPR. After this instruction is executed, the GPR will have the same value as
the I/O register. For example, the “IN R20,0x16” instruction will copy the con-
tents of location 16 (in hex) of the I/O memory into R20. As you can see in
memory address. Each location in the data memory has a unique address called the
data memory address. Each I/O register has a relative address in comparison to the
beginning of the I/O memory; this address is called the I/O address. See
Name
Address
I/O
Mem.
$00
$20 TWBR
$01
$21 TWSR
$04
$24 ADCL
$05
$25 ADCH
$02
$22 TWAR
$03
$23 TWDR
$06
$26 ADCSRA
$07
$27 ADMUX
$08
$28 ACSR
$09
$29 UBRRL
$0A
$2A UCSRB
$0B
$2B UCSRA
$0C
$2C UDR
$0D
$2D SPCR
$0E
$2E SPSR
$0F
$2F
PIND
$10
$30
DDRD
$11
$31
PORTD
$12
$32
PINC
$13
$33
DDRC
$14
$34
PORTC
$15
$35
PINB
$16
$36
DDRB
$17
$37
PORTB
$18
$38
PINA
$19
$39
DDRA
$1A
$3A
PORTA
$1B
$3B
EECR
$1C
$3C
EEDR
$1D
$3D
EEARL
$1E
$3E
EEARH
$1F
$3F
SPDR
Name
Address
I/O
Mem.
Name
Address
I/O
Mem.
UBRRC
$20
$40
UBRRH
$21
$41 WDTCR
$22
$42 ASSR
$23
$43 OCR2
$24
$44 TCNT2
$25
$45 TCCR2
$26
$46 ICR1L
$27
$47 ICR1H
$28
$48 OCR1BL
$29
$49 OCR1BH
OCR1AH
$2B
$4B
SFIOR
$30
$50
OCDR
$31
$51
OSCCAL
$32
$52
TCCR0
$33
$53
MCUCSR
$34
$54
MCUCR
$35
$55
TWCR
$36
$56
SPMCR
$37
$57
TIFR
$38
$58
TIMSK
$39
$59
TCNT1L
$2C
$4C
TCNT1H
$2D
$4D
TCCR1B
$2E
$4E
TCCR1A
$2F
$4F
TCNT0
$3A
$5A
GICR
$3B
$5B
OCR0
$3C
$5C
SPL
$3D
$5D
SPH
$3E
$5E
GIFR
OCR1AL
$2A
$4A SREG
$3F
$5F
Note: Although memory address $20-$5F is set aside for I /O registers (SFR) we
can access them as I /O locations with addresses starting at $00.
Figure 7. I/O Registers of the ATmega32 and Their Data Memory Address Locations
Figure 7, each location in I/O memory has two addresses: I/O address and data
Figure 3. You see the list of I/O registers in Figure 7.
64

State the contents of RAM locations $212 to $216 after the following program is executed:
LDI R16, 0x99 ;load R16 with value 0x99
STS 0x212, R16
STS 0x213, R16
LDI R16, 0x3F ;load R16 with value 0x3F
STS 0x214, R16
STS 0x215, R16
STS 0x216, R16
Solution:
After the execution of STS 0x212, R16 data memory location $212 has value 0x99;
after the execution of STS 0x213, R16 data memory location $213 has value 0x85;
after the execution of STS 0x214, R16 data memory location $214 has value 0x3F;
after the execution of STS 0x215, R16 data memory location $215 has value 0x63;
and so on, as shown in the chart. Address Data
$212 0x99
$213 0x85
$214 0x3F
$215 0x63
$216 0x12
State the contents of R20, R21, and data memory location 0x120 after the following
program:
LDI R20, 5 ;load R20 with 5
STS 0x120, R20 ;store in location 0x120 the contents of R20
Solution:
The program loads R20 with value 5. Then it loads R21 with value 2. Then it
adds the R21 register to R20 twice. At the end, it stores the result in location 0x120 of
data memory.
After After After After After
LDI R20, 5 LDI R21, 2 ADD R20, R21 ADD R20, R21 STS 0x120, R20
Location Data
R20 5
R21
0x120
Location Data
R20 5
R21 2
0x120
Location Data
R20 7
R21 2
0x120
Location Data
R20 9
R21 2
0x120
Location Data
R20 9
R21 2
0x120 9
Example 1
Example 2
65

In the IN instruction, the I/O registers are referred to by their I/O address-
es. For example, the “IN R20,0x16” instruction will copy the contents of location
$16 of the I/O memory (whose data memory address is 0x36) into R20. As shown
The following instruction loads R19 with the contents of location 0x10 of
the I/O memory:
IN R19,0x10 ;load R19 with location $10 (R19 = PIND)
To work with the I/O registers more easily, we can use their names instead
of their I/O addresses. For example, the following instruction loads R19 with the
contents of PIND:
IN R19,PIND ;load R19 with PIND
Notice that to be able to use the names of the I/O addresses instead of the
The following program adds the contents of PIND to PINB, and stores the
result in location 0x300 of the data memory:
IN R1,PIND ;load R1 with PIND
IN R2,PINB ;load R2 with PINB
ADD R1, R2 ;R1 = R1 + R2
STS 0x300, R1 ;store R1 to data space location $300
IN vs. LDS
As we mentioned earlier, we can use the LDS instruction to copy the con-
tents of a memory location to a GPR. This means that we can load an I/O register
into a GPR, using the LDS instruction. So, what is the advantage of using the IN
instruction for reading the contents of I/O registers over using the LDS instruc-
tion? The IN instruction has the following advantages:
1.
2. The IN is a 2-byte instruction, whereas LDS is a 4-byte instruction. This
means that the IN instruction occupies less code memory.
3. When we use the IN instruction, we can use the names of the I/O registers
instead of their addresses.
4. The IN instruction is available in all of the AVRs, whereas LDS is not
implemented in some of the AVRs.
Notice that in using the IN instruction we can access only the standard I/O
memory, while we can access all parts of the data memory using the LDS instruc-
tion.
5.
I/O addresses we should include the proper header files, as discussed in Section
The CPU executes the IN instruction faster than LDS. The IN instruction
lasts 1 machine cycle, whereas LDS lasts 2 machine cycles.
in Figure 7, I/O address 0x16 belongs to PINB, so the instruction copies the contents
of PINB to R20.
66

OUT instruction (OUT to I/O location)
OUT A, Rr ;store register to I/O location (0 ≤ r ≤ 31),(0 ≤A ≤ 63)
The OUT instruction tells the CPU to store the GPR to the I/O register.
After the instruction is executed, the I/O register will have the same value as the
GPR. For example, the “OUT PORTD,R10” instruction will copy the contents of
R10 into PORTD (location 12 of the I/O memory).
Notice that in the OUT instruction, the I/O registers are referred to by their
I/O addresses (like the IN instruction).
The following program copies 0xE6 to the SPL register:
LDI R20,0xE6 ;load R20 with 0xE6
OUT SPL, R20 ;out R20 to SPL
We must remember that we cannot copy an immediate value to an I/O reg-
ister nor to an SRAM location.
The following program copies PIND to PORTA:
IN R0, PIND ;load R20 with the contents of I/O reg PIND
OUT PORTA, R0 ;out R20 to PORTA
MOV instruction
The MOV instruction is used to copy data among the GPR registers of
R0–R31. It has the following format:
MOV Rd,Rr ;Rd = Rr (copy Rr to Rd)
;Rd and Rr can be any of the GPRs
For example, the following instruction copies the contents of R20 to R10:
MOV R10,R20 ;R10 = R20
For instance, if R20 contains 60, after execution of the above instruction
both R20 and R10 will contain 60.
Write a program to get data from the PINB and send it to the I/O register of PORT C
continuously.
Solution:
AGAIN:IN R16, PINB ;bring data from PortB into R16
OUT PORTC,R16 ;send it to Port C
JMP AGAIN ;keep doing it forever
In Example 3 we use JMP to repeat an action indefinitely. JMP is simi-
Example 3
lar to “goto” in the C language.
67

More ALU instructions involving the GPRs
The following program adds 0x19 to the contents of location 0x220 and
stores the result in location 0x221:
LDI R20, 0x19 ;load R20 with 0x19
ADD R21, R20 ;R21 = R21 + R20
STS 0x221, R21 ;store R21 to location 0x221
INC instruction
INC Rd ;increment the contents of Rd by one (0 ≤ d ≤ 31)
The INC instruction increments the contents of Rd by 1. For example, the
following instruction adds 1 to the contents of R2:
INC R2 ;R2 = R2 + 1
The following program increments the contents of data memory location
0x430 by 1:
LDS R20, 0x430 ;R20 = contents of location 0x430
INC R20 ;R20 = R20 + 1
STS 0x430, R20 ;store R20 to location 0x430
SUB instruction
The SUB instruction has the following format:
SUB Rd,Rr ;Rd = Rd - Rr
The SUB instruction tells the CPU to subtract the value of Rr from Rd and
put the result back into the Rd register. To subtract 0x25 from 0x34, one can do
the following:
LDI R20, 0x34 ;R20 = 0x34
LDI R21, 0x25 ;R20 = 0x25
SUB R20, R21 ;R20 = R20 - R21
The following program subtracts 5 from the contents of location 0x300 and
stores the result in location 0x320:
LDS R0, 0x300 ;R0 = contents of location 0x300
LDI R16, 0x5 ;R16 = 0x5
SUB R0, R16 ;R0 = R0 - R16
STS 0x320,R0 ;store the contents of R0 to location 0x320
The following program decrements the contents of R10, by 1:
LDI R16, 0x1 ;load 1 to R16
SUB R10, R16 ;R10 = R10 - R16
68

DEC instruction
The DEC instruction has the following format:
DEC Rd ;Rd = Rd - 1
The DEC instruction decrements (subtracts 1 from) the contents of Rd and
puts the result back into the Rd register. For example, the following instruction
subtracts 1 from the contents of R10:
DEC R10 ;R10 = R10 - 1
In the following program, we put the value 3 into R30. Then the value in
R30 is decremented.
LDI R30, 3 ;R30 = 3
DEC R30 ;R30 has 2
DEC R30 ;R30 has 1
DEC R30 ;R30 has 0
Instruction
ADD Rd, Rr ADD Rd and Rr
ADC Rd, Rr ADD Rd and Rr with Carry
AND Rd, Rr AND Rd with Rr
EOR Rd, Rr Exclusive OR Rd with Rr
OR Rd, Rr OR Rd with Rr
SBC Rd, Rr Subtract Rr from Rd with carry
SUB Rd, Rr Subtract Rr from Rd without carry
Instruction
CLR Rd Clear Register Rd
INC Rd Increment Rd
DEC Rd Decrement Rd
COM Rd One’s Complement Rd
NEG Rd Negative (two’s complement) Rd
ROL Rd Rotate left Rd through carry
ROR Rd Rotate right Rd through carry
LSL Rd Logical Shift Left Rd
LSR Rd Logical Shift Right Rd
ASR Rd Arithmetic Shift Right Rd
SWAP Rd Swap nibbles in Rd
Table 2: ALU Instructions Using Two GPRs
Table 3: Some Instructions Using a GPR as Operand
Rd and Rr can be any of the GPRs.
69

COM instruction
The “COM Rd” instruction complements (inverts) the contents of Rd and
places the result back into the Rd register. In the following program, we put 0x55
into R16 and then send it to the SFR location of PORTB. Then the content of R16
is complemented, which becomes AA in hex. The 01010101 (0x55) is inverted and
becomes 10101010 (0xAA).
LDI R16,0x55 ;R16 = 0x55
OUT PORTB, R16 ;copy R16 to Port B SFR (PB = 0x55)
COM R16 ;complement R16 (R16 = 0xAA)
OUT PORTB, R16 ;copy R16 to Port B SFR (PB = 0xAA)
The above concepts are important and must be understood since there are
a large number of instructions with these formats.
and destination (rd) and then place the result in the destination register (Rd)
2.
result in the same register.
Review Questions
1. True or false. No value can be loaded directly into internal SRAM.
2. Write instructions to load value 0x95 into the SPL I/O register.
3. Write instructions to add 2 to the contents of R18.
4. Write instructions to add the values 0x16 and 0xCD. Place the result in loca-
tion 0x400 of the data memory.
5. What is the largest hex value that can be moved into a location in the data
memory? What is the decimal equivalent of the hex value?
6. “ADD R16, R3” puts the result in _____ .
7. What does “OUT OCR0, R23” do?
8. What is wrong with “STS OCR0, R23”? What does it do?
Write a simple program to toggle the I/O register of PORT B continuously forever.
Solution:
LDI R20, 0x55 ;R20 = 0x55
OUT PORTB, R20 ;move R20 to Port B SFR (PB = 0x55)
L1: COM R20 ;complement R20
OUT PORTB, R20 ;move R20 to Port B SFR
JMP L1 ;repeat forever
Examine Example 4.
Example 4
Regarding Tables 2 and 3 the following points must be noted:
The instructions in Table 3 operate on a single GPR register and place the
1. The instructions in Table 2 operate on two GPR registers of source (Rr)
70

Like all other microprocessors, the AVR has a flag register to indicate arith-
metic conditions such as the carry bit. The flag register in the AVR is called the
status register (SReg). In this section, we discuss various bits of this register and
AVR status register
The status register is an 8-bit register. It is also referred to as the flag reg-
H are called conditional flags, meaning that they indicate some conditions that
result after an instruction is executed. Each of the conditional flags can be used to
The following is a brief explanation of the flag bits of the status register.
The impact of instructions on this register is then discussed.
C, the carry flag
This flag is set whenever there is a carry out from the D7 bit. This flag bit
Z, the zero flag
The zero flag reflects the result of an arithmetic or logic operation. If the
N, the negative flag
Binary representation of signed numbers uses D7 as the sign bit. The neg-
ative flag reflects the result of an arithmetic operation. If the D7 bit of the result is
zero, then N = 0 and the result is positive. If the D7 bit is one, then N = 1 and the
result is negative. The negative and V flag bits are used for the signed number
V, the overflow flag
This flag is set whenever the result of a signed number operation is too
large, causing the high-order bit to overflow into the sign bit. In general, the carry
flag is used to detect errors in unsigned arithmetic operations while the overflow
D0
D7
Bit
SECTION 4: AVR STATUS REGISTER
ister. See Figure 8 for the bits of the status register. The bits C, Z, N, V, S, and
Figure 8. Bits of Status Register (SREG)
provide some examples of how it is altered.
perform a conditional branch (jump).
is affected after an 8-bit addition or subtraction.
result is zero, then Z = 1. Therefore, Z = 0 if the result is not zero.
arithmetic operations.
71

flag is used to detect errors in signed arithmetic operations. The V and N flag bits
S, the Sign bit
H, Half carry flag
If there is a carry from D3 to D4 during an ADD or SUB operation, this bit
is set; otherwise, it is cleared. This flag bit is used by instructions that perform
BCD (binary coded decimal) arithmetic. In some microprocessors this is called the
ADD instruction and the status register
Show the status of the Z flag during the execution of the following program:
LDI R20,4 ;R20 = 4
DEC R20 ;R20 = R20 - 1
DEC R20 ;R20 = R20 - 1
DEC R20 ;R20 = R20 - 1
DEC R20 ;R20 = R20 - 1
Solution:
The Z flag is one when the result is zero. Otherwise, it is cleared (zero). Thus:
After Value of R20 The Z flag
LDI R20, 4 4 0
DEC R20 3 0
DEC R20 2 0
DEC R20 1 0
DEC R20 0 1
Example 5
are used for signed number arithmetic operations.
This flag is the result of Exclusive-ORing of N and V flags.
AC flag (Auxiliary Carry flag).
Next we examine the impact of the ADD instruction on the flag bits C, H,
and Z of the status register. Some examples should clarify their meanings.
Although all the flag bits C, Z, H, V
, S, and N are affected by the ADD instruction,
we will focus on flags C, H, and Z for now. The other flag bits relate only to signed
number operations. Examine Example 5 to see the impact of the DEC instruction
on selected flag bits. See also Examples 6 through 8 to see the impact of the ADD
instruction on selected flag bits.
72

Show the status of the C, H, and Z flags after the addition of 0x38 and 0x2F in the
following instructions:
LDI R16, 0x38
LDI R17, 0x2F
Solution:
$38 0011 1000
+ $2F 0010 1111
$67 0110 0111 R16 = 0x67
C = 0 because there is no carry beyond the D7 bit.
H = 1 because there is a carry from the D3 to the D4 bit.
Z = 0 because the R16 (the result) has a value other than 0 after the addition.
Show the status of the C, H, and Z flags after the addition of 0x9C and 0x64 in the
following instructions:
LDI R20, 0x9C
LDI R21, 0x64
Solution:
$9C 1001 1100
+ $64 0110 0100
$100 0000 0000 R20 = 00
C = 1 because there is a carry beyond the D7 bit.
H = 1 because there is a carry from the D3 to the D4 bit.
Z = 1 because the R20 (the result) has value 0 in it after the addition.
Show the status of the C, H, and Z flags after the addition of 0x88 and 0x93 in the fol-
lowing instructions:
LDI R20, 0x88
LDI R21, 0x93
Solution:
$ 88 1000 1000
+ $ 93 1001 0011
$11B 0001 1011 R20 = 0x1B
C = 1 because there is a carry beyond the D7 bit.
H = 0 because there is no carry from the D3 to the D4 bit.
Z = 0 because the R20 has a value other than 0 after the addition.
Example 6
Example 7
Example 8
73

Not all instructions affect the flags
Some instructions affect all the six flag bits C, H, Z, S, V, and N (e.g.,
ADD). But some instructions affect no flag bits at all. The load instructions are in
this category. And some instructions affect only some of the flag bits. The logic
instructions (e.g., AND) are in this category.
Flag bits and decision making
There are instructions that will
make a conditional jump (branch) based
Instructions Using Flag Bits
Instruction Action
BRLO Branch if C = 1
BRSH Branch if C = 0
BREQ Branch if Z = 1
BRNE Branch if Z = 0
BRMI Branch if N = 1
BRPL Branch if N = 0
BRVS Branch if V = 1
BRVC Branch if V = 0
Instruction C Z N V S H
ADD X X X X X X
ADC X X X X X X
ADIW X X X X X
AND X X X X
ANDI X X X X
CBR X X X X
CLR X X X X
COM X X X X X
DEC X X X X
EOR X X X X
FMUL X X
INC X X X X
LSL X X X X X
LSR X X X X
OR X X X X
ORI X X X X
ROL X X X X X
ROR X X X X
SEN 1
SEZ 1
SUB X X X X X X
SUBI X X X X X X
TST X X X X
Table 4: Instructions That Affect Flag Bits
Table 5: AVR Branch (Jump)
on the status of the flag bits. Table 5 pro-
Table 4 shows the instructions and the flag bits affected by them.
Note: X can be 0 or 1.
vides some of these instructions.
74

Review Questions
1. The flag register in the AVR is called the ________.
2. What is the size of the flag register in the AVR?
3. Find the C, Z, and H flag bits for the following code:
LDI R20, 0x9F
LDI R21, 0x61
ADD R20, R21
LDI R17, 0x82
LDI R23, 0x22
ADD R17, R23
LDI R20, 0x67
LDI R21, 0x99
ADD R20, R21
In this section we look at some widely used data formats and directives
supported by the AVR assembler.
AVR data type
Data format representation
There are four ways to represent a byte of data in the AVR assembler. The
numbers can be in hex, binary, decimal, or ASCII formats. The following are
examples of how each works.
Hex numbers
There are two ways to show hex numbers:
1. Put 0x (or 0X) in front of the number like this: LDI R16, 0x99
2. Put $ in front of the number, like this: LDI R22, $99
SECTION 5: AVR DATA FORMAT AND DIRECTIVES
The AVR microcontroller has only one data type. It is 8 bits, and the size
of each register is also 8 bits. It is the job of the programmer to break down data
larger than 8 bits (00 to 0xFF, or 0 to 255 in decimal) to be processed by the CPU.
The data types used by the AVR can be positive or negative.
75

out there use one of them and we need to get used to them.
Here are a few lines of code that use the hex format:
LDI R28,$75 ;R28 = 0x75
SUBI R28,0x11 ;R28 = 0x75 - 0x11 = 0x64
SUBI R28,0X20 ;R28 = 0x64 - 0x20 = 0x44
ANDI R28,0xF ;R28 = 0x44 - 0x0F = 0x35
Binary numbers
There is only one way to represent binary numbers in an AVR assembler.
It is as follows:
LDI R16,0b10011001 ;R16 = 10011001 or 99 in hex
The uppercase B will also work. Here are some examples of how to use it:
LDI R23,0b00100101 ;R23 = $25
SUBI R23,0B00010001 ;R23 = $25 - $11 = $14
Decimal numbers
To indicate decimal numbers in an AVR assembler we simply use the dec-
imal (e.g., 12) and nothing before or after it. Here are some examples of how to
use it:
LDI R17, 12 ;R17 = 00001100 or 0C in hex
SUBI R17, 2 ;R17 = 12 - 2 = 10 where 10 is equal to 0x0A
ASCII characters
To represent ASCII data in an AVR assembler we use single quotes as fol-
lows:
LDI R23,'2' ;R23 = 00110010 or 32 in hex (See Appendix F)
This is the same as other assemblers such as the 8051 and x86. Here are
some more examples:
LDI R20,'9';R20 = 0x39, which is hex number for ASCII '9'
SUBI R20,'1';R20 = 0x39 - 0x31 = 0x8
;(31 hex is for ASCII '1')
To represent a string, double quotes are used; and for defining ASCII
strings (more than one character), we use the .DB (define byte) directive.
We use both of these methods in this text, because many application notes
76

Assembler directives
While instructions tell the CPU what to do, directives (also called pseudo-
instructions) give directions to the assembler. For example, the LDI and ADD
instructions are commands to the CPU, but .EQU, .DEVICE, and .ORG are direc-
tives to the assembler. The following sections present some more widely used
directives of the AVR and how they are used. The directives help us develop our
program easier and make our program legible (more readable).
.EQU (equate)
This is used to define a constant value or a fixed address. The .EQU direc-
tive does not set aside storage for a data item, but associates a constant number
with a data or an address label so that when the label appears in the program, its
constant will be substituted for the label. The following uses .EQU for the count-
er constant, and then the constant is used to load the R21 register:
.EQU COUNT = 0x25
... ....
LDI R21, COUNT ;R21 = 0x25
When executing the above instruction “LDI R21, COUNT”, the register
R21 will be loaded with the value 25H. What is the advantage of using .EQU?
Assume that a constant (a fixed value) is used throughout the program, and the
programmer wants to change its value everywhere. By the use of .EQU, the pro-
grammer can change it once and the assembler will change all of its occurrences
throughout the program. This allows the programmer to avoid searching the entire
program trying to find every occurrence.
We mentioned earlier that we can use the names of the I/O registers instead
of their addresses (e.g., we can write “OUT PORTA,R20” instead of “OUT
0x1B,R20”). This is done with the help of the .EQU directive. In include files such
as M32DEF.INC the I/O register names are associated with their addresses using
the .EQU directive. For example, in M32DEF.INC the following pseudo-instruc-
tion exists, which associates 0x1B (the address of PORTB) with the PORTB.
.EQU PORTB = 0x1B
.SET
This directive is used to define a constant value or a fixed address. In this
regard, the .SET and .EQU directives are identical. The only difference is that the
value assigned by the .SET directive may be reassigned later.
Using .EQU for fixed data assignment
To get more practice using .EQU to assign fixed data, examine the following:
;in hexadecimal
.EQU DATA1 = 0x39 ;one way to define hex value
.EQU DATA2 = $39 ;another way to define hex value
;in binary
77

.EQU DATA3 = 0b00110101 ;binary (35 in hex)
;in decimal
.EQU DATA4 = 39 ;decimal numbers (27 in hex)
;in ASCII
.EQU DATA5 = '2' ;ASCII characters
We use .DB to allocate code ROM memory locations for fixed data such
Using .EQU for SFR address assignment
.EQU is also widely used to assign SFR addresses. Examine the following
code:
.EQU COUNTER = 0x00 ;counter value 00
.EQU PORTB = 0x18 ;SFR Port B address
LDI R16, COUNTER ;R16 = 0x00
OUT PORTB, R16 ;Port B (loc 0x18) now has 00 too
Using .EQU for RAM address assignment
Another common usage of .EQU is for the address assignment of the
internal SRAM. Examine the following rewrite of an earlier example using .EQU:
.EQU SUM = 0x120 ;assign RAM loc to SUM
ADD R20, R21 ;R20 = R20 + R21
ADD R20, R21 ;R20 = R20 + R21
STS SUM, R20 ;store the result in loc 0x120
This is especially helpful when the address needs to be changed in order to
use a different AVR chip for a given project. It is much easier to refer to a name
than a number when accessing RAM address locations.
.ORG (origin)
The .ORG directive is used to indicate the beginning of the address. It can
be used for both code and data.
.INCLUDE directive
The .include directive tells the AVR assembler to add the contents of a file
the files that you must include whenever you want to use any of the AVRs.
For example, when you want to use ATmega32, you must write the follow-
ing instruction at the beginning of your program:
.INCLUDE “M32DEF.INC”
to our program (like the #include directive in C language). In Table 6, you see
as ASCII strings.
78

Rules for labels in Assembly language
By choosing label names that are meaningful, a programmer can make a
program much easier to read and maintain. There are several rules that names must
follow. First, each label name must be unique. The names used for labels in
Assembly language programming consist of alphabetic letters in both uppercase
and lowercase, the digits 0 through 9, and the special characters question mark (?),
period (.), at (@), underline (_), and dollar sign ($). The first character of the label
must be an alphabetic character. In other words, it cannot be a number. Every
assembler has some reserved words that must not be used as labels in the program.
Foremost among the reserved words are the mnemonics for the instructions. For
example, “LDI” and “ADD” are reserved because they are instruction mnemonics.
In addition to the mnemonics there are some other reserved words. Check your
assembler for the list of reserved words.
Review Questions
1. Give two ways for hex data representation in the AVR assembler.
2. Show how to represent decimal 99 in formats of (a) hex, (b) decimal, and (c)
binary in the AVR assembler.
3. What is the advantage in using the .EQU directive to define a constant value?
4. Show the hex number value used by the following directives:
(a) .EQU ASC_DATA = '4' (b) .EQU MY_DATA=0B00011111
5. Give the value in R22 for the following:
.EQU MYCOUNT = 15
LDI R22, MYCOUNT
6. Give the value in data memory location 0x200 for the following:
.EQU MYCOUNT = 0x95
.EQU MYREG = 0x200
LDI R22, MYCOUNT
STS MYREG, R22
7. Give the value in data memory 0x63 for the following:
.EQU MYDATA = 12
.EQU MYREG = 0x63
.EQU FACTOR = 0x10
LDI R19, MYDATA
ADD R19, FACTOR
STS MYREG, R19
ATMEGA ATTINY Special Purpose
ATmega8 m8def.inc ATtiny11 tn11def.inc AT90CAN32 can32def.inc
ATmega16 m16def.inc ATtiny12 tn12def.inc AT90CAN64 can64def.inc
ATmega32 m32def.inc ATtiny22 tn22def.inc AT90PWM2 pwm2def.inc
ATmega64 m64def.inc ATtiny44 tn44def.inc AT90PWM3 pwm3def.inc
ATmega128 m128def.inc ATtiny85 tn85def.inc AT90USB646 usb646def.inc
ATmega256 m256def.inc
ATmega2560 m2560def.inc
Table 6: Some of the Common AVRs and Their Include Files
79

In this section we discuss Assembly language format and define some
widely used terminology associated with Assembly language programming.
While the CPU can work only in binary, it can do so at a very high speed.
It is quite tedious and slow for humans, however, to deal with 0s and 1s in order
to program the computer. A program that consists of 0s and 1s is called machine
language. In the early days of the computer, programmers coded programs in
machine language. Although the hexadecimal system was used as a more efficient
way to represent binary numbers, the process of working in machine code was still
cumbersome for humans. Eventually, Assembly languages were developed, which
provided mnemonics for the machine code instructions, plus other features that
made programming faster and less prone to error. The term mnemonic is frequent-
ly used in computer science and engineering literature to refer to codes and abbre-
viations that are relatively easy to remember. Assembly language programs must
be translated into machine code by a program called an assembler. Assembly lan-
guage is referred to as a low-level language because it deals directly with the inter-
nal structure of the CPU. To program in Assembly language, the programmer must
know all the registers of the CPU and the size of each, as well as other details.
Today, one can use many different programming languages, such as
BASIC, Pascal, C, C++, Java, and numerous others. These languages are called
high-level languages because the programmer does not have to be concerned with
the internal details of the CPU. Whereas an assembler is used to translate an
Assembly language program into machine code (sometimes also called object
code or opcode for operation code), high-level languages are translated into
machine code by a program called a compiler. For instance, to write a program in
C, one must use a C compiler to translate the program into machine language. Next
we look at AVR Assembly language format.
Structure of Assembly language
An Assembly language program consists of, among other things, a series
of lines of Assembly language instructions. An Assembly language instruction
consists of a mnemonic, optionally followed by one or two operands. The
operands are the data items being manipulated, and the mnemonics are the com-
mands to the CPU, telling it what to do with those items.
ments, or lines, which are either Assembly language instructions such as ADD and
LDI, or statements called directives. While instructions tell the CPU what to do,
directives (also called pseudo-instructions) give directions to the assembler. For
the CPU, .ORG and .EQU are directives to the assembler. The directive .ORG tells
the assembler to place the opcode at memory location 0, while .EQU introduces a
new expression equal to a known expression.
An Assembly language instruction consists of four fields:
[label:] mnemonic [operands] [;comment]
SECTION6:INTRODUCTIONTOAVRASSEMBLYPROGRAMMING
An Assembly language program (see Program 1) is a series of state-
example, in Program 1, while the LDI and ADD instructions are commands to
80

Brackets indicate that a field is optional and not all lines have them.
Brackets should not be typed in. Regarding the above format, the following points
should be noted:
1. The label field allows the program to refer to a line of code by name. The label
field cannot exceed a certain number of characters. Check your assembler for
the rule.
2. The Assembly language mnemonic (instruction) and operand(s) fields togeth-
er perform the real work of the program and accomplish the tasks for which
the program was written. In Assembly language statements such as
LDI R23, $55
ADD R23, R19
SUBI R23, $67
ADD and LDI are the mnemonics that produce opcodes; the “$55” and “$67”
are the operands. Instead of a mnemonic and an operand, these two fields could
contain assembler pseudo-instructions, or directives. Remember that directives
do not generate any machine code (opcode) and are used only by the assem-
bler, as opposed to instructions that are translated into machine code (opcode)
3. The comment field begins with a semicolon comment indicator “;”. Comments
may be at the end of a line or on a line by themselves. The assembler ignores
comments, but they are indispensable to programmers. Although comments
are optional, it is recommended that they be used to describe the program in a
way that makes it easier for someone else to read and understand.
4.
is told to stay in this loop indefinitely. If your system has a monitor program
you do not need this line and should delete it from your program. In Section
;AVR Assembly Language Program To Add Some Data.
;store SUM in SRAM location 0x300.
.EQU SUM = 0x300 ;SRAM loc $300 for SUM
.ORG 00 ;start at address 0
LDI R16, 0x25 ;R16 = 0x25
LDI R17, $34 ;R17 = 0x34
LDI R18, 0b00110001 ;R18 = 0x31
LDI R17, 11 ;R17 = 0x0B
STS SUM, R16 ;save the SUM in loc $300
HERE: JMP HERE ;stay here forever
7 we will see how to create a ready-to-run program.
Program 1: Sample of an Assembly Language Program
for the CPU to execute. In Program 1 the commands .ORG (origin) and
Notice the label “HERE” in the label field in Program 1. In the JMP the AVR
.EQU are examples of directives.
81

Review Questions
1. What is the purpose of pseudo-instructions?
2. _____________ are translated by the assembler into machine code, whereas
__________________ are not.
3. True or false. Assembly language is a high-level language.
4. Which of the following instructions produces opcode? List all that do.
(a) LDI R16,0x25 (b) ADD R23,R19 (c) .ORG 0x500 (d) JMP HERE
5. Pseudo-instructions are also called ___________.
6. True or false. Assembler directives are not used by the CPU itself. They are
simply a guide to the assembler.
7. In Question 4, which one is an assembler directive?
Now that the basic form of an Assembly language program has been given,
the next question is: How it is created, assembled, and made ready to run? The
lined as follows:
case of the AVR microcontrollers, we use the AVRStudio IDE, which has a text
editor, assembler, simulator, and much more all in one software package. It is
an excellent development software that supports all the AVR chips and is free.
Many editors or word processors are also available that can be used to create
or edit the program. A widely used editor is the Notepad in Windows, which
comes with all Microsoft operating systems. Notice that the editor must be able
EDITOR
PROGRAM
ASSEMBLER
PROGRAM
DOWNLOAD TO
AVR ’s FLASH
DOWNLOAD TO
AVR’s EEPROM
myfile.asm
SECTION 7: ASSEMBLING AN AVR PROGRAM
steps to create an executable Assembly language program (Figure 9) are out-
1. First we use a text editor to type in a program similar to Program 1. In the
Figure 9. Steps to Create a Program
82

to produce an ASCII file. For assemblers, the file names follow the usual DOS
conventions, but the source file has the extension “asm”. The “asm” extension
for the source file is used by an assembler in the next step.
2. The “asm” source file containing the program code created in step 1 is fed to
the AVR assembler. The assembler produces an object file, a hex file, an eep-
rom file, a list file, and a map file. The object file has the extension “obj”, the
hex file extension is “hex”, the list file extension is “lst”, the map file exten-
sion is “map”, and the eeprom file has the extension “eep”. After a successful
link, the hex file is ready to be burned into the AVR’s program ROM and is
downloaded into the AVR Trainer. We can write the eeprom file into the AVR’s
More about asm and object files
The asm file is also called the source file and must have the “asm” exten-
sion. As mentioned earlier, this file is created with a text editor such as Windows
Notepad. Many assemblers come with a text editor. The assembler converts the asm
file’s Assembly language instructions into machine language and provides the obj
(object) file. The object file, as mentioned earlier, has an “obj” as its extension. The
object file is used as input to a simulator or an emulator.
Before we can assemble a program to create a ready-to-run program, we
must make sure that it is error free. The AVR Studio IDE provides us error mes-
sages and we examine them to see the nature of syntax errors. The assembler will
not assemble the program until all the syntax errors are fixed. A sample of an error
“lst” and “map” files
The map file shows the labels defined in the program together with their
The lst (list) file, which is optional, is very useful to the programmer. The
AVRASM ver. 2.1.2 F:AVRSampleSample.asm Sun Apr 06 23:39:32 2008
EQU SUM 00000300
CSEG HERE 00000009
AVRASM: AVR macro assembler 2.1.2 (build 99 Nov 4 2005 09:35:05)
Copyright (C) 1995-2005 ATMEL Corporation
F:AVRSampleSample.asm(7): error: Invalid register
F:AVRSampleSample.asm(8): error: Operand(s) out of range in 'ldi r17,0x3432'
F:AVRSampleSample.asm(9): error: Undefined symbol: R38
F:AVRSampleSample.asm(9): error: Invalid register
F:AVRSampleSample.asm(16): No EEPROM data, deleting F:AVRSampleSample.eep
Assembly failed, 4 errors, 0 warnings
Figure 10. Sample of an AVR Error
values. Examine Figure 11. It shows the Map file of Program 1.
Figure 11. Map File of Program 1
message is shown in Figure 10.
EEPROM to initialize the EEPROM.
83

list shows the binary and source code; it also shows which instructions are used in
Many assemblers assume that the list file is not wanted unless you indicate
that you want to produce it. These files can be accessed by a text editor such as
Notepad and displayed on the monitor, or sent to the printer to get a hard copy. The
programmer uses the list and map files to ensure correct system design.
There are many different AVR assemblers available for free nowadays. If
you use the Windows operating system, AVR Studio can be a good choice. It has
a nice environment and provides great help.
Review Questions
1. True or false. The AVR Studio IDE and Windows Notepad text editor both pro-
duce an ASCII file.
2. True or false. The extension for the source file is “asm”.
3. Which of the following files can be produced by a text editor?
(a) myprog.asm (b) myprog.obj (c) myprog.hex (d) myprog.lst
4. Which of the following files is produced by an assembler?
(a) myprog.asm (b) myprog.obj (c) myprog.hex (d) myprog.lst
AVRASM ver. 2.1.2 F:AVRSampleSample.asm Tue Mar 11 11:28:34 2008
;store SUM in SRAM location 0x300.
.DEVICE ATMega32
.EQU SUM = 0x300 ;SRAM loc $300 for SUM
.ORG 00 ;start at address 0
000000 e205 LDI R16, 0x25 ;R16 = 0x25
000001 e314 LDI R17, $34 ;R17 = 0x34
000002 e321 LDI R18, 0b00110001 ;R18 = 0x31
000003 0f01 ADD R16, R17 ;add R17 to R16
000004 0f02 ADD R16, R18 ;add R18 to R16
000005 e01b LDI R17, 11 ;R17 = 0x0B
000006 0f01 ADD R16, R17 ;add R17 to R16
000007 9300 0300 STS SUM, R16 ;save the SUM in loc $300
000009 940c 0009 HERE: JMP HERE ;stay here forever
RESOURCE USE INFORMATION
------------------------
...
Memory use summary [bytes]:
Segment Begin End Code Data Used Size Use%
---------------------------------------------------------------
[.cseg] 0x000000 0x000016 22 0 22 unknown -
[.dseg] 0x000060 0x000060 0 0 0 unknown -
[.eseg] 0x000000 0x000000 0 0 0 unknown -
Assembly complete, 0 errors, 0 warnings
Figure 12. List File of Program 1
the source code, and the amount of memory the program uses. See Figure 12.
84

ROM SPACE IN THE AVR
In this section we discuss the role of the program counter (PC) in execut-
ing a program and show how the code is fetched from ROM and executed. We will
also discuss the program (code) ROM space for various AVR family members.
Finally, we examine the Harvard architecture of the AVR.
Program counter in the AVR
The most important register in the AVR microcontroller is the PC (program
counter). The program counter is used by the CPU to point to the address of the
next instruction to be executed. As the CPU fetches the opcode from the program
ROM, the program counter is incremented automatically to point to the next
instruction. The wider the program counter, the more memory locations a CPU can
access. That means that a 14-bit program counter can access a maximum of 16K
(214
= 16K) program memory locations.
In AVR microcontrollers each Flash memory location is 2 bytes wide. For
example, in ATmega32, whose Flash is 32K bytes, the Flash is organized as
16K×16, and its program counter is 14 bits wide (214
= 16K memory locations).
The ATmega64 has a 15-bit program counter, so its Flash has 32K locations
(215
=32K), with each location containing 2 bytes (32K × 2 bytes = 64K bytes).
In the case of a 16-bit program counter, the code space is 64K (216
= 64K),
which occupies the 0000–$FFFF address range. The program counter in the AVR
family can be up to 22 bits wide. This means that the AVR family can access pro-
gram addresses 000000 to $3FFFFF, a total of 4M locations. Because each Flash
location is 2 bytes wide, the AVR can have a maximum of 8M bytes of code.
However, at the time of this writing, none of the members of the AVR family have
ROM memory map in the AVR family
As we just discussed, some family members have only a few kilobytes of
on-chip ROM and some, such as the ATmega128, have 128K of ROM. The point
to remember is that no member of the AVR family can access more than 4M words
of opcode because the program counter in the AVR can be a maximum of 22 bits
wide (000000 to $3FFFFF address range). It must be noted that while the first
On-chip Code ROM Code Address Range ROM
(Bytes) (Hex) Organization
ATtiny25 2K 00000–003FF 1K × 2 bytes
ATmega8 8K 00000–00FFF 4K × 2 bytes
ATmega128 128K 00000–0FFFF 64K × 2 bytes
ATmega256 256K 00000–1FFFF 128K × 2 bytes
SECTION 8: THE PROGRAM COUNTER AND PROGRAM
Table 7: AVR On-chip ROM Size and Address Space
the entire 8M bytes of on-chip ROM installed. See Table 7.
85

location of program ROM inside the AVR has the address of 000000, the last loca-
tion can be different depending on the size of the ROM on the chip. (See
ROM. This 8K ROM memory is organized as 4K × 2 bytes and has memory
addresses of 00000 to $00FFF. Therefore, the first location of on-chip ROM of this
AVR has an address of 00000 and the last location has the address of $00FFF.
Find the ROM memory address of each of the following AVR chips:
(a) ATtiny25 with 2 KB
(b) ATmega16 with 16 KB
(c) ATmega64 with 64 KB
Solution:
(a) With 2K bytes of on-chip ROM memory, we have 2048 bytes (2 × 1024 = 2048). As
each address location in AVR is 2 bytes, its Flash has 1024 locations (2048 / 2 =
1024). This maps to address locations of 0000 to $03FF. Notice that 0 is always the
first location.
(b) With 16K bytes of on-chip ROM memory, we have 16,384 bytes (16 × 1024 =
16,384), and 8192 locations (16384 / 2 = 8192), which gives 0000–$1FFF.
(c) With 64K we have 65,535 bytes (64 × 1024 = 65,535), and 32,768 locations.
Converting 32,768 to hex, we get $8000; therefore, the memory space is 0000 to
$7FFF.
2 bytes
00000
00001
003FF
1Kx2Bytes
...
00000
00001
01FFF
...
8Kx2Bytes
2 bytes 2 bytes
32Kx2Bytes
00000
00001
07FFF
...
Tiny25
Mega16
Mega64
Figure 13. AVR On-Chip Program (code) ROM Address Range
Figure 13.) Among the AVR family members, the ATmega8 has 8K of on-chip
Look at Example 9 to see how this is computed.
Example 9
86

Where the AVR wakes up when it is powered up
Placing code in program ROM
To get a better understanding of the role of the program counter in fetch-
ing and executing a program, we examine the action of the program counter as
each instruction is fetched and executed. First, we examine once more the list file
of the sample program and show how the code is placed into the Flash ROM of
the AVR chip. As we can see, the opcode and operand for each instruction are list-
ed on the left side of the list file.
After the program is burned into ROM of an AVR family member such as
ATmega32 or ATtiny11, the opcode and operand are placed in ROM memory loca-
The list shows that address 0000 contains E205, which is the opcode for
moving a value into R16, and the operand (in this case 0x25) to be moved to R16.
Therefore, the instruction “LDI R16,0x25” has a machine code of “E205”,
Similarly, the machine code “E314” is located in ROM memory location 0001 and
represents the opcode and the operands for the instruction “LDI R17,$34”. In
E k1 d k0 E 2 0 5
LDI R16, 0x25
LDI R17, 0x34 LDI R18, 0x31
E 3 1 4
LDI Rd, k1k0
E 3 2 1
1 1 1 0 k k k k k k k k
d d d d
Figure 14. The Machine Code for Instruction “LDI Rd, k” in Binary
Figure 15. The Machine Code for Instruction “LDI Rd, k” in Hex
where E is the opcode and 205 is the operand. See Figures 14 and 15.
tions starting at 0000 as shown in the Program 1 list file.
One question that we must ask about any microcontroller (or microproces-
sor) is: At what address does the CPU wake up when power is applied? Each micro-
processor is different. In the case of the AVR microcontrollers (that is, all members
regardless of the family and variation), the microcontroller wakes up at memory
address 0000 when it is powered up. By powering up we mean applying VCC to
the RESET pin. In other words, when the AVR is powered up, the PC (program
counter) has the value of 00000 in it. This means that it expects the first opcode to
be stored at ROM address $00000. For this reason, in the AVR system, the first
opcode must be burned into memory location $00000 of program ROM because
this is where it looks for the first instruction when it is booted. We achieve this by
using the .ORG statement in the source program as shown earlier. Next we discuss
the step-by-step action of the program counter in fetching and executing a sample
program.
87

the same way, machine code “E321” is located in memory location 0002 and rep-
resents the opcode and the operand for the instruction “LDI
R18,0b00110001”. The memory location 0003 has the machine code of 0F01,
which is the opcode and the operands for the instruction “ADD R16,R17”.
Similarly, the machine code “0F02” is located in memory location 0004 and rep-
resents the opcode and the operands for the instruction “ADD R16, R18”. See
the “LDI R17,11” instruction. The memory location 0006 has the opcode and
operand for the “ADD R16,R17” instruction. The opcode for instruction “STS
SUM,R16” is located at address 00007 and its address of 0x300 at address 00008.
The opcode for “JMP HERE” and its target address are located in locations 00009
and 0000A. While all the instructions in this program are 2-byte instructions, the
JMP and STS instructions are 4-byte instructions. The reasons are explained at the
end of this section.
Executing a program instruction by instruction
Assuming that the above program is burned into the ROM of an AVR chip,
the following is a step-by-step description of the action of the AVR upon applying
power to it:
1. When the AVR is powered up, the PC (program counter) has 00000 and starts
to fetch the first instruction from location 00000 of the program ROM. In the
case of the above program the first code is E205, which is the code for mov-
ing operand 0x25 to R16. Upon executing the code, the CPU places the value
of 25 in R16. Now one instruction is finished. Then the program counter is
incremented to point to 00001 (PC = 00001), which contains code E314, the
machine code for the instruction “LDI R17,0x34”.
2. Upon executing the machine code E314, the value 0x34 is loaded to R17. Then
the program counter is incremented to 0002.
3. ROM location 0002 has the machine code for instruction “LDI R18,
0x31”. This instruction is executed and now PC = 0003.
4. This process goes on until all the instructions up to “ADD R16,R17” are
fetched and executed. Notice that all the above instructions are 2-byte instruc-
tions; that is, each one takes two bytes of ROM (one word).
5. Now PC = 0007 points to the next instruction, which is “STS SUM,R16”.
This is a 2-word (4-byte) instruction. It takes addresses of 07 and 08. When the
0 0 0 0 1 1 r d r r r r
d d d d
Rd,Rr” in Binary
0 F 0 1 0 F 0 2
Rd,Rr” in Hex
Figure 16. The Machine Code for Instruction “ADD
Figure 17. The Machine Code for Instruction “ADD
Figures 16 and 17. The memory location 0005 has the opcode and operand for
88

instruction is executed, the content of R16 is stored into memory location
0x300. After the execution of this instruction, PC = 0009.
6. Now PC = 0009 points to the next instruction, which is “JMP HERE”. This is
a 2-word (4-byte) instruction. It takes addresses of 09 and 0A. After the exe-
cution of this instruction, PC = 0009. This keeps the program in an infinite
loop. The fact that the program counter points at the next instruction to be exe-
cuted explains why some microprocessors (notably the x86) call the program
counter the instruction pointer.
ROM width in the AVR
As we have seen so far in this section, each location of the address space
holds two bytes (a word). If we have 16 address lines, this will give us 216
loca-
tions, which is 64K of memory location with an address map of 0000–FFFFH. To
bring in more information (code or data) into the CPU, AVR increased the width
of the data bus to 16 bits. In
other words, the AVR is word-
addressable. In contrast, the
8051 CPU is byte addressable.
In a sense, the data bus is like
traffic lanes on the highway
where each lane is 8 bits wide.
The more lanes, the more
information we can bring into
the CPU for processing. For
the AVR, the internal data bus
between the code ROM and the
CPU is 16 bits wide, as shown
64K ROM space is shown as
32K × 16 using a 16-bit word
data size. The same rule applies to the entire program address space of AVR, which
is 8M, organized as 4M × 16. The widening of the data path between the program
ROM and the CPU is another way in which the AVR designers increased the pro-
cessing power of the AVR family. Another reason to make the code ROM 16 bits
wide is to match it with the instruction width of the AVR because the vast major-
ity of the instructions are 2-byte instructions. This way, the CPU brings in an
instruction from ROM every time it makes a trip to the program ROM. That will
The AVR designers have made all instructions either 2-byte or 4-byte; there
are no 1-byte or 3-byte instructions, as is the case with the x86 and 8051 chips.
This is part of the RISC architectural philosophy, which we will study in the next
section. It must also be noted that the data memory SRAM in the AVR microcon-
troller is still 8-bit, and it is byte-addressable.
AVR
A0
A21 D15
D0
CODE
ROM
A0
A21 D0
D15
AVR
CPU
16-bit
in Figure 18. Therefore, the
Figure 18. Program ROM Width for the
make instruction fetch a single cycle, when instruction timing is discussed.
89

Harvard architecture in the AVR
wide and the address bus is as wide as the PC register to enable the CPU to address
the entire Program Flash ROM.
In the Data Bus, the data bus is 8 bits wide. As a result, the CPU can access
one byte of data at a time. The address bus is 16 bits wide. Thus the data memory
space can be up to 64K bytes.
use the STS and LDS instructions. When the CPU wants to execute the “LDS
Rn,k” instruction, it puts k on the address bus of the Data Bus, and receives data
through the data bus. For example, to execute “LDS R20, 0x90”, the CPU puts
the SRAM puts the contents of location $90 on the data bus. The CPU gets the
contents of location $90 through the data bus and puts it in R20.
The “STS k,Rn” instruction is executed similarly. The CPU puts k on the
address bus and the contents of Rn on the data bus. The unit whose address is on
the address bus receives the contents of data bus. For example, to execute the “STS
$100,R30” instruction the CPU puts the contents of R30 on the data bus and $100
on the address bus. Because $100 is bigger than $60, the address belongs to
SRAM; thus SRAM gets the contents of the data bus and puts it in location $100
of the SRAM.
PROGRAM
Flash ROM
Ports
Timers
Other
Peripherals
Program Bus Data Bus
SRAM
I/O
PINS
EEPROM
Interrupt
Unit
PC
ALU
Instruction dec.
data bus
addr. bus
control bus
16
data bus
addr. bus
control bus
8
16
General
Purpose
Registers
In Sections 2 and 3, you learned about data memory space and how to
As we can see in Figure 19, in the Program Bus, the data bus is 16 bits
0x90 on the address bus. The location $90 is in the SRAM (see Figure 4). Thus,
Figure 19. Harvard Architecture in the AVR
AVR uses Harvard architecture, which means that there are separate buses
for the code and the data memory. See Figure 19. The Program Bus provides access
to the Program Flash ROM whereas the Data Bus is used for bringing data to the
CPU.
90

Little endian vs. big endian war
The low byte goes to the low memory location, and the high byte goes to the high
memory address. This convention is called little endian to contrast it with big endi-
an. The origin of the terms big endian and little endian is from an argument in a
Gulliver’s Travels story over how an egg
should be opened: from the big end or the
little end. In the big endian method, the
high byte goes to the low address, where-
as in the little endian method, the high
byte goes to the high address and the low
byte to the low address. All Intel micro-
processors and many microcontrollers use
the little endian convention. Freescale
(formerly Motorola) microprocessors,
along with some mainframes, use big
endian. The difference might seem as triv-
ial as whether to break an egg from the big
end or the little end, but it is a nuisance in
converting software from one camp to be
run on a computer of the other camp.
Some microprocessors, such as the
PowerPC from IBM/Freescale, let the
software designer choose little endian or
big endian convention.
Instruction size of the AVR
Recall that the AVR instructions are either 2-byte or 4-byte. Almost all the
instructions in the AVR are 2-byte instructions. The exceptions are STS, JMP, and
a few others. Next we explore the instruction size and formation for a few of the
instructions we have used in this chapter. This should give you some insight into
the instructions of the AVR.
LDI instruction formation
The LDI is a 2-byte (16-bit) instruction. Of the 16 bits, the first 4 bits are
set aside for the opcode, the second and the fourth 4 bits are used for the value of
00 to $FF, and the third 4 bits present the destination register. This is shown below.
ADD instruction formation
The ADD is a 2-byte (16-bit) instruction. Of the 16 bits, the first 6 bits are
LDI Rd, K ;load register Rd with value K
Examine the placing of the code in the AVR ROM, shown in Figure 20.
Figure 20. AVR Program ROM
Contents for Program 1 List File
91

set aside for the opcode, and the other 10 bits represent the source and the desti-
nation registers. This is shown below.
STS instruction formation
The STS is a 4-byte (32-bit) instruction. Of the 32 bits, the first 16 bits are
set aside for the opcode and the address of the source, and the other 16 bits are
used for the address of the destination. This is shown below.
LDS instruction formation
The LDS is a 4-byte (32-bit) instruction. Of the 32 bits, the first 16 bits are
set aside for the opcode and the destination register, and the other 16 bits are used
for the address of the source memory location. This is shown below.
IN instruction formation
The IN is a 2-byte (16-bit) instruction. Of the 16 bits, the first 5 bits are set
aside for the opcode, and the other 11 bits are used for the address of the source
memory location, and destination register. This is shown below.
STS k, Rr ;Store register Rr in memory location k
ADD Rd, Rr ;Add Rd to Rr
k k k k k k k k
d d d d
0 d 31, 0 k 65535
1 0 0 1 0 0 0 d 0 0 0 0
k k k k k k k k
LDS Rd, k ;Load from memory location k to register Rd
d d d d
1 0 1 1 0 A A d A A A A
0 d 31, 0 A 63
IN Rd, A ;load from Address A of I/O memory into register Rd
92

OUT instruction formation
The OUT is a 2-byte (16-bit) instruction. Of the 16 bits, the first 5 bits are
set aside for the opcode, and the other 11 bits are used for the address of the source
memory location and destination register. This is shown below.
JMP instruction formation
The JMP is a 4-byte (32-bit) instruction. Of the 32 bits, only 10 bits are set
aside for the opcode, and the rest (22 bits) are used for the target address of the
JMP. This is shown below.
The 22-bit address gives us 4M of address space; so, it can address all of
the ROM space.
Review Questions
1. In the AVR, the program counter is, at most, ______ bits wide.
2. True or false. Every member of the AVR family, regardless of the program
ROM size, wakes up at memory $0000 when it is powered up.
3. At what ROM location do we store the first opcode of an AVR program?
4. The instruction “LDI R20,0x44” is a ____-byte instruction.
5. The instruction “JMP label” is a ____-byte instruction.
6. True or false. All the instructions in the AVR are 2- or 4-byte instructions.
There are three ways available to microprocessor designers to increase the
processing power of the CPU:
1. Increase the clock frequency of the chip. One drawback of this method is that
the higher the frequency, the more power and heat dissipation. Power and heat
dissipation is especially a problem for hand-held devices.
2. Use Harvard architecture by increasing the number of buses to bring more
information (code and data) into the CPU to be processed. While in the case of
JMP k ;Jump to address k
r r r r
1 0 1 1 1 A A r A A A A
OUT A, Rr ;Store register Rr in I/O memory location A
SECTION 9: RISC ARCHITECTURE IN THE AVR
93

x86 and other general purpose microprocessors this architecture is very expen-
sive and unrealistic, in today’s microcontrollers this is not a problem. As we
saw in the last section, the AVR has Harvard architecture.
3. Change the internal architecture of the CPU and use what is called RISC archi-
tecture.
Atmel used all three methods to increase the processing power of the AVR
microcontrollers. In this section we discuss the merits of RISC architecture and
examine how the AVR microcontrollers have adapted it.
RISC architecture
In the early 1980s, a controversy broke out in the computer design commu-
nity, but unlike most controversies, it did not go away. Since the 1960s, in all main-
frames and minicomputers, designers put as many instructions as they could think
of into the CPU. Some of these instructions performed complex tasks. An exam-
ple is adding data memory locations and storing the sum into memory. Naturally,
microprocessor designers followed the lead of minicomputer and mainframe
designers. Because these microprocessors used such a large number of instruc-
tions, many of which performed highly complex activities, they came to be known
as CISC (complex instruction set computer) processors. According to several stud-
ies in the 1970s, many of these complex instructions etched into CPUs were never
used by programmers and compilers. The huge cost of implementing a large num-
ber of instructions (some of them complex) into the microprocessor, plus the fact
that a good portion of the transistors on the chip are used by the instruction
decoder, made some designers think of simplifying and reducing the number of
instructions. As this concept developed, the resulting processors came to be known
as RISC (reduced instruction set computer).
Features of RISC
The following are some of the features of RISC as implemented by the
AVR microcontroller.
Feature 1
RISC processors have a fixed instruction size. In a CISC microcontroller
such as the 8051, instructions can be 1, 2, or even 3 bytes. For example, look at
the following instructions in the 8051:
CLR C ;clear Carry flag, a 1-byte instruction
ADD Accumulator, #mybyte ;a 2-byte instruction
LJMP target_address ;a 3-byte instruction
This variable instruction size makes the task of the instruction decoder very
difficult because the size of the incoming instruction is never known. In a RISC
architecture, the size of all instructions is fixed. Therefore, the CPU can decode the
instructions quickly. This is like a bricklayer working with bricks of the same size
as opposed to using bricks of variable sizes. Of course, it is much more efficient
to use bricks of the same size. In the last section we saw how the AVR uses 2-byte
instructions with very few 4-byte instructions.
94

Feature 2
One of the major characteristics of RISC architecture is a large number of
registers. All RISC architectures have at least 32 registers. Of these 32 registers,
only a few are assigned to a dedicated function. One advantage of a large number
of registers is that it avoids the need for a large stack to store parameters. Although
a stack can be implemented on a RISC processor, it is not as essential as in CISC
because so many registers are available. In the AVR microcontrollers the use of 32
Feature 3
RISC processors have a small instruction set. RISC processors have only
basic instructions such as ADD, SUB, MUL, LOAD, STORE, AND, OR, EOR,
CALL, JUMP, and so on. The limited number of instructions is one of the criti-
cisms leveled at the RISC processor because it makes the job of Assembly lan-
guage programmers much more tedious and difficult compared to CISC Assembly
language programming. This is one reason that RISC is used more commonly in
high-level language environments such as the C programming language rather
than Assembly language environments. It is interesting to note that some defend-
ers of CISC have called it “complete instruction set computer” instead of “com-
plex instruction set computer” because it has a complete set of every kind of
instruction. How many of these instructions are used and how often is another mat-
ter. The limited number of instructions in RISC leads to programs that are large.
Although these programs can use more memory, this is not a problem because
memory is cheap. Before the advent of semiconductor memory in the 1960s, how-
ever, CISC designers had to pack as much action as possible into a single instruc-
tion to get the maximum bang for their buck. In the ATmega we have around 130
Feature 4
At this point, one might ask, with all the difficulties associated with RISC
programming, what is the gain? The most important characteristic of the RISC
processor is that more than 95% of instructions are executed with only one clock
cycle, in contrast to CISC instructions. Even some of the 5% of the RISC instruc-
tions that are executed with two clock cycles can be executed with one clock cycle
by juggling instructions around (code scheduling). Code scheduling is most often
Feature 5
RISC processors have separate buses for data and code. In all the x86
processors, like all other CISC computers, there is one set of buses for the address
(e.g., A0–A24 in the 80286) and another set of buses for data (e.g., D0–D15 in the
80286) carrying opcodes and operands in and out of the CPU. To access any sec-
tion of memory, regardless of whether it contains code or data operands, the same
instructions.
the job of the compiler.
general purpose registers satisfies this RISC feature.
95

address bus and data bus are used. In RISC processors, there are four sets of buses:
(1) a set of data buses for carrying data (operands) in and out of the CPU, (2) a set
of address buses for accessing the data, (3) a set of buses to carry the opcodes, and
(4) a set of address buses to access the opcodes. The use of separate buses for code
and data operands is commonly referred to as Harvard architecture. We examined
the Harvard architecture of the AVR in the previous section.
Feature 6
Because CISC has such a large number of instructions, each with so many
different addressing modes, microinstructions (microcode) are used to implement
them. The implementation of microinstructions inside the CPU employs more than
40–60% of transistors in many CISC processors. RISC instructions, however, due
to the small set of instructions, are implemented using the hardwire method.
Hardwiring of RISC instructions takes no more than 10% of the transistors.
Feature 7
RISC uses load/store architecture. In CISC microprocessors, data can be
manipulated while it is still in memory. For example, in instructions such as “ADD
Reg, Memory”, the microprocessor must bring the contents of the external mem-
ory location into the CPU, add it to the contents of the register, then move the
result back to the external memory location. The problem is there might be a delay
in accessing the data from external memory. Then the whole process would be
stalled, preventing other instructions from proceeding in the pipeline. In RISC,
designers did away with these kinds of instructions. In RISC, instructions can only
load from external memory into registers or store registers into external memory
locations. There is no direct way of doing arithmetic and logic operations between
a register and the contents of external memory locations. All these instructions
must be performed by first bringing both operands into the registers inside the
CPU, then performing the arithmetic or logic operation, and then sending the result
back to memory. This idea was first implemented by the Cray 1 supercomputer in
1976 and is commonly referred to as load/store architecture. In the last section, we
saw that the arithmetic and logic operations are between the data memory (inter-
nal) locations, but none involves a ROM location. For example, there is no “ADD
ROM-Loc” instruction in AVR.
In concluding this discussion of RISC processors, it is interesting to note
that RISC technology was explored by the scientists at IBM in the mid-1970s, but
it was David Patterson of the University of California at Berkeley who in 1980
brought the merits of RISC concepts to the attention of computer scientists. It must
also be noted that in recent years CISC processors such as the Pentium have used
some RISC features in their design. This was the only way they could enhance the
processing power of the x86 processors and stay competitive. Of course, they had
to use lots of transistors to do the job, because they had to deal with all the CISC
instructions of the x86 processors and the legacy software of DOS/Windows.
96

Review Questions
1. What do RISC and CISC stand for?
2. True or false. The CISC architecture executes the vast majority of its instruc-
tions in 2, 3, or more clock cycles, while RISC executes them in one clock.
3. RISC processors normally have a _____ (large, small) number of general-pur-
pose registers.
4. True or false. Instructions such as “ADD R16, ROMmemory” do not exist in
RISC microcontrollers such as the AVR.
5. How many instructions does the ATmega have?
6. True or false. While CISC instructions are of variable sizes, RISC instructions
are all the same size.
7. Which of the following operations do not exist for the ADD instruction in
RISC?
(a) register to register (b) immediate to register (c) memory to memory
8. True or false. Harvard architecture uses the same address and data buses to
fetch both code and data.
AVR STUDIO IDE
The AVR microcontroller has great tools and support systems, many of
them free or inexpensive. AVR Studio is an assembler and simulator provided for
free by Atmel Corporation and can be downloaded from the www.atmel.com web-
site. See http://www.MicroDigitalEd.com for tutorials on how to use the AVR
Studio assembler and simulator.
Many assemblers and C compilers come with a simulator. Simulators allow
us to view the contents of registers and memory after executing each instruction
(single-stepping). It is strongly recommended to use a simulator to single-step
AVR Studio.
See the following website for a tutorial on using AVR Studio:
http://www.MicroDigitalEd.com
SECTION 10: VIEWING REGISTERS AND MEMORY WITH
Figures 21 through 23 show screenshots for AVR simulators from
some of the programs in this chapter. Single-stepping a program with a simulator
gives us a deeper understanding of microcontroller architecture, in addition to the
fact that we can use it to find the errors in our programs.
97

Figure 21. Data Memory Window in AVR Studio IDE
Figure 22. Program ROM (Disassembler) Window in AVR Studio IDE
Figure 23. I/O View Window in AVR Studio IDE
98

SUMMARY
This chapter began with an exploration of the major registers of the AVR,
including general purpose registers, I/O registers, and internal SRAM, and the pro-
gram counter. The use of these registers was demonstrated in the context of pro-
gramming examples. The process of creating an Assembly language program was
described from writing the source file, to assembling it, linking, and executing the
program. The PC (program counter) register always points to the next instruction
to be executed. The way the AVR uses program Flash ROM space was explored
because AVR Assembly language programmers must be aware of where programs
are placed in ROM, and how much memory is available.
An Assembly language program is composed of a series of statements that
are either instructions or pseudo-instructions, also called directives. Instructions
are translated by the assembler into machine code. Pseudo-instructions are not
translated into machine code: They direct the assembler in how to translate instruc-
tions into machine code. Some pseudo-instructions, called data directives, are used
to define data. Data is allocated in byte-size increments. The data can be in bina-
ry, hex, decimal, or ASCII formats.
Flags are useful to programmers because they indicate certain conditions,
such as carry or zero, that result from execution of instructions. The concepts of
the RISC and Harvard architectures were also explored.
The RISC architecture allows the design of much more powerful micro-
controllers. It has a simple instruction set and uses a large number of registers.
Harvard architecture allows us to bring more code and data to the CPU faster. The
use of a wider data bus in the AVR allows us to fetch an instruction every cycle
because the AVR instructions are typically 2 bytes.
PROBLEMS
1. AVR is a(n) _____-bit microcontroller.
2. The general purpose registers are _____ bits wide.
3. The value in LDI is _____ bits wide.
4. The largest number that can be loaded into the GPRs is _____ in hex.
5. What is the result of the following code and where is it kept?
LDI R20,$15
LDI R21,$13
ADD R20,R21
6. Which of the following is (are) illegal?
(a) LDI R20,500 (b) LDI R23,50 (c) LDI R1,00
(d) LDI R16,$255 (e) LDI R42,$25 (f) LDI R23,0xF5
(g) LDI 123,0x50
7. Which of the following is (are) illegal?
(a) ADD R20,R11 (b) ADD R16,R1 (c) ADD R52,R16
SECTION 1: THE GENERAL PURPOSE REGISTERS IN THE AVR
99

LDI R19,$25
ADD R19,$1F
LDI R21,0x15
ADD R21,0xEA
10. True or false. We have 32 general purpose registers in the AVR.
11. AVR data memory consists of _____________ (Flash ROM, internal SRAM).
12. True or false. The special function register in AVR is called the I/O register.
13. True or false. The I/O registers are part of the data memory space.
14. True or false. The general-purpose registers are not part of the data memory
space.
15. True or false. The data memory is the same size in all members of AVR.
16. If we add the I/O registers, internal RAM, and general purpose register sizes
together we should get the total space for the ______.
17. Find the data memory size for the following AVR chips:
(a) ATmega32 (b) ATmega16 (c) ATtiny44
18. What is the difference between the EEPROM and data RAM space in the
AVR?
19. Can we have an AVR chip with no EEPROM?
20. Can we have an AVR chip with no data memory?
21. What is the address range for the internal RAM?
22. What is the maximum number of bytes that the AVR can have for the data
memory?
23. Show a simple code to load values $30 and $97 into locations $105 and $106,
respectively.
24. Show a simple code to load the value $55 into locations $300–$308.
25. Show a simple code to load the value $5F into the PORTB I/O register.
26. True or false. We cannot load immediate values into the internal RAM direct-
ly.
27. Show a simple code to (a) load the value $11 into locations $100–$105, and
(b) add the values together and place the result in R20 as they are added.
28. Repeat Problem 27, except place the result in location $105 after the addition
is done.
29. Show a simple code to (a) load the value $15 into location $67, and (b) add it
to R19 five times and place the result in R19 as the values are added. R19
should be zero before the addition starts.
30. Repeat Problem 29, except place the result in location $67.
31. Write a simple code to complement the contents of location $68 and place the
result in R27.
32. Write a simple code to copy data from location $68 to PORTC using R19.
SECTION 3: USING INSTRUCTIONS WITH THE DATA MEMORY
100

33. The status register is a(n) ______ -bit register.
34. Which bits of the status register are used for the C and H flag bits, respective-
ly?
35. Which bits of the status register are used for the V and N flag bits, respective-
ly?
37. In the ADD instruction, when is H raised?
38. What is the status of the C and Z flags after the following code?
LDI R20,0xFF
LDI R21,1
ADD R20,R21
39. Find the C flag value after each of the following codes:
(a)LDI R20,0x54 (b)LDI R23,0 (c)LDI R30,0xFF
LDI R25,0xC4 LDI R16,0xFF LDI R18,0x05
ADD R20,R25 ADD R23,R16 ADD R30,R18
40. Write a simple program in which the value 0x55 is added 5 times.
41. State the value (in hex) used for each of the following data:
.EQU MYDAT_1 = 55
.EQU MYDAT_2 = 98
.EQU MYDAT_3 = 'G'
.EQU MYDAT_4 = 0x50
.EQU MYDAT_5 = 200
.EQU MYDAT_6 = 'A'
.EQU MYDAT_7 = 0xAA
.EQU MYDAT_8 = 255
.EQU MYDAT_9 = 0B10010000
.EQU MYDAT_10 = 0b01111110
.EQU MYDAT_11 = 10
.EQU MYDAT_12 = 15
42. State the value (in hex) for each of the following data:
.EQU DAT_1 = 22
.EQU DAT_2 = $56
.EQU DAT_3 = 0b10011001
.EQU DAT_4 = 32
.EQU DAT_5 = 0xF6
.EQU DAT_6 = 0B11111011
43. Show a simple code to (a) load the value $11 into locations $60–$65, and (b)
add them together and place the result in R29 as the values are added. Use
.EQU to assign the names TEMP0–TEMP5 to locations $60–$65.
36. In the ADD instruction, when is C raised?
101

________ (low, high)-level language.
45. Of C and Assembly language, which is more efficient in terms of code gener-
ation (i.e., the amount of ROM space it uses)?
46. Which program produces the obj file?
47. True or false. The source file has the extension asm.
48. True or false. The source code file can be a non-ASCII file.
49. True or false. Every source file must have .ORG and .EQU directives.
50. Do the .ORG and .SET directives produce opcodes?
51. Why are the directives also called pseudocode?
52. True or false. The .ORG directive appears in the .lst file.
53. The file with the _____ extension is downloaded into AVR Flash ROM.
54. Give three file extensions produced by AVR Studio.
THE AVR
55. Every AVR family member wakes up at address _____ when it is powered up.
56. A programmer puts the first opcode at address $100. What happens when the
microcontroller is powered up?
57. Find the number of bytes each of the following instructions takes:
(a) LDI R19,0x5 (b) LDI R30,$9F (c) ADD R20,R21
(d) ADD R22,R20 (e) LDI R18,0x41 (f) LDI R28,20
(g) ADD R1,R3 (h) JMP
58. Write a program to (a) place each of your 5-digit ID numbers into a RAM loca-
tions starting at address 0x100, (b) add each digit to R19 and store the sum in
RAM location 0x306, and (c) use the program listing to show the ROM mem-
ory addresses and their contents.
59. Find the address of the last location of on-chip program ROM for each of the
following:
(a) AVR with 32 KB (b) AVR with 8 KB
(c) AVR with 64 KB (d) AVR with 16 KB
(f) AVR with 128 KB
60. Show the lowest and highest values (in hex) that the ATmega32 program
counter can take.
61. A given AVR has $7FFF as the address of the last location of its on-chip ROM.
What is the size of on-chip ROM for this AVR?
62. Repeat Question 61 for $3FF.
63. Find the on-chip program ROM size in K for the AVR chip with the following
address ranges:
(a) $0000–$1FFF (b) $0000–$3FFF
(c) $0000–$7FFF (d) $0000–$FFFF
(e) $0000–$1FFFF (f) $00000–$3FFFF
(g) $00000–$FFF (h) $00000–$1FF
SECTION 6: INTRODUCTION TO AVR ASSEMBLY PROGRAMMING and
44. Assembly language is a ________ (low, high)-level language while C is a
SECTION 8: THE PROGRAM COUNTER AND PROGRAM ROM SPACE IN
102

64. Find the on-chip program ROM size in K for the AVR chips with the follow-
ing address ranges:
(a) $00000–$3FF (b) $00000–$7FF
(c) $00000–$7FFFF (d) $00000–$FFFFF
(e) $00000–$1FFFFF (f) $00000–$3FFFFF
(g) $00000–$5FFF (h) $00000–$BFFFF
(Some of the above might not be in production yet.)
65. How wide is the program ROM in the AVR chip?
66. How wide is the data bus between the CPU and the program ROM in the AVR
chip?
67. In instruction “LDI R21,K” explain why the K value cannot be larger than
255 decimal.
68. $0C01 is the machine code for the _____ (LDI, STS, JMP, ADD) instruction.
69. In “STS memLocation,R22”, explain what the size of the instruction is and
how it allows one to cover the entire range of the data memory in the AVR
chip.
70. In “LDS Rd, memLocation”, explain what the size of the instruction is and
how it allows one to cover the entire range of the data memory in the AVR
chip.
71. Explain how the instruction “JMP target-addr” is able to cover the entire 4M
address space of the AVR chip.
72. What do RISC and CISC stand for?
73. In ______ (RISC, CISC) architecture we can have 1-, 2-, 3-, or 4-byte instruc-
tions.
74. In ______ (RISC, CISC) architecture instructions are fixed in size.
75. In ______ (RISC, CISC) architecture instructions are mostly executed in one
or two cycles.
76. In ______ (RISC, CISC) architecture we can have an instruction to ADD a reg-
ister to external memory.
77. True or false. Most instructions in CISC are executed in one or two cycles.
1. LDI R29,0x34
2. LDI R18,0x16
LDI R19,0xCD
ADD R19,R18
3. False
4. FF hex and 255 in decimal
5. 8
SECTION 1: THE GENERAL PURPOSE REGISTERS IN THE AVR
103

1. False
2. Data memory
3. 8
4. 3
5. 64K
6. 64
1. True
2. LDI R20,0x95
OUT SPL,R20
3. LDI R19,2
ADD R18,R19
4. LDI R20,0x16
LDI R21,0xCD
ADD R20,R21
5. FF in hex or 255 in decimal
6. R16
7. It copies the contents of R23 into the OCR0 I/O register.
8. The OCR0 presents the I/O address of the OCR0 register ($3C); but we should use the data
memory address while using the STS instruction. The instruction copies the contents of R23
into the location with the data memory address of $3C (the EECR I/O register).
1. SREG
2. 8 bits
3.
Hex binary
9F 1001 1111
+ 61 + 0110 0001
100 10000 0000 This leads to C = 1, H = 1, and Z = 1.
4.
Hex binary
82 1000 0010
+ 22 + 0010 0010
A4 1010 0100 This leads to C = 0, H = 0, and Z = 0.
5.
Hex binary
67 0110 0111
+ 99 + 1001 1001
100 10000 0000 This leads to C = 1, H = 1, and Z = 1.
1. .EQU DATA1 = 0x9F
.EQU DATA2 = $9F
2. .EQU DATA1 = 0x99
.EQU DATA2 = 99
.EQU DATA3 = 0b10011001
3. If the value is to be changed later, it can be done once in one place instead of at every occur-
rence.
SECTION 3: USING INSTRUCTIONS WITH THE DATA MEMORY
104

4. (a) $34 (b) $1F
5. 15 in decimal (0x0F in hex)
6. Value of location 0x200 = (0x95)
7. $0C + $10 = $1C will be in data memory location $63.
1. The real work is performed by instructions such as LDI and ADD. Pseudo-instructions, also
called assembly directives, instruct the assembler in doing its job.
2. The instruction mnemonics, pseudo-instructions
3. False
4. All except (c)
5. Assembler directives
6. True
7. (c)
1. True
2. True
3. (a)
4. (b), (c), and (d)
1. 22
2. True
3. 0000H
4. 2
5. 4
6. True
1. RISC is reduced instruction set computer; CISC stands for complex instruction set computer.
2. True
3. Large
4. True
5. Around 130
6. True
7. (c)
8. False
SECTION 6: INTRODUCTION TO AVR ASSEMBLY PROGRAMMING
SECTION 8: THE PROGRAM COUNTER AND PROGRAM ROM SPACE IN THE AVR
105

OBJECTIVES

Code AVR Assembly language instructions to create loops

Code AVR Assembly language conditional branch instructions

Explain conditions that determine each conditional branch instruction

Code JMP (long jump) instructions for unconditional jumps

Calculate target addresses for conditional branch instructions

Code AVR subroutines

Describe the stack and its use in subroutines

Discuss pipelining in the AVR

Discuss crystal frequency versus instruction cycle time in the AVR

Code AVR programs to generate a time delay
BRANCH, CALL,
AND TIME DELAY LOOP
107

In the sequence of instructions to be executed, it is often necessary to trans-
fer program control to a different location. There are many instructions in AVR to
achieve this. This chapter covers the control transfer instructions available in AVR
well as instructions for conditional and unconditional branches (jumps). In Section
pipelining of the AVR is examined. Instruction timing and time delay subroutines
In this section we first discuss how to perform a looping action in AVR and
then the branch (jump) instructions, both conditional and unconditional.
Looping in AVR
Repeating a sequence of instructions or an operation a certain number of
times is called a loop. The loop is one of most widely used programming tech-
niques. In the AVR, there are several ways to repeat an operation many times. One
way is to repeat the operation over and over until it is finished, as shown below:
LDI R16,0 ;R16 = 0
LDI R17,3 ;R17 = 3
ADD R16,R17 ;add value 3 to R16 (R16 = 0x03)
ADD R16,R17 ;add value 3 to R16 (R16 = 0x0C)
ADD R16,R17 ;add value 3 to R16 (R16 = 0x0F)
In the above program, we add 3 to R16 six times. That makes 6 × 3 = 18 =
0x12. One problem with the above program is that too much code space would be
needed to increase the number of repetitions to 50 or 100. A much better way is to
use a loop. Next, we describe the method to do a loop in AVR.
Using BRNE instruction for looping
The BRNE (branch if not equal) instruction uses the zero flag in the status
register. The BRNE instruction is used as follows:
BACK: ......... ;start of the loop
......... ;body of the loop
......... ;body of the loop
DEC Rn ;decrement Rn, Z = 1 if Rn = 0
BRNE BACK ;branch to BACK if Z = 0
In the last two instructions, the Rn (e.g., R16 or R17) is decremented; if it
is not zero, it branches (jumps) back to the target address referred to by the label.
Prior to the start of the loop, the Rn is loaded with the counter value for the num-
ber of repetitions. Notice that the BRNE instruction refers to the Z flag of the sta-
are also discussed in Section 3.
SECTION 1: BRANCH INSTRUCTIONS AND LOOPING
BRANCH, CALL, AND TIME DELAY LOOP
Assembly language. In Section 1, we discuss instructions used for looping, as
2, we examine the stack and the CALL instruction. In Section 3, instruction
tus register affected by the previous instruction, DEC. This is shown in Example 1.
108

counter is first set to 10. In each iteration, the DEC instruction decrements the R16
and sets the flag bits accordingly. If R16 is not zero (Z = 0), it jumps to the target
address associated with the label “AGAIN”. This looping action continues until
R16 becomes zero. After R16 becomes zero (Z = 1), it falls through the loop and
executes the instruction immediately below it, in this case “OUT PORTB,R20”.
Write a program to (a) clear R20, then (b) add 3 to R20 ten times, and (c) send the sum
to PORTB. Use the zero flag and BRNE.
Solution:
;this program adds value 3 to the R20 ten times
LDI R16, 10 ;R16 = 10 (decimal) for counter
LDI R20, 0 ;R20 = 0
LDI R21, 3 ;R21 = 3
AGAIN:ADD R20, R21 ;add 03 to R20 (R20 = sum)
DEC R16 ;decrement R16 (counter)
BRNE AGAIN ;repeat until COUNT = 0
OUT PORTB,R20 ;send sum to PORTB
NO
YES
PLACE RESULT ON PINS
LOAD COUNTER
IS COUNTER
ZERO?
CLEAR R20
LOAD R21 WITH 3
ADD VALUE
DECREMENT COUNTER
LDI R16, 10
LDI R20, 0
LDI R21, 3
INSTRUCTIONS
DEC R16
BRNE AGAIN
OUT PORTB, R20
ADD R20, R21
AGAIN:
See Figure 1.
Example 1
Figure 1. Flowchart for Example 1
Y
Y
In the program in Example 1, register R16 is used as a counter. The
109

Loop inside a loop
want to repeat an action more times than 255? To do that, we use a loop inside a
loop, which is called a nested loop. In a nested loop, we use two registers to hold
Solution:
Because location R16 is an 8-bit register, it can hold a maximum of 0xFF (255 deci-
Write a program to (a) load the PORTB register with the value 0x55, and (b) comple-
ment Port B 700 times.
Solution:
Because 700 is larger than 255 (the maximum capacity of any general purpose register),
we use two registers to hold the count. The following code shows how to use R20 and
R21 as a register for counters.
.INCLUDE M32DEF.INC
.ORG 0
LDI R16, 0x55 ;R16 = 0x55
OUT PORTB, R16 ;PORTB = 0x55
LDI R20, 10 ;load 10 into R20 (outer loop count)
LOP_1:LDI R21, 70 ;load 70 into R21 (inner loop count)
LOP_2:COM R16 ;complement R16
OUT PORTB, R16 ;load PORTB SFR with the complemented value
DEC R21 ;dec R21 (inner loop)
BRNE LOP_2 ;repeat it 70 times
DEC R20 ;dec R20 (outer loop)
BRNE LOP_1 ;repeat it 10 times
In this program, R21 is used to keep the inner loop count. In the instruction “BRNE
LOP_2”, whenever R21 becomes 0 it falls through and “DEC R20” is executed. The
next instructions force the CPU to load the inner count with 70 if R20 is not zero, and
the inner loop starts again. This process will continue until R20 becomes zero and the
outer loop is finished.
the count. See Example 3.
Example 2
What is the maximum number of times that the loop in Example 1 can be repeated?
Example 3
mal); therefore, the loop can be repeated a maximum of 255 times. Example 3 shows
how to solve this limitation.
As shown in Example 2, the maximum count is 255. What happens if we
110

NO
YES
DECREMENT COUNTER 1
LOAD R16
IS COUNTER 2
ZERO?
LOAD PORTB
LOAD COUNTER 1
LOAD COUNTER 2
NO
YES
IS COUNTER 1
ZERO?
TOGGLE R16
LOAD PORTB
DECREMENT COUNTER 2
END
LDI R16, 0x55
OUT PORTB, R16
INSTRUCTIONS
LDI R21, 70
BRNE LOP_2
DEC R20
LDI R20, 10
BRNE LOP_1
DEC R21
COM R16
OUT PORTB, R16
LOP_1:
LOP_2:
Figure 2. Flowchart for Example 3
111

Looping 100,000 times
Because two registers give us a maximum value of 65,025 (255 × 255 =
65,025), we can use three registers to get up to more than 16 million (224
) itera-
tions. The following code repeats an action 100,000 times:
LDI R16, 0x55
OUT PORTB, R16
LDI R23, 10
LOP_3:LDI R22, 100
LOP_2:LDI R21, 100
LOP_1:COM R16
DEC R21
BRNE LOP_1
DEC R22
BRNE LOP_2
DEC R23
BRNE LOP_3
Other conditional jumps
conditional branches for the AVR. More
details of each instruction are provided in
instructions, such as BREQ (Branch if Z =
1) and BRLO (Branch if C = 1), jump only
if a certain condition is met. Next, we
examine some conditional branch instruc-
tions with examples.
BREQ (branch if equal, branch if Z = 1)
In this instruction, the Z flag is checked. If it is high, the CPU jumps to the
target address. For example, look at the following code.
OVER: IN R20, PINB ;read PINB and put it in R20
TST R20 ;set the flags according to R20
BREQ OVER ;jump if R20 is zero
In this program, if PINB is zero, the CPU jumps to the label OVER. It stays
in the loop until PINB has a value other than zero. Notice that the TST instruction
can be used to examine a register and set the flags according to the contents of the
register without performing an arithmetic instruction such as decrement.
When the TST instruction executes, if the register contains the zero value,
the zero flag is set; otherwise, it is cleared. It also sets the N flag high if the D7 bit
BRSH (branch if same or higher, branch if C = 0)
In this instruction, the carry flag bit in the Status register is used to make
the decision whether to jump. In executing “BRSH label”, the processor looks
at the carry flag to see if it is raised (C = 1). If it is not, the CPU starts to fetch and
execute instructions from the address of the label. If C = 1, it will not branch but
Branch (Jump) Instructions
Instruction Action
BRLO Branch if C = 1
BRSH Branch if C = 0
BREQ Branch if Z = 1
BRNE Branch if Z = 0
BRMI Branch if N = 1
BRPL Branch if N = 0
BRVS Branch if V = 1
BRVC Branch if V = 0
In Table 1 you see some of the
Appendix A. In Table 1 notice that the
of the register is high, otherwise N = 0. See Example 4.
Table 1: AVR Conditional
112

BRSH is used to add numbers together when the sum is higher than $FF. Note that
there is also a “BRLO label” instruction. In the BRLO instruction, if C = 1 the
Write a program to determine if RAM location 0x200 contains the value 0. If so, put
0x55 into it.
Solution:
.EQU MYLOC=0x200
LDS R30, MYLOC
TST R30 ;set the flag
;(Z=1 if R30 has zero value)
BRNE NEXT ;branch if R30 is not zero (Z=0)
LDI R30, 0x55 ;put 0x55 if R30 has zero value
STS MYLOC,R30 ;and store a copy to loc $200
NEXT: ...
Find the sum of the values 0x79, 0xF5, and 0xE2. Put the sum into R20 (low byte) and
R21 (high byte).
Solution:
.ORG 0
LDI R21, 0 ;clear high byte (R21 = 0)
LDI R20, 0 ;clear low byte (R20 = 0)
LDI R16, 0x79
ADD R20, R16 ;R20 = 0 + 0x79 = 0x79, C = 0
BRSH N_1 ;if C = 0, add next number
INC R21 ;C = 1, increment (now high byte = 0)
N_1: LDI R16, 0xF5
ADD R20, R16 ;R20 = 0x79 + 0xF5 = 0x6E and C = 1
BRSH N_2 ;branch if C = 0
N_2: LDI R16, 0xE2
ADD R20, R16 ;R20 = 0x6E + 0xE2 = 0x50 and C = 1
BRSH OVER ;branch if C = 0
OVER: ;now low byte = 0x50, and high byte = 02
R21 (high byte) R20 (low byte)
At first $0 $00
Before LDI R16,0xF5 $0 $79
Before LDI R16,0xE2 $1 $6E
At the end $2 $50
Example 4
Example 5
will execute the next instruction below BRSH. Study Example 5 to see how
CPU jumps to the target address.
113

All conditional branches are short jumps
It must be noted that all conditional jumps are short jumps, meaning that
the address of the target must be within 64 bytes of the program counter (PC). This
concept is discussed next.
Using the following list file, verify the jump forward address calculation.
LINE ADDRESS Machine Mnemonic Operand
3: +00000000: E050 LDI R21, 0 ;clear high byte (R21 = 0)
4: +00000001: E040 LDI R20, 0 ;clear low byte (R20 = 0)
5: +00000002: E709 LDI R16, 0x79
6: +00000003: 0F40 ADD R20, R16 ;R20 = 0 + 0x79 = 0x79, C = 0
7: +00000004: F408 BRSH N_1 ;if C = 0, add next number
8: +00000005: 9543 INC R21 ;C = 1, increment (now high byte = 0)
9: +00000006: EF05 N_1:LDI R16, 0xF5
10: +00000007: 0F40 ADD R20, R16 ;R20 = $79 + $F5 = 6E and C = 1
11: +00000008: F408 BRSH N_2 ;branch if C = 0
12: +00000009: 9553 INC R21 ;C = 1, increment (now high byte = 1)
@0000000A: n_2
13: +0000000A: EE02 N_2:LDI R16, 0xE2
14: +0000000B: 0F40 ADD R20, R16 ;R20 = $6E + $E2 = $50 and C = 1
15: +0000000C: F408 BRSH OVER ;branch if C = 0
16: +0000000D: 9553 INC R21 ;C = 1, increment (now high byte = 2)
@0000000E: over
Solution:
First notice that the BRSH instruction jumps forward. The target address for a forward
jump is calculated by adding the PC of the following instruction to the second byte of
the branch instruction. Recall that each instruction takes 2 bytes. In line 7 the instruc-
tion “BRSH N_1” has the machine code of F408. To distinguish the operand and
opcode parts, we should compare the machine code with the BRSH instruction format.
In the following, you see the format of the BRSH instruction. The bits marked by k are
the operand bits while the remainder are the opcode bits. In this example the machine
code’s equivalent in binary is 1111 0100 0000 1000. If we compare it with the BRSH
format, we see that the operand is 000001 and the opcode is 111101000. The 01 is the
relative address, relative to the address of the next instruction INC R21, which is
000005. By adding 000001 to 000005, the target address of the label N_1, which is
000006, is generated. Likewise for line 11, the “BRSH N_2” instruction, and line
000015, the “BRSH OVER” instruction jumps forward because the relative value is pos-
itive.
All the conditional jump instructions, whose mnemonics begin with BR (e.g., BRNE
and BRIE), have the same instruction format, and the opcode changes from instruction
to instruction. So, we can calculate the short branch address for any of them, as we did
in this example.
Example 6
114

Calculating the short branch address
All conditional branches such as BRSH, BREQ, and BRNE are short
branches due to the fact that they are all 2-byte instructions. In these instructions
the opcode is 9 bits and the relative address is 7 bits. The target address is relative
to the value of the program counter. If the relative address is positive, the jump is
forward. If the relative address is negative, then the jump is backwards. The rela-
tive address can be a value from –64 to +63. To calculate the target address, the
relative address is added to the PC of the next instruction (target address = relative
although the second byte is negative. That is, we add it to the PC value of the next
Solution:
LINE ADDRESS Machine Mnemonic Operand
3: +00000000: E00A LDI R16, 10 ;R16 = 10 (decimal) for counter
4: +00000001: E040 LDI R20, 0 ;R20 = 0
5: +00000002: E053 LDI R21, 3 ;R21 = 3
6: +00000003: 0F45 AGAIN:ADD R20, R21 ;add 03 to R20 (R20 = sum)
7: +00000004: 950A DEC R16 ;decrement R16 (counter)
8: +00000005: F7E9 BRNE AGAIN ;repeat until COUNT = 0
9: +00000006: BB48 OUT PORTB,R20 ;send sum to PORTB SFR
In the program list, “BRNE AGAIN” has machine code F7E9. To specify the operand
and opcode, we compare the instruction with the branch instruction format, which you
saw in the previous example. Because the binary equivalent of the instruction is 1111
0111 1110 1001, the opcode is 111101001 and the operand (relative address) is 1111101.
The 1111101 gives us –3, which means the displacement is –3. When the relative
address of –3 is added to 000006, the address of the instruction below, we have –3 + 06
= 03 (the carry is dropped). Notice that 000003 is the address of the label AGAIN.
instruction. See Example 7.
Figure 3. Calculating the Target Address in Conditional Branch Instructions
Example 7
Verify the calculation of backward jumps for the listing of Example 1, shown below.
address + PC). See Example 6. We do the same thing for the backward branch,
1111101 is a negative number, which means it will branch backward.
115

You might ask why we add the relative address to the address of the next
instruction. (Why don’t we add the relative address to the address of the current
instruction?) Before an instruction is executed, it should be fetched. So, the branch
instructions are executed after they are fetched. The PC points to the instruction
that should be fetched next. So, when the branch instructions are executed, the PC
is pointing to the next instruction. That is why we add the relative address to the
address of the next instruction. We will discuss the execution of instructions in the
last section of this chapter.
Unconditional branch instruction
The unconditional branch is a jump in which control is transferred uncon-
ditionally to the target location. In the AVR there are three unconditional branch-
es: JMP (jump), RJMP (relative jump), and IJMP (indirect jump). Deciding which
one to use depends on the target address. Each instruction is explained next.
JMP (JMP is a long jump)
JMP is an unconditional jump that can go to any memory location in the
4M (word) address space of the AVR. It is a 4-byte (32-bit) instruction in which
10 bits are used for the opcode, and the other 22 bits represent the 22-bit address
of the target location. The 22-bit target address allows a jump to 4M (words) of
memory locations from 000000 to $3FFFFF. So, it can cover the entire address
Remember that although the AVR can have ROM space of 8M bytes, not
all AVR family members have that much on-chip program ROM. Some AVR fam-
ily members have only 4K–32K of on-chip ROM for program space; consequent-
ly, every byte is precious. For this reason there is also an RJMP (relative jump)
1001010k21 k20…k17110k16 k15 … k8 k7 … k0
8 bit 8 bit
8 bit
8 bit
6MSB
OP
16 LSB
PC
Program Memory
0x0000
FlashEnd
0
21
16
31
0
15
Jump
instruction
22
bits
of
Addr.
space. See Figure 4.
Figure 4. JMP Instruction
116

instruction, which is a 2-byte instruction as opposed to the 4-byte JMP instruction.
This can save some bytes of memory in many applications where ROM memory
space is in short supply. RJMP is discussed next.
RJMP (relative jump)
In this 2-byte (16-bit) instruction, the first 4 bits are the opcode and the rest
(lower 12 bits) is the relative address of the target location. The relative address
range of 000 – $FFF is divided into forward and backward jumps; that is, within
−2048 to +2047 words of memory relative to the address of the current PC (pro-
gram counter). If the jump is forward, then the relative address is positive. If the
jump is backward, then the relative address is negative. In this regard, RJMP is like
the conditional branch instructions except that 12 bits are used for the offset
because it takes less ROM space.
IJMP (indirect jump)
IJMP is a 2-byte instruction. When the instruction executes, the PC is
loaded with the contents of the Z register, so it jumps to the address pointed to by
In the other jump instructions, the target address is static, which means that
in a specific condition they jump to a fixed point. But IJMP has a dynamic target
point, and we can dynamically change the target address by changing the Z regis-
ter’s contents through the program.
address instead of 7. This is shown in detail in Figure 5.
Figure 5. RJMP (Relative Jump) Instruction Address Range
Figure 6. IJMP (Indirect Jump) Instruction Target Address
words of the program memory.
Notice that this is a 2-byte instruction, and is preferred over the JMP
the Z register. Z is a 2-byte register, so IJMP can jump within the lowest 64K
117

Review Questions
1. The mnemonic BRNE stands for _______.
2. True or false. “BRNE BACK” makes its decision based on the last instruction
affecting the Z flag.
3. “BRNE HERE” is a ___ -byte instruction.
4. In “BREQ NEXT”, which register’s content is checked to see if it is zero?
5. JMP is a(n) ___ -byte instruction.
Another control transfer instruction is the CALL instruction, which is used
to call a subroutine. Subroutines are often used to perform tasks that need to be
performed frequently. This makes a program more structured in addition to saving
memory space. In the AVR there are four instructions for the call subroutine:
CALL (long call) RCALL (relative call), ICALL (indirect call to Z), and EICALL
(extended indirect call to Z). The choice of which one to use depends on the tar-
get address. Each instruction is explained next.
CALL
In this 4-byte (32-bit) instruction, 10 bits are used for the opcode and the
other 22 bits, k21–k0, are used for the address of the target subroutine, just as in
the JMP instruction. Therefore, CALL can be used to call subroutines located any-
where within the 4M address space of 000000–$3FFFFF for the AVR, as shown in
To make sure that the AVR knows where to come back to after execution
of the called subroutine, the microcontroller automatically saves on the stack the
address of the instruction immediately below the CALL. When a subroutine is
called, control is transferred to that subroutine, and the processor saves the PC
(program counter) of the next instruction on the stack and begins to fetch instruc-
tions from the new location. After finishing execution of the subroutine, the RET
instruction transfers control back to the caller. Every subroutine needs RET as the
last instruction.
1001 010k21 k20k19k18k17 111k16
k15k14k13k12 k11k10k9k8 k7k6k5k4 k3k2k1k0
1001010k21 k20…k17111k16 k15 … k8 k7 … k0
8 bit 8 bit
8 bit
8 bit
Figure 7.
Figure 7. CALL Instruction Formation
SECTION 2: CALL INSTRUCTIONS AND STACK
118

Stack and stack pointer in AVR
The stack is a section of RAM used by the CPU to store information tem-
porarily. This information could be data or an address. The CPU needs this storage
area because there are only a limited number of registers.
How stacks are accessed in the AVR
If the stack is a section of RAM, there must be a register inside the CPU to
point to it. The register used to access the stack is called the SP (stack pointer) reg-
ister.
In I/O memory space, there are two registers named SPL (the low byte of
the SP) and SPH (the high byte of the SP). The SP is implemented as two regis-
ters. The SPH register presents the high byte of the SP while the SPL register pres-
ents the lower byte.
The stack pointer must be wide enough to address all the RAM. So, in the
AVRs with more than 256 bytes of memory the SP is made of two 8-bit registers
(SPL and SPH), while in the AVRs with less than 256 bytes the SP is made of only
SPL, as an 8-bit register can address 256 bytes of memory.
The storing of CPU information such as the program counter on the stack
is called a PUSH, and the loading of stack contents back into a CPU register is
called a POP. In other words, a register is pushed onto the stack to save it and
popped off the stack to retrieve it. The following describes each process.
Pushing onto the stack
The stack pointer (SP) points to the top of the stack (TOS). As we push data
onto the stack, the data are saved where the SP points to, and the SP is decrement-
ed by one. Notice that this is the same as with many other microprocessors,
notably x86 processors, in which the SP is decremented when data is pushed onto
the stack.
To push a register onto stack we use the PUSH instruction.
PUSH Rr ;Rr can be any of the general purpose registers (R0-R31)
For example, to store the value of R10 we can write the following instruc-
tion:
PUSH R10 ;store R10 onto the stack, and decrement SP
Popping from the stack
Popping the contents of the stack back into a given register is the opposite
process of pushing. When the POP instruction is executed, the SP is incremented
and the top location of the stack is copied back to the register. That means the stack
is LIFO (Last-In-First-Out) memory.
Figure 8. SP (Stack Pointer) in AVR
119

To retrieve a byte of data from stack we can use the POP instruction.
POP Rr ;Rr can be any of the general purpose registers (R0-R31)
For example, the following instruction pops from the top of stack and
copies to R10:
POP R16 ;increment SP, and then load the top of stack to R10
This example shows the stack and stack pointer and the registers used after the execu-
tion of each instruction.
.INCLUDE M32DEF.INC
.ORG 0
;initialize the SP to point to the last location of RAM (RAMEND)
LDI R16, HIGH(RAMEND) ;load SPH
OUT SPH, R16
LDI R16, LOW(RAMEND) ;load SPL
OUT SPL, R16
LDI R31, 0
LDI R20, 0x21
LDI R22, 0x66
PUSH R20
PUSH R22
LDI R20, 0
LDI R22, 0
POP R22
POP R31
Solution:
Contents of some
of the registers Stack
After the
execution of
OUT SPL,R16 85E
85F
SP
85D
85E
85F
SP
85D
85E
85F 21
SP
85D
85E
85F 21
66
SP
85D
85E
85F 21
SP
85D
85E
85F SP
85D
LDI R22, 0x66
PUSH R20
PUSH R22
LDI R22, 0
POP R22
POP R31
85E
85F 21
66
SP
85D
$21
R20 R22 R31 SP
$0 $0 0 $085F
$21 $66 0 $085F
$66 0 $085E
$21 $66 0 $085D
$0 $0 0 $085D
$0 $66 0 $085E
$0 $66 $21 $085F
Example 8
120

Initializing the stack pointer
When the AVR is powered up, the SP register contains the value 0, which
is the address of R0. Therefore, we must initialize the SP at the beginning of the
program so that it points to somewhere in the internal SRAM. In AVR, the stack
grows from higher memory location to lower memory location (when we push
onto the stack, the SP decrements). So, it is common to initialize the SP to the
uppermost memory location.
Different AVRs have different amounts of RAM. In the AVR assembler
RAMEND represents the address of the last RAM location. So, if we want to ini-
tialize the SP so that it points to the last memory location, we can simply load
RAMEND into the SP. Notice that SP is made of two registers, SPH and SPL. So,
we load the high byte of RAMEND into SPH, and the low byte of RAMEND into
the SPL.
instructions. In the example you can see how the stack changes when the PUSH
and POP instructions are executed.
CALL instruction and the role of the stack
When a subroutine is called, the processor first saves the address of the
instruction just below the CALL instruction on the stack, and then transfers con-
trol to that subroutine. This is how the CPU knows where to resume when it
returns from the called subroutine.
For the AVRs whose program counter is not longer than 16 bits (e.g.,
ATmega128, ATmega32), the value of the program counter is broken into 2 bytes.
The higher byte is pushed onto the stack first, and then the lower byte is pushed.
For the AVRs whose program counters are longer than 16 bits but shorter
than 24 bits, the value of the program counter is broken up into 3 bytes. The high-
est byte is pushed first, then the middle byte is pushed, and finally the lowest byte
is pushed. So, in both cases, the higher bytes are pushed first.
RET instruction and the role of the stack
When the RET instruction at the end of the subroutine is executed, the top
location of the stack is copied back to the program counter and the stack pointer is
incremented. When the CALL instruction is executed, the address of the instruc-
tion below the CALL instruction is pushed onto the stack; so, when the execution
of the function finishes and RET is executed, the address of the instruction below
the CALL is loaded into the PC, and the instruction below the CALL instruction
is executed.
To understand the role of the stack in call instruction and returning, exam-
1. Notice the DELAY subroutine. After the first “CALL DELAY” is executed, the
address of the instruction right below it, “LDI R16,0xAA”, is pushed onto
Example 9:
For more information about RAMEND, LOW, and HIGH, see Section 1.
Example 8 shows how to initialize the SP and use the PUSH and POP
ine the contents of the stack and stack pointer (see Examples 9 and
Example 10). The following points should be noted for the program in
121

the stack, and the AVR starts to execute instructions at address 0x300.
2. In the DELAY subroutine, the counter R20 is set to 255 (R20 = 0xFF); there-
fore, the loop is repeated 255 times. When R20 becomes 0, control falls to the
RET instruction, which pops the address from the top of the stack into the pro-
gram counter and resumes executing the instructions after the CALL.
AVR. How to calculate the exact time will be explained in the last section of this
chapter.
The upper limit of the stack
As mentioned earlier, we can define the stack anywhere in the general pur-
pose memory. So, in the AVR the stack can be as big as its RAM. Note that we
must not define the stack in the register memory, nor in the I/O memory. So, the
SP must be set to point above 0x60.
In AVR, the stack is used for calls and interrupts. We must remember that
upon calling a subroutine, the stack keeps track of where the CPU should return
after completing the subroutine. For this reason, we must be very careful when
manipulating the stack contents.
Toggle all the bits of Port B by sending to it the values $55 and $AA continuously. Put
a time delay between each issuing of data to Port B.
Solution:
.INCLUDE M32DEF.INC
.ORG 0
LDI R16,HIGH(RAMEND) ;load SPH
OUT SPH,R16
LDI R16,LOW(RAMEND) ;load SPL
OUT SPL,R16
BACK:
LDI R16,0x55 ;load R16 with 0x55
OUT PORTB,R16 ;send 55H to port B
CALL DELAY ;time delay
LDI R16,0xAA ;load R16 with 0xAA
OUT PORTB,R16 ;send 0xAA to port B
RJMP BACK ;keep doing this indefinitely
;—————— this is the delay subroutine
.ORG 0x300 ;put time delay at address 0x300
DELAY:
LDI R20,0xFF ;R20 = 255,the counter
AGAIN:
NOP ;no operation wastes clock cycles
NOP
DEC R20
BRNE AGAIN ;repeat until R20 becomes 0
RET ;return to caller
Example 9
The amount of time delay in Example 9 depends on the frequency of the
122

Analyze the stack for the CALL instructions in the following program.
.INCLUDE M32DEF.INC
.ORG 0
+00000000: LDI R16,HIGH(RAMEND) ;initialize SP
+00000001: OUT SPH,R16
+00000002: LDI R16,LOW(RAMEND)
+00000003: OUT SPL,R16
BACK:
+00000004: LDI R16,0x55 ;load R16 with 0x55
+00000005: OUT PORTB,R16 ;send 55H to port B
+00000006: CALL DELAY ;time delay
+00000008: LDI R16,0xAA ;load R16 with 0xAA
+00000009: OUT PORTB,R16 ;send 0xAA to port B
+0000000A: CALL DELAY ;time delay
+0000000C: RJMP BACK ;keep doing this indefinitely
;-----this is the delay subroutine
DELAY:
+00000300: LDI R20,0xFF ;R20 = 255, the counter
AGAIN:
+00000301: NOP ;no operation wastes clock cycles
+00000302: NOP
+00000303: DEC R20
+00000304: BRNE AGAIN ;repeat until R20 becomes 0
+00000305: RET ;return to caller
Solution:
When the first CALL is executed, the address of the instruction “LDI R16,0xAA”
is saved (pushed) onto the stack. The last instruction of the called subroutine must be
a RET instruction, which directs the CPU to pop the contents of the top location of the
stack into the PC and resume executing at address 0008. The diagrams show the stack
frame after the CALL and RET instructions.
00
08
SP
85F
85E
85D
85C
85F
85E
85D
85C
SP
85F
85E
85D
85C
SP
00
0C
85F
85E
85D
85C
SP
85F
85E
85D
85C
SP
SP= 0x85F SP=0x85D SP= 0x85F SP=0x85D SP= 0x85F
Before the
First CALL
After the
first CALL
After RET
After the
second CALL
After RET
8bit
Example 10
123

Calling many subroutines from the main program
In Assembly language programming, it is common to have one main pro-
This allows you to make each subroutine into a separate module. Each module can
be tested separately and then brought together with the main program. More
importantly, in a large program the modules can be assigned to different program-
mers in order to shorten development time.
It needs to be emphasized that in using CALL, the target address of the
subroutine can be anywhere within the 4M (word) memory space of the AVR. See
next.
RCALL (relative call)
RCALL is a 2-byte instruction in contrast to CALL, which is 4 bytes.
Because RCALL is a 2-byte instruction, and only 12 bits of the 2 bytes are used
for the address, the target address of the subroutine must be within −2048 to +2047
words of memory relative to the address of the current PC.
.INCLUDE ”M32DEF.INC” ;Modify for your chip
;MAIN program calling subroutines
.ORG 0
MAIN: CALL SUBR_1
CALL SUBR_2
CALL SUBR_3
CALL SUBR_4
HERE: RJMP HERE ;stay here
;————————end of MAIN
;
SUBR_1: ....
....
RET
;————————end of subroutine 1
;
SUBR_2: ....
....
RET
SUBR_3: ....
....
RET
SUBR_4: ....
....
RET
Figure 9. AVR Assembly Main Program That Calls Subroutines
gram and many subroutines that are called from the main program. See Figure 9.
Example 11. This is not the case for the RCALL instruction, which is explained
124

There is no difference between RCALL and CALL in terms of saving the
program counter on the stack or the function of the RET instruction. The only dif-
ference is that the target address for CALL can be anywhere within the 4M address
space of the AVR while the target address of RCALL must be within a 4K range.
Write a program to count up from 00 to $FF and send the count to Port B. Use one
CALL subroutine for sending the data to Port B and another one for time delay. Put a
time delay between each issuing of data to Port B.
Solution:
.INCLUDE M32DEF.INC
.DEF COUNT=R20
.ORG 0
+00000000: LDI R16,HIGH(RAMEND)
+00000001: OUT SPH,R16
+00000002: LDI R16,LOW(RAMEND)
+00000003: OUT SPL,R16 ;initialize stack pointer
+00000004: LDI COUNT,0 ;count = 0
BACK:
+00000005: CALL DISPLAY
+00000007: RJMP BACK
;-----Increment and put it in PORTB
DISPLAY:
+00000008: INC COUNT ;increment count
+00000009: OUT PORTB, COUNT ;send it to PORTB
+0000000A: CALL DELAY
+0000000C: RET ;return to caller
;-----This is the delay subroutine
DELAY:
+00000300: LDI R16,0xFF ;R16 = 255
+00000301: AGAIN:
+00000302: NOP
+00000303: NOP
+00000304: NOP
+00000305: DEC R16
+00000306: BRNE AGAIN ;repeat until R16 becomes 0
+00000307: RET ;return to caller
85F
85E
85D
85C
SP
SP= 0x85F SP=0x85D SP= 0x85B SP=0x85D SP= 0x85F
After CALL
Delay
8bit
00
07
00
0C
85B
85F
85E
85D
85C
SP
Before CALL
Display
85B
85F
85E
85D
85C
SP
After CALL
Display
00
07
85B
85F
85E
85D
85C
SP
After Delay
RET
00
07
85B
85F
85E
85D
85C
SP
After Display
Ret
85B
Example 11
125

In many variations of the AVR marketed by Atmel Corporation, on-chip ROM is
as low as 4K. In such cases, the use of RCALL instead of CALL can save a num-
ber of bytes of program ROM space.
Of course, in addition to using compact instructions, we can program effi-
ciently by having a detailed knowledge of all the instructions supported by a given
ICALL (indirect call)
In this 2-byte (16-bit) instruction, the Z register specifies the target address.
When the instruction is executed, the address of the next instruction is pushed into
the stack (like CALL and RCALL) and the program counter is loaded with the
contents of the Z register. So, the Z register should contain the address of a func-
tion when the ICALL instruction is executed. Because the Z register is 16 bits
Solution:
.INCLUDE M32DEF.INC
.ORG 0
LDI R16,HIGH(RAMEND)
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16 ;initialize stack pointer
LDI R16,0x55 ;load R16 with 55H
BACK:
COM R16 ;complement R16
OUT PORTB,R16 ;load port B SFR
RCALL DELAY ;time delay
;---------this is the delay subroutine
DELAY:
LDI R20,0xFF
AGAIN:
NOP
DEC R20
RET
A developer is using the AVR microcontroller chip for a product. This chip has only 4K
of on-chip flash ROM. Which of the instructions, CALL or RCALL, is more useful in
programming this chip?
Solution:
The RCALL instruction is more useful because it is a 2-byte instruction. It saves two
bytes each time the call instruction is used. However, we must use CALL if the target
address is beyond the 2K boundary.
microcontroller, and using them wisely. Look at Examples 12 and 13.
Example 12
Rewrite the main part of Example 9 as efficiently as you can.
Example 13
126

wide, the ICALL instruction can call the subroutines that are within the lowest
64K words of the program memory. (The target address calculation in ICALL is
In the AVRs with more than 64K words of program memory, the EICALL
(extended indirect call) instruction is available. The EICALL loads the Z register
into the lower 16 bits of the PC and the EIND register into the upper 6 bits of the
The ICALL and EICALL instructions can be used to implement pointer to
function.
Review Questions
1. True or false. In the AVR, control can be transferred anywhere within the 4M
of code space by using the CALL instruction.
2. The CALL instruction is a(n) ___ -byte instruction.
3. True or false. In the AVR, control can be transferred anywhere within the 4M
of code space by using the RCALL instruction.
4. With each CALL instruction, the stack pointer register, SP, is
_______________ (incremented, decremented).
5. With each RET instruction, the SP is __________ (incremented, decrement-
ed).
6. On power-up, the SP points to address ______ .
7. How deep is the size of the stack in the AVR?
8. The RCALL instruction is a(n) ___ -byte instruction.
9. ______ (RCALL, CALL) takes more ROM space.
the same as for the IJMP instruction.) See Figure 10.
Figure 10. ICALL Instruction
PC. Notice that EIND is a part of I/O memory. See Figure 11.
Figure 11. EICALL Instruction
127

In the last section we used the DELAY subroutine. In this section we dis-
cuss how to generate various time delays and calculate exact delays for the AVR.
We will also discuss instruction pipelining and its impact on execution time.
Delay calculation for the AVR
In creating a time delay using Assembly language instructions, one must be
mindful of two factors that can affect the accuracy of the delay:
1. The crystal frequency: The frequency of the crystal oscillator connected to the
XTAL1 and XTAL2 input pins is one factor in the time delay calculation. The
duration of the clock period for the instruction cycle is a function of this crys-
tal frequency.
2. The AVR design: Since the 1970s, both the field of IC technology and the
architectural design of microprocessors have seen great advancements. Due to
the limitations of IC technology and limited CPU design experience for many
years, the instruction cycle duration was longer. Advances in both IC technol-
ogy and CPU design in the 1980s and 1990s have made the single instruction
cycle a common feature of many microcontrollers. Indeed, one way to increase
performance without losing code compatibility with the older generation of a
given family is to reduce the number of instruction cycles it takes to execute
an instruction. One might wonder how microprocessors such as AVR are able
to execute an instruction in one cycle. There are three ways to do that: (a) Use
Harvard architecture to get the maximum amount of code and data into the
CPU, (b) use RISC architecture features such as fixed-size instructions, and
Pipelining
In early microprocessors such as the 8085, the CPU could either fetch or
execute at a given time. In other words, the CPU had to fetch an instruction from
memory, then execute it; and then fetch the next instruction, execute it, and so on.
The idea of pipelining in its simplest form is to allow the CPU to fetch and exe-
exec 1
fetch 1 exec 2
fetch 2 exec 3
fetch 3
Non-pipeline
Pipeline exec 1
fetch 1
exec 2
fetch 2
exec 3
fetch 3
exec 4
fetch 4
exec 5
fetch 5
Time
T1 T2 T3 T4 T5 T6
Figure 12. Pipeline vs. Non-pipeline
SECTION 3: AVR TIME DELAY AND INSTRUCTION PIPELINE
cute at the same time, as shown in Figure 12. (An instruction fetches while the
finally (c) use pipelining to overlap fetching and execution of instructions.
Next, we discuss pipelining.
128

previous instruction executes.)
We can use a pipeline to speed up execution of instructions. In pipelining,
the process of executing instructions is split into small steps that are all executed
in parallel. In this way, the execution of many instructions is overlapped. One lim-
itation of pipelining is that the speed of execution is limited to the slowest stage of
the pipeline. Compare this to making pizza. You can split the process of making
pizza into many stages, such as flattening the dough, putting on the toppings, and
baking, but the process is limited to the slowest stage, baking, no matter how fast
the rest of the stages are performed. What happens if we use two or three ovens for
baking pizzas to speed up the process? This may work for making pizza but not
for executing programs, because in the execution of instructions we must make
sure that the sequence of instructions is kept intact and that there is no out-of-step
execution.
AVR multistage execution pipeline
stages: operand fetch, ALU operation execution, and result write back.
In step 1, the operand is fetched. In step 2, the operation is performed; for
example, the adding of the two numbers is done. In step 3, the result is written into
the destination register. In reality, one can construct the AVR pipeline for three
It should be noted that in many computer architecture books, the process
stage is referred to as execute and write back is called write.
Fetch 1 R P W
Fetch Ins. 2
Exec Ins. 1
R P W
Fetch Ins. 4
Exec Ins. 3
R P W
Fetch Ins. 3
Exec Ins. 2
T1 T2 T3 T4 Time
instruction
1
2
3
4
R = Read the operand
P = Process
W= Write the result to destination
R P W
Exec Ins. 4
Figure 13. Single Cycle ALU Operation
instructions, as is shown in Figure 14.
Figure 14. Pipeline Activity for Both Fetch and Execute
As shown in Figure 13, in the AVR, each instruction is executed in 3
129

Instruction cycle time for the AVR
Branch penalty
The overlapping of fetch and execution of the instruction is widely used in
today’s microcontrollers such as AVR. For the concept of pipelining to work, we
need a buffer or queue in which an instruction is prefetched and ready to be exe-
cuted. In some circumstances, the CPU must flush out the queue. For example,
when a branch instruction is executed, the CPU starts to fetch codes from the new
memory location, and the code in the queue that was fetched previously is discard-
ed. In this case, the execution unit must wait until the fetch unit fetches the new
instruction. This is called a branch penalty. The penalty is an extra instruction
cycle to fetch the instruction from the target location instead of executing the
instruction right below the branch. Remember that the instruction below the
branch has already been fetched and is next in line to be executed when the CPU
branches to a different address. This means that while the vast majority of AVR
instructions take only one machine cycle, some instructions take two, three, or four
machine cycles. These are JMP, CALL, RET, and all the conditional branch
instructions such as BRNE, BRLO, and so on. The conditional branch instruction
can take only one machine cycle if it does not jump. For example, the BRNE will
jump if Z = 0, and that takes two machine cycles. If Z = 1, then it falls through and
The following shows the crystal frequency for four different AVR-based systems. Find
the period of the instruction cycle in each case.
(a) 8 MHz (b) 16 MHz (c) 10 MHz (d) 1 MHz
Solution:
(a) instruction cycle is 1/8 MHz = 0.125 μs (microsecond) = 125 ns (nanosecond)
(b) instruction cycle = 1/16 MHz = 0.0625 μs = 62.5 ns (nanosecond)
(c) instruction cycle = 1/10 MHz = 0.1 μs = 100 ns
(d) instruction cycle = 1/1 MHz = 1 μs
Example 14
it takes only one machine cycle. See Examples 15 and 16.
It takes a certain amount of time for the CPU to execute an instruction. This
time is referred to as machine cycles. Because all the instructions in the AVR are
either 1-word (2-byte) or 2-word (4-byte), most instructions take no more than one
or two machine cycles to execute. (Notice, however, that some instructions such as
JMP and CALL could take up to three or four machine cycles.) In the AVR fami-
ly, the length of the machine cycle depends on the frequency of the oscillator
connected to the AVR system. The crystal oscillator, along with on-chip circuitry,
of one oscillator period, which means that with each oscillator clock, one machine
cycle passes. Therefore, to calculate the machine cycle for the AVR, we take the
inverse of the crystal frequency, as shown in Example 14.
provide the clock source for the AVR CPU. In the AVR, one machine cycle consists
130

Find the size of the delay of the code snippet below if the crystal frequency is 10 MHz:
Solution:
Instruction Cycles
.DEF COUNT = R20 0
DELAY: LDI COUNT, 0xFF 1
AGAIN: NOP 1
NOP 1
DEC COUNT 1
BRNE AGAIN 2/1
RET 4
Therefore, we have a time delay of [1 + ((1 + 1 + 1 + 2) × 255) + 4 ] × 0.1 μs = 128.0 μs.
Notice that BRNE takes two instruction cycles if it jumps back, and takes only one when
falling through the loop. That means the above number should be 127.9 μs.
For an AVR system of 1 MHz, find how long it takes to execute each of the following
instructions:
(a) LDI (b) DEC (c) LD
(d) ADD (e) NOP (f) JMP
(g) CALL (h) BRNE (i) .DEF
Solution:
Instruction Instruction cycles Time to execute
(a) LDI 1 1 × 1 μs = 1 μs
(b) DEC 1 1 × 1 μs = 1 μs
(c) OUT 1 1 × 1 μs = 1 μs
(d) ADD 1 1 × 1 μs = 1 μs
(e) NOP 1 1 × 1 μs = 1 μs
(f) JMP 3 3 × 1 μs = 2 μs
(g) CALL 4 4 × 1 μs = 4 μs
(h) BRNE 2/1 (2 μs taken, 1 μs if it falls
through)
(i) .DEF 0 (directive instructions do not
produce machine instructions)
Example 15
Example 16
we have:
The machine cycle for a system of 1 MHz is 1 μs, as shown in Example 14. Therefore,
We have the following machine cycles for each instruction of the DELAY subroutine:
131

Delay calculation for AVR
As seen in the last section, a delay subroutine consists of two parts: (1) set-
ting a counter, and (2) a loop. Most of the time delay is performed by the body of
loop and ignore the clock cycles associated with the instructions outside the loop.
way to increase the delay is to use NOP instructions in the loop. NOP, which stands
for “no operation,” simply wastes time, but takes 2 bytes of program ROM space,
Find the size of the delay in the following program if the crystal frequency is 1 MHz:
.INCLUDE M32DEF.INC
.ORG 0
LDI R16,HIGH(RAMEND) ;initialize SP
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
BACK:
OUT PORTB,R16 ;send 55H to port B
LDI R16,0xAA ;load R16 with 0xAA
OUT PORTB,R16 ;send 0xAA to port B
;-----this is the delay subroutine
DELAY: LDI R20,0xFF ;R20 = 255,the counter
AGAIN:
NOP
DEC R20
RET ;return to caller
Solution:
Instruction Cycles
DELAY: LDI R20,0xFF 1
AGAIN: NOP 1
NOP 1
DEC R20 1
BRNE AGAIN 2/1
RET 4
Therefore, we have a time delay of [1 + (255 × 5) – 1 + 4] × 1 μs = 1279 μs.
the loop, as shown in Examples 17 and 18.
Very often we calculate the time delay based on the instructions inside the
Example 17
In Example 16, the largest value the R20 register can take is 255. One
We have the following machine cycles for each instruction of the subroutine:
DELAY
132

which is too heavy a price to pay for just one instruction cycle. A better way is to
use a nested loop.
Loop inside a loop delay
Another way to get a large delay is to use a loop inside a loop, which is also
ing time delay is not the most reliable method. To get more accurate time delay we
For an instruction cycle of 1 μs (a) find the time delay in the following subroutine, and
(b) find the amount of ROM it takes.
Instruction Cycles
DELAY: LDI R16,200 1
AGAIN: LDI R17,250 1
HERE: NOP 1
NOP 1
DEC R17 1
BRNE HERE 2/1
DEC R16 1
BRNE AGAIN 2/1
RET 4
Solution:
(a)
For the HERE loop, we have [(5 × 250) – 1] × 1 μs = 1249 μs. (We should subtract 1 for
the times BRNE HERE falls through.) The AGAIN loop repeats the HERE loop 200
times; therefore, we have 200 × 1249 μs = 249,800 μs, if we do not include the over-
head. However, the following instructions of the outer loop add to the delay:
AGAIN: LDI R17,250 1
.....
DEC R16 1
BRNE AGAIN 2/1
The above instructions at the beginning and end of the AGAIN loop add [(4 × 200) – 1]
× 1 μs = 799 μs to the time delay. As a result we have 249,800 + 799 = 250,599 μs for
the total time delay associated with the above DELAY subroutine. Notice that this cal-
culation is an approximation because we have ignored the “LDI R16,200” instruction
and the last instruction, RET, in the subroutine.
(b)
There are 9 instructions in the above DELAY program, and all the instructions are 2-
byte instructions. That means that the loop delay takes 22 bytes of ROM code space.
From these discussions we conclude that the use of instructions in generat-
the disadvantage of using many NOPs. Also see Example 20.
Example 18
called a nested loop. See Example 18. Compare that with Example 19 to see
133

Review Questions
1. True or false. In the AVR, the machine cycle lasts 1 clock period of the crystal
frequency.
2. The minimum number of machine cycles needed to execute an AVR instruc-
tion is _____.
3. For Question 2, what is the maximum number of cycles needed, and for which
instructions?
4. Find the machine cycle for a crystal frequency of 12 MHz.
5. Assuming a crystal frequency of 1 MHz, find the time delay associated with
the loop section of the following DELAY subroutine:
DELAY: LDI R20, 100
HERE: NOP
Find the time delay for the following subroutine, assuming a crystal frequency of 1
Machine Cycles
DELAY: LDI R16, 200 1
AGAIN: NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
NOP 1
DEC R16 1
BRNE AGAIN 2
RET 4
Solution:
The time delay inside the AGAIN loop is [200(13 + 2)] × 1 µs = 3000 µs. NOP is a
2-byte instruction, even though it does not do anything except to waste cycle time.
There are 16 instructions in the above DELAY program, and all the instructions are
2-byte instructions. This means the loop delay takes 32 bytes of ROM code space, and
gives us only a 3000 μs delay. That is the reason we use a nested loop instead of NOP
Example 19
MHz. Discuss the disadvantage of this over Example 18.
instructions to create a time delay.
of cycles used. Meanwhile, to get an accurate time delay for a given AVR micro-
controller, we must use an oscilloscope to measure the exact time delay.
use timers. We can use AVR Studio’s simulator to verify delay time and number
134

NOP
NOP
NOP
NOP
DEC R20
BRNE HERE
RET
6. True or false. In the AVR, the machine cycle lasts 6 clock periods of the crys-
tal frequency.
7. Find the machine cycle for an AVR if the crystal frequency is 8 MHz.
8. True or false. In the AVR, the instruction fetching and execution are done at
the same time.
9. True or false. JMP and RCALL will always take 3 machine cycles.
10. True or false. The BRNE instruction will always take 2 machine cycles.
Write a program to toggle all the bits of I/O register PORTB every 1 s. Assume that the
crystal frequency is 8 MHz and the system is using an ATmega32.
Solution:
.INCLUDE M32DEF.INC
.ORG 0
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
BACK:
COM R16 ;complement PORTB
OUT PORTB,R16 ;send it to port B
CALL DELAY_1S ;time delay
DELAY_1S:
LDI R20,32
L1: LDI R21,200
L2: LDI R22,250
L3:
NOP
NOP
DEC R22
BRNE L3
DEC R21
BRNE L2
DEC R20
BRNE L1
RET
Machine cycle = 1 / 8 MHz = 125 ns
Delay = 32 × 200 × 250 × 5 × 125 ns = 1,000,000,000 ns = 1,000,000 µs = 1 s.
In this calculation, we have not included the overhead associated with the two outer
loops. Use the AVR Studio simulator to verify the delay.
Example 20
135

SUMMARY
The flow of a program proceeds sequentially, from instruction to instruc-
tion, unless a control transfer instruction is executed. The various types of control
transfer instructions in Assembly language include conditional and unconditional
branches, and call instructions.
Looping in AVR Assembly language is performed using an instruction to
decrement a counter and to jump to the top of the loop if the counter is not zero.
This is accomplished with the BRNE instruction. Other branch instructions jump
conditionally, based on the value of the carry flag, the Z flag, or other bits of the
status register. Unconditional branches can be long or short, depending on the
location of the target address. Special attention must be given to the effect of
CALL and RCALL instructions on the stack.
PROBLEMS
1. In the AVR, looping action with the “BRNE target” instruction is limited
to ____ iterations.
2. If a conditional branch is not taken, what is the next instruction to be
executed?
3. In calculating the target address for a branch, a displacement is added to the
contents of register _______.
4. The mnemonic RJMP stands for __________ and it is a(n) ___-byte instruc-
tion.
5. The JMP instruction is a(n) ___-byte instruction.
6. What is the advantage of using RJMP over JMP?
7. True or false. The target of a BRNE can be anywhere in the 4M word address
space.
8. True or false. All AVR branch instructions can branch to anywhere in the 4M
word address space.
9. Which of the following instructions is (are) 2-byte instructions.
(a) BREQ (b) BRSH (c) JMP (d) RJMP
10. Dissect the RJMP instruction, indicating how many bits are used for the
operand and the opcode, and indicate how far it can branch.
11. True or false. All conditional branches are 2-byte instructions.
12. Show code for a nested loop to perform an action 1,000 times.
13. Show code for a nested loop to perform an action 100,000 times.
14. Find the number of times the following loop is performed:
LDI R20, 200
BACK: LDI R21, 100
HERE: DEC R21
BRNE HERE
DEC R20
BRNE BACK
15. The target address of a BRNE is backward if the relative address of the opcode
is _______ (negative, positive).
136

16. The target address of a BRNE is forward if the relative address of the opcode
is ________ (negative, positive).
17. CALL is a(n) ___-byte instruction.
18. RCALL is a(n) ___-byte instruction.
19. True or false. The RCALL target address can be anywhere in the 4M (word)
address space.
20. True or false. The CALL target address can be anywhere in the 4M address
space.
21. When CALL is executed, how many locations of the stack are used?
22. When RCALL is executed, how many locations of the stack are used?
23. Upon reset, the SP points to location _________.
24. Describe the action associated with the RET instruction.
25. Give the size of the stack in AVR.
26. In AVR, which address is pushed into the stack when a call instruction is exe-
cuted.
27. Find the oscillator frequency if the machine cycle = 1.25 μs.
28. Find the machine cycle if the crystal frequency is 20 MHz.
31. True or false. The CALL and RCALL instructions take the same amount of
time to execute even though one is a 4-byte instruction and the other is a 2-byte
instruction.
32. Find the time delay for the delay subroutine shown below if the system has an
AVR with a frequency of 8 MHz:
LDI R16, 200
BACK: LDI R18, 100
HERE: NOP
DEC R18
BRNE HERE
DEC R16
BRNE BACK
LDI R20, 200
BACK: LDI R22, 100
HERE: NOP
NOP
DEC R22
BRNE HERE
DEC R20
BRNE BACK
137

LDI R20, 200
BACK: LDI R21, 250
HERE: NOP
DEC R21
BRNE HERE
DEC R20
BRNE BACK
LDI R20, 200
BACK: LDI R25, 100
NOP
NOP
NOP
HERE DEC R25
BRNE HERE
DEC R20
BRNE BACK
1. Branch if not equal
2. True
3. 2
4. Z flag of SREG (status register)
5. 4
1. True
2. 4
3. False
4. Decremented
5. Incremented
6. 0
7. The AVR’s stack can be as big as its RAM memory.
8. 2
9. CALL
1. True
2. 1
3. 4; CALL, RET
4. 12 MHz / 4 = 3 MHz, and MC = 1/3 MHz = 0.333 μs
5. [100 × (1 + 1 + 1 + 1 + 1 + 1 + 2)] × 1 μs = 800 μs = 0.8 milliseconds
6. False. It takes 4 clocks.
7. Machine cycle = 1 / 8 MHz = 0.125 μs = 125 ns
8. True
9. True
10. False. Only if it branches to the target address.
138

OBJECTIVES

List all the ports of the AVR

Describe the dual role of AVR pins

Code Assembly language to use the ports for input or output

Explain the dual role of Ports A, B, C, and D

Code AVR instructions for I/O handling

Code I/O bit-manipulation programs for the AVR

Explain the bit-addressability of AVR ports
AVR I/O PORT
PROGRAMMING
139

This chapter describes I/O port programming of the AVR with many exam-
In the AVR family, there are many ports for I/O operations, depending on
chip. A total of 32 pins are set aside for the four ports PORTA, PORTB, PORTC,
and PORTD. The rest of the pins are designated as VCC, GND, XTAL1, XTAL2,
I/O port pins and their functions
The number of ports in the AVR family varies depending on the number of
pins on the chip. The 8-pin AVR has port B only, while the 64-pin version has ports
The 40-pin AVR has four ports. They are PORTA, PORTB, PORTC, and PORTD.
To use any of these ports as an input or output port, it must be programmed, as we
will explain throughout this section. In addition to being used for simple I/O, each
10
11
1
2
3
4
5
6
7
8
9
12
13
14
15
16
17
18
19
20
(XCK/T0) PB0
(T1) PB1
(INT2/AIN0) PB2
(OC0/AIN1) PB3
(SS) PB4
(MOSI) PB5
(MISO) PB6
(SCK) PB7
RESET
VCC
XTAL2
GND
XTAL1
(RXD) PD0
(TXD) PD1
(INT0) PD2
(INT1) PD3
(OC1B) PD4
(OC1A) PD5
(ICP) PD6
31
30
40
39
38
37
36
35
34
33
32
29
28
27
26
25
24
23
22
21
PA0 (ADC0)
PA1 (ADC1)
PA2 (ADC2)
PA3 (ADC3)
PA4 (ADC4)
PA5 (ADC5)
PA6 (ADC6)
PA7 (ADC7)
AREF
AGND
PC7 (TOSC2)
AVCC
PC6 (TOSC1)
PC5 (TDI)
PC4 (TDO)
PC3 (TMS)
PC2 (TCK)
PC1 (SDA)
PC0 (SCL)
PD7 (OC2)
ples. In Section 1, we describe I/O access using byte-size data, and in Section
2, bit manipulation of the I/O ports is discussed in detail.
SECTION 1: I/O PORT PROGRAMMING IN AVR
Figure 1. ATmega32 Pin Diagram
which family member you choose. Examine Figure 1 for the ATmega32 40-pin
AVR I/O PORT PROGRAMMING
RESET, AREF, AGND, and AVCC.
A through F, and the 100-pin AVR has ports A through L, as shown in Table 1.
140

port has some other functions such as ADC, timers, interrupts, and serial commu-
Pins 8-pin 28-pin 40-pin 64-pin 100-pin
Chip ATtiny25/45/85 ATmega8/48/88 ATmega32/16 ATmega64/128 ATmega1280
Port A X X X
Port B 6 bits X X X X
Port C 7 bits X X X
Port D X X X X
Port E X X
Port F X X
Port G 5 bits 6 bits
Port H X
Port J X
Port K X
Port L X
Note: X indicates that the port is available.
for ATmega32 Ports
Port Address Usage
PORTA $3B output
DDRA $3A direction
PINA $39 input
PORTB $38 output
DDRB $37 direction
PINB $36 input
PORTC $35 output
DDRC $34 direction
PINC $33 input
PORTD $32 output
DDRD $31 direction
PIND $30 input
DDRx:
PORTx:
PINx:
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
Px7 Px6 Px5 Px4 Px3 Px2 Px1 Px0
Table 1: Number of Ports in Some AVR Family Members
Table 2: Register Addresses
Figure 2. Relations Between the Registers and the Pins of AVR
tions for the ATmega32 pins. In this chapter we
focus on the simple I/O function of the AVR fam-
ily. Not all ports have 8 pins. For example, in the
ATmega8, Port C has 7 pins. Each port has three
I/O registers associated with it, as shown in Table
2. They are designated as PORTx, DDRx, and
PINx. For example, for Port B we have PORTB,
DDRB, and PINB. Notice that DDR stands for
Data Direction Register, and PIN stands for Port
INput pins. Also notice that each of the I/O reg-
isters is 8 bits wide, and each port has a maxi-
mum of 8 pins; therefore each bit of the I/O reg-
isters affects one of the pins (see Figure 2; the
content of bit 0 of DDRB represents the direction
of the PB0 pin, and so on). Next, we describe
how to access the I/O registers associated with
the ports.
nication pins. Figure 1 shows alternate func-
141

DDRx register role in outputting data
Each of the ports A–D in the ATmega32 can be used for input or output.
The DDRx I/O register is used solely for the purpose of making a given port an
input or output port. For example, to make a port an output, we write 1s to the
DDRx register. In other words, to output data to all of the pins of the Port B, we
The following code will toggle all 8 bits of Port B forever with some time
delay between “on” and “off” states:
LDI R16,0xFF ;R16 = 0xFF = 0b11111111
OUT DDRB,R16 ;make Port B an output port (1111 1111)
L1: LDI R16,0x55 ;R16 = 0x55 = 0b01010101
OUT PORTB,R16 ;put 0x55 on port B pins
CALL DELAY
LDI R16,0xAA ;R16 = 0xAA = 0b10101010
OUT PORTB,R16 ;put 0xAA on port B pins
CALL DELAY
RJMP L1
It must be noted that unless we set the DDRx bits to one, the data will not
go from the port register to the pins of the AVR. This means that if we remove the
first two lines of the above code, the 0x55 and 0xAA values will not get to the pins.
They will be sitting in the I/O register of Port B inside the CPU.
To see the role of the DDRx register in allowing the data to go from Portx
DDR register role in inputting data
To make a port an input port, we must first put 0s into the DDRx register
for that port, and then bring in (read) the data present at the pins. As an aid for
remembering that the port is input when the DDR bits are 0s, imagine a person
who has 0 dollars. The person can only get money, not give it. Similarly, when
DDR contains 0s, the port gets data.
Notice that upon reset, all ports have the value 0x00 in their DDR registers.
This means that all ports are configured as input as we will see next.
Figure 3. The I/O Port in AVR
to the pins, examine Figure 3.
must first put 0b11111111 into the DDRB register to make all of the pins output.
142

PIN register role in inputting data
To read the data present at the pins, we should read the PIN register. It must
be noted that to bring data into CPU from pins we read the contents of the PINx
register, whereas to send data out to pins we use the PORTx register.
PORT register role in inputting data
There is a pull-up
resistor for each of the AVR
pins. If we put 1s into bits of
the PORTx register, the pull-
up resistors are activated. In
cases in which nothing is con-
nected to the pin or the con-
nected devices have high
impedance, the resistor pulls
If we put 0s into the
bits of the PORTx register, the
pull-up resistor is inactive.
The following code gets the data present at the pins of port C and sends it
to port B indefinitely, after adding the value 5 to it:
.INCLUDE M32DEF.INC
LDI R16,0x00 ;R16 = 00000000 (binary)
OUT DDRC,R16 ;make Port C an input port
LDI R16,0xFF ;R16 = 11111111 (binary)
OUT DDRB,R16 ;make Port B an output port(1 for Out)
L2: IN R16,PINC ;read data from Port C and put in R16
LDI R17,5
ADD R16,R17 ;add 5 to it
OUT PORTB,R16 ;send it to Port B
RJMP L2 ;continue forever
If we want to make the pull-up resistors of port C active, we must put 1s
into the PORTC register. The program becomes as follows:
.INCLUDE M32DEF.INC
LDI R16,0xFF ;R16 = 11111111 (binary)
OUT DDRB,R16 ;make Port B an output port
OUT PORTC,R16 ;make the pull-up resistors of C active
LDI R16,0x00 ;R16 = 00000000 (binary)
OUT DDRC,R16 ;Port C an input port (0 for I)
L2: IN R16,PINC ;move data from Port C to R16
LDI R17,5
ADD R16,R17 ;add some value to it
RJMP L2 ;continue forever
Again, it must be noted that unless we clear the DDR bits (by putting 0s
there), the data will not be brought into the registers from the pins of Port C. To
up the pin. See Figure 4.
Figure 4. The Pull-up Resistor
143

see the role of the DDRx register in allowing the data to come into the CPU from
The pins of the AVR microcontrollers can be in four different states accord-
This is one of powerful features of the AVR microcontroller, since most of
the other microcontrollers’ pins (e.g., 8051) have fewer states.
Port A
Port A occupies a total of 8 pins (PA0–PA7). To use the pins of Port A as
input or output ports, each bit of the DDRA register must be set to the proper
value. For example, the following code will continuously send out to Port A the
alternating values of 0x55 and 0xAA:
;toggle all bits of PORTA
.INCLUDE M32DEF.INC
LDI R16,0xFF ;R16 = 11111111 (binary)
OUT DDRA,R16 ;make Port A an output port
L1: LDI R16,0x55 ;R16 = 0x55
OUT PORTA,R16 ;put 0x55 on Port A pins
CALL DELAY
LDI R16,0xAA ;R16 = 0xAA
OUT PORTA,R16 ;put 0xAA on Port A pins
CALL DELAY
RJMP L1
It must be noted that 0x55 (01010101) when complemented becomes
0xAA (10101010).
Port A as input
In order to make all the bits of Port A an input, DDRA must be cleared by
writing 0 to all the bits. In the following code, Port A is configured first as an input
port by writing all 0s to register DDRA, and then data is received from Port A and
saved in a RAM location:
.INCLUDE M32DEF.INC
.EQU MYTEMP 0x100 ;save it here
LDI R16,0x00 ;R16 = 00000000 (binary)
OUT DDRA,R16 ;make Port A an input port (0 for In)
NOP ;synchronizer delay
IN R16,PINA ;move from pins of Port A to R16
STS MYTEMP,R16 ;save it in MYTEMP
PORTx
DDRx
the pins, examine Figure 3.
ing to the values of PORTx and DDRx, as shown in Figure 5.
Figure 5. Different States of a Pin in the AVR Microcontroller
144

Synchronizer delay
The input circuit of the AVR has a delay of 1 clock cycle. In other words,
the PIN register represents the data that was present at the pins one clock ago. In
the above code, when the instruction “IN R16,PINA” is executed, the PINA regis-
ter contains the data, which was present at the pins one clock before. That is why
the NOP is put before the “IN R16,PINA” instruction. (If the NOP is omitted, the
read data is the data of the pins when the port was output.)
Port B
Port B occupies a total of 8 pins (PB0–PB7). To use the pins of Port B as
input or output ports, each bit of the DDRB register must be set to the proper
value.
For example, the following code will continuously send out the alternating
values of 0x55 and 0xAA to Port B:
;toggle all bits of PORTB
.INCLUDE M32DEF.INC
LDI R16,0xFF ;R16 = 11111111 (binary)
OUT DDRB,R16 ;make Port B an output port (1 for Out)
L1: LDI R16,0x55 ;R16 = 0x55
OUT PORTB,R16 ;put 0x55 on Port B pins
CALL DELAY
OUT PORTB,R16 ;put 0xAA on Port B pins
CALL DELAY
RJMP L1
Port B as input
In order to make all the bits of Port B an input, DDRB must be cleared by
writing 0 to all the bits. In the following code, Port B is configured first as an input
port by writing all 0s to register DDRB, and then data is received from Port B and
saved in some RAM location:
.INCLUDE M32DEF.INC
.EQU MYTEMP=0x100 ;save it here
LDI R16,0x00 ;R16 = 00000000 (binary)
OUT DDRB,R16 ;make Port B an input port (0 for In)
NOP
IN R16,PINB ;move from pins of Port B to R16
Dual role of Ports A and B
The AVR multiplexes some other functions through Port B to save pins.
The AVR multiplexes an analog-to-digital converter through Port A to save
I/O pins. The alternate functions of the pins for Port A are shown in Table 3.
Because many projects use an ADC, we usually do not use Port A for simple I/O
functions.
145

Port C
Port C occupies a total of 8 pins (PC0–PC7). To use the pins of Port C as
input or output ports, each bit of the DDRC register must be set to the proper
value. For example, the following code will continuously send out the alternating
values of 0x55 and 0xAA to Port C:
.INCLUDE M32DEF.INC
LDI R16,0xFF ;R16 = 11111111 (binary)
OUT DDRC,R16 ;make Port C an output port (1 for Out)
L1: LDI R16,0x55 ;R16 = 0x55
OUT PORTC,R16 ;put 0x55 on Port C pins
CALL DELAY
OUT PORTC,R16 ;put 0xAA on Port C pins
CALL DELAY
RJMP L1
Port C as input
In order to make all the bits of Port C an input, DDRC must be cleared by
writing 0 to all the bits. In the following code, Port C is configured first as an input
port by writing all 0s to register DDRC, and then data is received from Port C and
.INCLUDE M32DEF.INC
LDI R16,0x00 ;R16 = 00000000 (binary)
OUT DDRC,R16 ;make Port C an input port (0 for In)
NOP
IN R16,PINC ;move from pins of Port C to R16
Port D
Port D occupies a total of 8 pins (PD0–PD7). To use the pins of Port D as
input or output ports, each bit of the DDRD register must be set to the proper
Functions
Bit Function
PB0 XCK/T0
PB1 T1
PB2 INT2/AIN0
PB3 OC0/AIN1
PB4 SS
PB5 MOSI
PB6 MISO
PB7 SCK
Functions
Bit Function
PA0 ADC0
PA1 ADC1
PA2 ADC2
PA3 ADC3
PA4 ADC4
PA5 ADC5
PA6 ADC6
PA7 ADC7
The alternate functions of the pins for Port B are shown in Table 4.
Table 3: Port A Alternate Table 4: Port B Alternate
146

value. For example, the following code will continuously send out to Port D the
alternating values of 0x55 and 0xAA:
.INCLUDE M32DEF.INC
LDI R16,0xFF ;R16 = 11111111 (binary)
OUT DDRD,R16 ;make Port D an output port (1 for Out)
L1: LDI R16,0x55 ;R16 = 0x55
OUT PORTD,R16 ;put 0x55 on Port D pins
CALL DELAY
OUT PORTD,R16 ;put 0xAA on Port D pins
CALL DELAY
RJMP L1
Port D as input
In order to make all the bits of Port D an input, DDRD must be cleared by
writing 0 to all the bits. In the following code, Port D is configured first as an input
port by writing all 0s to register DDRD, and then data is received from Port D and
.INCLUDE M32DEF.INC
LDI R16,0x00 ;R16 = 00000000 (binary)
OUT DDRD,R16 ;make Port D an input port (0 for In)
NOP
IN R16,PIND ;move from pins of Port D to R16
Dual role of Ports C and D
Functions
Bit Function
PC0 SCL
PC1 SDA
PC2 TCK
PC3 TMS
PC4 TDO
PC5 TDI
PC6 TOSC1
PC7 TOSC2
Functions
Bit Function
PD0 PSP0/C1IN+
PD1 PSP1/C1IN-
PD2 PSP2/C2IN+
PD3 PSP3/C2IN-
PD4 PSP4/ECCP1/P1A
PD5 PSP5/P1B
PD6 PSP6/P1C
PD7 PSP7/P1D
Table 5: Port C Alternate Table 6: Port D Alternate
The alternate functions of the pins for Port C are shown in Table 5. The
alternate functions of the pins for Port D are shown in Table 6.
147

Write a test program for the AVR chip to toggle all the bits of PORTB, PORTC, and
PORTD every 1/4 of a second. Assume a crystal frequency of 1 MHz.
Solution:
;tested with AVR Studio for the ATmega32 and XTAL = 1 MHz
;to select the XTAL frequency in AVR Studio, press ALT+O
.INCLUDE M32DEF.INC
LDI R16, HIGH(RAMEND)
OUT SPH, R16
LDI R16, LOW(RAMEND)
OUT SPL, R16 ;initialize stack pointer
LDI R16, 0xFF
OUT DDRB, R16 ;make Port B an output port
OUT DDRC, R16 ;make Port C an output port
OUT DDRD, R16 ;make Port D an output port
LDI R16, 0x55 ;R16 = 0x55
L3: OUT PORTB, R16 ;put 0x55 on Port B pins
OUT PORTC, R16 ;put 0x55 on Port C pins
OUT PORTD, R16 ;put 0x55 on Port D pins
CALL QDELAY ;quarter of a second delay
RJMP L3
;---------------1/4 SECOND DELAY
QDELAY:
LDI R21, 200
D1: LDI R22, 250
D2: NOP
NOP
DEC R22
BRNE D2
DEC R21
BRNE D1
RET
Calculations:
1 / 1 MHz = 1 µs
Delay = 200 × 250 × 5 MC × 1 µs = 250,000 µs (If we include the overhead, we will
Example 1
Use the AVR Studio simulator to verify the delay size.
have 250,608 µs.)
148

Review Questions
1. There are a total of _____ ports in the ATmega32.
2. True or false. All of the ATmega32 ports have 8 pins.
3. True or false. Upon power-up, the I/O pins are configured as output ports.
4. Code a simple program to send 0x99 to Port B and Port C.
5. To make Port B an output port, we must place _______ in register _______.
6. To make Port B an input port, we must place _______ in register _______.
7. True or false. We use a PORTx register to send data out to AVR pins.
8. True or false. We use PINx to bring data into the CPU from AVR pins.
In this section we further examine the AVR I/O instructions. We pay spe-
cial attention to I/O bit manipulation because it is a powerful and widely used fea-
ture of the AVR family.
I/O ports and bit-addressability
Sometimes we need to access only 1 or 2 bits of the port instead of the
entire 8 bits. A powerful feature of AVR I/O ports is their capability to access indi-
vidual bits of the port without altering the rest of the bits in that port. For all AVR
ports, we can access either all 8 bits or any single bit without altering the rest.
them most often.
Next we describe all these instructions and examine their usage.
Instruction Function
SBI ioReg,bit Set Bit in I/O register (set the bit: bit = 1)
CBI ioReg,bit Clear Bit in I/O register (clear the bit: bit = 0)
SBIC ioReg,bit Skip if Bit in I/O register Cleared (skip next instruction if bit = 0)
SBIS ioReg,bit Skip if Bit in I/O register Set (skip next instruction if bit = 1)
Name
Address
I/O
Mem.
$00
$20 TWBR
$01
$21 TWSR
$04
$24 ADCL
$05
$25 ADCH
$02
$22 TWAR
$03
$23 TWDR
$06
$26 ADCSRA
$07
$27 ADMUX
$08
$28 ACSR
$09
$29 UBRRL
$0A
$2A UCSRB
$0B
$2B UCSRA
$0C
$2C UDR
$0D
$2D SPCR
$0E
$2E SPSR
$0F
$2F
PIND
$10
$30
DDRD
$11
$31
PORTD
$12
$32
PINC
$13
$33
DDRC
$14
$34
PORTC
$15
$35
PINB
$16
$36
DDRB
$17
$37
PORTB
$18
$38
PINA
$19
$39
DDRA
$1A
$3A
PORTA
$1B
$3B
EECR
$1C
$3C
EEDR
$1D
$3D
EEARL
$1E
$3E
EEARH
$1F
$3F
SPDR
Name
Address
I/O
Mem.
Name
Address
I/O
Mem.
SECTION 2: I/O BIT MANIPULATION PROGRAMMING
Table 8 shows the lower 32 I/O registers.
Table 7: Single-Bit (Bit-Oriented) Instructions for AVR
Table 8: The Lower 32 I/O Registers
Table 7 can be used for any of the lower 32 I/O registers, I/O port operations use
Table 7 lists the single-bit instructions for the AVR. Although the instructions in
149

SBI (set bit in I/O register)
To set HIGH a single bit of a given I/O register, we use the following syn-
tax:
SBI ioReg, bit_num
where ioReg can be the lower 32 I/O registers (addresses 0 to 31) and
lower 32 I/O registers. Although the bit-oriented instructions can be used for
manipulation of bits D0–D7 of the lower 32 I/O registers, they are mostly used for
I/O ports. For example the following instruction sets HIGH bit 5 of Port B:
SBI PORTB, 5
CBI (Clear Bit in I/O register)
To clear a single bit of a given I/O register, we use the following syntax:
CBI ioReg, bit_number
For example, the following code toggles pin PB2 continuously:
SBI DDRB, 2 ;bit = 1, make PB2 an output pin
AGAIN:SBI PORTB, 2 ;bit set (PB2 = high)
CALL DELAY
CBI PORTB, 2 ;bit clear (PB2 = low)
CALL DELAY
RJMP AGAIN
Remember that for I/O ports, we must set the appropriate bit in the
DDRx register if we want the pin to be output.
Notice that PB2 is the third bit of Port B (the first bit is PB0, the second bit
manipulation of I/O bits.
bit_num is the desired bit number from 0 to 7. In Table 8 you see the list of the
In Figure 6, you see the SBI instruction format.
Figure 6. SBI (Set Bit) Instruction Format
Figure 7. CBI (Clear Bit) Instruction Format
is PB1, etc.). This is shown in Table 9. See Example 2 for an example of bit
150

single-bit addressability of I/O ports is one of the most powerful features of the
AVR microcontroller.
An LED is connected to each pin of Port D. Write a program to turn on each LED from
pin D0 to pin D7. Call a delay subroutine before turning on the next LED.
Solution:
.INCLUDE M32DEF.INC
OUT SPH, R20
LDI R20, 0xFF
OUT PORTD, R20 ;make PORTD an output port
SBI PORTD,0 ;set bit PD0
CALL DELAY ;delay before next one
SBI PORTD,1 ;turn on PD1
CALL DELAY ;delay before next one
SBI PORTD,2 ;turn on PD2
CALL DELAY
SBI PORTD,3
CALL DELAY
SBI PORTD,4
CALL DELAY
SBI PORTD,5
CALL DELAY
SBI PORTD,6
CALL DELAY
SBI PORTD,7
CALL DELAY
PORT PORTB PORTC PORTD Port Bit
PA0 PB0 PC0 PD0 D0
PA1 PB1 PC1 PD1 D1
PA2 PB2 PC2 PD2 D2
PA3 PB3 PC3 PD3 D3
PA4 PB4 PC4 PD4 D4
PA5 PB5 PC5 PD5 D5
PA6 PB6 PC6 PD6 D6
PA7 PB7 PC7 PD7 D7
Table 9: Single-Bit Addressability of Ports for ATmega32/16
Example 2
Notice in Example 2 that unused portions of Port C are undisturbed. This
151

Write the following programs:
(a) Create a square wave of 50% duty cycle on bit 0 of Port C.
(b) Create a square wave of 66% duty cycle on bit 3 of Port C.
Solution:
(a) The 50% duty cycle means that the “on” and “off” states (or the high and low por-
tions of the pulse) have the same length. Therefore, we toggle PC0 with a time delay
between each state.
.INCLUDE M32DEF.INC
OUT SPH, R20
SBI DDRC, 0 ;set bit 0 of DDRC (PC0 = out)
HERE: SBI PORTC, 0 ;set to HIGH PC0 (PC0 = 1)
CALL DELAY ;call the delay subroutine
CBI PORTC, 0 ;PC0 = 0
CALL DELAY
RJMP HERE ;keep doing it
(b) A 66% duty cycle means that the “on” state is twice the “off” state.
....
SBI DDRC, 3 ;set bit 3 of DDRC (PC3 = out)
HERE: SBI PORTC, 3 ;set to HIGH PC3 (PC3 = 1)
CBI PORTC, 3 ;PC3 = 0
CALL DELAY
RJMP HERE ;keep doing it
ATmega32
PC0
ATmega32
PC3
Example 3
152

Checking an input pin
To make decisions based on the status of a given bit in the file register, we
use the SBIC (Skip if Bit in I/O register Cleared) and SBIS (Skip if Bit in I/O reg-
ister Set) instructions. These single-bit instructions are widely used for I/O opera-
tions. They allow you to monitor a single pin and make a decision depending on
whether it is 0 or 1. Again it must be noted that the SBIC and SBIS instructions
can be used for any bits of the lower 32 I/O registers, including the I/O ports A, B,
C, D, and so on.
SBIS (Skip if Bit in I/O register Set)
To monitor the status of a single bit for HIGH, we use the SBIS instruction.
This instruction tests the bit and skips the next instruction if it is HIGH. See Figure
Write a program to perform the following:
(a) Keep monitoring the PB2 bit until it becomes HIGH;
(b) When PB2 becomes HIGH, write the value $45 to Port C, and also send a HIGH-to-
LOW pulse to PD3.
Solution:
.INCLUDE M32DEF.INC
CBI DDRB, 2 ;make PB2 an input
LDI R16, 0xFF
OUT DDRC, R16 ;make Port C an output port
SBI DDRD, 3 ;make PD3 an output
AGAIN: SBIS PINB, 2 ;skip if Bit PB2 is HIGH
RJMP AGAIN ;keep checking if LOW
LDI R16, 0x45
OUT PORTC, R16 ;write 0x45 to port C
SBI PORTD, 3 ;set bit PD3 (H-to-L)
CBI PORTD, 3 ;clear bit PD3
HERE: RJMP HERE
In this program, “SBIS PINB,2” instruction stays in the loop as long as PB2
is LOW. When PB2 becomes HIGH, it skips the branch instruction to get out of the
loop, and writes the value $45 to Port C. It also sends a HIGH-to-LOW pulse to PD3.
8. Example 4 shows how it is used.
Figure 8. SBIS (Skip If Bit in I/O Register Set) Instruction Format
Example 4
153

SBIC (Skip if Bit in I/O register Cleared)
To monitor the status of a single bit for LOW, we use the SBIC instruction.
This instruction tests the bit and skips the instruction right below it if the bit is
Monitoring a single bit
Assume that bit PB3 is an input and represents the condition of a door alarm. If it goes
LOW, it means that the door is open. Monitor the bit continuously. Whenever it goes
LOW, send a HIGH-to-LOW pulse to port PC5 to turn on a buzzer.
Solution:
.INCLUDE M32DEF.INC
SBI DDRC, 5 ;make PC5 an output
HERE: SBIC PINB, 3 ;keep monitoring PB3 for HIGH
RJMP HERE ;stay in the loop
SBI PORTC,5 ;make PC5 HIGH
CBI PORTC,5 ;make PC5 LOW for H-to-L
RJMP HERE
LOW. See Figure 9. Example 5 shows how it is used.
Figure 9. SBIC (Skip if Bit in I/O Register Cleared) Instruction Format
Example 5
and make a decision to perform an action. See Examples 6 and 7.
We can also use the bit test instructions to monitor the status of a single bit
154

A switch is connected to pin PB2. Write a program to check the status of SW and per-
form the following:
(a) If SW = 0, send the letter ‘N’ to PORTD.
(b) If SW = 1, send the letter ‘Y’ to PORTD.
Solution:
.INCLUDE M32DEF.INC
LDI R16, 0xFF
OUT DDRD, R16 ;make PORTD an output port
AGAIN:SBIS PINB, 2 ;skip next if PB bit is HIGH
RJMP OVER ;SW is LOW
LDI R16, 'Y' ;R16 = 'Y' (ASCII letter Y)
OUT PORTD, R16 ;PORTD = 'Y'
RJMP AGAIN
OVER: LDI R16, 'N' ;R16 = 'N' (ASCII letter Y)
OUT PORTD, R16 ;PORTD = 'N'
RJMP AGAIN
MAKE INPUT
MAKE OUTPUT
CBI DDRB, 2
LDI R16, 0XFF
OUT DDRD, R16
SBIS PINB, 2
INSTRUCTIONS
LDI R16, ‘Y’
OUT PORTD, R16
RJMP AGAIN
RJMP OVER
LDI R16, ‘N’
RJMP AGAIN
OUT PORTD, R16
NO
YES
IS IT ONE?
JUMP TO OVER
LOAD ASCII ‘Y’
SEND TO PORTD
REPEAT
LOAD ASCII ‘N’
SEND TO PORTD
REPEAT
AGAIN:
OVER:
Example 6
155

Solution:
.INCLUDE M32DEF.INC
LDI R16, 0xFF
OUT DDRD, R16 ;make PORTD an output port
AGAIN:SBIC PINB, 2 ;skip next if PB bit is LOW
RJMP OVER ;SW is HIGH
LDI R16, 'N' ;R16 = 'N' (ASCII letter N)
OUT PORTD, R16 ;PORTD = 'N'
RJMP AGAIN
OVER: LDI R16, 'Y' ;R16 = 'Y' (ASCII letter Y)
OUT PORTD, R16 ;PORTD = 'Y'
RJMP AGAIN
MAKE INPUT
MAKE OUTPUT
CBI DDRB, 2
LDI R16, 0XFF
OUT DDRD, R16
SBIC PINB, 2
INSTRUCTIONS
LDI R16, ‘N’
OUT PORTD, R16
RJMP AGAIN
RJMP OVER
LDI R16, ‘Y’
RJMP AGAIN
OUT PORTD, R16
NO
YES
IS IT ZERO?
JUMP TO OVER
LOAD ASCII ‘N’
SEND TO PORTD
REPEAT
LOAD ASCII ‘Y’
SEND TO PORTD
REPEAT
AGAIN:
OVER:
Example 7
Rewrite the program of Example 6, using the SBIC instruction instead of SBIS.
156

Reading a single bit
We can also use the bit test instructions to read the status of a single bit and
A switch is connected to pin PB0 and an LED to pin PB7. Write a program to get the
status of SW and send it to the LED.
Solution:
.INCLUDE M32DEF.INC
SBI DDRB, 7 ;make PB7 an output
AGAIN:SBIC PINB, 0 ;skip next if PB0 is clear
RJMP OVER ;(JMP is OK too)
CBI PORTB, 7
RJMP AGAIN ;we can use JMP too
OVER: SBI PORTB, 7
A switch is connected to pin PB0. Write a program to get the status of SW and save it
in location 0x200.
Solution:
.EQU MYTEMP = 0x200 ;set aside location 0x200
.INCLUDE M32DEF.INC
AGAIN:SBIC PINB, 0 ;skip next if PB0 is clear
RJMP OVER ;(JMP is OK too)
LDI R16, 0
OVER: LDI R16,0x1 ;move 1 to R16
RB0
RB7
AVR
4.7k
Switch
VCC
270
LED
send it to another bit or save it. This is shown in Examples 8 and 9.
Example 8
Example 9
157

Review Questions
1. True or false. The instruction “SBI PORTB, 1” makes pin PB1 HIGH while
leaving other pins of PORTB unchanged, if bit 1 of the DDR bits is configured
for output.
2. Show one way to toggle the pin PB7 continuously using AVR instructions.
3. Write instructions to get the status of PB2 and put it on PB0.
4. Write instructions to toggle both bits of PD7 and PD0 continuously.
5.
SUMMARY
This chapter focused on the I/O ports of the AVR. The four ports of the
ATmega32, PORTA, PORTB, PORTC, and PORTD, were explored. These ports
can be used for input or output. All the ports have alternate functions. The three
manipulation was examined. Then, I/O instructions of the AVR were explained,
and numerous examples were given. We also showed the bit-addressability of AVR
ports.
PROBLEMS
1. The ATmega32 has a DIP package of ____ pins.
2. In ATmega32, how many pins are assigned to VCC and GND?
3. In the ATmega32, how many pins are designated as I/O port pins?
4. How many pins are designated as PORTA in the 40-pin DIP package and what
are their numbers?
5. How many pins are designated as PORTB in the 40-pin DIP package and what
are their numbers?
6. How many pins are designated as PORTC in the 40-pin DIP package and what
are their numbers?
7. How many pins are designated as PORTD in the 40-pin DIP package and what
are their numbers?
8. Upon reset, all the bits of ports are configured as _____ (input, output).
9. Explain the role of DDRx and PORTx in I/O operations.
CAUTION
According to Figure 7, what does the machine instruction $9819 do?
registers associated with each port are PORTx, DDRx, and PINx. Their role in I/O
We strongly recommend that you study Appendix: AVR I/O Port
Structure and Interfacing before connecting any external hardware
to your AVR system. Failure to use the right instruction or the right
connection to port pins can damage the ports of your AVR chip.
158

10. Write a program to get 8-bit data from PORTC and send it to PORTB and
PORTD.
11. Write a program to get 8-bit data from PORTD and send it to PORTB and
PORTC.
12. Which pins are for RxD and TxD?
13. Give data memory location assigned to DDR registers of Ports A–C for the
ATmega32.
14. Write a program to toggle all the bits of PORTB and PORTC continuously
(a) using 0xAA and 0x55 (b) using the COM instruction.
15. Which ports of the ATmega32 are bit-addressable?
16. What is the advantage of bit-addressability for AVR ports?
17. Is the instruction “COM PORTB” a valid instruction?
18. Write a program to toggle PB2 and PB5 continuously without disturbing the
rest of the bits.
19. Write a program to toggle PD3, PD7, and PC5 continuously without disturbing
the rest of the bits.
20. Write a program to monitor bit PC3. When it is HIGH, send 0x55 to PORTD.
21. Write a program to monitor the PB7 bit. When it is LOW, send $55 and $AA
to PORTC continuously.
22. Write a program to monitor the PA0 bit. When it is HIGH, send $99 to PORTB.
If it is LOW, send $66 to PORTB.
23. Write a program to monitor the PB5 bit. When it is HIGH, make a LOW-to-
HIGH-to-LOW pulse on PB3.
24. Write a program to get the status of PC3 and put it on PC4.
25. Create a flowchart and write a program to get the statuses of PD6 and PD7 and
put them on PC0 and PC7, respectively.
26. Write a program to monitor the PB5 and PB6 bits. When both of them are
HIGH, send $AA to PORTC; otherwise, send $55 to PORTC.
27. Write a program to monitor the PB5 and PB6 bits. When either of them is
HIGH, send $AA to PORTC; otherwise, send $55 to PORTC.
PINB,3”.
“SBI PORTA,2” instruction.
28. Referring to Figure 8 and Table 8, write the machine equivalent of “SBIS
29. Referring to Figure 6 and Table 8, write the machine equivalent of the
159

1. 4
2. True
3. False
4. LDI R16,0xFF
OUT DDRB,R16
OUT DDRC,R16
LDI R16,0x99
OUT PORTB,R16
OUT PORTC,R16
5. $FF, DDRB
6. $00, DDRB
7. True
8. True
1. True
2. CBI DDRB,7
H1: SBI PORTB,7
CBI PORTB,7
RJMP H1
3. CBI DDRB,2
SBI DDRB,0
AGAIN: SBIS PINB,2
RJMP OVER
SBI PORTB,0
RJMP AGAIN
OVER: CBI PORTB,0
RJMP AGAIN
4. SBI DDRD,0
SBI DDRD,7
H2: SBI PORTD,0
SBI PORTD,7
CBI PORTD,0
CBI PORTD,7
RJMP H2
5.
$9819 is 1001 1000 0001 1001 in binary; according to Figure 7, this is the CBI instruction,
thus, this is the “CBI TWDR,1” instruction and clears bit 1 of the TWDR register.
where a = 00011 = 3 and b = 001 = 1. According to Table 8, 3 is the I/O address of TWDR;
160

OBJECTIVES

Define the range of numbers possible in AVR unsigned data

Code addition and subtraction instructions for unsigned data

Code AVR multiplication instructions

Code AVR programs for division

Code AVR Assembly language logic instructions AND, OR, and EX-OR

Use AVR logic instructions for bit manipulation

Use compare instructions for program control

Code conditional branch instructions

Code AVR rotate instructions and data serialization

Contrast and compare packed and unpacked BCD data

Code AVR programs for ASCII and BCD data conversion
ARITHMETIC, LOGIC
INSTRUCTIONS, AND
PROGRAMS
161

Unsigned numbers are defined as data in which all the bits are used to rep-
resent data and no bits are set aside for the positive or negative sign. This means
that the operand can be between 00 and FFH (0 to 255 decimal) for 8-bit data.
Addition of unsigned numbers
In the AVR, the add operation has two general purpose registers as inputs
and the result will be stored in the first (left) register. One form of the ADD
instruction in the AVR is:
ADD Rd,Rr ;Rd = Rd + Rr
The instruction adds Rr (resource) to Rd (destination) and stores the result
in Rd. It could change any of the Z, C, N, V, H or S bits of the status register,
depending on the operands involved. The effect of the ADD instruction on N and
Notice that none of the AVR addition instructions support direct memory
access; that is, we cannot add a memory location to another memory location or
register. To add a memory location we should first load it to any of the R0–R31
Show how the flag register is affected by the following instructions.
LDI R21,0xF5 ;R21 = F5H
LDI R22,0x0B ;R22 = 0x0BH
ADD R21,R22 ;R21 = R21+R22 = F5+0B = 00 and C = 1
Solution:
F5H 1111 0101
+ 0BH + 0000 1011
100H 0000 0000
After the addition, register R21 contains 00 and the flags are as follows:
C = 1 because there is a carry out from D7.
Z = 1 because the result in destination register (R21) is zero.
H = 1 because there is a carry from D3 to D4.
ARITHMETIC, LOGIC INSTRUCTIONS, AND PROGRAMS
SECTION 1: ARITHMETIC INSTRUCTIONS
ber operations. Look at Example 1.
registers and then use the ADD operation on it. Look at Example 2.
V is discussed in Section 2 because these bits are relevant mainly in signed num-
Example 1
This chapter describes AVR arithmetic and logic instructions. Program
examples are given to illustrate the application of these instructions. In Section 1
we discuss instructions and programs related to addition, subtraction, multiplica-
tion, and division of unsigned numbers. Signed numbers are described in Section
2. In Section 3, we discuss the logic instructions AND, OR, and XOR, as well as
the compare instruction. The rotate and shift instructions and data seri-alization are
explained in Section 4. In Section 5 we introduce BCD and ASCII conversion.
162

ADC and addition of 16-bit numbers
propagation of a carry from the lower byte to the higher byte. This is called multi-
byte addition to distinguish it from the addition of individual bytes. The instruc-
tion ADC (ADD with carry) is used on such occasions.
For example, look at the addition of 3CE7H + 3B8DH, as shown next.
1
3C E7
+ 3B 8D
78 74
When the first byte is added, there is a carry (E7 + 8D = 74, C = 1). The
carry is propagated to the higher byte, which results in 3C + 3B + 1 = 78 (all in
Assume that RAM location 400H has the value of 33H. Write a program to find the sum
of location 400H of RAM and 55H. At the end of the program, R21 should contain the
sum.
Solution:
LDS R2,0x400 ;R2 = 33H (location 0x400 of RAM)
LDI R21,0x55 ;R21 = 55
ADD R21,R2 ;R21 = R21 + R2 = 55H + 33H = 88H, C = 0
Write a program to add two 16-bit numbers. The numbers are 3CE7H and 3B8DH.
Assume that R1 = 8D, R2 = 3B, R3 = E7, and R4 = 3C. Place the sum in R3 and R4;
R3 should have the lower byte.
Solution:
;R1 = 8D
;R2 = 3B
;R3 = E7
;R4 = 3C
ADD R3,R1 ;R3 = R3 + R1 = E7 + 8D = 74 and C = 1
ADC R4,R2 ;R4 = R4 + R2 + carry, adding the upper byte
;with carry from lower byte
;R4 = 3C + 3B + 1 = 78H (all in hex)
Notice the use of ADD for the lower byte and ADC for the higher byte.
Example 2
hex). Example 3 shows the above steps in an AVR program.
Example 3
When adding two 16-bit data operands, we need to be concerned with the
163

Subtraction of unsigned numbers
In many microprocessors, there are two different instructions for subtrac-
tion: SUB and SUBB (subtract with borrow). In the AVR we have five instructions
The SBC and SBCI instructions are subtract with borrow. In the AVR, we
use the C (carry) flag for the borrow and that is why they are called SBC (SuB with
Carry). In this section we will examine some of these commands.
SUB Rd,Rr (Rd = Rd – Rr)
In subtraction, the AVR microcontrollers (indeed, all modern CPUs) use
the 2’s complement method. Although every CPU contains adder circuitry, it
would be too cumbersome (and take too many transistors) to design separate sub-
tractor circuitry. For this reason, the AVR uses adder circuitry to perform the sub-
tion and that C = 0 prior to the execution of the instruction, one can summarize the
steps of the hardware of the CPU in executing the SUB instruction for unsigned
numbers as follows:
1. Take the 2’s complement of the subtrahend (right-hand operand).
2. Add it to the minuend (left-hand operand).
3. Invert the carry.
SUB Rd,Rr ;Rd=Rd-Rr
SBC Rd,Rr ;Rd=Rd-Rr-c
SUBI Rd,K ;Rd=Rd-K
SBCI Rd,K ;Rd=Rd-K-c
SBIW Rd:Rd+1,K ;Rd+1:Rd=Rd+1:Rd-K
Show the steps involved in the following.
LDI R20, 0x23 ;load 23H into R20
LDI R21, 0x3F ;load 3FH into R21
SUB R21, R20 ;R21 - R21-R20
Solution:
R21 = 3F 0011 1111 0011 1111
- R20 = 23 0010 0011 + 1101 1101 (2’s complement)
1C 1 0001 1100
C = 0, D7 = N = 0 (result is positive)
The flags would be set as follows: N = 0, C = 0. (Notice that there is a carry but C = 0.
We will discuss this more in the next section.) The programmer must look at the N (or
C) flag to determine if the result is positive or negative.
traction command. Assuming that the AVR is executing a simple subtract instruc-
Figure 1.
Example 4
of each instruction.
for subtraction: SUB, SBC, SUBI, SBCI, and SBIW. Figure 1 shows a summary
164

These two steps are performed for every SUB instruction by the internal
hardware of the CPU, regardless of the source of the operands, provided that the
addressing mode is supported. It is after these two steps that the result is obtained
After the execution of the SUB instruction, if N = 0 (or C = 0), the result
is positive; if N = 1 (or C = 1), the result is negative and the destination has the 2’s
complement of the result. Normally, the result is left in 2’s complement, but the
NEG (negate, which is 2’s complement) instruction can be used to change it. The
other subtraction instructions for subtract are SUBI and SBIW, which subtract an
immediate (constant) value from a register. SBIW subtracts an immediate value in
the range of 0–63 from a register pair and stores the result in the register pair.
Write a program to subtract 18H from 29H and store the result in R21 (a) without using
the SUBI instruction, and (b) using the SUBI instruction.
Solution:
(a)
LDI R21,0x29 ;R21 = 29H
LDI R22,0x18 ;R22 = 18H
SUB R21,R22 ;R21 = R21 - R22 = 29 - 18 = 11 H
(b)
LDI R21,0x29 ;R21 = 29H
SUBI R21,0x18 ;R21 = R21 - 18 = 29 - 18 = 11 H
Write a program to subtract 18H from 2917H and store the result in R25 and R24.
Solution:
LDI R25,0x29 ;load the high byte (R25 = 29H)
LDI R24,0x17 ;load the low byte (R24 = 17H)
SBIW R25:R24,0x18 ;R25:R24 - R25:R24 - 0x18
;28FF = 2917 - 18
Notice that you should use SBIW Rd+1:Rd,K format. If SBIW Rd:Rd+1,K format is
used, the assembler will assemble your code as if you had typed SBIW Rd+1:Rd,K
Change the third line of the code from SBIW R25:R24,0x18 to SBIW R24:R25,0x18
and examine the result.
and the flags are set. Example 4 illustrates the two steps.
and 6.
Example 5
Example 6
Notice that only the last eight registers can be used with SBIW. See Examples 5
165

SBC (Rd ← Rd – Rr – C) subtract with borrow (denoted by C)
This instruction is used for multibyte numbers and will take care of the bor-
row of the lower byte. If the borrow flag is set to one (C = 1) prior to executing
the SBC instruction, this operation also subtracts 1 from the result. See
The C flag in subtraction for AVR
Notice that the AVR is like other CPUs such as the x86 and the 8051 when
it comes to the carry flag in subtract operations. In the AVR, after subtract opera-
tions, the carry is inverted by the CPU itself and we examine the C flag to see if
the result is positive or negative. This means that, after subtract operations, if C =
1, the result is negative, and if C = 0, the result is positive. If you study
you know the reason; it is because the CPU inverts the carry flag after the SUB
instruction. Notice that the CPU does not invert the carry flag after the ADD
instruction.
Multiplication of unsigned numbers
The AVR has several instructions dedicated to multiplication. Here we will
discuss the MUL instruction. Other instructions are similar to MUL but are used
MUL is a byte-by-byte multiply instruction. In byte-by-byte multiplication,
operands must be in registers. After multiplication, the 16-bit unsigned product is
placed in R1 (high byte) and R0 (low byte). Notice that if any of the operands is
selected from R0 or R1 the result will overwrite those registers after multiplica-
tion.
Write a program to subtract two 16-bit numbers: 2762H – 1296H. Assume R26 = (62)
and R27 = (27). Place the difference in R26 and R27; R26 should have the lower byte.
Solution:
;R26 = (62)
;R27 = (27)
LDI R28,0x96 ;load the low byte (R28 = 96H)
LDI R29,0x12 ;load the high byte (R29 = 12H)
SUB R26,R28 ;R26 = R26 - R28 = 62 - 96 = CCH
;C = borrow = 1, N = 1
SBC R27,R29 ;R27 = R27 - R29 - C
;R27 = 27 - 12 - 1 = 14H
After the SUB, R26 has = 62H − 96H = CCH and the carry flag is set to 1, indicating
there is a borrow (notice, N = 1). Because C = 1, when SBC is executed R27 has
27H − 12H − 1 = 14H. Therefore, we have 2762H − 1296H = 14CCH.
Example 7.
Example 7
for signed numbers. See Table 1.
Example 4 again, you will see that there was a carry from MSB, but C = 0. Now
166

The following example multiplies 25H by 65H.
LDI R23,0x25 ;load 25H to R23
LDI R24,0x65 ;load 65H to R24
MUL R23,R24 ;25H * 65H = E99 where
;R1 = 0EH and R0 = 99H
Division of unsigned numbers
AVR has no instruction for divide operation. We can write a program to
perform division by repeated subtraction. In dividing a byte by a byte, the numer-
ator is placed in a register and the denominator is subtracted from it repeatedly.
The quotient is the number of times we subtracted and the remainder is in the reg-
An application for division
Sometimes a sensor is connected to an ADC (analog-to-digital converter)
and the ADC represents some quantity such as temperature or pressure. The 8-bit
ADC provides data in hex in the range of 00–FFH. This hex data must be convert-
ed to decimal. We do that by dividing it by 10 repeatedly, saving the remainders,
.DEF NUM = R20
.DEF DENOMINATOR = R21
.DEF QUOTIENT = R22
LDI NUM,95 ;NUM = 95
LDI DENOMINATOR,10 ;DENOMINATOR = 10
CLR QUOTIENT ;QUOTIENT = 0
L1: INC QUOTIENT
SUB NUM, DENOMINATOR
BRCC L1 ;branch if C is zero
DEC QUOTIENT ;once too many
ADD NUM, DENOMINATOR ;add back to it
Multiplication Application Byte1 Byte2 High byte Low byte
of result of result
MUL Rd, Rr Unsigned numbers Rd Rr R1 R0
MULS Rd, Rr Signed numbers Rd Rr R1 R0
MULSU Rd, Rr Unsigned numbers Rd Rr R1 R0
with signed numbers
Table 1: Multiplication Summary
ister upon completion. See Program 1.
Program 1: Divide Function
as shown in Examples 8 and 9.
167

Assume that the data memory location 0x315 has value FD (hex). Write a program to
convert it to decimal. Save the digits in locations 0x322, 0x323, and 0x324, where the
least-significant digit is in location 0x322.
Solution:
.EQU HEX_NUM = 0x315
.EQU RMND_L = 0x322
.EQU RMND_M = 0x323
.EQU RMND_H = 0x324
.DEF NUM = R20
.DEF QUOTIENT = R22
LDI R16,0xFD ;$FD = 253 in decimal
STS HEX_NUM,R16 ;store $FD in location 0x315
;=====================
LDS NUM, HEX_NUM
LDI DENOMINATOR,10 ;DENOMINATOR = 10
L1: INC QUOTIENT ;
SUB NUM, DENOMINATOR;
BRCC L1 ;if C = 0 go back
STS RMND_L, NUM ;store remainder as the 1st digit
MOV NUM, QUOTIENT
LDI QUOTIENT,0
L2: INC QUOTIENT
BRCC L2
STS RMND_M, NUM ;store remainder as the 2nd digit
STS RMND_H, QUOTIENT ;store quotient as the 3rd digit
To convert a single decimal digit to ASCII format, we OR it with 30H. See Section
5.
Example 8
168

Review Questions
1. In unsigned byte-by-byte multiplication, the product will be placed in regis-
ter(s) __________ .
2. Is “MUL R2,0x10” a valid AVR instruction? Explain your answer.
3. In AVR, the largest two numbers that can be multiplied are ________ and
_________.
4. True or false. The MUL instruction works on R0 and R1 only.
5. The instruction “ADD R20, R21” places the sum in __________.
6. Why is the following ADD instruction illegal? “ADD R1,0x04”
7. Rewrite the instruction above in correct format.
8. The instruction “SUB R1, R2” places the result in _____________.
9. Find the value of the C flags in each of the following.
(a) LDI R21 0x4F (b) LDI R21, 0x9C
LDI R22 0xB1 LDI R22, 0x63
ADD R21, R22 ADD R21, R22
10. Show how the CPU would subtract 05H from 43H.
11. If C = 1, R1 = 95H, and R2 = 4FH prior to the execution of “SBC R1,R2”, what
will be the contents of R1 and C after the subtraction?
Solution:
To convert a binary (hex) value to decimal, we divide it by 10 repeatedly until the quo-
tient is less than 10. After each division the remainder is saved. In the case of an 8-bit
binary, such as FDH, we have 253 decimal, as shown below.
Quotient Remainder
253/10 = 25 3 (low digit)
25/10 = 2 5 (middle digit)
2 (high digit)
Therefore, we have FDH = 253.
Example 9
Analyze the program in Example 8 for a numerator of 253.
169

ARITHMETIC OPERATIONS
All data items used so far have been unsigned numbers, meaning that the
entire 8-bit operand was used for the magnitude. Many applications require signed
data. In this section the concept of signed numbers is discussed along with related
instructions. If your applications do not involve signed numbers, you can bypass
this section.
Concept of signed numbers in computers
In everyday life, numbers are used that could be positive or negative. For
example, a temperature of 5 degrees below zero can be represented as −5, and 20
degrees above zero as +20. Computers must be able to accommodate such num-
bers. To do that, computer scientists have devised the following arrangement for
the representation of signed positive and negative numbers: The most significant
bit (MSB) is set aside for the sign (+ or −), while the rest of the bits are used for
the magnitude. The sign is represented by 0 for positive (+) numbers and 1 for neg-
ative (−) numbers. Signed byte representation is discussed below.
Signed 8-bit operands
In signed byte operands, D7 (MSB) is the sign, and D0 to D6 are set aside
for the magnitude of the number. If D7 = 0, the operand is positive, and if D7 = 1,
it is negative. The N flag in the status register is the D7 bit.
Positive numbers
The range of positive numbers
that can be represented by the format
positive number is larger than +127, a
16-bit operand must be used.
Negative numbers
For negative numbers, D7 is 1; however, the magnitude is represented in
its 2’s complement. Although the assembler does the conversion, it is still impor-
tant to understand how the conversion works. To convert to negative number rep-
resentation (2’s complement), follow these steps:
1. Write the magnitude of the number in 8-bit binary (no sign).
2. Invert each bit.
3. Add 1 to it.
steps.
D7 D6 D5 D4 D3 D2 D1 D0
magnitude
sign
SECTION 2: SIGNED NUMBER CONCEPTS AND
shown in Figure 2 is 0 to +127. If a
Figure 2. 8-Bit Signed Operand
Examples 10, 11, and 12 on the next page demonstrate these three
170

Show how the AVR would represent −128.
Solution:
Observe the following steps.
1. 1000 0000 128 in 8-bit binary
2. 0111 1111 invert each bit
3 1000 0000 add 1 (which becomes 80 in hex)
Therefore, −128 = 80H, the signed number representation in 2’s complement for −128.
The D7 = N = 1 indicates that the number is negative. Notice that 128 (binary
10000000) in unsigned representation is the same as signed –128 (binary 10000000).
Show how the AVR would represent −34H.
Solution:
1. 0011 0100 34H given in binary
3 1100 1100 add 1 (which is CC in hex)
Therefore, −34 = CCH, the signed number representation in 2’s complement for 34H.
The D7 = N = 1 indicates that the number is negative.
Show how the AVR would represent −5.
Solution:
1. 0000 0101 5 in 8-bit binary
3 1111 1011 add 1 (which becomes FB in hex)
Therefore, −5 = FBH, the signed number representation in 2’s complement for −5. The
D7 = N = 1 indicates that the number is negative.
Example 10
Example 11
Example 12
171

From the examples above, it is clear that the range of byte-sized negative
numbers is −1 to −128. The following lists byte-sized signed number ranges:
Decimal Binary Hex
-128 1000 0000 80
-127 1000 0001 81
-126 1000 0010 82
... ......... ..
-2 1111 1110 FE
-1 1111 1111 FF
0 0000 0000 00
+1 0000 0001 01
+2 0000 0010 02
.. ......... ..
+127 0111 1111 7F
Overflow problem in signed number operations
When using signed numbers, a serious problem sometimes arises that must
be dealt with. This is the overflow problem. The AVR indicates the existence of an
error by raising the V (overflow) flag, but it is up to the programmer to take care
of the erroneous result. The CPU understands only 0s and 1s and ignores the
human convention of positive and negative numbers. What is an overflow? If the
result of an operation on signed numbers is too large for the register, an overflow
CPU, was −90. Why? The reason is that the result was larger than what R0 could
contain. Like all other 8-bit registers, R0 could only contain values less than or
equal to +127. The designers of the CPU created the overflow flag specifically for
the purpose of informing the programmer that the result of the signed number
operation is erroneous. The N flag is D7 of the result. If N = 0, the sum is positive
(+) and if N = 1, then the sum is negative.
Examine the following code and analyze the result, including the N and V flags.
LDI R20,0X60 ;R20 = 0110 0000 (+70)
LDI R21,0x46 ;R21 = 0100 0110 (+96)
ADD R20,R21 ;R20 = (+96) + (+70) = 1010 0110
;R20 = A6H = -90 decimal, INVALID!!
Solution:
+96 0110 0000
+ +70 0100 0110
+ 166 1010 0110 N = 1 (negative) and V = 1 Sum = -90
According to the CPU, the result is negative (N = 1), which is wrong. The CPU sets V
= 1 to indicate the overflow error. Remember that the N flag is the D7 bit. If N = 0, the
sum is positive, but if N = 1, the sum is negative.
has occurred and the programmer must be notified. Look at Example 13.
Example 13
In Example 13, +96 was added to +70 and the result, according to the
172

When is the V flag set?
In 8-bit signed number operations, V is set to 1 if either of the following
two conditions occurs:
1. There is a carry from D6 to D7 but no carry out of D7 (C = 0).
2. There is a carry from D7 out (C = 1) but no carry from D6 to D7.
In other words, the overflow flag is set to 1 if there is a carry from D6 to
D7 or from D7 out, but not both. This means that if there is a carry both from D6
D6 to D7 and no carry from D7 out, V = 1.
from D6 to D7, V = 1.
Further considerations on the V flag
In the ADD instruction, there are two different conditions. Either the
operands have the same sign or the signs of the operands are different. When we
ADD two numbers with different signs, the absolute value of the result is smaller
than the operands before executing the ADD instruction. So overflow definitely
cannot happen after two operands with different signs are added. Overflow is pos-
sible only when we ADD two operands with the same sign. In this case the
absolute value of the result is larger than the operands before executing the ADD
instruction. So it is possible that the result will be too large for the register and
cause overflow. If we ADD two numbers with the same sign, the results should
have the same sign too. If we add two numbers with the same sign and the result
sign is different, we know that overflow has occurred. That is exactly the way that
the CPU knows when to set the V flag. In the AVR the equation of the V flag is as
follows:
where Rd7 and Rr7 are the 7th bit of the operands and R7 is the 7th bit of
Examine the following code, noting the role of the V and N flags:
LDI R20,0x80 ;R20 = 1000 0000 (80H = -128)
LDI R21,0xFE ;R21 = 1111 1110 (FEH = -2)
ADD R20,R21 ;R20 = (-128) + (-2)
;R20 = 1000000 + 11111110 = 0111 1110,
;N = 0, R0 = 7EH = +126, invalid
Solution:
-128 1000 0000
+ - 2 1111 1110
- 130 0111 1110 N = 0 (positive) and V = 1
According to the CPU, the result is +126, which is wrong, and V = 1 indicates that.
Notice that the N flag indicates the sign of the corrupted result, not the sign that the real
result should have.
to D7 and from D7 out, V = 0. In Example 13, because there is only a carry from
In Example 14, because there is only a carry from D7 out and no carry
Example 14
173

the result. We can extend this concept to the SUB instructions (a – b = a + (–b))
arithmetic.
tion, V indicates whether the result is valid or not. If V = 1, the result is erroneous;
if V = 0, the result is valid. We can state emphatically that in unsigned number
addition, the programmer must monitor the status of C (carry flag), and in signed
number addition, the V (overflow) flag must be monitored. In the AVR, instruc-
tions such as BRCS and BRCC allow the program to branch right after the addi-
tion of unsigned numbers according to the value of C flag. There are also the
BRVC and the BRVS instructions for the V flag that allow us to correct the signed
number error. We also have two branch instructions for the N flag (negative),
BRPL and BRMI.
LDI R20,7 ;R20 = 0000 0111
LDI R20,18 ;R20 = 0001 0010
ADD R20,R21 ;R20 = (+7) + (+18)
;R20 = 00000111 + 00010010 = 0001 1001
;R20 = (+7) + (+18) = +25, N = 0, positive
;and correct, V = 0
Solution:
+ 7 0000 0111
+ +18 0001 0010
+25 0001 1001 N = 0 (positive 25) and V = 0
According to the CPU, this is +25, which is correct, and V = 0 indicates that.
LDI R20,-2 ;R20 = 1111 1110 (R20 = FEH)
LDI R21,-5 ;R21 = 1111 1110 (R21 = FBH)
ADD R20,R21 ;R20 = (-2) + (-5) = -7 or F9H
;correct, since V = 0
Solution:
-2 1111 1110
+ -5 1111 1011
- 7 1111 1001 and V = 0 and N = 1. Sum is negative
According to the CPU, the result is −7, which is correct, and the V indicates that (V = 0).
Example 15
Study Examples 15 and 16 to understand the overflow flag in signed
Example 16
From Examples 14 to 16, we conclude that in any signed number addi-
174

What is the difference between the N and S flags?
As we mentioned before, in signed numbers the N flag represents the D7
bit of the result. If the result is positive, the N flag is zero, and if the result is neg-
ative, the N flag is one, which is why it is called the Negative flag.
In operations on signed numbers, overflow is possible. Overflow corrupts
the result and negates the sign bit. So if you ADD two positive numbers, in case
of overflow, the N flag would be 1 showing that the result is negative! The S flag
helps you to know the sign of the real result. It checks the V flag in addition to the
D7 bit. If V = 0, it shows that overflow has not occurred and the S flag will be the
same as D7 to show the sign of the result. If V = 1, it shows that overflow has
occurred and the S flag will be opposite to the D7 to show the sign of the real (not
Instructions to create 2’s complement
The AVR has a special instruction to make the 2’s complement of a num-
ber. It is called NEG (negate), which is discussed in the next section.
Review Questions
1. In an 8-bit operand, bit _____ is used for the sign bit.
2. Convert −16H to its 2’s complement representation.
3. The range of byte-sized signed operands is ______ to _____.
4. Show +9 and −9 in binary.
5. Explain the difference between a carry and an overflow.
of them and whether the value of the S flag is the same as that of the N flag.
Solution:
positive, so S = 0 (for positive). The value of the S flag is not the same as that of the N
flag (1) because there is overflow (V = 1).
negative, so S = 1 (for negative). The value of the S flag is not the same as that of the
N flag (0) because there is overflow (V = 1).
negative, so S = 1 (for negative). The value of the S flag is the same as that of the N
flag (1) because there is no overflow (V = 0).
positive, so S = 0 (for positive). The value of the S flag is the same as that of the N flag
(0) because there is overflow (V = 0).
the corrupted) result. See Example 17.
Example 17
Example 13: Because two positive numbers are added, the sign of the real result is
Study Examples 13 through 16 again and state what the value of the S flag is in each
Example 14: Because two negative numbers are added, the sign of the real result is
Example 15: Because two negative numbers are added, the sign of the real result is
Example 16: Because two positive numbers are added, the sign of the real result is
175

Apart from I/O and arithmetic instructions, logic instructions are some of
the most widely used instructions. In this section we cover Boolean logic instruc-
tions such as AND, OR, Exclusive-OR (XOR), and complement. We will also
study the compare instruction.
AND
AND Rd,Rr ;Rd = Rd AND Rr
This instruction will perform a logical AND
on the two operands and place the result in the left-
hand operand. There is also the “ANDI Rd, k”
instruction in which the right-hand operand can be a
constant value. The AND instruction will affect the
Z, S, and N flags. N is D7 of the result, and Z = 1 if
the result is zero. The AND instruction is often used
to mask (set to 0) certain bits of an operand. See
OR
OR Rd,Rr ;Rd = Rd OR Rr
This instruction will perform a logical OR on
the two operands and place the result in the left-hand
operand. There is also the “ORI Rd, k” instruction
in which the right-hand operand can be a constant
value. The OR instruction will affect the Z, S, and N
flags. N is D7 of the result and Z = 1 if the result is
zero. The OR instruction can be used to set certain
Logical AND Function
Inputs Output
X Y X AND Y
0 0 0
0 1 0
1 0 0
1 1 1
X
Y
X AND Y
Show the results of the following.
LDI R20,0x35 ;R20 = 35H
ANDI R20,0x0F ;R20 = R20 AND 0FH (now R20 = 05)
Solution:
35H 0011 0101
AND 0FH 0000 1111
---------------
05H 0000 0101 ;35H AND 0FH = 05H, Z = 0, N = 0
Logical OR Function
Inputs Output
X Y X OR Y
0 0 0
0 1 1
1 0 1
1 1 1
X
Y
X OR Y
SECTION 3: LOGIC AND COMPARE INSTRUCTIONS
Example 18.
Example 18
bits of an operand to 1. See Example 19.
176

EX-OR
EOR Rd,Rs ;Rd = Rd XOR Rs
This instruction will perform a logical EX-
OR on the two operands and place the result in the
left-hand operand. The EX-OR instruction will
affect the Z, S, and N flags. N is D7 of the result
(a) Show the results of the following:
LDI R20,0x04 ;R20 = 04
ORI R20,0x30 ;now R20 = 34H
(b) Assume that PB2 is used to control an outdoor light, and PB5 to control a light inside
a building. Show how to turn “on” the outdoor light and turn “off” the inside one.
Solution:
(a) 04H 0000 0100
OR 30H 0011 0000
-------------------
34H 0011 0100 04 OR 30 = 34H, Z = 0 and N = 0
(b)
SBI DDRB, 2 ;bit 2 of Port B is output
IN R20, PORTB ;move PORTB to R20.(Notice that we read
;the value of PORTB instead of PINB
;because we want to know the last value
;of PORTB, not the value of the AVR
;chip pins.)
ORI R20, 0b00000100 ;set bit 2 of R20 to one
ANDI R20, 0b11011111 ;clear bit 5 of R20 to zero
OUT PORTB, R20 ;out R20 to PORTB
HERE: JMP HERE ;stop here
Logical XOR Function
Inputs Output
A B A XOR B
0 0 0
0 1 1
1 0 1
1 1 0
A
B
A XOR B
Show the results of the following:
LDI R20, 0x54
LDI R21, 0x78
EOR R20, R21
Solution:
54H 0101 0100
XOR 78H 0111 1000
----------------
2CH 0010 1100 54H XOR 78H = 2CH, Z = 0, N = 0
Example 19
and Z = 1 if the result is zero. See Example 20.
Example 20
177

EX-OR can also be used to see if two registers have the same value. The
“EOR R0, R1” instruction will EX-OR the R0 register and R1, and put the result
in R0. If both registers have the same value, 00 is placed in R0 and the Z flag is
set (Z = 1). Then, we can use the BREQ or BRNE instruction to make a decision
Another widely used application of EX-OR is to toggle the bits of an
operand. The following code demonstrates how to use EX-OR to toggle the bits of
an operand.
LDI R20,0xFF
EOR R0, R20 ;EX-OR R0 with 1111 1111 will
;change all the bits of R0 to
;opposite
Read and test PORTB to see whether it has the value 45H. If it does, send 99H to
PORTC; otherwise, it is cleared.
Solution:
LDI R20,0xFF ;R20 = 0xFF
OUT DDRC,R20 ;Port C is output
LDI R20,0x00 ;R20 = 0
OUT DDRB,R20 ;Port B is input
OUT PORTC,R20 ;PORTC = 00
LDI R21,0x45 ;R21 = 45
HERE:
IN R20,PINB ;get a byte
EOR R20,R21 ;EX-OR with 0x45
BRNE HERE ;branch if PORTB has value other than 45
LDI R20,0x99 ;R20 = 0x99
OUT PORTC,R20 ;PORTC = 99h
EXIT: JMP EXIT ;stop here
The EX-OR instruction can be used to test the contents of a register by EX-ORing it
with a known value. In the following code, we show how EX-ORing the value 45H with
itself will raise the Z flag:
OVER: IN R20,PINB
LDI R21,0x45
EOR R20,R21
BRNE OVER
Solution:
45H 01000101
45H 01000101
00 00000000
EX-ORing a number with itself sets it to zero with Z = 1. We can use the BREQ instruc-
tion to make the decision. EX-ORing with any other number will result in a nonzero value.
based on the result. See Examples 21 and 22.
Example 21
Example 22
178

COM (complement)
This instruction complements the contents of a
register. The complement action changes the 0s to 1s,
and the 1s to 0s. This is also called 1’s complement.
COM R20 ;now R20 = 55H
NEG (negate)
Compare instructions
CP Rd,Rr
The AVR has the CP instruction for the compare operation. The compare
instruction is really a subtraction, except that the values of the operands do not
change. There is also the “CPI Rd, k” instruction in which the right-hand
operand can be a constant value.
The AVR has some conditional branch instructions that can be used after
Conditional branch instructions
BREQ Branch if equal Branch if Z = 1
BRNE Branch if not equal Branch if Z = 0
BRSH Branch if same or higher Branch if C = 0
BRLO Branch if lower Branch if C = 1
BRLT Branch if less than (signed) Branch if S = 1
BRGE Branch if greater than or equal (signed) Branch if S = 0
BRVS Branch if Overflow flag set Branch if V = 1
BRVC Branch if Overflow flag clear Branch if V = 0
Find the 2’s complement of the value 85H. Notice that 85H is –123.
Solution:
LDI R21, 0x85 ;85H = 1000 0101
;1’s = 0111 1010
+ 1
NEG R21 ;2’s comp 0111 1011 = 7BH
Logical Inverter
Input Output
X NOT X
0 1
1 0
X NOT X
This instruction takes the 2’s complement of a register. See Example 23.
Example 23
Table 2: AVR Compare Instructions
the CP instruction to make decisions based on the result of the CP instruction.
AVR there are at least two conditional jumps for each flag of the status register.
Conditional branches alter the flow of contro if a condition is true. In the
Here we will describe eight of the most important conditional jumps. Others are
that we will describe in this section.
similar but of different flags. Table 2 shows the conditional branch instructions
179

BREQ and BRNE instructions
BREQ k ;if (Z = 1) then branch
;else continue
The BREQ makes decisions based on the Z flag. If Z = 1 the BREQ
instruction branches. Notice that after the CP instructions, the Z = 1 means that the
operands were equal, and after the DEC instruction it means that the operand is
now equal to zero.
The BRNE instruction, like the BREQ, makes decisions based on the Z
flag, but it branches when Z = 0. (After the CP instructions, Z = 0 means that the
operands were not equal, and after the DEC instruction it means that the operand
Notice that the BREQ and BRNE instructions can be used for both signed,
and unsigned numbers.
BRSH and BRLO instructions
BRSH k ;if (C = 0) then branch
;else continue
The BRSH makes decisions based on the C flag. If C = 0 (which, after the
CP instructions for unsigned numbers, means that the left-hand operand of the CP
instruction was the same as or higher than the right-hand operand) the CPU will
jump.
The BRLO instruction, like the BRSH, makes decisions based on the C
flag, but it branches when C = 1. (After the CP instructions for unsigned numbers,
C = 1 means that the left-hand operand of the CP instruction was lower than the
Notice that the BRSH and the BRLO instructions can be used to compare
unsigned numbers. To compare signed numbers you should use the BRGE and
BRLT instructions. We will discuss them in more detail next.
We can use more than one conditional branch instruction to make more
Write a program to monitor PORTB continuously for the value 63H. It should stop mon-
itoring only if PORTB = 63H.
Solution:
LDI R20,0x00
OUT DDRB,R20 ;PORT B is input
LDI R21,0x63
AGAIN:
IN R20,PINB
CP R20,R21 ;compare with 0x63, Z = 1 if yes
BRNE AGAIN ;go to AGAIN if PORTB is not equal to 0x63
....
is not equal to zero.) See Example 24.
Example 24
right-hand operand.) See Example 25.
complicated decisions. See Example 26.
180

Write a program to find the greater of the two values 27 and 54, and place it in R20.
Solution:
.EQU VAL_1=27
.EQU VAL_2=54
LDI R20,VAL_1 ;R20 = VAL_1
CP R21,R20 ;compare R21 and R20
BRLO NEXT ;if R21R20 (branch if lower) go to NEXT
NEXT:
Assume that Port B is an input port connected to a temperature sensor. Write a program
to read the temperature and test it for the value 75. According to the test results, place
the temperature value into the registers indicated by the following.
If T = 75 then R16 = T ; R17 = 0 ; R18 = 0
If T 75 then R16 = 0 ; R17 = T ; R18 = 0
If T 75 then R16 = 0 ; R17 = 0 ; R18 = T
Solution:
LDI R20,0x00 ;R20 = 0
OUT DDRB,R20 ;Port B = input
CLR R16 ;R16 = 0
CLR R17 ;R17 = 0
CLR R18 ;R18 = 0
IN R20,PINB
CPI R20,75 ;compare R20 (PORTB) and 75
BRSH SAME_HI
;executes when R20 75
MOV R18,R20
RJMP CNTNU
SAME_HI: ;executes when R20 = 75
BRNE HI
MOV R16,R20 ;executes when R20 = 75
RJMP CNTNU
HI: ;executes when R20 75
MOV R17,R20
CNTNU: ....
Example 25
Example 26
181

BRGE and BRLT instructions
The BRGE makes decisions based on the S flag. If S = 0 (which, after the
CP instruction for signed numbers, means that the left-hand operand of the CP
instruction was greater than or equal to the right-hand operand) the BRGE instruc-
tion branches in a forward or backward direction relative to program counter.
The BRLT is like the BRGE, but it branches when S = 1. Notice that the
BRGE, and the BRLT are used with signed numbers.
BRVS and BRVC instructions
As we mentioned before, the V (overflow) flag must be monitored by the
programmer to detect overflow and handle the error. The BRVC and BRVS
instructions let you check the value of the V flag and change the flow of the pro-
Review Questions
1. Find the content of R20 after the following code in each case:
(a) LDI R20,0x37 (b) LDI R20,0x37 (c) LDI R20,0x37
LDI R21,0xCA LDI R21,0xCA LDI R21,0xCA
AND R20,R21 OR R20,21 EOR
2. To mask certain bits of R20, we must AND it with ______.
3. To set certain bits of R20 to 1, we must OR it with _____.
4. EX-ORing an operand with itself results in _______.
5. True or false. The CP instruction alters the contents of its operands.
6. Find the contents of register R20 after execution of the following code:
LDI R20,0
LDI R21,0x99
LDI R22,0xFF
OR R20,R21
EOR R20,R22
Write a program to add two signed numbers. The numbers are in R21 and R22. The pro-
gram should store the result in R21. If the result is not correct, the program should put
0xAA on PORTA and clear R21.
Solution:
LDI R21,0xFA ;R21 = 0xFA
LDI R22,0x05 ;R22 = 0x05
OUT DDRA,R23 ;Port A is output
ADD R21,R22 ;R21 = R21 + R22
BRVC NEXT ;if V = 0 ( no error) then go to next
OUT PORTA,R23 ;send 0xAA to PORTA
LDI R21,0x00 ;clear R21
NEXT: ...
gram if overflow has occurred. See Example 27.
Example 27
182

DATA SERIALIZATION
In many applications there is a need to perform a bitwise rotation of an
operand. In the AVR the rotation instructions ROL and ROR are designed specif-
ically for that purpose. They allow a program to rotate a register right or left
through the carry flag. We explore the rotate instructions next because they are
widely used in many different applications.
Rotating through the carry
There are two rotate instructions in the AVR. They involve the carry flag.
Each is shown next.
ROR instruction
ROR Rd ;rotate Rd right through carry
In the ROR, as bits are rotat-
ed from left to right, the carry flag
enters the MSB, and the LSB exits to
the carry flag. In other words, in
ROR the C is moved to the MSB,
and the LSB is moved to the C. In
reality, the carry flag acts as if it is part of the register, making it a 9-bit register.
Examine the following code.
CLC ;make C = 0 (carry is 0)
LDI R20,0x26 ;R20 = 0010 0110
ROR R20 ;R20 = 0001 0011 C = 0
ROR R20 ;R20 = 0000 1001 C = 1
ROR R20 ;R20 = 1000 0100 C = 1
ROL instruction
The other rotating instruction
is ROL. In ROL, as bits are shifted
from right to left, the carry flag
enters the LSB, and the MSB exits to
the carry flag. In other words, in
ROL the C is moved to the LSB, and
the MSB is moved to the C. See the following code and diagram. Again, the carry
flag acts as if it is part of the register, making it a 9-bit register. Examine the fol-
lowing code.
SEC ;make C = 1
LDI R20,0x15 ;R20 = 0001 0101
ROL R20 ;R20 = 0010 1011 C = 0
ROL R20 ;R20 = 0101 0110 C = 0
ROL R20 ;R20 = 1010 1100 C = 0
ROL R20 ;R20 = 0101 1000 C = 1
MSB LSB
C
MSB LSB C
SECTION 4: ROTATE AND SHIFT INSTRUCTIONS AND
183

Serializing data
Serializing data is a way of sending a byte of data one bit at a time through
a single pin of the microcontroller. There are two ways to transfer a byte of data
serially:
1. Using the serial port. In using the serial port, programmers have very limited
2. The second method of serializing data is to transfer data one bit at a time and
control the sequence of data and spaces between them. In many new genera-
tions of devices such as LCD, ADC, and ROM, the serial versions are becom-
ing popular because they take up less space on a printed circuit board. Next,
we discuss how to use rotate instructions in serializing data.
Serializing a byte of data
Serializing data is one of the most widely used applications of the rotate
instruction. We can use the rotate instruction to transfer a byte of data serially (one
bit at a time). Shift instructions can be used for the same job. After presenting
rotate instructions in this section we will discuss shift instructions in more detail.
pin.
Write a program to transfer the value 41H serially (one bit at a time) via pin PB1. Put
one high at the start and end of the data. Send the LSB first.
Solution:
.INCLUDE M32DEF.INC
LDI R20,0x41 ;R20 = the value to be sent
CLC ;clear carry flag
LDI R16, 8 ;R16 = 8
SBI PORTB, 1 ;bit 1 of PORTB is 1
AGAIN:
ROR R20 ;rotate right R20 (send LSB to C flag)
BRCS ONE ;if C = 1 then go to ONE
CBI PORTB, 1 ;bit 1 of PORTB is cleared to zero
JMP NEXT ;go to NEXT
ONE: SBI PORTB, 1 ;bit 1 of PORTB is set to one
NEXT:
DEC R16 ;decrement R16
BRNE AGAIN ;if R16 is not zero then go to AGAIN
SBI PORTB, 1 ;bit 1 of PORTB is set to one
HERE: JMP HERE ;RB1 = high
Example 28 shows how to transfer an entire byte of data serially via any AVR
Example 28
control over the sequence of data transfer.
184

Write a program that finds the number of 1s in a given byte.
Solution:
.INCLUDE M32DEF.INC
LDI R20, 0x97
LDI R30, 0 ;number of 1s
LDI R16, 8 ;number of bits in a byte
AGAIN:
ROR R20 ;rotate right R20 and move LSB to C flag
BRCC NEXT ;if C = 0 then go to NEXT
INC R30 ;increment R30
NEXT:
BRNE AGAIN ;if R16 is not zero then go to AGAIN
ROR R20 ;one more time to leave R20 unchanged
Write a program to bring in a byte of data serially via pin RC7 and save it in R20 reg-
ister. The byte comes in with the LSB first.
Solution:
.INCLUDE M32DEF.INC
CBI DDRC, 7 ;bit 7 of Port C is input
LDI R16, 8 ;R16 = 8
LDI R20, 0 ;R20 = 0
AGAIN:
SBIC PINC, 7 ;skip the next line if bit 7 of Port C is 0
SEC ;set carry flag to one
SBIS PINC, 7 ;skip the next line if bit 7 of Port C is 1
CLC ;clear carry flag to zero
ROR R20 ;rotate right R20. move C flag to MSB of R21
BRNE AGAIN ;if R16 is not zero go to AGAIN
Example 29
Example 30
Example 29 also shows how to bring in a byte of data serially. Example
30 shows how to scan the bits in a byte.
185

Shift instructions
There are three shift instructions in the AVR. All of them involve the carry
flag. Each is shown next.
LSL instruction
LSL Rd ;logical shift left
In LSL, as bits are
shifted from right to left, 0
enters the LSB, and the
MSB exits to the carry flag.
In other words, in LSL, 0 is
moved to the LSB, and the MSB is moved to the C flag. Notice that this instruc-
tion multiplies the content of the register by 2 assuming that after LSL the carry
flag is not set. Examine the following code.
CLC ;make C = 0 (carry is 0 )
LDI R20,0x26 ;R20 = 0010 0110(38) c = 0
LSL R20 ;R20 = 0100 1100(76) C = 0
LSL R20 ;R20 = 1001 1000(152) C = 0
LSL R20 ;R20 = 0011 0000(48) C = 1
;as C = 1 and content of R20
;is not multiplied by 2
LSR instruction
The second shift
instruction is LSR. In LSR,
as bits are shifted from left
to right, 0 enters the MSB,
and the LSB exits to the
carry flag. In other words, in
LSR, 0 is moved to the MSB, and the LSB is moved to the C flag. Notice that this
instruction divides the content of the register by 2 and the carry flag contains the
remainder of the division. Examine the following code.
LDI R20,0x26 ;R20 = 0010 0110 (38)
LSR R20 ;R20 = 0001 0011 (19) C = 0
LSR R20 ;R20 = 0000 1001 (9) C = 1
LSR R20 ;R20 = 0000 0100 (4) C = 1
ASR instruction
The third shift
instruction is ASR, which
means arithmetic shift right.
The ASR instruction can
divide signed numbers by
two. In ASR, as bits are
MSB LSB 0
C
MSB LSB C
0
MSB LSB C
LSR cannot be used to divide signed numbers by 2. See Example 31.
186

shifted from left to right, the MSB is held constant and the LSB exits to the carry
flag. In other words, MSB is not changed but is copied to D6, D6 is moved to D5,
D5 is moved to D4, and so on. Examine the following code.
LDI R20,0D60 ;R20 = 1101 0000(-48) c = 0
LSR R20 ;R20 = 1110 1000(-24) C = 0
LSR R20 ;R20 = 1111 0100(-12) C = 0
LSR R20 ;R20 = 1111 1010(-6) C = 0
LSR R20 ;R20 = 1111 1101(-3) C = 0
LSR R20 ;R20 = 1111 1110(-1) C = 1
ber that is a power of 2.
Assume that R20 has the number 48. Show how we can use ROR to divide R20 by 8.
Solution:
;to divide a number by 8 we can
;shift it 3 bits to the right. without
;LSR we have to ROR 3 times and
;clear carry flag before
;each rotation
LDI R20,0x30 ;R20 = 0011 0000 (48)
ROR R20 ;R20 = 0001 1000 (24)
ROR R20 ;R20 = 0000 1100 (12)
ROR R20 ;R20 = 0000 0110 (6)
;48 divided by 8 is 6 and
;the answer is correct
Assume that R20 has the number –6. Show that LSR cannot be used to divide the con-
tent of R20 by 2. Why?
Solution:
LDI R20,0xFA ;R20 = 1111 1010 (-6)
LSR R20 ;R20 = 0111 1101 (+125)
;-6 divided by 2 is not +125 and
;the answer is not correct
Because LSR shifts the sign bit it changes the sign of the number and therefore cannot
be used for signed numbers.
Example 32 shows how we can use ROR to divide a register by a num-
Example 31
Example 32
187

SWAP instruction
SWAP Rd ;swap nibbles
Another useful instruction is the SWAP instruction. It works on R0–R31.
It swaps the lower nibble and the higher nibble. In other words, the lower 4 bits
are put into the higher 4 bits, and the higher 4 bits are put into the lower 4 bits. See
the diagrams below.
SWAP instruction.
LDI R20, 0x72
SWAP R20
(b) In the absence of a SWAP instruction, how would you exchange the nibbles?
Write a simple program to show the process.
Solution:
(a)
LDI R20, 0x72 ;R20 = 0x72
SWAP R20 ;R20 = 0x27
(b)
LDI R20,0x72
LDI R16,4
LDI R21,0
BEGIN:
CLC
ROL R20
ROL R21
DEC R16
BRNE BEGIN
OR R20, R21
HERE: JMP HERE
0111 0010
before: 0010 0111
after:
SWAP
D7–D4 D3–D0
before: D3–D0 D7–D4
after:
SWAP
Example 33 shows how to exchange nibbles of a byte with and without
(a) Find the contents of the R20 register in the following code .
Example 33
188

Review Questions
1. What is the value of R20 after the following code is executed?
LDI R20,0x40
CLC
ROR R20
ROR R20
ROR R20
ROR R20
2. What is the value of R20 after the following code is executed?
LDI R20,0x40
CLC
ROL R20
ROL R20
ROL R20
ROL R20
3. What is the value of R20 after execution of the following code?
LDI R20,0x40
SEC
ROL R20
SWAP R20
4. What is the value of R20 after execution of the following code?
LDI R20,0x00
SEC
ROL R20
CLC
ROL R20
SEC
ROL R20
CLC
ROL R20
SEC
ROL R20
CLC
ROL R20
SEC
ROL R20
CLC
ROL R20
5. What is the value of R20 after execution of the last code if you replace ROL
with the ROR instruction?
6. How many LSR instructions are needed to divide a number by 32?
189

In this section you will learn about packed and unpacked BCD numbers.
We will also show how you can change packed BCD to unpacked BCD and vice
versa. Then you will learn to convert ASCII codes to BCD and vice versa.
BCD (binary coded decimal) number
system
BCD stands for binary coded decimal. BCD is
needed because in everyday life we use the digits 0 to 9
for numbers, not binary or hex numbers. Binary repre-
computer literature, one encounters two terms for BCD
numbers: (1) unpacked BCD, and (2) packed BCD. We
describe each one next.
Unpacked BCD
In unpacked BCD, the lower 4 bits of the number represent the BCD num-
ber, and the rest of the bits are 0. For example, “0000 1001” and “0000 0101” are
unpacked BCD for 9 and 5, respectively. Unpacked BCD requires 1 byte of mem-
ory, or an 8-bit register, to contain it.
Packed BCD
In packed BCD, a single byte has two BCD numbers in it: one in the lower
4 bits, and one in the upper 4 bits. For example, “0101 1001” is packed BCD for
59H. Only 1 byte of memory is needed to store the packed BCD operands. Thus,
one reason to use packed BCD is that it is twice as efficient in storing data.
ASCII numbers
On ASCII keyboards, when the key “0” is activated, “011 0000” (30H) is
provided to the computer. Similarly, 31H (011 0001) is provided for key “1”, and
Key ASCII (hex) Binary BCD (unpacked)
0 30 011 0000 0000 0000
1 31 011 0001 0000 0001
2 32 011 0010 0000 0010
3 33 011 0011 0000 0011
4 34 011 0100 0000 0100
5 35 011 0101 0000 0101
6 36 011 0110 0000 0110
7 37 011 0111 0000 0111
8 38 011 1000 0000 1000
9 39 011 1001 0000 1001
Digit BCD
0 0000
1 0001
2 0010
3 0011
4 0100
5 0101
6 0110
7 0111
8 1000
9 1001
sentation of 0 to 9 is called BCD (see Figure 3). In
Figure 3. BCD Code
so on, as shown in Table 3.
Table 3: ASCII and BCD Codes for Digits 0–9
SECTION 5: BCD AND ASCII CONVERSION
190

It must be noted that BCD numbers are universal, although ASCII is stan-
dard in the United States (and many other countries). Because the keyboard, print-
ers, and monitors all use ASCII, how does data get converted from ASCII to BCD,
and vice versa? These are the subjects covered next.
Packed BCD to ASCII conversion
To convert packed BCD to ASCII, you must first convert it to unpacked
BCD. Then the unpacked BCD is tagged with 011 0000 (30H). The following
Packed BCD Unpacked BCD ASCII
29H 02H 09H 32H 39H
0010 1001 0000 0010 0011 0010
0000 1001 0011 1001
ASCII to packed BCD conversion
To convert ASCII to packed BCD, you first convert it to unpacked BCD (to
get rid of the 3), and then combine it to make packed BCD. For example, for 4 and
7 the keyboard gives 34 and 37, respectively. The goal is to produce 47H or “0100
0111”, which is packed BCD. This process is illustrated next.
Key ASCII Unpacked BCD Packed BCD
4 34 00000100
7 37 00000111 01000111 which is 47H
Assume that R20 has packed BCD. Write a program to convert the packed BCD to two
ASCII numbers and place them in R21 and R22.
Solution:
.INCLUDE M32DEF.INC
LDI R20,0x29 ;the packed BCD to be converted is 29
MOV R21,R20 ;R21 = R20 = 29H
ANDI R21,0x0F ;mask the upper nibble (R21 = 09H)
ORI R21,0x30 ;make it ASCII (R21 = 39H)
MOV R22,R20 ;R22 = R20 = 29H
SWAP R22 ;swap nibbles (R22 = 92H)
ANDI R22,0x0F ;mask the upper nibble (R22 = 02)
ORI R22,0x30 ;make it ASCII (R22 = 32H)
HERE: JMP HERE
Example 34
demonstrates converting packed BCD to ASCII. See also Example 34.
In many systems we have what is called a real-time clock (RTC). The RTC
provides the time of day (hour, minute, second) and the date (year, month, day)
continuously, regardless of whether the power is on or off. This data, however, is
provided in packed BCD. For this data to be displayed on a device such as an LCD,
or to be printed by the printer, it must be in ASCII format.
191

LDI R21,'4' ;load character 4 to R21
LDI R22,'7' ;load character 7 to R22
ANDI R21,0x0F ;mask upper nibble of R21
SWAP R21 ;swap nibbles of R21
;to make upper nibble of packed BCD
ANDI R22,0x0F ;mask upper nibble of R22
OR R22,R21 ;join R22 and R21 to make packed BCD
MOV R20,R22 ;move the result to R20
After this conversion, the packed BCD numbers are processed and the
result will be in packed BCD format.
Review Questions
1. For the following decimal numbers, give the packed BCD and unpacked BCD
representations.
(a) 15 (b) 99
(c) 25 (d) 55
2. Show the binary and hex formats for “76” and its BCD version.
3. Does the R20 register contain 54H after the following instruction is executed?
LDI R20,54
4. 67H in BCD when converted to ASCII is ____hex and ____hex.
SUMMARY
This chapter discussed arithmetic instructions for both signed and unsigned
data in the AVR. Unsigned data uses all 8 bits of the byte for data, making a range
of 0 to 255 decimal. Signed data uses 7 bits for the data and 1 for the sign bit, mak-
ing a range of −128 to +127 decimal.
In coding arithmetic instructions for the AVR, special attention has to be
given to the possibility of a carry or overflow condition.
This chapter defined the logic instructions AND, OR, XOR, and comple-
ment. In addition, AVR Assembly language instructions for these functions were
described. These functions are often used for bit manipulation purposes.
Compare and conditional branch instructions were described using differ-
ent examples.
The rotate and swap instructions of the AVR are used in many applications
such as serial devices. These instructions were discussed in detail.
Binary coded decimal (BCD) data represents the digits 0 through 9. Both
packed and unpacked BCD formats were discussed. This chapter also described
BCD and ASCII conversions.
192

PROBLEMS
1. Find the C, Z, and H flags for each of the following:
(a) LDI R20,0x3F (b) LDI R20,0x99
LDI R21,0x45 LDI R21,0x58
ADD R20,R21 ADD R20,R21
(c) LDI R20,0xFF (d) LDI R20,0xFF
CLR R21 LDI R21,0x1
SEC ADD R20,R21
ADC R20,R21
2. Write a program to add 25 to the day of your birthday and save the result in
R20.
3. Write a program to add the following numbers and save the result in R20.
0x25, 0x19, 0x12
4. Modify Problem 3 to add the result with 0x3D.
5. State the steps that the SUB instruction will go through for each of the follow-
ing.
(a) 23H − 12H (b) 43H − 53H (c) 99 − 99
6. For Problem 5, write a program to perform each operation.
7. Write a program to add 7F9AH to BC48H and save the result in R20 (low byte)
and R21 (high byte).
8. Write a program to subtract 7F9AH from BC48H and save the result in R20
(low byte) and R21 (high byte).
9. Show how to perform 77 × 34 in the AVR.
10. Show how to perform 64/4 in the AVR.
11. The MUL instruction places the result in registers ________ and______.
OPERATIONS
12. Show how the following numbers are represented by the assembler:
(a) −23 (b) +12 (c) −28
(d) +6FH (e) −128 (f) +127
13. The memory addresses in computers are _______ (signed, unsigned) numbers.
14. Write a program for each of the following and indicate the status of the V flag
for each:
(a) (+15) + (−12) (b) (−123) + (−127)
(c) (+25H) + (+34H) (d) (−127) + (+127)
15. Explain the difference between the C and V flags and where each one is used.
16. When is the V flag raised? Explain.
17. Which register holds the V flag?
18. How do you detect the V flag in the AVR? How do you detect the C flag?
SECTION 2: SIGNED NUMBER CONCEPTS AND ARITHMETIC
193

19. Find the contents of register R20 after each of the following instructions:
(a) LDI R20,0x65 (b) LDI R20, 0x70
LDI R21,0x76 LDI R21, 0x6B
AND R20,R21 OR R20, R21
(c) LDI R20,0x95 (d) LDI R20, 0x5D
LDI R21,0xAA LDI R21, 0x75
EOR R20,R21 AND R20, R21
(e) LDI R20,0x0C5 (f) LDI R20, 0x6A
LDI R21,0x12 LDI R21, 0x6E
OR R20,R21 EOR R20, R21
(g) LDI R20,0x37
LDI R21,0x26
OR R20,R21
20. Explain how the BRSH instruction works.
21. Does the compare instruction affect the flag bits of the status register?
22. Assume that R20 = 85H. Indicate whether the conditional branch is executed
in each of the following cases:
(a) LDI R21, 0x90 (b) LDI R21, 0x70
CP R20,R21 CP R20, R21
BRLO NEXT BRSH NEXT
... ...
23. For Problem 22, indicate the value in R20 after execution of each program.
ZATION
24. Find the contents of R20 after each of the following is executed:
(a) LDI R20, 0x56 (b) LDI R20, 0x39
SWAP R20 SEC
CLC ROL R20
ROR R20 ROL R0
ROR R20
(c) CLC (d) CP R20, R20
LDI R20, 0x4D LDI R20, 0x7A
SWAP R20 ROR R20
ROL R20
ASR R20
25. Show the code to replace the SWAP instruction:
(a) using the ROL instruction
(b) using the ROR instruction
26. Write a program that finds the number of zeros in an 8-bit data item.
SECTION 4: ROTATE AND SHIFT INSTRUCTIONS AND DATA SERIALI-
194

27. Write a program that finds the position of the first high in an 8-bit data item.
The data is scanned from D0 to D7. Give the result for 68H.
28. Write a program that finds the position of the first high in an 8-bit data item.
The data is scanned from D7 to D0. Give the result for 68H.
29. Write a program to convert the following packed BCD numbers to ASCII.
Place the ASCII codes into R20 and R21.
(a) 0x76
(b) 0x87
30. For 3 and 2 the keyboard gives 33H and 32H, respectively. Write a program to
convert these values to packed BCD and store the result in R20.
1. R1:R0
2. No. Because immediate addressing mode is not supported.
3. 255, 255.
4. False.
5. R20.
6. We cannot use immediate addressing mode with ADD.
7. “ADI R1,0x04”
8. R1
9. (a) R21 = 00 and C = 1
(b) R21 = FF and C = 0
10.
43H 0100 0011 0100 0011
- 05H 0000 0101 2’s complement + 1111 1011
3EH 0011 1110
11. R1 = 95H − 4FH − 1 = 45H, C = 0.
1. D7
2. 16H is 00010110 in binary and its 2’s complement is 1110 1010 or
−16H = EA in hex.
3. −128 to +127
4. +9 = 00001001 and −9 = 11110111 or F7 in hex.
5. An overflow is a carry into the sign bit (D7), but the carry is a carry out of register.
1. (a) 02 H
(b) FF H
(c) FD H
2. Zero
3. One
4. All zeros
SECTION 2: SIGNED NUMBER CONCEPTS AND ARITHMETIC OPERATIONS
195

5. False
6. 66H
1. 04H
2. 02H
3. 18H
4. AAH
5. 55H
6. 5 LSL instructions
1. (a) 15H = 0001 0101 packed BCD, 0000 0001,0000 0101 unpacked BCD
(b) 99H = 1001 1001 packed BCD, 0000 1001,0000 1001 unpacked BCD
(c) 25H = 0010 0101 packed BCD, 0000 0010,0000 0101 unpacked BCD
(d) 55H = 0101 0101 packed BCD, 0000 1001,0101 0101 unpacked BCD
2. 3736H = 00110111 00110110B
and in BCD we have 76H = 0111 0110B
3. No. We need to write it as 0x54 (to indicate that it is hex) or 0b01010100. The value 54 is inter-
preted as 36H by the assembler.
4. 36H, 37H
SECTION 4: ROTATE AND SHIFT INSTRUCTIONS AND DATA SERIALIZATION
196

OBJECTIVES

List all the addressing modes of the AVR microcontroller

Contrast and compare the addressing modes

Code AVR Assembly language instructions using each addressing mode

Access the data RAM file register using various addressing modes

Code AVR instructions to manipulate a look-up table

Access fixed data residing in the program Flash ROM space

Discuss how to create macros

Explain how to write data to EEPROM memory of the AVR

Explain how to read data from EEPROM memory of the AVR

Code AVR programs to create and test the checksum byte

Code AVR programs for ASCII data conversion
LANGUAGE PROGRAMMING
AVR ADVANCED ASSEMBLY
197

AVR ADVANCED ASSEMBLY LANGUAGE PROGRAMMING
Arithmetic and logic expressions with constant values
.EQU ALFA = 50
.EQU BETA = 40
LDI R23,ALFA ;R23 = ALFA = 50
LDI R24,((ALFA-BETA)*2)+9 ;R24 = ((50-40)*2)+9 = 29
The AVR Studio IDE supports logic operations between expressions as well.
.EQU C1 = 0x50
.EQU C2 = 0x10
.EQU C3 = 0x04
LDI R21,(C1C2)|C3 ;R21=(0x100x50)|0x04 = 0x10|0x04= 0x14
left and right a constant value. For example, the following instruction loads the
R20 register with 0b00001110:
LDI R16,0b000001111 ;R16 = 0b00001110
One of the uses of shift operators is for initializing the registers. For exam-
Symbol Action
+ Addition
- Subtraction
* Multiplication
/ Division
% Modulo
Symbol Action
Bitwise AND
| Bitwise OR
^ Bitwise XOR
~ Bitwise NOT
Section 8.
and BCD-ASCII conversions are covered in Section 7. Macros are examined in
which we can access program and data memories in the AVR.
DIRECTIVES
SECTION 1: INTRODUCING SOME MORE ASSEMBLER
throughout this chapter. In Sections 2 through 4 we see the different ways in
See Table 2. For example, in the following program R21 is loaded with 0x14:
Table 1: Arithmetic Operators Table 2: Logic Operators
Section 6 we discuss how to access EEPROM in the AVR. Checksum generation
In Section 1, you learn some new assembler directives that are used
In Table 3 you see the shift operators, which are very useful. They shift
Section 5 explains the bit-addressability of the data memory space. In
You should already be familiar with the assembler directives .ORG,
.SET, and .INCLUDE. In this section, you will learn some other useful directives.
We can define constant values using .EQU. The AVR Studio IDE supports
arithmetic operations between expressions. See Table 1. For example, in the fol-
lowing program R24 is loaded with 29, which is the result of the arithmetic expres-
sion “ ”.
((ALFA-BETA)*2)+9
198

task will be done:
LDI R20, 0b00000011 ;Z = 1, C = 1
OUT SREG,R20
task; you have to open the datasheet or a reference book to see the structure of the
in the header files of each AVR microcontroller. For example, in M32DEF.INC
there are the following lines of code:
...
; SREG - Status Register
.equ SREG_C = 0 ;carry flag
.equ SREG_Z = 1 ;zero flag
.equ SREG_N = 2 ;negative flag
.equ SREG_V = 3 ;2's complement overflow flag
.equ SREG_S = 4 ;sign bit
.equ SREG_H = 5 ;half carry flag
.equ SREG_T = 6 ;bit copy storage
.equ SREG_I = 7 ;global interrupt enable
...
So, we can use the names of the bits instead of remembering the structure
of the registers or finding them in the datasheet. For example, the following pro-
gram sets the Z flag of the SREG register and clears the other bits:
LDI R16, 1SREG_Z ;R16= 1 1 = 0b00000010
OUT SREG,R16 ;SREG = 0b00000010 (set Z and clear others)
As another example, the following program sets the V and S flags of SREG:
LDI R16,(1SREG_V)|(1SREG_S) ;R16=0b1000|0b10000=0b11000
OUT SREG,R16 ;SREG = 0b00011000 (set V and S, clear others)
Symbol Action Example
Shifts left the left expression LDI R20,0b1012 ;R20=0b10100
by the right expression
Shifts right the left expression LDI R20,0b1001 ;R20=0b010
by the number of places given
by the right expression
D0
D7
Bit
Figure 1. Bits of the Status Register
SREG register. To make the task simpler, the names of the register bits are defined
Figure 1. But imagine you are writing a program and you want to do the same
In this example, we calculated the 0b00000011 number by looking at
ter and clear the others. Look at Figure 1. If we load 0b00000011 to SREG the
ple, suppose we want to set the Z and C bits of the SREG (Status Register) regis-
by the number of places given
Table 3: Shift Operators
199

Notice that when the assembler wants to convert a code to machine lan-
guage it substitutes all of the assembler directives with their equivalent values.
Thus, using the directives has no side effects on the performance of our code but
Write codes to set PB2 and PB4 of PORTB to 1 and clear the other pins
(a) without the directives, and
(b) using the directives.
Solution:
(a) LDI R20,0x14 ;R20 = 0x14
OUT PORTB,R20 ;PORTB = R20
To make the code more readable, we can write the number in binary as well:
LDI R20,0b00010100 ;R20 = 0x14
OUT PORTB,R20 ;PORTB = 0x14
(b) LDI R20,(14)|(12) ;R20 = (0b10000 | 0b00100) = 0b10100
As we mentioned before, the names of the register bits are defined in the header files of
each AVR microcontroller. PB2 and PB4 are defined equal to 2 and 4, as well.
Therefore, we can write the code as shown below:
LDI R20,(1PB4)|(1PB2) ;set the PB4 and PB2 bits
What does the AVR assembler do while assembling the following program?
.equ C1 = 2
.equ C2 = 3
LDI R20,C1|(1C2) ;R20= 2|(13)= 0b00000010|0b00001000= 0b00001010
Solution:
.equ is an assembler directive. When assembling “.equ C1 = 2”, the assembler
assigns value 2 to C1. Similarly, while assembling the “.equ C2 = 3” instruction, it
assigns the value 3 to C2.
When the assembler converts the “LDI R20,C1|(1C2)” instruction to
machine language, it knows the values of C1 and C2. Thus it calculates the value of
“C1|(1C2)”, and then replaces the expression with its value. Therefore, “LDI
R20,C1|(1C2)” will be converted to “LDI R20,0b00001010”. Then the assembler
converts the instruction to machine language.
Example 1
rather makes our code more readable. See Examples 2 and 3.
In Example 1, you see the usage of the directives in I/O port programming.
Example 2
200

It is highly recommended that you take a look at the M32DEF.INC file. The
file is located in the following path, if you did not change it while installing the AVR
Studio software:
Program FilesAtmelAVR ToolsAvrAssembler2Appnotesm32def.inc
HIGH( ) and LOW( ) functions
The HIGH( ) and LOW( ) functions give the higher and the lower bytes of
a 16-bit value. For example, in the following program
0x55 and 0x44 are loaded into R16 and R17, respectively:
LDI R16,LOW(0x4455) ;R16 = 0x55
LDI R17,HIGH(0x4455) ;R17 = 0x44
refer to the last location of the memory:
LDI R16,HIGH(RAMEND) ;R16 = 0x08 (for ATmega32)
OUT SPH,R16 ;SPH = the high byte of address
LDI R16,LOW(RAMEND) ;R16 = 0x5f
OUT SPL,R16 ;SPL = the low byte of address
But how do the instructions work? In the AVR header files (e.g.,
M32DEF.INC) RAMEND is defined equal to the address of the last location of the
memory. For example, in M32DEF.INC there is the following line:
.equ RAMEND = 0x085f
The HIGH( ) and LOW( ) functions split the RAMEND into two bytes, $08
and $5F. They go to SPH and SPL, respectively.
You can see the list of the different directives available in the AVR by using
the help feature of AVR Studio. (Choose the assembler Help option from the Help
menu and then click on the Expressions topic.)
0x4455
R16
R17
HIGH LOW
What does the AVR assembler do while assembling the following program?
LDI R20,(1PB4)|(1PB2);set the PB4 and PB2 bits
OUT DDRB,R20 ;DDRB = R20
HERE: RJMP HERE
Solution:
Including a header file at the beginning of a program is similar to copying all the con-
tents of the header file to the beginning of the program. Thus, the assembler, first assem-
bles the contents of M32DEF.INC. The header file contains some “.equ” instructions,
such as “.equ PB4 = 4”. Thus, after reading the header file the assembler learns that
PB4 is equal to 4, PB2 is equal to 2, and so on. Thus, when it wants to assemble instruc-
tions such as “LDI R20,(1PB4)|(1PB2)”, it knows the values of PB2 and PB4. It
calculates the value of “(1PB4)|(1PB2)” and substitutes it.
Example 3
We can use the following instructions to make the stack pointer refer to the
201

Review Questions
1. Indicate the value loaded into the registers in the following program:
.EQU CONST1 = 0x10
.EQU CONST2 = 0x91
.EQU CONST3 = 0x14
.EQU ADDR = (0x91 1)+1
LDI R20,CONST1CONST2
LDI R21,CONST2|CONST3
LDI R30,LOW(ADDR)
LDI R31,HIGH(ADDR)
2. What does the following code do?
LDI R16,(1SREG_V)|(1SREG_Z)
OUT SREG,R16 ;SREG = 0b00011000
3. Using the assembler directives write a program that sets the Z and C flags and
clears the other flags.
4. Calculate the values that are loaded into the TCNT1L and TCNT1H I/O regis-
ters.
LDI R16,HIGH(15900)
OUT TCNT1H,R16 ;TCNT1H = HIGH(15900)
LDI R16,LOW(15900)
OUT TCNT1L,R16 ;TCNT1L = LOW(15900)
or in memory, or provided as an immediate value. These various ways of access-
addressing modes in the context of some examples.
The various addressing modes of a microprocessor are determined when it
is designed, and therefore cannot be changed by the programmer. The AVR pro-
vides a total of 13 distinct addressing modes, which can be categorized into the fol-
lowing groups:
1. Single-Register (Immediate)
2. Register
3. Direct
4. Register indirect
5. Flash Direct
6. Flash Indirect
stored in program ROM.
SECTION 2: REGISTER AND DIRECT ADDRESSING MODES
ing data are called addressing modes. In Sections 2 through 6 we discuss AVR
modes. In Section 3 we cover accessing RAM data memory using the register
The CPU can access data in various ways. The data could be in a register,
indirect mode. Section 4 explains how to access fixed data and look-up tables
In this section we look at immediate, two-register, and direct addressing
202

Single-register (immediate) addressing mode
In this addressing mode, the operand is a register. See the examples below.
NEG R18 ;negate the contents of R18
COM R19 ;complement the contents of R19
ROR R22 ;rotate right R22
In some of the instructions there is also a constant value with the register
operand. See the examples below.
SUBI R19,0x6 ;subtract 0x6 from R19
ANDI R19,0b01000000 ;AND R19 with 0x40
and the addressing mode is referred to as immediate addressing mode in some
microcontrollers. But the AVR datasheet refers to this mode as a subset of the sin-
gle-register addressing mode. This addressing mode can be used to load data into
any of the R16–R31 general purpose registers. The immediate addressing mode is
also used for arithmetic and logic instructions. Note that the letter “I” in instruc-
We can use the .EQU directive to access immediate data, as shown below.
.EQU COUNT = 0x30
... ..
LDI R16,COUNT ;R16 = 0x30
Two-register addressing mode
Two-register addressing mode involves the use of two registers to hold the
Rd
d
31
0
4 bits
12 bits
Op. Code
Rd
d
31
0
4 bits
8 bits
4 bits
Immediate
Op. Code
tions such as LDI, ANDI, and SUBI means “immediate.” See Figures 2a and 2b.
Figure 2a. Single-Register Addressing
operand comes immediately after the opcode when the instruction is assembled;
data to be manipulated. See Figure 3.
Figure 2b. Single-Register (with immediate)
The constant value is sometimes referred to as immediate data since the
Figure 3. Two-Register Addressing
203

Examples of two-register addressing mode are as follows:
ADD R20,R23 ;add R23 to R20
SUB R29,R20 ;subtract R20 from R29
AND R16,R17 ;AND R16 with 0x40
MOV R23,R19 ;copy the contents of R19 to R23
Direct addressing mode
indirect addressing modes. The register indirect addressing mode will be discussed
in the next section. In direct addressing mode, the operand data is in a RAM mem-
ory location whose address is known, and this address is given as a part of the
instruction. Contrast this with immediate addressing mode in which the operand
data itself is provided with the instruction. Examine the following instructions:
LDS R19,0x560 ;load R19 with the contents of memory loc $560
STS 0x40,R19 ;store R19 to data space location 0x40
RAMEND
0
16
0
15
19
31 20
Note: RAMEND has been used to
represent the highest location in
data space.
we see that the addresses are embedded in the instruction, as shown in Figure 4.
The two instructions use direct addressing mode. If we dissect the opcode
Figure 4. Direct Addressing Opcode
The entire data memory can be accessed using either direct or register
Figure 5b. I/O Direct Addressing
Figure 5a. Direct Data Addressing
As shown in Figure 5a, the address field is a 16-bit address and can take
values from $0000–$FFFF. Of course, it is much easier to use names instead of
addresses in the program. It must be noted that data memory does not support imme-
diate addressing mode. In other words, to move data into internal RAM or to I/O reg-
isters, we must first move it to a GPR (R16–R31), and then move it from the GPR to
the data memory space using the STS instruction. For example, if we want to store
0x95 in memory location 0x520 we should write the following program, as there is no
204

instruction for storing immediate values in memory locations:
STS 0x520,R19 ;store R19 into data location 0x520
I/O direct addressing mode
isters. The IN and OUT instructions use this addressing mode. Examine the fol-
lowing instruction, which copies the contents of PINB to PORTC:
IN R18,0x16 ;R18 = contents of location $16 (PINB)
OUT 0x15,R18 ;PORTC (location $15) = R18
values from $00 to $3F, which is from 00 to 63 in decimal. So, it can address the
entire standard I/O register memory space.
OUT 0x15,R19 ;is the same as the next instruction
OUT PORTC,R19 ;which means copy R19 into Port C
IN R26,0x16 ;is the same as the next instruction
IN R26,PINB ;which means copy PINB into R26
Symbol Name I/O Address Data Memory Addr.
PIND Port D input pins $10 $30
DDRD Data Direction, Port D $11 $31
PORTD Port D data register $12 $32
PINC Port C input pins $13 $33
DDRC Data Direction, Port C $14 $34
PORTC Port C data register $15 $35
PINB Port B input pins $16 $36
DDRB Data Direction, Port B $17 $37
PORTB Port B data register $18 $38
PINA Port A input pins $19 $39
DDRA Data Direction, Port A $1A $3A
PORTA Port A data register $1B $3B
SPL Stack Pointer, Low byte $3D $5D
SPH Stack Pointer, High byte $3E $5E
As shown in Figure 5b, the address field is a 6-bit address and can take
The AVR registers for Ports A, B, and so on are part of the group of regis-
ters commonly referred to as I/O registers. There are many I/O registers and they
are widely used. The I/O registers can be accessed by their names (which is much
easier) or by their addresses. For example, PINB has address 0x16, and PORTC the
address $15, as shown in Table 4. Notice how the following paris Notice how the
following pairs of instructions mean the same thing:
ing mode. The I/O direct addressing mode can address only the standard I/O reg-
To access the I/O registers there is a special mode called I/O direct address-
Table 4: Selected ATmega32 I/O Register Addresses
205

1.
OUT 0x15,R19 ;PORTC=R19 (0x15 is the I/O addr. of PORTC)
STS 0x35,R19 ;PORTC=R19 (0x35 is the data memory addr. of PORTC)
IN R19,0x16 ;R19=PINB (0x16 is the I/O addr. of PINB)
LDS R19,0x36 ;R19=PINB (0x36 is the data memory addr. of PINB)
2. Some AVRs have less than 64 I/O registers. So, some locations of the standard
I/O memory are not used by the I/O registers. The unused locations are
reserved and must not be used by the AVR programmer.
3. Some AVRs have more than 64 I/O registers. The extra I/O registers are locat-
ed above the data memory address $5F. The data memory allocated to the extra
I/O direct addressing mode, the address field is a 6-bit address and can take
values from $00–$3F, which is from 00 to 63 in decimal. So, it can address
only the standard I/O register memory, and it cannot be used for addressing the
extended I/O memory. For example, the following instruction causes an error,
since the I/O address must be between 0 and $3F:
OUT 0x65,R19 ;illegal as the address is above $3F
To access the extended I/O registers we can use the direct addressing mode.
For example, in ATmega128, PORTF has the memory address of 0x62. So, the
following instruction stores the contents of R20 in PORTF.
STS 0x62,R20 ;PORTF = R20
4. The I/O registers can have different addresses in different AVR microcon-
trollers. For example, the I/O address $2 is assigned to TWAR in theATmega32,
while the same address is assigned to DDRE in ATmega128. This means that in
ATmega32, the instruction “OUT 0x2,R20” copies the contents of R20 to TWAR,
while the same instruction, in ATmega128, copies the contents of R20 to
DDRE. In other words, the same instruction can have different meanings in dif-
ferent AVR microcontrollers. This can cause problems if you want to run pro-
grams written for one AVR on another AVR. For example, if you have written
a code for ATmega32 and you want to run it on an ATmega128, it might be nec-
essary to change some register locations before loading it into the ATmega128.
Table 4 lists some of the AVR I/O registers and their addresses. The follo-
wing points should be noted about the addresses of I/O registers:
I/O registers is calledextended I/O memory
. As shown in Figure 2b, in the
The addresses between $20 and $5F of the data space have been assigned to
standard I/O registers in all of the AVRs. These I/O registers have two address-
es: I/O address and data memory address. The I/O address is used when we use
the I/O direct addressing mode, while the data memory address is used when
we use the direct addressing mode; in other words, the standard I/O registers
can be accessed using both the direct addressing and the I/O addressing modes.
For example, the following pairs of instructions do the same thing, but the IN
and OUT instructions are more efficient:
206

The best way to solve this problem is to use the names of the registers instead
of their addresses. For example, the instruction “OUT TWAR,R20” has the same
meaning on all the AVRs. Therefore, using the names of the registers instead of
Review Problems
1. Can the programmer of a microcontroller make up new addressing modes?
2. Show the instructions to load 1000 0000 (binary) into register SPL.
3. True or false. In immediate addressing the value comes immediately after the
opcode.
4. True or false. We can access the extended I/O registers using the I/O direct
addressing mode.
5. True or false. SPL is an I/O register.
6. True or false. Using the names of the registers makes the code more portable.
Write code to send $55 to Port B. Include
(a) the register name,
(b) the I/O address, and
(c) the data memory address.
Solution:
(a) LDI R20,0xFF ;R20 = 0xFF
OUT DDRB,R20 ;DDRB = R20 (Port B output)
LDI R20,0x55 ;R20 = $55
OUT PORTB,R20 ;Port B = 0x55
(b)
OUT 0x17,R20 ;DDRB = R20 (Port B output)
LDI R20,0x55 ;R20 = $55
OUT 0x18,R20 ;Port B = 0x55
(c)
address = $38.
STS 0x37,R20 ;DDRB = R20 (Port B output)
LDI R20,0x55 ;R20 = $55
STS 0x38,R20 ;Port B = 0x55
their addresses makes our code more portable. See Example 4.
Example 4
From Table 4, DDRB I/O address = $17 and PORTB I/O address = $18.
From Table 4, DDRB data memory address = $37 and PORTB data memory
207

We can use direct or register indirect addressing modes to access data stored
in the data memory. In the previous section we showed how to use direct address-
mode in the AVR. This topic will be discussed thoroughly in this section.
Register indirect addressing mode
In the register indirect addressing mode, a register is used as a pointer to
the data memory location. In the AVR, three registers are used for this purpose: X,
Y, and Z. These are 16-bit registers allowing access to the entire 65,536 bytes of
data memory space in the AVR.
combining R26 and R27 makes the X register. In this case R26 is the lower byte of X,
and R27 is the higher byte. TheYand Z registers are made by combining R29:R28 and
can be referred to as XL, XH, YL,YH, ZL, and ZH, respectively. For example, “LDI
XL,0x31” is the same as “LDI R26,0x31” since XL is another name for R26.
The 16-bit registers X, Y, and Z are widely used as pointers. We can use
them with the LD instruction to read the value of a location pointed to by these
registers. For example, the following instruction reads the value of the location
pointed to by the X pointer.
LD R24, X ;load into R24 from location pointed to by X
For instance, the following program loads the contents of location 0x130
into R18:
LDI XL, 0x30 ;load R26 (the low byte of X) with 0x30
LDI XH, 0x01 ;load R27 (the high byte of X) with 0x1
LD R18, X ;copy the contents of location 0x130 to R18
The above program loads 0x130 into the X register; this is done by load-
ing 0x30 into R26 (the low byte of X) and 0x1 into R27 (the high byte of X). Then
The ST instruction can be used to write a value to a location to which any
of the X, Y, and Z registers points. For example, the following program stores the
contents of R23 into location 0x139F:
LDI ZL, 0x9F ;load 0x9F into the low byte of Z
LDI ZH, 0x13 ;load 0x13 into the high byte of Z (Z=0x139F)
ST X, R23 ;store the contents of location 0x139F in R23
15 XH XL
7 0 7 0
0
R26
R27
15 YH YL
7 0 7 0
0
R28
R29
15 ZH ZL
7 0 7 0
0
R30
R31
ing mode. The register indirect addressing mode is a very important addressing
Figure 6. Registers X, Y, and Z
it loads R18 with the contents of the location to which X points. See Figure 7.
SECTION 3: REGISTER INDIRECT ADDRESSING MODE
R31:R30, respectively. See Figure 6. The R26, R27, R28, R29, R30, and R31 GPRs
Each of the registers is made by combining two specific GPRs; for example,
208

Advantages of register indirect addressing mode
One of the advantages of register indirect addressing mode is that it makes
accessing data dynamic rather than static, as with direct addressing mode.
$144 . Notice in solution (b) that two instructions are repeated numerous times. We
can create a loop with those two instructions as shown in solution (c). Solution (c)
is the most efficient and is possible only because of the register indirect address-
ing mode.
X, Y, OR Z - REGISTER
Data Space
RAMEND
0
0
15
Note: RAMEND has been used to represent
the highest location in data space.
Write a program to copy the value $55 into memory locations $140 through $144 using
(a) direct addressing mode,
(b) register indirect addressing mode without a loop, and
(c) a loop.
Solution:
(a) LDI R17,0x55 ;load R17 with value 0x55
STS 0x140,R17 ;copy R17 to memory location 0x140
(b) LDI R16,0x55 ;load R16 with value 0x55
LDI YL,0x40 ;load R28 with value 0x40 (low byte of addr.)
LDI YH,0x1 ;load R29 with value 0x1 (high byte of addr.)
ST Y,R16 ;copy R16 to memory location 0x140
INC YL ;increment the low byte of Y
INC YL ;increment the pointer
Figure 7. Register Indirect Addressing Mode
Example 5 shows three cases of copying $55 into RAM locations $140 through
Example 5
209

YL” to increment the pointer because
there is no such instruction as “INC Y”. Looping is not possible in direct address-
ing mode, and that is the main difference between the direct and register indirect
addressing modes. For example, trying to copy a string of data located in consec-
utive locations of data RAM is much more efficient and dynamic using register
Auto-increment and auto-decrement options for pointer
registers
Because the pointer registers (X, Y, and Z) are 16-bit registers, they can go
from $0000 to $FFFF, which covers the entire 64K memory space of the AVR.
Using the “INC ZL” instruction to increment the pointer can cause a problem when
an address such as $5FF is incremented. The instruction “INC ZL” will not prop-
agate the carry into the ZH register. The AVR gives us the options of auto-incre-
ment and auto-decrement for pointer registers to overcome this problem. The syn-
(c) LDI R16,0x5 ;R16 = 5 (R16 for counter)
LDI R20,0x55 ;load R20 with value 0x55 (value to be copied)
LDI YL,0x40 ;load YL with value 0x40
LDI YH,0x1 ;load YH with value 0x1
L1: ST Y,R20 ;copy R20 to memory pointed to by Y
DEC R16 ;decrement the counter
BRNE L1 ;loop while counter is not zero
Use the AVR Studio simulator to examine memory contents after the above program is
run.
$140 = ($55) $141 = ($55) $142 = ($55) $143 = ($55) 144 = ($55)
LD Rn,X After loading location pointed to by X, the X stays the same.
LD Rn,X+ After loading location pointed to by X, the X is incremented.
LD Rn,-X The X is decremented, then the location pointed to by X is loaded.
LD Rn,Y After loading location pointed to by Y, the Y stays the same.
LD Rn,Y+ After loading location pointed to by Y, the Y is incremented.
LD Rn,-Y The Y is decremented, then the location pointed to by Y is loaded.
LDD Rn,Y+q After loading location pointed to by Y+q, the Y stays the same.
LD Rn,Z After loading location pointed to by Z, the Z stays the same.
LD Rn,Z+ After loading location pointed to by Z, the Z is incremented.
LD Rn,-Z The Z is decremented, then the location pointed to by Z is loaded.
LDD Rn,Z+q After loading location pointed to by Z+q, the Z stays the same.
Note: This table shows the syntax for the LD instruction, but it works for all such instruc-
tions. The auto-decrement or auto-increment affects the entire 16 bits of the pointer register
and has no effect on the status register. This means that pointer register going from FFFF to
0000 will not raise any flag.
indirect addressing mode than using direct addressing mode. See Example 6.
Example 5 (Cont.)
In Example 5, we must use “INC
tax used for the LD instruction in such cases is shown in Table 5.
Table 5: AVR Auto-Increment/Decrement of Pointer Registers for LD Instruction
210

Assume that RAM locations $90–$94 have a string of ASCII data, as shown below.
$90 = (‘H’) $91 = (‘E’) $92 = (‘L’) $93 = (‘L’) $94 = (‘O’)
Write a program to get each character and send it to Port B one byte at a time. Show the
program using:
(a) Direct addressing mode.
(b) Register indirect addressing mode.
Solution:
(a) Using direct addressing mode
LDI R20,0xFF
OUT DDRB,R20 ;make Port B an output
LDS R20,0x90 ;R20 = contents of location 0x90
(b) Using register indirect addressing mode
LDI R16,0x5 ;R16=0x5 (R16 for counter)
LDI R20,0xFF
OUT DDRB,R20 ;make Port B an output
LDI ZL,0x90 ;the low byte of address (ZL = 0x90)
LDI ZH,0x0 ;the high byte of address (ZH = 0x0)
L1: LD R20,Z ;read from location pointed to by Z
INC ZL ;increment pointer
OUT PORTB,R20 ;send to PortB the contents of R20
DEC R16 ;decrement counter
BRNE L1 ;if R16 is not zero go to L1
When simulating the above program on the AVR Studio, make sure that memory loca-
tions $90–$94 have the message “HELLO”.
Example 6
211

Write a program to clear 16 memory locations starting at data memory address $60.
Use the following:
(a) INC Rn
(b) Auto-increment
Solution:
(a) LDI R16, 16 ;R16 = 16 (counter value)
LDI XL, 0x60 ;XL = the low byte of address
LDI XH, 0x00 ;XH = the high byte of address
LDI R20, 0x0 ;R20 = 0
L1: ST X, R20 ;clear location X points to
INC XL ;increment pointer
BRNE L1 ;loop until counter = zero
(b) LDI R16, 16 ;R16 = 16 (counter value)
LDI XL, 0x60 ;the low byte of X = 0x60
LDI XH, 0x00 ;the high byte of X = 0
LDI R20, 0x0 ;R20 = 0
L1: ST X+, R20 ;clear location X points to
Data Space
RAMEND
0
0
15
-1
Data Space
RAMEND
0
0
15
1
See Figures 8 and 9. Then, see Examples 7 through 9.
Example 7
Figure 9. Register Indirect Addressing with Pre-decrement
Figure 8. Register Indirect Addressing with Post-increment
212

To see an example of how to use all three pointer registers, study and sim-
Write a program to copy a block of 5 bytes of data from data memory locations starting
at $130 to RAM locations starting at $60.
Solution:
LDI R16, 16 ;R16 = 16 (counter value)
LDI XL, 0x30 ;the low byte of address
LDI XH, 0x01 ;the high byte of address
LDI YL, 0x60 ;the low byte of address
LDI YH, 0x00 ;the high byte of address
L1: LD R20, X+ ;read where X points to
ST Y+, R20 ;store R20 where Y points to
Before we run the above program.
130 = ('H') 131 = ('E') 132 = ('L') 133 = ('L') 134 = ('O')
After the program is run, the addresses $60–$64 have the same data as $130–$134.
130 = ('H') 131 = ('E') 132 = ('L') 133 = ('L') 134 = ('O')
60 = ('H') 61 = ('E') 62 = ('L') 63 = ('L') 64 = ('O')
Assume that data memory locations $240–$243 have the following hex data. Write a
program to add them together and place the result in locations $220 and $221.
$240 = ($7D) $241 = ($EB) $242 = ($C5) $243 = ($5B)
Solution:
.EQU L_BYTE = 0x220 ;RAM loc for L_Byte
.EQU H_BYTE = 0x221 ;RAM loc for H_Byte
LDI R16,4
LDI R20,0
LDI R21,0
LDI XL, 0x40 ;the low byte of X = 0x40
LDI XH, 0x02 ;the high byte of X = 02
L1: LD R22, X+ ;read contents of location where X points to
ADD R20, R22
BRCC L2 ;branch if C = 0
L2: DEC R16 ;decrement counter
BRNE L1 ;loop until counter is zero
ST L_BYTE, R20 ;store the low byte of the result in $220
ST H_BYTE, R21 ;store the high byte of the result in $221
Example 8
Example 9
ulate Example 10.
213

Register indirect with displacement
Suppose we want to read a byte that is a few bytes higher than where the
Z register points to. To do so we can increment the Z register so that it points to
the desired location and then read it. But there is an easier way; we can use the reg-
ister indirect with displacement. In this addressing mode a fixed number is added
to the Z register. For example, if we want to read from the location that is 5 bytes
after the location to which Z points, we can write the following instruction:
LDD R20, Z+5 ;load from Z+5 into R20
The general format of the instruction is as follows:
LDD Rd, Z+q ;load from Z+q into Rd
where q is a number between 0 to 63, and Rd is any of the general purpose
To store a byte of data in a data memory location using the register indirect
Two multibyte numbers are stored in locations $130–$133 and $150–$153. Write a pro-
gram to add the multibyte numbers and save the result in address $160–$163.
$C7659812
+ $2978742A
Solution:
LDI R16, 4 ;R16 = 4 (counter value)
LDI XL, 0x30
LDI XH, 0x1 ;load pointer. X = $130
LDI YL, 0x50
LDI YH, 0x1 ;load pointer. Y = $150
LDI ZL, 0x60
LDI ZH, 0x1 ;load pointer. Z = $160
CLC ;clear carry
L1: LD R18, X+ ;copy memory to R18 and INC X
LD R19, Y+ ;copy memory to R19 and INC Y
ADC R18,R19 ;R18 = R18 + R19 + carry
ST Z+,R18 ;store R18 in memory and INC Z
DEC R16 ;decrement R16 (counter)
Before the addition we have:
MSByte LSByte
133 = ($C7) 132 = ($65) 131 = ($98) 130 = ($12)
153 = ($29) 152 = ($78) 151 = ($74) 150 = ($2A)
After the addition we have:
163 = ($F0) 162 = ($DE) 161 = (0C) 160 = (3C)
Notice that we are using the little endian convention of storing a low byte to a low
address, and a high byte to a high address. Single-step the program in AVR Studio and
examine the pointer registers and memory contents to gain insight into register indirect
addressing mode.
Example 10
registers. See Figure 10.
214

with displacement addressing mode we can use STD (Store with Displacement).
The instruction is as follows:
STD Z+q,Rr ;store Rr into location Z+q
For example, the following instruction writes the contents of R20 into the
location that is five bytes away from where Z points to:
STD Z+5,R20 ;store R20 into location Z+5
Y OR Z - REGISTER
Data Space
RAMEND
0
0
15
Op.
0
15
Rr/Rd q
5
6
10
15
Write a function that adds the contents of three continuous locations of data space and stores
the result in the first location. The Z register should point to the first location before the func-
tion is called.
Solution:
.INCLUDE M32DEF.INC
LDI R16,HIGH(RAMEND) ;initialize the stack pointer
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
LDI ZL,0x00 ;initialize the Z register
LDI ZH,2
CALL ADD3LOC ;call add3loc
HERE: JMP HERE ;loop forever
ADD3LOC:
LDI R21,0 ;R21 = 0
LD R20,Z ;R20 = contents of location Z
LDD R16,Z+1 ;R16 = contents of location Z+1
ADD R20,R16 ;R20 = R20 + R16
BRCC L1 ;branch if carry cleared
INC R21 ;increment R21 if carry occurred
L1: LDD R16,Z+2 ;R16 = contents of location Z+2
ADD R20,R16 ;R20 = R20 + R16
BRCC L2 ;branch if carry cleared
L2: ST Z,R20 ;store R20 into location Z
STD Z+1,R21 ;store R21 into location Z+1
RET
Figure 10. Register Indirect with Displacement
To see an example of how to use the addressing mode, see Example 11.
Example 11
215

Review Questions
R19,0x95” uses _________ addressing mode.
2. Which register is the low byte of the X register?
3. The pointer registers are _____-bit registers.
4. Write a program that adds 2 to the contents of locations $90–$9A and stores
the results in locations $200–$20A.
5. Which registers may be used for register indirect addressing mode if the data
is in the data memory?
So far, we have seen that the AVR has a maximum of 8M bytes of code
(program) space and 64K of data memory space. We can use the code space to
store fixed data. In this section we discuss how to access fixed data residing in the
program ROM space of the AVR. First we examine how to store fixed data in the
program ROM space using the .DB (define byte) directive.
.DB (define byte) and fixed data in program ROM
The .DB data directive is widely used to allocate ROM program (code)
memory in byte-sized chunks. In other words, .DB is used to define an 8-bit fixed
data. When .DB is used to define fixed data, the numbers can be in decimal, bina-
ry, hex, or ASCII formats. The .DB directive is widely used to define ASCII
strings.
memory is 2 bytes, whereas the .DB directive allocates byte-sized chunks. If we
byte of ROM location; the second byte goes to the high byte of ROM location; the
In the cases in which we allocate an odd number of ROM locations using .DB, the
assembler will automatically make the number of allocated locations even by plac-
ing a zero into the high byte of the last location. In other words, even if we allo-
cate a fraction of a program ROM location, the assembler will allocate the whole
we must use single quotes (') for a single character and double quotes () for a
string.
AVR assembly also allows the use of .DW in place of .DB to define values
we need to have a register pointer to point to the data to be fetched from the code
register indirect flash addressing mode. This is an addressing mode widely used to
access data elements located in the program space of the AVR. In AVR terminolo-
gy, there are two register indirect flash addressing modes: program memory con-
stant addressing and program memory addressing with post-increment. In the pro-
SECTION 4: LOOK-UP TABLE AND TABLE PROCESSING
location and load the unused part of it with zero. In Example 12 notice also that
greater than 255 (0xFF) but not larger than 65,535 (0xFFFF). See Example 13.
1. The instruction “LD
space. The Z register can be used for this purpose. For this reason we can call it
third byte goes to the low byte of the next location of program ROM; and so on.
See Example 12. In Example 12 notice that each location of program
allocate a few bytes of data using the .DB directive, the first byte goes to the low
Example 12 showed how to place fixed data into program ROM. Now,
Reading table elements in the AVR
216

Assume that we have burned the following fixed data into the program ROM of an AVR
;MY DATA IN FLASH ROM
.ORG $500
DATA1: .DB 1,8,5,3
DATA2: .DB 28 ;DECIMAL(1C in hex)
DATA3: .DB 0b00110101 ;BINARY (35 in hex)
DATA4: .DB 0x39 ;HEX
.ORG 0x510
DATA4: .DB 'Y' ;single ASCII char
DATA5: .DB '2','0','0','5';ASCII numbers
.ORG $516
DATA6: .DB Hello ALI ;ASCII string
Solution:
DATA1 has four bytes of data. The “.ORG $500” directive causes the assembler to put
the first byte of DATA1 in the low byte of location $500. The second byte of DATA1,
which is 8, goes to the high byte of location $500; the third byte goes to the low byte
of location $501, and the fourth byte goes to the high byte of location $501.
DATA2 will be located after DATA1, in location $502 of memory. As DATA2 has one
byte of data and each location of program is 2 bytes wide, the assembler puts zero in
the high byte of location $502.
Give the contents of each ROM location starting at $600.
.ORG $600
DATA1: .DW 0x1234,0x1122
DATA2: .DW 28 ;DECIMAL (001C in hex)
DATA3: .DW 0x2239 ;HEX
Solution:
Since AVR is little endian, the low byte of 0x1234, which is 0x34, goes to the low
byte of location $600, and its high byte goes to the high byte.
Example 12
Example 13
chip. Give the contents of each ROM location starting at $500.
217

gram memory constant addressing mode, the content of Z does not change when
the instruction is executed, which is why it is called constant addressing; whereas
in the program memory addressing with post-increment, the content of Z incre-
ments after each execution.
“LPM Rn, Z” uses program memory constant addressing mode, while
“LPM Rn,Z+” uses program memory addressing with post-increment. (See Table
There is a group of AVR instructions designed for table processing. Table
The “LPM Rn, Z” instruction loads the byte pointed to by Z into the Rn.
As you know, in the AVR, each location of the program memory is 2 bytes. So, we
should mention if we want to read the low byte or the high byte. The least signif-
icant bit (LSB) of the Z register indicates whether the low byte or the high byte
should be read. If LSB = 0, then the low byte will be read; otherwise, the high byte
Z - REGISTER
Program Memory
FLASHEND
0
0
15
LSB
1
15
0
7
8
15
16
1
Note: If LSB = 0, the low byte is selected; if LSB = 1, the high byte is selected. Bits 15 through
1 are for word address.
Z - REGISTER
Program Memory
FLASHEND
0
0
15
LSB
1
15
0
7
8
15
Instruction Function Description
LPM Rn,Z Load from Program Memory After read, Z stays the same
LPM Rn,Z+ Load from Program Memory with post-inc. Reads and increments Z
Note: The byte of data is read into the Rn register from code space pointed to by Z.
6 shows the instructions for table reading in the AVR.
6.) In Figures 11 and 12 you see the addressing modes.
Figure 11. Program Memory Constant Addressing
Figure 12. Program Memory Addressing with Post-increment
Table 6: AVR Table Read Instructions
218

will be read. The other bits of the Z register (bit 1 to bit 15) represent the address
order to address each byte of the program memory. For example, to address the
low byte of location $0002, we should load the Z register with $0005, as shown
below:
LDI ZH, 0x00 ;load ZH with 0x00 (the high byte of addr.)
LDI ZL, 0x05 ;load ZL with 0x05 (the low byte of addr.)
LPM R16, Z ;load R16 with contents of location Z
We can write the code using the HIGH and LOW directives as well:
LDI ZH, HIGH(0x0005) ;load ZH with 0x00 (the high byte of addr.)
LDI ZL, LOW (0x0005) ;load ZL with 0x05 (the low byte of addr.)
shift the address of that location one bit to the left. For instance, to access the low
byte of location 0b00000101, we should load Z with 0b000001010. To read the high
byte, we shift the address to the left and we set bit 0 to one.
We can shift the address using the directive as well. For example, the fol-
lowing program reads the low byte of location $100:
LDI ZH, HIGH($1001) ;load ZH with the high byte of addr.
LDI ZL, LOW ($1001) ;load ZL with the low byte of addr.
If we OR a number with 1, its bit 0 will be set. Thus, the following program
reads the high byte of location $100.
LDI ZH, HIGH(($1001)|1)
LDI ZL, LOW (($1001)|1)
0000 0000 0000 0000 0000 0000 0000 0001 0000 0000 0000 0000
0000 0000 0000 0001
0000 0000 0000 0010 0000 0000 0000 0011
0000 0000 0000 0100 0000 0000 0000 0101 0000 0000 0000 0010
0000 0000 0000 0011
0000 0000 0000 0110 0000 0000 0000 0111
0000 0000 0000 1000 0000 0000 0000 1001 0000 0000 0000 0100
0000 0000 0000 0101
0000 0000 0000 1010 0000 0000 0000 1011
1111 1111 1111 1100 1111 1111 1111 1101 0111 1111 1111 1110
0111 1111 1111 1111
1111 1111 1111 1110 1111 1111 1111 1111
…..
…..
of the location that should be read. See Figure 11.
Figure 13b shows the value that should be loaded into the Z register in
Figure 13a. Values of Z (in Binary) Figure 13b. Values of Z
As you see in Figure 13a, to read the low byte of each location we should
219

In this program, assume that the phrase “WORLD PEACE.” is burned into ROM loca-
tions starting at $500, and the program is burned into ROM locations starting at 0.
Analyze how the program works and state where “WORLD PEACE.” is stored after this
program is run.
.ORG $0000 ;burn into ROM starting at 0
LDI R20,0xFF
OUT DDRB,R20 ;make PB an output
LDI ZL,LOW(MYDATA1) ;ZL = 0x00 (low byte of address)
LDI ZH,HIGH(MYDATA1) ;ZH = 0x05 (high byte of address)
LPM R20,Z
INC ZL ;ZL = 01 pointing to next byte (A01)
LPM R20,Z ;load R20 with 'W' (char pointed to by Z)
LPM R20,Z ;load R20 with 'O' (char pointed to by Z)
LPM R20,Z ;load R20 with 'R' (char pointed to by Z)
LPM R20,Z ;load R20 with 'L' (char pointed to by Z)
LPM R20,Z ;load R20 with 'D' (char pointed to by Z)
HERE: RJMP HERE ;stay here forever
.ORG $500 ;data is burned into program space starting at $500
MYDATA: .DB WORLD PEACE.
Solution:
In the above program, ROM locations $500–$505 have the following contents.
$500 (Low byte) = ('W') $500 (High byte) = ('O')
$501 (Low byte) = ('R') $501 (High byte) = ('L')
$502 (Low byte) = ('D') $502 (High byte) = (' ')
$503 (Low byte) = ('P') $503 (High byte) = ('E')
$504 (Low byte) = ('A') $504 (High byte) = ('C')
$505 (Low byte) = ('E') $505 (High byte) = ('.')
We start with Z = $0A00 (R31:R30 = $A00). The instruction “LPM R20,Z” loads R20
with the contents of the low byte of ROM location $500. Register R20 contains $57, the
ASCII value for 'W'. This is loaded to Port B. Next, ZL is incremented to make Z =
$A01. The LPM instruction will get the contents of the high byte of ROM location $500,
which is character 'O'. After this program is run, we send the ASCII values for the char-
acters 'W', 'O', 'R', 'L', and 'D' to Port B one character at a time. The loop version of this
program is given in the next example.
Example 14
220

Assuming that program ROM space starting at $500 contains “WORLD PEACE.”.
write a program to send all the characters to Port B one byte at a time.
Solution:
(a) This method uses a counter
.INCLUDE M32DEF.INC
LDI R16,11
LDI R20,0xFF
LDI ZH,HIGH(MYDATA1);ZH = high byte of addr.
LDI ZL,LOW(MYDATA1) ;ZL = low byte of addr.
L1: LPM R20,Z
INC ZL ;pointing to next byte
BRNE L1 ;repeat if counter not zero
;-----------------------------------------------
;data is burned into code (program) space starting at $500
.ORG 0x500
MYDATA DB WORLD PEACE.
(b) This method uses null char for end of string
.INCLUDE M32DEF.INC
LDI R20,0xFF
LDI ZH,HIGH(MYDATA1);ZH = high byte of addr.
L1: LPM R20,Z ;bring in next byte
CPI R20,0 ;compare R20 with 0
BREQ HERE ;branch if equal
INC ZL ;pointing to next byte
RJMP L1 ;repeat
;-----------------------------------------------
.ORG 0x500
MYDATA: .DB WORLD PEACE,0 ;notice null
Example 15
221

Auto-increment option for Z
Using the “INC ZL” instruction to increment the pointer can cause a prob-
lem when an address such as $5FF is incremented. The carry will not propagate
into ZH. The AVR gives us the option of LPM Rn, Z+ (load program memory with
Assume that ROM space starting at $100 contains the message “The Promise of World
Peace”. Write a program to bring this message into the CPU one byte at a time and place
the bytes in RAM locations starting at $140.
Solution:
.EQU RAM_BUF = 0x140
.INCLUDE M32DEF.INC
LDI R20,0xFF
LDI ZH,HIGH(MYDATA1) ;ZH = high byte of addr.
LDI XH,HIGH(RAM_BUF) ;XH = $1, high byte of RAM addr.
LDI XL,LOW(RAM_BUF) ;XL = $40, low byte of RAM addr.
L1: LPM R20,Z+ ;bring in next byte and increment Z
BREQ HERE ;branch if end of string
ST X+,R20 ;store R20 in RAM and increment X
RJMP L1 ;repeat
;---------------------message
.ORG 0x100 ;data burned starting at 0x100
MYDATA: .DB The Promise of World Peace,0 ;notice null
Solution:
.INCLUDE M32DEF.INC
LDI R20,0xFF
LDI ZH,HIGH(MYDATA1) ;ZH = high byte of addr.
L1: LPM R20,Z+ ;bring in next byte and inc. Z
BREQ HERE ;branch if equal
RJMP L1 ;repeat
.ORG 0x500
MYDATA: .DB WORLD PEACE,0 ;notice null
post-increment) as shown in Table 6. See Examples 16 and 17.
Example 16
Repeat Example 15, using auto-increment.
Example 17
222

Look-up table
The look-up table is a widely used concept in microcontroller program-
ming. It allows access to elements of a frequently used table with minimum oper-
ations. As an example, assume that for a certain application we need 4 + x2
values
in the range of 0 to 9. We can use a look-up table instead of calculating the values,
which takes some time. In the AVR, to get the table element we add the index to
Assume that the lower three bits of Port C are connected to three switches. Write a pro-
gram to send the following ASCII characters to Port D based on the status of the
switches.
000 ‘0’
001 ‘1’
010 ‘2’
011 ‘3’
100 ‘4’
101 ‘5’
110 ‘6’
111 ‘7’
Solution:
.ORG 0
.INCLUDE M32DEF.INC
LDI R16,0x0
OUT DDRC,R16 ;DDRC = 0x00 (port C as input)
LDI R16,0xFF
OUT DDRD,R16 ;DDRD = 0xFF (port D as output)
LDI ZH,HIGH(ASCII_TABLE1) ;ZH = high byte of addr.
BEGIN:IN R16,PINC ;read from port C into R16
ANDI R16,0b00000111 ;mask upper 5 bits
LDI ZL,LOW(ASCII_TABLE1) ;ZL = the low byte of addr.
ADD ZL,R16 ;add PINC to the addr
LPM R17,Z ;get ASCII from look-up table
OUT PORTD,R17
RJMP BEGIN
;look-up table for ASCII numbers 0-7
.ORG 0x20
ASCII_TABLE:
.DB '0','1','2','3','4','5','6','7'
Example 18
the address of the look-up table. This is shown in Examples 18 through 20.
223

Write a program to get the x value from Port B and send x2
to Port C. Assume that
PB3–PB0 has the x value of 0–9. Use a look-up table instead of a multiply instruction.
What is the value of Port C if we have 9 at Port B?
Solution:
.INCLUDE M32DEF.INC
.ORG 0
LDI R16,0x00
OUT DDRB,R16 ;DDRB = 0x00 (Port B as input)
LDI R16,0xFF
OUT DDRC,R16 ;DDRC = 0xFF (Port C as output)
LDI ZH,HIGH(XSQR_TABLE1) ;ZH = high byte of addr.
L1: LDI ZL,LOW(XSQR_TABLE1) ;ZL = low byte of addr.
IN R16,PINB ;read from Port B into R16
ANDI R16,0x0F ;mask upper bits
ADD ZL,R16
LPM R18,Z ;get x2 from the look-up table
OUT PORTC,R18
RJMP L1
;look-up table for square of numbers 0-9
.ORG 0x10
XSQR_TABLE:
.DB 0, 1, 4, 9, 16, 25, 36, 49, 64, 81
From the screenshot below, notice that location 0020 has 0, the square of 0. Location
0021 has 01, the square of 1. Location 0022 has 04, the square of 2. Location 0023 has
09, the square of 3. Location 0024 has $10, the square of 4 (4 × 4 = 16 = $10) and so
on. Notice that the Memory window shows the low bytes and the high bytes of each pro-
gram memory location separately, and the locations are addressed the same way as the
Z register. This simplifies debugging since we usually use the Memory window to exam-
ine data. If we want to examine the instruction, we would better use the Disassembly
window.
If we have 9 at Port B, then Port C will have $51, which is the hex value of dec-
imal 81 (92 = 81).
Example 19
224

Accessing a look-up table in RAM
The look-up table elements can also be in RAM instead of ROM.
Sometimes we need to bring in the elements of the look-up table from RAM
because the elements are dynamic and can change. In the AVR, we can do that
using the pointers.
Writing table elements in AVR
In AVR we also have the SPM instruction, which allows us to write (store)
data into program memory. See the AVR datasheets to see how to write to Flash
ROM.
Review Questions
1. The instruction “LPM” uses register ______ as the address pointer.
2. What register holds data once it is read by the LPM Rd,Z instruction?
3. What is the size of Z? How much ROM space does it cover?
4. What register is incremented upon execution of the LPM Rd,Z+ instruction?
5. What is the difference between the LPM and ELPM instructions?
6. When should we make our look-up table in RAM?
7. True or false. We can write into program memory using the SPM instruction.
Write a program to get the x value from Port B and send x2
+ 2x + 3 to Port C. Assume
PB3–PB0 has the x value of 0–9. Use a look-up table instead of a multiply instruction.
Solution:
.ORG 0
.INCLUDE M32DEF.INC
LDI R16,0x00
OUT DDRB,R16 ;DDRB = 0x00 (Port B as input)
LDI R16,0xFF
OUT DDRC,R16 ;DDRC = 0xFF (Port C as output)
LDI ZH,HIGH(TABLE1) ;ZH = high byte of addr.
L1: LDI ZL,LOW(TABLE1) ;ZL = low byte of addr.
IN R16,PINB ;read from Port B into R16
ANDI R16,0x0F ;mask upper bits
ADD ZL,R16
LPM R18,Z ;get x2 + 2x + 3 from the look-up table
OUT PORTC,R18
RJMP L1
.ORG 0x10
TABLE:
.DB 3, 6, 11, 18, 27, 38, 51, 66, 83, 102
Example 20
225

access registers and I/O ports in byte size only. In other words, if you need to check
a single bit of an I/O port, you must read the entire byte first and then manipulate
the whole byte with some logic instructions to get hold of the desired single bit.
bit-oriented instructions use only one addressing mode, the direct addressing
mode. In the previous sections of this chapter we showed various addressing
modes of byte-addressable space of the AVR, among them register indirect
addressing mode for both data RAM and program (code) ROM. Note that there is
no register indirect addressing mode for bit-oriented instructions in the AVR, nor
are there any bit-oriented instructions for program memory.
Manipulating the bits of general purpose registers
In this part we discuss how to set, clear, or copy the bits of a GPR.
Setting the bits
The SBR (Set Bits in Register) instruction sets the specified bits in the gen-
eral purpose register. It has the following format:
SBR Rd,K ;set bits in register Rd
K is an 8-bit value that can be 00–FF in hex, and Rd is R16 to R31 (any of
the 16 general purpose registers). The SBR instruction is just another name for the
ORI instruction and it sets any of the bits of the general purpose register whose bit
in the K variable is 1. For example, in the following program the SBR instruction
sets the bits 2, 5, and 6 regardless of their previous values.
LDI R17,0b01011001 ;R17 = 0x59
SBR R17,0b01100100 ;set bits 2, 5, and 6 in register R17
When execution of the above instructions is finished, R17 contains 0x7D.
Notice that the SBR instruction is a byte-oriented instruction as it manipulates the
whole byte at one time.
Clearing the bits
The CBR (Clear Bits in Register) instruction clears the specified bits in the
general purpose register. It has the following format:
CBR Rd,K ;clear bits in register Rd
K is an 8-bit value that can be 00–FF in hex, and Rd is R16 to R31 (any of
the 16 general purpose registers). The CBR instruction clears any of the bits of the
general purpose register whose bit in the K variable is 1. For example, in the fol-
lowing program the CBR instruction clears the bits 2, 5, and 6 regardless of their
SECTION 5: BIT-ADDRESSABILITY
In Table 7, some of the bit-oriented instructions are given. Notice that the
Many microprocessors such as the 386 or Pentium allow programs to
This is not the case with the AVR. In this section, we provide more programming
examples of bit manipulation using the bit-addressable and byte-addressable op-
tions of the AVR family.
226

previous values.
LDI R17,0b01011001 ;R17 = 0x59
CBR R17,0b01100100 ;clear bits 2, 5, and 6 in register R17
After the execution of the above instructions, R17 contains 0x19.
Copying a bit
Rr,b” instruction copies the T flag to bit b in register Rr.
For example, the following program copies bit 3 from R17 to bit 5 in reg-
ister R19:
BST R17,3 ;store bit 3 from R17 to the T flag
BLD R19,5 ;copy the T flag to bit 5 in R19
SBI A,b Set Bit b in I/O register
CBI A,b Clear Bit b in I/O register
SBIC A,b Skip next instruction if Bit b in I/O register is Cleared
SBIS A,b Skip next instruction if Bit b in I/O register is Set
BST Rr,b Bit store from register Rr to T
BLD Rd,b Bit load from T to Rd
SBRC Rr,b Skip next instruction if Bit b in Register is Cleared
SBRS Rr,b Skip next instruction if Bit b in Register is Set
BRBS s,k Branch if Bit s in status register is Set
BRBC s,k Branch if Bit s in status register is Cleared
Note: A can be any location of the I/O register.
A switch is connected to pin PB4. Write a program to get the status of the switch and
save it in D0 of internal RAM location 0x200.
Solution:
.EQU MYREG = 0x200 ;set aside loc 0x200
CBI DDRB,0 ;make PB0 an input
IN R17,PINB ;R17 = PINB
BST R17,4 ;T = PINB.4
LDI R16,0x00 ;R16 = 0
BLD R16,0 ;R16.0 = T
STS MYREG,R16 ;copy R16 to location $200
HERE: JMP HERE
Table 7: Single-Bit (Bit-Oriented) Instructions for AVR
See Example 21.
Example 21
One of the bits in the SREG (status register) is named T (temporary),
which is used when we want to copy a bit of data from one GPR to another GPR.
The BST (Bit Store from register to T) and BLD (Bit Load from T to register) in-
structions can be used to copy a bit of a register to a specific bit of another register.
The “BST Rd,b” instruction stores bit b from Rd to the T flag, while flag, while
the “BLD
227

Checking a bit
To see if a bit of a general purpose register is set or cleared, we can use the
SBRS (Skip next instruction if Bit in Register is Set) and SBRC (Skip next instruc-
tion if Bit in register is Cleared) instructions.
The SBRS instruction tests a bit of a register and skips the instruction right
below it if the bit is HIGH. The format of the SBRS instruction is as follows:
SBRS Rd,b ;skip next instruction if Bit b in Rd is set
For example, in the following program the “LDI R20,0x55” instruction
will not be executed since bit 3 of R17 is set.
LDI R17,0b0001010
SBRS R17,3 ;skip next instruction if Bit 3 in R17 is set
LDI R20,0x55
LDI R30,0x33
The SBRC instruction skips the next instruction if a bit of a GPR is cleared.
It has the following format:
SBRC Rd,b ;skip next instruction if Bit b in Rd is cleared
For example, in the following program the “LDI R20,0x55” instruction
will not be executed since bit 2 of R16 is cleared.
LDI R16,0b0001010
SBRC R16,2 ;skip next instruction if Bit 2 in R16 is cleared
LDI R20,0x55
LDI R30,0x33
A switch is connected to pin PC7. Using the SBRS instruction, write a program to check
the status of the switch and perform the following:
(a) If switch = 0, send letter ‘N’ to Port D.
(b) If switch = 1, send letter ‘Y’ to Port D.
Solution:
.INCLUDE ”M32DEF.INC” ;include a file according to the IC you use
CBI DDRC,7 ;make PC7 an input
LDI R16,0xFF
OUT DDRD,R16 ;make Port D an output port
AGAIN:IN R20,PINC ;R20 = PINC
SBRS R20,7 ;skip next line if Bit PC7 is set
RJMP OVER ;it must be LOW
LDI R16,'Y' ;R16 = 'Y' ASCII letter Y
OUT PORTD,R16 ;issue R16 to PD
RJMP AGAIN ;we could use JMP instead
OVER: LDI R16,'N' ;R16 = 'N' ASCII letter N
OUT PORTD,R16 ;issue R16 to PORTD
See Example 22.
Example 22
228

Manipulating the bits of I/O registers
SBI PORTA,1 ;set Bit 1 in PORTA
CBI PORTB,4 ;clear Bit 4 in PORTB
Solution:
.INCLUDE ”M32DEF.INC” ;include a proper file
LDI R16,0xFF
AGAIN:IN R20,PINC ;R20 = PINC
SBRC R20,7 ;skip next line if Bit PC7 is cleared
RJMP OVER ;it must be HIGH
LDI R16,'N' ;R16 = 'N' ASCII letter N
OVER: LDI R16,'Y' ;R16 = 'Y' ASCII letter Y
Write a program to toggle PB2 a total of 200 times.
Solution:
LDI R16,200 ;load the count into R16
SBI DDRB,2 ;DDRB.1 = 1, make RB1 an output
AGAIN:SBI PORTB,2 ;set bit PB2 (toggle PB2)
CBI PORTB,2 ;clear bit PB2 (toggle PB2)
BRNE AGAIN ;continue until counter is zero
See Example 23.
Example 23
Example 24
Rewrite the program of Example 22 using the SBIC instruction.
We can set and clear the lower 32 I/O registers (addresses 0 to 31) using
SBI (Set bit in I/O register) and CBI (Clear bit in I/O register) instructions. For
example, the following two instructions set the PORTA. 1 and clear the POR-
TB.4, respectively:
I/O register is Set) and SBIC (Skip if Bit in I/O register is Cleared) instructions.
We can test a bit in the lower 32 I/O register using the SBIS (Skip if Bit in
229

Status register bit-addressability
Checking a flag bit
There are some instructions for checking the bits in the status register, as
BRBS (Branch if status flag is Set) and BRBC (Branch if status flag is Cleared).
The instructions are as follows:
BRBS s,k ;branch if status flag bit is set
BRBC s,k ;branch if status flag bit is cleared
where s is a number between 0 and 7, and represents the bit in the status
register, and k is the relative address of the target location to which the instruction
branches when the condition is true.
For example, in the following program the LDI instruction is not executed
when the carry flag is set:
BRBS 0,L1 ;branch if status flag bit 0 is set
LDI R20,3
L1:
D0
D7
Bit
Solution:
.INCLUDE ”M32DEF.INC” ;include a proper file
LDI R16,0xFF
AGAIN:SBIS PINC,7 ;skip next line if Bit PC7 is set
LDI R16,'Y' ;R16 = 'Y' ASCII letter Y
OVER: LDI R16,'N' ;R16 = 'N' ASCII letter N
Example 25
Rewrite the program of Example 22 using the SBIS instruction.
shown in Table 8. All of the instructions are derived from two instructions:
Figure 14. Bits of the Status Register
Now let’s see how we can use bit-addressability of the status register.
The bits of the status register are used for the flags C, Z, N, V, S, H, T, and I.
The status register is shown in Figure 14.
230

We can write the same program using the “BRCS L1” instruction as follows:
BRCS L1 ;branch if carry flag is set
LDI R20,3
L1:
Since it is hard to memorize the bits of the status register and use the
fy checking the bits of the status register.
Manipulating a bit
To set a flag we can use the BSET instruction.
BSET s ;flag bit set
where s is a number between 0 and 7, and represents the bit to be set in the
status register.
For example, the following instruction sets the carry flag.
BSET 0 ;set bit 0 (carry flag)
As another example, the instruction “BSET 2” sets the N (Negative) flag.
To clear a flag we can use the BCLR (flag bit clear) instruction.
BCLR s ;flag bit clear
where s is a number between 0 and 7, and represents the bit to be cleared
in the status register.
For example, the following instruction clears the carry flag.
BCLR 0 ;clear bit 0 (carry flag)
As another example, the instruction “BCLR 1” clears the Z (Zero) flag.
Instruction Action Instruction Action
BRCS Branch if C = 1 BRCC Branch if C = 0
BRLO Branch if C = 1 BRSH Branch if C = 0
BREQ Branch if Z = 1 BRNE Branch if Z = 0
BRMI Branch if N = 1 BRPL Branch if N = 0
BRVS Branch if V = 1 BRVC Branch if V = 0
BRLT Branch if S = 1 BRGE Branch if S = 0
BRHS Branch if H = 1 BRHC Branch if H = 0
BRTS Branch if T = 1 BRTC Branch if T = 0
BRIE Branch if I = 1 BRID Branch if I = 0
Table 8: AVR Conditional Branch (Jump) Instructions
BRBC and BRBS instructions, we can use the instructions in Table 8 to simplify
A more convenient way is to use the CLZ instruction, as shown in Table 9.
231

Internal RAM bit-addressability
The internal RAM is not bit-addressable. So, in order to manipulate a bit
of the internal RAM location, you should bring it into the general purpose register
Write a program to see if the internal RAM location $195 contains an even value. If so,
send it to Port B. If not, make it even and then send it to Port B.
Solution 1:
LDI R16,0xFF
AGAIN:LDS R16,MYREG
SBRS R16,0 ;bit test D0, skip if set
CBR R16,0b00000001 ;clear bit D0 = 0
OVER: OUT PORTB,R16 ;copy it to Port B
JMP AGAIN ;we can use RJMP too
Solution 2:
LDI R16,0xFF
AGAIN:LDS R16,MYREG
CBR R16,0b00000001 ;clear bit D0 = 0
OVER: OUT PORTB,R16 ;copy it to Port B
JMP AGAIN ;we can use RJMP too
Instruction Action Instruction Action
SEC Set Carry C = 1 CLC Clear Carry C = 0
SEZ Set Zero Z = 1 CLZ Clear Zero Z = 0
SEN Set Negative N = 1 CLN Clear Negative N = 0
SEV Set overflow V = 1 CLV Clear overflow V = 0
SES Set Sign S = 1 CLS Clear Sign S = 0
SEH Set Half carry H = 1 CLH Clear Half carry H = 0
SET Set Temporary T = 1 CLT Clear Temporary T = 0
SEI Set Interrupt I = 1 CLI Clear Interrupt I = 0
Table 9: Manipulating the Flags of the Status Register
and then manipulate it, as shown in Examples 26 and 27.
Example 26
232

Review Questions
1. True or false. All registers of the AVR are bit-addressable.
2. True or false. The status register of the AVR is bit-addressable.
3. Indicate which of the following registers are bit-addressable.
(a) Port A (b) Port B (c) R19 (d) status register (e) PC register
4. How would you check to see whether bit D1 of R23 is HIGH or LOW?
5. Show how to clear the carry flag.
6. State what each instruction does.
(a) SBR R16,0x1 (b) CBR R30,0x7 (c) BST R19,2
(d) SBI PORTB,4 (e) CBI SREG,1 (f) CLI
Every member of the AVR microcontrollers has some amount of on-chip
Write a program to see if the internal RAM location $137 contains an even value. If so,
write 0x55 into location $200. If not, write 0x63 into location $200.
Solution:
.EQU MYREG = 0x137 ;set aside location 0x137
.EQU RESULT= 0x200
LDS R16,MYREG
SBRC R16,0 ;skip if clear Bit D0 of R16 register is clr
RJMP OVER ;it is odd
LDI R16,0x55
STS RESULT,R16
RJMP HERE
OVER: LDI R16,0x63
STS RESULT,R16
HERE: RJMP HERE
Chip Bytes Chip Bytes Chip Bytes
ATmega8 512 ATmega16 512 ATmega32 1024
ATmega64 2048 ATmega128 4096 ATmega256RZ 4096
ATmega640 4096 ATmega1280 4096 ATmega2560 4096
SECTION 6: ACCESSING EEPROM IN AVR
Example 27
EEPROM. In Table 10 you can see the amount of EEPROM memory in each
Table 10: Size of EEPROM Memory in ATmega Family
member of the ATmega family. The data in SRAM will be lost if the power is dis-
connected. However, we need a place to save our data to protect them against
power failure. EEPROM memory can save stored data even when the power is cut
off. In this section we will show how to write to EEPROM memory and how to
access it.
233

EEPROM registers
There are three I/O registers that are directly related to EEPROM. These
are EECR (EEPROM Control Register), EEDR (EEPROM Data Register), and
EEARH-EEARL (EEPROM Address Register High-Low). Each of these registers
is discussed in detail in this section.
EEPROM Data Register (EEDR)
To write data to EEPROM, you have to write it to the EEDR register and
then transfer it to EEPROM. Also, if you want to read from EEPROM you have to
read from EEDR. In other words, EEDR is a bridge between EEPROM and CPU.
EEPROM Address Register (EEARH and EEARL)
The EEARH:EEARL registers together make a 16-bit register to address
each location in EEPROM memory space. When you want to read from or write
to EEPROM, you should load the EEPROM location address in EEARs. As you
Because ATmega32 has 1024-byte EEPROM locations, we need 10 bits to address
each location in EEPROM space. In ATmega16, 9 bits of the EEAR registers are
used because ATmega16 has 512 bytes of EEPROM, and to address 512 bytes we
need a 9-bit address.
EEPROM Control Register (EECR)
The EECR register is used to select the kind of operation to perform on.
EECR register. The bits are as follows:
EEPROM Read Enable (EERE): Setting this bit to one will cause a read
operation if EEWE is zero. When a read operation starts, one byte of EEPROM
will be read into the EEPROM Data Register (EEDR). The EEAR register speci-
fies the address of the desired byte.
EEPROM Write Enable (EEWE) and EEPROM Master Write Enable
(EEMWE): When EEMWE is set, setting EEWE within four clock cycles will start
a write operation. If EEMWE is zero, setting EEWE to one will have no effect.
8
Bit 9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
EEAR0
EEAR1
EEAR2
EEAR3
EEAR4
EEAR5
EEAR6
EEAR7
EEAR8
EEAR9
-
-
-
-
-
-
Bit
0
1
2
3
4
5
6
7
EERE
EEWE
EEMWE
EERIE
-
-
-
-
Bit
Figure 16. EEPROM Control Registers
see in Figure 15, only 10 bits of the EEAR registers are used in ATmega32.
The operation can be start, read, and write. In Figure 16 you see the bits of the
Figure 15. EEPROM Address Registers
234

When you set EEMWE to one, the hardware clears the bit to zero after four clock
that you cannot start read or write operations before the last write operation is fin-
ished. You can check for this by polling the EEWE bit. If EEWE is zero it means
that EEPROM is ready to start a new read or write operation.
Programming the AVR to write on EEPROM
To write on EEPROM the following steps should be followed. Notice that
steps 2 and 3 are optional, and the order of the steps is not important. Also note
that you cannot do anything between step 4 and step 5 because the hardware clears
the EEMWE bit to zero after four clock cycles.
1. Wait until EEWE becomes zero.
2. Write new EEPROM address to EEAR (optional).
3. Write new EEPROM data to EEDR (optional).
4. Set the EEMWE bit to one (in EECR register).
5. Within four clock cycles after setting EEMWE, set EEWE to one.
Write an AVR program to store ‘G’ into location 0x005F of EEPROM .
Solution:
.INCLUDE M16DEF.INC
WAIT: ;wait for last write to finish
SBIC EECR,EEWE ;check EEWE to see if last write is finished
RJMP WAIT ;wait more
LDI R18,0 ;load high byte of address to R18
LDI R17,0x5F ;load low byte of address to R17
OUT EEARH, R18 ;load high byte of address to EEARH
OUT EEARL, R17 ;load low byte of address to EEARL
LDI R16,'G' ;load 'G' to R16
OUT EEDR,R16 ;load R16 to EEPROM Data Register
SBI EECR,EEMWE ;set Master Write Enable to one
SBI EECR,EEWE ;set Write Enable to one
Run and simulate the code on AVR Studio to see how the content of the EEPROM
changes after the last line of code. Enter four NOP instructions before the last line,
change the ‘G’ to ‘H’, and run the code again. Explain why the code doesn’t store ‘H’
at location 0x005F of EEPROM.
cycles. This prevents unwanted write operations on EEPROM contents. Notice
See Example 28 to see how we write a byte on EEPROM.
Example 28
EEPROM Ready Interrupt Enable (EERIE): As you see in Figure 16, bits 4
to 7 of EECR are unused at the present time and are reserved.
235

Programming the AVR to read from EEPROM
To read from EEPROM the following steps should be taken. Note that step
2 is optional.
1. Wait until EEWE becomes zero.
2. Write new EEPROM address to EEAR (optional).
3. Set the EERE bit to one.
4. Read EEPROM data from EEDR.
Initializing EEPROM
directive. We can also allocate and initialize the EEPROM using the .DB directive.
If we write .ESEG before a definition, the variable will be located in the EEPROM,
whereas .CSEG before a definition causes the variable to be allocated in the code
(program) memory. By default the variables are located in the program memory.
For example, the following code allocates locations $10 and $11 of EEPROM for
DATA1 and DATA2, and initializes them with $95 and $19, respectively:
.ESEG
.ORG $10
DATA1: .DB $95
DATA2: .DB $19
The following code allocates DATA1 and DATA3 in program memory and
DATA2 in EEPROM:
DATA1: .DB $10 ;by default it is located in code memory
.ESEG
DATA2: .DB $20 ;it is located in EEPROM
DATA3: .DB $35 ;it is located in EEPROM
.CSEG
DATA4: .DB $45 ;it is located in code memory
Write an AVR program to read the content of location 0x005F of EEPROM into
PORTB.
Solution:
.INCLUDE M16DEF.INC
LDI R16,0xFF
OUT DDRB,R16
WAIT: ;wait for last write to finish
SBIC EECR,EEWE ;check EEWE to see if last write is finished
RJMP WAIT ;wait more
LDI R18,0 ;load high byte of address to R18
LDI R17,0x5F ;load low byte of address to R17
OUT EEARH, R18 ;load high byte of address to EEARH
OUT EEARL, R17 ;load low byte of address to EEARL
SBI EECR,EERE ;set Read Enable to one
IN R16,EEDR ;load EEPROM Data Register to R16
OUT PORTB,R16 ;out R16 to PORTB
See Example 29 to see how we read a byte from EEPROM.
Example 29
In Section 4, you saw how to allocate program memory using the .DB
See Example 30.
236

Review Questions
1. True or false. The AVR EEPROM memory is used for both program code and
data.
2. True or false. The ATmega32 has 1,024 bytes of EEPROM memory.
3. True or false. In the AVR, EEPROM contents are lost when power to the chip
is cut off.
4. True or false. In the AVR, EEPROM memory is read and write memory.
5. True or false. Every AVR chip comes with 1 KB of EEPROM.
Write a program that counts how many times a system has been powered up.
Solution:
.INCLUDE M32DEF.INC
OUT SPH,R20
LDI R20,LOW(RAMEND)
LDI XH,HIGH(COUNTER)
LDI XL,LOW(COUNTER) ;X points to COUNTER
CALL LOAD_FROM_EEPROM ;load R20 with value of COUNTER
CALL STORE_IN_EEPROM ;store R20 in EEPROM
HERE: RJMP HERE
;-----Load R20 with contents of location X of EEPROM
LOAD_FROM_EEPROM:
SBIC EECR, EEWE
RJMP LOAD_FROM_EEPROM ;wait while EEPROM is busy
OUT EEARH,XH
OUT EEARL,XL ;EEAR = X
IN R20,EEDR ;load EEPROM Data Register to r20
RET
;-----Store R20 into location X of EEPROM
STORE_IN_EEPROM:
SBIC EECR, EEWE
RJMP STORE_IN_EEPROM ;wait while EEPROM is busy
OUT EEARH,XH
OUT EEDR,R20
SBI EECR,EEWE ;write EEDR into EEPROM
RET
;-------EEPROM
.ESEG
.ORG 0
COUNTER: .DB 0
COUNTER is initialized with $0. Then, it is incremented on each power-up.
Example 30
237

In this section we look at some widely used subroutines: checksum byte,
BCD, and ASCII conversion.
Checksum byte in EEPROM
To ensure the integrity of ROM contents, every system must perform a
checksum calculation. The checksum will detect any corruption of the contents of
ROM. One cause of ROM corruption is current surge, either when the system is
turned on, or during operation. To ensure data integrity in ROM, the checksum
process uses what is called a checksum byte. The checksum byte is an extra byte
that is tagged to the end of a series of bytes of data. To calculate the checksum byte
of a series of bytes of data, the following steps can be taken:
1. Add the bytes together and drop the carries.
2. Take the 2's complement of the total sum, and that is the checksum byte, which
becomes the last byte of the series.
To perform a checksum operation, add all the bytes, including the check-
sum byte. The result must be zero. If it is not zero, one or more bytes of data have
Checksum program
The checksum generation and testing program is given in subroutine form.
Five subroutines perform the following operations:
1. Retrieve the data from EEPROM.
2. Test the checksum byte for any data error.
3. Initialize variables if the checksum byte is corrupted.
4. Calculate the checksum byte.
5. Store the data in EEPROM.
shows how to manually calculate the checksum for a list of values. Also, see
;PROG CHECKSUM
.INCLUDE M32DEF.INC
.EQU OPTION_SIZE = 0x4
.EQU RAM_OPTIONS = 0x100
;-------------main program
.ORG 0
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16 ;SP points to RAMEND
RCALL LOAD_OPTIONS ;load options
RCALL TEST_CHKSUM ;test checksum
TST R20
BREQ L1 ;if data is not corrupted go to L1
SECTION 7: CHECKSUM AND ASCII SUBROUTINES
been changed (corrupted). To clarify these important concepts, see Example 31.
Each of these subroutines can be used in other applications. Example 31
Program 1.
1:
238

RCALL INIT_OPTIONS ;initialize options
L1: ;Here you can use the options
RCALL CAL_CHKSUM ;calculating checksum
RCALL STORE_OPTIONS ;storing options in EEPROM
HERE: RJMP HERE
;-----Load R20 with contents of location X of EEPROM
LOAD_FROM_EEPROM:
SBIC EECR, EEWE
RJMP LOAD_FROM_EEPROM ;wait while EEPROM is busy
OUT EEARH,XH
IN R20,EEDR ;load EEPROM Data Register to R20
RET
;-----Store R20 into location X of EEPROM
Assume that we have 4 bytes of hexadecimal data: $25, $62, $3F, and $52.
(a) Find the checksum byte.
(b) Perform the checksum operation to ensure data integrity.
(c) If the second byte, $62, has been changed to $22, show how the checksum method
detects the error.
Solution:
$25
+ $62
+ $3F
+ $52
$118 (Dropping the carry of 1, we have $18. Its 2’s complement is $E8. Therefore,
the checksum byte is $E8.)
$25
+ $62
+ $3F
+ $52
+ $E8
$200 (Dropping the carries, we see 00, indicating that the data is not corrupted.)
(c) If the second byte, $62, has been changed to $22, show how the checksum
method detects the error.
$25
+ $22
+ $3F
+ $52
+ $E8
$1C0 (Dropping the carry, we get $C0, which is not 00. This means that the data
is corrupted.)
Example 31
239

STORE_IN_EEPROM:
SBIC EECR, EEWE
RJMP STORE_IN_EEPROM ;wait while EEPROM is busy
OUT EEARH,XH
OUT EEDR,R20
SBI EECR,EEWE ;write EEDR into EEPROM
RET
;-----copying the data from EEPROM to internal SRAM
LOAD_OPTIONS:
LDI XL,LOW(E_OPTIONS)
LDI XH,HIGH(E_OPTIONS) ;X points to E_OPTIONS
LDI YL,LOW(RAM_OPTIONS)
LDI YH,HIGH(RAM_OPTIONS) ;Y points to RAM_OPTIONS
LDI R16,OPTION_SIZE+1 ;COUNTER = OPTION_SIZE+1
LL1: CALL LOAD_FROM_EEPROM ;load R20 with EEPROM loc X
ST Y+,R20 ;store R20 in RAM loc Y
INC XL ;increment XL
BRNE LL2 ;if not carry go to LL2
INC XH
LL2: DEC R16 ;decrement COUNTER
BRNE LL1 ;if COUNTER not zero go to LL1
RET ;return
;-------copying data from code ROM to data RAM
INIT_OPTIONS:
LDI ZL,LOW(FLASH_OPTIONS1);Z points to FLASH_OPTIONS
LDI ZH,HIGH(FLASH_OPTIONS1)
LDI R16,OPTION_SIZE ;COUNTER = OPTION_SIZE
H1: LPM R18,Z+ ;load R18 with program mem. location Z
ST Y+,R18 ;store R18 in loc Y of RAM
DEC R16 ;decrement COUNTER
BRNE H1 ;if COUNTER is not zero go to H1
RET ;return
;-------calculating checksum byte
CAL_CHKSUM:
LDI R16,OPTION_SIZE ;COUNTER = OPTION_SIZE
LDI R20,0 ;SUM = 0
CL1: LD R17,Y+ ;load R17 with contents of loc Y
ADD R20,R17 ;SUM = SUM + R17
BRNE CL1 ;if COUNTER is not zero go to CL1
NEG R20 ;two's complement SUM
ST Y,R20 ;store checksum in loc Y of RAM
RET ;return
;-------testing checksum byte
TEST_CHKSUM:
LDI R16,OPTION_SIZE+1
LDI R20,0 ;SUM = 0
TL1: LD R17,Y+ ;load R17 with contents of loc Y
ADD R20,R17 ;SUM = SUM + R17
240

BRNE TL1 ;loop while COUNTER is not zero
RET
;-----copying the data from internal SRAM to EEPROM
STORE_OPTIONS:
LDI XL,LOW(E_OPTIONS)
LDI XH,HIGH(E_OPTIONS) ;X points to E_OPTIONS
LDI R16,OPTION_SIZE+1 ;COUNTER = OPTION_SIZE+1
SL1: LD R20, Y+
CALL STORE_IN_EEPROM ;store R20 in loc X
INC XL ;increment XL
BRNE SL2 ;if not carry go to SL2
INC XH
SL2: DEC R16 ;decrement COUNTER
BRNE SL1 ;loop while COUNTER is not zero
RET ;return
;-------initial values in program ROM
FLASH_OPTIONS: .DB 0x25,0x62,0x3F,0x52
;-------EEPROM
.ESEG
.ORG $0
E_OPTIONS: .DB 0x25,0x62,0x3F,0x52
BCD to ASCII conversion program
Many RTCs (real-time clocks) provide time and date in BCD format. To dis-
play the BCD data on an LCD or a PC screen, we need to convert it to ASCII.
;PROG CONVERTING PACKED BCD TO ASCII
.INCLUDE M32DEF.INC
.EQU RAM_ADDR = 0x80
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16 ;SP = RAMEND
CALL BCD_ASCII_COV
HERE: RJMP HERE
;-----convert packed BCD to ASCII
BCD_ASCII_COV:
LDI ZL,LOW(MYBYTE1)
LDI ZH,HIGH(MYBYTE1) ;Z = MYBYTE
LDI XL,LOW(RAM_ADDR)
LDI XH,HIGH(RAM_ADDR) ;X = RAM_ADDR
LDI R16,4 ;COUNTER = 4
L1: LPM R20,Z+ ;
MOV R21,R20 ;R21 = R20
ANDI R21,0x0F ;mask the upper nibble
ORI R21,0x30 ;make it an ASCII
ST X+,R21
Program 2 (a) transfers packed BCD data from program ROM to data RAM, (b)
2:
converts packed BCD to ASCII, and (c) sends the ASCII to port B for display.
241

SWAP R20 ;swap the nibbles
ANDI R20,0x0F ;mask the upper nibble
ORI R20,0x30 ;make it an ASCII
ST X+,R20
BRNE L1 ;loop while COUNTER is not zero
RET ;return
;-----send ASCII to Port B
SEND_TO_PORTB:
LDI XH,HIGH(RAM_ADDR)
LDI XL,LOW(RAM_ADDR) ;X = RAM_ADDR
LDI R16,8 ;COUNTER = 8
L2: LD R20,X+ ;
BRNE L2 ;loop while counter is not zero
RET
MYBYTE: .DB 0x25, 0x67, 0x39, 0x52
Binary (hex) to ASCII conversion program
Many ADC (analog-to-digital converter) chips provide output data in bina-
ry (hex). To display the data on an LCD or PC screen, we need to convert it to
Notice that the subroutine gets a byte of 8-bit binary (hex) data from Port B and
converts it to decimal digits, and the second subroutine converts the decimal dig-
its to ASCII digits and saves them. We are saving the low digit in the lower address
location and the high digit in higher address location. This is referred to as the
little-endian convention (i.e., low byte to low location, and high byte to high loca-
tion). All AVR products use the little-endian convention.
;PROG CONVERTING BINARY TO ASCII
.INCLUDE M32DEF.INC
.DEF NUM = R20
.DEF QUOTIENT = R22
.EQU RAM_ADDR = 0x200
.EQU ASCII_RESULT = 0x210
;--------------main program
.ORG 0
OUT SPH,R18
LDI R18,LOW(RAMEND)
OUT SPL,R18
LDI R16,0x00
OUT DDRA,R16
RCALL BIN_DEC_CONVRT
RCALL DEC_ASCI_CONVRT
END: RJMP END
;-----------Converting BIN(HEX) TO DEC (00-FF TO 000-255)
BIN_DEC_CONVRT:
LDI XL,LOW(RAM_ADDR) ;save DEC digits in these locations
ASCII. The code for the binary-to-ASCII conversion is shown in Program 3.
3:
242

IN NUM,PINA ;read data from PORT A
LDI DENOMINATOR,10
RCALL DIVIDE ;QUOTIENT=PINA/10 NUM=PINA%10
ST X+,NUM ;save lower digit
MOV NUM,QUOTIENT
RCALL DIVIDE ;divide by 10 once more
ST X+,NUM ;save the next digit
ST X+,QUOTIENT ;save the last digit
RET
DEC_ASCI_CONVRT:
LDI XL,LOW(RAM_ADDR) ;addr. of DEC data
LDI YL,LOW(ASCII_RESULT) ;addr. of ASCII data
LDI YH,HIGH(ASCII_RESULT)
LDI R16,3 ;count
BACK: LD R20,X+ ;get DEC digit
ORI R20,0x30 ;make it an ASCII digit
ST Y+,R20 ;store it
BRNE BACK ;repeat until the last one
RET
;----------------------------------------------------------------
DIVIDE:
LDI QUOTIENT,0
L1: INC QUOTIENT
BRCC L1
DEC QUOTIENT
ADD NUM, DENOMINATOR
RET
We can write a function that directly converts binary to ASCII as shown
below:
.INCLUDE M32DEF.INC
.DEF NUM = R20
.DEF QUOTIENT = R22
.EQU ASCII_RESULT = 0x210
;--------------main program
.ORG 0
OUT SPH,R18
LDI R18,LOW(RAMEND)
LDI R16,0x00
OUT DDRA,R16
RCALL BIN_ASCII_CONVRT
HERE: RJMP HERE
;-----------Converting BIN(HEX) TO DEC (00-FF TO 000-255)
BIN_ASCII_CONVRT:
LDI XL,LOW(ASCII_RESULT) ;save results in these loc.
LDI XH,HIGH(ASCII_RESULT)
IN NUM,PINA ;read data from PORT A
LDI DENOMINATOR,10
RCALL DIVIDE ;QUOTIENT=PINA/10 NUM=PINA%10
243

ORI NUM,0x30 ;make it an ASCII digit
ST X+,NUM ;save lower digit
MOV NUM,QUOTIENT
RCALL DIVIDE ;divide by 10 once more
ORI NUM,0x30 ;make it an ASCII digit
ST X+,NUM ;save the next digit
ORI QUOTIENT,0x30 ;make it an ASCII digit
ST X+,QUOTIENT ;save the last digit
RET
In this section we explore macros and their use in Assembly language pro-
gramming. The format and usage of macros are defined and many examples of
their applications are examined.
What is a macro and how is it used?
There are applications in Assembly language programming in which a
group of instructions performs a task that is used repeatedly. For example, moving
data into a RAM location is done repeatedly in the same program. It does not make
sense to rewrite this code every time it is needed. Therefore, to reduce the time that
it takes to write code and reduce the possibility of errors, the concept of macros
was born. Macros allow the programmer to write the task (code to perform a spe-
cific job) once only, and to invoke it whenever it is needed.
Macro definition
Every macro definition must have three parts, as follows:
.MACRO name
......
.ENDMACRO
The .MACRO directive indicates the beginning of the macro definition and
the .ENDMACRO directive signals the end. What goes between the .MACRO and
.ENDMACRO directives is called the body of the macro. The name must be
unique and must follow Assembly language naming conventions. A macro can
take up to 10 parameters. The parameters can be referred to as @0 to @9 in the
body of the macro. After the macro has been written, it can be invoked (or called)
by its name, and appropriate values are substituted for parameters.
For example, moving immediate data into I/O register data RAM is a wide-
ly used service, but there is no instruction for that. We can use a macro to do the
job as shown in the following code:
.MACRO LOADIO
LDI R20,@1
OUT @0,R20
.ENDMACRO
The above is the macro definition. Note that parameters @0 and @1 are
SECTION 8: MACROS
244

mentioned in the body of the macro.
The following are three examples of how to use the above macro:
1. LOADIO PORTA, 0x20 ;send value 0x20 to PORTA
2. .EQU VAL_1 = 0xFF
LOADIO DDRC, VAL_1
3. LOADIO SPL, 0x55 ;send value $55 to SPL
;Program toggling Port B using macros
;------------------------------------------
.INCLUDE M32DEF.INC
.MACRO LOADIO
LDI R20,@1
OUT @0,R20
.ENDMACRO
;--------------------------time delay macro
.MACRO DELAY
LDI @0,@1
BACK:
NOP
NOP
NOP
NOP
DEC @0
BRNE BACK
.ENDMACRO
;--------------------------program starts
.ORG 0
LOADIO DDRB,0xFF ;make PORTB output
L1: LOADIO PORTB,0x55 ;PORTB = 0x55
DELAY R18,0x70 ;delay
LOADIO PORTB,0xAA ;PB = 0xAA
DELAY R18,0x70 ;delay
RJMP L1
.INCLUDE directive
Assume that several macros are used in every program. Must they be
rewritten every time? The answer is no, if the concept of the .INCLUDE directive
is known. The .INCLUDE directive allows a programmer to write macros and save
them in a file, and later bring them into any program file. For example, assume that
the following widely used macros were written and then saved under the filename
“MYMACRO1.MAC”.
Assuming that the LOADIO and DELAY macros are saved on a disk under
the filename “MYMACRO1.MAC”, the .INCLUDE directive can be used to bring this
file into any “.asm” file and then the program can call upon any of the macros as
many times as needed. When a file includes all macros, the macros are listed at the
beginning of the “.lst” file and, as they are expanded, will be part of the program.
Now examine Program 4 to see how to use a macro in a program.
4:
245

;Program toggling Port B using macros
.INCLUDE M32DEF.INC
.INCLUDE MYMACRO1.MAC ;get macros from macro file
;----------------------------program starts
.ORG 0
LOADIO DDRB,0xFF
L1: LOADIO PORTB,0x55
DELAY R18,0x70
LOADIO PORTB,0xAA
DELAY R18,0x70
RJMP L1
.LISTMAC directive
When viewing the .lst file with macros, the details of the macros are not
displayed. This means that the bodies of the macros are not displayed when they
are invoked during the code. But when we are debugging the code we might need
to see exactly what instructions are executed. Using the .LISTMAC directive we
can turn on the display of the bodies of macros in the list file. For example, exam-
ine the following code:
.INCLUDE M32DEF.INC
.MACRO LOADIO
LDI R20,@1
OUT @0,R20
.ENDMACRO
LOADIO PORTA,0x20
LOADIO DDRA,0x53
HERE: JMP HERE
The assembler provides the following code in the .lst file:
.MACRO LOADIO
LDI R20,@1
OUT @0,R20
.ENDMACRO
000000 e240
000001 bb4b LOADIO PORTA,0x20
000002 e543
000003 bb4a LOADIO DDRA,0x53
000004 940c 0004 HERE:JMP HERE
If we add the .LISTMAC directive to the above code:
.MACRO LOADIO
LDI R20,@1
OUT @0,R20
.ENDMACRO
.LISTMAC
LOADIO PORTA,0x20
To understand this, see Program 5.
5:
246

LOADIO DDRA,0x53
HERE:JMP HERE
The assembler expands the macro by providing the following code in the
.lst file:
.MACRO LOADIO
LDI R20,@1
OUT @0,R20
.ENDMACRO
.LISTMAC
+
000000 e240 +LDI R20 , 0x20
000001 bb4b +OUT PORTA , R20
LOADIO PORTA,0x20
+
000002 e543 +LDI R20 , 0x53
000003 bb4a +OUT DDRA , R20
LOADIO DDRA,0x53
000004 940c 0004 HERE:JMP HERE
The + indicates that the code is from the macro.
Macros vs. subroutines
Macros and subroutines are useful in writing assembly programs, but each
has limitations. Macros increase code size every time they are invoked. For exam-
ple, if you call a 10-instruction macro 10 times, the code size is increased by 100
instructions; whereas, if you call the same subroutine 10 times, the code size is
only that of the subroutine instructions. On the other hand, a function call takes 3
or 4 clocks and the RET instruction takes 4 clocks to get executed. So, using func-
tions adds around 8 clock cycles. The subroutines use stack space as well when
called, while the macros do not.
Review Questions
1. Discuss the benefits of macro programming.
2. List the three parts of a macro.
3. Explain and contrast the macro definition and invoking the macro.
SUMMARY
This chapter described the addressing modes of the AVR. Immediate
addressing mode uses a constant for the operand. Direct or register indirect
addressing modes can be used to access data stored in data memory of the AVR.
Register indirect addressing mode uses a register as a pointer to the data. The
advantage of this is that it makes addressing dynamic rather than static. Program
memory addressing mode is widely used in accessing data elements of look-up
table entries located in the program Flash ROM space of the AVR. The AVR allows
247

the reading of fixed data stored in program Flash ROM space, in addition to writ-
ing to Flash ROM.
The I/O registers can be accessed by six different addressing modes: I/O
direct addressing (by their names or their addresses), direct data addressing, data
indirect with displacement, data indirect addressing, data indirect addressing with
pre-decrement, and data indirect addressing with post-increment.
We also discussed the bit-addressable locations and showed how to use sin-
gle-bit instructions to access them directly.
We also explained how to access EEPROM and how to use checksum to
make sure data is not corrupted.
Macros were also explored and their advantages were discussed.
PROBLEMS
1. Indicate the value loaded into the registers in the following program:
.EQU C1 = 0x20
.EQU C2 = 0x6F
.EQU C3 = 0x14
LDI R20,(C1C2)|C3
LDI R21,C2-(C1+C3)
2. Indicate the value loaded into R30, R31, and R20 in the following program:
.ORG 0x0
.EQU DATA_ADDR = (OUR_DATA1)
LDI R30,LOW(DATA_ADDR)
LDI R31,HIGH(DATA_ADDR)
LPM R20,Z
.ORG 0x100
OUR_DATA: .DB 20,’A’,’C’
3. Which of the following are invalid uses of immediate addressing mode?
(a) LDI R20,0x24 (b) STS 0x70, 0x30 (c) OUT 0x20,0x42
4. Identify the addressing mode for each of the following:
(a) OUT PORTB,R20 (b) LDI R20, 0x50 (c) LDS 0x40,R20
(d) ADD R20,R25 (e) MOV R20,R25
5. Indicate the addresses assigned to each of the following:
(a) PORTB (b) PORTC (c) DDRC
(d) DDRD (e) SPL (f) SPH
(g) SREG
6. In accessing the I/O registers, we should use ______ addressing mode.
7. What does the following instruction do? “STS 0xF0,R20”
8. What does the following instruction do? “OUT PORTC,R19”
SECTION 1: INTRODUCING SOME MORE ASSEMBLER DIRECTIVES
SECTION 2: REGISTERAND DIRECTADDRESSING MODES
248

9. The byte addresses assigned to the internal SRAM are _____ to _____ in
ATmega32. (Hint: To calculate the address of the last location, add the size of
SRAM in ATmega32 to the address of the first location of SRAM and decrease
the result by one.)
10. The byte addresses assigned to the SRAM are _____ to _____ in ATmega16.
11. Write a program to add the following data and place the result in RAM loca-
tion $200: The data values are 6, 9, 2, 5, 7
12. Which registers are allowed to be used as a pointer for register indirect
addressing mode when accessing data RAM? Give their names and show how
they are loaded.
13. Write a program to copy $AA into RAM locations $80 to $9F.
14. Write a program to clear RAM locations $90 to $12F.
15. Write a program to copy 10 bytes of data starting at RAM address $80 to RAM
locations starting at $90.
16. Write a program to toggle RAM locations $80 to $8F.
17. Compile and state the contents of each ROM location for the following data:
.ORG 0x200
MYDAT_1: .DB Earth
MYDAT_2: .DB 987-65
MYDAT_3: .DB GABEH 98
18. Compile and state the contents of each ROM location for the following data:
.ORG 0x340
DAT_1: .DB 0x22,0x56, 0b10011001, 32, 0xF6, 0b11111011
19. Which register is allowed to be used as a pointer for register indirect address-
ing mode when accessing data stored in program ROM? Give the name and
show how it is loaded.
20. What is the size of the Z register? How much ROM space does the LPM
instruction cover?
21. Write a program to read data from the low byte of Flash ROM location 0x200.
22. Write a program to read data from the high byte of Flash ROM location 0x340.
23. Write a program to read the following message from ROM and place it in data
RAM starting at 0x60:
.ORG 0x600
MYDATA: .DB 1-800-999-9999,0
24. Write a program to find y where y = x2
+ 2x + 5, and x is between 0 and 9.
25. Write a program to find y where y = 20x + 5, and x is between 0 and 9.
26. Write a program to read the following message from ROM and place it in data
RAM starting at 40:
.ORG 0x700
MYDATA: .DB The earth is but one country,0
27. True or false. In all AVR members we can access the Flash ROM memory.
28. True or false. The ELPM instruction works for all AVR members.
29. Assume that the lower four bits of PORTB are connected to four switches.
SECTION 3: REGISTER INDIRECTADDRESSING MODE
249

Write a program to send the following ASCII characters to a PORTC, based on
the status of the switches:
0000 ‘0’
0001 ‘1’
0010 ‘2’
0011 ‘3’
0100 ‘4’
0101 ‘5’
0110 ‘6’
0111 ‘7’
1000 ‘8’
1001 ‘9’
1010 ‘A’
1011 ‘B’
1100 ‘C’
1101 ‘D’
1110 ‘E’
1111 ‘F’
30. Write a program to generate a square wave with 75% duty cycle on bit PB5.
31. Write a program to generate a square wave with 80% duty cycle on bit PC7.
32. Write a program to monitor PB4. When it goes HIGH, the program will gen-
erate a sound (square wave of 50% duty cycle) on pin PB7.
33. Write a program to monitor PC1. When it goes LOW, the program will send
the value $55 to PD.
34. What register does the carry flag belong to?
35. What bit address is assigned to the Z flag?
36. Which of the following instructions are valid? If valid, indicate which bit is
altered.
(a) SBI PORTB,1 (b) CBI PORTC.3 (c) SBR SREG,1
(d) SBR R20,1 (e) BLD PORTD,0 (f) BST R20,3
(g) CLV R3 (h) CLN
37. “SBI PORTB, 0” is a(n) _______ (valid, invalid) instruction.
38. Which of the I/O ports of PORTB, PORTC, and PORTD are bit-addressable?
39. Which of the general purpose registers are bit-addressable?
40. Give an instruction to clear the carry flag.
41. Show how would you check whether the C flag is HIGH.
42. Show how would you check whether the Z flag is HIGH.
43. Give the bit locations in the status register assigned to the flag bits C, Z, H, and
V.
44. True or false. I/O registers are not bit-addressable.
45. Write instructions to save the C flag bit in bit 4 of location 0x60.
46. Write instructions to save the H flag bit in bit 2 of location 0x160.
47. Write instructions to save the Z flag bit in bit 7 of location 0x120.
48. Write instructions to see whether the D0 and D1 bits of register R20 are LOW.
250

If so, divide register R20 by 4.
49. Write a program to see whether the D7 bit of register R25 is HIGH. If so, send
50. Write a program to set HIGH all the bits of the PORTC I/O register using the
following methods:
(a) byte addresses (b) bit addresses
51. Write a program to see whether the R24 register is divisible by 8.
52. Write a program that writes 0 in EEPROM locations $0 to $30.
53. Write a program to copy 10 bytes of data starting at RAM address $80 to EEP-
ROM locations starting at $10.
54. Write a program to copy 10 bytes of data starting at EEPROM address $10 to
RAM locations starting at $80.
55. Write a program that calculates the sum of the values of locations $10 to $20
of EEPROM.
56. Find the checksum byte for the following ASCII message: “Hello”
57. In each of the following cases perform checksum calculation to see if data is
corrupted or not.
(a) Data = $65, $09, and $95; checksum = $23.
(b) Data = $71, $69, $38, and $81; checksum = $6D.
58. True or false. If we add all bytes, including the checksum byte, and the result
is $00, there is no error in the data.
59. Write a program to (a) get the data “Hello, my fellow world citizens” from pro-
gram ROM, (b) calculate the checksum byte, and (c) test the checksum byte
for any data error.
60. To display data on LCD or PC monitors, it must be in ________ (binary, BCD,
ASCII).
61. Write a program to convert a series of packed BCD numbers to ASCII. Assume
that the packed BCD is located in ROM locations starting at $700. Place the
ASCII codes in RAM locations starting at $40.
.ORG $700
MYDATA: .DB $76, $87, $98, $43
62. Write a program to convert a series of ASCII numbers to packed BCD. Assume
that the ASCII data is located in ROM locations starting at $300. Place the
BCD data in RAM locations starting at $60.
.ORG $300
MYDATA: .DB 87675649
63. Write a program to get an 8-bit binary number from PORTD, convert it to
ASCII, and save the result in RAM locations $40, $41, and $42. What is the
result if PORTD has 1000 1101 binary as input?
0xFF to PORTD.
SECTION 7: CHECKSUM AND ASCII SUBROUTINES
251

64. Give two advantages of macros.
65. Which uses more program Flash ROM space: a macro or a subroutine?
1. R20 = 0x100x91 = 0x10
R21 = 0x91|0x14 = 0x95
Z = ZH:ZL = 0x123
2. It sets the V and Z flags and clears the other flags.
3. LDI R16,(1SREG_Z)|(1SREG_C)
OUT SREG,R16 ;set Z and C, clear others
4. 15900 is $3E1C in hex. Therefore, TCNT1H is loaded with $3E and $1C is loaded into
TCNT1L.
1. No
2. LDI R20,0b10000000
OUT SPL,R20
3. True
4. False
5. True
6. True
1. Indirect
2. R26
3. 16
4.
.INCLUDE M32DEF.INC
LDI XL,$90
LDI XH,$00
LDI YL,$00
LDI YH,$2
LDI R16,11
LDI R22,2
L1: LD R20,X+
ADD R20,R22
ST Y+,R20
DEC R16
BRNE L1
HERE: RJMP HERE
5. X, Y, Z
1. Z
2. Rd
3. 16 bits, 32K words
SECTION 8: MACROS
SECTION 1: INTRODUCING SOME MORE ASSEMBLER DIRECTIVES
SECTION 2: REGISTER AND DIRECT ADDRESSING MODES
SECTION 3: REGISTER INDIRECT ADDRESSING MODE
252

4. Z
5. ELPM can address up to 4M words of Flash memory.
6. When we want to be able to change the look-up table
7. True
1. False
2. True
3. a, b, and d
4. BST R23,1 ;T = R23.1
BRTS L1 ;branch if T = 1 (branch if R23.1 is high)
....
L1:
5. CLC
6. (a) It sets to HIGH bit 0 of R16.
(b) It clears bits 0, 1, and 2 of R30.
(c) It stores bit 2 of R19 to the T flag.
(d) It sets to HIGH bit 4 of PORTB.
(e) It clears bit 1 of the status register.
(f) It clears the I flag of the status register.
1. False
2. True
3. False
4. True
5. False
1. Macro programming can save the programmer time by allowing a set of frequently repeated
instructions to be invoked within the program with a single line. This can also make the code
easier to read.
2. The three parts of a macro are the .MACRO directive, the body, and the .ENDMACRO direc-
tive.
3. The macro definition is the list of statements the macro will perform. It begins with the
.MACRO directive and ends with the .ENDMACRO directive. The macro is invoked when-
ever it is called from within an Assembly language program. The macro is expanded when the
Assembly program replaces the line invoking the macro with the Assembly language code in
the body of the macro.
SECTION 8: MACROS
253

OBJECTIVES

Examine C data types for the AVR

Code C programs for time delay and I/O operations

Code C programs for I/O bit manipulation

Code C programs for logic and arithmetic operations

Code C programs for ASCII and BCD data conversion

Code C programs for binary (hex) to decimal conversion

Code C programs for data serialization

Code C programs for EEPROM access
AVR PROGRAMMING
IN C
255

Why program the AVR in C?
Compilers produce hex files that we download into the Flash of the micro-
controller. The size of the hex file produced by the compiler is one of the main
concerns of microcontroller programmers because microcontrollers have limited
on-chip Flash. For example, the Flash space for the ATmega16 is 16K bytes.
How does the choice of programming language affect the compiled pro-
gram size? While Assembly language produces a hex file that is much smaller than
C, programming in Assembly language is often tedious and time consuming. On
the other hand, C programming is less time consuming and much easier to write,
but the hex file size produced is much larger than if we used Assembly language.
The following are some of the major reasons for writing programs in C instead of
Assembly:
1. It is easier and less time consuming to write in C than in Assembly.
2. C is easier to modify and update.
3. You can use code available in function libraries.
4. C code is portable to other microcontrollers with little or no modification.
C programming for the AVR is the main topic of this chapter. In Section
cation in C is discussed.
In this section we first discuss C data types for the AVR and then provide
code for time delay functions.
C data types for the AVR C
One of the goals of AVR programmers is to create smaller hex files, so it
is worthwhile to re-examine C data types. In other words, a good understanding of
C data types for the AVR can help programmers to create smaller hex files. In this
vary from one compiler to another.
AVR PROGRAMMING IN C
1, we discuss data types, and time delays. I/O programming is shown in Section
2. The logic operations AND, OR, XOR, inverter, and shift are discussed in
section we focus on the specific C data types that are most common and widely
Section 3. Section 4 describes ASCII and BCD conversions and checksums. In
Section 5, data serialization for the AVR is shown. In Section 6, memory allo-
SECTION 1: DATA TYPES AND TIME DELAYS IN C
used in AVR C compilers. Table 1 shows data types and sizes, but these may
Several third-party companies develop C compilers for the AVR microcon-
troller. Our goal is not to recommend one over another, but to provide you with the
fundamentals of C programming for the AVR. You can use the compiler of your
choice for the chapter examples and programs. We have chosen AVR GCC compil-
http://www.MicroDigitalEd.com for tutorials on AVR Studio and the AVR GCC
compiler.
GCC and AVR Studio are available as a free download from the Web. See
er to integrate with AVR Studio. At the time of the writing of this chapter AVR
256

Unsigned char
Because the AVR is an 8-bit microcontroller, the character data type is the
most natural choice for many applications. The unsigned char is an 8-bit data type
that takes a value in the range of 0–255 (00–FFH). It is one of the most widely
used data types for the AVR. In many situations, such as setting a counter value,
where there is no need for signed data, we should use the unsigned char instead of
the signed char.
In declaring variables, we must pay careful attention to the size of the data
and try to use unsigned char instead of int if possible. Because the AVR microcon-
troller has a limited number of registers and data RAM locations, using int in place
of char can lead to the need for more memory space. Such misuse of data types in
compilers such as Microsoft Visual C++ for x86 IBM PCs is not a significant
issue.
Remember that C compilers use the signed char as the default unless we
the unsigned char data type for a string of ASCII characters, including extended
Write an AVR C program to send values 00–FF to Port B.
Solution:
#include avr/io.h //standard AVR header
int main(void)
{
unsigned char z;
DDRB = 0xFF; //PORTB is output
for(z = 0; z = 255; z++)
PORTB = z;
return 0;
}
//Notice that the program never exits the for loop because if you
//increment an unsigned char variable when it is 0xFF, it will
//become zero.
Data Type Size in Bits Data Range/Usage
unsigned char 8-bit 0 to 255
char 8-bit –128 to +127
unsigned int 16-bit 0 to 65,535
int 16-bit –32,768 to +32,767
unsigned long 32-bit 0 to 4,294,967,295
long 32-bit –2,147,483,648 to +2,147,483,648
float 32-bit ±1.175e-38 to ±3.402e38
double 32-bit ±1.175e-38 to ±3.402e38
Table 1: Some Data Types Widely Used by C Compilers
put the keyword unsigned in front of the char (see Example 1). We can also use
ASCII characters. Example 2 shows a string of ASCII characters. See
Example 3 for toggling a port 200 times.
Example 1
257

Signed char
The signed char is an 8-bit data type that uses the most significant bit (D7
of D7–D0) to represent the – or + value. As a result, we have only 7 bits for the
magnitude of the signed number, giving us values from –128 to +127. In situations
where + and – are needed to represent a given quantity such as temperature, the
Again, notice that if we do not use the keyword unsigned, the default is the
signed value. For that reason we should stick with the unsigned char unless the
data needs to be represented as signed numbers.
Write an AVR C program to toggle all the bits of Port B 200 times.
Solution:
//toggle PB 200 times
int main(void) //the code starts from here
{
PORTB = 0xAA; //PORTB is 10101010
unsigned char z;
for(z=0; z 200; z++) //run the next line 200 times
PORTB = ~ PORTB; //toggle PORTB
while(1); //stay here forever
return 0;
}
Write an AVR C program to send hex values for ASCII characters of 0, 1, 2, 3, 4, 5, A,
B, C, and D to Port B.
Solution:
int main(void) //the code starts from here
{
unsigned char myList[]= 012345ABCD;
unsigned char z;
for(z=0; z10; z++) //repeat 10 times and increment z
PORTB = myList[z]; //send the character to PORTB
while(1); //needed if running on a trainer
return 0;
}
Example 2
Example 3
use of the signed char data type is necessary (see Example 4).
258

Unsigned int
The unsigned int is a 16-bit data type that takes a value in the range of 0 to
65,535 (0000–FFFFH). In the AVR, unsigned int is used to define 16-bit variables
such as memory addresses. It is also used to set counter values of more than 256.
Because the AVR is an 8-bit microcontroller and the int data type takes two bytes
of RAM, we must not use the int data type unless we have to. Because registers
and memory accesses are in 8-bit chunks, the misuse of int variables will result in
larger hex files, slower execution of program, and more memory usage. Such mis-
use is not a problem in PCs with 512 megabytes of memory, the 32-bit Pentium’s
registers and memory accesses, and a bus speed of 133 MHz. For AVR program-
ming, however, do not use signed int in places where unsigned char will do the job.
Of course, the compiler will not generate an error for this misuse, but the overhead
in hex file size will be noticeable. Also, in situations where there is no need for
signed data (such as setting counter values), we should use unsigned int instead of
signed int. This gives a much wider range for data declaration. Again, remember
that the C compiler uses signed int as the default unless we specify the keyword
unsigned.
Signed int
Signed int is a 16-bit data type that uses the most significant bit (D15 of
D15–D0) to represent the – or + value. As a result, we have only 15 bits for the
magnitude of the number, or values from –32,768 to +32,767.
Write an AVR C program to send values of –4 to +4 to Port B.
Solution:
int main(void)
{
char mynum[] = {-4,-3,-2,-1,0,+1,+2,+3,+4};
unsigned char z;
for(z=0; z=8; z++)
PORTB = mynum[z];
return 0;
}
Run the above program on your simulator to see how PORTB displays values of FCH,
FDH, FEH , FFH, 00H, 01H, 02H, 03H, and 04H (the hex values for –4, –3, –2, –1, 0,
Example 4
1, etc.).
259

Other data types
The unsigned int is limited to values 0–65,535 (0000–FFFFH). The AVR C
compiler supports long data types, if we want values greater than 16-bit. Also, to
deal with fractional numbers, most AVR C compilers support float and double data
Write an AVR C program to toggle all bits of Port B 100,000 times.
Solution:
//toggle PB 100,00 times
int main(void)
{
unsigned long z; //long is used because it should
//store more than 65535.
for(z=0; z100000; z++){
PORTB = 0x55;
PORTB = 0xAA;
}
return 0;
}
Write an AVR C program to toggle all bits of Port B 50,000 times.
Solution:
int main(void)
{
unsigned int z;
for(z=0; z50000; z++)
{
PORTB = 0x55;
PORTB = 0xAA;
}
return 0;
}
Run the above program on your simulator to see how Port B toggles continuously.
Notice that the maximum value for unsigned int is 65,535.
types. See Examples 5 and 6.
Example 5
Example 6
260

Time delay
There are three ways to create a time delay in AVR C
1. Using a simple for loop
2. Using predefined C functions
3. Using AVR timers
In creating a time delay using a for loop, we must be mindful of two fac-
tors that can affect the accuracy of the delay:
1. The crystal frequency connected to the XTAL1–XTAL2 input pins is the most
important factor in the time delay calculation. The duration of the clock peri-
od for the instruction cycle is a function of this crystal frequency.
2. The second factor that affects the time delay is the compiler used to compile
the C program. When we program in Assembly language, we can control the
exact instructions and their sequences used in the delay subroutine. In the case
of C programs, it is the C compiler that converts the C statements and func-
tions to Assembly language instructions. As a result, different compilers pro-
duce different code. In other words, if we compile a given C program with dif-
ferent compilers, each compiler produces different hex code.
For the above reasons, when we use a loop to write time delays for C, we
Notice that most compilers do some code optimization before generating a .hex
file. In this process they may omit the delay loop because it does not do anything
other than wasting CPU time. In these compilers, you have to set the level of opti-
mization to zero (none). To see how you can set the level of optimization for
WinAVR and AVR Studio, refer to www.MicroDigitalEd.com.
Write an AVR C program to toggle all the bits of Port B continuously with a 100 ms
delay. Assume that the system is ATmega 32 with XTAL = 8 MHz.
Solution:
void delay100ms(void)
{
unsigned int i;
for(i=0; i42150; i++); //try different numbers on your
} //compiler and examine the result.
int main(void)
{
while (1)
{
PORTB = 0xAA;
delay100ms();
PORTB = 0x55;
delay100ms();
}
return 0;
}
must use the oscilloscope to measure the exact duration. Look at Example 7.
Example 7
261

Another way of generating time delay is to use predefined functions such
as _delay_ms() and _delay_us() defined in delay.h in WinAVR or delay_ms() and
delay_us() defined in delay.h in CodeVision. The only drawback of using these
functions is the portability problem. Because different compilers do not use the
same name for delay functions, you have to change every place in which the delay
functions are used, if you want to compile your program on another compiler. To
overcome this problem, programmers use macro or wrapper function. Wrapper
functions do nothing more than call the predefined delay function. If you use
wrapper functions and decide to change your compiler, instead of changing all
instances of predefined delay functions, you simply change the wrapper function.
microseconds.
Review Questions
1. Give the magnitude of the unsigned char and signed char data types.
2. Give the magnitude of the unsigned int and signed int data types.
3. If we are declaring a variable for a person’s age, we should use the ___ data
type.
4. True or false. Using predefined functions of compilers to create a time delay is
not recommended if you want your code to be portable to other compilers.
5. Give two factors that can affect the delay size.
Write an AVR C program to toggle all the pins of Port C continuously with a 10 ms
delay. Use a predefined delay function in Win AVR.
Solution:
#include util/delay.h //delay loop functions
int main(void)
{
void delay_ms(int d) //delay in d microseconds
{
_delay_ms(d);
}
DDRB = 0xFF; //PORTA is output
while (1){
PORTB = 0xFF;
delay_ms(10);
PORTB = 0x55;
delay_ms(10);
}
return 0;
}
Look at Example 8. Notice that calling a wrapper function may take some
Example 8
262

Byte size I/O
To access a PORT register as a byte, we use the PORTx label where x indi-
cates the name of the port. We access the data direction registers in the same way,
using DDRx to indicate the data direction of port x. To access a PIN register as a
byte, we use the PINx label where x indicates the name of the port. See Examples
LEDs are connected to pins of Port B. Write an AVR C program that shows the count
from 0 to FFH (0000 0000 to 1111 1111 in binary) on the LEDs.
Solution:
int main(void)
{
DDRB = 0xFF; //Port B is output
while (1)
{
PORTB = PORTB + 1;
}
return 0;
}
Write an AVR C program to get a byte of data from Port B, and then send it to Port C.
Solution:
int main(void)
{
unsigned char temp;
DDRB = 0x00; //Port B is input
DDRC = 0xFF; //Port C is output
while(1)
{
temp = PINB;
PORTC = temp;
}
return 0;
}
SECTION 2: I/O PROGRAMMING IN C
9, 10, and 11.
Example 9
Example 10
In this section we look at C programming of the I/O ports for the AVR. We look at
both byte and bit I/O programming.
All port registers of the AVR are both byte accessible and bit accessible.
263

Bit size I/O
The I/O ports of ATmega32 are bit-accessible. But some AVR C compilers
do not support this feature, and the others do not have a standard way of using it.
For example, the following line of code can be used in CodeVision to set the first
pin of Port B to one:
PORTB.0 = 1;
but it cannot be used in other compilers such as WinAVR.
To write portable code that can be compiled on different compilers, we
must use AND and OR bit-wise operations to access a single bit of a given regis-
ter.
So, you can access a single bit without disturbing the rest of the byte. In
next section you will see how to mask a bit of a byte. You can use masking for both
bit-accessible and byte-accessible ports and registers.
Review Questions
1. Write a short program that toggles all bits of Port C.
2. True or false. All bits of Port B are bit addressable.
3. Write a short program that toggles bit 2 of Port C using the functions of your
compiler.
4. True or false. To access the data direction register of Port B, we use DDRB.
Write an AVR C program to get a byte of data from Port C. If it is less than 100, send it
to Port B; otherwise, send it to Port D.
Solution:
int main(void)
{
DDRC = 0; //Port C is input
DDRD = 0xFF; //Port D is output
unsigned char temp;
while(1)
{
temp = PINC; //read from PINB
if ( temp 100 )
PORTB = temp;
else
PORTD = temp;
}
return 0;
}
Example 11
264

One of the most important and powerful features of the C language is its
ability to perform bit manipulation. Because many books on C do not cover this
important topic, it is appropriate to discuss it in this section. This section describes
the action of bit-wise logic operators and provides some examples of how they are
used.
Bit-wise operators in C
While every C programmer is familiar with the logical operators AND
(), OR (||), and NOT (!), many C programmers are less familiar with the bit-
wise operators AND (), OR (|), EX-OR (^), inverter (~), shift right (), and shift
left (). These bit-wise operators are widely used in software engineering for
embedded systems and control; consequently, their understanding and mastery are
The following shows some examples using the C bit-wise operators:
1. 0x35 0x0F = 0x05 /* ANDing */
2. 0x04 | 0x68 = 0x6C /* ORing */
3. 0x54 ^ 0x78 = 0x2C /* XORing */
4. ~0x55 = 0xAA /* Inverting 55H */
C. Run these programs on your simulator and examine the results.
AND OR EX-OR Inverter
A B AB A|B A^B Y=~B
0 0 0 0 0 1
0 1 0 1 1 0
1 0 0 1 1
1 1 1 1 0
Run the following program on your simulator and examine the results.
int main(void)
{
DDRB = 0xFF; //make Port B output
DDRC = 0xFF; //make Port C output
DDRD = 0xFF; //make Port D output
PORTB = 0x35 0x0F; //ANDing
PORTC = 0x04 | 0x68; //ORing
PORTD = 0x54 ^ 0x78; //XORing
PORTB = ~0x55; //inverting
while (1);
return 0;
}
SECTION 3: LOGIC OPERATIONS IN C
critical in microcontroller-based system design and interfacing. See Table 2.
Table 2: Bit-wise Logic Operators for C
Examples 12 through 20 show how the bit-wise operators are used in
Example 12
265

Write an AVR C program to monitor bit 5 of port C. If it is HIGH, send 55H to Port B;
otherwise, send AAH to Port B.
Solution:
int main(void)
{
DDRC = 0x00; //PORTC is input
DDRD = 0xFF; //PORTB is output
while(1)
{
if (PINC 0b00100000) //check bit 5 (6th bit) of PINC
PORTB = 0x55;
else
PORTB = 0xAA;
}
return 0;
}
Write an AVR C program to toggle only bit 4 of Port B continuously without disturbing
the rest of the pins of Port B.
Solution:
int main(void)
{
while(1)
{
PORTB = PORTB | 0b00010000; //set bit 4 (5th bit) of PORTB
PORTB = PORTB 0b11101111; //clear bit 4 (5th bit) of PORTB
}
return 0;
}
Example 13
Example 14
266

A door sensor is connected to bit 1 of Port B, and an LED is connected to bit 7 of Port
C. Write an AVR C program to monitor the door sensor and, when it opens, turn on the
LED.
Solution:
int main(void)
{
DDRB = DDRB 0b11111101; //pin 1 of Port B is input
DDRC = DDRC | 0b10000000; //pin 7 of Port C is output
while(1)
{
if (PINB 0b00000010) //check pin 1 (2nd pin) of PINB
PORTC = PORTC | 0b10000000; //set pin 7 (8th pin) of PORTC
else
PORTC = PORTC 0b01111111; //clear pin 7 (8th pin) of PORTC
}
return 0;
}
The data pins of an LCD are connected to Port B. The information is latched into the
LCD whenever its Enable pin goes from HIGH to LOW. The enable pin is connected to
pin 5 of Port C (6th pin). Write a C program to send “The Earth is but One Country” to
this LCD.
Solution:
int main(void)
{
unsigned char message[] = The Earth is but One Country;
unsigned char z;
DDRC = DDRC | 0b00100000; //pin 5 of Port C is output
for ( z = 0; z 28; z++)
{
PORTB = message[z];
PORTC = PORTC | 0b00100000; //pin LCD_EN of Port C is 1
PORTC = PORTC 0b11011111; //pin LCD_EN of Port C is 0
}
while (1);
return 0;
}
Example 15
Example 16
267

Write an AVR C program to read pins 1 and 0 of Port B and issue an ASCII character
to Port D according to the following table:
pin1 pin0
0 0 send ‘0’ to Port D (notice ASCII ‘0’ is 0x30)
0 1 send ‘1’ to Port D
Solution:
int main(void)
{
unsigned char z;
DDRB = 0; //make Port B an input
DDRD = 0xFF; //make Port D an output
while(1) //repeat forever
{
z = PINB; //read PORTB
z = z 0b00000011; //mask the unused bits
switch(z) //make decision
{
case(0):
{
PORTD = '0'; //issue ASCII 0
break;
}
case(1):
{
break;
}
case(2):
{
break;
}
case(3):
{
break;
}
}
}
return 0;
}
Example 17
268

Write an AVR C program to monitor bit 7 of Port B. If it is 1, make bit 4 of Port B input;
otherwise, change pin 4 of Port B to output.
Solution:
int main(void)
{
DDRB = DDRB 0b01111111; //bit 7 of Port B is input
while (1)
{
if(PINB 10000000)
else
DDRB = DDRB | 0b00010000; //bit 4 of Port B is output
}
return 0;
}
Write an AVR C program to get the status of bit 5 of Port B and send it to bit 7 of port
C continuously.
Solution:
int main(void)
{
DDRC = DDRC | 0b10000000; //bit 7 of Port C is output
while (1)
{
if(PINB 0b00100000 )
PORTC = PORTC | 0b10000000; //set bit 7 of Port C to 1
else
PORTC = PORTC 0b01111111; //clear bit 7 of Port C to 0
}
return 0;
}
Example 18
Example 19
269

4: {
+00000049: EF8F SER R24 Set Register
+0000004A: BB87 OUT 0x17,R24 Out to I/O location
6: PORTB = 0xAA;
+0000004B: EA8A LDI R24,0xAA Load immediate
+0000004C: BB88 OUT 0x18,R24 Out to I/O location
9: PORTB =~ PORTB ;
+0000004D: B388 IN R24,0x18 In from I/O location
+0000004E: 9580 COM R24 One's complement
+0000004F: BB88 OUT 0x18,R24 Out to I/O location
+00000050: CFFC RJMP PC-0x0003 Relative jump
+00000051: 94F8 CLI Global Interrupt Disab
+00000052: CFFF RJMP PC-0x0000 Relative jump
Write an AVR C program to toggle all the pins of Port B continuously.
(a) Use the inverting operator. (b) Use the EX-OR operator.
Solution:
(a)
int main(void)
{
PORTB = 0xAA;
while (1)
PORTB = ~ PORTB; //toggle PORTB
return 0;
}
(b)
int main(void)
{
PORTB = 0xAA;
while (1)
PORTB = PORTB ^ 0xFF;
return 0;
}
4: {
+00000049: EF8F SER R24 Set Register
+0000004A: BB87 OUT 0x17,R24 Out to I/O location
6: PORTB = 0xAA;
+0000004B: EA8A LDI R24,0xAA Load immediate
+0000004C: BB88 OUT 0x18,R24 Out to I/O location
9: PORTB = PORTB ^ 0xFF ;
+0000004D: B388 IN R24,0x18 In from I/O location
+0000004E: 9580 COM R24 One's complement
+0000004F: BB88 OUT 0x18,R24 Out to I/O location
+00000050: CFFC RJMP PC-0x0003 Relative jump
+00000051: 94F8 CLI Global Interrupt Disab
+00000052: CFFF RJMP PC-0x0000 Relative jump
Example 20
Disassembly of Example 20 Part a
Disassembly of Example 20 Part b
270

thing.
Compound assignment operators in C
To reduce coding (typing) we can use compound statements for bit-wise
Operation Abbreviated Expression Equal C Expression
And assignment a = b a = a b
OR assignment a |= b a = a | b
Using bitwise compound assignment operators
Solution:
(a)
int main(void)
{
while (1)
{
if(PINB 0b00100000)
DDRB = 0b11101111; //bit 4 of Port B is input
else
DDRB |= 0b00010000; //bit 4 of Port B is output
}
return 0;
}
(b)
int main(void)
{
DDRB = 0b11011111; //bit 5 of Port B is input
DDRC |= 0b10000000; //bit 7 of Port C is output
while (1)
{
if(PINB 0b00100000)
PORTC |= 0b10000000; //set bit 7 of Port C to 1
else
PORTC = 0b01111111; //clear bit 7 of Port C to 0
}
return 0;
}
will notice that the generated codes are the same because they do exactly the same
Examine the Assembly output for parts (a) and (b) of Example 20. You
operators in C. See Table 3 and Example 21.
Table 3: Compound Assignment Operator in C
Example 21
(a) Rewrite Example 18 (b) Rewrite Example 19
271

Bit-wise shift operation in C
The following shows some examples of shift operators in C:
1. 0b00010000 3 = 0b00000010 /* shifting right 3 times */
2. 0b00010000 3 = 0b10000000 /* shifting left 3 times */
3. 1 3 = 0b00001000 /* shifting left 3 times */
Bit-wise shift operation and bit manipulation
Reexamine the last 10 examples. To do bit-wise I/O operation in C, we
need numbers like 0b00100000 in which there are seven zeroes and one one. Only
the position of the one varies in different programs. To leave the generation of ones
and zeros to the compiler and improve the code clarity, we use shift operations. For
example, instead of writing “0b00100000” we can write “0b00000001 5” or
we can write simply “15”.
Sometimes we need numbers like 0b11101111. To generate such a number,
we do the shifting first and then invert it. For example, to generate 0b11101111 we
Write code to generate the following numbers:
(a) A number that has only a one in position D7
(b) A number that has only a one in position D2
(c) A number that has only a one in position D4
(d) A number that has only a zero in position D5
(e) A number that has only a zero in position D3
(f) A number that has only a zero in position D1
Solution:
(a) (17)
(b) (12)
(c) (14)
(d) ~(15)
(e) ~(13)
(f) ~(11)
Operation Symbol Format of Shift Operation
Shift right data number of bits to be shifted right
Shift left data number of bits to be shifted left
There are two bit-wise shift operators in C. See Table 4.
Table 4: Bit-wise Shift Operators for C
can write ~ (15). See Example 22.
Example 22
272

use shift operation.
Write an AVR C program to monitor bit 7 of Port B. If it is 1, make bit 4 of Port B input;
else, change pin 4 of Port B to output.
Solution:
int main(void)
{
DDRB = DDRB ~(17); //bit 7 of Port B is input
while (1)
{
if(PINB (17))
else
DDRB = DDRB | (14); //bit 4 of Port B is output
}
return 0;
}
Write an AVR C program to get the status of bit 5 of Port B and send it to bit 7 of port
C continuously.
Solution:
int main(void)
{
DDRC = DDRC | (17); //bit 7 of Port C is output
while (1)
{
if(PINB (15) )
PORTC = PORTC | (17); //set bit 7 of Port C to 1
else
PORTC = PORTC ~(17); //clear bit 7 of Port C to 0
}
return 0;
}
Examples 23 and 24 are the same as Examples 18 and 19, but they
Example 23
Example 24
273

As we mentioned before, bit-wise shift operation can be used to increase
Notice that to generate more complicated numbers, we can OR two simpler
numbers. For example, to generate a number that has a one in position D7 and
another one in position D4, we can OR a number that has only a one in position
D7 with a number that has only a one in position D4. So we can simply write
Review Questions
1. Find the content of PORTB after the following C code in each case:
(a) PORTB=0x370xCA;
(b) PORTB=0x37|0xCA;
(c) PORTB=0x37^0xCA;
2. To mask certain bits we must AND them with ______.
3. To set high certain bits we must OR them with _____.
4. EX-ORing a value with itself results in _______.
5. Find the contents of PORTC after execution of the following code:
PORTC = 0;
PORTC = PORTC | 0x99;
PORTC = ~PORTC;
6. Find the contents of PORTC after execution of the following code:
PORTC = ~(03);
A door sensor is connected to the port B pin 1, and an LED is connected to port C pin
7. Write an AVR C program to monitor the door sensor and, when it opens, turn on the
LED.
Solution:
#define LED 7
#define SENSOR 1
int main(void)
{
DDRB = DDRB ~(1SENSOR); //SENSOR pin is input
DDRC = DDRC | (1 LED); //LED pin is output
while(1)
{
if (PINB (1 SENSOR)) //check SENSOR pin of PINB
PORTC = PORTC | (1LED); //set LED pin of Port C
else
PORTC = PORTC ~(1LED); //clear LED pin of Port C
}
return 0;
}
code clarity. See Example 25.
Example 25
(17)|(14).
274

ASCII numbers
On ASCII keyboards, when the “0” key is activated, “0011 0000” (30H) is
provided to the computer. Similarly, 31H (0011 0001) is provided for the “1” key,
Packed BCD to ASCII conversion
The RTC provides the time of day (hour, minute, second) and the date
(year, month, day) continuously, regardless of whether the power is on or off. This
data is provided in packed BCD. To convert packed BCD to ASCII, you must first
convert it to unpacked BCD. Then the unpacked BCD is tagged with 011 0000
(30H). The following demonstrates converting from packed BCD to ASCII. See
Packed BCD Unpacked BCD ASCII
0x29 0x02, 0x09 0x32, 0x39
00101001 00000010,00001001 00110010,00111001
ASCII to packed BCD conversion
To convert ASCII to packed BCD, you first convert it to unpacked BCD (to
get rid of the 3), and then combine the numbers to make packed BCD. For exam-
ple, 4 and 7 on the keyboard give 34H and 37H, respectively. The goal is to pro-
duce 47H or “0100 0111”, which is packed BCD.
Key ASCII (hex) Binary BCD (unpacked)
0 30 011 0000 0000 0000
1 31 011 0001 0000 0001
2 32 011 0010 0000 0010
3 33 011 0011 0000 0011
4 34 011 0100 0000 0100
5 35 011 0101 0000 0101
6 36 011 0110 0000 0110
7 37 011 0111 0000 0111
8 38 011 1000 0000 1000
9 39 011 1001 0000 1001
SECTION 4: DATA CONVERSION PROGRAMS IN C
and so on, as shown in Table 5.
Table 5: ASCII Code for Digits 0–9
also Example 26.
Many newer microcontrollers have a real-time clock (RTC) where the time
and date are kept even when the power is off. Very often the RTC provides the time
and date in packed BCD. To display them, however, we must convert them to
ASCII. In this section we show the application of logic and rotate instructions in
the conversion of BCD and ASCII.
275

Key ASCII Unpacked BCD Packed BCD
4 34 00000100
7 37 00000111 01000111 or 47H
Write an AVR C program to convert packed BCD 0x29 to ASCII and display the bytes
on PORTB and PORTC.
Solution:
int main(void)
{
unsigned char x, y;
unsigned char mybyte = 0x29;
DDRB = DDRC = 0xFF; //make Ports B and C output
x = mybyte 0x0F; //mask upper 4 bits
PORTB = x | 0x30; //make it ASCII
y = mybyte 0xF0; //mask lower 4 bits
y = y 4; //shift it to lower 4 bits
PORTC = y | 0x30; //make it ASCII
return 0;
}
Write an AVR C program to convert ASCII digits of ‘4’ and ‘7’ to packed BCD and dis-
play them on PORTB.
Solution:
int main(void)
{
unsigned char bcdbyte;
unsigned char w = '4';
unsigned char z = '7';
DDRB = 0xFF; //make Port B an output
w = w 0x0F; //mask 3
w = w 4; //shift left to make upper BCD digit
z = z 0x0F; //mask 3
bcdbyte = w | z; //combine to make packed BCD
PORTB = bcdbyte;
return 0;
}
See Example 27.
Example 26
Example 27
276

Checksum byte in ROM
To ensure the integrity of data, every system must perform the checksum
calculation. When you transmit data from one device to another or when you save
and restore data to a storage device you should perform the checksum calculation
to ensure the integrity of the data. The checksum will detect any corruption of data.
To ensure data integrity, the checksum process uses what is called a checksum
byte. The checksum byte is an extra byte that is tagged to the end of a series of
bytes of data. To calculate the checksum byte of a series of bytes of data, the fol-
lowing steps can be taken:
1. Add the bytes together and drop the carries.
2. Take the 2's complement of the total sum. This is the checksum byte, which
becomes the last byte of the series.
To perform the checksum operation, add all the bytes, including the check-
sum byte. The result must be zero. If it is not zero, one or more bytes of data have
Assume that we have 4 bytes of hexadecimal data: 25H, 62H, 3FH, and 52H.
(a) Find the checksum byte, (b) perform the checksum operation to ensure data
integrity, and (c) if the second byte, 62H, has been changed to 22H, show how check-
sum detects the error.
Solution:
25H
+ 62H
+ 3FH
+ 52H
1 18H (dropping carry of 1 and taking 2’s complement, we get E8H)
25H
+ 62H
+ 3FH
+ 52H
+ E8H
2 00H (dropping the carries we get 00, which means data is not corrupted)
(c) If the second byte, 62H, has been changed to 22H, show how checksum detects
the error.
25H
+ 22H
+ 3FH
+ 52H
+ E8H
1 C0H (dropping the carry, we get C0H, which means data is corrupted)
been changed (corrupted). See Examples 28 through 30.
Example 28
277

Write an AVR C program to calculate the checksum byte for the data given in
Solution:
int main(void)
{
unsigned char mydata[] = {0x25,0x62,0x3F,0x52};
unsigned char sum = 0;
unsigned char x;
unsigned char chksumbyte;
DDRA = 0xFF; //make Port A output
DDRB = 0xFF; //make Port B output
DDRC = 0xFF; //make Port C output
for(x=0; x4; x++)
{
PORTA = mydata[x]; //issue each byte to PORTA
sum = sum + mydata[x]; //add them together
PORTB = sum; //issue the sum to PORTB
}
chksumbyte = ~sum + 1; //make 2’s complement (invert +1)
PORTC = chksumbyte; //show the checksum byte
return 0;
}
character ‘G’ to PORTD. Otherwise, send ‘B’ to PORTD.
Solution:
int main(void)
{
unsigned char mydata[] = {0x25,0x62,0x3F,0x52,0xE8};
unsigned char chksum = 0;
unsigned char x;
for(x=0;x5;x++)
chksum = chksum + mydata[x]; //add them together
if(chksum == 0)
PORTD = 'G';
else
PORTD = 'B';
return 0;
}
Change one or two values in the mydata array and simulate the program to see the
results.
Example 29
Example 28.
Write a C program to perform step (b) of Example 28. If the data is good, send ASCII
Example 30
278

Binary (hex) to decimal and ASCII conversion in C
The printf function is part of the standard I/O library in C and can do many
things including converting data from binary (hex) to decimal, or vice versa. But
printf takes a lot of memory space and increases your hex file substantially. For
this reason, in systems based on the AVR microcontroller, it is better to know how
to write our own conversion function instead of using printf.
Hex Quotient Remainder
FD/0A 19 3 (low digit) LSD
19/0A 2 5 (middle digit)
2 (high digit) (MSD)
Write an AVR C program to convert 11111101 (FD hex) to decimal and display the dig-
its on PORTB, PORTC, and PORTD.
Solution:
int main(void)
{
unsigned char x, binbyte, d1, d2, d3;
DDRB = DDRC = DDRD =0xFF; //Ports B, C, and D output
binbyte = 0xFD; //binary (hex) byte
x = binbyte / 10; //divide by 10
d1 = binbyte % 10; //find remainder (LSD)
d2 = x % 10; //middle digit
d3 = x / 10; //most-significant digit (MSD)
PORTB = d1;
PORTC = d2;
PORTD = d3;
return 0;
}
Example 31 shows the C program for the above algorithm.
Example 31
One of the most widely used conversions is binary to decimal conversion.
In devices such as ADCs (Analog-to-Digital Converters), the data is provided to
the microcontroller in binary. In some RTCs, the time and dates are also provided
in binary. In order to display binary data, we need to convert it to decimal and then
to ASCII. Because the hexadecimal format is a convenient way of representing
binary data, we refer to the binary data as hex. The binary data 00–FFH convert-
ed to decimal will give us 000 to 255. One way to do that is to divide it by 10 and
keep the remainder. For example, 11111101 or FDH is 253 in decimal. The follow-
ing is one version of an algorithm for conversion of hex (binary) to decimal:
279

Many compilers have some predefined functions to convert data types. In
be included. Notice that these functions may vary in different compilers.
Review Questions
1. For the following decimal numbers, give the packed BCD and unpacked BCD
representations:
(a) 15 (b) 99
2. Show the binary and hex for “76”.
3. 67H in BCD when converted to ASCII is ____H and ____H.
4. Does the following convert unpacked BCD to ASCII?
mydata=0x09+0x30;
5. Why is the use of packed BCD preferable to ASCII?
6. Which takes more memory space to store numbers: packed BCD or ASCII?
7. In Question 6, which is more universal?
8. Find the checksum byte for the following values: 22H, 76H, 5FH, 8CH, 99H.
9. To test data integrity, we add the bytes together, including the checksum byte.
The result must be equal to ____ if the data is not corrupted.
10. An ADC provides an output of 0010 0110. How do we display that on the
screen?
Serializing data is a way of sending a byte of data one bit at a time through
a single pin of a microcontroller. There are two ways to transfer a byte of data seri-
ally:
1. Using the serial port. In using the serial port, the programmer has very limited
2. The second method of serializing data is to transfer data one bit a time and con-
trol the sequence of data and spaces between them. In many new generations
of devices such as LCD, ADC, and EEPROM, the serial versions are becom-
ing popular because they take up less space on a printed circuit board.
Although we can use standards such as I2
C, SPI, and CAN, not all devices sup-
port such standards. For this reason we need to be familiar with data serializa-
tion using the C language.
Examine the next four examples to see how data serialization is done in C.
Function signature Description of functions
int atoi(char *str) Converts the string str to integer.
long atol(char *str) Converts the string str to long.
void itoa(int n, char *str) Converts the integer n to characters in string str.
void ltoa(int n, char *str) Converts the long n to characters in string str.
float atof(char *str) Converts the characters from string str to float.
SECTION 5: DATA SERIALIZATION IN C
Table 6 you can see some of them. To use these functions, the stdlib.h file should
Table 6: Data Type Conversion Functions in C
control over the sequence of data transfer.
280

Write an AVR C program to send out the value 44H serially one bit at a time via
PORTC, pin 3. The LSB should go out first.
Solution:
#include avr/io.h
#define serPin 3
int main(void)
{
unsigned char conbyte = 0x44;
unsigned char regALSB;
unsigned char x;
regALSB = conbyte;
DDRC |= (1serPin);
for(x=0;x8;x++)
{
if(regALSB 0x01)
PORTC |= (1serPin);
else
PORTC = ~(1serPin);
regALSB = regALSB 1;
}
return 0;
}
Write an AVR C program to send out the value 44H serially one bit at a time via
PORTC, pin 3. The MSB should go out first.
Solution:
#include avr/io.h
#define serPin 3
int main(void)
{
unsigned char conbyte = 0x44;
unsigned char regALSB;
unsigned char x;
regALSB = conbyte;
DDRC |= (1serPin);
for(x=0;x8;x++)
{
if(regALSB 0x80)
PORTC |= (1serPin);
else
PORTC = ~(1serPin);
regALSB = regALSB 1;
}
return 0;
}
Example 32
Example 33
281

Write an AVR C program to bring in a byte of data serially one bit at a time via PORTC,
pin 3. The MSB should come in first.
Solution:
#define serPin 3
int main(void)
{
unsigned char x;
unsigned char REGA=0;
DDRC = ~(1serPin); //serPin as input
for(x=0; x8; x++) //repeat for each bit of REGA
{
REGA = REGA 1; //shift REGA to left one bit
REGA |= (PINC (1serPin)) serPin; //copy bit serPin of
} //PORT C to LSB of REGA.
return 0;
}
Write an AVR C program to bring in a byte of data serially one bit at a time via PORTC,
pin 3. The LSB should come in first.
Solution:
//Bringing in data via PC3 (SHIFTING RIGHT)
#define serPin 3
int main(void)
{
unsigned char x;
unsigned char REGA=0;
DDRC = ~(1serPin); //serPin as input
for(x=0; x8; x++) //repeat for each bit of REGA
{
REGA = REGA 1; //shift REGA to right one bit
REGA |= (PINC (1serPin)) (7-serPin); //copy bit serPin
} //of PORTC to MSB of REGA.
return 0;
}
SECTION 6: MEMORY ALLOCATION IN C
Example 34
Example 35
Using program (code) space for predefined fixed data is a widely used
option in the AVR. Next, we use C language programs to access the data stored in
ROM.
282

Flash, RAM, and EEPROM data space in the AVR
In the AVR we have three spaces in which to store data. They are as fol-
lows:
1.
2. The 2M words (4M bytes) of code (program) space with addresses of
000000–1FFFFFH. This 2M words of on-chip Flash ROM space is used pri-
marily for storing programs (opcodes) and therefore is directly under control
3. EEPROM. As we mentioned before, EEPROM can save data when the power
is off. That is why we use EEPROM to save variables that should not be lost
when the power is off. For example, the temperature set point of a cooling sys-
tem should be changed by users and cannot be stored in program space. Also,
it should be saved when the power is off, so we place it in EEPROM. Also,
when there is not enough code space, we can place permanent variables in
EEPROM to save some code space.
flash unsigned char mynum[] = Hello; //use Flash code space
eeprom unsigned char = 7 //use EEPROM space
To learn how you can use the built-in functions or directives of your com-
piler, you should consult the manual for your compiler. Also, you can download
some examples using different compilers from www.MicroDigitalEd.com.
Flash SRAM EEPROM
ATmega 8 8K 256 256
ATmega 16 16K 1K 512
ATmega 32 32K 2K 1K
ATmega 64 64K 4K 2K
ATmega 128 128K 8K 4K
See www.MicroDigitalEd.com for
using Flash data space to store fix data
Table 7: Memory Size for Some ATmega Family Members(Bytes)
of the program counter (PC). Many AVR chips have much less than 2M words
of on-chip program ROM (see Table 7). You should also know how to access
the program space for the purpose of data storage.
You should already know how to read from or write to EEPROM. In this
chapter we will show the same concept using C programming. Notice that differ-
ent C compilers may have their built-in functions or directives to access each type
of memory. In CodeVision, to define a const variable in the Flash memory, you
only need to put the Flash directive before it. Also, to define a variable in EEP-
ROM, you can put the eeprom directive in front of it:
The 64K bytes of SRAM space with address range 0000–FFFFH. Many AVR
chips have much less than 64K bytes for the SRAM. We also have seen how
we can read (from) or write (into) this RAM space directly or indirectly. We
store temporary variables in SRAM since the SRAM is the scratch pad.
283

EEPROM access in C
Review Questions
1. The AVR family has a maximum of ____ of program ROM space.
2. The ATmega128 has ____ of program ROM.
3. True or false. The program (code) ROM space can be used for data storage, but
the data space cannot be used for code.
4. True or false. Using the program ROM space for data means the data is fixed
and static.
5. If we have a message string with a size of over 1000 bytes, then we use
________ (program ROM, data RAM) to store it.
Write an AVR C program to read the content of location 0x005F of EEPROM into
PORTB.
Solution:
int main(void)
{
DDRB = 0xFF; //make PORTB an output
while(EECR (1EEWE)); //wait for last write to finish
EEAR = 0x5f; //write 0x5F to address register
EECR |= (1EERE); //start EEPROM read by writing EERE
PORTB = EEDR; //move data from data register to PORTB
}
Write an AVR C program to store ‘G’ into location 0x005F of EEPROM.
Solution:
int main(void)
{
while(EECR (1EEWE)); //wait for last write to finish
EEAR = 0x5f; //write 0x5F to address register
EEDR = 'G'; //write 'G' to data register
EECR |= (1EEMWE); //write one to EEMWE
EECR |= (1EEWE); //start EEPROM write
return 0;
}
Example 36
Example 37
You should already know how we can access EEPROM using Assembly
tioned before, most compilers have some built-in functions or directives to make
how we access EEPROM in C.
the job of accessing the EEPROM memory easier. See Examples 36 and 37 to learn
language. Next, we do the same thing with C language. Notice that as we men-
284

SUMMARY
This chapter dealt with AVR C programming, specifically I/O program-
ming and time delays in C. We also showed the logic operators AND, OR, XOR,
and complement. In addition, some applications for these operators were dis-
cussed. This chapter described BCD and ASCII formats and conversions in C. We
also discussed how to access EEPROM in C. The widely used technique of data
serialization was also discussed.
PROBLEMS
1. Indicate what data type you would use for the following variables:
(a) temperature
(b) the number of days in a week
(c) the number of days in a year
(d) the number of months in a year
(e) a counter to track the number of people getting on a bus
(f) a counter to track the number of people going to a class
(g) an address of 64K RAM space
(h) the age of a person
(i) a string for a message to welcome people to a building
2. Give the hex value that is sent to the port for each of the following C statements:
(a) PORTB=14; (b) PORTB=0x18; (c) PORTB='A';
(d) PORTB=7; (e) PORTB=32; (f) PORTB=0x45;
(g) PORTB=255; (h) PORTB=0x0F;
3. Give two factors that can affect time delay in the AVR microcontroller.
4. Of the two factors in Problem 3, which can be set by the system designer?
5. Can the programmer set the number of clock cycles used to execute an instruc-
tion? Explain your answer.
6. Explain why various C compilers produce different hex file sizes.
7. What is the difference between PORTC=0x00 and DDRC=0x00?
8. Write a C program to toggle all bits of Port B every 200 ms.
9. Write a C program to toggle bits 1 and 3 or Port B every 200 ms.
10. Write a time delay function for 100 ms.
11. Write a C program to toggle only bit 3 of PORT C every 200 ms.
12. Write a C program to count up Port B from 0–99 continuously.
13. Indicate the data on the ports for each of the following:
Note: The operations are independent of each other.
(a) PORTB=0xF00x45; (b) PORTB=0xF00x56;
285

(c) PORTB=0xF0^0x76; (d) PORTC=0xF00x90;
(e) PORTC=0xF0^0x90; (f) PORTC=0xF0|0x90;
(g) PORTC=0xF00xFF; (h) PORTC=0xF0|0x99;
(i) PORTC=0xF0^0xEE; (j) PORTC=0xF0^0xAA;
14. Find the contents of the port after each of the following operations:
(a) PORTB=0x650x76; (b) PORTB=0x70|0x6B;
(c) PORTC=0x95^0xAA; (d) PORTC=0x5D0x78;
(e) PORTC=0xC5|0x12; (f) PORTD=0x6A^0x6E;
(g) PORTB=0x37|0x26;
15. Find the port value after each of the following is executed:
(a) PORTB=0x652; (b) PORTC=0x392;
(c) PORTB=0xD43; (d) PORTB=0xA72;
16. Show the C code to swap 0x95 to make it 0x59.
17. Write a C program that finds the number of zeros in an 8-bit data item.
18. Write a C program to convert packed BCD 0x34 to ASCII and display the
bytes on PORTB and PORTC.
19. Write a program to convert ASCII digits of ‘7’ and ‘2’ to packed BCD and dis-
play them on PORTB.
20. Write a C program to that finds the number of 1s in a given byte.
21. Indicate what type of memory (data SRAM or code space) you would use for
the following variables:
(a) temperature
(b) the number of days in a week
(c) the number of days in a year
(d) the number of months in a year
22. True or false. When using code space for data, the total size of the array should
not exceed 256 bytes.
23. Why do we use the code space for video game characters and shapes?
24. What is the advantage of using code space for data?
25. What is the drawback of using program code space for data?
26. Write a C program to send your first and last names to EEPROM.
27. Indicate what type of memory (data RAM, or code ROM space) you would use
for the following variables:
(a) a counter to track the number of people getting on a bus
(b) a counter to track the number of people going to a class
(c) an address of 64K RAM space
(d) the age of a person
(e) a string for a message to welcome people to a building
28. Why do we not use the data RAM space for video game characters and shapes?
29. What is the drawback of using RAM data space for fixed data?
SECTION 5: DATA SERIALIZATION IN C
SECTION 6: MEMORY ALLOCATION IN C
286

30. What is the advantage of using data RAM space for variables?
1. 0 to 255 for unsigned char and –128 to +127 for signed char
2. 0 to 65,535 for unsigned int and –32,768 to +32,767 for signed int
3. Unsigned char
4. True
5. (a) Crystal frequency of the AVR system
(b) Compiler used for C
1. void main()
{
DDRC = 0xFF; //PORTC is output
PORTC = 0x55; //PORTC is 0101 0101
PORTC = 0xAA; //PORTC is 1010 1010
}
2. True
3. In CodeVision, the code can be:
void main()
{
DDRC.2 = 1;
PORTC.2 = 0;
}
4. True
1. (a) 02H
(b) FFH
(c) FDH
2. Zeros
3. One
4. All zeros
5. 66H
6. ~ ((0000 0000) 3) = ~ (1111 1111) = FFH
1. (a) 15H = 0001 0101 packed BCD, 0000 0001,0000 0101 unpacked BCD
(b) 99H = 1001 1001 packed BCD, 0000 1001,0000 1001 unpacked BCD
2. “76” = 3736H = 00110111 00110110B
3. 36, 37
4. Yes, because mydata = 0x39
5. Space savings
6. ASCII
7. BCD
8. E4H
9. 0
10. First, convert from binary to decimal, then convert to ASCII, and then send the results to the
screen and we will see 038.
287

1. 2M words (4M bytes)
2. 128K bytes
3. True
4. True
5. Program ROM
SECTION 6: PROGRAM ROM ALLOCATION IN C
288

OBJECTIVES

Explain the function of the reset pin of the AVR microcontroller

Show the hardware connection of the AVR chip

Show the use of a crystal oscillator for a clock source

Explain how to design an AVR-based system

Explain the role of brown-out detection voltage (BOD) in system reset

Explain the role of the fuse bytes in an AVR-based system

Show the design of the AVR trainer

Code a test program in Assembly and C for testing the AVR

Show how to download programs into the AVR system using
AVRISP

Explain the hex file characteristics
AVR HARDWARE
CONNECTION, HEX FILE, AND
FLASH LOADERS
Published by Pearson Prentice Hall. All rights reserved. 289

This chapter describes the process of physically connecting and testing
AVR-based systems. In the first section we describe the functions of ATmega32
explain the characteristics of hex files that are produced by AVR Studio. In
microcontroller. It also shows the hardware connection for an AVR trainer using
the ATmega16 or ATmega32 chips.
for the four Ports A, B, C, and D, with their alternate functions. The rest of the pins
are designated as VCC, AVCC, AREF, GND, XTAL1, XTAL2, and RESET. Next,
we describe the function of each pin.
40 PIN DIP
10
11
1
2
3
4
5
6
7
8
9
12
13
14
15
16
17
18
19
20
(XCK/T0) PB0
(T1) PB1
(INT2/AIN0) PB2
(OC0/AIN1) PB3
(SS) PB4
(MOSI) PB5
(MISO) PB6
(SCK) PB7
RESET
VCC
XTAL2
GND
XTAL1
(RXD) PD0
(TXD) PD1
(INT0) PD2
(INT1) PD3
(OC1B) PD4
(OC1A) PD5
(ICP) PD6
31
30
40
39
38
37
36
35
34
33
32
29
28
27
26
25
24
23
22
21
PA0 (ADC0)
PA1 (ADC1)
PA2 (ADC2)
PA3 (ADC3)
PA4 (ADC4)
PA5 (ADC5)
PA6 (ADC6)
PA7 (ADC7)
AREF
AGND
PC7 (TOSC2)
AVCC
PC6 (TOSC1)
PC5 (TDI)
PC4 (TDO)
PC3 (TMS)
PC2 (TCK)
PC1 (SDA)
PC0 (SCL)
PD7 (OC2)
AVR HARDWARE CONNECTION
pins. The fuse bits of the AVR are explored in Section 2. In Section 3 we
Section 4 we discuss the various methods of loading a program into the AVR
SECTION 1: ATMEGA32 PIN CONNECTION
Examine Figure 1. Notice that of the 40 pins, a total of 32 are set aside
Figure 1. ATmega32 Pin Diagram
The ATmega family members come in different packages, such as DIP
(dual in-line package), MLF (Micro Lead Frame Package), and QFP (quad flat
package). They all have many pins that are dedicated to various functions such as
I/O, ADC, timer, and interrupts. Notice that Atmel provides a 28-pin version of the
ATmega family (ATmega8) with a reduced number of I/O ports for less demand-
ing applications. Because the vast majority of educational trainers use the 40-pin
chip, we will concentrate on that. Figure 1 shows the pins for the ATmega32.
290

VCC
This pin provides supply voltage to the chip. The typical voltage source is
+5 V. Some AVR family members have lower voltage for VCC pins in order to
reduce the noise and power dissipation of the AVR system. For example,
ATmega32L operation voltage is 2.7–5.5 V. We can choose other options for the
operating voltage level by setting BOD fuse bits. The BOD fuse bits are discussed
in the next section.
AVCC
AVCC is the supply voltage pin for Port A and the A/D Converter. It should
AREF
GND
Two pins are also used for ground. In chips with 40 pins and more, it is
common to have multiple pins for VCC and GND. This will help reduce the noise
(ground bounce) in high-frequency systems.
XTAL1 and XTAL2
The ATmega32 has many options for the clock source. Most often a quartz
crystal oscillator is connected to input pins XTAL1 and XTAL2. The quartz crys-
tal oscillator connected to the XTAL1 and XTAL2 pins also needs two capacitors.
Vdd
10K
AVCC
30
12
GND
VCC
31
10
9
RESET
ATmega32
Reset
Switch
11
13
XTAL1
8MHz
22pF
22pF
GND
XTAL2
Notice that ATmega32 microcontrollers can have speeds of 0 Hz to 16 MHz.
One side of each capacitor is connected to the ground as shown in Figure 2.
Figure 2. Minimum Connection for ATmega32
be externally connected to VCC, even if the ADC is not used.
AREF is the analog reference pin for ADC.
291

We can choose options for the clock source and frequency by setting some
fuse bits. The fuse bits are discussed in the next section.
RESET
Pin 9 (in the ATmega32, 40-pin DIP)
is the RESET pin. It is an input and is active-
LOW (normally HIGH). When a LOW pulse
is applied to this pin, the microcontroller will
reset and terminate all activities. After apply-
ing reset, contents of all registers and SRAM
locations will be cleared. Notice that after
applying reset, all ports will be input because
contents of all DDR registers are cleared. The
CPU will start executing the program from
run location 0x00000 after a brief delay when the RESET pin is forced low and
then released.
Power-On Reset
Circuit
Reset Circuit with
Capacitor and Diode
Reset Circuit with
Momentary Switch
Some AVR Registers
Register Reset Value (hex)
PC 000000
R0–R31 00
DDRx 00
PORTx 00
Table 1: RESET Values for
Figure 3b. Power-On Figure 3c. Power-On
Figure 3a. Simple
Figures 3a, 3b, and 3c show three ways of connecting the RESET pin.
Figure 3b uses a momentary switch for reset circuitry. The most difficult time for
any system is during the power-up. The CPU needs both a stable clock source and
a stable voltage level to function properly. Some designers put a 10 nF capacitor
between the RESET pin and GND to filter the noise during reset and working time.
The diode protects the RESET pin from being powered by the capacitor when the
power is off. The AVR chips come with some features that help the reset process.
We can choose these features by setting the bits in the fuse bytes. The fuse bits for
the reset are discussed in the next section. In addition to the RESET pin there are
other sources of reset in the AVR family that will not be discussed in this chapter.
292

Ports A, B, C, D, and E
Review Questions
1. Which pin is used to reset the ATmega32 chip?
2. Upon power-up, the R0–R31 registers have a value of ____.
3. True or false. Upon power-up, the CPU continues running the code from the
line it was running before reset.
4. Reset is an active-_______ (LOW, HIGH) pin.
5. What is the operating voltage of ATmega32L?
Functions
Bit Function
PC0 SCL
PC1 SDA
PC2 TCK
PC3 TMS
PC4 TDO
PC5 TDI
PC6 TOSC1
PC7 TOSC2
Functions
Bit Function
PD0 RXD
PD1 TXD
PD2 INT0
PD3 INT1
PD4 OC1B
PD5 OC1A
PD6 ICP
PD7 OC2
Functions
Bit Function
PA0 ADC0
PA1 ADC1
PA2 ADC2
PA3 ADC3
PA4 ADC4
PA5 ADC5
PA6 ADC6
PA7 ADC7
Functions
Bit Function
PB0 XCK/T0
PB1 T1
PB2 INT2/AIN0
PB3 OC0/AIN1
PB4 SS
PB5 MOSI
PB6 MISO
PB7 SCK
Table 4: Port C Alternate Table 5: Port D Alternate
Table 2: Port A Alternate Table 3: Port B Alternate
The number of I/O ports varies among the AVR family members. The
following is another look at them for the ATmega32.
As shown in Figure 1, the Ports A, B, C, and D use a total of 32 pins. Tables
functions.
2 through 5 provide summaries of features of Ports A–D and their alternative
293

There are some features of the AVR that we can choose by programming
the bits of fuse bytes. These features will reduce system cost by eliminating any
of the fuse bytes. Notice that the default values can be different from production
to production and time to time. In this section we examine some of the basic fuse
bits. The Atmel website (http://www.atmel.com) provides the complete description
of fuse bits for the AVR microcontrollers. It must be noted that if a fuse bit is incor-
rectly programmed, it can cause the system to fail. An example of this is changing
the SPIEN bit to 0, which disables SPI programming mode. In this case you will
not be able to program the chip any more! Also notice that the fuse bits are ‘0’ if
they are programmed and ‘1’ when they are not programmed.
In addition to the fuse bytes in the AVR, there are 4 lock bits to restrict
access to the Flash memory. These allow you to protect your code from being
copied by others. In the development process it is not recommended to program
lock bits because you may decide to read or verify the contents of Flash memory.
Lock bits are set when the final product is ready to be delivered to market. In this
data sheets for your chip at http://www.atmel.com.
Fuse High Bit Description Default Value
Byte No.
OCDEN 7 Enable OCD 1 (unprogrammed)
JTAGEN 6 Enable JTAG 0 (programmed)
SPIEN 5 Enable SPI serial program and 0 (programmed)
data downloading
CKOPT 4 Oscillator options 1 (unprogrammed)
EESAVE 3 EEPROM memory is preserved 1 (unprogrammed)
through the chip erase
BOOTSZ1 2 Select boot size 0 (programmed)
BOOTSZ0 1 Select boot size 0 (programmed)
BOOTRST 0 Select reset vector 1 (unprogrammed)
Fuse High Bit Description Default Value
Byte No.
BODLEVEL 7 Brown-out detector trigger level 1 (unprogrammed)
BODEN 6 Brown-out detector enable 1 (unprogrammed)
SUT1 5 Select start-up time 1 (unprogrammed)
SUT0 4 Select start-up time 0 (programmed)
CKSEL3 3 Select clock source 0 (programmed)
CKSEL0 0 Select clock source 1 (unprogrammed)
SECTION 2: AVR FUSE BITS
need for external components.
ATmega32 has two fuse bytes. Tables 6 and 7 give a short description
Table 6: Fuse Byte (High)
Table 7: Fuse Byte (Low)
text we do not discuss lock bits. To study more about lock bits you can read the
294

Fuse bits and oscillator clock
source
different clock sources in AVR. You can
choose one by setting or clearing any of the
bits CKSEL0 to CKSEL3.
CKSEL0–CKSEL3
The four bits of CKSEL3, CKSEL2,
CKSEL1, and CKSEL0 are used to select the
clock source to the CPU. The default choice
is internal RC (0001), which uses the on-chip
RC oscillator. In this option there is no need
to connect an external crystal and capacitors
changing the values of CKSEL0–CKSEL3
we can choose among 1, 2, 4, or 8 MHz inter-
nal RC frequencies; but it must be noted that
using an internal RC oscillator can cause
about 3% inaccuracy and is not recommend-
ed in applications that need precise timing.
The external RC oscillator is another
use the external RC oscillator, you have to con-
nect an external resistor and capacitors to the
XTAL1 pin. The values of R and C determine
the clock speed. The frequency of the RC
oscillator circuit is estimated by the equation
f = 1/(3RC). When you need a variable clock
source you can use the external RC and replace the resistor with a potentiometer.
By turning the potentiometer you will be able to change the frequency. Notice that
the capacitor value should be at least 22 pF. Also, notice that by programming the
CKOPT fuse, you can enable an internal 36 pF capacitor between XTAL1 and
values of CKSEL0–CKSEL3, we can choose different frequency ranges.
Oscillator Operation Modes
CKSELguatda.com/cmx.p3...0 Frequency
0001 1 MHz
0010 2 MHz
0011 4 MHz
0100 8 MHz
Oscillator Operation Modes
CKSELguatda.com/cmx.p3...0 Frequency (MHz)
0101 0.9
0110 0.9–3.0
0111 3.0–8.0
1000 8.0–12.0
External RC
Oscillator
External
Clock
Crystal
Oscillator
Low-Frequency
Crystal Oscillator
Calibrated RC
Oscillator
Clock
Multiplexer
As you see in Figure 4, there are
Figure 4. ATmega32 Clock Sources
to the chip. As you see in Table 8, by
source to the CPU. As you see in Figure 5, to
GND, and remove the external capacitor. As you see in Table 9, by changing the
Table 8: Internal RC
Figure 5 External RC
Table 9: External RC
295

By setting CKSELguatda.com/cmx.p0...3 bits to 0000, we can use an external clock source
The most widely used option is to connect the XTAL1 and XTAL2 pins to
CKOPT is programmed, the oscillator output will oscillate with a full rail-to-rail
swing on the output, causing a more powerful clock signal. This is suitable when
the chip drives a second clock buffer or operates in a very noisy environment. As
programmed, the oscillator has a smaller output swing and a limited frequency
range. This mode cannot be used to drive other clock buffers, but it does reduce
power consumption considerably. There are four choices for the crystal oscillator
the relation between crystal frequency and instruction cycle time.
XTAL2
XTAL1
GND
NC
EXTERNAL
OSCILLATOR
SIGNAL
External Clock Source
XTAL2
XTAL1
GND
C2
C1
Connection to Crystal Oscillator
22 pF
22 pF
Range
CKOPT CKSELguatda.com/cmx.p3...1 Frequency (MHz) C1 and C2 (pF)
1 101 0.4–0.9 Not for crystals
1 110 0.9–3.0 12–22
1 111 3.0–8.0 12–22
0 101, 110, 111 More than 1.0 12–22
Find the instruction cycle time for the ATmega32 chip with the following crystal oscillators
connected to the XTAL1 and XTAL2 pins.
(a) 4 MHz (b) 8 MHz (c) 10 MHz
Solution:
(a) Instruction cycle time is 1/(4 MHz) = 250 ns
(b) Instruction cycle time is 1/(8 MHz) = 125 ns
(c) Instruction cycle time is 1/(10 MHz) = 100 ns
for the CPU. In Figure 6a you see the connection to an external clock source.
Figure 6a. XTAL1 Connection to an Figure 6b. XTAL1–XTAL2
a crystal (or ceramic) oscillator, as shown in Figure 6b. In this mode, when
you see in Table 10, this mode has a wide frequency range. When CKOPT is not
option. Table 10 shows all of these choices. Notice that mode 101 cannot be
used with crystals, and only ceramic resonators can be used. Example 1 shows
Table 10: ATmega32 Crystal Oscillator Frequency Choices and Capacitor
Example 1
296

Fuse bits and reset delay
The most difficult time for a system is during power-up. The CPU needs
both a stable clock source and a stable voltage level to function properly. In AVRs,
after all reset sources have gone inactive, a delay counter is activated to make the
reset longer. This short delay allows the power to become stable before normal
operation starts. You can choose the delay time through the SUT1, SUT0, and
SUT0, and CKSEL fuse bits and also the recommended usage of each combina-
Brown-out detector
Occasionally, the power source provided to the VCC pin fluctuates, caus-
ing the CPU to malfunction. The ATmega family has a provision for this, called
brown-out detection. The BOD circuit compares VCC with BOD-Level and resets
the chip if VCC falls below the BOD-Level. The BOD-Level can be either 2.7 V
when the BODLEVEL fuse bit is one (not programmed) or 4.0 V when the
BODLEVEL fuse is zero (programmed). You can enable the BOD circuit by pro-
gramming the BODEN fuse bit. When VCC increases above the trigger level, the
BOD circuit releases the reset, and the MCU starts working after the time-out peri-
od has expired.
A good rule of thumb
There is a good rule of thumb for selecting the values of fuse bits. If you
are using an external crystal with a frequency of more than 1 MHz you can set the
CKSEL3, CKSEL2, CKSEL1, SUT1, and SUT0 bits to 1 (not programmed) and
clear CKOPT to 0 (programmed).
CKSEL0 SUTguatda.com/cmx.p1...0 Start-Up Time Delay from Recommended
from Power-Down Reset (VCC = 5) Usage
0 00 258 CK 4.1 Ceramic resonator,
fast rising power
0 01 258 CK 65 Ceramic resonator,
slowly rising power
0 10 1K CK - Ceramic resonator,
BOD enabled
0 11 1K CK 4.1 Ceramic resonator,
fast rising power
1 00 1K CK 65 Ceramic resonator,
slowly rising power
1 01 16K CK - Crystal oscillator,
BOD enabled
1 10 16K CK 4.1 Crystal oscillator,
fast rising power
1 11 16K CK 65 Crystal oscillator,
slowly rising power
CKSEL0 fuses. Table 11 shows start-up times for the different values of SUT1,
tion. Notice that the third column of Table 11 shows start-up time from power-
Table 11: Startup Time for Crystal Oscillator and Recommended Usage
down mode. Power-down mode is not discussed in this chapter.
297

Putting it all together
We can use the following skeleton source code for the programs that we
intend to download into a chip. Notice that you have to modify the first line if you
use a chip other than ATmega32. As you can see in the comments, if you want to
enable interrupts you have to modify “.ORG 0”, and if you do not use call the
instruction in your code, you can omit the codes that set the stack pointer.
.INCLUDE M32DEF.INC ;change it according to your chip
.ORG 0 ;change it if you use interrupt
LDI R16,HIGH(RAMEND) ;set the high byte of stack pointer to
OUT SPH,R16 ;the high address of RAMEND
LDI R16,LOW(RAMEND) ;set the low byte of stack pointer to
OUT SPL,R16 ;low address of RAMEND
... ;place your code here
with some delay between the “on” and “off” states.
;Test PORTB for the Atmega32
.INCLUDE ;using Atmega32
.ORG 0
LDI R16,HIGH(RAMEND) ;set up stack
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
LDI R16,0xFF ;load R16 with 0xFF
OUT DDRB,R16 ;Port B is output
BACK:
DELAY:
LDI R20,16
L1: LDI R21,200
L2: LDI R22,250
L3:
NOP
NOP
DEC R22
BRNE L3
DEC R21
BRNE L2
DEC R20
BRNE L1
RET
As an example, examine Program 1. It will toggle all the bits of Port B
M32DEF.INC
1:
Program Toggling
Program 1: Toggling Port B in Assembly
We know what we should write in the fuse bits and how we should connect
the ATmega32 pins, we can download the hex output file provided by the
programmer.
AVR Studio assembler into the Flash memory of the AVR chip using an AVR
298

Toggle program in C
Review Questions
1. A given ATmega32-based system has a crystal frequency of 16 MHz. What is
the instruction cycle time for the CPU?
2. How many fuse bytes are available in ATmega32?
3. True or false. Upon power-up, both voltage and frequency are stable instantly.
4. The internal RC oscilator works for the frequency range of _____ to ______
MHz.
5. Which fuse bit is used to disable the BOD?
6. True or false. Upon power-up, the CPU starts working immediately.
7. What is the rule of thumb for ATmega32 fuse bits?
8. The brown-out detection voltage can be set at _______ or ______ by________
fuse bit.
9. True or false. The higher the clock frequency for the system, the lower the
power dissipation.
#include util/delay.h
void delay_ms(int d);
int main(void)
{
while (1)
{ //do forever
PORTB = 0x55;
delay_ms(1000); //delay 1 second
PORTB = 0xAA;
delay_ms(1000); //delay 1 second
}
return 0;
}
void delay_ms(int d)
{
_delay_ms(d); //delay 1000 us
}
Program 2: Toggling Port B in C
You should already be familiar with C programming of the AVR using the
AVR GCC compiler. Program 2 shows the toggle program written in C. It will tog-
gle all the bits of Port B with some delay between the “on” and “off” states.
299

Intel Hex is a widely used file format designed to standardize the loading
(transferring) of executable machine code into a chip. Therefore, the loaders that
come with every ROM burner (programmer) support the Intel Hex file format. In
many Windows-based assemblers such as AVR Studio, the Intel Hex file is pro-
duced according to the settings you set. In the AVR Studio environment, the object
file is fed into the linker program to produce the Intel hex file. The hex file is used
by a programmer such as the AVRISP to transfer (load) the file into the Flash
memory. The AVR Studio assembler can produce three types of hex files. They are
(a) Intel Intellec 8/MDS (Intel Hex), (b) Motorola S-record, and (c) Generic. See
ommend that you do not use AVR GCC if you want to test the programs in this
section on your computer. It is better to use a simple .asm file like toggle.asm to
understand this concept better.
Analyzing the Intel Hex file
We choose the hex type of Intel Hex, Motorola S-record, or Generic by
using the command-line invocation options or setting the options in the AVR
Studio assembler itself. If we do not choose one, the AVR Studio assembler selects
Intel Hex by default. Intel Hex supports up to 16-bit addressing and is not appli-
cable for programs more than 64K bytes in size. To overcome this limitation AVR
Studio uses extended Intel Hex files, which support type 02 records to extend
address space to 1M. We will explain extended Intel Hex file format in this sec-
the opcode into Flash, the hex file must provide the following: (1) the number of
bytes of information to be loaded, (2) the information itself, and (3) the starting
address where the information must be placed. Each record (line) of the Hex file
consists of six parts as follows:
:BBAAAATTHHHHH.......HHHHCC
The following describes each part:
1. “:” Each line starts with a colon.
2. BB, the count byte. This tells the loader how many bytes are in the line.
3. AAAA is for the record address. This is a 16-bit address. The loader places the
first byte of record data into this Flash location. This is the case in files that are
less than 64 KB. For files that are more than 64 KB the address field shows the
record address in the current segment.
Format Name File Extension Max. ROM Address
Extended Intel Hex file .hex 20-bit address
Motorola S-record .mot 32-bit address
Generic .gen 24-bit address
SECTION 3: EXPLAINING THE HEX FILE FOR AVR
tion. Figure 10 shows the Intel Hex file of the test program whose list file is
given in Figure 8. Since the programmer (loader) uses the Hex file to download
Table 12. In this section we will explain Intel Hex with some examples. We rec-
Table 12: Intel Hex File Formats Produced by AVR Studio
300

4. TT is for type. This field is 00, 01, or 02. If it is 00, it means that there are more
lines to come after this line. If it is 01, it means that this is the last line and the
loading should stop after this line. If it is 02, it indicates the current segment
address. To calculate the absolute address of each record (line), we have to
shift the current segment address 4 bits to left and then add it to the record
a record in extended Intel hex file.
5. HH......H is the real information (data or code). The loader places this informa-
tion into successive memory locations of Flash. The information in this field is
presented as low byte followed by the high byte.
6. CC is a single byte. This last byte is the checksum byte for everything in that
What is the absolute address of the first byte of a record that has 0025 in the address
field if the last type 02 record before it has the segment address 0030?
Solution:
To calculate the absolute address of each record (line), we have to shift the segment
address (0030) four bits to the left and then add it to the record address (0025):
0030 (2 bytes segment address) shifted 4 bits to the left -- 00300
0025 (record address) + 25
---------
= (absolute address) 00325
What is the absolute address of the first byte of the second record below?
:020000020000FC
:1000000008E00EBF0FE50DBF0FEF07BB05E500953C
Solution:
To calculate the absolute address of the first byte of the second record, we have to shift
left the segment address (0000, as you see in the first record) four bits and then add it
to the second record address (0000, as you see in the second record).
0000 (segment address) shift 4 bits to the left -- 00000
+ 0000 (record address)
---------
000000 (absolute address)
address. Examples 2 and 3 show how to calculate the absolute address of
Example 2
Example 3
line. The checksum byte is used for error checking. Notice that the checksum
byte at the end of each line represents the checksum byte for everything in that
line, and not just for the data portion.
301

Analyzing the bytes in the Flash memory vs. list file
The data in the Flash memory of the AVR is recorded in a way that is called
Little-endian. This means that the high byte of the code is located in the higher
address location of Flash memory, and the low byte of the code is located in the
lower address location of Flash memory. Compare the first word of code (e008) in
see, 08, which is the low byte of the first instruction (LDI R16,HIGH(RAMEND))
in the code, is placed in the lower location of Flash memory, and e0, which is the
high byte of the instruction in the code, is placed in the next location of program
space just after 08.
LOC OBJ LINE
.ORG 0x000
000000 e008 LDI R16,HIGH(RAMEND)
000001 bf0e OUT SPH,R16
000002 e50f LDI R16,LOW(RAMEND)
000003 bf0d OUT SPL,R16
000004 ef0f LDI R16,0xFF
000005 bb07 OUT DDRB,R16
000006 e505 LDI R16,0x55
BACK:
000007 9500 COM R16
000008 bb08 OUT PORTB,R16
000009 940e 000c CALL DELAY_1S
00000b cffb RJMP BACK
DELAY_1S:
00000c e140 LDI R20,16
00000d ec58 L1: LDI R21,200
00000e ef6a L2: LDI R22,250
L3:
00000f 0000 NOP
000010 0000 NOP
000011 956a DEC R22
000012 f7e1 BRNE L3
000013 955a DEC R21
000014 f7c9 BRNE L2
000015 954a DEC R20
000016 f7b1 BRNE L1
000017 9508 RET
(Comments and other lines are deleted, and some spaces are added for simplicity.)
Figure 8. List File for Test Program
Figure 8 with the first two bytes of Flash memory (08e0) in Figure 7. As you
Figure 7. AVR Flash Memory Contents
302

is a type 02 record and indicates the current segment address, which is 0000. The
next record (line) is a type 00 record and contains the data (the code to be loaded
into the chip). After ‘:’ the record starts with 10, which means that the data field
contains 10 (16 decimal) bytes of data. The next field is the address field (0000),
and it indicates that the first byte of the data field will be placed in address loca-
tion 0 in the current segment. So the first byte of code will be loaded into location
.ORG 0x000 in the code. The next field is the data field, which contains the code
to be loaded into the chip. The first byte of the data field is 08, which is the low
field of the record is the checksum byte of the record. Notice that the checksum
byte at the end of each line represents the checksum byte for everything in that
line, and not just for the data portion.
and compare it with the address of the bb08 instruction in the list file in Figure
the address of the bb08 instruction in the hex file, which is 0010. That is because
each Flash location (word) contains 2 bytes.
:020000020000FC
:1000000008E00EBF0FE50DBF0FEF07BB05E500953C
:1000100008BB0E940C00FBCF40E158EC6AEF0000E7
:1000200000006A95E1F75A95C9F74A95B1F7089526
:00000001FF
Separating the fields, we get the following:
:BB AAAA TT HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH CC
:02 0000 02 0000 FC
:10 0000 00 08E00EBF0FE50DBF0FEF07BB05E50095 3C
:10 0010 00 08BB0E940C00FBCF40E158EC6AEF0000 E7
:10 0020 00 00006A95E1F75A95C9F74A95B1F70895 26
:00 0000 01 FF
Byte #0 Byte #1
Byte #2 Byte #3
Byte #4 Byte #5
Byte #6 Byte #7
Location #0
Location #1
Location #2
Location #3
Flash Memory
byte of the first instruction (LDI R16,HIGH(RAMEND)). See Figure 8. The last
8. As you can see, the address in the list file is 000008, which is exactly half of
Figure 9. AVR Flash Memory Locations
In Figure 10 you see the hex file of the toggle code. The first record (line)
0 of Flash memory. (Reexamine Example 3 if needed.) Also, notice the use of
Pay attention to the address field of the next record (0010) in Figure 10
Figure 10. Intel Hex File Test Program with the Intel Hex Option
Each Flash location in the AVR is 2 bytes long. So, for example, the first
byte of Flash location #2 is Byte #4 of the code. See Figure 9.
303

format.
Review Questions
1. True or false. The Intel Hex file format does not use the checksum byte method
to ensure data integrity.
2. The first byte of a line in an Intel Hex file represents ____.
3. The last byte of a line in an Intel Hex file represents ____.
4. In the TT field of an Intel Hex file, we have 00. What does it indicate?
5. Find the checksum byte for the following values: 22H, 76H, 5FH, 8CH, 99H.
6. In Question 5, add all the values and the checksum byte. What do you get?
tion is not corrupted.
Solution:
(a) 10 + 00 + 00 + 00 + 08 + E0 + 0E + BF + 0F + E5 + 0D + BF + 0F +
EF + 07 + BB + 05 + E5 + 00 + 95 = 6C4 in hex. Dropping the carries (6)
gives C4H, and its 2's complement is 3CH, which is the last byte of line 3.
(b) If we add all the information in line 2, including the checksum byte, and drop the
carries we should get 10 + 00 + 00 + 00 + 08 + E0 + 0E + BF + 0F + E5
+ 0D + BF + 0F + EF + 07 + BB + 05 + E5 + 00 + 95 + 3C = 700.
Dropping the carries (7) gives 00H, which means OK.
Solution:
is followed by the high byte. That means it is E008, the opcode for the instruction
“LDI
data in line 5 is 0895, which is the opcode for the “RET” instruction in the list file.
Solution:
After the colon (:), we have 10, which means that 16 bytes of data are in this line. 0010H
is the record address, and means that 08, which is the first byte of the record, is placed
in address location 10H (16 decimal). Next, 00 means that this is not the last line of the
record. Then the data, which is 16 bytes, is as follows:
08BB0E940C00FBCF40E158EC6AEF0000. Finally, the last byte, E7, is the checksum byte.
list file of the test program given in Figure 8. Do they match?
R16,HIGH(RAMEND)”, as shown in the list file of Figure 8. The last byte of the
In the second line of Figure 10, the data portion starts with 08E0H, where the low byte
Examine Examples 4 through 6 to gain insight into the Intel Hex file
Example 4
From Figure 10, analyze the six parts of line 3.
Example 5
Compare the data portion of the Intel Hex file of Figure 10 with the opcodes in the
Example 6
(a) Verify the checksum byte for line 3 of Figure 10. (b) Verify also that the informa-
304

In this section, we show various ways of loading a hex file into the AVR
microcontroller. We also discuss the connection for a simple AVR trainer.
Atmel has skillfully designed AVR microcontrollers for maximum flexibil-
ity of loading programs. The three primary ways to load a program are:
1. Parallel programming. In this way a device burner loads the program into the
microcontroller separate from the system. This is useful on a manufacturing
floor where a gang programmer is used to program many chips at one time.
Most mainstream device burners support the AVR families: EETools is a pop-
ular one. The device programming method is straightforward: The chip is pro-
grammed before it is inserted into the circuit. Or, the chip can be removed and
reprogrammed if it is in a socket. A ZIF (zero insertion force) socket is even
quicker and less damaging than a standard socket. When removing and rein-
serting, we must observe ESD (electrostatic discharge) procedures. Although
AVR devices are rugged, there is always a risk when handling them. Using this
method allows all of the device’s resources to be utilized in the design. No pins
are shared, nor are internal resources of the chip used as is the case in the other
two methods. This allows the embedded designer to use the minimum board
space for the design.
2. An in-circuit serial programmer (ISP) allows the developer to program and
debug their microcontroller while it is in the system. This is done by a few
wires with a system setup to accept this configuration. In-circuit serial pro-
gramming is excellent for designs that change or require periodic updating.
AVR has two methods of ISP. They are SPI and JTAG. Most of the ATmega
family supports both methods. The SPI uses 3 pins, one for send, one for
receive, and one for clock. These pins can be used as I/O after the device is
programmed. The designer must make sure that these pins do not conflict with
the programmer. Notice that SPI stands for “serial peripheral interface” and is
a protocol. But ISP stands for “in-circuit serial programming” and is a method
of code loading. AVRISP and many other devices support ISP. To connect
AVRISP to your device you also need to connect VCC, GND, and RESET
pins. You must bring the pins to a header on the board so that the programmer
10
SECTION 4: AVR PROGRAMMING AND TRAINER BOARD
can connect to it. Figure 11 shows the pin connections.
Figure 11. ISP 10-pin Connections (See www.Atmel.com for 6-pin version)
305

Another method of ISP is JTAG. JTAG is another protocol that supports in-cir-
cuit programming and debugging. It means that in addition to programming
you can trace your program on the chip line by line and watch or change the
values of memory locations, ports, or registers while your program is running
on the chip.
3. A boot loader is a piece of code burned into the microcontroller’s program
Flash. Its purpose is to communicate with the user’s board to load the program.
A boot loader can be written to communicate via a serial port, a CAN port, a
USB port, or even a network connection. A boot loader can also be designed
to debug a system, similar to the JTAG. This method of programming is excel-
lent for the developer who does not always have a device programmer or a
JTAG available. There are several application notes on writing boot loaders on
the Web. The main drawback of the boot loader is that it does require a com-
munication port and program code space on the microcontroller. Also, the boot
loader has to be programmed into the device before it can be used, usually by
one of the two previous ways.
The boot loader method is ideal for the developer who needs to quickly
program and test code. This method also allows the update of devices in the
field without the need of a programmer. All one needs is a computer with a port
that is compatible with the board. (The serial port is one of the most common-
ly used and discussed, but a CAN or USB boot loader can also be written.) This
method also consumes the largest amount of resources. Code space must be
reserved and protected, and external devices are needed to connect and com-
municate with the PC. Developing projects using this method really helps pro-
grammers test their code. For mature designs that do not change, the other two
methods are better suited.
AVR trainers
There are many popular trainers for the AVR chip. The vast majority of
them have a built-in ISP programmer. See the following website for more infor-
mation and support about the AVR trainers. For more information about how to use
an AVR trainer you can visit the www.MicroDigitalEd.com website.
Review Questions
1. Which method(s) to program the AVR microcontroller is/are the best for the
manufacturing of large-scale boards?
2. Which method(s) allow(s) for debugging a system?
3. Which method(s) would allow a small company to develop a prototype and test
an embedded system for a variety of customers?
4. True or false. The ATmega32 has Flash program ROM.
5. Which pin is used for reset in the ATmega32?
6. What is the status of the RESET pin when it is not activated?
The information about the trainer board can be found at:
www.MicroDigitalEd.com
306

SUMMARY
This chapter began by describing the function of each pin of the
ATmega32. A simple connection for ATmega32 was shown. Then, the fuse bytes
were discussed. We use fuse bytes to enable features such as BOD and clock
source and frequency. We also explained the Intel Hex file format and discussed
each part of a record in a hex file using an example. Then, we explained list files
in detail. The various ways of loading a hex file into a chip were discussed in the
last section. The connections to a ISP device were shown.
PROBLEMS
1. The ATmega32 DIP package is a(n) ____-pin package.
2. Which pins are assigned to VCC and GND?
3. In the ATmega32, how many pins are designated as I/O port pins?
4. The crystal oscillator is connected to pins ____ and ____ .
5. True or false. AVR chips comes only in DIP packages.
6. Indicate the pin number assigned to RESET in the DIP package.
7. The RESET pin is normally ______ (LOW, HIGH) and needs a _______
(LOW, HIGH) signal to be activated.
8. In the ATmega32, how many pins are set aside for the VCC?
9. In the ATmega32, how many pins are set aside for the GND?
10. True or false. In connecting VCC pins to power both must be connected.
11. RESET is an ________ (input, output) pin.
12. How many pins are designated as Port A and what are those in the 40-pin DIP
package?
13. How many pins are designated as Port B and what are those in the 40-pin DIP
package?
14. How many pins are designated as Port C and what are those in the 40-pin DIP
package?
15. How many pins are designated as Port D and what are those in the 40-pin DIP
package?
16. Upon reset, all the bits of ports are configured as _____ (input, output).
17. How many clock sources does the AVR have?
18. What fuse bits are used to select clock source?
19. Which clock source do you suggest if you need a variable clock source?
20. Which clock source do you suggest if you need to build a system with mini-
mum external hardware?
21. Which clock source do you suggest if you need a precise clock source?
22. How many fuse bytes are there in the AVR?
307

23. Which fuse bit is used to set the brown-out detection voltage for the
ATmega32?
24. Which fuse bit is used to enable and disable the brown-out detection voltage
for the ATmega32?
25. If the brown-out detection voltage is set to 4.0 V, what does it mean to the sys-
tem?
26. True or false. The Hex option can be set in AVR Studio.
27. True or false. The extended Intel Hex file can be used for ROM sizes of less
than 64 kilobytes.
28. True or false. The extended Intel Hex file can be used for ROM sizes of more
than 64 kilobytes.
mation is not corrupted.
31. What is the difference between Intel Hex files and extended Intel Hex files?
32. True or false. To use a parallel programmer, we must remove the AVR chip
from the system and place it into the programmer.
33. True or false. ISP can work only with Flash chips.
34. What are the different ways of loading a code into an AVR chip?
35. True or false. A boot loader is a kind of parallel programmer.
1. 9
2. 0
3. False
4. LOW
5. 2.7 V–5.5 V
1. 1/16 MHz = 62.5 ns
2. 16 bits = 2 bytes
3. False
4. 1, 8
5. BODEN
6. False
7. If you are using an external crystal with a frequency of more than 1 MHz you can set the
CKSEL3, CKSEL2, CKSEL1, SUT1, and SUT0 bits to 1 (not programmed) and clear CKOPT
to 0 (programmed).
8. 2.7 V, 4 V, BODLEVEL
9. False
SECTION 3: EXPLAINING THE INTEL HEX FILE FOR AVR
29. Analyze the six parts of line 3 of Figure 10.
30. Verify the checksum byte for line 3 of Figure 10. Verify also that the infor-
308

1. False
2. The number of bytes of data in the line
3. The checksum byte of all the bytes in that line
4. 00 means this is not the last line and that more lines of data follow.
5. 22H + 76H + 5FH + 8CH + 99H = 21CH. Dropping the carries we have 1CH and its 2’s com-
plement, which is E4H.
6. 22H + 76H + 5FH + 8CH + 99H + E4H = 300H. Dropping the carries, we have 00, which
means that the data is not corrupted.
1 Device burner
2. JTAG and boot loader
3. ISP
4. True
5. Pin 9
6. HIGH
SECTION 3: EXPLAINING THE INTEL HEX FILE FOR AVR
309

OBJECTIVES

List the timers of the ATmega32 and their associated registers

Describe the Normal and CTC modes of the AVR timers

Program the AVR timers in Assembly and C to generate time delays

Program the AVR counters in Assembly and C as event counters
AVR TIMER
PROGRAMMING
IN ASSEMBLY AND C
311

Many applications need to count an event or generate time delays. So,
When we want to count an event, we connect the external event source to the clock
pin of the counter register. Then, when an event occurs externally, the content of
the counter is incremented; in this way, the content of the counter represents how
many times an event has occurred. When we want to generate time delays, we con-
nect the oscillator to the clock pin of the counter. So, when the oscillator ticks, the
content of the counter is incremented. As a result, the content of the counter reg-
ister represents how many ticks have occurred from the time we have cleared the
counter. Since the speed of the oscillator in a microcontroller is known, we can cal-
culate the tick period, and from the content of the counter register we will know
how much time has elapsed.
So, one way to generate a time delay is to clear the counter at the start time
and wait until the counter reaches a certain number. For example, consider a
microcontroller with an oscillator with frequency of 1 MHz; in the microcon-
troller, the content of the counter register increments once per microsecond. So, if
we want a time delay of 100 microseconds, we should clear the counter and wait
until it becomes equal to 100.
In the microcontrollers, there is a flag for each of the counters. The flag is
set when the counter overflows, and it is cleared by software. The second method
to generate a time delay is to load the counter register and wait until the counter
overflows and the flag is set. For example, in a microcontroller with a frequency
of 1 MHz, with an 8-bit counter register, if we want a time delay of 3 microsec-
onds, we can load the counter register with $FD and wait until the flag is set after
3 ticks. After the first tick, the content of the register increments to $FE; after the
second tick, it becomes $FF; and after the third tick, it overflows (the content of
the register becomes $00) and the flag is set.
The AVR has one to six timers depending on the family member. They are
referred to as Timers 0, 1, 2, 3, 4, and 5. They can be used as timers to generate a
time delay or as counters to count events happening outside the microcontroller.
In the AVR some of the timers/counters are 8-bit and some are 16-bit. In
ATmega32, there are three timers: Timer0, Timer1, and Timer2. Timer0 and
Timer2 are 8-bit, while Timer1 is 16-bit. In this chapter we cover Timer0 and
Timer2 as 8-bit timers, and Timer1 as a 16-bit timer.
If you learn to use the timers of ATmega32, you can easily use the timers
of other AVRs. You can use the 8-bit timers like the Timer0 of ATmega32 and the
16-bit timers like the Timer1 of ATmega32.
Counter register
External source
Oscillator
Counter/Timer
Flag
AVR TIMER PROGRAMMING IN ASSEMBLY AND C
there are counter registers in microcontrollers for this purpose. See Figure 1.
Figure 1. A General View of Counters and Timers in Microcontrollers
312

Every timer needs a clock pulse to tick. The clock source can be internal or
external. If we use the internal clock source, then the frequency of the crystal oscil-
lator is fed into the timer. Therefore, it is used for time delay generation and con-
sequently is called a timer. By choosing the external clock option, we feed pulses
through one of the AVR’s pins. This is called a counter. In this section we discuss
the AVR timer, and in the next section we program the timer as a counter.
Basic registers of timers
AVR, for each of the timers, there
is a TCNTn (timer/counter) regis-
ter. That means in ATmega32 we
have TCNT0, TCNT1, and
TCNT2. The TCNTn register is a
contains zero. It counts up with
each pulse. The contents of the
timers/counters can be accessed
using the TCNTn. You can load a
value into the TCNTn register or
read its value.
Each timer has a TOVn
(Timer Overflow) flag, as well.
When a timer overflows, its
TOVn flag will be set.
Each timer also has the
TCCRn (timer/counter control
register) register for setting
modes of operation. For example,
you can specify Timer0 to work
as a timer or a counter by loading
proper values into the TCCR0.
Each timer also has an
OCRn (Output Compare Register) register. The content of the OCRn is compared
with the content of the TCNTn. When they are equal the OCFn (Output Compare
Flag) flag will be set.
The timer registers are located in the I/O register memory. Therefore, you
can read or write from timer registers using IN and OUT instructions, like the other
I/O registers. For example, the following instructions load TCNT0 with 25:
LDI R20,25 ;R20 = 25
OUT TCNT0,R20 ;TCNT0 = R20
or “IN R19,TCNT2” copies TCNT2 to R19.
Next, we discuss each timer separately in more detail.
TCNT0 OCR0
=
(comparator)
Timer0
TCNT1 OCR1B
OCR1A
Mega32
TOV0
TCCR0
OCF0
=
(comparator)
OCF1B
=
(comparator)
OCF1A
TCCR1A
TCCR1B
Timer1
TCNT2 OCR2
=
(comparator)
Timer2 TOV2
TCCR2
OCF2
TOV1
SECTION 1: PROGRAMMING TIMERS 0, 1, AND 2
counter. Upon reset, the TCNTn
Examine Figure 2. In
The internal structure of the ATmega32 timers is shown in Figure 3.
Figure 2. Timers in ATmega32
313

Prescaler
T0
Clk I/O
Clk/8
Clk/64
Clk/256
Clk/1024
0
1
2
3
4
5
6
7
CS02 CS01 CS00
2 1 0
Control Unit
count up/down clear
OCR0
TCNT0
Comparator
=
8 8
TOV0
OCF0
WGM01 WGM00
Prescaler
T1
Clk/8
Clk/64
Clk/256
Clk/1024
Edge detector
0
1
2
3
4
5
6
7
CS12 CS11 CS10
2 1 0
Control Unit
count up/down clear
OCR1B
TCNT1
Comparator
=
16 16
TOV1
OCF1B
WGM13 - WGM10
OCR1A
16
Comparator
=
OCF1A
Clk I/O
MUX
MUX
Prescaler
TOSC1
Clk/8
Clk/32
Clk/64
Clk/128
T/C
Oscillator
CS22 CS21 CS20
Control Unit
count up/down clear
OCR2
TCNT2
Comparator
=
8 8
TOV2
OCF2
WGM21 WGM20
MUX
Mega32
Timer0
Timer1
Timer2
TOSC2
4
Edge detector Rising Edge
Falling Edge
Rising
Falling
Clk/1024
Clk/256
0
1
2
3
4
5
6
7
2 1 0
MUX
Clk
Clk
Clk
Clk I/O
1
0
AS2
Clk
314

Timer0 programming
TCCR0 (Timer/Counter Control Register) register
TCCR0 is an 8-bit register used for control of Timer0. The bits for TCCR0
CS02:CS00 (Timer0 clock source)
These bits in the TCCR0 register are used to choose the clock source. If
CS02:CS00 = 000, then the counter is stopped. If CS02–CS00 have values
between 001 and 101, the oscillator is used as clock source and the timer/counter
acts as a timer. In this case, the timers are often used for time delay generation. See
Bit 7 6 5 4 3 2 1 0
Read/Write W RW RW RW RW RW RW RW
Initial Value 0 0 0 0 0 0 0 0
FOC0 D7 Force compare match: This is a write-only bit, which can be used
while generating a wave. Writing 1 to it causes the wave
generator to act as if a compare match had occurred.
WGM00, WGM01
D6 D3 Timer0 mode selector bits
0 0 Normal
0 1 CTC (Clear Timer on Compare Match)
1 0 PWM, phase correct
1 1 Fast PWM
COM01:00 D5 D4 Compare Output Mode:
CS02:00 D2 D1 D0 Timer0 clock selector
0 0 0 No clock source (Timer/Counter stopped)
0 0 1 clk (No Prescaling)
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
1 1 0 External clock source on T0 pin. Clock on falling edge.
1 1 1 External clock source on T0 pin. Clock on rising edge.
FOC0 WGM00 COM01 COM00 WGM01 CS02 CS01 CS00
Timer0 is 8-bit in ATmega32; thus, TCNT0 is 8-bit as shown in Figure 4.
Figure 4. Timer/Counter 0 Register
are shown in Figure 5.
Figure 3 and then see Examples 1 and 2.
Figure 5. TCCR0 (Timer/Counter Control Register) Register
These bits control the waveform generator.
315

If CS02–CS00 are 110 or 111, the external clock source is used and it acts
as a counter. We will discuss Counter in the next section.
WGM01:00
Timer0 can work in four different modes: Normal, phase correct PWM,
CTC, and Fast PWM. The WGM01 and WGM00 bits are used to choose one of
TIFR (Timer/counter Interrupt Flag Register) register
The TIFR register contains the flags of different timers, as shown in Figure
Bit 7 6 5 4 3 2 1 0
Read/Write R/W R/W R/W R/W R/W R/W R/W R/W
TOV0 D0 Timer0 overflow flag bit
0 = Timer0 did not overflow.
1 = Timer0 has overflowed (going from $FF to $00).
OCF0 D1 Timer0 output compare flag bit
0 = compare match did not occur.
1 = compare match occurred.
OCF1B D3 Timer1 output compare B match flag
OCF1A D4 Timer1 output compare A match flag
ICF1 D5 Input Capture flag
TOV2 D6 Timer2 overflow flag
OCF2 D7 Timer2 output compare match flag
Find the timer’s clock frequency and its period for various AVR-based systems, with the
following crystal frequencies. Assume that no prescaler is used.
(a) 10 MHz (b) 8 MHz (c) 1 MHz
Solution:
(a) F = 10 MHz and T = 1/10 MHz = 0.1 μs
(b) F = 8 MHz and T = 1/8 MHz = 0.125 μs
(c) F = 1 MHz and T = 1/1 MHz = 1 μs
Find the value for TCCR0 if we want to program Timer0 in Normal mode, no prescaler.
Use AVR’s crystal oscillator for the clock source.
Solution:
TCCR0 =
OCF2 TOV2 ICF1 OCF1A OCF1B TOV1 OCF0 TOV0
0 0 0 0 0 0 0 1
Example 1
Example 2
6. Next, we discuss the TOV0 flag, which is related to Timer0.
Figure 6. TIFR (Timer/Counter Interrupt Flag Register)
them.
316

TOV0 (Timer0 Overflow)
The flag is set when the counter overflows, going from $FF to $00. As we
will see soon, when the timer rolls over from $FF to 00, the TOV0 flag is set to 1
applies to all flags of the AVR chip. In AVR, when we want to clear a given flag
of a register we write 1 to it and 0 to the other bits. For example, the following pro-
gram clears TOV0:
LDI R20,0x01
OUT TIFR,R20 ;TIFR = 0b00000001
Normal mode
In this mode, the content of the timer/counter increments with each clock.
It counts up until it reaches its max of 0xFF. When it rolls over from 0xFF to 0x00,
it sets high a flag bit called TOV0 (Timer Overflow). This timer flag can be mon-
Steps to program Timer0 in Normal mode
To generate a time delay using Timer0 in Normal mode, the following
steps are taken:
1. Load the TCNT0 register with the initial count value.
2. Load the value into the TCCR0 register, indicating which mode (8-bit or
16-bit) is to be used and the prescaler option. When you select the clock
source, the timer/counter starts to count, and each tick causes the content of the
timer/counter to increment by 1.
3. Keep monitoring the timer overflow flag (TOV0) to see if it is raised. Get out
of the loop when TOV0 becomes high.
4. Stop the timer by disconnecting the clock source, using the following instruc-
tions:
LDI R20,0x00
OUT TCCR0,R20 ;timer stopped, mode=Normal
5. Clear the TOV0 flag for the next round.
6. Go back to Step 1 to load TCNT0 again.
TCNT0
0
0xFF
about this flag is that in order to clear it we need to write 1 to it. Indeed this rule
and it remains set until the software clears it. See Figure 6. The strange thing
itored. See Figure 7.
Figure 7. Timer/Counter 0 Normal Mode
To clarify the above steps, see Example 3.
317

In the following program, we are creating a square wave of 50% duty cycle (with equal
portions high and low) on the PORTB.5 bit. Timer0 is used to generate the time delay.
Analyze the program.
.INCLUDE M32DEF.INC
.MACRO INITSTACK ;set up stack
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20
.ENDMACRO
INITSTACK
LDI R16,15 ;R16 = 0x20 (0010 0000 for PB5)
SBI DDRB,5 ;PB5 as an output
LDI R17,0
OUT PORTB,R17 ;clear PORTB
BEGIN:RCALL DELAY ;call timer delay
EOR R17,R16 ;toggle D5 of R17 by Ex-Oring with 1
OUT PORTB,R17 ;toggle PB5
RJMP BEGIN
;-------------------Time0 delay
DELAY:LDI R20,0xF2 ;R20 = 0xF2
OUT TCNT0,R20 ;load timer0
LDI R20,0x01
OUT TCCR0,R20 ;Timer0, Normal mode, int clk, no prescaler
AGAIN:IN R20,TIFR ;read TIFR
SBRS R20,TOV0 ;if TOV0 is set skip next instruction
RJMP AGAIN
LDI R20,0x0
OUT TCCR0,R20 ;stop Timer0
LDI R20,(1TOV0)
OUT TIFR,R20 ;clear TOV0 flag by writing a 1 to TIFR
RET
Solution:
In the above program notice the following steps:
1. 0xF2 is loaded into TCNT0.
2. TCCR0 is loaded and Timer0 is started.
3. Timer0 counts up with the passing of each clock, which is provided by the crystal
oscillator. As the timer counts up, it goes through the states of F3, F4, F5, F6, F7,
F8, F9, FA, FB, and so on until it reaches 0xFF. One more clock rolls it to 0, raising
the Timer0 flag (TOV0 = 1). At that point, the “SBRS R20,TOV0” instruction bypass-
es the “RJMP AGAIN” instruction.
4. Timer0 is stopped.
5. The TOV0 flag is cleared.
F2
TOV0=0
F3
TOV0=0
F4
TOV0=0
FF
TOV0=0
00
TOV0=1
Example 3
318

To calculate the exact time delay and the square wave frequency generat-
XTAL = 8 MHz.
Solution:
We have 8 MHz as the timer frequency. As a result, each clock has a period of T = 1 /8
MHz = 0.125 μs. In other words, Timer0 counts up each 0.125 μs resulting in delay =
number of counts × 0.125 μs.
The number of counts for the rollover is 0xFF − 0xF2 = 0x0D (13 decimal). However,
we add one to 13 because of the extra clock needed when it rolls over from FF to 0 and
raises the TOV0 flag. This gives 14 × 0.125 μs = 1.75 μs for half the pulse.
Assume that XTAL = 8 MHz.
Solution:
To get a more accurate timing, we need to add clock cycles due to the instructions.
Cycles
LDI R16,0x20
SBI DDRB,5
LDI R17,0
OUT PORTB,R17
BEGIN:RCALL DELAY 3
EOR R17,R16 1
OUT PORTB,R17 1
RJMP BEGIN 2
DELAY:LDI R20,0xF2 1
OUT TCNT0,R20 1
LDI R20,0x01 1
OUT TCCR0,R20 1
AGAIN:IN R20,TIFR 1
SBRS R20,0 1 / 2
RJMP AGAIN 2
LDI R20,0x0 1
OUT TCCR0,R20 1
LDI R20,0x01 1
OUT TIFR,R20 1
RET 4
24
T = 2 × (14 + 24) × 0.125 μs = 9.5 μs and F = 1 / T = 105.263 kHz.
ed on pin PB5, we need to know the XTAL frequency. See Examples 4 and 5.
Example 4
In Example 3, calculate the amount of time delay generated by the timer. Assume that
Example 5
In Example 3, calculate the frequency of the square wave generated on pin PORTB.5.
319

We can develop a formula for delay calculations using the Normal mode of
Find the delay generated by Timer0 in the following code, using both of the methods of
.INCLUDE M32DEF.INC
INITSTACK ;add its definition from Example
LDI R16,0x20
LDI R17,0
OUT PORTB,R17
BEGIN:RCALL DELAY
EOR R17,R16 ;toggle D5 of R17
RJMP BEGIN
DELAY:LDI R20,0x3E
OUT TCNT0,R20 ;load timer0
LDI R20,0x01
RJMP AGAIN
LDI R20,0x00
LDI R20,(1TOV0) ;R20 = 0x01
OUT TIFR,R20 ;clear TOV0 flag
RET
Solution:
(a) (FF − 3E + 1) = 0xC2 = 194 in decimal and 194 × 0.125 μs = 24.25 µs.
(b) Because TCNT0 = 0x3E = 62 (in decimal) we have 256 − 62 = 194. This means that
the timer counts from 0x3E to 0xFF. This plus rolling over to 0 goes through a total
of 194 clock cycles, where each clock is 0.125 μs in duration. Therefore, we have
194 × 0.125 μs = 24.25 µs as the width of the pulse.
(a) in hex
(FF - XX + 1) × 0.125 μs
where XX is the TCNT0, ini-
tial value. Notice that XX
value is in hex.
(b) in decimal
Convert XX value of the
TCNT0 register to decimal to
get a NNN decimal number,
then (256 - NNN) × 0.125 μs
Figure 8. Timer Delay Calculation for XTAL = 8 MHz with No Prescaler
the timer for a crystal frequency of XTAL = 8 MHz. This is given in Figure 8.
can help you find the TCNT0 value. This calculator supports decimal, hex, and
The scientific calculator in the Accessories menu directory of Microsoft Windows
binary calculations. See Example 6.
Example 6
Figure 8. Do not include the overhead due to instructions. (XTAL = 8 MHz)
3
320

Finding values to be loaded into the timer
Assuming that we know the amount of timer delay we need, the question
is how to find the values needed for the TCNT0 register. To calculate the values to
be loaded into the TCNT0 registers, we can use the following steps:
1. Calculate the period of the timer clock using the following formula:
Tclock = 1/FTimer
where FTimer is the frequency of the clock used for the timer. For example, in
no prescaler mode, FTimer = Foscillator. Tclock gives the period at which the timer
increments.
2. Divide the desired time delay by Tclock. This says how many clocks we need.
3. Perform 256 − n, where n is the decimal value we got in Step 2.
4. Convert the result of Step 3 to hex, where xx is the initial hex value to be
loaded into the timer’s register.
5. Set TCNT0 = xx.
for the AVR system.
Assuming that XTAL = 8 MHz, write a program to generate a square wave with a peri-
od of 12.5 μs on pin PORTB.3.
Solution:
For a square wave with T = 12.5 μs we must have a time delay of 6.25 μs. Because
XTAL = 8 MHz, the counter counts up every 0.125 μs. This means that we need 6.25 μs
/ 0.125 μs = 50 clocks. 256 − 50 = 206 = 0xCE. Therefore, we have TCNT0 = 0xCE.
.INCLUDE M32DEF.INC
LDI R16,0x08
LDI R17,0
OUT PORTB,R17
BEGIN:RCALL DELAY
RJMP BEGIN
;---------------- Timer0 Delay
DELAY:LDI R20,0xCE
OUT TCNT0,R20 ;load Timer0
LDI R20,0x01
RJMP AGAIN
LDI R20,0x00
LDI R20,(1TOV0)
RET
Look at Examples 7 and 8, where we use a crystal frequency of 8 MHz
Example 7
3
321

Using the Windows calculator to find TCNT0
The scientific calculator in Microsoft Windows is a handy and easy-to-use
tool to find the TCNT0 value. Assume that we would like to find the TCNT0 value
for a time delay that uses 135 clocks of 0.125 μs. The following steps show the cal-
culation:
1. Bring up the scientific calculator in MS Windows and select decimal.
2. Enter 135.
3. Select hex. This converts 135 to hex, which is 0x87.
4. Select +/− to give −135 decimal (0x79).
5. The lowest two digits (79) of this hex value are for TCNT0. We ignore all the
Fs on the left because our number is 8-bit data.
Prescaler and generating a large time delay
As we have seen in the examples so far, the size of the time delay depends
on two factors, (a) the crystal frequency, and (b) the timer’s 8-bit register. Both of
square wave of 16 kHz frequency on pin PORTB.3.
Solution:
Look at the following steps.
(a) T = 1 / F = 1 / 16 kHz = 62.5 μs the period of the square wave.
(b) 1/2 of it for the high and low portions of the pulse is 31.25 μs.
(c) 31.25 μs / 0.125 μs = 250 and 256 − 250 = 6, which in hex is 0x06.
(d) TCNT0 = 0x06.
10-bit T/C Prescaler
Clear
0
CS00
CS01
CS02
T0
clkIO
PSR10
Timer/Counter0 clock
source
clk/1024
clk/256
clk/64
clk/8
0 1 2 3 4 5 6 7
Figure 9. Timer/Counter 0 Prescaler
Example 8
Assuming that XTAL = 8 MHz, modify the program in Example 7 to generate a
322

these factors are beyond the control of the AVR programmer. We saw in Example
not enough? We can use the prescaler option in the TCCR0 register to increase the
delay by reducing the period. The prescaler option of TCCR0 allows us to divide
As we have seen so far, with no prescaler enabled, the crystal oscillator fre-
quency is fed directly into Timer0. If we enable the prescaler bit in the TCCR0 reg-
ister, however, then we can divide the clock before it is fed into Timer0. The lower
3 bits of the TCCR0 register give the options of the number we can divide by. As
ms. In your calculation, exclude the overhead due to the instructions in the loop.
Solution:
To get the largest delay we make TCNT0 zero. This will count up from 00 to 0xFF and
then roll over to zero.
.INCLUDE M32DEF.INC
LDI R16,0x08
LDI R17,0
OUT PORTB,R17
BEGIN:RCALL DELAY
RJMP BEGIN
;---------------- Timer0 Delay
DELAY:LDI R20,0x00
OUT TCNT0,R20 ;load Timer0 with zero
LDI R20,0x01
RJMP AGAIN
LDI R20,0x00
LDI R20,(1TOV0)
RET
Making TCNT0 zero means that the timer will count from 00 to 0xFF, and then will
roll over to raise the TCNT0 flag. As a result, it goes through a total of 256 states.
Therefore, we have delay = (256 − 0) × 0.125 μs = 32 μs. That gives us the smallest
frequency of 1 / (2 × 32 μs) = 1 / (64 μs) = 15.625 kHz.
prescaler of Timer/Counter 0 is shown in Figure 9.
Example 9
Modify TCNT0 in Example 7 to get the largest time delay possible. Find the delay in
3
9 that the largest time delay is achieved by making TCNT0 zero. What if that is
the instruction clock by a factor of 8 to 1024 as was shown in Figure 5. The
shown in Figure 9, this number can be 8, 64, 256, and 1024. Notice that the low-
est number is 8 and the highest number is 1024. Examine Examples 10 through
14 to see how the prescaler options are programmed.
323

Examine the following program and find the time delay in seconds. Exclude the over-
head due to the instructions in the loop. Assume XTAL = 8 MHz.
.INCLUDE M32DEF.INC
LDI R16,0x08
LDI R17,0
OUT PORTB,R17
BEGIN:RCALL DELAY
RJMP BEGIN
;---------------- Timer0 Delay
DELAY:LDI R20,0x10
LDI R20,0x03
OUT TCCR0,R20 ;Timer0, Normal mode, int clk, prescaler 64
RJMP AGAIN
LDI R20,0x0
Find the timer’s clock frequency and its period for various AVR-based systems, with the
following crystal frequencies. Assume that a prescaler of 1:64 is used.
(a) 8 MHz (b) 16 MHz (c) 10 MHz
Solution:
(a) 1/64 × 8 MHz = 125 kHz due to 1:64 prescaler and T = 1/125 kHz = 8 μs
(b) 1/64 × 16 MHz = 250 kHz due to prescaler and T = 1/250 kHz = 4 μs
(c) 1/64 × 10 MHz = 156.2 kHz due to prescaler and T = 1/156 kHz = 6.4 μs
÷ 64
XTAL
oscillator
TCNTn
Find the value for TCCR0 if we want to program Timer0 in Normal mode with a
prescaler of 64 using internal clock for the clock source.
Solution:
TCCR0 =
0 0 0 0 0 0 1 1
Example 10
Example 11
From Figure 5 we have TCCR0 = 0000 0011; XTAL clock source, prescaler of 64.
Example 12
3
324

LDI R20,1TOV0
RET
Solution:
TCNT0 = 0x10 = 16 in decimal and 256 − 16 = 240. Now 240 × 64 × 0.125 μs = 1920
Assume XTAL = 8 MHz. (a) Find the clock period fed into Timer0 if a prescaler option
of 1024 is chosen. (b) Show what is the largest time delay we can get using this
prescaler option and Timer0.
Solution:
(a) 8 MHz × 1/1024 = 7812.5 Hz due to 1:1024 prescaler and T = 1/7812.5 Hz = 128
ms = 0.128 ms
(b) To get the largest delay, we make TCNT0 zero. Making TCNT0 zero means that the
timer will count from 00 to 0xFF, and then roll over to raise the TOV0 flag. As a
result, it goes through a total of 256 states. Therefore, we have delay = (256 − 0) ×
128 μs = 32,768 μs = 0.032768 seconds.
Assuming XTAL = 8 MHz, write a program to generate a square wave of 125 Hz fre-
quency on pin PORTB.3. Use Timer0, Normal mode, with prescaler = 256.
Solution:
Look at the following steps:
(a) T = 1 / 125 Hz = 8 ms, the period of the square wave.
(b) 1/2 of it for the high and low portions of the pulse = 4 ms
(c) (4 ms / 0.125 μs) / 256 = 125 and 256 − 125 = 131 in decimal, and in hex it is 0x83.
(d) TCNT0 = 83 (hex)
.INCLUDE M32DEF.INC
.MACRO INITSTACK ;set up stack
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20
.ENDMACRO
4ms 4ms
Example 12 (Cont.)
μs, or from Example 10, we have 240 × 8 μs = 1920 μs.
Example 13
Example 14
325

Assemblers and negative values
Because the timer is in 8-bit mode, we can let the assembler calculate the
value for TCNT0. For example, in the “LDI R20, -100” instruction, the assem-
bler will calculate the −100 = 9C and make R20 = 9C in hex. This makes our job
INITSTACK
LDI R16,0x08
LDI R17,0
BEGIN:OUT PORTB,R17 ;PORTB = R17
CALL DELAY
RJMP BEGIN
;---------------- Timer0 Delay
DELAY:LDI R20,0x83
LDI R20,0x04
RJMP AGAIN
LDI R20,0x0
LDI R20,1TOV0
RET
Find the value (in hex) loaded into TCNT0 for each of the following cases.
(a) LDI R20, -200 (b) LDI R17,-60 (c) LDI R25,-12
OUT TCNT0,R20 OUT TCNT0,R17 OUT TCNT0,R25
Solution:
You can use the Windows scientific calculator to verify the results provided by the
assembler. In the Windows calculator, select decimal and enter 200. Then select hex,
then +/− to get the negative value. The following is what we get.
Decimal 2’s complement (TCNT0 value)
−200 0x38
−60 0xC4
−12 0xF4
Example 14 (Cont.)
easier. See Examples 15 and 16.
Example 15
326

Find (a) the frequency of the square wave generated in the following code, and (b) the
duty cycle of this wave. Assume XTAL = 8 MHz.
.INCLUDE M32DEF.INC
OUT SPH,R16
LDI R16,LOW(RAMEND)
LDI R16,0x20
LDI R18,-150
BEGIN:SBI PORTB,5 ;PB5 = 1
OUT TCNT0,R18 ;load Timer0 byte
CALL DELAY
OUT TCNT0,R18 ;reload Timer0 byte
CALL DELAY
CBI PORTB,5 ;PB5 = 0
OUT TCNT0,R18 ;reload Timer0 byte
CALL DELAY
RJMP BEGIN
;----- Delay using Timer0
DELAY:LDI R20,0x01
OUT TCCR0,R20 ;start Timer0, Normal mode, int clk, no prescaler
SBRS R20,TOV0 ;monitor TOV0 flag and skip if high
RJMP AGAIN
LDI R20,0x0
LDI R20,1TOV0
OUT TIFR,R20 ;clear TOV0 flag bit
RET
Solution:
For the TCNT0 value in 8-bit mode, the conversion is done by the assembler as long as
we enter a negative number. This also makes the calculation easy. Because we are using
150 clocks, we have time for the DELAY subroutine = 150 × 0.125 μs = 18.75 μs. The
high portion of the pulse is twice the size of the low portion (66% duty cycle).
Therefore, we have: T = high portion + low portion = 2 × 18.75 μs + 18.75 μs = 56.25
μs and frequency = 1 / 56.25 μs = 17.777 kHz.
ATmega32
PB5
Example 16
327

Clear Timer0 on compare match (CTC) mode programming
ister is used with CTC mode. As with the Normal mode, in the CTC mode, the timer
is incremented with a clock. But it counts up until the content of the TCNT0 register
becomes equal to the content of OCR0 (compare match occurs); then, the timer will
be cleared and the OCF0 flag will be set when the next clock occurs. The OCF0 flag
In the following program, we are creating a square wave of 50% duty cycle (with equal
portions high and low) on the PORTB.5 bit. Timer0 is used to generate the time delay.
Analyze the program.
.INCLUDE M32DEF.INC
LDI R16,0x08
LDI R17,0
BEGIN:OUT PORTB,R17 ;PORTB = R17
RCALL DELAY
RJMP BEGIN
;---------------- Timer0 Delay
DELAY:LDI R20,0
OUT TCNT0,R20
LDI R20,9
OUT OCR0,R20 ;load OCR0
LDI R20,0x09
OUT TCCR0,R20 ;Timer0, CTC mode, int clk
SBRS R20,OCF0 ;if OCF0 is set skip next inst.
RJMP AGAIN
LDI R20,0x0
LDI R20,1OCF0
OUT TIFR,R20 ;clear OCF0 flag
RET
Solution:
In the above program notice the following steps:
1. 9 is loaded into OCR0.
2. TCCR0 is loaded and Timer0 is started.
3. Timer0 counts up with the passing of each clock, which is provided by the crystal
oscillator. As the timer counts up, it goes through the states of 00, 01, 02, 03, and so
on until it reaches 9. One more clock rolls it to 0, raising the Timer0 compare match
flag (OCF0 = 1). At that point, the “SBRS R20,OCF0” instruction bypasses the “RJMP
AGAIN” instruction.
4. Timer0 is stopped.
5. The OCF0 flag is cleared.
00
OCF0=0
TOV0=0
01
OCF0=0
TOV0=0
02
OCF0=0
TOV0=0
09
OCF0=0
TOV0=0
00
OCF0=1
TOV0=0
Examining Figure 2 once more, we see the OCR0 register. The OCR0 reg-
is located in the TIFR register. See Figure 10 and Examples 17 through 21.
Example 17
3
328

Find the delay generated by Timer0 in the following program. Do not include the over-
head due to instructions. (XTAL = 8 MHz)
.INCLUDE M32DEF.INC
LDI R16,0x08
LDI R17,0
OUT PORTB,R17
LDI R20,89
OUT OCR0,R20 ;load Timer0
BEGIN:LDI R20,0x0B
OUT TCCR0,R20 ;Timer0, CTC mode, prescaler = 64
SBRS R20,OCF0 ;if OCF0 flag is set skip next instruction
RJMP AGAIN
LDI R20,0x0
OUT TCCR0,R20 ;stop Timer0 (This line can be omitted)
LDI R20,1OCF0
RJMP BEGIN
Solution:
Due to prescaler = 64 each timer clock lasts 64 × 0.125
μs = 8 µs. OCR0 is loaded with 89; thus, after 90 clocks
OCF0 is set. Therefore we have 90 × 8 μs = 720 µs.
OCF0=1
OCF0=1
OCF0=1
OCF0=1
OCF0=1
OCF0=1
to instructions. (XTAL = 8 MHz)
Solution:
OCR0 is loaded with 9 and TCNT0 is cleared;
Thus, after 9 clocks TCNT0 becomes equal to
OCR0. On the next clock, the OCF0 flag is set
and the reset occurs. That means the TCNT0 is
cleared after 9 + 1 = 10 clocks. Because XTAL
= 8 MHz, the counter counts up every 0.125 μs.
Therefore, we have 10 × 0.125 μs = 1.25 µs.
0 1 2
3 4
5 6
7 8
9
0 1 2
3 4
5 6
7 8
9
Figure 10. Timer/Counter 0 CTC Mode
Example 18
Find the delay generated by Timer0 in Example 17. Do not include the overhead due
Example 19
329

Assuming XTAL = 8 MHz, write a program to generate a delay of 1 ms.
Solution:
As XTAL = 8 MHz, the different outputs of the prescaler are as follows:
Prescaler Timer Clock Timer Period Timer Value
None 8 MHz 1/8 MHz = 0.125 μs 1 ms/0.125 μs = 8000
8 8 MHz/8 = 1 MHz 1/1 MHz = 1 μs 1 ms/1 μs = 1000
64 8 MHz/64 = 125 kHz 1/125 kHz = 8 μs 1 ms/8 μs = 125
256 8 MHz/256 = 31.25 kHz 1/31.25 kHz = 32 μs 1 ms/32 μs = 31.25
1024 8 MHz/1024 = 7.8125 kHz 1/7.8125 kHz= 128 μs 1 ms/128 μs = 7.8125
From the above calculation we can only use the options Prescaler = 64, Prescaler = 256,
or Prescaler = 1024. We should use the option Prescaler = 64 since we cannot use a dec-
imal point. To wait 125 clocks we should load OCR0 with 125 − 1 = 124.
DELAY:LDI R20,0
OUT TCNT0,R20 ;TCNT0 = 0
LDI R20,124
OUT OCR0,R20 ;OCR0 = 124
LDI R20,0x0B
SBRS R20,OCF0 ;if OCF0 is set skip next instruction
RJMP AGAIN
LDI R20,0x0
LDI R20,1OCF0
RET
Assuming XTAL = 8 MHz, write a program to generate a delay of 25.6 ms. Use Timer0,
CTC mode, with prescaler = 1024.
Solution:
Due to prescaler = 1024 each timer clock lasts 1024 × 0.125 μs = 128 µs. Thus, in order
to generate a delay of 25.6 ms we should wait 25.6 ms / 128 µs = 200 clocks. Therefore
the OCR0 register should be loaded with 200 − 1 = 199.
DELAY:LDI R20,0
OUT TCNT0,R20
LDI R20,199
OUT OCR0,R20 ;load OCR0
LDI R20,0x0D
RJMP AGAIN
LDI R20,0x0
LDI R20,1OCF0
RET
Example 20
Example 21
330

Notice that the comparator checks for equality; thus, if we load the OCR0
register with a value that is smaller than TCNT0’s value, the counter will miss the
compare match and will count up until it reaches the maximum value of $FF and
In the following program, how long does it take for the PB3 to become one? Do not
include the overhead due to instructions. (XTAL = 8 MHz)
.INCLUDE M32DEF.INC
LDI R20,89
LDI R20,95
BEGIN:LDI R20,0x09
SBRS R20,OCF0 ;if OCF0 flag is set skip next inst.
RJMP AGAIN
LDI R20,0x0
OUT TCCR0,R20 ;stop Timer0 (This line can be omitted)
LDI R20,1OCF0
RJMP BEGIN
Solution:
Since the value of TCNT0 (95) is bigger than the content of OCR0 (89), the timer counts
up until it gets to $FF and rolls over to zero. The TOV0 flag will be set as a result of the
overflow. Then, the timer counts up until it becomes equal to 89 and compare match
occurs. Thus, the first compare match occurs after 161 + 90 = 251 clocks, which means
after 251 × 0.125 μs = 31.375 µs. The next compare matches occur after 90 clocks,
which means after 90 × 0.125 μs = 11.25 µs.
TCNT0
0
255
89
PB3
0
1
95
TOV0 = 1 OCF0 = 1 OCF0 = 1
OCF0 = 1
161 90 90 90
Example 22
rolls over. This causes a big delay and is not desirable in many cases. See Example 22.
331

Timer2 programming
as Timer0. But there are two differences between Timer0 and Timer2:
1. Timer2 can be used as a real time counter. To do so, we should connect a
crystal of 32.768 kHz to the TOSC1 and TOSC2 pins of AVR and set the AS2 bit.
2. In Timer0, when CS02–CS00 have values 110 or 111, Timer0 counts the
external events. But in Timer2, the multiplexer selects between the different scales
of the clock. In other words, the same values of the CS bits can have different
Bit 7 6 5 4 3 2 1 0
FOC2 D7 Force compare match: a write-only bit, which can be used
WGM20, WGM21
D6 D3 Timer2 mode selector bits
0 0 Normal
0 1 CTC (Clear Timer on Compare Match)
1 1 Fast PWM
COM21:20 D5 D4 Compare Output Mode:
CS22:20 D2 D1 D0 Timer2 clock selector
0 0 1 clk (No Prescaling)
0 1 0 clk / 8
0 1 1 clk / 32
1 0 0 clk / 64
1 0 1 clk / 128
1 1 0 clk / 256
1 1 1 clk / 1024
Find the value for TCCR2 if we want to program Timer2 in normal mode with a
prescaler of 64 using internal clock for the clock source.
Solution:
TCCR2 =
0 0 0 0 0 1 0 0
See Figure 12. Timer2 is an 8-bit timer. Therefore it works the same way
See Figure 12. For more information about this feature, see the AVR datasheet.
meanings for Timer0 and Timer2. Compare Figure 11 with Figure 5 and exam-
ine Examples 23 through 25.
Example 23
From Figure 11 we have TCCR2 = 0000 0100; XTAL clock source, prescaler of 64.
Compare the answer with Example 11.
These bits control the waveform generator.
332

Prescaler
T0
Clk I/O
Clk/8
Clk/64
Clk/256
Clk/1024
0
1
2
3
4
5
6
7
CS02 CS01 CS00
2 1 0
Control Unit
count up/down clear
OCR0
TCNT0
Comparator
=
8 8
TOV0
OCF0
WGM01 WGM00
Prescaler
T1
Clk/8
Clk/64
Clk/256
Clk/1024
Edge detector
0
1
2
3
4
5
6
7
CS12 CS11 CS10
2 1 0
Control Unit
count up/down clear
OCR1B
TCNT1
Comparator
=
16 16
TOV1
OCF1B
WGM13 - WGM10
OCR1A
16
Comparator
=
OCF1A
Clk I/O
MUX
MUX
Prescaler
TOSC1
Clk/8
Clk/32
Clk/64
Clk/128
T/C
Oscillator
CS22 CS21 CS20
Control Unit
count up/down clear
OCR2
TCNT2
Comparator
=
8 8
TOV2
OCF2
WGM21 WGM20
MUX
Mega32
Timer0
Timer1
Timer2
TOSC2
4
Falling Edge
Rising
Falling
Clk/1024
Clk/256
0
1
2
3
4
5
6
7
2 1 0
MUX
Clk
Clk
Clk
Clk I/O
1
0
AS2
Clk
Bit 7 6 5 4 3 2 1 0
AS2 When it is zero, Timer2 is clocked from clkI/O. When it is set, Timer2 works as RTC.
- - - - AS2 TCN2UB OCR2UB TCR2UB
Figure 12. ASSR (Asynchronous Status Register)
333

Using a prescaler of 64, write a program to generate a delay of 1920 μs. Assume XTAL
= 8 MHz.
Solution:
Timer clock = 8 MHz/64 = 125 kHz Timer Period = 1 / 125 kHz = 8 μs
Timer Value = 1920 μs / 8 μs = 240
;---------------- Timer2 Delay
DELAY:LDI R20,-240 ;R20 = 0x10
LDI R20,0x04
RJMP AGAIN
LDI R20,0x0
LDI R20,1TOV2
RET
There are two differences between the two programs:
1. The register names are different. For example, we use TCNT2 instead of
TCNT0.
2. The values of TCCRn are different for the same prescaler.
Using CTC mode, write a program to generate a delay of 8 ms. Assume XTAL = 8 MHz.
Solution:
Prescaler Timer Clock Timer Period Timer Value
None 8 MHz 1/8 MHz = 0.125 μs 8 ms / 0.125 μs = 64 k
8 8 MHz/8 = 1 MHz 1/1 MHz = 1 μs 8 ms / 1 μs = 8000
32 8 MHz/32 = 250 kHz 1/250 kHz = 4 μs 8 ms / 4 μs = 2000
64 8 MHz/64 = 125 kHz 1/125 kHz = 8 μs 8 ms / 8 μs = 1000
128 8 MHz/128 = 62.5 kHz 1/62.5 kHz = 16 μs 8 ms / 16 μs = 500
256 8 MHz/256 = 31.25 kHz 1/31.25 kHz = 32 μs 8 ms / 32 μs = 250
1024 8 MHz/1024 = 7.8125 kHz 1/7.8125 kHz= 128 μs 8 ms / 128 μs = 62.5
From the above calculation we can only use options Prescaler = 256 or Prescaler = 1024.
We should use the option Prescaler = 256 since we cannot use a decimal point. To wait
250 clocks we should load OCR2 with 250 − 1 = 249.
Example 24
Compare the above program with the DELAY subroutine in Example 12.
Example 25
334

Timer1 programming
Timer1 is a 16-bit timer and has lots of capabilities. Next, we discuss
Timer1 and its capabilities.
Since Timer1 is a 16-bit timer
its 16-bit register is split into two bytes.
These are referred to as TCNT1L
(Timer1 low byte) and TCNT1H
Timer1 also has two control registers
named TCCR1A (Timer/counter 1 con-
trol register) and TCCR1B. The TOV1
(timer overflow) flag bit goes HIGH
when overflow occurs. Timer1 also has
the prescaler options of 1:1, 1:8, 1:64,
the Timer1 block diagram and Figures
options. There are two OCR registers in
Timer1: OCR1A and OCR1B. There
are two separate flags for each of the
OCR registers, which act independent-
ly of each other. Whenever TCNT1 equals OCR1A, the OCF1A flag will be set on
TCCR2 =
;---------------- Timer2 Delay
DELAY:LDI R20,0
LDI R20,249
LDI R20,0x0E
OUT TCCR0,R20 ;Timer0,CTC mode,prescaler = 256
RJMP AGAIN
LDI R20,0x0
LDI R20,1OCF2
RET
0 0 0 0 1 1 1 0
Example 25 (Cont.)
(Timer1 high byte). See Figure 15.
15 and 16 for TCCR1 register
1:256, and 1:1024. See Figure 14 for
Figure 14. Simplified Diagram of Timer1
Figure 15. Timer1 High and Low Registers
335

the next timer clock. When TCNT equals OCR1B, the OCF1B flag will be set on
the next clock. As Timer1 is a 16-bit timer, the OCR registers are 16-bit registers
as well and they are made of two 8-bit registers. For example, OCR1A is made of
OCR1AH (OCR1A high byte) and OCR1AL (OCR1A low byte). For a detailed
The TIFR register contains the TOV1, OCF1A, and OCF1B flags. See
There is also an auxiliary register named ICR1, which is used in operations
such as capturing. ICR1 is a 16-bit register made of ICR1H and ICR1L, as shown
Bit 7 6 5 4 3 2 1 0
Read/Write R/W R/W R R/W R/W R/W R/W R/W
COM1A1:COM1A0 D7 D6 Compare Output Mode for Channel A
COM1B1:COM1B0 D5 D4 Compare Output Mode for Channel B
FOC1A D3 Force Output Compare for Channel A
FOC1B D2 Force Output Compare for Channel B
WGM11:10 D1 D0
Bit 7 6 5 4 3 2 1 0
Read/Write R/W R/W R/W R/W R/W R/W R/W R/W
0 = Timer0 did not overflow.
1 = Timer0 has overflowed (going from $FF to $00).
OCF0 D1 Timer0 output compare flag bit
0 = compare match did not occur.
1 = compare match occurred.
OCF1B D3 Timer1 output compare B match flag
OCF1A D4 Timer1 output compare A match flag
ICF1 D5 Input Capture flag
TOV2 D6 Timer2 overflow flag
OCF2 D7 Timer2 output compare match flag
OCF2 TOV2 ICF1 OCF1A OCF1B TOV1 OCF0 TOV0
COM1A1 COM1A0 COM1B1 COM1B0 FOC1A FOC1B WGM11 WGM10
in Figure 19.
view of Timer1 see Figure 13.
Figure 16.
Figure 16. TIFR (Timer/Counter Interrupt Flag Register)
(discussed in Section 3)
Timer1 mode (discussed in Figure 18)
Figure 17. TCCR1A (Timer 1 Control ) Register
336

Bit 7 6 5 4 3 2 1 0
TCCR1B
ICNC1 D7 Input Capture Noise Canceler
0 = Input Capture is disabled.
1 = Input Capture is enabled.
ICES1 D6 Input Capture Edge Select
0 = Capture on the falling (negative) edge
1 = Capture on the rising (positive) edge
D5 Not used
WGM13:WGM12 D4 D3 Timer1 mode
CS12:CS10 D2D1D0 Timer1 clock selector
0 0 1 clk (no prescaling)
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
1 1 0 External clock source on T1 pin. Clock on falling edge.
1 1 1 External clock source on T1 pin. Clock on rising edge.
ICNC1 ICES1 - WGM13 WGM12 CS12 CS11 CS10
Mode WGM13 WGM12 WGM11 WGM10 Timer/Counter Mode of Operation Top Update of
OCR1x
TOV1 Flag
Set on
0 0 0 0 0 Normal 0xFFFF Immediate MAX
1 0 0 0 1 PWM, Phase Correct, 8-bit 0x00FF TOP BOTTOM
4 0 1 0 0 CTC OCR1A Immediate MAX
5 0 1 0 1 Fast PWM, 8-bit 0x00FF TOP TOP
8 1 0 0 0 PWM, Phase and Frequency Correct ICR1 BOTTOM BOTTOM
9 1 0 0 1 PWM, Phase and Frequency Correct OCR1A BOTTOM BOTTOM
10 1 0 1 0 PWM, Phase Correct ICR1 TOP BOTTOM
11 1 0 1 1 PWM, Phase Correct OCR1A TOP BOTTOM
12 1 1 0 0 CTC ICR1 Immediate MAX
13 1 1 0 1 Reserved - - -
14 1 1 1 0 Fast PWM ICR1 TOP TOP
15 1 1 1 1 Fast PWM OCR1A TOP TOP
Figure 19. Input Capture Register (ICR) for Timer1
Figure 18. TCCR1B (Timer 1 Control) Register
337

WGM13:10
The WGM13, WGM12, WGM11, and WGM10 bits define the mode of
(mode 13) is reserved (not implemented). In this chapter, we cover mode 0
Timer1 operation modes
Normal mode (WGM13:10 = 0000)
In this mode, the timer counts up until it reaches $FFFF (which is the max-
imum value) and then it rolls over from $FFFF to 0000. When the timer rolls over
CTC mode (WGM13:10 = 0100)
In mode 4, the timer counts up until the content of the TCNT1 register
becomes equal to the content of OCR1A (compare match occurs); then, the timer
will be cleared when the next clock occurs. The OCF1A flag will be set as a result
Find the values for TCCR1A and TCCR1B if we want to program Timer1 in mode 0
(Normal), with no prescaler. Use AVR’s crystal oscillator for the clock source.
Solution:
TCCR1A = 0000 0000 WGM11 = 0, WGM10 = 0
TCCR1B = 0000 0001 WGM13 = 0, WGM12 = 0, oscillator clock source, no prescaler
TCNT1
0
$FFFF
TOV1 = 1 TOV1 = 1 TOV1 = 1 TOV1 = 1 TOV1 = 1
TCNT1
0
$FFFF
OCR1A
OCF1A = 1
OCF1A = 1
OCF1A = 1
OCF1A = 1
OCF1A = 1
OCF1A = 1
OCF1A = 1
of the compare match as well. See Figure 21 and Examples 28 and 29.
Timer1, as shown in Figure 18. Timer1 has 16 different modes. One of them
from $FFFF to 0000, the TOV1 flag will be set. See Figure 20 and Examples
26 and 27. In Example 27, a delay is generated using Normal mode.
Figure 20. TOV in Normal and Fast PWM
Figure 21. OCF1A in CTC Mode
Example 26
(Normal mode) and mode 4 (CTC mode).
338

Find the frequency of the square wave generated by the following program if XTAL =
8 MHz. In your calculation do not include the overhead due to instructions in the loop.
.INCLUDE M32DEF.INC
LDI R16,0x20
LDI R17,0
OUT PORTB,R17 ;PB5 = 0
BEGIN:RCALL DELAY
RJMP BEGIN
;--------------- Timer1 delay
DELAY:LDI R20,0xD8
OUT TCNT1H,R20 ;TCNT1H = 0xD8
LDI R20,0xF0
OUT TCNT1L,R20 ;TCNT1L = 0xF0
LDI R20,0x00
OUT TCCR1A,R20 ;WGM11:10 = 00
LDI R20,0x01
OUT TCCR1B,R20 ;WGM13:12 = 00, Normal mode, prescaler = 1
RJMP AGAIN
LDI R20,0x00
OUT TCCR1B,R20 ;stop Timer1
LDI R20,0x04
RET
Solution:
WGM13:10 = 0000 = 0x00, so Timer1 is working in mode 0, which is Normal mode,
and the top is 0xFFFF.
FFFF + 1 − D8F0 = 0x2710 = 10,000 clocks, which means that it takes 10,000 clocks.
As XTAL = 8 MHz each clock lasts 1/(8M) = 0.125 μs and delay = 10,000 × 0.125 μs
= 1250 μs = 1.25 ms and frequency = 1 / (1.25 ms × 2) = 400 Hz.
In this calculation, the overhead due to all the instructions in the loop is not included.
Notice that instead of using hex numbers we can use HIGH and LOW directives, as
shown below:
LDI R20,HIGH (65536-10000) ;load Timer1 high byte
LDI R20,LOW (65536-10000) ;load Timer1 low byte
or we can simply write it as follows:
LDI R20,HIGH (-10000) ;load Timer1 high byte
LDI R20,LOW (-10000) ;load Timer1 low byte
Example 27
3
339

Find the values for TCCR1A and TCCR1B if we want to program Timer1 in mode 4
(CTC, Top = OCR1A), no prescaler. Use AVR’s crystal oscillator for the clock source.
Solution:
TCCR1A = 0000 0000 WGM11 = 0, WGM10 = 0
TCCR1B = 0000 1001 WGM13 = 0, WGM12 = 1, oscillator clock source, no prescaler
Find the frequency of the square wave generated by the following program if XTAL =
8 MHz. In your calculation do not include the overhead due to instructions in the loop.
.INCLUDE M32DEF.INC
RCALL DELAY
RCALL DELAY
RJMP BEGIN
;--------------- Timer1 delay
DELAY:LDI R20,0x00
OUT TCNT1H,R20
OUT TCNT1L,R20 ;TCNT1 = 0
LDI R20,0
OUT OCR1AH,R20
LDI R20,159
OUT OCR1AL,R20 ;OCR1A = 159 = 0x9F
LDI R20,0x0
LDI R20,0x09
OUT TCCR1B,R20 ;WGM13:12 = 01,CTC mode, prescaler = 1
SBRS R20,OCF1A ;if OCF1A is set skip next instruction
RJMP AGAIN
LDI R20,1OCF1A
OUT TIFR,R20 ;clear OCF1A flag
LDI R19,0
OUT TCCR1B,R19 ;stop timer
OUT TCCR1A,R19
RET
Solution:
WGM13:10 = 0100 = 0x04 therefore, Timer1 is working in mode 4, which is a CTC
mode, and max is defined by OCR1A.
159 + 1 = 160 clocks
XTAL = 8 MHz, so each clock lasts 1/(8M) = 0.125 μs.
Delay = 160 × 0.125 μs = 20 μs and frequency = 1 / (20 μs × 2) = 25 kHz.
In this calculation, the overhead due to all the instructions in the loop is not included.
Example 28
Example 29
340

Accessing 16-bit registers
The AVR is an 8-bit microcontroller, which means it can manipulate data
8 bits at a time, only. But some Timer1 registers, such as TCNT1, OCR1A, ICR1,
and so on, are 16-bit; in this case, the registers are split into two 8-bit registers, and
each one is accessed individually. This is fine for most cases. For example, when
we want to load the content of SP (stack pointer), we first load one half and then
the other half, as shown below:
LDI R16, 0x12
OUT SPL, R16
LDI R16, 0x34
OUT SPH, R16 ;SP = 0x3412
In 16-bit timers, however, we should read/write the entire content of a reg-
ister at once, otherwise we might have problems. For example, imagine the follow-
ing scenario:
The TCNT1 register contains 0x15FF. We read the low byte of TCNT1,
which is 0xFF, and store it in R20. At the same time a timer clock occurs, and the
content of TCNT1 becomes 0x1600; now we read the high byte of TCNT1, which
is now 0x16, and store it in R21. If we look at the value we have read, R21:R20 =
0x16FF. So, we believe that TCNT1 contains 0x16FF, although it actually contains
0x15FF.
This problem exists in many 8-bit microcontrollers. But the AVR design-
ers have resolved this issue with an 8-bit register called TEMP, which is used as a
the value will be written into the TEMP register. When we write into the low byte
of a 16-bit register, the content of TEMP will be written into the high byte of the
16-bit register as well. For example, consider the following program:
LDI R16, 0x15
OUT TCNT1H, R16 ;store 0x15 in TEMP of Timer1
LDI R16, 0xFF
OUT TCNT1L, R16 ;TCNT1L = R16, TCNT1H = TEMP
TEMP (8-bit)
OCR1xH (8-bit) TCNT1H (8-bit) TCNT1L (8-bit)
OCR1xL (8-bit)
TCNT1 (16-bit Counter)
OCR1x (16-bit Register)
OCR1xH buf. OCR1xL buf.
OCR1x buffer (16-bit Register)
Data bus (8-bit)
Note: OCR1x is OCR1A or OCR1B
buffer. See Figure 22. When we write or read the high byte of a 16-bit register,
Figure 22. Accessing 16-bit Registers through TEMP
341

After the execution of “OUT TCNT1H, R16”, the content of R16, 0x15,
will be stored in the TEMP register. When the instruction “OUT TCNT1L, R16”
is executed, the content of R16, 0xFF, is loaded into TCNT1L, and the content of
the TEMP register, 0x15, is loaded into TCNT1H. So, 0x15FF will be loaded into
the TCNT1 register at once.
Notice that according to the internal circuitry of the AVR, we should first
write into the high byte of the 16-bit registers and then write into the lower byte.
Otherwise, the program does not work properly. For example, the following code:
LDI R16, 0xFF
OUT TCNT1L, R16 ;TCNT1L = R16, TCNT1H = TEMP
LDI R16, 0x15
OUT TCNT1H, R16 ;store 0x15 in TEMP of Timer1
does not work properly. This is because, when the TCNT1L is loaded, the content
of TEMP will be loaded into TCNT1H. But when the TCNT1L register is loaded,
TEMP contains garbage (improper data), and this is not what we want.
When we read the low byte of 16-bit registers, the content of the high byte
will be copied to the TEMP register. So, the following program reads the content
of TCNT1:
IN R20,TCNT1L ;R20 = TCNT1L, TEMP = TCNT1H
IN R21,TCNT1H ;R21 = TEMP of Timer1
We must pay attention to the order of reading the high and low bytes of the
16-bit registers. Otherwise, the result is erroneous.
Notice that reading the OCR1A and OCR1B registers does not involve
using the temporary register. You might be wondering why. It is because the AVR
microcontroller does not update the content of OCR1A nor OCR1B unless we
update them. For example, consider the following program:
IN R20,OCR1AL ;R20 = OCR1L
IN R21,OCR1AH ;R21 = OCR1H
The above code reads the low byte of the OCR1A and then the high byte,
and between the two readings the content of the register remains unchanged. That
is why the AVR does not employ the TEMP register while reading the OCR1A /
OCR1B registers.
different modes.
Examine Examples 29 through 31 to see how to generate time delay in
342

Assuming XTAL = 8 MHz, write a program that toggles PB5 once per millisecond.
Solution:
XTAL = 8 MHz means that each clock takes 0.125 µs. Now for 1 ms delay, we need
1 ms/0.125 µs = 8000 clocks = 0x1F40 clocks. We initialize the timer so that after 8000
clocks the OCF1A flag is raised, and then we will toggle the PB5.
.INCLUDE M32DEF.INC
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16 ;initialize the stack
RCALL DELAY_1ms
RCALL DELAY_1ms
RJMP BEGIN
;-----------------------Timer1 delay
DELAY_1ms:
LDI R20,0x00
OUT TCNT1H,R20 ;TEMP = 0
OUT TCNT1L,R20 ;TCNT1L = 0, TCNT1H = TEMP
LDI R20,HIGH(8000-1)
OUT OCR1AH,R20 ;TEMP = 0x1F
LDI R20,LOW(8000-1)
OUT OCR1AL,R20 ;OCR1AL = 0x3F, OCR1AH = TEMP
LDI R20,0x0
LDI R20,0x09
OUT TCCR1B,R20 ;WGM13:12 = 01, CTC mode, CS = 1
AGAIN:
IN R20,TIFR ;read TIFR
RJMP AGAIN
LDI R20,1OCF1A
LDI R19,0
OUT TCCR1A,R19
RET
Example 30
343

Solution:
To wait 1 ms we should load the TCNT1 register so that it rolls over after 8000 =
0x1F40 clocks. In Normal mode the top value is 0xFFFF = 65535.
65535 + 1 − 8000 = 57536 = 0xE0C0. Thus, we should load TCNT1 with 57536, or
0xE0C0 in hex, or we can simply use 65536 − 8000, as shown below:
.INCLUDE M32DEF.INC
LDI R16,HIGH(RAMEND) ;initialize stack pointer
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
RCALL DELAY_1ms
RCALL DELAY_1ms
RJMP BEGIN
;-----------------------Timer1 delay
DELAY_1ms:
LDI R20,HIGH(65536-8000) ;R20 = high byte of 57536
OUT TCNT1H,R20 ;TEMP = 0xE0
LDI R20,LOW(65536-8000) ;R20 = low byte of 57536
OUT TCNT1L,R20 ;TCNT1L = 0xC1, TCNT1H = TEMP
LDI R20,0x0
LDI R20,0x1
OUT TCCR1B,R20 ;WGM13:12 = 00, Normal mode, CS = 1
AGAIN:
IN R20,TIFR ;read TIFR
SBRS R20,TOV1 ;if OCF1A is set skip next instruction
RJMP AGAIN
LDI R20,1TOV1
LDI R19,0
OUT TCCR1A,R19
RET
Example 31
Rewrite Example 30 using the TOV1 flag.
344

Generating a large time delay using prescaler
As we have seen in the examples so far, the size of the time delay depends
on two factors: (a) the crystal frequency, and (b) the timer’s 16-bit register. Both
of these factors are beyond the control of the AVR programmer. We can use the
prescaler option in the TCCR1B register to increase the delay by reducing the peri-
od. The prescaler option of TCCR1B allows us to divide the instruction clock by
As we have seen so far, with no prescaler enabled, the crystal oscillator fre-
quency is fed directly into Timer1. If we enable the prescaler bit in the TCCR1B
register, then we can divide the instruction clock before it is fed into Timer1. The
lower 3 bits of the TCCR1B register give the options of the number we can divide
8, 64, 256, or 1024. Notice that the lowest number is 8, and the highest number is
grammed.
Review Questions
1. How many timers do we have in the ATmega32?
2. True or false. Timer0 is a 16-bit timer.
3. True or false. Timer1 is a 16-bit timer.
4. True or false. The TCCR0 register is a bit-addressable register.
5. In Normal mode, when the counter rolls over it goes from ____ to ____.
6. In CTC mode, the counter rolls over when the counter reaches____.
7. To get a 5-ms delay, what numbers should be loaded into TCNT1H and TCNT1L
using Normal mode and the TOV1 flag? Assume that XTAL = 8 MHz.
8. To get a 20-μs delay, what number should be loaded into the TCNT0 register
using Normal mode and the TOV0 flag? Assume that XTAL = 1 MHz.
10-bit T/C Prescaler
Clear
0
CS10
CS11
CS12
T1
clkIO
PSR10
Timer/Counter1 clock
source
clk/1024
clk/256
clk/64
clk/8
0 1 2 3 4 5 6 7
a factor of 8 to 1024, as was shown in Figure 16. The prescaler of Timer/Counter
1 is shown in Figure 23.
1024. Examine Examples 32 and 33 to see how the prescaler options are pro-
the clock by before it is fed to timer. As shown in Figure 23, this number can be
Figure 23. Timer/Counter 1 Prescaler
345

An LED is connected to PC4. Assuming XTAL = 8 MHz, write a program that toggles
the LED once per second.
Solution:
Scaler Timer Clock Timer Period Timer Value
None 8 MHz 1/8 MHz = 0.125 μs 1 s/0.125 μs = 8 M
8 8 MHz/8 = 1 MHz 1/1 MHz = 1 μs 1 s/1 μs = 1 M
64 8 MHz/64 = 125 kHz 1/125 kHz = 8 μs 1 s/8 μs = 125,000
256 8 MHz/256 = 31.25 kHz 1/31.25 kHz = 32 μs 1 s/32 μs = 31,250
1024 8 MHz/1024 = 7.8125 kHz 1/7.8125 kHz = 128 μs 1 s/128 μs = 7812.5
From the above calculation we can use only options 256 or 1024. We should use option
256 since we cannot use a decimal point.
.INCLUDE M32DEF.INC
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
SBI DDRC,4 ;PC4 as an output
BEGIN:SBI PORTC,4 ;PC4 = 1
RCALL DELAY_1s
CBI PORTC,4 ;PC4 = 0
RCALL DELAY_1s
RJMP BEGIN
;------------------- Timer1 delay
DELAY_1s:
LDI R20,HIGH (31250-1)
OUT OCR1AH,R20 ;TEMP = $7A (since 31249 = $7A11)
LDI R20,LOW (31250-1)
OUT OCR1AL,R20 ;OCR1AL = $11 (since 31249 = $7A11)
LDI R20,0
OUT TCNT1H,R20 ;TEMP = 0x00
OUT TCNT1L,R20 ;TCNT1L = 0x00, TCNT1H = TEMP
LDI R20,0x00
LDI R20,0x4
OUT TCCR1B,R20 ;WGM13:12 = 00, Normal mode,CS = CLK/256
RJMP AGAIN
LDI R20,1OCF1A
LDI R19,0
OUT TCCR1A,R19
RET
Example 32
346

Assuming XTAL = 8 MHz, write a program to generate 1 Hz frequency on PC4.
Solution:
With 1 Hz we have T = 1 / F = 1 / 1 Hz = 1 second, half of which is high and half low.
Thus we need a delay of 0.5 second duration.
Since XTAL = 8 MHz, the different outputs of the prescaler are as follows:
Scaler Timer Clock Timer Period Timer Value
None 8 MHz 1/8 MHz = 0.125 μs 0.5 s/0.125 μs = 4 M
8 8 MHz/8 = 1 MHz 1/1 MHz = 1 μs 0.5 s/1 μs = 500 k
64 8 MHz/64 = 125 kHz 1/125 kHz = 8 μs 0.5 s/8 μs = 62,500
256 8 MHz/256 = 31.25 kHz 1/31.25 kHz = 32 μs 0.5 s/32 μs = 15,625
1024 8 MHz/1024 = 7.8125 kHz 1/7.8125 kHz = 128 μs 0.5 s/128 μs = 3906.25
From the above calculation we can use options 64 or 256. We choose 64 in this
Example.
.INCLUDE M32DEF.INC
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
BEGIN:SBI PORTC,4 ;PC4 = 1
RCALL DELAY_1s
CBI PORTC,4 ;PC4 = 0
RCALL DELAY_1s
RJMP BEGIN
;------------------- Timer1 delay
DELAY_1s:
LDI R20,HIGH (62500-1)
OUT OCR1AH,R20 ;TEMP = $F4 (since 62499 = $F423)
LDI R20,LOW (62500-1)
OUT OCR1AL,R20 ;OCR1AL = $23 (since 62499 = $F423)
LDI R20,0x00
LDI R20,0x00
LDI R20,0x3
OUT TCCR1B,R20 ;WGM13:12 = 00, Normal mode, CS = CLK/64
RJMP AGAIN
LDI R20,1OCF1A
LDI R19,0
OUT TCCR1A,R19
RET
Example 33
347

In the previous section, we used the timers of the AVR to generate time
delays. The AVR timer can also be used to count, detect, and measure the time of
events happening outside the AVR. The use of the timer as an event counter is cov-
ered in this section. When the timer is used as a timer, the AVR’s crystal is used as
the source of the frequency. When it is used as a counter, however, it is a pulse out-
side the AVR that increments the TCNTx register. Notice that, in counter mode,
registers such as TCCR, OCR0, and TCNT are the same as for the timer discussed
in the previous section; they even have the same names.
CS00, CS01, and CS02 bits in the TCCR0 register
Recall from the previous section that the CS bits (clock selector) in the
TCCR0 register decide the source of the clock for the timer. If CS02:00 is between
1 and 5, the timer gets pulses from the crystal oscillator. In contrast, when CS02:00
is 6 or 7, the timer is used as a counter and gets its pulses from a source outside
counter counts up as pulses are fed from pin T0 (Timer/Counter 0 External Clock
input). In ATmega32/ATmega16, T0 is the alternative function of PORTB.0. In the
Prescaler
T0
Clk
Clk/8
Clk/64
Clk/256
Clk/1024
0
1
2
3
4
5
6
7
CS02 CS01 CS00
2
1 0
Control Unit
count up/down clear
OCR0
TCNT0
Comparator
=
8 8
TOV0
OCF0
WGM01 WGM00
Prescaler
T1
Clk/8
Clk/64
Clk/256
Clk/1024
Edge detector
0
1
2
3
4
5
6
7
CS12 CS11 CS10
2 1
0
Control Unit
count up/down clear
OCR1B
TCNT1
Comparator
=
16 16
TOV1
OCF1B
WGM13 - WGM10
OCR1A
16
Comparator
=
OCF1A
Clk
MUX
MUX
Timer0
Timer1
4
Falling Edge
Rising
Falling
SECTION 2: COUNTER PROGRAMMING
the AVR chip. See Figure 24. Therefore, when CS02:00 is 6 or 7, the TCNT0
Figure 24. Timer/Counters 0 and 1 Prescalers
348

case of Timer0, when CS02:00 is 6 or 7, pin T0 provides the clock pulse and the
counter counts up after each clock pulse coming from that pin. Similarly, for
Timer1, when CS12:10 is 6 or 7, the clock pulse coming in from pin T1
(Timer/Counter 1 External Clock input) makes the TCNT1 counter count up.
When CS12:10 is 6, the counter counts up on the negative (falling) edge. When
CS12:10 is 7, the counter counts up on the positive (rising) edge. In
ATmega32/ATmega16, T1 is the alternative function of PORTB.1. See Example
as clock pulses are fed into PB0. These clock pulses could represent the number of
people passing through an entrance, or of wheel rotations, or any other event that
can be converted to pulses.
Find the value for TCCR0 if we want to program Timer0 as a Normal mode counter.
Use an external clock for the clock source and increment on the positive edge.
Solution:
TCCR0 = 0000 0111 Normal, external clock source, no prescaler
Assuming that a 1 Hz clock pulse is fed into pin T0 (PB0), write a program for Counter0
in normal mode to count the pulses on falling edge and display the state of the TCNT0
count on PORTC.
Solution:
.INCLUDE M32DEF.INC
CBI DDRB,0 ;make T0 (PB0) input
LDI R20,0xFF
OUT DDRC,R20 ;make PORTC output
LDI R20,0x06
OUT TCCR0,R20 ;counter, falling edge
AGAIN:
IN R20,TCNT0
OUT PORTC,R20 ;PORTC = TCNT0
IN R16,TIFR
SBRS R16,TOV0 ;monitor TOV0 flag
RJMP AGAIN ;keep doing if Timer0 flag is low
LDI R16,1TOV0
OUT TIFR, R16 ;clear TOV0 flag
RJMP AGAIN ;keep doing it
PORTC is connected to 8 LEDs
and input T0 (PB0) to 1 Hz pulse.
PORTC
PB0
to
LEDs
T0
ATmega32
Example 34
34.
In Example 35, we are using Timer0 as an event counter that counts up
Example 35
349

As another example of the application of the counter, we can feed an exter-
nal square wave of 60 Hz frequency into the timer. The program will generate the
second, the minute, and the hour out of this input frequency and display the result
on an LCD. This will be a nice looking digital clock, although not a very accurate
one.
Before we finish this section, we need to state an important point. You
might think monitoring the TOV and OCR flags is a waste of the microcontroller’s
time. You are right. There is a solution to this: the use of interrupts. Using inter-
rupts enables us to do other things with the microcontroller. When a timer Interrupt
Assuming that a 1 Hz clock pulse is fed into pin T0, use the TOV0 flag to extend Timer0
to a 16-bit counter and display the counter on PORTC and PORTD.
Solution:
.INCLUDE M32DEF.INC
LDI R19,0 ;R19 = 0
LDI R20,0xFF
OUT DDRD,R20 ;make PORTD output
LDI R20,0x06
OUT TCCR0,R20 ;counter, falling edge
AGAIN:
IN R20,TCNT0
IN R16,TIFR
SBRS R16,TOV0
LDI R16,1TOV0 ;clear TOV0 flag
OUT TIFR, R16
INC R19 ;R19 = R19 + 1
OUT PORTD,R19 ;PORTD = R19
PORTC and PORTD are connected to 16 LEDs
and input T0 (PB0) to 1 Hz pulse.
PORTC
PORTD
PB0
to
LEDs
T0
ATmega32
In Example 35, the TCNT0 data was displayed in binary. In Example
36, the TCNT0 register is extended to a 16-bit counter using the TOV0 flag. See
Examples 37 and 38.
Example 36
flag such as TOV0 is raised it will inform us.
350

Assuming that clock pulses are fed into pin T1 (PB1), write a program for Counter1 in
Normal mode to count the pulses on falling edge and display the state of the TCNT1
count on PORTC and PORTD.
Solution:
.INCLUDE M32DEF.INC
LDI R20,0xFF
LDI R20,0x0
OUT TCCR1A,R20
LDI R20,0x06
OUT TCCR1B,R20 ;counter, falling edge
AGAIN:
IN R20,TCNT1L ;R20 = TCNT1L, TEMP = TCNT1H
IN R20,TCNT1H ;R20 = TEMP
OUT PORTD,R20 ;PORTD = TCNT0
IN R16,TIFR
SBRS R16,TOV1
LDI R16,1TOV1 ;clear TOV1 flag
OUT TIFR, R16
PORTC
PORTD
PB1 (T1)
ATmega32
Example 37
351

Assuming that clock pulses are fed into pin T1 (PB1) and a buzzer is connected to pin
PORTC.0, write a program for Counter 1 in CTC mode to sound the buzzer every 100
pulses.
Solution:
To sound the buzzer every 100 pulses, we set the OCR1A value to 99 (63 in hex), and
then the counter counts up until it reaches OCR1A. Upon compare match, we can sound
the buzzer by toggling the PORTC.0 pin.
.INCLUDE M32DEF.INC
LDI R16,0x1
LDI R17,0
LDI R20,0x0
OUT TCCR1A,R20
LDI R20,0x0E
OUT TCCR1B,R20 ;CTC, counter, falling edge
AGAIN:
LDI R20,0
OUT OCR1AH,R20 ;TEMP = 0
LDI R20,99
OUT OCR1AL,R20 ;ORC1L = R20, OCR1H = TEMP
L1: IN R20,TIFR
SBRS R20,OCF1A
RJMP L1 ;keep doing it
LDI R20,1OCF1A ;clear OCF1A flag
OUT TIFR, R20
OUT PORTC,R17 ;toggle PC0
PC0 is connected to a buzzer and input T1 to a pulse.
PC0
PB1
Buzzer
100 Hz T1
ATmega32
Example 38
352

Review Questions
1. Which resource provides the clock pulses to AVR timers if CS02:00 = 6?
2. For Counter 0, which pin is used for the input clock?
3. To allow PB1 to be used as an input for the Timer1 clock, what must be done,
and why?
4. Do we have a choice of counting up on the positive or negative edge of the
clock?
In C we can access timer registers such as TCNT0, OCR0, and TCCR0
Write a C program to toggle all the bits of PORTB continuously with some delay. Use
Timer0, Normal mode, and no prescaler options to generate the delay.
Solution:
#include avr/io.h
void T0Delay ( );
int main ( )
{
DDRB = 0xFF; //PORTB output port
while (1)
{
PORTB = 0x55; //repeat forever
T0Delay ( ); //delay size unknown
PORTB = 0xAA; //repeat forever
T0Delay ( );
}
}
void T0Delay ( )
{
TCNT0 = 0x20; //load TCNT0
TCCR0 = 0x01; //Timer0, Normal mode, no prescaler
while ((TIFR0x1)==0); //wait for TF0 to roll over
TCCR0 = 0;
TIFR = 0x1; //clear TF0
}
SECTION 3: PROGRAMMING TIMERS IN C
directly using their names. See Example 39.
Example 39
In this section we show C programming for the AVR timers. The general-
accessed directly by C statements. All of the SFRs (Special Function Registers),
however, are accessible directly using C statements.
purpose registers of the AVR are under the control of the C compiler and are not
353

Calculating delay length using timers
As we saw in the last two sections, the delay length depends primorily on
two factors: (a) the crystal frequency, and (b) the prescaler factor. A third factor in
the delay size is the C compiler because various C compilers generate different hex
code sizes, and the amount of overhead due to the instructions varies by compiler.
Write a C program to toggle only the PORTB.4 bit continuously every 70 μs. Use
Timer0, Normal mode, and 1:8 prescaler to create the delay. Assume XTAL = 8 MHz.
Solution:
XTAL = 8MHz Tmachine cycle = 1/8 MHz
Prescaler = 1:8 Tclock = 8 × 1/8 MHz = 1 μs
70 μs/1 μs = 70 clocks 1 + 0xFF – 70 = 0x100 – 0x46 = 0xBA = 186
#include avr/io.h
void T0Delay ( );
int main ( )
{
while (1)
{
T0Delay ( ); //Timer0, Normal mode
PORTB = PORTB ^ 0x10; //toggle PORTB.4
}
}
void T0Delay ( )
{
TCNT0 = 186; //load TCNT0
TCCR0 = 0x02; //Timer0, Normal mode, 1:8 prescaler
while ((TIFR(1TOV0))==0); //wait for TOV0 to roll over
TCCR0 = 0; //turn off Timer0
TIFR = 0x1; //clear TOV0
}
Study Examples 40 through 42 and verify them using an oscilloscope.
Example 40
354

Write a C program to toggle only the PORTB.4 bit continuously every 2 ms. Use Timer1,
Normal mode, and no prescaler to create the delay. Assume XTAL = 8 MHz.
Solution:
XTAL = 8 MHz Tmachine cycle = 1/8 MHz = 0.125 μs
Prescaler = 1:1 Tclock= 0.125 μs
2 ms/0.125 μs = 16,000 clocks = 0x3E80 clocks
1 + 0xFFFF – 0x3E80 = 0xC180
#include avr/io.h
void T1Delay ( );
int main ( )
{
while (1)
{
PORTB = PORTB ^ (1PB4); //toggle PB4
}
}
void T1Delay ( )
{
TCNT1H = 0xC1; //TEMP = 0xC1
TCNT1L = 0x80;
TCCR1A = 0x00; //Normal mode
TCCR1B = 0x01; //Normal mode, no prescaler
while ((TIFR(0x1TOV1))==0); //wait for TOV1 to roll over
TCCR1B = 0;
TIFR = 0x1TOV1; //clear TOV1
}
Example 41
355

C programming of Timers 0 and 1 as counters
Timers can be used as counters if we provide pulses from outside the chip instead
of using the frequency of the crystal oscillator as the clock source. By feeding
pulses to the T0 (PB0) and T1 (PB1) pins, we use Timer0 and Timer1 as Counter
and 1 are programmed as counters using C language.
Write a C program to toggle only the PORTB.4 bit continuously every second. Use
Timer1, Normal mode, and 1:256 prescaler to create the delay. Assume XTAL = 8 MHz.
Solution:
XTAL = 8 MHz Tmachine cycle = 1/8 MHz = 0.125 μs = Tclock
Prescaler = 1:256 Tclock = 256 × 0.125 μs = 32 μs
1 s/32 μs = 31,250 clocks = 0x7A12 clocks 1 + 0xFFFF – 0x7A12 = 0x85EE
#include avr/io.h
void T1Delay ( );
int main ( )
{
while (1)
{
PORTB = PORTB ^ (1PB4); //toggle PB4
}
}
void T1Delay ( )
{
TCNT1H = 0x85; //TEMP = 0x85
TCNT1L = 0xEE;
TCCR1B = 0x04; //Normal mode, 1:256 prescaler
while ((TIFR(0x1TOV1))==0); //wait for TF0 to roll over
TCCR1B = 0;
}
In Section 2 we showed how to use Timers 0 and 1 as event counters.
Example 42 (C version of Example 32)
0 and Counter 1, respectively. Study Examples 43 and 44 to see how Timers 0
356

Assuming that a 1 Hz clock pulse is fed into pin T0, use the TOV0 flag to extend
Timer0 to a 16-bit counter and display the counter on PORTC and PORTD.
Solution:
#include avr/io.h
int main ( )
{
PORTB = 0x01; //activate pull-up of PB0
DDRC = 0xFF; //PORTC as output
DDRD = 0xFF; //PORTD as output
TCCR0 = 0x06; //output clock source
TCNT0 = 0x00;
while (1)
{
do
{
PORTC = TCNT0;
}while((TIFR(0x1TOV0))==0);//wait for TOV0 to roll over
PORTD ++; //increment PORTD
}
}
PORTC and PORTD are connected to 16 LEDs.
T0 (PB0) is connected to a
1-Hz external clock.
PD
PC
PB0
to
LEDs
1 Hz T0
ATmega32
357

Assume that a 1-Hz external clock is being fed into pin T1 (PB1). Write a C program
for Counter1 in rising edge mode to count the pulses and display the TCNT1H and
TCNT1L registers on PORTD and PORTC, respectively.
Solution:
#include avr/io.h
int main ( )
{
PORTB = 0x01; //activate pull-up of PB0
DDRC = 0xFF; //PORTC as output
DDRD = 0xFF; //PORTD as output
TCCR1A = 0x00; //output clock source
TCCR1B = 0x06; //output clock source
TCNT1H = 0x00; //set count to 0
TCNT1L = 0x00; //set count to 0
while (1) //repeat forever
{
do
{
PORTC = TCNT1L;
PORTD = TCNT1H; //place value on pins
}while((TIFR(0x1TOV1))==0);//wait for TOV1
}
}
PB1
PC and
PD to
LEDs
1 Hz clock T1
ATmega32
358

SUMMARY
The AVR has one to six timers/counters depending on the family member.
When used as timers, they can generate time delays. When used as counters, they
can serve as event counters.
Some of the AVR timers are 8-bit and some are 16-bit. The 8-bit timers are
accessed as TCNTn (like TCNT0 for Timer0), whereas 16-bit timers are accessed
as two 8-bit registers (TCNTnH, TCNTnL).
Each timer has its own TCCR (Timer/Counter Control Register) register,
allowing us to choose various operational modes. Among the modes are the
prescaler and timer/counter options. When the timer is used as a timer, the AVR
crystal is used as the source of the frequency; however, when it is used as a count-
er, it is a pulse outside of the AVR that increments the TCNT register.
This chapter showed how to program the timers/counters to generate
delays and count events using Normal and CTC modes.
PROBLEMS
1. How many timers are in the ATmega32?
2. Timer0 of the ATmega32 is ____-bit, accessed as ______.
3. Timer1 of the ATmega32 is ____-bit, accessed as ______ and _______.
4. Timer0 supports the highest prescaler value of ______.
5. Timer1 supports the highest prescaler value of ______.
6. The TCCR0 register is a(n) ___-bit register.
7. What is the job of the TCCR0 register?
8. True or false. TCCR0 is a bit-addressable register.
9. True or false. TIFR is a bit-addressable register.
10. Find the TCCR0 value for Normal mode, no prescaler, with the clock coming
from the AVR’s crystal.
11. Find the frequency and period used by the timer if the crystal attached to the
AVR has the following values:
(a) XTAL = 8 MHz (b) XTAL = 16 MHz
(c) XTAL = 1 MHz (d) XTAL = 10 MHz
12. Which register holds the TOV0 (timer overflow flag) and TOV1 bits?
13. Indicate the rollover value (in hex and decimal) of the timer for each of the fol-
lowing cases:
(a) Timer0 and Normal mode (b) Timer1 and Normal mode
14. Indicate when the TOVx flag is raised for each of the following cases:
(a) Timer0 and Normal mode (b) Timer1 and Normal mode
15. True or false. Both Timer0 and Timer1 have their own timer overflow flags.
16. True or false. Both Timer0 and Timer1 have their own timer compare match
flags.
359

17. Assume that XTAL = 8 MHz. Find the TCNT0 value needed to generate a time
delay of 20 µs. Use Normal mode, no prescaler mode.
18. Assume that XTAL = 8 MHz. Find the TCNT0 value needed to generate a time
delay of 5 ms. Use Normal mode, and the largest prescaler possible.
19. Assume that XTAL = 1 MHz. Find the TCNT1H,TCNT1L value needed to
generate a time delay of 2.5 ms. Use Normal mode, no prescaler mode.
20. Assume that XTAL = 1 MHz. Find the OCR0 value needed to generate a time
delay of 0.2 ms. Use CTC mode, no prescaler mode.
21. Assume that XTAL = 1 MHz. Find the OCR1H,OCR1L value needed to gen-
erate a time delay of 2 ms. Use CTC mode, and no prescaler mode.
22. Assuming that XTAL = 8 MHz, and we are generating a square wave on pin
PB7, find the lowest square wave frequency that we can generate using Timer1
in Normal mode.
23. Assuming that XTAL = 8 MHz, and we are generating a square wave on pin
PB2, find the highest square wave frequency that we can generate using
Timer1 in Normal mode.
24. Repeat Problems 22 and 23 for Timer0.
25. Assuming that TCNT0 = $F1, indicate which states Timer0 goes through until
TOV0 is raised. How many states is that?
26. Program Timer0 to generate a square wave of 1 kHz. Assume that XTAL = 8
MHz.
27. Program Timer1 to generate a square wave of 3 kHz. Assume that XTAL = 8
MHz.
28. State the differences between Timer0 and Timer1.
29. Find the value (in hex) loaded into R16 in each of the following:
(a) LDI R16,-12 (b) LDI R16,-22
(c) LDI R16,-34 (d) LDI R16,-92
(e) LDI R16,-120 (f) LDI R16,-104
30. To use a timer as an event counter we must set the _____ bits in the TCCR reg-
ister to ________.
31. Can we use both Timer0 and Timer1 as event counters?
34. Program Timer1 to be an event counter. Use Normal mode, and display the
binary count on PORTC and PORTD continuously. Set the initial count to
20,000.
35. Program Timer0 to be an event counter. Use Normal mode and display the
binary count on PORTC continuously. Set the initial count to 20.
36. Program Timer0 in C to generate a square wave of 1 kHz. Assume that XTAL
= 1 MHz.
SECTION 3: PROGRAMMING TIMERS IN C
360

= 8 MHz.
= 16 MHz.
= 10 MHz.
40. Program Timer1 in C to be an event counter. Use Normal mode and display the
binary count on PORTB and PORTD continuously. Set the initial count to
20,000.
41. Program Timer0 in C to be an event counter. Use Normal mode and display the
binary count on PORTD continuously. Set the initial count to 20.
1. 3
2. False
3. True
4. False
5. Max ($FFFF for 16-bit timers and $FF for 8-bit timers), 0000
6. OCR1A
7. $10000 – (5000 × 8) = 25536 = 63C0, TCNT1H = 0x64 and TCNT1L = 0xC0
8. XTAL = 1 MHz Tmachine cycle = 1/1 M = 1 µs 20 µs / 1 µs = 20
−20 = $100 – 20 = 256 − 20 = 236 = 0xEC
1. External clock (falling edge)
2. PORTB.0 (T0)
3. DDRB.0 must be cleared to turn the output circuit off and use the pin as input.
4. Yes
361

OBJECTIVES

Contrast and compare interrupts versus polling

Explain the purpose of the ISR (interrupt service routine)

List all the major interrupts of the AVR

Explain the purpose of the interrupt vector table

Enable or disable AVR interrupts

Program the AVR timers using interrupts

Describe the external hardware interrupts of the AVR

Define the interrupt priority of the AVR

Program AVR interrupts in C
AVR INTERRUPT
PROGRAMMING IN
ASSEMBLY AND C
363

In this chapter we explore the concept of the interrupt and interrupt pro-
In this section, we first examine the difference between polling and inter-
rupt and then describe the various interrupts of the AVR.
Interrupts vs. polling
A single microcontroller can serve several devices. There are two methods
by which devices receive service from the microcontroller: interrupts or polling.
In the interrupt method, whenever any device needs the microcontroller’s service,
the device notifies it by sending an interrupt signal. Upon receiving an interrupt
signal, the microcontroller stops whatever it is doing and serves the device. The
program associated with the interrupt is called the interrupt service routine (ISR)
or interrupt handler. In polling, the microcontroller continuously monitors the sta-
tus of a given device; when the status condition is met, it performs the service.
After that, it moves on to monitor the next device until each one is serviced.
Although polling can monitor the status of several devices and serve each of them
as certain conditions are met, it is not an efficient use of the microcontroller. The
advantage of interrupts is that the microcontroller can serve many devices (not all
at the same time, of course); each device can get the attention of the microcon-
troller based on the priority assigned to it. The polling method cannot assign pri-
ority because it checks all devices in a round-robin fashion. More importantly, in
the interrupt method the microcontroller can also ignore (mask) a device request
for service. This also is not possible with the polling method. The most important
reason that the interrupt method is preferable is that the polling method wastes
much of the microcontroller’s time by polling devices that do not need service. So
Interrupt service routine
For every interrupt, there must be an interrupt service routine (ISR), or
interrupt handler. When an interrupt is invoked, the microcontroller runs the inter-
rupt service routine. Generally, in most microprocessors, for every interrupt there
is a fixed location in memory that holds the address of its ISR. The group of mem-
ory locations set aside to hold the addresses of ISRs is called the interrupt vector
AVR INTERRUPT PROGRAMMING IN ASSEMBLYAND C
discussed in Section 3. In Section 4, we cover interrupt priority. In Section
2, interrupts belonging to timers are discussed. External hardware interrupts are
gramming. In Section 1, the basics of AVR interrupts are discussed. In Section
5, we provide AVR interrupt programming examples in C.
SECTION 1: AVR INTERRUPTS
table, as shown in Table 1.
interrupts are used to avoid tying down the microcontroller. For example, you may
have used the bit test instruction “ ” and waited until the timer
rolled over, and while you were waiting you could not do anything else. That is a
waste of microcontroller time that could have been used to perform some useful
tasks. In the case of the timer, if we use the interrupt method, the microcontroller
can go about doing other tasks, and when the TOV0 flag is raised, the timer will
interrupt the microcontroller in whatever it is doing.
SBRS R20,TOV0
364

Steps in executing an interrupt
Upon activation of an interrupt, the microcontroller goes through the fol-
lowing steps:
1. It finishes the instruction it is currently executing and saves the address of the
next instruction (program counter) on the stack.
2. It jumps to a fixed location in memory called the interrupt vector table. The
interrupt vector table directs the microcontroller to the address of the interrupt
service routine (ISR).
3. The microcontroller starts to execute the interrupt service subroutine until it
reaches the last instruction of the subroutine, which is RETI (return from inter-
rupt).
4. Upon executing the RETI instruction, the microcontroller returns to the place
where it was interrupted. First, it gets the program counter (PC) address from
the stack by popping the top bytes of the stack into the PC. Then it starts to
execute from that address.
Notice from Step 4 the critical role of the stack. For this reason, we must
be careful in manipulating the stack contents in the ISR. Specifically, in the ISR,
just as in any CALL subroutine, the number of pushes and pops must be equal.
Interrupt ROM Location (Hex)
Reset 0000
External Interrupt request 0 0002
Time/Counter2 Compare Match 0008
Time/Counter2 Overflow 000A
Time/Counter1 Capture Event 000C
Time/Counter1 Compare Match A 000E
Time/Counter1 Compare Match B 0010
Time/Counter1 Overflow 0012
Time/Counter0 Compare Match 0014
Time/Counter0 Overflow 0016
SPI Transfer complete 0018
USART, Receive complete 001A
USART, Data Register Empty 001C
USART, Transmit Complete 001E
ADC Conversion complete 0020
EEPROM ready 0022
Analog Comparator 0024
Two-wire Serial Interface (I2C) 0026
Store Program Memory Ready 0028
Table 1: Interrupt Vector Table for the ATmega32 AVR
365

Sources of interrupts in the AVR
There are many sources of interrupts in the AVR, depending on which
peripheral is incorporated into the chip. The following are some of the most wide-
ly used sources of interrupts in the AVR:
1. There are at least two interrupts set aside for each of the timers, one for over-
2. Three interrupts are set aside for external hardware interrupts. Pins PD2
(PORTD.2), PD3 (PORTD.3), and PB2 (PORTB.2) are for the external hard-
3. Serial communication’s USART has three interrupts, one for receive and two
assigned to the reset pin. They are ROM address locations 0–1. For this reason, in
our program we put the JMP as the first instruction and redirect the processor away
see how this works in the context of some examples.
Enabling and disabling an interrupt
Upon reset, all interrupts are disabled (masked), meaning that none will be
responded to by the microcontroller if they are activated. The interrupts must be
enabled (unmasked) by software in order for the microcontroller to respond to
them. The D7 bit of the SREG (Status Register) register is responsible for enabling
bit makes the job of disabling all the interrupts easy. With a single instruction
“CLI” (Clear Interrupt), we can make I = 0 during the operation of a critical task.
.ORG 0 ;wake-up ROM reset location
JMP MAIN ;bypass interrupt vector table
;---- the wake-up program
.ORG $100
MAIN: .... ;enable interrupt flags
....
flow and another for compare match. See Section 2.
ware interrupts INT0, INT1, and INT2, respectively. See Section 3.
From Table 1, also notice that only 2 words (4 bytes) of ROM space are
from the interrupt vector table, as shown in Figure 1. In the next section we will
Figure 1. Redirecting the AVR from the Interrupt Vector Table at Power-up
and disabling the interrupts globally. Figure 2 shows the SREG register. The I
interrupts for transmit.
4. The SPI interrupts.
5. The ADC (analog-to-digital converter).
The AVR has many more interrupts than the list shows. Notice in Table 1
that a limited number of bytes is set aside for interrupts. For example, a total of 2
words (4 bytes), from locations 0016 to 0018, are set aside for Timer0 overflow
interrupt. Normally, the service routine for an interrupt is too long to fit into the
memory space allocated. For that reason, a JMP instruction is placed in the vector
table to point to the address of the ISR. In upcoming sections of this chapter, we
will see many examples of interrupt programming that clarify these concepts.
366

Steps in enabling an interrupt
To enable any one of the interrupts, we take the following steps:
1. Bit D7 (I) of the SREG register must be set to HIGH to allow the interrupts to
happen. This is done with the “SEI” (Set Interrupt) instruction.
2. If I = 1, each interrupt is enabled by setting to HIGH the interrupt enable (IE)
flag bit for that interrupt. There are some I/O registers holding the interrupt
for Timer0, Timer1, and Timer2. As we study each of peripherals throughout the
noted that if I = 0, no interrupt will be responded to, even if the corresponding
D0
D7
Bit
Show the instructions to (a) enable (unmask) the Timer0 overflow interrupt and Timer2
compare match interrupt, and (b) disable (mask) the Timer0 overflow interrupt, then (c)
show how to disable (mask) all the interrupts with a single instruction.
Solution:
(a) LDI R20,(1TOIE0)|(1OCIE2) ;TOIE0 = 1, OCIE2 = 1
OUT TIMSK,R20 ;enable Timer0 overflow and Timer2 compare match
SEI ;allow interrupts to come in
(b) IN R20,TIMSK ;R20 = TIMSK
ANDI R20,0xFF^(1TOIE0) ;TOIE0 = 0
OUT TIMSK,R20 ;mask (disable) Timer0 interrupt
We can perform the above actions with the following instructions, as well:
IN R20,TIMSK ;R20 = TIMSK
CBR R20,1TOIE0 ;TOIE0 = 0
OUT TIMSK,R20 ;mask (disable) Timer0 interrupt
(c) CLI ;mask all interrupts globally
Notice that in part (a) we can use “LDI,0x81” in place of the following instruction:
“LDI R20,(1TOIE0)|(1OCIE2)”
Figure 2. Bits of Status Register (SREG)
enable bits. Figure 3 shows that the TIMSK register has interrupt enable bits
Example 1
interrupt enable bit is high. To understand this important point look at Example 1.
text we will examine the registers holding the interrupt enable bits. It must be
367

Review Questions
1. Of the interrupt and polling methods, which one avoids tying down the micro-
controller?
2. Give the name of the interrupts in the TIMSK register.
3. Upon power-on reset of the ATmega32, what memory area is assigned to the
interrupt vector table? Can the programmer change the memory space assigned
to the table?
4. What is the content of D7 (I) of the SREG register upon reset, and what does
it mean?
5. Show the instructions needed to enable the Timer1 compare A match interrupt.
6. What address in the interrupt vector table is assigned to the Timer1 overflow
and INT0 interrupts?
TOIE0 Timer0 overflow interrupt enable
= 0 Disables Timer0 overflow interrupt
= 1 Enables Timer0 overflow interrupt
OCIE0 Timer0 output compare match interrupt enable
= 0 Disables Timer0 compare match interrupt
= 1 Enables Timer0 compare match interrupt
OCIE1B Timer1 output compare B match interrupt enable
= 0 Disables Timer1 compare B match interrupt
= 1 Enables Timer1 compare B match interrupt
OCIE1A Timer1 output compare A match interrupt enable
= 0 Disables Timer1 compare A match interrupt
= 1 Enables Timer1 compare A match interrupt
TICIE1 Timer1 input capture interrupt enable
= 0 Disables Timer1 input capture interrupt
= 1 Enables Timer1 input capture interrupt
OCIE2 Timer2 output compare match interrupt enable
= 0 Disables Timer2 compare match interrupt
= 1 Enables Timer2 compare match interrupt
These bits, along with the I bit, must be set high for an interrupt to be responded to.
Upon activation of the interrupt, the I bit is cleared by the AVR itself to make sure
another interrupt cannot interrupt the microcontroller while it is servicing the current
one. At the end of the ISR, the RETI instruction will make I = 1 to allow another inter-
rupt to come in.
OCIE2 TOIE2 TICIE1 OCIE1A OCIE1B TOIE1 OCIE0 TOIE0
D7 D0
Figure 3. TIMSK (Timer Interrupt Mask) Register
368

Rollover timer flag and interrupt
1. We must avoid using the memory space allocated to the interrupt vector table.
Therefore, we place all the initialization codes in memory starting at an
address such as $100. The JMP instruction is the first instruction that the AVR
executes when it is awakened at address 0000 upon reset. The JMP instruction
at address 0000 redirects the controller away from the interrupt vector table.
2. In the MAIN program, we enable (unmask) the Timer0 interrupt with the fol-
lowing instructions:
LDI R16,1TOV0
OUT TIMSK,R16 ;enable Timer0 overflow interrupt
SEI ;set I (enable interrupts globally)
Interrupt Overflow Register Enable Bit Register
Flag Bit
Timer0 TOV0 TIFR TOIE0 TIMSK
SECTION 2: PROGRAMMING TIMER INTERRUPTS
Table 2: Timer Interrupt Flag Bits and Associated Registers
Notice the following points about Program 1:
Figure 4. The Role of Timer Overflow Interrupt Enable (TOIE0)
In this section we use interrupts to program the AVR timers. Please review
what you know about AVR timer programming before you study this section.
The timer overflow flag is raised when the timer rolls over. You Should
know how to monitor the timer flag with the instruction “ ”. In
polling TOV0, we have to wait until TOV0 is raised. The problem with this method
do anything else. Using interrupts avoids tying down the controller. If the timer
interrupt in the interrupt register is enabled, TOV0 is raised whenever the timer
rolls over and the microcontroller jumps to the interrupt vector table to service the
ISR. In this way, the microcontroller can do other things until it is notified that the
timer has rolled over. To use an interrupt in place of polling, first we must enable
the interrupt because all the interrupts are masked upon reset. The TOIEx bit
enables the interrupt for a given timer. TOIEx bits are held by the TIMSK register
as shown in Table 2. See Figure 4 and Program 1.
SBRS R20,TOV0
is that the microcontroller is tied down waiting for TOV0 to be raised, and cannot
369

3. In the MAIN program, we initialize the Timer0 register and then enter into an
infinite loop to keep the CPU busy. The loop could be replaced with a real-
world application being executed by the CPU. In this case, the loop gets data
from PORTC and sends it to PORTD. While the PORTC data is brought in and
issued to PORTD continuously, the TOIE0 flag is raised as soon as Timer0
rolls over, and the microcontroller gets out of the loop and goes to $0016 to
execute the ISR associated with Timer0. At this point, the AVR clears the I bit
(D7 of SREG) to indicate that it is currently serving an interrupt and cannot be
interrupted again; in other words, no interrupt inside the interrupt. In Section
4.
too large to fit into address space $16–$18, the address allocated to the Timer0
overflow interrupt in the interrupt vector table.
5. RETI must be the last instruction of the ISR. Upon execution of the RETI
instruction, the AVR automatically enables the I bit (D7 of the SREG register)
to indicate that it can accept new interrupts.
6. In the ISR for Timer0, notice that there is no need for clearing the TOV0 flag
since the AVR clears the TOV0 flag internally upon jumping to the interrupt
vector table.
switches and PORTD to 8 LEDs. This program uses Timer0 to generate a square
wave on pin PORTB.5, while at the same time data is being transferred from
PORTC to PORTD.
;Program
.INCLUDE M32DEF.INC
.ORG 0x0 ;location for reset
JMP MAIN
.ORG 0x16 ;location for Timer0 overflow (see Table
JMP T0_OV_ISR ;jump to ISR for Timer0
;-main program for initialization and keeping CPU busy
.ORG 0x100
MAIN: LDI R20,HIGH(RAMEND)
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20 ;initialize stack
LDI R20,(1TOIE0)
LDI R20,-32 ;timer value for 4 s
OUT TCNT0,R20 ;load Timer0 with -32
LDI R20,0x01
OUT TCCR0,R20 ;Normal, internal clock, no prescaler
LDI R20,0x00
OUT DDRC,R20 ;make PORTC input
LDI R20,0xFF
;--------------- Infinite loop
HERE: IN R20,PINC ;read from PORTC
OUT PORTD,R20 ;give it to PORTD
JMP HERE ;keeping CPU busy waiting for interrupt
The ISR for Timer0 is located starting at memory location $200 because it is
6, we show how to allow an interrupt inside an interrupt.
1)
Program 1: For this program, we assume that PORTC is connected to 8
1
370

;--------------ISR for Timer0 (it is executed every 4 µs)
.ORG 0x200
T0_OV_ISR:
IN R16,PORTB ;read PORTB
LDI R17,0x20 ;00100000 for toggling PB5
EOR R16,R17
LDI R16,-32 ;timer value for 4 µs
OUT TCNT0,R16 ;load Timer0 with -32 (for next round)
RETI ;return from interrupt
taneously, to generate square waves on pins PB1 and PB7 respectively, while data
is being transferred from PORTC to PORTD.
;Program
.INCLUDE
.ORG 0x12 ;ISR location for Timer1 overflow
JMP T1_OV_ISR ;go to an address with more space
;----main program for initialization and keeping CPU busy
.ORG 0x100
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20 ;initialize stack point
LDI R20,(1TOIE0)|(1TOIE1)
LDI R20,-160 ;value for 20 s
LDI R20,0x01
OUT TCCR0,R20 ;Normal mode, int clk, no prescaler
LDI R20,HIGH(-640) ;the high byte
OUT TCNT1H,R20 ;load Timer1 high byte
What is the difference between the RET and RETI instructions? Explain why we can-
not use RET instead of RETI as the last instruction of an ISR.
Solution:
Both perform the same actions of popping off the top bytes of the stack into the program
counter, and making the AVR return to where it left off. However, RETI also performs
the additional task of setting the I flag, indicating that the servicing of the interrupt is over
and the AVR now can accept a new interrupt. If you use RET instead of RETI as the last
instruction of the interrupt service routine, you simply block any new interrupt after the
first interrupt, because the I would indicate that the interrupt is still being serviced.
See Example 2 to understand the difference between RET and RETI.
Example 2
See Program 2. Program 2 uses Timer0 and Timer1 interrupts simul-
M32DEF.INC
2
371

LDI R20,LOW(-640) ;the low byte
OUT TCNT1L,R20 ;load Timer1 low byte
LDI R20,0x00
OUT TCCR1A,R20 ;Normal mode
LDI R20,0x01
OUT TCCR1B,R20 ;internal clk, no prescaler
LDI R20,0x00
LDI R20,0xFF
OUT PORTD,R20 ;and give it to PORTD
;------ISR for Timer0 (It comes here after elapse of 20 μs time)
.ORG 0x200
T0_OV_ISR:
LDI R16,-160 ;value for 20 μs
OUT TCNT0,R16 ;load Timer0 with -160 (for next round)
EOR R16,R17
;------ISR for Timer1 (It comes here after elapse of 80 μs time)
.ORG 0x300
T1_OV_ISR:
LDI R18,HIGH(-640)
LDI R18,LOW(-640)
OUT TCNT1L,R18 ;load Timer1 low byte (for next round)
EOR R18,R19
Notice that the addresses $0100, $0200, and $0300 that we used in
only addresses that we cannot change are the reset location of 0000, the Timer0
overflow address of $0016, and the Timer1 overflow address of $0012 in the inter-
rupt vector table because they were fixed at the time of the ATmega32 design.
overflows. It overflows once per second. (2) A pulse is fed into Timer0, where
Timer0 is used as counter and counts up. Whenever the counter reaches 200, it will
toggle the pin PORTB.6.
;Program
.INCLUDE M32DEF.INC
Program 2 are all arbitrary and can be changed to any addresses we want. The
Program 3 has two interrupts: (1) PORTA counts up every time Timer1
3
372

;---main program for initialization and keeping CPU busy
.ORG 0x40
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20 ;initialize SP
LDI R18,0 ;R18 = 0
OUT PORTA,R18 ;PORTA = 0
LDI R20,0
OUT DDRC,R20 ;PORTC as input
LDI R20,0xFF
OUT DDRA,R20 ;PORTA as output
OUT DDRD,R20 ;PORTD as output
SBI PORTB,0 ;activate pull-up of PB0
LDI R20,0x06
OUT TCCR0,R20 ;Normal, T0 pin falling edge, no scale
LDI R16,-200
LDI R19,HIGH(-31250) ;timer value for 1 second
LDI R19,LOW(-31250)
OUT TCNT1L,R19 ;load Timer1 low byte
LDI R20,0
OUT TCCR1A,R20 ;Timer1 Normal mode
LDI R20,0x04
OUT TCCR1B,R20 ;int clk, prescale 1:256
LDI R20,(1TOIE0)|(1TOIE1)
OUT TIMSK,R20 ;enable Timer0 Timer1 overflow ints
OUT PORTD,R20 ;and send it to PORTD
JMP HERE ;waiting for interrupt
;-------ISR for Timer0 to toggle after 200 clocks
.ORG 0x200
T0_OV_ISR:
LDI R17,0x40 ;0100 0000 for toggling PB7
EOR R16,R17
LDI R16,-200 ;setup for next round
OUT TCNT0,R16 ;load Timer0 with -200 for next round
;---------ISR for Timer1 (It comes here after elapse of 1s time)
.ORG 0x300
T1_OV_ISR:
INC R18 ;increment upon overflow
OUT PORTA,R18 ;display it on PORTA
LDI R19,HIGH(-31250)
LDI R19,LOW(-31250)
OUT TCNT1L,R19 ;load Timer1 low byte (for next round)
373

Compare match timer flag and interrupt
Sometimes a task should be done periodi-
cally, as in the previous examples. The programs
can be written using the CTC mode and compare
match (OCF) flag. To do so, we load the OCR reg-
ister with the proper value and initialize the timer
to the CTC mode. When the content of TCNT
matches with OCR, the OCF flag is set, which
causes the compare match interrupt to occur.
Using Timer0, write a program that toggles pin POR
time transferring data from PORTC to PORTD. Assume XTAL = 1 MHz.
Solution:
That means we must have OCR0 = 40 – 1 = 39
.INCLUDE M32DEF.INC
JMP MAIN
.ORG 0x14 ;ISR location for Timer0 compare match
JMP T0_CM_ISR
;main program for initialization and keeping CPU busy
.ORG 0x100
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20 ;set up stack
LDI R20,(1OCIE0)
OUT TIMSK,R20 ;enable Timer0 compare match interrupt
LDI R20,39
OUT OCR0,R20 ;load Timer0 with 39
LDI R20,0x09
OUT TCCR0,R20 ;start Timer0, CTC mode, int clk, no prescaler
LDI R20,0x00
LDI R20,0xFF
OUT PORTD,R20 ;and send it to PORTD
;----------------ISR for Timer0 (it is executed every 40 µs)
T0_CM_ISR:
EOR R16,R17
TCNTx
0
Time
OCRx
OCFx = 1 OCFx = 1 OCFx = 1
Example 3
Figure 5. CTC Mode
TB.5 every 40 µs, while at the same
1/1 MHz = 1 µs and 40 µs/1 µs = 40.
374

Because the timer is in the CTC mode, the timer will be loaded with zero as well.
ing to the interrupt vector table.
Using Timer1, write a program that toggles pin PORTB.5 every second, while at the
same time transferring data from PORTC to PORTD. Assume XTAL = 8 MHz.
Solution:
For prescaler = 1024 we have TClock= (1 / 8 MHz) ×
7812. That means we must have OCR1A = 7811 = 0x1E83
.INCLUDE M32DEF.INC
JMP MAIN
.ORG 0x14 ;location for Timer1 compare match
JMP T1_CM_ISR
;------main program for initialization and keeping CPU busy
OUT SPH,R20
LDI R20,LOW(RAMEND)
LDI R20,(1OCIE1A)
LDI R20,0x00
OUT TCCR1A,R20
LDI R20,0xD
OUT TCCR1B,R20 ;prescaler 1:1024, CTC mode
LDI R20,HIGH(7811) ;the high byte
OUT OCR1AH,R20 ;Temp = 0x1E (high byte of 7811)
LDI R20,LOW(7811) ;the low byte
OUT OCR1AL,R20 ;OCR1A = 7811
LDI R20,0x00
LDI R20,0xFF
;---ISR for Timer1 (It comes here after elapse of 1 second time)
T1_CM_ISR:
IN R16,PORTB
EOR R16,R17
Examples 3 and 4. Notice that the AVR chip clears the OCF flag upon jump-
So, the compare match interrupt occurs periodically. See Figure 5 and
Example 4
1024 = 128 µs and 1 s/128 µs =
375

Review Questions
1. True or false. There is a single interrupt in the interrupt vector table assigned
to both Timer0 and Timer1.
2. What address in the interrupt vector table is assigned to Timer0 overflow?
3. Which register does TOIE1 belong to? Show how it is enabled.
4. Assume that Timer0 is programmed in Normal mode, TCNT0 = 0xF1, and the
TOIE0 bit is enabled. Explain how the interrupt for the timer works.
5. True or false. The last two instructions of the ISR for Timer0 are:
OUT TIFR, 1TOV0 ;clear TOV0 flag
RETI
6. Assume that Timer0 is programmed in CTC mode, OCR0 = 0x21, and the
compare match interrupt is enabled. Explain how the interrupt for the timer
works.
7. In the previous problem, assume XTAL = 8 MHz, and the timer is in no
prescaler mode. How often is the ISR executed?
INTERRUPTS
The number of external hardware interrupt interrupts varies in different
AVRs. The ATmega32 has three external hardware interrupts: pins PD2
(PORTD.2), PD3 (PORTD.3), and PB2 (PORTB.2), designated as INT0, INT1,
and INT2, respectively. Upon activation of these pins, the AVR is interrupted in
whatever it is doing and jumps to the vector table to perform the interrupt service
routine. In this section we study these three external hardware interrupts of the
AVR with some examples in Assembly language.
External interrupts INT0, INT1, and INT2
There are three external hardware interrupts in the ATmega32: INT0, INT1,
and INT2. They are located on pins PD2, PD3, and PB2, respectively. As we saw in
INT1, and INT2, respectively. The hardware interrupts must be enabled before they
can take effect. This is done using the INTx bit located in the GICR register. See
LDI R20,0x40
OUT GICR,R20
The INT0 is a low-level-triggered interrupt by default, which means, when
a low signal is applied to pin PD2 (PORTD.2), the controller will be interrupted
and jump to location $0002 in the vector table to service the ISR.
program, the microcontroller is looping continuously in the HERE loop. Whenever
the switch on INT0 (pin PD2) is activated, the microcontroller gets out of the loop
and jumps to vector location $0002. The ISR for INT0 toggles the PC0. If, by the
time it executes the RETI instruction, the INT0 pin is still low, the microcontroller
initiates the interrupt again. Therefore, if we want the ISR to be executed once, the
SECTION 3: PROGRAMMING EXTERNAL HARDWARE
Table 1, the interrupt vector table locations $2, $4, and $6 are set aside for INT0,
Figure 6. For example, the following instructions enable INT0:
Study Example 5 to gain insight into external hardware interrupts. In this
376

INT0 pin must be brought back to high before RETI is executed, or we should make
the interrupt edge-triggered, as discussed next.
INT0 External Interrupt Request 0 Enable
= 0 Disables external interrupt 0
= 1 Enables external interrupt 0
These bits, along with the I bit, must be set high for an interrupt to be responded to.
INT1 INT0 INT2 - - - IVSEL IVCE
D7 D0
Assume that the INT0 pin is connected to a switch that is normally high. Write a pro-
gram that toggles PORTC.3 whenever the INT0 pin goes low.
Solution:
.INCLUDE M32DEF.INC
.ORG 0 ;location for reset
JMP MAIN
.ORG 0x02 ;vector location for external interrupt 0
JMP EX0_ISR
OUT SPH,R20
LDI R20,LOW(RAMEND)
SBI DDRC,3 ;PORTC.3 = output
SBI PORTD,2 ;pull-up activated
LDI R20,1INT0 ;enable INT0
OUT GICR,R20
SEI ;enable interrupts
HERE:JMP HERE ;stay here forever
EX0_ISR:
IN R21,PINC ;read PINC
LDI R22,0x08 ;00001000
EOR R21,R22
OUT PORTC,R21
RETI
Figure 6. GICR (General Interrupt Control Register) Register
Example 5
377

Edge-triggered vs. level-triggered interrupts
There are two types of activation for the external hardware interrupts:
(1) level triggered, and (2) edge triggered. INT2 is only edge triggered, while
INT0 and INT1 can be level or edge triggered.
As stated before, upon reset INT0 and INT1 are low-level-triggered inter-
rupts. The bits of the MCUCR register indicate the trigger options of INT0 and
ISC01, ISC00 (Interrupt Sense Control bits) These bits define the level or edge on the
external INT0 pin that activates the interrupt, as shown in the following table:
ISC11, ISC10 These bits define the level or edge that activates the INT1 pin.
SE SM2 SM1 SM0 ISC11 ISC10 ISC01 ISC00
D7 D0
ISC01 ISC00 Description
The low level of INT0 generates an interrupt request.
Any logical change on INT0 generates an interrupt
request.
The falling edge of INT0 generates an interrupt
request.
The rising edge of INT0 generates an interrupt
request.
0 0
0 1
1 0
1 1
ISC11 ISC10 Description
The low level of INT1 generates an interrupt request.
Any logical change on INT1 generates an interrupt
request.
The falling edge of INT1 generates an interrupt
request.
The rising edge of INT1 generates an interrupt
request.
0 0
0 1
1 0
1 1
ISC2 This bit defines whether the INT2 interrupt activates on the falling edge or the rising edge.
JTD ISC2 - JTRF WDRF BORF EXTRF PORF
D7 D0
ISC2 Description
The falling edge of INT2 generates an interrupt request.
The rising edge of INT2 generates an interrupt request.
0
1
Figure 7. MCUCR (MCU Control Register) Register
INT1, as shown in Figure 7.
Figure 8. MCUCSR (MCU Control and Status Register) Register
378

The ISC2 bit of the MCUCSR register defines whether INT2 activates in
ing that the external hardware interrupt of INT2 is falling edge triggered. See
Solution:
.INCLUDE M32DEF.INC
.ORG 0 ;location for reset
JMP MAIN
.ORG 0x02 ;location for external interrupt 0
JMP EX0_ISR
OUT SPH,R20
LDI R20,LOW(RAMEND)
LDI R20,0x2 ;make INT0 falling edge triggered
OUT MCUCR,R20
SBI DDRC,3 ;PORTC.3 = output
SBI PORTD,2 ;pull-up activated
LDI R20,1INT0 ;enable INT0
OUT GICR,R20
HERE: JMP HERE
EX0_ISR:
IN R21,PORTC
LDI R22,0x08 ;00001000 for toggling PC3
EOR R21,R22
OUT PORTC,R21
RETI
Show the instructions to (a) make INT0 falling edge triggered, (b) make INT1 triggered
on any change, and (c) make INT2 rising edge triggered.
Solution:
(a) LDI R20,0x02
OUT MCUCR,R20
(b) LDI R20,1ISC10 ;R20 = 0x04
OUT MCUCR,R20
(c) LDI R20,1ISC2 ;R20 = 0x40
OUT MCUCSR,R20
the falling edge or the rising edge (see Figure 8). Upon reset ISC2 is 0, mean-
Examples 6 and 7.
Example 6
Example 7
Rewrite Example 5, so that whenever INT0 goes low, it toggles PORTC.3 only once.
379

LDI R20,0x2 ;make INT0 falling edge triggered
OUT MCUCR,R20
which makes INT0 an edge-triggered interrupt. When the falling edge of
the signal is applied to pin INT0, PORTC.3 will toggle. To toggle the LED again,
another high-to-low pulse must be applied to INT0. This is the opposite of
as long as INT0 is kept at a low level, PORTC.3 toggles. But in this example, to
turn on PORTC.3 again, the INT0 pulse must be brought back high and then low
to create a falling edge to activate the interrupt.
Sampling the edge-triggered and level-triggered interrupts
or the change level) is latched by the AVR and is held by the INTFx bits of the
GIFR register. This means that when an external interrupt is in an edge-triggered
mode (falling edge, rising edge, or change level), upon triggering an interrupt
request, the related INTFx flag becomes set. If the interrupt is active (the INTx bit
is set and the I-bit in SREG is one), the AVR will jump to the corresponding inter-
rupt vector location and the INTFx flag will be cleared automatically, otherwise,
the flag remains set. The flag can be cleared by writing a one to it. For example,
the INTF1 flag can be cleared using the following instructions:
LDI R20,(1INTF1) ;R20 = 0x80
OUT GIFR,R20 ;clear the INTF1 flag
Notice that in edge-triggered interrupts (falling edge, rising edge, and
change level interrupts), the pulse must last at least 1 instruction cycle to ensure
that the transition is seen by the microcontroller. This means that pulses shorter
than 1 machine cycle are not guaranteed to generate an interrupt.
When an external interrupt is in level-triggered mode, the interrupt is not
latched, meaning that the INTFx flag remains unchanged when an interrupt occurs,
and the state of the pin is read directly. As a result, when an interrupt is in
level-triggered mode, the pin must be held low for a minimum time of 5 machine
cycles to be recognized.
Review Questions
1. True or false. Upon reset, the external hardware interrupts INT0–INT2 are
edge triggered.
-
-
-
INTF2 -
INTF1 -
INTF0
D0
D7
Bit
In Example 7, notice that the only difference between it and the pro-
gram in Example 5 is in the following instructions:
Example 5. In Example 5, due to the level-triggered nature of the interrupt,
Examine Figure 9. The edge interrupt (the falling edge, the rising edge,
Figure 9. GIFR (General Interrupt Flag Register) Register
380

2. For ATmega32, what pins are assigned to INT0–INT2?
3. Show how to enable the INT1 interrupt.
4. Assume that the external hardware interrupt INT0 is enabled, and is set to the
low-edge trigger. Explain how this interrupt works when it is activated.
5. True or false. Upon reset, the INT2 interrupt is falling edge triggered.
6. Assume that INT0 is falling edge triggered. How do we make sure that a sin-
gle interrupt is not recognized as multiple interrupts?
7. Using polling and INT0, write a program that upon falling edges toggles
The next topic that we must deal with is what happens when two interrupts
are activated at the same time. Which of these two interrupts is responded to first?
Interrupt priority
If two interrupts are activated at the same time, the interrupt with the high-
er priority is served first. The priority of each interrupt is related to the address of
that interrupt in the interrupt vector. The interrupt that has a lower address, has a
2, while the address of external interrupt 2 is 6; thus, external interrupt 0 has a
higher priority, and if both of these interrupts are activated at the same time, exter-
nal interrupt 0 is served first.
Interrupt inside an interrupt
What happens if the AVR is executing an ISR belonging to an interrupt and
another interrupt is activated? When the AVR begins to execute an ISR, it disables
the I bit of the SREG register, causing all the interrupts to be disabled, and no other
interrupt occurs while serving the interrupt. When the RETI instruction is execut-
ed, the AVR enables the I bit, causing the other interrupts to be served. If you want
another interrupt (with any priority) to be served while the current interrupt is
being served you can set the I bit using the SEI instruction. But do it with care. For
example, in a low-level-triggered external interrupt, enabling the I bit while the pin
is still active will cause the ISR to be reentered infinitely, causing the stack to over-
flow with unpredictable consequences.
Context saving in task switching
In multitasking systems, such as multitasking real-time operating systems
(RTOS), the CPU serves one task (job or process) at a time and then moves to the
next one. In simple systems, the tasks can be organized as the interrupt service rou-
(1) copying the contents of PORTC to PORTD,
(2) toggling POR
While writing a program for a multitasking system, we should manage the
resources carefully so that the tasks do not conflict with each other. For example,
consider a system that should perform the following tasks: (1) increasing the con-
SECTION 4: INTERRUPT PRIORITY IN THE AVR
PORTC.3. Compare it with Example 7; which program is better?
higher priority. See Table 1. For example, the address of external interrupt 0 is
tine. For example, in Example 3, the program does two different tasks:
TC.2 every 5 µs
381

tents of PORTC continuously, and (2) increasing the content of PORTD once every
.INCLUDE M32DEF.INC
JMP MAIN
JMP T0_CM_ISR
;-main program for initialization and keeping CPU busy
.ORG 0x100
OUT SPH,R20
LDI R20,LOW(RAMEND)
LDI R20,(1OCIE0)
LDI R20,160
LDI R20,0x09
OUT TCCR0,R20 ;CTC mode, int clk, no prescaler
LDI R20,0xFF
LDI R20, 0
HERE: OUT PORTC,R20 ;PORTC = R20
INC R20
;--------------------------ISR for Timer0
T0_CM_ISR:
IN R20,PIND
INC R20
The tasks do not work properly, since they have resource conflict and they
interfere with each other. R20 is used and changed by both tasks, which causes the
program not to work properly. For example, consider the following scenario: The
content of R20 increases in the main program, at first becoming 0, then 1, and so
on. When the timer interrupt occurs, R20 is 95, and PORTC is 95 as well. In the
ISR, the R20 is loaded with the content of PORTD, which is 0. So, when it goes
back to the main program, the content of R20 is 1 and PORTC will be loaded by
2. But if the program worked properly, PORTC would be loaded with 96.
We can solve such problems in the following two ways:
(1) Using different registers for different tasks. In the program discussed
above, if we use different registers in the main program and in the ISR, the pro-
gram will work properly.
;Program
.INCLUDE M32DEF.INC
JMP MAIN
;Program 4
5
5 µs. Read the following program. Does it work?
382

JMP T0_CM_ISR
;------main program for initialization and keeping CPU busy
.ORG 0x100
OUT SPH,R20
LDI R20,LOW(RAMEND)
LDI R20,(1OCIE0)
LDI R20,160
LDI R20,0x09
OUT TCCR0,R20 ;start timer,CTC mode,int clk,no prescaler
LDI R20,0xFF
LDI R20, 0
INC R20
JMP HERE ;keeping CPU busy waiting for int.
;--------------------------ISR for Timer0
T0_CM_ISR:
IN R21,PIND
INC R21
OUT PORTD,R21 ;toggle PB5
(2) Context saving. In big programs we might not have enough registers to
use separate registers for different tasks. In these cases, we can save the contents
of registers on the stack before execution of each task, and reload the registers at
the end of the task. This saving of the CPU contents before switching to a new task
is called context saving (or context switching). See the following program:
;Program
.INCLUDE M32DEF.INC
JMP MAIN
JMP T0_CM_ISR
;main program for initialization and keeping CPU busy
.ORG 0x100
OUT SPH,R20
LDI R20,LOW(RAMEND)
LDI R20,(1OCIE0)
LDI R20,160
LDI R20,0x09
6
383

OUT TCCR0,R20 ;CTC mode, int clk, no prescaler
LDI R20,0xFF
LDI R20, 0
INC R20
;--------------------------ISR for Timer0
T0_CM_ISR:
PUSH R20 ;save R20 on stack
IN R20,PIND
INC R20
OUT PORTD,R20 ;toggle PB5
POP R20 ;restore value for R20
Notice that using the stack as a place to save the CPU’s contents is tedious,
time consuming, and slow. So, we might want to use the first solution, whenever
we have enough registers.
Saving flags of the SREG register
The flags of SREG are important especially when there are conditional
jumps in our program. We should save the SREG register if the flags are changed
Interrupt latency
The time from the moment an interrupt is activated to the moment the CPU
starts to execute the task is called the interrupt latency. This latency is 4 machine
cycle times. During this time the PC register is pushed on the stack and the I bit of
the SREG register clears, causing all the interrupts to be disabled. The duration of
an interrupt latency can be affected by the type of instruction that the CPU is exe-
cuting when the interrupt comes in, since the CPU finishes the execution of the
current instruction before it serves the interrupt. It takes slightly longer in cases
where the instruction being executed lasts for two (or more) machine cycles (e.g.,
MUL) compared to the instructions that last for only one instruction cycle (e.g.,
ADD). See the AVR datasheet for the timing.
Sample_ISR:
PUSH R20
IN R20,SREG
PUSH R20
...
POP R20
OUT SREG,R20
POP R20
RETI
in a task. See Figure 10.
Figure 10. Saving the SREG Register
384

Review Questions
1. True or false. In ATmega32, if the Timer1 and Timer0 interrupts are activated
at the same time, the Timer0 interrupt is served first.
2. What happens if two interrupts are activated at the same time?
3. What happens if an interrupt is activated while the CPU is serving another
interrupt?
4. What is context saving?
So far all the programs in this chapter have been written in Assembly. In
this section we show how to program the AVR’s interrupts in WinAVR C language.
In C language there is no instruction to manage the interrupts. So, in
WinAVR the following have been added to manage the interrupts:
1. Interrupt include file: We should include the interrupt header file if we want
to use interrupts in our program. Use the following instruction:
#include avrinterrupt.h
2. cli( ) and sei( ): In Assembly, the CLI and SEI instructions clear and set
the I bit of the SREG register, respectively. In WinAVR, the cli() and sei()
macros do the same tasks.
Interrupt Vector Name in WinAVR
External Interrupt request 0 INT0_vect
Time/Counter2 Compare Match TIMER2_COMP_vect
Time/Counter2 Overflow TIMER2_OVF_vect
Time/Counter1 Capture Event TIMER1_CAPT_vect
Time/Counter1 Compare Match A TIMER1_COMPA_vect
Time/Counter1 Compare Match B TIMER1_COMPB_vect
Time/Counter0 Compare Match TIMER0_COMP_vect
SPI Transfer complete SPI_STC_vect
USART, Receive complete USART0_RX_vect
USART, Data Register Empty USART0_UDRE_vect
USART, Transmit Complete USART0_TX_vect
ADC Conversion complete ADC_vect
EEPROM ready EE_RDY_vect
Analog Comparator ANALOG_COMP_vect
Two-wire Serial Interface TWI_vect
Store Program Memory Ready SPM_RDY_vect
SECTION 5: INTERRUPT PROGRAMMING IN C
Table 3: Interrupt Vector Name for the ATmega32/ATmega16 in WinAVR
385

3. Defining ISR: To write an ISR (interrupt service routine) for an interrupt we
use the following structure:
ISR(interrupt vector name)
{
//our program
}
vector name
For example, the following ISR serves the Timer0 compare match interrupt:
ISR (TIMER0_COMP_vect)
{
}
Using Timer0 generate a square wave on pin PORTB.5, while at the same time transfer-
ring data from PORTC to PORTD.
Solution:
#include avr/io.h
#include avr/interrupt.h
int main ()
{
DDRB |= 0x20; //DDRB.5 = output
TCNT0 = -32; //timer value for 4 µs
TCCR0 = 0x01; //Normal mode, int clk, no prescaler
TIMSK = (1TOIE0); //enable Timer0 overflow interrupt
sei (); //enable interrupts
DDRC = 0x00; //make PORTC input
DDRD = 0xFF; //make PORTD output
while (1) //wait here
PORTD = PINC;
}
ISR (TIMER0_OVF_vect) //ISR for Timer0 overflow
{
TCNT0 = -32;
PORTB ^= 0x20; //toggle PORTB.5
}
For the interrupt we must use the ISR names in Table 3.
See Example 8.
Example 8 (C version of Program 1)
µ
386

Context saving
The C compiler automatically adds instructions to the beginning of the
ISRs, which save the contents of all of the general purpose registers and the SREG
register on the stack. Some instructions are also added to the end of the ISRs to
Using Timer0 and Timer1 interrupts, generate square waves on pins PB1 and PB7
respectively, while transferring data from PORTC to PORTD.
Solution:
#include avr/io.h
int main ( )
{
DDRB |= 0x82; //make DDRB.1 and DDRB.7 output
TCNT0 = -160;
TCCR0 = 0x01; //Normal mode, int clk, no prescaler
TCNT1H = (-640)8; //the high byte
TCNT1L = (-640); //the low byte
TCCR1A = 0x00;
TCCR1B = 0x01;
TIMSK = (1TOIE0)|(1TOIE1); //enable Timers 0 and 1 int.
PORTD = PINC;
}
{
TCNT0 = -160; //TCNT0 = -160 (reload for next round)
}
{
TCNT1H = (-640)8;
TCNT1L = (-640); //TCNT1 = -640 (reload for next round)
}
Note: We can use “TCNT1 = -640;” in place of the following instructions:
TCNT1H = (-640)8;
TCNT1L = (-640);
reload the registers. See Examples 9 through 13.
387

Using Timer0 and Timer1 interrupts, write a program in which:
(a) PORTA counts up everytime Timer1 overflows. It overflows once per second.
(b) A pulse is fed into Timer0 where Timer0 is used as counter and counts up. Whenever
the counter reaches 200, it will toggle the pin PORTB.6.
Solution:
#include avr/io.h
int main ()
{
DDRA = 0xFF; //make PORTA output
DDRB |= 0x40; //PORTB.6 as an output
PORTB |= 0x01; //activate pull-up
TCNT0 = -200; //load Timer0 with -200
TCCR0 = 0x06; //Normal mode, falling edge, no prescaler
TCNT1L = (-31250)0xFF; //overflow after 31250 clocks
TCCR1B = 0x04; //internal clock, prescaler 1:256
TIMSK = (1TOIE0)|(1TOIE1); //enable Timers 0 1 int.
PORTD = PINC;
}
{
TCNT0 = -200; //TCNT0 = -200
}
{
TCNT1L = (-31250)0xFF; //overflow after 31250 clocks
PORTA ++; //increment PORTA
}
388

Using Timer1, write a program that toggles pin PORTB.5 every second, while at the
same time transferring data from PORTC to PORTD. Assume XTAL = 8 MHz.
Solution:
#include avr/io.h
int main ()
{
DDRB |= 0x20; //make DDRB.5 output
OCR0 = 40;
TCCR0 = 0x09; //CTC mode, internal clk, no prescaler
TIMSK = (1OCIE0); //enable Timer0 compare match int.
PORTD = PINC;
}
ISR (TIMER0_COMP_vect) //ISR for Timer0 compare match
{
}
389

Assume that the INT0 pin is connected to a switch that is normally high. Write a pro-
gram that toggles PORTC.3, whenever INT0 pin goes low. Use the external interrupt in
level-triggered mode.
Solution:
#include avr/io.h
int main ()
{
DDRC = 13; //PC3 as an output
PORTD = 12; //pull-up activated
GICR = (1INT0); //enable external interrupt 0
while (1); //wait here
}
ISR (INT0_vect) //ISR for external interrupt 0
{
PORTC ^= (13); //toggle PORTC.3
}
once.
Solution:
#include avr/io.h
int main ()
{
DDRC = 13; //PC3 as an output
PORTD = 12; //pull-up activated
MCUCR = 0x02; //make INT0 falling edge triggered
GICR = (1INT0); //enable external interrupt 0
while (1); //wait here
}
ISR (INT0_vect) //ISR for external interrupt 0
{
PORTC ^= (13); //toggle PORTC.3
}
Example 13 (C version of Example Example 7)
Rewrite Example 12 so that whenever INT0 goes low, it toggles PORTC.3 only
390

SUMMARY
An interrupt is an external or internal event that interrupts the microcon-
troller to inform it that a device needs its service. Every interrupt has a program
associated with it called the ISR, or interrupt service routine. The AVR has many
sources of interrupts, depending on the family member. Some of the most widely
used interrupts are for the timers, external hardware interrupts, and serial commu-
nication. When an interrupt is activated, the IF (interrupt flag) bit is raised.
The AVR can be programmed to enable (unmask) or disable (mask) an
interrupt, which is done with the help of the I (global interrupt enable) and IE
(interrupt enable) bits. This chapter also showed how to program AVR interrupts
in both Assembly and C languages.
PROBLEMS
1. Which technique, interrupt or polling, avoids tying down the microcontroller?
2. List some of the interrupt sources in the AVR.
3. In the ATmega32 what memory area is assigned to the interrupt vector table?
4. True or false. The AVR programmer cannot change the memory address loca-
tion assigned to the interrupt vector table.
5. What memory address is assigned to the Timer0 overflow interrupt in the inter-
rupt vector table?
6. What memory address is assigned to the Timer1 overflow interrupt in the inter-
rupt vector table?
7. Do we have a memory address assigned to the Time0 compare match interrupt
in the interrupt vector table?
8. Do we have a memory address assigned to the external INT0 interrupt in the
interrupt vector table?
9. To which register does the I bit belong?
10. Why do we put a JMP instruction at address 0?
11. What is the state of the I bit upon power-on reset, and what does it mean?
12. Show the instruction to enable the Timer0 compare match interrupt.
13. Show the instruction to enable the Timer1 overflow interrupt.
14. The TOIE0 bit belongs to register______.
15. True or false. The TIMSK register is not a bit-addressable register.
16. With a single instruction, show how to disable all the interrupts.
17. Show how to disable the INT0 interrupt.
18. True or false. Upon reset, all interrupts are enabled by the AVR.
19. In the AVR, how many bytes of program memory are assigned to the reset?
20. True or false. For each of Timer0 and Timer1, there is a unique address in the
interrupt vector table.
391

21. What address in the interrupt vector table is assigned to Timer2 overflow?
22. Show how to enable the Timer2 overflow interrupt.
23. Which bit of TIMSK belongs to the Timer0 overflow interrupt? Show how it
is enabled.
24. Assume that Timer0 is programmed in Normal mode, TCNT0 = $E0, and the
TOIE0 bit is enabled. Explain how the interrupt for the timer works.
25. True or false. The last three instructions of the ISR for Timer0 are:
LDI R20,0x01
RETI
26. Assume that Timer1 is programmed for CTC mode, TCNT1H = $01, TCNT1L
= $00, OCR1AH = $01, OCR1AL = $F5, and the OCIE1A bit is enabled.
Explain how the interrupt is activated.
27. Assume that Timer1 is programmed for Normal mode, TCNT1H = $FF,
TCNT1L = $E8, and the TOIE1 bit is enabled. Explain how the interrupt is
activated.
28. Write a program using the Timer1 interrupt to create a square wave of 1 Hz on
pin PB7 while sending data from PORTC to PORTD. Assume XTAL = 8 MHz.
29. Write a program using the Timer0 interrupt to create a square wave of 3 kHz on
pin PB7 while sending data from PORTC to PORTD. Assume XTAL = 1 MHz.
30. True or false. An address location is assigned to each of the external hardware
interrupts INT0, INT1, and INT2.
31. What address in the interrupt vector table is assigned to INT0, INT1 and
INT2? How about the pins?
32. To which register does the INT0 bit belong? Show how it is enabled.
33. To which register does the INT1 bit belong? Show how it is enabled.
34. Show how to enable all three external hardware interrupts.
35. Assume that the INT0 bit for external hardware interrupt is enabled and is neg-
ative edge-triggered. When is the interrupt activated? How does this interrupt
work when it is activated.
36. True or false. Upon reset, all the external hardware interrupts are negative edge
triggered.
37. The INTF0 bit belongs to the _______ register.
38. The INTF1 bit belongs to the _______ register.
39. Explain the role of INTF0 and INT0 in the execution of external interrupt 0.
40. Explain the role of I in the execution of external interrupts.
41. True or false. Upon power-on reset, all of INT0–INT2 are positive edge trig-
gered.
42. Explain the difference between low-level and falling edge-triggered interrupts.
43. Show how to make the external INT0 negative edge triggered.
44. True or false. INT0–INT2 must be configured as an input pin for a hardware
interrupt to come in.
45. Assume that the INT0 pin is connected to a switch. Write a program in which,
whenever it goes low, the content of PORTC increases by one.
46. Assume that the INT0 and INT1 are connected to two switches named S1 and
SECTION 3: PROGRAMMING EXTERNAL HARDWARE INTERRUPTS
392

S2. Write a program in which, whenever S1 goes low, the content of PORTC
increases by one; and when S2 goes low, the content of PORTC decreases by
one. When the value of PORTC is bigger than 100, PD7 is high; otherwise, it
is low.
47. Explain what happens if both INT1F and INT2F are activated at the same time.
48. Assume that the Timer1 and Timer0 overflow interrupts are both enabled.
Explain what happens if both TOV1 and TOV0 are activated at the same time.
49. Explain what happens if an interrupt is activated while the AVR is serving an
interrupt.
50. True or false. In the AVR, an interrupt inside an interrupt is not allowed.
1. Interrupt
2. Timer0 overflow, Timer0 compare match, Timer1 overflow, Timer1 compare B match, Timer1
compare A match, Timer1 input capture, Timer2 overflow, Timer2 output compare match
3. Address locations 0x00 to 0x28. No. It is set when the processor is designed.
4. I = 0 means that all interrupts are masked, and as a result no interrupts will be responded to by
the AVR.
5. Assuming I = 1, we need:
LDI R16,(1OCIE1A)
OUT TIMSK,R16
6. $12 for Timer1 overflow interrupt and 0x02 for INT0.
1. False. For each of the interrupts there is a separate address.
2. 0x16
3. TIMSK
LDI R16,(1TOIE0)
OUT TIMSK,R16
4. After Timer0 is started, the timer will count up from $F1 to $FF on its own while the AVR is
executing other tasks. Upon rolling over from $FF to 00, the TOV0 flag is raised, which will
interrupt the AVR in whatever it is doing and force it to jump to memory location $0016 to
execute the ISR belonging to this interrupt.
5. False. There is no need to clear the TOV0 flag since the AVR clears the TOV0 flag internally
upon jumping to the interrupt vector table.
6. The timer counts from 0 to 21. Then TCNT0 is loaded with 0 and the OCF0 flag is set. If
Timer0 compare match interrupt is enabled, the ISR of the compare match interrupt is execut-
ed on each compare match.
7. 1/8 MHz = 125 ns è 125 ns × (21 + 1)
1. False. Only INT2 is in edge-triggered mode.
2. Bits PD2 (PORTD.2), PD3 (PORTD.3), and PB2 (PORTB.2) are assigned to INT0, INT1, and
INT2, respectively.
SECTION 3: PROGRAMMING EXTERNAL HARDWARE INTERRUPTS
= 2.75 µs
393

3. LDI R20,(1INT1)
OUT GICR,R20
4. Upon application of a high-to-low pulse to pin PD2, the INTF0 flag will be set; as a result, the
AVR is interrupted in whatever it is doing, clears the INTF0 flag, and jumps to ROM location
0x02 to execute the ISR.
5. True
6. When the CPU jumps to the interrupt vector to execute the ISR, it clears the flag that has
caused the interrupt (the INTF0 flag in this case). The INTF0 flag will be set only if a new
high-to-low pulse is applied to the pin.
7. .INCLUDE M32DEF.INC
LDI R16,0x2
OUT MCUCR,R16 ;make INT0 falling edge triggered
L1: IN R20,GIFR
SBRS R20,INTF0 ;skip next instruct. if the INTF0 bit of GIFR is set
RJMP L1 ;go to L1
IN R21,PORTC ;R21 = PORTC
LDI R22,0x08
EOR R21,R22 ;R21 = R21 xor 0x08 (toggle bit 3)
OUT PORTC,R21 ;PORTC = R21
LDI R20,1INTF0
OUT GIFR,R20 ;clear INTF0 flag
RJMP L1
1.
address of Timer1 overflow is $12. Thus, the Timer1 overflow has a higher priority.
2. The interrupt whose vector is first in the interrupt vector is served first.
3. The flag of the interrupt will be set, but since I is 0, the new interrupt will not be served. The
last instruction of the old interrupt is RETI, which causes the I flag to be set and the new inter-
rupt to be served.
4. Context saving is the saving of the CPU contents before switching to a new task.
False. As shown in Table 1, the address of the Timer0 overflow interrupt is $16, while the
394

OBJECTIVES

Contrast and compare serial versus parallel data transfer

List the advantages of serial communication over parallel

Explain serial communication protocol

Contrast synchronous versus asynchronous communication

Contrast half- versus full-duplex transmission

Explain the process of data framing

Describe data transfer rate and bps rate

Define the RS232 standard

Explain the use of the MAX232 and MAX233 chips

Interface the AVR with an RS232 connector

Discuss the baud rate of the AVR

Describe serial communication features of the AVR

Describe the main registers used by serial communication of the AVR

Program the ATmega32 serial port in Assembly and C
AVR SERIAL PORT
PROGRAMMING IN
ASSEMBLY AND C
395

Computers transfer data in two ways: parallel and serial. In parallel data
transfers, often eight or more lines (wire conductors) are used to transfer data to a
device that is only a few feet away. Devices that use parallel transfers include
printers and IDE hard disks; each uses cables with many wires. Although a lot of
data can be transferred in a short amount of time by using many wires in parallel,
the distance cannot be great. To transfer to a device located many meters away, the
serial method is used. In serial communication, the data is sent one bit at a time,
in contrast to parallel communication, in which the data is sent a byte or more at a
time. Serial communication of the AVR is the topic of this chapter. The AVR has
serial communication capability built into it, thereby making possible fast data
transfer using only a few wires.
In this chapter we first discuss the basics of serial communication. In
When a microprocessor communicates with the outside world, it provides
the data in byte-sized chunks. For some devices, such as printers, the information
is simply grabbed from the 8-bit data bus and presented to the 8-bit data bus of the
device. This can work only if the cable is not too long, because long cables dimin-
ish and even distort signals. Furthermore, an 8-bit data path is expensive. For these
reasons, serial communication is used for transferring data between two systems
grams serial versus parallel data transfers.
The fact that a single data line is used in serial communication instead of
the 8-bit data line of parallel communication makes serial transfer not only much
cheaper but also enables two computers located in two different cities to commu-
nicate over the telephone.
For serial data communication to work, the byte of data must be converted
Sender
Serial Transfer Parallel Transfer
Receiver Sender Receiver
D0
D7
AVR SERIAL PORT PROGRAMMING IN ASSEMBLY AND C
Section 2, AVR interfacing to RS232 connectors via MAX232 line drivers is
discussed. Serial port programming of the AVR is discussed in Section 3.
Section 4 covers AVR C programming for the serial port using the Win AVR
compiler. In Section 5 interrupt-based serial port programming is discussed.
SECTION 1: BASICS OF SERIAL COMMUNICATION
located at distances of hundreds of feet to millions of miles apart. Figure 1 dia-
Figure 1. Serial versus Parallel Data Transfer
396

to serial bits using a parallel-in-serial-out shift register; then it can be transmitted
over a single data line. This also means that at the receiving end there must be a
serial-in-parallel-out shift register to receive the serial data and pack them into a
byte. Of course, if data is to be transmitted on the telephone line, it must be con-
verted from 0s and 1s to audio tones, which are sinusoidal signals. This conversion
is performed by a peripheral device called a modem, which stands for “modula-
tor/demodulator.”
When the distance is short, the digital signal can be transmitted as it is on
a simple wire and requires no modulation. This is how x86 PC keyboards transfer
data to the motherboard. For long-distance data transfers using communication
lines such as a telephone, however, serial data communication requires a modem
to modulate (convert from 0s and 1s to audio tones) and demodulate (convert from
audio tones to 0s and 1s).
Serial data communication uses two methods, asynchronous and synchro-
nous. The synchronous method transfers a block of data (characters) at a time,
whereas the asynchronous method transfers a single byte at a time. It is possible
to write software to use either of these methods, but the programs can be tedious
and long. For this reason, special IC chips are made by many manufacturers for
serial data communications. These chips are commonly referred to as UART (uni-
versal asynchronous receiver-transmitter) and USART (universal synchronous-
asynchronous receiver-transmitter). The AVR chip has a built-in USART, which is
Half- and full-duplex transmission
In data transmission, if the data can be both transmitted and received, it is
a duplex transmission. This is in contrast to simplex transmissions such as with
printers, in which the computer only sends data. Duplex transmissions can be half
or full duplex, depending on whether or not the data transfer can be simultaneous.
If data is transmitted one way at a time, it is referred to as half duplex. If the data
Transmitter
Simplex Receiver
Transmitter
Full Duplex Receiver
Receiver Transmitter
Transmitter
Half Duplex Receiver
Receiver Transmitter
discussed in detail in Section 3.
Figure 2. Simplex, Half-, and Full-Duplex Transfers
397

can go both ways at the same time, it is full duplex. Of course, full duplex requires
two wire conductors for the data lines (in addition to the signal ground), one for
transmission and one for reception, in order to transfer and receive data simulta-
Asynchronous serial communication and data framing
The data coming in at the receiving end of the data line in a serial data
transfer is all 0s and 1s; it is difficult to make sense of the data unless the sender
and receiver agree on a set of rules, a protocol, on how the data is packed, how
many bits constitute a character, and when the data begins and ends.
Start and stop bits
Asynchronous serial data communication is widely used for character-ori-
ented transmissions, while block-oriented data transfers use the synchronous
method. In the asynchronous method, each character is placed between start and
stop bits. This is called framing. In data framing for asynchronous communica-
tions, the data, such as ASCII characters, are packed between a start bit and a stop
bit. The start bit is always one bit, but the stop bit can be one or two bits. The start
bit is always a 0 (low), and the stop bit(s) is 1 (high). For example, look at
between the start bit and a single stop bit. Notice that the LSB is sent out first.
which is referred to as mark. The 0 (low) is referred to as space. Notice that the
transmission begins with a start bit (space) followed by D0, the LSB, then the rest
of the bits until the MSB (D7), and finally, the one stop bit indicating the end of
the character “A”.
In asynchronous serial communications, peripheral chips and modems can
be programmed for data that is 7 or 8 bits wide. This is in addition to the number
of stop bits, 1 or 2. While in older systems ASCII characters were 7-bit, in recent
years, 8-bit data has become common due to the extended ASCII characters. In
some older systems, due to the slowness of the receiving mechanical device, two
stop bits were used to give the device sufficient time to organize itself before trans-
mission of the next byte. In modern PCs, however, the use of one stop bit is stan-
dard. Assuming that we are transferring a text file of ASCII characters using 1 stop
bit, we have a total of 10 bits for each character: 8 bits for the ASCII code, and 1
bit each for the start and stop bits. Therefore, each 8-bit character has an extra 2
bits, which gives 25% overhead.
0
d7
goes out last
goes out first
d0
0 0 0 0 0
1 1
stop
bit
start
bit
mark
Space
neously. See Figure 2.
Figure 3 in which the ASCII character “A” (8-bit binary 0100 0001) is framed
Notice in Figure 3 that when there is no transfer, the signal is 1 (high),
Figure 3. Framing ASCII ‘A’ (41H)
398

In some systems, the parity bit of the character byte is included in the data
frame in order to maintain data integrity. This means that for each character (7- or
8-bit, depending on the system) we have a single parity bit in addition to start and
stop bits. The parity bit is odd or even. In the case of an odd parity bit the number
of 1s in the data bits, including the parity bit, is odd. Similarly, in an even parity
bit system the total number of bits, including the parity bit, is even. For example,
the ASCII character “A”, binary 0100 0001, has 0 for the even parity bit. UART
chips allow programming of the parity bit for odd-, even-, and no-parity options.
Data transfer rate
The rate of data transfer in serial data communication is stated in bps (bits
per second). Another widely used terminology for bps is baud rate. However, the
baud and bps rates are not necessarily equal. This is because baud rate is the
modem terminology and is defined as the number of signal changes per second. In
modems, sometimes a single change of signal transfers several bits of data. As far
as the conductor wire is concerned, the baud rate and bps are the same, and for this
The data transfer rate of a given computer system depends on communica-
tion ports incorporated into that system. For example, the early IBM PC/XT could
transfer data at the rate of 100 to 9600 bps. In recent years, however, Pentium-
based PCs transfer data at rates as high as 56K. Notice that in asynchronous seri-
al data communication, the baud rate is generally limited to 100,000 bps.
RS232 standards
To allow compatibility among data communication equipment made by
various manufacturers, an interfacing standard called RS232 was set by the
Electronics Industries Association (EIA) in 1960. In 1963 it was modified and
called RS232A. RS232B and RS232C were issued in 1965 and 1969, respective-
widely used serial I/O interfacing standards. This standard is used in PCs and
numerous types of equipment. Because the standard was set long before the advent
of the TTL logic family, however, its input and output voltage levels are not TTL
compatible. In RS232, a 1 is represented by −3 to −25 V, while a 0 bit is +3 to +25
volts, making −3 to +3 undefined. For this reason, to connect any RS232 to a
microcontroller system we must use voltage converters such as MAX232 to con-
vert the TTL logic levels to the RS232 voltage levels, and vice versa. MAX232 IC
chips are commonly referred to as line drivers. Original RS232 connection to
RS232 pins
commonly referred to as the DB-25 connector. In labeling, DB-25P refers to the
plug connector (male), and DB-25S is for the socket connector (female). See
MAX232 is discussed in Section 2.
Table 1 shows the pins for the original RS232 cable and their labels,
Figure 4.
reason in this text we use the terms bps and baud interchangeably.
ly. In this text we refer to it simply as RS232. Today, RS232 is one of the most
399

Because not all the pins were used in PC cables, IBM introduced the DB-
9 version of the serial I/O standard, which uses only 9 pins, as shown in
Data communication classification
Current terminology classifies data communication equipment as DTE
(data terminal equipment) or DCE (data communication equipment). DTE refers
to terminals and computers that send
and receive data, while DCE refers to
communication equipment, such as
modems, that are responsible for trans-
ferring the data. Notice that all the
RS232 pin function definitions of
point of view.
The simplest connection
between a PC and a microcontroller
requires a minimum of three pins, TX,
RX, and ground, as shown in
the RX and TX pins are interchanged.
Examining RS232 hand-
shaking signals
To ensure fast and reliable data
transmission between two devices, the
data transfer must be coordinated. Just
as in the case of the printer, because the
receiving device may have no room for
the data in serial data communication,
there must be a way to inform the
sender to stop sending data. Many of
the pins of the RS-232 connector are
used for handshaking signals. Their
description is provided below only as a
reference, and they can be bypassed
Pin Description
1 Protective ground
2 Transmitted data (TxD)
3 Received data (RxD)
4 Request to send (
____
RTS)
5 Clear to send (
____
CTS)
6 Data set ready (
____
DSR)
7 Signal ground (GND)
8 Data carrier detect (
____
DCD)
9/10 Reserved for data testing
11 Unassigned
12 Secondary data carrier detect
13 Secondary clear to send
14 Secondary transmitted data
15 Transmit signal element timing
16 Secondary received data
17 Receive signal element timing
18 Unassigned
19 Secondary request to send
20 Data terminal ready (
____
DTR)
21 Signal quality detector
22 Ring indicator
23 Data signal rate select
24 Transmit signal element timing
25 Unassigned
14 25
13
1
Figure 4. The Original RS232 Connector DB-25 (No longer in use)
Table 2. The DB-9 pins are shown in Figure 5.
Tables 1 and 2 are from the DTE
Figure 6. Notice in that figure that
Table 1: RS232 Pins (DB-25)
400

because they are not supported by the
AVR UART chip.
1. DTR (data terminal ready). When
the terminal (or a PC COM port) is
turned on, after going through a
self-test, it sends out signal DTR to
indicate that it is ready for commu-
nication. If there is something
wrong with the COM port, this sig-
nal will not be activated. This is an
active-LOW signal and can be used
to inform the modem that the com-
puter is alive and kicking. This is
an output pin from DTE (PC COM
port) and an input to the modem.
2. DSR (data set ready). When the
DCE (modem) is turned on and has
gone through the self-test, it asserts
DSR to indicate that it is ready to
communicate. Thus, it is an output
from the modem (DCE) and an
input to the PC (DTE). This is an
active-LOW signal. If for any rea-
son the modem cannot make a con-
nection to the telephone, this signal
remains inactive, indicating to the
PC (or terminal) that it cannot
accept or send data.
3. RTS (request to send). When the
DTE device (such as a PC) has a
byte to transmit, it asserts RTS to
signal the modem that it has a byte
of data to transmit. RTS is an
active-LOW output from the DTE
and an input to the modem.
4. CTS (clear to send). In response to RTS, when the modem has room to store
the data it is to receive, it sends out signal CTS to the DTE (PC) to indicate
that it can receive the data now. This input signal to the DTE is used by the
DTE to start transmission.
5. DCD (data carrier detect). The modem asserts signal DCD to inform the DTE
(PC) that a valid carrier has been detected and that contact between it and the
other modem is established. Therefore, DCD is an output from the modem and
an input to the PC (DTE).
6. RI (ring indicator). An output from the modem (DCE) and an input to a PC
(DTE) indicates that the telephone is ringing. RI goes on and off in synchro-
nization with the ringing sound. Of the six handshake signals, this is the least
often used because modems take care of answering the phone. If in a given sys-
Pin Description
1 Data carrier detect (
____
DCD)
2 Received data (RxD)
3 Transmitted data (TxD)
4 Data terminal ready (DTR)
5 Signal ground (GND)
6 Data set ready (
____
DSR)
7 Request to send (
____
RTS)
8 Clear to send (
____
CTS)
9 Ring indicator (RI)
DTE
ground
TxD
RxD RxD
TxD
DTE
6 9
5
1
Figure 5. 9-Pin Connector for DB-9
Table 2: IBM PC DB-9 Signals
Figure 6. Null Modem Connection
401

tem the PC is in charge of answering the phone, however, this signal can be
used.
From the above description, PC and modem communication can be sum-
marized as follows: While signals DTR and DSR are used by the PC and modem,
respectively, to indicate that they are alive and well, it is RTS and CTS that actu-
ally control the flow of data. When the PC wants to send data it asserts RTS, and
in response, the modem, if it is ready (has room) to accept the data, sends back
CTS. If, for lack of room, the modem does not activate CTS, the PC will deassert
DTR and try again. RTS and CTS are also referred to as hardware control flow sig-
nals.
This concludes the description of the most important pins of the RS232
handshake signals plus TX, RX, and ground. Ground is also referred to as SG (sig-
nal ground).
x86 PC COM ports
The x86 PCs (based on 8086, 286, 386, 486, and all Pentium microproces-
sors) used to have two COM ports. Both COM ports were RS232-type connectors.
The COM ports were designated as COM 1 and COM 2. In recent years, one of
these has been replaced with the USB port, and COM 1 is the only serial port avail-
able, if any. We can connect the AVR serial port to the COM 1 port of a PC for
serial communication experiments. In the absence of a COM port, we can use a
COM-to-USB converter module.
With this background in serial communication, we are ready to look at the
AVR. In the next section we discuss the physical connection of the AVR and
munication port.
Review Questions
1. The transfer of data using parallel lines is ___________ (faster, slower) but
________________ (more expensive, less expensive).
2. True or false. Sending data from a radio station is duplex.
3. True or false. In full duplex we must have two data lines, one for transfer and
one for receive.
4. The start and stop bits are used in the ___________ (synchronous, asynchro-
nous) method.
5. Assuming that we are transmitting the ASCII letter “E” (0100 0101 in binary)
with no parity bit and one stop bit, show the sequence of bits transferred seri-
ally.
6. In Question 5, find the overhead due to framing.
7. Calculate the time it takes to transfer 10,000 characters as in Question 5 if we
use 9600 bps. What percentage of time is wasted due to overhead?
8. True or false. RS232 is not TTL compatible.
9. What voltage levels are used for binary 0 in RS232?
10. True or false. The AVR has a built-in UART.
RS232 connector, and in Section 3 we see how to program the AVR serial com-
402

In this section, the details of the physical connections of the ATmega32 to
TTL compatible; therefore, a line driver such as the MAX232 chip is required to
convert RS232 voltage levels to TTL levels, and vice versa. The interfacing of
ATmega32 with RS232 connectors via the MAX232 chip is the main topic of this
section.
RX and TX pins in the ATmega32
The ATmega32 has two pins that are used specifically for transferring and
receiving data serially. These two pins are called TX and RX and are part of the
Port D group (PD0 and PD1) of the 40-pin package. Pin 15 of the ATmega32 is
assigned to TX and pin 14 is designated as RX. These pins are TTL compatible;
therefore, they require a line driver to make them RS232 compatible. One such
line driver is the MAX232 chip. This is discussed next.
MAX232
Because the RS232 is not compatible with today’s microprocessors and
microcontrollers, we need a line driver (voltage converter) to convert the RS232’s
signals to TTL voltage levels that will be acceptable to the AVR’s TX and RX pins.
One example of such a converter is MAX232 from Maxim Corp. (www.maxim-
ic.com). The MAX232 converts from RS232 voltage levels to TTL voltage levels,
and vice versa. One advantage of the MAX232 chip is that it uses a +5 V power
source, which is the same as the source voltage for the AVR. In other words, with
a single +5 V power supply we can power both the AVR and MAX232, with no
need for the dual power supplies that are common in many older systems.
The MAX232 has two sets of line drivers for transferring and receiving
R2OUT
T2IN
R1OUT
T2OUT
R1IN
R2IN
RS232 side
TTL side
T1OUT
T1IN
12
11
10
9
2
6
16
Vcc
15
C4
+
C3
+
+
C1
+
C2
4
5
1
3
8
7
14
14 11
15 12
13
(PD0)RXD
(PD1)TXD
ATmega32
DB-9
MAX232
MAX232
14 2
13 3
Modem)
5
40-Pin DIP Package ATmega32
SECTION 2: ATMEGA32 CONNECTION TO RS232
RS232 connectors are given. As stated in Section 1, the RS232 standard is not
data, as shown in Figure 7. The line drivers used for TX are called T1 and T2,
Figure 7. (a) Inside MAX232 and (b) Its Connection to the ATmega32 (Null
403

while the line drivers for RX are designated as R1 and R2. In many applications
only one of each is used. For example, T1 and R1 are used together for TX and RX
of the AVR, and the second set is left unused. Notice in MAX232 that the T1 line
driver has a designation of T1in and T1out on pin numbers 11 and 14, respective-
ly. The T1in pin is the TTL side and is connected to TX of the microcontroller,
while T1out is the RS232 side that is connected to the RX pin of the RS232 DB
connector. The R1 line driver has a designation of R1in and R1out on pin numbers
13 and 12, respectively. The R1in (pin 13) is the RS232 side that is connected to
the TX pin of the RS232 DB connector, and R1out (pin 12) is the TTL side that is
modem connection where RX for one is TX for the other.
MAX232 requires four capacitors ranging from 0.1 to 22 μF. The most
widely used value for these capacitors is 22 μF.
MAX233
To save board space, some designers use the MAX233 chip from Maxim.
The MAX233 performs the same job as the MAX232 but eliminates the need for
capacitors. However, the MAX233 chip is much more expensive than the
MAX232. Notice that MAX233 and MAX232 are not pin compatible. You cannot
MAX233 with no capacitor used.
Review Questions
1. True or false. The PC COM port connector is the RS232 type.
2. Which pins of the ATmega32 are set aside for serial communication, and what
are their functions?
3. What are line drivers such as MAX 232 used for?
4. MAX232 can support ____ lines for TX and ____ lines for RX.
5. What is the advantage of the MAX233 over the MAX232 chip?
R2OUT
T2IN
R1OUT
T2OUT
R1IN
R2IN
TTL side RS233 side
T1OUT
T1IN
3
2
1
20
11
15
16
10
13
14
12
17
7
Vcc
6 9
19
18
5
14 2
15 3
4
(PD0)RxD
(PD1)TxD
ATmega32
DB-9
MAX233
MAX233
5 2
4 3
Modem)
5
40-Pin DIP Package ATmega32
connected to the RX pin of the microcontroller. See Figure 7. Notice the null
take a MAX232 out of a board and replace it with a MAX233. See Figure 8 for
Figure 8. (a) Inside MAX233 and (b) Its Connection to the ATmega32 (Null
404

ASSEMBLY
In this section we discuss the serial communication registers of the
ATmega32 and show how to program them to transfer and receive data using asyn-
chronous mode. The USART (universal synchronous asynchronous receiver/
transmitter) in the AVR has normal asynchronous, double-speed asynchronous,
master synchronous, and slave synchronous mode features. The synchronous
mode can be used to transfer data between the AVR and external peripherals such
as ADC and EEPROMs. The asynchronous mode is the one we will use to connect
the AVR-based system to the x86 PC serial port for the purpose of full-duplex seri-
al data transfer. In this section we examine the asynchronous mode only.
In the AVR microcontroller five registers are associated with the USART
that we deal with in this chapter. They are UDR (USART Data Register), UCSRA,
UCSRB, UCSRC (USART Control Status Register), and UBRR (USART Baud
Rate Register). We examine each of them and show how they are used in full-
duplex serial data communication.
UBRR register and baud rate in the AVR
Because the x86 PCs are so widely used to commu-
nicate with AVR-based systems, we will emphasize serial
communications of the AVR with the COM port of the x86
PC. Some of the baud rates supported by PC HyperTerminal
going to the Microsoft Windows HyperTerminal program
and clicking on the Communication Settings option. The
AVR transfers and receives data serially at many different
baud rates. The baud rate in the AVR is programmable. This
is done with the help of the 8-bit register called UBRR. For
a given crystal frequency, the value loaded into the UBRR
decides the baud rate. The relation between the value loaded
into UBBR and the Fosc (frequency of oscillator connected to the XTAL1 and
XTAL2 pins) is dictated by the following formula:
Desired Baud Rate = Fosc/ (16(X + 1))
where X is the value we load into the UBRR register. To get the X value
for different baud rates we can solve the equation as follows:
X = (Fosc/ (16(Desired Baud Rate))) – 1
Assuming that Fosc = 8 MHz, we have the following:
Desired Baud Rate = Fosc/ (16(X + 1)) = 8 MHz/16(X + 1) = 500 kHz/(X + 1)
X = (500 kHz/ Desired Baud Rate) – 1
PC Baud Rates in
HyperTerminal
1,200
2,400
4,800
9,600
19,200
38,400
57,600
115,200
SECTION 3: AVR SERIAL PORT PROGRAMMING IN
Table 3: Some
are listed in Table 3. You can examine these baud rates by
405

grammable prescaler to generate baud rate. The system clock (Fosc) is the clock
input to the down-counter. The down-counter is loaded with the UBRR value each
time it counts down to zero. When the counter reaches zero, a clock is generated.
This makes a frequency divider that divides the OSC frequency by UBRR + 1.
Baud Rate UBRR (Decimal Value) UBRR (Hex Value)
38400 12 C
19200 25 19
9600 51 33
4800 103 67
2400 207 CF
1200 415 19F
Note: For Fosc = 8 MHz we have UBRR = (500000/BaudRate) – 1
With Fosc = 8 MHz, find the UBRR value needed to have the following baud rates:
(a) 9600 (b) 4800 (c) 2400 (d) 1200
Solution:
Fosc = 8 MHz = X = (8 MHz/16(Desired Baud Rate)) – 1
= X = (500 kHz/(Desired Baud Rate)) – 1
(a) (500 kHz/ 9600) – 1 = 52.08 – 1 = 51.08 = 51 = 33 (hex) is loaded into UBRR
(b) (500 kHz/ 4800) – 1 = 104.16 – 1 = 103.16 = 103 = 67 (hex) is loaded into UBRR
(c) (500 kHz/ 2400) – 1 = 208.33 – 1 = 207.33 = 207 = CF (hex) is loaded into UBRR
(d) (500 kHz/ 1200) – 1 = 416.66 – 1 = 415.66 = 415 = 19F (hex) is loaded into UBRR
Notice that dividing the output of the prescaling down-counter by 16 is the default set-
ting upon Reset. We can get a higher baud rate with the same crystal by changing this
default setting. This is explained at the end of this section.
UBRR
Prescaling
Down-Counter ÷2 ÷4 ÷2
osc
UBRR+1
Fosc
0
1
U2X
Table 4: UBRR Values for Various Baud Rates (Fosc = 8 MHz, U2X = 0)
Table 4 shows the X values for the different baud rates if Fosc = 8 MHz.
Another way to understand the UBRR values listed in Table 4 is to look at
Figure 9. The UBRR is connected to a down-counter, which functions as a pro-
Then the frequency is divided by 2, 4, and 2. See Example 1. As you can see
Figure 9. Baud Rate Generation Block Diagram
Example 1
406

In the next section we learn more about it.
it are used to set the USART baud rate. Bit 15 is URSEL and, as we will see in the
next section, selects between accessing the UBRRH or the UCSRC register. The
other bits are reserved.
UDR registers and USART data I/O in the AVR
In the AVR, to provide a full-duplex serial communication, there are two
shift registers referred to as Transmit Shift Register and Receive Shift Register.
Each shift register has a buffer that is connected to it directly. These buffers are
called Transmit Data Buffer Register and Receive Data Buffer Register. The
USART Transmit Data Buffer Register and USART Receive Data Buffer Register
share the same I/O address, which is called USART Data Register or UDR. When
you write data to UDR, it will be transferred to the Transmit Data Buffer Register
(TXB), and when you read data from UDR, it will return the contents of the
UBRR[7:0]
URSEL UBRR[11:8]
0
7
8
15
TXB[7:0]
RXB[7:0]
0
7
0
7
UDR (Read)
UDR (Write)
TXB (transmit data buffer
register)
Transmit shift register
RXB (receive data buffer
register)
DATA BUS
(0)
(1)
TxD
Pin
Receive shift register (0)
(1)
RxD
Pin
Start
Stop
Start
Stop
Figure 11. UDR Register
Figure 10. UBRR Register
in Figure 9, we can choose to bypass the last divider and double the baud rate.
As you see in Figure 10, UBRR is a 16-bit register but only 12 bits of
Receive Data Buffer Register (RXB). See Figure 12.
Figure 12. Simplified USART Transmit Block Diagram
407

UCSR registers and USART configurations in the AVR
UCSRs are 8-bit control registers used for controlling serial communica-
tion in the AVR. There are three USART Control Status Registers in the AVR.
the role of each bit in these registers. Examine these figures carefully before con-
tinuing to read this chapter.
RXC (Bit 7): USART Receive Complete
This flag bit is set when there are new data in the receive buffer that are not read yet. It is
cleared when the receive buffer is empty. It also can be used to generate a receive com-
plete interrupt.
TXC (Bit 6): USART Transmit Complete
This flag bit is set when the entire frame in the transmit shift register has been trans-
mitted and there are no new data available in the transmit data buffer register (TXB).
It can be cleared by writing a one to its bit location. Also it is automatically cleared
when a transmit complete interrupt is executed. It can be used to generate a transmit
complete interrupt.
UDRE (Bit 5): USART Data Register Empty
This flag is set when the transmit data buffer is empty and it is ready to receive new
data. If this bit is cleared you should not write to UDR because it overrides your last
data. The UDRE flag can generate a data register empty interrupt.
FE (Bit 4): Frame Error
This bit is set if a frame error has occurred in receiving the next character in the
receive buffer. A frame error is detected when the first stop bit of the next character in
the receive buffer is zero.
DOR (Bit 3): Data OverRun
This bit is set if a data overrun is detected. A data overrun occurs when the
receive data buffer and receive shift register are full, and a new start bit is detected.
PE (Bit 2): Parity Error
This bit is set if parity checking was enabled (UPM1 = 1) and the next character in the
receive buffer had a parity error when received.
U2X (Bit 1): Double the USART Transmission Speed
Setting this bit will double the transfer rate for asynchronous communication.
MPCM (Bit 0): Multi-processor Communication Mode
This bit enables the multi-processor communication mode. The MPCM feature is not
set these bits to zero when writing to UCSRA.
RXC TXC UDRE FE DOR PE U2X MPCM
They are UCSRA, UCSRB, and UCSRC. In Figures 13 to 15 you can see
Figure 13. UCSRA: USART Control and Status Register A
Notice that FE, DOR, and PE are valid until the receive buffer (UDR) is read. Always
discussed in this text.
408

Three of the UCSRB register bits are related to interrupt. They are RXCIE,
flags are used with interrupts. In this section we monitor (poll) the UDRE flag bit
to make sure that the transmit data buffer is empty and it is ready to receive new
data. By the same logic, we monitor the RXC flag to see if a byte of data has come
in yet.
Before you start serial communication you have to enable the USART
receiver or USART transmitter by writing one to the RXEN or TXEN bit of
UCSRB. As we mentioned before, in the AVR you can use either synchronous or
asynchronous operating mode. The UMSEL bit of the UCSRC register selects the
USART operating mode. Since we want to use synchronous USART operating
mode, we have to set the UMSEL bit to one. Also you have to set an identical char-
acter size for both transmitter and the receiver. If the character size of the receiv-
er does not match the character size of the transmitter, data transfer would fail.
Parity mode and number of stop bits are other factors that the receiver and trans-
mitter must agree on before starting USART communication.
RXCIE (Bit 7): Receive Complete Interrupt Enable
To enable the interrupt on the RXC flag in UCSRA you should set this bit to one.
TXCIE (Bit 6): Transmit Complete Interrupt Enable
To enable the interrupt on the TXC flag in UCSRA you should set this bit to one.
UDRIE (Bit 5): USART Data Register Empty Interrupt Enable
To enable the interrupt on the UDRE flag in UCSRA you should set this bit to one.
RXEN (Bit 4): Receive Enable
To enable the USART receiver you should set this bit to one.
TXEN (Bit 3): Transmit Enable
To enable the USART transmitter you should set this bit to one.
UCSZ2 (Bit 2): Character Size
This bit combined with the UCSZ1:0 bits in UCSRC sets the number of data bits
(character size) in a frame.
RXB8 (Bit 1): Receive data bit 8
This is the ninth data bit of the received character when using serial frames with nine
TXB8 (Bit 0): Transmit data bit 8
This is the ninth data bit of the transmitted character when using serial frames with nine
RXCIE TXCIE UDRIE RXEN TXEN UCSZ2 RXB8 TXB8
Figure 14. UCSRB: USART Control and Status Register B
TXCIE, and UDRIE. See Figure 14. In Section 5 we will see how these
data bits. This bit is not used in this text.
data bits. This bit is not used in this text.
409

URSEL (Bit 7): Register Select
This bit selects to access either the UCSRC or the UBRRH register and will be dis-
cussed more in this section.
UMSEL (Bit 6): USART Mode Select
This bit selects to operate in either the asynchronous or synchronous mode of operation.
0 = Asynchronous operation
1 = Synchronous operation
UPM1:0 (Bit 5:4): Parity Mode
These bits disable or enable and set the type of parity generation and check.
00 = Disabled
01 = Reserved
10 = Even Parity
11 = Odd Parity
USBS (Bit 3): Stop Bit Select
This bit selects the number of stop bits to be transmitted.
0 = 1 bit
1 = 2 bits
UCSZ1:0 (Bit 2:1): Character Size
These bits combined with the UCSZ2 bit in UCSRB set the character size in a frame
and will be discussed more in this section.
UCPOL (Bit 2): Clock Polarity
This bit is used for synchronous mode only and will not be covered in this section.
URSEL UMSEL UPM1 UPM0 USBS UCSZ1 UCSZ0 UCPOL
UCSZ2 UCSZ1 UCSZ0 Character Size
0 0 0 5
0 0 1 6
0 1 0 7
0 1 1 8
1 1 1 9
Note: Other values are reserved. Also notice that UCSZ0 and UCSZ1 belong to UCSRC
and UCSZ2 belongs to UCSRB
Figure 15. UCSRC: USART Control and Status Register C
Table 5: Values of UCSZ2:0 for Different Character Sizes
To set the number of data bits (character size) in a frame you must set the
values of the UCSZ1 and USCZ0 bits in the UCSRB and UCSZ2 bits in UCSRC.
Table 5 shows the values of UCSZ2, UCSZ1, and UCSZ0 for different character
sizes. We use the 8-bit character size because it is the most common in x86 serial
communications. If you want to use 9-bit data, you have to use the RXB8 and
TXB8 bits in UCSRB as the 9th bit of UDR (USART Data Register).
410

Because of some technical considerations, the UCSRC register shares the
same I/O location as the UBRRH, and therefore some care must be taken when
accessing these I/O locations. When you write to UCSRC or UBRRH, the high bit
of the written value (URSEL) controls which of the two registers will be the tar-
get of the write operation. If URSEL is zero during a write operation, the UBRRH
(a) What are the values of UCSRB and UCSRC needed to configure USART for asyn-
chronous operating mode, 8 data bits (character size), no parity, and 1 stop bit?
Enable both receive and transmit.
(b) Write a program for the AVR to set the values of UCSRB and UCSRC for this con-
figuration.
Solution:
(a) RXEN and TXEN have to be 1 to enable receive and transmit. UCSZ2:0 should be
011 for 8-bit data, UMSEL should be 0 for asynchronous operating mode, UPM1:0
have to be 00 for no parity, and USBS should be 0 for one stop bit.
(b)
.INCLUDE M32DEF.INC
LDI R16,(1RXEN)|(1TXEN)
OUT UCSRB, R16
;In the next line URSEL = 1 to access UCSRC. Note that instead
;of using shift operator, you can write “LDI R16, 0b10000110”
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL)
OUT UCSRC, R16
the values of UCSRB, UCSRC, and UBRR. (Focs = 8 MHz)
Solution:
.INCLUDE M32DEF.INC
LDI R16,(1RXEN)|(1TXEN)
OUT UCSRB, R16
;In the next line URSEL = 1 to access UCSRC. Note that instead
;of using shift operator, you can write “LDI R16, 0b10000110”
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL)
OUT UCSRC, R16 ;move R16 to UCSRC
LDI R16,0x9F ;see Table
OUT UBRRL,R16 ;1200 baud rate
LDI R16,0x1 ;URSEL= 0 to
OUT UBRRH,R16 ;access UBRRH
value will be updated; otherwise, UCSRC will be updated. See Examples 2 and
3 to learn how we access the bits of UCSRC and UBRR.
Example 2
Example 3
In Example 2, set the baud rate to 1200 and write a program for the AVR to set up
4
411

FE and PE flag bits
When the AVR USART receives a byte, we can check the parity bit and
stop bit. If the parity bit is not correct, the AVR will set PE to one, indicating that
an parity error has occurred. We can also check the stop bit. As we mentioned
before, the stop bit must be one, otherwise the AVR would generate a stop bit error
and set the FE flag bit to one, indicating that a stop bit error has occurred. We can
check these flags to see if the received data is valid and correct. Notice that FE and
PE are valid until the receive buffer (UDR) is read. So we have to read FE and PE
bits before reading UDR. You can explore this on your own.
Programming the AVR to transfer data serially
In programming the AVR to transfer character bytes serially, the following
steps must be taken:
1. The UCSRB register is loaded with the value 08H, enabling the USART trans-
mitter. The transmitter will override normal port operation for the TxD pin
when enabled.
2. The UCSRC register is loaded with the value 06H, indicating asynchronous
mode with 8-bit data frame, no parity, and one stop bit.
3.
to set the baud rate for serial data transfer.
4. The character byte to be transmitted serially is written into the UDR register.
5. Monitor the UDRE bit of the UCSRA register to make sure UDR is ready for
the next byte.
6. To transmit the next character, go to Step 4.
Importance of monitoring the UDRE flag
By monitoring the UDRE flag, we make sure that we are not overloading
Write a program for the AVR to transfer the letter ‘G’ serially at 9600 baud, continuous-
ly. Assume XTAL = 8 MHz.
Solution:
.INCLUDE M32DEF.INC
LDI R16,(1TXEN) ;enable transmitter
OUT UCSRB, R16
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL);8-bit data
OUT UCSRC, R16 ;no parity, 1 stop bit
LDI R16,0x33 ;9600 baud rate
OUT UBRRL,R16 ;for XTAL = 8 MHz
AGAIN:
SBIS UCSRA,UDRE ;is UDR empty
RJMP AGAIN ;wait more
LDI R16,'G' ;send ‘G’
OUT UDR,R16 ;to UDR
RJMP AGAIN ;do it again
The UBRR is loaded with one of the values in Table 4 (if Fosc = 8 MHz)
Example 4
412

the UDR register. If we write another byte into the UDR register before it is empty,
the old byte could be lost before it is transmitted.
We conclude that by checking the UDRE flag bit, we know whether or not
the AVR is ready to accept another byte to transmit. The UDRE flag bit can be
checked by the instruction “SBIS UCSRA,UDRE” or we can use an interrupt, as
transfer data serially, and avoid tying down the microcontroller with instructions
such as “SBIS
serially at 9600 baud.
Programming the AVR to receive data serially
In programming the AVR to receive character bytes serially, the following
Write a program to transmit the message “YES ” serially at 9600 baud, 8-bit data, and
1 stop bit. Do this forever.
Solution:
.INCLUDE M32DEF.INC
LDI R21,HIGH(RAMEND) ;initialize high
OUT SPH,R21 ;byte of SP
LDI R21,LOW(RAMEND) ;initialize low
OUT SPL,R21 ;byte of SP
LDI R16,(1TXEN) ;enable transmitter
OUT UCSRB, R16
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL); 8-bit data
OUT UBRRL,R16
AGAIN:
LDI R17,'Y' ;move 'Y' to R17
CALL TRNSMT ;transmit r17 to TxD
LDI R17,'E' ;move 'E' to R17
LDI R17,'S' ;move 'S' to R17
LDI R17,' ' ;move ' ' to R17
CALL TRNSMT ;transmit space to TxD
TRNSMT:
SBIS UCSRA,UDRE ;is UDR empty?
RJMP TRNSMT ;wait more
OUT UDR,R17 ;send R17 to UDR
RET
we will see in Section 5. In Section 5 we will show how to use interrupts to
UCSRA,UDRE”. Example 4 shows the program to transfer ‘G’
Example 5 shows how to transfer “YES ” continuously.
Example 5
413

steps must be taken:
1. The UCSRB register is loaded with the value 10H, enabling the USART
receiver. The receiver will override normal port operation for the RxD pin
when enabled.
2. The UCSRC register is loaded with the value 06H, indicating asynchronous
mode with 8-bit data frame, no parity, and one stop bit.
3.
to set the baud rate for serial data transfer.
4. The RXC flag bit of the UCSRA register is monitored for a HIGH to see if an
entire character has been received yet.
5. When RXC is raised, the UDR register has the byte. Its contents are moved
into a safe place.
6. To receive the next character, go to Step 5.
Transmit and receive
In previous examples we showed how to transmit or receive data serially.
Next we show how do both send and receive at the same time in a program.
Assume that the AVR serial port is connected to the COM port of the x86 PC, and
we are using the HyperTerminal program on the PC to send and receive data seri-
ally. Ports A and B of the AVR are connected to LEDs and switches, respectively.
the serial port to the PC’s screen, and (c) receives any key press sent by
HyperTerminal and puts it on LEDs.
Program the ATmega32 to receive bytes of data serially and put them on Port B. Set the
baud rate at 9600, 8-bit data, and 1 stop bit.
Solution:
.INCLUDE M32DEF.INC
LDI R16,(1RXEN) ;enable receiver
OUT UCSRB, R16
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL);8-bit data
OUT UBRRL,R16
LDI R16,0xFF ;Port B is output
OUT DDRB,R16
RCVE:
SBIS UCSRA,RXC ;is any byte in UDR?
RJMP RCVE ;wait more
IN R17,UDR ;send UDR to R17
OUT PORTB,R17 ;send R17 to PORTB
RJMP RCVE ;do it again
The UBRR is loaded with one of the values in Table 4 (if Fosc = 8 MHz)
Example 6 shows the coding of the above steps.
Example 6
sage YES once to the PC screen, (b) gets data on switches and transmits it via
Example 7 shows an AVR program with the following parts: (a) sends the mes-
414

Write an AVR program with the following parts: (a) send the message YES once to
the PC screen, (b) get data from switches on Port A and transmit it via the serial port to
the PC’s screen, and (c) receive any key press sent by HyperTerminal and put it on
LEDs. The programs must do parts (b) and (c) repeatedly.
Solution:
.INCLUDE M32DEF.INC
LDI R21,0x00
OUT DDRA,R21 ;Port A is input
LDI R21,0xFF
OUT DDRB,R21 ;Port B is output
LDI R21,HIGH(RAMEND) ;initialize high
OUT SPH,R21 ;byte of SP
LDI R21,LOW(RAMEND) ;initialize low
OUT SPL,R21 ;byte of SP
LDI R16,(1TXEN)|(1RXEN) ;enable transmitter
OUT UCSRB, R16 ;and receiver
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL) ;8-bit data
OUT UBRRL,R16
LDI R17,'Y' ;move 'Y' to R17
LDI R17,'E' ;move 'E' to R17
LDI R17,'S' ;move 'S' to R17
AGAIN:
SBIS UCSRA,RXC ;is there new data?
RJMP SKIP_RX ;skip receive cmnds
IN R17,UDR ;move UDR to R17
OUT PORTB,R17 ;move R17 TO PORTB
SKIP_RX:
RJMP SKIP_TX ;skip transmit cmnds
IN R17,PINA ;move Port A to R17
SKIP_TX:
TRNSMT:
RJMP TRNSMT ;wait more
RET
Example 7
415

Doubling the baud rate in the AVR
There are two ways to increase the baud rate of data transfer in the AVR:
1. Use a higher-frequency crystal.
2. Change a bit in the UCSRA register, as shown below.
Option 1 is not feasible in many situations because the system crystal is
fixed. Therefore, we will explore option 2. There is a software way to double the
baud rate of the AVR while the crystal frequency stays the same. This is done with
the U2X bit of the UCSRA register. When the AVR is powered up, the U2X bit of
the UCSRA register is zero. We can set it to high by software and thereby double
the baud rate.
To see how the baud rate is doubled with this method, look again at
bypassed. In the case of XTAL = 8 MHz and U2X bit set to HIGH, we would have:
Desired Baud Rate = Fosc / (8 (X + 1)) = 8 MHz / 8 (X + 1) = 1 MHz / (X + 1)
To get the X value for different baud rates we can solve the equation as follows:
X = (1 kHz / Desired Baud Rate) – 1
ent baud rates for U2X = 0 and U2X = 1. (XTAL = 8 MHz).
Baud rate error calculation
In calculating the baud rate we have used the integer number for the UBRR
register values because AVR microcontrollers can only use integer values. By
dropping the decimal portion of the calculated values we run the risk of introduc-
ing error into the baud rate. There are several ways to calculate this error. One way
would be to use the following formula.
Error = (Calculated value for the UBRR – Integer part) / Integer part
For example, with XTAL = 8 MHz and U2X = 0 we have the following for
U2X = 0 U2X = 1
Baud Rate UBRR UBR (HEX) UBRR UBR (HEX)
38400 12 C 25 19
19200 25 19 51 33
9,600 51 33 103 67
4,800 103 67 207 CF
UBRR = (500 kHz / Baud rate) – 1 UBRR = (1 kHz / Baud rate) – 1
Figure 9. If we set the U2X bit to HIGH, the third frequency divider will be
In Table 6 you can see values of UBRR in hex and decimal for differ-
Table 6: UBRR Values for Various Baud Rates (XTAL = 8 MHz)
416

the 9600 baud rate:
UBRR value = (500,000/ 9600) – 1 = 52.08 – 1 = 51.08 = 51
= Error = (51.08 – 51)/ 51 = 0.16%
Another way to calculate the error rate is as follows:
Error = (Calculated baud rate – desired baud rate) / desired baud rate
Where the desired baud rate is calculated using X = (Fosc / (16(Desired
Baud rate))) – 1, and then the integer X (value loaded into UBRR reg) is used for
the calculated baud rate as follows:
Calculated baud rate = Fosc / (16(X + 1)) (for U2X = 0)
For XTAL = 8 MHz and 9600 baud rate, we got X = 51. Therefore, we get
the calculated baud rate of 8 MHz/(16(51 + 1)) = 9765. Now the error is calculat-
ed as follows:
Error = (9615 – 9600) / 9600 = 0.16%
which is the same as what we got earlier using the other method.
In some applications we need very accurate baud rate generation. In these
cases we can use a 7.3728 MHz or 11.0592 MHz crystal. As you can see in
values of UBRR for different baud rates for U2X = 0 and U2X = 1.
U2X = 0 U2X = 1
Baud Rate UBRR Error UBRR Error
38400 11 0% 23 0%
19200 23 0% 47 0%
9,600 47 0% 95 0%
4,800 95 0% 191 0%
UBRR = (460,800 / Baud rate) – 1 UBRR = (921,600 / Baud rate) – 1
U2X = 0 U2X = 1
Baud Rate UBRR Error UBRR Error
38400 12 0.2% 25 0.2%
19200 25 0.2% 51 0.2%
9,600 51 0.2% 103 0.2%
4,800 103 0.2% 207 0.2%
UBRR = (500,000 / Baud rate) – 1 UBRR = (1,000,000 / Baud rate) – 1
Table 7 provides the error rates for UBRR values of 8 MHz crystal frequencies.
Table 7: UBRR Values for Various Baud Rates (XTAL = 8 MHz)
Table 8, the error is 0% if we use a 7.3728 MHz crystal. In the table there are
Table 8: UBRR Values for Various Baud Rates (XTAL = 7.3728 MHz)
417

Review Questions
1. Which registers of the AVR are used to set the baud rate?
2. If XTAL = 10 MHz, what value should be loaded into UBRR to have a 14,400
baud rate? Give the answer in both decimal and hex.
3. What is the baud rate error in the last question?
4. With XTAL = 7.3728 MHz, what value should be loaded into UBRR to have
a 9600 baud rate? Give the answer in both decimal and hex.
5. To transmit a byte of data serially, it must be placed in register _______.
6. UCSRA stands for __________ .
7. Which bits are used to set the data frame size?
8. True or false. UCSRA and UCSRB share the same I/O address.
9. What parameters should the transmitter and receiver agree on before starting a
serial transmission?
10. Which register has the U2X bit, and why do we use the U2X bit?
Assuming XTAL = 10 MHz, calculate the baud rate error for each of the following:
(a) 2400 (b) 9600 (c) 19,200 (d) 57,600
Use the U2X = 0 mode.
Solution:
UBRR Value = (Fosc / 16(baud rate)) – 1 , Fosc = 10 MHz =
(a) UBRR Value = (625,000 / 2400) – 1 = 260.41 – 1 = 259.41 = 259
Error = (259.41c259) / 259 = 0.158%
(b) UBRR Value (625,000 / 9600) – 1 = 65.104 – 1 = 64.104 = 64
Error = (64.104 – 64)/64 = 0.162%
(c) UBRR Value (625,000 / 19,200) – 1 = 32.55 – 1 = 31.55 = 31
Error = (31.55 – 31) / 31 = 1.77%
(d) UBRR Value (625,000 / 57,600) – 1 = 10.85 – 1 = 9.85 = 9
Error = (9.85 – 9) / 9 = 9.4%
See Example 8 to see how to calculate the error for different baud rates.
Example 8
418

Write a C function to initialize the USART to work at 9600 baud, 8-bit data, and 1 stop
bit. Assume XTAL = 8 MHz.
Solution:
void usart_init (void)
{
UCSRB = (1TXEN);
UCSRC = (1 UCSZ1)|(1UCSZ0)|(1URSEL);
UBRRL = 0x33;
}
Write a C program for the AVR to transfer the letter ‘G’ serially at 9600 baud, continu-
ously. Use 8-bit data and 1 stop bit. Assume XTAL = 8 MHz.
Solution:
{
UCSRB = (1TXEN);
UBRRL = 0x33;
}
void usart_send (unsigned char ch)
{ //wait until UDR
while (! (UCSRA (1UDRE))); //is empty
UDR = ch; //transmit ‘G’
}
int main (void)
{
usart_init(); //initialize the USART
while(1) //do forever
usart_send (‘G’); //transmit ‘G’ letter
return 0;
}
SECTION 4: AVR SERIAL PORT PROGRAMMING IN C
Example 9
Example 10 (C Version of Example 4)
All the special function registers of the AVR are accessible directly in C
compilers by using the appropriate header file. Examples 9 through 14 show how
to program the serial port in C. Connect your AVR trainer to the PC’s COM port
and use HyperTerminal to test the operation of these examples.
419

Program the AVR in C to receive bytes of data serially and put them on Port A. Set the
baud rate at 9600, 8-bit data, and 1 stop bit.
Solution:
int main (void)
{
DDRA = 0xFF; //Port A is input
UCSRB = (1RXEN); //initialize USART
UBRRL = 0x33;
while(1)
{
while (! (UCSRA (1RXC))); //wait until new data
PORTA = UDR;
}
return 0;
}
Write a program to send the message “The Earth is but One Country. ” to the serial port
continuously. Using the settings in the last example.
Solution:
{ UCSRB = (1TXEN);
UBRRL = 0x33;
}
void usart_send (unsigned char ch)
{ while (! (UCSRA (1UDRE)));
UDR = ch;
}
int main (void)
{ unsigned char str[30]= The Earth is but One Country. ;
unsigned char strLenght = 30;
unsigned char i = 0;
usart_init();
while(1)
{
usart_send(str[i++]);
if (i = strLenght)
i = 0;
}
return 0;
}
Example 11
Example 12
420

Review Questions
1. True or false. All the SFR registers of AVR are accessible in the C compiler.
2. True or false. The FE flag is cleared the moment we read from the UDR reg-
ister.
Write an AVR C program to receive a character from the serial port. If it is ‘a’ – ‘z’
change it to capital letters and transmit it back. Use the settings in the last example.
Solution:
void transmit (unsigned char data);
int main (void)
{
// initialize USART transmitter and receiver
UCSRB = (1TXEN)|(1RXEN);
UBRRL = 0x33;
unsigned char ch;
while(1)
{
while(!(UCSRA(1RXC))); //while new data received
ch = UDR;
if (ch = 'a' ch='z')
{
ch+=('A'-'a');
while (! (UCSRA (1UDRE)));
UDR = ch;
}
}
return 0;
}
In the last five examples, what is the baud rate error?
Solution:
2%.
Example 13
Example 14
According to Table 8, for 9600 baud rate and XTAL = 8 MHz, the baud rate error is about
421

ASSEMBLY AND C USING INTERRUPTS
By now you might have noticed that it is a waste of the microcontroller’s
time to poll the TXIF and RXIF flags. In order to avoid wasting the microcon-
troller’s time we use interrupts instead of polling. In this section, we will show
how to use interrupts to program the AVR’s serial communication port.
Interrupt-based data receive
To program the serial port to receive data using the interrupt method, we
need to set HIGH the Receive Complete Interrupt Enable (RXCIE) bit in UCSRB.
Setting this bit enables the interrupt on the RXC flag in UCSRA. Upon comple-
tion of the receive, the RXC (USART receive complete flag) becomes HIGH. If
Program the ATmega32 to receive bytes of data serially and put them on Port B. Set the
baud rate at 9600, 8-bit data, and 1 stop bit. Use Receive Complete Interrupt instead of
the polling method.
Solution:
.INCLUDE M32DEF.INC
.CSEG ;put in code segment
RJMP MAIN ;jump main after reset
.ORG URXCaddr ;int-vector of URXC int.
RJMP URXC_INT_HANDLER ;jump to URXC_INT_HANDLER
.ORG 40 ;start main after
;interrupt vector
MAIN: LDI R16, HIGH(RAMEND) ;initialize high byte of
OUT SPH, R16 ;stack pointer
LDI R16, LOW(RAMEND) ;initialize low byte of
OUT SPL,R16 ;stack pointer
LDI R16,(1RXEN)|(1RXCIE) ;enable receiver
OUT UCSRB, R16 ;and RXC interrupt
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL);sync,8-bit data
OUT UBRRL,R16
LDI R16,0xFF ;set Port B as an
OUT DDRB,R16 ;input
WAIT_HERE:
RJMP WAIT_HERE ;stay here
URXC_INT_HANDLER:
IN R17,UDR ;send UDR to R17
OUT PORTB,R17 ;send R17 to PORTB
RETI
SECTION 5: AVR SERIAL PORT PROGRAMMING IN
RXCIE = 1, changing RXC to one will force the CPU to jump to the interrupt vec-
tor. Program 15 shows how to receive data using interrupts.
Example 15
422

Interrupt-based data transmit
To program the serial port to transmit data using the interrupt method, we
need to set HIGH the USART Data Register Empty Interrupt Enable (UDRIE) bit
in UCSRB. Setting this bit enables the interrupt on the UDRE flag in UCSRA.
When the UDR register is ready to accept new data, the UDRE (USART Data
Register Empty flag) becomes HIGH. If UDRIE = 1, changing UDRE to one will
mit data using interrupts. To transmit data using the interrupt method, there is
another source of interrupt; it is Transmit Complete Interrupt. Try to clarify the dif-
ference between these two interrupts for yourself. Can you provide some example
that the two interrupts can be used interchangeably?
Write a program for the AVR to transmit the letter ‘G’ serially at 9600 baud, continu-
ously. Assume XTAL = 8 MHz. Use interrupts instead of the polling method.
Solution:
.INCLUDE M32DEF.INC
.CSEG ;put in code segment
RJMP MAIN ;jump main after reset
.ORG UDREaddr ;int. vector of UDRE int.
RJMP UDRE_INT_HANDLER ;jump to UDRE_INT_HANDLER
.ORG 40 ;start main after
;interrupt vector
;*****************************
MAIN:
LDI R16, HIGH(RAMEND) ;initialize high byte of
OUT SPH, R16 ;stack pointer
LDI R16, LOW(RAMEND) ;initialize low byte of
OUT SPL,R16 ;stack pointer
LDI R16,(1TXEN)|(1UDRIE) ;enable transmitter
OUT UCSRB, R16 ;and UDRE interrupt
LDI R16,(1UCSZ1)|(1UCSZ0)|(1URSEL); sync., 8-bit
OUT UCSRC, R16 ;data no parity, 1 stop bit
OUT UBRRL,R16
WAIT_HERE:
RJMP WAIT_HERE ;stay here
;*****************************
UDRE_INT_HANDLER:
LDI R26,'G' ;send 'G'
OUT UDR,R26 ;to UDR
RETI
force the CPU to jump to the interrupt vector. Example 16 shows how to trans-
Example 16
423

Write a C program to receive bytes of data serially and put them on Port B. Use Receive
Complete Interrupt instead of the polling method.
Solution:
#include avrio.h
ISR(USART_RXC_vect)
{
PORTB = UDR;
}
int main (void)
{
UCSRB = (1RXEN)|(1RXCIE); //enable receive and RXC int.
UBRRL = 0x33;
sei(); //enable interrupts
while (1); //wait forever
return 0;
}
Write a C program to transmit the letter ‘G’ serially at 9600 baud, continuously. Assume
XTAL = 8 MHz. Use interrupts instead of the polling method.
Solution:
#include avrio.h
ISR(USART_UDRE_vect)
{
UDR = 'G';
}
int main (void)
{
UCSRB = (1TXEN)|(1UDRIE);
UBRRL = 0x33;
return 0;
}
Examples 17 and 18 are the C versions of Examples 15 and
16, respectively.
Example 17
Example 18
424

Review Questions
1. What is the advantage of interrupt-based programming over polling?
2. How do you enable transmit or receive interrupts in AVR?
SUMMARY
This chapter began with an introduction to the fundamentals of serial com-
munication. Serial communication, in which data is sent one bit a time, is used in
situations where data is sent over significant distances. (In parallel communica-
tion, where data is sent a byte or more at a time, great distances can cause distor-
tion of the data.) Serial communication has the additional advantage of allowing
transmission over phone lines. Serial communication uses two methods: synchro-
nous and asynchronous. In synchronous communication, data is sent in blocks of
bytes; in asynchronous, data is sent one byte at a time. Data communication can
be simplex (can send but cannot receive), half duplex (can send and receive, but
not at the same time), or full duplex (can send and receive at the same time).
RS232 is a standard for serial communication connectors.
The AVR’s UART was discussed. We showed how to interface the
ATmega32 with an RS232 connector and change the baud rate of the ATmega32.
In addition, we described the serial communication features of the AVR, and pro-
grammed the ATmega32 for serial data communication. We also showed how to
program the serial port of the ATmega32 chip in Assembly and C.
PROBLEMS
1. Which is more expensive, parallel or serial data transfer?
2. True or false. 0- and 5-V digital pulses can be transferred on the telephone
without being converted (modulated).
3. Show the framing of the letter ASCII ‘Z’ (0101 1010), no parity, 1 stop bit.
4. If there is no data transfer and the line is high, it is called ___________ (mark,
space).
5. True or false. The stop bit can be 1, 2, or none at all.
6. Calculate the overhead percentage if the data size is 7, 1 stop bit, and no pari-
ty bit.
7. True or false. The RS232 voltage specification is TTL compatible.
8. What is the function of the MAX 232 chip?
9. True or false. DB-25 and DB-9 are pin compatible for the first 9 pins.
10. How many pins of the RS232 are used by the IBM serial cable, and why?
11. True or false. The longer the cable, the higher the data transfer baud rate.
12. State the absolute minimum number of signals needed to transfer data between
two PCs connected serially. What are those signals?
13. If two PCs are connected through the RS232 without a modem, both are con-
425

figured as a ________ (DTE, DCE) -to- _______ (DTE, DCE) connection.
14. State the nine most important signals of the RS232.
15. Calculate the total number of bits transferred if 200 pages of ASCII data are
sent using asynchronous serial data transfer. Assume a data size of 8 bits, 1
stop bit, and no parity. Assume each page has 80 × 25 of text characters.
16. In Problem 15, how long will the data transfer take if the baud rate is 9600?
17. The MAX232 DIP package has _____ pins.
18. For the MAX232, indicate the VCC and GND pins.
19. The MAX233 DIP package has ____ pins.
20. For the MAX233, indicate the VCC and GND pins.
21. Is the MAX232 pin compatible with the MAX233?
22. State the advantages and disadvantages of the MAX232 and MAX233.
23. MAX232/233 has ____ line driver(s) for the RX wire.
24. MAX232/233 has ____ line driver(s) for the TX wire.
25. Show the connection of pins TX and RX of the ATmega32 to a DB-9 RS232
connector via the second set of line drivers of MAX232.
26. Show the connection of the TX and RX pins of the ATmega32 to a DB-9
RS232 connector via the second set of line drivers of MAX233.
27. What is the advantage of the MAX233 over the MAX232 chip?
28. Which pins of the ATmega32 are set aside for serial communication, and what
are their functions?
29. Which of the following baud rates are supported by the HyperTerminal pro-
gram in PC?
(a) 4800 (b) 3600 (c) 9600
(d) 1800 (e) 1200 (f) 19,200
30. Which register of ATmega32 is used for baud rate programming?
31. Which bit of the UCSRA is used for baud rate speed?
32. What is the role of the UDR register in serial data transfer?
33. UDR is a(n) ____-bit register.
34. For XTAL = 10 MHz, find the UBRR value (in both decimal and hex) for each
of the following baud rates.
(a) 9600 (b) 4800 (c) 1200
35. What is the baud rate if we use UBRR = 15 to program the baud rate? Assume
XTAL = 10 MHz.
36. Write an AVR program to transfer serially the letter ‘Z’ continuously at 9600
baud rate. Assume XTAL = 10 MHz.
37. When is the PE flag bit raised?
38. When is the RXC flag bit raised or cleared?
39. When is the UDRE flag bit raised or cleared?
40. To which register do RXC and UDRE belong?
41. Find the UBRR for the following baud rates if XTAL = 16 MHz and U2X = 0.
SECTION 3: AVR SERIAL PORT PROGRAMMING IN ASSEMBLY
426

(a) 9600 (b) 19200
(c) 38400 (d) 57600
42. Find the UBRR for the following baud rates if XTAL = 16 MHz and U2X = 1.
(a) 9600 (b) 19200
(c) 38400 (d) 57600
43. Find the UBRR for the following baud rates if XTAL = 11.0592 MHz and
U2X = 0.
(a) 9600 (b) 19200
(c) 38400 (d) 57600
44. Find the UBRR for the following baud rates if XTAL = 11.0592 MHz and
U2X = 1.
(a) 9600 (b) 19200
(c) 38400 (d) 57600
45. Find the baud rate error for Problem 41.
49. Write an AVR C program to transmit serially the letter ‘Z’continuously at 9600
baud rate.
50. Write an AVR C program to transmit serially the message “The earth is but one
country and mankind its citizens” continuously at 57,600 baud rate.
1. Faster, more expensive
2. False; it is simplex.
3. True
4. Asynchronous
5. With 0100 0101 binary the bits are transmitted in the sequence:
(a) 0 (start bit) (b) 1 (c) 0 (d) 1 (e) 0 (f) 0 (g) 0 (h) 1 (i) 0 (j) 1 (stop bit)
6. 2 bits (one for the start bit and one for the stop bit). Therefore, for each 8-bit character, a total
of 10 bits is transferred.
7. 10,000 × 10 = 100,000 total bits transmitted. 100,000 / 9600 = 10.4 seconds; 2 / 10 = 20%.
8. True
9. +3 to +25 V
10. True
1. True
2. Pin 14, which is RxD, and pin15, which is TXD .
3. They convert different voltage levels to each other to make two different standards compati-
ble.
4. 2, 2
5. It has a built-in capacitor.
SECTION 4: AVR SERIAL PORT PROGRAMMING IN C
427

1. UBRRL and UBRRH.
2. (Fosc / 16 (baud rate) ) – 1 = (10M / 16 (14400)) – 1 = 42.4 = 42 or 2AH
3. (42.4 – 42) / 42 = 0.95%
4. (Fosc / 16 (baud rate) ) – 1 = (7372800 / 16 (9600)) – 1 = 47 or 2FH
5. UDR
6. USART Control Status Register A
7. UCSZ0 and UCSZ1 bits in UCSRB and UCSZ2 in UCSRC
8. False
9. Baud rate, frame size, stop bit, parity
10. U2X is bit1 of UCSRA and doubles the transfer rate for asynchronous communication.
1. True
2. True
USING INTERRUPTS
1. In interrupt-based programming, CPU time is not wasted.
2. By writing the value of 1 to the UDRIE and RXCIE bits
SECTION 3: AVR SERIAL PORT PROGRAMMING IN ASSEMBLY
SECTION 4 : AVR SERIAL PORT PROGRAMMING IN C
SECTION 5 : AVR SERIAL PORT PROGRAMMING IN ASSEMBLY AND C
428

OBJECTIVES

List reasons that LCDs are gaining widespread use, replacing LEDs

Describe the functions of the pins of a typical LCD

List instruction command codes for programming an LCD

Interface an LCD to the AVR

Program an LCD in Assembly and C

Explain the basic operation of a keyboard

Describe the key press and detection mechanisms

Interface a 4 × 4 keypad to the AVR using C and Assembly
LCD AND KEYBOARD
INTERFACING
429

This chapter explores some real-world applications of the AVR. We explain
how to interface the AVR to devices such as an LCD and a keyboard. In
interfacing with the AVR is shown. We use C and Assembly for both sections.
This section describes the operation modes of LCDs and then describes
how to program and interface an LCD to an AVR using Assembly and C.
LCD operation
In recent years the LCD is finding widespread use replacing LEDs (seven-
segment LEDs or other multisegment LEDs). This is due to the following reasons:
1. The declining prices of LCDs.
2. The ability to display numbers, characters, and graphics. This is in contrast to
LEDs, which are limited to numbers and a few characters.
3. Incorporation of a refreshing controller into the LCD, thereby relieving the
CPU of the task of refreshing the LCD. In contrast, the LED must be refreshed
by the CPU (or in some other way) to keep displaying the data.
4. Ease of programming for characters and graphics.
LCD pin descriptions
The LCD discussed in this section has 14 pins. The function of each pin is
VCC, VSS, and VEE
While VCC and VSS provide +5 V and
ground, respectively, VEE is used for control-
ling LCD contrast.
RS, register select
There are two very important registers
inside the LCD. The RS pin is used for their
selection as follows. If RS = 0, the instruction
command code register is selected, allowing the
user to send commands such as clear display,
cursor at home, and so on. If RS = 1 the data
register is selected, allowing the user to send
data to be displayed on the LCD.
R/W, read/write
R/W input allows the user to write infor-
mation to the LCD or read information from it.
R/W = 1 when reading; R/W = 0 when writing.
E, enable
The enable pin is used by the LCD to
latch information presented to its data pins.
Pin Symbol I/O Description
1 VSS -- Ground
2 VCC -- +5 V power supply
3 VEE -- Power supply
to control contrast
4 RS I RS = 0 to select
command register,
RS = 1 to select
data register
5 R/W I R/W = 0 for write,
R/W = 1 for read
6 E I/O Enable
7 DB0 I/O The 8-bit data bus
LCD AND KEYBOARD INTERFACING
Section 1, we show LCD interfacing with the AVR. In Section 2, keyboard
SECTION 1: LCD INTERFACING
given in Table 1. Figure 1 shows the pin positions for various LCDs.
Table 1: Pin Descriptions for LCD
430

When data is supplied to data pins, a high-to-low pulse must be applied to this pin
in order for the LCD to latch in the data present at the data pins. This pulse must
be a minimum of 450 ns wide.
D0–D7
The 8-bit data pins,
D0–D7, are used to send infor-
mation to the LCD or read the
contents of the LCD’s internal
registers.
To display letters and
numbers, we send ASCII codes
for the letters A–Z, a–z, and
numbers 0–9 to these pins
while making RS = 1.
There are also instruc-
tion command codes that can
be sent to the LCD to clear the
display or force the cursor to
the home position or blink the
instruction command codes.
In this section you will
see how to interface an LCD to
the AVR in two different ways.
We can use 8-bit data or 4-bit
data options. The 8-bit data
interfacing is easier to program
but uses 4 more pins.
shows the position of each pin in different packages.
1 2 14
2 1
14
13
14
2 1
DMC1610A
DMC1606C
DMC16117
DMC16128
DMC16129
DMC1616433
DMC20434
DMC16106B
DMC16207
DMC16230
DMC20215
DMC32216
DMC20261
DMC24227
DMC24138
DMC32132
DMC32239
DMC40131
DMC40218
Code Command to LCD Instruction
(Hex) Register
1 Clear display screen
2 Return home
4 Decrement cursor (shift cursor to left)
6 Increment cursor (shift cursor to right)
5 Shift display right
7 Shift display left
8 Display off, cursor off
A Display off, cursor on
C Display on, cursor off
E Display on, cursor blinking
F Display on, cursor blinking
10 Shift cursor position to left
14 Shift cursor position to right
18 Shift the entire display to the left
1C Shift the entire display to the right
80 Force cursor to beginning of 1st line
C0 Force cursor to beginning of 2nd line
28 2 lines and 5 × 7 matrix (D4–D7, 4-bit)
38 2 lines and 5 × 7 matrix (D0–D7, 8-bit)
Table 2: LCD Command Codes
cursor. Table 2 lists the
Note: This table is extracted from Table 4.
Dot matrix character LCDs are available in different packages. Figure 1
Figure 1. Pin Positions for Various LCDs from Optrex
431

Sending commands and data to LCDs
To send data and commands to LCDs you should do the following steps.
Notice that steps 2 and 3 can be repeated many times:
1. Initialize the LCD.
3. Send the character to be shown on the LCD.
Initializing the LCD
To initialize the LCD for 5 × 7 matrix and 8-bit operation, the following
sequence of commands should be sent to the LCD: 0x38, 0x0E, and 0x01. Next
we will show how to send a command to the LCD. After power-up you should wait
about 15 ms before sending initializing commands to the LCD. If the LCD initial-
izer function is not the first function in your code you can omit this delay.
Sending commands to the LCD
and R/W = 0 and put the command number on the data pins (D0–D7). Then send
a high-to-low pulse to the E pin to enable the internal latch of the LCD. Notice that
after each command you should wait about 100 μs to let the LCD module run the
command. Clear LCD and Return Home commands are exceptions to this rule.
shows the details of commands and their execution times.
Sending data to the LCD
To send data to the LCD, make pins RS = 1 and R/W = 0. Then put the data
on the data pins (D0–D7) and send a high-to-low pulse to the E pin to enable the
internal latch of the LCD. Notice that after sending data you should wait about 100
μs to let the LCD module write the data on the screen.
AVR
D0
D7
LCD
RS R/W E
PA.0
PA.7
PB.0
PB.1
PB.2
VCC
VEE
VSS
+5V
10K
POT
2. Send any of the commands from Table 2 to the LCD.
To send any of the commands from Table 2 to the LCD, make pins RS
After the 0x01 and 0x02 commands you should wait for about 2 ms. Table 3
Program 1 shows how to write “Hi” on the LCD using 8-bit data. The
AVR connection to the LCD for 8-bit data is shown in Figure 2.
Figure 2. LCD Connections for 8-bit Data
432

.INCLUDE M32DEF.INC
.EQU LCD_DPRT = PORTA ;LCD DATA PORT
.EQU LCD_DDDR = DDRA ;LCD DATA DDR
.EQU LCD_DPIN = PINA ;LCD DATA PIN
.EQU LCD_CPRT = PORTB ;LCD COMMANDS PORT
.EQU LCD_CDDR = DDRB ;LCD COMMANDS DDR
.EQU LCD_CPIN = PINB ;LCD COMMANDS PIN
.EQU LCD_RS = 0 ;LCD RS
.EQU LCD_RW = 1 ;LCD RW
.EQU LCD_EN = 2 ;LCD EN
OUT SPH,R21 ;set up stack
LDI R21,LOW(RAMEND)
OUT SPL,R21
LDI R21,0xFF;
OUT LCD_DDDR, R21 ;LCD data port is output
OUT LCD_CDDR, R21 ;LCD command port is output
CBI LCD_CPRT,LCD_EN;LCD_EN = 0
CALL DELAY_2ms ;wait for power on
LDI R16,0x38 ;init LCD 2 lines,5×7 matrix
CALL CMNDWRT ;call command function
CALL DELAY_2ms ;wait 2 ms
LDI R16,0x0E ;display on, cursor on
LDI R16,0x01 ;clear LCD
CALL DELAY_2ms ;wait 2 ms
LDI R16,0x06 ;shift cursor right
LDI R16,'H' ;display letter 'H'
CALL DATAWRT ;call data write function
LDI R16,'i' ;display letter 'i'
HERE: JMP HERE ;stay here
;-------------------------------------------------------
CMNDWRT:
OUT LCD_DPRT,R16 ;LCD data port = R16
CBI LCD_CPRT,LCD_RS ;RS = 0 for command
CBI LCD_CPRT,LCD_RW ;RW = 0 for write
SBI LCD_CPRT,LCD_EN ;EN = 1
CALL SDELAY ;make a wide EN pulse
CBI LCD_CPRT,LCD_EN ;EN=0 for H-to-L pulse
CALL DELAY_100us ;wait 100 us
RET
Program 1: Communicating with LCD (continued on next page)
433

Sending code or data to
the LCD 4 bits at a time
The above code showed how to
send commands to the LCD with 8 bits
for the data pin. In most cases it is pre-
ferred to use 4-bit data to save pins.
The LCD may be forced into the 4-bit
Notice that its initialization differs
from that of the 8-bit mode and that
data is sent out on the high nibble of
Port A, high nibble first.
In 4-bit mode, we initialize the
LCD with the series 33, 32, and 28 in
DATAWRT:
OUT LCD_DPRT,R16 ;LCD data port = R16
SBI LCD_CPRT,LCD_RS ;RS = 1 for data
SBI LCD_CPRT,LCD_EN ;EN = 1
RET
;-------------------------------------------------------
SDELAY: NOP
NOP
RET
;-------------------------------------------------------
DELAY_100us:
PUSH R17
LDI R17,60
DR0: CALL SDELAY
DEC R17
BRNE DR0
POP R17
RET
;-------------------------------------------------------
DELAY_2ms:
PUSH R17
LDI R17,20
LDR0: CALL DELAY_100US
DEC R17
BRNE LDR0
POP R17
RET
AVR
D4
D7
LCD
RS R/W E
PA.4
PA.7
PB.0
PB.1
PB.2
VCC
VEE
VSS
+5V
10K
POT
Program 1: Communicating with LCD (continued from previous page)
mode as shown in Program 2.
Figure 3. LCD Connections Using 4-bit Data
434

hex. This represents nibbles 3, 3, 3, and 2, which tells the LCD to go into 4-bit
mode. The value $28 initializes the display for 5 × 7 matrix and 4-bit operation as
required by the LCD datasheet. The write routines (CMNDWRT and DATAWRT)
send the high nibble first, then swap the low nibble with the high nibble before it
is sent to data pins D4–D7. The delay function of the program is the same as in
.INCLUDE M32DEF.INC
LDI R21,LOW(RAMEND)
OUT SPL,R21
LDI R21,0xFF;
LDI R16,0x33 ;init. LCD for 4-bit data
CALL DELAY_2ms ;init. hold
LDI R16,0x28 ;init. LCD 2 lines,5×7 matrix
CALL DELAY_2ms ;delay 2 ms for clear LCD
Program 1.
Program 2: Communicating with LCD Using 4-bit Mode (continued on next page)
435

;-------------------------------------------------------
CMNDWRT:
MOV R27,R16
ANDI R27,0xF0
OUT LCD_DPRT,R27 ;send the high nibble
CBI LCD_CPRT,LCD_RS ;RS = 0 for command
SBI LCD_CPRT,LCD_EN ;EN = 1 for high pulse
CALL DELAY_100us ;make a wide EN pulse
MOV R27,R16
ANDI R27,0xF0 ;mask D0-D3
OUT LCD_DPRT,R27 ;send the low nibble
RET
;-------------------------------------------------------
DATAWRT:
MOV R27,R16
ANDI R27,0xF0
OUT LCD_DPRT,R27 ;;send the high nibble
SBI LCD_CPRT,LCD_RS ;RS = 1 for data
MOV R27,R16
ANDI R27,0xF0 ;mask D0-D3
OUT LCD_DPRT,R27 ;send the low nibble
RET
;-------------------------------------------------------
;delay functions are the same as last program and should
;be placed here.
;-------------------------------------------------------
Program 2: Communicating with LCD Using 4-bit Mode (continued from previous page)
436

Sending code or data
to the LCD using a
single port
The above code showed
how to send commands to the
LCD with 4-bit data but we
used two different ports for data
and commands. In most cases it
hardware connection.
.INCLUDE M32DEF.INC
.EQU LCD_PRT = PORTA ;LCD DATA PORT
.EQU LCD_DDR = DDRA ;LCD DATA DDR
.EQU LCD_PIN = PINA ;LCD DATA PIN
LDI R21,LOW(RAMEND)
OUT SPL,R21
LDI R21,0xFF;
OUT LCD_DDR, R21 ;LCD data port is output
OUT LCD_DDR, R21 ;LCD command port is output
LDI R16,0x28 ;init. LCD 2 lines,5×7 matrix
AVR
D4
D7
LCD
RS R/W E
PA.4
PA.7
PA.0
PA.1
PA.2
VCC
VEE
VSS
+5V
10K
POT
Port
Figure 4. LCD Connections Using a Single
port for LCD interfacing.
2 modified to use a single
is preferred to use a single port.
Program 3 shows Program
Figure 4 shows the
Program 3: Communicating with LCD Using a Single Port (continued on next page)
437

CALL DELAY_2ms ;delay 2 ms for clear LCD
HERE:
JMP HERE ;stay here
;-------------------------------------------------------
CMNDWRT:
MOV R27,R16
ANDI R27,0xF0
IN R26,LCD_PRT
ANDI R26,0x0F
OR R26,R27
OUT LCD_PRT,R26 ;LCD data port = R16
CBI LCD_PRT,LCD_RS ;RS = 0 for command
CBI LCD_PRT,LCD_RW ;RW = 0 for write
SBI LCD_PRT,LCD_EN ;EN = 1 for high pulse
CBI LCD_PRT,LCD_EN ;EN=0 for H-to-L pulse
CALL DELAY_100us ;make a wide EN pulse
MOV R27,R16
SWAP R27
ANDI R27,0xF0
IN R26,LCD_PRT
ANDI R26,0x0F
OR R26,R27
RET
;-------------------------------------------------------
DATAWRT:
MOV R27,R16
ANDI R27,0xF0
IN R26,LCD_PRT
ANDI R26,0x0F
(continued from previous page)
Program 3: Communicating with LCD Using a Single Port
438

OR R26,R27
SBI LCD_PRT,LCD_RS ;RS = 1 for data
CBI LCD_PRT,LCD_RW ;RW = 0 for write
MOV R27,R16
SWAP R27
ANDI R27,0xF0
IN R26,LCD_PRT
ANDI R26,0x0F
OR R26,R27
RET
;-------------------------------------------------------
SDELAY:
NOP
NOP
RET
;-------------------------------------------------------
DELAY_100us:
PUSH R17
LDI R17,60
DR0: CALL SDELAY
DEC R17
BRNE DR0
POP R17
RET
;-------------------------------------------------------
DELAY_2ms:
PUSH R17
LDI R17,20
LDR0: CALL DELAY_100us
DEC R17
BRNE LDR0
POP R17
RET
(continued from previous page)
Program 3: Communicating with LCD Using a Single Port
439

Sending information to LCD using the LPM instruction
other functions do not change. If you want to use a single port you have to change
.INCLUDE M32DEF.INC
LDI R21,LOW(RAMEND)
OUT SPL,R21
LDI R21, 0xFF;
CBI LCD_CPRT,LCD_EN;LCD_EN = 0
CALL LDELAY ;wait for init.
LDI R16,0x38 ;init LCD 2 lines, 5×7 matrix
CALL LDELAY ;init. hold
LDI R16,0x84 ;cursor at line 1 pos. 4
LDI R31,HIGH(MSG1)
LDI R30,LOW(MSG1);Z points to MSG
LOOP: LPM R16,Z+
BREQ HERE ;if R16 equals 0 exit
RJMP LOOP ;jump to loop
MSG: .DB Hello World!,0
the port definition in the beginning of the code according to Program 2.
of characters to an LCD. Program 4 shows only the main part of the code. The
Program 4 shows how to use the LPM instruction to send a long string
Program 4: Communicating with LCD Using the LPM Instruction
440

LCD data sheet
Here we deepen your understanding of LCDs by concentrating on two
important concepts. First we will show you the timing diagram of the LCD; then
we will discuss how to put data at any location.
LCD timing diagrams
the 8-bit and 4-bit modes. Notice that in the 4-bit operating mode, the high nibble
is transmitted. Also notice that each nibble is followed by a high-to-low pulse to
enable the internal latch of the LCD.
E
R/W
RS
tAS
tH
tPWH
tDSW
tAH
tPWH = Enable pulse width = 450 ns (minimum)
tDSW = Data setup time = 195 ns (minimum)
tH = Data hold time = 10 ns (minimum)
tAS = Setup time prior to E (going high) for both RS and R/W = 140 ns (minimum)
tAH = Hold time after E has come down for both RS and R/W = 10 ns (minimum)
Data
E
R/W
RS
tAS
tH
tPWH
tDSW
tAH
tPWH = Enable pulse width = 450 ns (minimum)
tDSW = Data setup time = 195 ns (minimum)
tH = Data hold time = 10 ns (minimum)
tAS = Setup time prior to E (going high) for both RS and R/W = 140 ns (minimum)
tAH = Hold time after E has come down for both RS and R/W = 10 ns (minimum)
high low
In Figures 5 and 6 you can study and contrast the Write timing for
Figure 5. LCD Timing for Write (H-to-L for E line)
Figure 6. LCD Timing for 4-bit Write
441

LCD detailed commands
Clear Display 0 0 0 0 0 0 0 0 0 1 Clears entire display and sets DD 1.64 ms
RAM address 0 in address counter.
Return Home 0 0 0 0 0 0 0 0 1 - Sets DD RAM address 0 as address 1.64 ms
counter. Also returns display being
shifted to original position. DD RAM
contents remain unchanged.
Entry Mode 0 0 0 0 0 0 01 1/D S Sets cursor move direction and specifies 40 μs
Set shift of display. These operations are
performed during data write and read.
Display On/ 0 0 0 0 0 0 1 D C B Sets On/Off of entire display (D), 40 μs
Off Control cursor On/Off (C), and blink of cursor
position character (B).
Cursor or 0 0 0 0 0 1 S/C R/L - - Moves cursor and shifts display with- 40 μs
Display Shift out changing DD RAM contents.
Function Set 0 0 0 0 1 DL N F - - Sets interface data length (DL), num- 40 μs
ber of display lines (L), and character
font (F).
Set CG RAM 0 0 0 1 AGC Sets CG RAM address. CG RAM data 40 μs
Address is sent and received after this setting.
Set DD RAM 0 0 1 ADD Sets DD RAM address. DD RAM data 40 μs
Address is sent and received after this setting.
Read Busy 0 1 BF AC Reads Busy flag (BF) indicating inter- 40 μs
Flag Address nal operation is being performed and
reads address counter contents.
Write Data 1 0 Write Data Writes data into DD or CG RAM. 40 μs
CG or DD RAM
Read Data 1 1 Read Data Reads data from DD or CG RAM. 40 μs
CG or DD RAM
Notes:
1. Execution times are maximum times when fcp or fosc is 250 kHz.
2. Execution time changes when frequency changes. Ex: When fcp or fosc is 270 kHz: 40 μs × 250 / 270 = 37 μs.
3. Abbreviations:
DD RAM Display data RAM
CG RAM Character generator RAM
ACC CG RAM address
ADD DD RAM address, corresponds to cursor address
AC Address counter used for both DD and CG RAM addresses
1/D = 1 Increment 1/D = 0 Decrement
S = 1 Accompanies display shift
S/C = 1 Display shift; S/C = 0 Cursor move
R/L = 1 Shift to the right; R/L = 0 Shift to the left
DL = 1 8 bits, DL = 0: 4 bits
N = 1 1 line, N = 0: 1 line
F = 1 5 × 10 dots, F = 0: 5 × 7 dots
BF = 1 Internal operation; BF = 0 Can accept instruction
RS
R/W
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
Execution
Time
(Max)
Instruction Description
Table 3 provides a detailed list of LCD commands and instructions.
Table 3: List of LCD Instructions
442

The upper address range can go as high as 0100111 for the
40-character-wide LCD, while for the 20-character-wide LCD it goes up to 010011
(19 decimal = 10011 binary). Notice that the upper range 0100111 (binary) = 39
decimal, which corresponds to locations 0 to 39 for the LCDs of 40 × 2 size.
From the above discussion we can get the addresses of cursor positions for
LCD Type Line Address Range
16 × 2 LCD Line 1: 80 81 82 83 through 8F
Line 2: C0 C1 C2 C3 CF
20 × 1 LCD Line 1: 80 81 82 83 through 93
20 × 2 LCD Line 1: 80 81 82 83 through 93
Line 2: C0 C1 C2 C3 through D3
20 × 4 LCD Line 1: 80 81 82 83 through 93
Line 2: C0 C1 C2 C3 through D3
Line 3: 94 95 96 97 through A7
Line 4: D4 D5 D6 D7 through E7
40 × 2 LCD Line 1: 80 81 82 83 through A7
Line 2: C0 C1 C2 C3 through E7
Note: All data is in hex.
RS R/W DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0
0 0 1 A A A A A A A
What is the cursor address for the following positions in a 20 × 4 LCD?
(a) Line 1, Column 1
(b) Line 2, Column 1
(c) Line 3, Column 2
(d) Line 4, Column 3
Solution:
(a) 80
(b) C0
(c) 95
(d) D6
The following shows how to set DD RAM address locations.
1100111 for line 2.
Where AAAAAAA = 0000000 to 0100111 for line 1 and AAAAAAA = 1000000 to
(Table 2 is extracted from this table.) As you see in the eighth row of
Table 3, you can set the DD RAM address. It lets you put data at any location.
through
of LCDs. Notice that all the addresses are in hex. See Example 1.
various sizes of LCDs. See Table 4 for the cursor addresses for common types
Table 4: Cursor Addresses for Some LCDs
Example 1
443

LCD programming in C
using C programming. The codes are modular to improve code clarity.
in C language.
// YOU HAVE TO SET THE CPU FREQUENCY IN AVR STUDIO
// BECAUSE YOU ARE USING PREDEFINED DELAY FUNCTION
#include util/delay.h //delay header
#define LCD_DPRT PORTA //LCD DATA PORT
#define LCD_DDDR DDRA //LCD DATA DDR
#define LCD_DPIN PINA //LCD DATA PIN
#define LCD_CPRT PORTB //LCD COMMANDS PORT
#define LCD_CDDR DDRB //LCD COMMANDS DDR
#define LCD_CPIN PINB //LCD COMMANDS PIN
#define LCD_RS 0 //LCD RS
#define LCD_RW 1 //LCD RW
#define LCD_EN 2 //LCD EN
//*******************************************************
void delay_us(unsigned int d)
{
_delay_us(d);
}
//*******************************************************
void lcdCommand( unsigned char cmnd )
{
LCD_DPRT = cmnd; //send cmnd to data port
LCD_CPRT = ~ (1LCD_RS); //RS = 0 for command
LCD_CPRT = ~ (1LCD_RW); //RW = 0 for write
LCD_CPRT |= (1LCD_EN); //EN = 1 for H-to-L pulse
delay_us(1); //wait to make enable wide
LCD_CPRT = ~ (1LCD_EN); //EN = 0 for H-to-L pulse
}
//*******************************************************
void lcdData( unsigned char data )
{
LCD_DPRT = data; //send data to data port
LCD_CPRT |= (1LCD_RS); //RS = 1 for data
(continued on next page)
Programs 5, 6, and 7 show how to interface an LCD to the AVR
Program 5 shows how to use 8-bit data to interface an LCD to the AVR
Program 5: Communicating with LCD Using 8-bit Data in C
444

}
//*******************************************************
void lcd_init()
{
LCD_DDDR = 0xFF;
LCD_CDDR = 0xFF;
LCD_CPRT =~(1LCD_EN); //LCD_EN = 0
delay_us(2000); //wait for init.
lcdCommand(0x38); //init. LCD 2 line, 5 × 7 matrix
lcdCommand(0x0E); //display on, cursor on
lcdCommand(0x01); //clear LCD
delay_us(2000); //wait
lcdCommand(0x06); //shift cursor right
}
//*******************************************************
void lcd_gotoxy(unsigned char x, unsigned char y)
{
char firstCharAdr[]={0x80,0xC0,0x94,0xD4};//Table
lcdCommand(firstCharAdr[y-1] + x - 1);
delay_us(100);
}
//*******************************************************
void lcd_print( char * str )
{
while(str[i]!=0)
{
lcdData(str[i]);
i++ ;
}
}
//*******************************************************
int main(void)
{
lcd_init();
lcd_gotoxy(1,1);
lcd_print(The world is but);
lcd_gotoxy(1,2);
lcd_print(one country);
return 0;
}
unsigned 5
445

in C language.
#define LCD_DPRT PORTA //LCD DATA PORT
#define LCD_DDDR DDRA //LCD DATA DDR
#define LCD_DPIN PINA //LCD DATA PIN
#define LCD_CPRT PORTB //LCD COMMANDS PORT
#define LCD_CDDR DDRB //LCD COMMANDS DDR
#define LCD_CPIN PINB //LCD COMMANDS PIN
void delay_us(int d)
{
_delay_us(d);
}
void lcdCommand( unsigned char cmnd )
{
LCD_DPRT = cmnd 0xF0; //send high nibble to D4-D7
LCD_CPRT = ~ (1LCD_RS); //RS = 0 for command
delay_us(1); //make EN pulse wider
LCD_DPRT = cmnd4; //send low nibble to D4-D7
}
void lcdData( unsigned char data )
{
LCD_DPRT = data 0xF0; //send high nibble to D4-D7
LCD_CPRT |= (1LCD_RS); //RS = 1 for data
LCD_DPRT = data4; //send low nibble to D4-D7
(continued on next page)
446

}
void lcd_init()
{
LCD_DDDR = 0xFF;
LCD_CDDR = 0xFF;
LCD_CPRT =~(1LCD_EN); //LCD_EN = 0
lcdCommand(0x33); //send $33 for init.
lcdCommand(0x32); //send $32 for init.
lcdCommand(0x28); //init. LCD 2 line,5×7 matrix
lcdCommand(0x0e); //display on, cursor on
delay_us(2000);
}
{
unsigned char firstCharAdr[]={0x80,0xC0,0x94,0xD4};
delay_us(100);
}
void lcd_print(char * str )
{
while(str[i]!=0)
{
lcdData(str[i]);
i++ ;
}
}
int main(void)
{
lcd_init();
lcd_gotoxy(1,1);
lcd_gotoxy(1,2);
lcd_print(one country);
return 0;
}
447

in C language. It uses only a single port. Also there are some useful functions to
print a string (array of chars) or to move the cursor to a specific location.
#define LCD_PRT PORTA //LCD DATA PORT
#define LCD_DDR DDRA //LCD DATA DDR
#define LCD_PIN PINA //LCD DATA PIN
void delay_us(int d)
{
_delay_us(d);
}
void delay_ms(int d)
{
_delay_ms(d);
}
void lcdCommand( unsigned char cmnd ){
LCD_PRT = (LCD_PRT 0x0F) | (cmnd 0xF0);
LCD_PRT = ~ (1LCD_RS); //RS = 0 for command
LCD_PRT = ~ (1LCD_RW); //RW = 0 for write
LCD_PRT |= (1LCD_EN); //EN = 1 for H-to-L
delay_us(1); //wait to make EN wider
LCD_PRT = ~ (1LCD_EN); //EN = 0 for H-to-L
LCD_PRT = (LCD_PRT 0x0F) | (cmnd 4);
}
void lcdData( unsigned char data ){
LCD_PRT = (LCD_PRT 0x0F) | (data 0xF0);
LCD_PRT |= (1LCD_RS); //RS = 1 for data
LCD_PRT = ~ (1LCD_RW); //RW = 0 for write
Program 7: Communicating with LCD Using 4-bit Data in C (continued on next page)
448

LCD_PRT = (LCD_PRT 0x0F) | (data 4);
}
void lcd_init(){
LCD_DDR = 0xFF; //LCD port is output
LCD_PRT =~(1LCD_EN); //LCD_EN = 0
delay_us(2000); //wait for stable power
lcdCommand(0x33); //$33 for 4-bit mode
lcdCommand(0x0e); //display on, cursor on
delay_us(100);
}
{ //Table
unsigned char firstCharAdr[] = {0x80, 0xC0, 0x94, 0xD4};
delay_us(100);
}
void lcd_print( char * str )
{
while(str[i]!=0)
{
lcdData(str[i]);
i++;
}
}
5
449

int main(void)
{
lcd_init();
while(1)
{ //stay here forever
lcd_gotoxy(1,1);
lcd_gotoxy(1,2);
lcd_print(one country );
delay_ms(1000);
lcd_gotoxy(1,1);
lcd_print(and mankind its );
lcd_gotoxy(1,2);
lcd_print(citizens );
delay_ms(1000);
}
return 0;
}
You can purchase the LCD expansion board of
the MDE AVR trainer from the
following websites:
www.digilentinc.com
www.MicroDigitalEd.com
The LCDs can be purchased from the
following websites:
www.digikey.com
www.jameco.com
www.elexp.com
Program 7: Communicating with LCD Using 4-bit Data in C (cont. from previous page)
450

Review Questions
1. The RS pin is an _______ (input, output) pin for the LCD.
2. The E pin is an ________ (input, output) pin for the LCD.
3. The E pin requires an _______ (H-to-L, L-to-H) pulse to latch in information
at the data pins of the LCD.
4. For the LCD to recognize information at the data pins as data, RS must be set
to _____ (high, low).
5. What is the 0x06 command ?
6. Which of the following commands takes more than 100 microseconds to run?
(a) Shift cursor left
(b) Shift cursor right
(c) Set address location of DDRAM
(d) Clear screen
7. Which of the following initialization commands initializes an LCD for 5 × 7
matrix characters in 8-bit operating mode?
(a) 0x38, 0x0E, 0x0, 0x06
(b) 0x0E, 0x0, 0x06
(c) 0x33, 0x32, 0x28, 0x0E, 0x01, 0x06
(d) 0x01, 0x06
8. Which of the following initialization commands initializes an LCD for 5 × 7
matrix characters in 4-bit operating mode?
(a) 0x38, 0x0E, 0x0, 0x06
(b) 0x0E, 0x0, 0x06
(c) 0x33, 0x32, 0x28, 0x0E, 0x01, 0x06
(d) 0x01, 0x06
9. Which of the following is the address of the second column of the second row
in a 2 × 20 LCD?
(a) 0x80
(b) 0x81
(c) 0xC0
(d) 0xC1
10. Which of the following is the address of the second column of the second row
in a 4 × 20 LCD?
(a) 0x80
(b) 0x81
(c) 0xC0
(d) 0xC1
11. Which of the following is the address of the first column of the second row in
a 4 × 20 LCD?
(a) 0x80
(b) 0x81
(c) 0xC0
(d) 0xC1
451

Keyboards and LCDs are the most widely used input/output devices in
microcontrollers such as the AVR and a basic understanding of them is essential.
In the previous section, we discussed how to interface an LCD with an AVR using
some examples. In this section, we first discuss keyboard fundamentals, along
with key press and key detection mechanisms. Then we show how a keyboard is
interfaced to an AVR.
Interfacing the keyboard to the AVR
At the lowest level, keyboards are organized in a matrix of rows and
columns. The CPU accesses both rows and columns through ports; therefore, with
two 8-bit ports, an 8 × 8 matrix of keys can be connected to a microcontroller.
When a key is pressed, a row and a column make a contact; otherwise, there is no
connection between rows and columns. In x86 PC keyboards, a single microcon-
troller takes care of hardware and software interfacing of the keyboard. In such
systems, it is the function of programs stored in the Flash of the microcontroller to
scan the keys continuously, identify which one has been activated, and present it
to the motherboard. In this section we look at the mechanism by which the AVR
scans and identifies the key.
3 2 1 0
7 6 5 4
B A 9 8
F E D C
VCC
SECTION 2: KEYBOARD INTERFACING
Figure 7. Matrix Keyboard Connection to Ports
452

Scanning and identifying the key
connected to an output port and the columns are connected to an input port. If no
key has been pressed, reading the input port will yield 1s for all columns since they
are all connected to high (VCC). If all the rows are grounded and a key is pressed,
one of the columns will have 0 since the key pressed provides the path to ground.
It is the function of the microcontroller to scan the keyboard continuously to detect
and identify the key pressed. How this is done is explained next.
Grounding rows and reading the columns
To detect a pressed key, the microcontroller grounds all rows by providing
0 to the output latch, and then it reads the columns. If the data read from the
columns is D3–D0 = 1111, no key has been pressed and the process continues until
a key press is detected. However, if one of the column bits has a zero, this means
that a key press has occurred. For example, if D3–D0 = 1101, this means that a key
in the D1 column has been pressed. After a key press is detected, the microcon-
troller will go through the process of identifying the key. Starting with the top row,
the microcontroller grounds it by providing a low to row D0 only; then it reads the
columns. If the data read is all 1s, no key in that row is activated and the process
is moved to the next row. It grounds the next row, reads the columns, and checks
for any zero. This process continues until the row is identified. After identification
of the row in which the key has been pressed, the next task is to find out which
column the pressed key belongs to. This should be easy since the microcontroller
knows at any time which row and column are being accessed. Look at
identification of key activation. In this program, it is assumed that PC0–PC3 are
connected to the rows and PC4–PC7 are connected to the columns.
lowing.
(a) D3–D0 = 1110 for the row, D3–D0 = 1011 for the column
(b) D3–D0 = 1101 for the row, D3–D0 = 0111 for the column
Solution:
(a) The row belongs to D0 and the column belongs to D2; therefore, key number 2 was
pressed.
(b) The row belongs to D1 and the column belongs to D3; therefore, key number 7 was
pressed.
Figure 7 shows a 4 × 4 matrix connected to two ports. The rows are
Example 2.
Example 2
From Figure 7 the row and column can be used to identify the key.
From Figure 7 identify the row and column of the pressed key for each of the fol-
Program 8 is the AVR Assembly language program for detection and
453

Start
Return
Ground all rows
Ground next row
Read all columns
Find which key
is pressed
Get scan code
from table
Read all columns
Read all columns
Read all columns
Wait for debounce
All keys
open?
Key
press in
this
row?
Any key
down?
Any key
down?
yes
yes
yes
yes
1
1
no
no
no
no
Figure 8. Flowchart for Program 8
454

flowcharts this process):
1. To make sure that the preceding key has been released, 0s are output to all rows
at once, and the columns are read and checked repeatedly until all the columns
are high. When all columns are found to be high, the program waits for a short
amount of time before it goes to the next stage of waiting for a key to be
pressed.
2. To see if any key is pressed, the columns are scanned over and over in an infi-
nite loop until one of them has a 0 on it. Remember that the output latches con-
nected to rows still have their initial zeros (provided in stage 1), making them
grounded. After the key press detection, the microcontroller waits 20 ms for
the bounce and then scans the columns again. This serves two functions: (a) it
ensures that the first key press detection was not an erroneous one due to a
spike noise, and (b) the 20-ms delay prevents the same key press from being
delay the key is still pressed, it goes to the next stage to detect which row it
belongs to; otherwise, it goes back into the loop to detect a real key press.
3. To detect which row the key press belongs to, the microcontroller grounds one
row at a time, reading the columns each time. If it finds that all columns are
high, this means that the key press cannot belong to that row; therefore, it
grounds the next row and continues until it finds the row the key press belongs
to. Upon finding the row that the key press belongs to, it sets up the starting
address for the look-up table holding the scan codes (or the ASCII value) for
that row and goes to the next stage to identify the key.
4. To identify the key press, the microcontroller rotates the column bits, one bit
at a time, into the carry flag and checks to see if it is low. Upon finding the
zero, it pulls out the ASCII code for that key from the look-up table; otherwise,
it increments the pointer to point to the next element of the look-up table.
While the key press detection is standard for all keyboards, the process for
determining which key is pressed varies. The look-up table method shown in
shows keypad programming in C.
There are IC chips such as National Semiconductor's MM74C923 that
incorporate keyboard scanning and decoding all in one chip. Such chips use com-
binations of counters and logic gates (no microcontroller) to implement the under-
GND
VCC
Unstable Unstable
Program 8 goes through the following four major stages (Figure 8
interpreted as a multiple key press. Look at Figure 9. If after the 20-ms
Program 8 can be modified to work with any matrix up to 8 × 8. Example 3
lying concepts presented in Program 8.
Figure 9. Keyboard Debounce
455

;Keyboard Program. This program sends the ASCII code
;for pressed key to Port D
;PC0-PC3 connected to rows PC4-PC7 connected to columns
.INCLUDE M32DEF.INC
.EQU KEY_PORT = PORTC
.EQU KEY_PIN = PINC
.EQU KEY_DDR = DDRC
OUT SPH,R20
LDI R20,LOW(RAMEND) ;init. stack pointer
OUT SPL,R20
LDI R21,0xFF
OUT DDRD,R21
LDI R20,0xF0
OUT KEY_DDR,R20
GROUND_ALL_ROWS:
LDI R20,0x0F
OUT KEY_PORT,R20
WAIT_FOR_RELEASE:
NOP
IN R21,KEY_PIN ;read key pins
ANDI R21,0x0F ;mask unused bits
CPI R21,0x0F ;(equal if no key)
BRNE WAIT_FOR_RELEASE ;do again until keys released
WAIT_FOR_KEY:
NOP ;wait for sync. circuit
BREQ WAIT_FOR_KEY ;do again until a key pressed
CALL WAIT15MS ;wait 15 ms
BREQ WAIT_FOR_KEY ;do again until a key pressed
LDI R21,0b01111111 ;ground row 0
OUT KEY_PORT,R21
IN R21,KEY_PIN ;read all columns
BRNE COL1 ;row 0, find the colum
OUT KEY_PORT,R21
Program 8: Keyboard Interfacing Program (continued on next page)
456

OUT KEY_PORT,R21
OUT KEY_PORT,R21
COL1:
LDI R30,LOW(KCODE01)
LDI R31,HIGH(KCODE01)
RJMP FIND
COL2:
RJMP FIND
COL3:
RJMP FIND
COL4:
RJMP FIND
FIND:
LSR R21
BRCC MATCH ;if Carry is low go to match
LPM R20,Z+ ;INC Z
RJMP FIND
MATCH:
LPM R20,Z
OUT PORTD,R20
RJMP GROUND_ALL_ROWS
WAIT15MS: ;place a code to wait 15 ms
;here
RET
.ORG 0x300
KCODE0: .DB '0','1','2','3' ;ROW 0
KCODE1: .DB '4','5','6','3' ;ROW 1
KCODE2: .DB '8','9','A','B' ;ROW 2
KCODE3: .DB 'C','D','E','F' ;ROW 3
Program 8. Keyboard Interfacing Program (continued from previous page)
457

Write a C program to read the keypad and send the result to Port D.
PC0–PC3 connected to columns
PC4–PC7 connected to rows
Solution:
#define KEY_PRT PORTC //keyboard PORT
#define KEY_DDR DDRC //keyboard DDR
#define KEY_PIN PINC //keyboard PIN
void delay_ms(unsigned int d)
{
_delay_ms(d);
}
unsigned char keypad[4][4] ={ '0','1','2','3',
'4','5','6','7',
'8','9','A','B',
'C','D','E','F'};
int main(void)
{
unsigned char colloc, rowloc;
//keyboard routine. This sends the ASCII
//code for pressed key to port c
DDRD = 0xFF;
KEY_DDR = 0xF0; //
KEY_PRT = 0xFF;
while(1) //repeat forever
{
do
{
KEY_PRT = 0x0F; //ground all rows at once
colloc = (KEY_PIN 0x0F); //read the columns
} while(colloc != 0x0F); //check until all keys released
do
{
do
{
delay_ms(20); //call delay
colloc =(KEY_PIN0x0F); //see if any key is pressed
} while(colloc == 0x0F); //keep checking for key press
delay_ms(20); //call delay for debounce
colloc = (KEY_PIN 0x0F); //read columns
}while(colloc == 0x0F); //wait for key press
while(1)
{
KEY_PRT = 0xEF; //ground row 0
Example 3
458

Review Questions
1. True or false. To see if any key is pressed, all rows are grounded.
2. If D3–D0 = 0111 is the data read from the columns, which column does the
pressed key belong to?
3. True or false. Key press detection and key identification require two different
processes.
1110, which key is pressed?
5. True or false. To identify the pressed key, one row at a time is grounded.
if(colloc != 0x0F) //column detected
{
rowloc = 0; //save row location
break; //exit while loop
}
KEY_PRT = 0xDF; //ground row 1
{
}
KEY_PRT = 0xBF; //ground row 2
{
}
KEY_PRT = 0x7F; //ground row 3
}
//check column and send result to Port D
if(colloc == 0x0E)
PORTD = (keypad[rowloc][0]);
else if(colloc == 0x0D)
else if(colloc == 0x0B)
else
}
return 0 ;
}
Example 3 (continued from previous page)
4. In Figure 7, if the rows are D3–D0 = 1110 and the columns are D3–D0 =
459

SUMMARY
This chapter showed how to interface real-world devices such as LCDs and
keypads to the AVR. First, we described the operation modes of LCDs, and then
described how to program the LCD by sending data or commands to it via its inter-
face to the AVR.
Keyboards are one of the most widely used input devices for AVR projects.
This chapter also described the operation of keyboards, including key press and
detection mechanisms. Then the AVR was shown interfacing with a keyboard.
AVR programs were written to return the ASCII code for the pressed key.
PROBLEMS
1. The LCD discussed in this section has ____ pins.
2. Describe the function of pins E, R/W, and RS in the LCD.
3. What is the difference between the VCC and VEE pins on the LCD?
4. “Clear LCD” is a __________ (command code, data item) and its value is ___
hex.
5. What is the hex value of the command code for “display on, cursor on”?
6. Give the state of RS, E, and R/W when sending a command code to the LCD.
7. Give the state of RS, E, and R/W when sending data character ‘Z’ to the LCD.
8. Which of the following is needed on the E pin in order for a command code
(or data) to be latched in by the LCD?
(a) H-to-L pulse (b) L-to-H pulse
9. True or false. For the above to work, the value of the command code (data)
must already be at the D0–D7 pins.
10. There are two methods of sending commands and data to the LCD: (1) 4-bit
mode or (2) 8-bit mode. Explain the difference and the advantages and disad-
vantages of each method.
11. For a 16 × 2 LCD, the location of the last character of line 1 is 8FH (its com-
mand code). Show how this value was calculated.
12. For a 16 × 2 LCD, the location of the first character of line 2 is C0H (its com-
13. For a 20 × 2 LCD, the location of the last character of line 2 is 93H (its com-
14. For a 20 × 2 LCD, the location of the third character of line 2 is C2H (its com-
15. For a 40 × 2 LCD, the location of the last character of line 1 is A7H (its com-
16. For a 40 × 2 LCD, the location of the last character of line 2 is E7H (its com-
17. Show the value (in hex) for the command code for the 10th location, line 1 on
a 20 × 2 LCD. Show how you got your value.
18. Show the value (in hex) for the command code for the 20th location, line 2 on
460

a 40 × 2 LCD. Show how you got your value.
19. In reading the columns of a keyboard matrix, if no key is pressed we should
get all ______ (1s, 0s).
20. In the 4 × 4 keyboard interfacing, to detect the key press, which of the follow-
ing is grounded?
(a) all rows (b) one row at time (c) both (a) and (b)
21. In the 4 × 4 keyboard interfacing, to identify the key pressed, which of the fol-
lowing is grounded?
(a) all rows (b) one row at time (c) both (a) and (b)
for each of the following.
(a) D3–D0 = 0111 (b) D3–D0 = 1110
23. Indicate the steps to detect the key press.
24. Indicate the steps to identify the key pressed.
25. Indicate an advantage and a disadvantage of using an IC chip for keyboard
scanning and decoding instead of using a microcontroller.
26. What is the best compromise for the answer to Problem 25?
1. Input
2. Input
3. H-to-L
4. High
5. Shift cursor to right
6. d
7. a
8. c
9. d
10. d
11. c
1. True
2. Column 3
3. True
4. 0
5. True
22. For the 4 × 4 keyboard interfacing (Figure 7), indicate the column and row
461

OBJECTIVES

Discuss the ADC (analog-to-digital converter) section of the AVR chip

Interface temperature sensors to the AVR

Explain the process of data acquisition using ADC

Describe factors to consider in selecting an ADC chip

Program the AVR’s ADC in C and Assembly

Describe the basic operation of a DAC (digital-to-analog converter) chip

Interface a DAC chip to the AVR

Program DAC chips in AVR C and Assembly

Explain the function of precision IC temperature sensors

Describe signal conditioning and its role in data acquisition
INTERFACING
ADC, DAC, AND SENSOR
463

digital converters), DACs (digital-to-analog converters), and sensors. We will also
This section will explore ADC generally. First, we describe some general
aspects of the ADC itself, then focus on the functionality of some important pins
in ADC.
ADC devices
Analog-to-digital converters are among the most widely used devices for
data acquisition. Digital computers use binary (discrete) values, but in the physi-
cal world everything is analog (continuous). Temperature, pressure (wind or liq-
uid), humidity, and velocity are a few examples of physical quantities that we deal
with every day. A physical quantity is converted to electrical (voltage, current) sig-
nals using a device called a transducer. Transducers are also referred to as sensors.
Sensors for temperature, velocity, pressure, light, and many other natural quanti-
ties produce an output that is voltage (or current). Therefore, we need an analog-
to-digital converter to translate the analog signals to digital numbers so that the
explain how to interface the AVR to these devices. In Section 1, we describe
cussed in Section 4.
discuss the issue of signal conditioning. The characteristics of DAC chips are dis-
analog-to-digital converter (ADC) chips. We will program the ADC portion of
the AVR chip in Section 2. In Section 3, we show the interfacing of sensors and
This chapter explores more real-world devices such as ADCs (analog-to-
SECTION 1: ADC CHARACTERISTICS
microcontroller can read and process them. See Figures 1 and 2.
Figure 1. Microcontroller Connection to Sensor via ADC
Figure 2. An 8-bit ADC Block Diagram
ADC, DAC, AND SENSOR INTERFACING
464

Some of the major characteristics of the ADC
Resolution
The ADC has n-bit resolution, where n can be 8, 10, 12, 16, or even 24 bits.
Higher-resolution ADCs provide a smaller step size, where step size is the small-
est change that can be discerned by an ADC. Some widely used resolutions for
. This is discussed below.
Conversion time
In addition to resolution, conversion time is another major factor in judg-
ing an ADC. Conversion time is defined as the time it takes the ADC to convert
the analog input to a digital (binary) number. The conversion time is dictated by
the clock source connected to the ADC in addition to the method used for data con-
version and technology used in the fabrication of the ADC chip such as MOS or
TTL technology.
Vref
Vref is an input voltage used for the reference voltage. The voltage con-
nected to this pin, along with the resolution of the ADC chip, dictate the step size.
For an 8-bit ADC, the step size is Vref/256 because it is an 8-bit ADC, and 2 to the
range needs to be 0 to 4 volts, Vref is connected to 4 volts. That gives 4 V/256 =
15.62 mV for the step size of an 8-bit ADC. In another case, if we need a step size
ref = 5 V)
n-bit Number of steps Step size (mV)
8 256 5/256 = 19.53
10 1024 5/1024 = 4.88
12 4096 5/4096 = 1.2
16 65,536 5/65,536 = 0.076
Notes: VCC = 5 V
Step size (resolution) is the smallest change that can be discerned by an ADC.
ref Relation to Vin Range for an 8-bit ADC
Vref (V) Vin Range (V) Step Size (mV)
5.00 0 to 5 5/256 = 19.53
4.0 0 to 4 4/256 = 15.62
3.0 0 to 3 3/256 = 11.71
2.56 0 to 2.56 2.56/256 = 10
2.0 0 to 2 2/256 = 7.81
1.28 0 to 1.28 1.28/256 = 5
1 0 to 1 1/256 = 3.90
Step size is Vref / 256
Table 1: Resolution versus Step Size for ADC (V
ADCs are shown in Table 1. Although the resolution of an ADC chip is decided
at the time of its design and cannot be changed, we can control the step size with
ref
the help of what is called V
power of 8 gives us 256 steps. See Table 1. For example, if the analog input
Table 2: V
465

ref = 2.56 V, because 2.56 V/256 = 10 mV. For
the 10-bit ADC, if the Vref = 5V, then the step size is 4.88 mV as shown in Table
ref
ref ref ref
ref (+) pin is used as the Vref.
Digital data output
In an 8-bit ADC we have an 8-bit digital data output of D0–D7, while in
the 10-bit ADC the data output is D0–D9. To calculate the output voltage, we use
the following formula:
where Dout in = analog input voltage,
and step size (resolution) is the smallest change, which is Vref/256 for an 8-bit
at a time (serially), or in one chunk, using a parallel line of outputs. This is dis-
cussed next.
Parallel versus serial ADC
The ADC chips are either parallel or serial. In parallel ADC, we have 8 or
more pins dedicated to bringing out the binary data, but in serial ADC we have
only one pin for data out. That means that inside the serial ADC, there is a paral-
lel-in-serial-out shift register responsible for sending out the binary data one bit at
a time. The D0–D7 data pins of the 8-bit ADC provide an 8-bit parallel data path
between the ADC chip and the CPU. In the case of the 16-bit parallel ADC chip,
For an 8-bit ADC, we have Vref = 2.56 V. Calculate the D0–D7 output if the analog
input is: (a) 1.7 V, and (b) 2.1 V.
Solution:
Because the step size is 2.56/256 = 10 mV, we have the following:
(a) Dout = 1.7 V/10 mV=170 in decimal, which gives us 10101010 in binary for D7–D0.
(b) Dout= 2.1 V/10 mV = 210 in decimal, which gives us 11010010 in binary for D7–D0.
ref Relation to Vin Range for an 10-bit ADC
Vref (V) Vin (V) Step Size (mV)
5.00 0 to 5 5/1024 = 4.88
4.096 0 to 4.096 4.096/1024 = 4
3.0 0 to 3 3/1024 = 2.93
2.56 0 to 2.56 2.56/1024 = 2.5
2.048 0 to 2.048 2.048/1024 = 2
1.28 0 to 1.28 1/1024 = 1.25
1.024 0 to 1.024 1.024/1024 = 1
Dout =
Vin
step size
Table 3: V
to ground and the V
1. Tables 2 and 3 show the relationship between the V and step size for the
8- and 10-bit ADCs, respectively. In some applications, we need the differential re-
(−) pinis connected
ref
ference voltage where V = V (+) −V (−). Often the V
of 10 mV for an 8-bit ADC, then V
ADC. See Example 1. This data is brought out of the ADC chip either one bit
= digital data output (in decimal), V
Example 1
466

we need 16 pins for the data path. In order to save pins, many 12- and 16-bit ADCs
years, for many applications where space is a critical issue, using such a large
number of pins for data is not feasible. For this reason, serial devices such as the
serial ADC are becoming widely used. While the serial ADCs use fewer pins and
their smaller packages take much less space on the printed circuit board, more
CPU time is needed to get the converted data from the ADC because the CPU must
get data one bit at a time, instead of in one single read operation as with the paral-
lel ADC. ADC848 is an example of a parallel ADC with 8 pins for the data output,
while the MAX1112 is an example of a serial ADC with a single pin for Dout.
Analog input channels
Many data acquisition applications need more than one ADC. For this rea-
son, we see ADC chips with 2, 4, 8, or even 16 channels on a single chip.
Multiplexing of analog inputs is widely used as shown in the ADC848 and
MAX1112. In these chips, we have 8 channels of analog inputs, allowing us to
monitor multiple quantities such as temperature, pressure, heat, and so on. AVR
microcontroller chips come with up to 16 ADC channels.
MAX1112
SHDN SSTRB
CH0
DOUT
REFIN
REFOUT
CH7
VDD
ADC0848
GND
WR CS RD
CH1 D0/MA0
D1/MA1
D2/MA2
D3/MA3
D4/MA4
D7
INTR
AGND
Vref
CH8
Vcc
CS SCLK
Din
Figures 3 and 4 show the block diagram for ADC848 and MAX1112.
use pins D0–D7 to send out the upper and lower bytes of the binary data. In recent
Figure 3. ADC0848 Parallel ADC Block Diagram
Figure 4. MAX1112 Serial ADC Block Diagram
467

Start conversion and end-of-conversion signals
The fact that we have multiple analog input channels and a single digital
output register creats the need for start conversion (SC) and end-of-conversion
(EOC) signals. When SC is activated, the ADC starts converting the analog input
value of Vin to an n-bit digital number. The amount of time it takes to convert
varies depending on the conversion method as was explained earlier. When the
data conversion is complete, the end-of-conversion signal notifies the CPU that the
converted data is ready to be picked up.
Successive Approximation ADC
Successive Approximation is a widely used method of converting an ana-
log input to digital output. It has three main components: (a) successive approxi-
mation register (SAR), (b) comparator, and (c) control unit. See the figure below.
Assuming a step size of 10 mV, the 8-bit successive approximation ADC will go
through the following steps to convert an input of 1 volt:
(1) It starts with binary 10000000. Since 128 × 10 mV = 1.28 V is greater
than the 1 V input, bit 7 is cleared (dropped). (2) 01000000 gives us 64 × 10 mV =
640 mV and bit 6 is kept since it is smaller than the 1 V input. (3) 01100000 gives
us 96 × 10 mV = 960 mV and bit 5 is kept since it is smaller than the 1 V input, (4)
01110000 gives us 112 × 10 mV = 1120 mv and bit 4 is dropped since it is greater
than the 1 V input. (5) 01101000 gives us 108 × 10 mV = 1080 mV and bit 3 is
dropped since it is greater than the 1 V input. (6) 01100100 gives us 100 × 10 mV =
1000 mV = 1 V and bit 2 is kept since it is equal to input. Even though the answer
is found it does not stop. (7) 011000110 gives us 102 × 10 mV = 1020 mV and bit 1
is dropped since it is greater than the 1 V input. (8) 01100101 gives us 101 × 10 mV
= 1010 mV and bit 0 is dropped since it is greater than the 1 V input.
Notice that the Successive Approximation method goes through all the
steps even if the answer is found in one of the earlier steps. The advantage of the
Successive Approximation method is that the conversion time is fixed since it has
to go through all the steps.
Review Questions
1. Give two factors that affect the step size calculation.
2. The ADC0848 is a(n) _______-bit converter.
3. True or false. While the ADC0848 has 8 pins for Dout, the MAX1112 has only
one Dout pin.
4. Find the step size for an 8-bit ADC, if Vref = 1.28 V.
5. For question 4, calculate the output if the analog input is: (a) 0.7 V, and (b) 1 V.
DAC (Digital-to-Analog
converter)
Successive Approximation
Register
Control
Analog
Input
Voltage
Vout
Binary Output Voltage
468

Because the ADC is widely used in data acquisition, in recent years an
increasing number of microcontrollers have had an on-chip ADC peripheral, just
like timers and USART. An on-chip ADC eliminates the need for an external ADC
connection, which leaves more pins for other I/O activities. The vast majority of
the AVR chips come with ADC. In this section we discuss the ADC feature of the
ATmega32 and show how it is programmed in both Assembly and C.
ATmega32 ADC features
The ADC peripheral of the ATmega32 has the following characteristics:
(a) It is a 10-bit ADC.
(b) It has 8 analog input channels, 7 differential input channels, and 2 differential
input channels with optional gain of 10x and 200x.
(c) The converted output binary data is held by two special function registers
called ADCL (A/D Result Low) and ADCH (A/D Result High).
(d) Because the ADCH:ADCL registers give us 16 bits and the ADC data out is
only 10 bits wide, 6 bits of the 16 are unused. We have the option of making
either the upper 6 bits or the lower 6 bits unused.
(e) We have three options for Vref. Vref can be connected to AVCC (Analog Vcc),
internal 2.56 V reference, or external AREF pin.
(f) The conversion time is dictated by the crystal frequency connected to the XTAL
pins (Fosc) and ADPS0:2 bits.
AVR ADC hardware considerations
For digital logic signals a small variation in voltage level has no effect on
the output. For example, 0.2 V is considered LOW, since in TTL logic, anything
less than 0.5 V will be detected as LOW logic. That is not the case when we are
We can use many techniques to reduce the impact of ADC supply voltage
and Vref variation on the accuracy of ADC output. Next, we examine two of the
most widely used techniques in the AVR.
For an 10-bit ADC, we have Vref = 2.56 V. Calculate the D0–D9 output if the analog
input is: (a) 0.2 V, and (b) 0 V. How much is the variation between (a) and (b)?
Solution:
Because the step size is 2.56/1024 = 2.5 mV, we have the following:
(a) Dout = 0.2 V/2.5 mV = 80 in decimal, which gives us 1010000 in binary.
(b) Dout = 0 V/2.5 mV = 0 in decimal, which gives us 0 in binary.
The difference is 1010000, which is 7 bits!
SECTION 2: ADC PROGRAMMING IN THE AVR
dealing with analog voltage. See Example 2.
Example 2
469

Decoupling AVCC from VCC
Connecting a capacitor between Vref and GND
By connecting a capacitor between the AVREF pin and GND you can make
the Vref
AVR programming in Assembly and C
In the AVR microcontroller five major registers are associated with the
ADC that we deal with in this chapter. They are ADCH (high data), ADCL (low
data), ADCSRA (ADC Control and Status Register), ADMUX (ADC multiplexer
selection register), and SPIOR (Special Function I/O Register). We examine each
of them in this section.
REFS1:0 Bit 7:6 Reference Selection Bits
These bits select the reference voltage for the ADC.
ADLAR Bit 5 ADC Left Adjust Results
This bit dictates either the left bits or the right bits of the result registers ADCH:ADCL
that are used to store the result. If we write a one to ADLAR, the result will be left
adjusted; otherwise, the result is right adjusted.
MUX4:0 Bit 4:0 Analog Channel and Gain Selection Bits
The value of these bits selects the gain for the differential channels and also selects
which combination of analog inputs are connected to the ADC.
REFS1 REFS0 ADLAR MUX4 MUX3 MUX2 MUX1 MUX0
Figure 5. ADC Recommended Connection
voltage more stable and increase the precision of ADC. See Figure 5.
Figure 6. ADMUX Register
pin. Figure 5 shows how to use an inductor and a capacitor to achieve this.
tter accuracy of AVR ADC we must provide a stable voltage source to the AVCC
The AVCC pin provides the supply for analog ADC circuitry. To get a be-
470

ADMUX register
Vref source
ref selection.
As you can see we have three options: (a) AREF pin, (b) AVCC pin, or (c) inter-
ref source.
Notice that if you connect the VREF pin to an external fixed voltage you
will not be able to use the other reference voltage options in the application, as
they will be shorted with the external voltage.
Another important point to note is the fact that connecting a 100 nF exter-
nal capacitor between the VREF pin and GND will increase the precision and sta-
bility of ADC, especially when you want to use internal 2.56 V. Refer to
ATmega32.
If you choose 2.56 V as the Vref, the step size of ADC will be 2.56 / 1024
= 10/4 = 2.5 mV. Such a round step size will reduce the calculations in software.
ref Source Selection Table for AVR
REFS1 REFS0 Vref
0 0 AREF pin Set externally
0 1 AVCC pin Same as VCC
1 0 Reserved ----
1 1 Internal 2.56 V Fixed regardless of VCC value
Internal 2.56V
REFS0
REFS1
AVCC
(pin30)
AVREF
(pin32)
Inside the
AVR chip
Outside the
AVR chip
Figure 7. ADC Reference Source Selection
Figure 6 shows the bits of ADMUX registers and their usage. In this
section we will focus more on the function of these bits.
Figure 7 shows the block diagram of internal circuitry of V
nal 2.56 V. Table 4 shows how the REFS1 and REFS0 bits of the ADMUX register
can be used to select the V
Table 4: V
Figure 5 to see how to connect an external capacitor to the VREF pin of the
471

ADC input channel source
selection. As you can see in the figure,
either single-ended or the differential
input can be selected to be converted to
digital data. If you select single-ended
among ADC0 to ACD7. In this case a
single pin is used as the analog line, and
GND of the AVR chip is used as com-
also select the op-amp gain. You can choose the gain of the op-amp to be 1x, 10x,
2.56V
ADC7
ADC6
ADC5
ADC4
ADC3
ADC2
ADC1
ADC0
GND
+
-
Gain
Selection
MUX Decoder
MUX0
MUX1
MUX2
MUX3
MUX4
Single
Ended
/
Differential
Selection
Channel
Selection
MUXguatda.com/cmx.p4...0 Single-ended Input
00000 ADC0
00001 ADC1
00010 ADC2
00011 ADC3
00100 ADC4
00101 ADC5
00110 ADC6
00111 ADC7
the internal circuitry of input channel
Figure 8 shows the schematic of
Table 5: Single-ended Channels
mon ground. Table 5 lists the values of MUX4–MUX0 bits for different single-
ended inputs. As you see in Figure 8, if you choose differential input, you can
input, you can choose the input channel
Figure 8. ADC Input Channel Selection
472

or 200x. You can select the positive input of the op-amp to be one of the pins
ADC0 to ADC7, and the negative input of the op-amp can be any of ADC0, ADC1,
ADLAR bit operation
the ADC result, but only 10 of the 16 bits are used and 6 bits are unused. You can
select the position of used bits in the bytes. If you set the ADLAR bit in ADMUX
register, the result bits will be left-justified; otherwise, the result bits will be right-
ref Source Selection Table
MUXguatda.com/cmx.p4...0 + Differential Input – Differential Input Gain
01000 * ADC0 ADC0 10x
01001 ADC1 ADC0 10x
01010 * ADC0 ADC0 200x
01011 ADC1 ADC0 200x
01100 * ADC2 ADC2 10x
01101 ADC3 ADC2 10x
01110 * ADC2 ADC2 200x
01111 ADC3 ADC2 200x
10000 ADC0 ADC1 1x
10001 * ADC1 ADC1 1x
10010 ADC2 ADC1 1x
10011 ADC3 ADC1 1x
10100 ADC4 ADC1 1x
10101 ADC5 ADC1 1x
10110 ADC6 ADC1 1x
10111 ADC7 ADC1 1x
11000 ADC0 ADC2 1x
11001 ADC1 ADC2 1x
11010 * ADC2 ADC2 1x
11011 ADC3 ADC2 1x
11100 ADC4 ADC2 1x
11101 ADC5 ADC2 1x
Note: The rows with * are not applicable.
D9 D1 D0
D2
D3
D4
D5
D6
D7
D8
D2
D3
D4
D5
D6
D7
D8 D1 D0
D9
Table 6: V
or ADC2 pins. See Table 6.
justified. See Figure 9. Notice that changing the ADLAR bit will affect the ADC
and cannot be stored in a single byte. In AVR two 8-bit registers are dedicated to
data register immediately.
The AVRs have a 10-bit ADC, which means that the result is 10 bits long
Figure 9. ADLAR Bit and ADCx Registers
473

ADCH: ADCL registers
After the A/D conversion is complete, the result sits in registers ADCL
(A/D Result Low Byte) and ACDH (A/D Result High Byte). As we mentioned
before, the ADLAR bit of the ADMUX is used for making it right-justified or left-
justified because we need only 10 of the 16 bits.
ADCSRA register
The ADCSRA register is the status and control register of ADC. Bits of this
a description of each bit of the ADCSRA register. We will examine some of these
bits in more detail.
ADC Start Conversion bit
tion to the ADCSC bit of ADCSRA there are other sources to trigger start of con-
version. If you set the ADATE bit of ADCSRA to high, you can select auto trigger
source by updating ADTS2:0 in the SFIOR register. If ADATE is cleared, the
ADTS2:0 settings will have no effect. Notice that there are many considerations if
you want to use auto trigger mode. We will not cover auto trigger mode in this
the datasheet of the device that you want to use at www.atmel.com.
ADEN Bit 7 ADC Enable
This bit enables or disables the ADC. Setting this bit to one will enable the ADC, and
clearing this bit to zero will disable it even while a conversion is in progress.
ADSC Bit 6 ADC Start Conversion
To start each conversion you have to set this bit to one.
ADATE Bit 5 ADC Auto Trigger Enable
Auto triggering of the ADC is enabled when you set this bit to one.
ADIF Bit 4 ADC Interrupt Flag
This bit is set when an ADC conversion completes and the data registers are updated.
ADIE Bit 3 ADC Interrupt Enable
Setting this bit to one enables the ADC conversion complete interrupt.
ADPS2:0 Bit 2:0 ADC Prescaler Select Bits
These bits determine the division factor between the XTAL frequency and the input
clock to the ADC.
ADEN ADSC ADATE ADIF ADIE ADPS2 ADPS1 ADPS0
register control or monitor the operation of the ADC. In Figure 10 you can see
Figure 10. ADCSRA (A/D Control and Status Register A)
has a special circuit to trigger start conversion. As you see in Figure 11, in addi-
As we stated before, an ADC has a Start Conversion input. The AVR chip
text. If you want to use auto trigger mode we strongly recommend you to refer to
474

A/D conversion time
register we can set the A/D conversion time. To select the conversion time, we can
select any of Fosc/2, Fosc/4, Fosc/8, Fosc/16, Fosc/32, Fosc/64, or Fosc/128 for
ADC clock, where Fosc is the speed of the crystal frequency connected to the AVR
chip. Notice that the multiplexer has 7 inputs since the option ADPS2:0 = 000 is
SOURCE 0
ADIF
SOURCE n
ADC
ADSC
ADATE
ADTS[2:0]
Edge
Detector
7 bit ADC Prescaler
CK/2
CK/128
CK/64
CK/32
CK/16
CK/8
CK/4
ADPS0
ADPS1
ADPS2
ADC CLOCK SOURCE
1 2 3 4 5 6 7
ADC Clock
Reserved
CK/2
CK/4
CK/8
CK/16
CK/64
CK/32
ADPS0
0
1
0
1
0
0
1
ADPS1
0
0
1
1
0
1
0
ADPS2
0
0
0
0
1
1
1
CK/128
1
1
1
An AVR is connected to the 8 MHz crystal oscillator. Calculate the ADC frequency for
(a) ADPS2:0 = 001 (b) ADPS2:0 = 100 (c) ADPS2:0 = 111
Solution:
(a) Because ADPS2:0 = 001 (1 decimal), the ck/2 input will be activated; we have
8 MHz / 2 = 4 MHz (greater than 200 kHz and not valid)
(b) Because ADPS2:0 = 100 (4 decimal), the ck/8 input will be activated; we have
8 MHz / 16 = 500 kHz (greater than 200 kHz and not valid)
(c) Because ADPS2:0 = 111 (7 decimal), the ck/128 input will be activated; we have
8 MHz / = 62 kHz (a valid option since it is less than 200 kHz)
Figure 11. AVR ADC Trigger Source
As you see in Figure 12, by using the ADPS2:0 bits of the ADCSRA
kHz for the maximum accuracy. Look at Example 3 for clarification.
reserved. For the AVR, the ADC requires an input clock frequency less than 200
Figure 12. AVR ADC Clock Selection
Example 3
475

Sample-and-hold time in ADC
A timing factor that we should know about is the acquisition time. After an
ADC channel is selected, the ADC allows some time for the sample-and-hold
capacitor (C hold) to charge fully to the input voltage level present at the channel.
In the AVR, the first conversion takes 25 ADC clock cycles in order to ini-
tialize the analog circuitry and pass the sample-and-hold time. Then each consec-
utive conversion takes 13 ADC clock cycles.
If the conversion time is not critical in your application and you do not
maximum accuracy of ADC.
Steps in programming the A/D converter using polling
To program the A/D converter of the AVR, the following steps must be
taken:
1. Make the pin for the selected ADC channel an input pin.
2. Turn on the ADC module of the AVR because it is disabled upon power-on
reset to save power.
3. Select the conversion speed. We use registers ADPS2:0 to select the conver-
sion speed.
4. Select voltage reference and ADC input channels. We use the REFS0 and
REFS1 bits in the ADMUX register to select voltage reference and the
MUX4:0 bits in ADMUX to select the ADC input channel.
5. Activate the start conversion bit by writing a one to the ADSC bit of ADCSRA.
6. Wait for the conversion to be completed by polling the ADIF bit in the ADC-
SRA register.
7. After the ADIF bit has gone HIGH, read the ADCL and ADCH registers to get
the digital data output. Notice that you have to read ADCL before ADCH; oth-
erwise, the result will not be valid.
8. If you want to read the selected channel again, go back to step 5.
9. If you want to select another Vref source or input channel, go back to step 4.
Programming AVR ADC in Assembly and C
Condition Sample and Hold Total Conversion
Time (Cycles) Time (Cycles)
First Conversion 14.5 25
Normal Conversion, Single-ended 1.5 13
Normal Conversion, Differential 2 13.5
Auto trigger conversion 1.5 / 2.5 13/14
Table 7 lists the conversion times for some different conditions. Notice that
Table 7: Conversion Time Table
sample-and-hold time is the first part of each conversion.
The Assembly language Program 1 illustrates the steps for ADC con-
version shown above. Figure 13 shows the hardware connection of Program 1.
want to deal with calculation of ADPS2:0 you can use ADPS2:0 = 111 to get the
476

GND
AVREF
AVCC
(32)
(31)
(30)
ATmega
16/32
100nF
100nF
10uH
ADC0 (40)
VCC
PORTB
PORTD
LEDs
;Program This program gets data from channel 0 (ADC0) of
;ADC and displays the result on Port C and Port D. This is done
;forever.
;****************** Program *************************
.INCLUDE M32DEF.INC
LDI R16,0xFF
OUT DDRB, R16 ;make Port B an output
OUT DDRD, R16 ;make Port D an output
LDI R16,0
OUT DDRA, R16 ;make Port A an input for ADC
LDI R16,0x87 ;enable ADC and select ck/128
OUT ADCSRA, R16
LDI R16,0xC0 ;2.56V Vref, ADC0 single ended
OUT ADMUX, R16 ;input, right-justified data
READ_ADC:
SBI ADCSRA,ADSC ;start conversion
KEEP_POLING: ;wait for end of conversion
SBIS ADCSRA,ADIF ;is it end of conversion yet?
RJMP KEEP_POLING ;keep polling end of conversion
SBI ADCSRA,ADIF ;write 1 to clear ADIF flag
IN R16,ADCL ;YOU HAVE TO READ ADCL FIRST
OUT PORTD,R16 ;give the low byte to PORTD
IN R16,ADCH ;READ ADCH AFTER ADCL
OUT PORTB,R16 ;give the high byte to PORTB
RJMP READ_ADC ;keep repeating it
1:
1
Program 1: Reading ADC Using Polling Method in Assembly
Figure 13. ADC Connection for Program 1
477

Programming A/D converter using interrupts
int main (void)
{
DDRA = 0; //make Port A an input for ADC input
ADCSRA= 0x87; //make ADC enable and select ck/128
ADMUX= 0xC0; //2.56V Vref, ADC0 single ended input
//data will be right-justified
while (1){
ADCSRA|=(1ADSC); //start conversion
while((ADCSRA(1ADIF))==0);//wait for conversion to finish
PORTD = ADCL; //give the low byte to PORTD
PORTB = ADCH; //give the high byte to PORTB
}
return 0;
}
.INCLUDE M32DEF.INC
.CSEG
RJMP MAIN
.ORG ADCCaddr
RJMP ADC_INT_HANDLER
.ORG 40
;*****************************
MAIN: LDI R16, HIGH(RAMEND)
OUT SPH, R16
OUT SPL,R16
SEI
LDI R16,0xFF
LDI R16,0
LDI R16,0x8F ;enable ADC and select ck/128
OUT ADCSRA, R16
LDI R16,0xC0 ;2.56V Vref, ADC0 single ended
OUT ADMUX, R16 ;input right-justified data
Program 1C is the C version of the ADC conversion for Program 1.
Program 1C: Reading ADC Using Polling Method in C
Program 2: Reading ADC Using Interrupts in Assembly (continued on next page)
You should know how to use interrupts instead of polling to avoid tying
down the microcontroller. To program the A/D using the interrupt method, we need
to set HIGH the ADIE (A/D interrupt enable) flag. Upon completion of conversion,
the ADIF (A/D interrupt flag) changes to HIGH; if ADIE = 1, it will force the CPU
to jump to the ADC interrupt handler. Programs 2 and 2C show how to read ADC
using interrupts.
478

is checked under WinAVR (20080610). If you use another compiler you may need
to read the documentation of your compiler to know how to deal with interrupts in
your compiler.
Review Questions
1. What is the internal Vref of the ATmega32?
2. The A/D of AVR is a(n) _______-bit converter.
3. True or false. The A/D of AVR has pins for DOUT.
4. True or false. A/D in the AVR is an off-chip module.
5. Find the step size for an AVR ADC, if Vref = 2.56 V.
6. For problem 5, calculate the D0–D9 output if the analog input is: (a) 0.7 V,
and (b) 1 V.
7. How many single-ended inputs are available in the ATmega32 ADC?
8. Calculate the first conversion time for ADPS0–2 = 111 and Fosc = 4 MHz.
9. In AVR, the ADC requires an input clock frequency less than _______ .
10. Which bit is used to poll for the end of conversion?
WAIT_HERE:
RJMP WAIT_HERE ;keep repeating it
;*****************************
ADC_INT_HANDLER:
IN R16,ADCL ;YOU HAVE TO READ ADCL FIRST
OUT PORTD,R16 ;give the low byte to PORTD
IN R16,ADCH ;READ ADCH AFTER ADCL
OUT PORTB,R16 ;give the high byte to PORTB
SBI ADCSRA,ADSC ;start conversion again
RETI
#include avrio.h
ISR(ADC_vect){
PORTD = ADCL; //give the low byte to PORTD
}
int main (void){
ADCSRA= 0x8F; //enable and interrupt select ck/128
ADMUX= 0xC0; //2.56V Vref and ADC0 single-ended
//input right-justified data
return 0;
}
Program 2: Reading ADC Using Interrupts in Assembly (continued from previous page)
Program 2C is the C version of Program 2. Notice that this program
Program 2C: Reading ADC Using Interrupts in C
479

DITIONING
This section will show how to interface sensors to the microcontroller. We
examine some popular temperature sensors and then discuss the issue of signal
conditioning. Although we concentrate on temperature sensors, the principles dis-
cussed in this section are the same for other types of sensors such as light and pres-
sure sensors.
Temperature sensors
Transducers convert physical data such as temperature, light intensity,
flow, and speed to electrical signals. Depending on the transducer, the output pro-
duced is in the form of voltage, current, resistance, or capacitance. For example,
temperature is converted to electrical signals using a transducer called a thermistor.
A thermistor responds to temperature
change by changing resistance, but
its response is not linear, as seen in
The complexity associated
with writing software for such non-
linear devices has led many manufac-
turers to market a linear temperature
sensor. Simple and widely used lin-
ear temperature sensors include the
LM34 and LM35 series from
National Semiconductor Corp. They
are discussed next.
LM34 and LM35 temperature sensors
The sensors of the LM34 series are precision integrated-circuit temperature
sensors whose output voltage is linearly proportional to the Fahrenheit tempera-
nally calibrated. It outputs 10 mV for each degree of Fahrenheit temperature.
Temperature
Temperature (C) Tf (K ohms)
0 29.490
25 10.000
50 3.893
75 1.700
100 0.817
From William Kleitz, Digital Electronics
Part Temperature Range Accuracy Output
Scale
LM34A −50 F to +300 F +2.0 F 10 mV/F
LM34 −50 F to +300 F +3.0 F 10 mV/F
LM34CA −40 F to +230 F +2.0 F 10 mV/F
LM34C −40 F to +230 F +3.0 F 10 mV/F
LM34D −32 F to +212 F +4.0 F 10 mV/F
Note: Temperature range is in degrees Fahrenheit.
SECTION 3: SENSOR INTERFACING AND SIGNAL CON-
Table 8.
Table 9 is a selection guide for the LM34.
ture. See Table 9. The LM34 requires no external calibration because it is inter
Table 8: Thermistor Resistance vs.
Table 9: LM34 Temperature Sensor Series Selection Guide
480

perature. The LM35 requires no external calibration because it is internally cali-
the selection guide for the LM35. (For further information see http://www.nation-
al.com.)
Signal conditioning
Signal conditioning is widely used in the
transducers produce an output in the form of
voltage, current, charge, capacitance, and resist-
ance. We need to convert these signals to volt-
age, however, in order to send input to an A-to-
D converter. This conversion (modification) is
commonly called signal conditioning. See
rent-to-voltage conversion or signal amplifica-
tion. For example, the thermistor changes resist-
ance with temperature. The change of resistance
must be translated into voltages to be of any use
to an ADC. We now look at the case of connect-
ing an LM34 (or LM35) to an ADC of the
ATmega32.
Interfacing the LM34 to the AVR
The A/D has 10-bit resolution with a maximum of 1024 steps, and the
LM34 (or LM35) produces 10 mV for every degree of temperature change. Now,
if we use the step size of 10 mV, the Vout will be 10,240 mV (10.24 V) for full-
scale output. This is not acceptable even though the maximum temperature sensed
by the LM34 is 300 degrees F, and the highest output we will get for the A/D is
3000 mV (3.00 V) .
Now if we use the internal 2.56 V reference voltage, the step size would
be 2.56 V/1024 = 2.5 mV. This makes the binary output number for the ADC four
times the real temperature because the sensor produces 10 mV for each degree of
temperature change and the step size is 2.5 mV (10 mV/2.5 mV = 4). We can scale
Part Temperature Range Accuracy Output Scale
LM35A −55 C to +150 C +1.0 C 10 mV/C
LM35 −55 C to +150 C +1.5 C 10 mV/C
LM35CA −40 C to +110 C +1.0 C 10 mV/C
LM35C −40 C to +110 C +1.5 C 10 mV/C
LM35D 0 C to +100 C +2.0 C 10 mV/C
Note: Temperature range is in degrees Celsius.
Analog world
(temperature,
pressure, etc.)
Transducer
Signal
conditioning
ADC
Microcontroller
Table 10: LM35 Temperature Sensor Series Selection Guide
sors whose output voltage is linearly proportional to the Celsius (centigrade) tem-
brated. It outputs 10 mV for each degree of centigrade temperature. Table 10 is
The LM35 series sensors are precision integrated-circuit temperature sen-
Figure 14. Signal conditioning can be cur-
world of data acquisition. The most common
Figure 14. Getting Data from
the Analog World
it by dividing it by 4 to get the real number for temperature. See Table 11.
481

sensor and the connection of the temperature sensor to the ATmega32.
Reading and displaying temperature
(1) The LM34 (or LM35) is connected to channel 0 (ADC0 pin).
(2) The 10-bit output of the A/D is divided by 4 to get the real temperature.
(3) To divide the 10-bit output of the A/D by 4 we choose the left-justified
option and only read the ADCH register. It is same as shifting the result
VCC
VCC
ADC
0
VCC
GND
Vout
VCC
Vout
GND Top View
TO220
Package
Bottom View
TO92
Package
out for AVR with Vref = 2.56 V
Temp. (F) Vin (mV) # of steps Binary Vout (b9–b0) Temp. in Binary
0 0 0 00 00000000 00000000
1 10 4 00 00000100 00000001
2 20 8 00 00001000 00000010
3 30 12 00 00001100 00000011
10 100 20 00 00101000 00001010
20 200 80 00 01010000 00010100
30 300 120 00 01111000 00011110
40 400 160 00 10100000 00101000
50 500 200 00 11001000 00110010
60 600 240 00 11110000 00111100
70 700 300 01 00011000 01000110
80 800 320 01 01000000 01010000
90 900 360 01 01101000 01011010
100 1000 400 01 10010000 01100100
Table 11: Temperature vs. V
Figure 15 shows the pin configuration of the LM34/LM35 temperature
in both Assembly and C, respectively.
The programs correspond to Figure 15. Regarding these two programs, the
following points must be noted:
Programs 4 and 4C show code for reading and displaying temperature
two bits right. See Example 4.
Figure 15. LM34/35 Connection to AVR and Its Pin Configuration
482

;this program reads the sensor and displays it on Port D
.INCLUDE M32DEF.INC
LDI R16,0xFF
LDI R16,0
LDI R16,0x87 ;enable ADC and select ck/128
OUT ADCSRA, R16
LDI R16,0xE0 ;2.56 V Vref, ADC0 single-ended
OUT ADMUX, R16 ;left-justified data
READ_ADC:
KEEP_POLING: ;wait for end of conversion
SBIS ADCSRA,ADIF ;is it end of conversion?
RJMP KEEP_POLING ;keep polling end of conversion
SBI ADCSRA,ADIF ;write 1 to clear ADIF flag
IN R16,ADCH ;read only ADCH for 8 MSB of
OUT PORTD,R16 ;result and give it to PORTD
RJMP READ_ADC ;keep repeating
;this program reads the sensor and displays it on Port D
int main (void)
{
ADCSRA = 0x87; //make ADC enable and select ck/128
ADMUX = 0xE0; //2.56 V Vref and ADC0 single-ended
//data will be left-justified
while (1){
ADCSRA |= (1ADSC); //start conversion
while((ADCSRA(1ADIF))==0); //wait for end of conversion
}
return 0;
}
the AVR A/D registers of ADCH and ADCL for left-justified.
Solution:
The step size is 2.56/1024 = 2.5 mV because Vref = 2.56 V.
For the 70 degrees temperature we have 700 mV output because the LM34 provides 10
mV output for every degree. Now, the number of steps are 700 mV/2.5 mV = 280 in
decimal. Now 280 = 0100011000 in binary and the AVR A/D output registers have
ADCH = 01000110 and ADCL = 00000000 for left-justified. To get the proper result we
must divide the result by 4. To do that, we simply read the ADCH register, which has
the value 70 (01000110) in it.
Program 3: Reading Temperature Sensor in Assembly
Program 3C: Reading Temperature Sensor in C
Example 4
In Table 11, verify the AVR output for a temperature of 70 degrees. Find values in
483

Review Questions
1. True or false. The transducer must be connected to signal conditioning circuit-
ry before its signal is sent to the ADC.
2. The LM35 provides ______ mV for each degree of ______ (Fahrenheit,
Celsius) temperature.
3. The LM34 provides ____ mV for each degree of _____ (Fahrenheit, Celsius)
temperature.
4. Why do we set the Vref of the AVR to 2.56 V if the analog input is connected
to the LM35?
5. In Question 4, what is the temperature if the ADC output is 0011 1001?
This section will show how to interface a DAC (digital-to-analog convert-
er) to the AVR. Then we demonstrate how to generate a stair-step ramp on the
scope using the DAC.
Digital-to-analog converter (DAC)
The digital-to-analog converter (DAC) is a device widely used to convert
digital pulses to analog signals. In this section we discuss the basics of interfacing
a DAC to the AVR.
Recall from your digital electronics course the two methods of creating a
DAC: binary weighted and R/2R ladder. The vast majority of integrated circuit
DACs, including the MC1408 (DAC0808) used in this section, use the R/2R
method because it can achieve a much higher degree of precision. The first crite-
rion for judging a DAC is its resolution, which is a function of the number of bina-
ry inputs. The common ones are 8, 10, and 12 bits. The number of data bit inputs
equal to 2n, where n is the number of data bit inputs. Therefore, an 8-input DAC
such as the DAC0808 provides 256 discrete voltage (or current) levels of output.
ref
SECTION 4: DAC INTERFACING
See Figure 16. Similarly, the 12-bit DAC provides 4096 discrete voltage levels
decides the resolution of the DAC because the number of analog output levels is
There are also 16-bit DACs, but they are more expensive.
Figure 16. DAC Block Diagram
484

MC1408 DAC (or DAC0808)
In the MC1408 (DAC0808), the digital inputs are converted to current
(Iout), and by connecting a resistor to the Iout pin, we convert the result to voltage.
The total current provided by the Iout pin is a function of the binary numbers at the
D0–D7 inputs of the DAC0808 and the reference current (Iref), and is as follows:
where D0 is the LSB, D7 is the MSB for the inputs, and Iref is the input
current that must be applied to pin 14. The Iref current is generally set to 2.0 mA.
using the standard 5 V power supply. Now assuming that Iref = 2 mA, if all the
inputs to the DAC are high, the maximum output current is 1.99 mA (verify this
for yourself).
Converting Iout to voltage in DAC0808
Ideally we connect the output pin Iout to a resistor, convert this current to
voltage, and monitor the output on the scope. In real life, however, this can cause
inaccuracy because the input resistance of the load where it is connected will also
affect the output voltage. For this reason, the Iref current output is isolated by con-
necting it to an op-amp such as the 741 with Rf = 5 kilohms for the feedback resis-
tor. Assuming that R = 5 kilohms, by changing the binary input, the output voltage
Iout = Iref +
D7
2
( )
+
D6
4
+
D5
8
+
D4
16
+
D3
32
+
D2
64
+
D1
128
D0
256
Atmega16/32
RD
WR
D0
D7
COMP
VCC
Vref (+)
OUT
VEE GND
+5V
DAC0808
Vref (-)
D1
D2
D3
D4
D5
D6
-12V
0.1uF
5k
5k
+5V
5k
1k
+
-
0.1uF
TO
SCOPE
Vout= 0
to10V
PB0
PB7
Figure 17 shows the generation of current reference (setting Iref = 2 mA) by
changes as shown in Example 5.
Figure 17. AVR Connection to DAC0808
485

Generating a stair-step ramp
Programming DAC in C
Assuming that R = 5 kilohms and Iref = 2 mA, calculate Vout for the following binary
inputs:
(a) 10011001 binary (99H)
(b) 11001000 (C8H)
Solution:
(a) Iout = 2 mA (153/256) = 1.195 mA and Vout = 1.195 mA × 5K = 5.975 V
(b) Iout = 2 mA (200/256) = 1.562 mA and Vout = 1.562 mA × 5K = 7.8125 V
LDI R16,0xFF
AGAIN:
OUT PORTB,R16 ;sent R16 to PORTB
NOP ;let DAC recover
NOP
RJMP AGAIN
int main (void)
{
unsigned char i = 0; //define a counter
while (1){ //do forever
PORTB = i; //copy i into PORTB to be converted
i++; //increment the counter
}
return 0;
}
Example 5
In order to generate a stair-step ramp, you can set up the circuit in Figure 17
and load Program 4 on the AVR chip. To see the result wave, connect the output
to an oscilloscope. Figure 18 shows the output.
Program 4C shows how to program the DAC in C.
Program 4: DAC Programming
Program 4C: DAC Programming in C
486

Review Questions
1. In a DAC, input is ______ (digital, analog) and output is _____ (digital, ana-
log).
2. In an ADC, input is ______ (digital, analog) and output is _____ (digital, ana-
log).
3. DAC0808 is a(n) ____-bit D-to-A converter.
4. (a) The output of DAC0808 is in ______ (current, voltage).
(b) True or false. The output of DAC0808 is ideal to drive a motor.
SUMMARY
This chapter showed how to interface real-world devices such as DAC
chips, ADC chips, and sensors to the AVR. First, we discussed both parallel and
serial ADC chips, then described how the ADC module inside the AVR works and
explained how to program it in both Assembly and C. Next we explored sensors.
We also discussed the relation between the analog world and a digital device, and
described signal conditioning, an essential feature of data acquisition systems. In
the last section we studied the DAC chip, and showed how to interface it to the
AVR.
PROBLEMS
1. True or false. The output of most sensors is analog.
2. True or false. A 10-bit ADC has 10-bit digital output.
3. True or false. ADC0848 is an 8-bit ADC.
4. True or false. MAX1112 is a 10-bit ADC.
5. True or false. An ADC with 8 channels of analog input must have 8 pins, one
for each analog input.
V
T
Figure 18. Stair Step Ramp Output
487

6. True or false. For a serial ADC, it takes a longer time to get the converted dig-
ital data out of the chip.
7. True or false. ADC0848 has 4 channels of analog input.
8. True or false. MAX1112 has 8 channels of analog input.
9. True or false. ADC0848 is a serial ADC.
10. True or false. MAX1112 is a parallel ADC.
11. Which of the following ADC sizes provides the best resolution?
(a) 8-bit (b) 10-bit (c) 12-bit (d) 16-bit (e) They are all the same.
12. In Question 11, which provides the smallest step size?
13. Calculate the step size for the following ADCs, if Vref is 5 V:
(a) 8-bit (b) 10-bit (c) 12-bit (d) 16-bit
14. With Vref = 1.28 V, find the Vin for the following outputs:
(a) D7–D0 = 11111111 (b) D7–D0 = 10011001 (c) D7–D0 = 1101100
15. In the ADC0848, what should the Vref value be if we want a step size of 5 mV?
(a) D7–D0 = 11111111 (b) D7–D0 = 10011001 (c) D7–D0 = 01101100
17. True or false. The ATmega32 has an on-chip A/D converter.
18. True or false. A/D of the ATmega32 is an 8-bit ADC.
19. True or false. ATmega32 has 8 channels of analog input.
20. True or false. The unused analog pins of the ATmega32 can be used for I/O
pins.
21. True or false. The A/D conversion speed in the ATmega32 depends on the crys-
tal frequency.
22. True or false. Upon power-on reset, the A/D module of the ATmega32 is turned
on and ready to go.
23. True or false. The A/D module of the ATmega32 has an external pin for the
start-conversion signal.
24. True or false. The A/D module of the ATmega32 can convert only one channel
at a time.
25. True or false. The A/D module of the ATmega32 can have multiple external
Vref+ at any given time.
26. True or false. The A/D module of the ATmega32 can use the Vcc for Vref.
27. In the A/D of ATmega32, what happens to the converted analog data? How do
we know that the ADC is ready to provide us the data?
28. In the A/D of ATmega32, what happens to the old data if we start conversion
again before we pick up the last data?
29. For the A/D of ATmega32, find the step size for each of the following Vref:
(a) Vref = 1.024 V (b) Vref = 2.048 V (c) Vref = 2.56 V
30. In the ATmega32, what should the Vref value be if we want a step size of 2
mV?
31. In the ATmega32, what should the Vref value be if we want a step size of 3
mV?
488

32. With a step size of 1 mV, what is the analog input voltage if all outputs are 1?
(a) D9–D0 = 0011111111 (b) D9–D0 = 0010011000 (c) D9–D0 = 0011010000
34. In the A/D of ATmega32, what should the Vref value be if we want a step size
of 4 mV?
(a) D9–D0 = 1111111111 (b) D9–D0 = 1000000001 (c) D9–D0 = 1100110000
36. Find the first conversion times for the following cases if XTAL = 8 MHz. Are
they acceptable?
(a) Fosc/2 (b) Fosc/4 (c) Fosc/8 (d) Fosc/16 (e) Fosc/32
37. Find the first conversion times for the following cases if XTAL = 4 MHz. Are
they acceptable?
(a) Fosc/8 (b) Fosc/16 (c) Fosc/32 (d) Fosc/64
38. How do we start conversion in the ATmega32?
39. How do we recognize the end of conversion in the ATmega32?
40. Which bits of which register of the ATmega32 are used to select the A/D’s con-
version speed?
41. Which bits of which register of the ATmega32 are used to select the analog
channel to be converted?
42. Give the names of the interrupt flags for the A/D of the ATmega32. State to
which register they belong.
43. Upon power-on reset, the A/D of the ATmega32 is given (on, off).
44. What does it mean when a given sensor is said to have a linear output?
45. The LM34 sensor produces _______ mV for each degree of temperature.
46. What is signal conditioning?
47. True or false. DAC0808 is the same as DAC1408.
48. Find the number of discrete voltages provided by the n-bit DAC for the follow-
ing:
(a) n = 8 (b) n = 10 (c) n = 12
49. For DAC1408, if Iref = 2 mA, show how to get the Iout of 1.99 when all inputs
are HIGH.
50. Find the Iout for the following inputs. Assume Iref = 2 mA for DAC0808.
(a) 10011001 (b) 11001100 (c) 11101110
(d) 00100010 (e) 00001001 (f) 10001000
51. To get a smaller step, we need a DAC with ______ (more, fewer) digital
inputs.
52. To get full-scale output, what should be the inputs for DAC?
SECTION 3: SENSOR INTERFACING AND SIGNAL CONDITIONING
489

1. Number of steps and Vref voltage
2. 8
3. True
4. 1.28 V/256 = 5 mV
5. (a) 0.7 V/ 5 mV = 140 in decimal and D7–D0 = 10001100 in binary.
(b) 1 V/ 5 mV = 200 in decimal and D7–D0 = 11001000 in binary.
1. 2.56 V
2. 10
3. False
4. False
5. 2.56/1024 = 2.5 mV
6. (a) 700 mV/2.5 mV = 280 (100011000), (b) 1000 mV/ 2.5 mV = 400 (110010000)
7 8 channels
8. (1/(4 MHz/128)) × 25 = 800 microseconds
9. 200 kHz
10. ADIF bit of the ADCSRA register
1. True
2. 10, Celsius
3. 10, Fahrenheit
4. Using the 8-bit part of the 10-bit ADC, it gives us 256 steps, and 2.56 V/256 = 10 mV. The
LM35 produces 10 mV for each degree of temperature, which matches the ADC’s step size.
5. 00111001 = 57, which indicates it is 57 degrees.
1. Digital, analog
2. Analog, digital
3. 8
4. (a) current (b) true
SECTION 3: SENSOR INTERFACING AND SIGNAL CONDITIONING
490

OBJECTIVES

Describe the basic operation of a relay

Interface the AVR with a relay

Describe the basic operation of an optoisolator

Interface the AVR with an optoisolator

Describe the basic operation of a stepper motor

Interface the AVR with a stepper motor

Code AVR programs to control and operate a stepper motor

Define stepper motor operation in terms of step angle, steps
per revolution, tooth pitch, rotation speed, and RPM
RELAY, OPTOISOLATOR, AND
STEPPER MOTOR INTERFACING
WITH AVR
491

Microcontrollers are widely used in motor control. We also use relays and
optoisolators in motor control. This chapter discusses motor control and shows
AVR interfacing with relays, optoisolators, and stepper motors. We use both
Assembly and C in our programming examples.
This section begins with an overview of the basic operations of electro-
mechanical relays, solid-state relays, reed switches, and optoisolators. Then we
describe how to interface them to the AVR. We use both Assembly and C language
programs to demonstrate their control.
Electromechanical relays
A relay is an electrically controllable switch widely used in industrial con-
trols, automobiles, and appliances. It allows the isolation of two separate sections
of a system with two different voltage sources. For example, a +5 V system can be
isolated from a 120 V system by placing a relay between them. One such relay is
called an electromechanical (or electromagnetic) relay (EMR) as shown in Figure
out any physical contact between them. When current flows through the coil, a
magnetic field is created around the coil (the coil is energized), which causes the
armature to be attracted to the coil. The armature's contact acts like a switch and
closes or opens the circuit. When the coil is not energized, a spring pulls the arma-
ture to its normal state of open or closed. In the block diagram for electromechan-
ical relays (EMR) we do not show the spring, but it does exist internally. There are
all types of relays for all kinds of applications. In choosing a relay the following
characteristics need to be considered:
1. The contacts can be normally open (NO) or normally closed (NC). In the NC
type, the contacts are closed when the coil is not energized. In the NO type, the
contacts are open when the coil is unenergized.
2. There can one or more contacts. For example, we can have SPST (single pole,
single throw), SPDT (single pole, double throw), and DPDT (double pole,
double throw) relays.
3. The voltage and current needed to energize the coil. The voltage can vary from
a few volts to 50 volts, while the current can be from a few mA to 20 mA. The
relay has a minimum voltage, below which the coil will not be energized. This
minimum voltage is called the “pull-in” voltage. In the datasheets for relays we
might not see current, but rather coil resistance. The V/R will give you the pull-
in current. For example, if the coil voltage is 5 V, and the coil resistance is 500
ohms, we need a minimum of 10 mA (5 V/500 ohms = 10 mA) pull-in current.
4. The maximum DC/AC voltage and current that can be handled by the contacts.
This is in the range of a few volts to hundreds of volts, while the current can
be from a few amps to 40 A or more, depending on the relay. Notice the differ-
ence between this voltage/current specification and the voltage/current needed
for energizing the coil. The fact that one can use such a small amount of volt-
RELAY, OPTOISOLATOR,AND STEPPER MOTOR INTERFACING
SECTION 1: RELAYS AND OPTOISOLATORS
1. The EMRs have three components: the coil, spring, and contacts. In Figure
1, a digital +5 V on the left side can control a 12 V motor on the right side with-
492

age/current on one side to handle a large amount of voltage/current on the
other side is what makes relays so widely used in industrial controls. Examine
Part No. Contact Form Coil Volts Coil Ohms Contact Volts-Current
106462CP SPST-NO 5 VDC 500 100 VDC-0.5 A
129875CP DPDT 5 VDC 62.5 30 VDC-1 A
Common
Normally
Open
Common
Normally
Open
Normally
Closed
(c) DPDT
(b) SPDT
(a) SPST
Table 1 for some relay characteristics.
Table 1: Selected DIP Relay Characteristics (www.Jameco.com)
Figure 1. Relay Diagrams
493

Driving a relay
Digital systems and microcontroller pins lack sufficient current to drive the
relay. While the relay’s coil needs around 10 mA to be energized, the microcon-
troller's pin can provide a maximum of 1–2 mA current. For this reason, we place
a driver, such as the ULN2803, or a power transistor between the microcontroller
;Program
.INCLUDE M32DEF.INC
LDI stack pointer
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
RCALL DELAY_1s
RCALL DELAY_1s
RJMP BEGIN
DELAY_1s:
... ;add the DELAY_1s function
RET
1 18
9
2
6
14
8
PB0
10
and the relay as shown in Figure 2.
and de-energizing the relay every second.
Figure 2. AVR Connection to Relay
Program 1 turns the lamp shown in Figure 2 on and off by energizing
R16,HIGH(RAMEND) ;initialize
1
494

Solid-state relay
relay, there is no coil, spring, or mechanical contact switch. The entire relay is
made out of semiconductor materials. Because no mechanical parts are involved
in solid-state relays, their switching response time is much faster than that of
electromechanical relays. Another advantage of the solid-state relay is its greater
life expectancy. The life cycle for the electromechanical relay can vary from a few
hundred thousand to a few million operations. Wear and tear on the contact points
can cause the relay to malfunction after a while. Solid-state relays, however, have
no such limitations. Extremely low input current and small packaging make solid-
state relays ideal for microcontroller and logic control switching. They are widely
used in controlling pumps, solenoids, alarms, and other power applications. Some
solid-state relays have a phase control option, which is ideal for motor-speed con-
solid-state relay (SSR).
Part No. Contact Style Control Volts Contact Volts Contact Current
143058CP SPST 4–32 VDC 240 VAC 3 A
139053CP SPST 3–32 VDC 240 VAC 25 A
162341CP SPST 3–32 VDC 240 VAC 10 A
172591CP SPST 3–32 VDC 60 VDC 2 A
175222CP SPST 3–32 VDC 60 VDC 4 A
176647CP SPST 3–32 VDC 120 VDC 5 A
4
1
3
162341
AVR
PB0
2
120VAC
FAN
ZERO
VOLTAGE
CIRCUIT
+5
Another widely used relay is the solid-state relay. See Table 2. In this
trol and light-dimming applications. Figure 3 shows control of a fan using a
Figure 3. AVR Connection to a Solid-State Relay
Table 2: Selected Solid-State Relay Characteristics (www.Jameco.com)
495

Reed switch
Another popular switch is the reed switch. When the reed switch is placed
in a magnetic field, the contact is closed. When the magnetic field is removed, the
moist and marine environments where it can be submerged in fuel or water. Reed
switches are also widely used in dirty and dusty atmospheres because they are
tightly sealed.
Optoisolator
WHEEL
MAGNET
LAMP
(ON)
REED SWITCH
(Closed)
WHEEL
M
A
G
N
E
T
LAMP
(OFF)
REED SWITCH
(Open)
contact is forced open by its spring. See Figure 4. The reed switch is ideal for
Figure 4. Reed Switch and Magnet Combination
In some applications we use an optoisolator (also called optocoupler) to
isolate two parts of a system. An example is driving a motor. Motors can produce
what is called back EMF, a high-voltage spike produced by a sudden change of
current as indicated in the formula V = Ldi/dt. In situations such as printed circuit
board design, we can reduce the effect of this unwanted voltage spike (called
ground bounce) by using decoupling capacitors. In systems that have inductors
(coil winding), such as motors, a decoupling capacitor or a diode will not do the
job. In such cases we use optoisolators. An optoisolator has an LED (light-emitting
diode) transmitter and a photosensor receiver, separated from each other by a gap.
When current flows through the diode, it transmits a signal light across the gap and
the receiver produces the same signal with the same phase but a different current
and amplitude. See Figure 5. Optoisolators are also widely used in communication
equipment such as modems. This device allows a comput-er to be connected to a
telephone line without risk of damage from power surges. The gap between the
transmitter and receiver of optoisolators prevents the electri-cal current surge from
reaching the system.
496

Interfacing an optoisolator
The optoisolator comes in a small IC package with four or more pins.
There are also packages that contain more than one optoisolator. When placing an
optoisolator between two circuits, we must use two separate voltage sources, one
between the microcontroller/digital output and the optoisolators.
1
2
3
4
8
7
6
5
LAMP
+12V
+5V
330
PB0
AVR
ILD74
OPTOISOLATOR
1
2
3 4
5
6 1
2
3
4 5
6
7
8 1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
IL74
OPTOISOLATOR
ILD74
OPTOISOLATOR
ILQ74
OPTOISOLATOR
Figure 5. Optoisolator Package Examples
for each side, as shown in Figure 6. Unlike relays, no drivers need to be placed
Figure 6. Controlling a Lamp via an Optoisolator
497

Review Questions
1. Give one application where would you use a relay.
2. Why do we place a driver between the microcontroller and the relay?
3. What is an NC relay?
4. Why are relays that use coils called electromechanical relays?
5. What is the advantage of a solid-state relay over EMR?
6. What is the advantage of an optoisolator over an EMR?
This section begins with an overview of the basic operation of stepper
motors. Then we describe
how to interface a stepper
motor to the AVR. Finally, we
use Assembly language pro-
grams to demonstrate control
of the angle and direction of
stepper motor rotation.
Stepper motors
A stepper motor is a
widely used device that trans-
lates electrical pulses into
mechanical movement. In
applications such as disk
drives, dot matrix printers,
and robotics, the stepper
motor is used for position
control. Stepper motors com-
monly have a permanent mag-
net rotor (also called the
shaft) surrounded by a stator
also steppers called variable
reluctance stepper motors that
do not have a permanent mag-
net rotor. The most common
stepper motors have four sta-
tor windings that are paired
with a center-tapped common
type of stepper motor is com-
monly referred to as a four-
phase or unipolar stepper
motor. The center tap allows a
change of current direction in
N
N
S
S
S
N
A
B
C D
N
N
S
S
S
N
A
B
C D
Average
North
Average
South
SECTION 2: STEPPER MOTOR INTERFACING
(see Figure 7). There are
as shown in Figure 8. This
Figure 7. Rotor Alignment
498

each of two coils when a winding is
grounded, thereby resulting in a polari-
ty change of the stator. Notice that while
a conventional motor shaft runs freely,
the stepper motor shaft moves in a fixed
repeatable increment, which allows it to
move to a precise position. This repeat-
able fixed movement is possible as a
result of basic magnetic theory where
poles of the same polarity repel and
opposite poles attract. The direction of
the rotation is dictated by the stator
poles. The stator poles are determined by the current sent through the wire coils.
As the direction of the current is changed, the polarity is also changed causing the
reverse motion of the rotor. The stepper motor discussed here has a total of six
leads: four leads representing the four stator windings and two commons for the
center-tapped leads. As the sequence of power is applied to each stator winding,
the rotor will rotate. There are several widely used sequences, each of which has
sequence.
once we start we must continue in the proper order. For example, if we start with
step 3 (0110), we must continue in the sequence of steps 4, 1, 2, and so on.
Step angle
How much movement is associated with a single step? This depends on
the internal construction of the motor, in particular the number of teeth on the sta-
tor and the rotor. The step angle is the minimum degree of rotation associated with
step angles for various motors. In
revolution. This is the total number of
steps needed to rotate one complete
rotation or 360 degrees (e.g., 180
steps × 2 degrees = 360).
It must be noted that perhaps
contrary to one's initial impression, a
stepper motor does not need more ter-
minal leads for the stator to achieve
smaller steps. All the stepper motors
COM
COM
A
B
C
D
Configuration
Step Angle Steps per Revolution
0.72 500
1.8 200
2.0 180
2.5 144
5.0 72
7.5 48
15 24
Counter-
clockwise
Step # Winding A Winding B Winding C Winding D
1 1 0 0 1
2 1 1 0 0
3 0 1 1 0
4 0 0 1 1
Clockwise
Figure 8. Stator Winding
a different degree of precision. Table 3 shows a two-phase, four-step stepping
Table 3: Normal Four-Step Sequence
Note that although we can start with any of the sequences in Table 3,
a single step. Various motors have different step angles. Table 4 shows some
Table 4: Stepper Motor Step Angles
Table 4, notice the term steps per
499

discussed in this section have four leads for the stator winding and two COM wires
for the center tap. Although some manufacturers set aside only one lead for the
common signal instead of two, they always have four leads for the stators. See
stand the stepper motor further.
Solution:
The following steps show the AVR connection to the stepper motor and its program-
ming:
1. Use an ohmmeter to measure the resistance of the leads. This should identify which
COM leads are connected to which winding leads.
2. The common wire(s) are connected to the positive side of the motor's power supply.
In many motors, +5 V is sufficient.
3. The four leads of the stator winding are controlled by four bits of the AVR port
(PB0–PB3). Because the AVR lacks sufficient current to drive the stepper motor
windings, we must use a driver such as the ULN2003 (or ULN2803) to energize the
stator. Instead of the ULN2003, we could have used transistors as drivers, as shown
use diodes to take care of inductive current generated when the coil is turned off.
One reason that using the ULN2003 is preferable to the use of transistors as drivers
is that the ULN2003 has an internal diode to take care of back EMF.
.INCLUDE M32DEF.INC
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20
LDI R20,0xFF ;Port B as output
OUT DDRB,R20
LDI R20,0x06 ;load step sequence
L1: OUT PORTB,R20 ;PORTB = R20
LSR R20 ;shift right
BRCC L2 ;if not carry skip next
ORI R20,0x8
L2: RCALL DELAY ;wait
RJMP L1
DELAY:LDI R16,0x50
D_L1: NOP
NOP
DEC R16
BRNE D_L1
RET
Change the value of DELAY to set the speed of rotation.
Example 1. Next we discuss some associated terminology in order to under-
Example 1
rotate it continuously.
Describe the AVR connection to the stepper motor of Figure 9 and code a program to
in Figure 11. However, notice that if transistors are used as drivers, we must also
500

Steps per second and RPM relation
The relation between RPM (revolutions per minute), steps per revolution,
and steps per second is as follows.
The 4-step sequence and number of teeth on rotor
switching sequence because after four steps the same two windings will be ON.
How much movement is associated with these four steps? After completing every
four steps, the rotor moves only one tooth pitch. Therefore, in a stepper motor with
200 steps per revolution, the rotor has 50 teeth because 4×50 = 200 steps are need-
ed to complete one revolution. This leads to the conclusion that the minimum step
angle is always a function of the number of teeth on the rotor. In other words, the
Steps per second =
RPM × Steps per revolution
60
Solution:
A motor with a 2-degree step angle has the following characteristics:
Step angle: 2 degrees Steps per revolution: 180
Number of rotor teeth: 45 Movement per 4-step sequence: 8 degrees
To move the rotor 80 degrees, we need to send 10 consecutive 4-step sequences,
because 10 × 4 steps × 2 degrees = 80 degrees.
AVR
PB0
PB1
PB2
PB3
9
Use one power supply for
the motor and ULN2003
and another for the AVR
8
ULN2003
+5V DC
Unipolar
Stepper Motor
Ground
1
2
3
4 13
14
15
16
+5V DC
Ground
Figure 9. AVR Connection to Stepper Motor
smaller the step angle, the more teeth the rotor has. See Example 2.
The switching sequence shown earlier in Table 3 is called the 4-step
Example 2
stepper motor to make an 80-degree move if the motor has a 2-degree step angle.
Give the number of times the four-step sequence in Table 3 must be applied to a
501

move 45 degrees, because the steps are 2 degrees each. To provide finer resolu-
tions, all stepper motors allow what is called an 8-step switching sequence. The 8-
step sequence is also called half-stepping, because in the 8-step sequence each step
is half of the normal step angle. For example, a motor with a 2-degree step angle
Motor speed
The motor speed, measured in steps per second (steps/s), is a function of
delay loop, we can achieve various rotation speeds.
Holding torque
The following is a definition of holding torque: “With the motor shaft at
standstill or zero rpm condition, the amount of torque, from an external source,
required to break away the shaft from its holding position. This is measured with
rated voltage and current applied to the motor.” The unit of torque is ounce-inch
(or kg-cm).
Wave drive 4-step sequence
In addition to the 8-step and the 4-step sequences discussed earlier, there is
the reader.
1 1 0 0 0
2 0 1 0 0
3 0 0 1 0
4 0 0 0 1
Clockwise Counter-
clockwise
1 1 0 0 1
2 1 0 0 0
3 1 1 0 0
4 0 1 0 0
5 0 1 1 0
6 0 0 1 0
7 0 0 1 1
8 0 0 0 1
Clockwise Counter-
clockwise
Looking at Example 2, one might wonder what happens if we want to
can be used as a 1-degree step angle if the sequence of Table 5 is applied.
Table 5: Half-Step 8-Step Sequence
the switching rate. Notice in Example 1 that by changing the length of the time
Notice that the 8-step sequence of Table 5 is simply the combination of the
3, respectively. Experimenting with the wave drive 4-step sequence is left to
another sequence called the wave drive 4-step sequence. It is shown in Table 6.
wave drive 4-step and normal 4-step normal sequences shown in Tables 6 and
Table 6: Wave Drive 4-Step Sequence
502

Unipolar versus bipolar stepper motor interface
There are three common types of stepper motor interfacing: universal,
unipolar, and bipolar. They can be identified by the number of connections to the
motor. A universal stepper motor has eight, while the unipolar has six and the bipo-
lar has four. The universal stepper motor can be configured for all three modes,
while the unipolar can be either unipolar or bipolar. Obviously the bipolar cannot
three type of configurations.
Unipolar stepper motors can be controlled using the basic interfacing
Bipolar stepper motors require a higher operational current than the unipolar; the
advantage of this is a higher holding torque.
Using transistors as drivers
energized and de-energized, similar to the electromechanical relays discussed ear-
lists the common industrial Darlington transistors. These transistors can accommo-
date higher voltages and currents.
Part No. Step Angle Drive System Volts Phase Resistance Current
151861CP 7.5 unipolar 5 V 9 ohms 550 mA
171601CP 3.6 unipolar 7 V 20 ohms 350 mA
164056CP 7.5 bipolar 5 V 6 ohms 800 mA
(a) Universal (b) Unipolar (c) Bipolar
Table 7: Selected Stepper Motor Characteristics (www.Jameco.com)
be configured for universal nor unipolar mode. Table 7 shows selected stepper
motor characteristics. Figure 10 shows the basic internal connections of all
shown in Figure 11, whereas the bipolar stepper requires H-Bridge circuitry.
Figure 10. Common Stepper Motor Types
tors. Diodes are used to reduce the back EMF spike created when the coils are
Figure 11 shows an interface to a unipolar stepper motor using transis-
lier. TIP transistors can be used to supply higher current to the motor. Table 8
503

NPN PNP Vceo (volts) Ic (amps) hfe (common)
TIP110 TIP115 60 2 1000
TIP111 TIP116 80 2 1000
TIP112 TIP117 100 2 1000
TIP120 TIP125 60 5 1000
TIP121 TIP126 80 5 1000
TIP122 TIP127 100 5 1000
TIP140 TIP145 60 10 1000
TIP141 TIP146 80 10 1000
TIP142 TIP147 100 10 1000
Figure 11. Using Transistors for Stepper Motor Driver
Table 8: Darlington Transistor Listing
504

Controlling stepper motor via optoisolator
In the first section of this chapter we examined the optoisolator and its use.
Optoisolators are widely used to isolate the stepper motor’s EMF voltage and keep
it from damaging the digital/microcontroller system. This is shown in Figure
A switch is connected to pin PA7 (PORTA.7). Write a program to monitor the status of
SW and perform the following:
(a) If SW = 0, the stepper motor moves clockwise.
(b) If SW = 1, the stepper motor moves counterclockwise.
Solution:
.INCLUDE M32DEF.INC
OUT SPH,R20
LDI R20,LOW(RAMEND)
OUT SPL,R20
LDI R20,0xFF ;Port B as output
OUT DDRB,R20
CBI DDRA,7 ;make PA7 an input
LDI R20,0x66 ;starting phase value
L1: OUT PORTB,R20 ;PORTB = R20
IN R16,PINA
BST R16,7 ;T=PINA.7
BRTS CW
LSR R20 ;shift right
BRCC OV1 ;if not carry skip next
ORI R20,0x80
OV1: RCALL DELAY ;wait
RJMP L1 ;repeat
CW: LSL R20 ;shift left
BRCC OV2 ;if not carry skip next
ORI R20,0x01
OV2: RCALL DELAY ;wait
RJMP L1 ;repeat
+5V DC
470
470
470
470
ILQ74
PB0
PB1
PB2
PB3
AVR
Unipolar
Stepper Motor
Use one power supply for
the motor and ULN2803
and another for AVR
+5V DC
ULN2803
The optoisolator
provides additional
protection of the AVR Ground
12. See Examples 3 and 4.
Figure 12. Controlling Stepper Motor via Optoisolator
Example 3
505

Stepper motor control with AVR C
The AVR C version of the stepper motor control is given below. In this pro-
#include “avr/io.h”
void main()
{
DDRB=0xFF; //PORTB as output
while(1)
{
PORTB = 0x66;
_delay_ms(100);
PORTB = 0xCC;
_delay_ms(100);
PORTB = 0x99;
_delay_ms(100);
PORTB = 0x33;
_delay_ms(100);
}
}
A switch is connected to pin PA7. Write a C program to monitor the status of SW and
perform the following:
(a) If SW = 0, the stepper motor moves clockwise.
(b) If SW = 1, the stepper motor moves counterclockwise.
Solution:
#define F_CPU 8000000UL //XTAL = 8 MHz
#include avr/io.h
int main ()
{
DDRA = 0x00;
DDRB = 0xFF;
while (1)
{
if( (PINA0x80) == 0)
{
PORTB = 0x66;
_delay_ms (100);
PORTB = 0xCC;
_delay_ms (100);
PORTB = 0x99;
_delay_ms (100);
PORTB = 0x33;
_delay_ms (100);
}
else
{
Example 4
gram we could have used (shift left) and (shift right).
506

Review Questions
1. Give the 4-step sequence of a stepper motor if we start with 0110.
2. A stepper motor with a step angle of 5 degrees has ____ steps per revolution.
3. Why do we put a driver between the microcontroller and the stepper motor?
PROBLEMS
1. True or false. The minimum voltage needed to energize a relay is the same for
all relays.
2. True or false. The minimum current needed to energize a relay depends on the
coil resistance.
3. Give the advantages of a solid-state relay over an EMR.
4. True or false. In relays, the energizing voltage is the same as the contact
voltage.
5. Find the current needed to energize a relay if the coil resistance is 1200 ohms
and the coil voltage is 5 V.
6. Give two applications for an optoisolator.
7. Give the advantages of an optoisolator over an EMR.
8. Of the EMR and solid-state relay, which has the problem of back EMF?
9. True or false. The greater the coil inductance, the worse the back EMF voltage.
10. True or false. We should use the same voltage sources for both the coil voltage
and the contact voltage.
11. If a motor takes 90 steps to make one complete revolution, what is the step
angle for this motor?
12. Calculate the number of steps per revolution for a step angle of 7.5 degrees.
13. Finish the normal 4-step sequence clockwise if the first step is 0011
(binary).
14. Finish the normal 4-step sequence clockwise if the first step is 1100
(binary).
15. Finish the normal 4-step sequence counterclockwise if the first step is 1001
(binary).
PORTB = 0x66;
_delay_ms (100);
PORTB = 0x33;
_delay_ms (100);
PORTB = 0x99;
_delay_ms (100);
PORTB = 0xCC;
_delay_ms (100);
}
}
}
Example 4 Cont.
507

16. Finish the normal 4-step sequence counterclockwise if the first step is 0110
(binary).
17. What is the purpose of the ULN2003 placed between the AVR and the stepper
motor? Can we use that for 3A motors?
18. Which of the following cannot be a sequence in the normal 4-step sequence for
a stepper motor?
(a) $CC (b) $DD (c) $99 (d) $33
19. What is the effect of a time delay between issuing each step?
20. In Question 19, how can we make a stepper motor go faster?
1. With a relay we can use a 5 V digital system to control 12 V–120 V devices such as horns and
appliances.
2. Because microcontroller/digital outputs lack sufficient current to energize the relay, we need a
driver.
3. When the coil is not energized, the contact is closed.
4. When current flows through the coil, a magnetic field is created around the coil, which caus-
es the armature to be attracted to the coil.
5. It is faster and needs less current to get energized.
6. It is smaller and can be connected to the microcontroller directly without a driver.
1. 0110, 0011, 1001, 1100 for clockwise; and 0110, 1100, 1001, 0011 for counterclockwise
2. 72
3. The microcontroller pins do not provide sufficient current to drive the stepper motor.
508

OBJECTIVES

Understand the compare and capture features of the AVR

Generate pulses with different frequencies

Explain how the wave generators of timers work

Explain the different operation modes of Timer0 and Timer1

Explain how the capture feature of Timer1 works

Code programs for the capture feature in Assembly and C
INPUT CAPTURE AND WAVE
GENERATION IN AVR
509

generator. The waveform generator can generate waves on the OCn pin. The
WGMn and COMn bits of the TCCR register determine how the waveform gener-
ator works. When the TCNTn register reaches Top or Bottom or compare match
TCNT0
OCR0
=
(comparator)
Waveform Generator
COM00
COM01
WGM00
WGM01
OC0
(PB3)
DDRB.3
PORTB.3 0
1
TCNT1
OCR1B
=
(comparator)
Waveform Generator B
COM1B0
COM1B1
OC1B
(PD4)
DDRD.4
PORTD.4 0
1
OCR1A
TCNT2
OCR2
=
(comparator)
Waveform Generator
COM20
COM21
WGM20
WGM21
OC2
(PD7)
DDRD.7
PORTD.7 0
1
=
(comparator)
Waveform Generator A
COM1A0
COM1A1
WGM13 - WGM10
OC1A
(PD5)
DDRD.5
PORTD.5 0
1
4
4
TCNT0 Top
TCNT0 bottom FOC0
TCNT2 Top
TCNT2 bottom FOC2
TCNT1 Top
TCNT1 bottom
FOC1A
TCNT1 Top
TCNT1 bottom
FOC1B
OCF0
OCF1A
OCF1B
OCF2
INPUT CAPTURE AND WAVE GENERATION IN AVR
As shown in Figures 1 and 2, in each AVR timer there is a waveform
Figure 1. Waveform Generators in ATmega32
SECTION 1: WAVE GENERATION USING 8-BIT TIMERS
You should know how to use AVR timers to generate delay and count exter-
nal events. AVR timers have other features as well. They can be used for gener-
ating different square waves or capturing events and measuring the frequency and
duty cycle of waves. These usages are discussed in this chapter. In Sections 1 and
2 you learn to generate waves using 8-bit and 16-bit timers, respectively. In Section
3 you learn to capture events and measure the frequency and duty cycle of waves.
You can find the C versions of the programs in Section 4.
Examine Figure 1. For each timer there is, at least, an OCRn register (like
OCR0 for Timer0). The value of this register is constantly compared with the
TCNTn register, and when a match occurs, the OCFn flag will be set to high.
510

occurs, the waveform generator is informed. Then the waveform generator
changes the state of the OC0 pin according to the mode of the timer (WGM01:00
bits of the TCCR0 register) and the COM01 (Compare Output Mode) and COM00
In ATmega32/ATmega16, OC0 is the alternative function of PB3. In other
words, the PB3 functions as an I/O port when both COM01 and COM00 are zero.
Otherwise, the pin acts as a wave generator pin controlled by a waveform genera-
direction of the I/O pin, we should set the OC0 pin as an output pin when we want
to use it for generating waves.
Waveform
Generator
OCn
Pin
COMn1
COMn0
FOCn
1
0
D Q
D Q
D Q
OCn
PORT
DDR
clkIO
Data
bus
OCRn TCNTn
(8-bit Comparator)
Waveform Generator
TCNTn Top
TCNTn Bottom
FOCn
OCn
WGMn1:0 COMn1:0
OCFn (interrupt req.)
bits. See Figure 4.
tor. See Figures 1 and 3. Notice that, since the DDR register represents the
Figure 3. DDR Register and Waveform Generator
Figure 2. Waveform Generator
511

Wave generation Normal and CTC modes
When Timer0 is in CTC (WGM01:0 = 10) or Normal (WGM01:0 = 00)
mode after a compare match occurs, the OC0 pin can perform one of the follow-
ing actions, depending on the value of the COM01:0 bits:
(a) Remain unaffected
(b) Toggle the OC0 pin
(c) Clear (Drive low) the OC0 pin
(d) Set (Drive high) the OC0 pin
We use the COM01 and COM00 bits to select one of the above actions; as
Notice that in the CTC mode, when the compare match occurs, the timer
value will be set to zero, while in the Normal mode the timer counts up until it
Setting (driving high) the OC0 pin
Bit 7 6 5 4 3 2 1 0
FOC0 D7 Force Output compare: Writing 1 to it forces the wave
generator to act as if a compare match has occurred.
WGM01:00 D6 D3 Timer0 mode selector bits
0 0 Normal
0 1 CTC (Clear Timer on Compare match)
1 1 Fast PWM
COM01:00 D5 D4 Compare Output Mode; The table shows what the wave genera-
tor does on compare match when the timer is in Normal or CTC mode:
CS02:00 D2D1D0 Timer0 clock selector
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
1 1 0 External clock source on T0 pin. Clock on falling edge
1 1 1 External clock source on T0 pin. Clock on rising edge
COM01 COM00 Description
0 0 Normal port operation, OC0 disconnected
0 1 Toggle OC0 on compare match
1 0 Clear OC0 on compare match
1 1 Set OC0 on compare match
shown in Figure 4. See Example 1.
be to count the number of people going through a door and closing the door when
reaches the top value.
There are many applications for the compare feature. One application can
a certain number is reached. See Example 2.
512

(a) Set high the OC0 pin upon match. Use external clock, falling edge, and Normal mode.
(b) Toggle the OC0 pin upon match. Use external clock, falling edge, and CTC mode.
Solution:
(a) TCCR0 =
(b) TCCR0 =
Write a program that (a) after 4 external clocks turns on an LED connected to the OC0
pin, (b) toggles the OC0 pin every 4 pulses.
Solution:
(a)
.INCLUDE M32DEF.INC
CBI DDRB,0 ;PB0(T0) pin as input
SBI DDRB,3 ;PB3(OC0) pin as output
LDI R20, 3
OUT OCR0,R20 ;OCR0 = 3 the final count
LDI R20, 0
LDI R20,0x36 ;external clk, Normal mode, set OC0
OUT TCCR0,R20 ;load TCCR0 and start counting
HERE: RJMP HERE
(b)
.INCLUDE M32DEF.INC
CBI DDRB,0
SBI DDRB,3
LDI R20, 3
OUT OCR0,R20
LDI R20, 0
OUT TCNT0,R20
LDI R20,0x1E ;external clk, CTC mode, toggle OC0
HERE: RJMP HERE
Notice that there is no need to monitor the OCF0 flag, which means the AVR can do
other tasks.
0 0 1 1 0 1 1 0
0 0 0 1 1 1 1 0
0 1 2 3 4 5
OC0
TCNT0
T0
0 1 2 3 0 1
OC0
TCNT0
T0
2 3 0 1
Example 1
Using Figure 4, find the TCCR0 register value to:
Example 2
513

Generating square waves
To generate square waves we can set the timer to Normal mode or CTC
mode and set the COM bits to the toggle mode (COM01:00 = 01). The OC0 pin
will be toggled on each compare match and a square wave will be generated. See
Assuming XTAL = 8 MHz, calculate the frequency of the wave generated by the fol-
lowing program:
.INCLUDE M32DEF.INC
SBI DDRB,3 ;PB3 as output
LDI R22,100
OUT OCR0,R22 ;set the match value
LDI R22,0x11 ;COM01:00 = Toggle, Mode = Normal, no prescaler
HERE: RJMP HERE
Solution:
There are 256 clocks between two con-
secutive matches. Therefore
Ttimer clock = 1/8 MHz = 0.125 µs
Twave = 2 × 256 × 0.125 µs = 64 µs
Fwave = 1/64 µs = 15,625 Hz = 15.625 kHz
Note: In Normal mode, when match occurs,
the OC0 pin toggles and the timer continues
to count up until it reaches the top value.
TCNT0
0 Time
0
1
OC0
OCR0
0xFF
256×(1/8M) 256×(1/8M)
2 × 256 × (1/8M)
TCNT0
0 Time
0
1
OC0
OCR0
0xFF
Find the value for TCCR0 if we want to program Timer0 as a Normal mode square wave
generator and no prescaler.
Solution:
TCCR0 =
0 0 0 1 0 0 0 1
Figure 5. See Examples 3 and 4.
Example 4
Figure 5. Generating Square Wave Using Normal
Example 3
514

Generating square waves using CTC
The CTC mode is better than Normal mode for generating square waves,
since the frequency of the wave can be easily adjusted using the OCR0 register.
occurs earlier and the period of the generated wave is smaller (higher frequency).
When the OCR0 has a higher value, compare match occurs later and the period of
the wave is longer (lower frequency).
Notice that in the CTC mode, when the compare match occurs, the timer
value will be set to zero, while in the Normal mode the timer counts up until it
Find the value for TCCR0 if we want to program Timer0 as a CTC mode square wave
generator and no prescaler.
Solution:
WGM01:00 = 10 = CTC mode
COM01:00 = 01 = Toggle
CS02:00 = 001 = No prescaler
FOC0 = 0
TCCR0 =
TCNT0
0
time
0
1
OC0
OCR0
0xFF
TCNT0
0
time
0
1
OC0
OCR0
0xFF
TCNT0
0
time
0
1
OC0
OCR0
0xFF
TCNT0
0 time
0
1
OC0
OCR0
0xFF
0 0 0 1 1 0 0 1
reaches the top value. See Examples 5 through 7.
Figure 6. Generating Square Wave Using CTC Mode
Example 5
See Figure 6. In CTC mode, when OCR0 has a lower value, compare match
515

Generating pulses using CTC mode
When a timer is in the CTC mode and COM is in the toggle mode, the
value of the OCRn represents how many clocks it counts before it toggles the pin.
This way, we can generate different pulses by loading different values into the
ing cases:
(a) OCR0 is loaded with 50
(b) XTAL = 4 MHz and OCR0 is loaded with 95
(c) prescaler is 8, XTAL = 1 MHz, OCR0 = 150
(d) prescaler is N, XTAL = FOSC, OCR0 = X
Solution:
(a) 50 + 1 = 51 clocks and Ttimer clock = 0.125 µs Twave = 2 × 51 × 0.125 µs = 12.75 µs
Fwave= 1 / 50.25 µs = 19,900 Hz = 19.900 kHz
(b) 95 + 1 = 96 clocks and Ttimer clock = 1 / 4 MHz = 0.25 µs
Twave = 2 × 96 × 0.25 µs = 48 µs Fwave = 1 / 48 µs = 20,833 Hz = 20.833 kHz
(c) 150 + 1 = 151 clocks and Ttimer clock = 8 × 1 / 1 MHz = 8 µs
Twave = 2 ×151 × 8 µs = 2416 µs Fwave = 1 / 2416 µs = 413.9 Hz
(d) X + 1 clocks and Ttimer clock= N × 1/FOSC = N/FOSC
Twave = 2 × (X + 1) × N / FOSC Fwave = 1 / Twave = FOSC / [2N(X + 1)]
lowing program:
.INCLUDE M32DEF.INC
SBI DDRB,3
LDI R20,0x19 ;COM01:00 = Toggle, Mode = CTC, no prescaler
OUT TCCR0,R20
LDI R22,200
OUT OCR0,R22
HERE: RJMP HERE
Solution:
Between two consecutive matches it takes
200 + 1 = 201 clocks and
Twave = 2 × 201 × 0.125 µs = 50.25 µs
Fwave = 1/50.25 µs = 19,900 Hz = 19.900 kHz
TCNT0
0 time
0
1
OC0
OCR0
0xFF
201×1/(8M)
2×201×1/(8M)
201×1/(8M)
Example 6
Example 7
In Example 6, calculate the frequency of the wave generated in each of the follow-
OCRn register. See Figure 7 and Example 8.
516

Assuming XTAL = 1 MHz, draw the wave generated by the following program:
.INCLUDE M32DEF.INC
SBI DDRB,3
BEGIN:LDI R20,69
LDI R20,0x19
OUT TCCR0,R20 ;CTC, no prescaler, set on match
L1: IN R20,TIFR
SBRS R20,OCF0 ;skip next instruction if OCF0 = 1
RJMP L1
LDI R16,1OCF0
OUT TIFR,R16 ;clear OCF0
LDI R20,99
LDI R20,0x29
OUT TCCR0,R20 ;CTC, no prescaler, clear on match
L2: IN R20,TIFR
SBRS R20,OCF0 ;skip next instruction if OCF0 = 1
RJMP L2
LDI R16,1OCF0 ;clear OCF0
OUT TIFR,R16
RJMP BEGIN
Solution:
Ttimer clock = 1 / 1 MHz = 1 µs
T0 = 70 × 1 µs = 70 µs
T1 = 100 × 1 µs = 100 µs
Twave = 70 µs + 100 µs = 170 µs
Fwave = 1 / 170 µs = 5882 Hz
TCNT0
0
time
0
1
OC0
69
255
100 clk
69
99
70 clk
169 239 339
time
100 clk
0
TCNTn
OCn
Period
OCFn Flag Set
1 2 3 4
Time
Time
0
1
Figure 7. Generating Different Pulses Using CTC and Toggle Modes
Example 8
517

To load values to the OCRn we can use the compare match interrupt as
well. Upon a compare match, the pin will be toggled and an interrupt will be
invoked. Using the interrupt we can define the duration that OCn will be in the cur-
.INCLUDE M32DEF.INC
.ORG 0x0
RJMP MAIN
.ORG 0x14 ;compare match interrupt vector
DEC R29 ;R29 = R29 - 1
BRPL L1 ;if (R29 = 0) go to L1
LDI R30,WAVE_TABLE1 ;Z points to WAVE_TABLE
LDI R29,3 ;R29 = 3
L1: LPM R28,Z+ ;R28 = [Z], Z = Z + 1
WAVE_TABLE: .DB 24,49,39,34
OUT SPH,R20
LDI R20,LOW(RAMEND)
SBI DDRB,3 ;PB3 as output
LDI R20,69
BEGIN:LDI R20,0x19
OUT TCCR0,R20 ;CTC, no prescaler, toggle on match
LDI R20,1OCIE0
OUT TIMSK,R20 ;activate compare match interrupt
SEI
HERE: RJMP HERE
Solution:
TCNT0
0 time
0
1
OC0
24
40 clk
185
49
35
clk
time
25
clk 50 clk
70 clk
70 145
0
69
39 39 39
49
40 clk
35
clk
25
clk 50 clk
34 24 49 34 24 49 34
40 clk
35
clk
50 clk
220 295 335
25
clk
370 445 485 520
Example 9.
Example 9
rent state by loading a proper value into the OCR0 register. See Figure 7 and
518

FOC0 (Force Output Compare) flag
Sometimes you might need to force the waveform generator to act as if a
compare match has occurred. This can be done by setting the FOC0 bit of the
Generating waves using Timer2
We can generate waves using Timer2 or any other 8-bit timer the same way
as we did using Timer0. We should simply use the proper registers and monitor the
associated flag.
As the prescaler values are different in Timer2 we should be careful to load
TCCR2 with proper value. For example, if we load 0x14 into TCCR0 the prescaler
is 256, whereas loading TCCR2 with 0x14 means a prescaler of 64. See Examples
.INCLUDE M32DEF.INC
SBI DDRB,3
LDI R20,0x98
BEGIN:OUT TCCR0,R20 ;CTC,timer stopped,toggle on match,FOC0=1
RJMP BEGIN
Solution:
The wave generator is in toggle mode. So, it toggles on com-
pare match. Setting the FOC0 bit causes the wave generator
to act as if a real compare match has occurred. The execution
of instructions “OUT TCCR0,R20” and “RJMP BEGIN”
takes 1 and 2 clocks, respectively. So, toggle occurs after
1 + 2 = 3 clocks.
0
1
OC0
3 6 9
time
0
Solution:
.INCLUDE M32DEF.INC
SBI DDRD,7 ;OC2 (PD7) as output
LDI R22,100
OUT OCR2,R22 ;set the match value
LDI R22,0x11 ;COM21:20=Toggle, Mode=Normal, no prescaler
HERE: RJMP HERE
TCCR0 register. See Example 10.
Example 10
Example 11
11 and 12.
Rewrite the program of Example 4 using Timer2.
519

Review Questions
1. True or false. In ATmega32, Timer0 has a wave generator.
2. True or false. CTC mode can be used to generate square waves.
3. True or false. To generate waves the OC0 pin must be configured as an input
pin.
4. Give the pin number used by the wave generator of Timer0 in ATmega32.
The different modes of Timer1
Top in Timer1
Top is the highest value that the TCNT register reaches while counting. In
8-bit timers (e.g., Timer0) the top value is 0xFF except for the CTC mode, whose
top values are as follows:
• In Normal mode (mode 0) the top value is 0xFFFF.
• In some modes the top value is fixed and is other than the maximum; the
top value can be 0xFF, 0x1FF, or 0x3FF.
• In some other modes the top can be defined by either the OCR1A register
Solution:
.INCLUDE M32DEF.INC
LDI R22,0x19
OUT TCCR2,R22 ;COM21:20 = Toggle, Mode = CTC, no prescaler
LDI R22,200
HERE: RJMP HERE
Example 12
Rewrite the program of Example 6 using Timer2.
or the ICR1 register. See Figure 8.
top can be defined by OCRn. See Figure 8. In 16-bit timers such as Timer1 the
SECTION 2: WAVE GENERATION USING TIMER1
In this section we first discuss the different modes of Timer1 in detail and
then show how to generate waves using Timer1.
The WGM13, WGM12, WGM11, and WGM10 bits define the mode of
Timer1, as shown in Figure 8. Timer1 has 16 different modes. Of these 16 modes,
mode 13 is reserved (not implemented). These modes can be categorized into five
groups: Normal, CTC, Fast PWM, Phase Correct PWM, and Phase and Frequency
gories; the operation of the other categories will be discussed in this part. Before
discussing the operation of the different modes we should define the meaning
of Top.
Correct PWM. You may already know about the operation of the first two cate-
520

CTC mode
are almost the same. The only difference between them is that in mode 4, the top
value is defined by OCR1A, whereas in mode 12, ICR specifies the top.
Bit 7 6 5 4 3 2 1 0
TCCR1B
ICNC1 D7 Input Capture Noise Canceller
0 = Input Capture Noise Canceller is disabled
1 = Input Capture Noise Canceller is enabled
D5 Not used
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
1 1 0 External clock source on the T1 pin. Clock on falling edge
1 1 1 External clock source on the T1 pin. Clock on rising edge
OCR1x
TOV1 Flag
Set on
13 1 1 0 1 Reserved - - -
Figure 8. TCCR1B (Timer 1 Control) Register
As shown in Figure 8, modes 4 and 12 operate in the CTC mode. They
521

In mode 12, the timer counts up until it reaches ICR; then the timer will be
it reaches the top and then rolls over to zero.
But the top value is different in the different
modes and as a result, different flags are set
when the timer rolls over. When the top value
is a fixed value, the TOV1 flag is set; when the
OCR1A register defines the top, the OCF1 flag
will be set; and when the top is defined by the
ICR1 register, the ICF1 flag will be set. See
You might find the contents of these two pages confusing. There is no need
to memorize the details. All you need to know is how the timer counts in each of
the five categories of operations (Normal, CTC, etc.) and how to use the informa-
Counting:
In Normal, CTC, and Fast PWM modes the timer counts up until it reach-
es the top value. Then the timer rolls over to zero and a flag is set:
• If the top is a fixed value, TOV1 will be set.
• If the OCR1A register represents the top, the OCF1A will be set.
• If the ICR1 register defines the top, the ICF1 will be set.
• Column 6 (Timer/Counter Mode of Operation): mentions which of the five
operation modes (Normal, CTC, Fast PWM, etc.) it belongs to.
• Column 7 (Top): represents the highest value that the timer reaches while
counting; in some modes the top is a fixed value such as 0xFF, 0x1FF,
0x3FFF, and 0xFFFF, while in the others the top value can be determined by
the OCR1A or ICR1 register.
cleared and the ICF1 flag will be set, as shown in Figure 10. So, in mode 12,
Figures 9 through 11. Figure 9. Modes 4 and 15
Figure 10. Modes 12 and 14 Figure 11. TOV1 in Modes 0, 5, 6, and 7
tion mentioned in Figure 8. The following is a summary:
Highlights of Figure 8:
the timer works almost the same way as mode 4.
In other words, in Normal, CTC, and Fast PWM, the timer counts up until
• Column 8 is not discussed in this Chapter.
In mode 4, the timer counts up until it reaches OCR1A; then the timer will be
cleared and the OCF1A flag will be set as a result of compare match. See Figure 9.
522

Solution:
To wait 10,000 clocks we should load the ICR1 flag with 10,000 − 1 = 9999 = 0x270F
and use mode 14.
.INCLUDE M32DEF.INC
OUT SPH,R16
LDI R16,LOW(RAMEND)
OUT SPL,R16
RCALL DELAY_1ms
RCALL DELAY_1ms
RJMP BEGIN
DELAY_1ms:
LDI R20,HIGH(9999)
OUT ICR1H,R20 ;TEMP = 0x27
LDI R20,LOW(9999)
OUT ICR1L,R20 ;ICR1L = 0x0F, ICR1H = TEMP
LDI R20,0
LDI R20,0x02
LDI R20,0x19
OUT TCCR1B,R20 ;WGM13:12 = 11, CS = CLK, mode = 14
SBRS R20,ICF1 ;if ICF1 is set skip next instruction
RJMP AGAIN
LDI R20,1ICF1
OUT TIFR,R20 ;clear ICF1 flag
LDI R19,0
OUT TCCR1A,R19
RET
Example 13
Rewrite Example 27 of the chapter “AVR Timer Programming in Assembly and
C” using the ICR1 flag.
523

Waveform generators in Timer1
pendent waveform generators: Waveform Generator A and Waveform Generator B.
Generator A, and the wave generated by Waveform Generator A shows up on the
OC1A pin.
The compare match between OCR1B and TCNT1 affects Waveform
Generator B, and the wave generated by Waveform Generator B shows up on the
OC1B pin.
The COM1A1 and COM1A0 bits have control over Waveform Generator
A; whereas COM1B1 and COM1B0 control Waveform Generator B. All of the
The operation mode of Timer1 (WGM13, WGM12, WGM11, and
WGM10 bits of TCCR1A and TCCR1B) affect both generators, as shown in
COM bits are in the TCCR1A register, as shown in Figure 14.
The compare match between OCR1A and TCNT1 affects Waveform
In examining Figures 12 and 13 we see that Timer1 has two inde-
Figures 12 and 13.
Figure 12. Waveform Generators in ATmega32
524

TCNT1H TCNT1L OCR1BH OCR1BL
OCR1AH OCR1AL
= (16-bit comparator) = (16-bit comparator)
WGM13:0
COM1B1:0
OC1A
COM1A1:0
TOP
BOTTOM
OC1B
OCF1B
OCF1A
Bit 7 6 5 4 3 2 1 0
WGM11:10 D1 D0
COM1A1 COM1A0 Description
0 0 Normal port operation, OC1A disconnected
0 1 Toggle OC1A on compare match
1 0 Clear OC1A on compare match
1 1 Set OC1A on compare match
COM1B1 COM1B0 Description
0 0 Normal port operation, OC1B disconnected
0 1 Toggle OC1B on compare match
1 0 Clear OC1B on compare match
1 1 Set OC1B on compare match
Figure 13. Simplified Waveform Generator Block Diagram
Figure 14. TCCR1A (Timer 1 Control) Register
525

In ATmega32/ATmega16, OC1A and OC1B are the alternative functions of
PD5 and PD4, respectively. In other words, the PD5 pin functions as an I/O port
when both COM1A1 and COM1A0 are zero. Otherwise, the pin acts as a wave
generator pin controlled by Waveform Generator A. PD4 functions as an I/O port
when both COM1B1 and COM1B0 are zero. Otherwise, the pin acts as a wave
Notice that the DDR register represents the direction of the OC1A and
OC1B pins all the time. Thus, we should be careful in setting the OC1A and OC1B
pins as output pins when we want to use them for generating waves.
The waveform generators of Timer1 work almost the same as those of
Timer0. In the following pages we will see the operation of Timer1 in the differ-
ent modes.
Wave generation in Normal and CTC modes
When Timer1 is in CTC (WGM13:0 = 0100 or WGM13:0 = 1100) or
Normal (WGM13:0 = 0000) mode after a compare match occurs, the waveform
generators can perform one of the following actions, depending on the values of
COM1A1:0 and COM1B1:0 bits, respectively:
(a) Remain unaffected
(b) Toggle the OC1x pin (OC1A or OC1B)
(c) Clear (drive low) the OC1x pin
(d) Set (drive high) the OC1x pin
The COM1A1 and COM1A0 bits select the operation of OC1A, while
if we want to clear the OC1A pin upon match, with no prescaler, internal clock, and
Normal mode.
Solution:
WGM13:10 = 0000 = Normal mode
COM1A1:0 = 10 = Clear
TCCR1A =
TCCR1B =
1 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
generator pin controlled by Waveform Generator B, as shown in Figure 12.
COM1B1 and COM1B0 select the operation of OC1B, as shown in Figure 14.
See Example 14.
Example 14
Using Figures 8 and 14, find the values of the TCCR1A and TCCR1B registers
526

Generating square waves
To generate square waves we can set the timer to Normal or CTC mode and
set the COM1x1 and COM1x0 bits of one of the Waveform Generators to the tog-
gle mode (COM1A1:0 = 01 to generate waves with Waveform Generator A or
COM1B1:0 = 01 for generating waves using Waveform Generator B).
The OC1x pin will be toggled on each compare match and a square wave
Find the value for TCCR1A and TCCR1B to program Timer1 as Normal mode and the
OC1A generator as square wave generator and no prescaler.
Solution:
WGM13:10 = 0000 = Normal mode
COM1A1:0 = 01 = Toggle
FOC1A = 1
FOC1B = 1
TCCR1A =
TCCR1B =
0 1 0 0 0 0 0 0
0 0 0 0 0 0 0 1
will be generated, as shown in Figure 15. See Examples 15 and 16.
Figure 15. Generating Square Wave Using Normal Mode and Toggle Mode
Example 15
527

CTC mode is better than Normal mode for generating square waves, as the
frequency of the wave can be easily adjusted by changing the top value (the value
mode, when OCR1x (or ICR1 in mode 12) has a lower value, compare match
occurs earlier and the period of the generated wave is smaller (higher frequency).
When the OCR0 has a higher value, compare match occurs later and the period of
lowing program:
.INCLUDE M32DEF.INC
SBI DDRD,5
LDI R22,0x40 ;COM1A = Toggle
OUT TCCR1A,R22
LDI R22,0x01 ;WGM = Toggle, Mode = Normal, no prescaler
OUT TCCR1B,R22
LDI R22,HIGH(30000) ;the high byte
OUT OCR1AH,R22
LDI R22,LOW(30000) ;the low byte
OUT OCR1AL,R22
HERE: RJMP HERE
Solution:
From one compare match to the next one it
takes 65,536 clocks and
Twave = 2 × 65,536 × 0.125 µs = 16,384 µs
Fwave = 1/16,384 µs = 61.035 Hz
TCNT0
0 time
0
1
OC0
OCR0
0xFF
201×1/(8M)
2×201×1/(8M)
201×1/(8M)
Find the value for TCCR1A and TCCR1B to program Timer1 as CTC mode and the
OC1A generator as square wave generator and no prescaler.
Solution:
WGM13:10 = 0100 = CTC
COM1A1:0 = 01 = toggle
CS12:10 = 001 = no prescaler
TCCR1A =
TCCR1B =
0 1 0 0 0 0 0 0
0 0 0 0 1 0 0 1
Example 16
of the OCR1x register in mode 4, and ICR1 in mode12). See Figure 16. In CTC
the wave is longer (lower frequency). See Examples 17 through 19.
Example 17
528

lowing program:
.INCLUDE M32DEF.INC
SBI DDRD,5
LDI R22,0x40 ;COM1A = Toggle
OUT TCCR1A,R22
LDI R22,0x09 ;WGM = Toggle, Mode = CTC, no prescaler
OUT TCCR1B,R22
LDI R22,HIGH(512)
OUT OCR1AH,R22 ;TEMP = 0x02
LDI R22,LOW(512)
HERE: RJMP HERE
Solution:
From one compare match to the next one it takes
512 + 1 = 513 clocks and
Ttimer clock = 1 / 8 MHz = 0.125 µs
Twave = 2 × 513 × 0.125 µs = 128.25 µs
Fwave = 1 / 128.25 µs = 7797 Hz = 7.797 kHz
TCNT1
0
time
0
1
OC0
OCR1A
0xFFFF
513×1/(8M)
2×513×1/(8M)
513×1/(8M)
Figure 16. Generating Square Wave Using CTC Mode and Toggle Mode
Example 18
529

FOC1A (Force Output Compare) and FOC1B flags
Writing 1 to the FOC1A bit of the TCCR1A register forces the Waveform
Generator A to act as if a compare match has occurred. Writing 1 to the FOC1B
bit of the TCCR1A register forces Waveform Generator B to act as if a compare
(a) OCR1A is loaded with 0x0500 (b) XTAL = 1 MHz and OCR1A is loaded with 0x5
(c) a prescaler option of 8 is chosen, XTAL = 4 MHz, OCR1A = 0x150
OSC, OCR1A = X
Solution:
(a) 0x500 + 1 = 0x501 = 1281 clocks and Ttimer clock = 0.125 µs
Twave = 2 × 1281 × 0.125 µs = 320.25 µs Fwave = 1 / 320.25 µs = 3122.56 Hz
(b) 5 + 1 = 6 clocks and Ttimer clock = 1/1 MHz = 1 µs
Twave = 2 × 6 × 1 µs = 12 µs Fwave = 1 / 12 µs = 83,333 Hz = 83.333 kHz
(c) 0x150 + 1 = 0x151 = 337 clocks and Ttimer clock = 8 × 1 / 4 MHz = 2 µs
Twave = 2 × 337 × 2 µs = 1348 µs Fwave = 1 / 2416 µs = 741.8 Hz
(d) X + 1 clocks and Ttimer clock = N × 1/FOSC = N / FOSC
Twave = 2 × (X + 1) × N / FOSC Fwave = 1 / Twave = FOSC / [2N (X + 1)]
.INCLUDE M32DEF.INC
SBI DDRD,5
LDI R20,0x01
OUT TCCR1B,R20 ;Normal, timer stopped
LDI R20,0x48
L1: OUT TCCR1A,R20 ;toggle on match, FOC1A = 1
RJMP L1
Solution:
The wave generator is in toggle mode. So, it toggles on compare
match. Setting the FOC1A bit causes the wave generator to act
as if the compare match has occurred. So, the OC1A pin toggles.
The execution of instructions “OUT TCCR1A,R20” and “RJMP
L1” takes 1 and 2 clocks, respectively. So, toggle occurs after
1 + 2 = 3 clocks
Example 19
cases:
(d) a prescaler option of N is chosen, XTAL = F
In Example 18, calculate the frequency of the wave generated in each of the following
match has occurred. See Example 20.
Example 20
The formula is the same as the one calculated in Example 7 d.
530

Review Questions
1. True or false. In ATmega32, Timer1 has three waveform generators.
2. True or false. In CTC modes the TOP value is determined by OCR1A or ICR1.
3. True or false. We can associate each of the pins with each of the waveform
generators.
4. True or false. In CTC modes we cannot change the frequency of the generated
wave.
The Input Capture function is widely used for many applications. Among
them are (a) recording the arrival time of an event, (b) pulse width measurement,
and (c) period measurement. In ATmega32, Timer1 can be used as the Input
Capture to detect and measure the events happening outside the chip. Upon detec-
flag is set.
which is PORTD.6 in ATmega32, and (2) the output of the analog comparator. We
can use the ACIC flag to select the event source. ACIC is a bit of the ACSR reg-
ICP1
ICNC1 ICES1
Noise
Canceler
Edge
Detector WRITE
ICF1
+
- ICR1H ICR1L
TCNT1H TCNT1L
ACIC
ACO
0
1
ACD (Analog Comparator Disable) When the bit is one, the power to the Analog Comparator
is switched off, which reduces power consumption.
ACBG (Analog Comparator Bandgap Select) See the datasheet.
ACO (Analog Comparator Output) The output of the analog comparator is connected to the
ACI (Analog Comparator Interrupt Flag)
ACIE (Analog Comparator Interrupt Enable)
ACIC (Analog Comparator Input Capture Enable) When the bit is one, the input capture is
triggered by the Analog Comparator; otherwise, the ICP1 pin (PD6 in ATmega32) provides the
ACIS1, ACIS0 (Analog Comparator Interrupt Mode Select) See the datasheet.
ACD ACBG ACO ACI ACIE ACIC ACIS1 ACIS0
ister, as shown in Figure 18.
tion of an event, the TCNT value is loaded into the ICR1 register, and the ICF1
As shown in Figure 17, there are two event sources: (1) the ICP1 pin,
Figure 17. Capturing Circuit
bit. ACO is read only. See Figure 17.
capturing signal. See Figure 17.
Figure 18. TCCR1B (Timer/Counter Control Register) Register, ICNC1, ICES1
SECTION 3: INPUT CAPTURE PROGRAMMING
531

Notice that the input capture unit does not work in the timer modes for
ICNC1 (Input Capture Noise Canceller) Setting the bit activates the noise canceller. When the
noise canceller is activated, each change is considered only if it persists for at least 4 successive
system clocks. Notice that although activating the noise canceller prevents the detection of noises
as signals, it causes 4 clocks of delay from the event occurrence to the load of the ICR1 register.
ICES1 (Input Capture Edge Select) Selects edge detection for the input capture function.
When an edge is detected, the TCNT is loaded into the ICRx register. It also raises the ICFn
(input capture flag) flag in the TIFR register.
0 Capture on falling edge
1 Capture on rising edge
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
OCR1x
TOV1 Flag
Set on
13 1 1 0 1 Reserved - - -
which the ICR1 defines the top value (modes 8, 10, 12, 14). See Example 21.
the type of edge detection and activate/deactivate the noise canceller unit.
As shown in Figures 17 and 19, we use the TCCR1B register to select
Figure 19. TCCR1B (Timer/Counter Control Register) Register, ICNC1, ICES1
532

Steps to program the Input Capture function
We use the following steps to measure the edge arrival time for the Input
Capture function.
1. Initialize the TCCR1A and TCCR1B for a proper timer mode (any mode
other than modes 8, 10, 12, and 14), enable or disable the noise canceller, and
select the edge (positive or negative) we want to measure the arrival time for.
2. Initialize the ACSR to select the desired event source.
3. Monitor the ICF1 flag in TIFR to see if the edge has arrived. Upon the
arrival of the edge, the TCNT1 value is loaded into the ICR1 register automatical-
Input Capture function is widely used to measure the period or the pulse width of an
incoming signal.
Solution:
TCCR1A =
TCCR1B =
Assuming that clock pulses are fed into pin ICP1, write a program to read the TCNT1
value on every rising edge. Place the result on PORTA and PORTB.
Solution:
.INCLUDE M32DEF.INC
LDI R16,0xFF
OUT DDRB,R16 ;PORTB as output
OUT PORTD,R16 ;activate pull-up
BEGIN:LDI R20,0x00
OUT TCCR1A,R20 ;timer mode = Normal
LDI R20,0x41
OUT TCCR1B,R20 ;rising edge, no prescaler, no noise canceller
L1: IN R21,TIFR
SBRS R21,ICF1 ;skip next if ICF1 flag is set
RJMP L1 ;jump L1
OUT TIFR,R21 ;clear ICF1
IN R22,ICR1L ;TEMP = ICR1H, R22 = ICR1L
OUT PORTA,R22 ;PORTA = R22
IN R22,ICR1H ;R22 = TEMP = ICR1H
RJMP BEGIN ;jump begin
Note: Upon the detection of each rising edge, the TCNT1 value is loaded into ICR1.
Also notice that we clear the ICF1 flag bit.
0 0 0 0 0 0 0 0
0 1 0 0 0 0 0 1
Example 21
Using Figures 12 and 19, find TCCR1A and TCCR1B, for capturing on rising edge,
no noise canceller, no prescaler, and timer mode = Normal.
ly by the AVR. Example 22 shows how the Input Capture function works. The
Example 22
533

Measuring period
We can use the following steps to measure the period of a wave.
1. Initialize the TCCR1A and TCCR1B.
2. Initialize the ACSR to select the desired event source.
arrival of the edge, the TCNT1 is loaded into the ICR1 register automatically by
the AVR.
4. Save the ICR1.
5. Monitor the ICF1 flag in TIFR to see if the second edge has arrived.
Upon the arrival of the edge, the TCNT is loaded into the ICR1 register automat-
ically by the AVR.
6. Save the ICR1 for the second edge. By subtracting the second edge value
Assuming that clock pulses are fed into pin PORTD.6, write a program to measure the
period of the pulses. Place the binary result on PORTA and PORTB.
Solution:
.INCLUDE M32DEF.INC
LDI R16,0xFF
OUT PORTD,R16
BEGIN:LDI R20,0x00
LDI R20,0x41
OUT TCCR1B,R20 ;rising edge, no prescaler, no noise canceller
L1: IN R21,TIFR
SBRS R21,ICF1 ;skip next instruction if ICF1 flag is set
RJMP L1 ;jump L1
IN R23,ICR1L ;R23 = ICR1L, TEMP = ICR1H (first edge value)
IN R24,ICR1H ;R24 = ICR1H
OUT TIFR,R21 ;ICF1 = 0
L2: IN R21,TIFR
RJMP L2
IN R22,ICR1L ;R22 = ICR1L, TEMP = ICR1H (second edge value)
SUB R22,R23 ;Period = Second edge - First edge
OUT PORTA,R22 ;PORTA = R22
IN R22,ICR1H ;R22 = TEMP
SBC R22,R24 ;R22 = R22 - R24 - C
L3: RJMP L3 ;wait forever
PORTA
PORTB
PD6
to
LEDs
Pulses
AVR
from the first edge value we get the time. See Examples 23 and 24. Also see Figure
20.
Example 23
534

Measuring Period in Terms of the Number of Clocks Counted by TCNT
The frequency of a pulse is between 50 Hz and 60 Hz. Assume that a pulse is connect-
ed to ICP1 (pin PD6). Write a program to measure its period and display it on PORTB.
Use the prescaler value that gives the result in a single byte. Assume XTAL = 8 MHz.
Solution:
8 MHz × 1/1024 = 7812.5 Hz due to prescaler and T = 1/7812.5 Hz = 128 μs.
The frequency of 50 Hz gives us the period of 1/50 Hz = 20 ms. So, the output is
20 ms/128 μs = 156.
The frequency of 60 Hz gives us the period of 1/60 Hz = 16.6 ms. So, the output is
16.6 ms/128 μs = 130.
.INCLUDE M32DEF.INC
LDI R16,0xFF
OUT PORTD,R16
BEGIN:LDI R20,0x00
LDI R20,0x45
OUT TCCR1B,R20 ;rising edge, prescaler = 1024, no noise canc.
L1: IN R21,TIFR
RJMP L1 ;jump L1
IN R16,ICR1L ;R16 = ICR1L (first edge value)
L2: IN R21,TIFR
RJMP L2
IN R22,ICR1L ;R22 = ICR1L, TEMP = ICR1H (second edge value)
SUB R22,R16 ;period = second edge - first edge
PB
PD6
to
LEDs
60/50 Hz clock
AVR
Figure 20. Using Input Capture to Measure Period
Example 24
535

Measuring pulse width
We can use the following steps to measure the pulse width of a wave.
1. Initialize TCCR1A and TCCR1B, and select capturing on rising edge.
2. Initialize ACSR to select the desired event source.
arrival of the edge, the TCNT1 value is loaded into the ICR1 register automatical-
ly by the AVR.
4. Save the ICR1 and change the capturing edge to the falling edge.
5. Monitor the ICF1 flag in TIFR to see if the second edge has arrived.
Upon the arrival of the edge, the TCNT value is loaded into the ICR1 register auto-
matically by the AVR.
6. Save the ICR1 for the second edge. Subtract the second edge value from
the first edge value to get the time.
Measuring Period in Terms of the Number of Clocks Counted by TCNT
Pulse With
Period
Measuring Pulse Width in Terms of the Number of Clocks Counted by TCNT
in Normal mode: (a) for capturing on rising edge (b) for capturing on falling edge
Solution:
(a) for capturing on rising edge
TCCR1B =
(b) for capturing on falling edge
TCCR1B =
0 1 0 0 0 1 0 1
0 0 0 0 0 1 0 1
Example 25
Using Figure 19, find TCCR1B for no noise canceller, prescaler = 1024, and timer
Figure 21. Using Input Capture to Measure Period and Pulse Width
See Figure 21 and Examples 25 through 27 to see how it is done.
536

Assume that a 60-Hz frequency pulse is connected to ICP1 (pin PD6). Write a program
to measure its pulse width. Use the prescaler value that gives the result in a single byte.
Display the result on PORTB. Assume XTAL = 8 MHz.
Solution:
The frequency of 60 Hz gives us the period of 1/60 Hz = 16.6 ms.
Now, 8 MHz × 1/1024 = 7812.5 Hz due to prescaler and T = 1/7812.5 Hz = 128 μs
for TCNT. That means we get the value of 130 (1000 0010 binary) for the period
since 16.6 ms / 128 μs = 130. Now the pulse width can be anywhere between 1 to
129.
.INCLUDE M32DEF.INC
LDI R16,0xFF
OUT PORTD,R16
BEGIN:LDI R20,0x00
LDI R20,0x45
OUT TCCR1B,R20 ;rising edge, prescaler = 1024, no noise canc.
L1: IN R21,TIFR
RJMP L1 ;jump L1
IN R16,ICR1L ;R16 = ICR1L (rising edge value)
OUT TIFR,R21 ;ICF1 = 0 (for next round)
LDI R20,0x05
OUT TCCR1B,R20 ;falling edge, prescaler = 1024, no noise canc.
L2: IN R21,TIFR
RJMP L2
IN R22,ICR1L ;R22 = ICR1L, TEMP = ICR1H (falling edge value)
SUB R22,R16 ;pulse width = falling edge - rising edge
OUT TIFR,R21 ;clear ICF1 (for next round)
PB
PD6
to
LEDs
60 Hz clock
AVR
Example 26
537

Analog comparator
tor provides the trigger signal for the input capture unit. The analog comparator is
(PORTB.2 in ATmega32). If the voltage of AIN1 is higher than AIN0, the com-
parator’s output is 1; otherwise, its output is 0. For more information, see the
datasheet of the ATmega32.
Assume that a temperature sensor is connected to pin PD6. The temperature provided
by the sensor is proportional to pulse width and is in the range of 1 μs to 250 μs. Write
a program to measure the temperature if 1 μs is equal to 1 degree. Use the prescaler
value that gives the result in a single byte. Display the result on PORTB. Assume XTAL
= 8 MHz.
Solution:
8 MHz × 1 / 8 = 1 MHz = 1,000,000 Hz due to prescaler and T = 1/1,000,000 Hz =
1 μs for TCNT. That means we get the values between 1 and 65,536 μs for the TCNT,
but since the pulse width never goes beyond 250 μs we should be able to display the
temperature value on PORTB.
.INCLUDE M32DEF.INC
LDI R16,0xFF
OUT PORTD,R16
BEGIN:LDI R20,0x00
LDI R20,0x42
OUT TCCR1B,R20 ;rising edge, prescaler 8, no noise canceller
L1: IN R21,TIFR ;stay here for ICP rising
RJMP L1 ;jump L1
IN R16,ICR1L ;R16 = ICR1L
LDI R20,0x02
OUT TCCR1B,R20 ;falling edge, prescaler 8, no noise canceller
L2: IN R21,TIFR ;stay here for ICP falling edge
RJMP L2
IN R22,ICR1L ;R22 = ICR1L, TEMP = ICR1H
SUB R22,R16 ;period = falling edge - rising edge
PB
PD6
to
LEDs
variable pulse width
AVR
Example 27
As shown in Figure 17, when the ACIC bit is set, the analog compara-
an op-amp that compares the voltage of AIN1 (PORTB.3 in ATmega32) with AIN0
538

Review Questions
1. True or false. In the ATmega32, only Timer1 has the Input Capture function.
2. True or false. TCNT1 is also used by the Input Capture function.
3. True or false. Activating the noise canceller causes the capturing to occur
instantly when an event rises.
4. Indicate the registers used by the Input Capture function.
5. True or false. The Input Capture function can capture the timing of an incom-
ing pulse on the rising edge only.
Write a program that (a) after 4 external clocks turns on an LED connected to the OC0
pin, and (b) toggles the OC0 pin every 4 pulses.
Solution:
(a)
#include avr/io.h
int main ( )
{
DDRB = ~(10); //PB0(T0) pin as input
DDRB = DDRB|(13); //PB3(OC0) pin as output
OCR0 = 3;
TCNT0 = 0; //load timer with 0
TCCR0 = 0x36; //external clock, Normal mode, set OC0
while (1);
return 0;
}
(b)
#include avr/io.h
int main ( )
{
DDRB = ~(10); //PB0(T0) pin as input
DDRB = DDRB|(13); //PB3(OC0) pin as output
OCR0 = 3;
TCNT0 = 0; //load timer with 0
TCCR0 = 0x1E; //external clock, CTC mode, set OC0
while (1);
return 0;
}
Examples 28 through 42 show the C versions of the earlier programs.
SECTION 4: C PROGRAMMING
539

Solution:
#include avr/io.h
int main ( )
{
DDRB = DDRB|(13); //PB3(OC0) = output
TCCR0 = 0x19; //COM01:00=Toggle, Mode=CTC, no prescaler
OCR0 = 200;
while (1);
}
Solution:
#include avr/io.h
int main ( )
{
DDRB |= (13); //PB3 = output
while (1)
{
OCR0 = 99;
TCCR0 = 0x19; //CTC, no prescaler, set on match
while ((TIFR(1OCF0)) == 0);
TIFR = (1OCF0); //clear OCF0
OCR0 = 69;
TCCR0 = 0x39; //CTC, no prescaler, set on match
while ((TIFR(1OCF0)) == 0);
TIFR = (1OCF0); //clear OCF0
}
return 0;
}
Solution:
#include avr/io.h
int main ( )
{
DDRB = DDRB|(13); //PB3(OC0) = output
TCCR0 = 0x11; //COM01:00=Toggle, Mode=Normal, no prescaler
OCR0 = 100;
while (1);
return 0;
}
Rewrite the program of Example 4 using C.
540

Solution:
#include avr/io.h
int main ( )
{
DDRB = DDRB |(13); //PB3 = output
OCR0 = 69;
TCCR0 = 0x19; //CTC, no prescaler, toggle on match
TIMSK = (1OCIE0); //enable compare match interrupt
while(1);
return 0;
}
ISR(TIMER0_COMP_vect)
{
const unsigned char waveTable [] = {24,49,39,34};
static unsigned char index = 0;
OCR0 = waveTable[index];
index ++;
if(index = 4)
index = 0;
}
Solution:
#include avr/io.h
int main ( )
{
DDRB = DDRB |(13); //PB3 = output
while(1)
TCCR0 = 0x98; //CTC, timer stopped, toggle on match, FOC0=1
return 0;
}
541

Solution:
#include avr/io.h
int main ( )
{
DDRD = DDRD |(17); //PD7(OC2) = output
TCCR2 = 0x19; //COM21:20=Toggle, Mode=CTC, no prescaler
OCR2 = 200;
while (1);
}
Solution:
#include avr/io.h
void delay_1ms ( );
int main ()
{
DDRB = (15);
while (1)
{
PORTB = PORTB ^ (15);
delay_1ms ( );
}
return 0;
}
void delay_1ms ( )
{
ICR1H = 0x27;
ICR1L = 0x0F; //ICR1L = 0x0F, ICR1H = TEMP
TCNT1H = 0;
TCNT1L = 0;
TCCR1A = 0x02; //WGM11:10 = 10
TCCR1B = 0x19; //WGM13:12 = 11, CS = CLK, mode = 14
while((TIFR(1ICF1)) == 0);
TIFR = (1ICF1);
TCCR1B = 0;
TCCR1A = 0; //stop timer
}
542

Solution:
#include avr/io.h
int main ()
{
DDRD = (15);
TCCR1A = 0x40; //COM1A = Toggle
TCCR1B = 0x09; //WGM = Toggle, Mode = CTC, no prescaler
OCR1AH = 0x02; //TEMP = 0x02
OCR1AL = 0x00; //OCR1A = 0x200 = 512
while (1);
return 0;
}
Solution:
#include avr/io.h
int main ()
{
DDRD = DDRD |(15);
TCCR1B = 0x01; //Normal, timer stopped
while (1)
TCCR1A = //toggle on match, FOC1A = 1
}
Assuming that clock pulses are fed into pin ICP1, write a program to read the TCNT1
value on every rising edge. Place the result on PORTA and PORTB.
Solution:
#include avr/io.h
int main ( )
{
DDRA = 0xFF; //port A as output
DDRB = 0xFF; //port B as output
PORTD = 0xFF; //activate pull-up
while(1) {
TCCR1A = 0; //Mode = Normal
TCCR1B = 0x41;//rising edge, no scaler, no noise canceller
while ((TIFR(1ICF1)) == 0);
TIFR = (1ICF1); //clear ICF1
PORTA = ICR1L;
PORTB = ICR1H;
}
return 0;
}
0x48;
543

Assuming that clock pulses are fed into pin PORTD.6, write a program to measure the
period of the pulses. Place the binary result on PORTA and PORTB.
Solution:
#include avr/io.h
int main ( )
{
unsigned int t;
DDRA = 0xFF; //PORTA as output
DDRB = 0xFF; //PORTB as output
PORTD = 0xFF; //activate pull-up
TCCR1A = 0; //Mode = Normal
TCCR1B = 0x41; //rising edge, no scaler, no noise canceller
t = ICR1;
t = ICR1 - t;
PORTA = t; //the low byte
PORTB = t8; //the high byte
while (1);
return 0;
}
The frequency of a pulse is either 50 Hz or 60 Hz. Assume that a the pulse is connect-
ed to ICP1 (pin PD6). Write a program to measure its period and display it on PORTB.
Use the prescaler value that gives the result in a single byte. Assume XTAL = 8 MHz.
Solution:
#include avr/io.h
int main ( )
{
unsigned char t1;
DDRB = 0xFF; //PORTB as output
PORTD = 0xFF;
TCCR1A = 0; //Timer Mode = Normal
TCCR1B = 0x45; //rising edge, prescaler=1024, no noise canc.
while ((TIFR(1ICF1)) == 0); //wait while ICF1 is clear
t1 = ICR1L; //first edge value
while ((TIFR(1ICF1)) == 0); //wait while ICF1 is clear
PORTB = ICR1L - t1; //period = second edge - first edge
}
544

Assume that a 60-Hz frequency pulse is connected to ICP1 (pin PD6). Write a program
to measure its pulse width. Use the prescaler value that gives the result in a single byte.
Display the result on PORTB. Assume XTAL = 8 MHz.
Solution:
#include avr/io.h
int main ( )
{
unsigned char t1;
DDRB = 0xFF; //Port B as output
PORTD = 0xFF;
TCCR1B = 0x45; //rising edge, prescaler=1024, no noise canc.
t1 = ICR1L; //first edge value
TIFR = (1ICF1); //clear ICF1 flag
TCCR1B = 0x05; //falling edge
PORTB = ICR1L - t1; //pulse width = falling - rising
return 0;
}
Assume that a temperature sensor is connected to pin PD6. The temperature provided
by the sensor is proportional to pulse width and is in the range of 1 μs to 250 μs. Write
a program to measure the temperature if 1 μs is equal to 1 degree. Use the prescaler
value that gives the result on PORTB. Assume XTAL = 8 MHz.
Solution:
#include avr/io.h
int main ( )
{
unsigned char t1;
DDRB = 0xFF; //Port B as output
PORTD = 0xFF;
TCCR1B = 0x42; //rising edge, prescaler = 8, no noise canc.
t1 = ICR1L;
TCCR1B = 0x02; //falling edge
PORTB = ICR1L - t1; //pulse width = falling - rising
return 0;
}
545

SUMMARY
This chapter began by describing the pulse wave generating features of the
AVR family. We discussed how to generate square waves and pulses using CTC
mode. We discussed how to generate waves using Timer0 as an 8-bit timer and
Timer1 as a 16-bit timer. We also described the input capture feature. We used the
input capture feature of AVR to measure the pulse width and period of incoming
pulses.
PROBLEMS
1. True or false. The ATmega32 has only one 8-bit timer.
2. True or false. In the ATmega32, Timer0 has a 16-bit register accessible as
TCNT0L and TCNT0H.
3. True or false. Each waveform generator has a single pin.
4. Give the pin used for Timer2 waveform generator in the ATmega32.
5. Using Timer0, no prescaler, and CTC mode, write a program that generates a
square wave with a frequency of 80 kHz. Assume XTAL = 8 MHz.
7. Using Timer0 and CTC mode, write a program that generates a square wave
with a frequency of 625 Hz. Assume XTAL = 8 MHz.
9. True or false. In the ATmega32, Timer1 has two waveform generator channels.
10. Give the number of waveform generators in the ATmega32.
15. What is the use of capturing?
16. True or false. In the ATmega32, all of the timers have the capturing capability.
17. True or false. To use capture mode, we must make the ICP pin an output pin.
18. Which timers can be used for the capture mode?
19. Find the value for the TCCR1B register in capture mode if we want to capture
546

on the falling edge.
20. Find the value for the TCCR1B register in capture mode if we want to capture
on the rising edge while the noise canceller is active.
23. Using Timer2, prescaler = 256, and CTC mode, write a program that generates
a square wave with a frequency of 100 Hz. Assume XTAL = 8 MHz.
24. Using Timer0, prescaler = 64, and CTC mode, write a program that generates
a square wave with a frequency of 95 Hz. Assume XTAL = 1 MHz.
25. As shown in the Figure, a switch is connected to PB1. Using CTC mode and
prescaler = 1024, write a program in
which, if the switch is closed, the
waveform generator creates a 60 Hz
wave; otherwise, it generates a wave
with a frequency of 50 Hz. Assume
XTAL = 8 MHz.
26. Using Timer1, no prescaler, and CTC
mode, write a program that generates
a square wave with a frequency of 3 kHz. Assume XTAL = 8 MHz.
1. True
2. True
3. False
4. PB3 (PORTB.3)
1. False
2. True
3. False
4. False
1. True
2. True
3. False
4. ICR, TCNT
5. False
SECTION 4: C PROGRAMMING
547

OBJECTIVES

Describe the basic operation of a DC motor

Code AVR programs to control and operate a DC motor

Describe how PWM is used to control motor speed

Generate waves with different duty cycles using 8-bit and 16-bit timers

Code PWM programs to control and operate a DC motor
PWM PROGRAMMING AND
DC MOTOR CONTROL IN AVR
549

This chapter discusses the topic of PWM (pulse width modulation) and
shows AVR interfacing with DC motors. The characteristics of DC motors are dis-
cussed along with their interfacing to the AVR. We use both Assembly and C pro-
gramming examples to create PWM pulses.
This section begins with an overview of the basic operation of DC motors.
Then we describe how to interface a DC motor to the AVR. Finally, we use
Assembly and C language programs to demonstrate the concept of pulse width
modulation (PWM) and show how to control the speed and direction of a DC motor.
DC motors
A direct current (DC) motor is a widely used device that translates electri-
cal pulses into mechanical movement. In the DC motor we have only + and –
leads. Connecting them to a DC voltage source moves the motor in one direction.
By reversing the polarity, the DC motor will move in the opposite direction. One
can easily experiment with the DC motor. For example, the small fans used in
many motherboards to cool the CPU are run by DC motors. When the leads are
connected to the + and – voltage source, the DC motor moves. While a stepper
motor moves in steps of 1 to 15 degrees, the DC motor moves continuously. In a
stepper motor, if we know the starting position we can easily count the number of
steps the motor has moved and calculate the final position of the motor. This is not
possible with a DC motor. The maximum speed of a DC motor is indicated in rpm
and is given in the data sheet. The DC motor has two rpms: no-load and loaded.
The manufacturer’s datasheet gives the no-load rpm. The no-load rpm can be from
a few thousand to tens of thousands. The rpm is reduced when moving a load and
it decreases as the load is increased. For example, a drill turning a screw has a
much lower rpm speed than when it is in the no-load situation. DC motors also
have voltage and current ratings. The nominal voltage is the voltage for that motor
we increase the voltage, the rpm goes up. The current rating is the current con-
sumption when the nominal voltage is applied with no load, and can be from 25
mA to a few amps. As the load increases, the rpm is decreased, unless the current
or voltage provided to the motor is increased, which in turn increases the torque.
With a fixed voltage, as the load increases, the current (power) consumption of a
DC motor is increased. If we overload the motor it will stall, and that can damage
the motor due to the heat generated by high current consumption.
Unidirectional control
Bidirectional control
With the help of relays or some specially designed chips we can change the
cepts of H-bridge control of DC motors.
SECTION 1: DC MOTOR INTERFACING AND PWM
Figure 1 shows the DC motor rotation for clockwise (CW) and counter-
clockwise (CCW) rotations. See Table 1 for selected DC motors.
direction of the DC motor rotation. Figures 2 through 4 show the basic concepts
under normal conditions, and can be from 1 to 150 V, depending on the motor. As
PWM PROGRAMMINGAND DC MOTOR CONTROLINAVR
550

All the switches are open, which does not allow the motor to turn.
Part No. Nominal Volts Volt Range Current RPM Torque
154915CP 3 V 1.5–3 V 0.070 A 5,200 4.0 g-cm
154923CP 3 V 1.5–3 V 0.240 A 16,000 8.3 g-cm
177498CP 4.5 V 3–14 V 0.150 A 10,300 33.3 g-cm
181411CP 5 V 3–14 V 0.470 A 10,000 18.8 g-cm
MOTOR
Clockwise
Rotation
MOTOR
Counter-
Clockwise
Rotation
+V
MOTOR NOT
RUNNING
SWITCH
1
SWITCH
2
SWITCH
3
SWITCH
4
Table 1: Selected DC Motor Characteristics (www.Jameco.com)
Figure 1. DC Motor Rotation (Permanent Magnet Field)
Figure 2. H-Bridge Motor Configuration
Figure 2 shows the connection of an H-bridge using simple switches.
551

motor.
are closed, current is allowed to pass through the motor.
+V
COUNTER
CLOCKWISE
DIRECTION
SWITCH
1
SWITCH
2
SWITCH
3
SWITCH
4
Current
Flow
+V
CLOCKWISE
DIRECTION
SWITCH
1
SWITCH
2
SWITCH
3
SWITCH
4
Current
Flow
direction. When switches 1 and 4 are closed, current is allowed to pass through the
Figure 4 shows the switch configuration for turning the motor in the
opposite direction from the configuration of Figure 3. When switches 2 and 3
Figure 3 shows the switch configuration for turning the motor in one
Figure 4. H-Bridge Motor Counterclockwise Configuration
Figure 3. H-Bridge Motor Clockwise Configuration
552

H-bridge control can be created using relays, transistors, or a single IC
solution such as the L298. When using relays and transistors, you must ensure that
invalid configurations do not occur.
shows a simple program to operate a basic H-bridge.
the L298 will generate heat during operation. For sustained operation of the motor,
+V
INVALID STATE
(SHORT CIRCUIT)
SWITCH
1
SWITCH
2
SWITCH
3
SWITCH
4
Motor Operation SW1 SW2 SW3 SW4
Off Open Open Open Open
Clockwise Closed Open Open Closed
Counterclockwise Open Closed Closed Open
Invalid Closed Closed Closed Closed
creating a short circuit. The same effect occurs when switches 1 and 3 are closed
or switches 2 and 4 are closed.
Table 2: Some H-Bridge Logic Configurations for Figure 2
Figure 5 shows an invalid configuration. Current flows directly to ground,
Table 2 shows some of the logic configurations for the H-bridge design.
Figure 5. H-Bridge in an Invalid Configuration
use a heat sink. Example 2 shows control of the L298.
Figure 6 shows the connection of the L298 to an AVR. Be aware that
Although we do not show the relay control of an H-bridge, Example 1
553

DC motor control with optoisolator
A switch is connected to pin PA7 (PORTA.7). Using a simulator, write a program to sim-
(a) If PA7 = 0, the DC motor moves clockwise.
(b) If PA7 = 1, the DC motor moves counterclockwise.
Solution:
.INCLUDE M32DEF.INC
SBI DDRB,0 ;make PB0 an output (switch1)
MONITOR: SBIS PINA,7 ;skip next if PINA.7 is set
RJMP CLKWISE ;if PA7 = 0 go to CLKWISE
CBI DDRB,1 ;switch2 = 0
SBI DDRB,0 ;switch1 = 1
JMP MONITOR
CLKWISE: CBI DDRB,0 ;switch1 = 0
JMP MONITOR
View the results on your simulator. This example is for simulation only
and should not be used on a connected system.
AVR
PB0
PB1
PB2
Current Sense A
+5
Output1
Output2
Supply voltage v s
Input1
Input2
Enable
ILQ74
M
Logic supply voltage v ss
GND
L298N (Multi watt package )
+5
D1 D2
D3 D4
The optoisolator provides
additional protection of the AVR
Use a separate power supply
for the motor and L 298N than
for the AVR
D1, D2, D3, D4 are 1N4004
1
2
3
4
9
5
6
7
8
1
2
3
4
5
6
330
+5
7
8
330
330
9
10
11
12
13
14
15
16
Example 1
ulate the H-bridge in Table 2. We must perform the following:
Figure 6. Bidirectional Motor Control Using an L298 Chip
The optoisolator is indispensable in many motor control applications. Figures 6
through 8 show the connections to a simple DC motor using an optoisolator.
554

the power supplies of the motor and logic will reduce the possibility of damage to
the control circuit.
Protection of the control circuit is provided by the optoisolator. The motor and
Write a program to monitor the status of SW and perform the following:
(a) If SW = 0, the DC motor moves clockwise.
(b) If SW = 1, the DC motor moves counterclockwise.
Solution:
.INCLUDE M32DEF.INC
SBI DDRB,0 ;make PB0 an output (Enable)
SBI DDRB,1 ;make PB1 an output (clock)
SBI DDRB,2 ;make PB2 an output (counter)
SBI PORTB,0 ;Enable = 1
SBI PORTA,7
MONITOR: SBIS PINA,7 ;skip next if PINA.7 is set
RJMP CLKWISE ;if PA7 = 0 go to CLKWISE
CBI PORTB,1 ;switch1 = 0
SBI PORTB,2 ;switch2 = 1
JMP MONITOR
CLKWISE: SBI PORTB,1 ;switch1 = 0
CBI PORTB,2 ;switch2 = 1
JMP MONITOR
1
2
3
4
8
7
6
5
ILD74
OPTOISOLATOR
10k TIP120
1N4004 MOTOR
+12V
0.1uF
330
+5V
+12V
AVR
PB0
100k
Example 2
Figure 6 shows the connection of an L298. Add a switch to pin PA7 (PORTA.7).
Figures 7 and 8 show optoisolators for single directional motor control,
and the same principle should be used for most motor applications. Separating
Figure 7 shows the connection of a bipolar transistor to a motor.
Figure 7. DC Motor Connection Using a Darlington Transistor
optoisolator and a separate power supply.
Notice that the AVR is protected from EMI created by motor brushes by using an
555

AVR use separate power supplies. The separation of power supplies also allows
the use of high-voltage motors. Notice that we use a decoupling capacitor across
the motor; this helps reduce the EMI created by the motor. The motor is switched
on by clearing bit PB0.
tor protects the AVR from EMI. The zener diode is required for the transistor to
Pulse width modulation (PWM)
The speed of the motor depends on three factors: (a) load, (b) voltage, and
(c) current. For a given fixed load we can maintain a steady speed by using a
method called pulse width modulation (PWM). By changing (modulating) the
width of the pulse applied to the DC motor we can increase or decrease the amount
of power provided to the motor, thereby increasing or decreasing the motor speed.
Notice that, although the voltage has a fixed amplitude, it has a variable duty cycle.
That means the wider the pulse, the higher the speed. PWM is so widely used in
DC motor control that some microcontrollers come with the PWM circuitry
embedded in the chip. In such microcontrollers all we have to do is load the prop-
er registers with the values of the high and low portions of the desired pulse, and
the rest is taken care of by the microcontroller. This allows the microcontroller to
do other things. For microcontrollers without PWM circuitry, we must create the
various duty cycle pulses using software, which prevents the microcontroller from
doing other things. The ability to control the speed of the DC motor using PWM
is one reason that DC motors are often preferred over AC motors. AC motor speed
is dictated by the AC frequency of the voltage applied to the motor and the fre-
quency is generally fixed. As a result, we cannot control the speed of the AC motor
1
2
3
4
8
7
6
5
ILD74
OPTOISOLATOR
10k
6.2V Zener
Diode
IRF521
1N4004 MOTOR
+12V
0.1uF
G
D
S
330
+5V
+12V
AVR
PB0 100k
Figure 8 shows the connection of a MOSFET transistor. The optoisola-
reduce gate voltage below the rated maximum value. See Example 3.
when the load is increased. See Figure 9 for PWM comparisons.
Figure 8. DC Motor Connection Using a MOSFET Transistor
556

Refer to the figure in this example. Write a program to monitor the status of the switch
and perform the following:
(a) If PORTA.7 = 1, the DC motor moves with 25% duty cycle pulse.
(b) If PORTA.7 = 0, the DC motor moves with 50% duty cycle pulse.
Solution:
.INCLUDE M32DEF.INC
OUT SPH,R16
LDI R16,LOW(RAMEND)
SBI DDRB,0 ;PORTB.0 as output
CBI DDRA,7 ;PORTA.7 as input
SBI PORTA,7 ;enable pull-up
CBI PORTB,0 ;turn off motor
CHK: SBIC PINA,7
RJMP P50
SBI PORTB,0 ;high portion of pulse
RCALL DELAY
RCALL DELAY
RCALL DELAY
CBI PORTB,0 ;low portion of pulse
RCALL DELAY
RJMP CHK
1
2
3
4
8
7
6
5
ILD74
OPTOISOLATOR
10k
TIP120
1N4004 MOTOR
+12V
0.1uF
330
+5V
+12V
AVR
PB.0
100k
4.7k
+5V
PA.7
25% DC
50% DC
75% DC
100% DC
¼ POWER
½ POWER
¾ POWER
FULL POWER
Figure 9. Pulse Width Modulation Comparisons
Example 3
557

DC motor control and PWM using C
Write a C program to monitor the status of SW and perform the following:
(a) If SW = 0, the DC motor moves clockwise.
(b) If SW = 1, the DC motor moves counterclockwise.
Solution:
#include avr/io.h
#define ENABLE 0
#define MTR_1 1
#define MTR_2 2
#define SW (PINA0x80)
int main ( )
{
DDRA = 0x7F; //make PA7 input pin
DDRB = 0xFF; //make PORTB output pin
PORTB = PORTB (~(1ENABLE));
PORTB = PORTB (~(1MTR_1));
PORTB = PORTB (~(1MTR_2));
while (1)
{
PORTB = PORTB | (1ENABLE);
if(SW == 1)
{
PORTB = PORTB | (1MTR_1); //MTR_1 = 1
PORTB = PORTB (~(1MTR_2)); //MTR_2 = 0
}
else{
PORTB = PORTB (~(1MTR_1)); //MTR_1 = 0
PORTB = PORTB | (1MTR_2); //MTR_2 = 1
}
}
return 0;
}
P50: SBI PORTB,0 ;high portion of pulse
RCALL DELAY
RCALL DELAY
CBI PORTB,0 ;low portion of pulse
RCALL DELAY
RCALL DELAY
RJMP CHK
Example 3 (Cont.)
Examples 4 through 5 show the C versions of the earlier programs con-
trolling the DC motor.
Example 4 (C version of Example 2
Refer to Figure 6 for connection of the motor. A switch is connected to pin PA7.
558

Refer to the figure in this example. Write a C program to monitor the status of SW and
perform the following:
(a) If SW = 0, the DC motor moves with 50% duty cycle pulse.
(b) If SW = 1, the DC motor moves with 25% duty cycle pulse.
Solution:
#define SW (PORTA(17))
#include avr/io.h
void main()
{
DDRA=0x7F; //make PA7 input pin
DDRB=0x01; //make PB0 output pin
while(1)
{
if(SW == 1)
{
PORTB = PORTB | (10);
_delay_ms(75);
PORTB = PORTB (~(10));
_delay_ms(25);
}
else
{
PORTB = PORTB | (10);
_delay_ms(50);
PORTB = PORTB (~(10));
_delay_ms(50);
}
}
}
1
2
3
4
8
7
6
5
ILD74
OPTOISOLATOR
10k
TIP120
1N4004 MOTOR
+12V
0.1uF
330
+5V
+12V
AVR
PB.0
100k
4.7k
+5V
PA.7
559

Review Questions
1. True or false. The permanent magnet field DC motor has only two leads for +
and – voltages.
2. True or false. Just like a stepper motor, one can control the exact angle of a DC
motor’s move.
3. Why do we put a driver between the microcontroller and the DC motor?
4. How do we change a DC motor’s rotation direction?
5. What is stall in a DC motor?
6. The RPM rating given for the DC motor is for __________ (no-load, loaded).
ATmega32 comes with three timers, which can be used as wave generators, as
TCNT0
OCR0
=
(comparator)
Waveform Generator
COM00
COM01
WGM00
WGM01
OC0
(PB3)
DDRB.3
PORTB.3 0
1
TCNT1
OCR1B
=
(comparator)
COM1B0
COM1B1
OC1B
(PD4)
DDRD.4
PORTD.4 0
1
OCR1A
TCNT2
OCR2
=
(comparator)
Waveform Generator
COM20
COM21
WGM20
WGM21
OC2
(PD7)
DDRD.7
PORTD.7 0
1
=
(comparator)
COM1A0
COM1A1
WGM13 - WGM10
OC1A
(PD5)
DDRD.5
PORTD.5 0
1
4
4
TCNT0 Top
TCNT0 bottom FOC0
TCNT2 Top
TCNT2 bottom FOC2
TCNT1 Top
TCNT1 bottom
FOC1A
TCNT1 Top
TCNT1 bottom
FOC1B
OCF0
OCF1A
OCF1B
OCF2
SECTION 2: PWM MODES IN 8-BIT TIMERS
shown in Figure 10. In the first section of this chapter we showed how to use the
This section and the next section discuss the PWM feature of the AVR. The
Figure 10. Waveform Generator
560

built-in PWM feature of the AVR is that it gives us the option of programming the
Fast PWM mode
In the Fast PWM, the counter counts like it does in the Normal mode. After
the timer is started, it starts to count up. It counts up until it reaches its limit of 0xFF.
Bit 7 6 5 4 3 2 1 0
FOC0 D7 Force compare match: it is a write-only bit, which can be used
WGM01:00 D3D6 Timer0 mode selector bit
0 0 Normal
0 1 PWM, Phase correct
1 0 CTC (Clear Timer on Compare match)
1 1 Fast PWM
COM01:00 D5 D4 Compare Output Mode when Timer0 is in Fast PWM mode
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
TCNT0
0
0xFF
COM01 COM00 Mode Name Description
0 0 Disconnected Normal port operation, OC0 disconnected
0 1 Reserved Reserved
1 0 Non-inverted Clear OC0 on compare match, set OC0 at TOP
1 1 Inverted PWM Set OC0 on compare match, clear OC0 at TOP
Figure 11. Timer/Counter 0 Fast PWM mode
When it rolls over from 0xFF to 00, it sets HIGH the TOV0 flag. See Figure 11.
period and duty cycle, therefore relieving the CPU to do other important things.
CPU itself to create the equivalent of PWM outputs. The advantage of using the
In Figure 12 you see the reaction of the waveform generator when compare
match occurs while the timer is in Fast PWM mode.
generator to act as if a compare match has occurred.
561

COM01:00 = 10, the waveform generator clears the OC0 pin whenever compare
match occurs, and sets it at top. This mode is called non-inverted PWM. See Figures
the duty cycle of the generated wave increases when the value of OCR0 increases.
When COM01:00 = 11, the waveform generator sets the OC0 pin whenev-
er compare match occurs, and clears it at top. This mode is referred as inverted
Frequency of the generated wave in Fast PWM mode
In Fast PWM mode, the timer counts from 0 to top (0xFF in 8-bit counters)
Fgenerated wave =
Ftimer clock
256
Ftimer clock =
Foscillator
N
Fgenerated wave =
Foscillator
256 × N
}
Figure 13A. Non-inverted Figure 13B. Non-inverted Figure 13C. Non-inverted
Figure 14A. Inverted Figure 14B. Inverted Figure 14C. Inverted
PWM mode. See Figures 14A through 14C. As you see, in the inverted PWM
mode when the value of OCR0 increases, the duty cycle of the generated wave
decreases.
When COM01:00 = 00 the OC0 pin operates as an I/O port. When
13A through 13C. As you see from these figures, in the non-inverted PWM, the
and then rolls over. So, the frequency of the generated wave is 1/256 of the fre-
quency of timer clock. The frequency of the timer clock can be selected using the
prescaler. So, in 8-bit timers the frequency of the generated wave can be calcu-
lated as follows (N is determined by the prescaler):
562

Duty cycle of the generated wave in Fast PWM mode
register. When COM01:00 = 10 (in non-inverted mode), the bigger OCR0 value
results in a bigger duty cycle; When OCR0 = 255, the OC0 is 256 clocks out of
256 clocks, which means always high (duty cycle = 100%). Generally speaking,
cycle can be calculated using the following formula in non-inverted mode:
Similarly, the duty cycle formula for inverted mode is as follows:
To generate a wave with duty cycle of 75% in non-inverted mode, calculate the OCR0.
Solution:
75 = (OCR0 + 1) × 100 / 256 OCR0 + 1 = 75 × 256 / 100 = 192 OCR0 = 191
Find the value for TCCR0 to initialize Timer0 for Fast PWM mode, non-inverted PWM
wave generator, and no prescaler.
Solution:
WGM01:00 = 11 = Fast PWM mode CS02:00 = 001 = No prescaler
COM01:00 = 10 = Non-inverted PWM
TCCR0 =
TCNT0
0
time
0
1
OC0
OCR0
0xFF
256 clocks 256 clocks 256 clocks
OCR0 + 1 OCR0 + 1 OCR0 + 1
OCR0 + 1
Duty Cycle =
OCR0 + 1
256
Duty Cycle =
255 − OCR0
256
× 100
0 1 1 0 1 0 0 1
Figure 15. Timer/Counter 0 Fast PWM mode
× 100
the OC0 is high, for a total of OCR0 + 1 clocks. See Figure 15. So, the duty
The duty cycle of the generated mode can be determined using the OCR0
through 10.
Example 6
Examine Figures 13 and 14 once again, and then examine Examples 6
Example 7
563

Assuming XTAL = 8 MHz, using non-inverted mode, write a program that generates a
wave with frequency of 31,250 Hz and duty cycle of 75%.
Solution:
31,250 = 8M / (256 × N) N = 8M / (31,250 × 256) = 1 N = 1 No prescaler
.INCLUDE M32DEF.INC
SBI DDRB,3
LDI R20,191 ;from Example
LDI R20,0x69 ;from Example
OUT TCCR0,R20 ;Fast PWM, no prescaler, non-inverted
HERE: RJMP HERE ;infinite loop
Notice that instead of the infinite loop we can use the CPU to perform other things.
wave with frequency of 3906.25 Hz and duty cycle of 37.5%.
Solution:
3906.25 = 8M / (256 × N) N = 8M / (3906.25 × 256) = 8 the prescaler value = 8
37.5 = 100 × (OCR0 + 1) / 256 OCR0 + 1 = (256 × 37.5) / 100 = 96 OCR0 = 95
.INCLUDE M32DEF.INC
SBI DDRB,3
LDI R20,95
LDI R20,0x6A
OUT TCCR0,R20 ;Fast PWM, N = 8, non-inverted
HERE: RJMP HERE
Solution:
37.5 = 100 × (255 − OCR0)/256 255 − OCR0 = (256 × 37.5)/100 = 96 OCR0 = 159
.INCLUDE M32DEF.INC
SBI DDRB,3
LDI R20,159
LDI R20,0x7A
OUT TCCR0,R20 ;Fast PWM, N = 8, inverted
HERE: RJMP HERE
Example 8
Example 9
Example 10
6
7
Rewrite Example 9 using inverted mode.
564

Loading values into the OCRx register in PWM modes
In the non-PWM modes (CTC
mode and Normal mode), when we
load a value into the OCR0 register,
the value will be loaded instantly into
the OCR0 register, but in the PWM
modes (Fast PWM and Phase correct
PWM), there is a buffer between us
and the OCR0 register. When we
read/write a value from/into the OCR0
we are dealing with the buffer. The
contents of the buffer will be loaded
into the OCR0 register only when the
TCNT0 reaches to its topmost value.
The top value is 0xFF in the 8-bit
Draw the wave generated by the following program. Assume XTAL = 1 MHz.
.INCLUDE M32DEF.INC
RJMP MAIN
.ORG 0x16 ;Timer0 overflow interrupt vector
NEG R20 ;Negative R20
OUT OCR0,R20 ;OCR0 = R20
RETI ;return interrupt
MAIN:
OUT SPH,R16
LDI R16,LOW(RAMEND)
SBI DDRB,3 ;OC0 as output
LDI R20,99 ;R20 = 99
LDI R16,0x69 ;Fast PWM mode, non-inverted, no prescaler
OUT TCCR0,R16
OUT OCR0,R20 ;OCR0 buffer = 99
LDI R16,(1TOIE0) ;enable overflow interrupt
OUT TIMSK,R16
SEI ;enable interrupt
HERE: RJMP HERE ;wait here
Solution:
The wave generator is in non-inverted Fast PWM mode, which means that on compare
match the OC0 pin will be set high. The OCR0 register is loaded with 99; so compare
match occurs when TCNT0 reaches 99. When the timer reaches the top value and over-
flows, the interrupt request occurs, and the OCR0 buffer is loaded with 157 (the two’s
Figure 16. OCRn Buffer in PWM Modes
timers. See Figure 16 and Example 11.
Example 11
565

Phase correct PWM mode programming of Timer0
First it counts up until it reaches the top value. Then it counts down until it reach-
Phase correct PWM mode
pare match occurs in Phase correct PWM mode. When COM01:00 = 00 the OC0
pin operates as an I/O port. When COM01:00 = 10, the waveform generator clears
the OC0 pin on compare match when counting up, and sets it on compare match
when counting down. This mode is called non-inverted Phase correct PWM. See
complement of 99). The next time that the timer reaches the top value, the contents of
the OCR0 buffer (157) will be loaded into the OCR0 register. Then the second interrupt
occurs and the OCR0 buffer will be loaded with 99 (the two’s complement of 157).
TCNT0
0 time
0
1
OC0
99
255
100 clk
356
157
156 clk
512 670 768
time
158 clk 98 clk 100 clk 156 clk 158 clk
868 1024 1182 1280
156 clk
100 clk 98 clk
100 256
0
OCR0 = OCR0 buff.
Interrupt request
OCR0 = OCR0 buff.
Interrupt request
OCR0 = OCR0 buff.
Interrupt request
OCR0 = OCR0 buff.
Interrupt request
OCR0 = OCR0 buff.
Interrupt request
OCR0 buff. = 157 OCR0 buff. = 99 OCR0 buff. = 157 OCR0 buff. = 99 OCR0 buff. = 157
TOV0 = 1 TOV0 = 1
TCNT0
0
0xFF
time
Example 11 (Cont.)
es zero. The TOV0 flag is set whenever it reaches zero. See Figure 17.
In Figure 18 you see the reaction of the waveform generator when com-
In the Phase correct PWM, the TCNT0 goes up and down like a yo-yo!
Figures 19A through 19C.
Figure 17. Timer/Counter 0 Phase Correct PWM Mode
566

When COM01:00 = 11, the waveform generator sets the OC0 pin on compare
Bit 7 6 5 4 3 2 1 0
FOC0 D7 Force compare match: This is a write-only bit, which can be used
WGM01:00 D3D6 Timer0 mode selector bit
0 0 Normal
0 1 PWM, Phase correct
1 0
1 1 Fast PWM
COM01:00 D5 D4 Compare Output Mode when Timer0 is in Phase correct PWM mode:
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
COM01 COM00 Description
0 0 Normal port operation, OC0 disconnected
0 1 Reserved
1 0 Clear OC0 on compare match when up-counting. Set OC0 on compare
match when down-counting.
1 1 Set OC0 on compare match when up-counting. Clear OC0 on compare
match when down-counting.
mode is referred as inverted Phase correct PWM mode. See Figures 20A through 20C.
match when counting up, and clears it on compare match when counting down. This
CTC (Clear Timer on Compare match)
567

Frequency of the generated wave in Phase correct PWM mode
Duty cycle of the generated wave in Phase correct PWM mode
register. When COM01:00 = 10 (in non-inverted mode), the bigger OCR0 value
results in a bigger duty cycle. When OCR0 = 255, the OC0 is high, 510 clocks out
of 510 clocks, which means always (duty cycle = 100%). Generally speaking, the
TCNT0
0
time
0
1
OC0
OCR0
255
510 clocks 510 clocks 510 clocks
255 255 255 255
OCR0
OCR0 OCR0 OCR0
OCR0
Fgenerated wave =
Ftimer clock
510
Ftimer clock =
Foscillator
N
Fgenerated wave =
Foscillator
510 × N
}
OC0 is high for a total of 2 × OCR0 clocks. See Figure 21. So, the duty cycle
The duty cycle of the generated mode can be determined using the OCR0
Figure 21. Phase Correct PWM
As you see in Figure 21, the frequency of the generated wave is 1/510
of the frequency of timer clock. The frequency of timer clock can be selected using
the prescaler. So, in 8-bit timers the frequency of the generated wave can be cal-
culated as follows:
568

can be calculated using the following formula in non-inverted mode:
Find the value for TCCR0 for Phase correct PWM, non-inverted PWM wave generator,
and no prescaler.
Solution:
WGM01:00 = 01 = Phase correct PWM mode
TCCR0 =
wave with frequency of 15,686 Hz and duty cycle of 75%.
Solution:
15,686 = 8M / (510 × N) N = 8M / (15,626 × 510) = 1 No prescaler
75 = OCR0 × 100 / 255 OCR0 = 75 × 255 / 100 = 191 OCR0 = 191
.INCLUDE M32DEF.INC
SBI DDRB,3
LDI R20,191
LDI R20,0x61
OUT TCCR0,R20 ;Phase c. PWM, no prescaler, non-inverted
HERE: RJMP HERE
the same. The only difference is that the TCCR0 is loaded with 0x61 instead of 0x69.
Duty Cycle =
OCR0
255
× 100
Duty Cycle =
2 × OCR0
510
× 100
Duty Cycle =
255 − OCR0
255
× 100
Duty Cycle =
510 − 2 × OCR0
510
× 100
0 1 1 0 0 0 0 1
See Examples 12 through 15.
Example 12
Example 13
Comparing the program with the program in Example 8, you see that they are almost
569

Difference between the wave generated by Phase correct PWM and
Fast PWM
In non-inverted Fast PWM, the duty cycle of the generated wave is
(OCR0+1)/256. Becuase the value of OCR0 is between 0 and 255, the duty cycle
of the wave can be changed between 1/256 and 256/256. Therefore, in non-invert-
ed Fast PWM the duty cycle of wave cannot be 0% (unless we turn off the wave-
form generator). Similarly, in inverted Fast PWM, the duty cycle changes between
0/256 and 255/256; thus, the duty cycle cannot be 100%. But in Phase correct
PWM, the duty cycle changes between 0/255 and 255/255. Therefore, the wave
can change between 0% (completely off) and 100% (completely on).
For driving motors, it is preferable to use Phase correct PWM rather than
Fast PWM. In Fast PWM the frequency of the generated wave is twice that of the
Phase correct mode. Thus, Fast PWM mode is preferable when we need to gener-
ate waves with high frequencies.
Find the value for TCCR0 for Phase correct PWM, inverted PWM wave generator, and
prescaler = 256.
Solution:
WGM01:00 = 01 = Phase correct PWM mode
COM01:00 = 11 = Inverted PWM
CS02:00 = 100 = Scale 256
TCCR0 =
with frequency of 61 Hz and duty cycle of 87.5%.
Solution:
61 = 8M/(510 × N) N = 8M/(61 × 510) = 256
87.5 = 100 × (255 − OCR0)/255 255 − OCR0 = (255 × 87.5)/100 = 223 OCR0 = 32
.INCLUDE M32DEF.INC
SBI DDRB,3 ;OC0 as output
LDI R20,32
OUT TCCR0,R20 ;Phase c. PWM, N = 256, inverted
HERE: RJMP HERE
0 1 1 1 0 1 0 0
Example 15
Example 14
As you see in Figure 22, in Fast PWM, the phase of the wave is different
for different duty cycles, while it remains unchanged in the Phase correct
PWM as shown in Figure 23.
14
Assuming XTAL = 8 MHz, using inverted mode, write a program that generates a wave
570

Generating waves using Timer2
ences are register names, output port, and the prescaler values of TCCRn register.
TCNT0
0
time
0
1
OC0
0xFF
TCNT0
0
time
0
1
OC0
0xFF
Solution:
TCCR2 =
.INCLUDE M32DEF.INC
LDI R20,32
LDI R20,0x76
OUT TCCR2,R20 ;Phase correct PWM, N = 256, inverted
HERE: RJMP HERE
0 1 1 1 0 1 1 0
See Example 16.
Figure 22. Fast PWM
Figure 23. Phase Correct PWM
Example 16
Timer2 is an 8-bit timer. Therefore, it works similar to Timer0. The differ-
Rewrite Example 15 using Timer2.
The TCCR2 register should be loaded with:
571

8-bit PWM programming in C
Solution:
#include avr/io.h
int main ()
{
DDRB |= (1 3);
OCR0 = 95;
TCCR0 = 0x6A; //Fast PWM, no prescaler, non-inverted
while (1);
return 0;
}
Solution:
#include avr/io.h
int main ()
{
DDRB |= (1 3);
OCR0 = 159;
TCCR0 = 0x7A; //Fast PWM, no prescaler, inverted
while (1);
return 0;
}
Solution:
#include avr/io.h
int main ()
{
DDRB |= (1 3);
OCR0 = 191;
TCCR0 = 0x69; //Fast PWM, no prescaler, non-inverted
while (1);
return 0;
}
ing PWM.
Examples 17 through 22 show the C versions of the earlier programs creat-
572

Solution:
#include avr/io.h
int main ()
{
DDRB |= (1 3);
OCR0 = 191;
TCCR0 = 0x61; //Phase c. PWM, no prescaler, non-inverted
while (1);
return 0;
}
Solution:
#include avr/io.h
int main ()
{
DDRB |= (1 3);
OCR0 = 32;
TCCR0 = 0x74; //Phase correct PWM, N = 256, inverted
while (1);
return 0;
}
Solution:
#include avr/io.h
int main ()
{
DDRD |= (1 7);
OCR2 = 32;
TCCR2 = 0x76; //Phase correct PWM, N = 256, inverted
while (1);
return 0;
}
573

1. True or false. In Fast PWM and Phase correct PWM modes, we can change the
duty cycle.
2. True or false. In Fast PWM, we cannot change the frequency of the wave.
3. True or false. For 8-bit timers, in Phase correct PWM mode, the period is 510 clocks.
4. True or false. In Fast PWM, phase does not change when the duty cycle is
changed.
5. Which of the PWM modes is preferable for controlling motors?
Fast PWM mode
modes 5, 6, 7, 14, and 15. In modes 5, 6, and 7 the top value is fixed at 0xFF,
0x1FF, and 0x3FF; while in modes 14 and 15, the ICR1 and OCR1A registers rep-
TOV1 = 1 TOV1 = 1
SECTION 3: PWM MODES IN TIMER1
See Figure 24.
Review Questions
resent the top value, respectively. See Figures 25 through 29.
From Figure 30 we see that we have five Fast PWM modes in Timer1:
the timer is started, it starts to count up. It counts up until it reaches its top limit.
In the Fast PWM, the counter counts like it does in the Normal mode. After
Figure 28. Mode 15 Figure 29. TOV in Mode 7
Figure 24. Fast PWM Mode Figure 25. TOV in Mode 5
Figure 26. Mode 14 Figure 27. TOV in Mode 6
574

In Modes 5, 6, and 7, which have fixed top values, the TOV1 flag will be
In Mode 14, whose top value is represented by ICR1, the ICF1 flag will be
In Mode 15, when the timer rolls over, the OCF1A flag will be set. See
Bit 7 6 5 4 3 2 1 0
TCCR1B
0 = Input Capture Noise Canceler is disabled.
1 = Input Capture Noise Canceler is enabled.
D5 Not used
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
ICNC1 ICES1 − WGM13 WGM12 CS12 CS11 CS10
OCR1x
TOV1 Flag
Set on
13 1 1 0 1 Reserved − − −
Figure 30. TCCR1B (Timer1 Control) Register
set when the timer rolls over. See Figures 25, 27, and 29.
set when the timer rolls over, as shown in Figure 26.
Figure 28.
575

OC1A pin operates as an I/O port. When COM1A1:0 = 10, the waveform generator
clears the OC1A pin whenever compare match occurs, and sets it at the top value.
see, in non-inverted PWM, the duty cycle of the generated wave increases when the
value of OCR1A increases.
Bit 7 6 5 4 3 2 1 0
TCCR1A
WGM11:10 D1 D0
0 1 In mode 15, toggle OC1A on compare match. In other modes
OC1A disconnected (Normal I/O port)
1 0 Clear OC1A on compare match. Set OC1A at Top.
1 1 Set OC1A on compare match. Clear OC1A at Top.
1 0 Clear OC1B on compare match. Set OC1B at Top.
1 1 Set OC1B on compare match. Clear OC1B at Top.
pare match occurs while the timer is in Fast PWM mode. When COM1A1:0 = 00 the
Figure 31. TCCR1A (Timer1 Control) Register
This mode is called non-inverted PWM. See Figures 32A through 32C. As you see,
In Figure 31 you see the reaction of the waveform generator when com-
576

er compare match occurs, and clears it at the top value. This mode is referred to as
PWM, the duty cycle of the generated wave decreases when the value of OCR1A
increases.
The same thing is true about the OCR1B register and COM1B1:10 bits.
Frequency of the generated wave in Fast PWM mode
Duty cycle of the generated wave in Fast PWM mode
The duty cycle of the generated mode can be determined using the OCR1x
register. When COM1x1:0 = 10 (in non-inverted mode), the bigger OCR1x value
results in a bigger duty cycle. When OCR1x = Top, the OC1 is always high (duty
cycle = 100%). Generally speaking, the OC1x is high for a total of OCR1x + 1
clocks. So, the duty cycle can be calculated using the following formula in non-
inverted mode:
In inverted mode, the duty cycle can be calculated using the following for-
mula:
Fgenerated wave =
Ftimer clock
Top + 1
Ftimer clock =
Foscillator
N
Fgenerated wave =
Foscillator
(Top + 1) × N
}
Duty Cycle =
OCR1x + 1
Top + 1
× 100
Duty Cycle =
Top − OCR1x
Top + 1
× 100
inverted PWM mode. See Figures 33A through 33C. As you see, in inverted
When COM1A1:0 = 11, the waveform generator sets the OC1A pin whenev-
Thus, the frequency of the generated wave is 1/(Top + 1) of the frequency of timer
Therefore, the frequency of the generated wave can be calculated as follows (N is
determined by the prescaler):
clock. The frequency of the timer clock can be selected using the prescaler.
In Fast PWM mode, timer counts from 0 to top value and then rolls over.
577

Calculate the value for the OCR1B register to generate a wave with duty cycle of 75%
for each of the following modes:
(a) Mode 5, non-inverted mode (b) Mode 7, inverted mode
(c) Mode 6, non-inverted mode (d) Mode 5, inverted mode
(e) Mode 7, non-inverted mode
Solution:
(a) In mode 5, Top = 0xFF= 255. Thus,
75 = (OCR1x + 1) × 100 / (Top + 1) OCR1x + 1 = 75 × 256 / 100 = 192
OCR1B = 191
(b) In mode 7, Top = 0x3FF = 1023. Thus,
75 = (Top − OCR1x) × 100 / (Top + 1) 1023 − OCR1x = 75 × 1024 / 100 = 768
OCR1B = 255
(c) In mode 6, Top = 0x1FF = 511. Thus,
75 = (OCR1x + 1) × 100 /(Top + 1) OCR1x + 1 = 75 × 512 / 100 = 384
OCR1A = 383
(d) In mode 5, Top = 0xFF = 255. Thus,
75 = (Top − OCR1x) × 100 / (Top + 1) 75 = (255 − OCR1x) × 100 / 256
255 − OCR1x = 75 × 256 / 100 = 192 OCR1B = 255 − 192 = 63
(e) In mode 7, Top = 0x3FF = 1023. Thus,
75 = (OCR1x + 1) × 100 / (Top + 1) OCR1x + 1 = 75 × 1024 / 100 = 768
OCR1B = 767
Find the values for TCCR1A and TCCR1B to initialize Timer1 for mode 5 (Fast PWM
mode, top = 0xFF), non-inverted PWM wave generator, and no prescaler, using wave-
form generator A.
Solution:
WGM13:10 = 0101 = Fast PWM mode CS02:00 = 001 = No prescaler
TCCR1A =
TCCR1B =
1 0 0 0 0 0 0 1
0 0 0 0 1 0 0 1
Example 23
Example 24
578

Assuming XTAL = 8 MHz, using non-inverted mode and mode 7, write a program that
generates a wave with frequency of 7812.5 Hz and duty cycle of 75%.
Solution:
7812.5 = 8M/(1024 × N) N = 8M/(7812.5 × 1024) = 1 No prescaler
.INCLUDE M32DEF.INC
SBI DDRD,5 ;PD5 = output
LDI R16,HIGH(767) ;R16 = the high byte
OUT OCR1AH,R16
LDI R16,LOW(767) ;R16 = the low byte
OUT OCR1AL,R16 ;OCR1A = 767 (from Example
LDI R16,0x83
OUT TCCR1A,R16 ;COM1A = non-inverted
LDI R16,0x09
OUT TCCR1B,R16 ;WGM = mode 7, clock = no scaler
HERE: RJMP HERE ;wait here forever
Assuming XTAL = 8 MHz, using non-inverted mode, and mode 5, write a program that
generates a wave with frequency of 31,250 Hz and duty cycle of 75%.
Solution:
.INCLUDE M32DEF.INC
LDI R16,HIGH(191) ;from Example
OUT OCR1AH,R16 ;Temp = 0x00
LDI R16,LOW(191) ;R16 = 191
LDI R16,0x09
HERE: RJMP HERE
Example 25
23
24
Example 26
23)
579

Solution:
60 = (Top − OCR1x) × 100 / (Top + 1) 511 − OCR1x = 60 × 512 / 100 = 307
OCR1B = 511 − 307 = 204
TCCR1A =
TCCR1B =
.INCLUDE M32DEF.INC
LDI R16,HIGH(204)
OUT OCR1AH,R16 ;Temp = the high byte
LDI R16,LOW(204)
LDI R16,0xB2
OUT TCCR1A,R16 ;COM1A = inverted
LDI R16,0x0A
Solution:
In mode 6, Top = 0x1FF= 511. Thus,
60 = (OCR1x + 1) × 100 / (Top + 1) OCR1x + 1 = 60 × 512 / 100 = 307
OCR1B = 306
1953 = 8M / (512 × N) N = 8M / (1953 × 512) = 8 prescaler = 1:8 CS12:0 = 010
TCCR1A =
TCCR1B =
.INCLUDE M32DEF.INC
OUT OCR1AH,R16 ;Temp = R16
LDI R16,0x82
OUT TCCR1A,R16 ;COM1A = non-inverted.
LDI R16,0x0A
1 0 0 0 0 0 1 0
0 0 0 0 1 0 1 0
1 1 0 0 0 0 1 0
0 0 0 0 1 0 1 0
Example 27
Example 28
580

Loading values into the OCR1A and OCR1B registers in PWM modes
value into the OCR1x register, the value will be loaded instantly, but in the PWM
modes (Fast PWM, Phase correct PWM, and phase and frequency correct PWM
mode), there is a buffer between us and the OCR1A and OCR1B registers. When
we read/write a value from/into the OCR1A or OCR1B register we are dealing
with the buffer. The contents of the buffer will be loaded into the OCR1A/OCR1B
TCNT1
OCR1A
OCF1A
OCF1B
OCR1B
OCR1B Buffer
TCNT1 = top
OCR1A Buffer
TCNT1 = top
Draw the wave generated by the following program. Assume XTAL = 1 MHz.
.INCLUDE M32DEF.INC
RJMP MAIN
.ORG 0x12 ;Timer1 overflow interrupt vector
OUT OCR1AH,R19 ;OCR1AH = R19 = 0
NEG R20
OUT OCR1AL,R20 ;OCR1A = R20
MAIN: LDI R16,LOW(RAMEND)
OUT SPL,R16
OUT SPH,R16 ;initialize stack pointer
LDI R19,0
LDI R20,31
LDI R16,0x81
OUT TCCR1A,R16 ;COM1A = non-inverted.
LDI R16,0x0A
LDI R16,(1TOIE1)
OUT TIMSK,R16 ;enable timer interrupt
SEI
Example 29.
registers only when the TCNT1 reaches its topmost value. See Figure 34 and
In the non-PWM modes (CTC mode and Normal mode), when we load a
Figure 34. OCRnx Buffer in PWM Modes
Example 29
581

Generating waves with different frequencies (case study)
FOscillator/[N × (Top + 1)]. In modes 5, 6, and 7, the Top value is fixed. Therefore,
in these modes the only way to change the frequency of the generated wave is to
can be generated using modes 5, 6, and 7.
Solution:
The wave generator is in non-inverted Fast PWM mode, which means that on compare
match the OC1A pin will be set high. The OCR1A register is loaded with 31, so com-
pare match occurs when TCNT1 reaches 31. When the timer reaches top and overflows,
the interrupt request occurs, and OCR1A buffer is loaded with 224 (the two’s comple-
ment of 31). The next time that the timer reaches the top value the contents of the
OCR1A buffer (224) will be loaded into the OCR1A register. Then the second interrupt
occurs and OCR1A buffer will be loaded with 31 (the two’s complement of 224).
TCNT1
0
time
0
1
OC0
31
255
32
clk
288
224
512 737
768
time
800 1024 1249 1280
224 clk
32
clk
32 256
0
224 clk
31
clk
32
clk
225 clk 224 clk 225 clk
31
clk
Foscillator
1×256
1 1:8
Foscillator
8×256
1:64
Foscillator
64×256
1:256
Foscillator
256×256
1:1024
Foscillator
1024×256
Prescaler
Mode = 5
Foscillator
1×512
Foscillator
8×512
Foscillator
64×512
Foscillator
256×512
Foscillator
Mode = 6
Foscillator
1×1024
Foscillator
8×1024
Foscillator
64×1024
Foscillator
256×1024
Foscillator
1024×1024
Mode = 7
1024×512
Example 29 (Cont.)
change N (the prescaler). In Figure 35, you see the different frequencies that
As we mentioned earlier, the frequency of the generated wave is equal to
Figure 35. Different Frequencies Can Be Made Using Modes 5, 6, and 7
582

Thus, in these modes we can make a very limited number of frequencies.
What if we want to make some other frequencies? In modes 14 and 15, the Top
value can be specified by ICR1 and the OCR1A registers. Thus, we can change the
Assuming XTAL = 8 MHz, find TCCR1A and TCCR1B to generate a wave with fre-
quency of 80 kHz using mode 14.
Solution:
80K = 8M / [N × (Top + 1)] N × (Top + 1) = 8M / 80K = 100
N × (Top + 1) = 100 N = 1; Top + 1 = 100
Top = 99 ICR1 = 99
N = 1 CS12:0 = 001
TCCR1A =
TCCR1B =
Calculate the OCR1B to generate a wave with duty cycle of 20% in each of the follow-
ing modes:
(a) mode 14, inverted mode, ICR1 = 45, (b) mode 15, non-inverted mode, OCR1A = 124,
and (c) mode 14, non-inverted mode, ICR1 = 99.
Solution:
(a) In mode 14, Top = ICR1 = 45. Thus,
20 = (Top − OCR1x) × 100 / (Top + 1) 45 − OCR1x = 20 × 46 / 100 = 9 OCR1A= 36
(b) In mode 15, Top = OCR1A = 124. Thus,
20 = (OCR1x + 1) × 100 / (124 + 1) OCR1x + 1 = 20 × 125 / 100 = 25 OCR1x = 24
(c) In mode 14, Top = ICR1 = 99. Therefore,
20 = (OCR1x + 1) × 100 / (99 + 1) OCR1x + 1 = 20 OCR1x = 19
1 0 0 0 0 0 1 0
0 0 0 1 1 0 0 1
frequency by loading proper values to ICR1 and OCR1A. See Examples 30
through 32.
Example 30
Example 31
583

If we use mode 15 instead of mode 14, OCR1A is buffered, and the con-
In mode 15 we can only use the OC1B wave generator and not the OC1A wave
generator since the OCR1A register is used for defining the top value. See
Assume XTAL = 8 MHz. Using mode 14 write a program that generates a wave with
duty cycle of 20% and frequency of 80 kHz.
Solution:
.INCLUDE M32DEF.INC
LDI R16,LOW(RAMEND)
OUT SPL,R16
LDI R16,HIGH(99)
OUT ICR1H,R16 ;Temp = 0
LDI R16,LOW(99)
OUT ICR1L,R16 ;ICR1 = 99
LDI R16,HIGH(19)
OUT OCR1AH,R16 ;Temp = 0
LDI R16,LOW(19)
OUT OCR1AL,R16 ;OCR1A = 19 (from Example
Assuming XTAL = 8 MHz, find TCCR1A and TCCR1B to generate a wave with
frequency of 64 kHz using mode 15.
Solution:
64k = 8M / [N × (Top + 1)] N × (Top + 1) = 8M / 64k = 125 N = 1; Top + 1 = 125
Top = 124 OCR1A = 124
N = 1 CS12:0 = 001
TCCR1A =
TCCR1B =
0 0 1 0 0 0 1 1
0 0 0 1 1 0 0 1
Example 32
31)
30
30
Example 33
Examples 33 and 34.
tents of the buffer will be loaded into OCR1A when the timer reaches its top value.
584

Phase correct PWM mode
In the Phase correct PWM, the timer counts up until it reaches the top value
then counts down until it reaches zero. The TOV1 flag will be set when the timer
There are five Phase correct PWM modes: modes 1, 2, 3, 10, and 11. See
TOV1 = 1 TOV1 = 1
TCNT1
0
TOP
time
Solution:
.INCLUDE M32DEF.INC
LDI R16,LOW(RAMEND)
OUT SPL,R16
OUT OCR1AH,R16
OUT OCR1BH,R16
OUT OCR1BL,R16 ;OCR1B = 24
OUT TCCR1A,R16 ;COM1B = non-inverted
Example 34
33
33
returns to zero, as shown in Figure 36.
Figure 37.
585

In modes 1, 2, and 3 the top value are
mode 10, the top value is defined by the
ICR1 register; and in mode 11, the OCR1A
register represents the top value. See Figures
Bit 7 6 5 4 3 2 1 0
TCCR1B
0 = Input Capture is disabled.
1 = Input Capture is enabled.
0 1 0 clk / 8
0 1 1 clk / 64
1 0 0 clk / 256
1 0 1 clk / 1024
OCR1x
TOV1 Flag
Set on
13 1 1 0 1 Reserved − − −
38 through 42.
waveform generator when compare match
occurs in Phase correct PWM mode.
In Figure 43 you see the reaction of
Figure 37. TCCR1B (Timer1 Control) Register
0xFF, 0x1FF, and 0x3FF, respectively. In
Figure 38. Mode 1
586

Bit 7 6 5 4 3 2 1 0
TCCR1A
WGM11:10 D1 D0
TOV1 = 1 TOV1 = 1
TOV1 = 1
0 1 In mode 9 or 14 toggles on compare match. In other modes
OC1A is disconnected (Normal I/O port).
1 0 Clear OC1A on compare match when up-counting. Set OC1A on
compare match when down-counting.
1 1 Set OC1A on compare match when up-counting. Clear OC1A on
1 0 Clear OC1B on compare match when up-counting. Set OC1B on
1 1 Set OC1B on compare match when up-counting. Clear OC1B on
Figure 40. Mode 3
Figure 39. Mode 2
Figure 41. Mode 10 Figure 42. Mode 11
Figure 43. TCCR1A (Timer1 Control) Register
587

COM1A1:00 = 10, the waveform generator clears the OC1A pin on compare
match when up-counting, and sets it on compare match when down-counting. This
mode is called non-inverted.
the duty cycle of the generated wave increases when the value of OCR1A increases.
compare match when up-counting, and clears it on compare match when down-
counting. This mode is referred to as inverted mode. As you can see from Figures
The same thing is true about the OCR1B register and COM1B1:10 bits.
Frequency of the generated wave in Phase correct PWM mode
TCNT1
0
time
0
1
OC1x
OCR1A
Top
TCNT1
0
time
0
1
OC1x
OCR1x
Top
TCNT1
0
time
0
1
OC1x
OCR1x = Top
TCNT1
0
time
0
1
OC1x
OCR1x = Top
TCNT1
0
time
0
1
OC1x
OCR1x
Top
TCNT1
0
time
0
1
OC1x
OCR1x
Top
Fgenerated wave =
Ftimer clock
2 × Top
Ftimer clock =
Foscillator
N
Fgenerated wave =
Foscillator
2 × N × Top
}
Figure 45C. Inverted
Figure 45B. Inverted
Figure 45A. Inverted
45A through 45C, in inverted PWM, the duty cycle of the generated wave decreas-
es when the value of OCR1A increases.
When COM1A1:00 = 11, the waveform generator sets the OC1A pin on
See Figures 44A through 44C. As you see, in the non-inverted mode,
When COM1A1:10 = 00 the OC1A pin operates as an I/O port. When
As you see in Figure 46, the frequency of the generated wave is 1/2 TOP of
the frequency of timer clock. The frequency of the timer clock can be selected
using the prescaler. Therefore, in 8-bit timers the frequency of the generated wave
can be calculated as follows:
588

Duty cycle of the generated wave in Phase correct PWM mode
The duty cycle of the generated mode can be determined using the OCR1x
register. When COM1x1:0 = 10 (in non-inverted mode), the bigger OCR1x value
cycle = 100%). Generally speaking, OC1x is high for a total of OCR1x clocks. See
non-inverted mode:
Find the values for TCCR1A and TCCR1B to initialize Timer1 for mode 1 (Phase cor-
rect PWM mode, top = 0xFF), non-inverted PWM wave generator, and no prescaler.
Solution:
WGM13:10 = 0001 = Phase correct PWM mode CS02:00 = 001 = No prescaler
TCCR1A =
TCCR1B =
TCNT1
0
time
0
1
OC1
OCR0
TOP
2 x TOP 2 x TOP 2 x TOP
TOP TOP TOP TOP
OCR1
OCR1 OCR1 OCR1
OCR1
Duty Cycle =
OCR1A
Top
× 100
Duty Cycle =
2 × OCR1A
2 × Top
× 100
Duty Cycle =
Top − OCR1A
Top
× 100
Duty Cycle =
2 × Top − 2 × OCR1A
2 × Top
×100
1 0 0 0 0 0 0 1
0 0 0 0 0 0 0 1
Figure 46. So, the duty cycle can be calculated using the following formula in
results in a bigger duty cycle. When OCR1x = Top, the OC1x is always high (duty
Example 35
589

Calculate the OCR1B to generate a wave with duty cycle of 75% in each of the follow-
ing modes:
(a) Mode 1, non-inverted mode (b) Mode 3, inverted mode
(c) Mode 2, non-inverted mode (d) Mode 2, inverted mode
(e) Mode 1, inverted mode
Solution:
(a) In mode 1, Top = 0xFF= 255. So,
75 = OCR1x × 100 / Top OCR1x = 75 × 255 / 100 = 192 OCR1B = 191
(b) In mode 3, Top = 0x3FF= 1023. So,
75 = (Top − OCR1x) × 100 / Top 1023 − OCR1x = 75 × 1023 / 100 = 767
OCR1B = 255
(c) In mode 2, Top = 0x1FF = 511. So,
75 = OCR1x × 100 / Top OCR1x = 75 × 511 / 100 = 383 OCR1B = 383
(d) In mode 2, Top = 0x1FF = 511. So,
75 = (Top − OCR1x) × 100 / Top 75 = (511 − OCR1x) × 100 / 511
511 − OCR1x = 75 × 511 / 100 = 383 OCR1B = 511 − 383 = 128
(e) In mode 1, Top = 0xFF = 255. So,
75 = (Top − OCR1x) × 100 / Top 75 = (255 − OCR1x) × 100 / 255
255 − OCR1x = 75 × 255 / 100 = 191 OCR1B = 255 − 191 = 64
Solution:
.INCLUDE M32DEF.INC
LDI R16,HIGH(191) ;from Example
LDI R16,LOW(191) ;R16 = 191
LDI R16,0x01
HERE: RJMP HERE
Example 36
Example 37
36
35
590

Generating waves with different frequencies (case study)
As we mentioned earlier, the frequency of the generated wave is equal to
Foscillator
these modes the only way to change the frequency of the generated wave is to
can be generated using modes 1, 2, and 3.
So, in these modes we can make a very limited number of frequencies.
What if we want to make some other frequencies? In modes 10 and 11, the Top
value can be specified by ICR1 and the OCR1A registers. Thus, we can change the
Foscillator
510
1 1:8
Foscillator
8*510
1:64
Foscillator
64*510
1:256
Foscillator
256*510
1:1024
Foscillator
1024*510
Prescaler
Mode = 1
Foscillator
1*1022
Foscillator
8*1022
Foscillator
64*1022
Foscillator
256*1022
Foscillator
Mode = 2
Foscillator
1*2046
Foscillator
8*2046
Foscillator
64*2046
Foscillator
256*2046
Foscillator
1024*2046
Mode = 3
1024*1022
Assuming XTAL = 8 MHz, find TCCR1A and TCCR1B to generate two waves with fre-
quency of 125 Hz on OC1A and OC1B using mode 10, non-inverted mode, and
prescaler = 1:256.
Solution:
125 = 8M / (2N × Top) 2N × Top = 8M / 125 = 64,000 Top = 64,000 / 512 = 250
Top = 250 ICR1 = 250
N = 256 CS12:0 = 100
Mode = 10 WGM12:10 = 1010
OC1A in non-inverted mode COM1A1:COM1A0 = 10
OC1B in non-inverted mode COM1B1:COM1B0 = 10
TCCR1A =
TCCR1B =
1 0 1 0 0 0 1 0
0 0 0 1 0 1 0 0
change N (the prescaler). In Figure 47, you see the different frequencies that
/(2N × Top). In modes 1, 2, and 3, the Top value is fixed. Therefore, in
Figure 47. Different Frequencies Can Be Made Using Modes 1, 2, and 3
frequency by loading proper values to ICR1 and OCR1A. See Examples 38
through 40.
Example 38
591

Assume XTAL = 8 MHz. Using mode 10 write a program that generates waves with
duty cycles of 30% and 60% on the OC1A and OC1B pins, respectively. Frequency of
the generated waves should be 125 Hz.
Solution:
.INCLUDE M32DEF.INC
LDI R16,LOW(RAMEND)
OUT SPL,R16
SBI DDRD,5 ;PD5 (OC1A) = output
SBI DDRD,4 ;PD4 (OC1B) = output
LDI R16,0
OUT OCR1AH,R16 ;Temp = 0
OUT OCR1AL,R16 ;OCR1AL = 75, OCR1AH = Temp = 0
OUT OCR1BL,R16 ;OCR1BL = 150, OCR1BH = Temp = 0
LDI R16,250
OUT ICR1L,R16 ;ICR1L = 250, ICR1H = Temp = 0
LDI R16,0xA2 ;from Example
OUT TCCR1A,R16 ;COM1A = non-inverted, COM1B = non-inv.
Calculate the OCR1x to generate the following waves in each of the following modes:
(a) Mode 11, inverted mode, OCR1A=50, duty cycle = 30%
(b) Mode 10, non-inverted mode, ICR1 = 250, duty cycle = 30%
(c) Mode 10, non-inverted mode, ICR1 = 250, duty cycle = 60%
Solution:
(a) In mode 11, Top = OCR1A = 50. So,
30 = (Top − OCR1B) × 100 / Top 50 − OCR1B = 50 × 30 / 100 = 15 OCR1B = 35
(b) In mode 10, Top = ICR1 = 250. So,
30 = OCR1x × 100 / Top OCR1x = 30 × 250 / 100 = 75 OCR1x = 75
(c) In mode 10, Top = ICR1 = 250. So,
60 = OCR1x × 100 / Top OCR1x = 60 × 250 / 100 OCR1x = 150
Example 39
Example 40
39
39
38
38
592

If we use mode 11 instead of mode 10, OCR1A is buffered, and the con-
tents of the buffer will be loaded into OCR1A, when the timer reaches its top
value. In mode 11 we can only use the OC1B wave generator and we cannot use
the OC1A wave generator since the OCR1A register is used for defining the Top
value.
Solution:
#include avr/io.h
int main ( )
{
DDRD |= (15); //PD5 = output
OCR1AH = 0; //Temp = 0
OCR1AL = 191; //OCR1A = 191
TCCR1A = 0x81; //COM1A = non-inverted
TCCR1B = 0x09; //WGM = mode 5, clock = no scaler
while (1);
return 0;
}
generates a wave with frequency of 7812.5 Hz and duty cycle of 75%.
Solution:
#include avr/io.h
int main ( )
{
DDRD |= (15); //PD5 = output
OCR1AH = 7678;//OCR1AH = HIGH (767)
OCR1AL = 767; //OCR1AL = LOW (767)
while (1);
return 0;
}
16-bit PWM programming in C
Examples 41 through 49 show the C versions of the earlier programs.
593

generates a wave with frequency of 1953 Hz and duty cycle of 60%.
Solution:
#include avr/io.h
int main ( )
{
DDRD |= (15); //PD5 as output
OCR1AH = 3068;//OCR1AH = HIGH (306)
OCR1AL = 306; //OCR1AL = LOW (306)
TCCR1B = 0x0A; //WGM = mode 6, clock = no prescaler
while (1);
return 0;
}
Solution:
#include avr/io.h
int main ( )
{
OCR1AH = 2048;//OCR1AH = HIGH(204) = 0
OCR1AL = 204; //OCR1AL = LOW(204) = 204
TCCR1A = 0xB2; //COM1A = inverted
TCCR1B = 0x0A; //WGM = mode 6, clock = no scaler
while (1);
return 0;
}
Solution:
#include avr/io.h
ISR (TIMER1_OVF_vect)
{
OCR1AH = 0;
OCR1AL = ~OCR1AL;
}
int main ( )
{
594

Solution:
#include avr/io.h
int main ( )
{
ICR1H = 0x00; //Temp = 0x00
ICR1L = 99; //ICR1 = 99
OCR1AH = 0; //OCR1AH = 0
OCR1AL = 19; //OCR1A = 19
while (1);
return 0;
}
Solution:
#include avr/io.h
int main ( )
{
OCR1AL = 124; //OCR1A = 124
OCR1BH = 0; //Temp = 0
OCR1BL = 24; //OCR1B = 24
TCCR1A = 0x23; //COM1B = non-inverted
while (1);
return 0;
}
OCR1AL = 31; //OCR1A = 31
TCCR1B = 0x0A; //WGM = mode 5, clock = no scaler
TIMSK = (1TOIE1);
sei ( );
while (1);
return 0;
}
Example 45 (Cont.)
595

Review Questions
1. True or false. We can associate each of the pins with each of the waveform
generators.
2. True or false. In PWM modes (Fast PWM and Phase correct PWM) we can
change the duty cycle of the generated wave.
3. True or false. In inverted Phase correct PWM mode, the duty cycle increases
when the OCR1A value increases.
Solution:
#include avr/io.h
int main ( )
{
OCR1AL = 191; //OCR1A = 191
TCCR1B = 0x01; //WGM = mode 1, clock = no prescaler
while (1);
return 0;
}
Assume XTAL = 8 MHz. Using mode 10 write a program that generates waves with
duty cycles of 30% and 60% on the OC1A and OC1B pins, respectively. The frequen-
cy of the generated waves should be 125 Hz.
Solution:
#include avr/io.h
int main ( )
{
DDRD = DDRD|(15)|(14); //PD4 and PD5 as output
OCR1AH = 0x00; //Temp = 0
OCR1AL = 75; //OCR1A = 75
OCR1BL = 150; //OCR1B = 150
ICR1L = 250; //ICR1 = 250
TCCR1A = 0xA2; //COM1A = non-inverted, COM1B = non-inv.
TCCR1B = 0x14; //WGM = mode 10, clock = no prescaler
while (1);
return 0;
}
596

To generate the PWM waves for controlling the DC motor we can use the
Refer to the figure in this example. Write a program to monitor the status of the switch
and perform the following:
Solution:
For driving motors it is preferable to use the Phase correct PWM mode.
OCR0 / 255 = duty cycle / 100 OCR0 = 255 × duty cycle / 100
For duty cycle = 25% OCR0 = 255 × 25 / 100 = 64
For duty cycle = 50% OCR0 = 255 × 50 / 100 = 127
In this example we generate waves with frequency of 245 Hz. To do so,
245 = 8M / (510 × N) N = 8M / (245 × 510) = 64 Prescaler = 64
TCCR0 =
.INCLUDE M32DEF.INC
SBI DDRB,3 ;make PB3 output
SBI PORTA,7 ;activate pull-up of PA7
LDI R16,0x73
OUT TCCR0,R16 ;N = 64, Phase correct PWM, inverted
L1: SBIC PINA,7 ;skip next instruct if PINA.7 is zero
LDI R16,64 ;if PINA.7 is one then R16 = 64
SBIS PINA,7 ;skip next instruct if PINA.7 is one
LDI R16,127 ;if PINA.7 is zero then R16 = 127
OUT OCR0,R16 ;OCR0 = R16
RJMP L1 ;jump L1
0 1 1 1 0 0 1 1
SECTION 4: DC MOTOR CONTROL USING PWM
PWM features of AVR. See Examples 50 and 51.
Example 50 (Example 3 using AVR PWM features)
597

DC motor control and PWM using C
Write a program to monitor the status of the switch and perform the following:
Solution:
#include avr/io.h
int main ( )
{
DDRB = 0x08; //PB3 as output
PORTA = 0x80; //pull-up resistor
TCCR0 = 0x73; //Phase correct PWM, inverted, N = 64
while (1)
{
switch ((PINA0x80))
{
case 0: OCR0 = 64; break; //25%
case 1: OCR0 = 127; break; //50%
}
}
return 0;
}
Write a program that gradually changes the speed of a DC motor from 50% to 100%.
Solution:
.INCLUDE M32DEF.INC
OUT SPH,R16
LDI R16,LOW(RAMEND)
SBI DDRB,3 ;make PB3 output
OUT TCCR0,R16 ;N = 64, Phase correct PWM, inverted
LDI R20,127
L1: OUT OCR0,R20 ;OCR0 = R17
RCALL DELAY
BRNE L1 ;jump L1 if R20 is not zero
HERE: RJMP HERE
Example 51
Use information given in Example 50.
Examples 52 and 53 show the C versions of the earlier programs.
50
598

SUMMARY
In the first section, The AVR was interfaced with DC motors. A typical DC
motor will take electronic pulses and convert them to mechanical motion. This
chapter showed how to interface the AVR with a DC motor. Then, simple
Assembly and C programs were written to show the concept of PWM.
We discussed the PWM features of AVR timers in sections two and three,
and in the last section we used the PWM feature of AVR to control DC motors.
PROBLEMS
1. Which motor is best for moving a wheel exactly 90 degrees?
2. True or false. Current dissipation of a DC motor is proportional to the load.
3. True or false. The RPM of a DC motor is the same for no-load and loaded.
4. The RPM given in data sheets is for ___________ (no-load, loaded).
5. What is the advantage of DC motors over AC motors?
6. What is the advantage of stepper motors over DC motors?
7. True or false. Higher load on a DC motor slows it down if the current and volt-
age supplied to the motor are fixed.
8. What is PWM, and how is it used in DC motor control?
9. A DC motor is moving a load. How do we keep the RPM constant?
10. What is the advantage of placing an optoisolator between the motor and the
microcontroller?
Write a program that gradually changes the speed of a DC motor from 50% to 100%.
Solution:
#include avr/io.h
int main ( )
{
unsigned char i;
DDRB = 0x08; //PB3 as output
i = 127;
OCR0 = 127; //duty cycle = 50%
TCCR0 = 0x73; //Phase correct PWM, inverted, N = 64
while (i != 0)
{
OCR0 = i;
_delay_ms(25); //use AVR Studio library delay
i++;
}
while (1);
return 0;
}
599

11. Using Timer0 and non-inverted Fast PWM mode, write a program that gener-
ates a wave with frequency of 62.5 kHz and duty cycle of 60%. Assume XTAL
= 16 MHz.
12. Using Timer0 and inverted Fast PWM mode, write a program that generates a
wave with frequency of 46.875 kHz and duty cycle of 70%. Assume XTAL =
12 MHz.
13. Using Timer0 and inverted Fast PWM mode, write a program that generates a
wave with frequency of 1953 Hz and duty cycle of 20%. Assume XTAL = 4
MHz.
14. Using Timer0 and non-inverted Fast PWM mode, write a program that gener-
ates a wave with frequency of 15.25 Hz and duty cycle of 10%. Assume XTAL
= 1 MHz.
15. Using Timer0 and inverted Phase correct PWM mode, write a program that
generates a wave with frequency of 1960 Hz and duty cycle of 20%. Assume
XTAL = 1 MHz.
generates a wave with frequency of 1.96 kHz and duty cycle of 95%. Assume
XTAL = 1 MHz.
17. Using Timer2 and non-inverted Phase correct PWM mode, write a program
that generates a wave with frequency of 61.3 Hz and duty cycle of 19%.
Assume XTAL = 8 MHz.
XTAL = 1 MHz.
19. Using mode 6 of Timer1 and non-inverted Fast PWM, write a program that
generates a wave with frequency of 15,625 Hz and duty cycle of 40%. Assume
XTAL = 8 MHz.
20. Using mode 7 of Timer1 and inverted Fast PWM, write a program that gener-
ates a wave with frequency of 3906 Hz and duty cycle of 45%. Assume XTAL
= 4 MHz.
21. Using mode 7 of Timer1 and inverted Fast PWM, write a program that gener-
ates a wave with frequency of 1953 Hz and duty cycle of 35%. Assume XTAL
= 16 MHz.
22. Using mode 6 of Timer1 and non-inverted Fast PWM, write a program that
XTAL = 8 MHz.
23. Using mode 1 of Timer1 and inverted Phase correct PWM, write a program
that generates a wave with frequency of 976.5 Hz and duty cycle of 35%.
24. Using mode 2 of Timer1 and non-inverted Phase correct PWM, write a pro-
gram that generates a wave with frequency of 30.5 Hz and duty cycle of 25%.
600

25. Using mode 1 of Timer1 and non-inverted Phase correct PWM, write a pro-
gram that generates a wave with frequency of 245 Hz and duty cycle of 19%.
26. As shown in the figure, a switch is
connected to PB0. Using mode 2 of
Timer1 and non-inverted Phase cor-
rect PWM, write a program that gen-
erates a wave with frequency of
978 Hz. When the switch is closed the
duty cycle is 20%, and when it is open
the duty cycle is 85%. Assume XTAL
= 8 MHz.
1. True
2. False
3. Because microcontroller/digital outputs lack sufficient current to drive the DC motor, we need
a driver.
4. By reversing the polarity of voltages connected to the leads
5. The DC motor is stalled if the load is beyond what it can handle.
6. No-load
1. True
2. False
3. True
4. False
5. Phase correct PWM
1. False
2. True
3. False
601

OBJECTIVES

Understand the Serial Peripheral Interfacing (SPI) protocol

Explain how the SPI read and write operations work

Examine the SPI pins SDO, SDI, CE, and SCLK

Code programs in Assembly and C for SPI

Explain how 7-segment displays work

Explain the function of the MAX7221 pins

Explain the function of the MAX7221 registers

Understand the interfacing of the MAX7221 to the AVR

Code programs to display numbers in Assembly and C
SPI PROTOCOL AND
MAX7221 DISPLAY
INTERFACING
603

ent pins of SPI protocol and then focus on the concept of clock polarity. We dis-
tinguish differences between single-byte read/write and multibyte burst read/
The SPI (serial peripheral interface) is a bus interface connection incorpo-
rated into many devices such as ADC, DAC, and EEPROM. In this section we
examine the pins of the SPI bus and show how the read and write operations in the
SPI work.
The SPI bus was originally started by Motorola Corp. (now Freescale), but
in recent years has become a widely used standard adapted by many semiconduc-
tor chip companies. SPI devices use only 2 pins for data transfer, called SDI (Din)
and SDO (Dout), instead of the 8 or more pins used in traditional buses. This
reduction of data pins reduces the package size and power consumption drastical-
ly, making them ideal for many applications in which space is a major concern.
The SPI bus has the SCLK (shift clock) pin to synchronize the data transfer
between two chips. The last pin of the SPI bus is CE (chip enable), which is used
to initiate and terminate the data transfer. These four pins, SDI, SDO, SCLK, and
SDO, SCLK, and CE signals are alternatively named as MOSI, MISO, SCK, and
used standard called a 3-wire interface bus. In a 3-wire interface bus, we have
SCLK and CE, and only a single pin for data transfer. The SPI 4-wire bus can
become a 3-wire interface when the SDI and SDO data pins are tied together.
However, there are some major differences between the SPI and 3-wire devices in
the data transfer protocol. For that reason, a device must support the 3-wire proto-
col internally in order to be used as a 3-wire device. Many devices such as the
DS1306 RTC (real-time clock) support both SPI and 3-wire protocols.
This chapter discusses the SPI bus. In Section 1 we examine the differ-
write. Section 2 discusses SPI programming in AVR using both Assembly and
C. We will examine how to interface MAX7221 to the AVR in Section 3.
SECTION 1: SPI BUS PROTOCOL
Figure 1. SPI Bus vs. Traditional Parallel Bus Connection to Microcontroller
SPI PROTOCOL AND MAX7221 DISPLAY INTERFACING
CE, make the SPI a 4-wire interface. See Figure 1. In many chips the SDI,
SS as shown in Figure 2 (compare with Figure 1). There is also a widely
604

How SPI works
SPI consists of two shift registers, one in the master and the other in the
slave side. Also, there is a clock generator in the master side that generates the
clock for the shift registers.
Slave In), and the serial-in pin of the master shift register is connected to the seri-
al-out pin of the slave shift register by MISO (Master In Slave Out). The master
clock generator provides clock to the shift registers in both the master and slave.
The clock input of the shift registers can be falling- or rising-edge triggered. This
will be discussed shortly.
In SPI, the shift registers are 8 bits long. It means that after 8 clock pulses,
the contents of the two shift registers are interchanged. When the master wants to
send a byte of data, it places the byte in its shift register and generates 8 clock puls-
es. After 8 clock pulses the byte is transmitted to the other shift register. When the
master wants to receive a byte of data, the slave side should place the byte in its
shift register, and after 8 clock pulses the data will be received by the master shift
register. It must be noted that SPI is full duplex, meaning that it sends and receives
data at the same time.
SPI read and write
In connecting a device with an SPI bus to a microcontroller, we use the
microcontroller as the master while the SPI device acts as a slave. This means that
the microcontroller generates the SCLK, which is fed to the SCLK pin of the SPI
SPI Shift Register SPI Shift Register
MOSI
MISO
Data Bus Data Bus
Clock
Generator
MASTER SLAVE
SCK
SS
Figure 2. SPI Architecture
As you can see in Figure 2, the serial-out pin of the master shift register
is connected to the serial-in pin of the slave shift register by MOSI (Master Out
605

device. The SPI protocol uses SCLK to synchronize the transfer of information
one bit at a time, where the most-significant bit (MSB) goes in first. During the
transfer, the CE must stay HIGH. The information (address and data) is transferred
between the microcontroller and the SPI device in groups of 8 bits, where the
address byte is followed immediately by the data byte. To distinguish between the
read and write operations, the D7 bit of the address byte is always 1 for write,
while for the read, the D7 bit is LOW, as we will see next.
Clock polarity and phase in SPI device
As we mentioned before in USART communication, transmitter and
receiver must agree on a clock frequency. In SPI communication, the master and
slave(s) must agree on the clock polarity and phase with respect to the data.
Freescale names these two options as CPOL (clock polarity) and CPHA (clock
phase), respectively, and most companies like Atmel have adopted that conven-
tion. At CPOL= 0 the base value of the clock is zero, while at CPOL = 1 the base
value of the clock is one. CPHA = 0 means sample on the leading (first) clock
edge, while CPHA = 1 means sample on the trailing (second) clock. Notice that if
the base value of the clock is zero, the leading (first) clock edge, is the rising edge
but if the base value of the clock is one, the leading (first) clock edge is falling
Steps for writing data to an SPI device
In accessing SPI devices, we have two modes of operation: single-byte and
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
SCK
SCK
CPOL = 0
CPOL = 1
CS
CPHA = 0
CPHA = 1
MISO/
MOSI
MISO/
MOSI
CPOL CPHA Data Read and Change Time SPI Mode
0 0 Read on rising edge, changed on a falling edge 0
0 1 Read on falling edge, changed on a rising edge 1
1 0 Read on falling edge, changed on a rising edge 2
1 1 Read on rising edge, changed on a falling edge 3
multibyte. We will explain each one separately.
edge. See Table 1 and Figure 3.
Table 1: SPI Clock Polarity and Phase
Figure 3. SPI Clock Polarity and Phase
606

Single-byte write
The following steps are used to send (write) data in single-byte mode for
1. Make CE = 0 to begin writing.
2. The 8-bit address is shifted in, one bit at a time, with each edge of SCLK.
Notice that A7 = 1 for the write operation, and the A7 bit goes in first.
3. After all 8 bits of the address are sent in, the SPI device expects to receive
the data belonging to that address location immediately.
4. The 8-bit data is shifted in one bit at a time, with each edge of the SCLK.
5. Make CE = 1 to indicate the end of the write cycle.
Multibyte burst write
Burst mode writing is an effective means of loading consecutive locations.
In burst mode, we provide the address of the first location, followed by the data
for that location. From then on, while CE = 0, consecutive bytes are written to con-
secutive memory locations. In this mode, the SPI device internally increments the
address location as long as CE is LOW. The following steps are used to send
(write) multiple bytes of data in burst mode for SPI devices as shown in
1. Make CE = 0 to begin writing.
2. The 8-bit address of the first location is provided and shifted in, one bit at
a time, with each edge of SCLK. Notice that A7 = 1 for the write operation
and the A7 bit goes in first.
3. The 8-bit data for the first location is provided and shifted in, one bit at a
time, with each edge of the SCLK. From then on, we simply provide con-
secutive bytes of data to be placed in consecutive memory locations. In the
process, CE must stay low to indicate that this is a burst mode multibyte
write operation.
4. Make CE = 1 to end writing.
ADDR0
SDI DATA0 DATA1 DATAN-1
CE
SCLK
DATA2 DATA3
A7=1 A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0
CE
SCLK
SDI
SDO
SPI devices, as shown in Figure 4:
Figure 4. SPI Single-Byte Write Timing (Notice A7 = 1)
Figure 5:
Figure 5. SPI Burst (Multibyte) Mode Writing
607

Steps for reading data from an SPI device
In reading SPI devices, we also have two modes of operation: single-byte
and multibyte. We will explain each one separately.
Single-byte read
The following steps are used to get (read) data in single-byte mode from
1. Make CE = 0 to begin reading.
2. The 8-bit address is shifted in one bit at a time, with each edge of SCLK.
Notice that A7 = 0 for the read operation, and the A7 bit goes in first.
3. After all 8 bits of the address are sent in, the SPI device sends out data
belonging to that location.
4. The 8-bit data is shifted out one bit at a time, with each edge of the
SCLK.
5. Make CE = 1 to indicate the end of the read cycle.
Multibyte burst read
Burst mode reading is an effective means of bringing out the contents of
consecutive locations. In burst mode, we provide the address of the first location
only. From then on, while CE = 0, consecutive bytes are brought out from consec-
utive memory locations. In this mode, the SPI device internally increments the
address location as long as CE is LOW. The following steps are used to get (read)
A7=0 A6 A5 A4 A3 A2 A1 A0
CE
SCLK
SDI
SDO
D7 D6 D5 D4 D3 D2 D1 D0
CE
SCLK
SDI ADDR0
SDO DATA0 DATA1 DATA2 DATA3 DATAN-1
SPI devices, as shown in Figure 6:
multiple bytes of data in burst mode for SPI devices, as shown in Figure 7:
Figure 6. SPI Single-Byte Read Timing (Notice A7 = 0)
Figure 7. SPI Burst (Multibyte) Mode Reading
608

1. Make CE = 0 to begin reading.
2. The 8-bit address of the first location is provided and shifted in, one bit at
a time, with each edge of SCLK. Notice that A7 = 0 for the read operation,
and the A7 bit goes in first.
3. The 8-bit data for the first location is shifted out, one bit at a time, with
each edge of the SCLK. From then on, we simply keep getting consecutive
bytes of data belonging to consecutive memory locations. In the process,
CE must stay LOW to indicate that this is a burst mode multibyte read
operation.
4. Make CE = 1 to end reading.
Review Questions
1. True or false. The SPI protocol writes and reads information in 8-bit chunks.
2. True or false. In SPI, the address is immediately followed by the data.
3. True or false. In an SPI write cycle, bit A7 of the address is LOW.
4. True or false. In an SPI write, the LSB goes in first.
5. State the difference between the single-byte and burst modes in terms of the
CE signal.
Most AVRs, including ATmega family members, support SPI protocols. In
AVR three registers are associated with SPI. They are SPSR (SPI Status Register),
SPCR (SPI Control Register), and SPDR (SPI Data Register). In this section we
will focus on these registers.
SPSR (SPI Status Register)
Bit 7 – SPIF (SPI Interrupt Flag)
In master mode, this bit is set in two situations: when a serial transfer is completed, or
when SS pin is an input and is driven low by an external device. Setting the SPIF flag
to one will cause an interrupt if SPIE in SPCR is set and global interrupts are enabled.
Bit 6 – WCOL (Write COLlision Flag)
The WCOL bit is set if you write on SPDR during a data transfer.
Bit 0 – SPI2X (Double SPI Speed)
When the SPI is in master mode, setting this bit to one doubles the SPI speed.
Notice that both the WCOL bit and the SPIF bit are cleared when you read the SPI
Status Register and then access the SPI Data Register. Alternatively, the SPIF bit is
cleared by hardware when executing the corresponding interrupt handler.
SPIF WCOL - - - - - SPI2X
SECTION 2: SPI PROGRAMMING IN AVR
Figure 8 shows the bits of the SPSR register used for SPI.
Figure 8. SPI Status Register (Note: The portion shown is used for SPI.)
609

SPCR (SPI Control Register)
to one, the SCK frequency is doubled.
Bit 7 – SPIE: SPI Interrupt Enable
Setting this bit to one enables the SPI interrupt.
Bit 6 – SPE: SPI Enable
Setting this bit to one enables the SPI.
Bit 5 – DORD: Data Order
This bit lets you choose to either transmit MSB and then LSB or vice versa. The LSB
is transmitted first if DORD is one; otherwise, the MSB is transmitted first.
Bit 4 – MSTR: Master/Slave Select
If you want to work in master mode then set this bit to one; otherwise, slave mode is
selected. Notice that if the SS pin is configured as an input and is driven low while
MSTR is set, MSTR will be cleared, and SPIF will become set.
Bit 3 – CPOL: Clock Polarity
This bit set the base value of clock when it is idle. At CPOL = 0 the base value of the
clock is zero while at CPOL = 1 the base value of the clock is one.
Bit 2 – CPHA: Clock Phase
CPHA = 0 means sample on the leading (first) clock edge, while CPHA = 1 means sam-
ple on the trailing (second) clock.
Bits 1, 0 – SPR1, SPR0: SPI Clock Rate Select 1 and 0
SPIE SPE DORD MSTR CPOL CPHA SPR1 SPR0
SPI2X SPR1 SPR0 SCK Frequency
0 0 0 Fosc/4
0 0 1 Fosc/16
0 1 0 Fosc/64
0 1 1 Fosc/128
1 0 0 Fosc/2 (Not recommended!)
1 0 1 Fosc/8
1 1 0 Fosc/32
1 1 1 Fosc/64
Figure 9 shows details of each bit in SPCR.
These two bits control the SCK rate of the device in master mode. See Table 2.
Figure 9. SPI Control Register
In Table 2 you see how SPI2X, SPR1, and SPR0 are combined to make
different clock frequencies for master. As you see in Table 2, by setting SPI2X
Table 2: SCK Frequency
610

SPDR (The SPI Data Register)
The SPI Data Register is a read/write register. To write into SPI shift reg-
ister, data must be written to SPDR. To read from the SPI shift register, you should
read from SPDR. Writing to the SPDR register initiates data transmission. Notice
that you cannot write to SPDR before the last byte is transmitted completely, oth-
erwise a collision will happen. You can read the received data before another byte
of data is received completely.
SS pin in AVR
As we mentioned before, the Slave Select (SS) pin of the SPI bus is used
to initiate and terminate the data transfer. In AVR, there are some points regarding
this pin that you should pay attention to.
When you are in master mode, you can choose to make this pin either input
or output. If you make it output, the SPI circuit of AVR will not control the SS pin
and you can make it one or zero by software. When you make the SS pin an input,
it will control the function of SPI. In this case you should externally make SS pin
high to ensure master SPI operation. If an external device makes the SS pin low,
the SPI module stops working in master mode and switches to slave mode by
clearing the MSTR bit in SPCR, and then sets the SPIF bit in SPSR. It is highly
recommended to make the SS pin output if you do not want to be interrupted when
you are working in master mode.
When you are in slave mode, the SS pin is always input and you cannot
control it by software. You should hold it externally low to activate the SPI. When
SS is driven high, SPI is disabled and all pins of SPI are input. Also the SPI mod-
ule will immediately clear any partially received data in the shift register. As we
mentioned before, it can be used in packet synchronizing by initiating and termi-
nating the data transfer.
Notice that when you are working in slave mode and the SS pin is driven
high by an external device, the SPI module is reset but not disabled and it is not
necessary to enable it again.
SPI programming in AVR
Before you start data transmission, you should set SPI Mode (Clock
Polarity and Clock Phase) by setting the values of the CPOL and CPHA bits in
Next, we will discuss each mode in detail.
LSB
MSB
0
1
2
3
4
5
6
7
Figure 10. SPI Data Register
SPCR. See Table 1. In AVR you can operate in either master or slave modes.
611

Master operating mode
If you want to work in master mode, you should set the MSTR bit to one.
Also you should set SCK frequency by setting the values of SPI2X, SPR1, and
to one before you start data transmission.
Writing a byte to the SPI Data Register (SPDR) starts data exchange by
starting the SPI clock generator. After shifting the last (8th) bit, the SPI clock gen-
erator stops and the SPIF flag changes to one. The byte in the master shift register
and the byte in the slave shift register are exchanged after the last clock. Notice
that you cannot write to the SPI Data Register before transmission is completed,
otherwise the collision happens. To get the received data you should read it from
SPDR before the next byte arrives. We can use interrupts or poll the SPIF to know
As we mentioned before, in case of multibyte burst write, the master con-
tinues to shift the next byte by writing it into SPDR. If you want to signal the end
of the packet, you should pull high the SS pin.
Write an AVR program to initialize the SPI for master, mode 0, with CLCK frequency
= Fosc/16, and then transmit ‘G’ via SPI repeatedly. The received data should be dis-
played on Port A.
Solution:
.INCLUDE M32DEF.INC
.equ MOSI = 5 ;for ATmega32
.equ SCK = 7
.equ SS = 4
LDI R17,0xFF ;Port A is output
OUT DDRA,R17
LDI R17,(1MOSI)|(1SCK)|(1SS)
OUT DDRB,R17 ;MOSI,SCK, and SS output
LDI R17,(1SPE)|(1MSTR)|(1SPR0) ;enable SPI
OUT SPCR,R17 ;master, CLK = fck/16
Transmit:
CBI PORTB,SS ;enable slave device
LDI R17,'G' ;move G letter to R17
OUT SPDR,R17 ;start transmission of G
Wait:
SBIS SPSR,SPIF ;wait for transmission
RJMP Wait ;to complete
IN R18,SPDR ;read received data into R18
OUT PORTA,R18 ;move R18 to PORTA
SBI PORTB,SS ;disable slave device
RJMP Transmit ;do it again
SPR2 according to Table 2. Then you should enable SPI by setting the SPIE bit
when a byte is exchanged. See Example 1.
Example 1
612

When AVR is configured as a master, the SPI will not control the SS pin.
If you want to make SS high or low, you have to do it by writing 1 or 0, respec-
tively, to the SS bit of Port B.
Slave operating mode
When AVR is configured as a slave, the function of the SPI interface
depends on the SS pin. If the SS is driven high, MISO is tri-stated and the SPI
interface sleeps. Only the contents of SPDR may be updated in this state. When SS
is driven low, the data will be shifted by incoming clock pulses on the SCK pin.
SPIF changes to one when the last bit of a byte has been shifted completely. Notice
that the slave can place new data to be sent into SPDR before reading the incom-
ing data; this is because in AVR there are two one-byte buffers to store received
data.
In slave mode there is no need to set SCK frequency because the SCK is
generated by the master, but you must select the SPI mode (Clock Phase and Clock
Polarity) and Data Order to match with SPI mode and Data Order of the other side
(master device). Finally you should enable the SPI by setting the SPIE bit of SPCR
Write an AVR program to initialize the SPI for slave, mode 0, with CLCK frequency =
fck/16, and then transmit ‘G’ via SPI repeatedly. The received data should be displayed
on Port A.
Solution:
.INCLUDE M32DEF.INC
.equ MISO = 6
LDI R17,0xFF ;Port A is output
OUT DDRA,R17
LDI R17,(1MISO) ;MISO is output
OUT DDRB,R17
LDI R17,(1SPE) ;enable SPI slave mode 0
OUT SPCR,R17 ;
Again:
LDI R17,'G' ;move letter G to R17
OUT SPDR,R17 ;send data to SPDR to be
;transmitted
Wait:
SBIS SPSR,SPIF ;skip next instruction if IF=1
RJMP Wait ;otherwise jump wait
IN R18,SPDR ;read received data into R18
OUT PORTA,R18 ;send R18 to PORTA
RJMP Again ;do it again
;
;It must be noted that slave will not start transfer or
;receive until it senses the clock from master
Example 2
to one. See Example 2. Notice that Example 2 is the slave version of Exam-
ple 1.
613

SPI programming in C for AVR
Review Questions
1. Which registers in the AVR are dedicated to SPI?
2. How do we set the SPI to operate in master mode 1?
3. How do we set the SPI clock frequency to be Fosc/120?
4. True or false. SPI is half duplex.
5. What is the maximum recommended frequency of the SPI clock?
Solution:
#define MOSI 5
#define SCK 7
int main (void)
{
DDRB = (1MOSI)|(1SCK); //MOSI and SCK are output
DDRA = 0xFF; //Port A is output
SPCR = (1SPE)|(1MSTR)|(1SPR0);//enable SPI as master
while(1){ //do for ever
SPDR = 'G'; //start transmission
while(!(SPSR (1SPIF))); //wait transfer finish
PORTA = SPDR; //move received data to
} //Port A
return 0;
}
Solution:
#define MISO 6
int main (void)
{
DDRA = 0xFF ; //Port A is output
DDRB = (1MISO); //MISO is output
SPCR = (1SPE); //enable SPI as slave
while(1){
SPDR = 'G';
while(!(SPSR (1SPIF))); //wait for transfer finish
PORTA = SPDR; //move received data to PORTA
}
return 0;
}
Examples 3 and 4 are C versions of the last two examples.
Rewrite Example 1 in C.
Example 3 (C version of 1)
Rewrite Example 2 in C.
Example 4 (C version of 2)
614

AND PROGRAMMING
In this section we first give a brief description of
7-segments and then show how to interface the
MAX7221 chip to AVR.
What is a 7-segment display?
In many applications, when you want to display
numbers, 7-segments are the best choice. These displays
are made of 7 LEDs to show different numbers plus
display digits.
There are two types of 7-segments, common anode and common cathode.
MAX7221
In many applications you need to connect two or more 7-segment LEDs to
a microcontroller. For example, if you want to connect four 7-segment LEDs
directly to a microcontroller you need 4 × 8 = 32 pins. This is not feasible. The
MAX7221 IC is an ideal chip for such applications since it supports up to eight 7-
segment LEDs. We can connect the MAX7221 to the AVR chip using SPI proto-
col and control up to eight 7-segment LEDs. The MAX7221 contains an internal
decoder that can be used to convert binary numbers to 7-segment codes. That
means we do not need to refresh the 7-segment LEDs. All you need to do is to send
a binary number to the MAX7221, and the chip decodes the binary data and dis-
plays the number. The device includes analog and digital brightness control, an
8×8 static RAM that stores each digit, and a test mode that forces all LEDs on.
Next, we will show how to interface an MAX7221 to the AVR and program it
using SPI protocol.
LEDs
A B C D E F G DP
GND
A
B
C
D
E
F
G
DP GND
SECTION 3: MAX7221 INTERFACING
Figure 11. 7-segment
another LED to display the decimal point. See Figure 11. Some characters like
A, b, c, d, E, and H are also displayed by 7-segments. Figure 12 shows how to
Figure 12. 7-Segment Display
The MAX7221 supports common cathode only. See Figure 13.
Figure 13. Common Cathode Connections in a 7-Segment Display
615

MAX7221 pins and connections
The MAX7221 is a 24-pin DIP chip.
It can be directly connected to the AVR and
control up to eight 7-segment LEDs. A resis-
tor or a potentiometer is the only external
component that you need. Next, we will dis-
cuss the pins of the MAX7221.
GND
Pin 4 and pin 9 are the ground.
Notice that both of the ground pins should
be connected to system ground and you can-
not leave any of them unconnected.
VCC
Pin 19 is the VCC and should be
connected to the +5 V power supply. Notice
that this pin is also the power to drive the 7-segments and the connecting wire to
this pin should be able to handle 100–300 mA.
ISET
Pin 18 is ISET and sets the maximum segment current. This pin should be
connected to VCC through a resistor. A 10 kilohm resistor can be connected to this
pin. If you want to manually control the intensity of the segments’ light, you can
replace the resistor with a 50K potentiometer. For more details about how to cal-
culate the value of the resistor you can look at the datasheet of the chip.
CS
Pin 12 is the chip select pin and should be connected to the SS pin of the
AVR. Serial data is loaded into the chip while CS is low, and the last 16 bits of the
serial data are latched on CS’s rising edge.
DIN
Pin 1 is the serial data input and should be connected to the MOSI pin of
the AVR. On CLK’s rising edge, data on this pin is loaded into the internal shift
register. Notice that the MAX7221 uses the SPI Mode 0, that is, read on rising
CLK
Pin 13 is the serial clock input and should be connected to the SCK pin of
the AVR. On MAX7221 the clock input is inactive when CS is high.
DOUT
Pin 24 is the serial data output and is used to connect more than one
MAX7221 to a single SPI bus.
DIG0–DIG7
The DIG pins are the 7-segment selector pins and should be connected to
DIN
DIG 0
DIG 4
GND
DIG 6
DIG 2
DIG 3
DIG 7
GND
DIG 5
(CS)
DIG 1
DOUT
SEG D
SEG DP
SEG E
SEG C
V+
ISET
SEG G
SEG B
SEG A
SEG F
CLK
10
11
1
2
3
4
5
6
7
8
9
12
15
14
24
23
22
21
20
19
18
17
16
13
From www.maxim-ic.com
edge and change on falling edge as shown in Table 1.
Figure 14. MAX7221
616

the 7-segments` common cathode pin. The MAX7221 chip can control up to eight
7-segment LEDs. These eight 7-segment dispalys are designated as DIG0 to DIG7.
SEGA–SEGG and DP
These pins select each segment and should be connected to segments of
MAX7221 data packet format
In MAX7221, data packets are 16 bits long (two bytes). You should first
make CS low before transmitting; then you transmit two bytes of data and termi-
nate the transmission by making CS high.
The first byte (MSBs) of each packet contains the command control bits,
bits (D15–D12) of the command byte are don’t care and the lower four bits
(D11–D8) are used to identify the meaning of the data byte to be followed. The
second byte (D7–D0) of the two-byte packet is called the data byte and is the actu-
A
B
C
D
E
F
G
DP
A
B
C
D
E
F
G
DP
SEG A
SEG B
SEG C
SEG D
SEG E
SEG F
SEG G
SEG DP
DIG 0
DIG 1
Common
Cathod
Common
Cathod
DIN
CS
CLK
MOSI
SS
SCLK
+5 V
ISET
10K
GND
GND
VCC
AVR
MAX
7221
The DIG pins provide the ground for
common cathode pins of 7-segments
D15 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D14 D13 D12 D11 D10
Don’t Care Command bits Data bit of each command
CS
CLK
DIN
Data Byte
Command Byte
each 7-segment accordingly. Figure 15 shows the connection for two 7-segments.
You can connect up to eight 7-segments to MAX7221.
Figure 15. MAX7221 Connections to the AVR
and the second byte is the data to be displayed. See Figure 16. The upper four
Figure 16. MAX7221 Packet Format
617

ry and hex values of each command. Next, we will discuss the commands in more
detail.
Set value of digit 0–digit 7 (commands X1–X8)
These commands set what is to be displayed on each 7-segment. You can
either send a binary number to the chip decoder and let it turn on/off the segments
accordingly, or you may decide to turn on/off each segment of the 7-segment by
yourself. The first way is useful when you do not want to deal with converting a
binary number to 7-segment codes. The second way is useful when you want to
show a character or any other thing that is not predefined. For example, if you
want to show U, you should use the second way and turn on/off segments your-
self. Next, you will see how to enable or bypass the decoder for each 7-segment.
Set decoding mode (command X9)
This command lets you enable or bypass the binary to 7-segment decoding
function for each 7-segment. Each bit in the data byte (second byte) is assigned to
one digit (7-segment). D0 is assigned to Digit 0, D1 is assigned to Digit 1, and so
on. If you want to enable the decoding function for a digit you should set to one
the bit assigned to that digit, and if you want to disable the decoding function you
Command D15-12 D11 D10 D9 D8 Hex Code
No operation X 0 0 0 0 X0
Set value of digit 0 X 0 0 0 1 X1
Set decoding mode X 1 0 0 1 X9
Set intensity of light X 1 0 1 0 XA
Set scan limit X 1 0 1 1 XB
Turn on/ off X 1 1 0 0 XC
Display test X 1 1 1 1 XF
Notes: 1) X means do not care.
2) Digits are designated as 0–7 to drive total of eight 7-segment LEDs.
x 0 1 1/0 1/0 1/0 1/0 1/0 1/0 1/0 1/0
x x x 1 0
Don’t Care Command bits Data bit of each command
DIN
Figure 17. Set Decoding Mode Command Format
Table 3: List of Commands in MAX7221
al data to be displayed or control the 7-segment driver. Table 3 shows the bina-
should clear the bit for that digit. Figure 17 shows the structure of the set
decoding mode command. See Examples 5 and 6.
618

If you want to turn on/off each segment by yourself to display a specific
letter on a 7-segment, you should bypass the decoding function and then use the
“Set value of digit x” command to turn on/off each bit of a segment. As you see in
For example, D0 is assigned to the G segment, D1 is assigned to the F segment,
and so on. If you want to turn on a segment, you should write one to its bit, and if
D7 D6 D5 D4 D3 D2 D1 D0
DP A B C D E F G
Bit
Segment
ing function for digit 0 and digit 2, and disable the decoding function for other digits?
Solution:
The first byte should be xxxx 1001 (X9 hex) to execute the “Set decoding mode” com-
mand, and the second byte (argument of the command) should be 0000 0101 to enable
the decoding function for digit 0 and digit 2.
x 0 1 0 0 0 0 0 1 0 1
x x x 1 0
Don’t Care Command 9 Data bits
MAX7221 in order to write 5 on digit 2?
Solution:
The first byte should be xxxx 0011 (X3 hex) to execute the “Set value of digit 2” com-
mand, and the second byte (argument of the command) should be 0000 0101 (05 hex)
to write 5 on digit 2. Notice that the decoding function for digit 2 has been enabled
before.
x 1 1 0 0 0 0 0 1 0 1
x x x 0 0
Example 5
Example 6
After running Example 5, what sequence of numbers should be sent to the
What sequence of bytes should be sent to the MAX7221 in order to enable the decod-
Figure 18, each bit of the data bits is assigned to a segment of the 7-segment.
you want to turn off a segment, you should write zero to its bit. Figure 18 shows
Figure 18. Bits Assigned to Segments
619

Set Intensity of Light (command XA)
This command sets the light intensity of the segments. The intensity can be
any value between 0 and 16 (0F hex). 0 is the minimum value of intensity, and 16
is the maximum value of intensity. Notice that 0 does not mean off but it is the
minimum intensity. As we mentioned before, you can also change the light inten-
sity of segments by changing the resistor that connects the ISET pin to VCC.
Set Scan Limit (command XB)
This command sets the number of 7-segments that are connected to the
chip. This number can vary from 1 to 8.
Turn On/ Off (command XC)
This command turns the display on or off. 1 (01 hex) turns the display on,
while 0 (00 hex) turns off the display. This command is useful when you want to
reduce the power consumption of your device.
Display Test (command XF)
This command is used to test the display. If you send 1 (01 hex) after send-
ing the display test command to the chip, it enters display-test mode and turns on
all segments. This lets you check to see if all segments work properly. When you
want to return to normal operation mode, you should execute the command but
send 0 (00 hex) as data to the chip.
sent to the MAX7221 in order to write U on digit 1?
Solution:
The decoding function for digit 1 has been disabled before in
As you see in the figure, segments B, C, D, E, and F should be
turned on. To turn on these segments of digit 1, we should send the
first byte xxxx 0010 (X2 hex) to execute the “Set value of digit 1”
command and then we should send 0011 1110 (3E hex) to write U on digit 1. Notice
that the decoding function for digit 1 has been enabled before. The figure below shows
the bits.
x 1 0 0 0 1 1 1 1 1 0
x x x 0 0
DP A B C D E F G
which bits are assigned to which segments. See Example 7.
Example 7
After running Example 5, what sequence of numbers should be
Example 5, and we have to turn on/off each segment manually.
620

MAX7221 programming in the AVR
To program MAX7221 in the AVR you should do the following steps.
Notice that step 4 is optional and can be ignored:
1. Initialize the SPI to operate in master mode 0.
2. Enable or disable decoding mode by executing command 9 (x9 hex).
3. Set the scan limit.
4. Set the intensity of light (optional).
5. Turn on the display.
6. Set the value of each digit.
.INCLUDE M32DEF.INC
.equ MOSI = 5
.equ SCK = 7
.equ SS = 4
LDI R21,HIGH(RAMEND) ;set the high byte of stack
OUT SPH,R21 ;pointer
LDI R21,LOW(RAMEND) ;set the low byte of stack
OUT SPL,R21 ;pointer
OUT DDRB,R17 ;MOSI, SCK, and SS are output
LDI R17,(1SPE)|(1MSTR)|(1SPR0) ;enable SPI
OUT SPCR,R17 ;master mode 0, CLK = fck/16
LDI R17,0x09 ;set decoding mode command
LDI R18,0b00000011 ;enable decoding for digit 0,1
CALL RunCMD ;send CMD and DATA to the chip
LDI R17,0x0B ;set scan limit command
LDI R18,0x02 ;scan two 7-segments
LDI R17,0x0C ;turn on/off command
LDI R18,0x01 ;turn on the chip
LDI R17,0x01 ;select digit 0
LDI R18,0x07 ;display value 7
See Programs 1 and 2. Program 1 shows how to display 57 on the 7-segment
display of Figure 15 by use of the decoding function. Program 2 shows how to
display 2U on the 7-segment of Figure 15 without using the decoding function.
Program 1: Display 57 on 7-Segment LEDs (continued on next page)
621

LDI R18,0x05 ;display value 5
H: RJMP H ;stop here
;-------------------------------------------------------------
;this function sends a command and its argument (data) to SPI
;command should be in R17 and data should be in R18 before
;the function is invoked
;-------------------------------------------------------------
RunCMD:
CBI PORTB,SS ;CS = 0 to start packet
OUT SPDR,R17 ;transmit the command in R17
Wait1:
SBIS SPSR,SPIF ;skip next instruction if IF is set
RJMP Wait1 ;otherwise jump to wait1
OUT SPDR,R18 ;transmit the data in R18
Wait2:
SBI PORTB,SS = 1 to terminate packet
RET ;return
M32DEF.INC
.equ MOSI = 5
.equ SCK = 7
.equ SS = 4
LDI R21,HIGH(RAMEND) ;set the high byte of stack
OUT SPH,R21 ;pointer
LDI R21,LOW(RAMEND) ;set the low byte of stack
OUT SPL,R21 ;pointer
OUT DDRB,R17 ;MOSI, SCK, and SS are output
LDI R17,(1SPE)|(1MSTR)|(1SPR0);enable SPI
Program 1: Display 57 on 7-Segment LEDs (continued from previous page)
.INCLUDE
Program 2 shows how to display 2U on the 7-segments of Figure 15 without
;CS
using the decoding function.
Program 2: Display 2U on the 7-Segment LEDs (continued on next page)
622

OUT SPCR,R17 ;master mode 0, CLK = fck/16
LDI R17,0x09 ;set decoding mode command
LDI R18,0b00000010 ;enable decoding for digit 1
LDI R17,0x0B ;set scan limit command
LDI R18,0x02 ;scan two 7-segments
LDI R17,0x0C ;turn on/off command
LDI R18,0x01 ;turn on the chip
LDI R18,0x3E ;display U (see Example
LDI R18,0x02 ;display 2
H: RJMP H ;stop here
;-------------------------------------------------------------
;this function sends a command and its argument (data) to SPI
;command should be in R17 and data should be in R18 before
;the function is invoked
;-------------------------------------------------------------
RunCMD:
CBI PORTB,SS ;CS = 0 to start packet
OUT SPDR,R17 ;transmit the command in R17
Wait1:
OUT SPDR,R18 ;transmit the data in R18
Wait2:
SBI PORTB,SS ;CS = 1 to terminate packet
RET ;return
7)
Program 2: Display 2U on 7-Segment LEDs (continued from previous page)
623

MAX7221 programming in C
Solution:
#define MOSI 5
#define SCK 7
#define SS 4
void execute( unsigned char cmd , unsigned char data)
{
PORTB = ~(1SS); //initializing the packet
//by pulling SS low
SPDR = cmd; //start CMD transmission
SPDR = data; //start DATA transmission
PORTB |= (1SS); //terminate the packet by
} //pulling SS high
int main (void)
{
DDRB = (1MOSI)|(1SCK)|(1SS); //MOSI and SCK are output
SPCR = (1SPE)|(1MSTR)|(1SPR0);//enable SPI as master
execute(0x09,0b00000011); //enable decoding for
//digits 1,2
execute(0x0B,0x02); //scan two 7-segments
execute(0x0C,0x01); //turn on the chip
execute(0x01,0x07); //display 7
execute(0x02,0x05); //display 5
while(1);
return 0;
}
Example 8 and Example 9 are C versions of Programs 1 and 2, respectively.
Example 8
Write an AVR C program to display 57 on the 7-segments of Figure 15.
624

Review Questions
1. How many 7-segments can be controlled by MAX7221?
2. What would happen if you do not set the scan limit?
3. True or False. If you want to show P on a 7-segment you can use the decoding
function.
4. Which segments should be on to display P on a 7-segment?
5. What is the recommended value of the ISET resistor?
Solution:
#define MOSI 5
#define SCK 7
#define SS 4
void execute( unsigned char cmd , unsigned char data)
{
PORTB = ~(1SS); //initializing the packet
//by pulling SS low
SPDR = cmd; //start CMD transmission
SPDR = data; //start DATA transmission
PORTB |= (1SS); //terminate the packet b
