Microproccesor and Microcontrollers hardware basics

Microprocessors,
Microcontrollers
Architecture And
Programming
Concepts….

Definitions
 Microcomputer : A computer with a microprocessor as its CPU which
includes memory and I/O etc
 Microprocessor : It is a silicon chip which includes ALU, register
circuits & control circuits
 Microcontroller : It is again a silicon chip which includes
microprocessor, memory & I/O in a single package

What is a Microprocessor?
 The word comes from the combination micro and processor
 Processor means a device that processes
 In this context processor means a device that processes numbers,
specifically binary numbers, 0’s and 1’s
 To process means to manipulate
 It means to perform certain operations on the numbers that depend on the
microprocessor’s design

What about micro….?
Micro is a new addition……
 In the late 1960’s, processors were built using discrete elements
 These devices performed the required operation, but were too large and
too slow
 In the early 1970’s the microchip was invented
 All of the components that made up the processor were now placed on a
single piece of silicon
 The size became several thousand times smaller and the speed became
several hundred times faster
 The Micro-Processor was “born”

Was there ever a “mini”-processor ?
No…
 It went directly from discrete elements to a single chip i.e SILICON
 However, comparing today’s microprocessors to the ones built in the early
1970’s you find an extreme increase in the amount of integration
 So, the Microprocessor is a programmable device that takes in
numbers, performs on them arithmetic or logical operations according to
the program stored in memory and then produces other numbers as a result

Fig: Motherboard & Hardware Components

 CPU: A central processing unit (CPU), is the hardware within
a computer system which carries out the instructions of a
computer program
 ALU: In computing, an arithmetic and logic unit (ALU) is a
digital circuit that performs arithmetic and logical operations ,
also ALU is a fundamental building block of the central
processing unit of a computer, and even the simplest
microprocessors
 Memory: In computing, memory refers to the physical devices
used to store programs (sequences of instructions) or data (e.g.
program state information) on a temporary or permanent basis
for use in a computer or other digital electronic device

 RAM: Random-access memory (RAM) is a form of computer data
storage. A random-access device allows stored data to be accessed in very
nearly the same amount of time for any storage location, so data can be
accessed quickly in any random order
 DRAM: Dynamic random-access memory (DRAM) is a type of
random-access memory that stores each bit of data in a separate capacitor
within an integrated circuit.
 The capacitor can be either charged or discharged; these two states are
taken to represent the two values of a bit, conventionally called 0 and 1
 SRAM: Static random-access memory (SRAM) is a type of memory
that uses bistable latching circuitry to store each bit
 The term Static differentiates it from Dynamic RAM (DRAM) which must
be periodically refreshed. SRAM exhibits data remanence, but data is
eventually lost when the memory is not powered

 ROM: Read-only memory (ROM) is a class of storage medium
used in computers and other electronic devices. Data stored in ROM
cannot be modified
 EEPROM: EEPROM (also written E2PROM and pronounced "e-
e-prom," "double-e prom," "e-squared," or simply "e-prom") stands
for Electrically Erasable
 PROM: Programmable Read-Only Memory and is a type of non-
volatile memory used in computers and other electronic devices to
store small amounts of data that must be saved when power is
removed
e.g, Calibration tables
 PERIPHERAL: A device useful to generate either Output or to
accept Input i e e.g (Display) or Input(Keyboard)

Signals
Types of Signals:
 Analog Signal
 Digital Signal

Analog Signal
V
t
Fig : Analog Signal
 A signal that continuously
varies with time is called as
Analog Signal
 In order to indicate the
value of the signal at any
instant, we require decimal
numbers i.e digits 0 to 9

Digital Signal
V
t
Fig : Digital Signal
 A signal that varies discretely is
called as Digital Signal
 It requires only two levels for
representation i.e 1 or 0
 There is less scope for any errors
when it is to be transmitted or
transferred from one device to
another
 It uses binary number system i.e (1
and 0)
 0 represents logic low (0 Volts)
 1 represents logic high (5 Volts)
V
1 0 1
t

Analog Signal Vs Digital Signal
# Analog Signal # Digital Signal
1)
2) Analog signal takes on
continuous range of
amplitude values
3) Analog signals create a circuit
that connect to create and
manipulate arbitrary
electrical signals
4) Analog systems are less
adaptable to variety of use
Whereas the Digital signal takes
on finite set of discrete values
often binary and frequently
changes the values only at
uniform spaced points in the time
Digital signals that create circuits
tends to be easier implemented
with IC technique
Digital signals are more adaptable
for variety of use

Decimal Binary Octal Hexadecimal
0 0 0 0 0 0 0 0
1 0 0 0 1 0 1 1
2 0 0 1 0 0 2 2
3 0 0 1 1 0 3 3
4 0 1 0 0 0 4 4
5 0 1 0 1 0 5 5
6 0 1 1 0 0 6 6
7 0 1 1 1 0 7 7
8 1 0 0 0 1 0 8
9 1 0 0 1 1 1 9
10 1 0 1 0 1 2 A
11 1 0 1 1 1 3 B
12 1 1 0 0 1 4 C
13 1 1 0 1 1 5 D
14 1 1 1 0 1 6 E
15 1 1 1 1 1 7 F
Fig : Binary/ Octal/ Hexadecimal Counting

Number System Types
 Decimal Number System:
The decimal numeral system (also called base ten or occasionally denary) has
ten as its base. It is the numerical base most widely used by modern
civilizations. Decimal numbers uses digits from 0..9. These are the regular
numbers that we use
Example: 253810 = 2×103 + 5×102 + 3×101 + 8×100

Binary Number System:
The binary numeral system, or base-2 numeral system, represents numeric
values using two symbols: 0 and 1. More specifically, the usual base-2 system is
a positional notation with a radix of 2. i.e Binary numbers uses only 0 and 1
digits
Example: 101012 = 1×24 + 0×23 + 1×22 + 0×21 + 1×20 = 16+4+1= 21

 Hexadecimal Number System:
In mathematics and computer science, hexadecimal (also base 16, or hex) is a
positional numeral system with a radix, or base, of 16
It uses sixteen distinct symbols, most often the symbols 0–9 to represent values
zero to nine,
&
A, B, C, D, E, F (or alternatively a–f) to represent values ten to fifteen
Example: The hexadecimal number 2AF3 is equal, in decimal, to:
(2 × 163) + (10 × 162) + (15 × 161) + (3 × 160)

Number System General Concept
 Understanding Binary and Decimal Numbers :
 The binary (base two) numeral system has two possible values, often
represented as 0 or 1
 In contrast, the decimal (base ten) numeral system has ten possible values
(0,1,2,3,4,5,6,7,8, or 9) for each place-value
 For example, the binary number 10011100 may be specified as "base two" by
writing it as 100111002
 The decimal number 156 may be written as 15610 and read as "one hundred
fifty-six, base ten"

Fig : Decimal to Binary Conversion System

Decimal to Binary: Divide by 2
* Rules :-
 Take the decimal number and divide it by two keeping track of the
remainder
Eg : For 11 / 2 Quotient is 5 and Remainder is 1
For 10 / 2 Quotient is 5 and Remainder is 0
 Take the result and divide it by two in the same way, always keeping track of
the remainder
 Repeat Step 2 until you reach a result of 0. Your last step should always look
like 1 / 2 = 0 r 1
 Read the remainders (all 0 or 1) off in reverse order starting at the bottom
with the one you just finished. This is the answer

Continued…
Decimal number:
87
87 / 2 = 43 rem 1
43 / 2 = 21 rem 1
21 / 2 = 10 rem 1
10 / 2 = 5 rem 0
5 / 2 = 2 rem 1
2 / 2 = 1 rem 0
1 / 2 = 0 rem 1
Result : (1010111)2
Decimal number:
105
105 / 2 = 52 rem 1
52 / 2 = 26 rem 0
26 / 2 = 13 rem 0
13 / 2 = 6 rem 1
6 / 2 = 3 rem 0
3 / 2 = 1 rem 1
1 / 2 = 0 rem 1
Result: (1101001)2
Note : (read remainders bottom to top):

Continued…
Decimal number:
(524.31)10 = (?)2
524 / 2 = 262 rem 0
262 / 2 = 131 rem 0
131 / 2 = 65 rem 1
65 / 2 = 32 rem 1
32 / 2 = 16 rem 0
16 / 2 = 8 rem 0
8 / 2 = 4 rem 0
4 / 2 = 2 rem 0
2 / 2 = 1 rem 0
1 / 2 = 0 rem 1
Result : (1000001100)2
Decimal number:
(.31)10
0.31 * 2 = 0.62 0
0.62 * 2 = 1.24 1
0.24 *2 = 0.48 0
0.48 *2 = 0.96 0
0.96 *2 = 1.92 1
0.92 *2 = 1.84 1
0.84 * 2 = 1.68 1
Result: (0.0100111)2
The Combine result is : (524.31) 10 = (1000001100.0100111)2

Continued…
Decimal number:
(153.61)10 = (?)2
153 / 2 = 76 rem 1
76 / 2 = 38 rem 0
38 / 2 = 19 rem 0
19 / 2 = 9 rem 1
9 / 2 = 4 rem 1
4 / 2 = 2 rem 0
2 / 2 = 1 rem 0
1 / 2 = 0 rem 1
Result : (10011001)2
Decimal number:
(.61)10
0.61 * 2 = 1.22 1
0.22 * 2 = 0.44 0
0.44 *2 = 0.88 0
0.88 *2 = 1.76 1
0.76 *2 = 1.52 1
0.52 *2 = 1.04 1
Result: (0.100111)2
The Combine result is : (524.31) 10 = (10011001. 100111)2

Continued…
Decimal number:
(37.125)10 = (?)2
37 / 2 = 18 rem 1
18 / 2 = 9 rem 0
9 / 2 = 4 rem 1
4 / 2 = 2 rem 0
2 / 2 = 1 rem 0
1 / 2 = 0 rem 1
Result : (100101)2
Decimal number :
(.125)10
0.125 * 2 = 0.25 0
0.25 * 2 = 0.5 0
0.5 *2 = 1.0 1
Result: (0.001)2
The Combine result is : (37.125) 10 = (100101.001)2

Binary to Decimal
The steps to be followed….
Multiply the binary digits with power of 2 according to their positional weight
(11100)2 = (?)10
= 1 * 2
4
+ 1 * 2
3
+1 * 2
2
+ 0 * 2
1
+ 0 * 2
0
= 16 + 8 + 4 + 0 + 0
= (28)
10

(0.1011)2 = (?)10
= 1 * 2
-1
+ 0 * 2
-2
+ 1 * 2
-3
+ 1 * 2
-4
= 0.5 + 0 + 0.125 + 0.0625
= (0.6875)
10

(11001011. 01101)2 =
(?)
10
(11001011)2
= 1 * 2
7
+ 1 * 2
6
+0 * 2
5
+ 0 * 2
4
+ 1 * 2
3
+ 0 * 2
2
+1 * 2
1
+ 1 * 2
0
= 128 + 64 + 8 + 2 + 1
= (203)
10
(0.01101)2 = (?)10
= 0 * 2
-1
+ 1 * 2
-2
+ 1 * 2
-3
+ 0 * 2
-4
+ 1 * 2
-5
= 0.25 + 0.125 + 0.03125
= (0.40625)
10
(11001011. 01101)2 =
(203.40625)
10

Decimal to Hexadecimal
Set of Rules:
Divide the decimal number by 16
Note the “quotient” and “remainder” as shown in
the example below
Repeat the above procedure till the quotient is
“zero”
The last remainder is “MSB” and the first
remainder is “LSB”

(345)10 = (?)16
345 / 16 = Quo 21 rem 9
21 / 16 = Quo 1 rem 5
1 / 16 = Quo 0 rem 1
(345)10 = (159)16

(0.85)10 = (?)16
0.85 * 16 = 13.6 D
0.6 * 16 = 9.6 9
0.6 * 16 = 9.6 9
(0.85)10 = (0.D99)16

(1245.8)10 = (?)16
1245 / 16 = 77 rem 13(D)
77 / 16 = 4 rem 13(D)
4 / 16 = 0 rem 4
(1245.8)10 = (4DD)16
0.8 * 16 = 12.8 12(C)
0.8 * 16 = 12.8 12(C)
(0.8)10 = (0.CC)16
(1245.8)10 = (4DD.CC)16

Hexadecimal to Decimal
Set of Rules:
Multiply the octal digits with powers of 16 according to their positional
weight
(A49)16 = (?)10
= 10 * 16
2
+ 4 * 16
1
+ 9 * 16
0
= 2560 + 64 + 9
= (2633)
10

(2C.CD2)16 = (?)10
= 2 * 16
1
+ 12 * 16
0
+ 12 * 16
-1
+ 13 * 16
-2
+ 2 * 16
-3
= 32 + 12 + 0.75 + 0.05078125 + 0.00048828125
= (44.80126953125)
10

Binary to Hexadecimal
Set of Rules:
We need to group the bits into four and write their hexadecimal equivalent …
The grouping must be done from the fraction or the decimal point on both
The sides of the point
In case of the number of bits not in the multiple of 4 the add zeroes
e.g:
(1010 0001 1101 . 1100 0101)2 = (A 1 D.C5)8
A 1 D . C 5

Binary Addition
To add binary numbers we follow the truth table as follows:
A B SUM CARRY
0 0 0 0
0 1 1 0
1 0 1 0
1 1 0 1
Fig : Truth Table for Binary Addition

E.g :
Add (10110101) + (11101110)
1 1 1 1 1 CARRY
1 0 1 1 0 1 0 1 No 1 = (181)10
+ 1 1 1 0 1 1 1 0 No 2 = (238)10
------------------------------
1 1 0 1 0 0 0 1 1 SUM = (419)10

Binary Subtraction
To add binary numbers we follow the truth table as follows:
A B DIFFERENCE BORROW
0 0 0 0
0 1 1 1
1 0 1 0
1 1 0 0
Fig : Truth Table for Binary Subtraction

E.g :
Sub (10110101) - (1101110)
1 0 1 1 0 1 0 1 No 1 = (181)10
- 0 1 1 0 1 1 1 0 No 2 = (110)10
1 . 1 1 1 . BORROW
------------------------------
0 1 0 0 0 1 1 1 DIFF = (71)10

One’s Compliment
Subtract (35)10 - (23)10 using 1’s Compliment
35 / 2 = 17 rem 1 23 /2 = 11 rem 1
17 / 2 = 8 rem 1 11/2 = 5 rem 1
8 / 2 = 4 rem 0 5/2 = 2 rem 1
4 / 2 = 2 rem 0 2/2 = 1 rem 0
2 / 2 = 1 rem 0 1/2 = 0 rem 1
1 / 2 = 0 rem 1
So , (35)10 = (100011)2 (23)10 = (10111)2

Step 1: Take 1’s compliment of negative number
So taking 1’Compliment of negative number i.e
(23)10 = (10111)2 by subtracting each digit from 1
1 1 1 1 1 1
- 1 0 1 1 1
--------------------
1 0 1 0 0 0

Step 2: Add the positive i.e (35)10 = (100011)2
with 1’s compliment of negative number
1 0 0 0 1 1
+ 1 0 1 0 0 0
-------------------------
1 0 0 1 0 1 1
CARRY

Step 3: Since carry is generated, add the carry to
result and the result is in true form and also the
result is positive
1 1
0 0 1 0 1 1
+ 1
-------------------------
(0 0 1 1 0 0)2 = (12)10
Therefore result = (1 1 0 0)2 = (12)10

Basics of Microprocessor
When we hear the word “Microprocessor”, what comes in our
mind is small IC(Integrated Circuit)
that processes data i.e it
performs arithmetic and logical operations…..
 ALU( Arithmetic and Logical Unit):
This unit is used to perform arithmetic operations (like +, - , *, /) and logical
operations like (AND, OR, EX-OR and many more..)
“A and B” are input operands while “F” is output operand
“S” are the select lines to select the lines to select the operation i.e (OPCODE)

INPUT
OPERANDS
OUTPUT
OPERANDS
OPCODE
Fig: ALU(Arithmetic Logic Unit)

ALU
RESULT
+ 5 Volts
Gnd
A3
A2
A1
A1
B3
B2
B1
B0
S3 S2 S1 S0
F3
F2
F1
F0
0
1
0
1
0
1
1
1
1
1
0
0
+5Volts
Fig: ALU Connections to implement 5 + 7
0 0 1 1
+ 5Volts
Gnd
Gnd
Opcode
determines
Add
operation

Definitions :
 Opcode: A binary code, that indicates the operation to be performed is
called as an “opcode”
 Operands: The data on which the operation is to be performed are
termed as operands
 Instruction: The combination of opcode and an operand, that can be
used to instruct a system, is called as an instruction
 Instruction Set: A list of all the instruction that can be issued to a
system, is called as instruction set of that system
 Program/Subroutine/Routine: A set of instruction written in a
particular sequence, so as to implement a given task, a subroutine in
assembly refers to function as in C/C++

Concept of Machine Cycle
Fig : Machine Cycle

Interrupts & Exceptions
 When many I/O devices are connected to a microprocessor based system, one
or more than one of the “I/O devices may request for service at a time”
 The microprocessor stops the execution of the current program and gives
service to the I/O devices , this feature is called as “Interrupt”
 Once the I/O device is serviced, the microprocessor will continue with
execution of its normal program

Contd…..
 Microprocessor handles all the requests made by the peripherals following a
specific procedure in order to assure smooth functioning of the system
 This procedure is known as “Interrupt Handling”
 This is the procedure with the help of which the needy I/O devices conveys
their service request to the processor and gets their work done

 Interrupts are asynchronous events typically triggered by the external
devices needing attention
 Interrupts and Exceptions are alike in that both cause the processor to
temporarily suspend its present program execution in order to execute a
program of higher priority
 The major difference between these two kinds of interrupts is the origin, i.e
an Exception is always re-producible by re-executing with the program
and data that caused the exception
 An Interrupt is generally independent of the currently executing program

General procedure of Interrupt Handling:
 Concern device raises the interrupt and waits for service from CPU
 Based on whether process is critical or higher priority work then the requested on
 If CPU is busy then device needs to wait else request is serviced..
Services performed by CPU:
o Determine what device wants service
o Perform or start the service
Examples of Interrupts:
o Mouse moved
o Keyboard key pressed
o Printer out of paper
o Modem sending or receiving

Type of Interrupts
Synchronous: If it occurs at the same place, every time the program
is executed with same data and memory allocation
Asynchronous: These interrupts are those that occur unexpectedly
Internal: These interrupts arise from illegal use of an instruction or
data , it is also called as traps
External: These interrupts arise from I/O devices, i.e circuit generated
from power supply
Software: These interrupts are initiated by executing an instruction

Exceptions

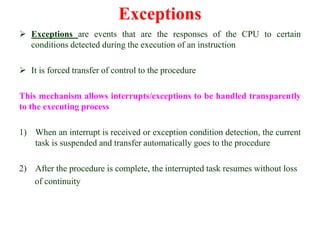

 Exceptions are events that are the responses of the CPU to certain
conditions detected during the execution of an instruction
 It is forced transfer of control to the procedure
This mechanism allows interrupts/exceptions to be handled transparently
to the executing process
1) When an interrupt is received or exception condition detection, the current
task is suspended and transfer automatically goes to the procedure
2) After the procedure is complete, the interrupted task resumes without loss
of continuity

Exceptions can be classified as follows:
Fault: On generation of fault system reacts in the same as :
1) Return to the faulting instruction
2) Reported during the execution of the faulting instruction
3) Virtual Memory faults
E.g: page fault, protection
Trap: System is forced to follow the procedure on trap as :
1) Return to the next instruction after the trapping instruction
Abort: It is generally generated due to exception
1) Suspend the process at an unpredictable location

ISR: In systems programming an interrupt handler, also known as an
Interrupt Service Routine (ISR), is a callback subroutine in microcontroller
firmware
 Operating system or device driver whose execution is triggered by the
reception of an interrupt
 Interrupt handlers have a multitude of functions, which vary based on the
reason the interrupt was generated and the speed at which the interrupt
handler or ISR completes its task

 Vectored Interrupt:
Vectored Interrupts are type of I/O interrupts in which the device that generates the interrupt
request (also called IRQ ) identifies itself directly to the processor
• Vectored interrupts can be achieved by having each I/O device a unique code
• When a device generates IRQ (Interrupt Request) , it sends its unique code over the bus to
the processor
 Non-Vectored Interrupt:
If a user has to provide the address of subroutine using CALL instruction when a processor is
interrupted, then it is called Non- vectored interrupt
 Subroutine or Functions :
It is a sequence of program instructions that perform a specific task, packaged as a unit. This unit
can then be used in programs wherever that particular task should be performed. Subprograms
may be defined within programs, or separately in libraries that can be used by multiple programs

Interrupts
 Interrupt is a process where an external device can get the attention of the
microprocessor
 The process starts from the I/O device
 Interrupts can be classified into two types:
Maskable (can be delayed)
Non-Maskable (can not be delayed)

 An interrupt is considered to be an emergency signal
 The Microprocessor should respond to it as soon as possible
 When the Microprocessor receives an interrupt signal, it suspends the
currently executing program and jumps to an Interrupt Service
Routine(ISR) to respond to the incoming interrupt
 Each interrupt will most probably have its own ISR
 Responding to an interrupt may be immediate or delayed , it is depending
on whether the interrupt is maskable or non-maskable

Microprocessor Charactestics
The power of microprocessor is determined by following characteristics:
 Processing Capability: It depends upon the number of instructions
processed
 Clock Frequency: The processing speed of microprocessor depends upon
clock frequency
 Width of Data Bus: This parameter decides word length of microcomputer
In computing, word is a term for the natural unit of data used by a particular processor
design. A word is basically a fixed-sized group of digits (binary or decimal) that are
handled as a unit by the instruction set and/or hardware of the processor
 Width of Address Bus : This parameter decides memory addressing
capability of the microprocessor, the maximum size of memory is decided by this
parameter
 I/O addressing capability: The maximum number of I/O ports accessed by
the microprocessor

 Data Types: The microprocessor handles various types of data formats
like binary, integers etc…
 Interrupt Capability: Interrupt are used to handle unpredictable and
random events in the microcomputer

Microprocessor Architecture
Accumulator ALU Working Registers
Timing and
clock
Stack
Pointer
Program
Counter
Interrupt
Circuit
Fig: General Architecture of Microprocessor

 Accumulator: In a computer's central processing unit (CPU), an accumulator
is a register in which intermediate arithmetic and logic results are stored
 ALU: In computing, an arithmetic and logic unit (ALU) is a digital
circuit that performs integer arithmetic and logical operation
 Working Registers: In computer architecture, a register is a small
amount of storage available as part of a CPU or other digital processor
 Clock signal: In electronics and especially synchronous digital circuits,
a clock signal is a particular type of signal that oscillates between a high
and a low state, microprocessor speed depends on the clock
 Stack Pointer: In a microprocessor, the stack can be used for both user
data (such as local variables and passed parameters) and CPU data (such as
return addresses when calling subroutines)

• The stack pointer stores the address of the most recent entry that was
pushed onto the stack
• To push a value onto the stack, the stack pointer is incremented to point to
the next physical memory address, and the new value is copied to that
address in memory
 Interrupt Circuit: This block accepts different interrupt request
inputs
• When a valid interrupt request is present it informs control logic to take
action in response to each signal

System bus (data, address & control signals)
Memory
Interrupt circuitrySerial I/OParallel I/O
Timing CPU
P +
associated
logic
circuitry:
•Bus controller
•Bus drivers
•Coprocessor
•ROM (Read Only Memory)
(start-up program)
•RAM (Random Access Memory)
•DRAM (Dynamic RAM) - high
capacity, refresh needed
•SRAM (Static RAM) - low
power, fast, easy to interface
•Crystal oscillator
•Timing circuitry
(counters dividing to
lower frequencies)
At external unexpected events,
P has to interrupt the main
program execution, service the
interrupt request (obviously a
short subroutine) and retake
the main program from the
point where it was interrupt.
Simple (only two wires
+ ground) but slow.
•Printer (low resolution)
•Modem
•Operator’s console
•Mainframe
•Personal computer
Many wires, fast.
•Printer (high resolution)
•External memory
•Floppy Disk
•Hard Disk
•Compact Disk
•Other high speed devices
Fig : System Block Diagram

Interfacing Buses & Significance of Bus
Width
 Bus:
 A group of lines, pins or signals having common function is termed as bus
 The number of lines in the bus is called as BUS WIDTH
 In a system we come across three functions being carried out by the wires
 These functions are address lines to select a memory or I/P location
 These functions data lines to carry data between memory, CPU and I/O
devices
 Also they carry control and status signals like enabling read or write,
memory or I/O etc…

 Address Bus :
 The bus over which the CPU sends out the address of memory location is
called as Address Bus
 The address may be consist of 16, 20, 24 or 32 parallel signal lines
 If there are N address lines, then it can directly address 2N memory
locations
 Data Bus :
 The data bus consists of 8, 16 or 32 parallel lines
 The data bus is a bi-directional bus , that means the data can get
transferred from CPU to memory and vice-versa
 The data bus also connects the I/O ports and CPU
 The number of data lines used in the data bus is equal to the size of data
word that can be written or read

 Control Bus :
 It is used for sending control signals to memory and I/O devices
 Some of the control bus signals are as follows:
a. Memory read
b. Memory write
c. I/O read
d. I/O write

Fig 2: Interfacing Buses & Computer System

Fig: Simple Microprocessor Architecture
 PC sends address
to Memory
Address Register
 MAR points to the
location of the
memory where the
content is to be
fetched from
 If the content is an
instruction, IR
decodes it

Applications of Microprocessor
They are used in industrial control applications , calculators, commercial
appliances
It is used in CPU of a computer for controlling I/P , O/P and other devices
of a computer
They are used for database management, storing information
They are used as controller for appliances and in automobiles
They are used in computers for railway, air-ticket reservations etc..
They are used to measure and control the temperature of a furnace, the
pressure of boiler etc…

Types of Memories/Storage Devices
Fig : Types of Memories

 Primary Memory :
 Primary memory is computer memory that is directly
accessible to the CPU of a computer without the use of
computer's input/output channels
 Primary storage is used to store data that is likely to be in
active use

What is ROM?
 Read-only memory (ROM) is a
class of storage media used in
computers
 Data stored in ROM cannot be
modified
 ROM is a non-volatile storage.
Data remains unchanged even
after switching off the computer.
(Wikipedia, 2007n)
E.g. EPROM, EEPROM Figure : An EPROM

What is RAM?
 Random access memory (RAM)
is a type of data storage used in
computers
 It takes the form of integrated
circuits that allow the stored data
to be accessed in any order
(random)
 Data stored in RAM can be
modified
 RAM is a volatile storage. Data
will lose after switching off the
computer
E.g. DDRam, DDR-2 Ram
Fig: Two 512 MB DDRam

Types of RAM Memories
There are two type of RAM, namely :
SRAM (Static RAM) & DRAM (Dynamic RAM)
SRAM (Static RAM) :
 SRAM is made up of flip- flops
 SRAM is used in the cache memory
 SRAM is faster than DRAM
DRAM (Dynamic RAM) :
 DRAM is made up of capacitors
 It requires Less number of components to make a one bit cell, hence also
requires less space on the silicon wafer
 DRAM is comparatively cheaper than SRAM
 Capacitors in DRAM require time for charging and discharging , charging is
called as refreshing the DRAM

Fig : DRAM & SRAM Cell Structure

Secondary Memory
 Secondary memory is computer memory that is not directly accessible to
the CPU of a computer
 It is used to store data that is NOT in active use
 It is usually slower than primary storage but it always has higher storage
capacity
 It is non-volatile. Data remains unchanged even after switching off the
computer

Figure 14. A C-R disk.
Figure 15. A CD-RW disk.
Figure 16. A DVD-R disk.
Figure 17. A DVD+RW disk.
Fig: Secondary Memory

Cache Memory
• CPU requests contents of memory location
• Check cache for this data
• If present, get from cache (faster Memory)
• If not present, read required block from main memory to cache
• Then deliver from cache to CPU
• Cache includes tags to identify which block of main memory is in each cache slot
• Cache is small amount of fast memory
• It is situated between normal main memory and CPU
• May be located on CPU chip

Cache Basics
Cache SRAM
Cache
Controller
Dual Ported
DRAM
Controller
System
DRAM
HOST CPU
Expansion
Slots
Embedded
Expansion
Device
Embedded
Expansion
Device
Embedded
Expansion
Device
Embedded
Expansion
Device
Fig: Cache Architecture in a System

 Implementation of cache memory subsystem is an attempt to achieve almost all
accesses with zero wait state while accessing memory, but with an acceptable system
cost
 The cache controller maintains a directory to keep a track of the information and it
has copied into the cache memory
 When the processor initiates a memory read bus cycle, the cache controller checks the
directory to determine if it has a copy of the requested information in cache memory
 If the copy is present, the cache controller reads the information from the cache, sends
It to the processors data bus, and asserts the processor's ready signal. This is called as
READ HIT
 If the cache controller determines that it does not have a copy of the requested
information in its cache, the information is now read from main memory (DRAM)
This is known as READ MISS and causes wait state due to slow access time of
DRAM
 The requested information is from the DRAM given to processor. The information is
also copied into the cache memory by cache controller and it updates its directory to
track the information stored in cache memory

Principles of Locality
**Definition**: Locality of reference is the term used to explain the
characteristics of programs that run in relatively small loops in consecutive
memory Locations
The locality of reference principle comprises of two components :
1) Temporal Locality :
 Since the program have loops, the same instructions are required
frequently, i.e programs normally uses the most recently used
information again & again
 If for a long time a information in cache is not used, then it is less likely to
be used again
 This principal is known as temporal locality

2) Spatial Locality :
 Programs and data accessed by the processor mostly reside in consecutive
memory locations
 This means the processor is likely to need code or data that are close to the
locations already accessed
 This is known as principle of Spatial Locality

Cache Performance
Performance of cache subsystems depends on the frequency of cache hits,
usually termed as “Hit Rate”
 If a program requires a small area of memory and consists of loops then maximum
“Cache Hits” are possible
 On the other hand, if the program has non-looping code, many accesses will result
in “Cache Miss”

Fig: Functional Block diagram of 80386DX

Features of 80386 DX:
 The 80386DX is a 32-bit processor
- i.e 32-bit processors can address upto 232 bytes of memory
- It also means that the processor can handle 32 bit code strings on every
clock cycle
- The 32 bit ALU allows to process 32-bit data
 The has 32-bit address bus so, it can access up to 4 GB i.e (232 )physical memory
or 64 terabytes 246 of virtual memory
 The 80386DX runs with speed upto 20 MHz instructions per second
 The pipelined architecture of 80386DX, allows simultaneous instruction fetching,
decoding, execution and memory management
 It can operate on 17 different data types
 Microprocessor can operate in real mode , protection mode or variation of
protection mode called as virtual 8086 mode
 Microprocessor is compatible with their earlier 8086, 8088, 80186.. etc chips

Functional Block Diagram of 80386DX
The internal architecture of
80386 is divided into three
sections :
 Central Processing Unit
* Execution Unit
* Instruction Decode Unit
 Memory Management Unit
* Segmentation Unit
* Paging Unit
 Bus Interface Unit

 Instruction Decode Unit:
Fig : Instruction Decode Unit
* Instruction Decode Unit:
 This unit takes instruction bytes from code pre-fetch queue and translates
them into microcode
 The decoded instructions are then stored in the instruction queue
 Then they are passed to the control section for deriving necessary control
signals

* Instruction Decode Unit Continues….
 Prefetcher and Prefetch Queue :
 The prefetcher fetches the instruction from the external memory and stores
them in the prefetch queue to be executed further
 The prefetch queue is 16-byte in size
 Instruction Decoder & Decoded Instruction Queue :
 The instruction decoder takes the instruction from the prefetch queue &
after decoding it, stores them in the decoded instruction queue
 The decoded instruction queue can store upto three decoded instructions

Execution Unit:
 The execution unit reads the instruction from the instruction queue and executes the
instructions. It consists of 3 subunits :
 Control Unit
 Data Unit
 Protection Test Unit
• The execution unit consists of 8 , 32-bit general purpose registers for address &
data
Fig : Execution Unit

* Execution Unit Continues…
 Control Unit :
 It contains microcode and special hardware
 The microcode & special hardware allows 80386DX to reduce time required
for execution of multiply & divide instructions
 Data Unit :
 It contains ALU, 8 , 32-bit general purpose registers & 64-Bit Barrel Shifter
 The Barrel Shifter is used for multiple bit shifts in 1- Clock
 This increases the speed of all shift and rotate operations
 The Multiply/Divide logic implements the bit-shift-rotate algorithm to
complete operation in minimum time
 The entire Data Unit is responsible for data operations requested by Control
Unit

 Control ROM & Sequencing Logic :
 The Control ROM provides the control signals to be issued for the
corresponding instruction, which are then sequenced by Sequence Logic

The Memory Management Unit consists of
i. Segmentation Unit :
It allows the conversion of Logical Address to the Linear Address
ii. Paging Unit
It allows the conversion from Linear Address to the Physical Address if paging is
enabled

What we mean by Registers…?
 The main tools to write programs in x86 assembly are the Processor
Registers
 The registers are like variables built in the processor
 Using registers instead of memory to store values makes the process faster
and cleaner
 Some operations or programs need absolutely some kind of registers but,
mostly they can be used freely

Programming Model of 80386
The INTEL 80386DX architecture register set has SIX 16-Bit registers & TWENTY FOUR
32-bit registers, they are divided as follows :
# Base Architecture Register :
a) General Purpose Registers
b) Instruction Pointer
c) Flag Registers
d) Segment Registers
# System Registers :
a) Memory Management Registers
b) Control Registers
# Debug & Test Registers :
a) DR0 to DR7
b) TR6 & TR7

AH AX AL
BH BX BL
CH CX CL
DH DX DL
SP
BP
DI
SI
EAX
EBX
ECX
EDX
ESP
EBP
EDI
ESI
Accumalator
Base Pointer
Counter
Data Register
Stack Pointer
Base Pointer
Destn Index
Source Index
32 Bit Names 16 Bit Names
32 Bits
IP
FLAGS
EIP
EFLAGS
16 Bits
Instn Pointer
Flag Register
CS
DS
ES
SS
FS
GS
Code Segment
Data Segment
Extra Segment
Stack Segment
Fig : Base Architecture Registers

Microproccesor and Microcontrollers hardware basics

General Purpose Registers
EAX 32 Bit Register
AX 16 Bit Register
AH & AL 8 Bit Register
EAX (Accumalator)
 It usually accumulates the result of any ALU operation , but can be used as
General Purpose Register
 In 386 and above , EAX may hold an address to access a memory location
EBX (Base Index)
EBX 32 Bit Register
BX 16 Bit Register
BH & BL 8 Bit Register
 It works as Base Index
 In 386 and above EBX
may also hold a address
to access memory
location
General register are the one we use
most of the time
Most of the instructions perform on
these registers
The "H" and "L" suffix on the 8 bit
registers stand for high byte and
low byte

ECX (Counter)
ECX 32 Bit Register
CX 16 Bit Register
CH & CL 8 Bit Register
 It is used for repeated String
Instructions, Shift, Rotate &
Loop Instructions
 In 386 and above ECX may also
hold a address to access memory
location
EDX (Data Register)
EDX 32 Bit Register
DX 16 Bit Register
DH & DL 8 Bit Register
 It holds result after Multiplication
or Division
 In 386 and above EDX may also
hold a address to access memory
location
EBP (Base Pointer)
EBP 32 Bit Register
BP 16 Bit Register
 It works as Random Pointer for
Stack Segment

EDI (Destination Index)
EDI 32 Bit Register
DI 16 Bit Register
 It holds the Destination data for
String Instruction
ESI (Source Index)
ESI 32 Bit Register
SI 16 Bit Register
ESP (Stack Pointer)
ESP 32 Bit Register
SP 16 Bit Register
 It is used to address memory
location in the stack segment in
association with Stack Segment
Register
 It holds the Source data for String
Instruction

* Instruction Pointer :
i. The instruction pointer is a 32 bit register called as EIP
ii. It holds the offset address within a segment of next instruction to be
executed

Flag Register
 OF DF IF TF ZFSF  AF PF CF 
015
 Control Flags  Status Flags
IF: Interrupt enable flag
DF: Direction flag
TF: Trap flag
CF: Carry flag
PF: Parity flag
AF: Auxiliary carry flag
ZF: Zero flag
SF: Sign flag
OF: Overflow flag
 Flag register contains information reflecting the current status of a Microprocessor
 It also contains information which controls the operation of the Microprocessor
 
Fig : Flag Register

i. IF Flag : When IF =1, it allows recognition of external maskable interrupt i.e INTR pin .
When IF =0, external maskable interrupt on INTR are not recognized
ii. DF Flag : It defines whether ESI(Source Index) and EDI(Destination Index) registers
are auto-incremented or auto-decremented during the execution of string instructions
iii. TF Flag : When TF=1 the processor is put into single-step mode used for debugging ,
which allows a program to be inspected as it executes
iv. CF: The CF = 1 , if operation resulted in carryout of MSB
v. PF: The PF =1, if the lower 8 bits of the operation contain an even no of 1’s
vi. AF: It is used for BCD operations
vii. ZF: The ZF= 1 only if all bits of the result are zero
viii. SF: SF= 1, if the MSB of the result is 1 , the result is –ve i.e 0 in case of signed
operation
ix. OF: The OF =1 , when a operation result in Carry/Borrow in the Sign Bit

Segment Register
 Segment registers hold the segment address of various items
 They are only available in 16 values
 Six , 16-Bit segment registers CS, SS, DS, ES, FS, & GS holds segment selector
values
 In Protected Mode they are identified as currently addressable memory segments
 In Real or Virtual Mode when multiplied by “10H”, provide starting address of
corresponding segments
e.g:
In CS the selector indicates current Code Segment
In SS the selector indicates current Stack Segment
In DS , ES, FS, & GS indicate current four Data Segment

Memory Management Register
There are four Memory Management Registers as Follows:
i. GDTR (Global Descriptor Table Register) : It points to the segment of
(64KB) in size which are common for all programs
ii. LDTR (Local Descriptor Table Register) : It points to the segment
containing programs that are unique to an application
iii. TR (Task Register) : It holds a selector that accesses a descriptor that defines
a Current Task to be Done
iv. IDTR (Interrupt Descriptor Table Register) : It can be loaded with
instructions which get 6 byte of Data Item from memory & are used to point to
GDTR and Interrupt Descriptor that points to ISR

Control & Debug Registers
There are four Control Registers:
1) CR0
2) CR1
3) CR2
4) CR3
 Only 4 of them are used for current implementations
 CR1 is reserved for the future use
80386DX architecture features 8 debug registers such as :
DR0 to DR7

Processing Modes of 80386
Virtual
Mode
Protected
Mode
SMM
Mode
Real
Mode
VM = ‘0’
VM = ‘1’
PE = ‘1’
PE = ‘0’ SMM
RSM
Reset
Fig: Processing Modes of
80386

 It is need to protect each and every application running inside the processor , when
they are interfaced with “Operating System”
 Therefore the processor makes certain Registers and Instructions inaccessible to
the application programs
These level of Protection is done under the following three modes :
 Real Mode:
* This is the mode of processor immediately after it is RESET
* It will appear to the programmers as a fast 8086 with some new
instructions
* Most applications of 80386 will use real mode for initialization only
 Virtual Mode:
* It is a dynamic mode in the sense that the processor can switch repeatedly &
rapidly between Virtual & Protected Mode
* A processor is switched to virtual mode when running a DOS
application under Windows operating system
 Protected Mode:
* The CPU enters Virtual Mode from Protected Mode to execute a program,
then leaves Virtual Mode and enters Protected Mode to continue executing a
native 80386 program

SMM (System Management Mode):
 All the special tasks like power management, error handling and any
specific platform related operations are performed
 Entered in SMM by invoking SMI (System Management Interrupt)
 Returns to normal execution by executing instruction RSM
 RSM(Resume from System Management Mode) , Returns program
control from system management mode (SMM) to the application program

Memory Management Unit :
Fig: Memory Management Unit
The memory management unit (MMU) :
 Hardware device that maps Virtual address or Logical address to Physical address
Note: Virtual address : Reside in the hard disk , as a pages
Logical address : Generated by CPU. Programmer concern with this
address.
Physical address : Reside in the RAM. It is the actual address
 In MMU scheme, the value in the relocation register is added to every address
generated by a user process at the time it is sent to memory
 The user program deals with logical addresses; it never sees the real physical
addresses

# The memory management unit (MMU) :
• It consists of a segmentation unit & paging unit
IMP NOTE:
• CPU generates logical address is given to “Segmentation Unit” which
produces linear addresses
• Linear address given to “paging unit” which generates physical address
in main memory
• The segmentation unit allows the use of two address components, i.e
segment and offset for relocability and sharing of code and data
• The segmentation unit allows segments of size 4 Gbytes at maximum
• The paging unit organizes the physical memory in terms of pages of
4Kbytes size each

Segmentation
A program is a collection of “Segments”
A segment is a logical unit such as:
 main program
 procedure
 Function
 Method
 Object
 local variables, global variables
 Stack
 symbol table
 arrays

Fig : Logical Address generated by CPU

1
Subroutine
2
Stack
3
Main Prog 4
Sqrt
User Space
1
4
2
3
Different Programs from CPU are placed in
Physical Memory Space i.e in RAM
Fig : Logical Address space is mapped to the Physical Address space in
“Segmentation”

Segment Selector Offset
Segment
Descriptor
+
Linear Address
Is Paging
Enabled
?
Page Translation
Physical Address
015 031
031
No
Yes
Descriptor Table
Fig: Address Translation
Overview
Virtual
or
Logical
AddressLinear
Base Addr
031

The 80386DX has 3 distinct Address Spaces:
1) Logical Address(also known as Virtual Address)
2) Linear Address
3) Physical Address
 A logical address consists of “Selector” & an “Offset”
 A selector is a content of “Segment Register”
 In Protected Mode, every Segment Selector has a “Linear Base Address”
associated with it & is stored in Segment Descriptor
 A selector is used to point a descriptor for the segment in table of descriptors
 The Linear Base Address from the descriptor is then added to 32-bit Offset to
generate 32-bit Linear Address, this is “Segmentation”
 If Paging is not enabled then 32-bit Linear Address corresponds Physical
Address
 But, If Paging is enabled Paging Mechanism translates Linear Address space
into the Physical Address Space by Paging Translation, this is “Paging”

Selector Offset
Segment
Descriptor
015 031
Index
0315
* 8
Access Rights
(1 Byte)
Limit
(20 Bits)
Base Address
(32-Bits)
Segment
Descriptor
Descriptor Table
RP
TI
+
Dir Page Offset
Linear
AddrFig: Segment Translation
Mechanism
Linear Address= Dir + Page + Offset

The previous figure shows how selector is used to access a descriptor table..
The 13-bit index part of the “Selector” , is multiplied by “8”, & used as a
pointer to the desired descriptor in a descriptor table
The index value is multiplied by 8 because each “Segment Descriptor”
requires 8 bytes in the descriptor table
The “Segment Descriptor” in Descriptor Table contains mainly , Base
Address, Segment Limit and access right byte
The 80386DX adds the Base Address of Segment from Segment Descriptor to
the “Effective Address” OR “Offset Address” to generate Linear Address

Paging
Page 1,048,495
Page 1,048,494
.
.
Physical Address Space
.
.
Page 2
Page 1
Page 0
4 KB
4 KB
4 KB
4 KB
4 KB
Fig: Paged Organization of Physical Address
Space
 Paging or page translation is
second phase of address translation
 In this phase 80386 transforms
linear address generated by
“Segmentation Unit” into
physical address
 Page Translation is in effect only
when PG bit of CR0 is set i.e 1
 When Paging enabled, the paging
unit arranges the physical address
space into 1,048,496 pages that are
each of 4 Kb long

Paging Continues…
Directory Page Offset
31 22 21 12 11 0
Fig: Linear Address Format
Linear Address
Three components of Paging :
1) Page Directory
2) Page Table
3) Page Itself
Like Segmentation , Paging is also dependable on special memory resident table i.e Page
Directory & Page Table are in table form and contain 32-bit descriptor each
Page Directory & Page Table must contain exactly 1024 descriptors making each
directory or page table of 4 Kb long and Page Frame is a 4 Kbyte unit of contiguous
address of physical memory

When paging is enabled the linear address generated by the segment translation
process is not used as a physical address
Processor internally divides a linear address into three fields :
Two fields i.e (Columns) of 10 bits each
One field i.e (Column) of 12 bits
 The MSB 10 (Directory Field) bits of linear address are used as an index into a
page directory
 The next most significant 10 bits (Page Field) of linear address are used as index
into page table determined by the page directory
 The least significant 12 bits (Offset) selects one of 4 KB of memory segment
from page frame determined by page table
 The physical address of the current page directory is stored in the “Control
Register” i.e CR3 which is referred as “Page Directory Base Register” (PDBR)
 The descriptor in the page directory is referred as Page Directory Entry(PDE)
 The descriptor in the page table is referred as Page Table Entry(PTE)

Fig : Segmentation & Paging Unit

# The control and attribute PLA , checks the privileges at the page level
# The limit and attribute PLA, checks segment limits to avoid invalid
accesses to code and data in the memory segments

The Bus Control Unit :
Fig: Bus Control Unit
The bus control unit has a prioritizer to resolve
the priority of the various bus requests , this
controls the access of the bus
# The address driver drives the bus enable and
address signals A0-A31
# The pipeline bus sizing units handle the related
control signals

Microcontroller
Microcontroller Chip

Introduction
The Computer has three main elements :
1) Input
2) Output
3) Processor Used for calculations, handle data, memory which stores
program and data
Microprocessor: It consists of separate chips on a printed circuit board i.e PCB
Microcontroller: It contains all the elements in one chip
PIC (Peripheral Interface Controller) is a term introduced by “Microchip
Technology”
Input & Output device which communicate with outside world

9/20/6 Lecture 21 -PIC Architecture 133
Microcontroller Applications
 Automotive air bag systems
 Remote control
 Handheld tools
 Appliances – coffee pot, mixer, stove, refrigerator, dish washer,
washer, dryer
 Major home systems – heating and cooling
 Cordless phones and cell phones
 Security systems
 TV, DVD player/recorder, DVR, PVR
 Sound system

Features
 PIC is family of low cost , high performance CMOS , fully-static
microcontroller
 They use Harvard Architecture which are high performance RISC
processors
Fig: Harvard Vs Von-Neumann block architectures
Complementary Metal–Oxide–Semiconductor (CMOS): It is a technology for
constructing integrated circuits. CMOS technology is used in microprocessors,
microcontrollers, static RAM, and other digital logic circuits
Reduced Instruction Set Computing, or RISC , is a CPU design strategy enables
much faster execution of each instruction

 Harvard Architecture has program memory & data memory as separate memories
which are accessed through separate buses
 “Bandwidth” is improved a lot in Harvard Architecture , over traditional Von-
Neumann architecture in which program & data are fetched from same memory
using same bus
 Separate buses in Harvard Architecture allow one instruction to execute while next
instruction is fetched
 These Microcontrollers have reduced instruction set , which has 35 single word i.e
data instructions
 The instructions are “Othogonal” i.e it is possible to carry out any operation on any
register using any addressing mode
 High speed instruction execution
 The machine cycle of PIC consists of only 4 clock pulses
 PIC has built in power-on-reset
 PIC also has “Brown-Out-Reset” i.e it resets PIC when power supply voltage
drops below 4Volts
 PIC has “Watch-Dog” Timer , which prevents from Software Crashes
 PIC has power saving “Sleep Mode”, i.e it puts itself to sleep to save power during
intervals when it has nothing to do

PIC Families
 PIC 10FXXX
 PIC 12FXXX
 PIC 16FXXX
 PIC 18FXXX
 PIC 24FXXX

Working
Register (W)
ALU
Status (Flag)
Register
Flash
ROM
Program
Memory
8192*14
bits
Program counter
Stack
13
bits*8
Levels
RAM
File
Registers
368
* 8 Bits
Instruction Register
EEPROM 256
Bytes
Instruction Decode
& CPU Control
Ports , Timers,
ADC, Serial I/OTiming Control
File Select
Register
CLK Reset
MCU
Control
Lines
Addr
Instructions
File Addr Prog Addr
Literal
Status
Opcode
Data
Bus
Port
Fig:
PIC
16F877
MCU
Block
Diagram

 Flash ROM Program Memory:
• It contains machine code , in location numbered from 0000h to 1FFFh (8k)
 Program Counter:
• The program counter holds address of current instruction & is incremented or
modified after each step
• On reset or power up, it is reset to zero and first instruction at address 0000 is
loaded in instruction register
 RAM File Register:
• The program proceeds in sequence , operating on the contents of file registers,
executing data movement instructions to transfer data between ports & file registers
or ALU
• RAM file register block is a set of 368, 8-bit file register
• It consists of special function registers (SFR) which perform dedicated functions
• It also consists of (GPR) general purpose registers

 (GPR) general purpose registers :
• All general purpose registers are 8 bit registers, implemented as Static RAM
• The GPR’s are accessed either directly or indirectly through “File Select
Register”(FSR)
• Variables in “C” Language are stored in GPR
 Working registers (W) :
• The working register “W” , is 8 bits wide
• It is used for ALU operations
• In two operand instructions, typically one operand is in working register “W”
 SFR) Special Function Registers :
• The special function registers are used by CPU and other peripherals
• These registers are implemented via Static RAM
 Status Register:
• It stores the result of operation from ALU

 Timer0:
• It is timer/counter register available in all PIC
 Port Registers:
• They are located in at the addresses 05H(Port A) to 09H(Port E) with data
direction register
 Option Registers:
• It is a readable and writeable register which contains various control bits to
configure “TIMER 0” register
 Interrupt Control Register:
• It is a readable and writeable register which contains various interrupt
enable bits , flag bits for TIMER 0 register

 Address & Data Bus:
• Address Bus in PIC16F877 is 14-bits wide
• Data Bus is 8-bits wide
 ALU:
• The PIC16F877 contains 8-bit ALU, it is capable of performing arithmetic operations such as
add, subtract, shift and logical operations
 Clock Modes:
• The PIC16F877 microcontroller has two main clock modes CR and XT
• The CR mode needs a simple capacitor and resistor circuit attached to CLKIN
• In XT mode an external crystal and two capacitors are fitted to CLKIN and CLKOUT pins
 Watchdog Timer:
• It is usually used to prevent software crashes i.e endless loop
• When enabled it automatically resets the processor after a given period
• This allows a application to escape from an endless loop caused by program bug or error
 EEPROM:
• In EEPROM important data can be stored during power down

 Power Up Timer:
• This ensures that the supply voltage is stable before clock starts up
 Oscillator Start Up:
• Once power up process is finished , then due to the delay caused, allows the clock to
stabilize program and then execution begins
 Brown Out Reset:
• If supply voltage falls below 4.0 Volts , then Brown-Out detection circuit holds
Microcontroller in reset & releases it when supply has recovered
 Code Protection:
• The PIC Microcontroller can be configured during programming to prevent machine code
being read back from chip
 In Circuit Programming and Debugging:
• It allows program code to be downloaded and tested
 Low voltage Programming Mode:
• It allows programming mode to be programmed at +5Volts instead of +12 Volts

Microcontroller Peripherals
 Digital I/O
 Timers
 A/D converter
 Comparator
 Parallel slave port
 Interrupts

Digital I/O
 In microcontroller basic digital I/O pins are
Bi-Directional
 By default pin is configured as digital I/P
 PIC16C6X & PIC16C7X have 5 I/O ports
i.e PORT A, PORT B, PORT C, PORT D,
PORT E
 Also there are 5 data direction registers
i.e TRIS A, TRIS B, TRIS C, TRIS D, TRIS E
 To configure port pin as an I/P, the current
driver output tristate gate is disabled by
setting the corresponding data direction bit to
1
 To configure port pin as an O/P, a 0 is loaded
into data direction bit, enabling the current
driver O/P tristate gate
Fig : Digital I/O Pin configuration

Digital I/O Ports
PORT PIN-NAME I/O PINS
Port A RA0-RA5 6 bits
Port B RB0-RB7 8 bits
Port C RC0-RC7 8 bits
Port D RD0-RD7 8 bits
Port E RE0-RE2 3 bits
Table: Digital I/O Ports

Timers
Fig : General Timer Operation
 Most microcontrollers provide built-in timers
 It consists of hardware binary counters that allow measurement of time interval or counting to be
carried out
 In Timer Mode , Internal Instruction Clock is used to drive Timer Register
 In PIC 16F877 , Instruction Clock Frequency is 1/4th of Total Clock Frequency i.e One Instruction
takes 4 cycles to execute
 The Timer is Incremented after 1 Microseconds

Analog To Digital Converter
Fig : Analog to Digital Operation
 Some PIC microcontrollers have built in Analog To Digital Converter (ADC)
 The PIC16F877 has 10 Bit ADC with 8 Inputs, which are connected to POR A(RA0-
RA3,RA5) pins & PORT E(RE0-RE2) pins
 The PIC16F877 A/D module has 4 Registers :
A/D Result High Register (ADRESH) A/D Result Low Register (ADRESL)
A/D Control Register0 (ADCON0) A/D Control Register1 (ADCON1)

Comparator
Fig : Comparator Module
 The PIC16F917 provides two Comparator Modules
 Each Comparator Module Compares the voltage at a pair of Inputs
 Status Bit is SET i.e 1 if Voltage at Vc+ Pin is Higher than Voltage at Vc-
Pin

Parallel Slave Port (PSP)
Fig : Parallel Slave Port Operation
 The PSP (Port D) on PIC16F877 Microcontroller allows Parallel Communications
with external 8-Bit System Data Bus or Peripheral
 It can directly interface to an 8-Bit Microprocessor Data Bus

Interrupts
o Interrupts can be generated by various Internal Or External Hardware Events
o There are two types of Interrupts:
 Software Interrupt
 Hardware Interrupt
 Software Interrupt:
• It comes from a Program that runs by the Processor
• It requests the Processor to Stop running a Program
• Goto make an Interrupt and then to return to continue to execute the Program
 Hardware Interrupt:
• These are sent to Microcontroller by Hardware device
• Some of Hardware Interrupts can be blocked by Interrupt Enable Bit (IE)
• When Interrupt is blocked PIC Microcontroller ignores it and will not Execute it

Program Memory of PIC 16F877
 PIC16F877 has two separate memory
blocks, one for Data and the other for
Program
 EEPROM memory with GPR and
SFR registers in RAM memory make
up the Data Block
 FLASH memory makes up the
program block

 Program Memory:
 Program memory has been carried out in FLASH technology which makes it
possible to program a microcontroller many times before it's installed into a device
 Program Memory is divided into 4 pages
 The Active Page is decided by Upper two Bits i.e e.g 4:3)
 CALL & GOTO branch operations, instructions gives 11 bits of address
 13 bit PC is capable to hold 8k*14 program memory space
 Reset vector is at 000H
 Interrupt vector at 0004H

 Data Memory:
 Data memory consists of EEPROM and RAM memories
 EEPROM memory consists of 64 eight bit locations whose contents is not lost
during loosing of power supply
 Locations of RAM memory are also called GPR registers(General Purpose)
 SFR registers:
Registers which take up first 12 locations in banks 0 and 1 are registers of
specialized function assigned with certain blocks of the microcontroller. These are
called Special Function Registers
Fig: Data Memory Organization

Microproccesor and Microcontrollers hardware basics

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to Microproccesor and Microcontrollers hardware basics (20)

Recently uploaded (20)

Microproccesor and Microcontrollers hardware basics
