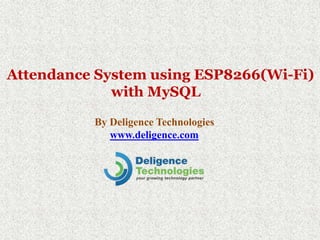

Attendance System using ESP8266(Wi-Fi) with MySQL

Attendance System using ESP8266(Wi-Fi)
with MySQL
By Deligence Technologies
www.deligence.com

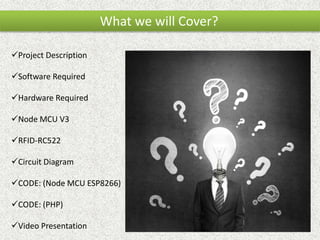

What we will Cover?
Project Description
Software Required
Hardware Required
Node MCU V3
RFID-RC522
Circuit Diagram
CODE: (Node MCU ESP8266)
CODE: (PHP)
Video Presentation

Project Description
Here We are going to connect
Node MCU ESP8266 and RFID-
RC522 with MYSQL Database. So
for that first we should connect
our Node MCU ESP8266 Board
with RFID Module. By using the
RFID Module we are going to
scan our RFID card and tag which
are allow or not. And by using
our ESP8266 we are going to
send that data to our MYSQL
Database which is connect
through a php page.
You can watch it in action in slide
20.

Software Used
 Arduino IDE
 LAMP Server for Linux or WAMP Server for Windows or MAMP Server for MAC OS

Hardware Used
 Node MCU V3
 RFID Reader with Tag
 Jumper Wire

Node MCU V3
Node MCU is an open source IOT platform. It includes
firmware which runs on the ESP8266 Wi-Fi SoC from
hardware which is based on the ESP-12 module. The term
"Node MCU" by default refers to the firmware rather than
the dev kits.

RFID-RC522
RFID RC522 is a low cost and easy to use module suitable
for equipment and advanced application development that
needs RFID applications. RFID application. RFID stands for
Radio-Frequency Identification. The acronym refers to small
electronic devices that consist of a small chip and an
antenna.

CODE: (Node MCU ESP8266)
#include<SoftwareSerial.h>
#include <ESP8266WiFi.h>
#include <WiFiClient.h>
#include <ESP8266WebServer.h>
#include <ESP8266mDNS.h>
#include <SPI.h>
#include <MFRC522.h>
const char* ssid = "TP-LINK_28C6";
const char* password = "02105604";
//WiFiClient client;
char server[] = "192.168.0.115"; //YOUR SERVER
#define SS_PIN 2 //FOR RFID SS PIN BECASUSE WE ARE USING BOTH ETHERNET
SHIELD AND RS-522
#define RST_PIN 15
#define No_Of_Card 3
Cont…. >>>>>

WiFiClient client;
//WiFiServer server(80);
SoftwareSerial mySerial(8,9);
MFRC522 rfid(SS_PIN,RST_PIN);
MFRC522::MIFARE_Key key;
byte id[No_Of_Card][4]={
{44,153,22,219}, //RFID NO-1
{112,224,72,84}, //RFID NO-2
{151,94,80,84} //RFID NO-3
};
byte id_temp[3][3];
byte i;
int j=0;
Cont…. >>>>>

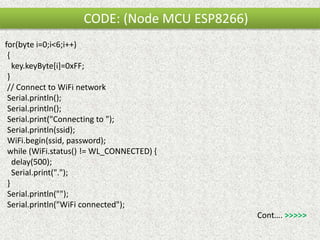

for(byte i=0;i<6;i++)
{
key.keyByte[i]=0xFF;
}
// Connect to WiFi network
Serial.println();
Serial.println();
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");
Cont…. >>>>>

// Start the server
// server.begin();
Serial.println("Server started");
Serial.print(WiFi.localIP());
delay(1000);
Serial.println("connecting...");
}
void loop()
{ // Check if a client has connected
int m=0;
if(!rfid.PICC_IsNewCardPresent())
return;
if(!rfid.PICC_ReadCardSerial())
return;
for(i=0;i<4;i++)
{
id_temp[0][i]=rfid.uid.uidByte[i];
delay(50);
} Cont…. >>>>>

for(i=0;i<No_Of_Card;i++)
{
if(id[i][0]==id_temp[0][0])
{
{
{
{
Serial.print("your card no :");
for(int s=0;s<4;s++)
{
Serial.print(rfid.uid.uidByte[s]);
Serial.print(" ");
}
Cont…. >>>>>

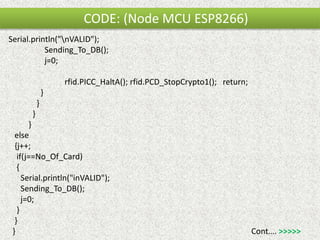

Serial.println("nVALID");
Sending_To_DB();
j=0;
rfid.PICC_HaltA(); rfid.PCD_StopCrypto1(); return;
}
}
}
}
else
{j++;
if(j==No_Of_Card)
{
Serial.println("inVALID");
Sending_To_DB();
j=0;
}
}
} Cont…. >>>>>

// Halt PICC
rfid.PICC_HaltA();
// Stop encryption on PCD
rfid.PCD_StopCrypto1();
}
void Sending_To_DB() //CONNECTING WITH MYSQL
{
if (client.connect(server, 80)) {
Serial.println("connected");
// Make a HTTP request:
Serial.println("GET /rfid/rfid_read.php?allow="); //YOUR URL
/rfid/rfid_read.php?allow
client.print("GET /rfid/nodemcu_rfid/rfid_read.php?allow="); //YOUR URL
/rfid/rfid_read.php?allow /var/www/html/rfid/rfid_read.php
Cont…. >>>>>

if(j!=No_Of_Card)
{
Serial.println('1');
client.print('1');
}
else
{
Serial.println('0');
client.print('0');
}
Serial.println("&id=");
client.print("&id=");
for(int s=0;s<4;s++)
{
Serial.println(rfid.uid.uidByte[s]);
client.print(rfid.uid.uidByte[s]);
}
Cont…. >>>>>

client.print(" "); //SPACE BEFORE HTTP/1.1
client.print("HTTP/1.1");
client.print("Host: ");
client.println(server);
client.println("Host: 192.168.0.115");
client.println("Connection: close");
client.println();
} else {
// if you didn't get a connection to the server:
Serial.println("connection failed");
}
client.stop();
}

CODE: (PHP)
<?php
class rfid{
public $link='';
function __construct($allow, $id){
$this->connect();
$this->storeInDB($allow, $id);
}
function connect(){
$this->link = mysqli_connect('localhost','root','Deligence@1') or die('Cannot
connect to the DB');
mysqli_select_db($this->link,'rfidesp') or die('Cannot select the DB');
}
Cont…. >>>>>

CODE: (PHP)
function storeInDB($allow, $id){
$query = "insert into rfid set rfid='".$id."', allow='".$allow."'";
$result = mysqli_query($this->link,$query) or die('Errant query: '.$query);
}
}
if($_GET['allow'] != '' and $_GET['id'] != ''){
$rfid=new rfid($_GET['allow'],$_GET['id']);
}
?>

You can get it's source code at -
https://github.com/DeligenceTechnologies/
Attendance-System-using-ESP8266-Wi-Fi-
with-MySQL
In case, you need any Embedded Systems
Development or IoT work - you can send an
email to us at sales @ deligence.com
Deligence Technologies –
(your growing technology partner)
www.deligence.com/contact-us
Email : info@deligence.com
Phone : +91 9910130340
