Back to Basics 2016 : Webinar 4
Advanced Indexing –
Text and Geospatial Indexes
Joe Drumgoole
Director of Developer Advocacy, EMEA
@jdrumgoole
V1.1

3
Recap
• Webinar 1 – Introduction to NoSQL
– The different types of NoSQL databases
– What kind of database is MongoDB? A document database.
• Webinar 2 – My First Application
– Creating databases and collections
– CRUD operations
– Indexes and Explain
• Webinar 3 – Schema Design
– Dynamic schema
– Embedding approaches
– Examples

4
Indexing
• An efficient way to look up data by its value
• Avoids table scans
1 2 3 4 5 6 7

5
Traditional Databases Use Btrees
• … and so does MongoDB

6
Queries, Inserts, Deletes O(Log(n) Time

7
Creating a Simple Index
db.coll.createIndex( { fieldName : <Direction> } )
Database Name
Collection Name
Command
Field Name to
be indexed
Ascending : 1
Descending : -1

8

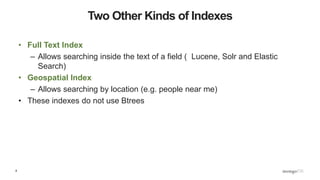

Two Other Kinds of Indexes
• Full Text Index
– Allows searching inside the text of a field ( Lucene, Solr and Elastic
Search)
• Geospatial Index
– Allows searching by location (e.g. people near me)
• These indexes do not use Btrees

9
Full Text Indexes
• An “inverted index” on all the words inside a single field (only one text index per collection)
{ “comment” : “I think your blog post is very interesting
and informative. I hope you will post more
info like this in the future” }
>> db.posts.createIndex( { “comments” : “text” } )
MongoDB Enterprise > db.posts.find( { $text: { $search : "info" }} )
{ "_id" : ObjectId(“…"), "comment" : "I think your blog post is very
interesting and informative. I hope you will post more info like this
in the future" }
MongoDB Enterprise >

10
Results
MongoDB Enterprise > db.posts.getIndexes()
...
{
"v" : 1,
"key" : {
"_fts" : "text",
"_ftsx" : 1
},
"name" : "comment_text",
"ns" : "test.posts",
"weights" : {
"comment" : 1
},
"default_language" : "english",
"language_override" : "language",
"textIndexVersion" : 3
}

11
Dropping Text Indexes
• We drop text indexes by name rather than shape
db.posts.getIndexes()
{
"v" : 1,
"key" : {
"_fts" : "text",
"_ftsx" : 1
},
"name" : "comment_text_text",
"ns" : "test.posts",
"weights" : {
"comment" : 5,
"tags" : 10
},
"default_language" : "english",
"language_override" : "language",
"textIndexVersion" : 3
}

12
Hence
MongoDB Enterprise > db.posts.dropIndex( "comment_text_tags_text" )
{ "nIndexesWas" : 2, "ok" : 1 }
• You can give an index an explict name to make this easier
MongoDB Enterprise > db.posts.createIndex( { "comments" : "text", "tags" :
"text" }, { "name" : "text_index" } )
{
"createdCollectionAutomatically" : false,
"numIndexesBefore" : 1,
"numIndexesAfter" : 2,
"ok" : 1
}

13
On The Server
I INDEX [conn275] build index on: test.posts properties: { v: 1, key:
{ _fts: "text", _ftsx: 1 }, name: "comment_text", ns: "test.posts",
weights: { comment: 1 }, default_language: "english",
language_override: "language", textIndexVersion: 3 }}
I INDEX [conn275] building index using bulk method
I INDEX [conn275] build index done. scanned 3 total records. 0 secs

14
More Detailed Example
>> db.posts.insert( { "comment" : "Red yellow orange green" } )
>> db.posts.insert( { "comment" : "Pink purple blue" } )
>> db.posts.insert( { "comment" : "Red Pink" } )
>> db.posts.find( { "$text" : { "$search" : "Red" }} )
{ "_id" : ObjectId(“…”), "comment" : "Red yellow orange green" }
{ "_id" : ObjectId( »…"), "comment" : "Red Pink" }
>> db.posts.find( { "$text" : { "$search" : "Red Green" }} )
{ "_id" : ObjectId(« …"), "comment" : "Red Pink" }
{ "_id" : ObjectId(« …"), "comment" : "Red yellow orange green" }
>> db.posts.find( { "$text" : { "$search" : "red" }} ) # <- Case Insensitve
{ "_id" : ObjectId(“…"), "comment" : "Red yellow orange green" }
{ "_id" : ObjectId(«…”), "comment" : "Red Pink" }
>>

15
Using Weights
• We can assign different weights to different fields in the text index
• E.g. I want to favour tags over comments in searching
• So I increase the weight for the the tags field
>> db.blog.createIndex( { comment: "text",
tags : "text” },
{ weights: { comment: 5,
tags : 10 }} )
• Now searches will favour tags

16
$textscore
• Weights impact $textscore:
>> db.posts.find( { "$text" : { "$search" : "Red" }}, { score: {
$meta: "textScore" }} ).sort( { score: { $meta: "textScore" } } )
{ "_id" : …, "comment" : "hello", "tags" : "Red green orange", "score"
: 6.666666666666666 }
{ "_id" : …, "comment" : "Red Pink", "score" : 3.75 }
{ "_id" : …, "comment" : "Red yellow orange green", "score" : 3.125 }
>>

17
Other Parameters
• Language : Pick the language you want to search in e.g.
– $language : Spanish
• Support case sensitive searching
– $caseSensitive : True (default false)
• Support accented characters (diacritic sensitive search e.g. café
is distinguished from cafe )
– $diacriticSensitive : True (default false)

19
Geospatial Indexes
• MongoDB supports 2D Sphere indexes
• Allows a user to represent location on the earth (which is a sphere)
• Coordinates are stored in GeoJSON format
• The Geospatial index supports subset of the GeoJSON operations
• The index is based on a QuadTree representation
• Index is based on WGS 84 standard

20
Coordinates
• Coordinates are represented as longitude, latitude
• longitude
– Measured from Greenwich meridian in London (0 degrees) locations east
(up to 180 degrees)
– For locations west we specify as negative
• Latitude
– Measured from equator north and south (0 to 90 north, 0 to -90 south)
• Coordinates in MongoDB are stored on Longitude/Latitude order
• Coordinates in Google are stored in Latitude/Longitude order

21
2DSphere Versions
• Three versions of 2dSphere index in MongoDB
• Version 1 : Up to MongoDB 2.4
• Version 2 : From MongoDB 2.6 onwards
• Version 3 : From MongoDB 3.2 onwards
• We will only be talking about Version 3 in this webinar

22
Creating a 2dSphere Index
db.collection.createIndex
( { <location field> : "2dsphere" } )
• Location field must be coordinate or GeoJSON data

23
Example
>> db.test.createIndex( { loc : "2dsphere" } )
{
"ok" : 1
}

24
Output
>> db.test.getIndexes()
[
{
"v" : 1,
"key" : {
"loc" : "2dsphere"
},
"name" : "loc_2dsphere",
"ns" : "geo.test",
"2dsphereIndexVersion" : 3
}
]
>>

25
Use a Simple Dataset to investigate Geo Queries
• Lets search for restaurants in Manhattan
• Using two candidate collections
– https://raw.githubusercontent.com/mongodb/docs-assets/geospatial/neighborhoods.json
– https://raw.githubusercontent.com/mongodb/docs-assets/geospatial/restaurants.json
• Import them into MongoDB
– mongoimport –c neighborhoods –d geo neighborhoods.json
– mongoimport –c restaurants –d geo restaurants.json

26
Neighborhood Document
MongoDB Enterprise > db.neighborhoods.findOne()
{
"_id" : ObjectId("55cb9c666c522cafdb053a1a"),
"geometry" : {
"coordinates" : [
[
[
-73.94193078816193,
40.70072523469547
],
...
[
-73.94409591260093,
40.69897295461309
],
]
"type" : "Polygon"
},
"name" : "Bedford"
}

27
Restaurant Document
MongoDB Enterprise > db.restaurants.findOne()
{
"_id" : ObjectId("55cba2476c522cafdb053adf"),
"location" : {
"coordinates" : [
-73.98241999999999,
40.579505
],
"type" : "Point"
},
"name" : "Riviera Caterer"
}
You can type this into
google maps but
remember to reverse the
coordinate order

28
Add Indexes
MongoDB Enterprise > db.restaurants.createIndex({ location: "2dsphere" })
{
"ok" : 1
}
MongoDB Enterprise > db.neighborhoods.createIndex({ geometry: "2dsphere" })
{
"ok" : 1
}

29
Use $geoIntersects to find our Neighborhood
• Assume we are at -73.93414657, 40.82302903
• What neighborhood are we in? Use $geoIntersects
db.neighborhoods.findOne({ geometry:
{ $geoIntersects:
{ $geometry:
{ type: "Point",
coordinates:
[ -73.93414657,
40.82302903 ]}}}})

30
Results
{
"geometry" : {
”coordinates" : [
[
-73.9338307684026,
40.81959665747723
],
...
[
-73.93383000695911,
40.81949109558767
]
]
"type" : "Polygon"
},
"name" : "Central Harlem North-Polo Grounds"
}

31
Find All Restaurants within 0.35 km
db.restaurants.find({ location:
{ $geoWithin: { $centerSphere:
[ [ -73.93414657, 40.82302903 ], 5 / 6,378.1 ] }
} })
Distance in km
Divide by radius of earth
to convert to radians

32
Results – (Projected)
{ "name" : "Gotham Stadium Tennis Center Cafe" }
{ "name" : "Chuck E. Cheese'S" }
{ "name" : "Red Star Chinese Restaurant" }
{ "name" : "Tia Melli'S Latin Kitchen" }
{ "name" : "Domino'S Pizza" }
• Without projection
{ "_id" : ObjectId("55cba2476c522cafdb0550aa"),
"location" : { "coordinates" : [ -73.93795159999999, 40.823376 ],
"type" : "Point" },
"name" : "Domino'S Pizza" }

33
Summary of Operators
• $geoIntersect: Find areas or points that overlap or are
adjacent
• $geoWithin: Find areas on points that lie within a specific area
• $geoNear: Returns locations in order from nearest to furthest
away

34
Summary
• Text Indexes : Full text searching of all the text items in a
collection
• Geospatial Indexes : Search by location, by intersection or by
distance from a point
