Transformer Tests
Page :

1

Introduction :
The methods used during tests and measurements of the Power Transformers, test and measurement
circuits, calculations and evaluation criterias are included in this manual. At the end of this manual,
BEST Balıkesir Transformer Factory laboratory hardware and measurement and test equipments are
listed.
For insulation levels of transformers, electrical characteristics and evaluation, please refer to national
and international standards and customer specifications.
Tests and evaluation definitons are listed below:

Routine Tests :
Page
1.
2.
3.
4.
5.
6.
7.
8.
9.

Measurement of winding resistance
Measurement of voltage ratio and check of phase displacement
Measurement of short-circuit impedance and load loss
Measurement of no-load loss and current
Dielectric tests
Separate source AC withstand voltage test
Induced AC voltage test
Partial-discharge measurement
Tests on on-load tap-changers

2
4
7
10
12
14
15
18
21

Type Tests :
10. Temperature-rise test
11. Lightning-Impulse tests

22
26

Special Tests :
12.
13.
14.
15.
16.
17.

Switching impulse voltage test
Measurement of dissipation factor (tan ) and capacitance
Measurement of zero sequence impedance(s)
Determination of sound level
Measurement of harmonics of the no-load current
Measurement of insulation resistance

30
32
34
36
40
41

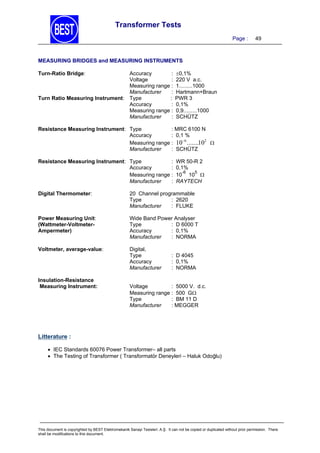

List of tests and measuring equipment of the testing laboratory

42

Prepared by :

Haluk Odoğlu

June 2009 ( 3 th Edition )

This document is copyrighted by BEST Elektromekanik Sanayi Tesisleri. A.Ş. It can not be copied or duplicated without prior permission. There
shall be modifications to this document.

Transformer Tests
Page :

2

1- Measurement of winding resistance
Measurement is made to check transformer windings and terminal connections and also both to use
as reference for future measurements and to calculate the load loss values at reference (e.g. 75C)
temperature. Measuring the winding resistance is done by using DC current and is very much
dependent on temperature. Temperature correction is made according to the equations below:

R2  R1 

235  t 2
235  t1

(for copper)

R2  R1 

R2 : winding resistance at temperature t2,

225  t 2
225  t1

(for aluminium)

R1 : winding resistance at temperature t1

Because of this, temperatures must be measured when measuring the winding resistances and
temperature during measurement should be recorded as well.
Winding resistances are measured between all connection terminals of windings and at all tap
positions. During this, winding temperature should also be appropriately measured and recorded.
The measuring current can be obtained either from a battery or from a constant(stable) current source.
The measuring current value should be high enough to obtain a correct and precise measurement and
small enough not to change the winding temperature. In practice, this value should be larger than
1,2xI0 and smaller than 0,1xIN, if possible.
A transformer consists of a resistance R and an inductance L connected in serial. If a voltage U is
applied to this circuit;

The value of current measurement will be :

i

R
 t
U
(1  e L ) . Here, the time coefficient depends on
R

L/R ratio.

As the measurement current increases, the core will be saturated and inductance will decrease. In this
way, the current will reach the saturation value in a shorter time.
After the current is applied to the circuit, it should be waited until the current becomes stationary
(complete saturation) before taking measurements, otherwise, there will be measurement errors.
Measuring circuit and performing the measurement
The transformer winding resistances can be measured either by current-voltage method or bridge
method. If digital measuring instruments are used, the measurement accuracy will be higher.
Measuring by the current-voltage method is shown in figure 1.1
In the current – voltage method, the measuring current passing through the winding also passes
through a standard resistor with a known value and the voltage drop values on both resistors (winding
resistance and standard resistance) are compared to find the unknown resistance (winding


Transformer Tests
Page :

3

resistance). One should be careful not to keep the voltage measuring voltmeter connected to the
circuit to protect it from high voltages which may occur during switching the current circuit on and off.

a
A

A

b

B

DC
Source

V

c

C
N

Figure 1.1: Measuring the resistance by Current-Voltage method
The bridge method is based on comparing an unknown (being measured) resistor with a known value
resistor. When the currents flowing in the arms are balanced, the current through the galvanometer
will be zero. In general, if the small value resistors (e.g. less than 1 ohm ) are measured with a Kelvin
bridge and higher value resistors are measured with a Wheatstone bridge, measurement errors will
be minimised.

R1

R2

R

R3

Rx

Rx

a

G

G

R4

rN

b
RN

R

R’3
A

RS
Figure 1.2: Kelvin bridge

Figure 1.3: Wheatstone bridge

The resistance measured with the Kelvin Bridge;

Rx  RN 

R1
R2

( R1 = R3 ve R2 = R4 )

The resistance measured with the Wheatstone Bridge;

Rx = R

a
b


Transformer Tests
Page :

4

2- Measurement of voltage ratio and check of phase displacement
The no-load voltage ratio between two windings of a transformer is called turn ratio.
The aim of measurement is; confirming the no-load voltage ratio given in the customer order
specifications, determining the conditions of both the windings and the connections and examining the
problems (if any)
The measurements are made at all tap positions and all phases.
Measurement circuit and performing the measurement
2.1

Turn Ratio Measurement

The turn ratio measurement can be made using two different methods;
a. Bridge method
b. By measuring the voltage ratios of the windings
a). Measurement of turn ratio is based on, applying a phase voltage to one of the windings using a
bridge (equipment) and measuring the ratio of the induced voltage at the bridge. The measurements
are repeated in all phases and at all tap positions, sequentially. During measurement, only turn ratio
between the winding couples which have the same magnetic flux can be measured, which means the
turn ratio between the winding couples which have the parallel vectors in the vector diagram can be
measured. (fig 2.1, 2.2, 2.3). In general, the measuring voltage is 220 V a.c. 50 Hz. However,
equipments which have other voltage levels can also be used. The accuracy of the measuring
instrument is ≤ 0,1%.
1
2

~
220 V

U2

U1

1

Transformer under test

3

Zero position indicator

3

2 Transformer with adjustable range (standard)

U1 Applied voltage to the bridge and HV winding (220 V, 50 Hz)

U2 Induced voltage at the LV winding
Figure 1-1: Bridge connection for measuring the turn ratio
Theoretical turn ratio = HV winding voltage / LV winding voltage
The theoretical no-load turn ratio of the transformer is adjusted on the equipment by an adjustable
transformer, it is changed until a balance occurs on the % error indicator. The value read on this error
indicator shows the deviaton of the transformer from real turn ratio as % .

Deviation 

measured

turn ratio   expected turn ratio 
expected turn ratio

 %100


Transformer Tests
Page :

5

b). The voltages at the winding couples to be measured, can be measured at the same time and the
ratio can be determined, or digital instruments which are manufactured for this purpose can be used in
the voltage ratio measurement method. By using such instruments, in addition to measuring the turn
ratio, also determining the connection group (with three phase measuring instrument) and measuring
the currents during measurement are also possible. The method of comparing the vector couple
voltages also allows measuring the angle (phase slip) between vectors at the same time
The no-load deviation of the turn ratios should be
2.2

≤

% 0,5 .

Determining the Connection Group

Depending on the type of the transformer, the input and output windings of a multi-phase transformer
are connected either as star ( Y ) or delta ( D ) or zigzag ( Z ). The phase angle between the high
voltage and the low voltage windings varies between 0 and 360 .
Representing as vectors, the HV winding is represented as 12 (0) hour and the other windings of the
connection group are represented by other numbers of the clock in reference to the real or virtual
point. For example, in Dyn 11 connection group the HV winding is delta and the LV winding is star and
there is a phase difference of 330 (11x30) between two windings. While the HV end shows 12 (0),
the LV end shows 11 o’clock (after 330).
Determining the connection group is valid only in three phase transformers. The high voltage winding
is shown first (as reference) and the other windings follow it.
If the vector directions of the connection are correct, the bridge can be balanced.
Also, checking the connection group or polarity is possible by using a voltmeter. Direct current or
alternating current can be used for this check.
The connections about the alternating current method are detailed in standards. An example of this
method is shown on a vector diagram below.
12

11

I

i
III

A

1
2

ii

n
II

iii
6

The order of the measurements:
1)- 3 phase voltage is applied to ABC phases
2)- voltage between phases (e.g. AC) is
measured
3)- A short circuit is made between C and n
4)- voltage between B and b is measured
5)- voltage between A and c is measured

a
3

n

a'

4

c'

n' C

c

b

b'

B

Figure 1-2: Connection group representation and measuring
As seen from the vector diagram, in order to be Dyn 11 group , A.c > AB > B.b correlation has to
realized. Taking the other phases as reference for starting, same principles can be used and also for
determining the other connection groups, same principles will be helpful.


Transformer Tests
Page :

Group
I

II

Connection
III
I

Connection

III

0

Yy 0
ii iii

i

II

Dd 0

6

II

i

Yz 11

II
iii

iii

i

III

Yy 6
ii iii

Dy 11

I

ii
I

Dz 6

ii

III

Yd 1
i ii

Dd 6

i

III

5

Yz 5

II

iii
II

Dy 5

I

Yd 1
i ii iii

I

Yz 1

ii

III

1

Dz 0

Dy 1

i

III

Connection

II

iii
I

6

I
III

II

ii

iii
i

I

1

II

III

Yd 11
i A iii

I
III

II
i

iii

ii

The table is formed based on IEC 60076 and the idea that the winding directions of the HV and LV
windings are same

Figure 2.3: Some of the connection groups according to IEC 60076-1 standard

Transformer Tests
Page :

7

3- Measurement of short-circuit impedance and load loss
The short-circuit loss and the short-circuit voltage show the performance of the transformer. These
values are recorded and guaranteed to the customer and important for operational economy. The
short-circuit voltage is an important criteria especially during parallel operations of the transformers.
The short-circuit loss is a data which is also used in the heat test.
Short-circuit voltage; is the voltage applied to the primary winding and causes the rated current to flow
in the winding couples while one of the winding couples is short circuited. The active loss measured
during this, is called short-circuit loss. If the adjusting range is more than 5%, in addition to the rated
value, the losses are repeated for the maximum and minimum values.
The short-circuit loss is composed of; “Joule “ losses (direct current/DC losses) which is formed by the
load current in the winding and the additional losses (alternating current/AC losses) in the windings,
core pressing arrangements, tank walls and magnetic screening (if any) by the leakage (scatter)
fluxes.

Measuring circuit and performing the measurement:

a

A

3

3

b

B

c

C
1

N
2

6

n

4

C
A

A

A
A

W
W

W

v

W

v
v

5

1- Power supply
2- Supply (intermediate) Transformer
3- Current Transformers
4- Voltage Transformers

5- Power Analyser
6- Transformer under test
C- Compensation Capacitor groups

Figure 3.1: Short-circuit losses measurement connection diagram


Transformer Tests
Page :

8

In general, the HV windings of the transformer are supplied while the LV windings are short-circuited.
During measurement, the current has to be at the value of IN or close to this value as far as possible.
The voltage, current and short-circuit losses of each phase should be measured during measurement.
In cases where the power supply is not sufficient enough to supply the measurement circuit,
compensation to meet the reactive power has to be made using capacitors.
Before beginnig to measure, the transformer winding/oil temperature has to be stabilised and the
winding/oil temperature and winding resistances have to be measured.
In order to avoid increasing the winding temperature by the applied current, the measurement has to
be completed in a short time and the measuring current has to be kept between 25%...100% of the
rated current. In this way, the measurement errors due to winding temperature increase will be
minimised.
The losses have to be corrected based on reference temperature (e.g. 75C ) stated in the standards
and evaluated. The short-circuit voltage Ukm and losses (Pkm ) which are found at the temperature
which the measurement was made, have to be corrected according to this reference temperature.
The direct-current/DC losses on the winding resistances, while the resistance values are RYG and RAG
(phase to phase measured resistances) are as follows ;
2

2

Direct-current loss = at measuring temperature tm PDC = 1,5.( I1 .RYG + I2 .RAG ).
AC / Additional losses = at measuring temperature tm Pac = Pkm- Pdc.
Losses at reference (75C ) temperature:
tR : 235 oC for Copper ( acc. to IEC )
225 o C for Aluminium ( acc. to IEC)

t  75C
t t
 PAC  R m .
Pk  PDC  R
tR  t m
tR  75

Short-circuit voltage :
At measuring temperature (tm)

uRM  100 

Pkm
SN

ukm  100 

Ukm
UN

%

% “ohmic/DC ” component,

u xm 

u 2 km  u 2 RM

%

“inductive /AC”

component
At reference (75C) temperature:

uR  100 

Pk
SN

 %

uk  u 2R  u 2 xm

 %

The short-sircuit losses and short-circuit voltage measurements, calculations and corrections have to
made at rated, maximum and minimum ranges.


Transformer Tests
Page :

9

Since the circuit forming the measurement in high power transformers and reactors are inductive, the
power factor (Cos ) will be very small (Cos : 0,01 ...... 0,003, or angle = 1..... 10 minutes). For this
reason, the errors in measurement current and voltage transformers will be very high. In this case, the
measurement results have to be corrected by a multiplier.
Measuring circuit and error correction equations :

(

Pkd  Pkm  1 

E(%)
100

)

Pkd :

Corrected loss

Pkm :

Loss read at the Wattmeter

E ( % ) : Total error
E(%) = E( % ) + Ei ( % ) + Eu ( % )

E( % ) : Measurement error
Ei ( % ) : Current transformer turn ratio error
Eu ( % ): Voltage transformer turn ratio error


cos 
Eδ (%)  1 
  100 .
 cos  δ  

Here  = i - u.

i : Current transformer phase error
u : Voltage transformer phase error
When the measurement transformer phase errors are stated in minutes;

E ( % ) = + 0,0291. (i – u ). tg  .
If the measurement current is different than rated current “ IN ”, the short-circuit voltage and shortcircuit losses for the rated current value are calculated as follows;
Uk  Ukm 

IN
Im

Pk  Pkm  (

IN 2
)
Im

Ukm : Measured short-circuit voltage
Pkm : Measured short-circuit losses
UK : Short-circuit voltage at the rated current

Im : Measured test current
Pk : Short-circuit losses at the rated current

When the transformer short-circuit losses and the voltage are measured at a frequency which is
different than the rated frequency, correction has to be made to according to below equations:
Short-circuit voltage : Uk  Ukm 

fN
fm

Short-circuit loss : Pk  PDC  PAC  (

fN 2
)
fm

Here :
Ukm : short-circuit voltage at fm measured frequency
Uk : short-circuit voltage at fN rated frquency

Pac : additional losses at fm measured
frequency

Pk : short-circuit losses at fN rated frequency


Transformer Tests
Page :

10

4- Measurement of no-load loss and current
The no-load losses are very much related to the operational performance of a transformer. As long as
the transformer is operated, these losses occur. For this reason, no-load losses are very important for
operational economy. No-load losses are also used in the heating test.
The no-load loss and current measurements of a transformer are made while one of the windings
(usually the HV winding) is kept open and the other winding is supplied at the rated voltage and
frequency. During this test the no-load current (Io) and the no-load losses (Po) are measured. The
measured losses depend heavily on the applied voltage waveform and frequency. For this reason, the
waveform of the voltage should be very sinusoidal and at rated frequency. Normally, the
measurements are made while the supply voltage is increased at equal intervals from 90% to 115% of
the transformer rated voltage ( UN ) and this way the values at the rated voltage can also be found.
No-load losses and currents:

The no-load losses of a transformer are grouped in three main topics; iron losses at the core of the
transformer, dielectric losses at the insulating material and the copper losses due to no-load current.
The last two of them are very small in value and can be ignored. So, only the iron losses are
considered in determining the no-load losses.
Measuring circuit and performing the measurement:

A

a

3

3

B

b

C
c
1

n
2

6

N

4

A

A

A
A

W
W

W

v

W

v
v

5

1- Power supply
3- Current Transformers

5- Power Analyser
4- Voltage Transformers

4-1: Connection diagram for measuring no-load losses


Transformer Tests
Page :

11

In general according to the standards, if there is less than 3% difference between the effective (U)
value and the average (U’) value of the supply voltage, the shape of the wave is considered as
appropriate for measurements. If the supply voltage is different than sinusoid, the measured no-load
losses have to be corrected by a calculation. In this case, the effective (r.m.s.) value and the average
(mean) value of the voltage are different. If the readings of both voltmeter are equal, there is no need
for correction.
During measurements, the supply voltage U´ is supplied to the transformer by the average value
voltmeter. In this way, the foreseen induction is formed and as a result of this, the hysteresis losses
are measured correctly. The eddy-current losses should be corrected according to equation below.
Pm  Po  (P1  k  P2 )

Pm : Measured loss
P0 : no-load losses where the voltage is sinusoidal
2

P0 = Ph + PE = k1 . f + k2 . f

Here :
U
k 
 U' 

2

P1 : The hysteresis loss ratio in total losses (Ph) = k1 . f
2

P2 : The eddy-curent loss ratio in total losses (PE) = k2 . f

At 50 Hz and 60 Hz, in cold oriented sheet steel, P1= P2 =% 50. So, the P0 no-load loss becomes:

P0 

Pm
.
P1  k  P2

Here: P1 = P2 =0,5.

According to IEC 60076-1;

Pm = P0.( 1+d ). Here

 U  U 
d
.
 U 

During no-load loss measurement, the effective value of the no-load current of the transformer is
measured as well. In general, in three phase transformers, evaluation is made according to the
average of the thre phase currents.
Before the no-load measurements, the transformer might have been magnetised by direct current and
it’s components (resistance measurement or impulse tests). For this reason, the core has to be
demagnetised. To do this, it has to be supplied by a voltage value (increasing and decreasing
between the maximum and minimum voltage values for a few minutes) higher than the rated voltage
for a certain time and then the measurements can be made.
The no-load currents are neither symmetrical nor of equal amplitude in three phase transformers. The
phase angles between voltages and currents may be different for each of three phases. For this
reason, the wattmeter readings on each of the three phases may not be equal. Sometimes one of the
wattmeter values can be 0(zero) or negative (-).


Transformer Tests
Page :

12

5 - Dielectric tests
The following insulation tests are performed in order to meet the transformer insulation strength
expectations.
Unless otherwise requested by the customer, the following test are performed in the following order
(IEC 60076-3) :
 Switching impulse test : to confirm the insulation of the transformer terminals and windings to the
earthed parts and other windings, and to confirm the insulation strength in the windings and
through the windings.
 Lightning impulse test : to confirm the transformer insulation strength in case of a lightning hitting
the connection terminals.
 Separate source AC withstand voltage test : to confirm the insulation strength of the
transformer line and neutral connection terminals and the connected windings to the earthed
parts and other windings.
 Induced AC voltage test ( short duration ACSD and long duration ACLD ) : to confirm the
insulation strength of the transformer connection terminals and the connected windings to the
earthed parts and other windings, both between the phases and through the winding.
 Partial discharge measurement : to confirm the “partial dicharge below a determined level”
property of the transformer insulation structure under operating conditions.

According to standards, the transformer windings are made to meet the maximum operating voltage
Um and the related insulation levels. The transformer insulation levels and the insulation test to be
applied according to IEC 60076-3 is shown in the below table.

Winding
structure

Maximum
operating
voltage

tests
Lightning
impulse

Switching
impulse

Long
duration AC

Short
duration AC

( LI )

( SI )

( ACLD )

( ACSD )

type
( note 1 )

na

na
( note 1 )

routine

routine

72,5 Um  170

routine

na

special

routine

routine

170  Um  300

routine

routine
( note 2 )

routine

special
( note 2 )

routine

routine

routine

routine

special

routine

Um kV
uniform
insulated
uniform
and
gradually
insulated

Um  72,5

 300

Applied
voltage test

Note 1 : In some countries, in transformers with Um  72,5 kV applied as routine test and the ACLD test is
applied as routine or type test.
Note 2 : If the ACSD test is defined, the SI test is not applied.


Transformer Tests
Page :

13

In case of a transformer with one or more than one gradual insulation, if foreseen by the induced
voltage test, the switching impulse test is determined according to the maximum Um voltage winding.
The foreseen test voltage can not be reached in lower Um voltage windings. In this case, the ratio
between the tap changer’s optimum tap position and the windings shall be such arranged that, the
lowest Um voltage winding reaches the most appropriate value. This is acceptable ( IEC 60076-3).
If chopped wave is requested during ligthning impulse ( LI ) test, the peak value of the chopped wave
is 1.1 times the full wave value (10% higher).
For transformers with the high voltage winding Um > 72.5 kV, the lightning impulse (LI) test is a routine
test for all windings of the transformer.
Repeating the dielectric tests :

If no modification is made in the internal insulation of a transformer, only maintenance is made, or if
insulation tests are required for a transformer which is in operation, and if no agreement is made with
the customer, test is performed with test voltages at 80% of the original test values. However, the long
duration induced voltage test ( ACLD ) is always repeated with 100% of the original value. For new
transformers with factory tests completed, tests are repeated always with 100% of the original values
( IEC 60076-3 section 9 ).


Transformer Tests
Page :

14

6- Separate source AC withstand voltage test
The aim of this test is to check the insulation strength between the windings and earthed core, other
windings, construction pieces and the tank, with foreseen test voltage. In this way, the insulation
strength of the transformer is tested against excessive voltages due to operational system instabilities,
malfunctions, operational mistakes and transient events.
Test circuit and performing the test

A

a

B

b

C

5

4

1

c

N



Vef

6

3

2
A

Û

7

8

V

1- Adjustable voltage transformer

2- Current transformer and ampermeter

3- Test transformer input voltage voltmeter

4- Test transformer

5- Capacitive voltage divider
7- Peak value voltmeter (Peak value/

6- Effective voltage voltmeter

2)


Figure 6.1: Separate source AC withstand voltage test connection diagram
During the Separate source AC withstand voltage test, the frequency of the test voltage should be
equal to the transformer’s rated frequency or should be not less than 80% of this frequency. In this
way, 60 Hz transformers can also be tested at 50 Hz. The shape of the voltage should be single phase
and sinusoidal as far as possible.
This test is applied to the star point (neutral point) of uniform insulated windings and gradual (nonuniform) insulation windings. Every point of the winding which test voltage has been applied is
accepted to be tested with this voltage.
The insulation tests of the input terminals (phase inputs) of the gradual insulation windings is
completed during induced voltage test. (Section 7).
The test voltage is measured with the help of a voltage divider. The test voltage should be read from
voltmeter as peak value divided by 2 . Test period is 1 minute. All the terminals of the winding under
test should be connected together and the voltage should be applied here. Meanwhile, the terminals of
the non tested windings should be connected together as groups. Non-tested windings, tank and the
core should be earthed. The secondary windings of bushing type current transformers should be
connected together and earthed. The current should be stable during test and no surges should occur.


Transformer Tests
Page :

15

7- Induced AC voltage test
The aim of this test is to check the insulation both between phases and between turns of the windings
and also the insulation between the input terminals of the graded insulation windings and earth.
During test, normally the test voltage is applied to the low voltage winding. Meanwhile the other
windings should be left open and earthed from a common point.
Since the test voltage will be much higher than the transformer’s rated voltage, the test frquency
should not be less than twice the rated frequency value, in order to avoid oversaturation of the
transformer core. The test voltage value is choosen according to the Um’ value of the winding with
highest operating voltage. Other windings should be kept at a test level closest to their own operation
voltage.
The test voltage can either be measured on a voltage divider connected to the HV terminal or on a
voltage transformer and voltmeter which have been set together with this voltage divider at the LV
side. Another method is to measure the test voltage with a peak-value measuring instrument at the
measuring-tap end of the capacitor type bushing (if any).
Test period which should not be less than 15 seconds, is calculated according to the equation below;
120 seconds x

( Rated frequency / Test frequency )

The test is accepted to be succesful if no surges, voltage collapses or extreme increases in the current
has occurred.
As seen in table at section 5, the induced voltage tests are classified as short duration or long duration
and according to the operation voltage being less or more than 72.5 kV, in IEC 60076-3 standard.
Different routine, type and special tests are performed accordingly. In transformers with the highest
operation voltage less than 72.5 kV, partial-discharge measurement is not mandatory. However in
transformers bigger than 72.5 kV, partial-discharge measurement during induced voltage tests is
mandatory.
Short duration induced voltage test ( ACSD ) :
a)

Uniform insulated windings

The test connection of a transformer is the same as operating connection. Three phase, symmetrical
voltage is applied to the transformer under test. Normally the test voltage is twice the rated voltage.
This voltage should not be more than the test voltage. To be safe, the tap position of the transformer
under test should be appropriate. The value of the test voltage (between phases and between phase
and earth) is measured at the LV side on an accurate voltage transformer.
Test connection
W

1- Synchronous generator
2- Test transformer
3- Current trans. and ampermeter
4- Voltage trans. and voltmeter

V

1
2

b

U

G
3~

C

c

a
A

N
3

B
A
5

N

V
4

Figure 7.1: Induced AC voltage test connection diagram


Transformer Tests
Page :

16

In transformers with Um < 72.5 kV, normally partial discharge measurement is not performed. Test
period is as explained above. The voltage level to be applied is given in standards.
In transformers with Um > 72.5 kV , normally this test is performed together with partial discharge
test. The voltage levels and application periods are given in figure 7.2 below. The measurement and
evaluation levels for partial discharge are:

U 2  1,3  U m / 3

phase – ground ve U 2  1,3  U m

phase – phase

C
A : 5 minutes
B : 5 minutes
C : test period
D :  minutes
E : 5 minutes
Um : maximum
operation
voltage

D

B
A

E
U2

U1

U2

1,1.U m / 3

1,1.U m / 3

Figure 7.2: Test period voltage-time diagram
b) non-Uniform insulated windings

There are two different methods for three phase transformers:
1.
2.

Together with partial-discharge measurement, phase—earth strength test.
Together with partial-discharge measurement, inter-phase strength test while the star point is
earthed. This test is performed as explained in section a) above.

Only phase – earth test is applied to single phase transformers. In three phase transformers, the test
voltage is applied to the phase terminals as single phase. The test is repeated for each phase. So, the
foreseen test voltage is applied once to each HV input. In such transformers, the induced voltage test
and the voltage test applied to the phase terminals are considered to be performed together.
The single phase voltage application should be U  1,5 U m / 3 in phase – earth test.

2

In phase – phase test, U2 = 1.3 . Um in partial – discharge measurement. In transformers with Um =
420 ve 550 kV and test value is 460 kV and 510 kV, the partial–discharge voltage level is taken as
U2 = 1.3 . Um in phase-phase test and as U   ,  U m /

 in phase-earth test..
W

1- Synchronous generator
2- Test transformer
3- Current trans. and ampermeter
4- Voltage trans. and voltmeter
6- Capacitive voltage divider

2

N

b

B

U

1

C

V

G
3~

c

a

A

A
V
3

5

N

4

V

6

Figure 7.3: Single phase induced voltage test in non-uniform insulated windings connection diagram


Transformer Tests
Page :

17

The test connection in figure 7.3 is given for a transformer with HV neutral point insulated according to
1/3 test voltage.
Long duration induced voltage test ( ACLD ) :
For uniform and gradual insulation windings.

In three phase transformers, it is applied either to terminals respectively as single phase connection,
or symmetrically as three phase connection.
The star point (if any) is earthed during test, the other windings are earthed from; star point if they are
star connected and from any terminal or from power supply if they are delta connected. The test
application period and values are given in figure 7.4 .
C
A : 5 minutes
B : 5 minutes
C : test period
D : 60 minutes for Um300 kV
30 minutes for Um <300 kV

A

E : 5 minutes
Um :

Maximum
voltage

D

B

E
U2

operation

U1

1,1.U m / 3

U2
1,1.U m / 3

A

Figure 7.4: Long duration induced voltage test, voltage-time diagram
In all voltage steps of the test, partial-discharge measurement is made. The details of partial-discharge
measurement are explained in section 8. The voltages according to earth should be as;

U  1,7 U m / 3 and U  1,5  U m / 3 and partial-discharge measurement should be made at all
1
2
HV line terminals.
The test is accepted as succesful if there are no test voltage collapses, a sudden increase in test
current, smoke, abnormal sound, gas bubbles during test. The details about evaluation of test and
partial-discharge measurement results are given in standards ( e.g. IEC 60076 – 3 ).


Transformer Tests
Page :

18

8- Partial Discharge Measurement
It aims to measure the partial discharges which may occur in the transformer insulation structure
during test.
Partial-discharges are electrical arks which form the surges between electrodes of any area of the
insulating media of a transformer between the conductors. These discharges may occur in air bubbles
left in the insulating media, gaps in the solid materials or at the surfaces of two different insulators.
Although these discharges have small (weak) energy, the thermal energies due to these discharges
can cause aging, deformation and tear of the insulating material.
The following conditions can be determined during partial-discharge measurement;
-

To determine whether a partial-discharge above a certain value has occurred in the transformer
at a pre-defined voltage

-

To define the voltage values where the partial-discharge starts by increasing the applied voltage
(partial-discharge start voltage) and the value where the partial-discharge ceases by decreasing
the applied voltage (partial-discharge cease voltage).

-

To define the partial-discharge strength at a pre-defined voltage

How Partial-Discharge occurs and measured magnitudes :
The structure where a partial-discharge occurred in an insulating media is shown in the simplified
figure 8.1. As seen on the simpliified diagram, the impulses forming on the discharge point cause a
U voltage drop at the transformer line terminals. This forms a measurable “q” load at the measuring
impedance. This load is called apparent load and given in pC (Pico-Coulomb) units.
During measurements; U voltage drop, average value of apparent partial-discharge current, partialdischarge power, impulse count within a time unit, partial-discharge start and cease voltages can also
be determined.

A

Z

A

Z

C2
C2

U C3

C1

C2

C3

U

C3
U1

C1

Figure 8.1

DG: Discharge gap

R1

B

a)

DG
i1( t )

U : Applied Voltage
Z : Impedance of the supply circuit
C1: Capacitance of the discharge part
C2: Capacitance of the discharge part and
serially connected insulator
C3: Capacitance of the other parts of the
insulator
R1: Discharge resistance

b)

a) simple schematics of an insulator with gas gap

b) equivalent circuit


Transformer Tests
Page :

19

Measuring circuit and application
Partial-discharge measurement structure of a transformer and related circuit in accordance with IEC
60270 is explained below.
qo

a

A

b

G



F

Zm
Z

c

Zm
Zm

1

B
C

Z
Zm
m

2
5

N

3

6

4
V
12345-

supply generator
supply transformer
test transformer
voltage transformer and measuring circuit
filter

8

7

6- measuring impedance
7- selective switch
8- measuring instrument and ossiloscope
qo- calibration generator

Figure 8.2: Partial discharge measuring connection circuit
The measurement circuit in figure 8.2 is formed according to Bushing-tap method stated in standards.
Before starting to measure, complete measurement circuit should be calibrated. For this, a calibrator
(Calibration generator) is necessary. The calibrator produces a q0 load with a predefined value.
Calibrator is connected to the test material in parallel. The q0 load produced in the calibrator is read at
the measuring instrument. These steps are repeated at all terminals of the transformer to be
measured at no-voltage.
K
: correction factor
q0 : load at the calibrator
K = q0 / q0m
q0m : load read at the measuring instrument
Application of the test
After the calibration operations are completed, the calibration generator is taken away from the
measuring circuit. When the power system is connected (supply generator switch is closed), the
voltage level will be too low (remenance level). This value which is considered as the base noise
(interference) level of the measuring system should be less than half of the guaranteed partialdischarge level.
Voltage level

The voltage is substantially increased up to the level stated by the specifications and in the meantime
the partial-discharge values at the predefined voltage levels are measured at each measuring terminal
and recorded. The voltage application period, level and measuring intervals are given in the induced
voltage test section.


Transformer Tests
Page :

20

After the transformer is energised for measuring operations, the partial-discharge value read at the
measuring instrument is multiplied with the predefined K correction factor, and real apparent partialdischarge value for each terminal is found.
q = K . qm

qm
K
q

: load read at the measuring instrument
: correction factor
: Real apparent load

Evaluation
The test is considered to be succesful if the partial-discharge value measured at the transformer’s
measuring terminals is lower than predefined values or values stated in the standards and no
increasing tendency is observed during test.
In addition to the measured partial-discharge level, the below conditions should also be considered in
transformers:


Partial-discharge start and cease voltages are above the operating voltage.



Depending on the test period, partial-discharge level stays approximately stable.



Increasing the test voltage causes almost no partial-discharge level change.


Transformer Tests
Page :

21

9 - On-Load Tap Changer Tests
After the on-load tap changer is mounted on the transformer, the below listed tests are applied at
100% rated auxiliary voltage (excluding item b);
a)

When there is no voltage at the transformer, operate the tap changer 8 times through the
whole adjustement range

b)

When there is no voltage at the transformer, operate the tap changer once through the whole
adjustment range at the 85% of the auxilary rated voltage

c)

When the transformer is at no-load condition, operate the tap changer once through the
whole adjustment range at rated voltage and frequency

d)

When one of the windings is short-circuited and the other winding is loaded with rated current
as far as possible, operate 10 times 2 taps at both sides of the rated tap position


Transformer Tests
Page :

22

10- Temperature-Rise Test
Temperature-rise test is a type test. The oil and winding temperatures are tested whether they are in
accordance with both standards and technical specifications or not.
The connections during test, technical specifications of test and measuring instruments are explained
in section 3 load losses and section 2 measuring winding resistances.
A simplified temperature distribution is shown in figure 10-1.

θo

θo

θo

θci

Top oil exit

θg

C
LV

Ave. Oil temp.

HV

θhs

θwmax

θo

θw
Av. Wind.temp

Bottom oil inlet.

θo

θco
θa

θo
∆θo
θa
θw
∆θw
θci
θco
θwmax

θwo

Temperature rise

θ

= Cooler

θoavg
∆θwo
∆θoavg
θhs

θw

= Maximum oil temperature (under cover)

C

Bottom of wind.

= Average oil temperature

= Maximum oil temperature rise ∆θo
= Ambient temperature

= θo - θa

= Average winding temperature
= Average winding temperature rise
= Input temperature to cooler

∆θw = θw - θa

= Exit temperature from cooler
= Maximum winding temperature

= Temperature difference between winding and oil
= Average oil temperature rise
= Hot - spot temperature

Figure 10.1: Simplified temperature distribution of a transformer


Transformer Tests
Page :

23

a) Performing the test

During this test make sure that the transfomer is away from especially outside effects (hot or cold air
flows).
The power, voltage and current (which should be recorded during test) measuring principles are the
same as section 3 measuring load losses. Unless otherwise requested by the customer, the
temperature increase test is made at the highest loss and current ranges.
Since the transformer temperature risings and ambient temperatures should be recorded during test,
thermometers are placed in the thermometer pocket on the transformer cover, at the cooler inlet and
exit and 1 or 2 meter away from the transformer. Before starting the test, while the transformer is cold
(windings are cold and in balance), the temperatures at these thermometers are measured and
recorded. The winding temperature is also measured and recorded before starting the test (cold
resistance). To reach the operating condiitions, the transformer is placed at the tap position where
maximum losses occur. At this condiditon it is supplied with enough current and voltage to cover the
short-circuit losses and no-load losses at this tap position.
Whenever appropriate, the cooling system is shut down temporarily for a while to shorten the 1st step
of the test for a few hours.
The transformer is loaded with a total calculated from no-load and load losses. In multiple winding
transformers, if the power of one of the windings is equal to the total power of other windings, the
loading should be made with the total windings’ loss.
The maximum current and voltage values during supply are as follows;

Supply Current: I

b

 IN 

Po  P
k
P
k

Supply Voltage:

U U 
b
k

Po  P
k
P
k

Here :

IN = Test current (the current at the tap which the test is performed),
P0 = No-load loss , PK = Load loss
Temperature rising test is performed in two steps:
1) Supplying with total losses ( 1st step of test ) :
The step where total losses are supplied is continued until the difference between the top oil
temperature rising and the ambient temperature becomes saturated ( is continued until the
difference between top oil temperature and ambient temperature stays below 1C for 3 hours ).
This step is called 1st step of the test. During this, the supply values of the transformer, all oil
temperatures and ambient temperature should be measured at appropriate time intervals.
2) Supplying with rated current ( 2nd step of test ) :
After the top oil temperature rising is saturated, the transformer is loaded with IN (the current at
test tap position) current for 1 hour. Meanwhile, all oil temperatures and ambient temperatures are
measured. After this 1 hour period, the supply is stopped and the circuit is opened (this step is
called the 2nd step of the test) and after the circuit is opened, resistance is measured quickly and
the cooling curve of the winding is formed, and then by extrapolation of the resistance-time curve,
the resistance value at exactly the opening moment of the circuit is found.
After the supply current is stopped, during resistance measurement, the fans and pumps are kept
running (if any) ( according to IEC 60076-2 ).


Transformer Tests
Page :

24

b) Measuring the ambient temperature (cooling air or water temperature)

In air cooled transformers, the air temperature around the transformer should be taken as ambient
temperature. According to standards, air temperature is measured by 3 thermometers or thermo
elements distributed around the transformer. Measuring is performed in oil inside a container which
has a 2 hour time-constant. The containers should be protected against extreme air flow and heat
waves. The containers should be placed at three sides of the transformer, 1 – 2 meter away from the
transformer and at half height of the coolers. If the transformer is being force cooled (by fans), the
forced air inlet should be measured as ambient temperature. The cooling media is measured in the
thermometer pocket at the cooling water inlet.
The cooler ambient temperature (cooling air or water temperature) is measured every ½ or 1 hour and
recorded and is used in average temperature rise calculations at the last quarter of the test.
c) Calculating the temperature rise of the oil

The top oil temperature can be measured in the thermometer pocket which is on the transformer
cover. The difference between maximum measured temperature and ambient temperature is ∆θt .

θ

oavg

1
 θ   (θ  θ )
o 2 ci
co

∆θo = θo - θa

average oil temperature

average oil temperature rise

The cooler inlet and exit temperatures are measured by thermometers insulated against ambient air
and placed at the cooler pipes. In a transformer with seperate cooler, the oil inlet-exit temperature
difference is measured at inlet-exit pipes near transformer tank.
If during the test, the transformer under test can not be supplied with enough current to cover the total
losses due to insufficiency of the laboratory power supply, the difference (test losses being not less
than 80% of the total losses) shall be calculated as below;

P
 Δθ
 n
Δθ
on
om  P
 m






X

∆θon = temperature rise at total losses Pn
∆θom = temperature rise at test losses Pm ( at measuring losses)

X = for distribution transformers 0,8 ( natural cooling, power
<2500 kVA)
For ON..- cooling 0,9 OF. And for OD..cooling 1,0

d) Measuring the temperature rise of the winding

After the oil temperature has reached saturation, the transformer is loaded with IN rated current for 1
hour. This time is considered to be necessary for adapting the balance condition between winding and
oil, to operating state. After this time, the loading is finished and the circuit is opened and the
resistance of the winding is measured for some time to form the cooling curve.
The heating of the winding is calculated with the below equation;

R
θ  2 (235  θ )  235
2 R
1
1

θ2 : Temperature of the winding when the circuit is opened
θ1 : Average oil temperature at he beginning of test (cold case)
R2 : Resistance at temperature θ2 ( hot case )
R1 : Resistance at temperature θ1 ( cold case )

Not: For aluminium winding, 225 should be used instead of 235.


Transformer Tests
Page :

25

Supplying with IN rated current for one hour is defined as 2nd step of the test. The oil temperature will
decrease a little during this time. The relation between the winding and average oil temperature should
be calculated according to below equation..

∆θwo

So:

= θ2 -

θo (IN ) .

∆θwo

: temperature difference between the winding and the oil

θ2
θo (IN )

: winding temperature ( temp.at the circuit opening moment from cooling curve )
: average oil temperature after supplying with ( 2nd step of the test) IN for 1 hour

θy (IN ) temperature

; the calculation of oil heating is made according to the method in item c).

The difference between the winding and oil temperatures at the 2nd step of the test:

When the difference betwen the oil and winding temperatures ∆θsy, is added to the θy, which is in
pargraph c) (supplying with total losses), ∆θs average winding temperature is found:

∆θw = ∆θwo + ∆θo
In cases where IN rated current can not be reached due to insufficiency of the laboratory supply, the
difference between winding and oil temperatures ∆θwo can be corrected as below:

I
Δθ woN  Δθ wom   N
I
 m






y

∆θwoN : winding-oil temperature difference at rated
current

∆θwom : winding-oil temperature difference at test
current
y...exponent : ON and OF cooling = 1.6
OD cooling = 2.0

A maximum temperature formed at any part of the winding insulation system is defined as “ hot–spot
temperature “ and this value is a parameter showing the heat load limit of the transformer.
Winding hot-spot temperature rising is calculated a below:

θhs= θo +Khf . ∆θwo

Khf : hot – spot factor

Hot – spot factor; it can be taken as 1.1 for distribution transformers and 1.3 for power transformers
( according to IEC 60076-2 ).
When the transformer is loaded with total losses at the 1st step of the test, if the test frequency is
different than rated frequency, there is no need to make a correction (the required load to heat the oil
is defined with total losses). However, for loading with rated current for 1 hour at the 2nd step of the
test, correction has to made according to below equation :

2
f
Pdc + N f
Pac
m
Im = IN
Pdc + Pac

Im : test current
IN : rated current
Pdc : direct current loss

fN : rated frequency
fm : test frequency
Pac : additional loss


Transformer Tests
Page :

26

11- Lightning Impulse Test
Impulse test are applied to transformers to confirm their withstand against atmospheric lightnings and
transient extra voltages during switchings. As explained in section 5, these tests are defined as type or
routine test depending on the operating voltage levels.
Power transformers used in high voltage networks have to face atmospheric discharges (lightnings).
The amplitudes of lightning excessive voltages always depend on impulse current and the impulse
impedance at the place of the lightning. This value can reach a few times of the transformer winding's
operating voltage.
Impulse voltages are formed by an "impulse voltage generator" at laboratories. For oil type
transformers; in general, the impulse wave is defined as negative (-) polarity in many standards and
it's shape at the line terminal should be as “ Tfront / T tail =1.2 ± 30 % / 50 ± 20% μS ”. Other than this
shape which is defined as full wave (Figure 11.1), the chopping time should be (Figure 11.2) between
2....6 S for chopped wave at the tail.

V

U(t)

T1 = 1.2 ± 30 % μS
T2 = 50 ± 20% μS

1,0
B

0,9

0,5
U0

A

0,3

T1 = 1,67 T
0

O’’

t (s)

T
T1

T2

Figure 11.1 : Full wave lightning impulse

V

U(t)

1,0

E

B

0,9
0,7

C
0,7 U0

A

0,3

D
O’

Tc

t (s)

Figure 11.2: Tail chopped lightning impulse


Transformer Tests
Page :

27

Lightning impulse voltages are applied to each one of the line terminals sequentially, at the amplitude
level, with number and method defined in the standards/specifications. During test, the windings which
voltage is not applied should be earthed directly or through a small resistance (Figure 11.3 and 11.4).
In three phase transformers, if not requested by the customer to have the test at a special tap position,
the test is performed at main tap, maximum and minimum tap positions, each phase being tested at a
different tap position.
In the small inductance, low voltage windings of high power transformers, sometimes the half timevalue can not reach the time stated in the standards. In such cases, the half time-value can be
increased by connecting an appropriate resistance between untested windings and earth. According to
IEC 60076-3 standard, this resistance should be choosen such that, the voltage of these terminals in
reference to earth should not be more than 75 % of the test voltage of these terminals and maximum
resistance value should be 500 .

A

B

C

RS
CS

N

RP
M.H.
a

b
Rw

Impulse generator

c
M.H.

Transformer under Test

Rw

Measuring
hardware
M.H.

Measuring hardware

Figure 11.3: Lightning impulse test connection diagram
Although changing according to place of use and aims, the most popularly used voltage divider is
“resistance damped capacitive voltage divider”.
Non-inductive, pure ohmic resistance is used for measuring impulse currents. Their values usually
range from 0,1  to 20 .
Coaxial cables are used to transfer the measurement signals to measurement equipment (digital
measuring system).
If chopped-wave is to be used, a chopping device is added to the impulse circuit. In impulse voltage
circuits generally a multiple chopping device is used.
At first, an oscillogram defining a voltage form at 50% of the test voltage is used. After the form stated
in the standards is obtained, a low amplitude “reference impulse” with 50% of the test voltage is
applied and then “full impulse” at 100% value with number and order stated in the standards is
applied.
The amplitude values of the applied voltages are determined at a digital measurement system through
a “voltage divider”. Also, the oscillograms of the applied voltage change through time and changes of
capacitive current flowing from tested winding to earth or from un-tested winding to earth are recorded.


Transformer Tests
Page :

28

The most popular and useful methods defined in the standards for evaluating the impulse voltage tests
is matching of the oscillograms. This means, the low amplitude (%50......%75) reference wave and full
amplitude (%100) wave oscillograms should match without any difference.
The arrangement of the test circuit, the effects caused by external interferences and/or earthing
arrangement can sometimes cause mismatching of the oscillograms. These should not be considered
as fault.
Some of the connection circuits used in lightning impulse test are given in figure 11.4.

2U

1U

1.1

1U

1.1

2.1

1V

1W

2.1
RW
1V
M.H.

2V

2V
R

Rm

M.H.

RW
2

M.H.

1N

M.H.

Rm

Rm

M.H.

Rm

Rm

1V

1N

1W

M.H.

1U

RW

Rm

1N

RW

RW

1.1

1V

1U

Rm

2.1

1W

M.H.

Rm

M.H.

1U

1V
1V

RW1
1V

1W

1U

1U

M.H.

Rm

RW1

1W

1W

M.H.

M.H.

Rm

Rm
RW2

RW2 RW2

Figure 11.4: Impulse test connection examples for single and three phase transformers


Transformer Tests
Page :

29

The time differences of the impulse generator stages can cause high frequency oscillations in the first
parts of the impulse wave front.
Small differences of the cutting time can cause deviations (changes) on the wave after cutting. These
should not be taken as fault conditions.
If impulse voltage is required at the technical specifications, impulse applying to this point is given in
standards in two ways:
a) Applying a voltage to the parallel connected line terminals which will cause the defined impulse
voltage amplitude at the neutr point.
b) Applying the defined impulse voltage directly at the neutr point.
As defined in paragraph “b”, when an impulse is applied at the neutr point, a voltage form with longer
front time (up to 13 S) is allowed in IEC 60076-3 standard.


Transformer Tests
Page :

30

12- Switching Impulse Voltage Test
The switching impulse test is applied to confirm the withstand of the transformer’s insulation against
excessive voltages occuring during switching. During switching impulse voltage test, the insulation
between windings and between winding and earth and withstand between different terminals is
checked..
The switching impulse voltage is generated in conventional impulse voltage generators at the
laboratories. The polarity of the voltage is negative and the voltage waveform should normally be T1 /
Td / T2 20/200/500 S /figure 12.2) according to IEC 60076-3.
Due to over-saturation of the core during switching impulse test, a few low amplitude, reverse polarity
(e.g. positive) impulses are applied after each test impulse in order to reset the transformer core to it’s
starting condition (demagnetised). By this way, the next impulse voltage waveform is applied
The tap position of the transformer during test is determined according to test conditions (see section
5)
The on-off impulse voltages are applied to each high voltage terminal sequentially. Meanwhile, the
neutral terminal is earthed. The windings which are not under test are left open (earthed at one point).
This connection is simlar to the induced voltage test connection. The voltgae distribution on the
winding is linear like the induced voltage test and the voltage amplitudes at the un-impulsed windings
are induced according to the turn ratio. Meanwhile, necessary arrangements should be made since
the voltage between phases will be 1,5 times the phase-neutral voltage.
The test circuit connections of three phase transformers depend on; structure of the core (three or five
legged), the voltage level between phases and the open or closed state of the delta winding (if any).
At first, a voltage with 50 % decresed value is used at the tests, then impulse voltages at full values
and at numbers given in standards are used. The peak value of the voltage is measured. The change
of the voltage waveform and winding current are measured with a special measuring instrument and
recorded. The negativities in the transformer during the test are determined by comptring the voltage
and current oscillograms. The sudden collapses of the voltage (surges) and abnormal sounds show
deformation of the insulation in the transfomer. The deformation of the voltage waveform and increase
in noise due to magnetic saturation of the core should not be considered as fault.

A

B

C

RS
CS

N

RP
H.D.
a

b
R

Impulse generator

c
H.D.

Transformer under Test

R

Measuring
Hardware
H.D.

Measuring Hardware

Figure 12.1: Switching on-off impulse test connection diagram


Transformer Tests
Page :

31

Switching Impulse Voltage Waveform :
Front

: T1 ≥ 100 µS = 1,67 T

90% value

: Td ≥ 200 µS

Time for cutting the axis : T2 ≥ 500 µS

T2
O1

T1

Td
t

%30

%90

T1= 1,67 T

Voltage

%100

Current

t

Figure 12.2: Switching impulse voltage waveform


Transformer Tests
Page :

32

13- Measurement of dissipation factor (tan ) and capacitance
The capacitance and dissipation/loss factor (Tan  / cos ) measurement are made to determine the
insulating condition of the transformer’s both winding to earth and between the windings, and to form
a reference for future measurements during operating the transformer.
There is a small amount of insulating loss in all insulators used in transformer applications at normal
operating voltage and frequency. In appropriate insulators, this loss is very small. This loss changes in
direct proportion with the “ square “ of the applied voltage. The insulator and equivalent diagrams are
given in figure 13.1.
V1 = U

I

I
C
U

IC

IR

1
R
G

I

Ic



V

V2 = 0

a)

Figure 13.1
diagram

a) Insulator

b)

b) equivalent circuit

IR

c)

c) vector

As seen in figure 13.1, the angle  ’between the total current “ I ” and capacitive current “IC ” allows to
make evaluation about the loss properties of the insulator
The loss angle  , depends heavily on the thicknness of the insulating material and surface condition,
structural property of the insulator, type of the material, (humidity, foreign materials/particles, air gaps,
etc. which cause ionisation the insulating material).
The conditions which increase the power losses of the insulator also decrease the insulation strength.
For this reason, loss angle measurement is a very valuable criteria for evaluating the insulation
material at a defined operating frequency. Periodical measurements made during operating are also
important to show the general condition of the insulating material. In this way, it is possible to gather
information about aging of the solid insulating materials and degradation of the oil.
The active loss of the measurement circuit can be calculated according to below equation:

P= UICos  = U 2. C. ω.tan 

( it is accepted that in very small angles, Cos  will be equal to tan  )
Capacitance, tan , active loss and Cos  can be measured by bridge methods at defined voltages or
by a “power factor” (Cos ) measuring instrument.
The measurement is made between windings and between the windings and the tank. During the test,
the temperature of the transformer should also be recorded and corrected in accordance with the
reference temperature.
The loss factor depends heavily on temperature. For this reason, in order to make comparisons later,
it has to be converted to reference temperature (for example 20 C reference temperature ) by a
coefficient.


Transformer Tests
Page :

33

Correction equation :
F20 = Ft / K
F20 : loss factor at 20  C temperature
Ft

: loss factor value at t measuring temperature

K : correction factor is given in the table.
Since extreme humid, rainy and cold conditions shall effect the results of the transformer negatively,
measurement should be avoided

Table
Measurement
temperature
[ C ]

Correction
factor [K]

Measurement
temperature
[ C ]

Correction factor
[K]

10

0,80

45

1,75

15

0,90

50

1,95

20

1.00

55

2,18

25

1,12

60

2,42

30

1,25

65

2,70

35

1,40

70

3,00

40

1,55

Note : Only for trans. With mineral
oil


Transformer Tests
Page :

34

14- Measurement of zero sequence impedance(s)
The aim of the test is to measure the properties of the mains system transformer in case of
unsymmetrical loads and to make required calculations.
By definition, the zero impedance “Z0” ; is three times the impedance measured by forcing a current
at the rated frequency between parallel connected phase terminals and star point, in star or zigzag
connected windings as seen in figures 14.1 and 14.2.

Zo  3 

Uo
I

/phase

Zero impedance is used in short-circuit protection and earth short-circuit current calculations.

A

I
G

U0

B
C

I

I/3

I/3

I/3

N
A

a
b

c
n

V

Figure 14.1:No-load zero impedance measurement connection diagram
The zero impedance depends on the connection of the transforrmer and structural property of the
transformer. The zero impedance consists of R0 real and X0 imaginary parts. Here, since R0 << X0,
R0 is negligible. In this case, the zero impedance equals zero reactance.
Zero imopedance can only be measured in windings with star point taken out. Measurement is made
at the rated tap position and with the active part assembled in the tank. The zero impedance of delta
connected windings and windings with the star point not possible to take out, is infinite in magnitude.
If the other winding of the transformer is delta connected or if there is a delta connected balance
winding, the star point of the star (or zig-zag) connected winding can be loaded with maximum rated
current during Z0 impedance measurement. Meanwhile, it is seen that the U0 test voltage is 15% to
27% of the rated phase-neutr voltage of the transformer. In cases where there is no counter magnetic
current, for example in start-star connected, three legged transformers with no balancing winding, this
test current should be maximum 0,3xIN in order to avoid excessive heating of the constructive parts.
In transformers with both windings star connected and the star points taken out, there are two different
zero impedances.
1 ) No-load zero impedance Z00
While one of the star connected windings is measured, the ends of the other winding is kept open.
Figure 14.1


Transformer Tests
Page :

2 ) Short-circuit zero impedance

35

Z0K

While one of the star connected windings is measured, the ends of the other winding and the
star point is short-circuited. Figure 14.2

A

I
G

U0

B
C

I

I/3

I/3

I/3

N
A

a
b

c
n

V

Figure 14.2: Short-circuit zero impedance measurement Y-Y winding

The zero impedance can also be expressed as percentage. In this case;

zo  Z o 

IN
UN

z0 = relative zero impedance (%)
IN = Rated phase current
(A)
UN = Phase-neutral rated voltage
(V)
Z0= Zero impedance
( / phase)


Transformer Tests
Page :

36

15- Determination of sound level
Aim of measurement; To confirm that the sound (noise) level of the transformer and related
equipments meet the customer’s demands and/or standards
Explanations about transformer noise is given in IEC 60076-10.
Main causes of a transformer noise is explained below :
1) Core noise ; caused by the magnetic forces between magnetositriction and core sheet steel
2) Noise of the transformer’s load (current) ; caused by current passing in the windings, and by
electromagnetic forces formed at the magnetic screenings at the tank walls..
3) Noise of the cooling equipments ; caused by fans and pumps of the cooling system.
An effective and important noise source is the core of the transformer. The noise of the core depends
on the magnetic property of the core material (sheet steel) and flux density. The sound frequency is
low (twice the rated frequency). The magnetic forces formed in the core cause vibration and noise.
The load noise occurs only on the loaded transforrmers and is added to the no-load (core noise ). This
noise is caused by the electromagnetic forces due to leakage fields. The source of the noise are tank
walls, magnetic screenings and vibrations of the windings.
The noises caused by the core and windings are mainly in the 100-600 Hz frequency band.
The frequency range of the noise ( aerodynamic/air and motor/bearing noise ) caused by cooling fans
is generally wide. The factors effecting the total fan noise are; speed, blade structure, number of fans
and arrangements of the radiators. The pump noise is not effective when the fans are working and it’s
frequency is low.
During noise measurements below precautions are very important to ensure the accuracy of the
results :
 The transformer should be placed in a room with minimum echo properties. It should be placed
on a base with no direct vibrations or should be placed on wheels. All mechanical
components/equipments on the transformer should be fixed to avoid vibration with the
transformer.
 During measurement, the transformer should be supplied at rated voltage and rated frequency.
Microphone positions :
If the height of the transformer under test is less than 2,5 m, the microphone position should be at half
height.. If the height of the transformer is more than 2.5 m, measurements should be made at 1/3 and
2/3 heights.
If only the cooling equipments are operating, the microphone position is; at half height for cooling
equipments which are taller than 4 m, at 1/3 and 2/3 height for cooling equipments which are shorter
than 4 m height.
Measurements should be made all around the transformer. There should be maximum 1 m distance
between two measurements.


Transformer Tests
Page :

37

The distance of the microphone from the main radiating surface :
a)

If the coolers of the transformer are not operating or if the coolers are more than 3 m away from
the transformer, the microphone should be 0,3 m away from the main radiation surface.

b)

If the transformer cooling system is operating (while the pumps and fans are working), the
microphone should be 2 m away from the main radiation surface. The transformer is energised as
below ;

1.

only the transformer is energised. The cooling equipments and oil circulation pumps are out of
service.
transformer is energised. The cooling equipments and the oil pumps are in service.
transformer is energised. The cooling equipments are out of service, oil pumps are in service.
transformer unenergized, cooling equipment and any oil pumps in service.

2.
3.
4.

Before starting the measurement procedure, the back ground noise level of the measurement room
should be determined. If there is more than 8 dB (A) difference between back ground noise level and
transformer noise level, no correction of the transformer’s noise level is required.
If the difference is between 3 dB (A) and 8 dB (A), a correction is required according to standards. If
the difference between the back ground noise level and transformer noise level is less than 3 dB, a
measurement is not necessary.
The correction factor for the back ground noise level’s effect on transformer’s noise level according to
IEC 60076-10 standard is given in below table and equations:
Difference between back ground
Difference between the back ground noise before measurement and back
noise and the transformer noise
ground noise after measurement

L pA0  maximum L bgA

first L bgA  last L bgA

comment

≥8 dB

-

Measurement OK

< 8 dB

< 3 dB

Measurement OK

< 8 dB

> 3 dB

Measur.must be repeated

< 3 dB

-

Measur. must be repeated

A- The average sound pressure level corrected by weight is calculated according to below equation :
 0,1 L
pA0 - 10 0,1 LbgA
LpA  10 log 10




 -K



: the smaller of the average back ground noise levels
L
bgA
L

K

pA0

: average measured noise level
: ambient noise corection factor

The ambient correction value “K “ depends on the properties of the materials around the noise source
and the sound absorbtion properties of the measurement room and calculated as below :
 4 
K = 10 log [1 + 
]
A = α S v
 A/S 



Transformer Tests
Page :

38

S : Main propagation area at measurement distance
αaverage sound absorbtion coefficient (see IEC 60076-10 table 1 )
SV : all surface of the test room including ceiling, floor and walls
Factors effecting the measurement results :
1. Internal effects about the structure of the transformer ( measuring frequency, flux/induction
at the core, mass, sheet steel quality of the core and operating type )
2. External effects :


( measuring distance ) is one of the main factors effecting the noise level. According to
acoustic laws; the sound pressure level decreases in linear proportion with the square of
the distance “ d “ from the defined source (equivalent centered sphere ). For example,
if the sound level is measured in 2m, sound level in a “d” distance is ;

Lp(d ) = Lp ( 2m ) – 20. log ( d / 2 ) here ;


d should be taken in meters.

The sound level changes by the square of the frequency :

Lp ( f ) = Lp ( 50 ) + 20. Log ( f / 50 )

For example, if a 60 Hz transformer is measured at 50 Hz, below value should be
added to the noise value at 50 Hz ;
∆Lp = 20.log ( 60 / 50 ) = 1,6 dB should be added.


For measurements made at voltages other than rated voltage, the noise pressure level
is corrected according to the equation below:
∆Lp = 40.log ( Ua n m a / Ut e s t )
For example, If a 420 kV rated voltage transformer is supplied with 410 kV voltage, the
below value is added to the measurement results.
∆Lp = 40.log ( 420 / 410) = 0,42 dB ≈ 0,5 dB


Transformer Tests
Page :

39

8

3
5
X
D

7

9

1- Horizontal air cooling
2- Natural cooling
3- Dome
4- Tansformer tank
5- Cable box
6- Measurement profiler
7- Sound propagation surface
8- Tap changer
9- Vertical forced air cooling
h- Tank height
x- Measurement distance
D- Microphone distance

6
1

2
4

7

h

Figure 15.1: Microphone locations for measuring noise level in transformers with cooling equipment
mounted on the tank

3

1

4

< 3m

h

D

X
2

1- Sound propagation surface
2- Measurement profile
x- Measurement distance
3- Transformer tank
h- Tank height
4- Forced air cooling

D- Microphone distance

Figure 15.2: microphone locations for measuring noise level in transformers with a seperate forced air
cooling equipment closer than 3 meters.


Transformer Tests
Page :

40

16- Measurement of harmonics of the no-load current
They are measured to use whenever necessary during the operating of the transformer.
In general, the ratio of harmonic currents in the rated current is less than 1%. The amplitude of the
harmonics component depends on the property of transformer’s core material, induction degree, core
design, connection of windings and impedance of the transformer’s supply circuit.
The measurement of current and voltage harmonics are done during the no-load losses and currents
measurement (section 4) by the same test connection. The measurement circuit connection diagram is
given in figure 16.1.
The supply voltage of the transformer at the test laboratory should be sinusoidal. Beause of the
possible defects in the no-load cuurent, the supply voltage may devaite from sinus wave. To avoid
this, the test generator and the connections of the test transformer should be appropriate and should
make sure that they are at the lineer operation area of their magnetic characteristics. The
measurement currents and voltages are connected to the analyser through measurement current and
voltage transformers. Because of this, the operation areas of the measurement transformers should
also be linear. By this way, the measurement transformers will not produce harmonics.
The measurements are repeated for each of the three phases. The measurements are usually made
at the strongest harmonics (3., 5., 7., and 9.).
The effective value of the no-load current:
n

I

I eff 

i 1

2

. Here Ii : Values of harmonics currents

i

A

a

3

3

B

b
c

1
2

C
n

4

A

A

A
A

W
W

W

N
6

v

W

v
v

5

1- Power supply
5- Harmonics Analyser / Power Analyser
6- transformer under Test
3- Measurement Current Transformers 4- Measurement Voltage Transformers

Figure 16.1: Harmonics measurement connection diagram


Transformer Tests
Page :

41

17- Measurement of insulation resistance
The insulation resistance measurements are made to determine the insulation conditions of the
transformer's windings to earth, between windings and to form a reference for future measurements
during operating.
During measurement the currents (charge, absorbtion and leakage currents) flowing in the resistance
formed by the insulator are measured. This current changes heavily according to humidity of the
insulator, foreign materials in the insulator and temperature.
By comparing the results obtained in insulation resistance mesurements with periodical
measurements, the insulation condiitons can be evaluated. For comparison they have to be at the
same temperature (e.g. 20C reference temperature).
In insulation resistance measurements about the insulation state of the transformer, “the method of
variation of resistance by test period” is one of the best methods to apply since it is simple and
accurate.
The insulation resistance is measured with a measuring instrument. The test voltage is “direct voltage”
and can be between 1000 V d.c. and 5000 V.d.c.
The measuring points are "between the windings and between winding and tank", the hard to measure
places can be connected to the “Guard” circuit of the instrument to have more accurate results.The
temperature and humidity during test should also be recorded.
The values at 15th sec, 30th sec, 45th sec and 60th sec and 10th min. after the voltage is applied,
should be recorded. Also, the ratio of insulation resistance in 60th sec ( R60 ), to insulation resistance
in 15th second (R15) can be given as absorbtion ratio in the test report. Also, the ratio of the value in
10th minute to value in 1st minute can be given as “ polarisation index ( PI ) “.
The correction factor of values (by multiplying) measured in transformer oil temperature according to
20 C reference temperature is given in below table:
N

A

B

C

−

M : D.C. Power Supply ( Megger )
G : Guard / Shield end
T : Transformer tank

M

═

G
T

+
n

a

b

c

Figure 17.1 : Measuring insulation resistance in a YNyn0 transformer
Measuring
Temperature

C
-10
-5
0
5
10
15
20
25
30

Correction
factor

0,13
0,18
0,25
0,36
0,50
0,75
1,0
1,40
1,98

Measuring
Temeperature
C
35
40
45
50
55
60
65
70
75

Correction
factor

2,80
3,95
5,60
7,85
11,20
15,85
22,40
31,75
44,70


Transformer Tests
Page :

42

Power Transformers Test Laboratory I ( OSB Lab. I )
ROTATING MACHINES
Generator I

:

S
U
I
f

= 10.000 kVA
= 6.000 V
= 962 A
= 50-60 Hz

Motor I

:

P = 2500 kW

Asynchronous

Generator II

:

S
U
I
f

synchronous

Motor II

:

P = 1000 kW

= 3.000 kVA
= 6.000 V
= 289
= 100-180 Hz

synchronous

Asynchronous

TEST TRANSFORMERS and REACTOR
Transformer :

S
U
I
f

= 15.000 kVA
= 6.000(6.600) / 2.028 -111.500(122.300) V
= 1443 A / 975........78 A
= 50-180 Hz

Reactor :

S
U
I
f

= 3.000(4.500 ) kVAr
= 6.000(6.600) V
= 285 ( 428 ) A
= 100-180 Hz

COMPENSATION CAPACITOR BANKS

A total of 151,2 MVAr with 252 groups of each 600 kVAr with rated voltage 12 kV capacitors.
Total Rated power

: 151.200 kVAr

INDUSTRIAL VOLTAGE TEST EQUIPMENTS
HV. Series Resonant System :

U = 600 kV( 2x300 kV),
S = 2.400 kVA
I = 4 A (2xparalel 8 A )
Manufacturer: Hipotronics

1- Phase
f= 50 Hz

Capacitive Voltage-Divider :

800 kV/0,1 kV 50180 Hz
Yapımcı firma: Hipotronics

Peak-Voltmeter :

U / 2  U eff
Voltmeter
Class 0,5 50180 Hz
Manufacturer: Hipotronics

HV Filters :

70 kV, 50 A, 3 pcs
Manufacturer: ISOFARAD


Transformer Tests
Page :

43

TRANSFORMER LOSS MEASURING SYSTEM
Current Channels :

5 ÷ 4.000 A / 5 A
Class 0,1, 100 kV, 50/60 Hz-150 Hz
Manufacturer: Haefely, TMS 580

Voltage Channels :

100 ÷ 100.000 V/100 V
Class 0,1, 50/60 Hz-150 Hz
Manufacturer: Haefely TMS 580

IMPULSE VOLTAGE TEST EQUIPMENTS
Impulse voltage generator:

Number of stages :
Max. Stage Voltage :
Max. Total Voltage :
Max. Total Power :
Cap. of each stage :
Manufacturer
:

n = 12

U L = 200 kV
U= 2400 kV
W= 240 kJ
C= 1 F
Haefely

Multiple Chopping Device:

12-stage
Capacitance
: 7200 pF/Stage
Lightning Impulse Voltage : 2400 kV
Manufacturer
: Haefely

Voltage Divider:

R-Damped- Capacitive Divider
Switching Impulse Voltage: 1300 kV
Capacitance
: 350 pF
Manufacturer
: Haefely

Digital Impulse Meas. System :

High Resolution Impulse Analysing System 4 Channels
Accuracy
: 1%
Type
: HIAS-743
Manufacturer
: Haefely

MEASURING BRIDGES and MEASURING INSTRUMENTS

Press-Gas Capacitor:

Type
Accuracy

: 2801
: 0,5%

Capacitance
tan 
Manufacturer

Schering Measuring Bridge :

: 0...... 10 F
: 0...... 350%
: TETTEX

Capacitance
Voltage
Manufacturer

: 50 pF
: 400 kV a.c.
: TETTEX

5

Turn Ratio Measuring Instrument: Type
Accuracy
Measuring range
Manufacturer

:
:
:
:

TR-MARK II R
0,05%
0,8.........13000
RAYTECH

Resistance Measuring Instrument:Type
Accuracy
Measuring range
Manufacturer

:
:
:
:

WR 100-R 2
0,1%
-6
5
10 10 
RAYTECH


Transformer Tests
Page :

Digital Thermometer:

20 Channels programmable
Type
: 2620
Manufacturer
: FLUKE

Partial-Discharge:
Measuring Instrument

Frequency
: 0,1 kHz  10 MHz
Measuring range : 0,1 pC.......100000 pC
RIV
: 850 kHz and 1 MHz
Type
: ICMsys8
Manufacturer
: Power Diagnostix

Insulation-Resistance:

Voltage
: 5000 V. d.c.
Measuring range
: 15 T
Type
: MIT 510
Manufacturer
: MEGGER

Sound Level:

44

Measuring instrument : type 2250 B
1/3-1/3 oktav filtre : type BZ 7223
Microphone
: type 4189
Calibrator
: type 4231
Manufacturer
: BRUEL & KJAER
-2

Vibration Measuring Instrument: Measuring range : 1 – 1000 ms , 10 Hz.......1 kHz
Type
: 5500
Manufacturer
: METRIX INSTRUMENT CO.
Loss Factor:

Measuring range : 0  12 kV
Type
: M2H-MCM
Manufacturer
: DOBLE Engineering Company

Ossiloscope:

4- Channels
Type
Manufacturer

: 2014
: TEKTRONİX

Corona Detector:

Type
Manufacturer

: ULD-40
: HOTEK

Thermal Camera:

Type
Manufacturer

: Ti 25
: FLUKE


Transformer Tests
Page :

45

Power Transformers Test Laboratory I (ASB Lab. I )
ROTATING MACHINES
Generator

:

S = 330 kVA
U = 500 V
I = 381 A
f = 50 Hz

synchronous

Motor

:

P= 300 kW

Asynchronous

Generator

:

S= 500 kVA
U= 800 / 1400 V
I = 361 / 206
f = 150 Hz

synchronous

TEST TRANSFORMERS
Transformer :

S = 4700 / 1000 / 4700 kVA
U = 34500 / 800-1400 / 64000 V
I = 79 A / 721........412 A / 42 A


A total of 22,5 MVAr with 45 groups of each 500 kVAr with rated voltage 6 kV and total of 22,5 MVAr
with 90 groups of each 250 kVAr with rated voltage of 3 kV capacitors.
Total Rated power

: 45.000 kVAr

REACTORS
Reactor I :

S = 3x(24-240) kVA; 50 Hz;
U = (200-800 V-∆) (200√3-800√3 V-Y)
I = 120-2080 A

Reactor II :

S = 1000 kVA; 150 Hz;
U = 800 V
I = 722 A

INDUSTRIAL VOLTAGE TEST EQUIPMENTS
H.V. Test Transformer :

U= 350 kV/0,4 kV, 1- Phase
S= 75 kVA
I= 0,2 A/ 188 A
f= 50 Hz
Manufacturer: Messwandlerbau-Bamberg


350 kV/0,1 kV 50200 Hz

Peak-Voltmeter :

U /

2  U eff

Voltmeter
Class 0,5 50200 Hz
Manufacturer: Messwandlerbau – Bamberg


Transformer Tests
Page :

46

TRANSFORMER LOSS MEASURING SYSTEM
Current Channels :

5 to 4.000 A / 5 A
Class 0,1, 100 kV, 50/60 Hz-150 Hz
Manufacturer: Haefely, TMS 580

Voltage Channels :

100 to 100.000 V/100 V
Class 0,1, 50/60 Hz-150 Hz
Manufacturer: Haefely TMS 580

IMPULSE VOLTAGE TEST EQUIPMENTS
Impulse voltage generator:

Number of stages
Max. Step Voltage
Max. Total Voltage
Max. Total Power
Cap. of each step
Manufacturer

:
:
:
:
:
:

n = 10

U L = 200 kV
U= 2000 kV
W= 200 kJ
C= 1 F
Passoni+Villa

Multiple chopping device:

8-stage, Dry Air Pressurized
Capacitance
: 6000 pF/stage
Lightning Impulse Voltage: 1800 kV
Manufacturer
: Passoni+Villa

Voltage Divider:

R-Damped-Capacitive Divider
Switching Impulse Voltage: 1450 kV
Capacitance
: 4001600 pF
Manufacturer
: Passoni+Villa
Digital Data Acquisition Analysis System
: 1%
: SDA-C
: Passoni+Villa

Digital Impulse Measuring System:
Accuracy
Type
Manufacturer


Press-Gas Capacitor

Type
Accuracy

: 2801
: 0,5%

Capacitance
tan 
Manufacturer

Schering Measuring Bridge :

: 0...... 10 F
: 0...... 350%
: TETTEX

Capacitance
Voltage
Manufacturer

: 50 pF
: 400 kV a.c.
: TETTEX

5

Turn Ratio Measuring Instrument: Type
Accuracy
Measuring range
Manufacturer

:
:
:
:

TR-MARK II R
0,05%
0,8.........13000
RAYTECH

Resistance Measuring Instrument:Type
Accuracy
Measuring range
Manufacturer

:
:
:
:

WR 50-R 2
0,1%
-6
5
10 10 
RAYTECH


Transformer Tests
Page :


20 Channel programmable
Type
: 2620
Manufacturer
: FLUKE

Power Measuring Unit:
(Wattmeter-VoltmeterAmpermeter)

47

Wide Band Power Analyser
Type
: D 6000 T
Accuracy
: 0,1%
Manufacturer
: NORMA

Partial-Discharge Measuring Instrument::Frequency
Measuring range
RIV
Type
Manufacturer

: 0,1 kHz  10 MHz
: 0,1 pC.......100000 pC
: 850 kHz and 1 MHz
: ICMsys4
: Power Diagnostix

Insulation-Resistance Measuring Instrument: Voltage : 5000 V. d.c.
Measuring range
: 15 T
Type
: MIT 510
Manufacturer
: MEGGER
Insulation-Resistance Measuring Instrument:Voltage: 5000 V. d.c.
Measuring range
: 10 T
Type
: BM 21
Manufacturer
: MEGGER
Noise Measuring Instrument:

Measuring instrument : type 2230
1/3-1/3 octave filter: type ZF 0020
Microphone
: type 4155
Calibrator
: type 4230
Manufacturer
: BRUEL & KJAER
2

Vibration Measuring Instrument: Measuring range : 1.....1000ms , 10 Hz.......1 kHz
Type
: 5500
Manufacturer
: METRIX INSTRUMENT CO.
Loss Factor Measuring Instrument:Measuring range : 0  12 kV
Type
: M2H
Manufacturer
: DOBLE Engineering Company

2- Channel
Type
Manufacturer

: 2012
: TEKTRONİX

Corona Detector:

Type
Manufacturer

: ULD-40
: HOTEK

Thermal Camera:

Type
Manufacturer

: Ti 25
: FLUKE

Ossiloscope:


Transformer Tests
Page :

48

Distribution Transformers Test Laboratory II ( ASB Lab II )
TEST TRANSFORMERS
Transformer :

S = 315 kVA
U = 400 / 400-3600 V
I = 455 A / 455.......51 A

Rotating Transformer :

S = 160 kVA
U = 380 / 760 V
I = 243 A / 455.......122 A

Frequency Converter :

Güç = 300 kW
U = 400 V
Frequency = 50-150 Hz


A total of 720 kVAr with 12 groups of each 60 kVAr with rated voltage 0,5 kV capacitors.
Total Rated power

: 720 kVAr

MEASURING TRANSFORMERS
Precision Current Transformers
3 pieces Current transformers: 5-10-25-50-100-250-500 A /5A
10 VA, Class 0,05, 3,6 kV, 50/60 Hz
Manufacturer: EPRO
Precision Voltage Transformers
3 pieces voltage transformers : 400-1000-2000-3000 V/100 V
10 VA, Class 0,05, 50/60 Hz
Manufacturer: EPRO
INDUSTRIAL VOLTAGE TEST EQUIPMENT
H.V. Test Transformer :

U= 100 kV/0,4 kV, 1- Phase
S= 100 kVA
I= 1 A/ 250 A
f= 50 Hz
Manufacturer: BEST


100 kV/0,1 kV 50200 Hz

Peak-Voltmeter :

U /

2  U eff

Voltmeter Digital

Class 0,5 50200 Hz
Manufacturer: Messwandlerbau – Bamberg
AC Voltage Test Instrument :

Type
: 3158
Measuring range : 0.........6 kV
Manufacturer
: HIOKI

HV Filter :

70 kV, 50 A, 3 pcs
Manufacturer
: ISOFARAD


Transformer Tests
Page :

49

Turn-Ratio Bridge:

Turn Ratio Measuring Instrument:

Accuracy
:
Voltage
:
Measuring range :
Manufacturer
:
Type
:
Accuracy
:
Measuring range :
Manufacturer
:

0,1%
220 V a.c.
1.........1000
Hartmann+Braun
PWR 3
0,1%
0,9.........1000
SCHÜTZ

: MRC 6100 N
Resistance Measuring Instrument: Type
Accuracy
: 0,1 %
6
2
Measuring range : 10 .......10 
Manufacturer
: SCHÜTZ
:
Resistance Measuring Instrument: Type
Accuracy
:
Measuring range :
Manufacturer
:

WR 50-R 2
0,1%
-6
5
10 10 
RAYTECH


20 Channel programmable
Type
: 2620
Manufacturer
: FLUKE

Power Measuring Unit:
(Wattmeter-VoltmeterAmpermeter)

Wide Band Power Analyser
Type
: D 6000 T
Accuracy
: 0,1%
Manufacturer
: NORMA

Voltmeter, average-value:

Digital,
Type
Accuracy
Manufacturer

Insulation-Resistance
Measuring Instrument:

: D 4045
: 0,1%
: NORMA

Voltage
: 5000 V. d.c.
Measuring range : 500 G
Type
: BM 11 D
Manufacturer
: MEGGER

Litterature :
 IEC Standards 60076 Power Transformer– all parts
 The Testing of Transformer ( Transformatör Deneyleri – Haluk Odoğlu)


Best transformer-test-procedures-en

More Related Content

What's hot (20)

Similar to Best transformer-test-procedures-en (20)

Best transformer-test-procedures-en
