This document discusses frameworks for practical fast matrix multiplication algorithms. It summarizes several fast algorithms that improve on classical matrix multiplication and achieve higher performance than Intel MKL. Code generation is used to rapidly prototype various algorithms and evaluate their sequential and parallel performance on different problem sizes and shapes. The document finds that fast algorithms can outperform MKL for large problems, but parallel performance is limited by memory bandwidth issues for shared memory architectures. Future work includes improving numerical stability and applying fast matrix multiplication to other numerical linear algebra algorithms.
![Fast matrix multiplication:
bridging theory and practice
2
• There are a number of Strassen-like algorithms for matrix
multiplication that have only been “discovered” recently.
[Smirnov13], [Benson&Ballard14]
• We show that they can achieve higher performance with
respect to MKL (sequential and sometimes in parallel).
• We use code generation to do extensive prototyping. There
are several practical issues, and there is plenty of room for
improvement (lots of expertise at UT to help here!)
2 2.81 3
[Strassen79]
2.37
[Williams12]
xxxxx xxx x](https://image.slidesharecdn.com/blisfastmatmul-140930215339-phpapp01/85/A-framework-for-practical-fast-matrix-multiplication-BLIS-retreat-2-320.jpg)
![Discovering fast algorithms is a
numerical challenge
7
• Low-rank tensor decompositions lead to fast algorithms
• Tensors are small, but we need exact decompositions
NP-hard
• Use alternating least squares with regularization and
rounding tricks [Smirnov13], [Benson&Ballard14]
• We have around 10 fast algorithms for <M, K, N>
decompositions. Also have permutations, e.g., <K, M, N>.](https://image.slidesharecdn.com/blisfastmatmul-140930215339-phpapp01/85/A-framework-for-practical-fast-matrix-multiplication-BLIS-retreat-7-320.jpg)
![8
[Strassen69]
[Smirnov13]](https://image.slidesharecdn.com/blisfastmatmul-140930215339-phpapp01/85/A-framework-for-practical-fast-matrix-multiplication-BLIS-retreat-8-320.jpg)
A framework for practical fast matrix multiplication (BLIS retreat)
- 1. A FRAMEWORK FOR PRACTICAL FAST MATRIX MULTIPLICATION 1 0 5000 10000 15000 25 20 15 10 5 0 Dimension (N) Effective GFLOPS / core Parallel performance of Strassen on <N,N,N> MKL, 6 cores MKL, 24 cores DFS, 6 cores BFS, 6 cores HYBRID, 6 cores DFS, 24 cores BFS, 24 cores HYBRID, 24 cores arXiv: 1409.2908 Austin Benson (arbenson@stanford.edu), ICME, Stanford Grey Ballard, Sandia National Laboratories BLIS Retreat, September 26, 2014
- 2. Fast matrix multiplication: bridging theory and practice 2 • There are a number of Strassen-like algorithms for matrix multiplication that have only been “discovered” recently. [Smirnov13], [Benson&Ballard14] • We show that they can achieve higher performance with respect to MKL (sequential and sometimes in parallel). • We use code generation to do extensive prototyping. There are several practical issues, and there is plenty of room for improvement (lots of expertise at UT to help here!) 2 2.81 3 [Strassen79] 2.37 [Williams12] xxxxx xxx x
- 4. 4 Key ingredients of Strassen’s algorithm • 1. Block partitioning of matrices (<2, 2, 2>) • 2. Seven linear combinations of sub-blocks of A • 3. Seven linear combinations of sub-blocks of B • 4. Seven matrix multiplies to form Mr (recursive) • 5. Linear combinations of Mr to form Cij
- 5. Key ingredients of fast matmul algorithms • 1. Block partitioning of matrices (<M, K, N>) • 2. R linear combinations of sub-blocks of A • 3. R linear combinations of sub-blocks of B • 4. R matrix multiplies to form Mr (recursive) R < MKN faster than classical • 5. Linear combinations of Mr to form Cij 5
- 6. “Outer product” fast algorithm • <4, 2, 4> partitioning • R = 26 multiplies (< 4 * 2 * 4 = 32) 23% speedup per recursive step (if everything else free) • Linear combinations of Aij to form Sr: 68 terms • Linear combinations of Bij to form Tr: 52 terms • Linear combinations of Mr to form Cij: 69 terms 6
- 7. Discovering fast algorithms is a numerical challenge 7 • Low-rank tensor decompositions lead to fast algorithms • Tensors are small, but we need exact decompositions NP-hard • Use alternating least squares with regularization and rounding tricks [Smirnov13], [Benson&Ballard14] • We have around 10 fast algorithms for <M, K, N> decompositions. Also have permutations, e.g., <K, M, N>.
- 9. Code generation lets us prototype algorithms quickly 9 • We have compact representation of many fast algorithms: 1. dimensions of block partitioning (<M, K, N>) 2. linear combinations of sub-blocks (Sr, Tr) 3. linear combinations of Mr to form Cij • We use code generation to rapidly prototype fast algorithms • Our approach: test all algorithms on a bunch of different problem sizes and look for patterns
- 10. Practical issues 10 • Best way to do matrix additions? (in paper) • Can we eliminate redundant linear combinations? (in paper) • Different problem shapes other than square (this talk) • When to stop recursion? (this talk) • How to parallelize? (this talk) =
- 11. Recursion cutoff: look at gemm curve 25 20 15 10 0 1000 2000 3000 Dimension (N) GFLOPS Sequential dgemm performance N x 800 x 800 N x 800 x N N x N x N peak 25 20 15 10 0 2000 4000 6000 8000 Dimension (N) GFLOPS / core Parallel dgemm performance (24 cores) Basic idea: take another recursive step if the sub-problems will still operate at high performance 11 <M, K, N> = <4, 2, 3>
- 12. Sequential performance 28 26 24 22 20 18 16 0 2000 4000 6000 8000 Dimension (N) Effective GFLOPS Sequential performance on N x N x N = 12 MKL STRASSEN <3,2,2> <3,2,4> <4,2,3> <3,4,2> <3,3,3> <4,2,4> <2,3,4> Effective GFLOPS for M x K x N multiplies = 1e-9 * 2 * MKN / time in seconds True peak
- 13. Sequential performance 28 26 24 22 20 18 16 0 2000 4000 6000 8000 Dimension (N) Effective GFLOPS Sequential performance on N x N x N = MKL STRASSEN <4,4,2> <4,3,3> <3,4,3> <3,3,6> <3,6,3> <6,3,3> • All algorithms beat MKL on large problems • Strassen’s algorithm is hard to beat 13
- 14. Sequential performance = 27 26 25 24 23 22 2000 4000 6000 8000 10000 12000 dimension (N) Effective GFLOPS Sequential performance on N x 1600 x N MKL <4,2,4> <4,3,3> <3,2,3> <4,2,3> STRASSEN • Almost all algorithms beat MKL • <4, 2, 4> and <3, 2, 3> tend to perform the best 14
- 15. Sequential performance = 26 25 24 23 22 • Almost all algorithms beat MKL • <4, 3, 3> and <4, 2, 3> tend to perform the best 15 10000 12000 14000 16000 18000 dimension (N) Effective GFLOPS Sequential performance on N x 2400 x 2400 MKL <4,2,4> <4,3,3> <3,2,3> <4,2,3> STRASSEN
- 16. Parallelization C + M2 … M1 M7 + M2 … M1 M7 + M2 … M1 M7 16
- 17. DFS Parallelization C + M2 … M1 M7 + M2 … M1 M7 All threads Use parallel MKL 17 + Easy to implement + Load balanced + Same memory footprint as sequential - Need large base cases for high performance
- 18. BFS Parallelization C + omp taskwait M2 … M1 M7 + omp taskwait M2 … M1 M7 1 thread 18 1 thread 1 thread + High performance for smaller base cases - Sometimes harder to load balance: 24 threads, 49 subproblems - More memory
- 19. HYBRID parallelization C + omp taskwait M2 … M1 M7 + omp taskwait M2 … M1 M7 19 1 thread 1 thread all threads + Better load balancing - Explicit synchronization or else we can over-subscribe threads
- 20. 20 0 5000 10000 15000 20000 0 5000 10000 15000 25 20 15 10 5 0 Dimension (N) Effective GFLOPS / core Parallel performance of <4,2,4> on <N,2800,N> MKL, 6 cores MKL, 24 cores DFS, 6 cores BFS, 6 cores HYBRID, 6 cores DFS, 24 cores BFS, 24 cores HYBRID, 24 cores
- 21. Bandwidth problems • We rely on the cost of matrix multiplications to be much more expensive than the cost of matrix additions • Parallel dgemm on 24 cores: easily get 50-75% of peak • STREAM benchmark: < 6x speedup in read/write performance on 24 cores C + M2 … M1 M7 21
- 22. Parallel performance = 22 Performance (6 cores) on N x N x N 28 26 24 22 20 18 9000 10000 11000 12000 13000 Dimension (N) Effective GFLOPS / core MKL STRASSEN <3,2,2> <3,2,4> <4,2,3> <3,4,2> <3,3,3> <4,2,4> <2,3,4> Performance (24 cores) on N x N x N 22 20 18 16 9000 10000 11000 12000 13000 Dimension (N) Effective GFLOPS / core MKL STRASSEN <3,2,2> <3,2,4> <4,2,3> <3,4,2> <3,3,3> <4,2,4> <2,3,4> • 6 cores: similar performance to sequential • 24 cores: can sometimes beat MKL, but barely
- 23. 24 23 22 21 20 19 18 10000 15000 20000 10000 15000 dimension (N) Effective GFLOPS / core Performance (6 cores) on N x 2800 x N MKL <4,2,4> <4,3,3> <3,2,3> <4,2,3> STRASSEN 20 18 16 14 12 5000 10000 15000 20000 dimension (N) Effective GFLOPS / core Performance (24 cores) on N x 2800 x N MKL <4,2,4> <4,3,3> <3,2,3> <4,2,3> STRASSEN Parallel performance = Bad MKL performance • 6 cores: similar performance to sequential • 24 cores: MKL best for large problems 23
- 24. Parallel performance = 23 22 21 20 19 18 18 17 16 15 14 13 12 • 6 cores: similar performance to sequential • 24 cores: MKL usually the best 24 10000 15000 20000 10000 15000 dimension (N) Effective GFLOPS / core Performance (6 cores) on N x 3000 x 3000 MKL <4,2,4> <4,3,3> <3,2,3> <4,2,3> STRASSEN 16000 18000 20000 22000 24000 26000 dimension (N) Effective GFLOPS / core Performance (24 cores) on N x 3000 x 3000 MKL <4,2,4> <4,3,3> <3,2,3> <4,2,3> STRASSEN
- 25. High-level conclusions 25 • For square matrix multiplication, Strassen’s algorithm is hard to beat • For rectangular matrix multiplication, use a fast algorithm that “matches the shape” • Bandwidth limits the performance of shared memory parallel fast matrix multiplication should be less of an issue in distributed memory Future work: • Numerical stability • Using fast matmul as a kernel for other algorithms in numerical linear algebra

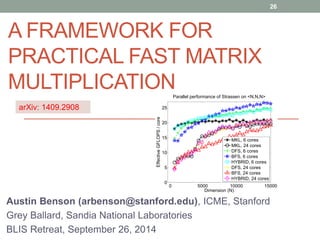

- 26. A FRAMEWORK FOR PRACTICAL FAST MATRIX MULTIPLICATION 26 0 5000 10000 15000 25 20 15 10 5 0 Dimension (N) Effective GFLOPS / core Parallel performance of Strassen on <N,N,N> MKL, 6 cores MKL, 24 cores DFS, 6 cores BFS, 6 cores HYBRID, 6 cores DFS, 24 cores BFS, 24 cores HYBRID, 24 cores arXiv: 1409.2908 Austin Benson (arbenson@stanford.edu), ICME, Stanford Grey Ballard, Sandia National Laboratories BLIS Retreat, September 26, 2014
- 27. Matrix additions (linear combinations) S1 S2 S S7 S 6 S 5 4 S3 A11 A12 A21 A22 “Pairwise” 2x DAXPY 2x DAXPY 27
- 28. Matrix additions (linear combinations) S1 S2 S S7 S 6 S 5 4 S3 A11 A12 A21 A22 “Write once” custom “DAXPY” custom “DAXPY” 28
- 29. Matrix additions (linear combinations) A11 A12 A21 A22 Entry-wise updates S1 S2 S S7 S 6 S 5 4 S3 “Streaming” 29
- 30. Common subexpression elimination (CSE) • Example in <4, 2, 4> algorithm (R = 26 multiples): T11 T25 B B24 12 B22 B23 Four additions, six reads, two writes 30
- 31. Common subexpression elimination (CSE) • Example in <4, 2, 4> algorithm (R = 26 multiples): T11 T25 B B24 12 B22 B23 Y Three additions, six reads, three writes Net increase in communication! 31
- 32. CSE does not really help Effective GFLOPS for M x K x N multiplies = 1e-9 * 2 * MKN / time in seconds 32
Editor's Notes
- #4: egin{bmatrix} C_{11} & C_{12} \ C_{21} & C_{22} end{bmatrix} = egin{bmatrix} A_{11} & A_{12} \ A_{21} & A_{22} end{bmatrix} cdot egin{bmatrix} B_{11} & B_{12} \ B_{21} & B_{22} end{bmatrix} S_1 &= A_{11} + A_{22} \ S_2 &= A_{21} + A_{22} \ S_3 &= A_{11} \ S_4 &= A_{22} \ S_5 &= A_{11} + A_{12} \ S_6 &= A_{21} - A_{11} \ S_7 &= A_{12} - A_{22} \ T_1 &= B_{11} + B_{22} \ T_2 &= B_{11} \ T_3 &= B_{12} - B_{22} \ T_4 &= B_{21} - B_{11} \ T_5 &= B_{22} \ T_6 &= B_{11} + B_{12} \ T_7 &= B_{21} + B_{22} \
- #9: egin{table} egin{tabular}{l c c c c c} Algorithm & Multiples & Multiplies & speedup per & \ base case & (fast) & (classical) & recursive step & exponent\ $langle 2,2,3 angle $ & 11 & 12 & 9\% & 2.89 \ $langle 2,2,5 angle $ & 18 & 20 & 11\% & 2.89\ $langle 2,2,2 angle $ & 7 & 8 & 14\% & 2.81 \ $langle 2,2,4 angle $ & 14 & 16 & 14\% & 2.85\ $langle 3,3,3 angle $ & 23 & 26 & 17\% & 2.85 \ $langle 2,3,3 angle $ & 15 & 18 & 20\% & 2.81 \ $langle 2,3,4 angle $ & 20 & 24 & 20\% & 2.83\ $langle 2,4,4 angle $ & 26 & 32 & 23\% & 2.82 \ $langle 3,3,4 angle $ & 29 & 36 & 24\% & 2.82 \ $langle 3,4,4 angle $ & 38 & 48 & 26\% & 2.82 \ $langle 3,3,6 angle $ & 40 & 54 & 35\% & 2.77 \ end{tabular} end{table}
- #17: egin{eqnarray*} S_7 &=& A_{12} - A_{22} \ T_7 &=& B_{21} + B_{22} \ M_7 &=& S_7 cdot T_7 end{eqnarray*}
- #18: egin{eqnarray*} S_7 &=& A_{12} - A_{22} \ T_7 &=& B_{21} + B_{22} \ M_7 &=& S_7 cdot T_7 end{eqnarray*}
- #19: egin{eqnarray*} S_7 &=& A_{12} - A_{22} \ T_7 &=& B_{21} + B_{22} \ M_7 &=& S_7 cdot T_7 end{eqnarray*}
- #31: T{11} &= B{24} - left(B{12} + B{22} ight) \ T{25} &= B{23} + B{12} + B{22}
- #32: Y &= B_{12} + B_{22} \ T_{11} &= B_{24} - Y \ T_{25} &= B_{23} + Y
