BOOK - IBM tivoli netcool service quality manager data mediation gateway development

ibm.com/redbooks
IBM Tivoli Netcool Service
Quality Manager Data Mediation
Gateway Development
Budi Darmawan
Alessandra Condoleo
Randall Bingham
Vincent Leo
Service Quality Manager concepts and
overview
Data mediation in Service
Quality Manager
Developmentofyourown
interface
Front cover

IBM Tivoli Netcool Service Quality Manager Data
Mediation Gateway Development
March 2009
International Technical Support Organization
SG24-7689-00

© Copyright International Business Machines Corporation 2009. All rights reserved.
Note to U.S. Government Users Restricted Rights -- Use, duplication or disclosure restricted by GSA ADP
Schedule Contract with IBM Corp.
First Edition (March 2009)
This edition applies to Version 4, Release 1 of IBM Tivoli Netcool Service Quality Manager.
Note: Before using this information and the product it supports, read the information in
“Notices” on page vii.

© Copyright IBM Corp. 2009. All rights reserved. iii
Contents
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
The team that wrote this book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Become a published author . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Comments welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Chapter 1. IBM Tivoli Netcool Service Quality Manager . . . . . . . . . . . . . . . 1
1.1 Service quality management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Product architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Service Quality Manager server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Data mediation subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.1 Extract Transform Load process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4.2 Gateway architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.4.3 PIF file format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chapter 2. Gateway concepts and processing. . . . . . . . . . . . . . . . . . . . . . 13
2.1 Gateway architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.1.1 Gateway components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.1.2 Gateway operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.2 Perl library extension and engine configuration . . . . . . . . . . . . . . . . . . . . 19
2.3 Working with transfer configuration rules . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.3.1 FTP transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.3.2 SCP/RCP transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.4 Working with post parser rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.4.1 Common parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.4.2 ACCUMULATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.4.3 AGGREGATE_LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.4.4 CVAL_MANIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.4.5 DATALINE_WHERE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.4.6 FILE_SPLIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.4.7 FILE_SPLIT_BY_COUNTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.4.8 INFOINSERT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.4.9 JOIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.4.10 MERGE_RECORDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.4.11 PERLIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.4.12 PIF_2_CSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.4.13 PIF_2_OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

iv IBM Tivoli Netcool Service Quality Manager Data Mediation Gateway Development
2.4.14 SPLIT_RECORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2.4.15 UNPEGGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2.5 Performance tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Chapter 3. Gateway development . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.1 Identifying the data source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.1.1 Input specification for GPRS Technology Pack . . . . . . . . . . . . . . . . 44
3.1.2 GPRS Service Solution interface control guide. . . . . . . . . . . . . . . . . 47
3.1.3 Mapping of data from gateway and adapters . . . . . . . . . . . . . . . . . . 50
3.2 Gateway configuration for Motorola GGSN. . . . . . . . . . . . . . . . . . . . . . . . 51
3.2.1 Configuring the Gateway directory settings . . . . . . . . . . . . . . . . . . . 51
3.2.2 Configuring auditing and logging for the gateway . . . . . . . . . . . . . . . 52
3.2.3 Enabling debug mode settings for the gateway . . . . . . . . . . . . . . . . 52
3.3 Transfer process for the Motorola GGSN gateway . . . . . . . . . . . . . . . . . . 53
3.3.1 Extracting data from source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3.3.2 Sending data to the adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.4 Modifying the Generic CSV parser engine . . . . . . . . . . . . . . . . . . . . . . . . 56
3.4.1 Verifying the parser engine configuration . . . . . . . . . . . . . . . . . . . . . 56
3.4.2 Modifying the configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.5 Developing the post parser configuration for Motorola GGSN . . . . . . . . . 58
3.5.1 Manipulating the data in the PERLIZE post parser rule . . . . . . . . . . 58
3.5.2 Outputting data in the CSV format using the PIF_2_CSV rule . . . . . 63
3.6 Running gateway programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3.6.1 Transferring file inbound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
3.6.2 Processing the CSV file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
3.6.3 Running the PERLIZE stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.6.4 Running the PIF_2_CSV stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.6.5 Transferring file outbound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Appendix A. Sample data and programs listing for gateways . . . . . . . . . 75
A sample Motorola GGSN CSV file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Sample first level PIF data file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Sample output CSV file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
CSV_Writer_ITSO.pm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Motorola GGSN EngineConfig.pm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Motorola GGSN UserConfig.pm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Sample UserConfig.pm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Appendix B. Additional material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Locating the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Using the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
System requirements for downloading the Web material . . . . . . . . . . . . . . 96
How to use the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Contents v
Abbreviations and acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Other publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Online resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
How to get Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Help from IBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

vi IBM Tivoli Netcool Service Quality Manager Data Mediation Gateway Development

© Copyright IBM Corp. 2009. All rights reserved. vii
Notices
This information was developed for products and services offered in the U.S.A.
IBM may not offer the products, services, or features discussed in this document in other countries. Consult
your local IBM representative for information on the products and services currently available in your area.
Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM
product, program, or service may be used. Any functionally equivalent product, program, or service that
does not infringe any IBM intellectual property right may be used instead. However, it is the user's
responsibility to evaluate and verify the operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter described in this document.
The furnishing of this document does not give you any license to these patents. You can send license
inquiries, in writing, to:
IBM Director of Licensing, IBM Corporation, North Castle Drive, Armonk, NY 10504-1785 U.S.A.
The following paragraph does not apply to the United Kingdom or any other country where such
provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION
PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer
of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in new editions of the publication. IBM may
make improvements and/or changes in the product(s) and/or the program(s) described in this publication at
any time without notice.
Any references in this information to non-IBM Web sites are provided for convenience only and do not in any
manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the
materials for this IBM product and use of those Web sites is at your own risk.
IBM may use or distribute any of the information you supply in any way it believes appropriate without
incurring any obligation to you.
Information concerning non-IBM products was obtained from the suppliers of those products, their published
announcements or other publicly available sources. IBM has not tested those products and cannot confirm
the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on
the capabilities of non-IBM products should be addressed to the suppliers of those products.
This information contains examples of data and reports used in daily business operations. To illustrate them
as completely as possible, the examples include the names of individuals, companies, brands, and products.
All of these names are fictitious and any similarity to the names and addresses used by an actual business
enterprise is entirely coincidental.
COPYRIGHT LICENSE:
This information contains sample application programs in source language, which illustrate programming
techniques on various operating platforms. You may copy, modify, and distribute these sample programs in
any form without payment to IBM, for the purposes of developing, using, marketing or distributing application
programs conforming to the application programming interface for the operating platform for which the
sample programs are written. These examples have not been thoroughly tested under all conditions. IBM,
therefore, cannot guarantee or imply reliability, serviceability, or function of these programs.

viii IBM Tivoli Netcool Service Quality Manager Data Mediation Gateway Development
Trademarks
IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business
Machines Corporation in the United States, other countries, or both. These and other IBM trademarked
terms are marked on their first occurrence in this information with the appropriate symbol (® or ™),
indicating US registered or common law trademarks owned by IBM at the time this information was
published. Such trademarks may also be registered or common law trademarks in other countries. A current
list of IBM trademarks is available on the Web at http://www.ibm.com/legal/copytrade.shtml
The following terms are trademarks of the International Business Machines Corporation in the United States,
other countries, or both:
AIX®
IBM®
Netcool®
Redbooks®
Redbooks (logo) ®
ServiceAssure™
Tivoli®
The following terms are trademarks of other companies:
ITIL is a registered trademark, and a registered community trademark of the Office of Government
Commerce, and is registered in the U.S. Patent and Trademark Office.
Oracle, JD Edwards, PeopleSoft, Siebel, and TopLink are registered trademarks of Oracle Corporation
and/or its affiliates.
Java, Solaris, Sun, and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United
States, other countries, or both.
Expression, MS, and the Windows logo are trademarks of Microsoft Corporation in the United States, other
countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Linux is a trademark of Linus Torvalds in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.

© Copyright IBM Corp. 2009. All rights reserved. ix
Preface
This IBM® Redbooks® publication discusses IBM Tivoli® Netcool® Service
Quality Manager V4.1.1 data mediation development. It is aimed at implementers
and system integrators connecting new data sources that will be managed by
Service Quality Manager.
Data mediation in Service Quality Manager is performed by Perl gateways.
Gateways extract data from vendor specific hardware monitors and prepare the
data to be loaded into the Service Quality Manager application.
The development aspect of data mediation for gateways uses Perl extensively.
The control files or rules are written as Perl subroutines. We discuss the detailed
specifications and processing of these mediation rules.
The team that wrote this book
This book was produced by a team of specialists from around the world working
at the International Technical Support Organization, Austin Center.
Figure 1 Vincent, Randy, Budi, and Alessandra

x IBM Tivoli Netcool Service Quality Manager Data Mediation Gateway Development
Budi Darmawan is a project leader at the International Technical Support
Organization, Austin Center. He writes extensively and teaches IBM classes
worldwide on all areas of systems and application management. Before joining
the ITSO 10 years ago, Budi worked in IBM Indonesia as a lead implementer and
solution architect. His current interests are business service management,
application management, and Java™ programming.
Alessandra Condoleo is a solution designer for GTS Italy, working in the SPL2
team designing and implementing IT Lifecycle Management and Governance
Service solutions. She has been working at IBM for two years and is currently in
a Master’s degree program for Business Administration. She developed the ROI
SOA investment calculation tool. Alessandra is a Netcool Trained practitioner
and is ITIL® Foundation Certified. Before working at IBM two years ago,
Alessandra worked at the University of Pisa, Italy, as a programmer. She
received the "Laurea" (M.S.) degree in Biomedical Engineering (summa cum
laude) from the University of Pisa.
Randall Bingham is a Network Performance Engineer in the USA. He has 20
years of experience in the telecommunications industry. He has worked at IBM
for 4 years. His areas of expertise include Network Management, Performance
Management,and Fault Management.
Vincent Leo is a Level 2 Support Engineer in Malaysia. He has 8 years of
experience in application support and performance management for the
telecommunication field, and has been with IBM for 3 years. He is CCNA, MCSE,
and RHCT certified, and holds a degree in Mechanical Engineering from the
University of Leicester. His other areas of expertise include storage systems and
embedded Linux®.
Thanks to the following people for their contributions to this project:
Wade Wallace
International Technical Support Organization, Austin Center
Ann Hayes, Ken Tyler, Mohd Ezman Zainudin, Sanjay Nayak, Thierry Supplisson,
Barra Seck,
IBM Software Group, Tivoli Service Quality Manager team
Become a published author
Join us for a two- to six-week residency program! Help write a book dealing with
specific products or solutions, while getting hands-on experience with
leading-edge technologies. You will have the opportunity to team with IBM
technical professionals, Business Partners, and Clients.

Preface xi
Your efforts will help increase product acceptance and customer satisfaction. As
a bonus, you will develop a network of contacts in IBM development labs, and
increase your productivity and marketability.
Find out more about the residency program, browse the residency index, and
apply online at:
ibm.com/redbooks/residencies.html
Comments welcome
Your comments are important to us!
We want our books to be as helpful as possible. Send us your comments about
this book or other IBM Redbooks in one of the following ways:
Use the online Contact us review Redbooks form found at:
ibm.com/redbooks
Send your comments in an e-mail to:
redbooks@us.ibm.com
Mail your comments to:
IBM Corporation, International Technical Support Organization
Dept. HYTD Mail Station P099
2455 South Road
Poughkeepsie, NY 12601-5400

xii IBM Tivoli Netcool Service Quality Manager Data Mediation Gateway Development

© Copyright IBM Corp. 2009. All rights reserved. 1
Chapter 1. IBM Tivoli Netcool Service
Quality Manager
IBM Tivoli Netcool Service Quality Manager manages the system’s commitment
to deliver high quality service for an IT service provider. It originated in quality
management for the wireless telecommunication industry. This book focuses on
data mediation used to collect data from vendor devices using a Perl gateway. In
this chapter, we introduce Service Quality Manager concepts and give an
overview of Service Quality Manager. The chapter contains the following
sections:
1.1, “Service quality management” on page 2
1.2, “Product architecture” on page 4
1.3, “Service Quality Manager server” on page 5
1.4, “Data mediation subsystem” on page 6
1

2 IBM Tivoli Netcool Service Quality Manager Data Mediation Gateway Development
1.1 Service quality management
As in every industry, the telecommunications industry is challenged to do more
with less, many in the industry are searching more aggressively for leading edge
management systems to automate day to day collection and management of
network performance and necessary customer management data.
Service providers are pressured to seek growth and control costs, while their
infrastructure is getting more complex with the addition of multiple technologies
and vendors to deliver their services. Other market conditions, such as increased
competition and demanding customer expectations, also contributes to the issue.
The key to addressing these challenges is understanding the customer
experience. Insights into the real customer experience can help you keep your
customers, create and launch new services, and optimize existing services.
IBM Tivoli Netcool Service Quality Manager enables you to see your service
through the customer’s eyes and thus helps you deliver high-quality service. With
an end-to-end view, you can verify that each service (including voice, video,
e-mail, Voice over IP (VoIP), i-mode, online gaming, virtual private network
(VPN), IP-TV, DSL, Metro-Ethernet and more) is functioning correctly and within
the expected bounds.
To help you manage services for each subscriber group in the network, Tivoli
Netcool Service Quality Manager takes a technology-agnostic approach so that
you can manage service quality and the customer experience through a wide
variety of delivery technologies. Additionally, it features quick-to-deploy solutions
for managing services such as Global System for Mobile (GSM)
communications, General Packet Radio Services (GPRS), third- generation (3G)
wireless technologies, Digital Subscriber Line (DSL), and WiMAX/WiFi networks.
Tivoli Netcool Service Quality Manager brings together an historical view of
service quality management (SQM) and service level agreement (SLA)
management into one solution, designed specifically to manage and improve
service quality despite the complexities of today’s infrastructure. This solution
includes customer experience management capabilities that is designed to
address the full spectrum of quality from the network, service, and customer
perspectives.
Tivoli Netcool Service Quality Manager also includes an optional component that
focuses specifically on customer experience management (CEM). CEM provides
a detailed analysis of an individual subscriber ‘s experience. It examines
subscriber transactions by service, location, subscriber group, and device type,
then supplies this critical customer experience information to teams such as
customer care, marketing, network operations, and executives.

Chapter 1. IBM Tivoli Netcool Service Quality Manager 3
By integrating these diverse efforts, Tivoli Netcool Service Quality Manager helps
you operate efficiently and achieve a sharpened focus on customer service
quality, in the context of your overall business management priorities.
IBM Tivoli Netcool Service Quality Manager provides a real-time, end-to-end
view of a service to enable Service Providers to understand service quality from
the customer’s perspective. Service Quality Manager has the following major
features:
Monitors and improves the quality of each customer experience, resulting in
more effective customer care and increased customer satisfaction.
Responds to network issues based on corporate directives such as revenue,
profitability, service, and customer impact.
Provides product differentiation to your enterprise sales team by offering
guaranteed service level agreements (SLAs) to attract and retain high-value
enterprise customers.
Enables the successful, rapid introduction of new services that you can offer
with confidence in their service quality.
Identifies high-priority problems quickly and accurately with powerful
root-cause and impact analysis.
Offers comprehensive data collection capabilities and extensive
pre-established service models with full key quality indicator (KQI) and key
performance indicator (KPI) mapping and reporting.

1.2 Product architecture
IBM Tivoli Netcool Service Quality Manager was formerly called
ServiceAssure™ from Vallent Technology. It has the components shown in
Figure 1-1.
Figure 1-1 Service Quality Manager components
The Service Quality Manager components, as shown in Figure 1-1, are:
The gateway machine, which collects data from network devices and
pre-processes it into a format that Service Quality Manager understands. You
can have more that one gateway machine, depending on your network’s
requirements.
The application server is the main processing center of Service Quality
Manager. It provides data collection and analysis of KPI and KQI. It measures
the Service Level Agreement (SLA) and generates alerts for violations and
warnings.
The database server hosts the Service Quality Manager database (sadb). It
runs the Oracle® Database server. In a smaller installation, the gateway,
application, and database servers can reside on the same machine.
Data Mediation
subsystem
Gateway
Service quality
manager servers
Network and
non-network service
data
Service quality
manager client
Reporting client BIRT tools
sadb
Application server
Reporting server
Database server

The reporting server runs the BusinessObjects server. The BusinessObjects
server provides reporting capability for Service Quality Manager. It reports
historical data of certain KPIs and KQIs.
1.3 Service Quality Manager server
The main components of Service Quality Manager is the server components.
These components can reside in a single server or be distributed over several
different servers for load balancing and failover.
The server components can be viewed in more detail in Figure 1-2.
Figure 1-2 Service Quality Manager server components
JMS
client
ceb
Client event
broker
coreweb
Tomcat
drldom
Drill down
engine
prefom
Preferences
manager
uiservice
User interface
server
adapters
*_loader
Adapters
*_loader
Adapters
*_loader
Adapters
*_loader
Adapters
sapmgr
ServiceAssure
Process
manager
monitoring
alarmom
Alarm
generator
combiner
KQI combiner
oss
Operational
Support
cem
customerom
Customer
manager
slom
SLO monitor
sloengineom1
SLO engine
manager
slouiservice
SLO user
interface
crmproxy
Customer
relationship
manager
domain
rmom
Resource
manager
kmom
KQI manager
kpiom
KPI controller
partyom
Party controller
serviceom
Service
controller
slatom
SLA Template
slaom
SLA manager
auditom
Auditing
process
reportom
Report
interface
svcreportom
Service
reporter
sadb

The server components are grouped into the following categories:
Domain processes, which are the primary object managers for controlling
Service Quality Manager resources. The domain processes access the
database and provide information about a certain object type using the
messaging infrastructure.
Customer Experience Management (CEM) processes, which has processes
that extend the Service Quality Manager data model in V4.1.1 to analyze the
overall customer experience. These processes are also object managers with
access to databases and provide information about objects using the
messaging infrastructure.
Monitoring processes provide monitoring support for other processes and
Service Quality Manager data. They centralize alert and notification
management of Service Quality Manager.
Client processes provide user interface support for accessing the Service
Quality Manager application. These processes does not access the database
directly, but communicate with the domain and CEM processes for object
access.
Adapter processes collect data from external data sources to be loaded into
Service Quality Manager for processing. This is our main discussion point in
this book.
1.4 Data mediation subsystem
Usually, data from a specific data source needs to be moved or extracted and go
through some kind of transformation before it can be useful for any form of
analysis. Most of the time, a business application provides a means to study this
data, and presents it in a standard reporting format.
However, the common problem is that the data resides in various different
systems, exists in a mixed variety of formats, and sometimes is available in
varied instances.
Therefore, a process should exist to allow the data from a source to be moved to
the end application or loaded to the database repository. Of course,
transformation of the data would most likely take place between this process and
trimmed for any unnecessary information. This entire process is known as data
mediation.
The data mediation in Service Quality Manager provides a facility for getting data
from a managed environment (device controller, database information, or
console output) and placing it into Service Quality Manager. It performs the

necessary conversion and calculation of the source data into performance
indicator information.
Data mediation is typically an extraction transformation and loading (ETL)
process. It extracts data from the source, transforms it into the target format, and
loads the data into a persistent storage (database). A data mediation gateway
collects information from a vendor specific device manager and gets raw data.
The raw data is formatted into a vendor neutral PIF format and then transformed
into the final CSV format as required by the adapter. The PIF files are temporary
files that are used in the intermediate processing stages within the gateway.
1.4.1 Extract Transform Load process
The overall process is an ETL process. This section describes the individual
stages.
Extract
The first part of an ETL process is to extract the data from the source. Most data
mediation projects consolidate data from several different sources. Each source
may have different data formats. Extraction converts the data into a format for
transformation processing.
An intrinsic part of the extraction is parsing of the extracted data, where the data
is checked to see if it meets the expected pattern or structure; if not, the data can
be rejected at this point.
The extract of the data is the beginning of the ETL process. This is where data is
read and retrieved from source systems to a temporary transitional location, or a
final location for further processing. A transfer may take place using different
methods, such as a copy from a local server or through a transfer protocol (ftp,
rcp, or scp) from a remote server.
There are two forms of how extraction could occur:
Push
The data at the source location is extracted usually at the source server and
transferred to the destination location. In this case, the process that performs
the extract is running on the source server. Normally this happens in a
situation when access to the source location is not permitted or to prevent
additional server load at the destination.

Figure 1-3 shows the general idea of a push extract mechanism.
Figure 1-3 Push extraction
Pull
For a pull extraction, the data extract mechanism take place at the destination
location and is downloaded from the destination location. The process
performing the extract runs on the destination server instead. Generally, a pull
extraction is ideal when a single point of reference for management is
preferred. Figure 1-4 shows an illustration of how a pull extraction mechanism
occurs.
Figure 1-4 Pull extraction
Transform
With the data extracted from the source, the next phase is to modify the source
data format and manipulate it depending on the specific requirements of the
target application. To achieve this process, we perform data transformation.
The transform stage applies a series of rules or functions to the extracted data to
derive data that will be loaded in the end format. Some data sets may require
little or no manipulation. In other cases, one or more of the following
transformation types may be needed to meet the business requirements or
Data source server
Data source
Destination server
Destination
location
Push
extraction
Push
Data source server
Data source
Destination server
Destination
location
Pull
extraction
Pull

technical needs of the loading processes. Service Quality Manager gateways
uses regular expressions for transformation processing.
The transformation types are:
Selecting only certain columns to load (or selecting null columns not to load).
Translating coded values (if the source system stores 1 for male and 2 for
female, but the warehouse stores M for male and F for female). This is called
automated data cleansing; no manual cleansing occurs during ETL.
Encoding free-form values (mapping “Male” to “1” and “Mr” to M).
Deriving a new calculated value (sale_amount = qty * unit_price).
Joining together data from multiple sources (lookup, merge, and so on).
Summarizing multiple rows of data (total sales for each store and for each
region).
Transposing or pivoting (turning multiple columns into multiple rows or vice
versa).
Applying any form of simple or complex data validation; if the validation fails, a
full, partial, or no rejection of the data occurs, and thus no, partial, or all the
data is handed over to the next step, depending on the rule design and
exception handling. Most of the above transformations might result in an
exception, for example, when a code-translation parses an unknown code in
the extracted data.
However, depending on the data source, there may be a series of transformation
rules involved that obtains the final end result. Mapping of data from the source
to the destination according to the element most likely will be required.
The end result is to obtain a uniform, standardized data format that can be
loaded into a database of the end target for the next phase. In fact, the perfect
scenario is when the data can be used in any kind of database. Apart from this
purpose, an ideal transformation should be able to consolidate data from one
data source system or format or from multiple data source systems or formats.
Load
The load phase loads the data into the database, usually the data warehouse.
Depending on the requirements of the organization, this process ranges widely.
Some data warehouses might overwrite existing information weekly with
cumulative, updated data, while other data warehouses or even other parts of the
same data warehouse might add new data in a historized form, such as hourly.
The timing and scope to replace or append data are strategic design choices that
depend on the time available and the needs of the business.

As the load phase interacts with a database, the constraints defined in the
database schema as well as in triggers activated upon data load apply (for
example, uniqueness, referential integrity, mandatory fields, and so on) also
contribute to the overall data quality performance of the ETL process.
With the transformation already performed, this should be a straightforward part
of the ETL process. Checking data consistency also occurs during this stage to
ensure loading is successful, and any possible bad formatted data is rejected.
The schema about how the data is written may vary for different systems, that is,
whether information will be overwritten, updated, or data added. This could be
updated periodically (perhaps every 15 minutes or hourly). All of this actually
depends on the design of the application providing further analysis of the data.
1.4.2 Gateway architecture
The purpose of the gateway is to provide a standard format for the transfer,
parsing, manipulation, and presentation of data from network elements to the
Service Quality Manager system.
Raw data is typically collected by the vendor supplied Operational Support
System (OSS) or Operation Maintenance Center (OMC). Collection intervals can
vary, but typical configurations are 15 or 30 minutes. The OMC must be
configured by the service provider to output the desired raw performance data.
The files are often very large and can be archived for several days within the
OMC. The gateway is typically interested in near real time performance data.
The gateway framework consists of a set of processing stages that perform
different functions to output the required performance data. It includes standard
tools for logging and recovery, as well as configurable rules for the
transformation of data.
The final output is then loaded to the service quality management application to
generate a service quality indicator and service level monitoring.
Gateways usually receive data in a specific data format from a network appliance
vendor. Each gateway processes a specific data source based on the output
provided from the vendor’s data format. Gateways generate performance data
that is vendor neutral, but technology specific. This is in contrast to the service
solution adapter that processes a technology specific data to load it to Service
Quality Manager.
The purpose of the gateway framework is to provide a standard framework for the
transfer, parsing, manipulation, and ultimately the presentation of performance
data from network elements to the Service Quality Manager system.

The raw data is typically transferred from the network element vendor supplied
Operation Management Console. The data is available at fixed periods, usually in
increments of 15 or 30 minutes, or up to several hours. Retrieving several hours
of data can be very time consuming.
The framework is made up of several processing stages that perform different
functions to output the desired data and data format. It employs standardized
tools for logging, measuring integrity, and recovery, and rules for transforming the
data into the required output. The final output is then ready for the Service
Quality Manager application to use to manage various telecommunication and
enterprise customer needs. The processing of the gateway framework is shown
in Figure 1-5.
Figure 1-5 Gateway framework characteristics
The gateway framework consists of three main components:
Transfer engine (IN and Out). This component is optional, and the file can
also reside directly on the gateway machine.
Parser engine.
Post parser engine.
These components interact mainly with various directories for reading, writing,
and storing files. The parser engine converts data from the raw data original
format to a PIF file. This conversion is vendor specific, as each vendor may have
different types of source file. The post parser engine works with the PIF file. It
reads one or more PIF files and writes to another PIF file for further processing.
The final output of the post parser engine is dictated by the consumer of the data;
Service Quality Manager uses CSV format, while Performance Manager for
Wireless uses LIF format.
Gateway Framework
File Format
Rules
IN_Dir INT_Dir OUT_Dir
Raw
Raw files
PIF LIF
Transfer
(IN)
Parser
Engine
Transfer
(OUT)
Post
Parser
Raw data

Chapter 2. Gateway concepts and
processing
This chapter describes in-depth information about Service Quality Manager
gateways. We explain the concepts and development of a gateway module in
Service Quality Manager. This chapter contains the following sections:
2.1, “Gateway architecture” on page 14
2.2, “Perl library extension and engine configuration” on page 19
2.3, “Working with transfer configuration rules” on page 20
2.4, “Working with post parser rules” on page 23
2

2.1 Gateway architecture
In this section, we discuss the gateway architecture in detail. We discuss:
2.1.1, “Gateway components” on page 14
2.1.2, “Gateway operation” on page 16
2.1.1 Gateway components
This section discusses the gateway architecture and its main components. The
gateway is made up of:
“Gateway framework” on page 14
“Vendor gateway” on page 15
“Gateway configuration” on page 15
Figure 2-1 shows the gateway components.
Figure 2-1 Gateway components
Gateway framework
The gateway framework provides the ability to perform the extraction and
transformation capability in the ETL operation. The gateway framework provides:
Executables for running the gateway, including the infrastructure for logging
and file management.
Predefined Perl modules that can be called or invoked. These modules are
usually invoked as a set of rules that can be configured from a file.
The gateway framework contains the following directories:
vstart: Startup programs for the gateway
parsersrc: Storing customized Perl modules (.pm files)
Gateway
configuration
Vendor: motorola-gprs
Version: V50
Gateway
configuration
Vendor: motorola-bss
Version: V10
Gateway
configuration
Vendor: nokia-nss
Version: m14.1
Gateway FrameworkPerl modules Executables
Vendor gateway
Generic CSV
Vendor gateway
Nokia XML

Chapter 2. Gateway concepts and processing 15
perl_extensions: Perl modules repository for the post parser rules
The processing of the gateway framework itself allows:
Transfer of data for extraction purposes. This part of the module actually runs
in two phases.
– Inbound transfer (IN) executes before parsing of the data
– Outbound transfer (OUT) executes after parsing of the data
Parsing of the data based on a vendor specific data format for transformation
operation.
The gateway framework files resides under the gateway-framework sub-directory
of $GATEWAY_ROOT.
Vendor gateway
The vendor gateway package consists of a number of configuration Perl modules
that perform the manipulation of the vendor specific data. Vendor gateways are
typically designed for processing data from a specific vendor format. It reads
vendor data and converts it into a common format for further processing. Usually
only the required Engine module needs to be installed for a specific vendor
gateway to function.
Vendor gateway files resides under the modules sub-directory of $GATEWAY_ROOT.
The current provided vendor gateways from Gateway Framework V3.4.2.1 are
for:
3gpp ASN1 V3.4.0.2
3gpp XML V3.4.3.1
Alcatel BSS V3.4.0.3
Alcatel NSS V3.4.0
Ericsson GSM V3.4.0
Generic ASCII V3.4.0
Generic CSV V3.4.1.1
Nokia ASCII V3.4.0.1
Nokia XML V3.4.0.2
Nortel BSS V3.4.0.1
Siemens BSS V3.4.0.1
Siemens NSS V3.4.1.1
Siemens V3.4.0
Gateway configuration
The gateway configuration files allow the vendor gateway to be more suitable for
vendor specific data. The gateway configuration files are available as technology
packs in IBM Tivoli Netcool Performance Manager for Wireless, a sister product

to Service Quality Manager. The gateway configuration files are installed in the
config sub-directory of $GATEWAY_ROOT.
More details about the IBM Tivoli Netcool Performance Manager for Wireless
product can be found at the following URL:
http://www-01.ibm.com/software/tivoli/products/netcool-performance-mgr-
wireless/
Technology Packs are discussed at the following URL:
http://www-01.ibm.com/software/tivoli/products/netcool-performance-mgr-
wireless-techpacks/
2.1.2 Gateway operation
The gateway is invoked using the script gateway_start.sh from the vstart
directory in Gateway Framework. The vendor gateway configuration is provided
as the relevant vendor, sub-system, and version arguments to this script. The
vendor, sub-system, and version arguments are used to qualify the directory in
the {GATEWAY_ROOT}/config directory.
The overall operation of a gateway executable is shown in Figure 2-2. It provides
details about the processing of the gateway.
Figure 2-2 Gateway processing characteristics
The gateway requires a specific version of the Perl modules. The version that we
use requires Perl 5.6.1. You can find instructions for using Perl in your platform at
the following URL:
http://www-01.ibm.com/support/docview.wss?uid=swg27011991
Gateway process
Perl 5.6.1
gateway-framework/perl_extensions/lib/site_perl/5.6.1
TransferConfig.pm EngineConfig.pm UserConfig.pm TransferConfig.pm
Transfer
inbound
Parser engine Post parser
Transfer
outbound
IN_DIR
INT_DIR
(PIF)
OUT_DIR
input output
local input

The next section goes through each stage and module of the data mediation
process for the gateway process. Note that we use the terminology IN_DIR,
INT_DIR, and OUT_DIR as variables that are specified from the gateway
properties file.
Inbound transfer
Depending on whether the data extraction is push or pull, as explained in
“Extract” on page 7, this optional stage enables the configuration of the transfer
of data from the source. It supports the SFTP, SCP, FTP, RCP, and local CP
(copy) file transfer mechanisms. The transfer rule allows the configuration of
multiple instances, so extraction of files from different source locations are
possible. However, these rules are executed in sequence, not in parallel.
Configuration of this stage is optional when data is pushed to the gateway or
provided by another external tool. The configuration file for this stage is in
TransferConfig.pm.
Parser engine
In this stage, the engine parses the raw data source file, which could be either in
a vendor specific data format, or a third-party data format, to produce the data in
Parser Intermediate Format (PIF). It picks up the raw data source file from
IN_DIR, and temporarily stores it as a PIF file in INT_DIR.
The parser engine executes based on a specific vendor specific engine rule.
Each vendor gateway provides its own configuration module. For example, to
parse Nokia NSS format data, the NOKIA_XML engine rule is used. Another rule
uses the CSV_GATEWAY that we use for parsing Motorola GPRS CSV format
data. The configuration file for this stage is in EngineConfig.pm.
Post parser
The post parser stage further processes the data through multiple standard and
vendor specific post parser rules, transforming data into the final desired output
format for successful loading that conforms to the system requirements.
There are several transformation functions possible in this stage. These rules are
implemented in the gateway framework, so it is available for all vendors. The
following are some of the common rules:
Joining different PIF files using the JOIN rule.
Accumulate.
CVAL_MANIP.
INFOINSERT.
Removing entire data records with the DATALINE_WHERE rule.

Customized manipulation of data using the PERLIZE rule.
Converting a PIF file to a desired final output file format with the
PIF_2_OUTPUT rule.
For a complete listing and detailed explanation of these transformation functions,
see the standard post parser rules in section 5 of the Gateway Framework User
Guide, which is provided as a PDF in the Service Quality Manager Gateway
installation media. We discuss how to configure some of these rules when
developing sample development in 3.2, “Gateway configuration for Motorola
GGSN” on page 51.
In this stage, the post parser rule can produce two types of output:
PIF files, which are used as input to the next post parser rule in the
processing chain. They are temporarily written to INT_DIR.
Output files, which are output to another directory as the final output file
format for loading into the system repository. These are output to OUT_DIR and
could be in one of the following formats:
– LIF files
– CSV files
– XML files
The configuration file for this stage is in UserConfig.pm.
Outbound transfer
With the final output files generated, this stage moves them to a separate
location for loading in a remote server or other servers, if necessary. Again, the
transfer engine is responsible for this process, and this is an optional stage.
The configuration file for this stage is in TransferConfig.pm.
Other features
The gateway framework also includes other features that are available for all
vendor gateways. These additional features include:
Logging and auditing
Crash recovering
Backlog processing
Parallel processing
Note: Another option is to directly configure OUT_DIR as the final location, and
so we can skip this part. However, this is solely up to your discretion, as it is
sometimes preferable to keep the directories separate for application
administration and management reasons.

Memory caching of intermediate data
Saving of parsed, intermediate, and load data
Compression of input and stored data
The gateway configuration defines the rules for parsing various data from specific
vendor subsystems. The main configuration files in the directory are
TransferConfig.pm (optional), EngineConfig.pm, and UserConfig.pm. The vendor
gateways (Technology Packs) already provide a base configuration platform.
However, you may modify the configuration to better suit your environment.
2.2 Perl library extension and engine configuration
Service Quality Manager gateways uses Perl as the primary programming
language. Perl is easily extended using Perl modules. Perl modules are text files
with the extension of .pm. The Perl modules are constructed in such a way that
they provides library functions that can be invoked from the vendor gateway
configuration.
Gateway framework defines that Perl modules must have the following
sub-routines:
New: Initialize the module.
load_config: Loading configuration files.
process_a_file: Process the data.
The Perl modules for EngineConfig.pm are typically provided with the vendor
gateway installation. A sample engine rule definition is for CSV raw data; the
module is called GENERIC_CSV_GATEWAY.
Typically, the gateway module will provide the parser engine module for loading
raw data. A generic parser engine is provided, such as for CSV file handling. The
CSV file handler is called the GENERIC_CSV_GATEWAY rule. We discuss more
about this generic CSV gateway in 3.4, “Modifying the Generic CSV parser
engine” on page 56.

Example 2-1 shows a sample rule for a generic CSV gateway.
Example 2-1 Generic CSV gateway
'RULE_TYPE' => 'GENERIC_CSV_GATEWAY',
'RULE_DESC' => 'Motorola GGSN v50',
'INPUT_FILE_DESCRIPTION' => [ '^PassiveCollector.*$' ],
'INPUT_DIR_DEPTH' => 0,
'ORDER_OF_FILES' => 'OLDEST_FIRST',
'FIELD_SEPARATOR' => ',',
'HEADER_FIELDS' => [ 3 ],
'DATA_FIELDS' => [ 0, 1, 2, 4, 5, 38 ],
'INVALID_VALUE_MATCH' => [],
'WHITESPACE_MODIFIER' => '_',
'FIELDS_TO_KEY_PIF_FILENAME' => [],
'DEFAULT_NULL_VALUE' => '',
'UPPERCASE_COUNTERS' => 0,
'PIF_FILENAME_EXTRACT' => 'PassiveCollector-C_IBM.pm-gw_(w+).',
'FILENAME_HEADER_FIELDS' => {
BLOCKNAME =>
'PassiveCollector-C_IBM.pm-gw_([A-Za-z]*)_[0-9]{2}_[0-9]{2}_[0-9]{4}_[0
-9]{2}_[0-9]{2}_[0-9]{2}.csv',
If you need a specialized gateway for your own use, you can create your own Perl
module.
2.3 Working with transfer configuration rules
Transfer configuration rules templates are located in the gateway directory
gateway-framework/perl_extensions/lib/site_perl/5.6.1/TransferEngine.
The defined protocols are ftp or scprcp.
2.3.1 FTP transfer
The FTP based transfer uses the following mandatory arguments:
HOST Target ftp server host name or IP address
DIRECTION IN or OUT
REMOTE_DIR Remote path of the file
LOCAL_DIR Local path of the file

TIMESTAMP_FILE File name to store the list of files in that have been
processed
DEPTH Number of levels from the remote directory to descend
INPUT_FILE_DESCRIPTION
List of hash values that are used to specify the file name
characteristic to be transferred
USER User ID of the target FTP server
PASS Password of the target FTP server
Additionally, the transfer uses the following optional arguments:
STATISTICS_FILENAME
File name to save the statistic output in
OUTPUT_FORMAT Unused
ENABLE_PING Whether or not to check with the ping command first
PING_PROTOCOL Whether to use tcp or udp for running the ping command.
PING_RETRY_ATTEMPTS
Number or retries to perform for the ping command
RETRY_INTERVAL Retry interval for the ftp connection attempt
TIMEOUT Timeout to wait for the ftp connection in seconds
ENABLE_LOCAL_COMPRESSION
Whether or not to compress local files
NUMBER_OF_FILES_TO_PROCESS
Maximum number of files to process in each iteration
TMP_FILENAME_EXTENSION
File extension to be use for temporary file names
DELETE_ORIGINAL Whether to delete the original files after ftp (1/true or
0/false)
OVERWRITE_FILES Whether to overwrite a local file (1/true or 0/false)
TRANSFER_MODE Set binary or ASCII transfer
2.3.2 SCP/RCP transfer
The FTP based transfer uses the following mandatory arguments:
HOST Target ftp server host name or IP address
DIRECTION IN or OUT

PROTOCOL_PATH The executable of ssh or scp for an scp protocol or rsh or
rcp for an rcp or cp protocol.
REMOTE_DIR Remote path of the file
LOCAL_DIR Local path of the file
TIMESTAMP_FILE File name to store list of files that have been processed
INPUT_FILE_DESCRIPTION
List of hash values that is used to specify the file name
characteristic to be transferred
Additionally, it uses the following optional arguments:
BULK_TRANSFER Bulk copying using the cpio utility
DEPTH Number of levels from the remote directory to descend
STATISTICS_FILENAME
File name to save the statistic output
OUTPUT_FORMAT Unused
ENABLE_PING Whether or not to check with the ping command first
PING_PROTOCOL Whether to use tcp or udp to run the ping command
PING_RETRY_ATTEMPTS
Number of retries to perform for the ping command
RETRY_ATTEMPTS Number or retries to connect to the remote host
RETRY_INTERVAL Retry interval for ftp connection attempts
TIMEOUT Timeout for waiting for the ftp connection in seconds
ENABLE_LOCAL_COMPRESSION
ENABLE_REMOTE_COMPRESSION
NUMBER_OF_FILES_TO_PROCESS
Maximum number of files to process in each iteration
TMP_FILENAME_EXTENSION
File extension to be use for temporary file names
DELETE_ORIGINAL Whether to delete the original files after ftp (1/true or
0/false)
OVERWRITE_FILES Whether to overwrite a local file (1/true or 0/false)

2.4 Working with post parser rules
The post parser rules deal with a known format, the PIF file, and so the rules are
more generic. The Service Quality Manager gateway framework provides a
wealth of templates for processing data. The UserConfig.pm listing for the sample
post parser rules is provided in “Sample UserConfig.pm” on page 92.
The following sections discusses some Perl rules that can be used in the
UserConfig.pm:
“ACCUMULATE” on page 24
“AGGREGATE_LINE” on page 25
“CVAL_MANIP” on page 26
“DATALINE_WHERE” on page 28
“FILE_SPLIT” on page 29
“FILE_SPLIT_BY_COUNTERS” on page 30
“INFOINSERT” on page 31
“JOIN” on page 34
“MERGE_RECORDS” on page 35
“PERLIZE” on page 36
“PIF_2_CSV” on page 37
“SPLIT_RECORD” on page 38
“UNPEGGER” on page 40
2.4.1 Common parameters
There are some common, optional parameters for these rules. They are:
REDUNDANT_HEADER_COUNTERS
This is a list of counters to remove from the output header.
REDUNDANT_DATA_COUNTERS
This is a list of counters to remove from the output data.
HEADER_COUNTERS_ORDER
A set of header fields used in a certain order.
DATA_COUNTERS_ORDER
A set of data fields used in a certain order.

2.4.2 ACCUMULATE
The ACCUMULATE rule aggregates counter values based on the grouping of an
identifier field. The default operation is to add all non-key columns. You can
choose columns to be aggregated as maximum, minimum, or average. If you use
these functions, you must also specify the string appendage to the counter name.
The process for ACCUMULATE is shown in Figure 2-3.
Figure 2-3 ACCUMULATE rule processing
The required parameters are:
OUTPUT_BLOCK_NAME
Block name for the output of the PIF file
COUNTERS_TO_SORT_ON
Sorting key for the table aggregation
The optional parameters are:
COUNTER_NULL_VALUE
Null value substitution if counter calculation has an error.
NON_ADDITIVE_COUNTERS
Counters that cannot be accumulated. They are passed
as is. An example are the time stamp fields.
Hostname numfail tot_req fail_dur fail
Server1 5 51 10 2
Server2 3 20 1 .33
Server2 4 14 3 .75
Server1 1 24 2 2
Hostname numfail tot_req fail_dur failMAX failMIN failAVG
Server1 6 75 12 2 2 2
Server2 7 34 4 .75 .33 .54
ACCUMULATE
RULE_TYPE => 'ACCUMULATE',
RULE_DESC => 'Rename APN',
INPUT_FILE_DESCRIPTION => '^ACCUMULATE.pif$',
COUNTERS_TO_SORT_ON => [ 'Hostname' ],
OUTPUT_BLOCK_NAME => 'Accumulate',
NON_ADDITIVE_COUNTERS => [ "fail" ],
MAXIMUM_COUNTERS => [ "fail" ],
AVERAGE_COUNTERS => [ "fail" ],
MINIMUM_COUNTERS => [ "fail" ],
MAXIMUM_APPEND_STR => "MAX",
MINIMUM_APPEND_STR => "MIN",
AVERAGE_APPEND_STR => "AVG",

MAXIMUM_COUNTERS
Counters to calculate the maximum value.
MINIMUM_COUNTERS
Counters to calculate the minimum value.
AVERAGE_COUNTERS
Counters to calculate the average value.
MAXIMUM_APPEND_STR
String to append to the field name for maximum values.
MINIMUM_APPEND_STR
String to append to the field name for minimum values.
AVERAGE_APPEND_STR
String to append to the field name for average values.
2.4.3 AGGREGATE_LINE
The AGGREGATE_LINE rule matches counters from a single line into a single
counter value. The process is shown in Figure 2-4. It adds all counters in the field
that matches the regular expression (pscc_d+) into a new counter name, which
is the HASH key for the COUNTER_GROUPS parameter (pscc). Typically, you
would then remove the aggregated counters using the
REDUNDANT_DATA_COUNTERS parameter.
Figure 2-4 AGGREGATE_LINE rule
Hostname pscc_1 pscc_2 pscc_3 pfle_1 pdur
Server1 56 57 66 16 4.56
Server2 54 78 90 8 3.45
Server2 65 89 99 21 3.24
Server1 65 65 77 12 1.74
Hostname pscc pfle_1 pdur
Server1 179 16 4.56
Server2 222 8 3.45
Server2 253 21 3.24
Server1 207 12 1.74
AGGREGATE_LINE
RULE_TYPE => 'AGGREGATE_LINE',
INPUT_FILE_DESCRIPTION => '^AGGLINE.pif$',
COUNTER_GROUPS => { 'pscc' => '(pscc_d+)' },
DEFAULT_NULL_VALUE => 0,
OUTPUT_BLOCK_NAME => 'Aggline',
REDUNDANT_DATA_COUNTERS => [ "pscc_1","pscc_2","pscc_3" ],

COUNTER_GROUPS
Hash to new counters with aggregates from values that
matches a regular expression.
DEFAULT_NULL_VALUE
Null value substitution if the counter calculation has an
error.
OUTPUT_BLOCK_NAME
The name of the output data block
COUNTER_NAME_TO_EXTRACT
Counter names that would be extracted
2.4.4 CVAL_MANIP
The counter value manipulation (CVAL_MANIP) rule is used for string
manipulation of the contents of the PIF file. This helps prepare the PIF file for
loading, rearranging fields, and combining them to get the format you want.
Some usage examples are:
Wrapping counter values in quotes
Remove a string from a value
Replacing a counter value
Rearranging a counter value
The pattern matching is performed for the counter specified in CNAME_MANIP.
Regular expressions are stored in the MATCH parameters. Matching stops at the
first match, so the most specific must be specified first in the list. The example in
Figure 2-5 on page 27 uses a catch-all expression (w+) last. The substitution is
using the regular expression matching from the entry in the PATTERN argument,
such as $1 is the first matched string and so on. The number of elements in
MATCH and PATTERN must be the same.

Figure 2-5 Counter value manipulation rule
CNAME_MANIP This is the name of the counter to be manipulated.
MATCH This is a list of regular expressions (in order of
preference) that the counter values are expected to match
in order for the values to be manipulated. Each regular
expression should contain at least one pattern to be
extracted if the value is to be manipulated.
PATTERN This is a list of patterns that define how the counter value
will be manipulated. There is a one-to-one
correspondence between the position of the regular
expression in list MATCH and the patterns in PATTERN.
Any occurrence of $1, $2, ... in PATTERN will be
substituted by the values of the tagged expressions
matched by the corresponding regular expression in
MATCH. Hence, the list MATCH and PATTERN must have
the same number of elements.
OUTPUT_BLOCK_NAME
This is the block name to use in the output data.
Hostname Result pscc pfle pdur
Server1 OPER Success 57 16 4.56
Server2 Success 90 8 3.45
Server2 Fail_1 99 21 3.24
Server1 OPER Warning 77 12 1.74
Server2 Fail 99 21 3.24
Server1 Warning 77 12 1.74
CVAL_MANIP
CNAME_MANIP => 'Result',
MATCH => [ 'OPERs(w+)','([A-Za-z]+)_(w+)','(w+)' ],
PATTERN => [ '$1', '$1', '$1' ],
INPUT_FILE_DESCRIPTION => '^CVAL.pif$'

OUTPUT_DIR This is the name of an alternate directory to which the
loader files can be written for this rule. If not configured,
then LIFs will be written to the configured parser output
directory.
NON_MATCH_RECORD
This value determines whether or not to output a PIF
record whose counter value fails to match any of the
patterns. If set to TRUE, it will discard the row.
2.4.5 DATALINE_WHERE
The DATALINE_WHERE rule includes or excludes a data row depending on the
counter pattern value. The COUNTER_NAMES rule is a hash of values of
COUNTER_NAME, KEEP_WHERE, and REMOVE_WHERE as the conditions
to keep or remove the row. The process is shown in Figure 2-6. You can also add
a new counter.
Figure 2-6 The DATALINE_WHERE rule
COUNTER_NAMES Counter names to check. This is an array of a hash table.
Each hash entry must contain COUNTER_NAME and
either the KEEP_WHERE or REMOVE_WHERE keys.
Server1 OPER Success 57 16 4.56
Server2 Fail_1 99 21 3.24
Server1 OPER Warning 77 12 1.74
DATALINE_WHERE
COUNTER_NAMES=> [ { 'COUNTER_NAME'=>'Result',
'KEEP_WHERE'=>[ 's+' ] }, ],
ADD_NEW_COUNTER => 'testadd',
PRODUCE_PIF => "true",
NEW_COUNTER_VALUE => 'abc',
INPUT_FILE_DESCRIPTION => '^DATAWHERE.pif$',
Hostname Result pscc pfle pdur testadd
Server1 Success 57 16 4.56 abc
Server1 Warning 77 12 1.74 abc

ADD_NEW_COUNTER
New counter name to add
NEW_COUNTERS_VALUE
Value of the new counter
OUTPUT_BLOCK_NAME
Output data block name
FILENAME_ADDITION
String to add to the file name
OUTPUT_DIR Output file path
2.4.6 FILE_SPLIT
This FILE_SPLIT rule splits PIFs based on a counter’s field content. Different
rows may end up in different files. First, you specify the key counters to perform
the sorting. Then you specify the regular expression that you want to use to split
the file. Each unique value (from matching the key counters to the regular
expression) generates a new file. You can also rename a set of counter names.
The process is shown in Figure 2-7.
Figure 2-7 The FILE_SPLIT rule
Hostname Result n_pscc pfle pdur
Hostname Result n_pscc pfle pdur
FILE_SPLIT
INPUT_FILE_DESCRIPTION => '^FSPLIT.pif$',
SPLIT_COUNTERS_ORDER => [ 'Hostname' ],
COUNTERS_USED_TO_SPLIT_FILE => { 'Hostname'=>'(.+)' },
OLD_COUNTER_NAMES => [ 'pscc' ],
NEW_COUNTER_NAMES => [ 'n_pscc' ],
server2
server1

SPLIT_COUNTERS_ORDER
The order of counters for applying a regular expression
that will be used to split the file.
COUNTERS_USED_TO_SPLIT_FILE
The array of a regular expression used to obtain the split
file identifier. The number of entries in
COUNTERS_USED_TO_SPLIT_FILE must match
SPLIT_COUNTERS_ORDER.
NEW_COUNTER_NAMES
List of new counter names. This parameter must be used
with OLD_COUNTER_NAMES and has the same number
of entries.
OLD_COUNTER_NAMES
List of old counter names. This parameter must be used
with NEW_COUNTER_NAMES and has the same
number of entries.
2.4.7 FILE_SPLIT_BY_COUNTERS
The FILE_SPLIT_BY_COUNTERS rule splits a PIF by putting counters on
different files. You specify the counter names that you want to put into each files.
The process is shown in Figure 2-8 on page 31.

Figure 2-8 FILE_SPLIT_BY_COUNTERS rule
SPLIT_CNAMES Counter names used to split the file
ONLY_INSERT Array of counter names to be inserted into the output
WRITE_DATA_LINE Whether or not to write the data line
2.4.8 INFOINSERT
The INFOINSERT rule is used when we wish to include information from one PIF
file in another PIF file. The main difference between this rule and the JOIN rule is
that we do not wish to simply aggregate PIF files: here, we are actually
processing them to get a much more complete and complex PIF file. This
typically happens when we need to add hierarchical information to a PIF file that
has only counters, based on some counter pattern presented in it.
The INFOINSERT rule inserts counter data from a secondary information file into
a primary data file. It is typically used to insert hierarchy data from a configuration
file into a main file, based on a counter key.
FILE_SPLIT_BY_COUNTER
INPUT_FILE_DESCRIPTION => '^FSPLITC.pif$',
SPLIT_CNAMES => {
'split1' => [ 'Hostname','Result','pdur' ],
'split2' => [ 'Hostname','pscc','pfle' ],
},
split1 split2
Hostname Result pdur
Server1 Success 4.56
Server2 Success 3.45
Server2 Fail 3.24
Server1 Warning 1.74
Hostname pscc pfle
Server1 57 16
Server2 90 8
Server2 99 21
Server1 77 12

These counter keys may be made up of one or more counters, with both header
and data counters configurable for both the primary and secondary files. The
INFOINSERT rule requires at least two input files for processing: The file from
where data will be extracted (lookup.pif), and the file where data will be inserted
(infoins.pif). The process is shown in Figure 2-9.
Figure 2-9 INFOINSERT rule
INFO_FILE_DESCRIPTION
This is a regular expression, or a list of regular
expressions describing the names of the secondary files
that contain the information that is to be substituted into
the data lines of the files that are described in the option
INPUT_FILE_DESCRIPTION.
HEADER_NAMES_USED_TO_ID_DATA_RECORD
This is a list of header names that form the first part of a
key that is used to identify which record of secondary
information should be insert into this data record.
NAMES_USED_TO_ID_DATA_RECORD
This is a list of counter names that are used to construct
the second part of an identifier that is used to choose
which record of secondary information should be included
with each data record.
Hostname numfail tot_req
Server1 5 51
Server2 3 20
Server2 4 14
Server1 1 24
Server region
Server1 Asia
Server2 Americas
Hostname region numfail tot_req
Server1 Asia 5 51
Server2 Americas 3 20
Server2 Americas 4 14
Server1 Asia 1 24
INFOINSERT
INPUT_FILE_DESCRIPTION => '^INFOINS.pif$',
INFO_FILE_DESCRIPTION => '^LOOKUP.pif$',
NAMES_USED_TO_ID_DATA_RECORD => [ 'Hostname' ],
NAMES_USED_TO_ID_INFORMATION => [ 'Server' ],
ONLY_INSERT => [ 'Region' ],
HEADER_NAMES_USED_TO_ID_DATA_RECORD => [],
HEADER_NAMES_USED_TO_ID_INFORMATION => [],

HEADER_NAMES_USED_TO_ID_INFORMATION
This is a list of header counter names that form the first
part of the key that is used to create the unique key to
identify the secondary data for insertion.
NAMES_USED_TO_ID_INFORMATION
This is a list of counter names used to construct a unique
identifier for the records of data in the secondary
information file.
ONLY_INSERT This list can be used to configure the list of counter names
that are required for insertion, if the full set of data from
the information file is not required.
WRITE_DATA_LINE This option controls the action of this rule when there is no
information to substitute for a line of data, that is, the key
from the main file is not found in the secondary file. If set
to TRUE, and there is no data to substitute, the data row
will be output anyway, with NULL values inserted for the
secondary keys. If set to FALSE, the data row will not be
output.
OUTPUT_BLOCK_NAME
This is the name that should be used for the section name
in the loader file.
OUTPUT_FILENAME_START
This is a prefix that the output file name will start with.
OUTPUT_DIR This is the output directory. The default is stored in the
properties file.
INFO_FILES_STORAGE_DIR
This is an optional scalar entry containing a directory
name where information files can be stored. Information
files not stored are deleted, as is the case if
INFO_FILES_STORAGE_DIR is not set in the
INFOINSERT configuration, or is set to zero (in
non-debug mode).
REMOVE_INFO_FILES
By default, the information files are kept for the run. In
certain situations, where the information files are being
created for each gateway iteration, this is not necessary. If
this option is set to TRUE, the information files will be
deleted.

2.4.9 JOIN
The JOIN rule merges two PIF files into a single file based on matching file
names and matching counters. The process is shown in Figure 2-10. We advise
using the OUTPUT_FILENAME_START as well so the file name does not start
with a hyphen (-).
Figure 2-10 JOIN operation
COUNTERS_TO_JOIN_ON
Source counters for joining the files
OUTPUT_BLOCK_NAME
Output data block name
This is a prefix to use on the output file name.
HEADER_COUNTERS_TO_USE_IN_OUTPUT_FILENAME
This is a list of counter names to use to construct the
output file name.
HOURS_TO_WAIT_FOR_PARTNER_FILES
This is the amount of time a PIF file waits for its partner
Hostname Port numfail tot_req resp
Server1 80 5 51 3.24
Server2 80 3 20 3.13
Server2 21 4 14 4.33
Server1 8080 1 24 2.12
JOIN
INPUT_FILE_DESCRIPTION => ['^JOIN1.pif$','^JOIN2.pif$' ],
COUNTERS_TO_JOIN_ON => [ 'Hostname','Port' ],
OUTPUT_BLOCK_NAME => 'joindata',
OUTPUT_FILENAME_START => 'JOINOUT',
Hostname Port numfail tot_req
Server1 80 5 51
Server2 80 3 20
Server2 21 4 14
Server1 8080 1 24
Hostname Port resp
Server1 80 3.24
Server2 80 3.13
Server1 8080 2.12
Server2 21 4.33

file before it can be joined. This entry should be removed
from the configuration or set to -1 if there is no partner file.
TIME_JOINFILE_PRODUCED
If set to TRUE, the rule will add a time and date to the
output joined file. The time and date is in the following
format: <DAY><DATE><MON><YEAR>_HH:MM:SS.
QUOTE_INPUT_PIFS
If set, the rule will add the names of the input PIFs to the
output LIF. This can be useful when trying to debug the
joining of a large number of files or a complex rule.
NEW_HEADER_COUNTERS
Additional header fields to be created.
OUTPUT_DIR Destination path.
2.4.10 MERGE_RECORDS
The MERGE_RECORDS rule merges multiple records into a single records by
sorting the key counters. The process is similar to ACCUMULATE, but the key
difference is that merging a record does not process the ACCUMULATE rule, but
instead keeps all the individual counters based on the grouping key. The process
is shown in Figure 2-11. The port key is used for grouping the data, and all the
different port numbers generate different counter names, resulting in some null
values.
Figure 2-11 MERGE_RECORDS rule
Hostname T80_req T80_fail T21_req T21_fail T8080_req T8080_fail
Server1 51 10 - - 24 2
Server2 20 1 14 3 - -
MERGE_RECORDS
INPUT_FILE_DESCRIPTION => '^MREC.pif$',
COUNTERS_TO_SORT_ON=> [ 'Hostname' ],
GROUP_KEY => 'port',
REDUNDANT_DATA_COUNTERS => [ ‘port’ ],
PRODUCE_PIF=> "true",
Hostname port req fail
Server1 80 51 10
Server2 80 20 1
Server2 21 14 3
Server1 8080 24 2

COUNTERS_TO_SORT_ON
Counters to sort for a merging record
GROUP_KEY The counter name that is used to define grouped records.
MANIP_ONLY Only return counters are manipulated.
2.4.11 PERLIZE
PERLIZE is, by far, the most flexible of all rules, for one very simple reason: It
allows you to input your own Perl program into the gateway framework! A support
engineer with Perl programming knowledge can correct, even on site, a problem
that exists within a gateway, bypassing all the processing by using the PERLIZE
rule.
Of course, this advantage is also its greatest disadvantage: using PERLIZE to
excess may lead to documentation problems (for example, only the professional
that programmed those lines on site will understand what happened if he or she
forgets to document his work).
Also, using PERLIZE too much may lead to redundancy: you may be tempted to
write a few code lines to perform a task that can be easily performed by another
rule, for example.
Therefore, PERLIZE should be used only in situations where other rules are not
recommended or when the vendor gateway rules cannot help. Read the
instructions both for the framework, vendor gateway, and gateway-adapter rules
before venturing too deep into Perl programming.
Data, both header and counter rows, can be manipulated in many ways,
including:
Deriving new counters from existing values, including using mathematical
operations
Adding new counters
Renaming counters
Removing counters
Filtering files through the header fields and counter rows individually

FILENAME_SUFFIX This is a suffix string that you append to the output file.
This should reflect the operation performed by PERLIZE
OUTPUT_BLOCK_NAME
This is the block name to use in the output data.
OUTPUT_DIR This is an alternative directory to which you write the
performance LIF data.
HEADER_COUNTERS_OP
This is a subroutine to process the header block. This
subroutine is passed a reference to a hash containing the
header names and values. If the subroutine returns a
non-zero value, then the file is discarded.
DATA_COUNTERS_OP
This is a subroutine to process each PIF data row that is
passed out as a hash reference. If the subroutine returns
a non-zero value, then the row will be discarded.
2.4.12 PIF_2_CSV
This rule generates an output file in the CSV format. This is important in Service
Quality Manager, as it uses CSV files as source data, and there is a problem in
generating the CSV file from the gateway framework. There are no required
parameters. The optional parameters are:
OUTPUT_FORMAT The format of the output file, which is CSV for Service
Quality Manager.
NEW_HEADER_COUNTERS
Additional header counters.
OUTPUT_BLOCK_NAME
Data block to be written in the output file.
Output file name prefix (not used).
FIELD_DELIMITER Output field delimiters. The default is a comma (not used).
HEADER_FIELDS_FOR_OUTPUT_FILENAME
An array of header fields to be used as the output file
name. This parameter overrides the default file name that
uses the input file name as a base to construct the output
file name.

OUTPUT_FILENAME_DELIMITER
Character that delimits the header fields.
COUNTERS_ORDER
The order of the output fields, both from the header and
data fields.
2.4.13 PIF_2_OUTPUT
The PIF_2_OUTPUT rule generates an output file that is not in the PIF format.
There are no required parameters. The optional parameters are:
OUTPUT_FORMAT The format of the output file
NEW_HEADER_COUNTERS
Additional header counters
OUTPUT_BLOCK_NAME
Data block to be written in the output file
Output file name prefix
OUTPUT_DIR Output file name directory path
2.4.14 SPLIT_RECORD
The SPLIT_RECORD rule split a record based on certain counter names. It
generates new counter names of the split key. The hash key of the
SPLIT_CNAMES becomes a new key counter, which retain the uniqueness of
the data row. The new key counter name is specified under the NEW_CNAMES
parameter. The process is shown in Figure 2-12 on page 39.

Figure 2-12 The SPLIT_RECORD rule
SPLIT_CNAMES Counter names for the split
NEW_CNAMES New counter names after split
ONLY_INSERT Specifies the counter names to be inserted.
OUTPUT_BLOCK_NAME
The output block name.
Prefix for the output file name.
OUTPUT_DIR Output directory path.
NEW_REC_ID_NAME
The new counter field name for the key counter.
ohost oport numfail tot_req resp
Server1 80 5 51 3.24
Server2 80 3 20 3.13
Server2 21 4 14 4.33
Server1 8080 1 24 2.12
host port numfail resp newrecid
Server1 80 5 3.24 key1
Server1 8080 1 2.12 key1
Server1 8080 1 2.12 key2
SPLIT_RECORDS
INPUT_FILE_DESCRIPTION => '^SPLITR.pif$',
SPLIT_CNAMES => {
'splitkey1' => [ 'ohost','oport' ],
},
NEW_CNAMES => [ 'host','port' ],
NEW_REC_ID_NAME=> 'newrecid',
ONLY_INSERT=> [ 'numfail’,’resp' ],

2.4.15 UNPEGGER
The UNPEGGER rule calculates the difference in values between two particular
rolling counters (counters that always increase in value). The rule can handle a
single time period per PIF, contained in the header, or can handle multiple
periods within a PIF. For header based datetime counters, the functions are
prefixed h_. For data based datetime counters, the functions are prefixed d_.
INPUT_FILE_DATETIME_KEY
The time stamp to be used for performing UNPEGGER.
PEG_FILENAME_PREFIX
Prefix for the peg file name
UNPEG_FILENAME_PREFIX
Prefix for the unpeg file name
KEEP_RAW_GRANULARITY
Whether or not to keep raw granularity
MAX_PEG_PIF_AGE
Maximum pegging age
CALCULATE_ROLLOVER
Whether or not to calculate rollover
DEFAULT_NULL_VALUE
The default value to fill in when there is a calculation error
PEG_COUNTERS Counters for the peg process
COUNTERS_TO_SORT_ON
Sorting key
UNPEG_FILE_TYPE
File type for the unpeg file
DATETIME_COUNTERS
Counter for date and time
INPUT_DATE_FORMAT
Format of the date time files
ROLLOVER_WINDOW
Window for the roll over data

2.5 Performance tips
This section discusses some miscellaneous performance tips for the gateway
processing. Some of the discussion is taken from the Gateway Framework User’s
Guide, found at:
http://publib.boulder.ibm.com/infocenter/tivihelp/v8r1/topic/com.ibm.ne
tcool_pm.doc/GatewayFramework_3.1_UserGuide.pdf
The following are some common changes that can improve performance of the
gateway. Before applying any changes, ensure that the gateway is outputting the
correct data format for loading.
Minimize the number of intermediate and output files: Typically, a gateway will
process less larger files with more data more efficiently than a greater number
of smaller files with a smaller number of records. This is less of an issue if you
are use PIF data that is cached in memory. It may also have an impact on the
loadmap configuration.
If outputting to multiple directories, use the Transfer Stage: Rather than using
multiple instances of the same rule to output to two different paths, use the
Transfer Engine or external scripts to distribute the files.
Never use a low performance disk or a network mounted disk (NFS disk) for
the intermediate processing files: The network and processing impact may
significantly reduce the throughput of your processing.
Use tmpfs file systems or cache PIF data in memory: Performance data goes
through a number of transformations before final output. Disk I/O can be a
major bottleneck. Use either tmpfs file systems or configure the PIF data to be
cached in memory. This can offer significant savings.
Use parallel processing: If the server has more than one processor, configure
parallel processing for rules that meet the detailed guidelines. This can also
be beneficial if the disk is slow, as multiple reads/writes can be queued to the
disk. The related parameters in EngineConfig.pm are:
NUMBER_OF_PROCESSES => 4
MIN_FILES_PER_PROCESS => 2
Use PERLIZE for complex operations: If there is a specific counter
manipulation or calculation requirement which requires a number of
transformations, use the PERLIZE rule to configure it in a single function,
rather than write specific rule(s).

Gently stop the gateway process: If required, the execution chain can be
stopped gently by creating an empty file named stop_gateway in the input
directory. The gateway will stop the current engine stage (does not parse all
remaining raw files) and proceed to the post parsing stage. The remaining
raw files will be parsed when the gateway is restarted.

Chapter 3. Gateway development
This chapter describes a sample gateway development of a Motorola GGSN data
gateway structure and modification of that structure. This chapter containts the
following sections:
3.1, “Identifying the data source” on page 44
3.2, “Gateway configuration for Motorola GGSN” on page 51
3.3, “Transfer process for the Motorola GGSN gateway” on page 53
3.4, “Modifying the Generic CSV parser engine” on page 56
3.5, “Developing the post parser configuration for Motorola GGSN” on
page 58
3.6, “Running gateway programs” on page 64
3

3.1 Identifying the data source
The standard Motorola GGSN vendor subsystem v50 release gateway parses
raw performance data in the CSV file format. Refer to “A sample Motorola GGSN
CSV file” on page 76 for a sample of this raw performance data file.
The installed gateway configuration produces LIF files that are meant to be used
with Performance Manager for Wireless loaders. Hence, further changes to the
gateway configuration is necessary in order for it to produce the CSV file format
that is required by the Service Quality Manager adapters. The Service Quality
Manager adapters require the input file to be a CSV file with a name conforming
to the 3GPP standard for time stamp.
We discuss data source information in the following sections:
“Input specification for GPRS Technology Pack” on page 44
“GPRS Service Solution interface control guide” on page 47
“Mapping of data from gateway and adapters” on page 50
3.1.1 Input specification for GPRS Technology Pack
To develop a gateway module, we must understand the input file format. You can
get the format from the customer or the technology vendor. As an example, we
are using the Motorola GGSN gateway configuration from the GPRS Technology
Pack. Apart from the gateway configuration, every Technology Pack also includes
a functional specification document. We extract the input file specification from
the functional specification, as shown in Table 3-1.
Table 3-1 Raw data field names
Number CSV field name Usage
0 systemName GGSN_ID
1 systemIPAddress Part of APN_ID
2 index Part of APN_ID
3 day Header date
4 startTime Header start time
5 endTime Header end time
6 cgprsAccPtActivePdps Not used
7 cgprsAccPtDestAddrViolTpdus Not used

Chapter 3. Gateway development 45
8 cgprsAccPtDhcpAddrReleases Not used
9 cgprsAccPtDhcpAddrRequests Not used
10 cgprsAccPtDownstreamPacketCount Not used
11 cgprsAccPtGgsnDeactivatedPdps Not used
12 cgprsAccPtIpv6DownstreamPackets Not used
13 cgprsAccPtIpv6DownstreamTrafficVolume Not used
14 cgprsAccPtIpv6GgsnDeactivatedPdps Not used
15 cgprsAccPtIpv6GgsnSuccDeactivatedPdps Not used
16 cgprsAccPtIpv6MsActivatedDynPdps Not used
17 cgprsAccPtIpv6MsActivatedPdps Not used
18 cgprsAccPtIpv6MsDeactivatedPdps Not used
19 cgprsAccPtIpv6MsSuccActivatedDynPdps Not used
20 cgprsAccPtIpv6MsSuccActivatedPdps Not used
21 cgprsAccPtIpv6MsSuccDeactivatedPdps Not used
22 cgprsAccPtIpv6NetworkInitDeactPdps Not used
23 cgprsAccPtIpv6NetworkInitDeactSuccPdps Not used
24 cgprsAccPtIpv6UpstreamPackets Not used
25 cgprsAccPtIpv6UpstreamTrafficVolume Not used
26 cgprsAccPtMsActivatedDynPdps The usage of these fields
are discussed in Table 3-2
on page 46.27 cgprsAccPtMsActivatedPdps
28 cgprsAccPtMsDeactivatedPdps
29 cgprsAccPtNetworkInitPdps
30 cgprsAccPtRedirInterMobilTraffic Not used
31 cgprsAccPtRevDownstrTrafficVol Not used
32 cgprsAccPtRevUpstreamTrafficVol Not used
33 cgprsAccPtSourceAddrViolTpdus Not used
34 cgprsAccPtSuccDhcpAddrRequests Not used

Using the fields in Table 3-1 on page 44, the necessary calculation for producing
KPIs are listed in Table 3-2. The field names in Table 3-2 are truncated, as we
omit the prefix cgprsAccPt. Also, the data in Table 3-2 is put in the PIF data block
called cgprsAccPtStatisticsEntry. Table 3-2 lists the information that must be
produced from the raw file that will be processed by the Technology Pack
gateway. We will use this for our gateway mapping process to define KPI
attributes.
Table 3-2 Fields data related to GPRS Core GGSN for Motorola
35 cgprsAccPtSuccGgsDeactivatedPdps Not used
36 cgprsAccPtSuccMsActivatedDynPdps The usage of these fields
are discussed in Table 3-2
on page 46.37 cgprsAccPtSuccMsActivatedPdps
38 cgprsAccPtSuccMsDeactivatedPdps
39 cgprsAccPtSuccNetworkInitPdps
40 cgprsAccPtUpstreamPacketCount Not used
Field name Expression® or mapping Description
GGSN_ID systemName A unique identifier for the GGSN
APN_ID systemIPAdress&”:”&index A unique identifier for the APN
SuccessfulPDPActivation SuccMsActivatedPdps+
SuccMsActivatedDynPdps+
SuccNetworkInitPdps
The total successful PDP activations
SuccMsActivatedPdps SuccMsActivatedPdps The total number of successfully completed
PDP context activation procedures initiated by
MS® on this APN
SuccMsActivatedDynPdps SuccMsActivatedDynPdps The total number of successfully completed
dynamic PDP context activation procedures
initiated by MS on this APN
SuccNetworkInitPdps SuccNetworkInitPdps The total number of successfully completed
network initiated PDP context activation
procedures
AttemptsPDPActivation MsActivatedPdps+
MsActivatedDynPdps+
NetworkInitPdps
The total attempted PDP activations

3.1.2 GPRS Service Solution interface control guide
The version of Service Quality Manager GPRS Service Solution installed is V1.3.
This GPRS Service Solution includes several data sources for:
Radio Access Network (RAN) PM
Core Gateway GPRS Support Node (GGSN) PM
Core Serving GPRS Support Node (SGSN) PM
End-to-End (E2E) Active Test
For each data source, there is an interface control guide in a PDF file. The
interface control guide explains the input file requirements so that data can be
loaded successfully. We use the GPRS Core GGSN PM Service Solution
Interface Control Guide as a basis to develop and configure the gateway we
have.
In conjunction with the functional specification of the technology pack, we can
correlate the performance data information for the GPRS Core GGSN PM.
GPRS Core GGSN PM CSV file naming convention
The adapter in the GPRS Core GGSN PM Service Solution requires the input
CSV file to be named as follows:
AYYYYMMDD.hhmm-YYYYMMDD.hhmm_UniqueID_GGSN.csv
where YYYYMMDD.hhmm elements correspond to the file interval start time and
end time, respectively.
MsActivatedPdps MsActivatedPdps The total number of PDP context activation
procedures initiated by an MS on this APN
MsActivatedDynPdps MsActivatedDynPdps The total number of dynamic PDP context
activation procedures initiated by an MS on this
APN
NetworkInitPdps NetworkInitPdps The total number of network initiated PDP
context activation procedures
SuccMsDeactivatedPdps SuccMsDeactivatedPdps The total number of successfully completed
PDP context deactivation initiated by the MS
MsDeactivatedPdps MsDeactivatedPdps The total number of PDP context deactivation
procedures initiated by an MS on this APN
Field name Expression® or mapping Description

UniqueID is an optional element that can be used to, for example, uniquely
identify the GPRS Core Network. In a situation where the deployed solution has
multiple mediation points, then this element is recommended.
We use a custom field in the PERLIZE rule and a modified CSV output writer to
achieve this name. This customization is explained in 3.5, “Developing the post
parser configuration for Motorola GGSN” on page 58. Example 3-1 show some of
the file names using the desired naming convention.
Example 3-1 GPRS Core GGSN CSV file naming convention
A20081008.1500-20081008.1515_1_GGSN.csv
A20081008.1500-20081008.1515_2_GGSN.csv
A20081008.1515-20081008.1530_1_GGSN.csv
A20081008.1515-20081008.1530_2_GGSN.csv
GPRS Core GGSN PM CSV file format
The content of the CSV file for the core GGSN PM is listed in Table 3-3. The
fields should be described in the CSV header lines.
Table 3-3 GPRS Core GGSN PM CSV file format
Field name Field description Constraints
GGSNName Textual name of GGSN Not null, text string (up to 64
characters)
APN The access point name Not null, text string (up to 256
characters)
pdpCreate_successes Number of successful PDP Contexts
creation attempts
Nullable, but >=0 if present
pdpCreate_failures Number of unsuccessful PDP Contexts
creation attempts
msInit_pdpDelete_successes Number of successful mobile initiated
PDP context deletion attempts
msInit_pdpDelete_failures Number of unsuccessful mobile initiated
PDP context deletion attempts
nwInit_pdpDelete_successes Number of unsuccessful network
initiated PDP context deletion attempts
nwInit_pdpDelete_successes Number of unsuccessful network
initiated PDP context deletion attempts

In order to generate this data, we would have to manipulate the raw performance
data in “A sample Motorola GGSN CSV file” on page 76. Some of the basic
changes involve:
Filtering the data and fields that are not used
Combining day and start/end time to get the complete time stamp, and
reformatting them
Calculating the required data
Renaming the data field
Sorting the data and field according to the above format
Some of these changes are available in the common post parser rules in the
gateway. Manipulating the time stamp and calculating the data would need to be
further developed using the PERLIZE rule.
The service solution expects the GPRS Core GGSN CSV input file to contain
one row for every unique identifier of the combination:
GGSNName
APN
As seen in our sample raw performance data in “A sample Motorola GGSN CSV
file” on page 76, the file complies with this requirement, so this is not an issue
here. However, APN is a combination of more than one field, so data
manipulation to combine the fields should be configured too.
Service Quality Manager delivery and collection mechanism
Most of the default settings for this mechanism are used with some exceptions.
Transfer mechanism
The gateway is able provide the data push of the GPRS Core GGSN CSV
input file to where the Service Quality Manager adapter is running and we
make the necessary configuration to enable this action.
Data directory
This default location for the data directory that will be used can be found in
$WMCROOT/var/adapter/gprs_core_ggsn_pm_loader, where WMCROOT is the
environment variable for the root directory of Service Quality Manager and
can be found in the profile for user saserver. Usually, it is /appl/sa, unless a
different path is used during install.
File interval
The file interval we are using is 15 minutes rather than the default 60 minutes.

Transfer latency
If the CSV files that come in periodically to the data directory are not on time,
there is a maximum latency period of 60 minutes. This is the default, but is
configurable.
Files per interval
The GPRS Core GGSN Service Solution expects at least one input file per
interval. In our case, we have two files per interval because we have two
sources of GGSN raw performance data.
3.1.3 Mapping of data from gateway and adapters
The information from the service solution interface control guide and the input
format (gateway’s functional specification) should be mapped. As we now have
an idea of how the data should be presented, we could proceed with developing
the gateway configuration files in 3.2, “Gateway configuration for Motorola
GGSN” on page 51.
Table 3-4 shows how the mapping of the information between Table 3-2 on
page 46 for the data input and Table 3-3 on page 48 from the interface control
guide documentation. Information that is not available will be left as null.
Table 3-4 Mapping of information
Interface field name Functional specification field name
GGSNName GGSN_ID
APN APN_ID
pdpCreate_successes SuccessfulPDPActivation
pdpCreate_failures AttemptsPDPActivation-SuccessfulPDPActivation
msInit_pdpDelete_successes SuccMsDeactivatedPdps
msInit_pdpDelete_failures MsDeactivatedPdps-SuccMsDeactivatedPdps
nwInit_pdpDelete_successes Not available
nwInit_pdpDelete_failure Not available

3.2 Gateway configuration for Motorola GGSN
Now that we know how to present the data based on the information gathered in
the last section, we can go ahead and configure the gateway with the most basic
settings, and finally develop it to generate our desired end result. Along the way,
we may highlight some debugging options and customization of the product for
features that may not yet be available.
Although the gateway is properly installed and set up with the Motorola GGSN
vendor sub-system v50 release gateway configuration, this only provides a
standard configuration platform. There are still some additional configuration
steps to get it running properly before we discuss further developing it to
generate our desired end result output. The configuration files for this gateway
can be found in $GATEWAY_ROOT/config/motorola-ggsn/v50 directory.
3.2.1 Configuring the Gateway directory settings
First, configure the directories where the gateway will be processing the files,
usually because either the path provided in the standard configuration is not
correct or it has not been created yet.
This configuration should be made in the properties file. IN_DIR, INT_DIR, and
OUT_DIR are the compulsory directory settings to ensure that the gateway is able
to run. Chapter 2, “Gateway concepts and processing” on page 13 explains how
these settings are used. Example 3-2 shows the directories being used in the
properties file.
Example 3-2 The gateway directory settings in the properties file
# Gateway processing directory settings
IN_DIR=../spool/parse
INT_DIR=../spool/inter
OUT_DIR=../spool/loader
# storage directory settings
INPUT_STORAGE_DIR=../spool/archive
INTERMEDIATE_STORAGE_DIR=0
OUTPUT_STORAGE_DIR=1
We are also using the INPUT_STORAGE_DIR directory setting, which is optional, to
store input raw performance data files after the gateway has processed them.
The other optional directory settings are INTERMEDIATE_STORAGE_DIR and
OUTPUT_STORAGE_DIR. The intermediate storage is usually set to 0, which disables
it.

The directory path that is used in the settings can either be a full path or an
absolute path according to the location of the properties file.
3.2.2 Configuring auditing and logging for the gateway
Similarly for the auditing and logging of the gateway, the default configured path
may not yet be available, and sometimes it is not the preferred location. Although
the gateway will still run without this configuration, we cannot tell if the gateway
ran successfully or has any error messages, and this is not an acceptable
situation.
Normally, the standard configuration names are audit and log. If there are other
vendor subsystems, however, this will often cause confusion, so we use more
meaningful names. The names for auditing and logging are AUDIT_FILE and
LOG_FILE, respectively. Example 3-3 shows how to use these names in the
properties file.
Example 3-3 The gateway auditing and logging names in the properties file
# Log and audit files settings.
# LOG_LEVEL can be set from 0 to 5, described as follow:
# 0 - No logs
# 1 - Critical error logs, Gateway unable to run or stop running
# 2 - Major error logs, Gateway configuration issues
# 3 - Minor error logs, raw data issues
# 4 - Warning
# 5 - Info
LOG_FILE=../../../logs/gways-motorola-ggsn-v50.log
LOG_LEVEL=1
AUDIT_FILE=../../../logs/gways-motorola-ggsn-v50.audit
By defining the LOG_LEVEL option, more information is available in LOG_FILE as
the number increases from 0 to 5. The default LOG_LEVEL of 5 will be useful during
the installation and configuration phase of the gateway. However, when we have
finished developing the gateway and ensure that it is running well, we should
lower the LOG_LEVEL to avoid accumulating a large amount of logs that may take
up disk space.
3.2.3 Enabling debug mode settings for the gateway
The gateway also has debug mode settings that are useful during development
or troubleshooting a problem. The settings do not actually output more debug
messages in the logs, but, with them enabled, the raw performance data files and

PIF files will not be removed from their directories after the gateway has
completed running.
With these settings, you can trace the execution of the gateway at every step and
check whether the files produced in each step are correct. You can set this
function using the DEBUG option in the properties file. Example 3-4 shows how
to turn on debug mode for the gateway in the properties file.
Example 3-4 The Gateway debug mode settings in properties file
# Debug level
# 0 - no debugging
# debug - debugging on
DEBUG=debug
As when the logging level is set too high, the debug mode should be disabled
when you are certain that the gateway is running properly. Leaving the debug
mode enabled will fill up disk space and sometimes cause incorrect output,
because if some PIF files are using the same file name, you may not be able to
overwrite them. Setting this option to 0 will turn off this feature.
3.3 Transfer process for the Motorola GGSN gateway
The transfer process consists of two parts: the extraction or inbound transfer (see
3.3.1, “Extracting data from source” on page 53) and the delivery or outbound
transfer (see 3.3.2, “Sending data to the adapter” on page 55).
3.3.1 Extracting data from source
The Motorola GGSN vendor subsystem V50 release’s raw performance data files
consist of CSV data generated through SNMP data acquisition. Usually, this data
is available in a separate system, and must be extracted and sent to the gateway
in order to process these files.

To do this task, we use the transfer (in) process in the Gateway Framework
architecture. The configuration is in the TransferConfig.pm file. Example 3-5
shows the transfer configuration for extracting the CSV file from the source by
using FTP to the gateway in the TransferConfig.pm file.
Example 3-5 TransferConfig.pm for inbound transfer
{
RULE_DESC => 'Transfer files in',
PROTOCOL => "ftp",
HOST => "9.3.5.11",
DIRECTION => "IN",
USER => "saserver",
PASS => "Saserver01",
LOCAL_DIR => "../spool/parse",
REMOTE_DIR => "/code/motorola-ggsn-source",
TIMESTAMP_FILE => "./.timestamp_in",
DEPTH => 0,
INPUT_FILE_DESCRIPTION => {
CSV => '^.*.csv$',
},
RETRY_ATTEMPTS => 4,
RETRY_INTERVAL => 5,
TIMEOUT => 30, # Seconds
BULK_TRANSFER => "True",
},
Most of the transfer configuration is quite straightforward, but take note of
DIRECTION option, set to IN, which means send the file to the gateway. The
TIMESTAMP_FILE option lets the gateway know the history of the last run of the
transfer and the files that were previously picked up, so only the transfer of new
files will take place. This prevents duplicate file transferal.
Here the INPUT_FILE_DESCRIPTION option is also introduced, which we will
see more in the other configuration part. It is used to identify only the file name
required for the regular expression pattern matching. It is often use with the
DEPTH option, so it is able to search a number of levels down into the defined
subdirectory. The number 0 denotes that there is only the current level of the
directory.

3.3.2 Sending data to the adapter
After the gateway has finished processing the raw performance data files, the
generated output files are sent to the gateway so they can be loaded. In our
example, the destination is the adapter in the GPRS Core GGSN PM Service
Solution.
Here we use the transfer (out) process in the Gateway Framework architecture,
where a configuration similar to what was done for the transfer (in) process is
done in the TransferConfig.pm file. Example 3-6 shows the transfer
configuration, where the output CSV file generated by the gateway is pushed to
the adapter in the TransferConfig.pm file.
Example 3-6 TransferConfig.pm for the outbound transfer
{
RULE_DESC => 'Transfer files out',
PROTOCOL => "ftp",
HOST => "9.3.5.11",
DIRECTION => "OUT",
USER => "saserver",
PASS => "Saserver01",
LOCAL_DIR => "../spool/loader",
REMOTE_DIR =>
"/appl/sa/var/adapter/gprs_core_ggsn_pm_loader/upload",
TIMESTAMP_FILE => "./.timestamp_out",
DEPTH => 0,
INPUT_FILE_DESCRIPTION => {
CSV => '^.*.csv$',
},
RETRY_ATTEMPTS => 4,
RETRY_INTERVAL => 5,
TIMEOUT => 30, # Seconds
DELETE_ORIGINAL => "True",
},
Here the DIRECTION option is set to OUT, so the file is sent out from the
gateway instead. The TIMESTAMP_FILE is also used, but remember to set it
using a different file name than the one we used when transferring the file in, or
you may have a conflict.

3.4 Modifying the Generic CSV parser engine
This section discusses modifying the standard generic CSV engine in two
sections:
“Verifying the parser engine configuration” on page 56
“Modifying the configuration” on page 56
3.4.1 Verifying the parser engine configuration
The Motorola GGSN vendor subsystem v50 release’s gateway configuration
provides a default configuration for the Generic CSV engine we previously
installed. It can process the Motorola GGSN CSV format raw performance data
to produce temporary PIFs.
The first level PIF file is actually the initial PIF file created by the vendor gateway
engine in INT_DIR. Normally, these files end with the -#-I.pif suffix generated
by the parser engine. The parser engine is governed by the EngineConfig.pm file.
The primary verification is to ensure that the INPUT_FILE_DESCRIPTION matches
the file of raw performance data. Check for other configurations that have
relevant files or file names, such as INPUT_DIR_DEPTH, ORDER_OF_FILES, and
FILENAME_HEADER_FIELDS. Usually, these are common misconfiguration errors.
It seems that the default engine configuration already matches the raw
performance data file name we are using, as shown in Example 3-7. If it does not
match, then it is necessary to modify the options related to the file and its naming
convention.
Example 3-7 Sample Motorola GGSN raw performance data file name
PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_10_10_2008_14_55_23.csv
3.4.2 Modifying the configuration
Normally, changing the vendor gateway parser engine configuration is preferable.
The parser engine configuration should already match each vendor subsystem
and release raw data. Modifying it without proper knowledge can cause the
gateway to be unable to produce PIF files.

It is better to make the configuration changes at the post parser level to
manipulate data in the first level PIF files after they are generated. However,
sometimes making changes to the vendor gateway engine configuration cannot
be avoided. Most of the time, this is due to limitations with the common data
manipulation features in the post parser configuration, and they are only available
through the specific vendor gateway configuration.
In our case, there are some configuration option changes to be made:
HEADER_FIELDS and DATA_FIELDS
Gateway configurations from the Technology Pack are designed to produce
LIF output for the Performance Manager for Wireless product. However, we
require CSV file output for Service Quality Manager. Header blocks and data
blocks only exist in PIF and LIF files, but not in CSV files. When exporting to
CSV file format, the gateway combines both header content and data block
content in a single row, with the header data appearing first.
The specific format of the CSV output file names in Example 3-1 on page 48
requires some information to be put into the header, such as start and end
time stamps. The systemIPAddress from the header field must be moved to
the data fields. The systemIPAddress combines with index data forms
APN_ID field. The mapping for HEADER_FIELDS and DATA_FIELDS is
shown in Example 3-8. The field’s number corresponds to the number in
Table 3-1 on page 44.
Example 3-8 The EngineConfig.pm for header and data fields
'HEADER_FIELDS' => [ 0,3,4,5 ],
'DATA_FIELDS' => [ 1,2,6..100 ],

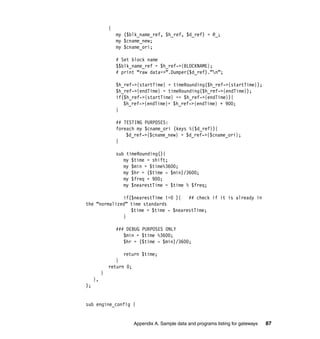

Time rounding feature in HEADER_DATA_RECORD_PROCESSING
For Service Quality Manager, time stamp data must fall in the correct time
boundary of the granularity period. For example, a 15 minute data granularity
period should only have a time stamp at 0, 15, 30, and 45 minutes. This can
be achieved by modifying the HEADER_DATA_RECORD_PROCESSING
subroutine in the parser engine configuration.

The original parser has time stamps in the data block, but we move it to the
header. So, instead of using the $d_ref variables, we use the $h_ref variables.
This change is shown in Example 3-9 for the EngineConfig.pm file.
Example 3-9 Generic CSV engine time rounding settings in EngineConfig.pm
$h_ref->{startTime} = timeRounding($h_ref->{startTime});
$h_ref->{endTime} = timeRounding($h_ref->{endTime});
if($h_ref->{startTime} == $h_ref->{endTime}){
$h_ref->{endTime}= $h_ref->{endTime} + 900;
}
In every vendor gateway, there is specific documentation that has more details
about the available configuration options. Some of the configuration options we
have discussed for Generic CSV can be found in the Generic CSV User Guide
packaged with the installation.
3.5 Developing the post parser configuration for
Motorola GGSN
The post parser configuration is where the majority of the development takes
place. We have to modify this configuration to generate a CSV output file instead
of a LIF file. We want to produce a CSV file for the adapter in the GPRS Core
GGSN PM service solution. This configuration will be done in the UserConfig.pm
file.
Our solution is discussed in these sections:
“Manipulating the data in the PERLIZE post parser rule” on page 58
“Outputting data in the CSV format using the PIF_2_CSV rule” on page 63
3.5.1 Manipulating the data in the PERLIZE post parser rule
According to 3.1, “Identifying the data source” on page 44, we have an idea of
how to generate the required data from the raw data, either through direct
one-to-one, or many-to-one mappings. This mapping relationship, which is
created by renaming existing data and calculations, does not seem to be directly
available with the standard post parser rule.

We can created these mappings by using the PERLIZE rule, which provides
advanced customized data manipulation in header and data blocks. By enabling
debug mode, we can see the first level PIF (see “Sample first level PIF data file”
on page 76 for more information).
From our previous gateway parser engine configurations, we understand some
data resides in the header and data block section. The purpose of having header
data is because it is common information that can be used for all other data block
sections, so they would not need to be repeated within each data block section.
Eventually, the combination of a header and each data block section will form
one record, or row, in the CSV file format. The PERLIZE rule allows manipulation
of the data in header and block sections.
We decide how to manipulate the data from the PIF file as follows:
Input to the PERLIZE rule is defined with the INPUT_FILE_DESCRIPTION
option, as shown in see Example 3-10. We also show how the PERLIZE rule
is called by simply defining the RULE_TYPE option. The RULE_DESC option
is mainly a description, so this rule can be easily searched for when
performing auditing or logging, because sometimes the same rule type may
be used more than once.
Example 3-10 Matching the PIF file name for the PERLIZE rule in UserConfig.pm
RULE_TYPE => 'PERLIZE',
RULE_DESC => 'Manipulating Motorola GGSN Data',
INPUT_FILE_DESCRIPTION => '^*-#-I.pif$',
Header manipulation
In the header, there are several changes that we want to perform:
– We would like to change the time format for startTime and endTime to the
format YYYYMMDD.hhmm. Currently, startTime and endTime information only
includes the time, but does not include date information, which has to be
created by combining the time with the day. To combine them, a
conversion to UNIX® date time is done and then converted to the desired
format. The Date::Manip Perl libraries should be included to allow this date
and time manipulation.
– The startTime and endTime fields use prefixes that conform to the naming
convention of the output file discussed in “GPRS Core GGSN PM CSV file
naming convention” on page 47.
– We want to rename the field from systemName to GGSNName. Copy the
same data from the old field name to a new field name. Then the old data
field, which is not necessary, is removed with the
REDUNDANT_HEADER_COUNTERS option.

– Manipulate the end_Time field to add the necessary hyphen and added
the INDEX field to define the suffix index for the 3GPP file name format.
All these operations above are configured through the
HEADER_COUNTERS_OP sub routine shown in Example 3-11. A basic
knowledge of Perl scripting is a prerequisite to understanding this operation
and is not covered in this book.
Example 3-11 Manipulating data in the header section with the PERLIZE rule in
UserConfig.pm
HEADER_COUNTERS_OP => sub {
use Date::Manip;
my $h_ref=shift;
# Manipulate date format
$h_ref->{"day"}=UnixDate($h_ref->{"day"},"%s");
$h_ref->{"startTime"}=$h_ref->{"day"} + $h_ref->{"startTime"};
$h_ref->{"startTime"}=localtime($h_ref->{"startTime"});
$h_ref->{"startTime"}=UnixDate($h_ref->{"startTime"},"%Y%m%d.%H%M");
$h_ref->{"startTime"}=”A” . $h_ref->{"startTime"};
$h_ref->{"endTime"}=$h_ref->{"day"} + $h_ref->{"endTime"};
$h_ref->{"endTime"}=localtime($h_ref->{"endTime"});
$h_ref->{"endTime"}=UnixDate($h_ref->{"endTime"},"%Y%m%d.%H%M");
$h_ref->{"endTime"}=”-” . $h_ref->{"endTime"};
$h_ref->{"INDEX"}=”_1_” # index field
# Renaming counter to form GGSNNAME
$h_ref->{"GGSNNAME"}=$h_ref->{"systemName"};
return 0;
},
Data block
Based on the mappings listed in Table 3-2 on page 46, the calculation of the
data fields are performed as follows:
– Merge the data fields systemIPaddress and index to form the APN data
field. When APN is created, systemIPaddress and index can be deleted by
using the REDUNDANT_DATA_COUNTERS option, because they are no
longer required.
– Calculations are performed for pdpCreate_successes, pdpCreate_failures,
msInit_pdpDelete_successes, and msInit_pdpDelete_failures.
– Null values are provided for nwInit_pdpDelete_successes and
nwInit_pdpDelete_failures.

All these operations are configured by using the DATA_COUNTERS_OP
option instead, as shown in Example 3-12.
Example 3-12 Manipulating data in the block section with the PERLIZE rule in
UserConfig.pm
DATA_COUNTERS_OP => sub {
my $c_ref=shift;
# Merge counters to form APN
$c_ref->{"APN"}=$c_ref->{"systemIPAddress"}.":".$c_ref->{"index"};
# Calculate pdpCreate_successes
$c_ref->{"PDPCREATE_SUCCESSES"}=
$c_ref->{"cgprsAccPtSuccMsActivatedPdps"}+
$c_ref->{"cgprsAccPtSuccMsActivatedDynPdps"}+
$c_ref->{"cgprsAccPtSuccNetworkInitPdps"};
# Calculate pdpDelete_failures
$c_ref->{"PDPCREATE_FAILURES"}=
$c_ref->{"cgprsAccPtMsActivatedPdps"}+
$c_ref->{"cgprsAccPtMsActivatedDynPdps"}+
$c_ref->{"cgprsAccPtNetworkInitPdps"}-
$c_ref->{"cgprsAccPtSuccMsActivatedPdps"}-
$c_ref->{"cgprsAccPtSuccMsActivatedDynPdps"}-
# Renaming counter to form msInit_pdpDelete_successes
$c_ref->{"MSINIT_PDPDELETE_SUCCESSES"}=
$c_ref->{"cgprsAccPtSuccMsDeactivatedPdps"};
# Calculate msInit_pdpDelete_failures
$c_ref->{"MSINIT_PDPDELETE_FAILURES"}=
$c_ref->{"cgprsAccPtMsDeactivatedPdps"}-
# Creating counters nwInit_pdpDelete_*
$c_ref->{"NWINIT_PDPDELETE_SUCCESSES"}='';
$c_ref->{"NWINIT_PDPDELETE_FAILURES"}='';
return 0;
},

We then remove the unused fields using the
REDUNDANT_HEADER_COUNTERS and REDUNDANT_DATA_COUNTERS
parameters, as shown in Example 3-13.
Example 3-13 Unused fields
REDUNDANT_HEADER_COUNTERS => [qw(FILENAME BLOCKNAME day systemName)],
REDUNDANT_DATA_COUNTERS => [ 'systemIPAddress',
'index',
'cgprsAccPtActivePdps',
'cgprsAccPtDestAddrViolTpdus',
'cgprsAccPtDhcpAddrReleases',
'cgprsAccPtDhcpAddrRequests',
'cgprsAccPtDownstreamPacketCount',
'cgprsAccPtGgsnDeactivatedPdps',
'cgprsAccPtIpv6DownstreamPackets',
'cgprsAccPtIpv6DownstreamTrafficVolume',
'cgprsAccPtIpv6GgsnDeactivatedPdps',
'cgprsAccPtIpv6GgsnSuccDeactivatedPdps',
'cgprsAccPtIpv6MsActivatedDynPdps',
'cgprsAccPtIpv6MsActivatedPdps',
'cgprsAccPtIpv6MsDeactivatedPdps',
'cgprsAccPtIpv6MsSuccActivatedDynPdps',
'cgprsAccPtIpv6MsSuccActivatedPdps',
'cgprsAccPtIpv6MsSuccDeactivatedPdps',
'cgprsAccPtIpv6NetworkInitDeactPdps',
'cgprsAccPtIpv6NetworkInitDeactSuccPdps',
'cgprsAccPtIpv6UpstreamPackets',
'cgprsAccPtIpv6UpstreamTrafficVolume',
'cgprsAccPtMsActivatedDynPdps',
'cgprsAccPtMsActivatedPdps',
'cgprsAccPtMsDeactivatedPdps',
'cgprsAccPtNetworkInitPdps',
'cgprsAccPtRedirInterMobilTraffic',
'cgprsAccPtRevDownstrTrafficVol',
'cgprsAccPtRevUpstreamTrafficVol',
'cgprsAccPtSourceAddrViolTpdus',
'cgprsAccPtSuccDhcpAddrRequests',
'cgprsAccPtSuccGgsDeactivatedPdps',
'cgprsAccPtSuccMsActivatedDynPdps',
'cgprsAccPtSuccMsActivatedPdps',
'cgprsAccPtSuccMsDeactivatedPdps',
'cgprsAccPtSuccNetworkInitPdps',
'cgprsAccPtUpstreamPacketCount',
],

3.5.2 Outputting data in the CSV format using the PIF_2_CSV rule
Here we use the PIF_2_CSV rule to output data in the CSV format. This option is
only available with Gateway Framework Version 3.4.2.1. which can be
downloaded from the support page at:
The configuration of the PIF_2_CSV rule is shown in Example 3-14.
Example 3-14 PIF_2_CSV rule in UserConfig.pm
RULE_TYPE => 'PIF_2_CSV',
RULE_DESC => 'Create CSV output',
INPUT_FILE_DESCRIPTION =>
['^(PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry.*)-#-I-#-PZ.pif
$'],
OUTPUT_BLOCK_NAME => 'GGSN',
HEADER_FIELDS_FOR_OUTPUT_FILENAME => [qw(startTime endTime
INDEX GGSNNAME)],
REDUNDANT_HEADER_COUNTERS => [qw(startTime endTime INDEX)],
OUTPUT_FORMAT => 'CSV_Writer_ITSO',
COUNTERS_ORDER => [qw(GGSNNAME APN
PDPCREATE_SUCCESSES PDPCREATE_FAILURES
MSINIT_PDPDELETE_SUCCESSES MSINIT_PDPDELETE_FAILURES
NWINIT_PDPDELETE_SUCCESSES NWINIT_PDPDELETE_FAILURES)],
In Example 3-14, the matching PIF file name ends with the PZ suffix, which
means it is from the last PERLIZE rule we have configured. As explained earlier,
configure RULE_TYPE to call the PIF_2_CSV rule and give a meaningful
description for RULE_DESC. The OUTPUT_BLOCK_NAME is not used for
Service Quality Manager; we just call the output block as GGSN.
We use HEADER_FIELDS_FOR_OUTPUT_FILENAME options that allow us to
set the desired file name that is needed by Service Quality Manager adapters.
We do not use the delimiter, as we include the delimiters in the PERLIZE custom
code. The source field names are startTime, endTime, INDEX, and
GGSNNAME.

The OUTPUT_FORMAT default is CSV_Writer. However, it introduces opening
and closing comments in the CSV file that cannot be processed by Service
Quality Manager. We create a new module by copying CSV_Writer.pm into
CSV_Writer_ITSO.pm and put them in the configuration path. The original
CSV_Writer.pm Perl modules reside in
$GATEWAY_ROOT/gateway-framework/perl_extensions/lib/site_perl/5.6.1. We
copy that directory to our configuration directory at
$GATEWAY_ROOT/config/motorola-ggsn/v50/CSV_Writer_ITSO.pm. The modified
CSV_Writer.pm perl module is provided in “CSV_Writer_ITSO.pm” on page 78.
3.6 Running gateway programs
To start running the gateway, use the script gateway_start.sh in the vstart
directory in Gateway Framework. Provide the relevant vendor subsystem and
release argument to this script (found in the Gateway Configuration directory) in
order to launch the correct one. An example invocation is:
GATEWAY_ROOT/gateway-framework/vstart/gateway_start.sh -vendor
motorola-ggsn -release v50
This launches the Motorola GGSN vendor subsystem v50 release gateway.
However, passing different arguments launches other gateway configurations if
they are already set up.
The gateway program must be invoked from a scheduler or a cron job. The
gateway processes any file data that exists at that point. It does not go to sleep to
wait for the next iteration. A separate program must iterate and execute the
gateway_start.sh script.A sample walk through of the various stages of the
gateway is provided in the following sections:
3.6.1, “Transferring file inbound” on page 65
3.6.2, “Processing the CSV file” on page 67
3.6.3, “Running the PERLIZE stage” on page 69
3.6.4, “Running the PIF_2_CSV stage” on page 71
3.6.5, “Transferring file outbound” on page 72
Note: Ensure that the PERL5_BASE environment variable is set up with the
path used when building Perl, or the gateway cannot run.

3.6.1 Transferring file inbound
The transfer inbound is performed using ftp. The configuration file is provided in
Example 3-5 on page 54. The audit log contains information about the files that
are transferred, Example 3-15 contains the audit log (we strip out the time stamp
for clarity).
Example 3-15 The inbound file transfer audit log
PIF module in use PIF_Handler
Start Transfer Engine: IN
Processing Transfer rule Transfer files in
TransferEngine::Ftp: Getting files
TransferEngine::Ftp File transfered
/code/motorola-ggsn-source/PassiveCollector-IBM.pmgw_cgprsAccPtStatisti
csEntry_13_01_2009_11_47_42.csv
Finished Transfer rule result 1
Finished Transfer Engine: IN
The processing log message is listed in Example 3-16. We use the most detailed
level of detail (LOGLEVEL=5). We also strip out the time stamp for clarity.
Example 3-16 The inbound file transfer message log
5 lock_process
(../spool/parse,/gways/gateway-framework/parsersrc/gateway_main.pm)
A PIF module in use PIF_Handler
3 Loader dir size utility not configured
A Start Transfer Engine: IN
A Processing Transfer rule Transfer files in
5 TransferEngine: PROTOCOL is ftp
4 TransferEngine: Protocol is ftp
5 Checking optional TIMEOUT which can be type SCALAR
5 Checking optional OVERWRITE_FILES which can be type SCALAR
5 Checking optional TMP_FILENAME_EXTENSION which can be type SCALAR
5 Checking optional PING_RETRY_ATTEMPTS which can be type SCALAR
5 Checking optional RETRY_INTERVAL which can be type SCALAR
5 Checking optional PING_PROTOCOL which can be type SCALAR
5 Returning 0 errors from configuration check
A TransferEngine::Ftp: Getting files
5 Time stamp file ./.timestamp_in doesn't exist
5 TransferEngine::Ftp: set transfer mode to binary
5 Transfer - created connection to 9.3.5.11
5 Transfer files in /code/motorola-ggsn-source since
5 Slept for 0 seconds
5 dir_ent:

-rwx------ 1 0 0 1787 Jan 13 17:49
PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_01_2009_11_47_42
.csv
1 TransferEngine::Ftp: Getting files and modification times
5 Processing file
.csv
5 File
.csv mod time 1231868953 size 1787
5 Getting the files now...
5 Matched file
.csv to type CSV
4 TransferEngine::Ftp Starting copy
.csv
A TransferEngine::Ftp File transfered
/mnt/hgfs/src/PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_01
_2009_11_47_42.csv
5 Setting new modtime 1231868953 for /code/motorola-ggsn-source
5 Writing out new modification time
A Finished Transfer rule result 1
4 TransferEngine:: DIRECTION IN - copied 1 files
A Finished Transfer Engine: IN
The file transfer stores the file time stamp information in a file. It is used to avoid
reprocessing the file. For the inbound transfer, the file is called .timestamp_in, as
specified in the rule definition. Example 3-17 shows the .timestamp_in file with
one entry.
Example 3-17 The .timestamp_in file
$mod_time = {
'/code/motorola-ggsn-source' => {
'PREV_FILES' => {},
'LAST_TIME' => '1231868953',
'COPIED_FILES' => {
'PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_01_2009_11_47_4
2.csv' => '1787'
}
}
};

3.6.2 Processing the CSV file
The parser engine, controlled by the Engine_config.pm, is responsible for
converting the input CSV file into a PIF file for further processing. The
Engine_config.pm file that we use is discussed in 3.4, “Modifying the Generic
CSV parser engine” on page 56.
The parser engine process is also recorded in audit and log message files.
Example 3-18 shows the entries in the audit files without the time stamp.
Example 3-18 The parser engine audit file
Start Parser Engine
Processing rule 'Motorola GGSN v50', type 'GENERIC_CSV_GATEWAY'
Processing files in '../spool/parse'
Engine process_files: 1 process(es) 1 files total 1
Processing
2.csv'
Generic CSV Interface: Created output file
'../spool/inter/PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_
01_2009_11_47_42.csv-#-I.pif'
Finished
2.csv'
Engine: Processed 1 files
Engine: processed 1 files in total
Finish Parser Engine
Example 3-19 shows the messages generated by processing the CSV file into a
PIF file using the Generic CSV processing. The Generic CSV processing
capability is provided by the vendor gateway.
Example 3-19 The parser engine log messages
4 GenUtils: changing PIF handling mode to PIF_Handler
A Start Parser Engine
A Processing rule 'Motorola GGSN v50', type 'GENERIC_CSV_GATEWAY'
5 Checking optional DATA_FIELDS which can be type ARRAY
5 Checking optional INVALID_VALUE_MATCH which can be type ARRAY
5 Checking optional DEFAULT_NULL_VALUE which can be type SCALAR
5 Checking optional WHITESPACE_MODIFIER which can be type SCALAR
A Processing files in '../spool/parse'
5 Sorting files in ascending order
5 Processing files:

../spool/parse/PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_0
1_2009_11_47_42.csv
5 GenUtils: calc_nprocs() no configuration for parallel processing or
too few files (1) return 1 processor
A Engine process_files: 1 process(es) 1 files total 1
5 Engine: total files processed so far 0 allowed
5 Engine raw file
../spool/parse/PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_0
1_2009_11_47_42.csv
5 Request to create recovery file for rule GENERIC_CSV_GATEWAY
5 Recovery file: Input key
GENERIC_CSV_GATEWAYPassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_
13_01_2009_11_47_42.csv hashed to -1948647783
4 Storing current file,
.csv key -1948647783 file
4 Extracting FILENAME_HEADER_FIELDS
A Processing
2.csv'
5 GenUtils: Opening file
.csv
4 Bad characters rule entry found:
5 Found Header Line =
systemName,systemIPAddress,index,day,startTime,endTime,cgprsAccPtActive
Pdps,cgprsAccPtDestAddrViolTpdus,cgprsAccPtDhcpAddrReleases,cgprsAccPtD
hcpAddrRequests,cgprsAccPtDownstreamPacketCount,cgprsAccPtGgsnDeactivat
edPdps,cgprsAccPtIpv6DownstreamPackets,cgprsAccPtIpv6DownstreamTrafficV
olume,cgprsAccPtIpv6GgsnDeactivatedPdps,cgprsAccPtIpv6GgsnSuccDeactivat
edPdps,cgprsAccPtIpv6MsActivatedDynPdps,cgprsAccPtIpv6MsActivatedPdps,c
gprsAccPtIpv6MsDeactivatedPdps,cgprsAccPtIpv6MsSuccActivatedDynPdps,cgp
rsAccPtIpv6MsSuccActivatedPdps,cgprsAccPtIpv6MsSuccDeactivatedPdps,cgpr
sAccPtIpv6NetworkInitDeactPdps,cgprsAccPtIpv6NetworkInitDeactSuccPdps,c
gprsAccPtIpv6UpstreamPackets,cgprsAccPtIpv6UpstreamTrafficVolume,cgprsA
ccPtMsActivatedDynPdps,cgprsAccPtMsActivatedPdps,cgprsAccPtMsDeactivate
dPdps,cgprsAccPtNetworkInitPdps,cgprsAccPtRedirInterMobilTraffic,cgprsA
ccPtRevDownstrTrafficVol,cgprsAccPtRevUpstreamTrafficVol,cgprsAccPtSour
ceAddrViolTpdus,cgprsAccPtSuccDhcpAddrRequests,cgprsAccPtSuccGgsDeactiv
atedPdps,cgprsAccPtSuccMsActivatedDynPdps,cgprsAccPtSuccMsActivatedPdps
,cgprsAccPtSuccMsDeactivatedPdps,cgprsAccPtSuccNetworkInitPdps,cgprsAcc
PtUpstreamPacketCount
A Generic CSV Interface: Created output file
01_2009_11_47_42.csv-#-I.pif'

4 PIF_Handler closing output file
../spool/inter/PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_0
1_2009_11_47_42.csv-#-I.pif
A Finished
2.csv'
3 Warning : Statistics obj not instantiated.
5 Clearing recovery file for key -1948647783
4 Deleted recovery file for
.csv from input directory
A Engine: Processed 1 files
4 All 1 Files processed
A Engine: processed 1 files in total
A Finish Parser Engine
4 Parse Count Utility: Is not required
4 GenUtils: changing PIF handling mode to PIF_Handler
3.6.3 Running the PERLIZE stage
The PERLIZE stage is the most versatile stage, as you can run arbitrary code to
process the header and data of a PIF file. It is also the most complex stage, as it
requires a deep understanding of both Perl and gateway framework architecture.
Example 3-20 shows the audit file for the PERLIZE stage. It is quite simple, as
the PERLIZE does not have a lot of built-in processing. The embedded code
must perform additional logging or auditing if necessary using AudMess or
LogMess methods.
Example 3-20 The PERLIZE audit messages
Start Post Parser
Processing rule 'Rename APN', type 'PERLIZE'
Processing
01_2009_11_47_42.csv-#-I.pif'

Example 3-21 shows the log messages for the PERLIZE stage. We perform a
great deal of processing, as indicated by the rule listings in 3.5.1, “Manipulating
the data in the PERLIZE post parser rule” on page 58.
Example 3-21 The PERLIZE log messages
A Start Post Parser
5 PIF_Handler: Get_Files() Getting list of files from intermediate
directory ../spool/inter
A Processing rule 'Rename APN', type 'PERLIZE'
5 Checking optional REDUNDANT_HEADER_COUNTERS which can be type ARRAY
5 Checking optional REDUNDANT_DATA_COUNTERS which can be type ARRAY
5 Checking optional DATA_COUNTERS_OP which can be type CODE
5 Checking optional HEADER_COUNTERS_OP which can be type CODE
1 GenUtils: process_pif_files() nprocs 1 files per process 1
A Processing
01_2009_11_47_42.csv-#-I.pif'
4 PIF_Handler opening file
1_2009_11_47_42.csv-#-I.pif
4 PERLIZE - calling out to header counters operation
3 PostParser: DATA COUNTER 'cgprsAccPtDestAddrViolTpdus' does not exist
3 PostParser: DATA COUNTER 'cgprsAccPtDhcpAddrReleases' does not exist
3 PostParser: DATA COUNTER 'cgprsAccPtDhcpAddrRequests' does not exist
. . . << messages for redundant_data_counters >>
5 Sorted data counters
APN,PDPCREATE_SUCCESSES,PDPCREATE_FAILURES,MSINIT_PDPDELETE_SUCCESSES,M
SINIT_PDPDELETE_FAILURES,NWINIT_PDPDELETE_SUCCESSES,NWINIT_PDPDELETE_FA
ILURES
3 PostParser: DATA COUNTER 'cgprsAccPtActivePdps' does not exist
3 PostParser: DATA COUNTER 'cgprsAccPtDestAddrViolTpdus' does not exist
3 PostParser: DATA COUNTER 'cgprsAccPtDhcpAddrReleases' does not exist
. . . << messages for redundant_data_counters >>
1_2009_11_47_42.csv-#-I-#-PZ.pif

4 PIF_Handler closing input file
1_2009_11_47_42.csv-#-I-#-PZ.pif
3.6.4 Running the PIF_2_CSV stage
The new PIF_2_CSV stage is provided to bolster the CSV generation for Service
Quality Manager gateways. This allows custom file name generation, including a
3GPP compliant file name. The rule parameters are provided in 3.5.2,
“Outputting data in the CSV format using the PIF_2_CSV rule” on page 63.
Example 3-22 shows the audit messages for this stage.
Example 3-22 PIF_2_CSV audit messages
Processing rule 'Create CSV output', type 'PIF_2_CSV'
Processing
01_2009_11_47_42.csv-#-I-#-PZ.pif'
Output file: 'A20090114.1330-20090114.1345_1_gs1-ggsn-3.pt'
Output file: 'A20090114.1330-20090114.1345_1_gs1-ggsn-3.pt'
Finish Post Parser
Example 3-23 lists the log messages for this stage. As indicated, the output file
name is compliant to the 3GPP format.
Example 3-23 PIF_2_CSV log messages
A Processing rule 'Create CSV output', type 'PIF_2_CSV'
5 Checking optional OUTPUT_FILENAME_START which can be type SCALAR
5 Checking optional COUNTERS_ORDER which can be type ARRAY
5 Checking optional HEADER_FIELDS_FOR_OUTPUT_FILENAME which can be type
ARRAY
5 Checking optional OUTPUT_BLOCK_NAME which can be type SCALAR
1 GenUtils: process_pif_files() nprocs 1 files per process 1
A Processing
01_2009_11_47_42.csv-#-I-#-PZ.pif'
4 PIF_Handler opening file
1_2009_11_47_42.csv-#-I-#-PZ.pif

A Output file: 'A20090114.1330-20090114.1345_1_gs1-ggsn-3.pt'
A Output file: 'A20090114.1330-20090114.1345_1_gs1-ggsn-3.pt'
5 Sorted data counters
GGSNNAME,APN,PDPCREATE_SUCCESSES,PDPCREATE_FAILURES,MSINIT_PDPDELETE_SU
CCESSES,MSINIT_PDPDELETE_FAILURES,NWINIT_PDPDELETE_SUCCESSES,NWINIT_PDP
DELETE_FAILURES
../spool/inter/A20090114.1330-20090114.1345_1_gs1-ggsn-3.pif
4 Renaming temp file to final name
../spool/loader/A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv
4 PIF_Handler closing input file
../spool/inter/A20090114.1330-20090114.1345_1_gs1-ggsn-3.pif
A Finish Post Parser
The files being processed are stored in the spool subdirectory. The files that we
have in the spool directory are listed in Example 3-24.
Example 3-24 Listing of files in the spool directory
[root@rtmach2 spool]# ls inter loader parse
inter:
A20090114.1330-20090114.1345_1_gs1-ggsn-3.pif
PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_01_2009_11_47_42.csv-#-I.pif
PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry_13_01_2009_11_47_42.csv-#-I-#-PZ.pif
loader:
A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv
parse:
3.6.5 Transferring file outbound
After the files are produced, the generated CSV file can be transferred for
processing by the Service Quality Manager loader or service solution. If the
Service Quality Manager application server is not the same as the gateway
machine, the file must be transferred out using a file transfer mechanism. We use
ftp, as shown in the configuration rule in 3.3.2, “Sending data to the adapter” on
page 55. The audit and messages are very similar to the inbound transfer.
Example 3-25 on page 73 shows the audit messages.

Example 3-25 Outbound transfer audit file
Start Transfer Engine: OUT
Processing Transfer rule Transfer files out
TransferEngine::Ftp: Putting files to remote host
Transfer::Engine:Ftp Copying:
A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv
Transfer::Engine:Ftp Copied:
A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv
Finished Transfer rule result 1
Finished Transfer Engine: OUT
Example 3-26 shows the log messages file.
Example 3-26 Outbound transfer message file
A Start Transfer Engine: OUT
A Processing Transfer rule Transfer files out
5 TransferEngine: PROTOCOL is ftp
4 TransferEngine: Protocol is ftp
5 Checking optional TIMEOUT which can be type SCALAR
5 Checking optional OVERWRITE_FILES which can be type SCALAR
5 Checking optional TMP_FILENAME_EXTENSION which can be type SCALAR
5 Checking optional PING_RETRY_ATTEMPTS which can be type SCALAR
5 Checking optional RETRY_INTERVAL which can be type SCALAR
5 Checking optional DELETE_ORIGINAL which can be type SCALAR
5 Checking optional PING_PROTOCOL which can be type SCALAR
3 GenUtils: check_dir(), checking directory
/gways/config/motorola-ggsn/spool/loader
5 Time stamp file ./.timestamp_out doesn't exist
A TransferEngine::Ftp: Putting files to remote host
5 TransferEngine::Ftp: set transfer mode to binary
5 Transfer - created connection to 9.3.5.11
5 Getting files from /gways/config/motorola-ggsn/spool/loader to copy
to 9.3.5.11
5 Found 3 entries in directory
5 Matched file A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv to type
CSV
A Transfer::Engine:Ftp Copying:
A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv
A Transfer::Engine:Ftp Copied:
A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv
5 TransferEngine::Ftp:ftp put deleting original
A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv
5 Writing out new modification time

A Finished Transfer rule result 1
4 TransferEngine:: DIRECTION OUT - copied 1 files
A Finished Transfer Engine: OUT
5 unlock_process(../spool/parse/.lock_gateway_main.pm.pid)
1 Destroying property service
Example 3-27 shows the .timestamp_out file.
Example 3-27 File .timestamp_out
$mod_time = {
'PREV_FILES' => undef,
'LAST_TIME' => 1231881135,
'COPIED_FILES' => {
'A20090114.1330-20090114.1345_1_gs1-ggsn-3.csv' => '0.3525390625'
}
};

Appendix A. Sample data and programs
listing for gateways
This appendix provides a sample listing of data and control files for the gateway
and service solution development. The files in this appendix can be downloaded
from the ITSO Web site. See Appendix B, “Additional material” on page 95 for
more details. The contents of this appendix are included in the following sections:
“A sample Motorola GGSN CSV file” on page 76
“Sample first level PIF data file” on page 76
“Sample output CSV file” on page 78
“CSV_Writer_ITSO.pm” on page 78
“Motorola GGSN EngineConfig.pm” on page 85
“Motorola GGSN UserConfig.pm” on page 88
“Sample UserConfig.pm” on page 92
A

A sample Motorola GGSN CSV file
Example A-1 lists a sample Motorola GGSN CSV file.
Example: A-1 Sample GGSN raw data
systemName,systemIPAddress,index,day,startTime,endTime,cgprsAccPtActive
Pdps,cgprsAccPtDestAddrViolTpdus,cgprsAccPtDhcpAddrReleases,cgprsAccPtD
hcpAddrRequests,cgprsAccPtDownstreamPacketCount,cgprsAccPtGgsnDeactivat
edPdps,cgprsAccPtIpv6DownstreamPackets,cgprsAccPtIpv6DownstreamTrafficV
olume,cgprsAccPtIpv6GgsnDeactivatedPdps,cgprsAccPtIpv6GgsnSuccDeactivat
edPdps,cgprsAccPtIpv6MsActivatedDynPdps,cgprsAccPtIpv6MsActivatedPdps,c
gprsAccPtIpv6MsDeactivatedPdps,cgprsAccPtIpv6MsSuccActivatedDynPdps,cgp
rsAccPtIpv6MsSuccActivatedPdps,cgprsAccPtIpv6MsSuccDeactivatedPdps,cgpr
sAccPtIpv6NetworkInitDeactPdps,cgprsAccPtIpv6NetworkInitDeactSuccPdps,c
gprsAccPtIpv6UpstreamPackets,cgprsAccPtIpv6UpstreamTrafficVolume,cgprsA
ccPtMsActivatedDynPdps,cgprsAccPtMsActivatedPdps,cgprsAccPtMsDeactivate
dPdps,cgprsAccPtNetworkInitPdps,cgprsAccPtRedirInterMobilTraffic,cgprsA
ccPtRevDownstrTrafficVol,cgprsAccPtRevUpstreamTrafficVol,cgprsAccPtSour
ceAddrViolTpdus,cgprsAccPtSuccDhcpAddrRequests,cgprsAccPtSuccGgsDeactiv
atedPdps,cgprsAccPtSuccMsActivatedDynPdps,cgprsAccPtSuccMsActivatedPdps
,cgprsAccPtSuccMsDeactivatedPdps,cgprsAccPtSuccNetworkInitPdps,cgprsAcc
PtUpstreamPacketCount
gs1-ggsn-3,212.47.101.248,3,07Oct2008,56420,57320,1826,0,0,0,5268959,14
7,,,,,,,,,,,,,,,762,762,636,0,0,4543225140,703822395,4012,0,148,763,763
,635,0,4923866
gs1-ggsn-3,212.47.101.248,1000,07Oct2008,56420,57320,0,0,0,0,0,0,,,,,,,
,,,,,,,,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
gs1-ggsn-3,212.47.101.248,46,07Oct2008,56420,57320,0,0,0,0,0,0,,,,,,,,,
,,,,,,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
gs1-ggsn-3,212.47.101.248,1,07Oct2008,56420,57320,0,0,0,0,0,0,,,,,,,,,,
,,,,,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
gs1-ggsn-3,212.47.101.248,253,07Oct2008,56420,57320,66,0,0,0,63526,9,,,
,,,,,,,,,,,,34,34,31,0,0,39535903,15369164,0,0,9,35,35,31,0,93194
Sample first level PIF data file
A sample first level PIF is shown in Example A-2 on page 77.

Appendix A. Sample data and programs listing for gateways 77
Example: A-2 Sample first level PIF
## Parser Intermediate File
##START|HEADER
day|startTime|BLOCKNAME|endTime|FILENAME|systemName
14Oct2008|28800|cgprsAccPtStatisticsEntry|29700|PassiveCollector-IBM.pm
gw_cgprsAccPtStatisticsEntry_14_10_2008_08_25_23.csv|gs1-ggsn-3
##END|HEADER
##START|cgprsAccPtStatisticsEntry
|cgprsAccPtDownstreamPacketCount|cgprsAccPtIpv6MsSuccActivatedPdps|cgpr
sAccPtUpstreamPacketCount|cgprsAccPtDestAddrViolTpdus|cgprsAccPtDhcpAdd
rReleases|cgprsAccPtIpv6NetworkInitDeactSuccPdps|cgprsAccPtSourceAddrVi
olTpdus|cgprsAccPtGgsnDeactivatedPdps|cgprsAccPtNetworkInitPdps|cgprsAc
cPtRevUpstreamTrafficVol|cgprsAccPtIpv6DownstreamTrafficVolume|cgprsAcc
PtSuccDhcpAddrRequests|cgprsAccPtIpv6UpstreamPackets|cgprsAccPtIpv6MsSu
ccActivatedDynPdps|cgprsAccPtActivePdps|cgprsAccPtMsActivatedDynPdps|cg
prsAccPtMsActivatedPdps|cgprsAccPtIpv6MsActivatedDynPdps|cgprsAccPtIpv6
GgsnSuccDeactivatedPdps|cgprsAccPtSuccMsActivatedDynPdps|index|cgprsAcc
PtSuccGgsDeactivatedPdps|cgprsAccPtRedirInterMobilTraffic|cgprsAccPtIpv
6UpstreamTrafficVolume|cgprsAccPtIpv6MsSuccDeactivatedPdps|cgprsAccPtSu
ccNetworkInitPdps|cgprsAccPtDhcpAddrRequests|cgprsAccPtSuccMsDeactivate
dPdps|cgprsAccPtIpv6MsActivatedPdps|cgprsAccPtIpv6DownstreamPackets|cgp
rsAccPtIpv6GgsnDeactivatedPdps|cgprsAccPtRevDownstrTrafficVol|cgprsAccP
tIpv6MsDeactivatedPdps|cgprsAccPtSuccMsActivatedPdps|cgprsAccPtMsDeacti
vatedPdps|cgprsAccPtIpv6NetworkInitDeactPdps|systemIPAddress
212.47.101.248|1613949||1592838|0|0||1813|71|0|192505726||0|||803|402|4
02|||401|3|71|0|||0|0|289||||1548659852||401|289||212.47.101.248
212.47.101.248|0||0|0|0||0|0|0|0||0|||0|0|0|||0|1000|0|0|||0|0|0||||0||
0|0||212.47.101.248
212.47.101.248|0||0|0|0||0|0|0|0||0|||0|0|0|||0|46|0|0|||0|0|0||||0||0|
0||212.47.101.248
212.47.101.248|0||0|0|0||0|0|0|0||0|||0|0|0|||0|1|0|0|||0|0|0||||0||0|0
||212.47.101.248
212.47.101.248|95498||91918|0|0||0|3|0|4860942||0|||47|21|21|||21|253|3
|0|||0|0|15||||105111146||21|15||212.47.101.248
##END|cgprsAccPtStatisticsEntry

Sample output CSV file
The sample output CSV file from the gateway conforms to the 3GPP naming
convention A20081010.1500-20081010.1515_1_GGSN.csv. Example A-3 shows
the sample content of the CSV file.
Example: A-3 Sample output CSV file
GGSNNAME,APN,PDPCREATE_SUCCESSES,PDPCREATE_FAILURES,MSINIT_PDPDELETE_SUCCESSES,
MSINIT_PDPDELETE_FAILURES,NWINIT_PDPDELETE_SUCCESSES,NWINIT_PDPDELETE_FAILURES
gs1-ggsn-3,212.47.101.248:46,0,0,0,0,,
gs1-ggsn-3,212.47.101.248:3,1661,2,700,0,,
gs1-ggsn-3,212.47.101.248:1000,0,0,0,0,,
gs1-ggsn-3,212.47.101.248:253,56,0,19,0,,
gs1-ggsn-3,212.47.101.248:1,0,0,0,0,,
CSV_Writer_ITSO.pm
As noted in 3.5, “Developing the post parser configuration for Motorola GGSN”
on page 58, the CSV_Writer.pm must be modified to suppress the comments at
the beginning and ending of the output file. The modified CSV_Writer_ITSO.pm is
shown in Example A-4.
Example: A-4 Modified CSV_Writer.pm
#
#------------------------------------------------------------
# %Z% %M% %I% %G% %Z%
#------------------------------------------------------------
#
# File: CSV_Writer_ITSO.pm
#
# Desc: this package contains the fucntions that are used to write the
# information out in Comma Separated Value (CSV).
#
# (c) Copyright IBM Corporation 1998, 2008. All rights reserved.
#
package CSV_Writer_ITSO;
use strict;
use vars qw($VERSION @ISA @EXPORT @EXPORT_OK);
require Exporter;
require AutoLoader;

@ISA = qw(Exporter AutoLoader);
# Items to export into callers namespace by default. Note: do not
export
# names by default without a very good reason. Use EXPORT_OK instead.
# Do not simply export all your public functions/methods/constants.
@EXPORT = qw( );
$VERSION = '0.02';
use GenUtils;
use RecordsUtils;
use FileHandle;
use AudLog;
############################################################
#
# Sub: New
#
# Desc: Creates the output object instance
#
# Params: None
#
# Returns: The created object
############################################################
sub New {
my $proto = shift;
my $class = ref($proto) || $proto;
my $self = {@_};
# create records object when record entries exists
if ( exists($self->{OUTPUT_RECORD_KEY}) ) {
$self->{records_obj} = RecordsUtils->get_records_object(
OUTPUT_RECORD_KEY => $self->{OUTPUT_RECORD_KEY},
OUTPUT_RECORD_KEY_DELIMITER =>
$self->{OUTPUT_RECORD_KEY_DELIMITER},
);
}
$self->{filename} = undef;
$self->{filehandle} = undef;
$self->{store} = "";
bless ($self, $class);
return $self;
}

############################################################
#
# Sub: Open
#
# Desc: Open a output file
#
# Params: $file - the name of the output file
#
# Returns: Nothing
############################################################
sub Open($) {
my $self = shift;
my $filename = shift;
# temp filename?
if ($filename =~ /.pt$/){
$self->{filename} = $self->{tmp_file} = $filename;
$self->{filename} =~ s/(.pt)$/.csv/;
}
else {
$self->{filename} = $self->{tmp_file} = $filename;
$self->{tmp_file} .= ".pt";
}
if( -e $self->{filename} ) {
LogMess("CSV_Writer: WARNING: $self->{filename} already exists,
overwriting", 3);
}
$self->{tmp_file} = $self->{filename} . ".pt";
$self->{filehandle} = new FileHandle;
$self->{filehandle}->open("> $self->{tmp_file}")
or LogMess("Can't open $self->{filename} for output", 1);
# Write header lines to the file.
#$self->{store} .= "# CSV Output File Startn";
}
############################################################
#
# Sub: Open_Block
#
# Desc: Open a block in the output file. In the case of CSV

# output nothing happens
#
# Params: $name - name of the block to open
#
# Returns: Nothing
#
############################################################
sub Open_Block() {
}
############################################################
#
# Sub: WriteToFile
#
# Desc: Writes the cached output to file
#
# Params: none;
#
# Returns: Nothing
#
############################################################
sub WriteToFile() {
my $self = shift;
$self->{filehandle}->print( $self->{store} );
$self->{store} = "";
return;
}
############################################################
#
# Sub: Write_Comment
#
# Desc: Writes out a comment to the output file
#
# Params: $comment - the comment to write
#
# Returns: nothing
#
############################################################
sub Write_Comment() {
(shift)->{store} .= "# ".(shift)."n";
return;
}

############################################################
#
# Sub: Block_Info
#
# Desc: This function prints all the elements of a hash to the
# output string. The reference is supplied as an argument.
# It checks if the value of the hash element has any length.
# If there is no length then nothing is printed.
#
# Params: $href - reference to a counter=value hash
# $counter_order - optional array specifying counter output
order
#
# Returns: Nothing
############################################################
sub Block_Info() {
my ($self, $href, $counter_order) = @_;
# save the header data as it's output per line
if (defined($counter_order) && scalar(@$counter_order)){
@{$self->{HEADER_NAMES}} = @$counter_order;
@{$self->{HEADER_VALUES}} = map { (defined $href->{$_}) ?
$href->{$_} :
$self->{DEFAULT_NULL_VALUE}
} @$counter_order;
}
else {
@{$self->{HEADER_NAMES}} = keys %$href;
@{$self->{HEADER_VALUES}} = values %$href;
}
$self->{CREATE_BLOCK} = undef;
return;
}
############################################################
#
# Sub: Create_Block
#
# Desc: This function opens, writes the information and closes
# the block.
#
# Params: $block - the name of the block
# $cref - reference to counter=value hash
# $counter_order - order of the data counters (optional)
#

# Returns: nothing
#
############################################################
sub Create_Block() {
my( $self, $block, $cref, $counter_order ) = @_;
my @block = ();# stores the header/counter info temporarily
my $data;# stores the header/counter info data
if ( defined($self->{records_obj}) &&
exists($self->{OUTPUT_RECORD_KEY}) ) {
$self->{records_obj}->add_record_key($cref, $counter_order) ;
}
unless ($self->{CREATE_BLOCK}){
# write out the header and data counter names
@{$self->{DATA_COUNTERS}} = defined($counter_order)
&& scalar(@$counter_order) ? @$counter_order : keys %$cref;
$self->{store} .= join(",",@{$self->{HEADER_NAMES}},
@{$self->{DATA_COUNTERS}});
$self->{store} .= "n";
$self->{CREATE_BLOCK} = 1;
}
# write out the counter values
$self->{store} .= join(",",@{$self->{HEADER_VALUES}},
map { (defined $cref->{$_}) ? $cref->{$_} :
$self->{DEFAULT_NULL_VALUE} }
@{$self->{DATA_COUNTERS}});
$self->{store} .= "n";
return;
}
############################################################
#
# Sub: Close
#
# Desc: Closes off the open blocks in the file and writes out
# the stored data to disk
#
# Params: Nothing
#
# Returns: Nothing
#

############################################################
sub Close() {
my $self = shift;
# Write end lines to the file.
#$self->{store} .= "# CSV Output File Endn";
$self->WriteToFile();
$self->{filehandle}->close;
LogMess("Renaming temp file to final name $self->{filename}",4);
# rename from temporary name to final
rename($self->{tmp_file},$self->{filename});
return $self->{filename};
}
############################################################
#
# Sub: Close_Block
#
# Desc: Closes a block. Require as a dummy function
#
# Params: Nothing
#
# Returns: Nothing
#
############################################################
sub Close_Block() {
}
1;
__END__
# Below is the stub of documentation for your module. You better edit
it!
=head1 NAME
CSV_Writer - a Perl 5 object that produces a CSV Output
File.
=head1 SYNOPSIS
use CSV_Writer;
$objid = CSV_Writer->New();

$objid->Open($filename);
$objid->Open_Block( $blockname );
$objid->Close_Block();
$objid->WriteToFile();
$objid->Write_Comment( "Comment string" );
$objid->Block_Info( %counter_hash );
$objid->Create_Block( $blockname, %counter_hash );
$objid->Close();
=head1 DESCRIPTION
This perl object includes a set of subroutines that enable the easy
production of a Comma Separated Value format (CSV) file, perhaps for
output to a binner.
=head1 AUTHOR
Gateways Team, KL Engineering Centre
=head1 SEE ALSO
perl(1).
=cut
Motorola GGSN EngineConfig.pm
The complete listing of the EngineConfig.pm that is used in 3.4, “Modifying the
Generic CSV parser engine” on page 56 is shown in Example A-5.
Example: A-5 EngineConfig.pm for motorola-ggsn gateway
#----------------------------------------------------------------------
# %A%
#----------------------------------------------------------------------
#
# This perl module contains the configuration information for this
# parser. If you don’t understand the format of this configuration file
# DON’T TOUCH IT.
#
# Ericsson GGSN R3
#

# Copyright (C) 2007 Vallent Software Systems UK, an IBM Company.
# All rights reserved.
package EngineConfig;
@ISA = qw(Exporter);
@EXPORT = qw(engine_config);
use strict;
use Exporter ();
use Data::Dumper;
use Date::Calc qw(Decode_Month Add_Delta_YMDHMS);
#----------------------------------------------------------------------
# Modify/Add rules here
#----------------------------------------------------------------------
my @rules =
(
{
‘RULE_TYPE’ => ‘GENERIC_CSV_GATEWAY’,
‘RULE_DESC’ => ‘Motorola GGSN v50’,
‘INPUT_FILE_DESCRIPTION’ => [ ‘^PassiveCollector.*$’ ],
‘INPUT_DIR_DEPTH’ => 0,
‘ORDER_OF_FILES’ => ‘FILENAME_ASCENDING’,
‘FIELD_SEPARATOR’ => ‘,’,
‘HEADER_FIELDS’ => [ 0,3,4,5 ],
‘DATA_FIELDS’ => [ 1,2,6..100 ],
‘INVALID_VALUE_MATCH’ => [],
‘WHITESPACE_MODIFIER’ => ‘_’,
‘FIELDS_TO_KEY_PIF_FILENAME’ => [],
‘DEFAULT_NULL_VALUE’ => ‘’,
‘UPPERCASE_COUNTERS’ => 0,
‘GLOBAL_SUBSTITUTION’ => {
# systemName => ‘GGSNNAME’,
# cgprsAccPtSuccMsDeactivatedPdps =>
‘MSINIT_PDPDELETE_SUCCESSES’,
},
‘FILENAME_HEADER_FIELDS’ => {
FILENAME => ‘(.*)’,
BLOCKNAME =>
‘PassiveCollector-w+.[A-Za-z.]*_([A-Za-z]*)_[0-9]{2}_[0-9]{2}_[0-9]{
4}_[0-9]{2}_[0-9]{2}_[0-9]{2}.csv’,
},
HEADER_DATA_RECORD_PROCESSING => sub

{
my ($blk_name_ref, $h_ref, $d_ref) = @_;
my $cname_new;
my $cname_ori;
# Set block name
$$blk_name_ref = $h_ref->{BLOCKNAME};
# print “raw data=>”.Dumper($d_ref).”n”;
$h_ref->{startTime} = timeRounding($h_ref->{startTime});
$h_ref->{endTime} = timeRounding($h_ref->{endTime});
if($h_ref->{startTime} == $h_ref->{endTime}){
$h_ref->{endTime}= $h_ref->{endTime} + 900;
}
## TESTING PURPOSES:
foreach my $cname_ori (keys %{$d_ref}){
$d_ref->{$cname_new} = $d_ref->{$cname_ori};
}
sub timeRounding(){
my $time = shift;
my $min = $time%3600;
my $hr = ($time - $min)/3600;
my $freq = 900;
my $nearestTime = $time % $freq;
if($nearestTime !=0 ){ ## check if it is already in
the “normalized” time standards
$time = $time - $nearestTime;
}
### DEBUG PURPOSES ONLY
$min = $time %3600;
$hr = ($time - $min)/3600;
return $time;
}
return 0;
}
},
);
sub engine_config {

return @rules;
}
1;
Motorola GGSN UserConfig.pm
The complete listing of the UserConfig.pm that is used in 3.5, “Developing the
post parser configuration for Motorola GGSN” on page 58 is shown in
Example A-6.
Example: A-6 UserConfig.pm for motorola-ggsn gateway
#
#----------------------------------------------------------------------
# %A%
#----------------------------------------------------------------------
#
# This perl module contains the configuration information for this
# parser. If you don't understand the format of this configuration file
# DON'T TOUCH IT.
#
#
# Copyright (C) 2007 Vallent Software Systems UK, an IBM company.
# All rights reserved.
#
package UserConfig;
@EXPORT = qw(postparser_config);
use strict;
use Exporter ();
#----------------------------------------------------------------------
my @rules = (
{
RULE_TYPE => 'PERLIZE',
INPUT_FILE_DESCRIPTION => '^*.pif$',
HEADER_COUNTERS_OP => sub {
use Date::Manip;

my $h_ref = shift;
# Manipulate date format
$h_ref->{"day"} = UnixDate($h_ref->{"day"},"%s");
$h_ref->{"startTime"} = $h_ref->{"day"} + $h_ref->{"startTime"};
$h_ref->{"startTime"} = localtime($h_ref->{"startTime"});
$h_ref->{"startTime"} =
UnixDate($h_ref->{"startTime"},"%Y%m%d.%H%M");
$h_ref->{"startTime"} = "A".$h_ref->{"startTime"};
$h_ref->{"endTime"} = $h_ref->{"day"} + $h_ref->{"endTime"};
$h_ref->{"endTime"} = localtime($h_ref->{"endTime"});
$h_ref->{"endTime"} = UnixDate($h_ref->{"endTime"},"%Y%m%d.%H%M");
$h_ref->{"endTime"} = "-".$h_ref->{"endTime"};
$h_ref->{"INDEX"} = "_1_";
# Renaming counter to form GGSNNAME
$h_ref->{"GGSNNAME"} = $h_ref->{"systemName"};
return 0;
},
DATA_COUNTERS_OP => sub {
my $c_ref = shift;
# Merge counters to form APN
$c_ref->{"APN"} =
$c_ref->{"systemIPAddress"}.":".$c_ref->{"index"};
# Calculate pdpCreate_successes
$c_ref->{"PDPCREATE_SUCCESSES"} =
$c_ref->{"cgprsAccPtSuccMsActivatedPdps"} +
$c_ref->{"cgprsAccPtSuccMsActivatedDynPdps"} +
# Calculate pdpDelete_failures
$c_ref->{"PDPCREATE_FAILURES"} =
abs($c_ref->{"cgprsAccPtMsActivatedPdps"} +
$c_ref->{"cgprsAccPtMsActivatedDynPdps"} +
$c_ref->{"cgprsAccPtNetworkInitPdps"} -
$c_ref->{"cgprsAccPtSuccMsActivatedPdps"} -
$c_ref->{"cgprsAccPtSuccMsActivatedDynPdps"} -
$c_ref->{"cgprsAccPtSuccNetworkInitPdps"});
$c_ref->{"MSINIT_PDPDELETE_SUCCESSES"} =
# Calculate msInit_pdpDelete_failures
$c_ref->{"MSINIT_PDPDELETE_FAILURES"} =
abs($c_ref->{"cgprsAccPtMsDeactivatedPdps"} -
$c_ref->{"cgprsAccPtSuccMsDeactivatedPdps"});
$c_ref->{"NWINIT_PDPDELETE_SUCCESSES"} = '';

$c_ref->{"NWINIT_PDPDELETE_FAILURES"} = '';
return 0;
},
FILENAME_SUFFIX => 'PZ',
REDUNDANT_HEADER_COUNTERS => [qw(FILENAME BLOCKNAME day
systemName)],
REDUNDANT_DATA_COUNTERS => [
'',
'systemIPAddress',
'index',
'cgprsAccPtActivePdps',
'cgprsAccPtDestAddrViolTpdus',
'cgprsAccPtDhcpAddrReleases',
'cgprsAccPtDhcpAddrRequests',
'cgprsAccPtDownstreamPacketCount',
'cgprsAccPtGgsnDeactivatedPdps',
'cgprsAccPtIpv6DownstreamPackets',
'cgprsAccPtIpv6DownstreamTrafficVolume',
'cgprsAccPtIpv6GgsnDeactivatedPdps',
'cgprsAccPtIpv6GgsnSuccDeactivatedPdps',
'cgprsAccPtIpv6MsActivatedDynPdps',
'cgprsAccPtIpv6MsActivatedPdps',
'cgprsAccPtIpv6MsDeactivatedPdps',
'cgprsAccPtIpv6MsSuccActivatedDynPdps',
'cgprsAccPtIpv6MsSuccActivatedPdps',
'cgprsAccPtIpv6MsSuccDeactivatedPdps',
'cgprsAccPtIpv6NetworkInitDeactPdps',
'cgprsAccPtIpv6NetworkInitDeactSuccPdps',
'cgprsAccPtIpv6UpstreamPackets',
'cgprsAccPtIpv6UpstreamTrafficVolume',
'cgprsAccPtMsActivatedDynPdps',
'cgprsAccPtMsActivatedPdps',
'cgprsAccPtMsDeactivatedPdps',
'cgprsAccPtNetworkInitPdps',
'cgprsAccPtRedirInterMobilTraffic',
'cgprsAccPtRevDownstrTrafficVol',
'cgprsAccPtRevUpstreamTrafficVol',
'cgprsAccPtSourceAddrViolTpdus',
'cgprsAccPtSuccDhcpAddrRequests',
'cgprsAccPtSuccGgsDeactivatedPdps',
'cgprsAccPtSuccMsActivatedDynPdps',
'cgprsAccPtSuccMsActivatedPdps',
'cgprsAccPtSuccMsDeactivatedPdps',
'cgprsAccPtSuccNetworkInitPdps',
'cgprsAccPtUpstreamPacketCount',

],
DATA_COUNTERS_ORDER => [qw(APN
PDPCREATE_SUCCESSES
PDPCREATE_FAILURES
MSINIT_PDPDELETE_SUCCESSES
MSINIT_PDPDELETE_FAILURES
NWINIT_PDPDELETE_SUCCESSES
NWINIT_PDPDELETE_FAILURES)],
},
{
RULE_TYPE => 'PIF_2_CSV',
RULE_DESC => 'Create CSV output',
INPUT_FILE_DESCRIPTION =>
['^(PassiveCollector-IBM.pmgw_cgprsAccPtStatisticsEntry.*)-#-I-#-PZ.pif
$'],
OUTPUT_BLOCK_NAME => 'GGSN',
DEFAULT_NULL_VALUE => '',
PRODUCE_PIF => 1,
OUTPUT_FILENAME_START => 'A',
HEADER_FIELDS_FOR_OUTPUT_FILENAME => [qw(startTime endTime
SUFFIX GGSNNAME)],
REDUNDANT_HEADER_COUNTERS => [qw(startTime endTime PREFIX
SUFFIX)],
OUTPUT_FORMAT => 'CSV_Writer_ITSO',
COUNTERS_ORDER => [qw(GGSNNAME APN
PDPCREATE_SUCCESSES
PDPCREATE_FAILURES
MSINIT_PDPDELETE_SUCCESSES
MSINIT_PDPDELETE_FAILURES
NWINIT_PDPDELETE_SUCCESSES
NWINIT_PDPDELETE_FAILURES)],
},
#----------------------------------------------------------------------
);
#----------------------------------------------------------------------
sub postparser_config {
return @rules;
}
1;

Sample UserConfig.pm
The sample user post parser configuration that is used in the demonstration
examples in 2.4, “Working with post parser rules” on page 23 is shown in
Example A-7. This UserConfig.pm does not have any relation to customizing the
Motorola GGSN gateway. This is provided for reference for understanding some
features of the post parser rules.
Example: A-7 Sample UserConfig.pm for testing rules
#
package UserConfig;
@EXPORT = qw(postparser_config);
use strict;
use Exporter ();
my @rules = (
{
RULE_TYPE => 'ACCUMULATE',
INPUT_FILE_DESCRIPTION => '^ACCUMULATE.pif$',
COUNTERS_TO_SORT_ON => [ 'Hostname' ],
OUTPUT_BLOCK_NAME => 'Accumulate',
NON_ADDITIVE_COUNTERS => [ "fail" ],
MAXIMUM_COUNTERS => [ "fail" ],
AVERAGE_COUNTERS => [ "fail" ],
MINIMUM_COUNTERS => [ "fail" ],
MAXIMUM_APPEND_STR => "MAX",
MINIMUM_APPEND_STR => "MIN",
AVERAGE_APPEND_STR => "AVG",
},
{
RULE_TYPE => 'AGGREGATE_LINE',
INPUT_FILE_DESCRIPTION => '^AGGLINE.pif$',
COUNTER_GROUPS => { 'pscc' => 'pscc_(d+)' },
DEFAULT_NULL_VALUE => 0,
OUTPUT_BLOCK_NAME => 'Aggline',
REDUNDANT_DATA_COUNTERS => [ "pscc_1","pscc_2","pscc_3" ],
},
{
RULE_TYPE => 'CVAL_MANIP',
CNAME_MANIP => 'Result',
MATCH => [ 'OPERs(w+)','([A-Za-z]+)_(w+)','(w+)' ],
PATTERN => [ '$1','$1','$1' ],
INPUT_FILE_DESCRIPTION => '^CVAL.pif$'

},
{
RULE_TYPE => 'DATALINE_WHERE',
COUNTER_NAMES => [ {
'COUNTER_NAME'=>'Result',
'KEEP_WHERE'=>[ 's+' ],
}, ],
ADD_NEW_COUNTER => 'testadd',
NEW_COUNTER_VALUE => 'abc',
INPUT_FILE_DESCRIPTION => '^DATAWHERE.pif$',
},
{
RULE_TYPE => 'FILE_SPLIT',
INPUT_FILE_DESCRIPTION => '^FSPLIT.pif$',
SPLIT_COUNTERS_ORDER => [ 'Hostname' ],
COUNTERS_USED_TO_SPLIT_FILE => { 'Hostname'=>'(.+)' },
OLD_COUNTER_NAMES => [ 'pscc' ],
NEW_COUNTER_NAMES => [ 'new_pscc' ],
},
{
RULE_TYPE => 'FILE_SPLIT_BY_COUNTERS',
INPUT_FILE_DESCRIPTION => '^FSPLITC.pif$',
SPLIT_CNAMES => {
'split1' => [ 'Hostname','Result','pdur' ],
'split2' => [ 'Hostname','pscc','pfle' ],
},
},
{
RULE_TYPE=> 'INFOINSERT',
INPUT_FILE_DESCRIPTION => '^INFOINS.pif$',
INFO_FILE_DESCRIPTION=> '^LOOKUP.pif$',
NAMES_USED_TO_ID_DATA_RECORD => [ 'Hostname' ],
NAMES_USED_TO_ID_INFORMATION => [ 'Server' ],
ONLY_INSERT => [ 'Region' ],
HEADER_NAMES_USED_TO_ID_DATA_RECORD => [],
HEADER_NAMES_USED_TO_ID_INFORMATION => [],
},
{
RULE_TYPE => 'JOIN',
INPUT_FILE_DESCRIPTION => ['^JOIN1.pif$','^JOIN2.pif$' ],
COUNTERS_TO_JOIN_ON=> [ 'Hostname','Port' ],

OUTPUT_BLOCK_NAME => 'joindata',
OUTPUT_FILENAME_START => 'JOINOUT',
},
{
RULE_TYPE => 'MERGE_RECORDS',
INPUT_FILE_DESCRIPTION => '^MREC.pif$',
COUNTERS_TO_SORT_ON=> [ 'Hostname' ],
GROUP_KEY => 'numfail',
},
{
RULE_TYPE => 'SPLIT_RECORDS',
INPUT_FILE_DESCRIPTION => '^SPLITR.pif$',
SPLIT_CNAMES => {
},
NEW_CNAMES => [ 'host','port' ],
NEW_REC_ID_NAME => 'newrecid',
ONLY_INSERT => [ 'pscc','pfle' ],
},
#{
# RULE_TYPE => '',
# INPUT_FILE_DESCRIPTION => '^.pif$',
#},
);
sub postparser_config {
return @rules;
}
1;

Appendix B. Additional material
This book refers to additional material that can be downloaded from the Internet
as described below.
Locating the Web material
The Web material associated with this book is available in softcopy on the
Internet from the IBM Redbooks Web server. Point your Web browser at:
ftp://www.redbooks.ibm.com/redbooks/SG247689
Alternatively, you can go to the IBM Redbooks Web site at:
ibm.com/redbooks
Select the Additional materials and open the directory that corresponds with
the IBM Redbooks form number, SG247689.
B

Using the Web material
The additional Web material that accompanies this book includes the following
files:
File name Description
7689perl.tar Gateway samples and listing
System requirements for downloading the Web material
The following system configuration is recommended:
Operating system: AIX®, Linux, or Sun™ Solaris™
Other requirements: Refer to the IBM Tivoli Netcool Service Quality Manager
gateway requirements
How to use the Web material
Create a subdirectory (folder) on your workstation, and untar the contents of the
Web material file into this folder.

3GPP 3rd Generation Partnership
Project
AIX Advanced Interactive
eXecutive
APAR Authorized Program Analysis
Report
APN Access Point Name
ASCII American Standard Code for
Information Interchange
ASN1 Abstract Syntax Notation 1
BSS Business Support Systems
CEM Customer Experience
Manager
CSV Comma Separated Values
DSL Digital Subscriber Line
E2E End to End
ETL Extract, Transform, Load
FTP File Transfer Protocol
GGSN Gateway GPRS Support
Node
GPRS General Packet Radio Service
GSM Global System for Mobile
communications
IBM International Business
Machines Corp.
ITIL Information Technology
Infrastructure Library
ITSO International Technical
Support Organization
KPI Key Performance Indicator
KQI Key Quality Indicator
LIF Loader Input Format
NSS Network and Switching
Subsystem
Abbreviations and acronyms
OMC Operation Management
Console
OSS Operation Support System
PDF Portable Document Format
PDP Packet Data Protocol
PIF Parser Intermediate File
RAN Radio Access Network
RCP Remote Copy
ROI Return on Investment
SCP Secure Copy
SFTP Secure FTP
SGSN Serving GPRS Support Node
SLA Service Level Agreement
SNMP Simple Network Management
Protocol
SOA Service Oriented Architecture
SQM Service Quality Management
URL Uniform Resource Locator
XML eXtensible Markup Language

Related publications
The publications listed in this section are considered particularly suitable for a
more detailed discussion of the topics covered in this book.
IBM Redbooks
For information about ordering these publications, see “How to get Redbooks” on
page 100. Note that some of the documents referenced here may be available in
softcopy only.
End-to-End Planning for Availability and Performance Monitoring, REDP-4371
Other publications
These publications are also relevant as further information sources:
IBM Tivoli Netcool Service Quality Manager Business Objects Server
Installation, GC23-6597
IBM Tivoli Netcool Service Quality Manager Server Installation Guide,
GC23-6598
IBM Tivoli Netcool Service Quality Manager Client Installation Guide,
GC23-6599
IBM Tivoli Netcool Service Quality Manager AIX Server Installation Guide,
GC23-9485
IBM Tivoli Netcool Service Quality Manager Customer Experience
Management Guide, GC23-9489
IBM Tivoli Netcool Service Quality Manager Release Notes, GI11-8203

Online resources
These Web sites are also relevant as further information sources:
Tivoli Netcool Service Quality Manager support pages
IBM Tivoli Performance Manager for Wireless Web sites
http://www-01.ibm.com/software/tivoli/products/netcool-performance-m
gr-wireless/
http://www-01.ibm.com/software/tivoli/products/netcool-performance-m
gr-wireless-techpacks/
How to get Redbooks
You can search for, view, or download Redbooks, Redpapers, Technotes, draft
publications and Additional materials, as well as order hardcopy Redbooks, at
this Web site:
ibm.com/redbooks
Help from IBM
IBM Support and downloads
ibm.com/support
IBM Global Services
ibm.com/services

Index
A
ADD_NEW_COUNTER 29
AVERAGE_APPEND_STR 25
AVERAGE_COUNTERS 25
B
BULK_TRANSFER 22
C
CALCULATE_ROLLOVER 40
CEM 2
CNAME_MANIP 27
commands
cpio 22
gateway_start.sh 16, 64
ping 21–22
rcp 22
ssh 22
COUNTER_GROUPS 26
COUNTER_NAME_TO_EXTRACT 26
COUNTER_NAMES 28
COUNTER_NULL_VALUE 24
COUNTERS_ORDER 38
COUNTERS_TO_JOIN_ON 34
COUNTERS_TO_SORT_ON 24, 36, 40
COUNTERS_USED_TO_SPLIT_FILE 30
cpio command 22
customer experience management, see CEM
D
data mediation 6
DATA_COUNTERS_OP 37
DATA_COUNTERS_ORDER 23
DATETIME_COUNTERS 40
DEFAULT_NULL_VALUE 26, 40
DELETE_ORIGINAL 21–22
DEPTH 21–22
Digital Subscriber Line, see DSL
DIRECTION 20–21
DSL 2
E
ENABLE_LOCAL_COMPRESSION 21–22
ENABLE_PING 21–22
ENABLE_REMOTE_COMPRESSION 22
ETL 7
extraction, transformation and loading, see ETL
F
FIELD_DELIMITER 37
FILENAME_ADDITION 29
FILENAME_HEADER_FIELDS 56
FILENAME_SUFFIX 37
G
Gateway GPRS Support Node, see GGSN
gateway_start.sh command 16, 64
General Packet Radio Services, see GPRS
GGSN 47
Global System for Mobile communication, see GSM
GPRS 2
GROUP_KEY 36
GSM 2
H
HEADER_COUNTERS_OP 37
HEADER_COUNTERS_ORDER 23
HEADER_COUNTERS_TO_USE_IN_OUTPUT_FI
LENAME 34
HEADER_FIELDS_FOR_OUTPUT_FILENAME
37
HEADER_NAMES_USED_TO_ID_DATA_RECOR
D 32
HEADER_NAMES_USED_TO_ID_INFORMATION
33
HOST 20–21
HOURS_TO_WAIT_FOR_PARTNER_FILES 34
I
INFO_FILE_DESCRIPTION 32
INFO_FILES_STORAGE_DIR 33
INPUT_DATE_FORMAT 40
INPUT_DIR_DEPTH 56

INPUT_FILE_DATETIME_KEY 40
INPUT_FILE_DESCRIPTION 21–22, 56
K
KEEP_RAW_GRANULARITY 40
key performance indicator, see KPI
key quality indicator, see KQI
KPI 3
KQI 3
L
LOCAL_DIR 20, 22
M
MANIP_ONLY 36
MATCH 27
MAX_PEG_PIF_AGE 40
MAXIMUM_APPEND_STR 25
MAXIMUM_COUNTERS 25
MINIMUM_APPEND_STR 25
MINIMUM_COUNTERS 25
N
NAMES_USED_TO_ID_DATA_RECORD 32
NAMES_USED_TO_ID_INFORMATION 33
NEW_CNAMES 39
NEW_COUNTER_NAMES 30
NEW_COUNTERS_VALUE 29
NEW_HEADER_COUNTERS 35, 37–38
NEW_REC_ID_NAME 39
NON_ADDITIVE_COUNTERS 24
NON_MATCH_RECORD 28
NUMBER_OF_FILES_TO_PROCESS 21–22
O
OLD_COUNTER_NAMES 30
ONLY_INSERT 31, 33, 39
Operational Support System, see OSS
ORDER_OF_FILES 56
OSS 10
OUTPUT_BLOCK_NAME 24, 26–27, 29, 33–34,
37–39
OUTPUT_DIR 28–29, 33, 35, 37–39
OUTPUT_FILENAME_DELIMITER 38
OUTPUT_FILENAME_START 33–34, 37–39
OUTPUT_FORMAT 21–22, 37–38
OVERWRITE_FILES 21–22
P
Parser Intermediate File, see PIF
PASS 21
PATTERN 27
PEG_COUNTERS 40
PEG_FILENAME_PREFIX 40
PIF 12
ping command 21–22
PING_PROTOCOL 21–22
PING_RETRY_ATTEMPTS 21–22
PROTOCOL_PATH 22
Q
QUOTE_INPUT_PIFS 35
R
rcp command 22
Redbooks Web site 100
Contact us xi
REDUNDANT_DATA_COUNTERS 23
REDUNDANT_HEADER_COUNTERS 23
REMOTE_DIR 20, 22
REMOVE_INFO_FILES 33
RETRY_ATTEMPTS 22
RETRY_INTERVAL 21–22
ROLLOVER_WINDOW 40
S
Service Level Agreement, see SLA
service quality management, see SQM
Serving GPRS Support Node, see SGSN
SGSN 47
SLA 4
SPLIT_CNAMES 31, 39
SPLIT_COUNTERS_ORDER 30
SQM 2
ssh command 22
STATISTICS_FILENAME 21–22
T
TIME_JOINFILE_PRODUCED 35
TIMEOUT 21–22
TIMESTAMP_FILE 21–22
TMP_FILENAME_EXTENSION 21–22
TRANSFER_MODE 21

Index 103
U
UNPEG_FILE_TYPE 40
UNPEG_FILENAME_PREFIX 40
USER 21
W
WRITE_DATA_LINE 31, 33

(0.2”spine)
0.17”<->0.473”
90<->249pages
IBMTivoliNetcoolServiceQualityManagerDataMediationGatewayDevelopment

®
SG24-7689-00 ISBN 0738432474
INTERNATIONAL
TECHNICAL
SUPPORT
ORGANIZATION
BUILDING TECHNICAL
INFORMATION BASED ON
PRACTICAL EXPERIENCE
IBM Redbooks are developed by
the IBM International Technical
Support Organization. Experts
from IBM, Customers and
Partners from around the world
create timely technical
information based on realistic
scenarios. Specific
recommendations are provided
to help you implement IT
solutions more effectively in
your environment.
For more information:
ibm.com/redbooks
®
IBM Tivoli Netcool Service
Quality Manager Data
Mediation Gateway
Development
Service Quality
Manager concepts
and overview
Data mediation in
Service Quality
Manager
Development of your
own interface
This IBM Redbooks publication discusses IBM Tivoli Netcool
Service Quality Manager V4.1.1 data mediation development.
It is aimed at implementers and system integrators
connecting new data sources that will be managed by
Service Quality Manager.
Data mediation in Service Quality Manager is performed by
Perl gateways. Gateways extract data from vendor specific
hardware monitors and prepare the data to be loaded into the
Service Quality Manager application.
The development aspect of data mediation for gateways
uses Perl extensively. The control files or rules are written as
Perl subroutines. We discuss the detailed specifications and
processing of these mediation rules.
