Build Systems with autoconf, automake and libtool [updated]

Build Systems with
autoconf and libtool
Benny Siegert ‹bsiegert@gmail.com›
The MirOS Project (http://www.mirbsd.org)

FOSDEM 2010

Contents
1. Theory
a) Introduction: a history lesson
b) Presentation of components
2. Practice
a) A concrete example
b) Bad practices
3. Conclusion

Make les
‣ since Version 7 AT&T Unix (ca 1977)

‣ Targets = lenames
with dependencies and compiler commands
‣ “Phony” lenames like “install”

# extremely simple Makefile
foo: foo.o
cc -o foo foo.o

foo.o: foo.c
cc -c -o foo.o foo.c

install: foo
install -m 555 foo /usr/local/bin

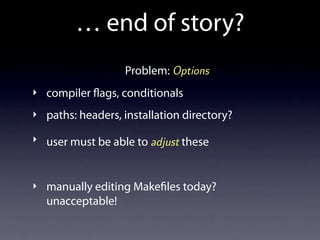

… end of story?
Problem: Options
‣ compiler ags, conditionals

‣ paths: headers, installation directory?

‣ user must be able to adjust these

‣ manually editing Make les today?
unacceptable!

Other build systems
‣ imake (X11): Imake le + cpp ➝ Make le

‣ a nightmare in practice

‣ Xorg now uses autotools, they know why

‣ Schily make (J?rg Schilling, cdrtools)

‣ >300 Make le fragments, one per platform

‣ does not work with BSD make

‣ bsd.prog.mk etc (BSD): platform dependent

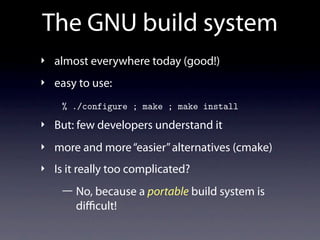

The GNU build system
‣ almost everywhere today (good!)

‣ easy to use:

% ./configure ; make ; make install
‣ But: few developers understand it

‣ more and more “easier” alternatives (cmake)

‣ Is it really too complicated?

— No, because a portable build system is
diﬃcult!

con gure
Make le.in Make le
con g.status
con g.h.in con g.h
*.in *

‣ gets options:
target dir, compiler ags, paths, modules, etc.
‣ searches for libraries, headers, paths

‣ creates con g.status

‣ con g.status handles replacement variables
(e.g. CC, CFLAGS, LIBS)

autoconf
con gure.ac m4 con gure
aclocal.m4

‣ you don‘t actually write con gure yourself

‣ con gure.ac contains macro calls to be
converted into a shell script
‣ Macros that are not part of autoconf
come from aclocal.m4
‣ Documentation: info autoconf (read it!)

autoheader
con gure.ac con g.h.in

‣ creates a template for con g.h

‣ con g.h contains C preprocessor symbols
for options, e.g. HAVE_FOO_H
‣ Source code: #include “con g.h”
at the start of each le
‣ Documentation: info autoheader

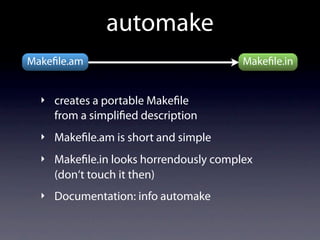

automake
Make le.am Make le.in

‣ creates a portable Make le
from a simpli ed description
‣ Make le.am is short and simple

‣ Make le.in looks horrendously complex
(don‘t touch it then)
‣ Documentation: info automake

aclocal
*.m4 aclocal.m4

‣ part of automake

‣ tells autoconf about local macros,
like those from automake
‣ only those actually used are put into
aclocal.m4
‣ acinclude.m4 is for your own macros

‣ Documentation: info aclocal

pkgcon g
CFLAGS
*.pc
LIBS

‣ makes nding and using shared libs easier

‣ replaces *-con g scripts (gtk-con g etc.)

‣ PKG_CHECK_MODULES(FOO, glib2.0 >= 2.8.0)
sets FOO_CFLAGS, FOO_LIBS
‣ if you are writing a library, consider
distributing a .pc le for it
‣ Dokumentation: man pkgcon g

libtool
command different
command

‣ shared library support for all platforms

‣ encapsulates platform-speci c commands

‣ you pretend you are building a static library
with .la suffix (so-called libtool library)
‣ you pre x commands with libtool --mode=foo,
libtool executes different, adapted commands
‣ Documentation: info libtool (except Mac OS)

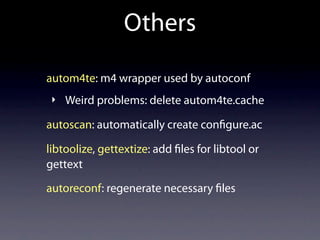

Others

autom4te: m4 wrapper used by autoconf
‣ Weird problems: delete autom4te.cache

autoscan: automatically create con gure.ac

libtoolize, gettextize: add les for libtool or
gettext

autoreconf: regenerate necessary les

Example source code
#include <stdio.h>
#include "hello.h"

void hello() hello.c
{
printf("Hello World!n");
}

void hello(); hello.h
#include "hello.h"

int main(int argc, char **argv)
{ main.c
hello();
return 0;
}

Traditional Make le
hw: main.o libhello.a
cc -o hw main.o libhello.a

libhello.a: hello.o
ar cru libhello.a hello.o
ranlib libhello.a

.SUFFIXES: .c .o
.c.o:
cc -c -o $@ $<

clean:
rm -f hw main.o hello.o libhello.a

Make le using libtool
hw: main.lo libhello.la
./libtool --mode=link cc -o hw main.lo libhello.la

libhello.la: hello.lo
./libtool --mode=link cc -rpath /usr/local/lib
-o libhello.la hello.lo

.SUFFIXES: .c .lo
.c.lo:
./libtool --mode=compile cc -c -o $@ $<

clean:
./libtool --mode=clean rm -f hw main.lo hello.lo
libhello.la

autoconf + automake
‣ here: source code moved to src/

‣ call autoreconf -v -i

AC_INIT(hw, 0.1)
AM_INIT_AUTOMAKE(foreign)

AC_PROG_CC
AC_STDC_HEADERS
con gure.ac

AC_CONFIG_FILES([Makefile src/Makefile])
AC_OUTPUT
SUBDIRS = src Make le.am
bin_PROGRAMS = hw
hw_SOURCES = main.c hello.c hello.h
src/Make le.am

Using con g.h
AC_INIT(hw, 0.1)
AM_INIT_AUTOMAKE
AC_CONFIG_HEADERS(config.h) con gure.ac
[…]

‣ call autoheader (done by autoreconf )

‣ To use con g.h:
add this to the top of every .c le
#ifdef HAVE_CONFIG_H
#include "config.h"
#endif

Features we have
‣ uses user‘s CC and CFLAGS

‣ can be built outside the sources

‣ installation (via make install), uninstall

‣ user can specify target directory

‣ dependency tracking (can be disabled)

‣ create a tarball (make dist)

‣ make clean

libtool!
‣ goal (as before): make libhello a shared library

‣ libtool is created by con gure
(AC_PROG_LIBTOOL macro)
‣ copy libtool.m4 and ltmain.sh from the libtool
sources (or use libtoolize --copy)
‣ nally call autoreconf -v -i

[…]

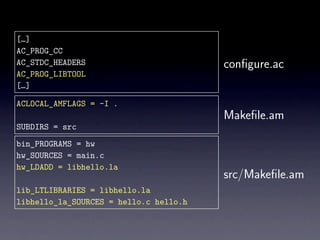

AC_PROG_CC
AC_STDC_HEADERS configure.ac
AC_PROG_LIBTOOL
[…]

ACLOCAL_AMFLAGS = -I .
Makefile.am
SUBDIRS = src
bin_PROGRAMS = hw
hw_SOURCES = main.c
hw_LDADD = libhello.la
src/Makefile.am
lib_LTLIBRARIES = libhello.la
libhello_la_SOURCES = hello.c hello.h

Replacement variables
‣ a variable is set to a value in con gure

‣ AC_SUBST(variable) replaces @variable@
by its value in output les
‣ automake de nes variable for us in Make les

‣ Goal here: version info for libhello should be
set by con gure
‣ add -version-info to libhello‘s LDFLAGS

current:revision:age
‣ version info for libtool libraries

‣ three numbers ∈ ℕ

‣ current: current API revision

‣ revision: bug xes etc. without any API changes

‣ age: to how many API revisions are we
backwards compatible?

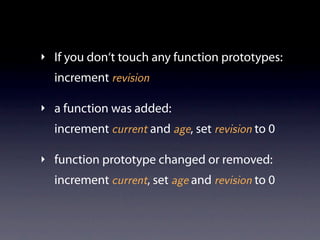

‣ If you don‘t touch any function prototypes:
increment revision

‣ a function was added:
increment current and age, set revision to 0

‣ function prototype changed or removed:
increment current, set age and revision to 0

[…]
LIBHELLO_CURRENT=1
LIBHELLO_REVISION=0
LIBHELLO_AGE=1

LIBHELLO_VER=$LIBHELLO_CURRENT:
$LIBHELLO_REVISION:$LIBHELLO_AGE
con gure.ac
AC_SUBST(LIBHELLO_VER)

AC_CONFIG_FILES([Makefile src/Makefile])
AC_OUTPUT

lib_LTLIBRARIES = libhello.la
libhello_la_SOURCES = hello.c
libhello_la_LDFLAGS =
src/Make le.am
-version-info ${LIBHELLO_VER}

Checking headers
‣ AC_CHECK_HEADERS checks if a header le is
found and if it works
‣ If another header must be included before,
use the fourth parameter
‣ ex: sys/mount.h depends on sys/param.h
[…]
AC_CHECK_HEADERS([sys/param.h sys/mount.h],
[], [], [#ifdef HAVE_SYS_PARAM_H
#include <sys/param.h> con gure.ac
#endif
])
[…]

arguments to con gure
‣ additional features (--enable-feature) or

use of external packages (--with-package)
‣ AC_ARG_ENABLE and AC_ARG_WITH,
work the same way
‣ Arguments: name, help string, and two
shell fragments (if arg given, if omitted)
‣ AS_HELP_STRING formats the help string

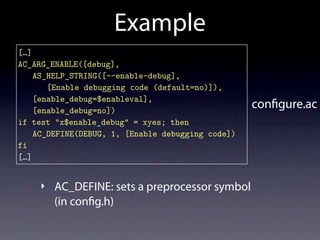

Example
[…]
AC_ARG_ENABLE([debug],
AS_HELP_STRING([--enable-debug],
[Enable debugging code (default=no)]),
[enable_debug=$enableval],
[enable_debug=no])
con gure.ac
if test "x$enable_debug" = xyes; then
AC_DEFINE(DEBUG, 1, [Enable debugging code])
fi
[…]

‣ AC_DEFINE: sets a preprocessor symbol
(in con g.h)

More complex example
AC_ARG_WITH([glib2],
AS_HELP_STRING([--with-glib2], [Enable support for glib 2.0
@<:@default=auto@:>@]),
[with_glib2=$withval],
[with_glib2=auto])
if test "x$with_glib2" != xno; then
PKG_CHECK_MODULES(GLIB, [glib-2.0 >= 2.8], [have_glib2=yes],
[have_glib2=no])
else
have_glib2=no
fi
if test "x$with_glib2" = xyes -a "x$have_glib2" = xno; then
AC_MSG_ERROR([Library requirements (glib-2.0 >= 2.8) not met;
consider adjusting the PKG_CONFIG_PATH environment variable if your
libraries are in a nonstandard prefix so pkg-config can find them.])
fi
if test "x$have_glib2" = xyes; then
AC_DEFINE([HAVE_GLIB2], [1], [Define if you have the glib2
library.])
fi

Conditional compile
‣ No portable “if” statement in Make les,
use automake conditionals
‣ decision is taken at con gure time
using the test from the second argument
[…]
AM_CONDITIONAL(DEBUG,
con gure.ac
[test "x$enable_debug" = xyes])
[…]
[…]
if DEBUG
hw_SOURCES += debugging.c
else
src/Make le.am
# something else
endif

Bake le
‣ automake replacement, used by wxWidgets

‣ pkgsrc has patched wxWidgets Make les so
that they use libtool. The patch is 3 MiB.
‣ example Bake le, from the tutorial:
<?xml version="1.0"?>

<makefile>
<include file="presets/simple.bkl"/>

<exe id="hello" template="simple">
<sources>hello.c</sources>
</exe>
</makefile>

wx-con g
‣ very complex con g script instead of a .pc le

‣ has to clean up behind con gure:
# We evidently can't trust people not to duplicate things in
# configure, or to keep them in any sort of sane order overall,
# so only add unique new fields here even if it takes us a while.
[…]
# This is not a licence
# for sloppy work elsewhere though and @GUI_TK_LIBRARY should
# be fixed.
[…]
# of course, this duplication is bad but I'll leave to somebody else the
care
# of refactoring this as I don't see any way to do it - VZ.

# This (and the other cruft to support it) should be removed with
# reference to the FIXME above when configure stops piping us a slurry
# of options that need to be decomposed again for most practical uses - RL.

“List of platforms“
‣ autoconf‘s goal is to help you get rid of long
lists of platforms and corresponding options.
‣ Yet, some con gures manage to do this.
case "${host}" in
[…]
*-*-openbsd*)
USE_BSD=1
USE_OPENBSD=1
AC_DEFINE(__OPENBSD__)
AC_DEFINE(__BSD__)
DEFAULT_DEFAULT_wxUSE_GTK=1
;;

*)
AC_MSG_ERROR(unknown system type ${host}.)
esac

a2ps Make les
‣ Last release (2.13b) in 2000

‣ uses autoconf 2.14a that was never oﬃcially
released
‣ does not use aclocal but:

## I use special autoconf/make macros
ACLOCAL_AMFLAGS = --version >/dev/null && cat m4/*.m4 >aclocal.m4

‣ comes with its own version of automake
in 17 (!) m4 les

‣ It is a good thing that so many projects use
autotools – only one build system to learn
‣ you cannot write a portable build system
from scratch – so don‘t try
‣ writing Make les with automake is not
that complicated
‣ automake replacements complicate life
for porters and contributors
‣ a good build system even runs on an
“unknown” system

My golden rules
1. Don‘t try to reinvent the wheel.
2. Not everyone uses Linux i386 with gcc
and GNU make.
3. Don‘t hardcode things that can be tested.
4. The user must be able to regenerate
your autoconf infrastructure.
5. Don‘t change any generated les.

Thank you
for your attention!

Further Reading
‣ slides on http://www.slideshare.net/bsiegert

‣ info pages

‣ ”autotools mythbuster“:
http://www. ameeyes.eu/autotools-mythbuster/

Build Systems with autoconf, automake and libtool [updated]

More Related Content

What's hot (20)

Similar to Build Systems with autoconf, automake and libtool [updated] (20)

Recently uploaded (20)

Build Systems with autoconf, automake and libtool [updated]
