Lightning Charges Travel in KM & Enter (Systems) from many medium

DC Power Plant we Ensure Safety

Link Vue System Electrical Safety (SurgeProtection,Lightning Protection& Earthing)

Selection of Right Surge Protection and Installation is is your Hand (TECHNICAL AwareneSS)
Electrical circuits may be connected to ground (earth) for several reasons. Earthing serves as:
•Personal protection
•Property/ operational protection
•Potential grading earthing
•Electro-magnetic pulses protection
•Lightning protection
In mains powered equipment, exposed metal parts are connected to ground so that if, due to any fault conditions, a “line” supply voltage connection occurs to any
such conductive parts, the current flow will then be such that any protective equipment installed for either overload or “leakage” protection will operate and
disconnect the line voltage.
This is done to prevent harm resulting to the user from coming in contact with any such dangerous voltage in a situation where the user may, at the same time, also
come in contact with an object at ground/earth potential. Connection to ground also limits the build-up of static electricity when handling flammable products or
electrostatic-sensitive devices.
Earthing should include:
Low electrical resistance(Max 1.00 Ohm)
Ability to conduct stable voltage, even at weather changes
Long life expectancy, i.e. high resistance against corrosion

Surge Protection Class B C and D as per Equipment Category

Surge Protection Installation Guide Line
SPD for power lines
7 module full mode protection
Monoblock type
Not interrupt the system
kA rating determine by the weakest link
Enclosed in rugged,safe, all metal enclosure
Provided with solid state indicators (LED)
Installed in parallel
Design to withstand multiple strikes
SPD for data/signal
Compatible & transparent to existing system
Not interrupt operation system

SURGE PROTECTION SELECTION FOR POWER SYSTEM

SURGE PROTECTION SELECTION FOR PABX SYSTEM

SURGE PROTECTION SELECTION FOR FIRE ALARM SYSTEM

SURGE PROTECTION SELECTION FOR CCTV SYSTEM

SURGE PROTECTION SELECTION FOR NETWORKING SYSTEM

Surge Protection Installation for Multiple Equipments Safety
A surge reference equaliser does two things; it brings together all
the service SPDs by locating themin a single enclosure and provides a
local earth reference for all the SPD "C" terminals to directly connect
the common bonding point, or "star" connection has two external
earth reference
One from the power SPD mains plug/socket local earth reference
and the other from the screened cable remote earth reference. This
means that the diverted surge current can split between the power
and screened cable earth references.to avoid earth loops in normal
operation, one SPDn option is to make the screened cable
"C"connection to the common bonding point via an SPD with a
switching function, which maintains isolation during normal
conditions but provides a bond during the occurrence of a surge.
The surge reference equaliser is now called an MSPD, although there
may not be any SPDs in it,only SPCs giving the equivalent surge
functionality of the replaced SPDs.
MSPD for protecting power, antenna, telephone and Ethernet
services with warning lights for protection failure and missing earth
connection.

Surge Protection for Serial and Co-Axial Communication Port

Let’s STUDY Jointly reason of Surge and use of Surge Protection including Installation GuideLine with Wiring Rules
UL SPD Types - Per 1449 4th Edition
Type 1- One port. permanently connected SPDs, except for watt- hour meter socket enclosure, intended for installation between the secondary of the service transformer and the line side of the
service equpment overcurrent device, as well as the load side, including watt-hour meter socket enclosures and Molded Case SPDs intended to be installed without an extemal overcurrent
protective device. Type 1 SPDs for use in PV systems can be connected between the PV aarry and the main service disconnect.
DIN-RAIL SPDs are open Type 1.
Type 2- Permanently connected SPDs intended for installation on the load side of the service equipment overcurrent device, including SPDs located at the branch panel and Model Case SPDs.
Type 3 - Point of utilization SPDs, installed at a minimum conductor length of 10 meters (30 feet) from the electrical service panel to the point of utilization, for example cord connected, direct
plug-in receptacle type and SPDs installed at the utilization equipment being protected. See marking in 80.3. The distance (10 meters) is exclusive of conductors provided with or used to attach
SPDs.
Note: type 2 and 3 SPDs ware previously known as TVSSs,
Type 4 - Component Assemblies - Component assembly consisting of one or more Type 5 components together with a disconnect (integral or external) or a means of complying with the limited
current tests in 44.4.
Type 1, 2, 3 Component Assemblies - Consists of a Type 4 component assembly with internal or external short
circuitprotection.
Type 5 - Discrete component surge suppressors such as MOVS that may be mounted on a PVVB connected by its leads or provided within an enciosure with mounting means and wiring
terminations. V/Uπ----nominal system voltage.
A nominal value assigned to designate a system of a given voltage class in accordance w ANSI CB4,1. Typical voltages include 120 208, 240, 277, 347, 480,600O Vac.
V --- Voltage Protection RatingA ring selected from a list of preferred values as given inToble 63. 1 of UL 1449 4th Edition andassigned to each mode of protection. The value of V is determined as
the nearest highest value taken from Table 63.1 to the measured limiting voltage determined during the surge test using the compination wave generator at a setting of 6 kV, 3kA. It is also known
as let-through voltage.
Guide to Surge Protection Devices (SPDs): selection, application and theory
The following common terminologies, as recognised by BS EN 61643/IEC 62305 are used throughout SPD specifications in order to aid correct selection and aredefined as follows:
Nominal Voltage UO is the line voltage to Earth a.c. voltage of the mains system (derived from the nominal system voltage) for which the SPD is designed to is the voltage by which the power
system is designated -e g. 230V.
Maximum Continuous Operating Voltage Uc is the maximum RMS voltage that may be continuously applied to the SPD's mode of protection e.g. phase to neutralmode. This is equivalent to the
SPD's rated peak voltage.
Temporary Overvoltage UT is the stated test value of momentary voltage increaseor overvoltage that the power SPD must withstand safely for a defined time.Temporary overvoltages,
typically lasting up to several seconds, usually
originate from switching operations or wiring faults (for example, sudden load rejection, single phase faults) as well as mains abnormalities such as ferro-resonance effects and harmonics.
Impulse Current Amp is defined by three parameters, a current peak with a chargeand a specific energy typically simulated with the 10/350us waveform to represent partial lightning
currents. This waveform is used with peak Imp current value stated. for the mains Type 1 SPD Class I test and typically for data telecom SPD TestCategory D.
Nominal Discharge Current /nspdis a defined nominal peak current value through the SPD, with an 8/20µs current waveshape. This is used for classification of mains SPDs(Class Il test) and also
for preconditioning of SPDs In Class I and Class IItests.
Maximum Discharge Current /maxis the peak current value through the SPD, with an B/20us waveshape. Imax is
declared for mains Type 2 SPDs in accordance to the test sequence of the Class Il operating duty test. In general, max is greater than /nspd.

Surge protective devices (SPDs)Surge protective devices mainly consist of voltage-dependent resistors (varistors, suppressor
diodes) and / or spark gaps (discharge paths). Surge protective devices are used to protect other electrical equipment and
installations against inadmissibly high surges and / or to establish equipotential bonding. Surge protective devices are
categorised:
Surge protective devices for power supply installations and devices
for nominal voltage ranges up to 1000 V
– according to EN 61643-11:2012 into type 1 / 2 / 3 SPDs
– according to IEC 61643-11:2011 into class I / II / III SPDs
Surge protective devices for information technology installations and devices
for protecting modern electronic equipment in telecommunications and signalling networks with nominal voltages up to
1000 V AC effective value) and 1500 V DC. against the indirect and direct effects of lightning strikes and other transients.
– according to IEC 61643-21:2009 and EN 61643-21: 2010.
Isolating spark gaps for earth-termination systems or equipotential bonding
Surge protective devices for use in photovoltaic systems
for nominal voltage ranges up to 1500 V
– according to EN 50539-11:2013 into type 1 / 2 SPDs
impulse current discharge capacity and protective effect into:
Lightning current arresters / coordinated lightning current arresters
for protecting installations and equipment against interference resulting from direct or nearby lightning strikes
Surge arresters
for protecting installations, equipment and terminal devices against remote lightning strikes, switching over-voltages as well
as electrostatic discharges (installed at the boundaries downstream .

Combined arresters
for protecting installations, equipment and terminal devices against interference resulting from direct or nearby lightning strikes
(installed at the boundaries between LPZ 0A and 1 as well as 0A and 2).
Technical data of surge protective devices
The technical data of surge protective devices include information on their conditions of use according to their:
Application (e.g. installation, mains conditions, temperature)
Performance in case of interference (e.g. impulse current discharge capacity, follow current extinguishing capability, voltage
protection level, response time)
Performance during operation (e.g. nominal current, attenuation, insulation resistance)
Performance in case of failure (e.g. backup fuse, disconnector, failsafe, remote signalling option)
Short-circuit withstand capability
The short-circuit withstand capability is the value of the prospective power-frequency short-circuit current handled by the surge
protective device when the relevant maximum backup fuse is connected upstream.
Short-circuit rating ISCPV of an SPD in a photovoltaic (PV) system
Maximum uninfluenced short-circuit current which the SPD, alone or in conjunction with its disconnection devices, is able to
withstand.
Temporary overvoltage (TOV)
Temporary overvoltage may be present at the surge protective device for a short period of time due to a fault in the high-voltage
system. This must be clearly distinguished from a transient caused by a lightning strike or a switching operation, which last no
longer than about 1 ms. The amplitude UT and the duration of this temporary overvoltage are specified in EN 61643-11 (200 ms, 5
s or 120 min.) and are individually tested for the relevant SPDs according to the system configuration (TN, TT, etc.). The SPD can
either a) reliably fail (TOV safety) or b) be TOV-resistant (TOV withstand), meaning that it is completely operational during and
following
temporary over-voltages.

Platform Touch Voltage Protection Membrane System

Director:- Mr. Manish Khatri
Head Marketing & Sales:- Mr. Mahesh Chandra Manav
Link Vue System Pvt Ltd
Head Office: I-19, Karampura, New Moti Nagar, New Delhi, (India).
Mobile: +91-9811247237
Tel: +91 11 4559778
Email:manav.chandra@linkvuesystem.com Email:manish@linkvuesystem.com Website: www.linkvuesystem.com
Link Vue Systems Pty Ltd
2 BRUCE STREET, BLACKTOWN NSW 2148,
Sydney, Australia Mobile:+61-423064098, Mobile: +91-9811247237,
Email:manav.chandra@linkvuesystem.com
visit webpage www.linkvuesystem.com
50

Link Vue
INT: INDIA/AUSTRALIA
India Australia

We offer end to end engineering solutions from project conceptualization, engineering design, Constancy with
incorporates our own In-house Singapore brand of Ethernet M2M connectivity wide range of products with
International industries approvals of CE, FCC & ROHS standards, Moreover We are the strategic partners, sole
distributors for world’ leading Enterprise ICT & Industrial class Surveillances security products from products selection to
project commissioning services for industries assisted with onshore & offshore 24X7 service support Link Vue System
Private Limited - India established to provide premier Integrated solutions for Industrial & Enterprise Grade Ethernet
Connectivity / Wireless WLAN, GSM Technology incorporates value added supply services & End to End support for
Govt.& small to large businesses to plan, build deploy & manage their Industrial Automation SCADA communication
control, Ethernet LAN/WAN networks System infrastructure, CCTV Surveillances, Access Control as per their standards -
all within their stipulated budget and cost effective solution.
With our extensive knowledge & rich industry hands-on experience in the Networks communication &
Industrial Automation arena, we continuously innovate and upgrade our products range aimed the varied applications
needs of our customers, we maintain high quality standards for our offering products which we have received many
quality and testing certifications from industries internationalcertifications bodies.
Performance Enabling Solutions
Advanced CCTV Surveillances & Access control Security on Ethernet Platform
Industrial & Enterprise Networking LAN/WAN, Wireless WLAN & GSM Data Loggers.
IP Security Collaboration I Messaging Mission Critical Data Storages NAS /GRID
Industrial Automation DCS I PLC I SCADA HMI I Industrial Computers Products & Implementations
Consultancy in Enterprise and Industrial Automation Networks Design
Sourcing of best Components Supply from in-house brand/ customized based on the project requirements for
industrial and enterprise connectivity and automation verticals.
IT Data Centre and ICT Products Infrastructure Management.
2

PERIMETER INTRUSION DETECTION SYSTEM (PIDS)SECURE YOUR
PREMISES
Perimeter Intrusion Detection System (PIDS) is designed to protect assets within a perimeter by detecting intruders
attempting to gain access and blocking such access using the control station. Blue Star R&R offers robust and reliable
solutions for accurate detection of such unauthorized entry and protection of assets against these threats. The
company's turnkey solutions can detect any unauthorized physical intrusions across the perimeter, assess the situation
and track intruders for future actions. Features such as instant alarm generation and control by reporting to central
monitoring station make it easier to manage such situations,
PIDS solutions from Link Vue Systems Pvt Ltd are based on microwave technology, Optical Fiber Cable (OFC) or video
cameras. These can be fence mounted, buried underground or can be tailored for specific needs, based on customer
requirements Seamless integration of PIDs with other security systems adds one more layer of comfort for the customer.
This security system is well suited for military bases, government facilities oil refineriesPetrochemical plants, power
plants,sea ports, airports, VIP residences. Storage yards and so on.
10

Link Vue System Trading Produts Portfolio
↓
www.linkvuesystem.com
11

TeleMON™ is an industrial grade x86 based gateways. Telemon gateway provides two RS485 serial interface for
Modbus RTU protocol, an ethernet interface for Modbus TCP and transfers the data to the cloud using MQTT (SSL/TLS)
over 3G or 4G cellular modem or ethernet Interface. TeleMON gateway acquires data from legacy devices and modern
sensors analyzes and make the data available at the cloud which would provide a platform for various applications like
remote asset management, centralized monitoring etc.
TeleMON is specifically designed to implement data collection systems which operate according to the Internet
of Things (IoT) paradigms; It allows bidirectional communication between field equipment and the Cloud
software platform. All the data transferred to the cloud are encrypted with Transport Layer Security (TLS). It is
possible to configure the MQTT message structure in order to better adapt to the different MQTT Brokers available
(Amazon AWS, Mosquito etc.)
13

Smart Grid & Smart City Solution
Smart cities depend on a smart grid to ensure reliable energy efficient and quality power Distribution System. Smart
Grid is Digitalization of Power Transmission and Distribution System.
Major areas of concern in the power distribution sector are high AT&C loss and poor power distribution reliability. To
address these problems accurate measurement, diagnosis and Local remedial action is essential.
The reliability of power is measured in the terms of SAFI and SAIDI which requires solution besed on real
time monitoring and Control.
The Feeder Remote Terminal Unit (FRTU) for SAIFA /SAIDI measurement is required at primary substation to our data
from status Input devices of breakers or protection relay viz O/C & E/F, CMRs, Multifunction Transducers
(MFTs), discrete transducers for analogdata The FRTUs shall be interfaced with the substation equipment,
communication equipment, power supply distribution boards;
Along with effective Monitoring, FRTU should also incorporate self-healing and logic for taster restoration of supply
even in the absence of control Centre SCADAIntelligent Protocol Gateways in Smart Grid combine the Functionality of
Traditional Protocol Converters and loT Gateways, TheseGateways not only help in interoperability between various
equipment supporting difforart Protocols as per Functional requirements.But also support clustering data processing.
Processing, network security and Many connectivity Options
RS Consultancy is Pioneer in Engineering and Development of Smart Grid Solutions in Partnership with Global Market
Leader in loT Hardware Advantech Co. Ltd, we Offer indigenized Solutions with.
•Intelligent FRTU
•Smart Grid IoT Gateway
•RSK PGA Smart Utilities
17

Battery Chargers for Grid TIE and OffGrid with Solar Panels
21

UL SPD Types - Per 1449 4th Edition
Type 1- One port. permanently connected SPDs, except for watt- hour meter socket enclosure, intended for installation
between the secondary of the service transformer and the line side of the service equpment overcurrent device, as well
as the load side, including watt-hour meter socket enclosures and Molded Case SPDs intended to be installed without
an extemal overcurrent protective device. Type 1 SPDs for use in PV systems can be connected between the PV aarry
and the main service disconnect.
DIN-RAIL SPDs are open Type 1.
Type 2- Permanently connected SPDs intended for installation on the load side of the service equipment overcurrent
device, including SPDs located at the branch panel and Model Case SPDs.
Type 3 - Point of utilization SPDs, installed at a minimum conductor length of 10 meters (30 feet) from the electrical
service panel to the point of utilization, for example cord connected, direct plug-in receptacle type and SPDs installed at
the utilization equipment being protected. See marking in 80.3. The distance (10 meters) is exclusive of conductors
provided with or used to attach SPDs.
Note: type 2 and 3 SPDs ware previously known as TVSSs,
Type 4 - Component Assemblies - Component assembly consisting of one or more Type 5 components together with a
disconnect (integral or external) or a means of complying with the limited current tests in 44.4.
Type 1, 2, 3 Component Assemblies - Consists of a Type 4 component assembly with internal or external
short
circuitprotection.
Type 5 - Discrete component surge suppressors such as MOVS that may be mounted on a PVVB connected by its leads
or provided within an enciosure with mounting means and wiring terminations. V/Uπ----nominal system voltage.
A nominal value assigned to designate a system of a given voltage class in accordance w ANSI CB4,1. Typical voltages
include 120 208, 240, 277, 347, 480,600O Vac.
V --- Voltage Protection Rating
A ring selected from a list of preferred values as given inToble 63. 1 of UL 1449 4th
Edition andassigned to each mode of
protection. The value of V is determined as the nearest highest value taken from Table 63.1 to the measured limiting
voltage determined during the surge test using the compination wave generator at a setting of 6 kV, 3kA. It is also
known as let-through voltage.
Guide to Surge Protection Devices (SPDs): selection, application and theory
The following common terminologies, as recognised by BS EN 61643/IEC 62305 are used throughout SPD specifications
in order to aid correct selection and aredefined as follows:
Nominal Voltage UO is the line voltage to Earth a.c. voltage of the mains system (derived from the nominal system
voltage) for which the SPD is designed to is the voltage by which the power system is designated -e g. 230V.
Maximum Continuous Operating Voltage Uc is the maximum RMS voltage that may be continuously applied to the
SPD's mode of protection e.g. phase to neutralmode. This is equivalent to the SPD's rated peak voltage.
Temporary Overvoltage UT is the stated test value of momentary voltage increaseor overvoltage that the power SPD
must withstand safely for a defined time.Temporary overvoltages, typically lasting up to several seconds,
usually
originate from switching operations or wiring faults (for example, sudden load rejection, single phase faults) as well as
mains abnormalities such as ferro-resonance effects and harmonics.
Impulse Current Amp is defined by three parameters, a current peak with a chargeand a specific energy
typically simulated with the 10/350us waveform to represent partial lightning currents. This waveform is used with peak
Imp current value stated. for the mains Type 1 SPD Class I test and typically for data telecom SPD TestCategory D.
Nominal Discharge Current /nspdis a defined nominal peak current value through the SPD, with an 8/20µs current
waveshape. This is used for classification of mains SPDs(Class Il test) and also for preconditioning of SPDs In Class I and
Class IItests.
Maximum Discharge Current /maxis the peak current value through the SPD, with an B/20us waveshape. Imax
is
declared for mains Type 2 SPDs in accordance to the test sequence of the Class Il operating duty test. In general, max is
greater than /nspd.
Combined Impulse Test with Open Circuit Voltage Uoc is a hybrid 1.2/50µs voltage test combined with an8/20µs
current. The test is performed using a combination wave generator where its open circuit voltage is defined as Loc.
typically 6kV 1,2/50µs for the mains Class III test and up to 4kV 12/50µs for signal/telecom Test Category C. With an
27

value of Uoc (3KA 8 20us for the mains Class I test and up to 2kA 8/20us for signal telecom Test Category C). With both
voltage and current test waveforms, the combined impulse test is designed to stress alltechnologies used within SPDS
Voltage Protection Level Up is the key parameter that characterises the performance of the SPD in limiting the
transient overvoltage across its terminals Alow protection level value (also known as let-through voltage) is therefore
particularly critical for the effective protection and continued operation of electronic equipment The peak voltage
protection level Up is declared when the SPD is tested with its stated nominal discharge current in for the peak current
peak of imp) and is also declared when the SPD is subject to combined impulse test mars Class test forType 3
SPDS) as well as data telecom Test Categories C and B Modes' refer to tie combinations of conductors in which
transient overvoltage car Lightning transients are generally disturbance with respect to Eat commonmode), whist
switching transients are disturbances between line/phase and neutral (differential mode). During propagation mode
conversion can occur (e.g. as a resultof flashover). Hence transients can exist simultaneously between any combinations
of conductors. Electronic systems now pervade almost every aspect of our lives, from the work environment, through
filling the car and even shopping at the local supermarket. As a society, we are now heavily reliant on the continuous
and efficientrunning of such systems. The use of computers, electronic process controls and telecommunications has
'increased exponentially’ during the last two decades. Not only are there more systems in existence the physical size of
the electronics involved has reduced considerably. This reduction in size means less energy is required to damage
components.
The operation of electronic systems can be severely affected by lightning activityduring thunderstorms or
electrical switching events. Both can cause very short duration increases in voltage on mains power
and/or data
Communication/signal/telephone lines, with potentially devastatingconsequences. These increases in voltages are
called surges or transient over voltages, all sorts of electronic equipment are at risk such as
•Computers
•Building management systems
•PABX telephone exchanges • CCTV equipment
•Fire and burglar alarms
•Uninterruptible power supplies • programmable logic controllers (PLCS)
•Plant sensors, telemetry and data acquisition equipment
•Weighbridge installations
A lightning surge is severe enough to present a risk of loss of life through fire and/or electric shock hazards through a
dangerous flashover. This can occur when the surge voltage exceeds the withstand rating of the cable insulation or
equipment. The home environment has also evolved everyday activities rely on electronic equipment Products such as
plasma televisions home theatre equipment alarms. microwaves and washing machines are all vulnerable to voltage
surges Protecting all home electronic equipment is simple with the qualified installation of a surge protection device
Products such as LCD screens. computer networks. data servers and industrial equipment including PLCs
provide essential services now crucial to business operational productivity Protection against the effects of
voltage surges inbusiness today is no longer an option, it has become a necessity.
Circuit breakers/fuses are not designed to provide overvoltage protection
Fuses and circuit breakers (aka Overcurrent Protective Devices (OCPDs) are designed to protect your home business
equipment and possibly even your life from an event such as a short circuit or overload,
The Surge Protective Device (hereafter referred to as an SPD) is specifically designed to protect equipment from events
such as extremely short duration high voltage spikes. These voltage spikesor transients are everyday occurrences and
can be caused by anything from switching on a lamp toalightning storm most spikes are of low energy. Some spikes
could possibly cause irreparable damage to equipment if no SPD is installed to redirect the harmful voltage away from
the equipment.
28

LED Light for Outdoor Conditions
34

Freedom Wire Connectorsand Industrial Plug and Socket for
High Power Equipment’s
40

MC 4 Connectors DC Voltage 1500 V-1800V 30Amps

Electric Vehicle and ElectricVehicle ChargingConnectors,Cable
Harness
48

Director:- Mr. Manish Khatri
Head Marketing & Sales:- Mr. Mahesh Chandra Manav
India
Head Office: I-19, Karampura, New Moti Nagar, New Delhi, (India).
Mobile: +91-9811247237
Tel: +91 11 45597781
Email:manish@linkvuesystem.com Website: www.linkvuesystem.com
Australia Sydney
Link Vue Systems Pty Ltd
2 BRUCE STREET, BLACKTOWN NSW 2148,
Sydney, Australia Mobile:+61-423064098,
Email:pawandeep@linkvuesystem.com Mobile: +91-9811247237,
50

Authorized Distributor
India
Head Office:I-19, Karampura, New Moti Nagar, New Delhi, India.
Mobile: +91-9811247237 Email:manav.chandra@linkvuesystem.com
Australia Sydney
Link Vue System Pty Ltd
2 BRUCE STREET, BLACKTOWN NSW 2148,Sydney,Australia
Mobile:+61-423064098, Email:pawandeep@linkvuesystem.com
Mobile: +91-9811247237, Email:manav.chandra@linkvuesystem.com
Singapore
Link Vue System Pte Ltd
29 Tuas Avenue 3, Singapore 639420
Email:hy.ching@linkvuesystems.com
Bangladesh
Email:gandhi@linkvuesystems.com
ContactySingapore office
Email:manish@linkvuesystem.com

Company
Aboutour
A
B
C
D
E
CEO
SPT (Surgeprotec Co., Ltd.) is a pioneering
Korean company specialising in the development
and production of surge protection devices. It
offersa complex range of surge arresters, pursuant
to EN 61643-11 standard and surge arresters for
information technology, measurement and control, and
telecommunications.
From the technical expertise to the operational
deployment, we are passionate about all aspects and
topics related to SPDs. Our teams are composed of
engineers and SPD specialists who can bring forward the
best insights and solutions. We support distributors,
contractors and consultants with Sales Application
Specialists.
We provide free A/S for 10 years for all surge protectors.
Instant Communication
Fairness and Transparency
Endless Innovation
Beyond Customer Expectations
Long-term Partnership
Core
Value
Organization Chart
General Executive Director
Auditing Director
Marketing Division Administration Division Production Division RD Division
Technical Strategy
Division
Domestic Marketing Team
Customer Support Team
Overseas Marketing Team
Accounting Team
Management Support Team
Procurement Team
Q.C. Team
Production Team
Maintenance Team
Product Development Team
Technical Support Team
Marketing Strategy Team
Product Promotion Team

Aboutour
Services
Quality
Flexibility
and Speed
RD Department
Customers
Requirements
Safety, reliability
and top quality
of our products
Flexible approach
totheimplementation
of special solutions
and products
Continuous
innovation is the
foundation of our
further development
Customers are
our everlasting
inspiration
SPT products provide complex
solutions for surge protection
devices for various applications.
Product Development

Type 1 SPD-lightning
current arresters
Combined, spark gap and MOV
Iimp 25 kA / 100 kA Up ≤ 1.5 kV
No follow current, zero
leakage current
Full coordination with
Type 2 SPD
Type 1 and 2 SPD
-combined arresters B+C
Iimp 12.5 kA / 50 kA
Up ≤ 1.5 kV
No follow current,
zero leakage current
Type 2 SPD –
surge arresters
U c 75 to 760 V AC
In 20 kA / Imax 40 kA
Up ≤ 1.35 kV
SPD PV - surge
arrester
Combination of MOV and
spark gap
PV Type 2 SPD
MOV surge arrester
UCPV 170 to 1500 V DC
In 15 to 20 kA
Imax 40 kA
Products
Surge Protector

Uc (MaximumcontinuousoperatingVoltage)
Maximumeffectivevoltagethatcanbeappliedpermanentlytotheterminalsoftheprotectiondevice.
In(Nominalcurrent)
Peakcurrentin8/20μswaveformtheprotectiondevicecanwithstand20timeswithoutreachingendoflife.
Imax (Maximumdischargecurrent)
Peakcurrentwith8/20μswaveformwhichtheprotectiondevicecanwithstand.
Iimp (Impulsecurrent)
Peakcurrentwith10/350μswaveformwhichtheprotectiondevicecanwithstandwithoutreachingendoflife.
Up(Voltageprotectionlevel)
Maximumresidualvoltagebetweentheterminalsoftheprotectiondeviceduringtheapplicationofapeakcurrent.
Ures(Residualvoltage)
Residualvoltageofthesurgeprotectorduringan8/20µscurrentwaveforminjectionatadeterminedrating.
TOV(TemporaryOvervoltage)
ThetemporaryovervoltageisthemaximumACvoltagethesurgeprotectorcanwithstandduringdefineddurations(5secondsand
120mn),withoutfailureorwithcontrolleddisconnection.ThisparameterUTisgreatertoUc.AnadditionaltestisrequiredforTTAC
system,tosimulateatemporary«highvoltage»overvoltages(TOV)betweenNeutralandPE(applicationof1200Vac,300Afor
200ms):thecompliancewiththistestrequirestheuseoftheCT2diagram(specificgastubebetweenNandPE)
2.
CLASSIFICATIONOFSURGEPROTECTORS
Protectiondevicesareclassifiedintotypesaccordingtodischargecapacity:
Type1:
Testedwitha10/350μswaveform(ClassItest),whichsimulatesthecurrentproducedbyadirectlightningstrike.
Abilitytodischargeveryhighcurrentstoearth,providingahighUp-voltageprotectionlevel.Mustbeaccompaniedby
downstreamType2protectors.Designedforuseinincomingpowersupplypanelswheretheriskoflightningstrikeishigh,for
exampleinbuildingswithanexternalprotectionsystem.
Type2:
Testedwitha8/20μswaveform(ClassIItest),whichsimulatesthecurrentproducedintheeventofaswitchingorlightningstrike
onthedistributionlineoritsvicinity.Abilitytodischargehighcurrentstoearth,providingamediumUp-voltageprotectionlevel.
DesignedforuseindistributionpanelslocateddownstreamofType1protectorsorinincomingpowersupplypanelsinareaswith
lowexposuretolightningstrikes.
Type3:
Testedwithacombined1.2/50μs-8/20μswaveform(ClassIIItest),whichsimulatesthecurrentandvoltagethatcanreachthe
equipmenttobeprotected.Abilitytodischargemediumcurrentstoearth,providingalowUp-voltageprotectionlevel.Always
installeddownstreamofaType2protection,itisdesignedtoprotectsensitiveequipmentorequipmentlocatedmorethan20m
downstreamoftheType2device.
1.SURGE PROTECTORS PARAMETERS

3.SELECTION AND INSTALLATION OF SPDs
Type1,Type2whichonehastobeselected?
TheSPDprotectiondesigndoesnotdependonthefaultratingsgiven
bythetransformer,itonlydependsonthelevelofexposurein
frontofasurge.So,whichSPDdowehavetoinstallinthemain
switchboard?
SeethediagrambelowfromIEC63205-1standardwhichdisplaysthe
dispersionofthehighestlightningconsidered:200kA@10/350μs.
Intheworstcasescenario,50%ofthisenergyisconductedaway
toearthleaving100kApotentialacrossthenetworks3phaseand
neutral.Herea25kA
@10/350μs(Iimp)Type1SPDisrecommendedforinsulated
installationsinextremeexposedlocationstolightning.
Inthe“NormalScenario”itisassumedanydirectlightningstriketothe
networkwillbeatsuchadistancefromtheinstallationthatanother
50%oftheenergyisdispersedtoearthviaotherconductorsbefore
enteringyourpointofconnection.Inthisscenarioadevicewith
12.5kA@10/350μs(Iimp)Type1isrecommended.Furthermore,based
ontheIEC61643-12standard,12.5kAistheminimumkAratewhen
aType1isneeded.Ifthelevelofexposureoftheinstallationislower
thanabovedescribedscenarios
Type2SPD(Imax)maybeconsideredalongwithriskandcostof
equipmentanddowntime.
4.POWERSUPPLYNETWORKS
An SPD in power supply networks should be connected in two
connection modes – mode x+0 (CT1) and mode x+1 (CT2).
The x+0 (CT1) connection mode is designated 3+0 (TN-C) or
4+0 (TN-S) for three-phase power supply and 1+0 (TN-C) or
2+0 (TN-S) for single-phase power supply. Such mode is beneﬁcial
in eliminating common mode of overvoltage.
The x+1 (CT2) connection mode is designated 3+1 for three
-phase power supply and 1+1 for single-phase power supply. It
cannot be used in the TN-C supply network. It is advantageous
to use it to eliminate the differential mode of overvoltage.

www.surgeprotec.com
Smart Buildings
Application
Power Industries Transportation
Systems
Construction IDC
Telecommunication
Wind Power
Solar Power
Power Grid
EV Charging Station
Harbor Facilities
Expressway
Railway.

01
03
05
07
09
11
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
46
SPT25-XXX/1(S)
SPT25-XXX/2(S)
SPT25-XXX/3(S)
SPT25-XXX/4(S)
SPT25-XXX/1(S)+1
SPT25-XXX/3(S)+1
SPT12.5-XXX/1(S)
SPT12.5-XXX/2(S)
SPT12.5-XXX/3(S)
SPT12.5-XXX/4(S)
SPT12.5-XXX/1(S)+1
SPT12.5-XXX/3(S)+1
SPT40-XXX/1(S)
SPT40-XXX/2(S)
SPT40-XXX/3(S)
SPT40-XXX/4(S)
SPT40-XXX/1(S)+1
SPT40-XXX/3(S)+1
SPT40-PVXXX-(S)
SPT DT-CAT 6A
SPT CP BNC
SPT12.5-PVXXX-(S)
SPT-DC

SURGE PROTEC
Surge Protection Total Solutions
SPT25-XXX/1(S)
Location of Use: Main Distribution Boards
Network Systems: TN-S, TN-C, TT
Mode of Protection: L-PE / N-PE
Surge Ratings: Iimp = 25 kA (10/350 µs)
In = 25 kA(8/20 µs)
IEC/EN Category: Class I+II / Type 1+2
Protective Elements: High Energy MOV
Housing: Monoblock Design
Compliance: IEC 61643-11:2011
EN 61643-11:2012
Technical Data
SPT25-XXX/1(S) 275 320 385 440
IEC Electrical
Nominal AC Voltage (50/60Hz) Uo/ Un 230 V 400 V
Maximum Continuous Operating Voltage (AC) Uc 320 V 385 V 440 V
Nominal Discharge Current (8/20 µs) In
Maximum Discharge Current (8/20 µs) Imax
Impulse Discharge Current (10/350 µs) Iimp 25 kA
100 kA
25 kA
Speciﬁc Energy W/R 156 kJ / Ω
230 V
230 V
275 V
120 V
150 V
150
Voltage Protection Level Up 1000 V 1500 V 1600 V 1800 V 2000 V
Response Time tA 25 ns
Back-Up Fuse (max) 315 A gL / gG
Short-Circuit Current Rating (AC) ISCCR 50 kA
TOV Withstand 5s UT 180 V 335 V 580 V
TOV 120min UT 230V 440V
Number of Ports 1
765 V
Mechanical Environmental
Operating Temperature Range Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
Permissible Operating Humidity RH 5%...95%
Atmospheric pressure and altitude 80k Pa ... 106k Pa / -500 m ... 2000 m
Terminal Screw Torque Mmax 26.5 Ibf·in [3.0 Nm]
Conductor Cross Section (max) 2 AWG (Solid, Stranded) / 4 AWG (Flexible)
35 mm2
(Solid, Stranded) / 25 mm2 (Flexible)
Mounting 35 mm DIN Rail, EN 60715
Degree of Protection IP 20 (built-in)
Housing Material Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection
Operating State / Fault Indication Green ok / Red defect
Remote Contacts (RC) Optional
RC Switching Capacity AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
RC Conductor Cross Section (max) 16 AWG (Solid) / 1.5 mm2(Solid)
Order Information
Order Code 275 320 385 440
SPT25-XXX/1
(with remote contacts)
Yes
SPT25-XXX/1S
2515011 2527511 2532011 2538511 2544011
2515012 2527512 2532012 2538512 2544012
335 V
440V
335 V
440V
150
Charge Q 12.5 As
01
Monoblock Single-Pole SPD
Class I Class II Type 1 Type 2
• • •
www.surgeprotec.com

RoHS
SPT25-XXX/1(S)
02
Dimensions Packaging
SPT25-XXX/1(S) 150 275 320 385 440
Single Unit DIN 43880 Dimension 1 CTN
Packaging Dimensions (H x W x L) [260 × 230 × 320 mm]
Minimum Order Quantity 42 Units
Legend
Internal Conﬁguration
L
N
Protective Earth
S Signalling Contacts Optional
Line
Neutral
PE
Connection Diagram
www.surgeprotec.com

SPT25-XXX/2(S)
Network Systems: TN-S
Mode of Protection: L-PE / , N-PE /
L-PE N-PE
′ ′
In = 25 kA(8/20 µs)
EN 61643-11:2012
Technical Data
SPT25-XXX/2(S) 275 320 385 440
150
SURGE PROTEC
03
Monoblock Multi-Pole SPD
• • •
www.surgeprotec.com
IEC Electrical
Nominal AC Voltage (50/60Hz) 230 V 400 V
Maximum Continuous Operating Voltage (AC) 320 V 385 V 440 V
Nominal Discharge Current (8/20 µs)
Maximum Discharge Current (8/20 µs)
Impulse Discharge Current (10/350 µs) 25 kA
100 kA
25 kA
Speciﬁc Energy 156 kJ / Ω
230 V
230 V
275 V
120 V
150 V
Voltage Protection Level
Response Time 25 ns
Short-Circuit Current Rating (AC) 50 kA
TOV Withstand 5s 180 V 335 V 580 V
TOV 120min 230 V 440 V
Number of Ports 1
765 V
Operating Temperature Range -40 ºF to +158 ºF [-40 ºC to +70 ºC]
Permissible Operating Humidity 5%...95%
Terminal Screw Torque 26.5 Ibf·in [3.0 Nm]
35 mm2 (Solid, Stranded) / 25 mm2 (Flexible)
Thermal Protection
RC Switching Capacity AC: 250V / 0.5 A;DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Order Information
Order Code 275 320 385 440
SPT25-XXX/2
Yes
SPT25-XXX/2S(with remote contacts)
2515021 2527521 2532021 2538521 2544021
2515022 2527522 2532022 2538522 2544022
335 V
440 V
335 V
440 V
150
Charge 12.5 As
Total Discharge Current (10/350 µs)
Uo/ Un
Uc
In
Imax
Iimp
W/R
Up
tA
ISCCR
UT
UT
Ta
RH
Mmax
Q
Itotal 50 kA
1000 V 1500 V 1600 V 1800 V 2000 V

RoHS
04
Legend
Connection Diagram
www.surgeprotec.com
SPT25-XXX/2(S)
SPT25-XXX/2(S) 150 275 320 385 440
L/L
N/N
Protective Earth
Line
Neutral
PE
′
′

IEC Electrical
Nominal AC Voltage (50/60Hz) 230 V 400 V
Maximum Continuous Operating Voltage (AC) 320 V 385 V 440 V
Impulse Discharge Current (10/350 µs) 25 kA
100 kA
25 kA
Speciﬁc Energy 156 kJ / Ω
230 V
230 V
275 V
120 V
150 V
Response Time 25 ns
Short-Circuit Current Rating (AC) 50 kA
TOV Withstand 5s 180 V 335 V 580 V
TOV 120min 230 V 440 V
Number of Ports 1
765 V
Operating Temperature Range -40 ºF to +158 ºF [-40 ºC to +70 ºC]
Permissible Operating Humidity 5%...95%
Terminal Screw Torque 26.5 Ibf·in [3.0 Nm]
Thermal Protection
Order Information
Order Code 275 320 385 440
SPT25-XXX/3
Yes
SPT25-XXX/3S
2515031 2527531 2532031 2538531 2544031
2515032 2527532 2532032 2538532 2544032
335 V
440 V
335 V
440 V
150
Charge 12.5 As
Total Discharge Current (10/350 µs) 75 kA
1000 V 1500 V 1800 V 2000 V
1600 V
Technical Data
275 320 385 440
150
05
• • •
www.surgeprotec.com
Network Systems: TN-C
Mode of Protection: L-PE / L-PE
′
In = 25 kA(8/20 µs)
EN 61643-11:2012
SPT25-XXX/3(S)
SPT25-XXX/3(S)
SURGE PROTEC
Uo/ Un
Uc
In
Imax
Iimp
W/R
Up
tA
ISCCR
UT
UT
Ta
RH
Mmax
Q
Itotal

RoHS
Protective Earth
Line
Neutral
PE
L / ′
L
N / ′
N
SPT25-XXX/3(S)
06
Legend
Connection Diagram
www.surgeprotec.com
SPT25-XXX/3(S) 150 275 320 385 440

Order Information
Order Code 275 320 385 440
150
35 mm2(Solid, Stranded) / 25 mm2 (Flexible)
Thermal Protection
RC Switching Capacity AC: 250V / 0.5 A;DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Yes
SPT25-XXX/4
SPT25-XXX/4S
2515041 2527541 2532041 2538541 2544041
2515042 2527542 2532042 2538542 2544042
Mode of Protection: L-PE / /
L-PE, - N-PE
′ NPE ′
In = 25 kA(8/20 µs)
EN 61643-11:2012
SURGE PROTEC
Technical Data
275 320 385 440
IEC Electrical
150
07
• • •
www.surgeprotec.com
SPT25-XXX/4(S)
Nominal Discharge Current (8/20 µs) In
Maximum Discharge Current (8/20 µs) Imax
Impulse Discharge Current (10/350 µs) Iimp 25 kA
100 kA
25 kA
Speciﬁc Energy W/R 156 kJ / Ω
230 V
230 V
275 V
120 V
150 V
Voltage Protection Level Up
Short-Circuit Current Rating (AC) ISCCR 50 kA
TOV 120min UT 230 V 440 V
Number of Ports 1
765 V
335 V
440 V
335 V
440 V
Charge Q 12.5 As
Total Discharge Current (10/350 µs) Itotal 100 kA
1000 V 1500 V 1800 V 2000 V
1600 V
SPT25-XXX/4(S)

Protective Earth
Line
Neutral
PE
L / ′
L
N / ′
N
RoHS
SPT25-XXX/4(S)
08
Legend
Connection Diagram
www.surgeprotec.com
SPT25-XXX/4(S) 150 275 320 385 440

SPT25-XXX/1(S)+1
SPT25-XXX/1(S)+1
SURGE PROTEC
Technical Data
275 320 385
150
• • •
09 www.surgeprotec.com
Network Systems: TT, TN-S
Mode of Protection: L-N N-PE
/ L-N,
′
Surge Ratings: Iimp = 25 kA / 50 kA (10/350 µs)
In =
Class I+II / Type 1+2
Protective Elements: High Energy MOV and GDT
Housing:
EN 61643-11:2012
IEC/EN Category:
25 kA / 50 kA (8/20 µs)
Monoblock Design
Terminal Screw Torque Mmax [
26.5 Ibf·in 3.0 Nm]
35 mm2 (Solid, Stranded) / 25 mm2(Flexible)
Thermal Protection
Operating State / Fault Indication
RC Switching Capacity
Yes
Green ok / Red defect
AC: 250V / 0.5 A;DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Nominal AC Voltage (50/60Hz)
Maximum Continuous Operating Voltage (L - N) Uc
(N - PE) Uc 255 V 255 V 255 V
Nominal Discharge Current (8/20 µs) (L - N) / (N - PE) In 25 kA / 50 kA
Maximum Discharge Current (8/20 µs) (L - N) / (N - PE) Imax 100 kA
Impulse Discharge Current (10/350 µs) (L - N) / (N - PE) Iimp
230 V
230 V
120 V
320 V
275 V
150 V
Speciﬁc Energy (L - N) / (N - PE) W/R 156 kJ / Ω / 625 kJ / Ω
Charge (L - N) / (N - PE) Q 12.5 As / 25 As
Voltage Protection Level (L - N) / (N - PE) Up 1000 V/ 1500 V 1500 V/ 1500 V 1600 V/ 1500 V
Follow Current Interrupt Rating (N-PE) Iﬁ 100 A RMS
Response Time (L - N) / (N - PE) tA 25 ns / 100 ns
Short-Circuit Current Rating (AC) (L - N) ISCCR 50 kA
TOV Withstand 5s (L - N) UT
TOV 120min (L - N) UT
TOV Withstand 200ms (N - PE) UT 1200 V
Number of Ports 1
180 V 335 V
230 V 440 V
335 V
440 V
25 kA / 50 kA
1800 V/ 1500 V
255 V
230 V
385 V
335 V
440 V
IEC Electrical

Order Code 150 275 320 385
SPT25-XXX/1+1
SPT25-XXX/1S+1
2515013
2515014
2527513
2527514
2532013
2532014
2538513
2538514
Order Information
SPT25-XXX/1(S)+1 150 275 320 385 440
Protective Earth
Line
Neutral
L / ′
L
N
PE PE
/ ′
RoHS
10
Legend
Connection Diagram
www.surgeprotec.com
SPT25-XXX/1(S)+1

SPT25-XXX/3(S)+1
Mode of Protection: L-N N-PE
/ L-N,
′
Surge Ratings: Iimp = 25 kA / 100 kA (10/350 µs)
In =
Class I+II / Type 1+2
Housing:
EN 61643-11:2012
IEC/EN Category:
25 kA / 100 kA (8/20 µs)
Monoblock Design
SURGE PROTEC
SPT25-XXX/3(S)+1
Technical Data
275 320 385
150
• • •
Terminal Screw Torque Mmax [
26.5 Ibf·in 3.0 Nm]
Thermal Protection
Yes
AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Maximum Continuous Operating Voltage (L - N) Uc
(N - PE) Uc 255 V 255 V 255 V
Nominal Discharge Current (8/20 µs) (L - N) / (N - PE) In 25 kA / 100 kA
Maximum Discharge Current (8/20 µs) (L - N) / (N - PE) Imax 100 kA
Impulse Discharge Current (10/350 µs) (L - N) / (N - PE) Iimp
230 V
230 V
120 V
320 V
275 V
150 V
Speciﬁc Energy (L - N) / (N - PE) W/R
Charge (L - N) / (N - PE) Q
Voltage Protection Level (L - N) / (N - PE) Up
Follow Current Interrupt Rating (N-PE) Iﬁ 100 ARMS
Response Time (L - N) / (N - PE) tA 25 ns / 100 ns
Short-Circuit Current Rating (AC) (L - N) ISCCR 50 kA
TOV Withstand 5s (L - N) UT
TOV 120min (L - N) UT
TOV Withstand 200ms (N - PE) UT 1200 V
Number of Ports 1
180 V 335 V
230 V 440 V
335 V
440 V
25 kA / 100 kA
255 V
230 V
385 V
335 V
440 V
156 kJ / Ω / 2.5 M kJ / Ω
12.5 As / 50 As
1000 V/ 1500 V 1500 V/ 1500 V 1800 V/ 1500 V
1600 V/ 1500 V
IEC Electrical

12
www.surgeprotec.com
SPT25-XXX/3(S)+1
Order Code 150 275 320 385
SPT25-XXX/3+1
SPT25-XXX/3S+1
2515033
2515034
2527533
2527534
2532033
2532034
2538533
2538534
Order Information
SPT25-XXX/3(S)+1 150 275 320 385 440
Protective Earth
Line
Neutral
L / ′
L
N
PE PE
/ ′
RoHS
Legend
Connection Diagram

New Modular Single Pole Multi-pole
Surge Protective Devices
New Housing Design Features
Contemporary design
Low residual protection level
Lifetime indicators
Redesigned thermal disconnection
Patented protection technologies
No external back-up fuse required up to 315 A
Vibration and shock withstand capability
Space-saving design
Easy replacement
Patented module locking mechanism
th
Meets IEC/EN and UL 1449 4 Edition
Remote Control
Switch
Lifetime
Indicator
Modular Plug
Design
(replaceable)
Pluggable RC
Connector
SURGE PROTEC
Modern
Modular
Space
Saving
Proﬁle
[18 mm]
[
90
mm
]
[
81
mm
]
SPT12.5-XXX/1
DIN Rail
Mount

Type 1/Type 2 SPD
Type 2 SPD
RoHS
14

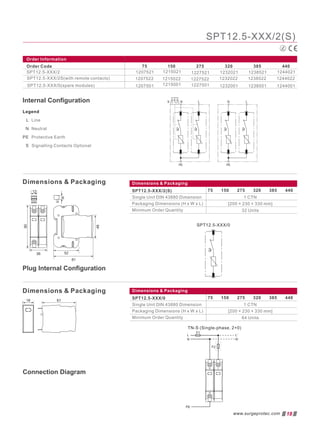

www.surgeprotec.com
SPT12.5-XXX/1(S) SPT12.5-XXX/2(S) SPT12.5-XXX/3(S) SPT12.5-XXX/4(S)
SPT12.5-XXX/1(S)+1 SPT12.5-XXX/3(S)+1
SPT40-XXX/1(S) SPT40-XXX/2(S) SPT40-XXX/3(S) SPT40-XXX/4(S)
SPT40-XXX/1(S)+1 SPT40-XXX/3(S)+1
SURGE PROTEC
SPT40-PVXXX-(S)
SPT12.5-PVXXX-(S)

IEC Electrical
Maximum Continuous Operating Voltage (AC)
Impulse Discharge Current (10/350 µs)
Speciﬁc Energy
Charge
Response Time
Back-Up Fuse (max)
Short-Circuit Current Rating (AC)
TOV Withstand 5s
TOV 120min
Uo/Un
Uc
In
Imax
Iimp
W/R
Q
Up
tA
315 A / 250 A gG
ISCCR 25 kA / 50 kA
UT
75 150 275 320 385 440
UT
Mode Withstand Safe Fail Safe Fail Safe Fail Safe Fail Safe Fail
114V
180V
180
230V
335V
440V
335V
440V
335V
440V
580V
765V
25 ns
60V
75V
20kA
50kA
12.5kA
39kJ/Ω
6.25 As
700V
120V
150V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1000V
230V
275V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1500V
230V
320V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1600V
230V
385V
10kA
50kA
10kA
25 kJ/Ω
5As
1800V
400V
440V
10kA
50kA
10kA
25kJ/Ω
5As
2000 V
Number of Ports 1
Location of Use:
Network Systems:
Mode of Protection:
Surge Ratings:
IEC/EN/UL Category:
Protective Elements:
Housing:
Compliance:
Main Distribution Boards
TN-S, TN-C, TT (only L-N)
L-PE, N-PE (only TN-S), L-PEN, L-N
Iimp = up to 12.5 kA (10/350 µs)
In = up to 20 kA (8/20 µs)
Class I+II / Type 1+2 / Type 1CA
High Energy MOV
Pluggable Design
IEC 61643-11:2011
EN 61643-11:2012
UL 1449 4th Edition
SURGE PROTEC
Technical Data
15
Class I Class II Type 1 Type 2 Type 1CA
• • • •
www.surgeprotec.com
SPT12.5-XXX/1(S)
Pluggable Single-Pole SPD
SPT12.5-XXX/1(S)
Conductor Cross Section (max)
2 AWG (Solid, Stranded) / 4 AWG (Flexible)
2 2
35 mm (Solid, Stranded) / 25 mm (Flexible)
Thermal Protection
Remote Contacts (RC)
RC Conductor Cross Section (max) 2
16 AWG (Solid) / 1.5 mm (Solid)
Optional
Yes
UL Electrical
MCOV
VPR
In
SCCR
Voltage Protection Rating
75V
330V
20kA
100kA
150V
600V
20kA
200kA
275V 320V 385V 440V
900V 1200V 1350V 1500V
20kA
20kA 20kA 20kA
150kA 200kA
150kA
150kA

75 150 275 320 385 440
Order Information
Order Code
SPT12.5-XXX/1
SPT12.5-XXX/1S(with remote contacts)
1215011 1227511 1232011 1238511 1244011
1207512 1215012 1227512 1232012 1238512 1244012
SPT12.5-XXX/0(spare modules) 1207501 1215001 1227501 1232001 1238501 1244001
1207511
SPT12.5-XXX/1(S)
SPT12.5-XXX/1(S)
Single Unit DIN 43880 Dimension
Packaging Dimensions (H x W x L)
Minimum Order Quantity
75 150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
64 Units
RoHS
16
L Line
N Neutral
PE Protective Earth
Legend
18 61
Connection Diagram
www.surgeprotec.com
SPT12.5-XXX/0
75 150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
64 Units
Plug Internal Conﬁguration

Technical Data
SPT12.5-XXX/2(S) 75 150 275 320 385 440
SURGE PROTEC
17
• • • •
www.surgeprotec.com
SPT12.5-XXX/2(S)
Pluggable Multi-Pole SPD
Terminal Screw Torque M max 39.9 Ibf·in [4.5 Nm]
2 2
Thermal Protection
RC Conductor Cross Section (max)
2
Optional
Yes
UL Electrical
MCOV
VPR
In
SCCR
75V
330V
20kA
100kA
150V
600V
20kA
200kA
275V 320V 385V 440V
900V 1200V 1350V 1500V
20kA
20kA 20kA 20kA
150kA 200kA
150kA
150kA
IEC Electrical
Speciﬁc Energy
Charge
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
Uo/Un
Uc
In
Imax
Iimp
W/R
Q
Up
tA
315 A / 250 A gG
ISCCR 25 kA / 50 kA
UT
UT
Mode Withstand Safe Fail Safe Fail Safe Fail Safe Fail Safe Fail
114V
114V
180V
230V
335V
440V
335V
440V
335V
440V
580V
765V
25 ns
60V
75V
20kA
50kA
12.5kA
39kJ/Ω
6.25 As
700V
120V
150V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1000V
230V
275V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1500V
230V
320V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1600V
230V
385V
10kA
50kA
10kA
25 kJ/Ω
5As
1800V
400V
440V
10kA
50kA
10kA
25kJ/Ω
5As
2000 V
Number of Ports 1
Location of Use:
Network Systems:
Mode of Protection:
Surge Ratings:
IEC/EN/UL Category:
Housing:
Compliance:
TN-S
L-PE, N-PE
Iimp = up to 12.5 kA (10/350 µs)
In = up to 20 kA (8/20 µs)
High Energy MOV
Pluggable Design
IEC 61643-11:2011
EN 61643-11:2012
UL 1449 4th Edition

Legend
L Line
N Neutral
PE Protective Earth
SPT12.5-XXX/2(S)
75 150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
32 Units
SPT12.5-XXX/0
75 150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
64 Units
75 150 275 320 385 440
Order Information
Order Code
SPT12.5-XXX/2
1215021 1227521 1232021 1238521 1244021
1207522 1215022 1227522 1232022 1238522 1244022
SPT12.5-XXX/0(spare modules) 1207501 1215001 1227501 1232001 1238501 1244001
1207521
RoHS
18
www.surgeprotec.com
SPT12.5-XXX/2(S)
Connection Diagram

SPT12.5-XXX/3(S)
Technical Data
SPT12.5-XXX/3(S) 150 275 320 385 440
SURGE PROTEC
19
• • • •
www.surgeprotec.com
2 2
Thermal Protection
2
Optional
Yes
UL Electrical
MCOV
VPR
In
SCCR
150V
600V
20kA
200kA
275V 320V 385V 440V
900V 1200V 1350V 1500V
20kA
20kA 20kA 20kA
150kA 200kA
150kA
150kA
IEC Electrical
Speciﬁc Energy
Charge
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
Uo/Un
Uc
In
Imax
Iimp
W/R
Q
Up
tA
315 A / 250 A gG
ISCCR 25 kA / 50 kA
UT
UT
Mode Safe Fail Safe Fail Safe Fail Safe Fail Safe Fail
180V
230V
335V
440V
335V
440V
335V
440V
580V
765V
25 ns
120V
150V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1000V
230V
275V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1500V
230V
320V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1600V
230V
385V
10kA
50kA
10kA
25 kJ/Ω
5As
1800V
400V
440V
10kA
50kA
10kA
25kJ/Ω
5As
2000 V
Number of Ports 1
Location of Use:
Network Systems:
Mode of Protection:
Surge Ratings:
IEC/EN/UL Category:
Housing:
Compliance:
TN-C
L-PEN
Iimp = up to 12.5 kA (10/350 µs)
In = up to 20 kA (8/20 µs)
High Energy MOV
Pluggable Design
IEC 61643-11:2011
EN 61643-11:2012
UL 1449 4th Edition

SPT12.5-XXX/3(S)
SPT12.5-XXX/3(S)
150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
16 Units
SPT12.5-XXX/0
150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
64 Units
150 275 320 385 440
Order Information
Order Code
SPT12.5-XXX/3
SPT12.5-XXX/0(spare modules)
RoHS
20
www.surgeprotec.com
Legend
Line
Neutral
Protective Earth
L
N
PE
1215031
1215032
1215001
1227531
1227532
1227501
1232031
1232032
1232001
1238531
1238532
1238501
1244031
1244032
1244001
Connection Diagram

Technical Data
SPT12.5-XXX/4(S) 150 275 320 385 440
SURGE PROTEC
• • • •
SPT12.5-XXX/4(S)
2 2
Thermal Protection
RC Conductor Cross Section (max) 2
Optional
Yes
UL Electrical
MCOV
VPR
In
SCCR
150V
600V
20kA
200kA
275V 320V 385V 440V
900V 1200V 1350V 1500V
20kA
20kA 20kA 20kA
150kA 200kA
150kA
150kA
IEC Electrical
Speciﬁc Energy
Charge
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
Uo/Un
Uc
In
Imax
Iimp
W/R
Q
Up
tA
315 A / 250 A gG
ISCCR 25 kA / 50 kA
UT
UT
Mode Safe Fail Safe Fail Safe Fail Safe Fail Safe Fail
180V
230V
335V
440V
335V
440V
335V
440V
580V
765V
25 ns
120V
150V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1000V
230V
275V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1500V
230V
320V
20kA
50kA
12.5kA
39kJ/Ω
6.25As
1600V
230V
385V
10kA
50kA
10kA
25 kJ/Ω
5As
1800V
400V
440V
10kA
50kA
10kA
25kJ/Ω
5As
2000 V
Number of Ports 1
Location of Use:
Network Systems:
Mode of Protection:
TN-S
L-PE, N-PE
Surge Ratings:
IEC/EN/UL Category:
Housing:
Compliance:
Iimp = up to 12.5 kA (10/350 µs)
In = up to 20 kA (8/20 µs)
High Energy MOV
Pluggable Design
IEC 61643-11:2011
EN 61643-11:2012
UL 1449 4th Edition

22
www.surgeprotec.com
150 275 320 385 440
Order Information
Order Code
SPT12.5-XXX/4
1227541 1232041 1238541 1244041
1215042 1227542 1232042 1238542 1244042
SPT12.5-XXX/0(spare modules) 1215001 1227501 1232001 1238501 1244001
1215041
SPT12.5-XXX/4(S)
Legend
L Line
N Neutral
PE Protective Earth
SPT12.5-XXX/4(S)
150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
16 Units
Dimensions Packaging Dimensions Packaging
SPT12.5-XXX/0
150 275 320 385 440
1 CTN
[200 × 230 × 330 mm]
64 Units
Connection Diagram
RoHS

2 2
Thermal Protection
Yes
2
Optional
SPT12.5-XXX/1(S)+1 320
IEC Electrical
75 150 275
Maximum Continuous Operating Voltage
Speciﬁc Energy
Charge
Follow Current Interrupt Rating
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
TOV Withstand 200ms
Number of Ports
(L- N)
(N- PE)
(L-N)/(N– PE)
(L-N)/(N- PE)
(L-N)/(N- PE)
(L- N)/(N- PE)
(L-N)/(N-PE)
(L-N)/(N– PE)
(N-PE)
(L-N)/(N-PE)
(L- N)
(L- N)
(L- N)
(N-PE)
Technical Data
Uc
In
Imax
Iimp
W/R
Q
Up
tA
ISCCR
UT
UT
Mode
Uc
Iﬁ
UT
60V
75V
255V
120V
150V
255V
230V
275V
255V
230V
320V
255V
20kA/ 25kA
50kA/50kA
12.5 kA/25 kA
39kJ/Ω/156kJ/Ω
6.25As/12.5As
700V/1500V 1000V/1500V 1500V/1500V 1600V/1500V
100ARMS
25ns/100ns
315A/250AgG
25kA/ 50kA
114V
114V
180V
230V
335V
440V
335V
440V
Withstand Safe Fail Safe Fail Safe Fail
1200V
1
SURGE PROTEC
• • • •
UL Electrical
(L-N)/(N– PE)
(L-N)/(N- PE)
(L-N)/(– PE)
(L- N)
MCOV
VPR
In
SCCR
75V/255V
330V/1200V
20kA /20kA
100kA
150V/255V
600V/1200V
20kA /20kA
200kA
275V/255V
900V/1200V
20kA /20kA
150kA
320V/255V
1200V/1200V
20kA /20kA
150kA
SPT12.5-XXX/1(S)+1
Location of Use:
Network Systems:
Mode of Protection:
Surge Ratings:
IEC/EN/UL Category:
Housing:
Compliance:
TT, TN-S
L-N,N-PE
Iimp =12.5 kA (10/350 µs)
In = 20 kA (8/20 µs)
Pluggable Design
IEC 61643-11:2011
EN 61643-11:2012
UL 1449 4th Edition
High Energy MOV and GDT

150 275 320
Order Information
Order Code
SPT12.5-XXX/1+1
SPT12.5-XXX/1S+1(with remote contacts)
SPT12.5-XXX/0(spare modules)
SPT12.5-NPE/0(spare modules)
75
1207513
1207514
1207501
1225501
1215013
1215014
1215001
1225501
1227513
1227514
1227501
1225501
1232013
1232014
1232001
1225501
SPT12.5-XXX/1(S)+1
75 150 275 320
1 CTN
[200 × 230 × 330 mm]
32 Units
SPT12.5-XXX/0
SPT12.5-NPE/0
75 150 275 320
1 CTN
[200 × 230 × 330 mm]
64 Units
25
Legend
L Line
N Neutral
PE Protective Earth
Connection Diagram
TN-S,TT (Single-phase, 1+1)
RoHS
24
www.surgeprotec.com
SPT12.5-XXX/1 (S)+1

UL Electrical
MCOV
VPR
In
SCCR
150V/255V
600V/1200V
20kA/20kA
200kA
275V/255V 320V/255V
900V/1200V 1200V/1200V
20kA/20kA 20kA/20kA
150kA
150kA
(L-N)/(N-PE)
(L- N)
(L-N)/(N-PE)
(L-N)/(N-PE)
SPT12.5-XXX/3(S)+1
IEC Electrical
Speciﬁc Energy
Charge
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
Technical Data
SPT12.5-XXX/2(S)+1 150 320
Safe Fail Safe Fail
180V
230V
335V
440V
120V
150V
255V
1000V/1500V
230V
320V
255V
Number of Ports
TOV Withstand 200s
(L- N)
(N– PE)
(L-N)/(N– PE)
(L-N)/(N– PE)
(L-N)/(N– PE)
(L-N)/(N– PE)
(L-N)/(N-PE)
(L-N)/(N– PE)
(N-PE)
(L-N)/(N-PE)
(L- N)
(L- N)
(L- N)
(N-PE)
Uc
In
Imax
Iimp
W/R
Q
Up
tA
ISCCR
UT
UT
Mode
Uc
Iﬁ
UT
1600V/1500V
315 A / 250 A gG
25 kA / 50 kA
275
Safe Fail
335V
440V
100A RMS
20kA/50kA
12.5kA/50kA
39kJ/Ω/625kJ/Ω
6.25As/25As
230V
275V
255V
1
50kA/100kA
1500V/1500V
1200V
25 ns / 100 ns
2 2
Thermal Protection
2
Optional
Yes
SURGE PROTEC
• • • •
Location of Use:
Network Systems:
Mode of Protection:
Surge Ratings:
IEC/EN/UL Category:
Housing:
Compliance:
TT, TN-S
N-PE, L-N
Iimp = 12.5 kA (10/350 µs)
In = 20 kA (8/20 µs)
High Energy MOV and GDT
Pluggable Design
IEC 61643-11:2011
EN 61643-11:2012
UL 1449 4th Edition

26
www.surgeprotec.com
150 275 320
Order Information
Order Code
SPT12.5-XXX/3+1
SPT12.5-XXX/3S+1 (with remote contacts)
SPT12.5-XXX/0 (spare modules)
SPT12.5-NPE/0 (spare modules)
1215033
1215034
121 5001
1225502
1227533
1227534
1227501
1225502
1232033
1232034
1232001
1225502
Legend
SPT12.5-XXX/3(S)+1
150 275 320
1 CTN
[200 × 230 × 330 mm]
16 Units
150 275 320
1 CTN
[200 × 230 × 330 mm]
64 Units
Connection Diagram
RoHS
SPT12.5-XXX/3(S)+1
L Line
N Neutral
PE Protective Earth
SPT12.5-NPE/0
SPT12.5-XXX/0
50

SPT12.5-PVXXX-(S)
Technical Data
600 1000 1200 1500
IEC Electrical
(DC+) - PE, (DC-) - PE
(DC+) - (DC-)
Maximum Continuous Operating DC Voltage
Response Time
Short-Circuit Current Rating
Number of Ports
(DC+) - PE, (DC-) - PE
(DC+) - (DC-)
600 V
600 V
2200 V
2200 V
1000 V
1000 V
1200 V
1200 V
1500 V
1500 V
4000 V
4000 V
4400 V
4400 V
5200 V
5200 V
2000A
1
25 ns
UCPV
In
Iimp
ITotal
ITotal
Imax
Up
Up
tA
ISCPV
UCPV
20KA
6.25kA
12.5kA
40kA
40kA
UL Electrical
Maximum Permitted DC Voltage
Nominal Discharge Current (8/20 μs)
(DC+) - PE, (DC-) - PE
(DC+) - (DC-)
Vpvdc
VPR
VPR
In
SCCR
600 V 1000 V 1200 V 1500 V
1600 V
1600 V
2500 V
2500 V
3000 V
3000 V
4000 V
4000 V
20 kA
35 kA 50 kA 55 kA 65 kA
Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
RH 5%...95%
Mmax 39.9 Ibf·in [4.5 Nm]
2 2
35mm (Solid, Stranded) / 25mm (Flexible)
35 mm DIN Rail, EN 60715
IP 20 (built-in)
Thermoplastic: Extinguishing Degree UL 94 V-0
Optional
2
16 AWG(Solid)/1.5 mm (Solid)
Operating Temperature Range
Permissible Operating Humidity
Terminal Screw Torque
Mounting
Degree of Protection
Housing Material
Thermal Protection
Yes
AC: 250V / 0.5 A;DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
• •
SURGE PROTEC
Pluggable Multi-Pole SPD for Photovoltaic Systems
SPT12.5-PVXXX-(S)
Location of Use:
Mode of Protection:
Surge Ratings:
IEC/EN/UL Category:
Housing:
Compliance:
String box, Inverter
(DC+)- PE, (DC-)- PE, (DC+)- (DC-)
Itotal = up to 12.5 kA (10/350 µs)
Itotal = up to 40 kA (8/20 µs)
High Energy MOV
Pluggable Design
IEC 61643-31:2018
EN 50539-11:2013+A1:2014
UL 1449 4th Edition

Order Information
Order Code
SPT12.5- PVXXX
SPT12.5- PVXXX-(S) (with remote contacts)
SPT12.5- PVXXX/0 (spare modules)
600 1000 1200 1500
0760025
0760026
0760002
0710235
0710236
0710202
0712231
0712232
0712202
0715231
0715232
0715202
RoHS
28
www.surgeprotec.com
PE Protective Earth
600 1000 1200
[220 × 230 × 330 mm]
1500
SPT12.5-PVXXX/0 600 1000 1200
[220 × 230 × 330 mm]
1500
16 Units 16 Units 16 Units
SPT12.5-PVXXX-(S)
SPT12.5-PVXXX-(S)
Legend

Location of Use: Sub-Distribution Boards
Network Systems: TN-S, TN-C, TT (only L-N)
Mode of Protection: L-PE, N-PE (only TN-S), L-PEN, L-N
Surge Ratings: In = 20 kA(8/20 µs)
IEC/EN/UL Category: Class II / Type 2 / Type 1CA
Housing: Pluggable Design
EN 61643-11:2012
UL 1449 4th Edition
SURGE PROTEC
Class II Type 2 Type 1CA
• •
Technical Data
SPT40-XXX/1(S) 75 150 275 320 385 440
Pluggable Single-Pole SPD
SPT40-XXX/1(S)
-40 ºF to +158 ºF [-40 ºC to +70 ºC]
5%...95%
80k Pa ... 106k Pa / -500 m ... 2000 m
Ta
RH
IP 20 (built-in)
Optional
AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Atmospheric pressure and altitude
Mounting
Housing Material
Thermal Protection
Yes
UL Electrical
MCOV 320 V 385 V 440 V
VPR 600 V 900 V 1000 V 1200 V 1500 V
In 20 kA 20 kA 20 kA 20 kA 20 kA
Short-Circuit Current Rating (AC) SCCR 150 kA
150 V
75 V
330 V
20 kA
150 kA 150 kA 200 kA
200 kA
100 kA
275 V
IEC Electrical
Nominal Discharge Current (8/20 µs) In 20 kA 20 kA 20 kA 20 kA 20 kA
Maximum Discharge Current (8/20 µs) Imax 40 kA 40 kA 40 kA 40 kA 40 kA
230 V
230 V
275 V
20 kA
40 kA
120 V
150 V
60 V
75 V
Back-Up Fuse (max)
Short-Circuit Current Rating (AC) ISCCR 25 kA / 50 kA
TOV Withstand 5s
UT 90 V 180 V 335 V 580 V
TOV 120min
UT 115 V 230 V 440 V
mode Withstand Safe Fail Safe Fail Safe Fail Safe Fail
Number of Ports 1
765 V
335 V
440 V
335 V
440 V
400 V
125 A gL / gG
Withstand

30
www.surgeprotec.com
SPT40-XXX/1(S) 75 150 275 320 385 440
SPT40-XXX/0 75 150 275 320 385 440
Legend
[270 × 230 × 330 mm]
Connection Diagram
TN-S, TN-C, TT (Single-phase, 1+0)
RoHS
Order Information
Order Code 75 150 275 320 385 440
SPT40-XXX/1 4007511
SPT40-XXX/1S
4015011 4027511 4032011 4038511 4044011
4007512 4015012 4027512 4032012 4038512 4044012
SPT40-XXX/0 4007501 4015001 4027501 4032001 4038501 4044001
( )
spare modules
SPT40-XXX/1(S)
L Line
N Neutral
PE Protective Earth

Mode of Protection: L-PE, N-PE
EN 61643-11:2012
UL 1449 4th Edition
Technical Data
SPT40-XXX/2(S) 75 150 275 320 385 440
IEC Electrical
Uc 320 V 385 V 440 V
230 V
230 V
275 V
20 kA
40 kA
120 V
150 V
60 V
75 V
Back-Up Fuse (max)
TOV Withstand 5s UT 90 V 180 V 335 V 580 V
TOV 120min UT 115 V 230 V 440 V
mode Withstand Safe Fail Safe Fail Safe Fail Safe Fail
Number of Ports 1
UL Electrical
Maximum Continuous Operating Voltage (AC) MCOV 320 V 385 V 440 V
Voltage Protection Rating VPR 600 V 900 V 1000 V 1200 V 1500 V
Nominal Discharge Current(8/20 µs) In 20 kA 20 kA 20 kA 20 kA 20 kA
Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
RH 5%...95%
80k Pa ... 106k Pa / -500 m ... 2000 m
IP 20 (built-in)
Optional
AC: 250V / 0.5 A;DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Mounting
Housing Material
Thermal Protection
RC Conductor Cross Section (max) 16 AWG (Solid) / 1.5 mm (Solid)
Yes
765 V
335 V
440 V
335 V
440 V
150 V
75 V
330 V
400 V
20 kA
150 kA 150 kA 200 kA
200 kA
100 kA
275 V
125 A gL / gG
Withstand
SPT40-XXX/2(S)
SURGE PROTEC
• •
2

32
www.surgeprotec.com
SPT40-XXX/2(S)
Legend
L
N
Protective Earth
Line
Neutral
PE
Connection Diagram
TN-S (Single-phase, 2+0)
RoHS
Order Information
Order Code 75 150 275 320 385 440
SPT40-XXX/2 4007521
SPT40-XXX/2S
4015021 4027521 4032021 4038521 4044021
4007522 4015022 4027522 4032022 4038522 4044022
SPT40-XXX/0 4007501 4015001 4027501 4032001 4038501 4044001
( )
spare modules
SPT40-XXX/2(S) 75 150 275 320 385 440
SPT40-XXX/0 75 150 275 320 385 440
[270 × 230 × 330 mm]

275 320 385 440
IEC Electrical
230 V
230 V
275 V
120 V
150 V
Back-Up Fuse (max)
TOV 120min UT 230 V 440 V
mode Safe Fail Safe Fail Safe Fail Safe Fail
Number of Ports 1
UL Electrical
MCOV 320 V 385 V 440 V
VPR 600 V 900 V 1000 V 1200 V 1500 V
In 20 kA 20 kA 20 kA 20 kA 20 kA
Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
RH 5%...95%
80k Pa ... 106k Pa / -500 m ... 2000 m
IP 20 (built-in)
Optional
AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Mounting
Housing Material
Thermal Protection
RC Conductor Cross Section (max) 16 AWG (Solid) / 1.5 mm (Solid)
Yes
765 V
335 V
440 V
335 V
440 V
150 V
150 kA 150 kA 200 kA
200 kA
275 V
125 A gL / gG
Withstand
150
Technical Data
SPT40-XXX/3(S)
Network Systems: TN-C
Mode of Protection: L-PEN
EN 61643-11:2012
UL 1449 4th Edition
SURGE PROTEC
• •
SPT40-XXX/3(S)
2

34
www.surgeprotec.com
SPT40-XXX/3(S)
Order Information
Order Code 150 275 320 385 440
SPT40-XXX/3
SPT40-XXX/3S
4015031 4027531 4032031 4038531 4044031
4015032 4027532 4032032 4038532 4044032
SPT40-XXX/0 4015001 4027501 4032001 4038501 4044001
( )
spare modules
Legend
L
N
Protective Earth
Line
Neutral
PE
TN-C (Three-phase, 3+0)
Connection Diagram
RoHS
SPT40-XXX/0 150 275 320 385 440
[270 × 230 × 330 mm]
SPT40-XXX/3(S) 150 275 320 385 440

SPT40-XXX/4(S)
Technical Data
SPT40-XXX/4(S) 275 320 385 440
IEC Electrical
Uo/ Un 230 V 400 V
Uc 320 V 385 V 440 V
In 20 kA 20 kA 20 kA 20 kA 20 kA
Imax 40 kA 40 kA 40 kA 40 kA 40 kA
230 V
230 V
275 V
120 V
150 V
Up 1000 V 1500 V 1600 V 1750 V 2000 V
tA 25 ns
ISCCR 25 kA / 50 kA
UT 180 V 335 V 580 V
UT 230 V 440 V
mode Safe Fail Safe Fail Safe Fail Safe Fail
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
Number of Ports 1
UL Electrical
MCOV 320 V 385 V 440 V
VPR 600 V 900 V 1000 V 1200 V 1500 V
In 20 kA 20 kA 20 kA 20 kA 20 kA
Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
RH 5%...95%
80k Pa ... 106k Pa / -500 m ... 2000 m
IP 20 (built-in)
Optional
AC: 250V / 0.5 A;DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Mounting
Housing Material
Thermal Protection
RC Conductor Cross Section 16 AWG (Solid) / 1.5 mm2(Solid)
Yes
765 V
335 V
440 V
335 V
440 V
150 V
150 kA 150 kA 200 kA
200 kA
275 V
125 A gL / gG
Withstand
150
SURGE PROTEC
• •
Mode of Protection: L-PE, N-PE
EN 61643-11:2012
UL 1449 4th Edition

SPT40-XXX/4(S) 150 275 320 385 440
SPT40-XXX/0 150 275 320 385 440
[270 × 230 × 330 mm]
Connection Diagram
TN-S (Three-phase, 4+0)
RoHS
36
www.surgeprotec.com
SPT40-XXX/4(S)
Order Information
Order Code 150 275 320 385 440
SPT40-XXX/4
SPT40-XXX/4S
4015041 4027541 4032041 4038541 4044041
4015042 4027542 4032042 4038542 4044042
SPT40-XXX/0 4015001 4027501 4032001 4038501 4044001
( )
spare modules
Legend
L
N
Protective Earth
Line
Neutral
PE

SPT40-XXX/1(S)+1
Technical Data
75 150 275 320
(L - N) Uc
(N - PE) Uc 255 V 255 V 255 V 255 V
(L - N) / (N - PE) In 20 kA / 20 kA
(L - N) / (N - PE) Imax 40 kA / 40 kA
SPT40-XXX/1(S)+1
IEC Electrical
230 V
230 V
120 V
60 V
320 V
275 V
150 V
75 V
(L - N) / (N - PE) Up 400 V/ 1000 V 1000 V/ 1000 V 1500 V/ 1000 V 1600 V/ 1000 V
(N-PE) Iﬁ 100 A RMS
(L - N) / (N - PE) tA 25 ns / 100 ns
(L - N) ISCCR 25 kA / 50 kA
(L - N) UT
(L - N) UT
mode Withstand Safe Fail Safe Fail
(N - PE) UT 1200 V
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
TOV Withstand 200ms
Number of Ports 1
UL Electrical
(L - N) / (N - PE) MCOV 275 V / 255 V
(L - N) / (N - PE) VPR 600 V / 1000 V
(L - N) / (N - PE) In 20 kA / 20 kA 20 kA / 20 kA
Short-Circuit Current Rating (AC) (L - N) SCCR
Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
RH 5%...95%
Mmax [
39.9 Ibf·in 4.5 Nm]
IP 20 (built-in)
Optional
16 AWG (Solid) / 1.5 mm2(Solid)
90 V 180 V 335 V
115 V 230 V 440 V
335 V
440 V
150 kA
200 kA
100 kA
75 V / 255 V 150 V / 255 V
330 V / 1000 V
320 V / 255 V
20 kA / 20 kA
150 kA
1000 V / 1000 V
900 V / 1000 V
20 kA / 20 kA
Mounting
Housing Material
Thermal Protection
Yes
AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
125 A gL / gG
Withstand
Location of Use:
Mode of Protection: L-N, N-PE
Sub-Distribution Boards
Surge Ratings: In = 20 kA(8/20µs)
EN 61643-11:2012
UL 1449 4th Edition
SURGE PROTEC
• •

Order Information
Order Code 75 150 275 320
SPT40-XXX/1+1
SPT40-XXX/1S+1
SPT40-XXX/0
SPT40-NPE/0
4007513
4007514
4007501
4025501
4015013
4015014
4015001
4025501
4027513
4027514
4027501
4025501
4032013
4032014
4032001
4025501
( )
spare modules
( )
spare modules
Legend
L
N
Protective Earth
Line
Neutral
PE
SPT40-XXX/1(S)+1
SPT40-XXX/1(S)+1 75 150 275 320
[270 × 230 × 330 mm]
Connection Diagram
TN-S,TT (Single-phase, 1+1)
RoHS
SPT40-XXX/0 150 275 320
75
SPT40-NPE/0 40
[270 × 230 × 330 mm]
38
www.surgeprotec.com

275
Uc
Uc 255 V 255 V 255 V
In 20 kA / 20 kA
Imax 40 kA / 40 kA
IEC Electrical
230 V
230 V
120 V
320 V
275 V
150 V
Up 1000 V/ 1000 V 1500 V/ 1000 V 1600 V/ 1000 V
Iﬁ 100 A RMS
tA 25 ns / 100 ns
ISCCR 25 kA / 50 kA
UT
UT
Mode Safe Fail Safe Fail
UT 1200 V
Response Time
Back-Up Fuse (max)
TOV Withstand 5s
TOV 120min
TOV Withstand 200ms
Number of Ports 1
UL Electrical
MCOV 275 V / 255 V 320 V / 255 V
VPR 600 V / 1000 V
In 20 kA / 20 kA 20 kA / 20 kA 20 kA / 20 kA
(L - N)
(N - PE)
(L - N) / (N - PE)
(L - N) / (N - PE)
(L - N) / (N - PE)
(N-PE)
(L - N) / (N - PE)
(L - N)
(L - N)
(L - N)
(N - PE)
(L - N) / (N - PE)
(L - N) / (N - PE)
(L - N) / (N - PE)
(L - N) SCCR
180 V 335 V
230 V 440 V
335 V
440 V
150 kA
150 kA
200 kA
150 V / 255 V
1000 V / 1000 V
900 V / 1000 V
320
150 385
125 A gL / gG
Withstand Safe Fail
335 V
440 V
230 V
385 V
255 V
1750 V/ 1000 V
320 V / 255 V
20 kA / 20 kA
150 kA
1200 V / 1000 V
SURGE PROTEC
Technical Data
SPT40-XXX/3(S)+1
SPT40-XXX/3(S)+1
• •
Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
RH 5%...95%
Mmax [
39.9 Ibf·in 4.5 Nm]
IP 20 (built-in)
Optional
Mounting
Housing Material
Thermal Protection
Yes
AC: 250V / 0.5 A;DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Location of Use:
Mode of Protection: L-N, N-PE
Sub-Distribution Boards
EN 61643-11:2012
UL 1449 4th Edition

40
www.surgeprotec.com
Order Information
Order Code 150 275 320
SPT40-XXX/3+1
SPT40-XXX/3S+1
SPT40-XXX/0
SPT40-NPE/0
4015033
4015034
4015001
4025501
4027533
4027534
4027501
4025501
4032033
4032034
4032001
4025501
385
4038533
4038534
4038501
4025501
( )
spare modules
( )
spare modules
SPT40-XXX/3(S)+1
Legend
L
N
Protective Earth
Line
Neutral
PE
Connection Diagram
SPT40-XXX/0 150 275 320
SPT40-NPE/0 40
[270 × 230 × 330 mm]
385
TN-S, TT (Three-phase, 3+1)
RoHS
SPT40-XXX/3(S)+1 150 275 320
[270 × 230 × 330 mm]
385

SURGE PROTEC
Pluggable Multi-Pole SPD for Photovoltaic Systems
SPT40-PVXXX-(S)
• •
Technical Data
SPT40-PVXXX-(S) 600 1000 1200 1500
IEC Electrical
20 kA
600 V
600 V
1000 V
1000 V
1200 V
1200 V
1500 V
1500 V
40 kA
40 kA
2200 V
2200 V
4000 V
4000 V
4400 V
4400 V
5200 V
5200 V
2000A
1
Maximum Continuous Operating DC Voltage (DC+) - PE, (DC-) - PE
(DC+) - (DC-)
Response Time
Number of Ports
Ucpv
In
ITotal
Imax
Up
tA
Iscpv
Ucpv
Up
(DC+) - PE, (DC-) - PE
(DC+) - (DC-)
25 ns
Maximum Permitted DC Voltage
Nominal Discharge Current (8/20 μs)
(DC+) - PE, (DC-) - PE
(DC+) - (DC-)
Vpvdc
VPR
VPR
In
SCCR
600 V 1000 V 1200 V 1500 V
1600 V
1600 V
2500 V
2500 V
3000 V
3000 V
4000 V
4000 V
20 kA
35 kA 50 kA 55 kA 65 kA
UL Electrical
Ta -40 ºF to +158 ºF [-40 ºC to +70 ºC]
RH 5%...95%
Mmax [
39.9 Ibf·in 4.5 Nm]
IP 20 (built-in)
Optional
Mounting
Housing Material
Thermal Protection
Yes
AC: 250V / 0.5 A; DC: 250V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Location of Use:
Mode of Protection:
Surge Ratings:
IEC/EN/UL Category:
Housing:
Compliance:
String box, Inverter
(DC+)- PE, (DC-)- PE, (DC+)- (DC-)
In = 20kA (8/20μs)
Itotal = up to 40kA (8/20μs)
Class II/ Type 2/ Type 1CA
High Energy MOV
Pluggable Design
IEC 61643-31:2018
EN 50539-11:2013+A1:2014
UL 1449 4th Edition

RoHS
SPT40-PVXXX-(S)
42
www.surgeprotec.com
SPT40-PV1500-(S)
SPT40-PV1200-(S)
SPT40-PV1000-(S)
SPT40-PV600-(S)
600 1000 1200
[270 × 230 × 330 mm]
1500
SPT40-PVXXX/0 600 1000 1200
[270 × 230 × 330 mm]
1500
30 Units 30 Units 30 Units
SPT40-PVXXX-(S)
Order Information
Order Code 600 1000 1200 1500
SPT40-PVXXX
SPT40-PVXXX-(S) (with remote contacts)
SPT40-PVXXX/0 (spare modules )
4060025
4060026
4060002
4010235
4010236
4010202
4012231
4012232
4012202
4015231
4015232
4015202
PE Protective Earth
Legend

In-line SPD for Coaxial RF Systems
C1 C2 C3
• •
The SPT CP BNC Series of coaxial surge protectors is intended to protect RF antenna systems and is suitable for frequencies from
DC to 2.6 GHz.
It is designed as an in-line unit allowing ease of installation. The careful design, low capacitance gas discharge arresters and high
quality BNC-type termination connectors, ensures a minimum of insertion loss throughout the frequency band.
Transfer power is 40 W to 300 W continuous, depending on the coaxial cable protector voltage.
The CP coaxial cable protector is designed in accordance with IEC61643-21: 2012 standards and regulations.
A grounding stud is provided which should be connected to the system ground or coaxial feed-through bulkhead, as directly as possible.
Maximum Peak Power
C2 Nominal Discharge Current (8/20 µs)
Residual Voltage at (1 kV/µs)
Impedance
Insertion Loss
Return Loss
Insulation Resistance of Protection
Frequency Range
SPT CP BNC
Mechanical
IEC Electrical
Temperature Range
Connection
Degree of Protection IEC/EN 60529
Housing Material
Order Information
Order Code
SPT CP BNC-FF-xxx
SPT CP BNC-MF-xxx
800 850 800 851 800 852
70 180 280
-40 ºF to +176 ºF [-40 ºC to +80 ºC]
BNC Female/Female BNC Male/Female
IP 20 (built-in)
Metal
70 180 280
180V
125 W
10 kA
20 kA
700V
500
0. 4dB ,
20dB
10GQ
0-2.6 GHz
800 853 800 854 800 855
SURGE PROTEC
Technical Data
Uc
In
Imax
Z
70V
40W
Pmax
Ures
IL
RL
Riso
fG
600V
280V
300W
900V
SPT CP BNC
IEC/EN Category:
Protection:
Maximum Operating:
Voltage:
Maximum Peak Power:
Frequency Range:
Surge Discharge Ratings:
Impedance:
Insertion Loss:
Return Loss:
Termination:
Housing:
Compliance:
C1/C2/C3
Impedance Matched
70, 180, 280 V
40, 125, 300 W
DC – 2.6 GHz
I n : 10 kA, I max : 20 kA
50 Ω
0.4 dB
20 dB
BNC Type (F-F, M-F)
In-line Installation, Shielded Enclosure
IEC/EN 61643-21

44
www.surgeprotec.com
SPT CP BNC-FF-xxx SPT CP BNC-MF-xxx
70 180 280 70 180 280
Weight per Unit 3.74oz [106g] 4.02 oz [114 g]
Packaging Dimensions (Single Unit) 2.9 × 1.2 × 1.2 [73 × 30 × 30 mm]
Minimum Package Quantity 100 pieces
Legend
SPT CP BNC
RoHS
GDT Gas Discharge Tube
PE Ground
SPT CP BNC

type 2 / class II
2 dB
255 pF
IP 20
1/2, 3/6, 4/5, 7/8
Connecting line
Class SPT
600 V
165 pF
-40/+80°C
Aluminum housing
Cat. 6
Cat. 6A in the channel
Max. continuous operating a.c. voltage Uc
SPT according to EN 61643-21 / IEC 61643-21
Max. continuous operating d.c. voltage
D1 Lightning impulse current (10/350 μs) per line
C2 Nominal discharge current (8/20 μs) line-line
C2 Nominal discharge current (8/20 μs) line-PG
Voltage protection level line-PG for In C2
Voltage protection level line-line at 1 kV/μs C3
Voltage protection level line-PG at 1 kV/μs C3
Voltage protection level pair-pair at 1 kV/μs C3 (PoE)
Insertion loss at 250 MHz
Capacitance line-line
Range of operating temperatures
Uc
Iimp
IL
Max. continuous operating d.c. voltage pair-pair (PoE)
Voltage protection level line-line for In C2
Capacitance line-PG
Rated current
C2 Nominal discharge current (8/20 μs) pair-pair (PoE)
Voltage protection level pair-pair for In C2 (PoE)
Degree of protection
Connection (input / output)
Pinning
Enclosure material
Earthing via
C2 Total nominal discharge current (8/20 μs) line-PG
Transmission class according to ISO/IEC 11801
Transmission class according to EN 50173-1
Transmission class according to ANSI/TIA/EIA-568
TU
C
C
UP
UP
UP
UP
UP
UP
41 V
58 V
57 V
1 A
1 kA
150 A
2.5 kA
10 kA
150 A
190 V
600 V
600 V
145 V
500 V
RJ45 / RJ45
Uc
In
In
In
In
The PoE Surge Protector permits the use of Power over Ethernet with nominal currents of up to 1 A. It can be snapped directly
onto the hat rail and uses it to create the necessary equipotential bonding. Alternatively, terminal protection using a separately
connectable
 Support for Power over Ethernet + up to 1 A (PoE+ according to IEEE 802.3at)
 CAT 6A in the channel according to ANSI/TIA/EIA-568
 For installation in conformity with the lightning protection zone concept at the boundaries from 0 -2 and higher
SPTs for Telecommunication and Data Networks
SURGE PROTEC
Surge Protection Total Solutions SPT DT-CAT 6A
DT-CAT 6A/EA
Type

Modular SPD for Single Pair
SPT-DC Series
D1 C1 C2 C3
• • •
5 12 15 24 30* 48 60 110
Electrical
Lines Protected 1
Nominal Operating Voltage (DC) Un 5V 12 V 15 V 24 V 30 V 48 V 60 V 110 V
Maximum Continuous Operating Voltage (DC) Uc 6V 15 V 18 V 28 V 33 V 52 V 64 V 170 V
Rated Load Current at 25ºC IL 1A
C2 Nominal Discharge Current (8/20 µs) In 10kA
Maximum Discharge Current (8/20 µs) Imax 20kA
D1 Impulse Current (10/350 µs) Iimp 2.5kA
Residual Voltage at 5 kA (8/20 µs) Ures 22V 42 V 48 V 70 V 80 V 140 V 160 V 450 V
Rated Spark Overvoltage (Line-Ground) 7-10V 16-21 V 21-25 V 31-37 V 36-44 V 57-69 V 68-84 V 184-264 V
(Line-Line) 7-10V 16-21 V 21-25 V 31-37 V 36-44 V 57-69 V 68-84 V 184-264 V
Response Time Overvoltage Protection tA 1 ns
Thermal Protection Ye s
SURGE PROTEC
IEC/ENCategory: D1/C1/C2/C3
ModeofProtection: Longitudinal,Transverse
CoarseProtection:
Voltages: 5,12,15,24,30*,48,60,110VDC
FrequencyRange: 30MHz
SurgeDischargeRatings: In:10kA,Imax:20kA,Iimp:2.5kA
SeriesLoadCurrent: 1A
Enclosure: DIN438802/3TE,DINRailMount
Terminals: Strandedto4mm2

Housing: ModularDesign
Compliance: IEC/EN61643-21

UL497B4thEdition
3TerminalGDT
Cut-off Frequency fG 30MHz
Order Information
Order Code 5 12 15 24 30* 48 60 110
SPT-DC-xxx 9086.33 9086.34 9086.35 9086.36 9082.80 9086.37 9086.38 9086.39
SPT-DC-xxxM (module) 9086.40 9086.41 9086.42 9086.43 9082.81 9086.44 9086.45 9086.46
Mechanical
Temperature Range -40 ºF to +176 ºF [-40 ºC to +80 ºC]
Terminal Cross Section Multi-strand (max.) 2 2
12 AWG [4 mm , 2.5 mm QVersion]
Degree of Protection IEC/EN 60529 IP20 (built-in)
Mounting IEC/EN 60715 35 mm DIN Rail
Technical Data
SPT-DC Series
Basic circuit diagram
1 1
2 2
PE PE
IN OUT
G D
L
L
D D
Dimensions
13
90
65
48
45
1 2
IN
OUT
1 2
PE
PE
SPT-DC Series
46
www.surgeprotec.com

SURGE PROTEC
STANDARDS FOR SURGE PROTECTORS
Surge Protectors for Low-Voltage installations:
● UL1449 - AC and DC Power SPD (USA)
● CSA C22.2 (CANADA)
● NOM-001-SCFI (MEXICO)
● NOM-003-SCFI (MEXICO)
● IEC 61643-11 (International)
● NF EN 61643-11 (France)
● VDE 0675-6-11 (Germany)
● EN 61643-11 (Europe)
Surge Protectors for data and RF equipment:
● UL 497A - Primary Data SPD (USA)
● UL 497B - Secondary Data SPD (USA)
● UL 497E - RF Antenna SPD (USA)
● IEC 61643-21 (International)
● ITU-T recommendations K11, K12, K17, K20, K21, K36 (International)
Surge Protectors mandatory application:
● NFPA 70 - NEC - National Electric Code (USA)
● NFPA 79 - Electrical Standard for Industrial Machinery (USA)
● NFPA 780 - Guide on Electrical Inspections (USA)
Surge Protectors recommended guidelines:
● ANSI/IEEE C62.41 - Low-Voltage AC Power Circuits (USA)
● ANSI/IEEE C136.2 - Roadway Area Lighting (USA)
For almost 40 years, many worldwide organizations have developed standards that form the basis of our
understanding of the surge environment and its effect on equipment. These surge protection working groups have been
the catalyst for many of the advances that have been made related to the optimal performance, increased reliability and
safety of surge protectors.
The most well-known reference standards are*:

Made in Korea
Manufacutre and headquarter:
Surgeprotec Co., Ltd.
Business Registration: 637-88-01997
Address: NO 184 Jungbu-daero, Giheung-gu,
Yongin-si, Gyeonggi-do, 17095
Republic of Korea

Building Automation,Networking & Communication Presentation by LVS 2022.pdf

More Related Content

Similar to Building Automation,Networking & Communication Presentation by LVS 2022.pdf (20)

More from Mahesh Chandra Manav (19)

Recently uploaded (20)

Building Automation,Networking & Communication Presentation by LVS 2022.pdf
