- 1. CEPT UNIVERSITY SUBMITTED TO:- AR.SAMI UR REHMAN AR.AMULYA AR.AMOL SHANKAR SUBMITTED BY:- GROUP-II CASE STUDY (AHMEDABAD) CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 2. LOCATION : GUJARAT UNIVERSITY AREA , AHMEDABAD ARCHITECT : B.V.DOSHI AREA OF SITE :12.5 ACRE CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 3. CEPT UNIVERSITY CEPT UNIVERSITY LATITUDE :23° 2' 14" N LONGITUDE :72° 33' 0" E CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 4. APPROACH MAIN ACCESS ON THE NORTHEN SIDE TWO ENTRANCES ON THE SOUTHERN SIDE WHICH IS AN INTERNAL ACCESS TWO ENTRANCES ON THE WESTREN SIDE SITE THE SITE IS LOCATED IN THE KASTURIBHAI LALBHAI CAMPUS IN NAVARANGAPURA,AHMEDABAD,GUJARATH… IT LIES WITHIN A ZONE OCCUPIED BY OTHER EDUCATIONAL INSTITUTIONS THIS CEPT UNIVERSITY IS LOCATED AT THE EDGE OF THE EDUCATIONAL ZONE,SO IT IS ALSO IMMEDIATELY PROXIMAL TO SOME RESIDENTIAL ZONE…. TOPOGRAPHY THE GENERAL SLOPE IS TOWARDS THE NOTH WESTERN CORNER CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY

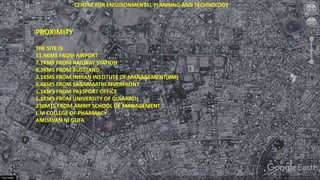

- 5. PROXIMITY THE SITE IS 11.9KMS FROM AIRPORT 7.7KMS FROM RAILWAY STATION 6.3KMS FROM BUSSTAND 3.1KMS FROM INDIAN INSTITUTE OF MANAGEMENT(IIM) 6.4KMS FROM SABARMATHI RIVERFRONT 1.1KMS FROM PASSPORT OFFICE 1.1KMS FROM UNIVERSITY OF GUJARATH 230MTS FROM AMRIT SCHOOL OF MANAGEMENT L.M COLLEGE OF PHARMACY AMDAVAN NI GUFA CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 6. ONE OF THE BEST EXAMPLES OF SPATIAL PLANNING WITH INTERESTING PATHWAYS. CEPT UNIVERSITY WAS STARTED IN 1962 UNDER THE AHMEDABAD EDUCATION SOCIETY AND WAS ACTIVELY SUPPORTED BY KASTHURBHAI LALBHAI A LEADING INDUSTRALIST AND PHILANTHROPIST. THE SCHOOL BROKE AWAY FROM THE CONVENTIONAL TEACHING COURSES . THE CONCEPT CHANGED FROM ARCHITECTURE AS THE TECHNICAL DISCIPLINE TO ARCHITECTURE AS A DESIGN DISCIPLINE. ABOUT THE COLLEGE :- CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 7. ARCHITECTS PHILOSOPHY I. ELIMINATION OF CLASSROOM FEELING II. ARCHITECTURE WITHOUT BARRIERS III. INTEGRATION OF OPEN SPACES IV. EASE OF INTERACTION BETWEEN VARIOUS DEPARTMENTS.. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 8. FEATURES THE BUILDING IS SET BACK 100FT FROM THE MAIN ROAD AND IS COVERED BY TREES TO CREATE THE COOL ATMOSPHERE INSIDE THE CAMPUS AND IS HARDLY VISIBLE FROM THE MAIN ROAD… CREATION OF A PROPER WORKING ENVIRONENT FACILITATING FACULTY AND STUDENTS TO HAVE FREE SCOPE TO LEARN AND TEACH ANYWHERE……. EXPOSED LOCAL MATERIALS FOR LOW COST,EASY EXPANSION AND MAINTAINCE….. THE DESIGN IS INTENDED TO BE CLOSE TO NATURE AND EXPERIMENT THE DESIGNING SKILLS,PLAY WITH,LEVELS ETC..,THE SITE WAS UNDULATED AND GAVE OPPURTUNITY TO PLAY WITH LEVELS…… THERE ARE INCLINE SKYLIGHTS ON TOP OF THE STUDIOS,PERPETUALLY LETTING IN NATURAL LIGHT INTO THE SPACES….. THE STUDIO SPACES HAVE BAY SPACES FACING THE EXTERIOR,CREATING SEMI-PRIVATE SPACES WHICH ARE YET TOTALLY OPEN TO THE EXTERIOR SPACES WHERE THE INDIVIDUAL CAN BE ALONE WITH NATURE EVEN IN THE ENVIRONMENT OF A STUDIO….. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 9. POSITIONING OF THE BUILDINGS :- THE BUILDINGS ARE PLACED ORTHOGONALLY WITH RESPECT TO THE SIDES OF THE SITE AND HENCE ALONG THE CARDINAL POINTS. KEEN OBSERVATION IN PLAN REVEALS THAT BUILDINGS ARE ORIENTED IN SUCH A PASSION THAT TO AVOID THE HARSH SUN LIGHT. IT ONLY ALLOWS THE LIGHT BUT NOT THE HOT SUN TO THE INTERIORS DURING MID DAY WHEN THE SUN IS HIGH. AS WE SEE, THE BUILDINGS ARE PLACED ACCORDING TO THE SUN DIRECTION, THE SOUTH FACED OF THE BUILDINGS HAS LONG PROJECTIONS AND ON THE NORTH FACADE OF THE BUILDING HAS SMALL PROJECTIONS…… CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 10. ROLE OF ENVIRONMENT THE BUILDINGS ARE PLACED AWAY FROM THE MAIN ROAD WITH TREES AT THE MIDST OF ROAD AND BUILDING SITE. THEY ARE ACTING AS BARRIERS THAT REDUCE THE NOSIE POLLUTION FROM THE ROAD. THESE TREES COVERS THE VIEW OF THE BUILDING FROM OUTSIDE CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 11. ARCHITECTURE BLOCK SIMPLE OPEN INTERACTIVE SIMPLE:THEY ACHIEVED AESTHETIC S WITHOUT USING HEAVY ORNAMENTAL ELEMENTS. OPEN:LOT OF LARGE OPEN SPACES ARE PROVIDED FOR BETTER CIRCULATION AND GOOD INTERACTION . INTERACTION: THEY BOUGHT THE INTERACTION BETWEEN THE SPACES THAT ARE CREATED . VISHWANATH KASHIKARAN CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 12. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY PANOROMIC VIEW SHOWING FA&FP BLOCKS
- 13. Spaces and Activities 1. CLASS ROOMS 2. STUDIOS 3. LABS 4. LIBRARY 5. WORKSHOP 6. INDOOR PLAY AREA 7. OUTDOOR PLAY AREA 8. FACULTY CABINS 9. ADMIN BLOCK 10. TOILETS 11.CANTEEN 12.STATIONARY STORES CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 14. LEVEL – 1 FLOOR PLAN LEVEL – 1 FA101 - M.ARCH LANDSCAPE STUDIO FP 102 – M.PLAN 1ST YEAR FP102 – M.PLAN 1ST YEAR UN101 – AUDITORIUM UN102 – LIBRARY EXPANSION UN103 – SERVER ROOM UN104 – COMPUTER LAB UN105 - STUDIO CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 15. LEVEL – 2 FLOOR PLAN LEVEL – 2 FA201 – B.ARCH 2ND YEAR STUDIO FA202 – M.ARCH SPECILIZATION FA203 – M.ARCH 1ST YEAR STUDIO FA204 – M.ARCH 2ND YEAR STUDIO FP201 – M.PLAN 2ND YEAR FP202 – M.PLAN 2ND YEAR UN201 – CUE UN202 – LIBRARY UN203 – ADMIN AREA UN204 – RECEPTION UN205 – ELECTRICITY ROOM UN206 - PRESIDENT CABIN UN207-UN222- FACULTY CABIN UN223 – MEETING ROOM UN226 – TEACHING ASSISTANT CABIN UN227 – IT NODE&FACULTY COPIER CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 16. LEVEL – 3 FLOOR PLAN LEVEL -3 FA301 – B.ARCH 4TH YEAR STUDIO FA302 – B.ARCH3RDYEAR STUDIO FA303 – B.ARCH 1ST YEAR STUDIO FP301 – M.PLAN 2NDYEAR RPM FP302 – M.PLAN 2NDYEAR EP FP303 – B.PLAN 1ST YEAR FM301 – FM STUDIO UN301 – SEMINAR ROOM UN302 – LIBRARY UN303 -UN323 – FACULTY CABINS UN324 – EMPTY ROOM UN325 – EMPTY ROOM CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 17. PLANNING THE BUILT FORM STARTS WITH A PAIR OF PARALLEL WALLS.THE BASIC COMPONENT OF THE BUILDINGS OF THE CEPT IS A DERIVATE OF LOAD-BEARING WALLS,SUPPORTING A FLAT FLOOR SLABS.THE REPEATED OCCURRENCE OF PARALLEL WALLED STRUCTUES CAN BE SEEN IN THE CEPT CAMPUS…… THE OVERALL PLANNING HAS BEEN DONE AROUND THE CENTRAL COURT WITH BUILT MASSES ON SIDES AND GREEN ON ONE SIDE WHICH GIVES THE CAMPUS NOISE PROTECTION……… CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 18. THE WHOLE BUILDING IS VERY SIMPLE AND ARCHITECTURAL ELEMENTS ARE EXPRESSIVE OF THEIR FUNCTIONS…. THE SPACES CREATED BY VOLUMES AND VOIDS ARE VISUALLY EXCITING…. THE BUILDING HAS SIMPLE HORIZONTAL LINES AND MERGES BEAUTIFULLY WITH THE SITE…… THE BUILDING IS TWO-STORYED WITH A SPLIT LEVEL BASEMENT…….. THE BUILDING DESIGN INCORPORATES THE THERMAL COMFORT AND NATURAL SENSIBLY…. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 19. BASEMENT THE BASEMENT IS A MULTI-PURPOSE SPACE.IT IS A VERY ACTIVE SPACES OF THE CAMPUS.ON ONE SIDE OF THE BASEMENT RISING CONTOURS CAN BE SEEN,AND ON THE OTHER SIDE STEPS TOWARDS THE CENTRAL COURTYARD…. THUS THE NORTH AND SOUTH WALLS HAVE BEEN AVOIDED.NUMEROUS ACTIVITIES ARE PERFORMED HERE LIKE CULTURAL PROGRAMS,FESTS AND EXHIBITIONS,INDOOR GAMES ETC.., CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 20. CENTRAL COURTYARD THE CENTRAL COURT YARD IS A COMBINATION OF PAVED AND UNPAVED AREAS,SHADED BY TREES IN CERTAIN AREAS…. ALL ENTRANCES ARE LINKED TO THE COURTYARD BY PEDESTRAIN PATHWAYS…….. HENCE THE COURTYARD IS AN AREA OF HEAVY CIRCULATION OF INTERACTION……. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 21. STUDIOS THE STUDIOS HAVE LARGE OPENINGS WHICH OPEN INTO THE GREENARY OUTSIDE…… PANELS AT THE SIDES HELP THE STUDENTS TO PUT UP THE IMPORTANT AND USEFUL SHEETS…. ALL THE STUDIOS ARE ABOVE ONE ANOTHER,ALONG WITH THE ADJACENT LECTURE ROOMS…….. THERE ARE COMMON INTERACTION ZONES BETWEEN THE STUDIOS OF DIFFERENT YEARS………. THE STUDIOS ARE DESIGNED KEEPING IN MIND THE CLIMATIC NEEDS AND COMFORT OF ITS USERS….. THE BUILDING SECTION AND DOUBLE HEIGHT STUDIOS ARE WELL CONCEIVED TO FACILITATE AIR FLOW…… THE BUILDING IS ORIENTED ALONG THE EAST-WEST AXIS WITH OPENINGS ON NORTH&SOUTH AND THICKWALLS ARE PROVIDED ON THE EAST AND WEST TO KEEP OFF THE HOT SUN CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 22. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 23. VENTILATION •THE PARALLEL WALLS,FORMING AN OPEN TUBE OF SPACE ARE PREDOMINANTLY ALIGNED NORTH- SOUTH,EFFECTIVELY CLOSE TO EAST AND WEST SIDES…….. •NORTH SIDE IS HEIGHTENED TO ALLOW MORE LIGHT IN WHILE THE SOUTH SIDE IS KEPT LOW TO SHIELD FROM DIRECT RADIATION…… CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 24. LANDSCAPE THE CAMPUS IS FULL OF NEEM TREES,WHICH WERE PLANTED OVER THE YEARS SINCE THE INTIAL PHASE MAKES HOT AHMEDABAD CLIMATE COOLER…….. THE TREES PROVIDE A PERPETUAL CHANGING PATTERN OF LIGHT AND SHADE….. THERE ARE MANY INTERCONNECTING PATHWAYS WITH BRICK PAVING AND TERRACOTTA TILING…… THERE ARE ALSO SMALL PLANTS WITHIN THE BUILDING AND PLOTTED PLANTS AT PLACES… THE STEPS IN FACT BECOME EXTERNAL ACTIVITY HUBS WITH STUDENTS USING THE LEVELS FOR READING,ORGANSING INFORMAL DISCUSSIONS,PERFORMANCES OR EVEN FOR SIMPLY LAZING AROUND CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 25. DESIGN FEATURES ALL BUILDINGS ARE ORIENTED IN THE NORTH-SOUTH DIRECTION……. OPEN SPACES ON THE NORTH AND SOUTH SIDE RESPECTIVELY ALLOW FRESH AIR TO VENTILATE THE BUILT STRUCTURES THE OPEN SPACES AND THE SHADED ONCE MERGE WITH THE LANDSCAPE………. THE OPEN SPACES IS LINKED TO THE OFFICE AND LIBRARY AREA WORKSHOP AND CANTEEN….. THE AREAS ARE VERY LIVELY AND DYNAMIC………. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 26. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY COURTYARD AMDAVAD NI GUFA
- 27. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY
- 28. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY CENTRAL COURTYARD IS BEING USED AS PLAY AREA
- 29. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY SHOWING THE LEVELS IN FA&FP BLOCKS
- 30. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY BLUE – DIRECT SUNLIGHT GREEN – SUNLIGHT SHADE RED- DARK AREA(NO SUNLIGHT) LIGHT ANALYSIS
- 31. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY BLUE – DIRECT SUNLIGHT GREEN – SUNLIGHT SHADE RED- DARK AREA(NO SUNLIGHT) LIGHT ANALYSIS
- 32. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY BLUE – DIRECT SUNLIGHT GREEN – SUNLIGHT SHADE RED- DARK AREA(NO SUNLIGHT) LIGHT ANALYSIS SHOWING THE NORTH FACADE OF THE CEPT UNIVERSITY
- 33. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY AMDAVAD NI GUFA
- 34. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY STUDENTS HAD DONE THE ART WORKS FROM THE SCRAP WHICH IS LEFT OVER IN THE COLLEGE.....THESE ARE CHANGED PERIODICALLY.....
- 35. CENTRE FOR ENIVIRONMENTAL PLANNING AND TECHNOLOGY MEASUREMENTS ARE ENCRYPTED ON THE BEAM WHILE IN THE TIME OF CONSTRUCTION JALIS MADE WITH WOOD CAN BE SEEN IN THE WALLS OF CEPT UNIVERSITY
