Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 1
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe
Chapter 5
The Relational Data Model and
Relational Database Constraints
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 3
Chapter Outline
◼ Relational Model Concepts
◼ Relational Model Constraints and Relational
Database Schemas
◼ Update Operations and Dealing with Constraint
Violations
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 4
Relational Model Concepts
◼ The relational Model of Data is based on the concept of a
Relation
◼ The strength of the relational approach to data management
comes from the formal foundation provided by the theory of
relations
◼ We review the essentials of the formal relational model in
this chapter
◼ In practice, there is a standard model based on SQL – this
is described in Chapters 8 and 9
◼ Note: There are several important differences between
the formal model and the practical model, as we shall see
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 5

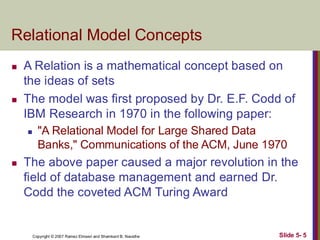

Relational Model Concepts
◼ A Relation is a mathematical concept based on
the ideas of sets
◼ The model was first proposed by Dr. E.F. Codd of
IBM Research in 1970 in the following paper:
◼ "A Relational Model for Large Shared Data
Banks," Communications of the ACM, June 1970
◼ The above paper caused a major revolution in the
field of database management and earned Dr.
Codd the coveted ACM Turing Award
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 6
Informal Definitions
◼ Informally, a relation looks like a table of values.
◼ A relation typically contains a set of rows.
◼ The data elements in each row represent certain facts that
correspond to a real-world entity or relationship
◼ In the formal model, rows are called tuples
◼ Each column has a column header that gives an indication
of the meaning of the data items in that column
◼ In the formal model, the column header is called an attribute
name (or just attribute)
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 7
Example of a Relation
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 8
Informal Definitions
◼ Key of a Relation:
◼ Each row has a value of a data item (or set of items)
that uniquely identifies that row in the table
◼ Called the key
◼ In the STUDENT table, SSN is the key
◼ Sometimes row-ids or sequential numbers are
assigned as keys to identify the rows in a table
◼ Called artificial key or surrogate key
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 9
Formal Definitions - Schema
◼ The Schema (or description) of a Relation:
◼ Denoted by R(A1, A2, .....An)
◼ R is the name of the relation
◼ The attributes of the relation are A1, A2, ..., An
◼ Example:
CUSTOMER (Cust-id, Cust-name, Address, Phone#)
◼ CUSTOMER is the relation name
◼ Defined over the four attributes: Cust-id, Cust-name,
Address, Phone#
◼ Each attribute has a domain or a set of valid values.
◼ For example, the domain of Cust-id is 6 digit numbers.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 10
Formal Definitions - Tuple
◼ A tuple is an ordered set of values (enclosed in angled
brackets ‘< … >’)
◼ Each value is derived from an appropriate domain.
◼ A row in the CUSTOMER relation is a 4-tuple and would
consist of four values, for example:
◼ <632895, "John Smith", "101 Main St. Atlanta, GA 30332",
"(404) 894-2000">
◼ This is called a 4-tuple as it has 4 values
◼ A tuple (row) in the CUSTOMER relation.
◼ A relation is a set of such tuples (rows)
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 11
Formal Definitions - Domain
◼ A domain has a logical definition:
◼ Example: “USA_phone_numbers” are the set of 10 digit phone
numbers valid in the U.S.
◼ A domain also has a data-type or a format defined for it.
◼ The USA_phone_numbers may have a format: (ddd)ddd-dddd where
each d is a decimal digit.
◼ Dates have various formats such as year, month, date formatted
as yyyy-mm-dd, or as dd mm,yyyy etc.
◼ The attribute name designates the role played by a domain in a
relation:
◼ Used to interpret the meaning of the data elements corresponding
to that attribute
◼ Example: The domain Date may be used to define two attributes
named “Invoice-date” and “Payment-date” with different meanings
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 12
Formal Definitions - State
◼ The relation state is a subset of the Cartesian
product of the domains of its attributes
◼ each domain contains the set of all possible values
the attribute can take.
◼ Example: attribute Cust-name is defined over the
domain of character strings of maximum length
25
◼ dom(Cust-name) is varchar(25)
◼ The role these strings play in the CUSTOMER
relation is that of the name of a customer.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 13
Formal Definitions - Summary
◼ Formally,
◼ Given R(A1, A2, .........., An)
◼ r(R)  dom (A1) X dom (A2) X ....X dom(An)
◼ R(A1, A2, …, An) is the schema of the relation
◼ R is the name of the relation
◼ A1, A2, …, An are the attributes of the relation
◼ r(R): a specific state (or "value" or “population”) of
relation R – this is a set of tuples (rows)
◼ r(R) = {t1, t2, …, tn} where each ti is an n-tuple
◼ ti = <v1, v2, …, vn> where each vj element-of dom(Aj)
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 14
Formal Definitions - Example
◼ Let R(A1, A2) be a relation schema:
◼ Let dom(A1) = {0,1}
◼ Let dom(A2) = {a,b,c}
◼ Then: dom(A1) X dom(A2) is all possible combinations:
{<0,a> , <0,b> , <0,c>, <1,a>, <1,b>, <1,c> }
◼ The relation state r(R)  dom(A1) X dom(A2)
◼ For example: r(R) could be {<0,a> , <0,b> , <1,c> }
◼ this is one possible state (or “population” or “extension”) r of
the relation R, defined over A1 and A2.
◼ It has three 2-tuples: <0,a> , <0,b> , <1,c>
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 15

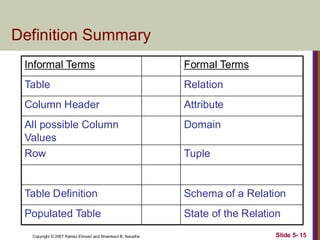

Definition Summary
Informal Terms Formal Terms
Table Relation
Column Header Attribute
All possible Column
Values
Domain
Row Tuple
Table Definition Schema of a Relation
Populated Table State of the Relation
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 16
Example – A relation STUDENT
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 17
Characteristics Of Relations
◼ Ordering of tuples in a relation r(R):
◼ The tuples are not considered to be ordered,
even though they appear to be in the tabular
form.
◼ Ordering of attributes in a relation schema R (and
of values within each tuple):
◼ We will consider the attributes in R(A1, A2, ...,
An) and the values in t=<v1, v2, ..., vn> to be
ordered .
◼ (However, a more general alternative definition of
relation does not require this ordering).
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 18
Same state as previous Figure (but
with different order of tuples)
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 19
Characteristics Of Relations
◼ Values in a tuple:
◼ All values are considered atomic (indivisible).
◼ Each value in a tuple must be from the domain of
the attribute for that column
◼ If tuple t = <v1, v2, …, vn> is a tuple (row) in the
relation state r of R(A1, A2, …, An)
◼ Then each vi must be a value from dom(Ai)
◼ A special null value is used to represent values
that are unknown or inapplicable to certain tuples.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 20
Characteristics Of Relations
◼ Notation:
◼ We refer to component values of a tuple t by:
◼ t[Ai] or t.Ai
◼ This is the value vi of attribute Ai for tuple t
◼ Similarly, t[Au, Av, ..., Aw] refers to the subtuple of t
containing the values of attributes Au, Av, ..., Aw,
respectively in t
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 21

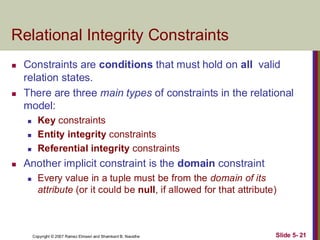

Relational Integrity Constraints
◼ Constraints are conditions that must hold on all valid
relation states.
◼ There are three main types of constraints in the relational
model:
◼ Key constraints
◼ Entity integrity constraints
◼ Referential integrity constraints
◼ Another implicit constraint is the domain constraint
◼ Every value in a tuple must be from the domain of its
attribute (or it could be null, if allowed for that attribute)
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 22

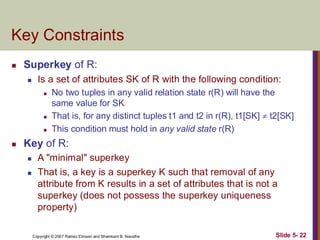

Key Constraints
◼ Superkey of R:
◼ Is a set of attributes SK of R with the following condition:
◼ No two tuples in any valid relation state r(R) will have the
same value for SK
◼ That is, for any distinct tuples t1 and t2 in r(R), t1[SK]  t2[SK]
◼ This condition must hold in any valid state r(R)
◼ Key of R:
◼ A "minimal" superkey
◼ That is, a key is a superkey K such that removal of any
attribute from K results in a set of attributes that is not a
superkey (does not possess the superkey uniqueness
property)
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 23
Key Constraints (continued)
◼ Example: Consider the CAR relation schema:
◼ CAR(State, Reg#, SerialNo, Make, Model, Year)
◼ CAR has two keys:
◼ Key1 = {State, Reg#}
◼ Key2 = {SerialNo}
◼ Both are also superkeys of CAR
◼ {SerialNo, Make} is a superkey but not a key.
◼ In general:
◼ Any key is a superkey (but not vice versa)
◼ Any set of attributes that includes a key is a superkey
◼ A minimal superkey is also a key
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 24
Key Constraints (continued)
◼ If a relation has several candidate keys, one is chosen
arbitrarily to be the primary key.
◼ The primary key attributes are underlined.
◼ Example: Consider the CAR relation schema:
◼ CAR(State, Reg#, SerialNo, Make, Model, Year)
◼ We chose SerialNo as the primary key
◼ The primary key value is used to uniquely identify each
tuple in a relation
◼ Provides the tuple identity
◼ Also used to reference the tuple from another tuple
◼ General rule: Choose as primary key the smallest of the
candidate keys (in terms of size)
◼ Not always applicable – choice is sometimes subjective
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 25
CAR table with two candidate keys –
LicenseNumber chosen as Primary Key
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 26
Relational Database Schema
◼ Relational Database Schema:
◼ A set S of relation schemas that belong to the
same database.
◼ S is the name of the whole database schema
◼ S = {R1, R2, ..., Rn}
◼ R1, R2, …, Rn are the names of the individual
relation schemas within the database S
◼ Following slide shows a COMPANY database
schema with 6 relation schemas
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 27

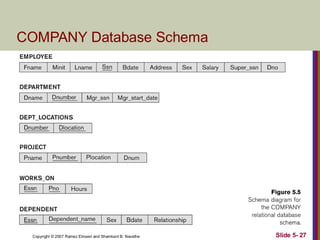

COMPANY Database Schema
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 28

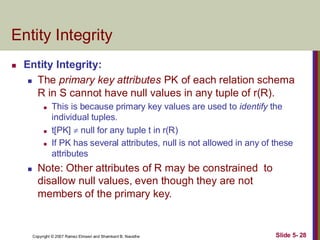

Entity Integrity
◼ Entity Integrity:
◼ The primary key attributes PK of each relation schema
R in S cannot have null values in any tuple of r(R).
◼ This is because primary key values are used to identify the
individual tuples.
◼ t[PK]  null for any tuple t in r(R)
◼ If PK has several attributes, null is not allowed in any of these
attributes
◼ Note: Other attributes of R may be constrained to
disallow null values, even though they are not
members of the primary key.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 29
Referential Integrity
◼ A constraint involving two relations
◼ The previous constraints involve a single relation.
◼ Used to specify a relationship among tuples in
two relations:
◼ The referencing relation and the referenced
relation.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 30

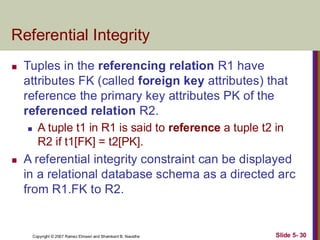

Referential Integrity
◼ Tuples in the referencing relation R1 have
attributes FK (called foreign key attributes) that
reference the primary key attributes PK of the
referenced relation R2.
◼ A tuple t1 in R1 is said to reference a tuple t2 in
R2 if t1[FK] = t2[PK].
◼ A referential integrity constraint can be displayed
in a relational database schema as a directed arc
from R1.FK to R2.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 31

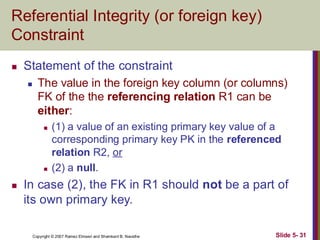

Referential Integrity (or foreign key)
Constraint
◼ Statement of the constraint
◼ The value in the foreign key column (or columns)
FK of the the referencing relation R1 can be
either:
◼ (1) a value of an existing primary key value of a
corresponding primary key PK in the referenced
relation R2, or
◼ (2) a null.
◼ In case (2), the FK in R1 should not be a part of
its own primary key.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 32
Displaying a relational database
schema and its constraints
◼ Each relation schema can be displayed as a row of
attribute names
◼ The name of the relation is written above the attribute
names
◼ The primary key attribute (or attributes) will be underlined
◼ A foreign key (referential integrity) constraints is displayed
as a directed arc (arrow) from the foreign key attributes to
the referenced table
◼ Can also point the the primary key of the referenced relation
for clarity
◼ Next slide shows the COMPANY relational schema
diagram
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 33
Referential Integrity Constraints for COMPANY database
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 34
Other Types of Constraints
◼ Semantic Integrity Constraints:
◼ based on application semantics and cannot be
expressed by the model per se
◼ Example: “the max. no. of hours per employee for
all projects he or she works on is 56 hrs per week”
◼ A constraint specification language may have
to be used to express these
◼ SQL-99 allows triggers and ASSERTIONS to
express for some of these
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 35
Populated database state
◼ Each relation will have many tuples in its current relation
state
◼ The relational database state is a union of all the
individual relation states
◼ Whenever the database is changed, a new state arises
◼ Basic operations for changing the database:
◼ INSERT a new tuple in a relation
◼ DELETE an existing tuple from a relation
◼ MODIFY an attribute of an existing tuple
◼ Next slide shows an example state for the COMPANY
database
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 36
Populated database state for COMPANY
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 37
Update Operations on Relations
◼ INSERT a tuple.
◼ DELETE a tuple.
◼ MODIFY a tuple.
◼ Integrity constraints should not be violated by the
update operations.
◼ Several update operations may have to be
grouped together.
◼ Updates may propagate to cause other updates
automatically. This may be necessary to maintain
integrity constraints.
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 38
Update Operations on Relations
◼ In case of integrity violation, several actions can
be taken:
◼ Cancel the operation that causes the violation
(RESTRICT or REJECT option)
◼ Perform the operation but inform the user of the
violation
◼ Trigger additional updates so the violation is
corrected (CASCADE option, SET NULL option)
◼ Execute a user-specified error-correction routine
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 39

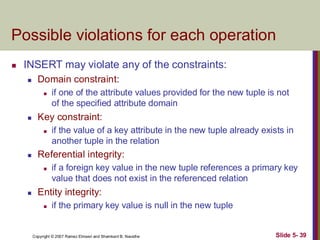

Possible violations for each operation
◼ INSERT may violate any of the constraints:
◼ Domain constraint:
◼ if one of the attribute values provided for the new tuple is not
of the specified attribute domain
◼ Key constraint:
◼ if the value of a key attribute in the new tuple already exists in
another tuple in the relation
◼ Referential integrity:
◼ if a foreign key value in the new tuple references a primary key
value that does not exist in the referenced relation
◼ Entity integrity:
◼ if the primary key value is null in the new tuple
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 40
Possible violations for each operation
◼ DELETE may violate only referential integrity:
◼ If the primary key value of the tuple being deleted is
referenced from other tuples in the database
◼ Can be remedied by several actions: RESTRICT, CASCADE,
SET NULL (see Chapter 8 for more details)
◼ RESTRICT option: reject the deletion
◼ CASCADE option: propagate the new primary key value into the
foreign keys of the referencing tuples
◼ SET NULL option: set the foreign keys of the referencing tuples
to NULL
◼ One of the above options must be specified during
database design for each foreign key constraint
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 41
Possible violations for each operation
◼ UPDATE may violate domain constraint and NOT NULL
constraint on an attribute being modified
◼ Any of the other constraints may also be violated,
depending on the attribute being updated:
◼ Updating the primary key (PK):
◼ Similar to a DELETE followed by an INSERT
◼ Need to specify similar options to DELETE
◼ Updating a foreign key (FK):
◼ May violate referential integrity
◼ Updating an ordinary attribute (neither PK nor FK):
◼ Can only violate domain constraints
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 42
Summary
◼ Presented Relational Model Concepts
◼ Definitions
◼ Characteristics of relations
◼ Discussed Relational Model Constraints and Relational
Database Schemas
◼ Domain constraints’
◼ Key constraints
◼ Entity integrity
◼ Referential integrity
◼ Described the Relational Update Operations and Dealing
with Constraint Violations
Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 43
In-Class Exercise
(Taken from Exercise 5.15)
Consider the following relations for a database that keeps track of student
enrollment in courses and the books adopted for each course:
STUDENT(SSN, Name, Major, Bdate)
COURSE(Course#, Cname, Dept)
ENROLL(SSN, Course#, Quarter, Grade)
BOOK_ADOPTION(Course#, Quarter, Book_ISBN)
TEXT(Book_ISBN, Book_Title, Publisher, Author)
Draw a relational schema diagram specifying the foreign keys for this
schema.

More Related Content

PPTX
ch04-The Relational Data Model and Relational Database Constraints [Compatibi...
PPT
1. UNIT - III.ppt
PPT
Chapter05db
PDF
Chapter05 Data Base Chapter05 Data Base .pdf
PPT
Chapter05 database sytem in computer . ppt
PDF
4 the relational data model and relational database constraints
PPT
ndnbfgdfgdfgModel and Relational Database Constraints.ppt
PPT
ch05-The Relational Data Model and Relational Database Constraints.ppt
ch04-The Relational Data Model and Relational Database Constraints [Compatibi...
1. UNIT - III.ppt
Chapter05db
Chapter05 Data Base Chapter05 Data Base .pdf
Chapter05 database sytem in computer . ppt
4 the relational data model and relational database constraints
ndnbfgdfgdfgModel and Relational Database Constraints.ppt
ch05-The Relational Data Model and Relational Database Constraints.ppt

Similar to ch05-The Relational Data Model and Relational Database Constraints.pdf (20)

PPTX
Upload a presentation to download APPLICATIChapter-02 -
PPTX
4-therelationaldatamodelandrelationaldatabaseconstraints-140128022150-phpapp0...
PPTX
ch05-The Relational Data Model and Relational Database Constraints.ppt.pptx
PDF
The Relational Data Model and Relational Database Constraints
PDF
Relational Model on Database management PPT
PDF
DBMS Unit-2.pdf
PPT
Chapter 5: Database superclass, subclass
PPTX
Module 2 2022 scheme BCS403 database management system
PPTX
relational model.pptx
PPT
ENCh05.ppt
PPTX
Database relational model_unit3_2023 (1).pptx
PPTX
The relational data model part[1]
PDF
Ch3.pdf
DOCX
The Relational Data Model and Relational Database Constraints Ch5 (Navathe 4t...
PPTX
Relation Model Database Pertemuan k.pptx
PPTX
Fundamentals of database system - Relational data model and relational datab...
PPTX
Relational Data Model and Algebra ch2.pptx
PPTX
Relational model
PPTX
The Relational Model
Upload a presentation to download APPLICATIChapter-02 -
4-therelationaldatamodelandrelationaldatabaseconstraints-140128022150-phpapp0...
ch05-The Relational Data Model and Relational Database Constraints.ppt.pptx
The Relational Data Model and Relational Database Constraints
Relational Model on Database management PPT
DBMS Unit-2.pdf
Chapter 5: Database superclass, subclass
Module 2 2022 scheme BCS403 database management system
relational model.pptx
ENCh05.ppt
Database relational model_unit3_2023 (1).pptx
The relational data model part[1]
Ch3.pdf
The Relational Data Model and Relational Database Constraints Ch5 (Navathe 4t...
Relation Model Database Pertemuan k.pptx
Fundamentals of database system - Relational data model and relational datab...
Relational Data Model and Algebra ch2.pptx
Relational model
The Relational Model
Ad

Recently uploaded (20)

PPTX
CYBER-CRIMES AND SECURITY A guide to understanding
PPTX
web development for engineering and engineering
PDF
July 2025 - Top 10 Read Articles in International Journal of Software Enginee...
PPTX
Construction Project Organization Group 2.pptx
PDF
The CXO Playbook 2025 – Future-Ready Strategies for C-Suite Leaders Cerebrai...
PPT
introduction to datamining and warehousing
PDF
SM_6th-Sem__Cse_Internet-of-Things.pdf IOT
PPTX
CH1 Production IntroductoryConcepts.pptx
PDF
Model Code of Practice - Construction Work - 21102022 .pdf
PPTX
Infosys Presentation by1.Riyan Bagwan 2.Samadhan Naiknavare 3.Gaurav Shinde 4...
PDF
TFEC-4-2020-Design-Guide-for-Timber-Roof-Trusses.pdf
PDF
PRIZ Academy - 9 Windows Thinking Where to Invest Today to Win Tomorrow.pdf
PDF
Unit I ESSENTIAL OF DIGITAL MARKETING.pdf
PDF
composite construction of structures.pdf
PDF
Well-logging-methods_new................
PPT
Mechanical Engineering MATERIALS Selection
PPTX
MET 305 2019 SCHEME MODULE 2 COMPLETE.pptx
PDF
Embodied AI: Ushering in the Next Era of Intelligent Systems
PPTX
CARTOGRAPHY AND GEOINFORMATION VISUALIZATION chapter1 NPTE (2).pptx
PDF
Mohammad Mahdi Farshadian CV - Prospective PhD Student 2026
CYBER-CRIMES AND SECURITY A guide to understanding
web development for engineering and engineering
July 2025 - Top 10 Read Articles in International Journal of Software Enginee...
Construction Project Organization Group 2.pptx
The CXO Playbook 2025 – Future-Ready Strategies for C-Suite Leaders Cerebrai...
introduction to datamining and warehousing
SM_6th-Sem__Cse_Internet-of-Things.pdf IOT
CH1 Production IntroductoryConcepts.pptx
Model Code of Practice - Construction Work - 21102022 .pdf
Infosys Presentation by1.Riyan Bagwan 2.Samadhan Naiknavare 3.Gaurav Shinde 4...
TFEC-4-2020-Design-Guide-for-Timber-Roof-Trusses.pdf
PRIZ Academy - 9 Windows Thinking Where to Invest Today to Win Tomorrow.pdf
Unit I ESSENTIAL OF DIGITAL MARKETING.pdf
composite construction of structures.pdf
Well-logging-methods_new................
Mechanical Engineering MATERIALS Selection
MET 305 2019 SCHEME MODULE 2 COMPLETE.pptx
Embodied AI: Ushering in the Next Era of Intelligent Systems
CARTOGRAPHY AND GEOINFORMATION VISUALIZATION chapter1 NPTE (2).pptx
Mohammad Mahdi Farshadian CV - Prospective PhD Student 2026
Ad

ch05-The Relational Data Model and Relational Database Constraints.pdf

  • 1. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 1
  • 2. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Chapter 5 The Relational Data Model and Relational Database Constraints
  • 3. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 3 Chapter Outline ◼ Relational Model Concepts ◼ Relational Model Constraints and Relational Database Schemas ◼ Update Operations and Dealing with Constraint Violations
  • 4. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 4 Relational Model Concepts ◼ The relational Model of Data is based on the concept of a Relation ◼ The strength of the relational approach to data management comes from the formal foundation provided by the theory of relations ◼ We review the essentials of the formal relational model in this chapter ◼ In practice, there is a standard model based on SQL – this is described in Chapters 8 and 9 ◼ Note: There are several important differences between the formal model and the practical model, as we shall see
  • 5. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 5 Relational Model Concepts ◼ A Relation is a mathematical concept based on the ideas of sets ◼ The model was first proposed by Dr. E.F. Codd of IBM Research in 1970 in the following paper: ◼ "A Relational Model for Large Shared Data Banks," Communications of the ACM, June 1970 ◼ The above paper caused a major revolution in the field of database management and earned Dr. Codd the coveted ACM Turing Award
  • 6. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 6 Informal Definitions ◼ Informally, a relation looks like a table of values. ◼ A relation typically contains a set of rows. ◼ The data elements in each row represent certain facts that correspond to a real-world entity or relationship ◼ In the formal model, rows are called tuples ◼ Each column has a column header that gives an indication of the meaning of the data items in that column ◼ In the formal model, the column header is called an attribute name (or just attribute)
  • 7. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 7 Example of a Relation
  • 8. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 8 Informal Definitions ◼ Key of a Relation: ◼ Each row has a value of a data item (or set of items) that uniquely identifies that row in the table ◼ Called the key ◼ In the STUDENT table, SSN is the key ◼ Sometimes row-ids or sequential numbers are assigned as keys to identify the rows in a table ◼ Called artificial key or surrogate key
  • 9. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 9 Formal Definitions - Schema ◼ The Schema (or description) of a Relation: ◼ Denoted by R(A1, A2, .....An) ◼ R is the name of the relation ◼ The attributes of the relation are A1, A2, ..., An ◼ Example: CUSTOMER (Cust-id, Cust-name, Address, Phone#) ◼ CUSTOMER is the relation name ◼ Defined over the four attributes: Cust-id, Cust-name, Address, Phone# ◼ Each attribute has a domain or a set of valid values. ◼ For example, the domain of Cust-id is 6 digit numbers.
  • 10. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 10 Formal Definitions - Tuple ◼ A tuple is an ordered set of values (enclosed in angled brackets ‘< … >’) ◼ Each value is derived from an appropriate domain. ◼ A row in the CUSTOMER relation is a 4-tuple and would consist of four values, for example: ◼ <632895, "John Smith", "101 Main St. Atlanta, GA 30332", "(404) 894-2000"> ◼ This is called a 4-tuple as it has 4 values ◼ A tuple (row) in the CUSTOMER relation. ◼ A relation is a set of such tuples (rows)
  • 11. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 11 Formal Definitions - Domain ◼ A domain has a logical definition: ◼ Example: “USA_phone_numbers” are the set of 10 digit phone numbers valid in the U.S. ◼ A domain also has a data-type or a format defined for it. ◼ The USA_phone_numbers may have a format: (ddd)ddd-dddd where each d is a decimal digit. ◼ Dates have various formats such as year, month, date formatted as yyyy-mm-dd, or as dd mm,yyyy etc. ◼ The attribute name designates the role played by a domain in a relation: ◼ Used to interpret the meaning of the data elements corresponding to that attribute ◼ Example: The domain Date may be used to define two attributes named “Invoice-date” and “Payment-date” with different meanings
  • 12. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 12 Formal Definitions - State ◼ The relation state is a subset of the Cartesian product of the domains of its attributes ◼ each domain contains the set of all possible values the attribute can take. ◼ Example: attribute Cust-name is defined over the domain of character strings of maximum length 25 ◼ dom(Cust-name) is varchar(25) ◼ The role these strings play in the CUSTOMER relation is that of the name of a customer.
  • 13. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 13 Formal Definitions - Summary ◼ Formally, ◼ Given R(A1, A2, .........., An) ◼ r(R)  dom (A1) X dom (A2) X ....X dom(An) ◼ R(A1, A2, …, An) is the schema of the relation ◼ R is the name of the relation ◼ A1, A2, …, An are the attributes of the relation ◼ r(R): a specific state (or "value" or “population”) of relation R – this is a set of tuples (rows) ◼ r(R) = {t1, t2, …, tn} where each ti is an n-tuple ◼ ti = <v1, v2, …, vn> where each vj element-of dom(Aj)
  • 14. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 14 Formal Definitions - Example ◼ Let R(A1, A2) be a relation schema: ◼ Let dom(A1) = {0,1} ◼ Let dom(A2) = {a,b,c} ◼ Then: dom(A1) X dom(A2) is all possible combinations: {<0,a> , <0,b> , <0,c>, <1,a>, <1,b>, <1,c> } ◼ The relation state r(R)  dom(A1) X dom(A2) ◼ For example: r(R) could be {<0,a> , <0,b> , <1,c> } ◼ this is one possible state (or “population” or “extension”) r of the relation R, defined over A1 and A2. ◼ It has three 2-tuples: <0,a> , <0,b> , <1,c>
  • 15. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 15 Definition Summary Informal Terms Formal Terms Table Relation Column Header Attribute All possible Column Values Domain Row Tuple Table Definition Schema of a Relation Populated Table State of the Relation
  • 16. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 16 Example – A relation STUDENT
  • 17. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 17 Characteristics Of Relations ◼ Ordering of tuples in a relation r(R): ◼ The tuples are not considered to be ordered, even though they appear to be in the tabular form. ◼ Ordering of attributes in a relation schema R (and of values within each tuple): ◼ We will consider the attributes in R(A1, A2, ..., An) and the values in t=<v1, v2, ..., vn> to be ordered . ◼ (However, a more general alternative definition of relation does not require this ordering).
  • 18. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 18 Same state as previous Figure (but with different order of tuples)
  • 19. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 19 Characteristics Of Relations ◼ Values in a tuple: ◼ All values are considered atomic (indivisible). ◼ Each value in a tuple must be from the domain of the attribute for that column ◼ If tuple t = <v1, v2, …, vn> is a tuple (row) in the relation state r of R(A1, A2, …, An) ◼ Then each vi must be a value from dom(Ai) ◼ A special null value is used to represent values that are unknown or inapplicable to certain tuples.
  • 20. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 20 Characteristics Of Relations ◼ Notation: ◼ We refer to component values of a tuple t by: ◼ t[Ai] or t.Ai ◼ This is the value vi of attribute Ai for tuple t ◼ Similarly, t[Au, Av, ..., Aw] refers to the subtuple of t containing the values of attributes Au, Av, ..., Aw, respectively in t
  • 21. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 21 Relational Integrity Constraints ◼ Constraints are conditions that must hold on all valid relation states. ◼ There are three main types of constraints in the relational model: ◼ Key constraints ◼ Entity integrity constraints ◼ Referential integrity constraints ◼ Another implicit constraint is the domain constraint ◼ Every value in a tuple must be from the domain of its attribute (or it could be null, if allowed for that attribute)
  • 22. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 22 Key Constraints ◼ Superkey of R: ◼ Is a set of attributes SK of R with the following condition: ◼ No two tuples in any valid relation state r(R) will have the same value for SK ◼ That is, for any distinct tuples t1 and t2 in r(R), t1[SK]  t2[SK] ◼ This condition must hold in any valid state r(R) ◼ Key of R: ◼ A "minimal" superkey ◼ That is, a key is a superkey K such that removal of any attribute from K results in a set of attributes that is not a superkey (does not possess the superkey uniqueness property)
  • 23. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 23 Key Constraints (continued) ◼ Example: Consider the CAR relation schema: ◼ CAR(State, Reg#, SerialNo, Make, Model, Year) ◼ CAR has two keys: ◼ Key1 = {State, Reg#} ◼ Key2 = {SerialNo} ◼ Both are also superkeys of CAR ◼ {SerialNo, Make} is a superkey but not a key. ◼ In general: ◼ Any key is a superkey (but not vice versa) ◼ Any set of attributes that includes a key is a superkey ◼ A minimal superkey is also a key
  • 24. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 24 Key Constraints (continued) ◼ If a relation has several candidate keys, one is chosen arbitrarily to be the primary key. ◼ The primary key attributes are underlined. ◼ Example: Consider the CAR relation schema: ◼ CAR(State, Reg#, SerialNo, Make, Model, Year) ◼ We chose SerialNo as the primary key ◼ The primary key value is used to uniquely identify each tuple in a relation ◼ Provides the tuple identity ◼ Also used to reference the tuple from another tuple ◼ General rule: Choose as primary key the smallest of the candidate keys (in terms of size) ◼ Not always applicable – choice is sometimes subjective
  • 25. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 25 CAR table with two candidate keys – LicenseNumber chosen as Primary Key
  • 26. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 26 Relational Database Schema ◼ Relational Database Schema: ◼ A set S of relation schemas that belong to the same database. ◼ S is the name of the whole database schema ◼ S = {R1, R2, ..., Rn} ◼ R1, R2, …, Rn are the names of the individual relation schemas within the database S ◼ Following slide shows a COMPANY database schema with 6 relation schemas
  • 27. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 27 COMPANY Database Schema
  • 28. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 28 Entity Integrity ◼ Entity Integrity: ◼ The primary key attributes PK of each relation schema R in S cannot have null values in any tuple of r(R). ◼ This is because primary key values are used to identify the individual tuples. ◼ t[PK]  null for any tuple t in r(R) ◼ If PK has several attributes, null is not allowed in any of these attributes ◼ Note: Other attributes of R may be constrained to disallow null values, even though they are not members of the primary key.
  • 29. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 29 Referential Integrity ◼ A constraint involving two relations ◼ The previous constraints involve a single relation. ◼ Used to specify a relationship among tuples in two relations: ◼ The referencing relation and the referenced relation.
  • 30. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 30 Referential Integrity ◼ Tuples in the referencing relation R1 have attributes FK (called foreign key attributes) that reference the primary key attributes PK of the referenced relation R2. ◼ A tuple t1 in R1 is said to reference a tuple t2 in R2 if t1[FK] = t2[PK]. ◼ A referential integrity constraint can be displayed in a relational database schema as a directed arc from R1.FK to R2.
  • 31. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 31 Referential Integrity (or foreign key) Constraint ◼ Statement of the constraint ◼ The value in the foreign key column (or columns) FK of the the referencing relation R1 can be either: ◼ (1) a value of an existing primary key value of a corresponding primary key PK in the referenced relation R2, or ◼ (2) a null. ◼ In case (2), the FK in R1 should not be a part of its own primary key.
  • 32. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 32 Displaying a relational database schema and its constraints ◼ Each relation schema can be displayed as a row of attribute names ◼ The name of the relation is written above the attribute names ◼ The primary key attribute (or attributes) will be underlined ◼ A foreign key (referential integrity) constraints is displayed as a directed arc (arrow) from the foreign key attributes to the referenced table ◼ Can also point the the primary key of the referenced relation for clarity ◼ Next slide shows the COMPANY relational schema diagram
  • 33. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 33 Referential Integrity Constraints for COMPANY database
  • 34. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 34 Other Types of Constraints ◼ Semantic Integrity Constraints: ◼ based on application semantics and cannot be expressed by the model per se ◼ Example: “the max. no. of hours per employee for all projects he or she works on is 56 hrs per week” ◼ A constraint specification language may have to be used to express these ◼ SQL-99 allows triggers and ASSERTIONS to express for some of these
  • 35. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 35 Populated database state ◼ Each relation will have many tuples in its current relation state ◼ The relational database state is a union of all the individual relation states ◼ Whenever the database is changed, a new state arises ◼ Basic operations for changing the database: ◼ INSERT a new tuple in a relation ◼ DELETE an existing tuple from a relation ◼ MODIFY an attribute of an existing tuple ◼ Next slide shows an example state for the COMPANY database
  • 36. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 36 Populated database state for COMPANY
  • 37. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 37 Update Operations on Relations ◼ INSERT a tuple. ◼ DELETE a tuple. ◼ MODIFY a tuple. ◼ Integrity constraints should not be violated by the update operations. ◼ Several update operations may have to be grouped together. ◼ Updates may propagate to cause other updates automatically. This may be necessary to maintain integrity constraints.
  • 38. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 38 Update Operations on Relations ◼ In case of integrity violation, several actions can be taken: ◼ Cancel the operation that causes the violation (RESTRICT or REJECT option) ◼ Perform the operation but inform the user of the violation ◼ Trigger additional updates so the violation is corrected (CASCADE option, SET NULL option) ◼ Execute a user-specified error-correction routine
  • 39. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 39 Possible violations for each operation ◼ INSERT may violate any of the constraints: ◼ Domain constraint: ◼ if one of the attribute values provided for the new tuple is not of the specified attribute domain ◼ Key constraint: ◼ if the value of a key attribute in the new tuple already exists in another tuple in the relation ◼ Referential integrity: ◼ if a foreign key value in the new tuple references a primary key value that does not exist in the referenced relation ◼ Entity integrity: ◼ if the primary key value is null in the new tuple
  • 40. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 40 Possible violations for each operation ◼ DELETE may violate only referential integrity: ◼ If the primary key value of the tuple being deleted is referenced from other tuples in the database ◼ Can be remedied by several actions: RESTRICT, CASCADE, SET NULL (see Chapter 8 for more details) ◼ RESTRICT option: reject the deletion ◼ CASCADE option: propagate the new primary key value into the foreign keys of the referencing tuples ◼ SET NULL option: set the foreign keys of the referencing tuples to NULL ◼ One of the above options must be specified during database design for each foreign key constraint
  • 41. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 41 Possible violations for each operation ◼ UPDATE may violate domain constraint and NOT NULL constraint on an attribute being modified ◼ Any of the other constraints may also be violated, depending on the attribute being updated: ◼ Updating the primary key (PK): ◼ Similar to a DELETE followed by an INSERT ◼ Need to specify similar options to DELETE ◼ Updating a foreign key (FK): ◼ May violate referential integrity ◼ Updating an ordinary attribute (neither PK nor FK): ◼ Can only violate domain constraints
  • 42. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 42 Summary ◼ Presented Relational Model Concepts ◼ Definitions ◼ Characteristics of relations ◼ Discussed Relational Model Constraints and Relational Database Schemas ◼ Domain constraints’ ◼ Key constraints ◼ Entity integrity ◼ Referential integrity ◼ Described the Relational Update Operations and Dealing with Constraint Violations
  • 43. Copyright © 2007 Ramez Elmasri and Shamkant B. Navathe Slide 5- 43 In-Class Exercise (Taken from Exercise 5.15) Consider the following relations for a database that keeps track of student enrollment in courses and the books adopted for each course: STUDENT(SSN, Name, Major, Bdate) COURSE(Course#, Cname, Dept) ENROLL(SSN, Course#, Quarter, Grade) BOOK_ADOPTION(Course#, Quarter, Book_ISBN) TEXT(Book_ISBN, Book_Title, Publisher, Author) Draw a relational schema diagram specifying the foreign keys for this schema.
