Chapter 12: Indexing and Hashing Database System Concepts, 5th Ed . ©Silberschatz, Korth and Sudarshan See www.db-book.com for conditions on re-use Rev. Sep 17, 2008

Chapter 12: Indexing and Hashing Basic Concepts Ordered Indices B + -Tree Index Files B-Tree Index Files Static Hashing Dynamic Hashing Comparison of Ordered Indexing and Hashing Index Definition in SQL Multiple-Key Access 12.2 Database System Concepts - 5 th Edition.

Basic Concepts Indexing mechanisms used to speed up access to desired data. E.g., author catalog in library Search Key - attribute to set of attributes used to look up records in a file. An index file consists of records (called index entries ) of the form Index files are typically much smaller than the original file Two basic kinds of indices: Ordered indices: search keys are stored in sorted order Hash indices: search keys are distributed uniformly across “buckets” using a “hash function”. 12.3 Database System Concepts - 5 th Edition. search-key pointer

Index Evaluation Metrics Access types supported efficiently. E.g., records with a specified value in the attribute or records with an attribute value falling in a specified range of values (e.g. 10000 < salary < 40000) Access time Insertion time Deletion time Space overhead 12.4 Database System Concepts - 5 th Edition.

Ordered Indices In an ordered index , index entries are stored sorted on the search key value. E.g., author catalog in library. Primary index : in a sequentially ordered file, the index whose search key specifies the sequential order of the file. Also called clustering index The search key of a primary index is usually but not necessarily the primary key. Secondary index : an index whose search key specifies an order different from the sequential order of the file. Also called non-clustering index . Index-sequential file : ordered sequential file with a primary index. 12.5 Database System Concepts - 5 th Edition.

Dense Index Files Dense index — Index record appears for every search-key value in the file. 12.6 Database System Concepts - 5 th Edition.

Sparse Index Files Sparse Index : contains index records for only some search-key values. Applicable when records are sequentially ordered on search-key To locate a record with search-key value K we: Find index record with largest search-key value < K Search file sequentially starting at the record to which the index record points 12.7 Database System Concepts - 5 th Edition.

Sparse Index Files (Cont.) Compared to dense indices: Less space and less maintenance overhead for insertions and deletions. Generally slower than dense index for locating records. Good tradeoff : sparse index with an index entry for every block in file, corresponding to least search-key value in the block. 12.8 Database System Concepts - 5 th Edition.

Multilevel Index If primary index does not fit in memory, access becomes expensive. Solution: treat primary index kept on disk as a sequential file and construct a sparse index on it. outer index – a sparse index of primary index inner index – the primary index file If even outer index is too large to fit in main memory, yet another level of index can be created, and so on. Indices at all levels must be updated on insertion or deletion from the file. 12.9 Database System Concepts - 5 th Edition.

Multilevel Index (Cont.) 12.10 Database System Concepts - 5 th Edition.

Index Update: Record Deletion If deleted record was the only record in the file with its particular search-key value, the search-key is deleted from the index also. Single-level index deletion: Dense indices – deletion of search-key: similar to file record deletion. Sparse indices – if deleted key value exists in the index, the value is replaced by the next search-key value in the file (in search-key order). If the next search-key value already has an index entry, the entry is deleted instead of being replaced. 12.11 Database System Concepts - 5 th Edition.

Index Update: Record Insertion Single-level index insertion: Perform a lookup using the key value from inserted record Dense indices – if the search-key value does not appear in the index, insert it. Sparse indices – if index stores an entry for each block of the file, no change needs to be made to the index unless a new block is created. If a new block is created, the first search-key value appearing in the new block is inserted into the index. Multilevel insertion (as well as deletion) algorithms are simple extensions of the single-level algorithms 12.12 Database System Concepts - 5 th Edition.

Secondary Indices Example Index record points to a bucket that contains pointers to all the actual records with that particular search-key value. Secondary indices have to be dense 12.13 Database System Concepts - 5 th Edition. Secondary index on balance field of account

Primary and Secondary Indices Indices offer substantial benefits when searching for records. BUT: Updating indices imposes overhead on database modification --when a file is modified, every index on the file must be updated, Sequential scan using primary index is efficient, but a sequential scan using a secondary index is expensive Each record access may fetch a new block from disk Block fetch requires about 5 to 10 micro seconds, versus about 100 nanoseconds for memory access 12.14 Database System Concepts - 5 th Edition.

B + -Tree Index Files Disadvantage of indexed-sequential files performance degrades as file grows, since many overflow blocks get created. Periodic reorganization of entire file is required. Advantage of B + -tree index files: automatically reorganizes itself with small, local, changes, in the face of insertions and deletions. Reorganization of entire file is not required to maintain performance. (Minor) disadvantage of B + -trees: extra insertion and deletion overhead, space overhead. Advantages of B + -trees outweigh disadvantages B + -trees are used extensively 12.15 Database System Concepts - 5 th Edition. B + -tree indices are an alternative to indexed-sequential files.

B + -Tree Index Files (Cont.) All paths from root to leaf are of the same length Each node that is not a root or a leaf has between  n /2 and n children. A leaf node has between ( n –1)/2 and n –1 values Special cases: If the root is not a leaf, it has at least 2 children. If the root is a leaf (that is, there are no other nodes in the tree), it can have between 0 and ( n –1) values. 12.16 Database System Concepts - 5 th Edition. A B + -tree is a rooted tree satisfying the following properties:

B + -Tree Node Structure Typical node K i are the search-key values P i are pointers to children (for non-leaf nodes) or pointers to records or buckets of records (for leaf nodes). The search-keys in a node are ordered K 1 < K 2 < K 3 < . . . < K n– 1 12.17 Database System Concepts - 5 th Edition.

Leaf Nodes in B + -Trees For i = 1, 2, . . ., n– 1, pointer P i either points to a file record with search-key value K i , or to a bucket of pointers to file records, each record having search-key value K i . Only need bucket structure if search-key does not form a primary key. If L i , L j are leaf nodes and i < j, L i ’s search-key values are less than L j ’s search-key values P n points to next leaf node in search-key order 12.18 Database System Concepts - 5 th Edition. Properties of a leaf node:

Non-Leaf Nodes in B + -Trees Non leaf nodes form a multi-level sparse index on the leaf nodes. For a non-leaf node with m pointers: All the search-keys in the subtree to which P 1 points are less than K 1 For 2  i  n – 1, all the search-keys in the subtree to which P i points have values greater than or equal to K i –1 and less than K i All the search-keys in the subtree to which P n points have values greater than or equal to K n –1 12.19 Database System Concepts - 5 th Edition.

Example of a B + -tree 12.20 Database System Concepts - 5 th Edition. B + -tree for account file ( n = 3)

Example of B + -tree Leaf nodes must have between 2 and 4 values (( n –1)/2 and n –1, with n = 5). Non-leaf nodes other than root must have between 3 and 5 children (( n /2 and n with n =5). Root must have at least 2 children. 12.21 Database System Concepts - 5 th Edition. B + -tree for account file ( n = 5)

Observations about B + -trees Since the inter-node connections are done by pointers, “logically” close blocks need not be “physically” close. The non-leaf levels of the B + -tree form a hierarchy of sparse indices. The B + -tree contains a relatively small number of levels Level below root has at least 2* n/2 values Next level has at least 2* n/2 * n/2 values .. etc. If there are K search-key values in the file, the tree height is no more than  log  n /2 ( K ) thus searches can be conducted efficiently. Insertions and deletions to the main file can be handled efficiently, as the index can be restructured in logarithmic time (as we shall see). 12.22 Database System Concepts - 5 th Edition.

Queries on B + -Trees Find all records with a search-key value of k. N=root Repeat Examine N for the smallest search-key value > k. If such a value exists, assume it is K i . Then set N = P i Otherwise k  K n –1 . Set N = P n Until N is a leaf node If for some i , key K i = k follow pointer P i to the desired record or bucket. Else no record with search-key value k exists. 12.23 Database System Concepts - 5 th Edition.

Queries on B +- Trees (Cont.) If there are K search-key values in the file, the height of the tree is no more than log  n /2 ( K ). A node is generally the same size as a disk block, typically 4 kilobytes and n is typically around 100 (40 bytes per index entry). With 1 million search key values and n = 100 at most log 50 (1,000,000) = 4 nodes are accessed in a lookup. Contrast this with a balanced binary tree with 1 million search key values — around 20 nodes are accessed in a lookup above difference is significant since every node access may need a disk I/O, costing around 20 milliseconds 12.24 Database System Concepts - 5 th Edition.

Updates on B + -Trees: Insertion Find the leaf node in which the search-key value would appear If the search-key value is already present in the leaf node Add record to the file If the search-key value is not present, then add the record to the main file (and create a bucket if necessary) If there is room in the leaf node, insert (key-value, pointer) pair in the leaf node Otherwise, split the node (along with the new (key-value, pointer) entry) as discussed in the next slide. 12.25 Database System Concepts - 5 th Edition.

Updates on B + -Trees: Insertion (Cont.) Splitting a leaf node: take the n (search-key value, pointer) pairs (including the one being inserted) in sorted order. Place the first  n /2 in the original node, and the rest in a new node. let the new node be p, and let k be the least key value in p. Insert ( k,p ) in the parent of the node being split. If the parent is full, split it and propagate the split further up. Splitting of nodes proceeds upwards till a node that is not full is found. In the worst case the root node may be split increasing the height of the tree by 1. 12.26 Database System Concepts - 5 th Edition. Result of splitting node containing Brighton and Downtown on inserting Clearview Next step: insert entry with (Downtown,pointer-to-new-node) into parent

Updates on B + -Trees: Insertion (Cont.) 12.27 Database System Concepts - 5 th Edition. B + -Tree before and after insertion of “Clearview”

Insertion in B + -Trees (Cont.) Splitting a non-leaf node: when inserting (k,p) into an already full internal node N Copy N to an in-memory area M with space for n+1 pointers and n keys Insert (k,p) into M Copy P 1 ,K 1 , …, K n/2-1 ,P n/2 from M back into node N Copy P n/2+1 ,K n/2+1 ,…,K n ,P n+1 from M into newly allocated node N’ Insert (K n/2 ,N’) into parent N Read pseudocode in book! 12.28 Database System Concepts - 5 th Edition. Redwood Downtown Mianus Perryridge Downtown Mianus

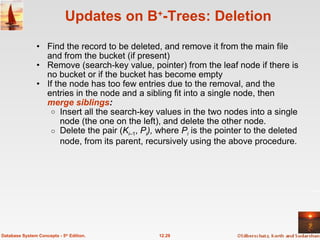

Updates on B + -Trees: Deletion Find the record to be deleted, and remove it from the main file and from the bucket (if present) Remove (search-key value, pointer) from the leaf node if there is no bucket or if the bucket has become empty If the node has too few entries due to the removal, and the entries in the node and a sibling fit into a single node, then merge siblings : Insert all the search-key values in the two nodes into a single node (the one on the left), and delete the other node. Delete the pair ( K i– 1 , P i ), where P i is the pointer to the deleted node, from its parent, recursively using the above procedure. 12.29 Database System Concepts - 5 th Edition.

Updates on B + -Trees: Deletion Otherwise, if the node has too few entries due to the removal, but the entries in the node and a sibling do not fit into a single node, then redistribute pointers : Redistribute the pointers between the node and a sibling such that both have more than the minimum number of entries. Update the corresponding search-key value in the parent of the node. The node deletions may cascade upwards till a node which has  n/2  or more pointers is found. If the root node has only one pointer after deletion, it is deleted and the sole child becomes the root. 12.30 Database System Concepts - 5 th Edition.

Examples of B + -Tree Deletion Deleting “Downtown” causes merging of under-full leaves leaf node can become empty only for n=3! 12.31 Database System Concepts - 5 th Edition. Before and after deleting “Downtown ”

Examples of B + -Tree Deletion (Cont.) 12.32 Database System Concepts - 5 th Edition. Before and After deletion of “Perryridge” from result of previous example

Examples of B + -Tree Deletion (Cont.) Leaf with “Perryridge” becomes underfull (actually empty, in this special case) and merged with its sibling. As a result “Perryridge” node’s parent became underfull, and was merged with its sibling Value separating two nodes (at parent) moves into merged node Entry deleted from parent Root node then has only one child, and is deleted 12.33 Database System Concepts - 5 th Edition.

Example of B + -tree Deletion (Cont.) Parent of leaf containing Perryridge became underfull, and borrowed a pointer from its left sibling Search-key value in the parent’s parent changes as a result 12.34 Database System Concepts - 5 th Edition. Before and after deletion of “Perryridge” from earlier example

B + -Tree File Organization Index file degradation problem is solved by using B + -Tree indices. Data file degradation problem is solved by using B + -Tree File Organization. The leaf nodes in a B + -tree file organization store records, instead of pointers. Leaf nodes are still required to be half full Since records are larger than pointers, the maximum number of records that can be stored in a leaf node is less than the number of pointers in a nonleaf node. Insertion and deletion are handled in the same way as insertion and deletion of entries in a B + -tree index. 12.35 Database System Concepts - 5 th Edition.

B + -Tree File Organization (Cont.) Good space utilization important since records use more space than pointers. To improve space utilization, involve more sibling nodes in redistribution during splits and merges Involving 2 siblings in redistribution (to avoid split / merge where possible) results in each node having at least entries 12.36 Database System Concepts - 5 th Edition. Example of B + -tree File Organization

Indexing Strings Variable length strings as keys Variable fanout Use space utilization as criterion for splitting, not number of pointers Prefix compression Key values at internal nodes can be prefixes of full key Keep enough characters to distinguish entries in the subtrees separated by the key value E.g. “Silas” and “Silberschatz” can be separated by “Silb” Keys in leaf node can be compressed by sharing common prefixes 12.37 Database System Concepts - 5 th Edition.

B-Tree Index Files Nonleaf node – pointers Bi are the bucket or file record pointers. 12.38 Database System Concepts - 5 th Edition. Similar to B+-tree, but B-tree allows search-key values to appear only once; eliminates redundant storage of search keys. Search keys in nonleaf nodes appear nowhere else in the B-tree; an additional pointer field for each search key in a nonleaf node must be included. Generalized B-tree leaf node

B-Tree Index File Example B-tree (above) and B+-tree (below) on same data 12.39 Database System Concepts - 5 th Edition.

B-Tree Index Files (Cont.) Advantages of B-Tree indices: May use less tree nodes than a corresponding B + -Tree. Sometimes possible to find search-key value before reaching leaf node. Disadvantages of B-Tree indices: Only small fraction of all search-key values are found early Non-leaf nodes are larger, so fan-out is reduced. Thus, B-Trees typically have greater depth than corresponding B + -Tree Insertion and deletion more complicated than in B + -Trees Implementation is harder than B + -Trees. Typically, advantages of B-Trees do not out weigh disadvantages. 12.40 Database System Concepts - 5 th Edition.

Multiple-Key Access Use multiple indices for certain types of queries. Example: select account_number from account where branch_name = “Perryridge” and balance = 1000 Possible strategies for processing query using indices on single attributes: 1. Use index on branch_name to find accounts with branch name Perryridge; test balance = 1000 2. Use index on balance to find accounts with balances of $1000; test branch_name = “Perryridge”. 3. Use branch_name index to find pointers to all records pertaining to the Perryridge branch. Similarly use index on balance . Take intersection of both sets of pointers obtained. 12.41 Database System Concepts - 5 th Edition.

Indices on Multiple Keys Composite search keys are search keys containing more than one attribute E.g. ( branch_name, balance ) Lexicographic ordering: (a 1 , a 2 ) < (b 1 , b 2 ) if either a 1 < b 1 , or a 1 =b 1 and a 2 < b 2 12.42 Database System Concepts - 5 th Edition.

Indices on Multiple Attributes For where branch_name = “Perryridge” and balance = 1000 the index on ( branch_name, balance ) can be used to fetch only records that satisfy both conditions. Using separate indices in less efficient — we may fetch many records (or pointers) that satisfy only one of the conditions. Can also efficiently handle where branch_name = “Perryridge” and balance < 1000 But cannot efficiently handle where branch_name < “Perryridge” and balance = 1000 May fetch many records that satisfy the first but not the second condition 12.43 Database System Concepts - 5 th Edition. Suppose we have an index on combined search-key ( branch_name, balance ).

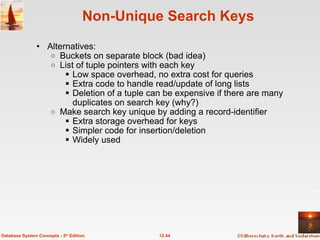

Non-Unique Search Keys Alternatives: Buckets on separate block (bad idea) List of tuple pointers with each key Low space overhead, no extra cost for queries Extra code to handle read/update of long lists Deletion of a tuple can be expensive if there are many duplicates on search key (why?) Make search key unique by adding a record-identifier Extra storage overhead for keys Simpler code for insertion/deletion Widely used 12.44 Database System Concepts - 5 th Edition.

Other Issues in Indexing Covering indices Add extra attributes to index so (some) queries can avoid fetching the actual records Particularly useful for secondary indices Why? Can store extra attributes only at leaf Record relocation and secondary indices If a record moves, all secondary indices that store record pointers have to be updated Node splits in B + -tree file organizations become very expensive Solution : use primary-index search key instead of record pointer in secondary index Extra traversal of primary index to locate record Higher cost for queries, but node splits are cheap Add record-id if primary-index search key is non-unique 12.45 Database System Concepts - 5 th Edition.

Hashing Database System Concepts, 5th Ed . ©Silberschatz, Korth and Sudarshan See www.db-book.com for conditions on re-use

Static Hashing A bucket is a unit of storage containing one or more records (a bucket is typically a disk block). In a hash file organization we obtain the bucket of a record directly from its search-key value using a hash function. Hash function h is a function from the set of all search-key values K to the set of all bucket addresses B. Hash function is used to locate records for access, insertion as well as deletion. Records with different search-key values may be mapped to the same bucket; thus entire bucket has to be searched sequentially to locate a record. 12.47 Database System Concepts - 5 th Edition.

Example of Hash File Organization There are 10 buckets, The binary representation of the i th character is assumed to be the integer i. The hash function returns the sum of the binary representations of the characters modulo 10 E.g. h(Perryridge) = 5 h(Round Hill) = 3 h(Brighton) = 3 12.48 Database System Concepts - 5 th Edition. Hash file organization of account file, using branch_name as key (See figure in next slide.)

Example of Hash File Organization 12.49 Database System Concepts - 5 th Edition. Hash file organization of account file, using branch_name as key (see previous slide for details).

Hash Functions Worst hash function maps all search-key values to the same bucket; this makes access time proportional to the number of search-key values in the file. An ideal hash function is uniform , i.e., each bucket is assigned the same number of search-key values from the set of all possible values. Ideal hash function is random , so each bucket will have the same number of records assigned to it irrespective of the actual distribution of search-key values in the file. Typical hash functions perform computation on the internal binary representation of the search-key. For example, for a string search-key, the binary representations of all the characters in the string could be added and the sum modulo the number of buckets could be returned. . 12.50 Database System Concepts - 5 th Edition.

Handling of Bucket Overflows Bucket overflow can occur because of Insufficient buckets Skew in distribution of records. This can occur due to two reasons: multiple records have same search-key value chosen hash function produces non-uniform distribution of key values Although the probability of bucket overflow can be reduced, it cannot be eliminated; it is handled by using overflow buckets . 12.51 Database System Concepts - 5 th Edition.

Handling of Bucket Overflows (Cont.) Overflow chaining – the overflow buckets of a given bucket are chained together in a linked list. Above scheme is called closed hashing . An alternative, called open hashing , which does not use overflow buckets, is not suitable for database applications. 12.52 Database System Concepts - 5 th Edition.

Hash Indices Hashing can be used not only for file organization, but also for index-structure creation. A hash index organizes the search keys, with their associated record pointers, into a hash file structure. Strictly speaking, hash indices are always secondary indices if the file itself is organized using hashing, a separate primary hash index on it using the same search-key is unnecessary. However, we use the term hash index to refer to both secondary index structures and hash organized files. 12.53 Database System Concepts - 5 th Edition.

Example of Hash Index 12.54 Database System Concepts - 5 th Edition.

Deficiencies of Static Hashing In static hashing, function h maps search-key values to a fixed set of B of bucket addresses. Databases grow or shrink with time. If initial number of buckets is too small, and file grows, performance will degrade due to too much overflows. If space is allocated for anticipated growth, a significant amount of space will be wasted initially (and buckets will be underfull). If database shrinks, again space will be wasted. One solution: periodic re-organization of the file with a new hash function Expensive, disrupts normal operations Better solution: allow the number of buckets to be modified dynamically. 12.55 Database System Concepts - 5 th Edition.

Dynamic Hashing Good for database that grows and shrinks in size Allows the hash function to be modified dynamically Extendable hashing – one form of dynamic hashing Hash function generates values over a large range — typically b -bit integers, with b = 32. At any time use only a prefix of the hash function to index into a table of bucket addresses. Let the length of the prefix be i bits, 0  i  32. Bucket address table size = 2 i. Initially i = 0 Value of i grows and shrinks as the size of the database grows and shrinks. Multiple entries in the bucket address table may point to a bucket (why?) Thus, actual number of buckets is < 2 i The number of buckets also changes dynamically due to coalescing and splitting of buckets. 12.56 Database System Concepts - 5 th Edition.

General Extendable Hash Structure 12.57 Database System Concepts - 5 th Edition. In this structure, i 2 = i 3 = i , whereas i 1 = i – 1 (see next slide for details)

Use of Extendable Hash Structure Each bucket j stores a value i j A ll the entries that point to the same bucket have the same values on the first i j bits. To locate the bucket containing search-key K j : 1. Compute h(K j ) = X 2. Use the first i high order bits of X as a displacement into bucket address table, and follow the pointer to appropriate bucket To insert a record with search-key value K j follow same procedure as look-up and locate the bucket, say j . If there is room in the bucket j insert record in the bucket. Else the bucket must be split and insertion re-attempted (next slide.) Overflow buckets used instead in some cases (will see shortly) 12.58 Database System Concepts - 5 th Edition.

Insertion in Extendable Hash Structure (Cont) If i > i j (more than one pointer to bucket j ) allocate a new bucket z , and set i j = i z = ( i j + 1) Update the second half of the bucket address table entries originally pointing to j, to point to z remove each record in bucket j and reinsert (in j or z ) recompute new bucket for K j and insert record in the bucket (further splitting is required if the bucket is still full) If i = i j (only one pointer to bucket j ) If i reaches some limit b , or too many splits have happened in this insertion, create an overflow bucket Else increment i and double the size of the bucket address table. replace each entry in the table by two entries that point to the same bucket. recompute new bucket address table entry for K j Now i > i j so use the first case above. 12.59 Database System Concepts - 5 th Edition. To split a bucket j when inserting record with search-key value K j :

Deletion in Extendable Hash Structure To delete a key value, locate it in its bucket and remove it. The bucket itself can be removed if it becomes empty (with appropriate updates to the bucket address table). Coalescing of buckets can be done (can coalesce only with a “ buddy ” bucket having same value of i j and same i j –1 prefix, if it is present) Decreasing bucket address table size is also possible Note: decreasing bucket address table size is an expensive operation and should be done only if number of buckets becomes much smaller than the size of the table 12.60 Database System Concepts - 5 th Edition.

Use of Extendable Hash Structure: Example 12.61 Database System Concepts - 5 th Edition. Initial Hash structure, bucket size = 2

Example (Cont.) Hash structure after insertion of one Brighton and two Downtown records 12.62 Database System Concepts - 5 th Edition.

Example (Cont.) 12.63 Database System Concepts - 5 th Edition. Hash structure after insertion of Mianus record

Example (Cont.) 12.64 Database System Concepts - 5 th Edition. Hash structure after insertion of three Perryridge records

Example (Cont.) Hash structure after insertion of Redwood and Round Hill records 12.65 Database System Concepts - 5 th Edition.

Extendable Hashing vs. Other Schemes Benefits of extendable hashing: Hash performance does not degrade with growth of file Minimal space overhead Disadvantages of extendable hashing Extra level of indirection to find desired record Bucket address table may itself become very big (larger than memory) Cannot allocate very large contiguous areas on disk either Solution: B + -tree file organization to store bucket address table Changing size of bucket address table is an expensive operation Linear hashing is an alternative mechanism Allows incremental growth of its directory (equivalent to bucket address table) At the cost of more bucket overflows 12.66 Database System Concepts - 5 th Edition.

Comparison of Ordered Indexing and Hashing Cost of periodic re-organization Relative frequency of insertions and deletions Is it desirable to optimize average access time at the expense of worst-case access time? Expected type of queries: Hashing is generally better at retrieving records having a specified value of the key. If range queries are common, ordered indices are to be preferred In practice: PostgreSQL supports hash indices, but discourages use due to poor performance Oracle supports static hash organization, but not hash indices SQLServer supports only B + -trees 12.67 Database System Concepts - 5 th Edition.

Bitmap Indices Bitmap indices are a special type of index designed for efficient querying on multiple keys Records in a relation are assumed to be numbered sequentially from, say, 0 Given a number n it must be easy to retrieve record n Particularly easy if records are of fixed size Applicable on attributes that take on a relatively small number of distinct values E.g. gender, country, state, … E.g. income-level (income broken up into a small number of levels such as 0-9999, 10000-19999, 20000-50000, 50000- infinity) A bitmap is simply an array of bits 12.68 Database System Concepts - 5 th Edition.

Bitmap Indices (Cont.) In its simplest form a bitmap index on an attribute has a bitmap for each value of the attribute Bitmap has as many bits as records In a bitmap for value v, the bit for a record is 1 if the record has the value v for the attribute, and is 0 otherwise 12.69 Database System Concepts - 5 th Edition.

Bitmap Indices (Cont.) Bitmap indices are useful for queries on multiple attributes not particularly useful for single attribute queries Queries are answered using bitmap operations Intersection (and) Union (or) Complementation (not) Each operation takes two bitmaps of the same size and applies the operation on corresponding bits to get the result bitmap E.g. 100110 AND 110011 = 100010 100110 OR 110011 = 110111 NOT 100110 = 011001 Males with income level L1: 10010 AND 10100 = 10000 Can then retrieve required tuples. Counting number of matching tuples is even faster 12.70 Database System Concepts - 5 th Edition.

Bitmap Indices (Cont.) Bitmap indices generally very small compared with relation size E.g. if record is 100 bytes, space for a single bitmap is 1/800 of space used by relation. If number of distinct attribute values is 8, bitmap is only 1% of relation size Deletion needs to be handled properly Existence bitmap to note if there is a valid record at a record location Needed for complementation not( A=v ): (NOT bitmap-A-v) AND ExistenceBitmap Should keep bitmaps for all values, even null value To correctly handle SQL null semantics for NOT( A=v ): intersect above result with (NOT bitmap-A-Null ) 12.71 Database System Concepts - 5 th Edition.

Efficient Implementation of Bitmap Operations Bitmaps are packed into words; a single word and (a basic CPU instruction) computes and of 32 or 64 bits at once E.g. 1-million-bit maps can be and-ed with just 31,250 instruction Counting number of 1s can be done fast by a trick: Use each byte to index into a precomputed array of 256 elements each storing the count of 1s in the binary representation Can use pairs of bytes to speed up further at a higher memory cost Add up the retrieved counts Bitmaps can be used instead of Tuple-ID lists at leaf levels of B + -trees, for values that have a large number of matching records Worthwhile if > 1/64 of the records have that value, assuming a tuple-id is 64 bits Above technique merges benefits of bitmap and B + -tree indices 12.72 Database System Concepts - 5 th Edition.

Index Definition in SQL Create an index create index <index-name> on <relation-name> (<attribute-list>) E.g.: create index b-index on branch(branch_name) Use create unique index to indirectly specify and enforce the condition that the search key is a candidate key is a candidate key. Not really required if SQL unique integrity constraint is supported To drop an index drop index <index-name> Most database systems allow specification of type of index, and clustering. 12.73 Database System Concepts - 5 th Edition.

End of Chapter Database System Concepts, 5th Ed . ©Silberschatz, Korth and Sudarshan See www.db-book.com for conditions on re-use

Partitioned Hashing Hash values are split into segments that depend on each attribute of the search-key. ( A 1 , A 2 , . . . , A n ) for n attribute search-key Example: n = 2, for customer, search-key being ( customer-street, customer-city ) search-key value hash value (Main, Harrison) 101 111 (Main, Brooklyn) 101 001 (Park, Palo Alto) 010 010 (Spring, Brooklyn) 001 001 (Alma, Palo Alto) 110 010 To answer equality query on single attribute, need to look up multiple buckets. Similar in effect to grid files. 12.75 Database System Concepts - 5 th Edition.

Sequential File For account Records 12.76 Database System Concepts - 5 th Edition.

Sample account File 12.77 Database System Concepts - 5 th Edition.

Figure 12.2 12.78 Database System Concepts - 5 th Edition.

Grid Files Structure used to speed the processing of general multiple search-key queries involving one or more comparison operators. The grid file has a single grid array and one linear scale for each search-key attribute. The grid array has number of dimensions equal to number of search-key attributes. Multiple cells of grid array can point to same bucket To find the bucket for a search-key value, locate the row and column of its cell using the linear scales and follow pointer 12.81 Database System Concepts - 5 th Edition.

Example Grid File for account 12.82 Database System Concepts - 5 th Edition.

Queries on a Grid File A grid file on two attributes A and B can handle queries of all following forms with reasonable efficiency ( a 1  A  a 2 ) ( b 1  B  b 2 ) ( a 1  A  a 2  b 1  B  b 2 ),. E.g., to answer ( a 1  A  a 2  b 1  B  b 2 ), use linear scales to find corresponding candidate grid array cells, and look up all the buckets pointed to from those cells. 12.83 Database System Concepts - 5 th Edition.

Grid Files (Cont.) During insertion, if a bucket becomes full, new bucket can be created if more than one cell points to it. Idea similar to extendable hashing, but on multiple dimensions If only one cell points to it, either an overflow bucket must be created or the grid size must be increased Linear scales must be chosen to uniformly distribute records across cells. Otherwise there will be too many overflow buckets. Periodic re-organization to increase grid size will help. But reorganization can be very expensive. Space overhead of grid array can be high. R-trees (Chapter 23) are an alternative 12.84 Database System Concepts - 5 th Edition.
