![7
Digital Logic Circuits
Computer Organization Computer Architectures Lab
BASIC IDENTITIES OF BOOLEAN ALGEBRA
[1] x + 0 = x
[3] x + 1 = 1
[5] x + x = x
[7] x + x’ = 1
[9] x + y = y + x
[11] x + (y + z) = (x + y) + z
[13] x(y + z) = xy +xz
[15] (x + y)’ = x’y’
[17] (x’)’ = x
[2] x • 0 = 0
[4] x • 1 = x
[6] x • x = x
[8] x • X’ = 0
[10] xy = yx
[12] x(yz) = (xy)z
[14] x + yz = (x + y)(x + z)
[16] (xy)’ = x’ + y’
[15] and [16] : De Morgan’s Theorem
Usefulness of this Table
- Simplification of the Boolean function
- Derivation of equivalent Boolean functions
to obtain logic diagrams utilizing different logic gates
-- Ordinarily ANDs, ORs, and Inverters
-- But a certain different form of Boolean function may be convenient
to obtain circuits with NANDs or NORs
→ Applications of De Morgans Theorem
x’y’ = (x + y)’ x’+ y’= (xy)’
I, AND → NOR I, OR → NAND
Boolean Algebra](https://image.slidesharecdn.com/ch12-230305144421-3628b111/85/CH1_2-ppt-7-320.jpg)
![8
Digital Logic Circuits
Computer Organization Computer Architectures Lab
EQUIVALENT CIRCUITS
F = ABC + ABC’ + A’C .......…… (1)
= AB(C + C’) + A’C [13] ..…. (2)
= AB • 1 + A’C [7]
= AB + A’C [4] ...…. (3)
(1)
(2)
(3)
Many different logic diagrams are possible for a given Function
Boolean Algebra
A
B
C
F
A
B
C F
F
A
B
C](https://image.slidesharecdn.com/ch12-230305144421-3628b111/85/CH1_2-ppt-8-320.jpg)
CH1_2.ppt
- 1. 1 Digital Logic Circuits Computer Organization Computer Architectures Lab Logic Gates Boolean Algebra Map Specification Combinational Circuits Flip-Flops Sequential Circuits Memory Components Integrated Circuits DIGITAL LOGIC CIRCUITS Introduction
- 2. 2 Digital Logic Circuits Computer Organization Computer Architectures Lab Logic Gates LOGIC GATES Digital Computers - Imply that the computer deals with digital information, i.e., it deals with the information that is represented by binary digits - Why BINARY ? instead of Decimal or other number system ? * Consider electronic signal signal range 0 1 2 3 4 5 6 7 8 9 0 0 1 2 3 4 5 6 7 8 9 1 1 2 3 4 5 6 7 8 9 10 2 2 3 4 5 6 7 8 9 1011 3 3 4 5 6 7 8 9 101112 4 4 5 6 7 8 9 10111213 5 5 6 7 8 9 1011121314 6 6 7 8 9 101112131415 7 7 8 9 10111213141516 8 8 9 1011121314151617 9 9 101112131415161718 0 1 7 6 5 4 3 2 1 0 binary octal 0 1 0 1 1 10 0 1 * Consider the calculation cost - Add
- 3. 3 Digital Logic Circuits Computer Organization Computer Architectures Lab BASIC LOGIC BLOCK - GATE - Types of Basic Logic Blocks - Combinational Logic Block Logic Blocks whose output logic value depends only on the input logic values - Sequential Logic Block Logic Blocks whose output logic value depends on the input values and the state (stored information) of the blocks Functions of Gates can be described by - Truth Table - Boolean Function - Karnaugh Map Logic Gates Gate . . . Binary Digital Input Signal Binary Digital Output Signal
- 4. 4 Digital Logic Circuits Computer Organization Computer Architectures Lab COMBINATIONAL GATES A X X = (A + B)’ B Name Symbol Function Truth Table Logic Gates AND A X = A • B X or B X = AB 0 0 0 0 1 0 1 0 0 1 1 1 0 0 0 0 1 1 1 0 1 1 1 1 OR A X X = A + B B I A X X = A’ 0 1 1 0 Buffer A X X = A A X 0 0 1 1 NAND A X X = (AB)’ B 0 0 1 0 1 1 1 0 1 1 1 0 NOR 0 0 1 0 1 0 1 0 0 1 1 0 XOR Exclusive OR A X = A B X or B X = A’B + AB’ 0 0 0 0 1 1 1 0 1 1 1 0 A X = (A B)’ X or B X = A’B’+ AB 0 0 1 0 1 0 1 0 0 1 1 1 XNOR Exclusive NOR or Equivalence A B X A B X A X A B X A B X A B X A B X
- 5. 5 Digital Logic Circuits Computer Organization Computer Architectures Lab BOOLEAN ALGEBRA Boolean Algebra * Algebra with Binary(Boolean) Variable and Logic Operations * Boolean Algebra is useful in Analysis and Synthesis of Digital Logic Circuits - Input and Output signals can be represented by Boolean Variables, and - Function of the Digital Logic Circuits can be represented by Logic Operations, i.e., Boolean Function(s) - From a Boolean function, a logic diagram can be constructed using AND, OR, and I Truth Table * The most elementary specification of the function of a Digital Logic Circuit is the Truth Table - Table that describes the Output Values for all the combinations of the Input Values, called MINTERMS - n input variables → 2n minterms Boolean Algebra
- 6. 6 Digital Logic Circuits Computer Organization Computer Architectures Lab LOGIC CIRCUIT DESIGN x y z F 0 0 0 0 0 0 1 1 0 1 0 0 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 1 1 1 1 1 F = x + y’z Boolean Algebra x y z F Truth Table Boolean Function Logic Diagram
- 7. 7 Digital Logic Circuits Computer Organization Computer Architectures Lab BASIC IDENTITIES OF BOOLEAN ALGEBRA [1] x + 0 = x [3] x + 1 = 1 [5] x + x = x [7] x + x’ = 1 [9] x + y = y + x [11] x + (y + z) = (x + y) + z [13] x(y + z) = xy +xz [15] (x + y)’ = x’y’ [17] (x’)’ = x [2] x • 0 = 0 [4] x • 1 = x [6] x • x = x [8] x • X’ = 0 [10] xy = yx [12] x(yz) = (xy)z [14] x + yz = (x + y)(x + z) [16] (xy)’ = x’ + y’ [15] and [16] : De Morgan’s Theorem Usefulness of this Table - Simplification of the Boolean function - Derivation of equivalent Boolean functions to obtain logic diagrams utilizing different logic gates -- Ordinarily ANDs, ORs, and Inverters -- But a certain different form of Boolean function may be convenient to obtain circuits with NANDs or NORs → Applications of De Morgans Theorem x’y’ = (x + y)’ x’+ y’= (xy)’ I, AND → NOR I, OR → NAND Boolean Algebra
- 8. 8 Digital Logic Circuits Computer Organization Computer Architectures Lab EQUIVALENT CIRCUITS F = ABC + ABC’ + A’C .......…… (1) = AB(C + C’) + A’C [13] ..…. (2) = AB • 1 + A’C [7] = AB + A’C [4] ...…. (3) (1) (2) (3) Many different logic diagrams are possible for a given Function Boolean Algebra A B C F A B C F F A B C
- 9. 9 Digital Logic Circuits Computer Organization Computer Architectures Lab COMPLEMENT OF FUNCTIONS A Boolean function of a digital logic circuit is represented by only using logical variables and AND, OR, and Invert operators. → Complement of a Boolean function - Replace all the variables and subexpressions in the parentheses appearing in the function expression with their respective complements A,B,...,Z,a,b,...,z A’,B’,...,Z’,a’,b’,...,z’ (p + q) (p + q)’ - Replace all the operators with their respective complementary operators AND OR OR AND - Basically, extensive applications of the De Morgan’s theorem (x1 + x2 + ... + xn )’ x1’x2’... xn’ (x1x2 ... xn)' x1' + x2' +...+ xn' Boolean Algebra
- 10. 10 Digital Logic Circuits Computer Organization Computer Architectures Lab SIMPLIFICATION Truth Table Boolean Function Unique Many different expressions exist Simplification from Boolean function - Finding an equivalent expression that is least expensive to implement - For a simple function, it is possible to obtain a simple expression for low cost implementation - But, with complex functions, it is a very difficult task Karnaugh Map (K-map) is a simple procedure for simplifying Boolean expressions. Truth Table Boolean function Karnaugh Map Simplified Boolean Function Map Simplification
- 11. 11 Digital Logic Circuits Computer Organization Computer Architectures Lab KARNAUGH MAP Karnaugh Map for an n-input digital logic circuit (n-variable sum-of-products form of Boolean Function, or Truth Table) is - Rectangle divided into 2n cells - Each cell is associated with a Minterm - An output(function) value for each input value associated with a mintern is written in the cell representing the minterm → 1-cell, 0-cell Each Minterm is identified by a decimal number whose binary representation is identical to the binary interpretation of the input values of the minterm. x F 0 1 1 0 x 0 1 0 1 x 0 1 0 1 Karnaugh Map value of F Identification of the cell x y F 0 0 0 0 1 1 1 0 1 1 1 1 y x 0 1 0 1 0 1 2 3 y x 0 1 0 1 0 1 1 0 F(x) = F(x,y) = (1,2) 1-cell (1) Map Simplification
- 12. 12 Digital Logic Circuits Computer Organization Computer Architectures Lab KARNAUGH MAP 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 0 1 1 0 0 1 1 1 0 0 1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 1 0 0 0 0 1 1 1 0 1 0 0 0 0 1 0 1 0 0 1 1 0 1 0 1 1 1 0 1 0 0 0 1 1 0 0 1 1 1 0 1 0 0 1 0 1 1 1 1 1 0 0 0 1 1 0 1 0 1 1 1 0 1 1 1 1 1 0 x yz 00 01 11 10 0 0 1 3 2 4 5 7 6 x yz 00 01 11 10 0 1 F(x,y,z) = (1,2,4) 1 x y z uv wx 00 01 11 10 00 01 11 10 0 1 3 2 4 5 7 6 12 13 15 14 8 9 11 10 uv wx 00 01 11 10 00 01 11 0 0 0 1 10 1 1 1 0 0 1 1 0 0 0 0 1 F(u,v,w,x) = (1,3,6,8,9,11,14) u v w x Map Simplification x y z F u v w x F
- 13. 13 Digital Logic Circuits Computer Organization Computer Architectures Lab MAP SIMPLIFICATION - 2 ADJACENT CELLS - Adjacent cells - binary identifications are different in one bit → minterms associated with the adjacent cells have one variable complemented each other Cells (1,0) and (1,1) are adjacent Minterms for (1,0) and (1,1) are x • y’ --> x=1, y=0 x • y --> x=1, y=1 F = xy’+ xy can be reduced to F = x From the map Rule: xy’ +xy = x(y+y’) = x x y 0 1 0 1 1 1 0 0 (2,3) F(x,y) = 2 adjacent cells xy’ and xy → merge them to a larger cell x = xy’+ xy = x Map Simplification
- 14. 14 Digital Logic Circuits Computer Organization Computer Architectures Lab MAP SIMPLIFICATION - MORE THAN 2 CELLS - u’v’w’x’ + u’v’w’x + u’v’wx + u’v’wx’ = u’v’w’(x’+x) + u’v’w(x+x’) = u’v’w’ + u’v’w = u’v’(w’+w) = u’v’ uv wx 1 1 1 1 1 1 1 1 uv wx 1 1 1 1 1 1 1 1 u v w x u v w x u’v’ uw u’x’ v’x 1 1 1 1 vw’ u’v’w’x’+u’v’w’x+u’vw’x’+u’vw’x+uvw’x’+uvw’x+uv’w’x’+uv’w’x = u’v’w’(x’+x) + u’vw’(x’+x) + uvw’(x’+x) + uv’w’(x’+x) = u’(v’+v)w’ + u(v’+v)w’ = (u’+u)w’ = w’ Map Simplification u v w x uv wx 1 1 1 1 1 1 1 1 u v uv 1 1 1 1 1 1 1 1 1 1 1 1 x w’ u V’ w
- 15. 15 Digital Logic Circuits Computer Organization Computer Architectures Lab MAP SIMPLIFICATION (0,1), (0,2), (0,4), (0,8) Adjacent Cells of 1 Adjacent Cells of 0 (1,0), (1,3), (1,5), (1,9) ... ... Adjacent Cells of 15 (15,7), (15,11), (15,13), (15,14) uv wx 00 01 11 10 00 01 0 0 0 0 11 0 1 1 0 10 0 1 0 0 1 1 0 1 F(u,v,w,x) = (0,1,2,9,13,15) u v w x Merge (0,1) and (0,2) --> u’v’w’ + u’v’x’ Merge (1,9) --> v’w’x Merge (9,13) --> uw’x Merge (13,15) --> uvx F = u’v’w’ + u’v’x’ + v’w’x + uw’x + uvx But (9,13) is covered by (1,9) and (13,15) F = u’v’w’ + u’v’x’ + v’w’x + uvx Map Simplification 0 0 0 0 1 1 0 1 0 1 1 0 0 1 0 0
- 16. 16 Digital Logic Circuits Computer Organization Computer Architectures Lab IMPLEMENTATION OF K-MAPS - Sum-of-Products Form - Logic function represented by a Karnaugh map can be implemented in the form of I-AND-OR A cell or a collection of the adjacent 1-cells can be realized by an AND gate, with some inversion of the input variables. x y z x’ y’ z’ x’ y z’ x y z’ 1 1 1 F(x,y,z) = (0,2,6) 1 1 1 x’ z’ y z’ Map Simplification x’ y x y z’ x’ y’ z’ F x z y z F I AND OR z’
- 17. 17 Digital Logic Circuits Computer Organization Computer Architectures Lab IMPLEMENTATION OF K-MAPS - Product-of-Sums Form - Logic function represented by a Karnaugh map can be implemented in the form of I-OR-AND If we implement a Karnaugh map using 0-cells, the complement of F, i.e., F’, can be obtained. Thus, by complementing F’ using DeMorgan’s theorem F can be obtained F(x,y,z) = (0,2,6) x y z x y’ z F’ = xy’ + z F = (xy’)z’ = (x’ + y)z’ x y z F I OR AND Map Simplification 0 0 1 1 0 0 0 1
- 18. 18 Digital Logic Circuits Computer Organization Computer Architectures Lab IMPLEMENTATION OF K-MAPS - Don’t-Care Conditions - In some logic circuits, the output responses for some input conditions are don’t care whether they are 1 or 0. In K-maps, don’t-care conditions are represented by d’s in the corresponding cells. Don’t-care conditions are useful in minimizing the logic functions using K-map. - Can be considered either 1 or 0 - Thus increases the chances of merging cells into the larger cells --> Reduce the number of variables in the product terms x y z 1 d d 1 d 1 x’ yz’ x y z F Map Simplification
- 19. 19 Digital Logic Circuits Computer Organization Computer Architectures Lab COMBINATIONAL LOGIC CIRCUITS Half Adder 0 0 0 0 0 0 0 1 0 1 0 1 0 0 1 0 1 1 1 0 1 0 0 0 1 1 0 1 1 0 1 1 0 1 0 1 1 1 1 1 cn = xy + xcn-1+ ycn-1 = xy + (x y)cn-1 s = x’y’cn-1+x’yc’n-1+xy’c’n-1+xycn-1 = x y cn-1 = (x y) cn-1 x y cn-1 x y cn-1 cn s Combinational Logic Circuits x y x y c = xy s = xy’ + x’y = x y x y c s x y cn-1 S cn Full Adder 0 0 0 0 0 1 0 1 1 0 0 1 1 1 1 0 x y c s 0 1 0 0 0 0 1 1 x y cn-1 cn s 0 0 1 0 0 1 1 1 0 1 0 1 1 0 1 0
- 20. 20 Digital Logic Circuits Computer Organization Computer Architectures Lab COMBINATIONAL LOGIC CIRCUITS Other Combinational Circuits Multiplexer Encoder Decoder Parity Checker Parity Generator etc Combinational Logic Circuits
- 21. 21 Digital Logic Circuits Computer Organization Computer Architectures Lab MULTIPLEXER Combinational Logic Circuits 4-to-1 Multiplexer I0 I1 I2 I3 S0 S1 Y 0 0 I0 0 1 I1 1 0 I2 1 1 I3 Select Output S1 S0 Y
- 22. 22 Digital Logic Circuits Computer Organization Computer Architectures Lab ENCODER/DECODER Octal-to-Binary Encoder Combinational Logic Circuits D1 D2 D3 D5 D6 D7 D4 A0 A1 A2 A0 A1 E D0 D1 D2 D3 0 0 0 0 1 1 1 0 0 1 1 0 1 1 0 1 0 1 1 0 1 0 1 1 1 1 1 0 1 d d 1 1 1 1 E A1 A0 D0 D1 D2 D3 2-to-4 Decoder
- 23. 23 Digital Logic Circuits Computer Organization Computer Architectures Lab FLIP FLOPS Characteristics - 2 stable states - Memory capability - Operation is specified by a Characteristic Table 0-state 1-state In order to be used in the computer circuits, state of the flip flop should have input terminals and output terminals so that it can be set to a certain state, and its state can be read externally. R S Q Q’ S R Q(t+1) 0 0 Q(t) 0 1 0 1 0 1 1 1 indeterminate (forbidden) Flip Flops 1 0 0 1 0 1 1 0
- 24. 24 Digital Logic Circuits Computer Organization Computer Architectures Lab CLOCKED FLIP FLOPS In a large digital system with many flip flops, operations of individual flip flops are required to be synchronized to a clock pulse. Otherwise, the operations of the system may be unpredictable. R S Q Q’ c (clock) Flip Flops S Q c R Q’ S Q c R Q’ operates when operates when clock is high clock is low Clock pulse allows the flip flop to change state only when there is a clock pulse appearing at the c terminal. We call above flip flop a Clocked RS Latch, and symbolically as
- 25. 25 Digital Logic Circuits Computer Organization Computer Architectures Lab RS-LATCH WITH PRESET AND CLEAR INPUTS Flip Flops R S Q Q’ c (clock) P(preset) clr(clear) S Q c R Q’ S Q c R Q’ P clr P clr S Q c R Q’ P clr S Q c R Q’ P clr
- 26. 26 Digital Logic Circuits Computer Organization Computer Architectures Lab D-LATCH D-Latch Forbidden input values are forced not to occur by using an inverter between the inputs Flip Flops Q Q’ D(data) E (enable) D Q E Q’ E Q’ D Q D Q(t+1) 0 0 1 1
- 27. 27 Digital Logic Circuits Computer Organization Computer Architectures Lab EDGE-TRIGGERED FLIP FLOPS Characteristics - State transition occurs at the rising edge or falling edge of the clock pulse Latches Edge-triggered Flip Flops (positive) respond to the input only during these periods respond to the input only at this time Flip Flops
- 28. 28 Digital Logic Circuits Computer Organization Computer Architectures Lab POSITIVE EDGE-TRIGGERED T-Flip Flop: JK-Flip Flop whose J and K inputs are tied together to make T input. Toggles whenever there is a pulse on T input. Flip Flops D-Flip Flop JK-Flip Flop S1 Q1 C1 R1 Q1' S2 Q2 C2 R2 Q2' D C Q Q' D C Q Q' SR1 SR2 SR1 active SR2 active D-FF S1 Q1 C1 R1 Q1' S2 Q2 C2 R2 Q2' SR1 SR2 J K C Q Q' J Q C K Q' SR1 active SR2 inactive SR2 inactive SR1 inactive
- 29. 29 Digital Logic Circuits Computer Organization Computer Architectures Lab CLOCK PERIOD Clock period determines how fast the digital circuit operates. How can we determine the clock period ? Usually, digital circuits are sequential circuits which has some flip flops Combinational Logic Circuit FF FF Combinational logic Delay FF Setup Time FF Hold Time FF Delay td ts,th clock period T = td + ts + th Flip Flops . . . ... FF C Combinational Logic Circuit FF FF . . .
- 30. 30 Digital Logic Circuits Computer Organization Computer Architectures Lab DESIGN EXAMPLE Design Procedure: Specification State Diagram State Table Excitation Table Karnaugh Map Circuit Diagram Example: 2-bit Counter -> 2 FF's current next state input state FF inputs A B x A B Ja Ka Jb Kb 0 0 0 0 0 0 d 0 d 0 0 1 0 1 0 d 1 d 0 1 0 0 1 0 d d 0 0 1 1 1 0 1 d d 1 1 0 0 1 0 d 0 0 d 1 0 1 1 1 d 0 1 d 1 1 0 1 1 d 0 d 0 1 1 1 0 0 d 1 d 1 A B x Ja 1 d d d d x A B Ka d d d d 1 Kb A B x 1 1 d d d d Ja = Bx Ka = Bx Jb = x Kb = x clock 00 01 10 11 x=0 x=1 x=0 x=1 x=0 x=1 x=0 x=1 Sequential Circuits J Q C K Q' J Q C K Q' x A A B x 1 d 1 d d d Jb B
- 31. 31 Digital Logic Circuits Computer Organization Computer Architectures Lab SEQUENTIAL CIRCUITS - Registers Bidirectional Shift Register with Parallel Load Sequential Circuits D Q C D Q C D Q C D Q C A0 A1 A2 A3 Clock I0 I1 I2 I3 Shift Registers D Q C D Q C D Q C D Q C Serial Input Clock Serial Output D Q C D Q C D Q C D Q C A0 A1 A2 A3 4 x 1 MUX 4 x 1 MUX 4 x 1 MUX 4 x 1 MUX Clock S0S1 SeriaI Input I0 I1 I2 I3 Serial Input
- 32. 32 Digital Logic Circuits Computer Organization Computer Architectures Lab SEQUENTIUAL CIRCUITS - Counters Sequential Circuits J K Q J K Q J K Q J K Q Clock Counter Enable A0 A1 A2 A3 Output Carry
- 33. 33 Digital Logic Circuits Computer Organization Computer Architectures Lab MEMORY COMPONENTS Logical Organization Random Access Memory - Each word has a unique address - Access to a word requires the same time independent of the location of the word - Organization Memory Components words (byte, or n bytes) 2k Words (n bits/word) n data input lines n data output lines k address lines Read Write 0 N - 1

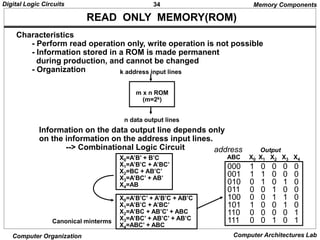

- 34. 34 Digital Logic Circuits Computer Organization Computer Architectures Lab READ ONLY MEMORY(ROM) Characteristics - Perform read operation only, write operation is not possible - Information stored in a ROM is made permanent during production, and cannot be changed - Organization Information on the data output line depends only on the information on the address input lines. --> Combinational Logic Circuit X0=A’B’ + B’C X1=A’B’C + A’BC’ X2=BC + AB’C’ X3=A’BC’ + AB’ X4=AB X0=A’B’C’ + A’B’C + AB’C X1=A’B’C + A’BC’ X2=A’BC + AB’C’ + ABC X3=A’BC’ + AB’C’ + AB’C X4=ABC’ + ABC Canonical minterms 1 0 0 0 0 1 1 0 0 0 0 1 0 1 0 0 0 1 0 0 0 0 1 1 0 1 0 0 1 0 0 0 0 0 1 0 0 1 0 1 address Output ABC X0 X1 X2 X3 X4 000 001 010 011 100 101 110 111 Memory Components m x n ROM (m=2k) k address input lines n data output lines
- 35. 35 Digital Logic Circuits Computer Organization Computer Architectures Lab TYPES OF ROM ROM - Store information (function) during production - Mask is used in the production process - Unalterable - Low cost for large quantity production --> used in the final products PROM (Programmable ROM) - Store info electrically using PROM programmer at the user’s site - Unalterable - Higher cost than ROM -> used in the system development phase -> Can be used in small quantity system EPROM (Erasable PROM) - Store info electrically using PROM programmer at the user’s site - Stored info is erasable (alterable) using UV light (electrically in some devices) and rewriteable - Higher cost than PROM but reusable --> used in the system development phase. Not used in the system production due to eras ability Memory Components
- 36. 36 Digital Logic Circuits Computer Organization Computer Architectures Lab INTEGRATED CIRCUITS Classification by the Circuit Density SSI - several (less than 10) independent gates MSI - 10 to 200 gates; Perform elementary digital functions; Decoder, adder, register, parity checker, etc LSI - 200 to few thousand gates; Digital subsystem Processor, memory, etc VLSI - Thousands of gates; Digital system Microprocessor, memory module Classification by Technology TTL - Transistor-Transistor Logic Bipolar transistors NAND ECL - Emitter-coupled Logic Bipolar transistor NOR MOS - Metal-Oxide Semiconductor Unipolar transistor High density CMOS - Complementary MOS Low power consumption Memory Components
