Chapter 2 – Software Processes
Chapter 2 Software Processes 1
30/10/2014

Topics covered
 Software process models
 Process activities
 Coping with change
 Process improvement
30/10/2014

The software process
 A structured set of activities required to develop a
software system.
 Many different software processes but all involve:
 Specification – defining what the system should do;
 Design and implementation – defining the organization of the
system and implementing the system;
 Validation – checking that it does what the customer wants;
 Evolution – changing the system in response to changing
customer needs.
 A software process model is an abstract representation
of a process. It presents a description of a process from
some particular perspective.
30/10/2014

Software process descriptions
 When we describe and discuss processes, we usually
talk about the activities in these processes such as
specifying a data model, designing a user interface, etc.
and the ordering of these activities.
 Process descriptions may also include:
 Products, which are the outcomes of a process activity;
 Roles, which reflect the responsibilities of the people involved in
the process;
 Pre- and post-conditions, which are statements that are true
before and after a process activity has been enacted or a
product produced.
30/10/2014

Plan-driven and agile processes
 Plan-driven processes are processes where all of the
process activities are planned in advance and progress
is measured against this plan.
 In agile processes, planning is incremental and it is
easier to change the process to reflect changing
customer requirements.
 In practice, most practical processes include elements of
both plan-driven and agile approaches.
 There are no right or wrong software processes.
30/10/2014

Software process models
30/10/2014

Software process models
 The waterfall model
 Plan-driven model. Separate and distinct phases of specification
and development.
 Incremental development
 Specification, development and validation are interleaved. May
be plan-driven or agile.
 Integration and configuration
 The system is assembled from existing configurable
components. May be plan-driven or agile.
 In practice, most large systems are developed using a
process that incorporates elements from all of these
models.
30/10/2014

The waterfall model
30/10/2014

Waterfall model phases
 There are separate identified phases in the waterfall
model:
 Requirements analysis and definition
 System and software design
 Implementation and unit testing
 Integration and system testing
 Operation and maintenance
 The main drawback of the waterfall model is the difficulty
of accommodating change after the process is
underway. In principle, a phase has to be complete
before moving onto the next phase.
30/10/2014

Waterfall model problems
 Inflexible partitioning of the project into distinct stages
makes it difficult to respond to changing customer
requirements.
 Therefore, this model is only appropriate when the requirements
are well-understood and changes will be fairly limited during the
design process.
 Few business systems have stable requirements.
 The waterfall model is mostly used for large systems
engineering projects where a system is developed at
several sites.
 In those circumstances, the plan-driven nature of the waterfall
model helps coordinate the work.
30/10/2014

Incremental development
30/10/2014

Incremental development benefits
 The cost of accommodating changing customer
requirements is reduced.
 The amount of analysis and documentation that has to be
redone is much less than is required with the waterfall model.
 It is easier to get customer feedback on the development
work that has been done.
 Customers can comment on demonstrations of the software and
see how much has been implemented.
 More rapid delivery and deployment of useful software to
the customer is possible.
 Customers are able to use and gain value from the software
earlier than is possible with a waterfall process.
30/10/2014

Incremental development problems
 The process is not visible.
 Managers need regular deliverables to measure progress. If
systems are developed quickly, it is not cost-effective to produce
documents that reflect every version of the system.
 System structure tends to degrade as new increments
are added.
 Unless time and money is spent on refactoring to improve the
software, regular change tends to corrupt its structure.
Incorporating further software changes becomes increasingly
difficult and costly.
30/10/2014

Integration and configuration
 Based on software reuse where systems are integrated
from existing components or application systems
(sometimes called COTS -Commercial-off-the-shelf)
systems).
 Reused elements may be configured to adapt their
behaviour and functionality to a user’s requirements
 Reuse is now the standard approach for building many
types of business system
 Reuse covered in more depth in Chapter 15.
30/10/2014

Types of reusable software
 Stand-alone application systems (sometimes called
COTS) that are configured for use in a particular
environment.
 Collections of objects that are developed as a package
to be integrated with a component framework such as
.NET or J2EE.
 Web services that are developed according to service
standards and which are available for remote invocation.
30/10/2014

Reuse-oriented software engineering
30/10/2014

Key process stages
 Requirements specification
 Software discovery and evaluation
 Requirements refinement
 Application system configuration
 Component adaptation and integration
30/10/2014

Advantages and disadvantages
 Reduced costs and risks as less software is developed
from scratch
 Faster delivery and deployment of system
 But requirements compromises are inevitable so system
may not meet real needs of users
 Loss of control over evolution of reused system elements
30/10/2014

Process activities
30/10/2014

Process activities
 Real software processes are inter-leaved sequences of
technical, collaborative and managerial activities with the
overall goal of specifying, designing, implementing and
testing a software system.
 The four basic process activities of specification,
development, validation and evolution are organized
differently in different development processes.
 For example, in the waterfall model, they are organized
in sequence, whereas in incremental development they
are interleaved.
30/10/2014

The requirements engineering process
30/10/2014

Software specification
 The process of establishing what services are required
and the constraints on the system’s operation and
development.
 Requirements engineering process
 Requirements elicitation and analysis
• What do the system stakeholders require or expect from the system?
 Requirements specification
• Defining the requirements in detail
 Requirements validation
• Checking the validity of the requirements
30/10/2014

Software design and implementation
 The process of converting the system specification into
an executable system.
 Software design
 Design a software structure that realises the specification;
 Implementation
 Translate this structure into an executable program;
 The activities of design and implementation are closely
related and may be inter-leaved.
30/10/2014

A general model of the design process
30/10/2014

Design activities
 Architectural design, where you identify the overall
structure of the system, the principal components
(subsystems or modules), their relationships and how
they are distributed.
 Database design, where you design the system data
structures and how these are to be represented in a
database.
 Interface design, where you define the interfaces
between system components.
 Component selection and design, where you search for
reusable components. If unavailable, you design how it
will operate.
30/10/2014

System implementation
 The software is implemented either by developing a
program or programs or by configuring an application
system.
 Design and implementation are interleaved activities for
most types of software system.
 Programming is an individual activity with no standard
process.
 Debugging is the activity of finding program faults and
correcting these faults.
30/10/2014

Software validation
 Verification and validation (V & V) is intended to show
that a system conforms to its specification and meets the
requirements of the system customer.
 Involves checking and review processes and system
testing.
 System testing involves executing the system with test
cases that are derived from the specification of the real
data to be processed by the system.
 Testing is the most commonly used V & V activity.
30/10/2014

Stages of testing
30/10/2014

Testing stages
 Component testing
 Individual components are tested independently;
 Components may be functions or objects or coherent groupings
of these entities.
 System testing
 Testing of the system as a whole. Testing of emergent properties
is particularly important.
 Customer testing
 Testing with customer data to check that the system meets the
customer’s needs.
30/10/2014

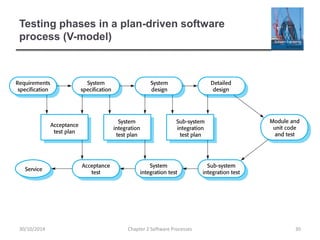

Testing phases in a plan-driven software
process (V-model)
30/10/2014

Software evolution
 Software is inherently flexible and can change.
 As requirements change through changing business
circumstances, the software that supports the business
must also evolve and change.
 Although there has been a demarcation between
development and evolution (maintenance) this is
increasingly irrelevant as fewer and fewer systems are
completely new.
30/10/2014

System evolution
30/10/2014

Coping with change
30/10/2014

Coping with change
 Change is inevitable in all large software projects.
 Business changes lead to new and changed system
requirements
 New technologies open up new possibilities for improving
implementations
 Changing platforms require application changes
 Change leads to rework so the costs of change include
both rework (e.g. re-analysing requirements) as well as
the costs of implementing new functionality
30/10/2014

Reducing the costs of rework
 Change anticipation, where the software process
includes activities that can anticipate possible changes
before significant rework is required.
 For example, a prototype system may be developed to show
some key features of the system to customers.
 Change tolerance, where the process is designed so that
changes can be accommodated at relatively low cost.
 This normally involves some form of incremental development.
Proposed changes may be implemented in increments that have
not yet been developed. If this is impossible, then only a single
increment (a small part of the system) may have be altered to
incorporate the change.
30/10/2014

Coping with changing requirements
 System prototyping, where a version of the system or
part of the system is developed quickly to check the
customer’s requirements and the feasibility of design
decisions. This approach supports change anticipation.
 Incremental delivery, where system increments are
delivered to the customer for comment and
experimentation. This supports both change avoidance
and change tolerance.
30/10/2014

Software prototyping
 A prototype is an initial version of a system used to
demonstrate concepts and try out design options.
 A prototype can be used in:
 The requirements engineering process to help with requirements
elicitation and validation;
 In design processes to explore options and develop a UI design;
 In the testing process to run back-to-back tests.
30/10/2014

Benefits of prototyping
 Improved system usability.
 A closer match to users’ real needs.
 Improved design quality.
 Improved maintainability.
 Reduced development effort.
30/10/2014

The process of prototype development
30/10/2014

Prototype development
 May be based on rapid prototyping languages or tools
 May involve leaving out functionality
 Prototype should focus on areas of the product that are not well-
understood;
 Error checking and recovery may not be included in the
prototype;
 Focus on functional rather than non-functional requirements
such as reliability and security
30/10/2014

Throw-away prototypes
 Prototypes should be discarded after development as
they are not a good basis for a production system:
 It may be impossible to tune the system to meet non-functional
requirements;
 Prototypes are normally undocumented;
 The prototype structure is usually degraded through rapid
change;
 The prototype probably will not meet normal organisational
quality standards.
30/10/2014

Incremental delivery
 Rather than deliver the system as a single delivery, the
development and delivery is broken down into
increments with each increment delivering part of the
required functionality.
 User requirements are prioritised and the highest priority
requirements are included in early increments.
 Once the development of an increment is started, the
requirements are frozen though requirements for later
increments can continue to evolve.
30/10/2014

Incremental development and delivery
 Incremental development
 Develop the system in increments and evaluate each increment
before proceeding to the development of the next increment;
 Normal approach used in agile methods;
 Evaluation done by user/customer proxy.
 Incremental delivery
 Deploy an increment for use by end-users;
 More realistic evaluation about practical use of software;
 Difficult to implement for replacement systems as increments
have less functionality than the system being replaced.
30/10/2014

Incremental delivery
30/10/2014

Incremental delivery advantages
 Customer value can be delivered with each increment so
system functionality is available earlier.
 Early increments act as a prototype to help elicit
requirements for later increments.
 Lower risk of overall project failure.
 The highest priority system services tend to receive the
most testing.
30/10/2014

Incremental delivery problems
 Most systems require a set of basic facilities that are
used by different parts of the system.
 As requirements are not defined in detail until an increment is to
be implemented, it can be hard to identify common facilities that
are needed by all increments.
 The essence of iterative processes is that the
specification is developed in conjunction with the
software.
 However, this conflicts with the procurement model of many
organizations, where the complete system specification is part of
the system development contract.
30/10/2014

30/10/2014
Boehm’s spiral model
 Process is represented as a spiral rather than as a
sequence of activities with backtracking.
 Each loop in the spiral represents a phase in the
process.
 No fixed phases such as specification or design - loops
in the spiral are chosen depending on what is required.
 Risks are explicitly assessed and resolved throughout
the process.

30/10/2014
Boehm’s spiral model

30/10/2014
Spiral model sectors
 Objective setting
 Specific objectives for the phase are identified.
 Risk assessment and reduction
 Risks are assessed and activities put in place to reduce the
key risks.
 Development and validation
 A development model for the system is chosen which can be
any of the generic models.
 Planning
 The project is reviewed and the next phase of the spiral is
planned.

30/10/2014
Spiral model usage
 Spiral model has been very influential in helping
people think about iteration in software processes and
introducing the risk-driven approach to development.
 In practice, however, the model is rarely used as
published for practical software development.

30/10/2014
advantages, disadvantages
 The spiral model is similar to the incremental model, with
more emphasis placed on risk analysis. The spiral model
has four phases: Planning, Risk Analysis, Engineering
and Evaluation. A software project repeatedly passes
through these phases in iterations (called Spirals in this
model). The baseline spiral, starting in the planning
phase, requirements are gathered and risk is assessed.
Each subsequent spirals builds on the baseline spiral.
 Planning Phase: Requirements are gathered during the
planning phase. Requirements like ‘BRS’ that is
‘Bussiness Requirement Specifications’ and ‘SRS’ that is
‘System Requirement specifications’.


30/10/2014
advantages, disadvantages
 Risk Analysis: In the risk analysis phase, a process is
undertaken to identify risk and alternate solutions. A
prototype is produced at the end of the risk analysis
phase. If any risk is found during the risk analysis then
alternate solutions are suggested and implemented.
 Engineering Phase: In this phase software is
developed, along with testing at the end of the phase.
Hence in this phase the development and testing is
done.
 Evaluation phase: This phase allows the customer to
evaluate the output of the project to date before the
project continues to the next spiral.

30/10/2014
Diagram of Spiral model

30/10/2014
Advantages of Spiral model
 High amount of risk analysis hence, avoidance of Risk
is enhanced.
 Good for large and mission-critical projects.
 Strong approval and documentation control.
 Additional Functionality can be added at a later date.
 Software is produced early in the software life cy

30/10/2014
Disadvantages of Spiral model
 Can be a costly model to use.
 Risk analysis requires highly specific expertise.
 Project’s success is highly dependent on the risk
analysis phase.
 Doesn’t work well for smaller projects.

30/10/2014
When to use Spiral model
 When costs and risk evaluation is important
 For medium to high-risk projects
 Long-term project commitment unwise because of
potential changes to economic priorities
 Users are unsure of their needs
 Requirements are complex
 New product line
 Significant changes are expected (research and
exploration

Process improvement
30/10/2014

Key points
 Design and implementation processes are concerned
with transforming a requirements specification into an
executable software system.
 Software validation is the process of checking that the
system conforms to its specification and that it meets the
real needs of the users of the system.
 Software evolution takes place when you change
existing software systems to meet new requirements.
The software must evolve to remain useful.
 Processes should include activities such as prototyping
and incremental delivery to cope with change.
30/10/2014

Key points
 Processes may be structured for iterative development
and delivery so that changes may be made without
disrupting the system as a whole.
 The principal approaches to process improvement are
agile approaches, geared to reducing process
overheads, and maturity-based approaches based on
better process management and the use of good
software engineering practice.
 The SEI process maturity framework identifies maturity
levels that essentially correspond to the use of good
software engineering practice.
30/10/2014

Chapter 2 Software Processes.pdf

More Related Content

What's hot (20)

Similar to Chapter 2 Software Processes.pdf (20)

Recently uploaded (20)

Chapter 2 Software Processes.pdf
