C Prog. - Data Types, Variables and Constants

Programming in C: A Practical Approach Data Types, Variables and Constants Introduction C is a: General-purpose Block structured Procedural Case sensitive Free flow Portable High level programming language developed by Dennis Ritchie at the Bell Telephone Laboratories . The selection of ‘C’ as a name of a programming language seems to be an odd choice but it was named C because it was evolved from earlier languages BCPL ( B asic C ombined P rogramming L anguage) and B . Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Basic source character set includes: Letters: Uppercase Letters: A,B,C…,Z Lowercase Letters: a, b, c…,z Digits: 0,1,2…9 Special Characters: ,.:;!@#$% ..etc. White Space Characters: Blank space Character Horizontal tab space character Carriage return New line character Form Feed Character Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Identifiers An identifier refers to the name of the object. The syntactic rules to write an identifier name in C are: Can have letters, digits or underscores. First character must be a letter or an underscore but can’t be a digit. No special character except underscore can be used. Keywords or reserved words cannot form a valid identifier name. Maximum number of characters that form an identifier name is compiler dependent. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Keywords Keyword refers to a reserved word that has a particular meaning in programming language. It cannot be used as an identifier name in C. There are 32 keywords available in C language. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Declaration Statement Every identifier (except label name) needs to be declared before it is used. An identifier can be declared by making use of declaration statement . ROLE: To introduce the name of an identifier along with its data type (or just type) to the compiler before its use. The general form of declaration statement is:  [storage_class_specifier ][type_qualifier|type_modifier ]type identifier [=value [, ...]]; The terms enclosed within [] (i.e. square brackets) are optional and might not be present in a declaration statement. The type name and identifier name are mandatory parts of a declaration statement. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Examples of valid declaration in C: int variable; ( type int and identifier name variable present) static int variable; ( Storage class specifier static, type int and identifier name variable present) int a=20, b=10; ( type int, identifier name a and its initial value 20 present, another identifier name b and its initial value 10 present ) Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Declaration Statements: 2 Types Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd. SHORTHAND DECLARATION STATEMENT LONGHAND DECLARATION STATEMENT Declaration statements in which more than one identifier is declared is known as shorthand declaration statement . e.g. int a=20, b=10; The corresponding longhand declaration statements are: e.g. int a=20; int b=10; 2. Can only be used to declare identifiers of the same type. e.g. int a=10, float b=2.3; is an invalid statement. 2. It can be used to declare identifiers of different types e.g. int a=10;float b=2.3; are valid statements.

Data Object, L-value And R-value An identifier is allocated some space in memory depending upon its data type and the working environment. This memory allocation gives rise to two important concepts known as L -value concept and R -value concept . DATA OBJECT is a term that is used to specify the region of data storage that is used to hold values. Once an identifier is allocated memory space, it will be known as a data object. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

L-value L-value is a data object locator. It is an expression that locates an object. Variable is a sort of name given to the memory location (say2000). Variable here refers to L-value, an object locator. The term L-value can be further categorized as: Modifiable L-value : A modifiable L-value is an expression that refers to an object that can be accessed and legally changed in the memory. Non-modifiable L-value : A non-modifiable L-value refers to an object that can be accessed but cannot be changed in the memory. ---> L in L-value stands for “left” , this means that L-value could legally stand on the left side of assignment operator. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

R-value R in R-value stands for “right” or “read” , this means that if an identifier name appears on the right side of assignment operator it refers to R-value. Consider the expression: variable= variable +20 variable on the left side of assignment operator refers to L-value. variable on the right side of assignment operator (in bold) refers to R-value. variable appearing on the right side refers to 20. 20 is added to 20 and the value of expression comes out to be 40 (R-value). This outcome (40) is assigned to variable on the left side of assignment operator, which signifies L-value. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

L-value variable locates the memory location where this value is to be placed i.e. at 2000 say. Remember it as: L-value refers to location value i.e. location of the object and R-value refers to read value i.e. value of the object. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Variables A variable is an entity whose value can vary (i.e. change) during the execution of a program. The value of a variable can be changed because it has a modifiable l-value. Since, it has modifiable l-value, it can be placed on the left side of assignment operator. Variables and Constants Programming in C: A Practical Approach Data Types, Variables and Constants Constants A constant is an entity whose value remains same throughout the execution of a program. It cannot be placed on the left-side of assignment operator because it does not have a modifiable l-value. Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Variables Variable can also be placed on the right side of assignment operator. Hence, it has r-value too. Thus, a variable has both l-value and r-value. Constants It can only be placed on the right side of assignment operator. Thus, a constant has an r-value only Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Literal constant or just literal denotes a fixed value, which may be an integer, floating point number, character or a string. The type of literal constant is determined by its value. Symbolic constants are created with the help of define preprocessor directive. For example: #define PI 3.14124 defines PI as a symbolic constant with value 3.14124. Each symbolic constant is replaced by its actual value during the preprocessing stage. Qualified constants are created by using const qualifier. The following statement creates a qualified character constant named as: const char a=’A’; Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Since, qualified constants are placed in the memory, they have l-value. But, as it is not possible to modify them, this means that they do not have modifiable l-value i.e. they have non-modifiable l-value. E.g. int a=10; // It is possible to modify the value of a. const int a=10;. // It is possible read the value placed within the memory location, but it is not possible to modify the value. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Integer Literal Constants Integer literal constants are integer values like -1, 2, 8 etc. The following are the rules for writing integer literal constants: An integer literal constant must have at least one digit. It should not have any decimal point. It can be either positive or negative. If no sign precedes an integer literal constant, then it is assumed to be positive. No special characters (even underscore) and blank spaces are allowed within an integer literal constant. If an integer literal constant starts with 0, then it assumed to be in octal number system e.g. 023 is a valid integer literal constant, which means 23 in octal number system and is equivalent to 19 in decimal number system. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

If an integer literal constant starts with 0x or 0X, then it is assumed to be in hexadecimal number system e.g. 0x23 or 0X23 is a valid integer literal constant, which means 23 in hexadecimal number system and is equivalent to 35 in decimal number system. The size of integer literal constant can be modified by using a length modifier. The length modifier can be a suffix character l, L, u, U, f or F. If the integer literal constant is terminated with l or L then it is assumed to be long. If it is terminated with u or U then it is assumed to be an unsigned integer e.g. 23l is a long integer and 23u is an unsigned integer. The length modifier f or F can only be used with floating point literal constant and not with integer literal constant. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Floating Point Literal Constants Floating point literal constants are values like -23.1, 12.8, -1.8e12 etc. Floating point literal constants can be written in: fractional form or in exponential form . Fractional Form The following are the rules for writing floating point literal constants in fractional form: A fractional floating point literal constant must have at least one digit. It should have a decimal point. It can be either positive or negative. If no sign precedes a floating point literal constant then it is assumed to be positive. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

No special characters (even underscore) and blank spaces are allowed within a floating point literal constant. A floating point literal constant by default is assumed to be of type double, e.g. the type of 23.45 is double. The size of floating point literal constant can be modified by using the length modifier f or F i.e. if 23.45 is written as 23.45f or 23.45F, then it is considered to be of type float instead of double. Following are valid floating point literal constants in fractional form: -2.5, 12.523, 2.5f, 12,5F Exponential Form The following are the rules for writing floating point literal constants in exponential form: Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

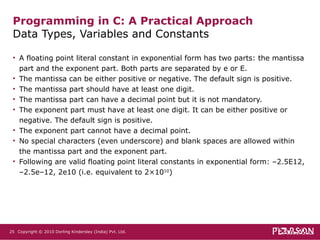

A floating point literal constant in exponential form has two parts: the mantissa part and the exponent part. Both parts are separated by e or E. The mantissa can be either positive or negative. The default sign is positive. The mantissa part should have at least one digit. The mantissa part can have a decimal point but it is not mandatory. The exponent part must have at least one digit. It can be either positive or negative. The default sign is positive. The exponent part cannot have a decimal point. No special characters (even underscore) and blank spaces are allowed within the mantissa part and the exponent part. Following are valid floating point literal constants in exponential form: –2.5E12, –2.5e–12, 2e10 (i.e. equivalent to 2×10 10 ) Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Character Literal Constant A character literal constant can have one or at most two characters enclosed within single quotes e.g. ‘A’, ‘a’, ‘\n’ etc. Character literal constants are classified as: Printable character literal constants Non-Printable character literal constants Printable Character Literal Constant: All characters of source character set except quotation mark, backslash and new line character when enclosed within single quotes form printable character literal constant . Following are the examples of printable character literal constants: ‘A’, ‘#’, ‘6’. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Non-printable Character Literal Constant: Non-printable character literal constants are represented with the help of escape sequences . An escape sequence consists of a backward slash (i.e. \) followed by a character and both enclosed within single quotes. An escape sequence is treated as a single character. It can be used in a string like any other printable character. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

List of Escape Sequences Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd. ESCAPE SEQUENCES CHARACTER VALUE ACTION ON OUTPUT DEVICE ‘ \'’ Single quotation mark Prints ‘ ‘ \“’ Double quotation mark (“) Prints “ ‘ \?’ Question mark (?) Prints ? ‘ \\’ Backslash character (\) Prints \ ‘ \a’ Alert Alerts by generating beep ‘ \b’ Backspace Moves the cursor one position to the left of its current position. ‘ \f’ Form feed Moves the cursor to the beginning of next page. ‘ \n’ New line Moves the cursor to the beginning of the next line. ‘ \r’ Carriage return Moves the cursor to the beginning of the current line. ‘ \t’ Horizontal tab Moves the cursor to the next horizontal tab stop. ‘ \v’ Vertical tab Moves the cursor to the next vertical tab stop. ‘ \0’ Null character Prints nothing

C Program Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd. LINE PROGRAM OUTPUT WINDOW 1 //Comment: First C program Hello Readers!! 2 #include<stdio.h> 3 main() 4 { 5 printf(“Hello Readers!!”); 6 }

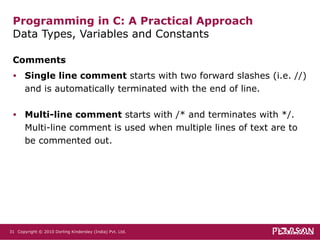

Comments Single line comment starts with two forward slashes (i.e. //) and is automatically terminated with the end of line. Multi-line comment starts with /* and terminates with */. Multi-line comment is used when multiple lines of text are to be commented out. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

Preprocessor Directives #include<stdio.h> is a preprocessor directive which includes standard input/output (i.e. stdio) header (.h) file. This file is to be included if standard input/output functions like printf or scanf are to be used in a program. The following points must be remembered while writing preprocessor directives: The preprocessor directive always starts with a pound symbol(i.e. #) The pound symbol # should be the first non-white space character in a line. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.

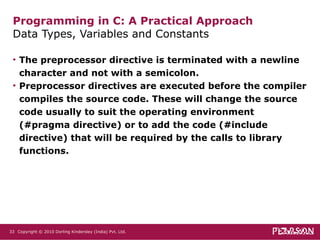

The preprocessor directive is terminated with a newline character and not with a semicolon. Preprocessor directives are executed before the compiler compiles the source code. These will change the source code usually to suit the operating environment (#pragma directive) or to add the code (#include directive) that will be required by the calls to library functions. Programming in C: A Practical Approach Data Types, Variables and Constants Copyright © 2010 Dorling Kindersley (India) Pvt. Ltd.
