Chapter2 Application

2: Application Layer Chapter 2 Application Layer Computer Networking: A Top Down Approach , 5 th edition. Jim Kurose, Keith Ross Addison-Wesley, April 2009. A note on the use of these ppt slides: We’re making these slides freely available to all (faculty, students, readers). They’re in PowerPoint form so you can add, modify, and delete slides (including this one) and slide content to suit your needs. They obviously represent a lot of work on our part. In return for use, we only ask the following: If you use these slides (e.g., in a class) in substantially unaltered form, that you mention their source (after all, we’d like people to use our book!) If you post any slides in substantially unaltered form on a www site, that you note that they are adapted from (or perhaps identical to) our slides, and note our copyright of this material. Thanks and enjoy! JFK/KWR All material copyright 1996-2009 J.F Kurose and K.W. Ross, All Rights Reserved

Chapter 2: Application layer 2.1 Principles of network applications 2.2 Web and HTTP 2.3 FTP 2.4 Electronic Mail SMTP, POP3, IMAP 2.5 DNS 2.6 P2P applications 2.7 Socket programming with TCP 2.8 Socket programming with UDP 2: Application Layer

Chapter 2: Application Layer Our goals: conceptual, implementation aspects of network application protocols transport-layer service models client-server paradigm peer-to-peer paradigm learn about protocols by examining popular application-level protocols HTTP FTP SMTP / POP3 / IMAP DNS programming network applications socket API 2: Application Layer

Some network apps e-mail web instant messaging remote login P2P file sharing multi-user network games streaming stored video clips voice over IP real-time video conferencing grid computing 2: Application Layer

Creating a network app write programs that run on (different) end systems communicate over network e.g., web server software communicates with browser software No need to write software for network-core devices Network-core devices do not run user applications applications on end systems allows for rapid app development, propagation 2: Application Layer application transport network data link physical application transport network data link physical application transport network data link physical

Chapter 2: Application layer 2.1 Principles of network applications 2.2 Web and HTTP 2.3 FTP 2.4 Electronic Mail SMTP, POP3, IMAP 2.5 DNS 2.6 P2P applications 2.7 Socket programming with TCP 2.8 Socket programming with UDP 2.9 Building a Web server 2: Application Layer

Application architectures Client-server Peer-to-peer (P2P) Hybrid of client-server and P2P 2: Application Layer

Client-server architecture server: always-on host permanent IP address server farms for scaling clients: communicate with server may be intermittently connected may have dynamic IP addresses do not communicate directly with each other 2: Application Layer client/server

Pure P2P architecture no always-on server arbitrary end systems directly communicate peers are intermittently connected and change IP addresses Highly scalable but difficult to manage 2: Application Layer peer-peer

Hybrid of client-server and P2P Skype voice-over-IP P2P application centralized server: finding address of remote party: client-client connection: direct (not through server) Instant messaging chatting between two users is P2P centralized service: client presence detection/location user registers its IP address with central server when it comes online user contacts central server to find IP addresses of buddies 2: Application Layer

Processes communicating Process: program running within a host. within same host, two processes communicate using inter-process communication (defined by OS). processes in different hosts communicate by exchanging messages Client process: process that initiates communication Server process: process that waits to be contacted 2: Application Layer Note: applications with P2P architectures have client processes & server processes

Sockets process sends/receives messages to/from its socket socket analogous to door sending process shoves message out door sending process relies on transport infrastructure on other side of door which brings message to socket at receiving process 2: Application Layer Internet controlled by OS controlled by app developer API: (1) choice of transport protocol; (2) ability to fix a few parameters (lots more on this later) process TCP with buffers, variables socket host or server process TCP with buffers, variables socket host or server

Addressing processes to receive messages, process must have identifier host device has unique 32-bit IP address Q: does IP address of host suffice for identifying the process? 2: Application Layer

Addressing processes to receive messages, process must have identifier host device has unique 32-bit IP address Q: does IP address of host on which process runs suffice for identifying the process? A: No, many processes can be running on same host identifier includes both IP address and port numbers associated with process on host. Example port numbers: HTTP server: 80 Mail server: 25 to send HTTP message to gaia.cs.umass.edu web server: IP address: 128.119.245.12 Port number: 80 more shortly… 2: Application Layer

App-layer protocol defines Types of messages exchanged, e.g., request, response Message syntax: what fields in messages & how fields are delineated Message semantics meaning of information in fields Rules for when and how processes send & respond to messages Public-domain protocols: defined in RFCs allows for interoperability e.g., HTTP, SMTP Proprietary protocols: e.g., Skype 2: Application Layer

What transport service does an app need? Data loss some apps (e.g., audio) can tolerate some loss other apps (e.g., file transfer, telnet) require 100% reliable data transfer Timing some apps (e.g., Internet telephony, interactive games) require low delay to be “effective” 2: Application Layer Throughput some apps (e.g., multimedia) require minimum amount of throughput to be “effective” other apps (“elastic apps”) make use of whatever throughput they get Security Encryption, data integrity, …

Transport service requirements of common apps 2: Application Layer Application file transfer e-mail Web documents real-time audio/video stored audio/video interactive games instant messaging Data loss no loss no loss no loss loss-tolerant loss-tolerant loss-tolerant no loss Throughput elastic elastic elastic audio: 5kbps-1Mbps video:10kbps-5Mbps same as above few kbps up elastic Time Sensitive no no no yes, 100’s msec yes, few secs yes, 100’s msec yes and no

Internet transport protocols services TCP service: connection-oriented: setup required between client and server processes reliable transport between sending and receiving process flow control: sender won’t overwhelm receiver congestion control: throttle sender when network overloaded does not provide: timing, minimum throughput guarantees, security UDP service: unreliable data transfer between sending and receiving process does not provide: connection setup, reliability, flow control, congestion control, timing, throughput guarantee, or security Q: why bother? Why is there a UDP? 2: Application Layer

Internet apps: application, transport protocols 2: Application Layer Application e-mail remote terminal access Web file transfer streaming multimedia Internet telephony Application layer protocol SMTP [RFC 2821] Telnet [RFC 854] HTTP [RFC 2616] FTP [RFC 959] HTTP (eg Youtube), RTP [RFC 1889] SIP, RTP, proprietary (e.g., Skype) Underlying transport protocol TCP TCP TCP TCP TCP or UDP typically UDP

Chapter 2: Application layer 2.1 Principles of network applications app architectures app requirements 2.2 Web and HTTP 2.4 Electronic Mail SMTP, POP3, IMAP 2.5 DNS 2.6 P2P applications 2.7 Socket programming with TCP 2.8 Socket programming with UDP 2: Application Layer

Web and HTTP First some jargon Web page consists of objects Object can be HTML file, JPEG image, Java applet, audio file,… Web page consists of base HTML-file which includes several referenced objects Each object is addressable by a URL Example URL: 2: Application Layer www.someschool.edu/someDept/pic.gif host name path name

HTTP overview HTTP: hypertext transfer protocol Web’s application layer protocol client/server model client: browser that requests, receives, “displays” Web objects server: Web server sends objects in response to requests 2: Application Layer PC running Explorer Server running Apache Web server Mac running Navigator HTTP request HTTP request HTTP response HTTP response

HTTP overview (continued) Uses TCP: client initiates TCP connection (creates socket) to server, port 80 server accepts TCP connection from client HTTP messages (application-layer protocol messages) exchanged between browser (HTTP client) and Web server (HTTP server) TCP connection closed HTTP is “stateless” server maintains no information about past client requests 2: Application Layer Protocols that maintain “state” are complex! past history (state) must be maintained if server/client crashes, their views of “state” may be inconsistent, must be reconciled aside

HTTP connections Nonpersistent HTTP At most one object is sent over a TCP connection. Persistent HTTP Multiple objects can be sent over single TCP connection between client and server. 2: Application Layer

Nonpersistent HTTP Suppose user enters URL www.someSchool.edu/someDepartment/home.index 1a . HTTP client initiates TCP connection to HTTP server (process) at www.someSchool.edu on port 80 2: Application Layer 2. HTTP client sends HTTP request message (containing URL) into TCP connection socket. Message indicates that client wants object someDepartment/home.index 1b. HTTP server at host www.someSchool.edu waiting for TCP connection at port 80. “accepts” connection, notifying client 3. HTTP server receives request message, forms response message containing requested object, and sends message into its socket time (contains text, references to 10 jpeg images)

Nonpersistent HTTP (cont.) 5 . HTTP client receives response message containing html file, displays html. Parsing html file, finds 10 referenced jpeg objects 2: Application Layer 6. Steps 1-5 repeated for each of 10 jpeg objects 4. HTTP server closes TCP connection. time

Non-Persistent HTTP: Response time Definition of RTT: time for a small packet to travel from client to server and back. Response time: one RTT to initiate TCP connection one RTT for HTTP request and first few bytes of HTTP response to return file transmission time total = 2RTT+transmit time 2: Application Layer time to transmit file initiate TCP connection RTT request file RTT file received time time

Persistent HTTP Nonpersistent HTTP issues: requires 2 RTTs per object OS overhead for each TCP connection browsers often open parallel TCP connections to fetch referenced objects Persistent HTTP server leaves connection open after sending response subsequent HTTP messages between same client/server sent over open connection client sends requests as soon as it encounters a referenced object as little as one RTT for all the referenced objects 2: Application Layer

HTTP request message two types of HTTP messages: request , response HTTP request message: ASCII (human-readable format) 2: Application Layer GET /somedir/page.html HTTP/1.1 Host: www.someschool.edu User-agent: Mozilla/4.0 Connection: close Accept-language:fr (extra carriage return, line feed) request line (GET, POST, HEAD commands) header lines Carriage return, line feed indicates end of message

HTTP request message: general format 2: Application Layer

Uploading form input Post method: Web page often includes form input Input is uploaded to server in entity body URL method: Uses GET method Input is uploaded in URL field of request line: 2: Application Layer www.somesite.com/animalsearch?monkeys&banana

Uploading form input 2: Application Layer

Method types HTTP/1.0 GET POST HEAD asks server to leave requested object out of response HTTP/1.1 GET, POST, HEAD PUT uploads file in entity body to path specified in URL field DELETE deletes file specified in the URL field 2: Application Layer

HTTP response message 2: Application Layer HTTP/1.1 200 OK Connection close Date: Thu, 06 Aug 1998 12:00:15 GMT Server: Apache/1.3.0 (Unix) Last-Modified: Mon, 22 Jun 1998 …... Content-Length: 6821 Content-Type: text/html data data data data data ... status line (protocol status code status phrase) header lines data, e.g., requested HTML file

HTTP response status codes 200 OK request succeeded, requested object later in this message 301 Moved Permanently requested object moved, new location specified later in this message (Location:) 400 Bad Request request message not understood by server 404 Not Found requested document not found on this server 505 HTTP Version Not Supported 2: Application Layer In first line in server->client response message. A few sample codes:

Trying out HTTP (client side) for yourself 1. Telnet to your favorite Web server: 2: Application Layer Opens TCP connection to port 80 (default HTTP server port) at cis.poly.edu. Anything typed in sent to port 80 at cis.poly.edu telnet cis.poly.edu 80 2. Type in a GET HTTP request: GET /~ross/ HTTP/1.1 Host: cis.poly.edu By typing this in (hit carriage return twice), you send this minimal (but complete) GET request to HTTP server 3. Look at response message sent by HTTP server!

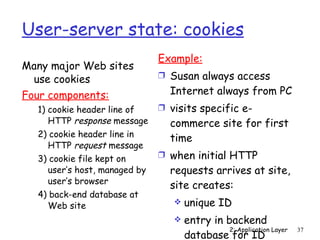

User-server state: cookies Many major Web sites use cookies Four components: 1) cookie header line of HTTP response message 2) cookie header line in HTTP request message 3) cookie file kept on user’s host, managed by user’s browser 4) back-end database at Web site Example: Susan always access Internet always from PC visits specific e-commerce site for first time when initial HTTP requests arrives at site, site creates: unique ID entry in backend database for ID 2: Application Layer

Cookies: keeping “state” (cont.) 2: Application Layer client server cookie file one week later: backend database usual http response msg usual http response msg usual http request msg cookie: 1678 cookie- specific action access ebay 8734 usual http request msg Amazon server creates ID 1678 for user create entry usual http response Set-cookie: 1678 ebay 8734 amazon 1678 usual http request msg cookie: 1678 cookie- spectific action access ebay 8734 amazon 1678

Cookies (continued) What cookies can bring: authorization shopping carts recommendations user session state (Web e-mail) 2: Application Layer Cookies and privacy: cookies permit sites to learn a lot about you you may supply name and e-mail to sites aside How to keep “state”: protocol endpoints: maintain state at sender/receiver over multiple transactions cookies: http messages carry state

Web caches (proxy server) user sets browser: Web accesses via cache browser sends all HTTP requests to cache object in cache: cache returns object else cache requests object from origin server, then returns object to client 2: Application Layer Goal: satisfy client request without involving origin server client Proxy server client origin server origin server HTTP request HTTP response HTTP request HTTP request HTTP response HTTP response

More about Web caching cache acts as both client and server typically cache is installed by ISP (university, company, residential ISP) Why Web caching? reduce response time for client request reduce traffic on an institution’s access link. Internet dense with caches: enables “poor” content providers to effectively deliver content (but so does P2P file sharing) 2: Application Layer

Caching example Assumptions average object size = 100,000 bits avg. request rate from institution’s browsers to origin servers = 15/sec delay from institutional router to any origin server and back to router = 2 sec Consequences utilization on LAN = 15% utilization on access link = 100% total delay = Internet delay + access delay + LAN delay = 2 sec + minutes + milliseconds 2: Application Layer origin servers public Internet institutional network 10 Mbps LAN 1.5 Mbps access link institutional cache

Caching example (cont) possible solution increase bandwidth of access link to, say, 10 Mbps consequence utilization on LAN = 15% utilization on access link = 15% Total delay = Internet delay + access delay + LAN delay = 2 sec + msecs + msecs often a costly upgrade 2: Application Layer origin servers public Internet institutional network 10 Mbps LAN 10 Mbps access link institutional cache

Caching example (cont) possible solution: install cache suppose hit rate is 0.4 consequence 40% requests will be satisfied almost immediately 60% requests satisfied by origin server utilization of access link reduced to 60%, resulting in negligible delays (say 10 msec) total avg delay = Internet delay + access delay + LAN delay = .6*(2.01) secs + .4*milliseconds < 1.4 secs 2: Application Layer origin servers public Internet institutional network 10 Mbps LAN 1.5 Mbps access link institutional cache

Conditional GET Goal: don’t send object if cache has up-to-date cached version cache: specify date of cached copy in HTTP request If-modified-since: <date> server: response contains no object if cached copy is up-to-date: HTTP/1.0 304 Not Modified 2: Application Layer cache server HTTP request msg If-modified-since: <date> object not modified HTTP request msg If-modified-since: <date> HTTP response HTTP/1.0 200 OK <data> object modified HTTP response HTTP/1.0 304 Not Modified

FTP: the file transfer protocol transfer file to/from remote host client/server model client: side that initiates transfer (either to/from remote) server: remote host ftp: RFC 959 ftp server: port 21 2: Application Layer file transfer local file system remote file system user at host FTP server FTP user interface FTP client

FTP: separate control, data connections FTP client contacts FTP server at port 21, TCP is transport protocol client authorized over control connection client browses remote directory by sending commands over control connection. when server receives file transfer command, server opens 2 nd TCP connection (for file) to client after transferring one file, server closes data connection. 2: Application Layer server opens another TCP data connection to transfer another file. control connection: “out of band” FTP server maintains “state”: current directory, earlier authentication FTP client FTP server TCP control connection port 21 TCP data connection port 20

FTP commands, responses Sample commands: sent as ASCII text over control channel USER username PASS password LIST return list of file in current directory RETR filename retrieves (gets) file STOR filename stores (puts) file onto remote host Sample return codes status code and phrase (as in HTTP) 331 Username OK, password required 125 data connection already open; transfer starting 425 Can’t open data connection 452 Error writing file 2: Application Layer

Electronic Mail Three major components: user agents mail servers simple mail transfer protocol: SMTP User Agent a.k.a. “mail reader” composing, editing, reading mail messages e.g., Eudora, Outlook, elm, Mozilla Thunderbird outgoing, incoming messages stored on server 2: Application Layer user mailbox outgoing message queue mail server user agent user agent user agent mail server user agent user agent mail server user agent SMTP SMTP SMTP

Electronic Mail: mail servers Mail Servers mailbox contains incoming messages for user message queue of outgoing (to be sent) mail messages SMTP protocol between mail servers to send email messages client: sending mail server “ server”: receiving mail server 2: Application Layer mail server user agent user agent user agent mail server user agent user agent mail server user agent SMTP SMTP SMTP

Electronic Mail: SMTP [RFC 2821] uses TCP to reliably transfer email message from client to server, port 25 direct transfer: sending server to receiving server three phases of transfer handshaking (greeting) transfer of messages closure command/response interaction commands: ASCII text response: status code and phrase messages must be in 7-bit ASCII 2: Application Layer

Scenario: Alice sends message to Bob 1) Alice uses UA to compose message and “to” [email_address] 2) Alice’s UA sends message to her mail server; message placed in message queue 3) Client side of SMTP opens TCP connection with Bob’s mail server 4) SMTP client sends Alice’s message over the TCP connection 5) Bob’s mail server places the message in Bob’s mailbox 6) Bob invokes his user agent to read message 2: Application Layer 1 2 3 4 5 6 user agent mail server mail server user agent

Sample SMTP interaction 2: Application Layer S: 220 hamburger.edu C: HELO crepes.fr S: 250 Hello crepes.fr, pleased to meet you C: MAIL FROM: <alice@crepes.fr> S: 250 alice@crepes.fr... Sender ok C: RCPT TO: <bob@hamburger.edu> S: 250 bob@hamburger.edu ... Recipient ok C: DATA S: 354 Enter mail, end with "." on a line by itself C: Do you like ketchup? C: How about pickles? C: . S: 250 Message accepted for delivery C: QUIT S: 221 hamburger.edu closing connection

Try SMTP interaction for yourself: telnet servername 25 see 220 reply from server enter HELO, MAIL FROM, RCPT TO, DATA, QUIT commands above lets you send email without using email client (reader) 2: Application Layer

SMTP: final words SMTP uses persistent connections SMTP requires message (header & body) to be in 7-bit ASCII SMTP server uses CRLF.CRLF to determine end of message Comparison with HTTP: HTTP: pull SMTP: push both have ASCII command/response interaction, status codes HTTP: each object encapsulated in its own response msg SMTP: multiple objects sent in multipart msg 2: Application Layer

Mail message format SMTP: protocol for exchanging email msgs RFC 822: standard for text message format: header lines, e.g., To: From: Subject: different from SMTP commands ! body the “message”, ASCII characters only 2: Application Layer header body blank line

Mail access protocols SMTP: delivery/storage to receiver’s server Mail access protocol: retrieval from server POP: Post Office Protocol [RFC 1939] authorization (agent <-->server) and download IMAP: Internet Mail Access Protocol [RFC 1730] more features (more complex) manipulation of stored msgs on server HTTP: gmail, Hotmail, Yahoo! Mail, etc. 2: Application Layer SMTP access protocol receiver’s mail server user agent sender’s mail server user agent SMTP

POP3 protocol authorization phase client commands: user: declare username pass: password server responses +OK -ERR transaction phase, client: list: list message numbers retr: retrieve message by number dele: delete quit 2: Application Layer C: list S: 1 498 S: 2 912 S: . C: retr 1 S: <message 1 contents> S: . C: dele 1 C: retr 2 S: <message 1 contents> S: . C: dele 2 C: quit S: +OK POP3 server signing off S: +OK POP3 server ready C: user bob S: +OK C: pass hungry S: +OK user successfully logged on

POP3 (more) and IMAP More about POP3 Previous example uses “download and delete” mode. Bob cannot re-read e-mail if he changes client “ Download-and-keep”: copies of messages on different clients POP3 is stateless across sessions IMAP Keep all messages in one place: the server Allows user to organize messages in folders IMAP keeps user state across sessions: names of folders and mappings between message IDs and folder name 2: Application Layer

DNS: Domain Name System People: many identifiers: SSN, name, passport # Internet hosts, routers: IP address (32 bit) - used for addressing datagrams “ name”, e.g., ww.yahoo.com - used by humans Q: map between IP addresses and name ? Domain Name System: distributed database implemented in hierarchy of many name servers application-layer protocol host, routers, name servers to communicate to resolve names (address/name translation) note: core Internet function, implemented as application-layer protocol complexity at network’s “edge” 2: Application Layer

DNS Why not centralize DNS? single point of failure traffic volume distant centralized database maintenance doesn’t scale! DNS services hostname to IP address translation host aliasing Canonical, alias names mail server aliasing load distribution replicated Web servers: set of IP addresses for one canonical name 2: Application Layer

Distributed, Hierarchical Database Client wants IP for www.amazon.com; 1 st approx: client queries a root server to find com DNS server client queries com DNS server to get amazon.com DNS server client queries amazon.com DNS server to get IP address for www.amazon.com 2: Application Layer Root DNS Servers com DNS servers org DNS servers edu DNS servers poly.edu DNS servers umass.edu DNS servers yahoo.com DNS servers amazon.com DNS servers pbs.org DNS servers

DNS: Root name servers contacted by local name server that can not resolve name root name server: contacts authoritative name server if name mapping not known gets mapping returns mapping to local name server 2: Application Layer 13 root name servers worldwide b USC-ISI Marina del Rey, CA l ICANN Los Angeles, CA e NASA Mt View, CA f Internet Software C. Palo Alto, CA (and 36 other locations) i Autonomica, Stockholm (plus 28 other locations) k RIPE London (also 16 other locations) m WIDE Tokyo (also Seoul, Paris, SF) a Verisign, Dulles, VA c Cogent, Herndon, VA (also LA) d U Maryland College Park, MD g US DoD Vienna, VA h ARL Aberdeen, MD j Verisign, ( 21 locations)

TLD and Authoritative Servers Top-level domain (TLD) servers: responsible for com, org, net, edu, etc, and all top-level country domains uk, fr, ca, jp. Network Solutions maintains servers for com TLD Educause for edu TLD Authoritative DNS servers: organization’s DNS servers, providing authoritative hostname to IP mappings for organization’s servers (e.g., Web, mail). can be maintained by organization or service provider 2: Application Layer

Local Name Server does not strictly belong to hierarchy each ISP (residential ISP, company, university) has one. also called “default name server” when host makes DNS query, query is sent to its local DNS server acts as proxy, forwards query into hierarchy 2: Application Layer

DNS name resolution example Host at cis.poly.edu wants IP address for gaia.cs.umass.edu 2: Application Layer requesting host cis.poly.edu gaia.cs.umass.edu root DNS server 1 2 3 4 5 6 authoritative DNS server dns.cs.umass.edu 7 8 TLD DNS server iterated query: contacted server replies with name of server to contact “ I don’t know this name, but ask this server” local DNS server dns.poly.edu

DNS name resolution example 2: Application Layer recursive query: puts burden of name resolution on contacted name server heavy load? requesting host cis.poly.edu gaia.cs.umass.edu root DNS server local DNS server dns.poly.edu 1 2 4 5 6 authoritative DNS server dns.cs.umass.edu 7 8 TLD DNS server 3

DNS: caching and updating records once (any) name server learns mapping, it caches mapping cache entries timeout (disappear) after some time TLD servers typically cached in local name servers Thus root name servers not often visited update/notify mechanisms under design by IETF RFC 2136 http://www.ietf.org/html.charters/dnsind-charter.html 2: Application Layer

DNS records DNS: distributed db storing resource records (RR) Type=NS name is domain (e.g. foo.com) value is hostname of authoritative name server for this domain 2: Application Layer Type=A name is hostname value is IP address Type=CNAME name is alias name for some “canonical” (the real) name www.ibm.com is really servereast.backup2.ibm.com value is canonical name Type=MX value is name of mailserver associated with name RR format: (name, value, type, ttl)

DNS protocol, messages DNS protocol : query and reply messages, both with same message format 2: Application Layer msg header identification: 16 bit # for query, reply to query uses same # flags: query or reply recursion desired recursion available reply is authoritative

DNS protocol, messages 2: Application Layer Name, type fields for a query RRs in response to query records for authoritative servers additional “helpful” info that may be used

Inserting records into DNS example: new startup “Network Utopia” register name networkuptopia.com at DNS registrar (e.g., Network Solutions) provide names, IP addresses of authoritative name server (primary and secondary) registrar inserts two RRs into com TLD server: (networkutopia.com, dns1.networkutopia.com, NS) (dns1.networkutopia.com, 212.212.212.1, A) create authoritative server Type A record for www.networkuptopia.com; Type MX record for networkutopia.com How do people get IP address of your Web site? 2: Application Layer

Pure P2P architecture no always-on server arbitrary end systems directly communicate peers are intermittently connected and change IP addresses Three topics: File distribution Searching for information Case Study: Skype 2: Application Layer peer-peer

File Distribution: Server-Client vs P2P Question : How much time to distribute file from one server to N peers ? 2: Application Layer u s u 2 d 1 d 2 u 1 u N d N Server Network (with abundant bandwidth) File, size F u s : server upload bandwidth u i : peer i upload bandwidth d i : peer i download bandwidth

File distribution time: server-client server sequentially sends N copies: NF/u s time client i takes F/d i time to download 2: Application Layer u s u 2 d 1 d 2 u 1 u N d N Server Network (with abundant bandwidth) F increases linearly in N (for large N) = d cs = max { NF/u s , F/min(d i ) } i Time to distribute F to N clients using client/server approach

File distribution time: P2P server must send one copy: F /u s time client i takes F/d i time to download NF bits must be downloaded (aggregate) 2: Application Layer u s u 2 d 1 d 2 u 1 u N d N Server Network (with abundant bandwidth) F fastest possible upload rate: u s +  u i d P2P = max { F/u s , F/min(d i ) , NF/(u s +  u i ) } i

2: Application Layer Server-client vs. P2P: example Client upload rate = u, F/u = 1 hour, u s = 10u, d min ≥ u s

File distribution: BitTorrent 2: Application Layer tracker: tracks peers participating in torrent torrent: group of peers exchanging chunks of a file P2P file distribution obtain list of peers trading chunks peer

BitTorrent (1) file divided into 256KB chunks . peer joining torrent: has no chunks, but will accumulate them over time registers with tracker to get list of peers, connects to subset of peers (“neighbors”) while downloading, peer uploads chunks to other peers. peers may come and go once peer has entire file, it may (selfishly) leave or (altruistically) remain 2: Application Layer

BitTorrent (2) Pulling Chunks at any given time, different peers have different subsets of file chunks periodically, a peer (Alice) asks each neighbor for list of chunks that they have. Alice sends requests for her missing chunks rarest first 2: Application Layer Sending Chunks: tit-for-tat Alice sends chunks to four neighbors currently sending her chunks at the highest rate re-evaluate top 4 every 10 secs every 30 secs: randomly select another peer, starts sending chunks newly chosen peer may join top 4 “ optimistically unchoke”

BitTorrent: Tit-for-tat 2: Application Layer (1) Alice “optimistically unchokes” Bob (2) Alice becomes one of Bob’s top-four providers; Bob reciprocates (3) Bob becomes one of Alice’s top-four providers With higher upload rate, can find better trading partners & get file faster!

Distributed Hash Table (DHT) DHT = distributed P2P database Database has (key, value) pairs; key: ss number; value: human name key: content type; value: IP address Peers query DB with key DB returns values that match the key Peers can also insert (key, value) peers

DHT Identifiers Assign integer identifier to each peer in range [0,2 n -1]. Each identifier can be represented by n bits. Require each key to be an integer in same range . To get integer keys, hash original key. eg, key = h(“Led Zeppelin IV”) This is why they call it a distributed “hash” table

How to assign keys to peers? Central issue: Assigning (key, value) pairs to peers. Rule: assign key to the peer that has the closest ID. Convention in lecture: closest is the immediate successor of the key. Ex: n=4; peers: 1,3,4,5,8,10,12,14; key = 13, then successor peer = 14 key = 15, then successor peer = 1

Circular DHT (1) Each peer only aware of immediate successor and predecessor. “ Overlay network” 1 3 4 5 8 10 12 15

Circle DHT (2) 0001 0011 0100 0101 1000 1010 1100 1111 O(N) messages on avg to resolve query, when there are N peers 1110 1110 1110 1110 1110 1110 Define closest as closest successor Who’s resp for key 1110 ? I am

Circular DHT with Shortcuts Each peer keeps track of IP addresses of predecessor, successor, short cuts. Reduced from 6 to 2 messages. Possible to design shortcuts so O(log N) neighbors, O(log N) messages in query 1 3 4 5 8 10 12 15 Who’s resp for key 1110?

Peer Churn Peer 5 abruptly leaves Peer 4 detects; makes 8 its immediate successor; asks 8 who its immediate successor is; makes 8’s immediate successor its second successor. What if peer 13 wants to join? To handle peer churn, require each peer to know the IP address of its two successors. Each peer periodically pings its two successors to see if they are still alive . 1 3 4 5 8 10 12 15

P2P Case study: Skype inherently P2P: pairs of users communicate. proprietary application-layer protocol (inferred via reverse engineering) hierarchical overlay with SNs Index maps usernames to IP addresses; distributed over SNs 2: Application Layer Supernode (SN) Skype clients (SC) Skype login server

Peers as relays Problem when both Alice and Bob are behind “NATs”. NAT prevents an outside peer from initiating a call to insider peer Solution: Using Alice’s and Bob’s SNs, Relay is chosen Each peer initiates session with relay. Peers can now communicate through NATs via relay 2: Application Layer

Socket programming Socket API introduced in BSD4.1 UNIX, 1981 explicitly created, used, released by apps client/server paradigm two types of transport service via socket API: unreliable datagram reliable, byte stream-oriented 2: Application Layer Goal: learn how to build client/server application that communicate using sockets a host-local , application-created , OS-controlled interface (a “door”) into which application process can both send and receive messages to/from another application process socket

Socket-programming using TCP Socket: a door between application process and end-end-transport protocol (UCP or TCP) TCP service: reliable transfer of bytes from one process to another 2: Application Layer controlled by application developer controlled by operating system host or server controlled by application developer controlled by operating system host or server internet process TCP with buffers, variables socket process TCP with buffers, variables socket

Socket programming with TCP Client must contact server server process must first be running server must have created socket (door) that welcomes client’s contact Client contacts server by: creating client-local TCP socket specifying IP address, port number of server process When client creates socket : client TCP establishes connection to server TCP When contacted by client, server TCP creates new socket for server process to communicate with client allows server to talk with multiple clients source port numbers used to distinguish clients (more in Chap 3) 2: Application Layer TCP provides reliable, in-order transfer of bytes (“pipe”) between client and server application viewpoint

Client/server socket interaction: TCP 2: Application Layer Server (running on hostid ) Client wait for incoming connection request connectionSocket = welcomeSocket.accept() create socket, port= x , for incoming request: welcomeSocket = ServerSocket() create socket, connect to hostid , port= x clientSocket = Socket() close connectionSocket read reply from clientSocket close clientSocket send request using clientSocket read request from connectionSocket write reply to connectionSocket TCP connection setup

A stream is a sequence of characters that flow into or out of a process. An input stream is attached to some input source for the process, e.g., keyboard or socket. An output stream is attached to an output source, e.g., monitor or socket. 2: Application Layer Client process client TCP socket Stream jargon

Socket programming with TCP Example client-server app: 1) client reads line from standard input ( inFromUser stream) , sends to server via socket ( outToServer stream) 2) server reads line from socket 3) server converts line to uppercase, sends back to client 4) client reads, prints modified line from socket ( inFromServer stream) 2: Application Layer

Example: Java client (TCP) 2: Application Layer import java.io.*; import java.net.*; class TCPClient { public static void main(String argv[]) throws Exception { String sentence; String modifiedSentence; BufferedReader inFromUser = new BufferedReader(new InputStreamReader(System.in)); Socket clientSocket = new Socket("hostname", 6789); DataOutputStream outToServer = new DataOutputStream(clientSocket.getOutputStream()); Create input stream Create client socket, connect to server Create output stream attached to socket

Example: Java client (TCP), cont. 2: Application Layer BufferedReader inFromServer = new BufferedReader(new InputStreamReader(clientSocket.getInputStream())); sentence = inFromUser.readLine(); outToServer.writeBytes(sentence + '\n'); modifiedSentence = inFromServer.readLine(); System.out.println ("FROM SERVER: " + modifiedSentence ); clientSocket.close(); } } Create input stream attached to socket Send line to server Read line from server

Example: Java server (TCP) 2: Application Layer import java.io.*; import java.net.*; class TCPServer { public static void main(String argv[]) throws Exception { String clientSentence; String capitalizedSentence; ServerSocket welcomeSocket = new ServerSocket(6789); while(true) { Socket connectionSocket = welcomeSocket.accept(); BufferedReader inFromClient = new BufferedReader(new InputStreamReader(connectionSocket.getInputStream())); Create welcoming socket at port 6789 Wait, on welcoming socket for contact by client Create input stream, attached to socket

Example: Java server (TCP), cont 2: Application Layer DataOutputStream outToClient = new DataOutputStream (connectionSocket.getOutputStream()); clientSentence = inFromClient.readLine(); capitalizedSentence = clientSentence.toUpperCase() + '\n'; outToClient.writeBytes(capitalizedSentence); } } } Read in line from socket Create output stream, attached to socket Write out line to socket End of while loop, loop back and wait for another client connection

Socket programming with UDP UDP: no “connection” between client and server no handshaking sender explicitly attaches IP address and port of destination to each packet server must extract IP address, port of sender from received packet UDP: transmitted data may be received out of order, or lost 2: Application Layer application viewpoint UDP provides unreliable transfer of groups of bytes (“datagrams”) between client and server

Client/server socket interaction: UDP 2: Application Layer Server (running on hostid ) create socket, port= x. serverSocket = DatagramSocket() close clientSocket read datagram from clientSocket create socket, clientSocket = DatagramSocket() Client Create datagram with server IP and port=x; send datagram via clientSocket read datagram from serverSocket write reply to serverSocket specifying client address, port number

Example: Java client (UDP) 2: Application Layer Output: sends packet (recall that TCP sent “byte stream”) Input: receives packet (recall thatTCP received “byte stream”) Client process client UDP socket

Example: Java client (UDP) 2: Application Layer import java.io.*; import java.net.*; class UDPClient { public static void main(String args[]) throws Exception { BufferedReader inFromUser = new BufferedReader(new InputStreamReader(System.in)); DatagramSocket clientSocket = new DatagramSocket(); InetAddress IPAddress = InetAddress.getByName("hostname"); byte[] sendData = new byte[1024]; byte[] receiveData = new byte[1024]; String sentence = inFromUser.readLine(); sendData = sentence.getBytes(); Create input stream Create client socket Translate hostname to IP address using DNS

Example: Java client (UDP), cont. 2: Application Layer DatagramPacket sendPacket = new DatagramPacket(sendData, sendData.length, IPAddress, 9876); clientSocket.send(sendPacket); DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length); clientSocket.receive(receivePacket); String modifiedSentence = new String(receivePacket.getData()); System.out.println("FROM SERVER:" + modifiedSentence); clientSocket.close(); } } Create datagram with data-to-send, length, IP addr, port Send datagram to server Read datagram from server

Example: Java server (UDP) 2: Application Layer import java.io.*; import java.net.*; class UDPServer { public static void main(String args[]) throws Exception { DatagramSocket serverSocket = new DatagramSocket(9876); byte[] receiveData = new byte[1024]; byte[] sendData = new byte[1024]; while(true) { DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length); serverSocket.receive(receivePacket); Create datagram socket at port 9876 Create space for received datagram Receive datagram

Example: Java server (UDP), cont 2: Application Layer String sentence = new String(receivePacket.getData()); InetAddress IPAddress = receivePacket.getAddress(); int port = receivePacket.getPort(); String capitalizedSentence = sentence.toUpperCase(); sendData = capitalizedSentence.getBytes(); DatagramPacket sendPacket = new DatagramPacket(sendData, sendData.length, IPAddress, port); serverSocket.send(sendPacket); } } } Get IP addr port #, of sender Write out datagram to socket End of while loop, loop back and wait for another datagram Create datagram to send to client

Chapter 2: Summary application architectures client-server P2P hybrid application service requirements: reliability, bandwidth, delay Internet transport service model connection-oriented, reliable: TCP unreliable, datagrams: UDP our study of network apps now complete! 2: Application Layer specific protocols: HTTP FTP SMTP, POP, IMAP DNS P2P: BitTorrent, Skype socket programming

Chapter 2: Summary typical request/reply message exchange: client requests info or service server responds with data, status code message formats: headers: fields giving info about data data: info being communicated Most importantly: learned about protocols 2: Application Layer Important themes: control vs. data msgs in-band, out-of-band centralized vs. decentralized stateless vs. stateful reliable vs. unreliable msg transfer “ complexity at network edge”

Chapter2 Application
