CLUSTER HEAD SELECTION ALGORITHMS FOR ENHANCED ENERGY EFFICIENCY IN WIRELESS SENSOR NETWORKS: A SYSTEMATIC LITERATURE REVIEW

International Journal of Computer Science and Engineering Survey (IJCSES), Vol.13, No.3, June 2022
DOI: 10.5121/ijcses.2022.13303 29
CLUSTER HEAD SELECTION ALGORITHMS
FOR ENHANCED ENERGY EFFICIENCY
IN WIRELESS SENSOR NETWORKS: A
SYSTEMATIC LITERATURE REVIEW
Peter Maina Mwangi , John Gichuki Ndia and Geoffrey Muchiri Muketha
School of computing and information Technology,
Murang’a University of Technology, Kenya
ABSTRACT
The extension of the sensor node's life span is an essential requirement in a Wireless Sensor Network.
Cluster head selection algorithms undertake the task of cluster head election and rotation among nodes,
and this has significant effects on the network's energy consumption. The objective of this paper is to
analyze existing cluster head selection algorithms and the parameters they implement to enhance energy
efficiency. To achieve this objective, systematic literature review methodology was used. Relevant papers
were extracted from major academic databases Elsevier, Springer, Wiley, IEEE, ACM Digital Library,
Citeseer Library, and preprints posted on arXiv. The results show that there are many existing Cluster
Head Selection Algorithms and they are categorized as deterministic, adaptive and hybrid. These
algorithms use different parameters to elect Cluster Heads. In future the researchers should derive more
parameters that can be used to elect cluster heads to improve on energy consumption.
KEYWORDS:
Cluster head, Cluster Head Selection Algorithms, energy efficiency, LEACH, Sensor node, Parameters,
wireless sensor networks.
1. INTRODUCTION
A Wireless Sensor Network (WSN) is a wireless network made up of a large number of small,
low-cost, low-power, and intelligent sensor nodes that monitor physical or environmental
parameters in many locations, such as humidity, temperature, pressure, motion, and water levels.
The sensors are placed at random around a sensing field to collect data about their surroundings.
[1]. WSN's intelligent nodes include an integrated CPU, which is one of their most distinguishing
features. Furthermore, rather than sending the data to the sensor nodes in charge of combining it,
they employ their processing capabilities to do simple processing and relay essential and partially
processed data. WSN has the potential to improve humans' ability to monitor and interact with
the physical world remotely because of these characteristics. [1]
Routing protocols and algorithms for Wireless Sensor Networks should be constructed to provide
fault tolerance in the event of individual node failure due to battery operation while consuming
less energy. Furthermore, because all sensor nodes must share the network's limited channel
capacity, these sensor network routing protocols must be inventive in order to implement local
cooperation and save bandwidth and energy. In a WSN (Wireless Sensor Network), all nodes are
considered homogeneous and energy limited [2].

30
Sensor Nodes (SN) in WSN are battery-powered and have a minimal computing capability, they
remain stationary once they've been installed in the appliance contexts. Furthermore, the expense
of replacing the nodes' batteries is prohibitively expensive. As a result, network lifespan
improvement is a difficult challenge and a popular research topic. Communication also consumes
a lot of energy when compared to processing. As a result, communication between nodes should
be kept to a minimum to extend the network's lifespan [3]. As a result of the nodes' energy
constraints, the key difficulties in WSN efficiency are lifetime and coverage.
Idle listening, collision, eavesdropping, overhead, overhearing, unprepared nodes, and a variety
of other activities all consume a significant amount of energy in wireless sensor nodes.
Improvements in energy economy are a critical issue in WSN, and building a power-efficient
protocol is vital to prolong the lifetime of WSN [4]
Clustering the network is a one of the best approach to design routing protocols in WSN. HEED
[5], TEEN [6], DD [7] and LEACH [8] are some of the WSN protocols that have been developed
based on clustering. The use of clustering approach can significantly reduce energy consumption
[9]. Energy usage is reduced by choosing the most suitable sensor node as cluster head (CH)
depending on standards defined inside the clustered sensors [9]. Cluster Head Selection
Algorithms are in charge of selecting Cluster Heads. However, the developed routing protocols
have yet to attain the much-needed greater levels of energy efficiency. As a result, the goal of this
research is to examine existing cluster head selection algorithms and the parameters that they
employ in order to increase energy efficiency.
The following is how the rest of the paper is organized: Section two covers related works, while
section three looks at methodology, section four tackles discussion and finally section five is the
conclusion of the study.
2. RELATED WORKS
Wireless sensor networks are used in a variety of applications, including health care monitoring,
environmental detection, industrial monitoring, and data logging. Researchers must, however,
resolve critical obstacles that are blocking widespread use of these infrastructures in order to
realize their full potential. Wireless sensor network power consumption is a significant
consideration while constructing sensor networks. The designers employ hierarchical routing
protocols based on clustering to achieve balanced energy usage and scalability [10]. The
following are some of the hierarchical routing protocols based on clustering:
Younis and Fahmy [11] devised a "Hybrid Energy-Efficient Distributed Clustering (HEED)
technique of extending network lifetime while maintaining dynamic scalability. For
homogeneous WSNs, this technique uses two factors to find cluster heads: remaining energy and
node density. In this protocol, the Cluster Head (CH) is elected on a regular basis based on a mix
of residual energy and node degree. In intra-cluster communication, however, the cluster
structure fails to achieve the lowest energy utilization. Furthermore, the HEED-generated clusters
are imbalanced.
Adaptive Threshold sensitive Energy Efficient sensor Network (APTEEN) proposed by
Manjeshwar and Agrawal [12] . APTEEN is a TEEN enhancement that aims to capture frequent
data harvests and respond to time-sensitive events. The cluster head will employ broadcasting to
provide all of the properties (transmission schedule and threshold value) to all of the nodes in the
network as soon as the clusters are established by the base station. Finally, to save energy, the
cluster heads will perform data aggregation. The primary benefit of APTEEN over TEEN is that

31
nodes use less energy. APTEEN's key drawback is the longer wait periods induced by the
system's complexity.
Cheng and Yang et al [13] developed the Novel Hierarchical Routing Algorithm (NHRPA),
which is another routing protocol for WSN. The NHRPA algorithm determines the best routing
approach for the nodes based on their residual energy usage, density, and distance from the BS
(Base Station). Because a node in a WSN typically performs the following three operations: loop
operations, judgment operations, and assignment operations, the suggested routing technique
lowers the calculation cost for these three activities. Furthermore, when a sensor network is
established, each node's initialization process is performed just once during the network's
lifetime. As a result, if the appropriate threshold value is selected, various concerns such as
energy and security can be balanced across a variety of conditions.
The primary idea behind the Base-Station Controlled Dynamic Clustering Protocol (BCDCP) is
to elect clusters in such a way that they are balanced as proposed by Muruganathan and Ma et al
[14]. Before deciding on a routing path, the BS gathers information about the current energy state
from all nodes in the network. Based on the responses received from all nodes, the base station
calculates the average energy level of all nodes by multiplying the energy levels of all nodes by
the number of nodes in the network. The base station then chooses a few nodes with higher
energy levels than the rest. Aside from that, each cluster is divided into equal numbers of nodes
in each cluster head so that: none of the cluster heads become overloaded; all cluster heads are
uniformly positioned throughout the network; and cluster head-to-cluster head (CH-to-CH)
communication is used so that data can be easily transferred to the BS without consuming
additional energy.
Another hierarchical routing protocol based on clustering in WSN is Extending Cluster Head
Lifetime (ELCH) developed by et al [15]. In the ELCH protocol for cluster head selection, all
nodes in the network voted for their neighbors. This protocol employs a hybrid technique, as a
result of which it consumes little energy, hence extending the network's life. This approach
blends cluster architecture with multi-hop routing.
Heinzelman et al [16] proposed Low Energy Adoptive Clustering Hierarchy (LEACH).
According to [16]LEACH is a self-organizing, adaptive clustering system that distributes energy
equitably throughout the network's sensors via randomness. LEACH nodes form local clusters,
with one node serving as the cluster-head or local base station. If the cluster heads were chosen a
priori and fixed throughout the system lifetime, as in traditional clustering systems, it's easy to
see how the unlucky sensors chosen to be cluster heads would perish quickly, thereby ending the
usable lives of all nodes belonging to such clusters. As a result, LEACH includes a randomized
rotation of the high-energy cluster-head location, which rotates across multiple sensors rather
than draining the battery of a single sensor. LEACH also uses local data fusion to reduce the
amount of data sent from the clusters to the base station, thereby saving energy and extending the
system's life. Many more hierarchical routing protocols for WSNs have been developed in
addition to the ones mentioned in other article [17], [18] and [19] etc.
There are various reviews that have been done over the years on cluster head selection algorithms
in WSN. Some of the reviews includes:
One of the review is carried out by Tyagi and Sudhanshu [20] they described a number of cluster-
driven hierarchical routing protocols based on the standard LEACH protocol, as well as their
advantages and disadvantages in comparison. Several factors, such as CH selection, load
balancing, routing, security, and so on, are chosen for comparison of the LEACH-based
protocols. The parameters are selected based on the applications and environment in which the

32
WSN is used. The absence of any statistical information on the discussed protocols, as well as the
lack of a statistic chart for the risk analysis, are the study's key weaknesses. The paper also lacks
research methodology.
Another review was carried out by Tamilselvi and Rizwana [21]. This paper discussed various
cluster head selection algorithms that seek to minimize energy consumption by taking into
account the residual energy of sensor nodes. The main issues in this paper is that it only focuses
on cluster head selection algorithms that used remaining energy parameter to minimize energy
consumption. Another weakness is that it is a traditional literature review meaning it does not
have methodology and the author can be bias.
Khalid, Raza and Shah [22] conducted a systematic review of the literature on Energy-Efficient
Routing Protocols for WSN. The paper describes existing energy-efficient protocols for wireless
sensor networks, analyzes and compares them, and cites their advantages and disadvantages. The
paper's main flaw is that it lacks eligibility criteria.
3. RESEARCH METHOD
This research was carried out as a systematic literature review based on Barbara Kitchenham's
original guidelines (2007) to systematically review existing cluster head selection algorithms
used by routing protocols, parameter they use to improve the lifespan of sensor network and their
limitations. A scientific literature review, in other words, can be used to locate, assess, and
interpret all relevant research for a certain research question, topic area, or phenomenon of
interest. This study is classified as a tertiary literature review because the purpose of the review is
to examine systematic literature reviews (which are referred to as secondary studies). The
approach is divided into three steps. This stage consists of three parts: planning, conducting, and
reporting on the review as shown in figure 1 below.
Figure 1. Steps used to conduct systematic literature review
Activities in SLR
Steps of conducting SLR
1. Identify the need for a systematic review
2. Formulate research goals and research
questions
3. Identify the key words
4. Identify the literature source
5. Identify the intrusion and exclusion criteria
6. Identify the data extraction strategy
Review
Planning
7. Identify relevant research
8. Studies selection
9. Study quality assessment
10. Data extraction and monitoring
11. Data synthesis
Review
conducting
12. Write review report
Result
reporting

33
3.1. Planning the Review
The planning process includes determining the need for a review, defining research topics, and
establishing a review technique.
3.1.1. Aim of the Systematic Literature Review
The goal of this literature study is to compile existing research on cluster head selection
algorithms and review the parameters and variables they utilize to increase energy efficiency. To
further the conversation, the study employs a variety of research questions.
3.1.2. Research Questions
To achieve the objective of the research various research questions were used
a) What are the existing cluster head selection algorithms?
b) What are the parameters used by cluster head selection algorithms?
c) What are the limitations of existing cluster head selection algorithms?
3.2. Conducting Research
The following are the processes taken throughout the review: eligibility criteria, the search
process, study selection, data collection process, inclusion and exclusion criteria and synthesis
methods.
3.2.1. Eligibility Criteria
This specifies intrusion and exclusion criteria for the literature review and how studies were
grouped for synthesis. This sets the boundaries of the review. This guarantees that only the most
relevant studies are included in the data analysis. Articles for the Systematic Literature Review
were chosen in three stages: first selection based on title, second selection based on reading the
abstract and final selection based on reading the whole paper. For inclusion and exclusion, the
following criteria were used in this research:
a) Articles on existing wireless sensor network routing protocol and cluster head selection
algorithms should be included.
b) In WSN, include comparative studies of cluster head selection strategies.
c) Use the most recent version of the articles (if any).
d) Consider articles that were published between 2010 and June 2021.
e) There articles must be peer reviewed journal publications or published conference
proceedings.
f) Exclude articles that that are not reviewing cluster head selection algorithms but are
related to enhancement of energy efficiency in WSN.
g) Articles, papers and journal that are not peer-reviewed journal or conference papers are
excluded.
3.2.2. Search Process
This section explains how to come up with search phrases, how to search, which databases to
search, and how to document your search. An extensive literature review was conducted by
examining relevant papers from seven major academic databases: Elsevier, Springer, Wiley,
IEEE, ACM Digital Library, Citeseer Library, and preprints posted on arXiv.

34
The papers were chosen using a keyword-based search. It entails looking for index keywords
based on common variation of the terms in the literature “cluster head selection”, “cluster head
selection algorithms”, “cluster head selection strategies” and other key words like “ energy
efficient routing protocols ”, “LEACH”e.t.c.
The research was limited to articles published between 2011 and June 2021 because we are
primarily interested in recent achievements in this area of study. The papers were then examined
to find relevant publications for additional research based on titles, abstracts, and keywords. After
then, a backward and forward snowballing method was used to locate further publications, which
consisted of leveraging the reference lists of the selected studies and the citations to these papers
to identify additional papers.
3.2.3. Data Extraction and Synthesis
For the years 2011–2021, a table was built with each row academic databases papers reviewed
were selected from and the number of journal papers that were examined in each database. Table
1 below shows various papers that have been selected from each academic database.
Table 1. List of journals paper selected form major academic databases.
Academic Databases No of Journal Papers Reviewed
IEEE 20
Elsevier 2
SPRINGER 22
ACM Digital library 17
Citeseer Library 4
arXiv. 1
Wiley 1
Total 67
A sample of the data extraction tool is attached as Appendix I. Relevant bibliographic
information (e.g., title, author, database, and page numbers) was captured for each article, as well
as a hyperlink to the piece for reading. The article abstract was gathered as a major part of the
first phase of this analysis for each article.
To answer questions the researcher considered abstract, introduction, and literature review and
result sections in all the papers that were selected. The decision to include an article in the final
review was made in two stages. Reading each abstract and classifying the paper as relevant or not
to the review was the first part. The relevance of the abstract was assessed by comparing it to the
above-mentioned search phrases. The review took into account the authors, publication date,
article type (e.g., journal, conference proceeding), technique-based taxonomy, and datasets. In
order to address the research questions, these information must be found. Figure 2 below show a
flow chart for the selection of articles and papers.

35
Figure 2. Flow chart for the selection of the articles
3.3. Reporting and Review
The responses to our research questions from the papers considered are discussed in this part. The
paper looks at the cluster head selection algorithms that should be used in LEACH a WSN
routing protocol, their properties, parameters and variables and their limitations. The following is
how the research findings are structured in relation to the research questions:
Identification
Screening
Eligibility
included
Through database searching the records that
were discovered
(j= 67)
Records after duplicates were removed (j=58)
Records screened
(j=58)
Records excluded on the bases
of titles /abstract removed (j=7)
Papers selected after
screening
(j=51)
Additional
records screened
through backward
snowballing
(j=42)
Records excluded
(j=32)
Articles additionally selected
(j=10)
Full articles assessed for eligibility
(j=61)
Articles excluded with
other reasons (j=18)
Full articles included in qualitative
synthesis
J=43

36
RQ1. What are the existing cluster head selection algorithms?
WSNs are projected to change the way data is collected, processed, and disseminated in a range
of contexts and applications. The most important design consideration in WSN is energy
consumption. To overcome the challenge and extend the network's lifetime, each node's energy
resources must be effectively managed. The structure of the most well-known energy efficiency
strategies is hierarchical. Hierarchical routing strategies based on clustering can effectively
reduce energy consumption. Many clustering concepts for extending network lifetime have been
proposed, including various tactics for cluster-head election and role rotation among sensor
nodes, all based on distinct characteristics, in order to perfect LEACH's restrictions [23]. The
study sought to identify existing cluster head election algorithms that have been used to improve
energy usage in LEACH protocols in WSN as a fundamental question in this body of literature.
Out of the 43 papers examined to have addressed this research issue 34 were found to have done
so. The key characterization of these cluster head election techniques on a shared platform
presents the following problems [23].
 Who will be the first to choose a cluster head?
 Which parameters define a sensor node duty?
 Which sensor nodes will serve as the cluster's leader?
 Will the cluster formulation procedure have to be restarted?
 Are the election cluster heads distributed evenly?
 Will it guarantee the formulation of a well-balanced clusters?
 Which strategy, single-hop or multi-hop, is the best for a vast network?
The Figure 3depicts existing classification of cluster head election algorithms.
Figure 3. Cluster head selection algorithms
According to [23] they classified cluster head selection algorithms into three categories namely
deterministic, adaptive and combined /hybrid cluster head selection algorithm.
The following section discusses each classification of cluster head selection algorithms and their
examples.
3.3.1. Deterministic cluster head selection algorithm
Sensor nodes in a communication range that meet the `node degree criterion in the beginning will
choose themselves as cluster heads. According to [23] “to establish the CH duty, throughout
Cluster head selection algorithm
Deterministic cluster
head selection algorithm
Adaptive cluster head
selection algorithm
Combined /hybrid
cluster head selection
algorithm

37
every round, all sensor nodes will send messages to their neighbors, and the nodes that receive
the most transmission shall declare themselves cluster leaders and relay a cluster configuration.
The presence of precisely one cluster leader in a communication range is validated by prohibiting
nodes that received the setup broadcast from broadcasting again. The sensor nodes that received
the setup broadcast send joining requests to the cluster head, who confirms it, generates the time
schedule, and distributes it to the cluster members”.
The deterministic approach chooses the best cluster heads based on sensor node characteristics
such as identification number (Node ID), number of neighbors (Node degree), and main reference
point (MRP)[23].
Algorithm for Cluster Establishment (ACE)
An example of this scheme is an Algorithm for Cluster Establishment (ACE) proposed by
Haowen et al [24] which developed a cluster formulation algorithm. There are two parts to this
algorithm. The first section specifies how nodes can spawn (by allowing each node to choose its
own leader), while the second section controls how clusters will move dynamically without
colliding. The ACE approach addresses cluster establishment, but not sensor node energy
variations throughout the working phase. For f min, they used the spawning threshold function,
which is an exponentially decreasing function based on the amount of time after the protocol was
begun for that node. That is, as the algorithm continues, f min should decrease. As a result, fewer
clusters emerge at the start of the process. With fewer clusters at the start, clusters will have
greater room to separate themselves from one another, laying the groundwork for effective
clustering. As time passes, the algorithm will gradually fill in the gaps between the clusters by
spawning new clusters more aggressively. The formula proposed by Haowen et al [24] to
calculate the spawning threshold function is:
𝑓min = (ₑ−
k1 t/ci –k2)d
According to [24] “the time since the protocol's beginnings is denoted by t, and the period during
which each node performs the protocol is denoted by cI, where c is the average number of
iterations expected per node and I is the expected period of the iteration timeframe. d is a network
node's expected average degree (number of neighbors), which is calculated ahead of time. The
parameters k1 and k2 determine the exponential graph's shape”.
One of the cluster heads identified by the ACE system dies prematurely as a result of increasing
energy demand, which is one of the algorithm's major flaws. Since they are the better cluster
leaders in those clusters, appointing other nodes as cluster heads will result in higher
communication costs. Another issue is that if we lose or destroyed a cluster head, the cluster
members will reconstruct a new group, which means we will lose a portion of the network's
scope, until the time new cluster is established.
The following is an explanation of how ACE functions. An ACE node can be in one of three
states: un-clustered, clustered, or cluster-head. When the algorithm starts, all nodes are un-
clustered. Each node delays the next iteration before deciding what action to take. This is done by
waiting for a random iteration interval.
When iteration arrives, the alternatives open to a node are determined by its current state. This
ACE technique, which is primarily concerned with cluster formation time, ignores the sensor
node residual energy levels. Unless sensor nodes suffer significant changes, ACE's cluster heads
will remain unchanged. Cluster leaders require a lot of energy than cluster members because they

38
are in charge of integrating and relaying data to the base station [25]. The limitations of ACE are
as follows:

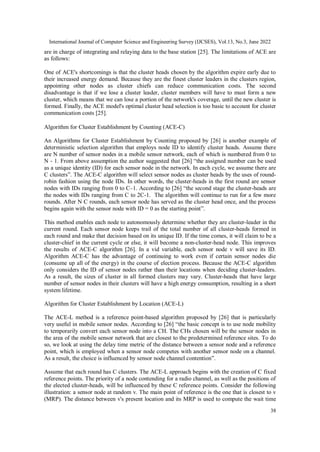

One of ACE's shortcomings is that the cluster heads chosen by the algorithm expire early due to
their increased energy demand. Because they are the finest cluster leaders in the clusters region,
appointing other nodes as cluster chiefs can reduce communication costs. The second
disadvantage is that if we lose a cluster leader, cluster members will have to must form a new
cluster, which means that we can lose a portion of the network's coverage, until the new cluster is
formed. Finally, the ACE model's optimal cluster head selection is too basic to account for cluster
communication costs [25].
Algorithm for Cluster Establishment by Counting (ACE-C)
An Algorithms for Cluster Establishment by Counting proposed by [26] is another example of
deterministic selection algorithm that employs node ID to identify cluster heads. Assume there
are N number of sensor nodes in a mobile sensor network, each of which is numbered from 0 to
N - 1. From above assumption the author suggested that [26] “the assigned number can be used
as a unique identity (ID) for each sensor node in the network. In each cycle, we assume there are
C clusters”. The ACE-C algorithm will select sensor nodes as cluster heads by the uses of round-
robin fashion using the node IDs. In other words, the cluster-heads in the first round are sensor
nodes with IDs ranging from 0 to C–1. According to [26] “the second stage the cluster-heads are
the nodes with IDs ranging from C to 2C-1. The algorithm will continue to run for a few more
rounds. After N C rounds, each sensor node has served as the cluster head once, and the process
begins again with the sensor node with ID = 0 as the starting point”.
This method enables each node to autonomously determine whether they are cluster-leader in the
current round. Each sensor node keeps trail of the total number of all cluster-heads formed in
each round and make that decision based on its unique ID. If the time comes, it will claim to be a
cluster-chief in the current cycle or else, it will become a non-cluster-head node. This improves
the results of ACE-C algorithm [26]. In a vid variable, each sensor node v will save its ID.
Algorithm ACE-C has the advantage of continuing to work even if certain sensor nodes die
(consume up all of the energy) in the course of election process. Because the ACE-C algorithm
only considers the ID of sensor nodes rather than their locations when deciding cluster-leaders.
As a result, the sizes of cluster in all formed clusters may vary. Cluster-heads that have large
number of sensor nodes in their clusters will have a high energy consumption, resulting in a short
system lifetime.
Algorithm for Cluster Establishment by Location (ACE-L)
The ACE-L method is a reference point-based algorithm proposed by [26] that is particularly
very useful in mobile sensor nodes. According to [26] “the basic concept is to use node mobility
to temporarily convert each sensor node into a CH. The CHs chosen will be the sensor nodes in
the area of the mobile sensor network that are closest to the predetermined reference sites. To do
so, we look at using the delay time metric of the distance between a sensor node and a reference
point, which is employed when a sensor node competes with another sensor node on a channel.
As a result, the choice is influenced by sensor node channel contention”.
Assume that each round has C clusters. The ACE-L approach begins with the creation of C fixed
reference points. The priority of a node contending for a radio channel, as well as the positions of
the elected cluster-heads, will be influenced by these C reference points. Consider the following
illustration: a sensor node at random v. The main point of reference is the one that is closest to v
(MRP). The distance between v's present location and its MRP is used to compute the wait time

39
for v, which is very significance for contending channel. All sensor nodes with the similar MRP
will compete for a channel, and the one with the smallest wait time will win. The channel is
apparently collected by the sensor node near to MRP. As a result, we can choose the CH that is
most closely associated with MRP. When a sensor node is chosen as the CH, it will use the
channel allocated to it, to transmission a CH beacon to the other nodes. Sensor node v, on the
other hand, stops the competition and it will not become a cluster head in this round. If it
receives a beacon of becoming a cluster leader from another sensor node u during the wait period
or channel contention, and node u has the same MRP as v. The fact that ACE-L consumes less
energy than ACE-C is one of its advantages [26].
3.3.2. Adaptive cluster head selection algorithm
Variables such as residual energy, energy squandered during the previous cycle, and the
beginning energy of the nodes are employed in adaptive systems to determine the next cluster
head in the network [23]. An adaptive strategy can be grouped as base station aided or self-
organized (Probabilistic) subject on who initiates the cluster head election. Depending on the
factors used to determine the duty of a sensor node, this scheme can be classified as base station
aided adaptive schemes, fixed parameter adaptive schemes, or resource adaptive schemes [23].
Below section will review existing adaptive cluster head selection algorithms.
The base station aided adaptive scheme groups the network and enlightens these nodes based on
pre-existing or collected node deployment information from the sensor nodes. The base station or
the sensing nodes select the cluster heads [23]. The effectiveness of base station-assisted
approaches is evaluated in light of the various requirements for cluster head selection. It's worth
noting that under these methods, the base station is in charge of re-clustering, whereas the sensor
nodes aren't responsible for computing the cluster heads.
Least Mean Squared Subtractive Clustering (LMSSC), suggested by P. Tillapart et al [27] is an
example of this technique. A suitable number of CHs is calculated by assessing the node metric
(CH), which is a definite ratio of a sensor node's outstanding energy, to the sum of the squared
distances from the involved node to all sensor nodes in the cluster, as well as its squared distance
to the base station.
After the nodes have been divided into clusters, the base station chooses and elects a suitable
cluster leaders for each group. When determining the nodes' metric (CH) of active nodes in a
group in order to elect a CH, the base station takes two critical parameters into account. The sum
of squared distances from an afflicted node, other cluster nodes, and a squared distance from the
affected node to the base station is the first variable. The second variable represents the injured
node's extra energy (Eri). P. Tillapart et al formula’s is used to determine CH for each node [27].
𝐶𝐻(𝑖) = 𝐸𝑟𝑖 ∗ [1/ (∑ 𝑑𝑗
2
𝑛
𝑗=1
+ 𝑑𝐵𝑆
2
)]
According to [27] “for node i CH(i) denotes the node's measure. The distance between node I
and the base station is expressed by dBS. dj represents the distance between nodes i and j in the
same cluster. The letter n represents the number of other nodes in the cluster. The node with the
most CH will be chosen as the cluster head. The proposed method causes the selected nodes to
form cluster heads until they die. A new cluster–head will be chosen after that”.

40
Another base station aided adaptive cluster head selection scheme is Base Station Controlled
Dynamic Clustering Protocol (BCDCP) proposed by [28]. According to [28] “BCDCP assigns
the required nodes with the highest energy status responsibility for the current round and gets to
pick sensor nodes with an energy level above the average as possible cluster leaders. Two cluster
heads with the biggest separation distance between them divide the network into two clusters, and
the sensor nodes are separated to balance the clusters. Until the network has been divided into
the requisite number of balanced clusters, this method of cluster division is used. The cluster
setup method is repeated when the cluster head energy has been decreased below a predetermined
threshold”.
In fixed parameter probabilistic scheme, cluster heads are picked for the initial and following
information gathering cycles by measuring an expression based on defined variables, utilizing
fixed variables such as the cluster heads number and the number of round.
An approach in this classification is the Energy Residue Aware (ERA) algorithm proposed by
Chen et al. [29] , which is a LEACH-based clustering technique. According to [29] “it employs
the same cluster head appointment technique as LEACH, but there are differences in the
clustering association procedures for cluster heads and non-cluster members, for which each CH
is required to submit data”. The Energy Residue Aware (ERA) algorithm, which is a LEACH-
based grouping scheme, is the Aware of Energy Residue approach in this classification. It uses
the same cluster head appointment technique as LEACH, but there are differences in the grouping
connection procedures between CH and non-cluster members, for which each CH must submit
data. The Energy Residue Aware (ERA) clustering method is used in extend the life of a network
in order to balance its energy consumption.
When cluster leaders are appointed in a particular round of ERA, every other non-cluster head
node joins one of the existing CHs and provide a return channel to the sink. The node with the
highest energy residues will be chosen instead of the one with the least amount of energy use. By
harmonizing energy use on the network, this clustering approach effectively extends the lifetime
of a sensor network.The following paragraphs describe the process in this subordinate phase.
After the cluster head selection operation is completed, each CH calculates its remaining energy
(E CH-res)i and broadcasts this data together with its CH duty to the nearby nodes. The
expression (E CH-res)i can be written as follows [29]:
(E CH-res)i=(E CH-rem)i-(E toBS)i , iϵ SC
According to [29] “the set of CHs is denoted by SC. The unused energy of CH i in the current
round is specified by (E CH-res)i, and the transfer of energy from CH i to the sink is specified by
(E toBS)i. The value of (E CH-res)i is then included in each CH's announcement message, which
is then sent to other nodes in the network. In the course of cluster head selection phase, each non-
cluster head node collects all announcement communications and extracts all of the CHs'
remaining energy information from the announcement messages”.
In addition, for each CH, each non-cluster head node computes energy remains (E nonCH-res) j
[29].
(𝐸𝑛𝑜𝑛𝐶𝐻−𝑟𝑒𝑠)𝑗 = (𝐸𝑛𝑜𝑛𝐶𝐻−𝑟𝑒𝑚)𝑗
−(𝐸𝑡𝑜𝐶𝐻)𝑗𝑖, 𝑗 ∈ 𝑆𝑁, ∀𝑖 ∈ 𝑆𝐶 ,
SN indicates a collection of non-cluster head nodes. (E nonCH-rem)j describes the unused energy
of nodes in the current round that are not cluster head nodes j, whereas (E toCH)ji specifies the
energy of the declaration from non-cluster head node j to cluster head node i. Finally, based on

41
the amount of energy it has left behind, so every non-cluster head makes the decision to join a
cluster head:
max{(𝐸𝐶𝐻−𝑟𝑒𝑠)𝑖 + (𝐸𝑛𝑜𝑛𝐶𝐻−𝑟𝑒𝑠)𝑗|∀𝑖 ∈ 𝑆𝐶} , 𝑗 ∈ 𝑆𝑁
The resource adaptive cluster head selection technique uses data about available node resources
to pick cluster heads for later rounds. [30] Proposes an Energy Adaptive Cluster Head Selection
Scheme that adjusts the threshold based on variables including remaining energy, energy spent in
the current round, and average node energy as a third variable.
3.3.3. Hybrid cluster head selection algorithm
Some hybrid techniques that integrate clustering with one or more other architectures as well as
better energy efficiency are recommended [23].
The Adaptive Clustering Algorithm Based on Energy Restriction (ACAER) presented by Xuehai
Hu et.el [31] is an example of this algorithm, which selects cluster nodes based on criteria such
as coverage rate and unused energy. WSN operates in ACAER in a logical manner, with each
period consisting of an initialization phase and a stability stage. According to [31] “to save
energy, the stability period is significantly longer than the start-up phase during the beginning
step of the ACAER protocol, a sensor nodes will be informally selected as a cluster based on a
specified proportion”. The cluster algorithm is as follows:
Make r=0; Ai=0, where Ai is the current angle and r is the current turn number.
𝐴𝑖 = {
1;𝑛𝑜𝑑𝑒 𝑖 𝑖𝑠 𝑐𝑙𝑢𝑠𝑡𝑒𝑟 ℎ𝑒𝑎𝑑
0; 𝑛𝑜𝑑𝑒 𝑖 𝑖𝑠 𝑛𝑜𝑛 − 𝑐𝑙𝑢𝑠𝑡𝑒𝑟 ℎ𝑒𝑎𝑑
Let 𝑅𝑖𝑟 = 𝑟𝑎𝑛𝑑(1) ∗ (
𝑊𝑖𝑅
𝑊0
)
2
Where rand (1): the value range (0,1) of the random function; Wo: the total energy of all nodes at
the start; Wir: the ‘i’ node's remaining energy in the 'r' turn.
𝑇 = 𝑃 ∗ 𝑚𝑖𝑛(
𝐶0
𝐶𝑟−1
, 𝑞) ∗ 𝑚𝑖𝑛((
∑ 𝑊𝑖𝑅
2
𝑛
𝑖=1
𝑛𝑊
0
2 ), 𝑢)
The fraction of nodes that form clusters is denoted by P. C r-1 signifies the coverage of the 'r-1'
turn; r denotes the current turn; The coverage compensation limit is denoted by the letter q. The
energy compensation limit is denoted by u. The node becomes a cluster when Rir>T.
Lee et al [32] proposed the Gradual Cluster Head Election Algorithm (GCA), a hybrid cluster
head selection technique that chooses cluster heads based on their closeness to neighbor nodes
and extra energy level (Er) at each grouping phase. This method selects cluster heads based on a
number of features. The number of sensor nodes present at each cluster tree level is used to pick
cluster leaders first. Second, the number of cluster leaders is determined by the number of join
requests received from non-joined sensor nodes, which allows for network density-aware cluster
head selection. Finally, all clusters keep the number of cluster heads that must be elected (NCH)),
and when NCH is less than one, at least one cluster head can be ensured in the next level.
To make the GCA better Lee et al. [32] Presented the Gradual Cluster Head Election with One-
Hop Neighbor Information (GCA-ON) algorithm, it gets to pick the cluster leader relying on Er

42
and sensor node relative location data, such as the number of cluster heads in one-hop neighbors
(NCH-ON). Based on the extra energy level (Er) of nodes and the number of cluster leaders in
one-hop neighbor, the cluster leader that received join requests elects cluster heads for the next
level (N CH-ON). Cluster chiefs are elected at the next level by cluster heads from non-joined
nodes with the lowest N CH-ON and highest Er.
Local Negotiated Clustering Approach (LNCA), proposed by [33] , is another hybrid cluster head
selection algorithm. The LNCA technique is the first to employ node reading similarity as the
major factor for cluster formation. As a result, LNCA is very good at lowering in-network data-
reporting traffic and, as a result, individual sensor node energy consumption.
3.3.4. Other Cluster head selection algorithms
Lin et al [34] Fan shaped clustering (FSC) is an algorithm that divides a large network into dense
rings before subdividing each ring into subrings. CH is in charge of network-based clustering and
data transmission, which is utilized to partition the network into square grids. A network is built
by selecting and categorizing all CHs. According to [34] “the gathered data is separated into a
network of sync networks for a rectangle network in two stages”. Nine successive low-level
clusters that are intentional in exchanging cluster data generate clusters for obtaining cluster data
at the lowest level. The FSC approaches look at performance indicators like total live nodes, total
remaining energy, and packet accumulation speed.
Lee et al [35] suggested a hybrid hierarchical clustering technique (HHCA) built on a distributed
cluster and a hybrid core network. HHCA is based on a three-tier clustering algorithm which are
superior to the two-tier method previously used. This approach defines grid heads and distributes
cluster heads from a central location. According to [35] “the number of nodes in contact with the
base position, as well as the three layer (TL) sequence, both contribute to increased energy gain.
TL-HHCA is concerned with improving network performance based on network life expectancy
and cluster numbers”.
In order to address the issue of excessive energy consumption. Akila et al [36] on a flimsy
foundation, a fuzzy-based cluster was presented. The remaining energy, confidence, signal
interference plus noise ratio, and load characteristics will all influence the CH value. Intra-cluster
routing is generated by a blur-based cluster protocol that uses a network index-based probability
route diagram to calculate the cooperative endpoint joining the cluster. Particle swarm
optimization (PSO) technology is used to determine the most perfect path connecting data
transmission CHs at each cooperative node.
The Fuzzy-Based Balanced Cost CH Selection technique (FBECS) was presented by Mehra et al.
[37].The extra energy, distance, and density of node are all inputs to the Fuzzy Inference System.
They chose the most eligible CH based on the Suitability index for each node. Load balancing
was ensured by the protocol's selection of the best candidate for cluster coordination.
Deepa et al [38] to reduce power consumption, an improved QoS-based clustering with multipath
routing protocol was presented (OQoS-CMRP). According to [38] “it solve the energy problem,
the modified particle swarm optimization (PSO) technique is used to select and cluster CHs in the
zinc cover zone. All target immersion methods are used to determine the best multidimensional
hop communication mechanism from sync to sensors when selecting the next hop nodes”. The
encircling robin path election technique is used to transport data over OQoS-CMRP to expand
communication reliability, low latency, power enhancement, and network performance.

43
Another algorithm is proposed by Muthukumar et al [39] is OC-TAS-IM algorithm. This method
is a modification to the optimal clustering (OC) algorithm that reduces network lifetime while
increasing energy consumption. The cluster is built using the turbid ant swarm (TAS) technique,
which uses node position and velocity, and the CHs are computed using decision trees using an
improved myopic (IM) algorithm. Energy consumption, network longevity, route cost, network
load, and distance are all factors to consider.
Regional Energy Aware Clustering with Isolated Nodes (REAC-IN) is a weight-based CH
selection algorithm described by [40] that solves the problem of node isolation while
simultaneously boosting the network's lifetime and stability.
The tables below displays some of existing cluster head selection algorithms and the parameters
the uses to improve on energy consumption as discussed in above section.
Table 2. Comparison of deterministic cluster head selection schemes
Deterministic Schemes Parameters
Algorithm for Cluster Establishment (ACE) [24] Node degree
Algorithm for Cluster Establishment by counting (ACE-C) Node ID,
Algorithm for Cluster Establishment with Location (ACE-L) Reference Point (MRP)
Reconfiguration of Cluster Head for Load Balancing (RCLB) Number of CHs range
Table 2 displays compares existing deterministic cluster head selection algorithms and the
parameters or variables they uses to select cluster head.
Table 3. Comparison of Adaptive Cluster Head Selection Algorithms.
Schemes CSA Parameter
Least Mean Squared
Subtractive Clustering
(LMSSC)
Base station Residual energy,
CH to SN and CH to BS distances
Base station Controlled
Dynamic Clustering
Protocol (BCDCP)
Position information and energy level.
Energy Residue Aware
(ERA)
Fixed parameter
Probabilistic schemes
Number of cluster heads and round number
Table 3 above compares existing adaptive cluster head selection algorithms and parameters they
uses to select cluster head.
Table 4. Comparison of hybrid cluster head selection algorithm.
Schemes CSA Parameter
Adaptive Clustering
Algorithm Based on
Energy Restriction
(ACAER)
Sensor
nodes
(Self
organized)
Remaining energy and coverage rate
Local Negotiated
Clustering
Algorithm (LNCA)

44
Gradual Cluster
head election
Algorithm (GCA)
The distance between nodes and the amount of
residual energy (Er)
Gradual Cluster
Head Election
algorithm with One-
Hop Neighbor
Information (GCA-
ON)
Residual energy level (Er)and sensor node
relative location information like the number
of cluster heads in one-hop neighbor
Table 3 above reviews existing hybrid cluster head selection algorithms and the parameters they
uses to elect cluster head.
RQ2: What are the parameters used by cluster head selection algorithms?
From literature review the researcher identified there are so many parameters that are used to
elect cluster head in WSN as discussed in above section. This section reviews some of the major
parameters that are used to elect cluster heads and improve network life span. They include;
Residual Energy of Node
At the conclusion of each simulation experiment cycle, [41] it is the average remaining energy of
the active sensor nodes is this value. It is one of the most critical considerations when routing a
network to ensure its long-term viability. A linear function of voltage is commonly used to
measure the residual energy in a battery.
Distance between nodes and BS
A CH node receives data from member nodes, removes duplicates, conducts some basic
processing, and then transfers it to the BS. Because data transmission consumes the most energy
in a sensor node, especially when transmitted over long distances, the closer the CH candidate is
to the BS, the less energy it requires to transmit data to the BS [42]. As a result, with each cycle
of clustering, CH lifetime and steady-state phase duration increase (the interval between two set-
up phases of CH selection expands), minimizing wasteful energy expenditure for reselecting
CHs. As a result, the lifespan of the network has been extended. As a result, nodes near the BS
are more likely to become CHs.
The Distance between Node and Its Neighboring Nodes
Because each member node communicates the data it has locally sensed to its CH, there is a
direct relationship between distance and data transmission energy. As a result, the closer the
member nodes are to the CH, the less energy they will expend communicating the data they have
gathered [43] [44].
Node density
This is the connection between the number of nodes in the field and the surface of the field.
Because the field's surface is constant, a higher node density means a shorter distance between
nodes. That is, nodes in densely populated areas are more likely to be chosen as CHs [45]. The
number of nodes per square meter is used to calculate network density. It varies depending on the
node distribution from one deployment to the next and from one node to the next within the same
deployment.

45
Number of Neighboring Nodes
It is critical to strike a good balance between cluster size and number. As a result, a threshold for
the number of cluster members must be specified, with nodes with a large number of neighbors
near the threshold having a better chance of being selected as CH [46].
Node position in the network
This is the agent node's network position. There are various types of node placements in the
network. Normal, critical, and edge are a few of them. The node's usual position in the network is
where it has a large number of neighbors. This type of node may collaborate with other network
nodes to maximize the amount of vital data collected. The edge node is a network node that lies
on the network's edge and has only one neighbor. It has a limited view of the network. Finally,
when a node connects two network components, it is considered essential. That is, if the node
runs out of energy, it may split the network, rendering many nodes behind it unavailable and, at
best, necessitating a longer route for their data to reach the sink. Because of the increased number
of hops, this longer journey requires more energy [47].
RQ3: What are the limitations of existing cluster head selection algorithms?
The study reviewed that there are many cluster head selection algorithms that have been
developed over the years as discussed in RQ1 and can be categorized as deterministic, adaptive
and hybrid cluster head election algorithms. This cluster-head selection algorithms have not fully
solved the issue of energy consumption in WSN. This section reviews the limitations of some of
this cluster head selection algorithms as shown in the table below.
Table 5. Limitations of cluster head selection algorithms.
Cluster Head Selection
Algorithms
Limitations
Algorithm for Cluster
Establishment (ACE )
Because of their higher energy requirement, the CH picked by the ACE
algorithm die early [25].
Appointing other nodes as cluster heads will increase communication
costs because they are the best cluster leaders in the clusters region [25].
If a cluster head is lost, cluster members must rebuild a new cluster,
which means that a portion of the network's coverage will be lost until
the new cluster is built [25].
Finally, the ACE model's optimal cluster head selection is too basic to
account for cluster communication costs [25].
Algorithm for Cluster
Establishment by
counting (ACE-C)
If a cluster head is lost, cluster members must rebuild a new cluster,
which means that a portion of the network's coverage will be lost until
the new cluster is built [26].
The cluster sizes of all created clusters may differ (the number of nodes
in a group) [26].
Some sensor nodes (cluster-leaders with a large number of sensor nodes
in their clusters) appear to be energy hogs, resulting in a short system
lifetime [26].
Adaptive Clustering
Algorithm Based on
Energy Restriction
(ACAER)
Do not take other important parameter in account in CH selection like
distance from nodes to BS and mobility of nodes
Regional Energy Aware
Clustering with Isolated
Nodes (REAC-IN)
When transferring data to prior CH nodes, isolated nodes use more
energy [40].

46
Gradual Cluster head
election Algorithm
(GCA)
Without the location information of sensor nodes, it would be impossible
to create a well-organized network structure [32].
Increases the likelihood of a collision by increasing the amount of CHs
[48].
Fuzzy-Based Balanced
Cost CH Selection
method (FBECS)
Implementing an optimization concept could extend the network's
lifespan.
4. DISCUSSION
The research was aimed at reviewing available work on existing cluster head selection algorithms
and the parameters they use to elect cluster head. Kitchenham and Charters' systematic literature
technique and recommendations were followed in the research (2007). Data was gathered from
primary studies published in journal articles, conference proceedings, and selected arXiv
preprints between January 2011 and June 2021. After applying our selection criteria, we came up
with a total of 43 suitable papers. Our discussions are summarized as follows:
RQ1. Our first research question was reviewing existing cluster head selection. Our study found
out that there are existing cluster head selection algorithms to select cluster heads in wireless
sensor networks. This algorithms have been classified into three categories they include
deterministic, adaptive and hybrid or combined cluster head selection algorithms. The study
reviewed that each CSA uses different parameters to elect cluster-heads as shown in table 2, 3
and 4 above.
RQ2. The second research question was reviewing the parameters used by cluster head selection
algorithms. The research identified the major parameters and features that the uses to improve on
energy efficiency in wireless sensor networks. These parameters or variables used to select
cluster head include; node id, node density, reference point, remaining energy, coverage rate and
distance between CH to BS and CH to SN.
RQ3. The third research question was to evaluate limitations of existing cluster head selection
algorithms. The study reviewed that there are many cluster head selection algorithms that have
been developed over the years as discussed in RQ1. The cluster head selection algorithms do not
fully address the issue of energy efficiency in WSN. In this section various limitations of existing
CSA were discussed as shown in Table 5 above.
5. CONCLUSION
Wireless sensor networks (WSNs) have received a lot of attention in recent years, and they can be
used for a variety of applications. Clustering and cluster head selection are two of the most
important research areas in the Wireless Sensor Network. A lot of effort has gone into designing
effective and efficient cluster-Head Selection algorithms for WSNs over the last few years.
Designing an effective, durable, and scalable Cluster-Head Selection Algorithm is a difficult task.
Different cluster head selection methods were evaluated, categorized, and discussed in this work,
with a particular focus on their cluster head election strategies and the parameters they employ to
elect cluster heads. Based on our findings, we believe that a more scalable, energy-efficient, and
cost-effective solution is required to elect cluster heads.
In the future, researchers should derive more parameters that can be utilized to elect cluster heads
and create an effective, robust, and scalable Cluster–Head Selection Algorithm for Wireless
Sensor Networks that improves energy efficiency.

47
REFERENCES
[1] B. Pithva, K. Pattani and A. Christian, "optimization of Leach Protocol in Wireless Sensor,"
International Journal of Computer Applications (0975 – 8887), vol. 93, pp. 26-28, 2014.
[2] R. Mohamed, A. Saleh and M. e. a. Abdelrazzak, Survey on Wireless Sensor Network Applications
and Energy Efficient Routing Protocols., 2018.
[3] T. Alghamdi, "Energy efficient protocol in wireless sensor network: optimized cluster head selection
model.," Telecommun Syst , p. 74, 2020.
[4] A. Kumar, M. Zhao, K. -J. Wong, Y. L. Guan and P. H. J. Chong, "A Comprehensive Study of IoT
and WSN MAC Protocols: Research Issues, Challenges and Opportunities," in IEEE Access, vol. 6,
no. doi: 10.1109/ACCESS.2018.2883391., pp. 76228-76262, 2018, 2018.
[5] S. Younis and S. Fahmy, "Distributed Clustering in Ad-hoc Sensor Networks: A Hybrid, Energy-
Efficient," in Proceedings of IEEE INFOCOM, china , 2005.
[6] A. Manjeshwar and D. Agrawal, TEEN: ARouting Protocol for Enhanced Efficiency in Wireless
Sensor Networks, Intl. Proc. of 15th Parallel and Distributed Processing Symp, 2001.
[7] R. G. D. E. Chalermek Intanagonwiwat, "Directed diffusion: A scalable and robust communication
paradigm for sensor networks," in In Proceedings of the Sixth Annual International Conference on
Mobile Computing and Networking , Boston, 2000.
[8] A. C. C. Wendi Rabiner Heinzelman, "Energy-Efficient Communication Protocol for Wireless
Microsensor Networks," Proceedings of the 33rd Annual Hawaii International Conference on System
Sciences, pp. 1-10, 2000.
[9] M. Tay and A. Senturk, "A New Energy-Aware Cluster Head Selection Algorithm for Wireless
Sensor Networks," Wireless Pers Commun , no. https://doi.org/10.1007/s11277-021-08990-3, p.
2235–2251, 2021.
[10] A. A. Salem, "Enhanced LEACH Protocol for Wireless Sensor Networks," in The 18th International
Arab Conference on Information Technology, Tunisia, 2017.
[11] O. Younis and S. Fahmy, "HEED: A Hybrid, Energy-Efficient, Distributed Clustering Approach for
Ad-hoc Sensor Networks.," IEEE Transactions on Mobile Computing., 2004.
[12] A. Manjeshwar and D. P. Agrawal, "APTEEN: a hybrid protocol for efficient routing and
comprehensive information retrieval in wireless,," in Proceedings 16th International Parallel and
Distributed Processing Symposium, 2002.
[13] H.-b. CHENG, G. YANG and Su-jun HU, "NHRPA: a novel hierarchical routing protocol algorithm
for wireless sensor networks," The Journal of China Universities of Posts and Telecommunications,
vol. Volume 15, no. 3, pp. 75-81, 2008.
[14] S. D. Muruganathan, D. C. F. Ma, R. I. Bhasin and A. O. Fapojuwo, "A centralized energy-efficient
routing protocol for wireless sensor networks," in IEEE Communications Magazine, vol. vol. 43, pp.
8-13, 2005.
[15] J. J. Lotf, M. N. Bonab and S. Khorsandi, "A Novel cluster-based routing protocol with extending
lifetime for wireless sensor networks," in 2008 5th IFIP International Conference on Wireless and
Optical Communications Networks (WOCN '08), 2008.
[16] W. R. Heinzelman, A. Chandrakasan and H. Balakrishnan, "Energy-efficient communication protocol
for wireless microsensor networks," Proceedings of the 33rd Annual Hawaii International Conference
on System Sciences, vol. 2, p. 10, 2000.
[17] Y. Yang, H. -h. Wu and H. -h. Chen, "SHORT: Shortest Hop Routing Tree for Wireless Sensor
Networks," in IEEE International Conference on Communications, 2006.
[18] Y. Jia, L. Zhao and B. Ma, "A hierarchical clustering-based routing protocol for wireless sensor
networks supporting multiple data aggregation qualities," International Journal of Sensor Networks ,
pp. 79-91, 2008.
[19] W. El-Hajj, D. Kountanis, A. Al-Fuqaha and S. Guizani, "A fuzzy-based virtual backbone routing for
large-scale MANETs," International Journal of Sensor Networks, pp. 250-259, 2008.
[20] T. Sudhanshu and K. Neeraj, "A systematic review on clustering and routing techniques based upon
LEACH protocol for wireless sensor networks," Journal of Network and Computer Applications, vol.
36, no. 10.1016/j.jnca.2012.12.001, p. 623–645, 2013.
[21] S. Tamilselvi and s. Rizwana, "A Review on Cluster Head Selection Algorithms for Wireless Sensor
Networks," International Journal of Computer Sciences and Engineering, no.
10.26438/ijcse/v7i6.618622, pp. 618-622, 2019.

48
[22] K. Maira, R. Ahmed and A. Shah, "Energy-Efficient Routing Protocols for WSN: A Systematic
Literature Review.," International Journal of Advanced Trends in Computer Science and Engineering
(IJATCSE), pp. 2569 -2579, 2021.
[23] D. R. K and S. Krishnan, "A Comparative Study Of Clusterhead Selection Algorithms In Wireless
Sensor Networks," International Journal of Computer Science & Engineering Survey, vol. 2, pp. 153-
163, 2012.
[24] H. Chan and A. Perrig, "ACE: An Emergent Algorithm for Highly Uniform Cluster Formation,"
European Workshop on Wireless Sensor Networks, pp. 1-17, 2004.
[25] Z. Meiyan, Z. Xiaodan and C. Wenyu, "EEACE: Energy Efficient ACE Algorithm for Wireless
Sensor Networks," I.J. Wireless and Microwave Technologies, vol. 7, pp. 31-37, 2011.
[26] C.-M. Liua, C.-H. Leea and L.-C. Wang, "Distributed clustering algorithms for data-gathering in
wireless mobile sensor networks," Journal of Parallel and Distributed Computing, p. 1187–1200,
2007.
[27] P. Tillapar, S. T. T. Thumthawatworn and P. Santiprabhob, "An Approach to Hybrid Clustering and
Routing in Wireless Sensor Networks," IEEE Aerospace Conference, pp. 1-8, 2005.
[28] S. D. Muruganathan, D. C. F. Ma, R. I. Bhasin and A. O. Fapojuwo, "A centralized energy-efficient
routing protocol for wireless sensor networks," IEEE Communications Magazine, vol. 43, pp. 8-13,
2005.
[29] H. Chen, C.-S. Wu, Y.-S. Chu and C.-C. Cheng, "Energy Residue Aware (ERA) Clustering
Algorithm for Leach-based Wireless Sensor Networks.," Second International Conference on
Systems and Networks Communications, p. 40, 2007.
[30] Y. Liang and H. Yu, "Energy Adaptive Cluster-Head Selection for Wireless Sensor Networks," Sixth
International Conference on Parallel and Distributed Computing Applications and Technologies, pp.
634-638, 2005.
[31] X. Hu, D. Ren, H. Wang, Y. Qiu and C. Jiang, "Adaptive Clustering Algorithm Based on Energy
Restriction," Fourth International Conference on Intelligent Computation Technology and
Automation, pp. 949-951, 2011.
[32] S. H. Lee, S. Lee, H. Song and H. S. Lee, "Gradual cluster head election for high network
connectivity in large-scale sensor networks,," 13th International Conference on Advanced
Communication Technology (ICACT2011), pp. 168-172, 2011.
[33] D. Xia and N. Vlajic, "Near-Optimal Node Clustering in Wireless sensor Networks for Environment
Monitoring," 1st International Conference on Advanced Information Networking and Applications ,
pp. 632-641, 2007.
[34] H. Lin, L. Wang and R. Kong, "Energy Efficient Clustering Protocol for Large-Scale Sensor
Networks," IEEE Sensors Journal, pp. 7150-7160, 2015.
[35] J. Lee and T. Kao, "An Improved Three-Layer Low-Energy Adaptive Clustering Hierarchy for
Wireless Sensor Networks," in IEEE Internet of Things Journal, vol. vol. 3, pp. 951-958, 2016.
[36] A. I.s and V. Raman, "A Fuzzy Based Energy-aware Clustering Architecture for Cooperative
Communication in WSN," The Computer Journal, 2016.
[37] P. Mehra, M. Doja and B. Alam, ". . Fuzzy based enhanced cluster head selection (FBECS) for
WSN.," Journal of King Saud University , 2018.
[38] O. Deepa and J. Suguna, "An optimized QoS-based clustering with multipath routing protocol for
Wireless Sensor Networks," Journal of King Saud University - Computer and Information Sciences,
vol. vol 32, no. issue 7, pp. 763-774, 2020.
[39] M. S and H. Rajesh, "Optimal clustering algorithm for wireless sensor networks using combined
turbid ant swarm andimproved myopic algorithm for maximizing life of sensors," research square ,
2021.
[40] J.-S. Leu, T.-H. Chiang, M.-C. Yu and K.-W. Su, "Emergy efficient clustering scheme for prolonging
the lifetime ofwireless sensor network with isolated nodes," IEEE communications letters, vol. 19,
pp. 259-262, 2015.
[41] T. Qureshi, N. Javaid, A. Khan, A. Iqbal, E. Akhtar and M. Ishfaq, "BEENISH: Balanced Energy
Efficient Network Integrated Super Heterogeneous Protocol for Wireless Sensor Networks," Procedia
Computer Science, vol. 19, pp. 920-925, 2013.
[42] S. H. Kang and T. Nguyen, "Distance Based Thresholds for Cluster Head Selection in Wireless
Sensor Networks,"," in IEEE Communications Letters, pp. 1396-1399, 2012.
[43] B. S. C. e. al, "RFID-Based Sensors for Zero-Power Autonomous Wireless Sensor Networks," in
IEEE Sensors Journal, , vol. 14, pp. 2419-2431, 2014.

49
[44] H. Barati, A. Movaghar, A. Rahmani and A. Sarmast, "A Distributed Energy Aware Clustering
Approach For Large Scale Wireless Sensor Network.," International Journal on Technical and
Physical Problems of Engineering., vol. 4, pp. 125-132. , 2012.
[45] R. X. H. Lin and L. Wei, "Density, distance and energy based clustering algorithm for data
aggregation in wireless sensor networks," IEEE/CIC International Conference on Communications in
China (ICCC), pp. 1-5, 2017.
[46] N. Amini, A. Vahdatpour, W. Xu, M. Gerla and M. Sarrafzadeh, "Cluster Size Optimization in
Sensor Networks with Decentralized Cluster-Based Protocols.," Computer communications, vol. 35,
pp. 207-220, 2012.
[47] D. A. Sharma and R. Singh, " Design Issues and Parameters for Cluster Head Selection in Energy
Efficient Wireless Sensor Networks.," International Journal of Advanced Research in Computer
Science and Software Engineering., vol. 5, pp. 218-222, 2015.
[48] M. Mirsadeghi, A. Mahani and M. Shojaee, "A Novel Distributed Clustering Protocol Using Fuzzy
Logic," Conference on Electronics, Telecommunications and Computers – CETC 2013, p. 742 – 748,
2014.

CLUSTER HEAD SELECTION ALGORITHMS FOR ENHANCED ENERGY EFFICIENCY IN WIRELESS SENSOR NETWORKS: A SYSTEMATIC LITERATURE REVIEW

More Related Content

Similar to CLUSTER HEAD SELECTION ALGORITHMS FOR ENHANCED ENERGY EFFICIENCY IN WIRELESS SENSOR NETWORKS: A SYSTEMATIC LITERATURE REVIEW (20)

Recently uploaded (20)

CLUSTER HEAD SELECTION ALGORITHMS FOR ENHANCED ENERGY EFFICIENCY IN WIRELESS SENSOR NETWORKS: A SYSTEMATIC LITERATURE REVIEW
