Code Generation (Part -2)
Course : 2CS701/IT794 – Compiler
Construction
Prof Monika Shah
Nirma University
Ref : Ch.9 Compilers Principles, Techniques, and Tools by Alfred Aho, Ravi Sethi, and Jeffrey Ullman

Glimpse
Part-1
• Introduction
• Code Generation Issues
Part-2
• Basic Code Generation Case Study
• Introduction to Basic Block, and Control Flow Diagram
Prof Monika Shah (Nirma University)
2

Machine independent asm to machine dependent
Lexical Analysis
Syntax Analysis
Semantic Analysis
Intermediate Code
Generation
Optimization
Code Generation
Source
Program
Assembly
Code
IR to low-level IR
Symbol
Table
Front
end
Back
end
Optimization
Token stream
AST or Parse tree
AST or Annotted Parse tree
Code Generation
• Final Phase of Compilation
• Produces a semantically equivalent target
program
• Main Functionalities :
• Instruction selection
• Register allocation and assignment
• Instruction ordering
• Functionalities for QoS
• Produce Correct code (semantic
preserving)
• Efficiency
• Effective use of resources
• User Heuristics to generate good, but
suboptimal code

4
Case Study of Basic Code Generation
The Borland 3.0 C Compiler for the 80X86
• Expression statement with symbols
• Array reference
• Structure Field reference
• Pointer reference
• If statement
• While statement
• Function call

5
Expression statement
Expression statement : (x = x +3 ) + 4
Assembly Code :
mov ax, word ptr [bp-2]
add ax, 3
mov word ptr [bp-2], ax
add ax, 4
Notes
• The bp is used as the frame pointer.
• The static simulation method is used to convert the intermediate code into
the target code.

6
Array Reference
Array reference Example :
(a [ i + 1 ] = 2 ) + a [ j ]
Where, i and j are declared as
int i, j;
int a[10];
( 1 ) mov bx,word ptr [bp-2]
( 2 ) shl bx , 1
( 3 ) l ea ax, word ptr [bp-22]
( 4 ) add bx , ax
( 5 ) mov ax , 2
( 6 ) mov word ptr [bx],ax
( 7 ) mov bx,word ptr [bp-4]
( 8 ) shl bx , 1
( 9 ) l ea dx,word ptr [bp-24]
( 1 0 ) add bx , dx
( 1 1 ) add ax,word ptr [bx]

7
Structure Field Reference
Structure Example
typedef struct rec
{ int i;
char c;
int j;
} Rec;
Rec x;
x.j =x.i;
mov ax, word ptr [bp-6]
mov word ptr [bp-3],ax
Note:
Integer variable has size 2 bytes;
Character variable has size 1 bytes;
Local variables are allocated only on even-byte boundaries;
The offset computation for j (-6 + 3 = -3 ) is performed statically by
the compiler.

8
Pointer Field Reference
typedef struct treeNode
{ int val;
struct treeNode * lchild,
* rchild;
} TreeNode;
…
Rec x;
TreeNode *p;
The code generated for the statement
p->lchild = p;
is
mov word ptr [si+2], si
And the statement
p = p->rchild;
is
mov si, word ptr [si+4]
Note:
Assume pointer has size 2

9
IF Statement
if (x>y)
y++;
else x--;
mov bx, word ptr [bp-
2] //x
mov dx, word ptr [bp -
4] //y
cmp bx , dx
jle short @1@86
inc dx
jmp short @1@114
@1@86 :
dec bx
@1@114 :

10

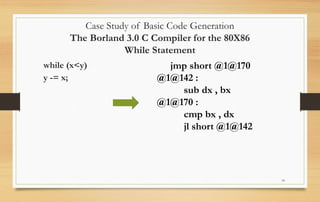

While Statement
while (x<y)
y -= x;
jmp short @1@170
@1@142 :
sub dx , bx
@1@170 :
cmp bx , dx
jl short @1@142

11
Function Call
• function definition:
int f( int x, int y)
{
return x+y+1 ；
}
• And a corresponding call
f (2+3, 4)
mov ax,4
push ax
mov ax,5
push ax
call near ptr _f
pop cx
pop cx
Notes:
The arguments are pushed on the stack in reverse order;
The caller is responsible for removing the arguments from the stack after the call.
The call instruction on the 80x86 automatically pushes the return address onto the stack.

12
Function Definition
_ f proc near
push bp
mov bp , sp
mov ax, word ptr [bp+4]
add ax, word ptr [bp+6]
inc ax
jmp short @1@58
@1@58 :
pop bp
ret
_ f endp

13
Basic Blocks and Flow of Control
• Partition the intermediate code into basic blocks
• The flow of control can only enter the basic block through the first
instruction in the block. That is, there are no jumps into the middle of the
block.
• Control will leave the block without halting or branching, except possibly at
the last instruction in the block.
• The basic blocks become the nodes of a flow graph
• Use : Code Optimization, Register Allocation

14
Flow Graphs
• A flow graph is a graphical depiction of a sequence of instructions with
control flow edges
• A flow graph can be defined at the intermediate code level or target code
level
MOV 1,R0
MOV n,R1
JMP L2
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1
MOV 0,R0
MOV n,R1
JMP L2
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1

15
Basic Blocks
• A basic block is a sequence of consecutive instructions with exactly one entry
point and one exit point (with natural flow or a branch instruction)
MOV 1,R0
MOV n,R1
JMP L2
MOV 1,R0
MOV n,R1
JMP L2
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1

16
Basic Blocks and Control Flow Graphs
• A control flow graph (CFG) is a directed graph with basic blocks Bi as vertices
and with edges Bi  Bj iff Bj can be executed immediately after Bi
MOV 1,R0
MOV n,R1
JMP L2
MOV 1,R0
MOV n,R1
JMP L2
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1

17
Successor and Predecessor Blocks
• Suppose the CFG has an edge B1  B2
• Basic block B1 is a predecessor of B2
• Basic block B2 is a successor of B1
MOV 1,R0
MOV n,R1
JMP L2
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1

18
Partition Algorithm for Basic Blocks
Input: A sequence of three-address statements
Output: A list of basic blocks with each three-address statement
in exactly one block
1.Determine the set of leaders, the first statements if basic blocks
a)The first statement is the leader
b)Any statement that is the target of a goto is a leader
c)Any statement that immediately follows a goto is a leader
2.For each leader, its basic block consist of the leader and all
statements up to but not including the next leader or the end
of the program

19
Loops
• A loop is a collection of basic blocks, such that
• All blocks in the collection are strongly connected
• The collection has a unique entry, and the only way to reach a block in the loop is
through the entry

20
Loops (Example)
MOV 1,R0
MOV n,R1
JMP L2
L1: MUL 2,R0
SUB 1,R1
L2: JMPNZ R1,L1
B1:
B2:
B3:
L3: ADD 2,R2
SUB 1,R0
JMPNZ R0,L3
B4:
Strongly connected
components:
SCC={{B2,B3},
{B4} }
Entries:
B3, B4

21
Equivalence of Basic Blocks
• Two basic blocks are (semantically) equivalent if they compute the same set of
expressions
b := 0
t1 := a + b
t2 := c * t1
a := t2
a := c * a
b := 0
a := c*a
b := 0
a := c*a
b := 0
Blocks are equivalent, assuming t1 and t2 are dead: no longer used (no longer live)

22
Transformations on Basic Blocks
• A code-improving transformation is a code optimization to improve
speed or reduce code size
• Global transformations are performed across basic blocks
• Local transformations are only performed on single basic blocks
• Transformations must be safe and preserve the meaning of the
code
• A local transformation is safe if the transformed basic block is
guaranteed to be equivalent to its original form
