Comparative Analysis of Destructive and Non-Destructive
Testing Method of Concrete Strength using Compressive
and Rebound Harmmer Testing Method
Onyeka, F. C1; Mama, B. O2
1Department of Civil Engineering, Edo University, Iyamho, Edo State, Nigeria
2Department of Civil Engineering, University of Nigeria, Nsukka, Nigeria
ABSTRACT
This work presents a study on the comparison between Destructive
(Compressive test) and Non-destructivetestingtechniques (Schmidt Rebound
Hammer). Tests (moisture content, Sieve analysis, particle density for
aggregate and cement paste, bulk density, standard consistency of cement,
slump test) were performed on both the aggregate and cement to compare
their accuracy of both methods and test the quality of the material to be used
for concrete casting and estimating the strength of concrete. Seventy samples
(cubes of 150 x 150 x 150mm) were prepared using mix designs of 1:2:4 with
a constant w/c ratio of 0.45 and were tested at 7, 14, 21 and 28 days
respectively. From the results, thereboundnumberincreasedfromanaverage
of 12 for 7days to an average rebound number of 17.7 for 28days which is
similar to the increment in compressive strength from an average of 24.3 for
7days to an average of 32 for 28days which show that the increment in the
strength is uniform but 5% difference in value obtained. The slump test was
between 62 - 78mm. From the results of the analysis, it was observed that the
strength obtained from destructive process conformed to targeted mix value,
whereas that of the Rebound hammer was below these values. Statistical
analysis of the results obtained showed that 5% difference exists betweenthe
results obtained from the two methods. Hence, there was no significant
difference between the means of the two methods for both mixes at a 0.05
level of significance. Non-destructive Testing is observed to be more
economical as it required no electricity and can also be used directly in the
field.
KEYWORDS: Concrete, Non-Destructive Testing, Compressive Strength, Rebound
Hammer, Destructive Testing method
How to cite this paper: Onyeka, F. C |
Mama, B. O "Comparative Analysis of
Destructive and Non-Destructive Testing
Method of Concrete Strength using
Compressive and Rebound Harmmer
Testing Method"
Published in
International
Journal of Trend in
Scientific Research
and Development
(ijtsrd), ISSN: 2456-
6470, Volume-4 |
Issue-1, December 2019, pp.1-7, URL:
https://www.ijtsrd.com/papers/ijtsrd29
389.pdf
Copyright © 2019 by author(s) and
International Journal ofTrendinScientific
Research and Development Journal. This
is an Open Access article distributed
under the terms of
the Creative
Commons Attribution
License (CC BY 4.0)
(http://creativecommons.org/licenses/by
/4.0)
1. INTRODUCTION
Non-destructive test (NDT) is the way of obtaining the
information about the state, properties of materials without
interfering with the attributes of the object or structure.
They are those tests that do not alter the concrete and after
conducting they do not destroy the concrete.
Non-destructive test is a method of testing existing concrete
structures to assess the strength and durability of concrete
structure. In the non-destructive method of testing, without
loading the specimen to failure (i.e. Without destructing the
concrete) we can measure the strength of concrete.
In 1984, Ernest Schmidt, a Swiss engineer developed a
device for testing concrete based on the rebound principle
(Malhotra, 1976, 2004).Now days,this methodhas becomea
part of quality control process. This method of testing also
helps us to investigate crack depth, micro cracks and
deterioration of concrete (Rangaraju, 2003).
It can also be seen as the cause of inspecting, testing or
evaluating materials, component assemblies without
destroying the serviceability of the part or system
(Workman and O. Moore, 2012). Generally, the purpose of
non-destructive testing is to determine the quality and
integrity of materials, components or assemblies without
affecting the ability to perform their intended functions.
In the other hand, Destructive tests are usually carried out
either on test specimens made for that purpose or may be
made on one specimen taken as representative of several
similar items. They are done in laboratories, workshops or
training centre and can be chemical or mechanical in nature
(Rangaraju, 2003). Destructive tests areusuallyquantitative
measurements of load for failure, significant distortion or
damage, or life to failure under given load and
environmental conditions. They are carried out to the
specimen’s failure, in order to understand behaves under
different loads which consequently yield numerical data
useful for design purposes or for establishing standards or
specifications.
Destructive testing is a testing technique in which the
application is made to be failing in an uncontrolled manner
to test the robustness of the application and also to find the
point of failure. Destructive testing is performed under the
most severe operating conditions and it is continued until
IJTSRD29389

International Journal of Trend in Scientific Research and Development (IJTSRD) @ www.ijtsrd.com eISSN: 2456-6470
the application breaks. Destructive tests are widely applied
to study mechanical properties and integrity of concrete
structures (Rauin Drarajah, 1997; Naza Man et al.., 1997;
Proverbio and Venture, 2005; IAEC, 2005).
Catastrophic strength failure has occurred in some
structures as a result of some concrete made of low strength
ductile materials and some made of high strength but low
toughness materials. This has led tomoredemandlevels and
to increase the use of destructive and non-destructivetestin
manufacture. These defects can be the result of initial flows
in the materials, production deficiencies and service
condition, e.g. fatigue cracks or stress corrosion cracks. It is
as a result of these that the need to test the in-place strength
of concrete arises.
In this research work, the rebound hammer method and
compressive strength are used to test the strength of a
particular concrete. This work also addresses the question
“which method is cheaper” which method is more accurate”.
This research work is carried out in order to determine the
in-place strength of concrete using the rebound hammer
method and the compressive strength. The research is
therefore imperative as it tries to compare destructive and
non-destructive testing methods in ordertodeducewhich of
the methods gives more features on the characteristics of
concretes. A comparison of thetwomethods aboveis donein
order to identify the best procedure to predict strength and
durability of concrete. Also to identify the most economical
and reliable method to be applied.
The objectives of this research work is to determine a
method between destructive and non-destructive test that
can be more suitable for estimating the strength of concrete
using Rebound hammer method and Compressive strength.
To identify the potential and limitations of the various
methods in investigating the strength of concrete and to
identify the most economical method for investigating the
strength of concrete.
This was done by grouping the test specimen (concrete
cubes of 150mm by 150mm by 150mm) into100tocompare
the result among the NDT techniques against the normal
testing methods of cube crushing (destructive test).
2. MATERIALS AND METHODS
The materials that were used in this research work areRiver
uncrushed fine aggregate collected From a sand depot at
Ikwuano L.G.A Abia State,crushed coarseaggregateof40mm
maximum size collected from Ahiaeke Ndume Umuahia
North L.A.G, Abia state and a 42.5 cement grade (Ordinary
Portland Cement), this includes aggregate classificationtest.
Cubes with a mix ration 1:1.5:2, 1:2:4, 1:3:6, was cast, cured
and crushed with the comprehensive strength result as a
basis for testing concrete non-destructively using rebound
hammer methods.
2.1. Laboratory Procedures
The test that was carried out include moisture content for
both fine and coarse aggregate sieve analysis for fine
aggregate, particle density for fine and coarse, bulk density,
slump test, strengthtest(Reboundhammerand compressive
strength)for hardened at various ages, and standard
consistency (setting time of cement) In addition to the tests,
mix design was also carried out.
2.2. Tests on hardened concrete
The tests carried out on the hardened concrete were the
Rebound Hammer test and thecubecompressivetest.Before
the compressive tests were carried out, the cubes were
subjected to testing using the Rebound hammer on the
specimen. A total of 10 readings was taken on each test
surface as recommended by ASTM C805 and the average
rebound number was then obtained. Each cube was then
placed in the testing machine in between two metal plates.
Having properly positioned each cube, the load was
gradually applied without shock until the cubefailedandthe
loads at failure were recorded for each sample. The load at
failure was then divided by the effective area of the cube in
square millimetres to obtain the compressivestrengthofthe
cube.
3. PRESENTATION, ANALYSIS OF RESULT AND
DISCUSSION
The various results obtained from table 1 – table 5 showed
that the material for concrete production conformed to
EN1881 and ASTM 33 standard for testing material readily
for concrete production. These results serve as bases for the
mix design for the work as shown below. The mix design is
then carried out using a characteristic mean strength of
20N/mm2.
Maximum aggregate size 20mm, maximum water/cement
ratio 0.5, workability 30-60mm slump, exposure condition,
mild, minimum cement content350kg/m3,specific gravity of
cement, coarse and fine aggregate (3.15, 2.76, 2.46) and that
of saw dust 0.68.
3.1. Result Moisture Content of Aggregate
Table 1a: Moisture Content of Fine Aggregate
TEST DATA SAMPLE 1 SAMPLE 2
Mass of container M1(g) 31.2 33.0
Mass of wet sample + container M2(g) 341.9 326
Mass of dry sample + container M3(g) 332.1 317.0
Mass of moisture M2- M3)(g) 9.8 9.0
Mass of dry sample (g) 300.9 284
Moisture content (%) 3.3 3.2
Average moisture content (%) 3.3

Table 1b Moisture Content of Coarse Aggregate
TEST DATA SAMPLE 1 SAMPLE 2
Mass of container M1(g) 31.2 25.5
Mass of wet sample + container M2(g) 590.89 490.6
Mass of dry sample + container M3(g) 580.4 483.1
Mass of moisture M2- M3)(g) 10.4 7.5
Mass of dry sample (g) 549.2 457.6
Moisture content (%) 1.9 1.6
Average moisture content (%) 1.8
3.2. Sieve Analysis on Fine and coarse Aggregates:
The following results were obtained from the sieve analysis carried out on both fine aggregate, and coarse aggregate on dry
mass process.
91.76
75.62
59.7259.32
2.120.220
10
20
30
40
50
60
70
80
90
100
PERCENTAGEPASSING

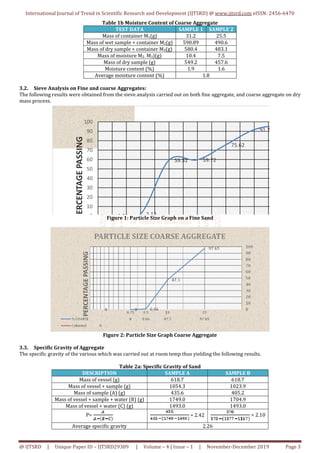

Figure 1: Particle Size Graph on a Fine Sand
Figure 2: Particle Size Graph Coarse Aggregate
3.3. Specific Gravity of Aggregate
The specific gravity of the various which was carried out at room temp thus yielding the following results.
Table 2a: Specific Gravity of Sand
DESCRIPTION SAMPLE A SAMPLE B
Mass of vessel (g) 618.7 618.7
Mass of vessel + sample (g) 1054.3 1023.9
Mass of sample (A) (g) 435.6 405.2
Mass of vessel + sample + water (B) (g) 1749.0 1704.9
Mass of vessel + water (C) (g) 1493.0 1493.0
P= = 2.42 = 2.10
Average specific gravity 2.26

Table 2b: Specific Gravity of Coarse Aggregate
Mass of Air Dried Sample (A) 2266.2 2375
Mass of Basket + Sample in Water (B)(g) 1566.7 1754.8
Mass of Basket in Water (C) (g) 244.6 246.7
P= = 2.40 = 2.74
Average Specific Gravity 2.57
3.4. Bulk Density of Aggregate
Table 3a: Bulk Density of fine Aggregate
DESCRIPTION Un-compacted Compacted
Weight of Mould + sample (g) 16140 17315
Weight of mould (g) 6420 6420
Volume of mould (Cm3) 7226.6 7226.6
Bulk density (g/Cm3) 1.34 1.51
Table 3b: Bulk Density of coarse aggregate
DESCRIPTION Un-compacted Compacted
Weight of Mould + sample (g) 16590 18155
Weight of mould (g) 6420 6420
Volume of mould (Cm3) 7226.6 7226.6
Bulk density(g/cm3) 1.41 1.62
3.5. Specific gravity of Ibeto Cement:
The specific gravity was determined on relative paraffin value for the OPC cement (IBETO) at room temperature to obtain the
results below:
Table 4: Specific Gravity of IBETO Cement
Mass of empty bottle(W1) (g) 28.0 27.6
Mass of bottle +cement (W2) (g) 50.1 49.5
Mass of bottle +cement + kerosene (W3) 85.0 85.4
Mass of bottle +kerosene (W4) (g) 68.4 68.0
Mass of bottle + water (W5) (g) 77.8 78.4
SP of kerosene= = 0.81 0.80
SP of Cement = 3.06 3.13
Average specific gravity 3.09
3.6. Consistency of Cement
Table 5: Setting Time and Fineness of Dangote Cement
DESCRIPTION Result Limit of specification Remark
Weight of cement(g) 400g Minimun200g Good
Weight of water(g) 103g Minimum50g Good
Initial setting time 60mins Minimum 45 mins Good
Final setting time 90mins Maximum 600mins Good
Fineness of cement using BS sieve NO. 170
Weight of sample 100g Minimum of 50g Good
Fineness of cement 2% Maximum 10% Good
Table 6: Quantity of Constituent to Normal Concrete for Experimental Mix
Mould Volume M3 Cement kg/M3 Water litres
Fine aggregate
(kg/M3)
Coarse Aggregate
(Kg/M3)
Cube meter 1 383.000 193.000 674.040 1134.360
Cube mould+ 10% 0.104124 39.8794 20.096 70.1837 118.114

3.7. Analysis Result on Destructive Compressive and Rebound Number of Non-Destructive Test.
0
5
10
15
20
25
30
SAMPLE 1 SAMPLE 2 SAMPLE 3
COMPRESIVE 7 DAYS
Figure 3: Compressive for destructive and rebound number 7 day curing.
Table 7: ANOVA Analysis for 7 days strength
From figure 3 and table 7, the various compressive strength had an average strength of (21.3 28.4 and 23.1) for destructive
testing while (12.7 11.2 and 10.9) were rebound values of the Result from above Mat Lab 2 way ANOVA test below shown
below with the following data; different within column 49.877, between Row5.966; Fcal within = 14.52 and P=0.1956
Degree of freedom D1=3-1= 2, D2= 32-2 = 30
F tabulated = 3.32. The Fcal fall at the critical region showing mean difference in strength at the 5% level of significance. Also
the strength had a small p value which indicates significance in different strength.
0
20
40
COMPRESIVE 14 DAYS
DESTRUCTIVE COMPRESSIVE REBOUND NUMBER Column1Figure 4: Compressive for destructive and rebound number 14 day curing
Table 8: ANOVA Analysis for 14 days test result
From figure 4 and 8 the various compressive strength had average strength of (28.9 30.7 and 28.0) for destructive test while
(12.6 17.1 and 15.5) were rebound values of the Result from above Mat Lab 2 way ANOVA test below shown below with the
following data; diff within column 58.397, between Row50.448 ; Fcalwithin = 12.22 and P=0.0007
F tabulated = 3.32. The Fcal fall at the critical region showing mean difference in strength at 5% level of significant. Also the
strength had small p values which indicate significance in different strength.

Figure 5: Compressive for destructive and rebound number 21 day curing
Table 9: ANOVA Analysis for 21 days test result
From figure 5 and 9, the various compressive strength had an average strength of (32.4 29.3 and 33.3) for destructive test
which meet up with the designed strength while (15.5 15.9 and 14) were rebound values the Result fromaboveMat Lab2 way
ANOVA test below shown below with the following data; different withincolumn79.03, betweenRow7.56;Fcal within=10.24,
Fcal between rows: 0.98 and P=0 and 0.3297
F tabulated = 3.32. The Fcal within the data fall at the critical region showing mean difference in strength at the 5% level of
significance but Fcal between rows shows no significant difference. Also the strength had a small p value which indicates
significance in different strength.
0
20
40
COMPRESIVE 28 DAYS
Fig 6: Compressive for destructive and rebound number 28 day curing.
Table10: ANOVA Analysis for 28 days test result.
From figure 6 and table 10, the various compressive strength had an average strength of (27.6 35.6 and 32.9) for destructive
test which exceeded the designed strength while (16.8 16.3 and 18.3) were rebound below design values.
The Result from above Mat Lab 2 way ANOVA test below shown below with the following data; different within column63.54,
between Row 9.89; Fcal within = 9.72, Fcal between rows: 1.51 and P=0 and 0.224
F tabulated = 3.32. The Fcal within the data fall in the critical region showing mean difference in strength at the 5% level of
significance but Fcal between rows shows no significant difference. Also the strength had small p values which indicate
significance in different strength.

4. CONCLUSION /RECOMMENDADATION
From the result shown and analyzed for the null hypothesis
H0(there is no mean different between the compressive
strength values obtained by destructive test and the value
obtained from rebound number) draws the conclusion that
at 5% significant level, there is a mean difference in the
values obtained from rebound number and destructive
strength for curing period of 7-28 days thus we reject the
null hypothesis and accept H1 that the two process are
different and had no correlated value at 5% significant level.
Nevertheless, there was no significant value within the
values of rebound number from 14-28 days curing period.
The strength obtained by destructive process conformed to
the targeted mix value whereas that of the rebound number
was below these values.
From the result of the analysis, the rebound hammer
increased from an average of 12 per 7days to an average
rebound number of 17.7 for 28days which is similar to the
increment in compressive strength from average of 24.3 for
7days to average of 32 for 28days which show that the
increment in the strength is uniform but 5% difference in
value obtained.
Non-Destructive Testing is observed to be more economical
as it required no electricity and can also be used directly in
the field.
It is therefore recommended that both methods be used but
not as a substitute for the other as both do not give exactly
the same result.
REFERENCES
[1] ACI Committee (1998). Non-destructive test methods
for evaluation of concrete in structures. ACI 228.2R.
American concrete institute, Farmington Hills, MI.
[2] ACI Committee (2003). In-place methods to estimate
concrete strength, ACI 228.1R. American concrete
institute, Fermington Hills, MI.
[3] ASTM (2002a). Standard test methodforpulsevelocity
through concrete. ASTM C597, ASTM International,
West Conshohocken PA.
[4] ASTM (2004a). Standard practice for estimating
concrete strength by maturity method, ASTM C1074.
ASTM International, West Conshohocken, PA.
[5] Carino N. J. (1944). Non-destructivetesting ofconcrete,
history and challenges. In concrete technology past,
present and future. Proceedings of U. Mohan Malhotra
Symposium, ACI SP-144, Pp, 623-678. American
concrete institute, Fermington Hills, MI.
[6] Malhotra V and Carette G. (2004). Penetration
resistance methods. In V. Malhotra and N. Carino
handbook on non-destructive testing of concrete. pp
10-23. New York: CRC press.
[7] Malhotra V. M. (2004). Surface hardness methods in
handbook on nondestructive testing of concrete, 2nd
ed., Malhotra V. M. and Carino N. J. Eds. CRC press,
Bocarato, FL.
[8] Malhotra, U. M. (1976). Testing hardened concrete,
Nondestructive methods, ACI Monograph No. 9. IOWA
state University press, Ames.
[9] Proverbio, E., and Venture, V. (2005). Reliability of
Non-destructive test for concrete strength’ 10 DBMC
lyou 17-20
[10] Rangaraju P.R. (2003). “Development of Some
Performance-Based Material Specifications for High-
Performance Concrete Pavement,” Transportation
Research Record, No. 1834, pp. 69-76.
[11] Ravingrarajah, R. S. (1997). “Strength evaluation of
high-strength concrete by ultrasonic pulse velocity
method” NDT Int., 30, 4.
[12] Workman G., and O-Moore P. (2012). Nondestructive
testing handbook 10: over-view Columbus: American
Society of Nondestructive Testing.

Comparative Analysis of Destructive and Non-Destructive Testing Method of Concrete Strength using Compressive and Rebound Harmmer Testing Method

More Related Content

What's hot (18)

Similar to Comparative Analysis of Destructive and Non-Destructive Testing Method of Concrete Strength using Compressive and Rebound Harmmer Testing Method (20)

More from ijtsrd (20)

Recently uploaded (20)

Comparative Analysis of Destructive and Non-Destructive Testing Method of Concrete Strength using Compressive and Rebound Harmmer Testing Method
