Problem 1. True or False.
Circle T or F for each of the following statements to indicate whether the statement is true
or false and briefly explain why.
(a) T F With all equal-sized intervals, a greedy algorithm based on the earliest start time
will always select the maximum number of compatible intervals.
Solution: True. The algorithm is equivalent to the earliest finish time algorithm.
(b) T F The problem of weighted interval scheduling can be solved in O(n log n) time using
dynamic programming.
Solution: True. The algorithm was covered in recitation.
(c) T F If we divide an array into groups of 3, find the median of each group, recursively
find the median of those medians, partition, and recurse, then we can obtain a linear-time
median-finding algorithm.
Solution: False. T(n) = T(n/3) + T(2n/3) + O(n) does not solve to T(n) = O(n). The array
has to be broken up into groups of at least 5 to obtain a lineartime algorithm.
(d) T F If we used the obvious Θ(n2) merge algorithm in the divide-andconquer convex-hull
algorithm, the overall time complexity would be Θ(n2 log n).
computernetworkassignmenthelp.com

Solution: False. The time complexity would satisfy the recurrence T(n) = 2T(n/2) + Θ(n2),
which solves to Θ(n2) by the Master Theorem.
(e) T F Van Emde Boas sort (where we insert all numbers, find the min, and then
repeatedly call SUCCESSOR) can be used to sort n = lg u numbers in O(lg u· lg lg lg u)
time.
Solution: False. Inserting into the tree and then finding all the successors will take n lg
lg(u) time, which in terms of u is lg(u) · lg lg(u).
(f) T F Van Emde Boas on n integers between 0 and u − 1 supports successor queries in
O(lg lg u) worst-case time using O(n) space.
Solution: False. We use Θ(u) space or do randomization.
(g) T F In the potential method for amortized analysis, the potential energy should never
go negative.
Solution: True.
(h) T F The quicksort algorithm that uses linear-time median finding to run in worst-case
O(n log n) time requires Θ(n) auxiliary space.
Solution: False. It can be implemented with O(log n) auxiliary space.
(i) T F Searching in a skip list takes Θ(log n) time with high probability, but could take
Ω(2n) time with nonzero probability.

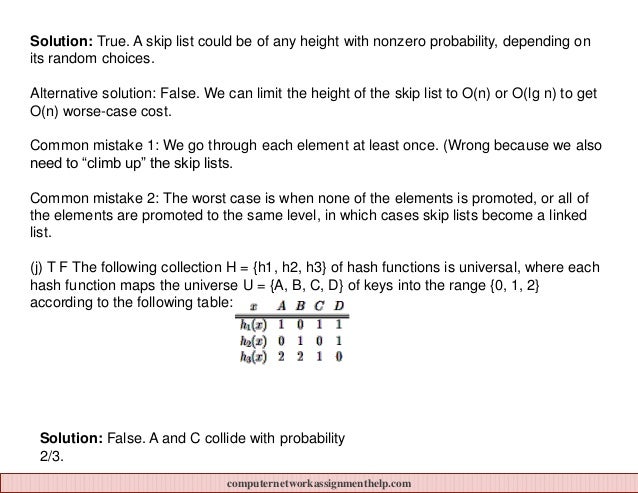

Solution: True. A skip list could be of any height with nonzero probability, depending on
its random choices.
Alternative solution: False. We can limit the height of the skip list to O(n) or O(lg n) to get
O(n) worse-case cost.
Common mistake 1: We go through each element at least once. (Wrong because we also
need to “climb up” the skip lists.
Common mistake 2: The worst case is when none of the elements is promoted, or all of
the elements are promoted to the same level, in which cases skip lists become a linked
list.
(j) T F The following collection H = {h1, h2, h3} of hash functions is universal, where each
hash function maps the universe U = {A, B, C, D} of keys into the range {0, 1, 2}
according to the following table:
Solution: False. A and C collide with probability
2/3.

Problem 2. Fast Fourier Transform (FFT). (1 part)
Ben Bitdiddle is trying to multiply two polynomials using the FFT. In his trivial example, Ben
sets a = (0, 1) and b = (0, 1), both representing 0 + x, and calculates:
So c represents 1 + 0 · x, which is clearly wrong. Point out Ben’s mistake in one sentence;
no calculation needed. (Ben swears he has calculated FFT F and inverse FFT F −1
correctly.)
Solution: The resulting polynomial is of degree 2, so Ben need to pad a and b with
zeroes. (Or Ben need at least 3 samples to do FFT).
Here is the correct calculaton (not required in the solution). Let a = b = (0, 1, 0, 0); then,

which represents x2. It is also OK to set a = b = (0, 1, 0).
Common mistake 1: A ∗ B should be convolution.
Common mistake 2: Ben should reverse b.
Both mistakes confuse the relation between convolution, polynomial multiplication and
FFT calculation. If one computes convolution directly (without FFT), one needs to
reverse the second vector. FFT provides a faster way to compute convolution and
polynomial multiplication (these two are the same thing). Using the FFT, one should
perform FFT on the two original vectors (no reversal). Then, after the FFT, one only
needs to do element-wise multiplication (as opposed to convolution), which Ben
performed correctly.
Problem 3. Yellow Brick Road. (1 part)
Prof. Gale is developing a new Facebook app called “Yellow Brick Road” for maintaining
a user’s timeline, here represented as a time-ordered list e0, e1, . . . , en−1 of n
(unchanging) events. (In Facebook, events can never be deleted, and for the purposes
of this problem, don’t worry about insertions either.) The app allows the user to mark an
event ei as yellow (important) or grey (unimportant); initially all events are grey. The app
also allows the user to jump to the next yellow event that comes after the event ei
currently on the screen (which may be yellow or grey). More formally, you must support
the following operations:

1. MARK-YELLOW(i): Mark ei yellow.
2. MARK-GREY(i): Mark ei grey.
3. NEXT-YELLOW(i): Find the smallest j > i such that ej is yellow.
Give the fastest data structure you can for this problem, measured according to worst-
case time. The faster your data structure, the better.
Hint: Use a data structure you have seen in either 6.006 or 6.046 as a building block.
Solution: Initialization takes O(n lg(lg(n))) time to insert all the yellow elements into a VEB
tree, V.
More importantly, each operation takes O(lg lg(n)) time. When a user asks to MARK-
YELLOW(i), then call V.insert(i) which takes O(lg lg(n)) time. When a user asks to MARK-
GREY(i), then call V.delete(i) which takes O(lg lg(n)) time. When a user asks to NEXT-
YELLOW(i), then call V.successor(i) which takes O(lg lg(n)) time.
Another slower solution used an AVL tree in place of a vEB for an O(lg(n)) runtime for the
operations.
Common mistake 1: Claiming operations took O(lg lg(u)). The universe size is exactly n,
and the term u was undefined.
Common mistake 2: Inserting both yellow and grey elements into the same data structure
without an augmentation to keep track of whether any yellow elements existed within
children. NextYellow could take O(n) in the worst case.

Common mistake 3: Use a skip list to keep track of all yellow elements. Some operations
would take O(lg(n)) with high probability, but O(n) worst case
Common mistake 4: Using a skip list capped at 2 levels, doubly linked list, or hash table.
Some operations would take O(n) worst case.
Problem 4. Amortized Analysis. (1 part)
Design a data structure to maintain a set S of n distinct integers that supports the
following two operations:
1. INSERT(x, S): insert integer x into S.
2. REMOVE-BOTTOM-HALF(S): remove the smallest n 2 integers from S.
Describe your algorithm and give the worse-case time complexity of the two operations.
Then carry out an amortized analysis to make INSERT(x, S) run in amortized O(1) time,
and REMOVEBOTTOM-HALF(S) run in amortized 0 time.
Solution:
Use a singly linked list to store those integers. To implement INSERT(x, S), we append
the new integer to the end of the linked list. This takes Θ(1) time. To implement REMOVE-
BOTTOMHALF(S), we use the median finding algorithm taught in class to find the median
number, and then go through the list again to delete all the numbers smaller or equal than
the median. This takes Θ(n) time.

Suppose the runtime of REMOVE-BOTTOM-HALF(S) is bounded by cn for some constant c.
For amortized analysis, use Φ = 2cn as our potential function. Therefore, the amortized cost
of an insertion is 1 + ΔΦ = 1 + 2c = Θ(1). The amortized cost of REMOVE-BOTTOM-
HALF(S) is cn + ΔΦ = cn + (−2c × n 2 ) = 0.
Problem 5. Verifying Polynomial Multiplication. (4 parts)
This problem will explore how to check the product of two polynomials. Specifically, we are
given three polynomials:
We want to check whether p(x)· q(x) = r(x) (for all values x). Via FFT, we could simply
compute p(x)· q(x) and check in O(n log n) time. Instead, we aim to achieve O(n) time via
randomization.
(a) Describe an O(n)-time randomized algorithm for testing whether p(x) · q(x) = r(x) that
satisfies the following properties:
1. If the two sides are equal, the algorithm outputs YES.
2. If the two sides are unequal, the algorithm outputs NO with probability at least 1 2 .

Solution: Pick a value a ∈ [1, 4n], and check whether p(a)q(a) = r(a). The algorithm outputs
YES if the two sides are equal, and NO otherwise. It takes O(n) time to evaluate the three
polynomials of degree O(n). Thus the overall running time of the algorithm is O(n).
(b) Prove that your algorithm satisfies Property 1.
Solution: If p(x) · q(x) = r(x), then both sides will evaluate to the same thing for any input.
(c) Prove that your algorithm satisfies Property 2.
Hint: Recall the Fundamental Theorem of Algebra: A degree-d polynomial has (at most) d
roots.
Solution: s(x) = r(x) − p(x) · q(x) is a degree-2n polynomial, and thus has at most 2n roots.
Then 2n 1 Pr{s(a) = 0} ≤ = 4n 2
since a was picked from a set of size 4n.
(d) Design a randomized algorithm to check whether p(x)· q(x) = r(x) that is correct with
probability at least 1 − ε. Analyze your algorithm in terms of n and 1/ε.
Solution: We run part a m times, and output YES if and only if all answers output YES. In
other words, we amplify the probability of success via repetition. m Our test works with
probability ≥ 1 − 2 1 . Thus we need 1 m

Problem 6. Dynamic Programming. (2 parts)
Prof. Child is cooking from her garden, which is arranged in grid with n rows and m
columns. Each cell (i, j) (1 ≤ i ≤ n, 1 ≤ j ≤ m) has an ingredient growing in it, with tastiness
given by a positive value Ti,j . Prof. Child doesn’t like cooking “by the book”. To prepare
dinner, she will stand at a cell (i, j) and pick one ingredient from each quadrant relative to
that cell. The tastiness of her dish is the product of the tastiness of the four ingredients she
chooses. Help Prof. Child find an O(nm) dynamic programming algorithm to maximize the
tastiness of her dish. Here the four quadrants relative to a cell (i, j) are defined as follows:

Because Prof. Child needs all four quadrants to be non-empty, she can only stand on cells
(i, j) where 1 < i < n and 1 < j < m.
(a) Define TLi,j to be maximum tastiness value in the top-left quadrant of cell (i, j): TLi,j =
max{Ta,b | 1 ≤ a ≤ i, 1 ≤ b ≤ j}. Find a dynamic programming algorithm to compute TLi,j ,
for all 1 < i < n and 1 < j < m, in O(nm) time.
Solution: When trying to calculate TLi,j , we see that the maximum can be at cell (i, j). If
not, it must lie either in the rectangle from (1, 1) to (i, j − 1), or the rectangle from (1, 1) to
(i − 1, j), or both. These three overlapping cases cover our required rectangle. We have
then,
TLi,j = max{Ti,j , TLi−1,j , TLi,j−1}
For the base cases, we can just set TL0,j = TLi,0 = 0 for all valid values of i and j. We can
compute the DP value for each state in O(1) time. There are nm states, so our algorithm is
O(nm).
(b) Use the idea in part (a) to obtain an O(nm) algorithm to find the tastiest dish.
Solution: In part (a) we calculated range maximum for the top-left quadrant. We can
similarly define range maximums for the other quadrants. Let BLi,j = max{Ta,b | i ≤ a ≤ n, 1
≤ b ≤ j}, TRi,j = max{Ta,b | 1 ≤ a ≤ i, j ≤ b ≤ m}, and BRi,j = max{Ta,b | i ≤ a ≤ n, j ≤ b ≤ m}.
Each of these can be computed in O(nm) time similar to TL.

To calculate the tastiest dish Prof. Child can cook when she stands at cell (i, j) (1 < i < n and
1 < j < m), we now just need to compute the product TLi−1,j−1BLi+1,j−1TRi−1,j+1BRi+1,j+1
and pick the maximum product. This can be done in O(nm) time.
Problem 7. Median of two sorted arrays. (3 parts)
Finding the median of a sorted array is easy: return the middle element. But what if you
are given two sorted arrays A and B, of size m and n respectively, and you want to find the
median of all the numbers in A and B? You may assume that A and B are disjoint.
(a) Give a na¨ıve algorithm running in Θ(m + n) time.
Solution: Merge the two sorted arrays (which takes O(m + n) time) and find the median
using linear-time selection.
(b) If m = n, give an algorithm that runs in Θ(lg n) time.
Solution: Pick the median m1 for A and median m2 for B. If m1 = m2, return m1. If m1
> m2, remove the second half of A and the first half of B. Then we get two subarrays
with size n/2. Repeat until both arrays are smaller than a constant. m1 < m2 is
symmetric.
(c) Give an algorithm that runs in O(lg(min{m, n})) time, for any m and n. Don’t spend too
much time on this question!

Solution: Without loss of generality, assume |A| = m > n = |B|. We can safely remove
elements A[0 : m− 2 n] and A[ m+ 2 n : m − 1] because none of these elements can be
the median of A + B. After this process, we get two arrays of size approximately n. Then
we can run part (b). The complexity is Θ(lg(min(m, n)))

Computer Network Assignment Help

More Related Content

Similar to Computer Network Assignment Help (20)

More from Computer Network Assignment Help (20)

Recently uploaded (20)

Computer Network Assignment Help
