Why is IPC necessary?
 IPC == intra- and extra-process communication between entities

 Real applications are often partitioned into independent modules
 Clean design, logical separation of entities
 Improved QA
 Component re-use
 Communication with legacy or non-proprietary systems (web services)
 But entities need to communicate
 Communication latency
 Bandwidth
 Complex distributed scheduling and deadlocks


What This Talk Is About
 Help developers understand and solve IPC issues in the context of an application with low
response time requirements (millisecond)
 Share our experiences with developing an industry standard Java benchmark
– Software design
– Hardware deployment
– How does it apply to your application or environment?

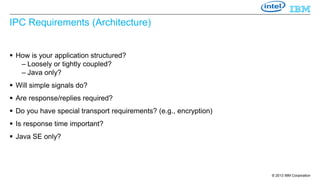

IPC Requirements (Architecture)
 How is your application structured?
– Loosely or tightly coupled?
– Java only?
 Will simple signals do?
 Are response/replies required?
 Do you have special transport requirements? (e.g., encryption)
 Is response time important?
 Java SE only?


Java Building Blocks for IPC (Implementation)
 java.net

 java.util.concurrent
 NIO/NIO2 packages
 CORBA

 RMI


Key Challenges With IPC
 Maintain high throughput and low latency (eliminate bottlenecks)

 Scalability of overall application
 Avoid deadlocks and starvation
 Work around limitations of communication technology

All are even more challenging in low SLA environments!


SPECjbb2013
 Next generation Java business logic benchmark from SPEC

 Business model is a supermarket supply chain: HQ, suppliers, supermarkets
 Scalable, self-injecting workload with multiple supported configurations:
– Composite (standalone)
– Multi-VM (several JVMs on the same host)
– Distributed (several JVMs on multiple hosts)
 Throughput ops/sec metric and a response-time metric
 Customer-relevant technologies: security, XML, JDK 7, etc.

 Designed to share data between entities


Response Time / Throughput Curve

Increasing load


SPECjbb2013 General Architecture
Control Entity
- benchmark infrastructure
Company
DB

Inventory

Business Entity
- workload

Config,
Results

Driver

SM

HQ

SP

Controller

Agent

Agent

Controller

TxInjector

Storage
- shared state

Control traffic
- start/stop requests
- audit requests
Business Data Traffic
- business logic requests
- fine-grained status

Backend (SUT)

SPECjbb2013 Communication Requirements
 Separation of workload components
– Intra- and inter-JVM traffic
 Control, status, data, and notifications traffic
– Request/Response and one-way Messages
 Multiple benchmark deployments
– Scalable architecture
 Millisecond response times under high transactional rate
 Simple developer API
– Uniform API for communication between agents: intra- or inter-process


SPECjbb2013 Communications Architecture

Driver
SM

IC

Conn

Conn

Clients

Server

SM

SP

HQ

IC

JVM1

JVM2

TxInjector

Backend

Active Entity
- SM/HQ/SP
- Driver

Transport
- Encapsulation
- Compression
- Encryption

Intra-JVM data traffic
Benchmark state:
- Business-logic requests
- Fine-grained status

Inter-JVM data traffic
Benchmark state:
- Business-logic requests
- Fine-grained status

Interconnects
Master Registry
Client 1

Client 2

Client 3

Local Registry

Connectivity
IC
JVM

 Interconnect is the central communication fabric
– Each JVM has its own IC
 Registry handles routing
– Global namespace for all clients
– Local locations added when connected
– Remote locations added lazily as they are resolved

 Transports define the format of data transferred between clients
 Connectivity defines the exchange format between two ICs

Transports
Serial

Encapsulation

Compression

Plain

Encryption

XML

none

GZIP

none

JCE

 Transports model business data marshallers / unmarshallers

 Transport mappings are fixed
– Most frequent transport is PLAIN, i.e., “pass by reference”
 Transport overheads can be LARGE, consider allowing adjustment in your application

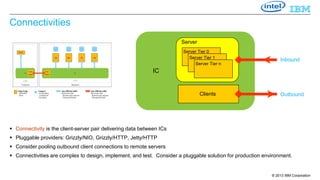

Connectivities
Server
Server Tier 0
Server Tier 1
Server Tier n

Inbound

IC

Clients

Outbound

 Connectivity is the client-server pair delivering data between ICs
 Pluggable providers: Grizzly/NIO, Grizzly/HTTP, Jetty/HTTP
 Consider pooling outbound client connections to remote servers
 Connectivities are complex to design, implement, and test. Consider a pluggable solution for production environment.


Connection Clients
Connection Client

Uplink for
out-bound traffic

Downlink for
in-bound traffic

 Clients (or entities) that can connect to an IC
– Agents (communicate with Controller)
– BatchExecutors (process communication in batches in parallel)
 Communicate with IC via uplinks and downlinks
 Simple communications API

Messages and Requests
 Communication delivery:
– messages (no reply expected, non-blocking)
– requests (reply expected, block for response)
 Repeated, identical messages/requests to same destination can be marshalled once and
cached by uplink to improve throughput
– Important for scalability
 Batching multiple messages/requests to same destination in same packet
 improved throughput and overhead (payload size and marshalling costs)
 need careful consideration of payload size and flush mechanism to not harm SLAs


Communication Design FAQ
 Why did you choose a message passing scheme?
– Fits the business model
– Allows flexible configurations without changing code
 Why didn’t you use the Java Messaging Service (JMS)?
– Java SE not Java EE
– Not a JMS benchmark!
 Why did you re-implement a communication scheme rather than re-use an existing one?
– Wanted tight control over performance and bottlenecks
– Re-use complex components, carefully choosing implementations to meet flexibility
requirements

Worker Thread Pools
 WTPs execute transactions initiated by
incoming requests and other transactions

Worker Thread Pool (WTP)
Tier 0

Tier 1

 ForkJoin implementation for efficient batch
decomposition and work stealing

Tier n

SM

SP

HQ

 Each connection client within a JVM shares
a single WTP with the other connection
clients
– Reduces artificial context switches
 Be careful with FJ and threads with
blocking I/O

Conn
Server

IC

JVM

 Proper design of WTPs essential for
scalability and throughput

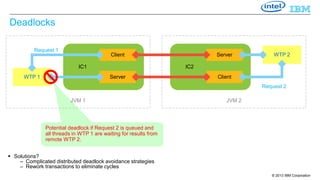

Deadlocks
Request 1

Client
IC1

WTP 2

IC2
Server

WTP 1

Server

Client
Request 2

JVM 1

JVM 2

Potential deadlock if Request 2 is queued and
all threads in WTP 1 are waiting for results from
remote WTP 2.
 Solutions?
– Complicated distributed deadlock avoidance strategies
– Rework transactions to eliminate cycles

Communication Tiers
 Introduce tiers to connectivity servers and thread pools
 Architected to guarantee progress by ensuring there is always an available thread
 Must be sized according to communication patterns
 Communication requests:
– within the same IC are sent on the same tier as requestor thread
– to a remote IC are sent to the next highest tier
– for infrastructure/control are sent on a reserved tier
 Destination tiers are transparent to sender


Communication With Tiers
Request 1
from Tier1

Request 1
routed to Tier 2
WTP

Request 1
arrives on Tier1

Client

Server

IC1

IC2
Server

WTP 1

Client

JVM 1
Request 2
Routed to Tier 3 WTP

WTP 2

JVM 2
Request 2
arrives on Tier2

Request 2
from Tier 2

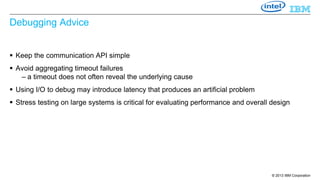

Debugging Advice
 Keep the communication API simple

 Avoid aggregating timeout failures
– a timeout does not often reveal the underlying cause
 Using I/O to debug may introduce latency that produces an artificial problem
 Stress testing on large systems is critical for evaluating performance and overall design


Factors That Affect Response Time


Deployment Decisions
 HW configuration:
– Systems with multiple network cards, network latency could be improved by affinitizing
network traffic to particular network cards and directing them to specific processors
– System could be connected via infiniBand or fiber optic instead of regular Ethernet cable
 Native OS:
– Within Single OS image: could take advantage of loop back traffic optimizations
– Across Multiple OS image: careful about traffic routing
 Virtual OS images:
– Good to affinitize VM to cores instead of free floating
– Be careful about IO across virtual OS images
 Process level
– Process affinitized to a socket delivers more consistent response time


Tunings: GC
 If long latencies are tracking with GC pauses, tune your garbage collector
– Run with verbose GC
– GC policies, Heap size, Nursery size

Match with GC log
time stamps


Tunings: Time outs
 Ensure communication time outs are appropriately sized
– Too large may not react quickly enough, affecting response time
– Too small does not tolerate normal workload delays

 Time outs must scale when moved to larger deployments

 Architect an appropriate response when something times out
– Retry mechanism?


Tuning: Communications
 Number of connection pools : Number of sockets

 Number of grizzly pools : Number of threads in each Grizzly pool

 Number of ForkJoin workers:
– Mostly need to set > logical processors

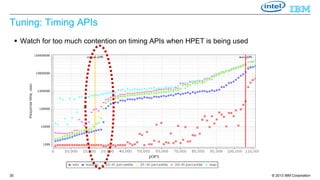

Tuning: Timing APIs
 Watch for too much contention on timing APIs when HPET is being used

30


Top 10 Takeaways
10

Reduce communication as much as possible

9

Send big chunks of data

8

Combine messages in batches

7

If you care about throughput, use an asynchronous model

6

If you care about strict correctness, use a synchronous model

5

Re-use connection channels: do not create new ones for each message

4

Check errors: it is difficult to debug IPC, so log any error as much as possible

3

Use frameworks when appropriate

2

Profile and tune

1

Don’t believe it when someone says “It will never happen”

Questions?

http://ibm.co/JavaOne2013

Visit the IBM booth and meet other IBM developers at JavaOne
2013


References and Credits
 Some benchmark slides and diagrams were adapted from SPECjbb2013 Design Committee
documentation and correspondence.
 Aleksey Shipilev (Oracle) for communication architecture diagrams


Trademarks

SPECjbb®2013 is a registered trademark of the Standard Performance Evaluation
Corporation (SPEC).
Java and all Java-based trademarks and logos are trademarks or registered trademarks of
Oracle and/or its affiliates.


JavaOne 2013 CON7370: Java Interprocess Communication Challenges in Low-Latency Deployments

More Related Content

What's hot (13)

Similar to JavaOne 2013 CON7370: Java Interprocess Communication Challenges in Low-Latency Deployments (20)

Recently uploaded (20)

JavaOne 2013 CON7370: Java Interprocess Communication Challenges in Low-Latency Deployments
