how to make architecture graduation project
- 1. concept
- 2. Translating non- physical problem into the physical product What’s concept Big Idea Primary Organizer Basic framework Mental Image Strategy Designer’s First idea
- 3. Concept nature المقياس1- Occur at any scale . 2- Can happen at any stage in the design processes . الوقت هرميه طبيعه3- Hierarchical nature. المشاكل حل فى الجوهريه مدى4- Posses intrinsic problems. building .5- Plural in numbers and concern within any single التعدديه التعقيد مدى.6- High complexity
- 4. Contextual Over all idea Concept types Functional Both
- 6. Context of concept getting The broader concerns General philosophy and life value of the designer Designer view of the problem
- 7. What control it ? Philosophy Discover A massage A case to defend Doing the impossible Dynamic structure Sustainable environment Out of The box Material
- 8. Designer’s valuesArtistic ……. scientific conscious ……. subconscious Rational ..….. irrational Individual ……. society Your needs ……. Client needs Man ……. nature Creative ……. common place Design for now ……. design for future Evaluate while designing ….. When
- 9. Designer philosophy 1- The building design should be what it wants to be not the designer wants to be . 2-Form should be derived from organizing and clothing activity patterns. 3-The solution to the problem is contained in the problem itself. 4- A building must perform on several levels : health and safety , utility ,economy and aesthetics . 5- Architecture should be expressive of the values of the culture where it occurs.
- 11. What control it ? Policy &operations Medical Educational Housing Entertaining Theaters hotels schoolsHospitals campus Games park Private villas Admin. museums Cultural shops companies Med. centers Exhibitions
- 12. What control it ? Educational Activates Teaching &learning Eating &chatting Admin &controling,ect… Housing Sleeping Reading & resting Hospitality & serving Medical Doing Surgery & diagnosis Eating & waiting Sleeping & Admin , ect…
- 13. Concept Getting Concept getting is often the stage in planning when the designer experiences his most intense frustrations and satisfactions
- 14. How to get it ?
- 15. Inspiration
- 16. Inspiration 1-The process of being mentally stimulated to do or feel something, especially to do something creative . 2-A sudden brilliant or timely idea.
- 17. How to get it ? •- Google for INSPIRATIONS file •- Set Activates •- write your Thought , Positives , Negatives •- Apply Philosophy •- BRAIN STORMING •- Get Non- physical image or thought clear •- Set a key words •- Google image for those words
- 18. Google for INSPIRATIONS File
- 19. Set Activates
- 20. Write your Thought , Positives , Negatives
- 21. Apply Philosophy
- 22. BRAIN STORMING Set a group for a brain storming Search similar project to know the common problems
- 23. Get Non- physical image or thought clear
- 24. Set key words
- 25. Google image for those words
- 26. How to get it ? By ending this stage you will end up with - An inspiration - Sketching of pattern ( key pattern – form – elevation , ect…) - Design philosophy And you will be ready for Translating stage
- 27. Translating stage Layout zoning Bubble diagram Zoning Form Final master plan
- 32. Layout Traffic Access points Transportation Vehicular traffic Pedestrian traffic Vehicular – pedestrian Parking
- 54. Layout Safety Varies with project nature and function
- 56. Layout Water
- 57. Layout Water
- 58. Layout Water
- 59. Layout Water
- 60. Layout Green
- 61. Layout Green
- 62. Layout Green
- 67. Layout Rocks
- 68. Layout Rocks
- 69. Layout Rocks
- 70. Layout Rocks
- 71. Layout Seating
- 72. Layout Seating
- 73. Layout Entrances
- 74. Layout Entrances
- 75. Layout Entrances
- 76. Layout Entrances
- 77. Layout Entrances
- 78. Layout Entrances
- 79. Layout Entrances
- 88. Plan Form
- 89. Plan Final plan
- 90. Plan Impact vectors Entry points Placing vertical circulation Movement systems
- 92. Plan Impact vectors Placing vertical circulation
- 94. Elev. Skyline Unites Continuity – unity Rhythm Materials Lights – shades Dynamic – static
- 112. Time ,Tricks & Tips Time management Concept stage Translation stage Presentation stage Tips & Tricks

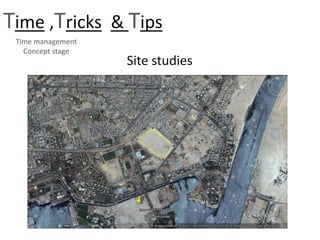

- 113. Time ,Tricks & Tips Time management Concept stage Site studies
- 114. Time ,Tricks & Tips Time management Concept stage First concept sketches
- 115. Time ,Tricks & Tips Time management Concept stage Layout zoning
- 116. Time ,Tricks & Tips Time management Translation stage Conceptual Model
- 117. Time ,Tricks & Tips Time management Translation stage Set style Set projections
- 118. Time ,Tricks & Tips Time management Translation stage Environmental studies
- 119. Time ,Tricks & Tips Time management Digitalize Cad stage Layout Plan Section elevation poster
- 120. Time ,Tricks & Tips Time management Digitalize Modeling stage studies Model model render
- 121. Time ,Tricks & Tips Time management Digitalize Presentation studies Poster Brush final images projections
- 122. Time ,Tricks & Tips
- 123. Time ,Tricks & Tips . Set a good environment . . Set realistic goals. . Make your project clear. . Easy to read. . Set a challenge . . Make a theme from start. . Don’t de-attach from reality. . De-attach from drama . . Don’t exaggerate . . Don’t panic . . Always Be ready .
