This document summarizes the topics covered in Session 20 of the CS304PC course on Computer Organization and Architecture. It discusses multiplication algorithms, including successive addition of partial products and hardware implementations. It also covers the Booth multiplication algorithm and array multipliers. The next session will cover division algorithms.
CS304PC:Computer Organization and Architecture session 20 Multiplication algorithm.pptx
- 1. CS304PC:Computer Organization and Architecture (R18 II(I sem)) Department of computer science and engineering (AI/ML) Session 20 by Asst.Prof.M.Gokilavani VITS 2/13/2023 Department of CSE (AI/ML) 1
- 2. TEXTBOOK: • 1. Computer System Architecture – M. Moris Mano, Third Edition, Pearson/PHI. REFERENCES: • Computer Organization – Car Hamacher, Zvonks Vranesic, Safea Zaky, Vth Edition, McGraw Hill. • Computer Organization and Architecture – William Stallings Sixth Edition, Pearson/PHI. • Structured Computer Organization – Andrew S. Tanenbaum, 4th Edition, PHI/Pearson. 2/13/2023 Department of CSE (AI/ML) 2
- 3. Unit III Data Representation: Data types ,Complements, fixed point Representations, Floating point representation. Computer Arithmetic: Addition and subtraction, multiplication Algorithms, Division Algorithms, Floating-point Arithmetic operations, Decimal Arithmetic unit, Decimal Arithmetic operations. 2/13/2023 Department of CSE (AI/ML) 3
- 4. Topics covered in session 20 2/13/2023 Department of CSE (AI/ML) 4 • Addition and subtraction • Multiplication Algorithms • Division Algorithms • Floating-point Arithmetic operations • Decimal Arithmetic unit • Decimal Arithmetic operations.
- 5. Multiplication Algorithm • Example: • In multiplication algorithm, successive bits of the multiplier, least significant bit first. • If the multiplier bit is a 1, the multiplicand is copied down, otherwise zero are copied down. • The numbers copied down is successive lines are shifted one position to the left from the previous number. Finally, the numbers are added, and their sum forms the product. • The sign of the product is determined from the sign of the multiplicand and multiplier. 2/13/2023 Department of CSE (AI/ML) 5
- 6. Hardware Implementation for Signed Magnitude Data • First, instead of providing register to store and add simultaneously as many binary numbers as there are bits in the multiplier, it is convenient to provide an adder for the summation of only binary numbers and successively accumulated the partial products in registers. • Second, instead of shifting the multiplicand to the left, the partial product is shifted to the right, which results in leaving the partial product and the multiplicand in the required relative position. • Third when the corresponding bit of the multiplier is 0, there is no need to add all zeros to the partial product since it will not alter its value. 2/13/2023 Department of CSE (AI/ML) 6
- 7. 2/13/2023 Department of CSE (AI/ML) 7
- 8. Working of Hardware Implementation • Initially, the multiplicand is in register B and the multiplier in Q. • The sum of A and B forms a partial product which is transferred to the EA register. Both partial product and multiplier are shifted to the right. This shift will be denoted by the statement shr EAQ to designate the right shift depicted. • The least significant bit of A is shifted into the most significant position of Q, the bit from E is shifted into the most significant position of A, and 0 is shifted into E. • After the shift, one bit of the partial product is shifted into Q, pushing the multiplier bits one position to the right. • Rightmost flip-flop in register Q, designated by Qn, will hold the bit of the multiplier, which must be inspected next. 2/13/2023 Department of CSE (AI/ML) 8

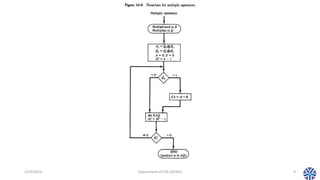

- 9. 2/13/2023 Department of CSE (AI/ML) 9
- 10. Booth Multiplication Algorithm 2/13/2023 Department of CSE (AI/ML) 10
- 11. Rules For Booth Algorithm 2/13/2023 Department of CSE (AI/ML) 11
- 12. 2/13/2023 Department of CSE (AI/ML) 12
- 13. 2/13/2023 Department of CSE (AI/ML) 13
- 14. Array Multiplier • Checking the bits of the multiplier one at a time and forming partial products is a sequential operation that requires a sequence of add and shift micro operations. • The multiplication of two binary numbers can b done with one micro operation by means of a combinational circuit that forms the product bits all at once. • An array multiplier requires a large number of gates, and integrated circuits. 2/13/2023 Department of CSE (AI/ML) 14
- 15. Array Multiplier 2/13/2023 Department of CSE (AI/ML) 15
- 16. 2/13/2023 Department of CSE (AI/ML) 16
- 17. 2/13/2023 Department of CSE (AI/ML) 17
- 18. Topics to be covered in next session 21 • Division Algorithm 2/13/2023 Department of CSE (AI/ML) 18 Thank you!!!
