Database Pro Power Days 2010 - Graph data in the cloud using .NET

Photo: Large Magellanic Cloud, ESO

19./20. Oktober 2010
Nürnberg
www.databasepro-powerdays.de

sones

Graph Data in the cloud
using .NET
Achim Friedland <achim@sones.de> Database Pro Power Days , 10/20/2010 1

Photo: funky64, flickr

For 35 years information has been
well-defined data within some tables
jailed in closed database silos.


Photo: shamballah, flickr

The relational model and SQL have
become much too limited for open
linked data and cloud requirements.
== graph data

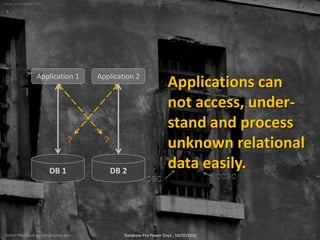

Application 1 Application 2
Applications can
not access, under-
stand and process
? ?
unknown relational
DB 1 DB 2
data easily.


Photo: Gephi, flickr

1. Graph-Databases



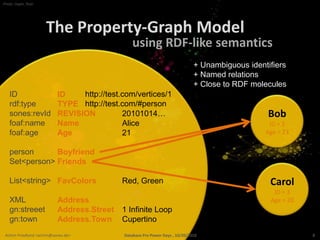

The Property-Graph Model

Vertex
Edge
Alice Friends Bob
ID = 1 since = 2009/09/21 ID = 2
Age = 21 reason = classmates Age = 23

Edge- Vertex-
Properties Properties




Direct linking
ID 1 without external
TYPE Person indices
REVISION 20101014… Bob
Name Alice ID = 2
Age 21 Age = 23

Boyfriend
Friends

FavColors Red, Green Carol
ID = 3
Address.Street 1 Infinite Loop Age = 20
Address.Town Cupertino
Close to Object- and
Document-Databases


using RDF-like semantics
+ Unambiguous identifiers
+ Named relations
+ Close to RDF molecules
ID ID http://test.com/vertices/1
rdf:type TYPE http://test.com/#person
sones:revId REVISION 20101014… Bob
foaf:name Name Alice ID = 2
foaf:age Age 21 Age = 23

person Boyfriend
Set<person> Friends

List<string> FavColors Red, Green Carol
ID = 3
XML Address Age = 20
gn:streeet Address.Street 1 Infinite Loop
gn:town Address.Town Cupertino


Graph-Databases in a cloud
• Vertices and edges are resources
• Access via e.g. http://test.com/vertices/[$id]
• Common CRUD operations (GET, POST, PUT…)

+ Atomicity
+ Statelessness
+ Idempotence
+ Parallelism
GraphDB

REST

Hypermedia • Representation must be „link-aware“
e.g. XML+XLINK, ATOM, RDFa…
• Representation should be self-describing


Photo: bombeador, flickr

Graph
2. The Object-relational
Impedance Mismatch


Inflexible relational schemata

• Expensive ALTER TABLE operations
• Entity-Attribute-Value Model ↔ RDF
• No semi-/unstructured data
XML, JSON, … hierarchies, graphs, … binary data
• No Multi-Attribute Values
List<String>, Set<Integer>, Set<Person>
• No simple way for versioned data



Relational Anti-Patterns:

• Relations via foreign key constraints
No explicit concept for relations
No index-free adjacency
• Querying relational data via JOINs is hard
Just storing a graph was never a challenge ;)
• No recursive JOINs
Inefficient query processing
(Except: Oracle’s “CONNECTED BY”)



SQL and Cloud-Readiness?

• No explicit scaling or partitioning within
the relational model
• No JOINs between different databases
and/or vendors
• No well interaction with state-of-the-art
web technologies
e.g. HTTP/REST, Hypermedia, Semantic Web



3. Benefits of Graph-Databases



The explicit graph data model
provides a higher level of abstraction
and a better understanding of the
domain model.



Index-free adjacency provides an
improved scalability, data-locality
and a superior graph traversal
performance.

( Independent of the size of the graph )


Photo: squacco, flickr

Consistency criteria and indices for
simple attributes up to complex
subgraph structures.


Photo: Khem, flickr

Traversing linked information, finding
shortest-paths, do semantic
partitions.


Photo: NASA, flickr

personal social item-related

Recommendation and discovery
of potentially interessting linked
information.


Photo: Birger Hoppe, flickr

Good integration into state-of-the-art
programming concepts and web
technologies.



Graph-Databases, REST and RDF
symantics are a solid foundation for
cloud services



4. Graph data in the cloud
using .NET / Mono


Photo: sones

sones GraphDB

• URL http://www.sones.de
• License AGPLv3
• Language C# 4.0
• Goals Management of linked data
• Concurrency MVCC
• Repl./Scaling p2p (alpha)
• Persistency Proprietary file system
• Cloud Connector for Microsoft Azure


Photo: sones

sones Architecture

GraphDS
REST, WebShell, C# API

GraphDB
GQL, Graph Traversals, Indices

GraphFS
Object Management, (De-)Serialization

Host File System / Microsoft Azure


Photo: sones

Shared nothing

GraphDB 1

GraphDS 1
GraphFS 1
User
it
depends…
Azure
GraphFS 2
GraphDS 2

GraphDB 2


Photo: sones

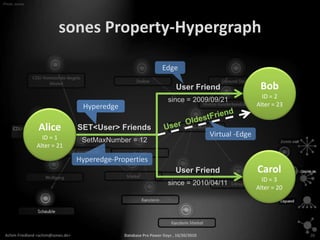

sones Property-Hypergraph

Edge

User Friend Bob
ID = 2
since = 2009/09/21
Hyperedge Alter = 23

Alice SET<User> Friends
ID = 1 Virtual -Edge
SetMaxNumber = 12
Alter = 21

Hyperedge-Properties
User Friend Carol
ID = 3
since = 2010/04/11
Alter = 20


Photo: sones

sones Property-Hypergraph

• Properties may include code as data
Think of stored procedures; C#: Func<…>, ExpressionTrees

• Allows hyperedge calculations be done among
the set of their edges
(GetMinWeight, SetMaxNumber, …)

Achim Friedland <achim@sones.de> Database Pro Power Days , 10/20/2010
NoSQL Frankfurt , 9/28/2010 27

Photo: Shayne Kaye, flickr

sones Graph Query Language

FROM User SELECT User.Friends.Friends.Name

• “SQL for graphs” providing a user-friendly DSL for ad-
hoc graph queries and graph discovery
• Functions and aggregates are type-safe and can be
extended by your own plug-ins, e.g.
• SELECT COUNT(User.Friends)
• SELECT User.Friends.Random(2)
• SELECT User.Friends.Name.Substring(2,5)



sones Graph Query Language
// sones gql example

CREATE VERTEX User
ADD ATTRIBUTES (String Name, SET<User> Friends)
INDICES (Name)
MANDATORY (Name)

INSERT INTO User VALUES (Name = "Alice", Age = 21)
INSERT INTO User VALUES (Name = "Bob", Age = 23)

LINK User(Name = ‘Alice') VIA Friends TO User(Name = ‘Bob')
LINK User(Name = ‘Bob') VIA Friends TO User(Name = ‘Alice‘)



C# API
// C# API type creation

var _Person = _GraphDB.TypeManager.
CreateVertex(„Person“).
AddString(„Name“, mandatory: true, indexed: true).
AddLoop(„Friends”, hyperEdge: true).
execute();

Type _PersonT = _GraphDB.TypeManager.
GenerateType(_Person);



C# API
// C# API vertex initialization

Person _Alice = _GraphDB.TypeManager.ActivateVertex(
_Person, new VertexUUID(1));

_Alice.Name = „Alice“;

dynamic _Alice2 = _Alice;
_Alice.Age = 21;
_Alice.bdayparty = (Action) (() => { _Alice.Age++; });

_Alice.bdayparty();



C# API
// sones C# API example

var _Friends = new GraphAttribute(„Friends“, Type: „foaf:knows“);

var _Bob = _GraphDB.TypeManager.ActivateVertex(
_Person, new VertexUUID(2));

_Alice.Link(_Friends, _Bob);
_Bob.Link(_Friends, _Alice);



C# API
// Graph Traversals

Public T TraverseVertex<T> (
IVertex myStartVertex,
TraversalOperation TraversalOperation =
TraversalOperation.BreathFirst,
Func<IVertex, IEdge, Boolean> myFollowThisEdge = null,
Func<IVertex, Boolean> myMatchEvaluator = null,
Action<IVertex> myMatchAction = null,
Func<TraversalState, Boolean> myStopEvaluator = null,
Func<IEnumerable<IVertex>, T> myWhenFinished = null)
{
// Traverse the graph
}


sones
For more information…

achim@sones.de
http://www.twitter.com/ahzf
http://www.twitter.com/graphdbs
