Real-world demonstration For the beginner modeler
Revisit Today’s Webinar Materials For anyone who may have been running late or wanted to reference these materials, we are happy to provide the presentation and a link to the recording of the webinar. Expect to hear from us after the presentation! © Minitab Inc. 210/24/2017
Today’s Discussion (10/24) Quick Refresher – What can Machine Learning do for you Salford Systems – Pioneering Predictive Analytics and Machine Learning Manufacturing Defects Dataset: Applied Examples CART TreeNet Random Forest © Minitab Inc. 310/24/2017 Today’s Presenter Charlie Harrison Charlie is part of Salford’s Data Scientist Team, and has been providing customer support and training for several years. His favorite thing about Data Science is proving theoretical results.
What Can Machine Learning Do For You? © Minitab Inc. 410/24/2017 Explore Data Discover the Most Important Features Find the Most Important Relationships in Factors & Response Predict Future Observations Solve Your Problem
How Broad and Deep is the Application Potential? Machine learning methods can be applied in almost any context. The following is a brief selection of industry and functional examples: © Minitab Inc. 510/24/2017 FINANCIAL SERVICES MANUFACTURING SALES MARKETING FUNCTIONAL AREASINDUSTRIES Loan Defaults Manufacturing Defects Fraud Prevention Preventative Maintenance Customer Churn Customer Segmentation Cross- Sell/Upsell Marketing Lift HEALTH CARE Disease Prevention Genetics OTHER INDUSTRIES Insurance Claims Environmental Impacts
CLASSIFICATION MODELS using CART, Gradient Boosting & Random Forests © Minitab Inc. 610/24/2017 CLASSIFICATION Predict a qualitative value UNSUPERVISED LEARNING Clustering TIME SERIES Predict future values based on past values SURVIVAL ANALYSIS Predict time until occurrence REGRESSION Predict a quantitative value
What Do You Need to Get Started? © Minitab Inc. 710/24/2017 Sufficient Data Pick the Right Problem Solve with the Right Tool Have you downloaded SPM 8.2? After this webinar, we’ll give you access to the dataset used so you can try it out for yourself. https://info.salford-systems.com/spm-8-download
Salford Systems © Minitab Inc. 810/24/2017
Salford’s Legacy in Pioneering Predictive Analytics & Machine Learning Salford’s solutions are innovative, reliable and robust because they were created and are implemented by inventors and pioneers of Predictive Analytics & Machine Learning (PAML): • Dr. Jerome Friedman (Professor of Statistics, Stanford) • Dr. Leo Breiman (Professor of Statistics, UC Berkeley) The algorithms covered today were either created or co-created by either Dr. Breiman or Dr. Friedman. © Minitab Inc. 910/24/2017
© Minitab Inc. 1010/24/2017 Accuracy of Prediction Defensibility of Models Salford’s models are defensible internally to executive stakeholders and externally to regulators Salford solutions are distinguished in particular by their: Salford Stands Out Against Competitors Salford’s models stand the test of time and are used by some of the biggest corporations in the world Ease of Use Salford’s models don’t require coding
Suite of Solutions – Data Science Toolkit Time- and market-tested predictive modeling tools including everything from market-leading decision tree and classification engines to advanced interaction detection and automation to state- of-the-art machine learning capabilities. © Minitab Inc. 1110/24/2017 SPM Software Suite CART MARS Random Forests TreeNet RuleLearner ISLE GPS Decision trees Nonlinear regression Data ensemble bagging Gradient boosting Rule ensemble Model compression Regularized regression
Why Do Classification Models Matter? Classification methods are a simple, effective and accurate approach to solve organization’s most difficult problems and uncover new opportunities by narrowing down with factors have the most impact in your outcome Some of the most common applications include: • Fraud Prevention • Risk Reduction in Credit Scoring and Loan Default • Optimizing Marketing Campaigns • Improving Operations © Minitab Inc. 1210/24/2017 FINANCIAL SERVICES MANUFACTURING SALES MARKETING FUNCTIONAL AREAS INDUSTRIES What promotions are most effective? HEALTH CARE What machine signals are predictive of defects? Does customer satisfaction influence loyalty? Does level of education impact credit risk? Does body weight influence the risk of heart disease?

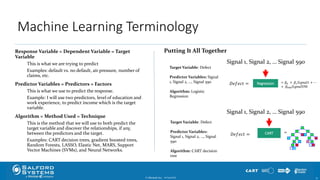

Machine Learning Terminology Response Variable = Dependent Variable = Target Variable This is what we are trying to predict Examples: default vs. no default, air pressure, number of claims, etc. Predictor Variables = Predictors = Factors This is what we use to predict the response. Example: I will use two predictors, level of education and work experience, to predict income which is the target variable. Algorithm = Method Used = Technique This is the method that we will use to both predict the target variable and discover the relationships, if any, between the predictors and the target. Examples: CART decision trees, gradient boosted trees, Random Forests, LASSO, Elastic Net, MARS, Support Vector Machines (SVMs), and Neural Networks. © Minitab Inc. 1310/24/2017 Target Variable: Defect Predictor Variables: Signal 1, Signal 2, …, Signal 590 Algorithm: Logistic Regression Regression𝐷𝑒𝑓𝑒𝑐𝑡 = = 𝛽0 + 𝛽1 𝑆𝑖𝑔𝑛𝑎𝑙1 + ⋯ + 𝛽590 𝑆𝑖𝑔𝑛𝑎𝑙590 CART = 𝐷𝑒𝑓𝑒𝑐𝑡 = Target Variable: Defect Predictor Variables: Signal 1, Signal 2, …, Signal 590 Algorithm: CART decision tree Putting It All Together Signal 1, Signal 2, … Signal 590 Signal 1, Signal 2, … Signal 590
Hands-on Practice © Minitab Inc. 1410/24/2017
Let’s Get Started . . . © Minitab Inc. 1510/24/2017 MANUFACTURING Open SPM DATA SET Live Demo Manufacturing Defects A manufacturing process involves myriad machines, and the information concerning the operation of the machines is recorded. There are 590 metrics recorded from the machines from the start of the process to the end and we’ll refer to these metrics as “signals.” 1. What signals, if any, are predictive of manufacturing defects? 2. If signals are predictive of defects, then how are these signals related to the likelihood of manufacturing defects?
CART and Random Forests © Minitab Inc. 16 10/24/2017 SPM ENGINE PREDICTIVE PERFORMANCE AUTOMATIC VARIABLE SELECTION AUTOMATIC INTERACTION DETECTION AUTOMATIC MISSING VALUE/OUTLIER HANDLING AUTOMATIC MODELING OF LOCAL EFFECTS INVARIANT TO MONOTONE TRANSFORMATIONS OF PREDICTORS INTERPRETABILITY A Random Forest prediction is really just an average of CART tree predictions. When you build a Random Forest model just keep this picture in the back of your mind: © Minitab Inc. 16 10/24/2017
Solving Problems with Machine Learning: Machine Settings and Manufacturing Defects A manufacturing process involves myriad machines, and the information concerning the operation of the machines is recorded. There are 590 metrics recorded from the machines from the start of the process to the end and we’ll refer to these metrics as “signals.” We will try to answer two primary questions: 1. What signals, if any, are predictive of manufacturing defects? 2. If signals are predictive of defects, then how are these signals related to the likelihood of manufacturing defects? We will use an algorithm called gradient boosting to do this. TreeNet® software will be used. TreeNet is unique in that its code was originally written by Jerome Friedman, the creator of gradient boosting. © Minitab Inc. 1710/24/2017 Manufacturing Defects
Dataset Citations Manufacturing Defect Dataset: Michael McCann and Adrian Johnston donated the dataset to the UCI Machine Learning Repository in 2008: Link: https://archive.ics.uci.edu/ml/datasets/SECOM © Minitab Inc. 1810/24/2017
CART Let’s apply CART to the manufacturing defect dataset. Applying CART 1. Build the model in SPM 2. Understand CART Relative Cost 3. Find the most interesting rules that are predictive of manufacturing defects using Hotspot Detection 4. Using the model: Generating manufacturing defect predictions and deploying CART outside of SPM SIGNAL_66 SIGNAL_247 SIGNAL_246 SIGNAL_60 SIGNAL_293 SIGNAL_60 SIGNAL_311 SIGNAL_111 SIGNAL_549 SIGNAL_246 SIGNAL_112 SIGNAL_158 SIGNAL_158 SIGNAL_21 SIGNAL_359 SIGNAL_359 SIGNAL_294 © Minitab Inc. 1910/24/2017
CART Review © Minitab Inc. 2010/24/2017 CART is a decision tree algorithm that divides the data so that the dependent variable can be predicted more accurately CART automatically: 1. Selects variables 2. Models nonlinear relationships 3. Model local effects 4. Models interactions 5. Handles missing values
CART : Relative Cost Relative Cost = 𝑂𝑣𝑒𝑟𝑎𝑙𝑙 𝑀𝑖𝑠𝑐𝑙𝑎𝑠𝑠𝑖𝑓𝑖𝑐𝑎𝑡𝑖𝑜𝑛 𝐶𝑜𝑠𝑡 𝑈𝑠𝑖𝑛𝑔 𝑎 𝐶𝐴𝑅𝑇 𝑡𝑟𝑒𝑒 𝑁𝑜 𝐷𝑎𝑡𝑎 𝑂𝑝𝑡𝑖𝑚𝑎𝑙 𝑅𝑢𝑙𝑒 The No Data Optimal Rule classifies every observation as one class. More specifically, the class chosen for the no data optimal rule is the class that has the lowest cost compared to the other(s) Good: If the relative cost is closer to zero (closer is better) then CART is better than the No Data Optimal Rule Bad: If the relative cost is equal to 1 then the CART error is the same as the No Data Optimal Rule which means that CART is no better than just predicting every observation as the same class The relative cost can be greater 1 which is especially bad and, more generally, values around 1 should be considered “bad” No Data Optimal Rule Predicted Class: Relative Cost = .44 CART Predicted Class: CART Predicted Class: CART Predicted Class: X2 <= -0.49 Terminal Node 1 Class = Circle Class Cases % Circle 6 100.0 Triangle 0 0.0 W = 6.00 N = 6 X1 <= 0.23 Terminal Node 2 Class = Triangle Class Cases % Circle 1 14.3 Triangle 6 85.7 W = 7.00 N = 7 X1 > 0.23 Terminal Node 3 Class = Circle Class Cases % Circle 9 75.0 Triangle 3 25.0 W = 12.00 N = 12 X2 > -0.49 Node 2 Class = Circle X1 <= 0.23 Class Cases % Circle 10 52.6 Triangle 9 47.4 W = 19.00 N = 19 Node 1 Class = Circle X2 <= -0.49 Class Cases % Circle 16 64.0 Triangle 9 36.0 W = 25.00 N = 25
CART Confusion Matrix © Minitab Inc. 2210/24/2017 Use the Confusion Matrix to assess CART and the types of correct or incorrect predictions that it makes. CART correctly predicted “No Defect” 935 times CART correctly predicted “No Defect” 57 times CART incorrectly predicted “Defect” when there was actually no defect 528 times (we call this a false positive) CART incorrectly predicted “No Defect” when there actually was a defect 47 times (we call this a false negative)
CART: Variable Selection & Importance There were 590 variables available to be selected by CART. 13 variables appear in the tree 79 variables are used in the model (i.e. 13 variables used in the tree and 66 used to handle missing values via surrogate splits) © Minitab Inc. 2310/24/2017
CART: Hotspot Detection Recall: a CART tree can be thought of as a collection of rules. Each rule defines a path to a terminal node For large CART trees, is there an easy way to find the “most interesting” rules? Yes, use Hotspot Detection. © Minitab Inc. 2410/24/2017 SIGNAL_66 SIGNAL_247 SIGNAL_246 SIGNAL_60 SIGNAL_293 SIGNAL_60 SIGNAL_311 SIGNAL_111 SIGNAL_549 SIGNAL_246 SIGNAL_112 SIGNAL_158 SIGNAL_158 SIGNAL_21 SIGNAL_359 SIGNAL_359 SIGNAL_294
CART: Hotspot Detection © Minitab Inc. 2510/24/2017 Hotspot Detection computes summary information about each terminal node (every rule leads to a terminal node) and displays the information conveniently to the user. Use this information to easily and efficiently find the most important rules in your CART tree.
CART: Using Hotspot Detection © Minitab Inc. 2610/24/2017 Here terminal node 5 has the largest class count and a lift value of around 2.5. This means that the probability of a “Defect” is 2.5 times more likely than the overall population. What rule leads to terminal node 5?
CART Hotspot Interpretation If Signal 294 <= 368.82 and Signal 293 > .006 and Signal 60 > 1.51 and Signal 246 <= 1.42 and Signal 247 > 2.98 then we predict “Defect”. If the machine signals satisfy this rule then the probability of a defect is 2.5 times larger than the overall probability of a defect. © Minitab Inc. 2710/24/2017
CART: Hotspot Detection © Minitab Inc. 2810/24/2017 Focus Class: the class (i.e. “Defect” or “No Defect” that you want to generate the hotspot report for. I set the focus class to be “Defect.” 𝐿𝑖𝑓𝑡 = 𝑃𝑟𝑜𝑏𝑎𝑏𝑖𝑙𝑖𝑡𝑦 𝑜𝑓 𝐹𝑜𝑐𝑢𝑠 𝐶𝑙𝑎𝑠𝑠 𝑖𝑛 𝑡ℎ𝑒 𝑡𝑒𝑟𝑚𝑖𝑛𝑎𝑙 𝑛𝑜𝑑𝑒 𝑃𝑟𝑜𝑏𝑎𝑏𝑖𝑙𝑖𝑡𝑦 𝑜𝑓 𝐹𝑜𝑐𝑢𝑠 𝐶𝑙𝑎𝑠𝑠 𝑂𝑣𝑒𝑟𝑎𝑙𝑙 Node Class Count = number of records in the sample that fall into the node If Lift = 1, then the probability of a “Defect” is the same as it is in the overall sample. If Lift = 2 then the probability of a “Defect” is twice as much in the terminal node as it is in the overall sample. If Lift = .5 then the probability of a “Defect” is half as much in the terminal node as it is in the overall sample.
What Can Machine Learning Do For You? © Minitab Inc. 2910/24/2017 Explore Data Solve Your Problem Discover the Most Important Features Find the Most Important Relationships in Factors & Response Predict Future Observations
Deploying CART If you want to use CART to generate predictions, you have two primary options: 1. Generate Predictions inside of SPM 2. Translate CART into a programming language and deploy it in your environment © Minitab Inc. 3010/24/2017
Generating Predictions Inside of SPM Let’s suppose that you have a set of machine signal values (i.e. you know the values for Signal 1 – Signal 590) and you want to predict if there will be a product defect (i.e. you don’t know the “STATUS” value) © Minitab Inc. 3110/24/2017
Deploying CART via Code Translations A CART model is fundamentally a collection of rules where each rule is an if-then statement (also else-if statements etc.). We can then take these if-then statements and translate them into different programming languages. In SPM we can translate into 4 languages: C, PMML, Java, and SAS. ***Use the code to generate CART predictions in other applications/programs or to make predictions in real-time. © Minitab Inc. 3210/24/2017
What Can Machine Learning Do For You? © Minitab Inc. 3310/24/2017 Explore Data Discover the Most Important Features Find the Most Important Relationships in Factors & Response Predict Future Observations Solve Your Problem
CART: Finding Rules CART automatically gave us a set of interpretable rules that are predictive of manufacturing defects. Now we will need to determine what the signals actually measure and determine if we can control the inputs that drive the settings. © Minitab Inc. 3410/24/2017
CART: Generating Predictions 1. Use CART to predict if there will or will not be a product defect inside of SPM. 2. Translate CART into C (or Java, PMML, or SAS) and deploy your CART model in your environment in order to make predictions in real-time. © Minitab Inc. 3510/24/2017
TreeNet Gradient Boosting Let’s apply the gradient boosting algorithm using TreeNet® software Applying TreeNet 1. Understanding the model: Partial Dependency Plots 2. Choosing the number of trees (set the maximum number of trees such that the error no longer meaningfully declines; SPM will choose the optimal number for you) 3. Choosing the number of nodes with Automate NODES 4. Discover important interactions with interaction reporting 5. Making predictions and deploying the model. © Minitab Inc. 3610/24/2017
Gradient Boosting Review Idea: fit a CART tree to the error from the previous error and use this new prediction to update the model © Minitab Inc. 3710/24/2017
© Minitab Inc. 3810/24/2017 Gradient Boosting: Why it works How does TreeNet model this curve? It makes small improvements (i.e. the learning rate is a small number that “shrinks” the model updates). The small improvements, taken together, produce an accurate model.Tree 1 Tree 10 Tree 50 Tree 100 Tree 150 Tree 200 Tree 400 Tree 600 Note: Noise ~ N(0,1) Tree 600
What Can Machine Learning Do For You? © Minitab Inc. 3910/24/2017 Explore Data Discover the Most Important Features Find the Most Important Relationships in Factors & Response Predict Future Observations Solve Your Problem
Most Important Signals TreeNet, like CART, automatically selects the most important variables (i.e. the signals). Steps 1. Import the dataset 2. Select “TreeNet Gradient Boosting Machine” 3. Set variables 4. Click “Start” 5. View variable importance measures Of the 590 signals, TreeNet automatically identifies 299 of them as useful (you can actually run a series of variable “shaving” experiments to see if you can reduce the number of variables used even more) © Minitab Inc. 4010/24/2017 Manufacturing Defects
What Can Machine Learning Do For You? © Minitab Inc. 4110/24/2017 Predict Future Observations Solve Your Problem Find the Most Important Relationships in Factors & Response Discover the Most Important Features Find the Most Important Relationships in Factors & Response Explore Data
How are Most Important Signals Related to the Likelihood of Product Defects? The plots on the right are generated automatically from a TreeNet model, so you only have to click two buttons to see the plots. The plots are ordered in terms of the variable importance (most important first). © Minitab Inc. 4210/24/2017 Manufacturing Defects
Most Important Signal: Signal 60 This plot tells us that, after accounting for the other 299 variables in the model, the likelihood of a product defect increases once Signal 60 has values beyond 3.25. Once Signal 60 reaches about 13.3, the likelihood of a defect remains constant. TreeNet automatically discovered this relationship. Now we have a few questions to answer: What does Signal 60 actually measure? What machine settings have an effect on Signal 60? To what extent, if any, can we control these settings? © Minitab Inc. 4310/24/2017 Signal_60=3.25 Signal_60=13.3 Manufacturing Defects
Most Important Two-Way Interaction: Signal 60 and Signal 334 The most important two-way interaction in the model is between Signal 60 and Signal 334. The red and orange areas in the plot on the right mean that the likelihood of a defect is higher. When Signal 60 is between about 15 and 150 and Signal 334 is between 30 and 100, then the likelihood of a defect is higher. Follow-up questions for identifying the machine settings that affect the signals: What do the two signals measure? What machine settings, if any, have an affect on Signal 60 and Signal 334? © Minitab Inc. 4410/24/2017 Defect is more likely Manufacturing Defects
Interaction Statistics: Global Score Use the Global Score to find the most important two-way interactions in the model. The Global Score for a pair of variables tells you the percentage of the total variation in the predicted response that is accounted for by the two-way interaction between two variables. A value of 5.66 means that 5.66% of the variation in the predicted response is accounted for by the interaction between Signal 60 and Signal 334. © Minitab Inc. 4510/24/2017 𝐆𝐥𝐨𝐛𝐚𝐥 𝐒𝐜𝐨𝐫𝐞 = − − Total Variation in the Predicted Response
Using the Interaction Statistics: Next Webinar One way to leverage the interaction statistics is allow only interactions between the pairs of variable deemed to be “important” by the TreeNet interaction statistics and disallow interactions among the unimportant variables. If we do this and the model error does not change meaningfully then we can be more confident that the interaction is real (i.e. not noise!). We will talk more about this in Webinar 5. © Minitab Inc. 4610/24/2017
What Can Machine Learning Do For You? © Minitab Inc. 4710/24/2017 Explore Data Solve Your Problem Discover the Most Important Features Find the Most Important Relationships in Factors & Response Predict Future Observations
Solving the Problem: Predicting Future Observations & Running Simulations Engineers can predict the likelihood of a defect based on the signal values: 1. Take data (i.e. hypothetical signal values or estimated signal values given the machine settings) and substitute the values into the TreeNet model 2. TreeNet will generate the probability of a defect based on the signal values supplied. ***If we can predict signal values based on the machine settings, then we could predict the probability of a defect based on chosen machine settings*** © Minitab Inc. 4810/24/2017 Hypothetical (or estimated) Signal Values Predicted probability of “Defect” and the predicted class: “Defect” or “No Defect.” Proposed Machine Settings Manufacturing Defects
Generating Predictions in SPM We can generate predictions inside of SPM just like CART (the same is true for Random Forests, MARS, etc.) Click the “Score” button © Minitab Inc. 4910/24/2017
Deploying TreeNet via Code Translations A TreeNet model is fundamentally a collection of rules where each rule is an if-then statement (also else-if statements etc.). We can then take these if-then statements and translate them into different programming languages. In SPM we can translate into 4 languages: C, PMML, Java, and SAS. ***Use the code to generate TreeNet predictions in other applications/programs or to make predictions in real-time. © Minitab Inc. 5010/24/2017
What Can Machine Learning Do For You? © Minitab Inc. 5110/24/2017 Explore Data Discover the Most Important Features Find the Most Important Relationships in Factors & Response Predict Future Observations Solve Your Problem
Solving the Problem: Predicting Future Observations & Running Simulations Engineers can predict the likelihood of a defect based on the signal values: 1. Take data (i.e. hypothetical signal values or estimated signal values given the machine settings) and substitute the values into the TreeNet model 2. TreeNet will generate the probability of a defect based on the signal values supplied. ***If we can predict signal values based on the machine settings, then we could predict the probability of a defect based on chosen machine settings*** © Minitab Inc. 5210/24/2017 Hypothetical (or estimated) Signal Values Predicted probability of “Defect” and the predicted class: “Defect” or “No Defect.” Proposed Machine Settings Manufacturing Defects
Solving the Problem: Understanding the relationship of signals and the likelihood of defects Use TreeNet gradient boosting to 1. View signals that are useful in predicting defects (or, conversely, non-defects; signals that are not important are either rarely used in the model or not used at all) 2. Visually understand the relationship between the likelihood of a defect and a signal 3. Visually understand the nature of the interactions that are important in the model. © Minitab Inc. 5310/24/2017 Manufacturing Defects
Optimizing Models with SPM Automates One way to choose the optimal value for a model parameter in TreeNet is to run an experiment: build multiple TreeNet models with identical settings except that change the value of one parameter each time. Model experimentation and optimization routines are pre-packaged for you in SPM, so you never have to write even a single line of code. We want you to spend time on solving problems, not troubleshooting while loops and function calls! We will discuss this more in the second webinar, but we will provide one example. © Minitab Inc. 5410/24/2017
Automate NODES The number of terminal nodes in each tree in the TreeNet model controls the extent to which the model can capture interactions. Use Automate NODES to easily find the optimal number of terminal nodes in each tree. Here the optimal number of terminal nodes is 6 (this is actually the default value). © Minitab Inc. 5510/24/2017
What Can Machine Learning Do For You? © Minitab Inc. 5610/24/2017 Explore Data Discover the Most Important Features Find the Most Important Relationships in Factors & Response Predict Future Observations Solve Your Problem
CART: Finding Rules CART automatically gave us a set of interpretable rules that are predictive of manufacturing defects. Now we will need to determine what the signals actually measure and determine if we can control the inputs that drive the settings. © Minitab Inc. 5710/24/2017
CART: Generating Predictions 1. Use CART to predict if there will or will not be a product defect inside of SPM. 2. Translate CART into C (or Java, PMML, or SAS) and deploy your CART model in your environment in order to make predictions in real-time. © Minitab Inc. 5810/24/2017
Random Forests: Review © Minitab Inc. 5910/24/2017 Idea: fit CART trees to independent bootstrap samples and combine the predictions
Random Forest Output For smaller datasets (i.e. <10,000 records) we can compute a variety of useful metrics including outlier statistics. © Minitab Inc. 6010/24/2017
Optimizing Random Forests: Automate RFNPREDS Use Automate RFNPREDS to conveniently find optimal value for the random variable subset size. Here the optimal size is 𝑛𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑝𝑟𝑒𝑑𝑖𝑐𝑡𝑜𝑟𝑠 ∗ 2 = 49 © Minitab Inc. 6110/24/2017
Other Machine Learning Applications © Minitab Inc. 6210/24/2017
Implementation of lean manufacturing in Saudi manufacturing organizations: an empirical study Proceedings of the 2011 International Conference on Materials and Products Manufacturing Technology: https://eprints.qut.edu.au/46594/1/2011011893_Karim_ePrints.pdf Manufacturing: Value Creation through Machine Learning Application © Minitab Inc. 6310/24/2017 MANUFACTURING INDUSTRIES Organizations Gain Efficiencies Through Smarter Lean Adoption Identifying challenges and the benefits of LEAN implementation in small to medium sized companies using CART.
Mining the customer credit using classification and regression tree and multivariate adaptive regression splines Computational Statistics & Data Analysis: http://www.sciencedirect.com/science/article/pii/S016794730400355X Financial Services: Value Creation through Machine Learning Application © Minitab Inc. 6410/24/2017 FINANCIAL SERVICES INDUSTRIES Improving Credit Scoring in Highly-Competitive Environment Accurate credit scoring using CART and TreeNet is critical for financial services and is increasingly competitive. Less risk is assumed as future instances of loan default are predicted.
Panel of Serum Biomarkers for the Diagnosis of Lung Cancer Journal of Clinical Oncology: http://ascopubs.org/doi/full/10.1200/JCO.2007.13.5392 Healthcare: Value Creation through Machine Learning Application © Minitab Inc. 6510/24/2017 HEALTHCARE INDUSTRIES Predicting Lung Cancer for High Risk Patients Medical researchers were looking to improve lung cancer detection through blood testing. CART analysis was leveraged to predict which patients had cancer given the serum biomarkers.
Continue To Use Machine Learning On Your Own © Minitab Inc. 6610/24/2017 We’ll provide you a link to the dataset used today in a follow up email Download a trial version of SPM https://info.salford- systems.com/spm-8-download If you need help getting started, give us a shout: support@salford-systems.com Check out our other training materials online: https://www.salford-systems.com/resources/training- videos Practice, Practice, Practice Feeling Stuck? We Can Help! Schedule a demo and we’ll walk you through the example shown today
Ready For More? Join Our Next Webinar Tuesday October 31, 2017 @ 10 am (PDT): Real-world demonstration for the advanced modeler Register: http://info.salford- systems.com/datascience101webinarseries In this webinar I am going to explain the how to leverage powerful Machine Learning algorithms in detail using SPM software. © Minitab Inc. 6710/24/2017
Appendix © Minitab Inc. 6810/24/2017
CART® Software Applications Predicting Return to Work with Data Mining Society of Actuaries: https://www.soa.org/files/research/projects/data-mining.pdf Implementation of lean manufacturing in Saudi manufacturing organizations: an empirical study Proceedings of the 2011 International Conference on Materials and Products Manufacturing Technology: https://eprints.qut.edu.au/46594/1/2011011893_Karim_ePrints.pdf Assessing the prediction of employee productivity: a comparison of OLS vs. CART International Journal of Productivity and Quality Management: http://www.inderscienceonline.com/doi/abs/10.1504/IJPQM.2011.042511 Mining the customer credit using classification and regression tree and multivariate adaptive regression splines Computational Statistics & Data Analysis: http://www.sciencedirect.com/science/article/pii/S016794730400355X Panel of Serum Biomarkers for the Diagnosis of Lung Cancer Journal of Clinical Oncology: http://ascopubs.org/doi/full/10.1200/JCO.2007.13.5392 Automated urban land-use classification with remote sensing International Journal of Remote Sensing: http://www.tandfonline.com/doi/abs/10.1080/01431161.2012.714510 © Minitab Inc. 6910/24/2017
Random Forest® Software Applications Mapping Oil and Gas Development Potential in the US Intermountain West and Estimating Impacts to Species http://journals.plos.org/plosone/article?id=10.1371/journal.pone.0007400 Random Forests applied as a soil spatial predictive model in arid Utah Digital Soil Mapping: http://link.springer.com/content/pdf/10.1007/978-90-481-8863-5.pdf#page=188 Factors Associated With Increased Reading Frequency in Children Exposed to Reach Out and Read Academic Pediatrics: ttp://www.sciencedirect.com/science/article/pii/S1876285915002752 This paper used Random Forests® software to pick the factors Using Random Forests to Provide Predicted Species Distribution Maps as a Metric for Ecological Inventory & Monitoring Programs Applications of Computational Intelligence in Biology: https://link.springer.com/chapter/10.1007/978-3-540-78534-7_9 Random Forest for Gene Expression Based Cancer Classification: Overlooked Issues Iberian Conference on Pattern Recognition and Image Analysis: https://link.springer.com/chapter/10.1007/978-3-540-72849-8_61 © Minitab Inc. 7010/24/2017
