Chapter 14: Distributed Operating SystemsChapter 14: Distributed Operating Systems
 Motivation
 Types of Distributed Operating Systems
 Network Structure
 Network Topology
 Communication Structure
 Communication Protocols
 Robustness
 Design Issues
 An Example: Networking

Chapter ObjectivesChapter Objectives
 To provide a high-level overview of distributed systems and
the networks that interconnect them
 To discuss the general structure of distributed operating
systems

MotivationMotivation
 Distributed system is collection of loosely coupled processors
interconnected by a communications network
 Processors variously called nodes, computers, machines, hosts
 Site is location of the processor
 Reasons for distributed systems
 Resource sharing
 sharing and printing ﬁles at remote sites
 processing information in a distributed database
 using remote specialized hardware devices
 Computation speedup – load sharing
 Reliability – detect and recover from site failure, function
transfer, reintegrate failed site
 Communication – message passing

A Distributed SystemA Distributed System

Types of Distributed Operating SystemsTypes of Distributed Operating Systems
 Network Operating Systems
 Distributed Operating Systems

Network-Operating SystemsNetwork-Operating Systems
 Users are aware of multiplicity of machines. Access to
resources of various machines is done explicitly by:
 Remote logging into the appropriate remote machine
(telnet, ssh)
 Remote Desktop (Microsoft Windows)
 Transferring data from remote machines to local
machines, via the File Transfer Protocol (FTP)
mechanism

Distributed-Operating SystemsDistributed-Operating Systems
 Users not aware of multiplicity of machines
 Access to remote resources similar to access to local
resources
 Data Migration – transfer data by transferring entire ﬁle, or
transferring only those portions of the ﬁle necessary for the
immediate task
 Computation Migration – transfer the computation, rather than the
data, across the system

Distributed-Operating Systems (Cont.)Distributed-Operating Systems (Cont.)
 Process Migration – execute an entire process, or parts of it, at
different sites
 Load balancing – distribute processes across network to even
the workload
 Computation speedup – subprocesses can run concurrently on
different sites
 Hardware preference – process execution may require
specialized processor
 Software preference – required software may be available at
only a particular site
 Data access – run process remotely, rather than transfer all
data locally

Network StructureNetwork Structure
 Local-Area Network (LAN) – designed to cover small geographical
area.
 Multiaccess bus, ring, or star network
 Speed ≈ 10 – 100 megabits/second
 Broadcast is fast and cheap
 Nodes:
 usually workstations and/or personal computers
 a few (usually one or two) mainframes

Depiction of typical LANDepiction of typical LAN

Network Types (Cont.)Network Types (Cont.)
 Wide-Area Network (WAN) – links geographically separated sites
 Point-to-point connections over long-haul lines (often leased
from a phone company)
 Speed ≈ 1.544 – 45 megbits/second
 Broadcast usually requires multiple messages
 Nodes:
 usually a high percentage of mainframes

Communication Processors in a Wide-Area NetworkCommunication Processors in a Wide-Area Network

Network TopologyNetwork Topology
 Sites in the system can be physically connected in a variety of
ways; they are compared with respect to the following criteria:
 Basic cost - How expensive is it to link the various sites in the
system?
 Communication cost - How long does it take to send a
message from site A to site B?
 Reliability - If a link or a site in the system fails, can the
remaining sites still communicate with each other?
 The various topologies are depicted as graphs whose nodes
correspond to sites
 An edge from node A to node B corresponds to a direct
connection between the two sites
 The following six items depict various network topologies

Network TopologyNetwork Topology

Communication StructureCommunication Structure
 Naming and name resolution - How do two processes
locate each other to communicate?
 Routing strategies - How are messages sent through the
network?
 Connection strategies - How do two processes send a
sequence of messages?
 Contention - The network is a shared resource, so how do
we resolve conﬂicting demands for its use?
The design of a communication network must address four basic
issues:

Naming and Name ResolutionNaming and Name Resolution
 Name systems in the network
 Address messages with the process-id
 Identify processes on remote systems by
<host-name, identiﬁer> pair
 Domain name service (DNS) – speciﬁes the naming
structure of the hosts, as well as name to address
resolution (Internet)

Routing StrategiesRouting Strategies
 Fixed routing - A path from A to B is speciﬁed in advance; path
changes only if a hardware failure disables it
 Since the shortest path is usually chosen, communication costs
are minimized
 Fixed routing cannot adapt to load changes
 Ensures that messages will be delivered in the order in which
they were sent
 Virtual circuit - A path from A to B is ﬁxed for the duration of one
session. Different sessions involving messages from A to B may
have different paths
 Partial remedy to adapting to load changes
 Ensures that messages will be delivered in the order in which
they were sent

Routing Strategies (Cont.)Routing Strategies (Cont.)
 Dynamic routing - The path used to send a message form site A
to site B is chosen only when a message is sent
 Usually a site sends a message to another site on the link least
used at that particular time
 Adapts to load changes by avoiding routing messages on
heavily used path
 Messages may arrive out of order
 This problem can be remedied by appending a sequence
number to each message

Connection StrategiesConnection Strategies
 Circuit switching - A permanent physical link is established for
the duration of the communication (i.e., telephone system)
 Message switching - A temporary link is established for the
duration of one message transfer (i.e., post-ofﬁce mailing system)
 Packet switching - Messages of variable length are divided into
ﬁxed-length packets which are sent to the destination
 Each packet may take a different path through the network
 The packets must be reassembled into messages as they
arrive
 Circuit switching requires setup time, but incurs less overhead for
shipping each message, and may waste network bandwidth
 Message and packet switching require less setup time, but
incur more overhead per message

ContentionContention
 CSMA/CD - Carrier sense with multiple access (CSMA);
collision detection (CD)
 A site determines whether another message is currently
being transmitted over that link. If two or more sites
begin transmitting at exactly the same time, then they
will register a CD and will stop transmitting
 When the system is very busy, many collisions may
occur, and thus performance may be degraded
 CSMA/CD is used successfully in the Ethernet system, the
most common network system
Several sites may want to transmit information over a link
simultaneously. Techniques to avoid repeated collisions include:

Contention (Cont.)Contention (Cont.)
 Token passing - A unique message type, known as a token,
continuously circulates in the system (usually a ring structure)
 A site that wants to transmit information must wait until the
token arrives
 When the site completes its round of message passing, it
retransmits the token
 A token-passing scheme is used by some IBM and HP/Apollo
systems
 Message slots - A number of ﬁxed-length message slots
continuously circulate in the system (usually a ring structure)
 Since a slot can contain only ﬁxed-sized messages, a single
logical message may have to be broken down into a number of
smaller packets, each of which is sent in a separate slot
 This scheme has been adopted in the experimental Cambridge
Digital Communication Ring

Communication ProtocolCommunication Protocol
 Physical layer – handles the mechanical and electrical
details of the physical transmission of a bit stream
 Data-link layer – handles the frames, or ﬁxed-length parts
of packets, including any error detection and recovery that
occurred in the physical layer
 Network layer – provides connections and routes packets
in the communication network, including handling the
address of outgoing packets, decoding the address of
incoming packets, and maintaining routing information for
proper response to changing load levels
The communication network is partitioned into the following
multiple layers:

Communication Protocol (Cont.)Communication Protocol (Cont.)
 Transport layer – responsible for low-level network access and for
message transfer between clients, including partitioning messages
into packets, maintaining packet order, controlling ﬂow, and
generating physical addresses
 Session layer – implements sessions, or process-to-process
communications protocols
 Presentation layer – resolves the differences in formats among
the various sites in the network, including character conversions,
and half duplex/full duplex (echoing)
 Application layer – interacts directly with the users’ deals with ﬁle
transfer, remote-login protocols and electronic mail, as well as
schemas for distributed databases

Communication Via ISO NetworkCommunication Via ISO Network
ModelModel

The ISO Protocol LayerThe ISO Protocol Layer

The ISO Network MessageThe ISO Network Message

The TCP/IP Protocol LayersThe TCP/IP Protocol Layers

RobustnessRobustness
 Failure detection
 Reconﬁguration

Failure DetectionFailure Detection
 Detecting hardware failure is difficult
 To detect a link failure, a handshaking protocol can be used
 Assume Site A and Site B have established a link
 At fixed intervals, each site will exchange an I-am-up message
indicating that they are up and running
 If Site A does not receive a message within the fixed interval, it
assumes either (a) the other site is not up or (b) the message was
lost
 Site A can now send an Are-you-up? message to Site B
 If Site A does not receive a reply, it can repeat the message or try
an alternate route to Site B

Failure Detection (cont)Failure Detection (cont)
 If Site A does not ultimately receive a reply from Site B, it
concludes some type of failure has occurred
 Types of failures:
- Site B is down
- The direct link between A and B is down
- The alternate link from A to B is down
- The message has been lost
 However, Site A cannot determine exactly why the failure has
occurred

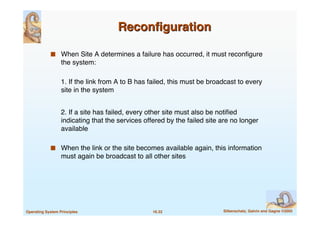

ReconfigurationReconfiguration
 When Site A determines a failure has occurred, it must reconfigure
the system:
1. If the link from A to B has failed, this must be broadcast to every
site in the system
2. If a site has failed, every other site must also be notified
indicating that the services offered by the failed site are no longer
available
 When the link or the site becomes available again, this information
must again be broadcast to all other sites

Design IssuesDesign Issues
 Transparency – the distributed system should appear as a
conventional, centralized system to the user
 Fault tolerance – the distributed system should continue to
function in the face of failure
 Scalability – as demands increase, the system should easily
accept the addition of new resources to accommodate the
increased demand
 Clusters – a collection of semi-autonomous machines that acts as
a single system

Example: NetworkingExample: Networking
 The transmission of a network packet between hosts on an
Ethernet network
 Every host has a unique IP address and a corresponding Ethernet
(MAC) address
 Communication requires both addresses
 Domain Name Service (DNS) can be used to acquire IP addresses
 Address Resolution Protocol (ARP) is used to map MAC addresses
to IP addresses
 If the hosts are on the same network, ARP can be used
 If the hosts are on different networks, the sending host will
send the packet to a router which routes the packet to the
destination network

An Ethernet PacketAn Ethernet Packet

End of Chapter 16End of Chapter 16

Design issues of dos

More Related Content

What's hot (20)

Viewers also liked (16)

Similar to Design issues of dos (20)

Recently uploaded (20)

Design issues of dos
