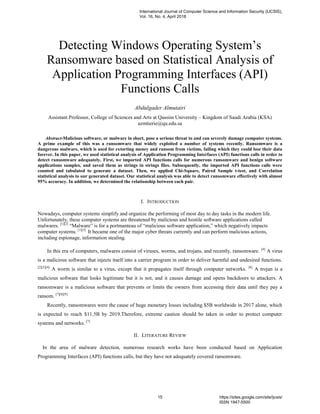

Detecting Windows Operating System’s
Ransomware based on Statistical Analysis of
Application Programming Interfaces (API)
Functions Calls
Abdulgader Almutairi
Assistant Professor, College of Sciences and Arts at Qassim University – Kingdom of Saudi Arabia (KSA)
azmtierie@qu.edu.sa
Abstract-Malicious software, or malware in short, pose a serious threat to and can severely damage computer systems.
A prime example of this was a ransomware that widely exploited a number of systems recently. Ransomware is a
dangerous malware, which is used for extorting money and ransom from victims, failing which they could lose their data
forever. In this paper, we used statistical analysis of Application Programming Interfaces (API) functions calls in order to
detect ransomware adequately. First, we imported API functions calls for numerous ransomware and benign software
applications samples, and saved them as strings in strings files. Subsequently, the imported API functions calls were
counted and tabulated to generate a dataset. Then, we applied Chi-Square, Paired Sample t-test, and Correlation
statistical analysis to our generated dataset. Our statistical analysis was able to detect ransomware effectively with almost
95% accuracy. In addition, we determined the relationship between each pair.
I. INTRODUCTION
Nowadays, computer systems simplify and organize the performing of most day to day tasks in the modern life.
Unfortunately, these computer systems are threatened by malicious and hostile software applications called
malwares. [1][2]
―Malware‖ is for a portmanteau of ―malicious software application,‖ which negatively impacts
computer systems. [1][3]
It became one of the major cyber threats currently and can perform malicious actions,
including espionage, information stealing.
In this era of computers, malwares consist of viruses, worms, and trojans, and recently, ransomware. [4]
A virus
is a malicious software that injects itself into a carrier program in order to deliver harmful and undesired functions.
[2][5][4]
A worm is similar to a virus, except that it propagates itself through computer networks. [6]
A trojan is a
malicious software that looks legitimate but it is not, and it causes damage and opens backdoors to attackers. A
ransomware is a malicious software that prevents or limits the owners from accessing their data until they pay a
ransom. [7][8][9]
Recently, ransomwares were the cause of huge monetary losses including $5B worldwide in 2017 alone, which
is expected to reach $11.5B by 2019.Therefore, extreme caution should be taken in order to protect computer
systems and networks. [7]
II. LITERATURE REVIEW
In the area of malware detection, numerous research works have been conducted based on Application
Programming Interfaces (API) functions calls, but they have not adequately covered ransomware.
International Journal of Computer Science and Information Security (IJCSIS),
Vol. 16, No. 4, April 2018
15 https://sites.google.com/site/ijcsis/
ISSN 1947-5500

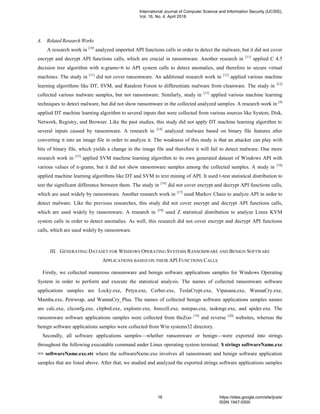

A. Related Research Works
A research work in [10]
analyzed imported API functions calls in order to detect the malware, but it did not cover
encrypt and decrypt API functions calls, which are crucial in ransomware. Another research in [11]
applied C 4.5
decision tree algorithm with n-grams=6 to API system calls to detect anomalies, and therefore to secure virtual
machines. The study in [11]
did not cover ransomware. An additional research work in [12]
applied various machine
learning algorithms like DT, SVM, and Random Forest to differentiate malware from cleanware. The study in [12]
collected various malware samples, but not ransomware. Similarly, study in [13]
applied various machine learning
techniques to detect malware, but did not show ransomware in the collected analyzed samples. A research work in [4]
applied DT machine learning algorithm to several inputs that were collected from various sources like System, Disk,
Network, Registry, and Browser. Like the past studies, this study did not apply DT machine learning algorithm to
several inputs caused by ransomware. A research in [14]
analyzed malware based on binary file features after
converting it into an image file in order to analyze it. The weakness of this study is that an attacker can play with
bits of binary file, which yields a change in the image file and therefore it will fail to detect malware. One more
research work in [15]
applied SVM machine learning algorithm to its own generated dataset of Windows API with
various values of n-grams, but it did not show ransomware samples among the collected samples. A study in [16]
applied machine learning algorithms like DT and SVM to text mining of API. It used t-test statistical distribution to
test the significant difference between them. The study in [16]
did not cover encrypt and decrypt API functions calls,
which are used widely by ransomware. Another research work in [17]
used Markov Chain to analyze API in order to
detect malware. Like the previous researches, this study did not cover encrypt and decrypt API functions calls,
which are used widely by ransomware. A research in [18]
used Z statistical distribution to analyze Linux KVM
system calls in order to detect anomalies. As well, this research did not cover encrypt and decrypt API functions
calls, which are used widely by ransomware.
III. GENERATING DATASET FOR WINDOWS OPERATING SYSTEMS RANSOMWARE AND BENIGN SOFTWARE
APPLICATIONS BASED ON THEIR API FUNCTIONS CALLS
Firstly, we collected numerous ransomware and benign software applications samples for Windows Operating
System in order to perform and execute the statistical analysis. The names of collected ransomware software
applications samples are Locky.exe, Petya.exe, Cerber.exe, TeslaCrypt.exe, Vipasana.exe, WannaCry.exe,
Mamba.exe, Petrwrap, and WannaCry_Plus. The names of collected benign software applications samples names
are calc.exe, cliconfg.exe, clipbrd.exe, explorer.exe, freecell.exe, notepas.exe, taskmgr.exe, and spider.exe. The
ransomware software applications samples were collected from theZoo [19]
and reverse [20]
websites, whereas the
benign software applications samples were collected from Win systems32 directory.
Secondly, all software applications samples—whether ransomware or benign—were exported into strings
throughout the following executable command under Linux operating system terminal: $ strings softwareName.exe
>> softwareName.exe.str where the softwareName.exe involves all ransomware and benign software application
samples that are listed above. After that, we studied and analyzed the exported strings software applications samples
Vol. 16, No. 4, April 2018
ISSN 1947-5500

due to Windows Operating System Application Programming Interfaces (API) functions calls according to the
following Win API functions calls families:
1. Internet Connection
2. Shell Code
3. Encrypt, Decrypt and Digital Certificate
4. Embedded Resource
5. Devices
6. Process Thread Mutex Service and Event (Task)
7. Privileges and User
8. Files and Directories
9. Strings Manipulation
10. Registry and Memory Manipulation
The studying and analyzing of exported strings software applications samples due to Windows Operating
System Application Programming Interfaces (API) functions calls identify and count API functions calls for each
software application sample by using the following executable command under Linux operating system terminal: $
cat softwareName.exe.str | grep -i "Keyword" | wc –l, where Keyword is one of the ten API functions calls
families that are listed above. Then, the results are presented in Table 1 below.
Vol. 16, No. 4, April 2018
ISSN 1947-5500

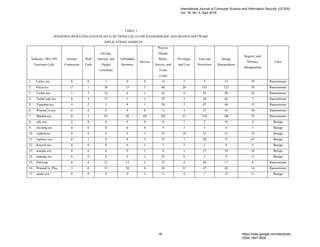

TABLE 1
WINDOWS OPERATING SYSTEM API FUNCTIONS CALLS FOR RANSOMWARE AND BENIGN SOFTWARE
APPLICATIONS SAMPLES.
Software / Win API
Functions Calls
Internet
Connection
Shell
Code
Encrypt,
Decrypt, and
Digital
Certificate
Embedded
Resource
Devices
Process,
Thread,
Mutex,
Service, and
Event
(Task)
Privileges
and User
Files and
Directories
Strings
Manipulation
Registry and
Memory
Manipulation
Class
1. Locky.exe 0 0 1 0 0 14 5 5 13 19 Ransomware
2. Petya.exe 17 1 30 15 5 88 20 135 122 70 Ransomware
3. Cerber.exe 5 2 14 6 1 42 9 42 40 22 Ransomware
4. TeslaCrypt.exe 6 3 11 1 1 25 3 28 44 7 Ransomware
5. Vipasana.exe 4 2 3 9 1 26 2 47 46 15 Ransomware
6. WannaCry.exe 0 0 8 4 0 11 4 27 10 10 Ransomware
7. Mamba.exe 0 5 65 48 68 292 57 234 186 79 Ransomware
8. calc.exe 0 0 0 0 0 8 3 3 10 4 Benign
9. cliconfg.exe 0 0 0 0 0 4 3 3 0 3 Benign
10. clipbrd.exe 0 0 0 0 2 22 10 33 23 15 Benign
11. explorer.exe 0 1 0 0 3 37 7 20 37 45 Benign
12. freecell.exe 0 0 0 0 1 2 3 2 4 9 Benign
13. notepas.exe 0 0 0 0 1 8 5 17 10 10 Benign
14. taskmgr.exe 0 0 0 0 2 23 6 2 17 13 Benign
15. Petrwrap 0 0 21 13 1 27 4 58 17 6 Ransomware
16. WannaCry_Plus 3 0 11 20 0 36 31 47 20 14 Ransomware
17. spider.exe 0 0 0 0 2 11 4 7 15 11 Benign
Vol. 16, No. 4, April 2018
ISSN 1947-5500

IV. STATISTICAL ANALYSIS OF DATASET FOR WINDOWS OPERATING SYSTEMS RANSOMWARE AND BENIGN
SOFTWARE APPLICATIONS BASED ON THEIR API FUNCTIONS CALLS
In this research paper, we used Chi-Square statistical distribution to study and analyze the relationships between
the ransomware and benign software applications, and Windows operating system API functions calls. The null
hypothesis (H0) and alternative hypothesis (H1) to be studied and analyzed according to Chi-Square distribution in
(1) are as follows:
H0: There is no relationship between ransomware and benign software applications, and Win API
functions calls.
H1: There is a relationship between ransomware and benign software applications, and Win API
functions calls.
∑ ………………………………………. (1)
The calculated results of Chi-Square distribution for inputs in Table 1 are recorded in Table 2 below. As results
show, only Encrypt/Decrypt/DigitalCert Win API functions calls family rejects the null hypothesis (H0) and
accepts alternative hypothesis (H1), which indicates there is a relationship between ransomware and benign software
applications, and Win API functions calls, since P-value is 0.03, which is less than 0.05 (0.03 0.05). This clearly
stated that there is a 95% chance of detecting ransomware software applications once the software application uses
Encrypt/Decrypt/DigitalCert Win API functions calls. On the contrary, all other Win API functions calls families
failed to detect a ransomware software application once the software application uses its corresponding Win API
functions calls family in chance 95%.
TABLE 2
CHI-SQUARE VALUES (P) FOR WIN API FUNCTIONS CALLS FAMILIES AND CLASS.
No. Win API Functions Calls Family Value df Asymp. Sig.
1 InternetConnection 6.3 5 0.278
2 ShellCode 4.78 4 0.311
3 Encrypt/Decrypt/DigitalCert 17 8 0.03
4 EmbeddedResource 13.43 8 0.098
5 Devices 6.83 5 0.233
6 Process/Thread/Mutex/Service/Event 14.99 14 0.379
7 Privileged/User 9.31 10 0.503
8 Files/Directories 17 13 0.199
9 Strings 12.32 13 0.502
10 Registry/Memory 12.99 14 0.528
In addition, Paired Sample t-test statistical distribution is used to study and analyze whether the mean difference
between two sets of Win API functions calls families is zero or not. The null hypothesis (H0) and alternative
Vol. 16, No. 4, April 2018
ISSN 1947-5500

hypothesis (H1) to be studied and analyzed according to Paired Sample t-test statistical distribution based on
equation in (2) and significance level α = 0.05 as follow:
H0:
H1:
√
………………………………..……………. (2)
Besides that, Correlation (r) is calculated for sets of Win API functions calls families according to equation (3) as
follows:
∑ ∑ ∑
√ ∑ ∑ √ ∑ ∑
…………………………………. (3)
The calculated results of Paired Sample t-test statistical distribution and Correlation for Table 1 inputs are
recorded in Table 3 below. As results show, P-value for the pair EncryptDecryptDigitalCert –
ProcessThreadMutexServiceEvent is 0.03, which is less than 0.05, therefore we accepted the null hypothesis (H0)
and rejected alternative hypothesis (H1). This indicates that the mean difference between the two sets of Win API
functions calls families is zero (means are equal). In the same way, the pair has very strong positive correlation,
since r = 0.94. This depicts that the increase in one family of one member of the pair will increase the other member
of the same pair. Likewise, P-value for the pair PrivilegedUser – FilesDirectories is 0.01, which is less than 0.05,
therefore we accepted the null hypothesis (H0) and rejected alternative hypothesis (H1). This indicates that the mean
difference between two sets of Win API functions calls families is zero (means are equal). In addition, the pair has
very strong positive correlation, since r = 0.87. This depicts that the increase in one family of one member of the
pair will increase the other member of the same pair. Similarly, P-value for the pair Devices – RegistryMemory is
zero, which is less than 0.05, therefore we accepted the null hypothesis (H0) and rejected alternative hypothesis (H1).
This indicates that the mean difference between two sets of Win API functions calls families is zero (means are
equal). In addition, the pair has strong positive correlation, since r = 0.72. This depicts that the increase in one
family of one member of the pair will increase the other member of the same pair. Similarly, P-value for the pair
PrivilegedUser – Devices is 0.02, which is less than 0.05, therefore we accepted the null hypothesis (H0) and
rejected alternative hypothesis (H1). This indicates that the mean difference between two sets of Win API functions
calls families is zero (means are equal). In addition, the pair has very strong positive correlation, since r = 0.86. This
depicts that the increase in one family of one member of the pair will increase the other member of the same pair.
Moreover, P-value for the pair EmbeddedResource – ShellCode is 0.05, which is less than or equal 0.05, therefore
we accepted the null hypothesis (H0) and rejected alternative hypothesis (H1). This indicates that the mean
difference between two sets of Win API functions calls families is zero (means are equal). In addition, the pair has
medium positive correlation, since r = 0.68. This depicts that the increase in one family of one member of the pair
will increase the other member of the same pair. Likewise, P-value for the pair RegistryMemory – Strings is 0.04,
which is less than 0.05, therefore we accepted the null hypothesis (H0) and rejected alternative hypothesis (H1). This
indicates that the mean difference between two sets of Win API functions calls families is zero (means are equal). In
addition, the pair has very strong positive correlation, since r = 0.92. This depicts that the increase in one family of
one member of the pair will increase the other member of the same pair. In contrast, P-value for the pair
Vol. 16, No. 4, April 2018
ISSN 1947-5500

InternetConnection – ShellCode is 0.25, which is greater than 0.05, therefore we rejected the null hypothesis (H0)
and accepted alternative hypothesis (H1). This indicates that the mean difference between two sets of Win API
functions calls families is not zero (means are not equal). In addition, the pair has low positive correlation, since r =
0.24. This depicts that the increase in one family of one member of the pair will increase the other member of the
same pair. Similarly, P-value for the pair FilesDirectories – ProcessThreadMutexServiceEvent is 0.72, which is
greater than 0.05, therefore we rejected the null hypothesis (H0) and accepted alternative hypothesis (H1). This
indicates that the mean difference between two sets of Win API functions calls families is not zero (means are not
equal). In addition, the pair has very strong positive correlation, since r = 0.94. This depicts that the increase in one
family of one member of the pair will increase the other member of the same pair.
TABLE 3
A PAIRED SAMPLE T-TEST STATISTICAL DISTRIBUTION FOR THE MEAN DIFFERENCE BETWEEN TWO SETS OF WIN API
FUNCTIONS CALLS FAMILIES.
Pair t df Sig. Correlation (r)
EncryptDecryptDigitalCert -
ProcessThreadMutexServiceEvent
-2.36 16 0.03 0.94
PrivilegedUser - FilesDirectories -2.73 16 0.01 0.87
InternetConnection - ShellCode 1.2 16 0.25 0.24
Devices - RegistryMemory -4.1 16 0 0.72
PrivilegedUser - Devices 2.56 16 0.02 0.86
FilesDirectories - ProcessThreadMutexServiceEvent 0.36 16 0.72 0.94
EmbeddedResource - ShellCode 2.17 16 0.05 0.68
RegistryMemory - Strings -2.21 16 0.04 0.92
V. CONCLUSION
Ransomware is the most hazardous malicious software (malware); therefore, they should be detected to secure
computer systems. In this paper, we used statistical analysis of Application Programming Interfaces (API) functions
calls in order to detect ransomware sufficiently. We applied Chi-Square, Paired Sample t-test, and Correlation
statistical analysis to our generated dataset, which we produced from various ransomware and benign software
applications. Our statistical analysis is able to detect ransomware effectively with an accuracy of 95%, especially
when the software application uses Encrypt/Decrypt/DigitalCert Win API functions calls family. In addition, we
stated that the mean difference between two sets of Win API functions calls families is zero for all pairs, except
InternetConnection – ShellCode and FilesDirectories – ProcessThreadMutexServiceEvent. Similarly, correlation for
all pairs is positive, which varies between Low, Medium, or Strong. In future work, we plan to extend this study to
apply machine learning algorithms for further improvements.
REFERENCES
[1] A. Jadhav, D. Vidyarthi, and M. Hemavathy, ―Evolution of evasive malwares: A survey,‖ 2016 Int. Conf. Comput. Tech. Inf. Commun.
Technol. ICCTICT 2016 - Proc., pp. 641–646, 2016.
[2] H. T. Poon and A. Miri, ―Scanning for Viruses on Encrypted Cloud Storage,‖ Proc. - 13th IEEE Int. Conf. Ubiquitous Intell. Comput.
13th IEEE Int. Conf. Adv. Trust. Comput. 16th IEEE Int. Conf. Scalable Comput. Commun. IEEE Int., pp. 954–959, 2017.
[3] S. Anil and R. Remya, ―A hybrid method based on genetic algorithm, self-organised feature map, and support vector machine for better
Vol. 16, No. 4, April 2018
ISSN 1947-5500

network anomaly detection,‖ Comput. Commun. Netw. Technol. (ICCCNT),2013 Fourth Int. Conf., pp. 1–5, 2013.
[4] N. Miramirkhani, M. P. Appini, N. Nikiforakis, and M. Polychronakis, ―Spotless Sandboxes: Evading Malware Analysis Systems
Using Wear-and-Tear Artifacts,‖ Proc. - IEEE Symp. Secur. Priv., pp. 1009–1024, 2017.
[5] A. A. Shaikh, ―Attacks on cloud computing and its countermeasures,‖ Int. Conf. Signal Process. Commun. Power Embed. Syst.
SCOPES 2016 - Proc., pp. 748–752, 2017.
[6] F. C. C. Osorio, H. Qiu, and A. Arrott, ―Segmented sandboxing - A novel approach to Malware polymorphism detection,‖ 2015 10th
Int. Conf. Malicious Unwanted Software, MALWARE 2015, pp. 59–68, 2016.
[7] S. Morgan, ―Ransomware Damage Report,‖ 2017. [Online]. Available: https://cybersecurityventures.com/ransomware-damage-report-
2017-part-2/. [Accessed: 16-Mar-2018].
[8] J. Z. Kolter and M. A. Maloof, ―Learning to detect malicious executables in the wild,‖ Proc. 2004 ACM SIGKDD Int. Conf. Knowl.
Discov. data Min. - KDD ’04, vol. 7, p. 470, 2004.
[9] P. Mishra, E. S. Pilli, V. Varadharajant, and U. Tupakula, ―NvCloudIDS: A security architecture to detect intrusions at network and
virtualization layer in cloud environment,‖ 2016 Int. Conf. Adv. Comput. Commun. Informatics, ICACCI 2016, pp. 56–62, 2016.
[10] M. Belaoued and S. Mazouzi, ―Statistical study of imported APIs by PE type malware,‖ Proc. - 2014 Int. Conf. Adv. Netw. Distrib.
Syst. Appl. INDS 2014, pp. 82–86, 2014.
[11] P. Mishra, E. S. Pilli, V. Varadharajan, and U. Tupakula, ―Securing virtual machines from anomalies using program-behavior analysis
in cloud environment,‖ Proc. - 18th IEEE Int. Conf. High Perform. Comput. Commun. 14th IEEE Int. Conf. Smart City 2nd IEEE Int.
Conf. Data Sci. Syst. HPCC/SmartCity/DSS 2016, no. Vmi, pp. 991–998, 2017.
[12] R. Tian, R. Islam, L. Batten, and S. Versteeg, ―Differentiating malware from cleanware using behavioural analysis,‖ Proc. 5th IEEE
Int. Conf. Malicious Unwanted Software, Malware 2010, pp. 23–30, 2010.
[13] I. Firdausi, C. lim, A. Erwin, and A. S. Nugroho, ―Analysis of Machine learning Techniques Used in Behavior-Based Malware
Detection,‖ 2010 Second Int. Conf. Adv. Comput. Control. Telecommun. Technol., pp. 201–203, 2010.
[14] X. Han, J. Sun, W. Qu, and X. Yao, ―Distributed malware detection based on binary file features in cloud computing environment,‖
26th Chinese Control Decis. Conf. (2014 CCDC), no. 4, pp. 4083–4088, 2014.
[15] R. Veeramani and N. Rai, ―Windows API based Malware Detection and Framework Analysis,‖ … Conf. Networks Cyber Secur., vol. 3,
no. 3, pp. 1–6, 2012.
[16] G. G. Sundarkumar, V. Ravi, I. Nwogu, and V. Govindaraju, ―Malware detection via API calls, topic models and machine learning,‖
IEEE Int. Conf. Autom. Sci. Eng., vol. 2015–Octob, pp. 1212–1217, 2015.
[17] H. L. Hussein, ―Static Analysis Based Behavioral API for Malware Detection using Markov Chain,‖ vol. 5, no. 12, pp. 55–64, 2014.
[18] S. S. Alariti and S. D. Wolthusen, ―Detecting Anomalies In IaaS Environments Through Virtual Machine Host System Call Analysis,‖
2012 Int. Conf. Internet Technol. Secur. Trans., pp. 211–218, 2012.
[19] Y. Nativ, ―theZoo.‖ [Online]. Available: https://github.com/ytisf/theZoo/tree/master/malwares. [Accessed: 15-Mar-2018].
[20] Reverse, ―reverse.‖ [Online]. Available: https://www.reverse.it/. [Accessed: 15-Mar-2018].
Vol. 16, No. 4, April 2018
ISSN 1947-5500

Detecting Windows Operating System’s Ransomware based on Statistical Analysis of Application Programming Interfaces (API) Functions

More Related Content

What's hot (20)

Similar to Detecting Windows Operating System’s Ransomware based on Statistical Analysis of Application Programming Interfaces (API) Functions (20)

Recently uploaded (20)

Detecting Windows Operating System’s Ransomware based on Statistical Analysis of Application Programming Interfaces (API) Functions
