Digital logic circuit I Lab to computer engginner

Outline
🞛 Design Combinational Logic Circuit for scenario
🞛 Adder
🞛 Subtractor
🞛 Comparator
🞛 Multiplexer
🞛 Demultiplexer
🞛 Encoder
🞛 Decoder
🞛 Code Conversions
🞛 Implementation

Design Methods
🞛 Type of IC chips (based on packing density) :
🞜 Small-scale integration (SSI): up to 12 gates
🞜 Medium-scale integration (MSI): 12-99 gates
🞜 Large-scale integration (LSI): 100-9999 gates
🞜 Very large-scale integration (VLSI): 10,000-99,999
gates
🞜 Ultra large-scale integration (ULSI): > 100,000
gates
🞛 Main objectives of circuit design:
🞜 (i) reduce cost
⬥ reduce number of gates (for SSI circuits)
⬥ reduce IC packages (for complex circuits)
🞜 (ii) increase speed
🞜 (iii) design simplicity (reuse blocks where possible)

Introduction
Combinational Logic Circuits (Circuits without a
memory): In this type of logic circuits outputs depend
only on the current inputs.
Sequential Logic Circuits (Circuits with memory): In
this type of logic circuits outputs depend on the current
inputs and previous inputs. These circuits employ
storage elements and logic gates.

Combinational Logic Circuits
🞛 A combinational circuit consists of input variables (n), logic
gates, and output variables (m).
🞛 For (n) input variables there are 2n possible combinations of
binary input values.
🞛 For each possible input combination there is one and only one
possible output combination, a combinational circuit can be
describe by (m) Boolean functions one for each output variable.
🞛 Each output function expressed in terms of the (n) input
variables.

Design Procedure
1.
2.
3.
4.
5.
6.
The problem is stated (Verbal description).
Specify the number of inputs and required numbers of outputs.
The input and output variables are assigned letter symbols.
Construct the truth table to define relationship between inputs
and outputs.
The simplified Boolean function for each output is obtained
(using K-Map, Tabulation method and Boolean Algebra rules).
The logic diagram is drawn.
combinational logic circuit use the following
To design
a
procedures:

Practical Design
A practical design method would have to consider such constrains as:
1.
2.
3.
4.
Min. no. of gates.
Min. no. of inputs to gates.
Min. no. of interconnections.
Min. propagation time of the
signal throw the circuit.

Digital logic circuit I Lab to computer engginner

Simple Design – Remind You

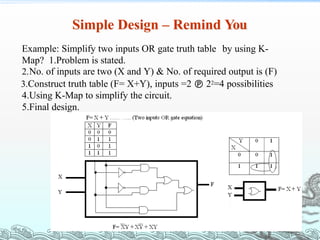

Example: Simplify two inputs OR gate truth table by using K-
Map? 1.Problem is stated.
2.No. of inputs are two (X and Y) & No. of required output is (F)
3.Construct truth table (F= X+Y), inputs =2  22=4 possibilities
4.Using K-Map to simplify the circuit.
5.Final design.

Design for scenario
🞛 A committee of three individuals decide issues
for an organization. Each individual votes
either yes or no for each proposal that arises. A
proposal is passed if it receives at least two
yes votes. Design a circuit that determines
whether a proposal passes.

Solution
Inputs are three (x, y, z) , Output is proposal (F)
We used truth table to make a
relationship between inputs and
output.
We used K-Map minimization
technique to simplify the circuit.

Adders
🞛 Digital computers perform a variety of
information processing tasks. Among the basic
functions encountered are the various
arithmetic operations (addition).

Binary Adder -Half
Adder
Q/Design a combinational logic circuit that performs arithmetic
operation for adding two bits?
Answer: n=2 bit , n=22=4
0 + 0 = 0
0 + 1 = 1
1 + 0 = 1
1 + 1 = 10

Binary Adder -Full
Adder
operation for adding three bits?
Answer: n=3bit , n=23=8

Subtractor
🞛 Digital computers perform a variety of
information processing tasks. Among the basic
functions encountered are the various
arithmetic operations (Subtraction).
Binary
Arithmetic

Binary Subtractor- Half Subtractor
operation for subtracting two bits?
Answer: n= 2bit , n=22=4 0
– 0 =0
1 – 0 =1
1 – 1 =0
0 – 1 = 10 – 1 = 1
(The 1 borrowed from the
next higher stage)

Binary Subtractor – Full Subtractor
operation for subtracting three bits?
Answer: n=3bits , n=23=8

Comparator
The comparison of two numbers is an operation that
determines if one number is greater than, less than,
or equal to the other number. A comparator is a
CLC that compares two numbers A, B, and
determines their relative magnitudes. The outcome
of the comparison is specified my three binary
variables that indicate whether A>B, A=B, or A<B.

Multiplexer (Data Selector)
Design MUX:
AND gates used to represent
inputs.
One OR gate only used to
collect inputs.
NOT gates as a selector to
connect inputs to output.
Multiplexing means transmitting a large number of information units
over a smaller number of channels or lines. A digital multiplexer is
CLC that selects binary information from one of many input lines
and directs it to a single output line. The selection of a particular
input line is controlled by of a selection lines.

E1:It is the European format for digital transmission.
According to the ITU-T recommendations, it consists of 32
channels (2 channels are reserved for signaling and
synchronization, 30 channels for carry voice calls and data
communications, band width for each channel=64Kbps, data
rate for E1=2048Kbps or 2.048Mbps).
TDM is used for separate channels from each other. E1 is
designed to send PCM voice signal (Sampling frequency=
8000 sample per second, E1 time frame= 1/8000 = 125µs,
within this time frame we have 32 sample x 8 bit per sample =
256 bits. Therefore, Data Rate of E1= 2.048 Mbps(256bits/
125µs).
E1 and T1 MUX/DMUX

E1 and T1 MUX/DMUX
T 1 :T1 is the North American
digital communication carrier standard that
consists of
24 channels, which has 64Kbps bandwidth
each. Initially each 64Kbps channel is
designed to transfer pulse code modulated
voice signals. T1 frame consists of 193 bits (24
samples x 8 bits per sample) that need to be
transferred within 125µs. Therefore, data rate
of T1 carrier is 1.544 Mbps (193 bits/125µs).

Demultiplexer
Design DMUX:
AND gates used to
represent inputs.
NOT gates as a selector to
connect inputs to output.
A demultiplexer performs the reverse operation of a
multiplexer i.e. it receives one input and distributes it over
several outputs.

Encoder
Design ENC:
OR gates used to
design encoder.
An encoder is a device, circuit, software program, algorithm or person
that converts information from one format or code to another. The
purpose of encoder is standardization, speed, secrecy, security, or saving
space by shrinking size. If a device output code has fewer bits than the
input code has, the device is usually called an encoder.

Decimal to BCD Encoder logical diagram

Decoder
A decoder is a combinational circuit that converts binary
information from n input lines to a maximum of 2n unique
output lines.
Design DEC:
AND gates used to
represent inputs.
NOT gates to connect
inputs to output.

Code Converters :
Convert Binary to Gray Code
Example: Design a combinational logic circuit that converts 4bits binary to
gray code?
Advantage
gray code
over binary
number?

4bit binary to gray code
converter

Implementation
🞛 Electronics Workbench Circuit Board
Design and Simulation Software such as
EWB, Multisim, ..etc
