This document discusses best practices for using DynamoDB for game data, including tips for indexing, scaling, data modeling, and real-world use cases. It provides examples of using local secondary indexes (LSI) and global secondary indexes (GSI) to query game data efficiently. It also recommends modeling time series data with separate tables per time period. The document concludes with an overview of how Nexon Korea uses DynamoDB for mobile game databases.
![Rich expressions
§Projection expression
§ Query/Get/Scan: ProductReviews.FiveStar[0]
§Filter expression
§ Query/Scan: #VIEWS > :num
§Conditional expression
§ Put/Update/DeleteItem: attribute_not_exists (#pr.FiveStar)
§Update expression
§ UpdateItem: set Replies = Replies + :num](https://image.slidesharecdn.com/awsclouddiveintoclouddatabase-dynamodb-160108065335/85/DynamoDB-AWS-Cloud-Track-3-Gaming-22-320.jpg)
게임을 위한 DynamoDB 사례 및 팁 - 김일호 솔루션즈 아키텍트:: AWS Cloud Track 3 Gaming
- 1. 게임을 위한 DynamoDB 사례 및 팁 김일호 | Solutions Architect 박성원, Nexon Korea | 파트장
- 2. Agenda §Tip 1. DynamoDB Index(LSI, GSI) §Tip 2. DynamoDB Scaling §Tip 3. DynamoDB Data Modeling §Scenario based Best Practice §Nexon use-case
- 4. Local secondary index (LSI) §Alternate range key attribute §Index is local to a hash key (or partition) A1 (hash) A3 (range) A2 (table key) A1 (hash) A2 (range) A3 A4 A5 LSIs A1 (hash) A4 (range) A2 (table key) A3 (projected) Table KEYS_ONLY INCLUDE A3 A1 (hash) A5 (range) A2 (table key) A3 (projected) A4 (projected) ALL 10 GB max per hash key, i.e. LSIs limit the # of ran ge keys!
- 5. Global secondary index (GSI) §Alternate hash (+range) key §Index is across all table hash keys (partitions) A1 (hash) A2 A3 A4 A5 GSIs A5 (hash) A4 (range) A1 (table key) A3 (projected) Table INCLUDE A3 A4 (hash) A5 (range) A1 (table key) A2 (projected) A3 (projected) ALL A2 (hash) A1 (table key) KEYS_ONLY RCUs/WCUs provisioned se parately for GSIs Online indexing
- 6. How do GSI updates work? Table Primary ta ble Primary ta ble Primary ta ble Primary ta ble Global Seco ndary Index Client 2. Asynchronous update (in progress) If GSIs don’t have enough write capacity, table writes will be throttled!
- 7. LSI or GSI? §LSI can be modeled as a GSI §If data size in an item collection > 10 GB, use GSI §If eventual consistency is okay for your scenario, use GSI!
- 9. Scaling §Throughput § Provision any amount of throughput to a table §Size § Add any number of items to a table § Max item size is 400 KB § LSIs limit the number of range keys due to 10 GB limit §Scaling is achieved through partitioning
- 10. Throughput §Provisioned at the table level § Write capacity units (WCUs) are measured in 1 KB per second § Read capacity units (RCUs) are measured in 4 KB per second § RCUs measure strictly consistent reads § Eventually consistent reads cost 1/2 of consistent reads §Read and write throughput limits are independent WCURCU
- 11. Partitioning math Number of Partitions By Capacity (Total RCU / 3000) + (Total WCU / 1000) By Size Total Size / 10 GB Total Partitions CEILING(MAX (Capacity, Size))
- 12. Partitioning example Table size = 8 GB, RCUs = 5000, WCUs = 500 RCUs per partition = 5000/3 = 1666.67 WCUs per partition = 500/3 = 166.67 Data/partition = 10/3 = 3.33 GB RCUs and WCUs are uniformly sprea d across partitions Numberof Partitions By Capacity (5000 / 3000) + (500 / 1000) = 2.17 By Size 8 / 10 = 0.8 Total Partitions CEILING(MAX (2.17, 0.8)) = 3
- 15. Getting the most out of DynamoDB throughput “To get the most out of DynamoDB throughput, create tables where the hash key element has a large number of distinct values, and values are requested fairly uniformly, as randomly as possible.” —DynamoDB Developer Guide §Space: access is evenly spread over the key- space §Time: requests arrive evenly spaced in time
- 16. What causes throttling? § If sustained throughput goes beyond provisioned throughput per partition § Non-uniform workloads § Hot keys/hot partitions § Very large bursts § Mixing hot data with cold data § Use a table per time period § From the example before: § Table created with 5000 RCUs, 500 WCUs § RCUs per partition = 1666.67 § WCUs per partition = 166.67 § If sustained throughput > (1666 RCUs or 166 WCUs) per key or partition, DynamoDB may throttle requests § Solution: Increase provisioned throughput
- 18. 1:1 relationships or key-values §Use a table or GSI with a hash key §Use GetItem or BatchGetItem API §Example: Given an SSN or license number, get attributes Users Table Hash key Attributes SSN = 123-45-6789 Email = johndoe@nowhere.com, License = TDL25478134 SSN = 987-65-4321 Email = maryfowler@somewhere.com, License = TDL78309234 Users-Email-GSI Hash key Attributes License = TDL78309234 Email = maryfowler@somewhere.com, SSN = 987-65-4321 License = TDL25478134 Email = johndoe@nowhere.com, SSN = 123-45-6789
- 19. 1:N relationships or parent-children §Use a table or GSI with hash and range key §Use Query API Example: § Given a device, find all readings between epoch X, Y Device-measurements Hash Key Range key Attributes DeviceId = 1 epoch = 5513A97C Temperature = 30, pressure = 90 DeviceId = 1 epoch = 5513A9DB Temperature = 30, pressure = 90
- 20. N:M relationships §Use a table and GSI with hash and range key elements switched §Use Query API Example: Given a user, find all games. Or given a game, find all users. User-Games-Table Hash Key Range key UserId = bob GameId = Game1 UserId = fred GameId = Game2 UserId = bob GameId = Game3 Game-Users-GSI Hash Key Range key GameId = Game1 UserId = bob GameId = Game2 UserId = fred GameId = Game3 UserId = bob
- 21. Documents (JSON) § New data types (M, L, BOOL, NULL) introduced to support JSON § Document SDKs § Simple programming model § Conversion to/from JSON § Java, JavaScript, Ruby, .NET § Cannot index (S,N) elements of a JSON object stored in M § Only top-level table attributes can be used in LSIs and GSIs without Streams/Lambda JavaScript DynamoDB string S number N boolean BOOL null NULL array L object M
- 22. Rich expressions §Projection expression § Query/Get/Scan: ProductReviews.FiveStar[0] §Filter expression § Query/Scan: #VIEWS > :num §Conditional expression § Put/Update/DeleteItem: attribute_not_exists (#pr.FiveStar) §Update expression § UpdateItem: set Replies = Replies + :num
- 24. Game logging Storing time series data
- 25. Time series tables Events_table_2015_April Event_id (Hash key) Timestamp (range key) Attribute1 …. Attribute N Events_table_2015_March Event_id (Hash key) Timestamp (range key) Attribute1 …. Attribute N Events_table_2015_Feburary Event_id (Hash key) Timestamp (range key) Attribute1 …. Attribute N Events_table_2015_January Event_id (Hash key) Timestamp (range key) Attribute1 …. Attribute N RCUs = 1000 WCUs = 100 RCUs = 10000 WCUs = 10000 RCUs = 100 WCUs = 1 RCUs = 10 WCUs = 1 Current table Older tables Hot dataCold data Don’t mix hot and cold data; archive cold data to Amazon S3
- 26. Important when: Use a table per time period §Pre-create daily, weekly, monthly tables §Provision required throughput for current table §Writes go to the current table §Turn off (or reduce) throughput for older tables Dealing with time series data
- 27. Item shop catalog Popular items (read)
- 28. Partition 1 2000 RCUs Partition K 2000 RCUs Partition M 2000 RCUs Partition 50 2000 RCU Scaling bottlenecks Product A Product B Gamers ItemShopCatalog Table SELECT Id, Description, ... FROM ItemShopCatalog
- 30. Partition 1 Partition 2 ItemShopCatalog Table User DynamoDB User Cache popular items SELECT Id, Description, ... FROM ProductCatalog
- 31. Requests Per Second Item Primary Key Request Distribution Per Hash Key DynamoDB Requests Cache Hits
- 32. Multiplayer online gaming Query filters vs. composite key indexes
- 33. GameId Date Host Opponent Status d9bl3 2014-10-02 David Alice DONE 72f49 2014-09-30 Alice Bob PENDING o2pnb 2014-10-08 Bob Carol IN_PROGRESS b932s 2014-10-03 Carol Bob PENDING ef9ca 2014-10-03 David Bob IN_PROGRESS Games Table Multiplayer online game data Hash key

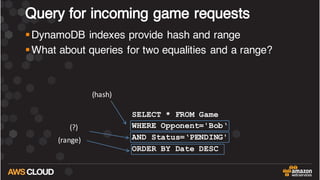

- 34. Query for incoming game requests §DynamoDB indexes provide hash and range §What about queries for two equalities and a range? SELECT * FROM Game WHERE Opponent='Bob‘ AND Status=‘PENDING' ORDER BY Date DESC (hash) (range) (?)
- 35. Secondary Index Opponent Date GameId Status Host Alice 2014-10-02 d9bl3 DONE David Carol 2014-10-08 o2pnb IN_PROGRESS Bob Bob 2014-09-30 72f49 PENDING Alice Bob 2014-10-03 b932s PENDING Carol Bob 2014-10-03 ef9ca IN_PROGRESS David Approach 1: Query filter BobHash key Range key
- 36. Secondary Index Approach 1: query filter Bob Opponent Date GameId Status Host Alice 2014-10-02 d9bl3 DONE David Carol 2014-10-08 o2pnb IN_PROGRESS Bob Bob 2014-09-30 72f49 PENDING Alice Bob 2014-10-03 b932s PENDING Carol Bob 2014-10-03 ef9ca IN_PROGRESS David SELECT * FROM Game WHERE Opponent='Bob' ORDER BY Date DESC FILTER ON Status='PENDING' (filtered out)
- 37. Needle in a haystack Bob
- 38. Important when: Use query filter §Send back less data “on the wire” §Simplify application code §Simple SQL-like expressions § AND, OR, NOT, () Your index isn’t entirely selective
- 39. Approach 2: composite key StatusDate DONE_2014-10-02 IN_PROGRESS_2014-10-08 IN_PROGRESS_2014-10-03 PENDING_2014-09-30 PENDING_2014-10-03 Status DONE IN_PROGRESS IN_PROGRESS PENDING PENDING Date 2014-10-02 2014-10-08 2014-10-03 2014-10-03 2014-09-30 + =
- 40. Secondary Index Approach 2: composite key Opponent StatusDate GameId Host Alice DONE_2014-10-02 d9bl3 David Carol IN_PROGRESS_2014-10-08 o2pnb Bob Bob IN_PROGRESS_2014-10-03 ef9ca David Bob PENDING_2014-09-30 72f49 Alice Bob PENDING_2014-10-03 b932s Carol Hash key Range key
- 41. Opponent StatusDate GameId Host Alice DONE_2014-10-02 d9bl3 David Carol IN_PROGRESS_2014-10-08 o2pnb Bob Bob IN_PROGRESS_2014-10-03 ef9ca David Bob PENDING_2014-09-30 72f49 Alice Bob PENDING_2014-10-03 b932s Carol Secondary Index Approach 2: composite key Bob SELECT * FROM Game WHERE Opponent='Bob' AND StatusDate BEGINS_WITH 'PENDING'
- 42. Needle in a sorted haystack Bob
- 43. Sparse indexes Id (Hash) User Game Score Date Award 1 Bob G1 1300 2012-12-23 2 Bob G1 1450 2012-12-23 3 Jay G1 1600 2012-12-24 4 Mary G1 2000 2012-10-24 Champ 5 Ryan G2 123 2012-03-10 6 Jones G2 345 2012-03-20 Game-scores-table Award (Hash) Id User Score Champ 4 Mary 2000 Award-GSI Scan sparse hash GSIs
- 44. Important when: Replace filter with indexes §Concatenate attributes to form useful §secondary index keys §Take advantage of sparse indexes You want to optimize a query as much as possible Status + Date
- 46. Nexon Korea, 박성원 파트장 넥슨 모바일 게임 관련 데이터베이스 업무를 담당하고 있습니다.
- 47. DDB 사용현황 §HIT 메인 게임DB • 27 Tables • Various Alarms • Flexible Dashboards
- 48. DDB, 이런 분에게 추천합니다. §Capacity 산정 §Monitoring §백업 및 복원 §Tips https://i.ytimg.com/vi/C6U2M7ZkZI8/maxresdefault.jpg
- 49. Capacity 산정 § 서비스 전 읽기/쓰기에 대한 패턴 테스트를 꼭 수행하세요. § 모든 패턴이 읽혀지진 않지만, 병목의 중심이 되는 대략적인 내용은 파악할 수 있습니다. § 동시 사용자 증가 속도를 꼭 염두에 두셔야 합니다. 대응하려는 순간 이미 서비스 불가일 수 있습니다. Ø 2분 안에 800,000 증가 Ø 초당 RCUs 변환 시 13,000 증가 시간 읽 기 호 출 수
- 50. Capacity 변경 §웹콘솔, AWS앱, CLI 등으로 쉽게 Capacity 변경이 가능합니다. §다만, 즉시 적용은 되지 않습니다. AWS에도 작업 시간을 주세요. §대량의 RCUs, WCUs 변경이 필요한 경우는 미리 준비하는 것이 좋습니다.
- 51. Capacity 모니터링 §Cloud Watch 를 활용하세요. §대시보드 및 알람 기능이 매우 유용합니다. §초 단위 데이터까지 보기엔 어렵습니다. (1분 단위 Sum)
- 52. 백업 및 복원 § Export / Import 개념입니다. § Data Pipeline 을 사용하세요. § CLI 에 친숙해 지세요. 반복적인 작업을 쉽게 구현할 수 있습니다.
- 53. 소소한 Tip §Read / Write 캐시 레이어 도입을 고려하세요. • Retry 시 지수 백오프 알고리즘을 도입하세요. • Data 용량계획을 고려하세요. http://cfile30.uf.tistory.com/image/221DF544538C11D62866E9
- 54. DDB 를 사용해보니… §전통적인 RDB와 비교하여 손댈 것이 거의 없습니다. §AWS Document 에 근거하여 개발하셔야 합니다. §운영 시 Cloud Watch 및 CLI 가 많은 도움이 됩니다.
