EclipseCon 2010 API Design and Evolution (Tutorial)

API Design and Evolution

Boris Bokowski, IBM Rational
Martin Oberhuber, Wind River
Michael Scharf, Wind River

Based on presentation material co-authored with John Arthorne and Jim des Rivieres, IBM Canada

© Copyright 2007, 2010 IBM Corp. and Wind River; made available under the EPL v1.0 March 24, 2010

Authors
Dr. Boris Bokowski, IBM Rational, Ottawa Canada
Full time committer on the Eclipse Platform and e4, Technical lead of the
Eclipse Platform UI team, Member of the Eclipse Architecture Council,
Committer Representative on the Eclipse Board of Directors.

Dipl.-Ing. Martin Oberhuber, Wind River, Salzburg Austria
Senior Member of Technical Staff at Wind River, Certified ScrumMaster,
Chair of the Eclipse Architecture Council, Eclipse PMC Member, Target
Management Project Lead, Eclipse Platform Core and e4 Committer.

Dipl.-Phys. Michael Scharf, Wind River, Heidelberg Germany
Principal Technologist and Architectural Overseer at Wind River,
Member of the Eclipse Architecture Council, Model Enthusiast,
Committer and Officially Approved Eclipse Troublemaker.

API Design and Evolution © 2007, 2010 IBM Corp and Wind River; made available under the EPL v1.0 2

A Simple Example

 Requirement:
As a Tutorial Presenter, I want to know how many committers vs
non-committers are in my talk, such that I can present material that
matters to the audience.
 API, 1st cut:
public interface Course {

public int countCommitters();

public int countNonCommitters();

}


Specification Example

 Adding Specifications:
/**
* Represents a course at a conference.
*/
public interface Course {

/**
* Returns the number of committers who attended the course.
* @return the number of committers who attended the course.
*/
public int countCommitters();

/**
* Returns the number of non-committers who attended the course.
* @return the number of non-committers who attended the course.
*/
public int countNonCommitters();

}

 What's broken with this?


What's broken with this?

 ...committers who attended the course is not what I want!
- I want a live count (current snapshot)
 I'm also interested in the total number of attendees!
- Ok that was not in the requirement, but I found it when testing the API
 I want the total number to be exact
- Approximate percentage is OK for attendee role, but percentages
should sum up as expected
- Another new requirement
 Actually, I may be interested in more roles in the future
- E.g. contributor, commercial vs private
- Yet another requirement


What can we learn from this?

 Specification: API Documentation is important (“live count” vs
“attendees”) to make crystal clear what the API does.
 Process: Testing the API against an actual client is important from
the earliest stages, to verify that it does what was expected.
- Client and implementer learn from each other when discussing API

Good API needs time and multiple iterations against real clients.

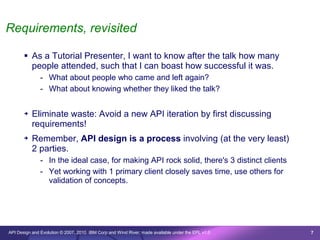

Requirements, revisited

 As a Tutorial Presenter, I want to know after the talk how many
people attended, such that I can boast how successful it was.
- What about people who came and left again?
- What about knowing whether they liked the talk?

➔ Eliminate waste: Avoid a new API iteration by first discussing
requirements!
➔ Remember, API design is a process involving (at the very least)
2 parties.
- In the ideal case, for making API rock solid, there's 3 distinct clients
- Yet working with 1 primary client closely saves time, use others for
validation of concepts.


Requirements, revisited (2)

 As a Tutorial Presenter, I want to know after the talk how many
distinct people heard the talk, and how many left a “+1” card when
leaving, such that I get feedback about audience satisfaction.
 As a Tutorial Presenter, I want to get live approximate statistics
about committers vs non-committers in my talk, such that I can
present material that matters to the audience. I may be interested
in other attendee roles in the future, such as contributors, private
or commercial attendees.

 Contest: There will be a prize for the best API for these reqs
- Use the patterns you'll learn in this course, and your ingenuity
- E-Mail Solutions until today 7pm to martin.oberhuber@windriver.com
- Will discuss solutions and give out the prize at the Unconference,
7:15pm in this room


Contest

 Launch Eclipse SDK or any package (JDT preferred)
 File > Import > General : Existing Projects into Workspace
 Archive: org.eclipsecon.apitutorial.zip
 Hand off: File > Export > General : Archive File

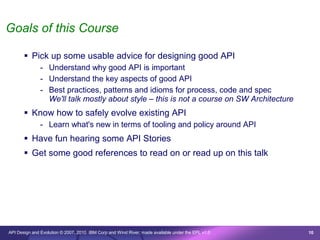

Goals of this Course

 Pick up some usable advice for designing good API
- Understand why good API is important
- Understand the key aspects of good API
- Best practices, patterns and idioms for process, code and spec
We'll talk mostly about style – this is not a course on SW Architecture
 Know how to safely evolve existing API
- Learn what's new in terms of tooling and policy around API
 Have fun hearing some API Stories
 Get some good references to read on or read up on this talk

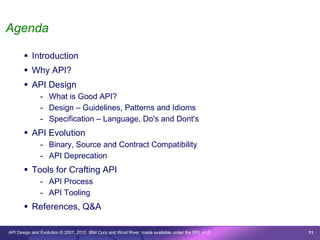

Agenda

 Introduction
 Why API?
 API Design
- What is Good API?
- Design – Guidelines, Patterns and Idioms
- Specification – Language, Do's and Dont's
 API Evolution
- Binary, Source and Contract Compatibility
- API Deprecation
 Tools for Crafting API

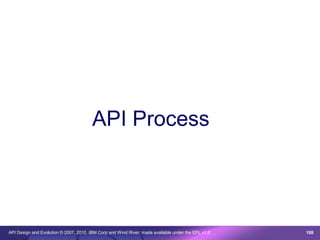

- API Process
- API Tooling
 References, Q&A


Why APIs?

 APIs are interfaces with specified and supported behavior.
- Specification: Guideline for implementations, judge what's a bug
- Supported: Bugs will be fixed
 Key for successful componentization and scaling up
- Develop, test and evolve components individually
- API: Provide a stable Platform to build on
- SPI: Allow multiple implementations, e.g. improve performance
 Good APIs capture and bind clients
- Clients invest into API (by code, and by learning the API)
 Good APIs minimize waste
- Encourage code re-use instead of re-writing
- Reduce code and complexity
- Bad APIs lead to bugs, maintenance and documentation needs


Different styles of API evolution

Product development
without compatibility Platform development
open-ended promises
set of Clients Clients will continue to work
Clients must adapt to without being recompiled
changes, cost is unknown

Internal product Internal product
development family development
clients known
Clients will adapt to Clients should continue to
changes, cost is known work when recompiled

lock-step development not in lock-step
(“screw the client”) (“maintain compatibility”)


API Design


Characteristics of good API


Characteristics of good API

?

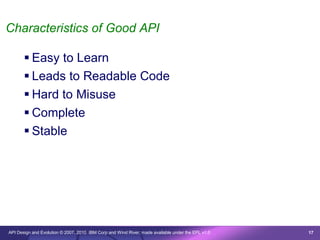

Characteristics of Good API

 Easy to Learn
 Leads to Readable Code
 Hard to Misuse
 Complete
 Stable


Make your API Easy to Learn

 Implies simplicity
- But not too simple
 Minimal surprise (consistency)
- Meets the expectations of a user
- Depend on the knowledge of the users
- Mimic the environment
 Avoids boilerplate code

 Client Centric

API Design and Evolution © 2007, 2010 IBM Corp and Wind River; made available under the EPL v1.0

Make your API Client Code Easy to Read

 Implies the right level of abstraction
 Think in terms of clients
 Naming matters!


Easy to Read vs. Easy to Write (Learn)



new Label(parent, SWT.SEPARATOR | SWT.HORIZONTAL);




 Easy to Read
 Hard to Write




new Label(parent, true, true);





 Hard to Read
 Easy to Write (code completion)





Label label=new Label(parent);
label.setSeparator(true);
label.setHorizontal(true);





Label label=new Label(parent);
label.setSeparator(true);
label.setHorizontal(true);

 Easy to Read (but verbose)
 Easy to Write (but verbose)


Make your API Hard to Misuse

 Use java (JDT) to guide the user
 Avoid hidden contracts


The “ultimate” API



class U {
static Object do(Object o) {}
}



class U {
static Object do(Object... o) {}
}

A little Java 5 Convenience


Hidden Contracts

class U {
}

Object w=U.do("createWindow");
U.do(w,"setSize",500,500);
U.do(w,"show");


Hidden Contracts

class U {
}

API is more than the signature


Is this Problematic?

void setup(Map map);

Collection elements();


Is this Problematic?

void setup(Map map);

Collection elements();

 Easy to Misuse
 Hard to Write
 Needs Lots of API Documentation


Is this Better?

void setup(Map<String,Object> map);

Collection<IElement> elements();


Is this Better?

void setup(Map<String,Object> map);

Collection<IElement> elements();

 It still needs lots of API documentation


Make your API Stable

 Easy to extend and evolve
 Do not over-specify
 Do not break clients


Make your API Complete

 Lets the users do everything they want
 Fits the requirements
 Do mot miss important concepts


Recipes for Good API

 Heuristics
 Deviation should be with a reason


API is a Cover Story

 Hide implementation
 Hide information
 Hide internal data formats
 Think about concepts rather than code


Names Matter

 Good names drive development
- Easy to Learn, Easy to Read
 If it's hard to name, it's probably broken
- take a step back
 Avoid abbreviations
- Hard to remember where abbreviation is used

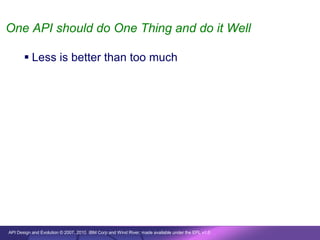

One API should do One Thing and do it Well

 Less is better than too much


As Small as Possible (but not Smaller)

 Minimal to satisfy requirements
- can always add later but not remove
 Avoid the need for boilerplate code in the client

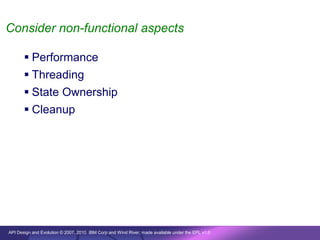

Consider non-functional aspects

 Performance
 Threading
 State Ownership
 Cleanup

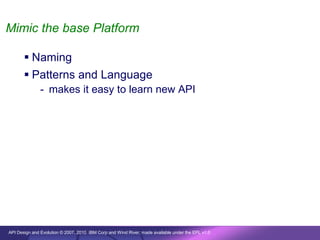

Mimic the base Platform

 Naming
 Patterns and Language
- makes it easy to learn new API


Java API Guidelines

 Class Guidelines
 Method Guidelines
 Exception Guidelines


Class Design Guidelines


Try to keep Classes Immutable

 Immutable objects are simple, thread-safe and reusable
 If there must be state, keep it small and known, and document it


Prohibit Subclassing – or clearly document it

 Subclasses are sensitive to implementation change in the base

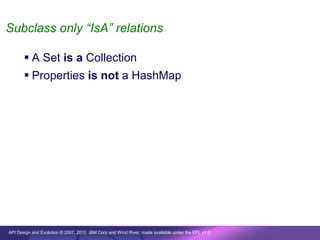

Subclass only “IsA” relations

 A Set is a Collection
 Properties is not a HashMap

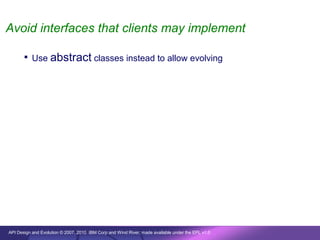

Avoid interfaces that clients may implement

 Use abstract classes instead to allow evolving


Separate API from SPI (Service Provider Interface)

 Evolve API and SPI separately
 SPI may have less strict rules
 Example: org.eclipse.core.filesystem


Method Design Guidelines


Prefer factory method over public constructor

 Allows object caching and sharing
 Life-cycle control

 Dependency Injection is even better!


Make simple things simple, make hard things possible

 Don't force the client write boilerplate code
 Don't violate the principle of least astonishment
 Don't clients into exception processing


Use consistent naming and ordering of parameters

 Platform: IProgressMonitor always comes last
 Avoid parameter lists longer than 4
- impossible to remember


Use proper parameter and return types

 Input types as specific as possible
- as generic as makes sense
 Avoid String if something better exists
- static type checking
 Avoid Collections


Exception Design Guidelines


Exceptions are for the exceptional

 Don't use exceptions for control flow
 Don't use return values for exceptional behavior
- Java is not C

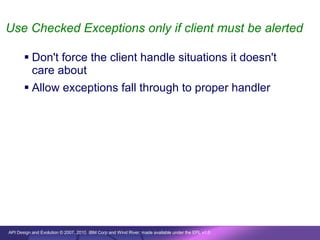

Use Checked Exceptions only if client must be alerted

 Don't force the client handle situations it doesn't
care about
 Allow exceptions fall through to proper handler


Fail fast

 Report errors soon – compile time is best
 Include failure cause in exceptions


Summary: API Design

 Make your API easy to read, write and evolve
 Be client centric
 API is a Cover Story
 Names Matter! Repeat until happy
 Keep API Small: If in doubt, leave it out
 Make simple things simple, make hard things possible
 Consider non-functional aspects: No Spec - No API.
 Emulate the Platform


Eclipse Design Idioms

 Use int option flags to allow for future extension
- Same effort but more flexible than boolean
- Common Pattern used in the Platform, e.g.
IProject.open(IResource.NONE, IProgressMonitor mon)
 Separate concerns: Do one thing at a time
- Adapter pattern to mix-and-match functionality
- IAddonInterface addon =
(IAddonInterface)Platform.getAdapterManager().getAdapter(
baseObject, IaddonInterface.class)

 e4: Use Dependency Injection

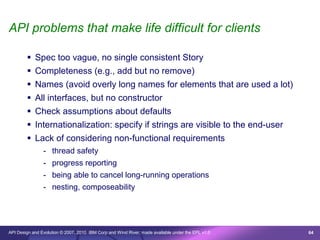

API problems that make life difficult for clients

 Spec too vague, no single consistent Story
 Completeness (e.g., add but no remove)
 Names (avoid overly long names for elements that are used a lot)
 All interfaces, but no constructor
 Check assumptions about defaults
 Internationalization: specify if strings are visible to the end-user
 Lack of considering non-functional requirements
- thread safety
- progress reporting
- being able to cancel long-running operations
- nesting, composeability


API Specifications


API specs

There's many things an API User needs to know,
which are not expressed in the Java signatures...

 Specification Design Goals by Role
A. Tell client what they need to know to use it
B. Tell an implementor how to implement it properly
C. Tell tester about key behaviors to test
D. Determines blame in event of failure

➔ Document religiously, but only as far as the cover story is
concerned (don't let implementation leak)

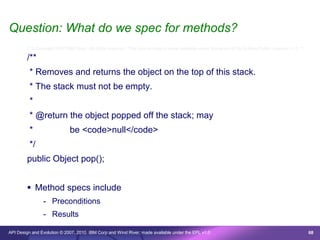

Question: What do we spec for methods?
/* © Copyright 2007 IBM Corp. All rights reserved. This source code is made available under the terms of the Eclipse Public License, v1.0. */

/**
*
* ???
*
*
*
*/
public Object pop();


Question: What do we spec for methods?

/**
* Removes and returns the object on the top of this stack.
* The stack must not be empty.
*
* @return the object popped off the stack; may
* be <code>null</code>
*/
public Object pop();

 Method specs include
- Preconditions
- Results


Lessons learned

 API is not just public methods
 Document religiously, and carefully

No specs. No API.


Appropriate level of specification detail

 Is the specification too specific or detailed, making it difficult to
evolve or implement?
- Gain flexibility by hiding implementation.
- API is a cover story.

 Is the spec too vague, making it difficult for clients to know the
correct usage?
- Always assume clients are unfamiliar with your code.
- Tell a compelling and seamless story.
- If incomplete, clients will look up your implementation :(

 Is the API designed to be implemented or extended by clients?
- Be aware of different kinds of clients.
- Keep Client API separate from Service Provider API (SPI).

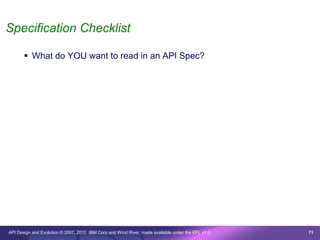

Specification Checklist

 What do YOU want to read in an API Spec?


Over-specification makes Evolving hard

 Exposing unnecessary implementation details
 Factory methods: specifying that it "returns a new instance"
rather than "returns an instance" - prevents future
caching/pooling
 Specifying the whole truth, rather than just the truth
- Specifying all failure cases (instead of "reasons for failure
include...")
- Specifying that an enum or similar pool of types is a closed set -
prevents adding entries later (eg: resource types)
- Specifying precise data structures of return types (HashSet, rather
than just Set or Collection)


Over-specification makes Implementation hard

Making promises that are hard to keep:

 Over-specifying precision of results (returns the number of
nanoseconds since the file was changed)
 Returning a data structure that promises to remain up to date
indefinitely (leaking live objects)
 Promises about the order of operations - prevents future
concurrency
 Real-time promises


API Contract language

 The language used in an API contract is very important

 Changing a single word can completely alter the meaning of an
API

 It is important for APIs to use consistent terminology so clients
learn what to expect



 RFC on specification language: http://www.ietf.org/rfc/rfc2119.txt

 Must, must not, required, shall: it is a programmer error for
callers not to honor these conditions. If you don’t follow them,
you’ll get a runtime exception (or worse)

 Should, should not, recommended: Implications of not
following these conditions need to be specified, and clients need
to understand the trade-offs from not following them

 May, can: A condition or behavior that is completely optional



Some Eclipse project conventions:
 Not intended: indicates that you won’t be prohibited from doing
something, but you do so at your own risk and without promise of
compatibility. Example: “This class is not intended to be
subclassed”
 Fail, failure: A condition where a method will throw a checked
exception
 Long-running: A method that can take a long time, and should
never be called in the UI thread
 Internal use only: An API that exists for a special caller. If
you’re not that special caller, don’t touch it

Emulate the Platform language since your clients will know it.
Use API Tooling tags.

Summary: API Specification review checklist

 Purpose: Summarized in 1 introductory sentence
 Contract: Pre-conditions, Post-conditions
 Data: Argument and result types, ownership, special cases
 Failure: Any cases worth specifying? Don't overdo!
 Non-functional aspects: as relevant for Cover Story
- Side effects
- Concurrency
- Event ordering
- Callbacks

 Is the story complete, compelling, and seamless?
 Does your spec help your clients without limiting your freedom?


Summary: API Design

 Know your Clients and Iterate over Requirements with them
 Make simple things simple, make hard things possible
 Keep API Small: If in doubt, leave it out.
 Names Matter! Repeat until happy.
 API is a Cover Story
 Specs are important! No Spec - No API.
 Emulate the Platform

Know where to look for details: http://wiki.eclipse.org/API_Central


Evolving API


Evolving APIs

 Different situations when evolving an API

 Compatibility

 Techniques for evolving APIs

 Techniques for writing APIs that are evolvable


But remember

 Try to get it right the first time.
 Failing that, do not break clients.

APIs should be stable.


Compatibility

 Contract – Are existing contracts still tenable?

 Binary – Do existing binaries still run?

 Source – Does existing source code still compile?

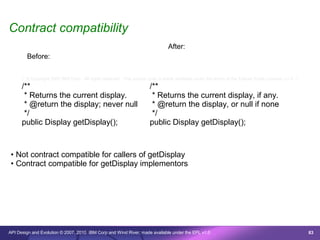

Contract compatibility
After:
Before:

/** /**
* Returns the current display. * Returns the current display, if any.
* @return the display; never null * @return the display, or null if none
*/ */
public Display getDisplay(); public Display getDisplay();

• Not contract compatible for callers of getDisplay
• Contract compatible for getDisplay implementors


Contract compatibility

 Weaken method preconditions – expect less of callers
- Compatible for callers; breaks implementors

 Strengthen method postconditions – promise more to callers
- Compatible for callers; breaks implementors

 Strenghten method preconditions – expect more of callers
- Breaks callers; compatible for implementors

 Weaken method postconditions – promise less to callers
- Breaks callers; compatible for implementors


Compatibility quiz

 Is the code snippet a binary compatible change?
 Is it source compatible?

 For clients?
 For implementers?


Compatibility quiz #1

Before:
After:
public class Test { public class Test {
public void foo() { public void foo() {

}
}
System.out.print(“Yes”);

}
}
System.out.print(“Oui”);

• Binary compatible
• Method bodies do not affect binary compatibility



Before:
After:
public void foo() {} public void foo() {}

x
public void bar() {} }
}

• Not binary compatible
• Not source compatible
• Deleting methods is a breaking change



Before:
After:

x
public void foo() {} public void foo(int flags) {}
}

• Parameters are part of the method signature



Before:
After:

x
public void foo(String s) {} public void foo(Object o) {}
} }

• Source compatible



Before:
After:

}
public void foo(Object o) {}

}
public void foo(Object o) {}
public void foo(String s) {} 
• When source references are recompiled they may be bound to the
new method
• Will cause errors in source references with a null argument, such as
test.foo(null)



Before:
After:
public class Super { public class Super {

}
public void foo(String s) {}
}

public class Sub extends Super { public class Sub extends Super {
public void foo(String s) {} }
}

• A different method will be called at runtime when method “void foo(String) is
invoked on an object of type “Sub”



Before:
After:

x
public static final int x = 5; public static final int x = 6;
} }

• Constant values that can be computed by the compiler are in-lined at
compile time. Referring code that is not recompiled will still have the value “5”
in-lined in their code

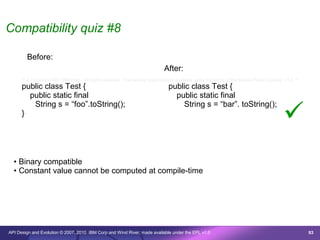

Before:
After:
public static final public static final


String s = “foo”.toString(); String s = “bar”. toString();
}

• Constant value cannot be computed at compile-time



Before:
After: x

package org.eclipse.internal.p1; package org.eclipse.internal.p1;
public class Super { public class Super {
protected void foo(String s) {} }
}
package org.eclipse.p1;
package org.eclipse.p1; public class Sub extends Super {
public class Sub extends Super { }
}

• Protected members accessible from an API type are API
• Is this valid if class Sub is final or says clients must not subclass?



Before:
After:
public class E extends Exception {} public class E extends Exception {}


protected void foo() throws E {} protected void foo() {}
} }

• There is no distinction between checked and unchecked exceptions at
runtime
• Not source compatible because catch blocks in referring methods may
become unreachable

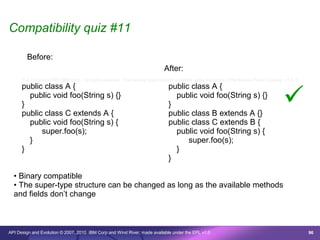

Before:
After:
public class A { public class A {

}

public class C extends A {
}

public class B extends A {}

public void foo(String s) { public class C extends B {
super.foo(s); public void foo(String s) {
} super.foo(s);
} }
}

• The super-type structure can be changed as long as the available methods
and fields don’t change

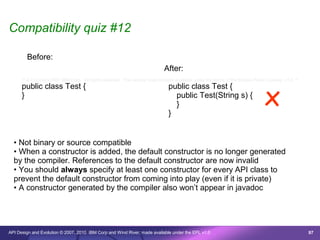

Before:
After:

x
} public Test(String s) {
}
}

• Not binary or source compatible
• When a constructor is added, the default constructor is no longer generated
by the compiler. References to the default constructor are now invalid
• You should always specify at least one constructor for every API class to
prevent the default constructor from coming into play (even if it is private)
• A constructor generated by the compiler also won’t appear in javadoc

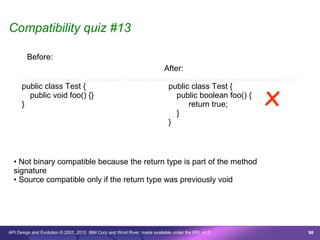

Before:
After:

x
public void foo() {} public boolean foo() {
} return true;
}
}

• Not binary compatible because the return type is part of the method
signature
• Source compatible only if the return type was previously void


Lessons learned

 It is very difficult to determine if a change is binary compatible
 Binary compatibility and source compatibility can be very different
 You can’t trust the compiler to flag non-binary compatible changes

Evolve once, check twice.
 If in doubt, check “The Bible”:
Evolving Java-based APIs, Jim des Rivieres et al
available from http://wiki.eclipse.org/API_Central


Binary compatibility DONT's for API elements
 Rename a package, class, method, or field
 Delete a package, class, method, or field
 Decrease visibility (change public to non-public)
 Add or delete method parameters
 Change type of a method parameter
 Add or delete checked exceptions to a method
 Change return type of a method
 Change type of a field
 Change value of a compile-time constant field
 Change an instance method to/from a static method
 Change an instance field to/from a static field
 Change a class to/from an interface
 Make a class final (if clients may subclass)
 Make a class abstract (if clients may subclass)
...

Binary compatibility DO's for API elements
 Add packages, classes, and interfaces
 Change body of a method
 Do anything you want with non-API elements
 Add fields and type members to classes and interfaces
 Add methods to classes (if clients cannot subclass)
 Add methods to interfaces (if clients cannot implement)
 Add non-abstract methods to classes (if clients may implement)
 Reorder class and interface member declarations
 Change value of a field (if not compile-time constant)
 Move a method up to a superclass
 Make a final class non-final
 Make an abstract class non-abstract
 Change name of method formal parameter
...

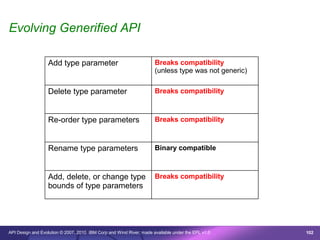

Evolving Generified API

Add type parameter Breaks compatibility
(unless type was not generic)

Delete type parameter Breaks compatibility

Re-order type parameters Breaks compatibility

Rename type parameters Binary compatible

Add, delete, or change type Breaks compatibility
bounds of type parameters


Techniques for evolving APIs

 Create extension interfaces, use naming convention
(ITurtleExtension, ITurtle2)

 Wiegand’s device

 Deprecate and try again

 Proxy that implements old API by calling new API


Techniques for enabling API evolution

 Use abstract classes instead of interfaces for non-trivial types if
clients are allowed to implement/specialize

 Separate service provider interfaces from client interfaces

 Separate concerns for different service providers

 Hook methods

 Mechanisms for plugging in generic behavior (IAdaptable) or
generic state, such as getProperty() and setProperty() methods


Non-Java API's

 File Formats
- Workspace Compatibility section in the Eclipse Project's Project Plan
- Provide Migration code when changing, e.g. Preferences
 Extension Points
- Expected Parameters
- Can be evolved like Java APIs: Version Numbering
- No Tooling available yet
 ID's
- Even Extensions are API for consumers!
- Example: ID's of Property Testers expected to be in the Platform
- No Tooling, no good automatic documentation!
 Data Protocols, Wire Formats, …
 Functionality of commandline args, config files, …
- Example: eclipse -configuration /tmp


API Deprecation

 Reasons for deprecating API
- A new story fixed issues (e.g. concurrency, performance)
- Small API – Less to Learn, easy to understand
- Planning a major implementation rewrite (think e4)
 Reasons for removing API
- At first, deprecation is just a recommendation
 But nobody will act if there is no axe in the window
 May remain deprecated forever if just for ease-of-learning
- Schedule API Removal for serious issues
- Removal breaks clients and must be clearly announced (Policies)
- Announce removal date. Use API Tooling to find parties to discuss.

 Eclipse Project Policy for Removal: 2 years lead time
http://wiki.eclipse.org/API_Central


Who can remember all this?

API Design is hard...

… but there is rescue!


API Process


Before you begin

 Have and agree on common API guidelines, e.g.:
- Eclipse Naming conventions
http://wiki.eclipse.org/Naming_Conventions
- How to Use the Eclipse API
http://www.eclipse.org/articles/Article-API%20use/eclipse-api-usage-rules.html

 Have someone in charge of the API early on

 Have well-defined component boundaries and dependencies
- There's no good API for bad Architecture
- E.g., Core vs. UI


Work with a client

 APIs exist to serve the needs of clients
- Where are those clients? What do they need?
 Important to work with actual clients when designing API
- Designing APIs requires feedback from real clients who will use it
- Otherwise risks crummy API that real clients cannot use
 Find a primary client
- Ideally: adjacent component, different team, same release schedule
- E.g., JDT UI is primary client of JDT Core
 Work closely with primary client
- Listen to their problems with using API
- Watch out for lots of utility classes in client code symptomatic of
mismatch between API and what client really needs
- Work together to find solutions


API Design Process

 Gather Requirements – but with healthy skepticism
- Some “Requirements” are really implementation suggestions
- API should be the Cover Story but allow different implementations!
 Start the spec with 1 page
- Iterate, rinse, return - take time to evolve
 Code early against the API
- Tests, Examples to see how it “feels” in real life
- This is not throw-away code but may become regression tests or
examples as part of the spec later on
- Even more important for SPI! - If there is just one implementation of a
service that's meant to be changeable, you'll surely mess up.
 Have realistic expectations: expect to evolve


Development cycle, releasing an API

 Important to distinguish between
- On-going development
- Released API
 In each development cycle, opportunity to work with well-known
clients on new API
 Release cycles can be short or long
 Release cycles of API, implementation, and Client may be:
- The same (lock step development)
- Different (more likely!)

 What kind of compatibility promise do you make?

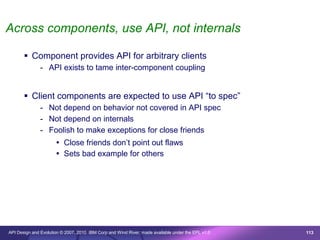

Across components, use API, not internals

 Component provides API for arbitrary clients
- API exists to tame inter-component coupling

 Client components are expected to use API “to spec”
- Not depend on behavior not covered in API spec
- Not depend on internals
- Foolish to make exceptions for close friends
 Close friends don’t point out flaws
 Sets bad example for others


Eclipse API Process Guidelines

 Provisional API Guidelines
- Mark x-internal:=”true” in the Manifest until solidified
- Allows for wider exposure to clients, even across releases
- NEW: Allowed to have provisional API in its final namespace
 No more forced breaking of clients when refactoring from
“internal” package to “public” package namespace
 X-internal is the premier markup of provisional API
 Must have a client
- Each extension point or API must have a client in Open Source
- Ensure that example code and test code is there
 Freeze by M6
- With PMC Escalation process into M7

Reference: http://wiki.eclipse.org/API_Central


API Tooling


API Tooling for Developers

 Has become indispensable for
- Adding proper Javadoc Tags
- Reporting mis-use according to tags
- Detecting Binary Compatibility Breakage
- Detecting Leakage of non-API Types into API
- Updating Version Numbers correctly

 Super easy setup
- Window > Preferences > PDE > API Baselines : Register Baseline
- Single directory with plugins to compare against
- Problem Markers; use Ctrl+1 Quickfix to add problem filters

 Documentation: http://www.eclipse.org/pde/pde-api-tools/

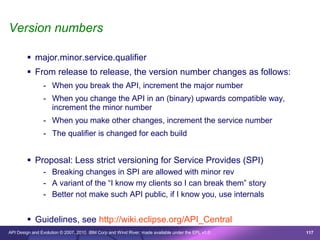

Version numbers

 major.minor.service.qualifier
 From release to release, the version number changes as follows:
- When you break the API, increment the major number
- When you change the API in an (binary) upwards compatible way,
increment the minor number
- When you make other changes, increment the service number
- The qualifier is changed for each build

 Proposal: Less strict versioning for Service Provides (SPI)
- Breaking changes in SPI are allowed with minor rev
- A variant of the “I know my clients so I can break them” story
- Better not make such API public, if I know you, use internals

 Guidelines, see http://wiki.eclipse.org/API_Central

API Tooling for Build Engineers

 .api_description file needed in binary bundles
- Conveys information from API tags like @noimplement
- No problem reporting without these in the binary baseline

 Setup: Just add this to your build.properties:
- generateAPIDescription=true


API Tooling for Reports

 API (mis) Usage Reporting
- Who uses my internals?
- New with 3.6M5: Run > External Tools...

 API Comparison
- Generate an XML Snapshot of API
- Compare two snapshots, generate XML / HTML Report
- Useful for New&Noteworthy, Release Reviews

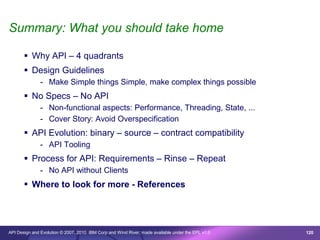

Summary: What you should take home

 Why API – 4 quadrants
 Design Guidelines
- Make Simple things Simple, make complex things possible
 No Specs – No API
- Non-functional aspects: Performance, Threading, State, ...
- Cover Story: Avoid Overspecification
 API Evolution: binary – source – contract compatibility
- API Tooling
 Process for API: Requirements – Rinse – Repeat
- No API without Clients
 Where to look for more - References


References

 API Central on Eclipse Wiki
http://wiki.eclipse.org/API_Central
- API Process: This Presentation, linked on API Central
 Eclipse API Process and Policies, all linked from API Central
- API Design: Joshua Bloch, Effective API Design (1 Hr Video)
http://www.infoq.com/presentations/effective-api-design
- API Specifications:
 EclipseCon 2006 API Tutorial, see API Central
 Sun, Requirements for Writing Java API Specifications
 Sun, How to Write Doc Comments for the Javadoc Tool
- API Evolution
 Evolving Java-Based API's, see API Central
 EclipseCon 2007: Eclipse APIs and Java 5, see API Central
- API Tooling, Documentation and Wiki all linked from API Central
 Joshua Bloch, Effective Java Programming Language Guide


And remember the Contest...

 Create your API for counting Course attendees and Committer /
User Statistics
 E-Mail solutions to martin.oberhuber@windriver.com
 Come to the Winner Selection at the Unconference
- Today 19:15 in this room (Lafayette)
- We'll all learn a lot by looking at solutions
- … and the winner can take their prize away

 If you have any more questions about API...
- Find us at the conference, or file a bug with the Architecture Council
- http://wiki.eclipse.org/Architecture_Council


Legal Notices

 IBM and Rational are registered trademarks of International
Business Corp. in the United States and other countries
 Java and all Java-based trademarks are trademarks of Sun
Microsystems, Inc. in the United States, other countries, or both
 Other company, product, or service names may be trademarks or
service marks of others


EclipseCon 2010 API Design and Evolution (Tutorial)

More Related Content

What's hot (20)

Viewers also liked (12)

Similar to EclipseCon 2010 API Design and Evolution (Tutorial) (20)

EclipseCon 2010 API Design and Evolution (Tutorial)
