This document discusses optimizing images and video for fast delivery on mobile websites. It begins by explaining that fast loading is a human perception based on time thresholds, with 100ms perceived as instant. The document then outlines 4 simple image optimizations: quality, format, sizing, and lazy loading. It provides examples of each optimization and data on real-world usage. Additional topics discussed include responsive images, animated GIFs, save-data considerations, and base64 encoding. The overall message is that images make up most web content and several techniques can significantly improve performance and user experience.
Edi ux fastandbeautiful
- 1. Delivering Beautiful and Fast Images and Video Doug Sillars @DougSillars Edinburgh UX February 11, 2019
- 2. Contact Me: @DougSillars Doug.Sillars@gmail.com www.dougsillars.com Doug Sillars Freelance Developer Relations Performance Audits: Web/Native Workshops: Performance/Images/Video http://bit.ly/HighPerformanceAndroidApps
- 4. 0.5 0.6 0.7 0.8 0.9 Standing in Line Standing on the edge of a virtual cliff Experiencing Mobile Delays Solving a Math Problem https://www.ericsson.com/res/docs/2016/mobility-report/emr-feb-2016-the-stress-of-steaming-delays.pdf Stress
- 6. Fast is a Human Perception • 100ms: • 1s: • 10s: https://www.nngroup.com/articles/response-times-3-important-limits/ Perceived as instantaneous Limit for uninterrupted train of thought: Delay is noticed, but generally accepted Limit for keeping focus
- 7. Fast is a Human Perception In 1993:
- 8. Fast is a Human Perception • 100ms: • 1s: • 10s: 3-5s: Perceived as instantaneous Limit for uninterrupted train of thought: Delay is noticed, but generally accepted Limit for keeping focus
- 9. Fast is a Human Perception • 100ms: • 1s: • 10s: 3-5s: Perceived as instantaneous Limit for uninterrupted train of thought: Delay is noticed, but generally accepted Limit for keeping focus 65ms: ranged from 34-164ms https://calendar.perfplanet.com/2018/magic-numbers/
- 10. Large Downloads Induce Delays in Rendering 3s: 53% of Users Abandon Mobile Sites 500ms: 26% Frustration 8% Engagement 100ms: 1% Revenue Walmart & Amazon (Desktop 2001) 4% Mobile Users Throw Their Phones https://www.doubleclickbygoogle.com/articles/mobile-speed-matters http://bit.ly/mobileWebStress http://www.globaldots.com/how-website-speed-affects-conversion-rates/ https://www.mobilejoomla.com/blog/172-responsive-design-vs-server-side-solutions-infographic.html
- 11. Images & Video make up 75% of Web Content HTTPArchive mobile websites 15/02/18
- 13. Is Content In Ideal Web Format?
- 14. Screenshot: File Size Optimizations? Tested 1300 “Screen Shot” images on the web https://dougsillars.com/2019/02/10/using-screenshots-in-production/
- 15. 4 Simple Image Optimizations
- 16. 4 Simple Image Optimizations 1. Quality 2. Format 3. Sizing 4. Lazy Loading
- 17. 4 Simple Image Optimizations 1. Quality 2. Format 3. Sizing 4. Lazy Loading
- 18. 4 Simple Image Optimizations Httparchive.org Webpagetest.org
- 19. 4 Simple Image Optimizations 1. Quality 2. Format 3. Sizing 4. Lazy Loading
- 20. Image Quality magick -quality 85 riga.jpg riga85.jpg http://res.cloudinary.com/dougsillars/image/upload/q_85/v1520504964/IMG_20180301_114117_tzasan.jpg Lighthouse: Recommends 85% quality on all images https://developers.google.com/speed/docs/insights/OptimizeImages
- 23. Image Quality Use “In The Wild” 500,000 mobile sites Analyzed 3/15/18
- 24. Image Quality Use “In The Wild” Median Savings (50th percentile): • 2.83 seconds faster page load • 419KB less data

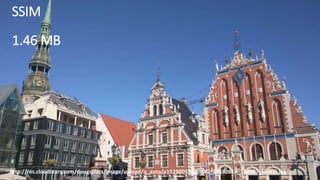

- 28. Automate Quality vs. File Size • Butteraugli • SSIM: Structural SIMilarity https://github.com/technopagan/cjpeg-dssim cjpeg-dssim jpegoptim riga.jpg http://res.cloudinary.com/dougsillars/image/upload/q_auto/v1529005982/IMG_20180614_184507_ssuk1i.jpg
- 31. Results: • Test Load on Motorola G4:
- 32. 4 Simple Image Optimizations 1. Quality 2. Format 3. Sizing 4. Lazy Loading
- 33. Image Formats – Average Size HTTPArchive mobile websites 15/02/18
- 34. Image Formats – Average Size HTTPArchive mobile websites 15/02/18
- 35. Scalable Vector Graphics (SVG) Images drawn as shapes infinitely scalable XML - Can be added inline to HTML document https://gist.github.com/hail2u/2884613?short_path=66a60ff
- 36. Scalable Vector Graphics (SVG) Images drawn as shapes infinitely scalable XML - Can be added inline to HTML document https://gist.github.com/hail2u/2884613?short_path=66a60ff
- 37. Scalable Vector Graphics (SVG)
- 38. Scalable Vector Graphics (SVG)
- 39. Scalable Vector Graphics (SVG) KB Original 946 Optimized 1
- 40. Scalable Vector Graphics (SVG) KB Original 946 Optimized 1
- 41. Scalable Vector Graphics (SVG) KB Original 946 Optimized 1 GZip 687 bytes
- 42. Scalable Vector Graphics (SVG) KB Original 946 Optimized 1 GZip 687 bytes Brotli 525 bytes
- 43. Scalable Vector Graphics (SVG) KB Original 946 Optimized 1 GZip 687 bytes Brotli 525 bytes
- 44. Scalable Vector Graphics (SVG) <style > .svgorange { filter: invert(.5) sepia(1) saturate(5) hue-rotate(5deg); } </style> <img class="svgorange" src ="map- marker-circle.svg"> https://medium.com/@union_io/swapping-fill-color-on-image-tag-svgs-using-css-filters-fa4818bf7ec6
- 45. Scalable Vector Graphics (SVG)
- 46. Image Formats – Average Size HTTPArchive mobile websites 15/02/18
- 48. SSIM + WebP 986 KB http://res.cloudinary.com/dougsillars/image/upload/q_auto,f_auto/v1529005982/IMG_20180614_184507_
- 49. File Format: Web <picture> <source width = "100%" type="image/webp" srcset=”riga.webp"> <img width = "100%" src=”riga_cjpeg_dssim.jpg" alt=”Riga, Latvia"> </picture>
- 50. Image Format Use “In The Wild” 500,000 mobile sites Analyzed 3/15/18
- 51. Image Format Use “In The Wild” 500,000 mobile sites Analyzed 3/15/18
- 52. 4 Simple Image Optimizations 1. Quality 2. Format 3. Sizing 4. Lazy Loading

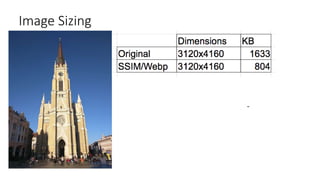

- 53. Image Sizing -
- 54. Image Sizing
- 55. Image Sizing -
- 57. Image Sizing 624 832 12,979,000 pixels 519,000 pixels _________________ - 12,460,000 pixels
- 58. Image Sizing 624 832 12,979,000 pixels 519,000 pixels _________________ - 12,460,000 pixels
- 60. Image Sizing - Responsive Images: Generate a set of images 25 KB difference in size
- 61. Responsive Images 624 832 625,000 pixels - 106,000 pixels 519,000 pixels _________________
- 65. Responsive Images Use “In The Wild” 500,000 mobile sites Analyzed 3/15/18
- 66. Responsive Images Use “In The Wild” 442,000 mobile sites Analyzed 3/15/18
- 67. 4 Simple Image Optimizations 1. Quality 2. Format 3. Sizing 4. Lazy Loading
- 70. Lazy Loading Use “In The Wild” 442,000 mobile sites Analyzed 3/15/18
- 71. Lazy Loading Use “In The Wild” 442,000 mobile sites Analyzed 3/15/18
- 72. Preview Images
- 73. Optimizing Content Delivery Preview Images https://github.com/technopagan/sqip
- 75. Lazy Loading: Chrome Experiments
- 76. Lazy Loading: Chrome Experiments
- 77. Animated GIFs
- 78. Animated GIFs “The Graphics Interchange Format is not intended as a platform for animation, even though it can be done in a limited way.” -GIF89a Specification https://www.w3.org/Graphics/GIF/spec-gif89a.txt
- 80. Animated GIFs
- 81. Animated GIFs Animated GIF 3.8 MB 270% larger
- 82. Animated GIFs
- 83. Animated GIFs MP4: 256 colors 247KB 93% smaller
- 84. Animated GIFs Video Tags: <video loop autoplay muted playsinline controls = "false” src="goats.mp4”/> Video is not pre-loaded, will be last to download Img tags are fast! <picture> <source type="video/mp4" srcset=”goats.mp4"> <source type="image/webp" srcset=”goats.webp"> <img src=”goats.gif"> </picture> https://calendar.perfplanet.com/2017/animated-gif-without-the-gif/
- 85. Animated GIFs
- 86. Animated GIFs: Social Media
- 87. Animated GIFs: Social Media #FAKENEWS
- 88. Animated GIFs: Social Media
- 89. Animated GIFs https://dougsillars.com/2019/01/15/state-of-the-web-animated-gifs/
- 90. Addendum: What Are Your Customers Saying?
- 95. Addendum: Save-Data q_auto -> q_auto:eco 180KB -> 135 KB https://res.cloudinary.com/dougsillars/image/upload/w_1400,q_auto/v1540978150/IMG_20181028_153301_okeb2b.jpg
- 96. Addendum 2: Network Info
- 97. Addendum 2: Network Info // Network type that browser uses navigator.connection.type; // Effective bandwidth estimate navigator.connection.downlink // Effective round-trip time estimate navigator.connection.rtt // Upper bound on the downlink speed of the first network hop navigator.connection.downlinkMax
- 98. Addendum 2: Network Info // Network type that browser uses navigator.connection.type; // Effective bandwidth estimate navigator.connection.downlink // Effective round-trip time estimate navigator.connection.rtt // Upper bound on the downlink speed of the first network hop navigator.connection.downlinkMax 500 KBPS
- 99. Addendum 3: Base 64 Encoding Images embedded as Base64 in your HTML/CSS/JS • Fewer Requests • Images Now Block Rendering of Page • Images are 20-30% larger • Caching is limited • Difficult to reference more than once
- 100. Addendum 3: Base 64 Encoding • 91KB CSS Shared as University Template • 48KB is SVG • Never Appears on Any Page Departments, colleges and other units of the University of Nebraska–Lincoln should use the Nebraska N as a main identifier, not the University seal, on all publications, invitations, websites and other electronic media. https://unlcms.unl.edu/wdn/templates_4.1/css/all.css?dep=4.1.36
- 101. Addendum 3: Base 64 Encoding https://cdn.glowing.com/generated/css/base.474240e8485dbff13fd3652d24ef83bc.css
- 102. Conclusion Optimize Image: Quality Format Sizing Lazy Load if Possible aGIFs to movies Honor customer requests for less data Observe Network Conditions Avoid Base64 encoding Images
- 103. Video
- 104. 104 Video Buffer Rage: a state of uncontrollable fury or violent anger induced by delayed or interrupted streaming video content http://www.ineoquest.com/press-releases/new-research-reveals-buffer-rage-as-techs-newest-epidemic
- 105. Video Quality Metrics 1.Does the Video Start? 2.Does the Video Stall? 3.Does it Look Good?
- 107. Video Startup Conviva creen_Streaming_TV_Census_Report_FINAL.pdf Q1 2018: Video Startup 16.9B total Video plays 400M Fail to Start 2B Abandoned before Start ~800M hours of video playback lost
- 108. Video Startup Conviva creen_Streaming_TV_Census_Report_FINAL.pdf Q1 2018: Video Startup 16.9B total Video plays 400M Fail to Start 2B Abandoned before Start ~800M hours of video playback lost
- 109. Video Fails To Start
- 111. Video Startup Conviva creen_Streaming_TV_Census_Report_FINAL.pdf Q1 2018: Video Startup 16.9B total Video plays 400M Fail to Start 2B Abandoned before Start
- 112. Video Startup Delay After 2 seconds, every additional second corresponds to 5.8% increase in abandonment https://www.akamai.com/kr/ko/multimedia/documents/technical-publication/video-stream-quality-impacts-viewer-behavior-inferring-causality-using-quasi-experimental-designs-technical-publication.pdf
- 114. Preload When It Makes Sense Ad Playback Video Download
- 115. Preload When It Makes Sense Ad Playback Video Download
- 116. Preload When It Makes Sense Ad Playback Video Download
- 117. ..be Careful with Video Preload Preload = “auto”
- 118. …be Careful with Preload
- 119. Background Video
- 120. Video Background Video (as Downloaded): 5.3 MB Video 5 MB Audio 250 KB 5% of file Best Practice: To save bandwidth, remove the audio stream from videos that are played silently.
- 121. Video Background: Mobile Best Practice: If Viewport will not support Video… Don’t Download it
- 122. Video Background
- 123. Video Background 33.6 MB 27s 2560 x 1226 10 MBPS
- 124. Video Background Best Practice: Resize Video to reasonable size. 33.6 MB 27s 2560 x 1226 10 MBPS
- 125. Video Background Best Practice: Resize Video to reasonable size. PROTIP: Renaming the file is not enough…
- 126. Video Resizing • 1920x1080: 8.1 MB • 1280x720: 4.3 MB • 1080x608: 3.3 MB • 720x405: 1.76 MB http://res.cloudinary.com/dougsillars/video/upload/vc_auto,w_720/v1533591785/depend_p2ryou.mp4
- 127. Video Is Not Cheap
- 128. Video Is Not Cheap
- 129. Video Is Not Cheap
- 130. Video Is Not Cheap
- 131. Video Is Not Cheap After 20 free videos Each Video Download costs:
- 132. Video Is Not Cheap
- 133. Video Is Not Cheap
- 134. Third Parties No initial Video Download, but expect 700KB -1MB additional JavaScript on page load
- 135. Third Parties
- 136. Video Third Parties
- 137. Video Third Parties
- 138. Video Third Parties
- 139. Video Third Parties
- 140. Conclusion Optimize Image: Quality Format Sizing Lazy Load if Possible Only download Video when displayed Strip audio if silent Resize Videos for Mobile Audit 3rd Party Videos Streaming: Start with lower bitrates to speed video playback Streaming: Conservative bitrates *may* reduce stalls, but will lower quality Images Video
- 141. Summary Testing: WebPageTest https://www.webpagetest.org HttpArchive https://httparchive.org Images: ImageMagick https://www.imagemagick.org SSIM https://github.com/technopagan/cjpeg-dssim LazySizes https://github.com/aFarkas/lazysizes Responsive Breakpoints http://www.responsivebreakpoints.com/ Cloudinary https://www.cloudinary.com Tooling
- 142. Conclusion Images and Video Can Be Beautiful AND Fast
- 143. Video Streaming Manifest File: List of Available Streams Player Chooses a Stream Stream Manifest: List of Video Segments Player Downloads Segments into buffer Video Plays
- 144. Video Plays Optimizing Video Delivery Video Streaming Player can estimate network throughput Optimal video Bitrate HTTPArchive Mobile: 1.6 MBPS Desktop 5 MBPS
- 145. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8 Video Tracks Video Tracks (iFrames) Audio Tracks & Subtitles
- 146. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8 Video Tracks
- 147. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8
- 148. Optimizing Video Delivery Video Streaming Manifest File: List of Available Streams Player selects high bitrate stream Stream Manifest: List of Video Segments Buffer takes a long time to fill Video Does Not Play Player chooses low bitrate Buffer Fills Quickly Video Plays
- 149. Video Startup Conviva creen_Streaming_TV_Census_Report_FINAL.pdf Q1 2018: Video Startup Average Video Start Time: N. America: 4.91s Asia: 3.00s Europe: 4.30s
- 150. Video Streaming: Startup Time Low -> High High => Low Middle (Goldilocks)
- 151. Video Startup 10s 11s 12s 13s 14s 15s 16s 17s 4k Low->High: 4K Middle (Goldilocks): 4k:High->Low:
- 152. Video Startup 4k Low->High: 4K Middle (Goldilocks): 4k:High->Low: PROs: CONS: Fast Startup Initial Quality: Low Other Connections: Initial Quality: Low Very slow startup Fast Connections: Initial Quality: High Initial Quality: Good Initial Startup: Not fast, but not slow
- 153. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8 Testing with WebPageTest 3G
- 154. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8
- 155. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8
- 156. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8 Testing with WebPageTest 3G
- 157. Video Streaming: Manifest File 600k.m3u8
- 158. Video Streaming: Manifest File 600k.m3u8
- 159. Video Streaming: Manifest File https://hls.ted.com/talks/2208.m3u8
Editor's Notes
- #30: 47% smaller!
- #36: 1149 bytes, 700 Zipped
- #37: 1149 bytes, 700 Zipped
- #38: 1149 bytes, 700 Zipped
- #39: 1149 bytes, 700 Zipped
- #40: 1149 bytes, 700 Zipped
- #41: 1149 bytes, 700 Zipped
- #42: 1149 bytes, 700 Zipped
- #43: 1149 bytes, 700 Zipped
- #44: 1149 bytes, 700 Zipped
- #45: 1149 bytes, 700 Zipped
- #46: 1149 bytes, 700 Zipped
- #49: 47% smaller! Or 65% smaller from original!
- #74: file:///Users/demo/Documents/reponsiveimages.html
- #120: www.kidzania.com
- #121: www.kidzania.com
- #122: www.kidzania.com
- #123: www.depend.com
- #124: www.depend.com
- #125: www.depend.com
- #126: www.depend.com
- #128: www.govisland.com
- #129: www.govisland.com
- #130: www.govisland.com
- #131: www.govisland.com
- #132: www.govisland.com
- #133: www.govisland.com
- #134: www.govisland.com
