Embassies Case Studies
- 1. Vy Complex Gym U S E m b a s s y Chancery Building L I m a , P e r u ArquitectonicaArchitect In 1989
- 2. Why ?? US Embassy Chancery Building – Lima , Peru Because US Embassy in Lima Peru, and Lima is one of the dangerous cities in the world that has large number of terrorists and cocaine dealers, so it is a challenge to design an embassy that would meet the strictest security standards.
- 3. US Embassy Chancery Building – Lima , Peru Changes in Peru
- 4. US Embassy Chancery Building – Lima , Peru Shining Path :
- 5. US Embassy Chancery Building – Lima , Peru The new generation Embassy :
- 6. Name of Project : US Embassy chancery. Architects: Bernardo Fort-Brescia. Team:Arquitectonica. Landscaping : Structure engineer: Glenn Cameron. Electrical engineer: Mechanical engineer: Location : Lima, Peru. Address : Lima, EL DERBY Street Land area : 85000 sqm Project year : 1989 US Embassy Chancery Building – Lima , Peru
- 7. US Embassy Chancery Building – Lima , Peru ChoosingThe site : Setbacks of 30.5 m
- 8. US Embassy Chancery Building – Lima , Peru Location: Lima
- 9. US Embassy Chancery Building – Lima , Peru Location: Lima Peru: Peru, officially the Republic of, is a country in western South America. It is bordered in the north by Ecuador and Colombia, in the east by Brazil, in the southeast by Bolivia, in the south by Chile, and in the west by the Pacific Ocean. Peru is an extremely biodiverse country with habitats ranging from the arid plains of the Pacific coastal region in the west to the peaks of the Andes mountains vertically extending from the north to the southeast of the country to the tropical Amazon Basin rainforest in the east with the Amazon river.
- 10. US Embassy Chancery Building – Lima , Peru Location: Lima Lima is the CAPITAL and the LARGEST CITY OF PERU. It is located in the valleys of the Chillón, Rímac and Lurín rivers, in the central coastal part of the country, overlooking the Pacific Ocean. Together with the seaport of Callao, it forms a contiguous urban area known as the Lima Metropolitan Area. With a population of almost 10 million, Lima is the MOST POPULOUS metropolitan area of Peru, and the THIRD LARGEST CITY IN THE AMERICAS (as defined by "city proper"), just behind São Paulo and Mexico City.
- 11. US Embassy Chancery Building – Lima , Peru Approuch : CARR. PANAMERICANA EL DERBY LIMA , PERU
- 12. Surrounding: LIMA , PERU US Embassy Chancery Building – Lima , Peru Site size: One and a half Polo Playing Fields POLO FIELDS
- 13. US Embassy Chancery Building – Lima , Peru Bernardo Fort-Brescia is a founding principal of Arquitectonica. A native of Lima he did his early studies in Peru and Europe where he learned multiple languages which would later prove useful for his international career. He studied architecture and urban planning at Princeton University and received a Master of Architecture from Harvard University, where he later taught. He moved to Florida in 1975 to teach at the University of Miami. In 1977 he founded Arquitectonica with a group of young architects and set up a studio in Coconut Grove. Bernardo Fort-BresciaArchitect: Arquitectonica
- 14. US Embassy Chancery Building – Lima , Peru Site Details: - Surrounded by two main streets - Longitude site ( Rectangular ) - Surrounded by crowded area - Setbacks of 35.5 m from main streets and parking. Residential Commercial
- 15. US Embassy Chancery Building – Lima , Peru 21 acres 21 acres = 85000 sqm
- 16. GreenArea US Embassy Chancery Building – Lima , Peru Parking Inner Streets Solid Outer Streets Cars Entrance Pedestrians Entrance Site Plan: Plaza N
- 17. US Embassy Chancery Building – Lima , Peru Void Solid Site Plan: N
- 18. US Embassy Chancery Building – Lima , Peru Site Plan: 3 Gates N
- 19. US Embassy Chancery Building – Lima , Peru Design Inspiration Arquitectonica quite literally took inspiration from Peruvian history, modeling the base of the building on the structures of the : Ancient cities of Cuzco and Machu Picchu.
- 20. US Embassy Chancery Building – Lima , Peru Concept Approuch Layered on top are more Modern references that commingle Peruvian and American cultures. A grid of gold squares is meant to refer to Peru’s rich mining heritage. Sized to match the windows, they make the wall look less formidable. The bands of tinted glass suggest ashlar-patterned stone while recalling the strip windows of Modern office buildings.
- 21. US Embassy Chancery Building – Lima , Peru A grid of gold squares sized to match the windows
- 22. Neo-AndeanStyle US Embassy Chancery Building – Lima , Peru Architecture Style: Glenn Cameron
- 23. US Embassy Chancery Building – Lima , Peru Exterior
- 24. Night Shots US Embassy Chancery Building – Lima , Peru
- 25. Solid 85% Void 15% Basic shapes Many Colors Geometry Rhythm Grid Contrast US Embassy Chancery Building – Lima , Peru Elevations
- 26. Solid 85% Void 15% Basic shapes Many Colors Geometry Rhythm Grid Contrast US Embassy Chancery Building – Lima , Peru Elevations The façade was designed as a tapestry to clock the five- story bulk and minimal fenestration, “a Modern architectural version of a pre-Columbian textile,” Different materials give the illusion of depth ( Terrorists can’t scale flat surfaces), rein-forced perimeter walls are meant to resemble rock patterns of Inca structures.
- 27. US Embassy Chancery Building – Lima , Peru Elevations
- 28. The building includes : • Ceremonial Lobby • Security Checkpoints • Business information center • Research Center • Auditorium • ReceptionTerrace • Library • Conference Room • Consular services • Consular Courtyard US Embassy Chancery Building – Lima , Peru Due to U.S Department of state security requirements, only a schematic floor plan can be shown.
- 29. US Embassy Chancery Building – Lima , Peru Ground Floor Plan ( Functions ) Ceremonial Lobby Security Checkpoint BIC Research Center Auditorium ReceptionTerrace 1 2 3 4 5 6 Library Conference Room Consular Services Consular Courtyard Vertical Circulation Circulation 7 8 9 10 11 12
- 30. US Embassy Chancery Building – Lima , Peru Ground Floor Plan ( Privet/Public ) Private Public Semi-private Semi-public Visitors circulation Workers andVisitors circulation Workers circulation Workers andVisitors circulation
- 31. Ground Floor Plan ( Spatial Relationships ) US Embassy Chancery Building – Lima , Peru
- 32. Inside, the building footprint is highly flexible because it “allows for large chunks of contiguou s, adjacent floor space. US Embassy Chancery Building – Lima , Peru Interior Spaces
- 33. US Embassy Chancery Building – Lima , Peru Interior Spaces Inside the consular area, one of the most heavily-used sections of the embassy is a waiting room with terrazzo floor patterns that are meant to recall Peruvian textiles.
- 34. US Embassy Chancery Building – Lima , Peru Entrance & Facades
- 35. The materials (exterior) The materials (interior) US Embassy Chancery Building – Lima , Peru For more contemporary, defensive purposes, the trapezoidal panels are welded to steel plates embedded in concrete. Meant to create the illusion of depth along the top is a triangular pattern of two shades of limestone, anchored to the concrete structure. Like all façade cladding, by steel bolts on support angles. Inside the consular area, one of the most heavily-used sections of the embassy is a waiting room with terrazzo floor patterns that are meant to recall Peruvian textiles.
- 36. Embassy of Iran in Amman
- 37. Case studyMODEL
- 38. CASE STUDY Location: Amman - Jordan Surface Area: 2717 LandArea: 4676 sq. M. Consultant: Engineers Plshyr- Daalmran Contractor: Hussein Miqdad partners Designer: MR Ghanei. Architects PolsheerArchitecture & Planning Engineer Mohammad Reza Ghanei Clients Ministry of ForeignAffairs In lines
- 39. CASE STUDY In lines Commission 2003 Design 2003 - 2003 Construction 2004 - 2006 Occupancy 2006 Site 1,600 m2 Ground floor 900 m2 Total floor 3,400 m2 Costs 3,800,000 USD
- 40. Case studyArchitect philosophy of : Mohammad Reza Ghaneei EDUCATION - Master ofArchitecture from Tehran University ofArt - PhD, University of Paris XII Dr Ghaneei not only responds to his native historical/vernacular architecture, but also gives considerable importance to the contemporary context. His work experience in Iran, Europe and America has been extremely varied. His projects consists of a wide spectrum from the urban scale and regeneration to the restoration of historic buildings. Absar Pool Safavi Residence Sadri Residence Ghaneei House THEARCHITECT
- 41. Case study Iran embassy Jordan Middle east Location Jabal Amman Amman Radwan SITING/ Almolghi st. №7, Alrefaie st., Between Circle 3&4, AlzahranAve .Amman, Jordan PO. BOX: 173AMMAN 11118 JORDAN LOCATION
- 42. Dr-Mostafa Moslehzadeh Case study Consul MahmoudAsadi Ambassador FACTS ABOUTTHE EMBASSY Web site : www.iranembassyjordan.com Jordan in Iran: Jordan maintains an embassy in Tehran. Iran in Jordan: Iran's embassy in Amman is the only Iranian representation in Jordan. The Iranian embassy is one of 107 foreign representations in Jordan, and one of 104 foreign representations inAmman. The Iranian embassy in Amman is one of 140 Iranian diplomatic and consular representations abroad. FactsAboutTheEmbassy
- 43. Tehran city Case study Tehran only had a small population until the late 18th century, but began to take a more considerable role in Iranian society after it was chosen as the capital city, Tehran is Iran's primate city, and is considered to have the most modernized infrastructure in the country; however, the gentrification of old neighbourhoods and the demolition of buildings of cultural significance has caused concerns. TEHRAN
- 44. Amman city Case study -Jordan has a pleasant Mediterranean climate. -The capitol,Amman, is built in terraces on the hills, taking advantages of pleasant breeze that flows through them.The main idea for the Iranian Embassy in Jordan is creation terraces of open and closed spaces in five different volumes, to take advantages of the climate and create a pleasant environment inside. AMMAN
- 45. • JabalAmman is one of the seven hills that originally made upAmman, Jordan.Today, JabalAmman is near the old downtown area • is located west of the city. • Weather conditions : slope faces south - wind light , typically Mediterranean • Featuring proximity to government buildings and diplomatic plan … Zahran st. Case study . JABALAMMAN
- 46. Case study Le Royal Hotel 3rd Circle 4th Circle Queen Zain sharaf palace EmbassiesArea ( Iran – France – Spain – Russia – austria-lativa-baraguay) Public park LandMarks
- 47. Case study Embassy of France Embassy ofAustria Embassy of Latvia Embassy of Iran Embassy of Spain Embassy of Russia Zahran st. Embassieszone
- 49. Case study 2 min. 3rd circle Embassy of iran 3rd circle. The embassy Zahran street Approach
- 50. Case study Embassy of iran 3rd circle. Intercontinental hotel Grand Hyatt amman hotel Le royal hotel Sur.Hotels
- 51. Case study embassies over the world? In a world of continuous diplomatic relations in the 21st century is changing how will these concepts institutions thoughts and ideas on topics such as : - Security - openness - a manifestation of cultural origins updating compliance with the target culture and society looking to the future - a sign of friendship - Humility - stability - sustainability, etc. EMBASSIES
- 52. Case study Sometimes contradictory concepts that must be mixed together in an architectural design so that neither the benefit of others is not. the Iranian proposal is not incompatible with their bed.Also provide: - adequate security - Openness - Humility - authenticity. Iran is reminiscent of the authority identified but not arrogant . building construction that would embassies needs in terms of : - space - light - Circulation - glossy appearance - fits with the anatomical tissue surrounding natural budget. EMBASSIES
- 53. Case study In general, the 4676 square meter plot Land - 2717 square meters to buildings and structural elements - 2479 square meters of to landscaping and green space and waterfront and is dedicated ramp . In these series - the Consular Section of two separate buildings - embassies of the three buildings is distinct. PROGRAM
- 54. Case study Including spaces designed in this series include: 1. platform such as indoor and outdoor parking area of 324 square meters on it at the level of 6 meters. 2.The consulate of gold land relatively high portion of the ground floor and the first building in 1076 with gold 3. central courtyard and an area of 670 square meters waterfront 4.The embassies of the gold chronic high ground and first floors of the second and third with an area of 1835 5.The one-storey building Iran and space platforms such as the building of 250 square meters with gold PROGRAM
- 55. Case studyDetails of concept 1. Concepts and features of these ideas can be developed in harmony with the environment 2. splendour of nature and culture combined with design platform. 3. Security and privacy of the subject embassies taken into consideration. 4. Along with the excitement of discovering the ease of finding a space. 5. Install a sense of stability summarized in the conceptual elements and functions embodied on. 6. contemporary oriental atmosphere CONCEPT
- 56. Case studyDetails of concept To take advantage ofAmman’s Mediterranean climate, the Iranian embassy is constructed of terraces of open and closed spaces in five different volumes that encourage airflow to create a cool environment inside. The structure evokes the urban environment of Amman, which is built on terraces on the hillsides. CONCEPT
- 57. Case study In order to achieve these architectural concepts, thoughts and ideas were put forward various ideas that ultimately led to the special architectural idea is to combine the cube-shaped elements linearly in a Larger blades invisible part of regular geometric forms cut it without losing your conventional rectangular shape. creation and transformation plan PROGRAM
- 58. Case study end beginning 15 meters 7 meters north south In general, the space is dominated by two points at the beginning and end .The shorter building term embassy is the consular section building height of 15 meters with a height of 7 meters in the north and in the south with the use of horizontal elements and connected to each other a visual tension between them strong created and set to be a visual system of the composition . Repeated cube and cube forms at different height levels and emphasizes the visual system above the confined space while creating spatial and visual continuity PROGRAM
- 60. Basement floor plan Vertical circulation Ramps
- 61. Ground Floor Plan Vertical circulation Ramps
- 65. The Features The use of white stone exterior. Case study In order to bond with the external environment. FEATURES
- 66. Case study In order to define space and security. Using continuous vertical surfaces . FEATURES
- 67. Case study to introduce space to clients. Designing two rotational path around the set and stone walls A walkway winds up to the embassy, its walls perforated with openings of different sizes spaced in an irregular pattern, creating a play of light and shadow. FEATURES
- 68. Case study Show of authority. Embassy building height at the highest point of the land. FEATURES
- 69. Case study to link with the more general section of the city. Directly related to public input : (available with the console) or Zahran Street FEATURES
- 70. Case study The design of horizontal and platform on the roof terrace . to enjoy the beautiful landscape and the Mediterranean breeze FEATURES
- 71. Case study for openness Plan. The use of horizontal levels and open space FEATURES
- 72. Case study The land natural slope intensified by the height of construction. in order to : 1- take advantage of the characteristics of the environment . 2- emphasis on orientation set. FEATURES
- 73. Case study Design of green space for more compatible with the surrounding nature. FEATURES
- 74. Case study in order to recall the original architectural elements of Persian (garden-yard Central) The use of the waterfront and central green spaces The administrator guidance. FEATURES
- 75. Case study The walkway walls perforated with openings of different sizes spaced in an irregular pattern, creating a play of light and shadow. FEATURES
- 78. Conclusion CASE STUDY using the country architecture elements in designing the embassy . Using Jordan architectural element to not be out of the context. Well defined as an embassy from the exterior. Combination between the indoor and the outdoor areas.
- 80. CANADIAN EMBASSY Area 180000.0 ft2 ProjectYear 2005 Architects KPMB architects Location Leipziger Platz 17, 10117 Berlin, Germany
- 81. ARCHITECT BRUCE KUWABARA Manitoba hydro palaceCenter for addiction and mental health Art gallery of Hamilton
- 82. • The design expresses elements of Canada's identity which conforms to Berlin’s stringent design guidelines. housing the Canadian mission the Department of ForeignAffairs InternationalTrade commercial offices residential space THE DESIGN PROVIDES : • located beside the former site of the Berlin Wall that divided the old East andWest portions of the city. PAST PRESENT EAST WEST THE CONCEPT OF BRIDGING
- 90. INTERIOR SPACES Public media room Ambassador’s office Entrance hall with river
- 91. Auditorium, cinema Canada room On the ground floor, an exhibition room can be opened up either entirely or selectively to this central space, allowing it to accommodate
- 92. INTEGRATED ART • works of art that are a permanent part of the building's structure and design. • Serving functional as well as aesthetic purposes, these works are based on the theme of the Canadian landscape, and are created from natural or Canadian-built products "Canopy“ BY Robin Collyer Digital photographic image on vinyl applied to architectural louvers in the Embassy courtyard "River “ BY Barbara Steinman Granite and quartzite inlaid floor design for main Embassy reception area
- 93. "North" Adrian Göllner Wood and aluminum floor design in theTimber Hall The arrangement of stars depicts an astronomical method for finding north. "CanadianWeather Patterns" Barbara Astman Fritted pattern on curved glass wall around the Timber Hall "The river as thread, the canoe as needle" John McEwen Bronze sculpture in the Canada Passage
- 94. MATERIALS • embodying Canada’s regional diversity by using a variety of materials from across the country black granite and maple from Quebec Eramosa marble from Ontario Tyndall limestone from Manitoba copper • providing a rich dynamic of interior and exterior spaces Framed glazing
- 95. The timber hall: the focus of the design • On axis with the main entrance in the central bay of the Leipzig Platz façade. • This decahedral room, is wrapped by a gently ascending circular stair • informs both interior and exterior spaces.
- 96. • TheTimber Hall is open to the sky via a lightly framed glazed skylight system, includes a state-of- the-art conference facility and first-class conference room.
- 98. Embassy of Ecuador Bogotá, Bogota, Colombia ArquiteckArchitects In 2013
- 99. Embassy of Ecuador •Architects Arquiteck Location Bogotá, Bogota, Colombia •Project Area 772.0 m2 •ProjectYear 2013
- 100. The entire program is divided into three floors, offices for the embassy, the consulate, the attaché, meeting rooms, common areas and services that occupy a total of • 772.19 built m2 and •595.81 m2 of gardens, terraces and green roofs PRIVATE PUBLIC
- 101. Reception CirculationStairs Parking Toilets Consul office Financial officeConsular offices GF
- 102. Meeting room The bridge Attaché offices ToiletsProtocols room Minister officeStairs Circulation Alert offices 1st
- 103. Ambassador’s office Toilets Stairs Circulation ArchiveMulti-purpose hall Green cover 2nd
- 104. Form
- 105. Sections Elevations
- 106. Context • Located in a high density neighborhood : • consisting of residential and office buildings • around six stories high • with a predominant use of brick facades contrast with the surrounding buildings. low heightgardens neutral palette of colors and materials
- 107. Materials • Large white glass facades, double height panels made of ornamental stone that frame and define precise geometries accompanied by substantial parallelepipeds framing important interiors, lines that break through the large masses that define the main idea and that are part of the artisanal and socio-political concepts most representative of Ecuador: the stone wall, the bridge, and the different volumes which are clad with textures and openings that work to contain and convey; contain information as a "bunker" and convey social and political transparency.
- 108. Interior spaces • The interior spaces at the embassy are open and transparent, visual permeability is limited as the program DOES NOTALLOW IT but still, we are able to get a pretty pleasant and functional lighting comfort maintaining an daylight atmosphere during business hours. • COLOR PALETTE: is neutral, grayscale, light earth colors and environments intended for diplomatic tranquility and production of information, there are NO DISTRACTIONS or interruptions.
- 109. • The roofs and gardens are a cornerstone of the proposal in terms of bio-climatic and sustainable criteria, an adequate balance in the chromatic scale chosen to show large areas of vegetation, creating an urban contrast while allowing energy savings and comfort within the building.
- 111. Sweden EMBASSY Washington, DC, USA Thomas Hanse GertWingårdh In 2006
- 112. House of Sweden in Washington D.C Location: Washington, DC, USA Area: 8157.0 sqm Project Year: 2006 Gert Wingårdh Thomas Hanse
- 113. A result of an architecture contest announced by the National Property Board of Sweden in 2002 House of Sweden Contest requirements included Atmosphere of openness & transparency Public areas for exhibits & seminars Two floors of apartments
- 114. It’s Located on the Georgetown Harbor site on the bank of the Potomac River LOCATION
- 115. Views To The Site View 1 View 3 View 2
- 116. View 2 Views from the Site View 1
- 117. Contemporary Scandinavian architecture A Physical Representation of Swedish Values OPENNESS TRANSPARENCY DEMOCRACY unusual features in an embassy Rejecting the conventional embassy typology Simplicity… Modernity… Unpretentious Elegance CONCEPT
- 118. A contradiction that illustrates a general theme where a transparent lower part carries the more solid upper levels CONCEPT
- 119. The Rock Creek The Potomac River “House of Sweden” An emblematic building… illuminating the idea of the open society No Fence
- 120. 30th Street Parking is not allowed for guests in this street “House of Sweden” NO FENCE FENCE “Another Ordinary Embassy” DESIGN It invites and inspires Swedes and Americans in an ongoing creative dialog. An atmosphere of positive, creative cooperation between two great countries… creating a base for cultural and commercial exchanges
- 121. Public Main Entrance Private Side Entrance 30th Street highest point to xpected to rise
- 122. Materials Shade to the offices Wooden ring Provides & Privacy to the apartments the Swedish tradition of wood painting is revived by a computer-generated print Six different patterns of exaggerated wood grain were combined & enclosed between two sheets of glass
- 123. Like It’s Floating Its sparkling reflection in the Potomac River Sweden's northern latitude is radically different to Washington's geographical location so … The architects wanted to create "the Nordic light in the dark Southern night" Backlighting the panels cloaking the balconies
- 124. The architects worked with a gradient of white dots on glass panels The gradient extends over three storeys Crystal-clear glass at the bottom Speckled with more and more dots Gradually becomes white Exterior Glass Opaque Transparent
- 125. Interior Glass By: The Swedish artist “Ingegerd Råman” She used key elements in the Swedish landscape She created a glass piece known as "March 6 a.m." Snow Rain Black Granite Like “slowly running water”
- 126. The maple ceiling is cut through with unevenly spaced, round holes Stairs.. Walls.. Floors are made of maple
- 127. A peninsula surrounded by the Potomac and Rock Creek Water Resistance Solutions The risk of flooding called for water-resistant solutions below the first floor.
- 128. DESIGN The Building Houses: The Embassy of Sweden The Embassy of Iceland Office suites Event Center (conference exhibition halls) Two floors of apartments Total Area Approximately (8100 sqm) • Area Event Center: 1200 sqm • Area Office Suites: 2662 sqm • Total Rentable Area excl Garage: 6060 sqm We’ll show next the public zones which visitors can rent by a confirmation from the house of sweden
- 129. Ground Floor Plan
- 130. Surrounded by glass with an opened terrace and unique moveable glass wall panels and interior mobil glass wall. Perfect for retreat style day meetings, fabulous receptions and dinners Ground Floor Plan Anna Lindh hall
- 131. The Anna Lindh Hall Exhibition Layout Theatre Seating Layout Banquet Seating Layout Anna Lindh is the most popular space in the house of sweden… Its glass walls bring the outdoors inside providing spectacular views of both the Potomac river and Rock Creek
- 132. Main Entrance Anna Lindh hall Terrace
- 133. First Floor Plan
- 134. First Floor Plan Alfred Nobel hall An Art Gallery and Exhibition HallEvent Center Lounge Fyra and Fem Tre and Tva

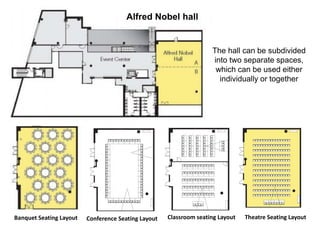

- 135. Alfred Nobel hall The hall can be subdivided into two separate spaces, which can be used either individually or together Theatre Seating LayoutBanquet Seating Layout Classroom seating LayoutConference Seating Layout
- 136. Black walls create the unique canvas for the Art Gallery Exhibitions to really stand out AV equipment.. high end sound system and in house tables and chairs for conference Alfred Nobel hall
- 137. Event Center Lounge Situated on the first floor … The event center lounge is ideal for informal gatherings and evening cocktail parties. It is highlighted by both indoor and outdoor reflective pools and a great view of Rock Creek Guests can walk onto an outdoor stone walkway
- 138. Tva and Tre TvaTre Tva and Tre, two intimate conference rooms on the first floor plan, are ideal for smaller meetings or as part of a larger event as breakout rooms Each room comes equipped with a projector and can comfortably accommodate up to 14 people
- 139. Fyra and Fem Fyra and Fem are two midsized conference or reception rooms that can be used separately or together Classroom seating LayoutClassroom seating Layout Theatre seating Layout Conference Seating Layout
- 140. Fyra’s northern glass window overlooks House of Sweden’s beautiful landscaped garden Conference Seating Layout Fyra and Fem
- 141. Second Floor Plan
- 142. Third Floor Plan Every apartment has an access for the balcony which is covered by the wooden maple belt
- 143. Fourth Floor Plan
- 144. Terrace
- 145. Section A-A Section B-B Horizontal Circulation Vertical Circulation Sections Section A-A Apartment’s Balconies
- 146. South Elevation North Elevation East Elevation West Elevation
- 147. Dutch Embassy Rudy Uvtenhaak In 2010 Abdoun,Amman, Jordan
- 148. Dutch Embassy in Amman •Architects: Rudy Uvtenhaak •Location: Abdoun, Amman, Jordan •Client: Ministry of Foreign Affairs •Area: 1200.0 sqm •ProjectYear: 2010
- 149. Architect & Some of his work: Rudy Uvtenhaak The Municipal Office in Leyweg Life Sciences at the University of Groningen Veranda Multi-story Car Park
- 150. The Dutch embassy project concerns the renovation of an understated villa within a walled garden. The building was renovated and extended because it was: Reason For Renovation: too small not earthquake-proof.
- 151. *Hospitality in combination with security The embassy is a modern interpretation of them. Concept: -They were inspired by: “Classic modern architecture as a new and contemporary image, adapted to the local context of building traditions and climate.“ in the structural vocabulary ofAmman
- 152. Movable “parasol” shading on the south façade to control solar heat gain Photovoltaic panels providing approx. 3% of the building’s lighting demand Fabric covering portions of the roof to reduce the building’s heat island effect a. Existing structure reused for part of the design program Parasol structural system MAIN ENTRANCE ENTRANCE Existing swimming pool reused as a thermal storage tank for the HVAC systems Solar collectors to provide hot water that is transferred directly to the building or stored in the thermal storage (existing pool) This building has been certified under the LEED Green Building Rating System:
- 153. Program: The entrances and the various consulate functions are situated on the ground floor in the original building layer, while a separate new structure above this houses the more representative section of the embassy. Ground Floor Plan
- 154. First Floor Plan
- 155. Ground Floor Plan Zoning Plans Zoning:
- 156. First Floor Plan Zoning
- 157. Section A-A
- 158. Materials & Framework: unified character by a light-filtering portico made of local Jerusalem Stone. This framework: -emphasizes the relation with the garden -shades the building from the heat of the sun
- 159. Spanish Embass José Ramón Gámez Zahran Street
- 160. Architect: Spanish architect José Ramón Gámez Location: on Zahran Street between Fourth and Fifth Circle Area: 1600 sqm Spanish Embassy in Amman
- 161. Architect: Spanish architect José Ramón Gámez -though he has participated on juries in South America. “I think of architecture as a process like life is a process. It’s not an object and I like its flexibility,” says Ramón, discussing how a city is not static. “For me, a building is not a completely finished element. It’s constantly changing.A building is to be lived in and maybe in the future it will change into another building; this process is very interesting to me.” The embassy project in Jordan the architect’s first international venture
- 162. Concept: The inspiration The etched façades of Petra. “The concept for the design was to carve out a space inside a large stone and make a place for people to live and work,”explains Ramón. the stone veneers of the exterior continued indoors with the extensive use of concrete.
- 163. The open floor plan The wooden stairs, The whitewashed metal railings the carpeted areas. “I decided to make a softer environment for the people working in the building,”says the architect. “The most important element of design is the relation between different spaces inside,and to imagine people using the space” To counter the roughness of the stone Ramón blended cozier elements, through out:
- 164. LOCATION Situated on Zahran Street between Third and Forth Circle -where Spain has expanded its consulate in Amman into a larger embassy
- 165. SITE PLAN the landscaped compound rooftop gardens RooftopTerrace Greenery Mesh Greenery is injected into the space
- 166. one primary challenge Having to move the main entrance Rethinking the design *Due to issues with traffic and security The functioning entrance was relocated to the side street MovingThe Entrancee
- 168. SOUTH ELEVATION
- 169. EAST ELEVATION
- 170. WEST ELEVATION
- 171. Cellar Plan PLANS
- 172. Basement Plan
- 173. Ground Floor Plan
- 174. First Floor Plan
- 175. Second Floor Plan
- 176. Third Floor Plan
- 177. Cellar Plan Zoning PLANS ZONING
- 178. Basement Plan Zoning
- 179. Ground Floor Plan Zoning
- 180. First Floor Plan Zoning
- 181. Second Floor Plan Zoning
- 182. Third Floor Plan Zoning
- 183. STRUCTURAL COLUMNS
- 184. SECTION A-A SECTIONS
- 185. SECTION B-B
