Everything can be a bundle - making OSGi bundles of Java legacy code - Gunnar Ekolin, Makewave
- 1. June 10-11, 2008 Berlin, Germany Everything can be a bundle – Making OSGi bundles of Java legacy code Erik Wistrand wistrand@makewave.com Gunnar Ekolin ekolin@makewave.com
- 2. 2 •! Lots of Java code has been written taking stuff for granted •! Just one classloader •! System.exit() is OK to call •! A file system is present •! A static main() method is used for start-up •! ... ...this leads to classloading problems, premature exit of the entire framework and various internal bugs What's the problem?
- 3. 3 The Knopflerfish OSGi framework contains code that can •! Start jar files with only a static main method •! Automatically import/export packages •! Patch code that uses “bad” methods regarding classloading etc. What can be done?
- 4. 4 Installing a non-bundle JAR-file •! The Auto-Manifest feature of Knopflerfish makes it possible to take any jar file and install it as if it where bundle •! All contained packages will be exported •! Dynamic-Import: * used to get access to shared packages.
- 5. 5 Auto-Manifest - Configuration The file automanifest.props 1.match.filter=(location=*hello_world-app*)! 1.export.filter=(pkg=*)! 1.export.file.filter=(file=*.class)! 1.header.DynamicImport-Package=* 1.header.Import-Package=[remove] 1.header.Export-Package=[autoexport]
- 7. 7 Demo: Hello World •! Install the Hello World application hello_world-app-1.0.0.jar •! The demos are available for download from http://www.knopflerfish.org/demos/knopflerfish-osgi-berlin-2008.zip
- 8. 8 Main-Class as Activator - Launch java -Dorg.knopflerfish.framework.automanifest=true -Dorg.knopflerfish.framework.automanifest.config= file:automanifest.props -Dorg.knopflerfish.framework.debug.automanifest= true -Dorg.knopflerfish.framework.main.class.activation= file:jars/hello_world-app/hello_world-app-1.0.0.jar -jar framework.jar
- 9. 9 System.exit()! •! An application normally calls System.exit(0) to terminate. •! This will kill the entire OSGi framework. •! Common workaround: •! Modify the application source to be OSGi aware and recompile. •! Impractical. •! License issues. •! Source may not be available.
- 10. 10 SinceallbundleclassesareloadedviatheOSGiframework,theframeworkcanmodify th e byte-code on the fly to use the correct classloader: 1. Load original byte code. 2. Find occurrences of “wrong” method calls. 3. Replace with call to “right” method. 4. Use the modified class. (5. Profit!)! A new approach – automatic byte code modification
- 11. 11 BundleClassLoader The Knopflerfish implementation Bundle Patched BundleASM patches.props
- 12. 12 •! Uses the ASM byte-code manipulation library. •! A configuration file can specify which bundles/ classes should be modified. •! Bundles are automatically modified as they are loaded. Yes, this is a poor man's aspect oriented framework. btw, LDAP filters are the best thing since sliced bread. Yes, they are! The Knopflerfish implementation
- 13. 13 Default set of patches •! java.lang.ClassLoader.getSystemClassLoader()! •! Returns the bundle classloader. •! java.lang.System.exit(int)! •! Calls BundleContext.stop(), disabled by default. •! java.lang.Class.forName(String)! •! First tries the default classloader, then the bundle's classloader. •! java.lang.Class.forName(String,boolean,ClassLoader)! • F irst tries the specified classloader, then the bundle's classloader.
- 14. 14 Patching - Launch java -Dorg.knopflerfish.framework.patch=true -Dkf.patch.systemExitWrapper=true -cp framework.jar:asm-3.1.jar org.knopflerfish.framework.Main
- 15. 15 Demo: Hello World •! Start the Hello World application and stop it by closing the window. •! Same thing again with default bundle patching enabled. •! The demos are available for download from http://www.knopflerfish.org/demos/knopflerfish-osgi-berlin-2008.zip
- 16. 16 Classloading problems •! Old, non-OSGi-aware libraries can easily be wrapped as an OSGi bundle. •! Sounds easy, just create a manifest file and export/ import the necessary stuff, ...but they may still run into classloading problems. ClassNotFoundException: Cannot find com.acme.ICustomer
- 17. 17 Why ClassNotFoundException •! For the OSGi import/export mechanism to work, the bundle must use the Bundle classloader. •! However, many libraries uses the system classloader or the thread's classloader •! Works great in standalone apps •! Does not work at all in typical OSGi settings
- 18. 18 package mypackage; class Foo { System classloader Bundle classloader mypackage.Foo.class mypackage.Bar.class Class c = ...getContextClassLoader().loadClass(“mypackage.Bar”); Class c = Foo.class.getClassloader().loadClass(“mypackage.Bar”); OSGi framework Fails! ok!
- 19. 19 •! Modifying the library source to be OSGi-aware and recompile •! Impractical •! License issues •! Wrapping each library call in code that sets the thread's context class loader •! Tricky to find all cases •! Boilerplate code is a Bad Thing •! Put all classes on the system class path! •! Really just hurts Common workarounds to fix classloading
- 20. 20 Demo – run jEdit as a bundle jEdit bundle Knopflerfish OSGi + ASM jEdit 4.2 std distribution Std OSGi bundles Wrapper methods JVM
- 21. 21 Let's patch all library calls to Class.forName(String name, boolean init, ClassLoader cl)! Example patch
- 22. 22 public static Class forName3Wrapper(String name, boolean initialize, ClassLoader cl, long bid, Object context) throws ClassNotFoundException { // use bundle classloader instead return ... } First, write the wrapper method
- 23. 23 •!Find the string signature of the method to be patched java/lang/Class.forName(Ljava/lang/ String;ZLjava/lang/ClassLoader;)Ljava/ lang/Class; •!Find the string signature or the static wrapper method that should replace the above call org/knopflerfish/framework/ ClassPatcherWrappers.forName3Wrapper Next, find signature strings
- 24. 24 patch.1.from= java/lang/Class. forName(Ljava/lang/String;ZLjava/lang/ClassLoader;) Ljava/lang/Class; p at ch.1.to= org/knopflerfish/framework/ClassPatcherWrappers. forName3Wrapper patch.1.static=true patch.1.active=true # Optional LDAP-filter with keys: classname, methodname, methoddesc, # methodaccess, bid, location and all manifest headers. patches.filter=(&(!(classname=org.knopflerfish.*)) (!(classname=org.osgi.*))(location=*))! Create configuration file
- 25. 25 Specify Configuration File •! A global (default) patch configuration file can be specified as the value of the (system) property: org.knopflerfish.framework.patch.configurl •! Each bundle can specify a bundle specific patch configuration file via the manifest header: Bundle-ClassPatcher-Config:!/patches.props
- 26. 26 java -Dorg.knopflerfish.framework.patch=true -Dorg.knopflerfish.framework.patch.configurl= file:patches.props -cp framework.jar:asm-3.1.jar org.knopflerfish.framework.Main ...and launch

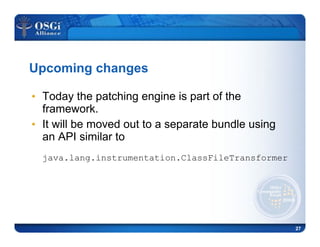

- 27. 27 Upcoming changes •! Today the patching engine is part of the framework. •! It will be moved out to a separate bundle using an API similar to java.lang.instrumentation.ClassFileTransformer
- 28. June 10-11, 2008 Berlin, Germany Q&A Gunnar Ekolin ekolin@makewave.com
- 29. June 10-11, 2008 Berlin, Germany Everything can be a bundle – Making OSGi bundles of Java legacy code Erik Wistrand wistrand@makewave.com Gunnar Ekolin ekolin@makewave.com
