Extending Oracle E-Business Suite with Ruby on Rails
2 likes2,212 views
This document discusses extending Oracle E-Business Suite using Ruby on Rails. It provides an overview of how to extend EBS functionality by embedding EBS data in other systems or customizing forms and reports. It then discusses the evolution of EBS extension approaches over time from custom PL/SQL to various Java-based frameworks. It introduces Ruby on Rails as an alternative approach, describing how Rails uses an MVC architecture and Active Record pattern. It demonstrates how to connect Rails to Oracle databases using enhanced Oracle adapters and call PL/SQL from Ruby. Finally, it discusses deployment options and provides references for more information.
![Action Controller
class PostsController < ApplicationController
def index
@posts = Post.all
end
def show
@post = Post.find(params[:id])
end
def new
@post = Post.new
end
# ...
end](https://image.slidesharecdn.com/extendingoracleebswithrubyonrails-111006202825-phpapp02/85/Extending-Oracle-E-Business-Suite-with-Ruby-on-Rails-24-320.jpg)
![PL/SQL calls from Ruby
(old way)
require "oci8"
conn = OCI8.new("hr","hr","xe")
cursor = conn.parse <<-EOS
BEGIN
:return := test_uppercase(:p_string);
END;
EOS
cursor.bind_param(':p_string',"xxx",String)
cursor.bind_param(':return',nil,String,4000)
cursor.exec
puts cursor[':return']
cursor.close](https://image.slidesharecdn.com/extendingoracleebswithrubyonrails-111006202825-phpapp02/85/Extending-Oracle-E-Business-Suite-with-Ruby-on-Rails-30-320.jpg)
![class Employee < ActiveRecord::Base
set_create_method do
plsql.employees_pkg.create_employee(
:p_first_name => first_name,
ActiveRecord :p_last_name => last_name,
:p_employee_id => nil
)[:p_employee_id]
with end
set_update_method do
PL/SQL plsql.employees_pkg.update_employee(
:p_employee_id => id,
:p_first_name => first_name,
CRUD )
:p_last_name => last_name
procedures end
set_delete_method do
plsql.employees_pkg.delete_employee(
:p_employee_id => id
)
end
end](https://image.slidesharecdn.com/extendingoracleebswithrubyonrails-111006202825-phpapp02/85/Extending-Oracle-E-Business-Suite-with-Ruby-on-Rails-33-320.jpg)
Extending Oracle E-Business Suite with Ruby on Rails
- 1. Extending Oracle E-Business Suite with Ruby on Rails
- 2. Raimonds Simanovskis github.com/rsim @rsim .com
- 3. Why to extend Oracle E-Business Suite?

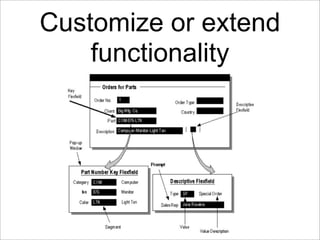

- 4. Customize or extend functionality
- 5. Embed EBS data in other systems
- 6. Simplify and make usable
- 7. Simplify and make usable
- 8. Simplify and make usable
- 9. How to extend Oracle E-Business Suite?
- 10. Release 11, 1998 Custom Forms, Reports, PL/SQL PL/SQL
- 11. Self-Service Web Applications 11, 1998 PL/SQL generated web pages PL/SQL
- 12. Self-Service Web Applications 11i, 2000 PL/SQL => JSP Java
- 13. OA Framework 11i, ~2005 JSP => full MVC framework Java
- 14. OA Framework 12, 2007 or maybe move to ADF? “My general advice is to stick with OAF so long as you are working with the E-Business Suite, and wait until you move to the Fusion Applications before moving to ADF” Java -- Steven Chan
- 15. Oracle E-Business Suite today ADF? Java “Extending Oracle E-Business Suite with Oracle ADF and Oracle SOA Suite” APEX? PL/SQL “New Whitepaper: Extending E-Business Suite 12.1.3 using Oracle Application Express”
- 16. Do not blindly trust what Oracle is recommending...
- 17. Many Open-Source Web Technologies CSS 3 Raphaël.js
- 18. What is Ruby on Rails?
- 19. Ruby is object-oriented dynamic programming language simple from outside Yukihiro Matsumoto or “Matz” powerful inside
- 20. Ruby on Rails Web applications development framework Developed in Ruby Extracted from 37signals Basecamp application Open source software Focused on developer productivity Agile software development approach

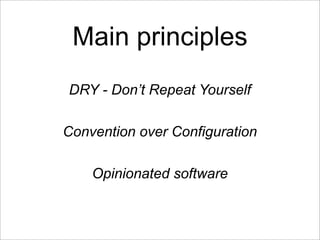

- 21. Main principles DRY - Don’t Repeat Yourself Convention over Configuration Opinionated software

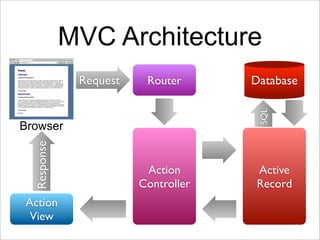

- 22. MVC Architecture Request Router Database SQL Browser Response Action Active Controller Record Action View
- 23. Active Record (Model) class CreatePosts < ActiveRecor::Migration def self.up create_table :posts do |t| CREATE TABLE posts ( t.string :title id NUMBER(38) NOT t.text :body NULL, t.timestamps title VARCHAR2(255), end body CLOB, end created_at DATE, end updated_at DATE ); CREATE SEQUENCE posts_seq; class Post < ActiveRecord::Base # nothing here! end post = Post.new post.title = "First post" post.save post = Post.find(1) puts post.name # output: "First post"
- 24. Action Controller class PostsController < ApplicationController def index @posts = Post.all end def show @post = Post.find(params[:id]) end def new @post = Post.new end # ... end
- 25. Action View <h1>Posts</h1> <% @posts.each do |post| %> <h2><%= post.title %></h2> <h3>Created at <%= post.created_at %></h3> <p><%= post.body %></p> <% end %>

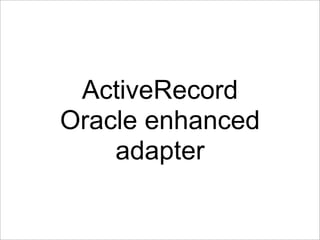

- 26. ActiveRecord Oracle enhanced adapter
- 27. Multi-platform support oracle_enhanced adapter Ruby 1.8.7 Ruby 1.9.2 JRuby ruby-oci8 ruby-oci8 JDBC
- 28. Oracle Data Types Ruby Rails Oracle Fixnum :integer NUMBER Float :float NUMBER BigDecimal :decimal NUMBER, DECIMAL Time :datetime DATE Time :time DATE Date :date DATE String :string VARCHAR2 String :text CLOB String :binary BLOB True/FalseClass :boolean NUMBER(1), CHAR(1)

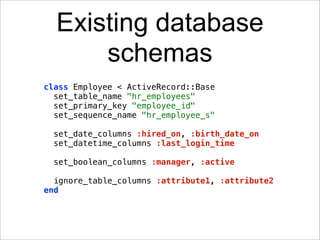

- 29. Existing database schemas class Employee < ActiveRecord::Base set_table_name "hr_employees" set_primary_key "employee_id" set_sequence_name "hr_employee_s" set_date_columns :hired_on, :birth_date_on set_datetime_columns :last_login_time set_boolean_columns :manager, :active ignore_table_columns :attribute1, :attribute2 end
- 30. PL/SQL calls from Ruby (old way) require "oci8" conn = OCI8.new("hr","hr","xe") cursor = conn.parse <<-EOS BEGIN :return := test_uppercase(:p_string); END; EOS cursor.bind_param(':p_string',"xxx",String) cursor.bind_param(':return',nil,String,4000) cursor.exec puts cursor[':return'] cursor.close
- 31. ruby-plsql library gem install ruby-plsql require "ruby-plsql" plsql.connect! "hr","hr","xe" puts plsql.test_uppercase('xxx')

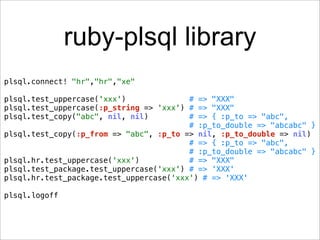

- 32. ruby-plsql library plsql.connect! "hr","hr","xe" plsql.test_uppercase('xxx') # => "XXX" plsql.test_uppercase(:p_string => 'xxx') # => "XXX" plsql.test_copy("abc", nil, nil) # => { :p_to => "abc", # :p_to_double => "abcabc" } plsql.test_copy(:p_from => "abc", :p_to => nil, :p_to_double => nil) # => { :p_to => "abc", # :p_to_double => "abcabc" } plsql.hr.test_uppercase('xxx') # => "XXX" plsql.test_package.test_uppercase('xxx') # => 'XXX' plsql.hr.test_package.test_uppercase('xxx') # => 'XXX' plsql.logoff

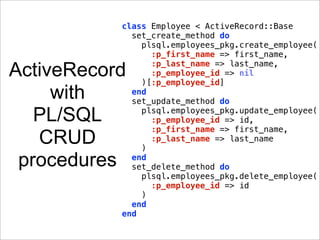

- 33. class Employee < ActiveRecord::Base set_create_method do plsql.employees_pkg.create_employee( :p_first_name => first_name, ActiveRecord :p_last_name => last_name, :p_employee_id => nil )[:p_employee_id] with end set_update_method do PL/SQL plsql.employees_pkg.update_employee( :p_employee_id => id, :p_first_name => first_name, CRUD ) :p_last_name => last_name procedures end set_delete_method do plsql.employees_pkg.delete_employee( :p_employee_id => id ) end end
- 34. Demo
- 35. Ruby on Rails on Oracle E-Business Suite Request Router Browser Oracle EBS Database Response XXAPP schema Action additional Controller application tables EBS module EBS module EBS module schemas EBS module Action schemas schemas schemas View APPS schema XXAPP_% views Active XXAPP_% packages Record
- 36. Additional Ruby libraries database_loader oracle_ebs_authentication ruby-plsql-spec
- 37. Deployment options Application source Apache Java app sever Application WAR file Ruby mod_passenger JRuby Gems Application Application
- 38. References

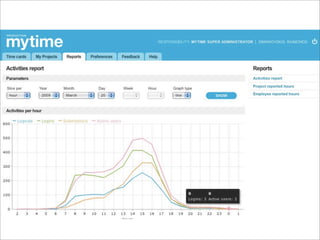

- 39. Rails on Oracle E-Business Suite mytime mydata crmdata
- 46. Why Rails? Fast agile / iterative development Test-driven development support Flexible HTML/CSS/JavaScript front-end Easy to put on top of legacy applications Libraries for all new “cool” technologies Open-source with liberal license
- 47. More information Demo app source code: https://github.com/rsim/rails_ebs_demo http://github.com/rsim/oracle-enhanced http://blog.rayapps.com
