This document discusses biofouling, which is the accumulation of organisms like algae, barnacles, and tube worms on submerged surfaces like ship hulls. It causes economic impacts by increasing drag on ships and reducing heat transfer efficiency. The document outlines the main types of fouling organisms (plants, animals, inorganic), describes their life cycles and distribution worldwide, and discusses prevention methods like anti-fouling coatings.
Fouling organisms
- 2. GROUP MEMBERS • Siddhartha Roy • Radhakrishnan Nair • Lidiya Wilwet • Shafeeque • Syam K.R. • Neethu • Reenu Rose Cletus
- 3. INTRODUCTION • WHAT IS FOULING ? Fouling is the accumulation of unwanted material on solid surfaces to the detriment of function. The fouling material can consist of either living organisms (biofouling)or a non- living substance (inorganic or organic).
- 4. • Fouling phenomena are common and diverse, ranging from fouling of ship hulls, natural surfaces in the marine environment (marine fouling), fouling of heat-transfer components through ingredients contained in the cooling water or gases, and even the development of plaque or calculus on teeth.
- 5. WHAT CAUSES FOULING? Fouling is caused by the settlement of large number of sedentary marine organisms called “FOULERS”.
- 6. TYPES OF FOULING • PLANT FOULING. • ANIMAL FOULING. • Inorganic fouling (precipitation of inorganic crystals) • Organic fouling (deposition of fat, oil, protein etc.) • Particle fouling (deposition of silt, clay.)
- 7. PLANT FOULING • The most important members of plant fouling includes the algal community, especially the green algae Enteromorpha sp. and the brown algae Ectocarpus sp. The smaller members of the same community includes diatoms such as Biddulphia , Chaetoceros, Rhizosolenia etc..

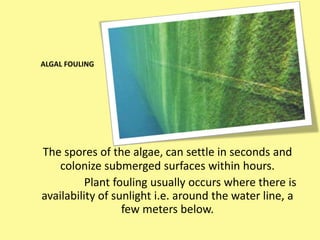

- 8. The spores of the algae, can settle in seconds and colonize submerged surfaces within hours. Plant fouling usually occurs where there is availability of sunlight i.e. around the water line, a few meters below. ALGAL FOULING
- 9. ANIMAL FOULING • Animal fouling is more gregarious and causes severe extensive damages to the submerged surfaces. The chiefly responsible causative organisms are: • Protozoans – Vorticella sp. Carchesium sp. Zoothamium sp.
- 11. • Bryozoans – (Encrusting and dendritic fouling organisms. They show great variation in settlement.) Bryptosula pallasiana Bugula neritina B. flabellata
- 12. Tubularia COELENTRATES Most species are found in marine waters, but some occur in brackish or even fresh water. Coelenterates may be either sessile or free swimming, depending on the species and/or stage of the life-cycle. Standard methods of introduction include ship fouling or transportation in ballast water of ocean-going vessels. -Tubularia -Pennaria -Campanularia
- 13. • HYDROIDS- - Hydroids albiceps - Hydroids norvegica - Spirobranchus sp. Plant like in appearnce, hydroids live in colonies, and are often found on the flat bottom of vessels where they are often mistaken for algae due to the low light level on flat bottom areas.
- 14. • MOLLUSCS -Mytilus - Perna -Patella - Ostrea These are animals with hard paired shells such as mussels and oysters adhered to submerged structures. They settle heavily especially in pipe systems carrying seawater on board and obstructs the flow of water. The constant flow of water is conducive to their large scale settling and rapid growth.
- 15. • ANNELID -Tubeworms These organisms live in easily recognizable calcareous tubes which protect their soft bodies. Tube worm larva can recognize their own species, resulting in large colonies being established. They tend to settle on stationary structures or on stationary vessels.They can proliferate on any area underwater hull including the flat bottom.
- 16. • CRUSTACEANS -Balanus amphitrite -B.eburneus -Lepas anatifera Among crustacean foulers, the barnacles are by far the dominant representatives of the fouling communities. They can inhabit any surface no matter how smooth it may be. Their shells are very hard and difficult to remove. They settle on moving ship hulls.
- 17. SUCCESSION OF THE FOULING ORGANISMS. At first an algal film is formed on the submergred surface, know as the “PRIMARY FILM”. This is an essential requisite for many foulers as the larvae of these settles on them. These films are composed of Diatoms and Algal spores with relatively small proportions of bacteria. They serve as the food of the larva, and also as the foothold on the substratum.
- 19. FACTORS AFFECTING THE ATTACHMENT TO THE SUBSTRATUM • The colour of the substratum also influences the settlement of the larvae of the foulers. • High tide and low tides determines the rate of settlement of species, each according to its particular species, some prefer high tides some low tide. • Some species prefer shaded surfaces or darkly coloured and some shows diurnal variations.
- 20. DISTRIBUTION • Polar zones: <5ºC, low fouling risk. Fouling will occur for a short time period, typically either side of midsummer. • Temperate zones: 5-20ºC, medium fouling risk. Fouling will occur throughout the year peaking in spring to early autumn. • Tropical/sub tropical zones: 20ºC+, high fouling risk. Fouling continues throughout the year with a multiplicity of species.
- 21. MAP SHOWING DISTRUBUTION OF FOULING ORGANISMS OVER THE WORLD
- 22. ECONOMIC IMPACT • Biofouling is economically significant on ships' hulls, where high levels of fouling can increase drag, reducing the overall hydrodynamic performance of the vessel and increasing the fuel consumption necessary to maintain a given level of performance. • Industrially important examples include membrane systems (e.g., membrane bioreactors and reverse osmosis) and cooling water cycles of large industrial equipments and power stations. • Biofouling can also occur in oil pipelines carrying oils with entrained water especially those carrying used oils.
- 23. Continued... • The removal of these organisms requires costly docking and loss of ship’s time. • Accumulation of deposits owing to capsulated and slime forming bacteria reduces the heat transfer efficiency of condensers. • They cause corrosion to the tubes and also jams them.
- 24. DIAGRAM SHOWING THE PLACES AFFECTED BY FOULING IN A VESSEL
- 25. DIAGRAM DEPICTING DIFFERENT FOULING ORGANISMS IN DIFFERENT SEASONS
- 27. PREVENTIVE MEASURES • Various types of coatings are used , such as: • Pesticide based: – TBT (Tributyltin) – Copper – Arsenic – Mercury • Pesticide free – Silicone – Epoxy • Ablative – Self-polishing • Non-ablative
- 29. • In olden times, prevention of fouling was done by using copper sheathing in case of wooden hulls. • In modern times, anti-fouling paints are formulated with toxic copper, organotin compounds, or other biocides-- special chemicals which impede growth of barnacles, algae, and marine organisms.
- 30. MOLLUSCA
