Glen Newton used open source tools like Lucene, Semantic Vectors, and R to analyze a large corpus of over 5 million scientific articles from over 2000 journals. He was able to build semantic vector representations of the journals and use multidimensional scaling to map them to 2 dimensions for visualization. This allowed visualization of relationships between journals from different subject categories. Future work includes improving evaluation, projecting individual articles onto the journal space, and developing an interactive discovery interface.
Using Open Source Tools for Visualization and Semantic Mapping in a Large Scale Article Digital Library

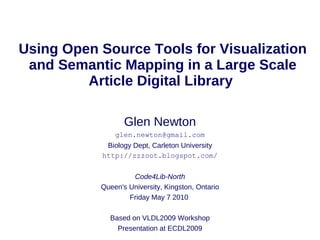

- 1. Using Open Source Tools for Visualization and Semantic Mapping in a Large Scale Article Digital Library Glen Newton glen.newton@gmail.com Biology Dept, Carleton University http://zzzoot.blogspot.com/ Code4Lib-North Queen's University, Kingston, Ontario Friday May 7 2010 Based on VLDL2009 Workshop Presentation at ECDL2009
- 2. Outline • Maps of Science • Broad Research Interests • Research Goals • Process • Scalability issues • Open Source Tools • Environment • Results • Conclusions • Future Work
- 3. From Bollen et al 2009 PLOS1
- 4. From Leydesdorff From Leydesdorff & Rafols 2006 & Rafols 2006
- 5. From Leydesdorff & Rafols 2006
- 6. Broad Research Interests • Search results visualization & refinement • Domain-specific discovery, with a particular interest in genomics and drug discovery • Improved discovery in STM domains through results visualization and contextualization, browse/explore/refine • Use of Open Source tools in complex research problem spaces
- 7. Research Goals • Use Open Source tools to support large scale semantic text analysis and visualization • Find way to extract journal (& article) semantic vector space (semantics much better than keyword or tf-idf -based representations natural language) • Latent Semantic Analysis (LSA) works for small/medium sized corpora, does not scale to large scale of items and/or terms • New alternative: Semantic Vectors (SV): uses random vectors & avoids expensive singular value decomposition (SVD) • Can SV scale & generate sensible semantic vector space of journals on corpus of this size? • Can the visualization produced be useful for results query visualization, refinement, discovery?
- 8. Corpus • Licensed journal articles from STM publishers: Elsevier, Springer, etc • ~4100 journal titles, classified into 23 categories (by publishers) • ~8.4m journal articles • Selection of articles/journals: – Only those with authors, abstract (no notices, obituaries, etc) – Only English language articles – Only journals with >50 articles in corpus – Resulting corpus: 5,733,721 articles from 2231 journals – Categories overlapping: 1.53 categories per journal
- 9. Corpus Category # Journals per category Agriculture & Biological Sciences 358 Arts and Humanities 70 Biochemistry, Genetics and Molecular Biology 240 Business, Management and Accounting 106 Chemical Engineering 126 Chemistry 226 Civil Engineering 64 Computer Science 218 Decision Science 50 Earth and Planetary Science 146 Economics, Econometrics and Finance 112
- 10. Category # Journals per category Energy and Power 73 Engineering and Technology 328 Environmental Science 138 Immunology and Microbiology 104 Materials Science 160 Mathematics 205 Medicine 671 Neuroscience 103 Pharmacology, Toxicology and 73 Pharmaceutics Physics and Astronomy 210 Psychology 126 Social Science 222
- 11. Process • Index full-text (only) with Lucene 2.4, aggressive stopword list, Porter stemming using LuSql tool • Build Semantic Vectors (v1.18, parallelized) index from Lucene index, with 512 semantic dimensions • Find item x item distance matrix from SV index of 512- dimensional vectors • Using R, use multidimensional scaling (MDS) to reduce from 512- D to 2-D
- 12. Scalability Issues • #items, #unique terms – #unique terms: SV easily handles very well – #items: SV handles fairly well – #items: impacts size of distance matrix (#items x #items) – R cannot handle huge article distance matrix in MDS (i.e. millions of articles vs. thousands of journals) • Instead of using articles for items, use journals for items • Make single large full-text document from concatenation of all articles of particular journal & index these
- 13. Open Source Tools • Lucene • LuSql (High performance Lucene index building tool) • Semantic Vectors • R • Processing • Linux
- 14. Environment • Dell PowerEdge 1955 Blade server, 2 x dual-core Xeon 5050 processors with 2x2MB cache, 3.0 Ghz 64bit, 32GB RAM, attached to a Dell EMC AX150 storage arrays via SilkWorm 200E Series 16-Port Capable 4Gb Fabric Switch. • Operating system: Linux openSUSE 10.2 (64-bit X86-64), kernel 2.6.18.8-0.10-default #1 SMP • Java version 1.6.0.07 (build 1.6.0 07-b06) Java HotSpot 64-Bit Server VM (build 10.0-b23, mixed mode). • Processing 1.0 (processing.org)
- 15. Results: Scalability • Corpus: ~600GB full-text • Lucene index: 43GB – LuSql: 13 hours 51 minutes to produce • SV index: 58 minutes, 885 MB, 21.6m terms – Distance matrix: 6 minutes
- 16. Results: Visualization • Using Processing environment, built simple validation/visualization tool
- 19. Harder sciences and engineering categories
- 20. Chemistry
- 21. Material Science
- 24. Mathematics
- 25. Computer Science
- 30. Biochemistry, Genetics and Molecular Biology
- 32. Pharmacology
- 33. Neuroscience
- 35. Psychology
- 39. Energy and Power
- 40. Decision Science
- 42. Social Sciences
- 45. Examination of outliers, extrema and cataloging errors
- 46. Ecotoxicology and Environmental Safety Organic Geochemistry Corporate Environmental Strategy Environmental Science
- 47. Journal of Biomolecular NMR Journal of X-Ray Science and Technology Medicine Medicine
- 48. Colloidal and Polymer Science Annales Henri Poincare Medicine Medicine
- 49. Medicine Medicine French language Medical & Psychology Journals
- 50. Bulletin of Mathematical Biology Journal of Medical Ultrasonics Mathematics
- 51. Conclusions • Reasonable mapping results • Full-text only (no citations, metadata) gives good results • Scalable to significant size • Open Source tools supported a complex research process and were easy to modify to deal with scalability issues
- 52. Future Work • Proper precision and recall evaluation using same corpus • Validate with NetNews-20 collection for P & R • Evaluate non-metric MDS • Project articles onto semantic journal space & build interactive discovery interface & evaluate – Index journal 'documents' and journal articles – SV on all – Distance matrix only on journals – Do MDS – Use eigenvectors to transform N-d article vector to 2-D • Explore 3-D interface (MDS N-d → 3D)
- 53. Acknowledgements • Collaborators: Michel Dumontier, Alison Callahan @Carleton • Support: Greg Kresko, Andre Vellino, Jeff Demaine @ NRC- CISTI
- 54. Demo • Link to project demo page
- 55. License Creative Commons Attribution-Noncommercial-No Derivative Works 2.
